Abstract

Computational fluid dynamics (CFD) has become an essential tool for investigating the effects of the atmospheric boundary layer (ABL) on a wide range of practical applications. However, accurately simulating ABL flows remains challenging, particularly in properly describing boundary conditions and effectively preventing inflow deterioration. While previous studies have primarily focused on neutral ABL conditions, the influence of thermal stratification, driven by daily cycles of surface heating and cooling, is still inadequately addressed. Existing approaches, such as those based on Monin-Obukhov Similarity Theory and the standard gradient diffusion hypothesis, exhibit limitations in capturing turbulent kinetic energy profiles and defining thermal boundary conditions. To overcome these challenges, we propose a unified model for simulating ABL flows across diverse thermal stability regimes. The model integrates local equilibrium theory with the standard gradient diffusion hypothesis within the framework of standard k-ε turbulence model. A set of analytical solutions for inflow profiles and thermal boundary conditions is derived to ensure consistency with the governing transport and energy equations. The model’s performance is validated against wind tunnel experimental data for both wind flow over flat terrain and around a typical building. Results demonstrate that the proposed model maintains horizontal homogeneity and accurately reproduces velocity, turbulence, and temperature profiles under different thermal stratifications, showing good agreement with experimental measurements. Comparative studies further highlight the advantages of the unified model over existing approaches, underscoring its potential for reliable CFD simulation of ABL flows in engineering applications.

Keywords

atmospheric boundary layer thermal stability horizontal homogeneity turbulence model

Introduction

Computational fluid dynamics (CFD) is increasingly utilized to investigate the effects of atmospheric boundary layer (ABL) on a wide variety of practical applications, including structural safety, pollutant dispersion, and wind energy assessment (Ai and Mak, 2013; Alam et al., 2024; Blocken et al., 2016; Cindori et al., 2022; Liu et al., 2025; Wandji Zoumb et al., 2025; Yang et al., 2008). However, the treatment of boundary conditions remains complicated and challenging over a 30-year development. The promising CFD techniques, such as Reynolds-Averaged Navier-Stokes (RANS) and large-eddy simulation (LES), face limitations in properly describing boundary conditions and effectively preventing inflow deterioration (Gan and Zhang, 2025; Richards and Norris, 2019; Tabor and Baba-Ahmadi, 2010; Tominaga, 2024). The dissipation/growth of turbulent kinetic energy and distortion of inflow profiles lead to unfavorable and uncontrollable approaching flow conditions in the region of interest, thereby resulting in considerable simulation errors.

To produce horizontally homogeneous ABL flows, it is crucial to satisfy the equilibrium of various conservation equations and mitigate the generation of unintended streamwise gradients (Richards and Norris, 2019). Under the framework of standard k-ε model, Richards and Hoxey (1993) first proposed a set of inflow profiles for isothermal (or neutral) condition that are mathematically consistent with the k transport equation. However, the basic assumption of a constant turbulent kinetic energy profile in Richards and Hoxey’s model can barely be supported by field measurements and wind tunnel experiments (Blocken, 2015; Brost and Wyngaard, 1978). Consequently, analytical models presenting a decreasing trend of k profile with height were suggested (Gorlé et al., 2009; Xie et al., 2004; Yang et al., 2009). Meanwhile, to maintain the equilibrium state of ε within the computational domain, the incorporation of source term or height-dependent empirical model parameters in the transport equations have been widely adopted (Parente et al., 2011; Pontiggia et al., 2009; Shen et al., 2024). Furthermore, to overcome the inherent limitations of standard k-ε model, similar concepts can be transplanted to other RANS turbulence models, such as renormalization group k-ε model, realizable k-ε model and shear stress transport (SST) k-ω model (Shen et al., 2024; Yan et al., 2016; Yang et al., 2012).

On the other hand, due to the daily cycle of surface heating and cooling, the turbulent ABL flows during convective (or unstable) and stable conditions can deviate significantly from isothermal condition profiles (Albornoz et al., 2022; Pontiggia et al., 2009). In these non-isothermal scenarios, accurately quantifying the buoyancy effects induced by varying thermal stabilities on inflow profiles, as well as determining the thermal boundary conditions properly, becomes crucial (Sathe et al., 2013; Uehara et al., 2000). A comprehensive review of the literature indicates that the Monin-Obukhov Similarity Theory (MOST)-based model correction strategy is widely imposed in CFD simulations (e.g., Alinot and Masson, 2005; Breedt et al., 2018; Chang et al., 2018; Guo et al., 2021; Pieterse and Harms, 2013; Van der Laan et al., 2017; Wang et al., 2025). The profiles of mean wind speed, temperature and turbulence variables can be updated by empirical correction functions in an analytical manner. For instance, Alinot and Masson (2005) established a general formulation for the closure coefficient associated with the buoyancy production term, which was further improved by Van der Laan et al. (2017). Pieterse and Harms (2013) extended the MOST-based framework from the standard k-ε model to the SST k- $ω$ model. Wang et al. (2025) revisited the description of coefficient $C_{ε 3}$ , enhancing the effect of buoyancy term in the transport equation for ε. It is worth noting that although MOST-based models have been well established, they build on the pioneering work of Richards and Hoxey (1993) and rely on the constant k profile as a basis. Additionally, limitations also exist on the selection of empirical correction functions due to a lack of consist agreement on the performance for practical application. As an alternative, attempts have also been made to derive thermally related boundary conditions directly from the principles of energy conservation and the physical processes of heat transfer (Chen and Yang, 2024; Toparlar et al., 2019). The standard gradient diffusion hypothesis is employed, which assumes that the turbulent heat flux is proportional to the gradient of mean temperature, to achieve turbulent heat flux closure. However, previous studies simply treated inflow profiles and thermal boundary conditions independently, lacking an organic integration between them.

To address these challenges, we aim to propose a unified model based on the standard k-ε model for the simulation of ABL flows under various thermal stratifications in this study. The structure of this work is outlined as follows. In Section 2, the detailed theoretical development of the proposed model will be introduced. To validate the model, two sets of comparative studies will be designed and conducted in Section 3, including wind flow over flat terrain for the horizontal homogeneity test and over a typical bluff body for the practical application demonstration. Finally, Section 4 provides a brief conclusion of this study.

Theory and methodology

Theoretical foundations based on standard k-ε turbulence model

As depicted in standard k-ε turbulence model (Jones and Launder, 1972), the transport equations for the turbulent kinetic energy ( $k$ ) and the dissipation rate ( $ε$ ) are as follows:

\frac{\partial}{\partial t} (ρ k) + \frac{\partial}{\partial x_{j}} (ρ k u_{j}) = \frac{\partial}{\partial x_{j}} [(μ + \frac{μ_{t}}{σ_{k}}) \frac{\partial k}{\partial x_{j}}] + P_{k} + P_{b} - ρ ε

(1)

\frac{\partial}{\partial t} (ρ ε) + \frac{\partial}{\partial x_{j}} (ρ ε u_{j}) = \frac{\partial}{\partial x_{j}} [(μ + \frac{μ_{t}}{σ_{ε}}) \frac{\partial ε}{\partial x_{j}}] + C_{1 ε} \frac{ε}{k} (P_{k} + C_{3 ε} P_{b}) - C_{2 ε} ρ \frac{ε^{2}}{k}

(2)

with:

P_{k} = - ρ \bar{u_{i}^{'} u_{j}^{'}} \frac{\partial u_{j}}{\partial x_{i}}

(3)

P_{b} = β g \frac{μ_{t}}{\Pr_{t}} (\frac{\partial T}{\partial x_{i}} - \frac{g}{C_{p}})

(4)

μ_{t} = ρ C_{μ} \frac{k^{2}}{ε}

(5)

where

ρ

is the density,

μ

is the dynamic viscosity, and

μ_{t}

is the eddy viscosity.

x_{j}

u_{j}

and

u_{j}^{'}

represent the components of the coordinate system, mean and fluctuating velocity, respectively.

β

is the thermal expansion coefficient,

g

is the gravitational acceleration, and

C_{p}

is the specific heat at constant pressure. The terms

P_{k}

and

P_{b}

are the turbulence kinetic energy productions due to shear and buoyancy. The standard gradient diffusion hypothesis is employed to derive equation (4).

σ_{k}

σ_{ε}

and

\Pr_{t}

are the turbulent Prandtl numbers and

C_{μ}

C_{1 ε}

C_{2 ε}

and

C_{3 ε}

are empirical constants.

By introducing the following assumptions into the entire computational domain: 1) constant shear stress; 2) constant static pressure; and 3) zero vertical velocity, equations (1) and (2) can be replaced by:

\frac{\partial}{\partial z} (\frac{μ_{t}}{σ_{k}} \frac{\partial k}{\partial z}) + μ_{t} {(\frac{\partial u}{\partial z})}^{2} + R i \frac{μ_{t}}{\Pr_{t}} {(\frac{\partial u}{\partial z})}^{2} - ρ ε = 0

(6)

\frac{\partial}{\partial z} (\frac{μ_{t}}{σ_{ε}} \frac{\partial ε}{\partial z}) + C_{1 ε} \frac{ε}{k} [μ_{t} {(\frac{\partial u}{\partial z})}^{2} + C_{3 ε} R i \frac{μ_{t}}{\Pr_{t}} {(\frac{\partial u}{\partial z})}^{2}] - C_{2 ε} ρ \frac{ε^{2}}{k} = 0

(7)

where

R i = β g (\frac{\partial T}{\partial z} - \frac{g}{C_{p}}) / {(\frac{\partial u}{\partial z})}^{2}

is the gradient Richardson number (Ohya et al., 1997; Stull, 1993), representing various thermal stratification conditions, such as unstable (

R i

< 0), neutral (

R i

= 0), and stable (

R i

> 0).

Substituting equation (5) into equations (6) and (7) yields:

\frac{\partial}{\partial z} (\frac{C_{μ}}{σ_{k}} \frac{k^{2}}{ε} \frac{\partial k}{\partial z}) + C_{μ} \frac{k^{2}}{ε} (1 + \frac{R i}{\Pr_{t}}) {(\frac{\partial u}{\partial z})}^{2} - ε = 0

(8)

\frac{\partial}{\partial z} (\frac{C_{μ}}{σ_{ε}} \frac{k^{2}}{ε} \frac{\partial ε}{\partial z}) + C_{1 ε} C_{μ} k [1 + C_{3 ε} \frac{R i}{\Pr_{t}}] {(\frac{\partial u}{\partial z})}^{2} - C_{2 ε} \frac{ε^{2}}{k} = 0

(9)

Under the equilibrium state, which admits the balance between turbulence production and dissipation (i.e. $P_{k} + P_{b} = ρ ε$ ), the inlet turbulence dissipation should satisfy:

ε = \sqrt{1 + \frac{R i}{\Pr_{t}}} \sqrt{C_{μ}} k \frac{\partial u}{\partial z}

(10)

Development of inflow boundary conditions for various ABL flows

The inflow boundary conditions should include the profiles of mean wind velocity $u$ , turbulence kinetic energy $k$ , and turbulence dissipation rate $ε$ . For neutral ABL case, the mean velocity profile is often expressed by the logarithmic law (Simiu and Scanlan, 1996):

u = \frac{u_{*}}{κ} \ln (\frac{z + z_{0}}{z_{0}})

(11)

where

u_{*}

is the surface friction velocity,

κ

is the von Karman constant (

κ = 0.41

), and

z_{0}

is the aerodynamic roughness length. As a consequence, the partial derivative of

u

with respect to

z

is obtained.

\frac{\partial u}{\partial z} = \frac{u_{*}}{κ (z + z_{0})}

(12)

Substituting equation (12) into equation (10), the constitute relationship between $ε$ and $k$ as well as their partial derivatives can be expressed as:

ε = \frac{\sqrt{1 + \frac{R i}{\Pr_{t}}} \sqrt{C_{μ}} u_{*}}{κ (z + z_{0})} k

(13)

\frac{\partial ε}{\partial z} = \frac{\sqrt{1 + \frac{R i}{\Pr_{t}}} \sqrt{C_{μ}} u_{*}}{κ (z + z_{0})} (\frac{\partial k}{\partial z} - \frac{k}{z + z_{0}})

(14)

Further inserting equations (12–14) into equations (8) and (9) yields:

\frac{\partial}{\partial z} ((z + z_{0}) k \frac{\partial k}{\partial z}) = 0

(15)

\frac{\partial}{\partial z} (\frac{1}{σ_{ε}} k (\frac{\partial k}{\partial z} - \frac{k}{z + z_{0}})) + \frac{[(C_{1 ε} - C_{2 ε}) + (C_{1 ε} C_{3 ε} - C_{2 ε}) \frac{R i}{\Pr_{t}}] k u_{*}^{2}}{κ^{2} {(z + z_{0})}^{2}} = 0

(16)

As a result, similar to the demonstrations provided in Yang et al. (2009) and Gorlé et al. (2009), the inlet profile of turbulence kinetic energy $k$ can be given as:

k = \sqrt{A \ln (z + z_{0}) + B}

(17)

where A and B are constants that can be determined by fitting data from wind tunnel or field measurements.

To ensure the inherent self-consistency, the empirical coefficient $C_{μ}$ should fulfill the following relationship instead of applying the values proposed by previous studies (Gorlé et al., 2009):

C_{μ} = (1 + \frac{R i}{\Pr_{t}}) \frac{u_{*}^{4}}{k^{2}}

(18)

Given the limitation of imposing varying values during simulations, $C_{μ}$ is recommended to select the one at the center point of the wall adjacent cell (Juretić and Kozmar, 2013).

On the other hand, to maintain the horizontal homogeneity within the transport equation of $ε$ , $σ_{ε}$ should satisfy:

σ_{ε} = \frac{κ^{2} (- \frac{A}{2} + k^{2})}{u_{*}^{2} [(C_{2 ε} - C_{1 ε}) + (C_{2 ε} - C_{1 ε} C_{3 ε}) \frac{R i}{\Pr_{t}}] k [1 - E (z + z_{0})]}

(19)

with:

E = {\begin{cases} \frac{e^{\frac{B}{A}} \sqrt{π} [\erf (\sqrt{\frac{k^{2}}{A}})]}{2 \sqrt{\frac{k^{2}}{A}}} A > 0 \\ \frac{e^{\frac{B}{A}} \sqrt{π} [erfi (\sqrt{\frac{k^{2}}{| A |}})]}{2 \sqrt{\frac{k^{2}}{| A |}}} A < 0 \end{cases}

(20)

where

\erf (\cdot)

and

erfi (\cdot)

are error functions and

erfi (x)

- i \erf (i x) .

Meanwhile,

σ_{k}

is suggested to maintain a fixed ratio with

σ_{ε}

as 1.5 for the accuracy of model by Poroseva and Iaccarino (2001), leading to

σ_{ε}

and

σ_{k}

vary with height.

Heat transfer and thermal boundary conditions

In addition to the inflow profiles of $u$ , $k$ and $ε$ , the thermal boundary conditions should also be pre-specified to solve the heat transfer process. For the incompressible and steady ABL flow without any heat sources/sinks, the energy equation can be simplified as:

u_{j} \frac{\partial T}{\partial x_{j}} + \frac{\partial \bar{u_{j}^{'} T^{'}}}{\partial x_{j}} = α \frac{\partial^{2} T}{\partial x_{j}^{2}}

(21)

\bar{u_{j}^{'} T^{'}} = - α_{t} \frac{\partial T}{\partial x_{j}} = - \frac{μ_{t}}{ρ \Pr_{t}} \frac{\partial T}{\partial x_{j}}

(22)

where

T

denotes the mean temperature.

α

and

α_{t}

are the thermal diffusivity and turbulent thermal diffusivity, respectively.

\bar{u_{j}^{'} T^{'}}

represents the turbulent heat flux, which is proportional to the gradient of mean temperature according to the standard gradient diffusion hypothesis.

Moreover, as the relationship between the wall heat flux $q_{wall}$ and the vertical temperature gradient follows:

q_{wall} = - λ_{t} \frac{\partial T}{\partial z}

(23)

where

λ_{t}

denotes the turbulent thermal conductivity and

λ_{t} = α_{t} ρ C_{p} = \frac{C_{p} μ_{t}}{\Pr_{t}}

Combining it with equation (5), it is identified that the temperature profile should meet the requirement:

\frac{\partial T}{\partial z} = - \frac{q_{wall} \Pr_{t}}{μ_{t} C_{p}} = - \frac{q_{wall} \Pr_{t}}{ρ C_{μ} C_{p}} \frac{ε}{k^{2}}

(24)

By integration:

T = - \frac{2 \sqrt{1 + \frac{R i}{\Pr_{t}}} T_{*} u_{*}^{2} \Pr_{t}}{A κ \sqrt{C_{μ}}} k + C

(25)

where

T_{*} = q_{wall} / {ρ C}_{p} u_{*}

is the scaling friction temperature (Panofsky and Dutton, 1984). The constant

C

can be determined by the boundary conditions at the reference height

z_{ref}

C = T_{ref} + \frac{2 \sqrt{1 + \frac{R i}{\Pr_{t}}} T_{*} u_{*}^{2} \Pr_{t}}{A κ \sqrt{C_{μ}}} k_{ref}

(26)

Consequently, equation. (25) is revised as:

T = T_{ref} - \frac{2 \sqrt{1 + \frac{R i}{\Pr_{t}}} T_{*} u_{*}^{2} \Pr_{t}}{A κ \sqrt{C_{μ}}} [k - k_{ref}]

(27)

Wall function for rough surfaces

In the RANS regime, the turbulent flow near rough surfaces cannot be fully resolved. To address this issue, the fully rough $k_{s}$ -type wall function recommended by Blocken et al. (2007a) was utilized in this study. The following relationship is employed to link the equivalent sand-grain roughness height roughness height $k_{s}$ and the roughness constant $C_{s}$ to the roughness length $z_{0}$ .

\frac{k_{s} C_{s}}{z_{0}} = 9.793

(28)

And the momentum wall function for an equilibrium boundary layer, valid when $C_{s} k_{s}^{+} ≫ 1$ , is expressed as:

\frac{u_{p}}{u_{*}} = \frac{1}{κ} \ln (\frac{u_{*} z_{p}}{ν C_{s} k_{s}^{+}}) + 5.43

(29)

where

k_{s}^{+}

(= u_{*} k_{s} / ν)

the nondimensional roughness height and

u_{p}

denotes the streamwise velocity in the cell adjacent to the wall. Although this wall function was originally proposed for neutral conditions, previous studies (Chen and Yang, 2024; Wang et al., 2025) suggest that the equivalent sand-grain roughness and roughness constant are generally not significantly affected by thermal stratification.

Model validation and practical application

As detailed in Section 2, a unified model has been developed within the framework of standard k-ε turbulence model to simulate atmospheric boundary layer flows under various thermal stratifications. Both the inflow profiles and thermal boundary configurations are derived analytically. To assess the effectiveness of this new approach, two sets of numerical experiments are planned: one involving wind flow over flat terrain and the other examining turbulent flow over a typical bluff body for practical application. The results will be compared with those from other widely used models to highlight the performance of our model.

Wind flow over flat terrain

Computational domain, mesh and numerical settings

To examine the capability of the proposed model in maintaining horizontal homogeneity of inflow properties under different thermal stratifications, we conduct empty domain experiments simulating wind flow over flat terrain using the commercial software package ANSYS Fluent. As sketched in Figure 1, a three-dimensional computational domain is designed, with its size adaptive to each specific study case. The inflow profiles are applied at the velocity inlet through a user-defined function. The bottom surface is modelled as a stationary no-slip wall, while the top and side surfaces are treated as symmetry boundaries. A pressure outlet is imposed for the downstream exit.

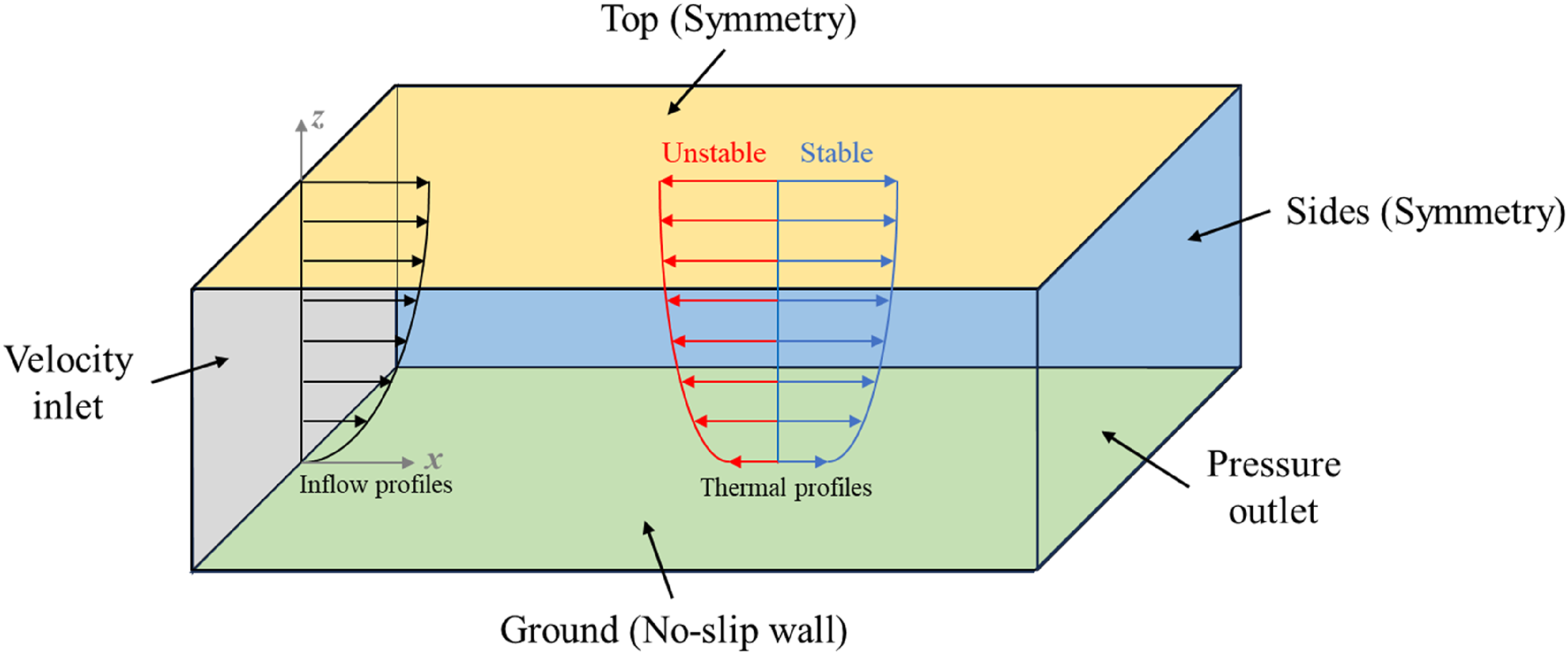

Figure 1.

Simulation configurations for wind flow over flat terrain.

Hexahedral grids are used throughout the entire domain. The height of first mesh layer’s center point above the ground $z_{p}$ , the roughness height $k_{s}$ , and the roughness constant $C_{S}$ are determined according to the recommendations in Blocken et al. (2007a; b). The growth ratio of mesh points in vertical direction is set to 1.1, while adopting a uniform meshing scheme in horizontal directions. In this study, the RANS equations are solved using a steady-state, pressure-based solver. The spatial discretization of the governing equations is performed using the finite volume method. For the convection terms, the second-order upwind scheme is employed to ensure both accuracy and numerical stability. The pressure-velocity coupling is handled using the SIMPLE (Semi-Implicit Method for Pressure-Linked Equations) algorithm. Gradients are calculated using the least-squares cell-based approach, while the pressure term is discretized using the second-order scheme. The flow field is initialized using values specified for the inlet boundary conditions. Simulations are deemed complete when the scaled residuals of all variables and continuity equation converge to a level of 10^-6.

Simulation of isothermal ABL flows

The wind tunnel database (CEDVAL) built by the University of Hamburg (Donat, 1996) is first applied to evaluate the performance of our model under isothermal condition. Accordingly, the computational domain is defined as 2.2 m (streamwise) × 1.3 m (lateral) × 1 m (vertical) with a reference wind speed of 5.61 m/s at the height of 0.4 m. The wall adjacent cell centroid $z_{p}$ is set as 1.25 × 10^-3 m, which is slightly greater than the equivalent sand-grain roughness height $k_{s}$ of 1.2 × 10^-3 m. A total of 32 levels of hexahedral cells are implemented for domain discretization in the vertical direction, with a growth ratio of 1.1. The horizontal grid size is 1.64 × 10^-2 m, eventually leading to a total number of 0.34 million mesh cells. Grid independence tests were conducted to verify the reliability and accuracy of the proposed meshing strategy.

In addition to the newly proposed model, four widely used models are selected for comparison, i.e., the Constant (Richards and Hoxey, 1993), Linear (Brost and Wyngaard, 1978; Yan et al., 2016), Yang (Yang et al., 2009), and Gorlé (Gorlé et al., 2009) models. The detailed settings, including inflow profiles and empirical model constants, are summarized in Table 1. By fitting the inlet velocity and turbulent kinetic energy profiles to the experimental data, all key parameters can be determined, e.g.,

u_{*}

= 0.374 m/s and

z_{0}

= 7.5 × 10^-4 m, for the CEDVAL case.

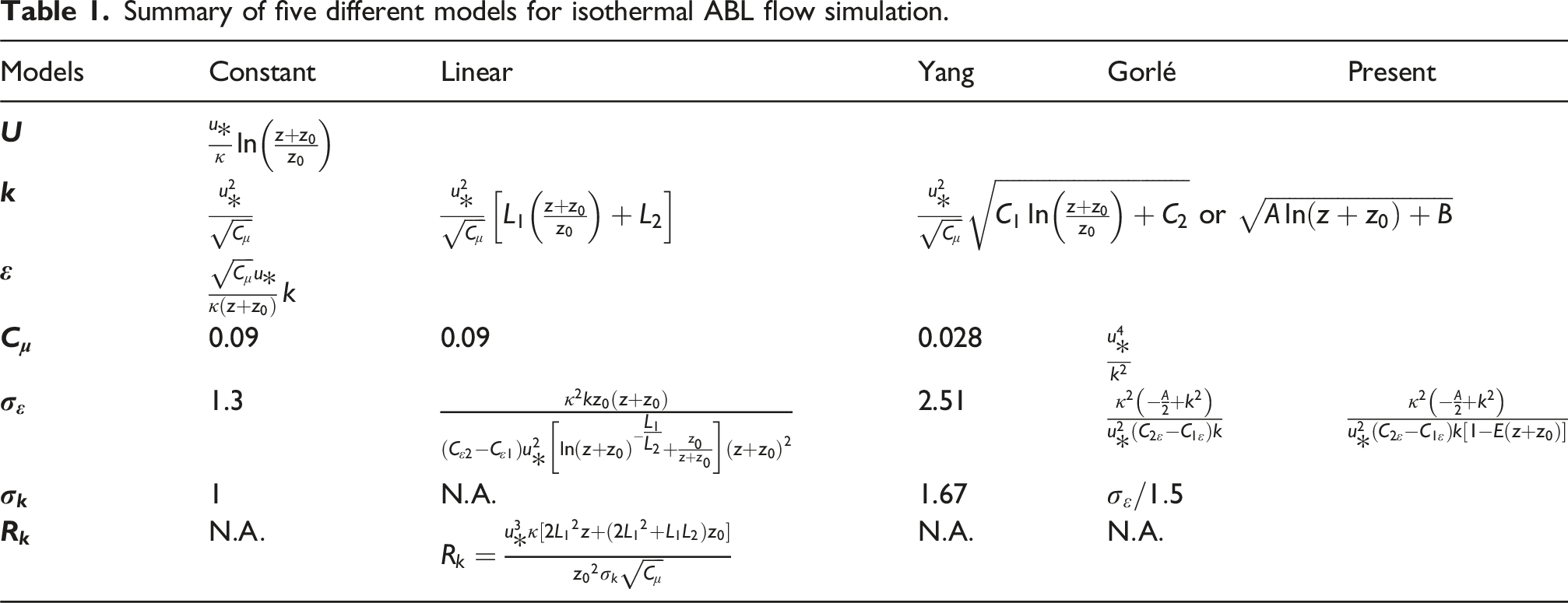

Table 1.

Summary of five different models for isothermal ABL flow simulation.

Models	Constant	Linear	Yang	Gorlé	Present
$U$	$\frac{u_{*}}{κ} \ln (\frac{z + z_{0}}{z_{0}})$
$k$	$\frac{u_{*}^{2}}{\sqrt{C_{μ}}}$	$\frac{u_{*}^{2}}{\sqrt{C_{μ}}} [L_{1} (\frac{z + z_{0}}{z_{0}}) + L_{2}]$	$\frac{u_{*}^{2}}{\sqrt{C_{μ}}} \sqrt{C_{1} \ln (\frac{z + z_{0}}{z_{0}}) + C_{2}}$ or $\sqrt{A \ln (z + z_{0}) + B}$
$ε$	$\frac{\sqrt{C_{μ}} u_{*}}{κ (z + z_{0})} k$
$C_{μ}$	0.09	0.09	0.028	$\frac{u_{*}^{4}}{k^{2}}$
$σ_{ε}$	1.3	$\frac{κ^{2} k z_{0} (z + z_{0})}{(C_{ε 2} - C_{ε 1}) u_{*}^{2} [\ln {(z + z_{0})}^{- \frac{L_{1}}{L_{2}}} + \frac{z_{0}}{z + z_{0}}] {(z + z_{0})}^{2}}$	2.51	$\frac{κ^{2} (- \frac{A}{2} + k^{2})}{u_{*}^{2} (C_{2 ε} - C_{1 ε}) k}$	$\frac{κ^{2} (- \frac{A}{2} + k^{2})}{u_{*}^{2} (C_{2 ε} - C_{1 ε}) k [1 - E (z + z_{0})]}$
$σ_{k}$	1	$N . A .$	1.67	$σ_{ε} / 1.5$
$R_{k}$	$N . A .$	$R_{k} = \frac{u_{*}^{3} κ [2 {L_{1}}^{2} z + (2 {L_{1}}^{2} + L_{1} L_{2}) z_{0}]}{{z_{0}}^{2} σ_{k} \sqrt{C_{μ}}}$	$N . A .$	$N . A .$

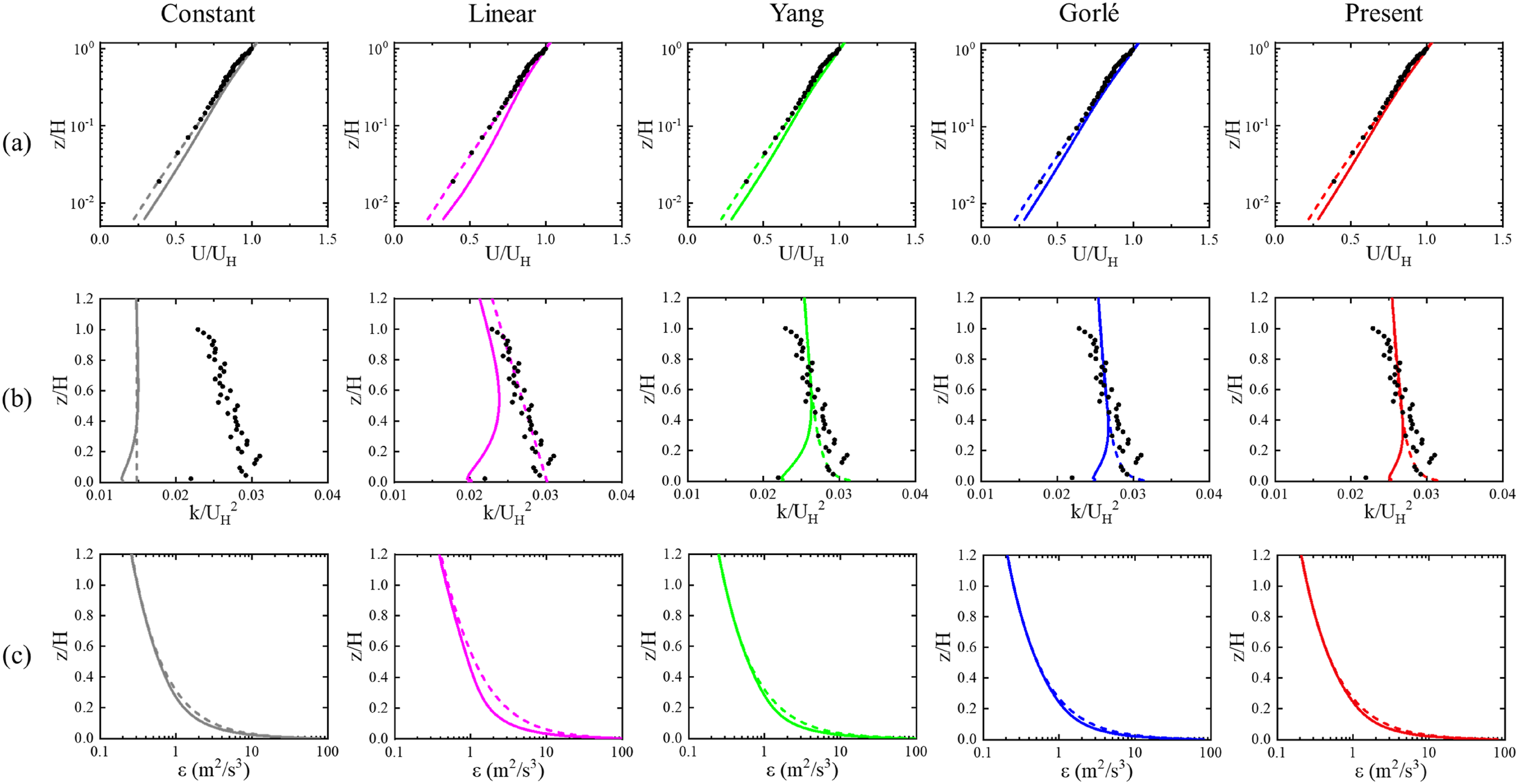

Figure 2 collects the numerical results from different models, presenting the profiles of mean wind velocity $U$ , turbulent kinetic energy $k$ , and turbulent dissipation rate $ε$ . The data at both the inlet and downstream outlet positions are extracted to reveal each model’s ability to maintain horizontal homogeneity within the computational domain. Furthermore, the discrepancies between numerical simulations and wind tunnel measurements offer a quantitative assessment of the suitability of these theoretical models.

Figure 2.

Comparison of the vertical profiles at inlet (dashed lines) and outlet (solid lines) for five selected models under isothermal condition: (a) mean wind velocity $U$ , (b) turbulent kinetic energy $k$ and (c) turbulent dissipation rate $ε$ . Black dots are experimental data from CEDVAL.

As examined in Table 1, all the models share the same wind velocity inlet profile, which is represented by the dashed line in Figure 2(a) (1^st row). The experimental data exhibits a good agreement with the log-law velocity profile. However, at the downstream exit, the development of turbulent boundary layer close to the ground surface considerably affects the maintenance ability in an unfavorable way. More specifically, the Linear model performs the worst, followed by the Constant and Yang models, while the Gorlé and present models perform the best. Regarding the distribution of turbulent kinetic energy k, as illustrated in Figure 2(b), the advantages of our model become more pronounced. Limited to the oversimplified assumption of a constant turbulent kinetic energy distribution with height, the inlet profile of Constant model (gray dashed lines) can barely align with the wind tunnel observations. Additionally, the Linear model fits the experimental data with a straight line. In contrast, the k profiles of the other three models are essentially the same in mathematics, all showing considerable consistency with the observations. Since the Linear model is purely empirical, the validity of transport equations cannot be always guaranteed in the computational domain, resulting in poor performance in sustaining turbulence characteristics. However, the downstream profiles of the Gorlé and present models adhere more closely to both the inlet conditions and the wind tunnel experiment at lower height (z/H <0.2) compared to the Yang model. Overall, in simulating the ABL flow under isothermal condition, both the Gorlé and present models outperform other widely used ones. In essence, the Gorlé model can be identified as a special case of the present model. We extend the Gorlé framework from exclusively neutral conditions to encompass various thermal stratifications by introducing the gradient Richardson number (Ri) into the model. When Ri = 0, our model equations naturally reduce to those developed by Gorlé et al. (2009). Additionally, the Gorlé model assumes the E function (equation (20)) to be zero for simplicity, which may lead to unnecessary errors. We retain this term in our formulation, and this modification yields slight improvements in performance when comparing these two models in detail. For instance, as displayed in Figure 2(b), the detachment point between the inlet and outlet profiles becomes lower in present model, demonstrating an enhanced inflow maintenance capability in turbulence characteristics. Regarding the distribution of the turbulent dissipation rate, it is observed that, except for the Linear model, all models yield nearly identical results at both the inlet and outlet. This similarity also applies to the other cases. Therefore, for the sake of brevity, further comparison will not be discussed.

To further demonstrate the applicability of the present model, we employ two additional wind tunnel experiments conducted by Takahashi et al. (2005) and Tokyo Polytechnic University (TPU) (Tamura and Yoshie, 2016), with key parameters listed in Table 2. As shown in Figure 3, the inlet and outlet profiles are compared with the experimental data. The proposed model provides strong evidence of its capability to simulate isothermal ABL flows effectively.

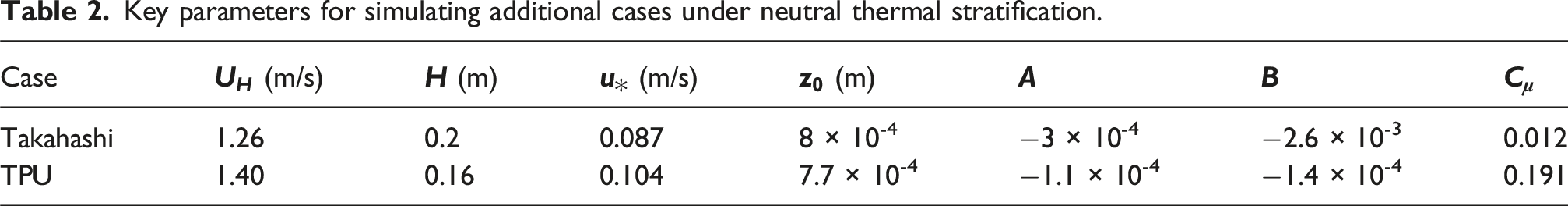

Table 2.

Key parameters for simulating additional cases under neutral thermal stratification.

Case	$U_{H}$ (m/s)	$H$ (m)	$u_{*}$ (m/s)	$z_{0}$ (m)	$A$	$B$	$C_{μ}$
Takahashi	1.26	0.2	0.087	8 × 10^-4	−3 × 10^-4	−2.6 × 10^-3	0.012
TPU	1.40	0.16	0.104	7.7 × 10^-4	−1.1 × 10^-4	−1.4 × 10^-4	0.191

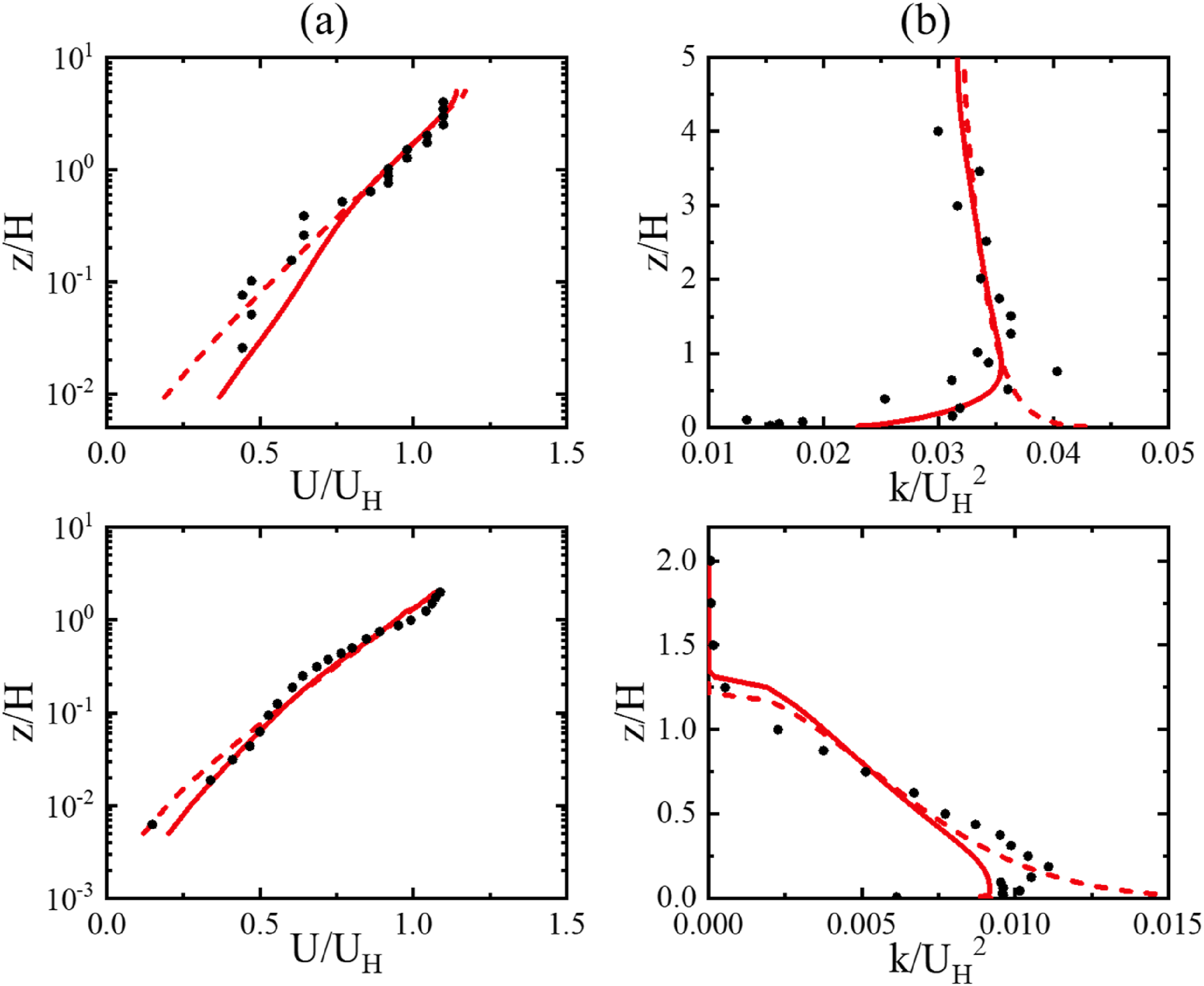

Figure 3.

Comparison of the vertical profiles at the inlet (dashed lines) and outlet (solid lines) positions for present model under isothermal condition: (a) mean wind velocity $U$ and (b) turbulent kinetic energy $k$ . Black dots are experimental data from Takahashi (1^st row) and TPU (2^nd row).

Simulation of non-isothermal ABL flows

Beyond isothermal ABL flows, our unified model can inherently be extended to the non-isothermal scenarios. To realize the simulation properly, those inflow profiles for isothermal conditions should be revisited by incorporating the thermal stability term, as outlined in Table 3. Additionally, the thermal boundary conditions, such as inlet temperature profile and surface heat flux, should also be appropriately configured, ensuring energy balance within the computational domain.

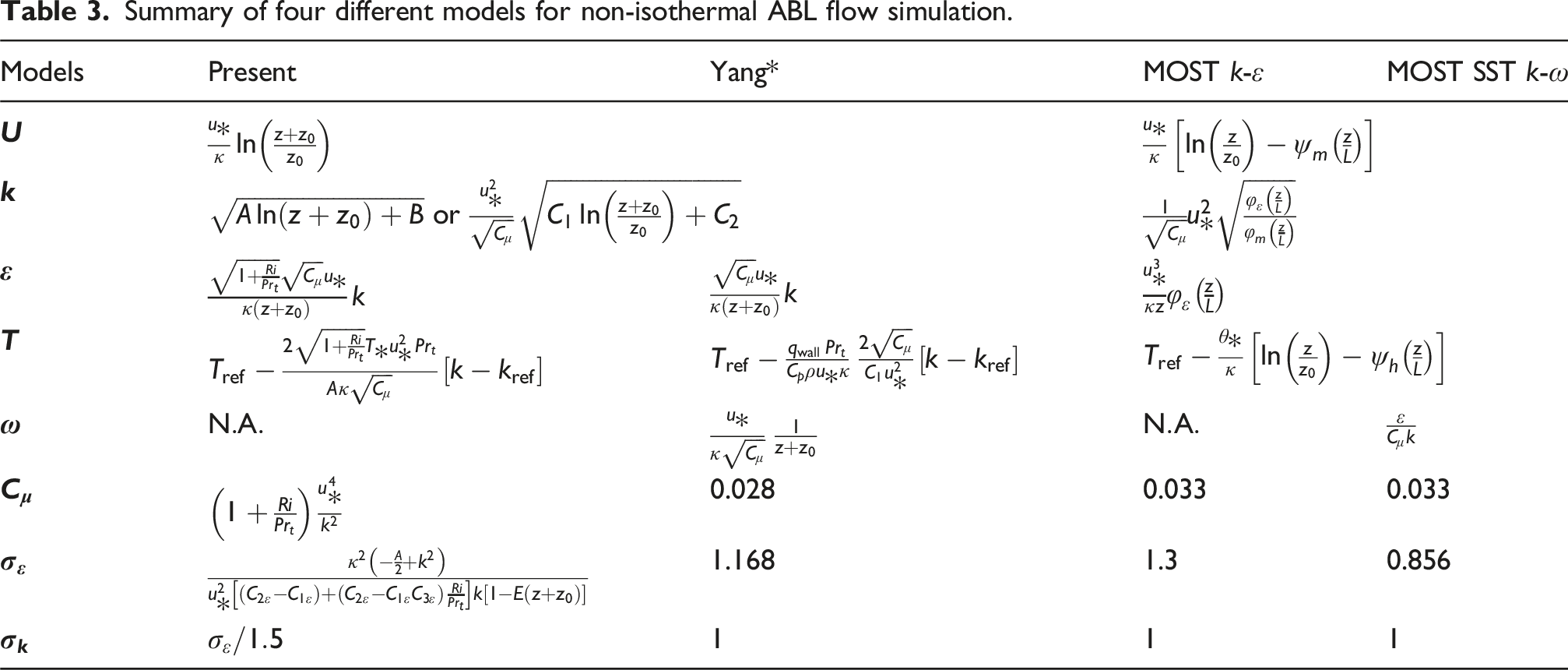

Table 3.

Summary of four different models for non-isothermal ABL flow simulation.

Models	Present	Yang*	MOST k-ε	MOST SST k-ω
$U$	$\frac{u_{*}}{κ} \ln (\frac{z + z_{0}}{z_{0}})$		$\frac{u_{*}}{κ} [\ln (\frac{z}{z_{0}}) - ψ_{m} (\frac{z}{L})]$
$k$	$\sqrt{A \ln (z + z_{0}) + B}$ or $\frac{u_{*}^{2}}{\sqrt{C_{μ}}} \sqrt{C_{1} \ln (\frac{z + z_{0}}{z_{0}}) + C_{2}}$		$\frac{1}{\sqrt{C_{μ}}} u_{*}^{2} \sqrt{\frac{φ_{ε} (\frac{z}{L})}{φ_{m} (\frac{z}{L})}}$
$ε$	$\frac{\sqrt{1 + \frac{R i}{\Pr_{t}}} \sqrt{C_{μ}} u_{*}}{κ (z + z_{0})} k$	$\frac{\sqrt{C_{μ}} u_{*}}{κ (z + z_{0})} k$	$\frac{u_{*}^{3}}{κ z} φ_{ε} (\frac{z}{L})$
$T$	$T_{ref} - \frac{2 \sqrt{1 + \frac{R i}{\Pr_{t}}} T_{} u_{}^{2} \Pr_{t}}{A κ \sqrt{C_{μ}}} [k - k_{ref}]$	$T_{ref} - \frac{q_{wall} \Pr_{t}}{C_{p} ρ u_{} κ} \frac{2 \sqrt{C_{μ}}}{C_{1} u_{}^{2}} [k - k_{ref}]$	$T_{ref} - \frac{θ_{*}}{κ} [\ln (\frac{z}{z_{0}}) - ψ_{h} (\frac{z}{L})]$
$ω$	$N . A .$	$\frac{u_{*}}{κ \sqrt{C_{μ}}} \frac{1}{z + z_{0}}$	$N . A .$	$\frac{ε}{C_{μ} k}$
$C_{μ}$	$(1 + \frac{R i}{\Pr_{t}}) \frac{u_{*}^{4}}{k^{2}}$	0.028	0.033	0.033
$σ_{ε}$	$\frac{κ^{2} (- \frac{A}{2} + k^{2})}{u_{*}^{2} [(C_{2 ε} - C_{1 ε}) + (C_{2 ε} - C_{1 ε} C_{3 ε}) \frac{R i}{\Pr_{t}}] k [1 - E (z + z_{0})]}$	1.168	1.3	0.856
$σ_{k}$	$σ_{ε} / 1.5$	1	1	1

Moreover, to quantify the buoyancy effects in the incompressible RANS simulations, the Boussinesq approximation is utilized, assuming the temperature-induced air density variation solely affects the gravity term of momentum equation. The linear relation between density and temperature is expressed as follows:

ρ / ρ_{0} = 1 - β (T - T_{0})

(30)

where

T_{0}

and

ρ_{0}

are the reference temperature and density, respectively. In this study, the reference point takes the air density of 1.225 kg/m³ at 288.15 K and the thermal expansion coefficient

β

= 3.5 × 10^-3. The error induced by Boussinesq approximation is thus acceptable as

β (T - T_{0}) ≪ 1

. Other physical properties of air flow are specified as follows: constant dynamic viscosity

μ

= 1.79 × 10^-5 Pa·s, specific heat capacity

C_{p}

= 1006.43 J/kg·K, and constant thermal conductivity

λ

= 0.024 W/m·K.

According to the authors’ best knowledge, MOST-based models are currently the most popular for simulating non-isothermal ABL flows. The typical MOST-based k-ε and SST k-ω models (Pieterse and Harms, 2013) are involved for comparison. Additionally, a recently developed model by Chen and Yang (2024) is also considered here. To differentiate it from the Yang model for isothermal ABL simulation, we will name it as Yang* model hereafter. Table 3 provides a detailed overview of the theoretical foundations of all four models mentioned above.

Consider that both the Takahashi and TPU databases can offer us experimental data under non-isothermal stratification conditions. The wind tunnel experiments conducted by Takahashi et al. (2005) will first serve as study cases, including both unstable and stable ABL flows, for validation and comparison. The inflow profiles and thermal conditions are again reconstructed by fitting the wind tunnel data using the least squares method, and then applied to simulate wind flow over flat terrain. The surface heat flux from the ground can be evaluated by $q_{wall}$ = $T_{*} C_{p} u_{*} ρ$ . The computational domain size and meshing schemes keep the same as those used for isothermal stratification. The reference wind speed $U_{H}$ is 1.31 m/s at the height $H$ of 0.2 m.

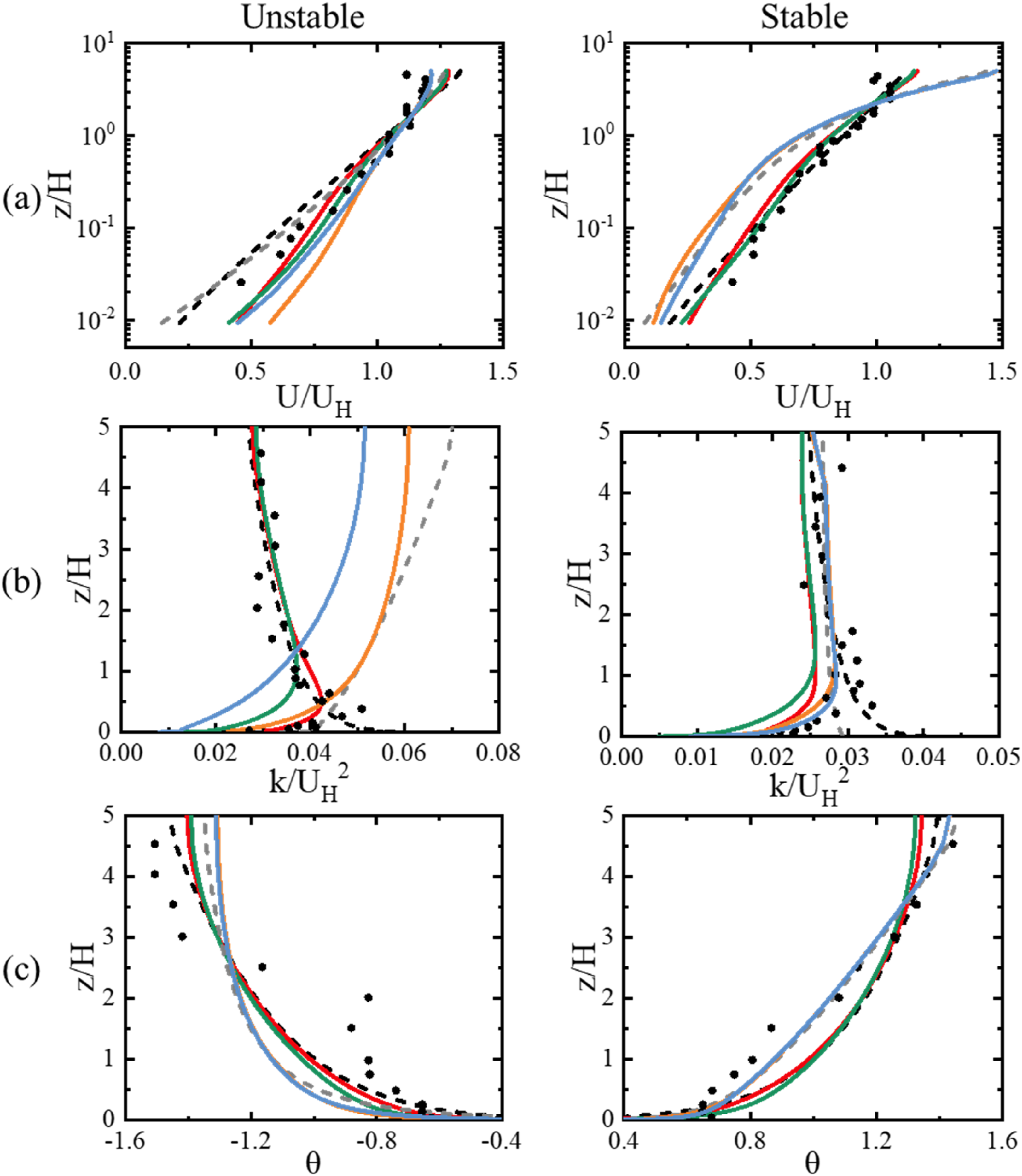

Accordingly, Figure 4 compares the ability of various models to maintain key physical parameters, such as mean streamwise wind velocity U, turbulent kinetic energy k, and temperature T, within the computational domain. The temperature is normalized as $θ$ = $(T - T_{wall}) / (T_{ref} - T_{wall})$ . In these non-isothermal experiments, the mean wind velocity profiles measured from the wind tunnel are well characterized by the Yang* and present models, showcasing the remarkable coincidence with log-law profiles. In contrast, the MOST-based models exhibit considerable discrepancies in the stable situation (Figure 4(a), 2nd column). Similar trends can also be observed in the turbulent kinetic energy profile under unstable ABL (Figure 4(b), 1st column). This issue arises primarily from the introduction of so-called universal similarity functions in MOST-based models, which have yet to provide a general solution that accurately reflects practical measurements. Furthermore, the derivation of the height-dependent k profile in MOST-based models stands upon the basis of the Constant model, assuming the reference turbulent kinetic energy remains invariant with height. By contrast, the Yang* and present models offer greater flexibility in representing the wind tunnel measurements.

Figure 4.

Comparison of the profiles of

From the perspective of horizontal homogeneity feature of the simulated wind flow over flat terrain, the following observations can be drawn from Figure 4:

Both the Yang* and present models can effectively maintain mean wind velocity profiles under non-isothermal ABL conditions, with only a slight increase near the ground. The MOST-based models can achieve good agreement under stable ABL but exhibit a more significant near-ground bias under unstable ABL.

The dissipation of turbulent kinetic energy in the near-ground regions is inevitable; however, the present model outperforms the Yang* model in this regard.

All models satisfactorily sustain the temperature profiles.

To further demonstrate the general applicability of the proposed model under non-isothermal stratifications, the TPU case has also been verified and is presented here. The parameters of the fitted profiles are summarized in Table 4, and Figure 5 illustrates the vertical profiles obtained from the inlet, approaching, and outlet flows. The approaching flow location corresponds to the planned placement of the bluff body, which will be discussed in next Section. Under unstable condition, the approaching profiles of

U

and

k

deviate from the experimental data near the ground surface, while

T

consistently aligns. In stable condition, the approaching profiles of

k

and

T

maintain good agreement with wind tunnel data throughout the entire domain. These results further support the broad applicability of our model to non-isothermal ABL flows.

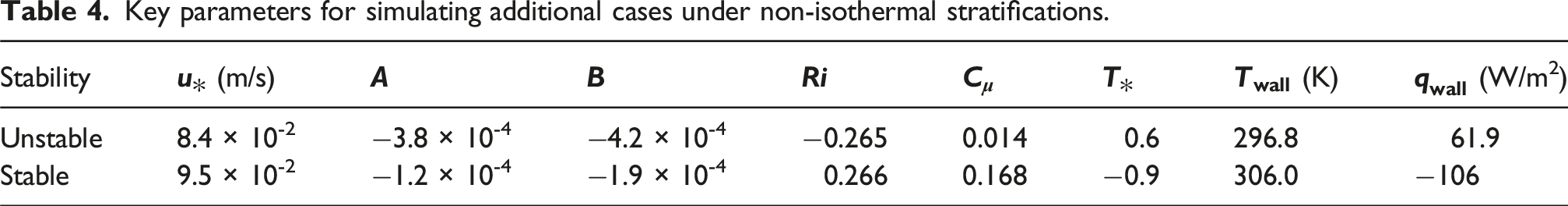

Table 4.

Key parameters for simulating additional cases under non-isothermal stratifications.

Stability	$u_{*}$ (m/s)	$A$	$B$	$R i$	$C_{μ}$	$T_{*}$	$T_{wall}$ (K)	$q_{wall}$ (W/m²)
Unstable	8.4 × 10^-2	−3.8 × 10^-4	−4.2 × 10^-4	−0.265	0.014	0.6	296.8	61.9
Stable	9.5 × 10^-2	−1.2 × 10^-4	−1.9 × 10^-4	0.266	0.168	−0.9	306.0	−106

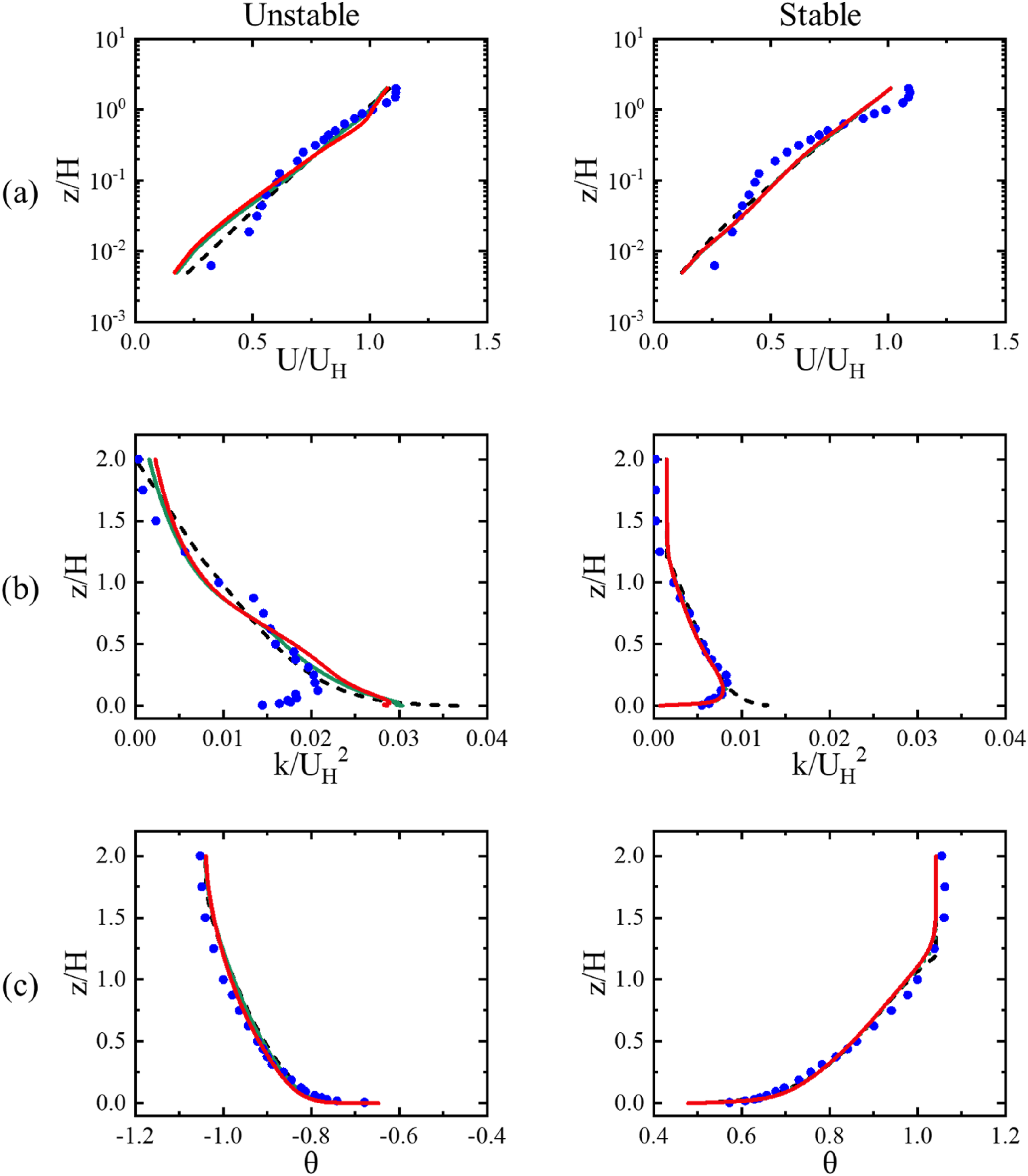

Figure 5.

Comparison of the profiles of

Flow over square cylinder

Numerical model and settings

In this section, we aim to apply our model to simulate turbulent winds passing over a realistic bluff body, such as a typical high-rise building. Figure 6 establishes a computational domain that includes a 1:1:2 building model. The model has a height of H = 0.16 m, positioned L₁ = 5H from the upstream inlet and L₂ = 10H from the downstream outlet. The streamwise and lateral mesh size close to the building surface is 5 × 10^-3 m, with a growth ratio of 1.1 extending in both directions. The vertical grid size along the building is set uniformly as 8 × 10^-4 m, increasing with a ratio of 1.1 above the building, resulting in approximately 1.2 million cells in total. According to the TPU wind tunnel experiments (Takahashi et al., 2005), the reference wind speed at the building height $U_{H}$ is 1.37 m/s.

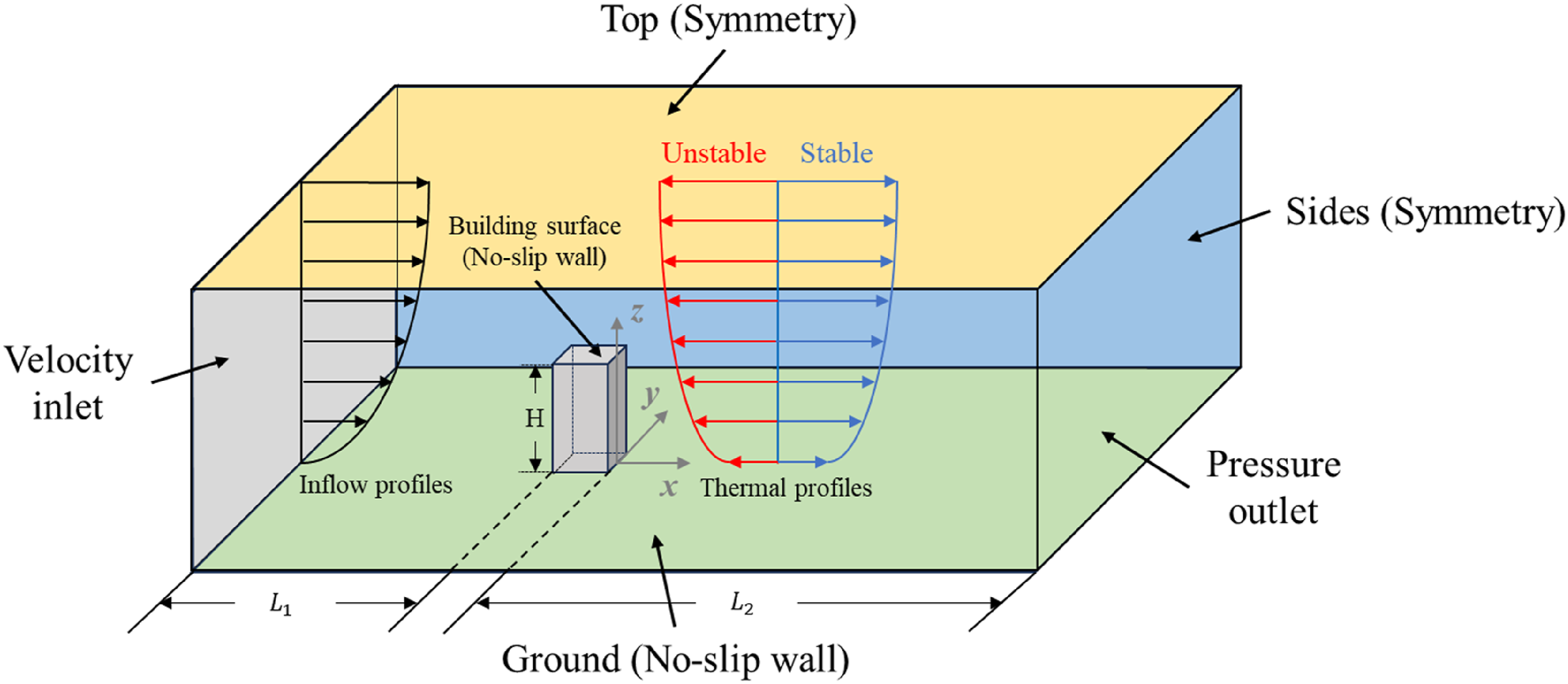

Figure 6.

Simulation configurations for wind flow over a typical building model.

As demonstrated in Section 3.1.3, only the Yang* model achieves performance comparable to our model. Therefore, it will be the only model included for comparison here. The key parameters summarized in Table 4 are again utilized as the boundary conditions. In Figure 7, the measurement locations in the wind tunnel experiments are indicated by red points, while the blue lines suggest where the numerical data will be extracted accordingly for validation and comparison, covering the upstream, middle, and downstream areas around the building model.

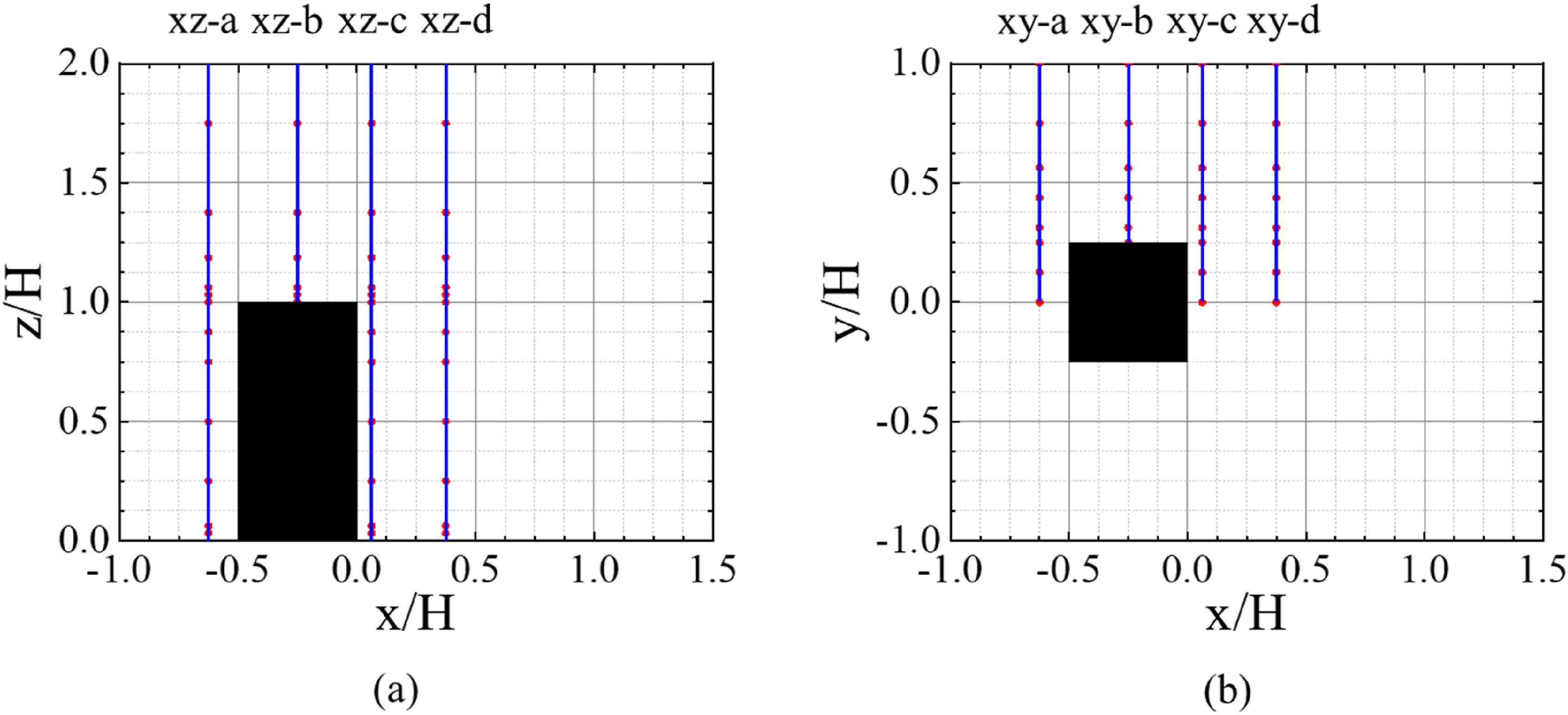

Figure 7.

Selection of typical locations (x/H = −0.625, −0.25, 0.0625 and 0.375) on longitudinal plane y/H = 0 (a) and horizontal plane z/H = 0.025 (b) for comparison.

Results and discussion

Figure 8 compares the mean streamwise wind velocity profiles on both longitudinal and horizontal planes under unstable ABL flow. The numerical simulations can effectively capture key physical phenomena, such as the building-induced wind wall effect, the acceleration of airflow along the shear layer caused by sharp leading edges, and the formation of near-wake recirculation. In the front wall-ground corner region, the intensity of primary horseshoe vortex appears to be overestimated, as indicated by the wind velocities at xy-a. Similarly, the reduction in velocity at the windward wall is slightly overestimated up to the top of building model. The presence of leading edges at the top and sides results in pronounced flow separation, as expected, forming unstable shear layer flows extending downstream. This feature is well characterized in xz-b and xy-b. In the near-wake region, the RANS-based simulations tend to provide a larger size of the wake recirculation zone and overestimate the reverse flow behind the building.

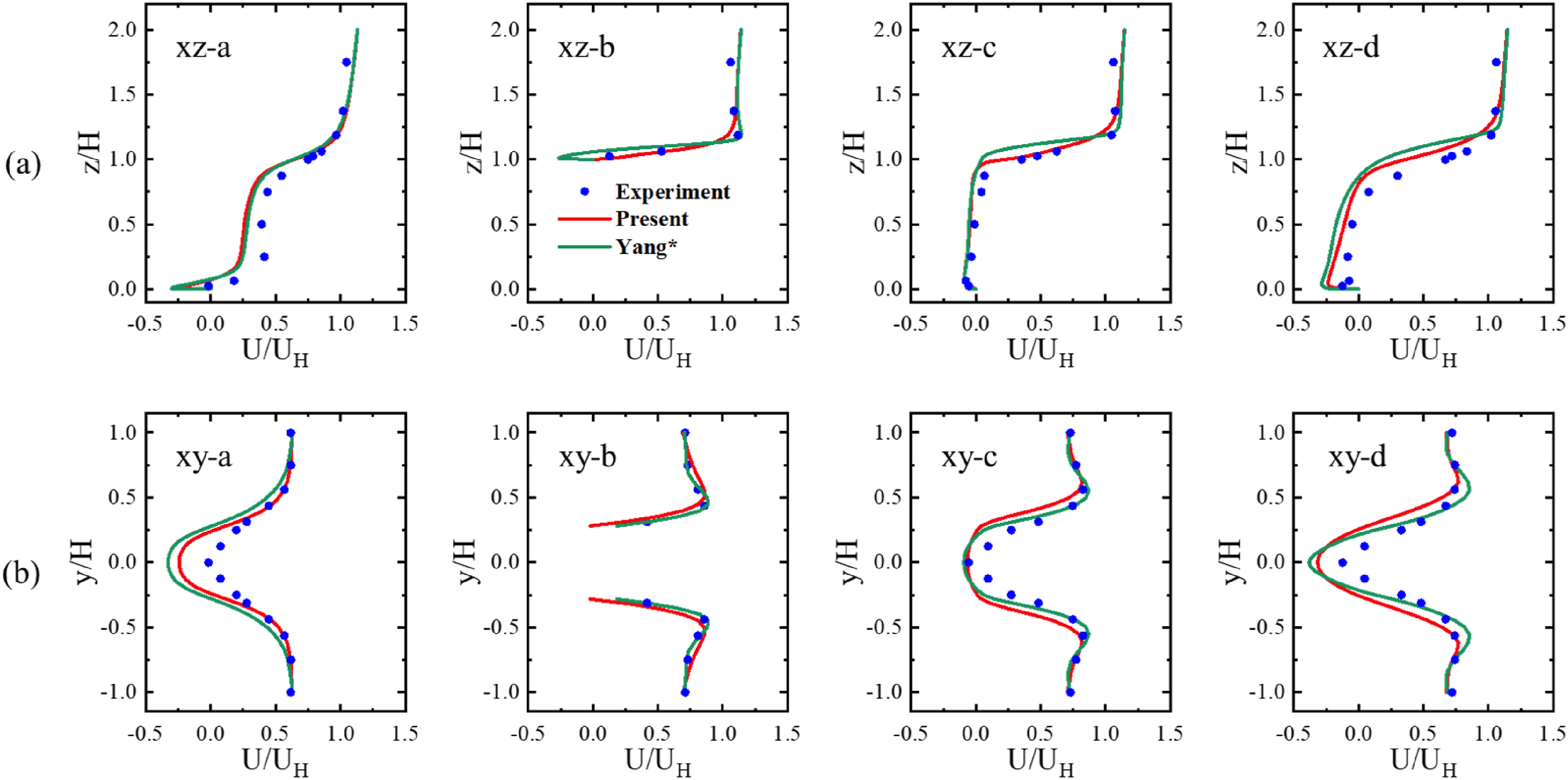

Figure 8.

Comparison of mean streamwise wind velocity at longitudinal (a) and horizontal (b) planes under unstable ABL flow.

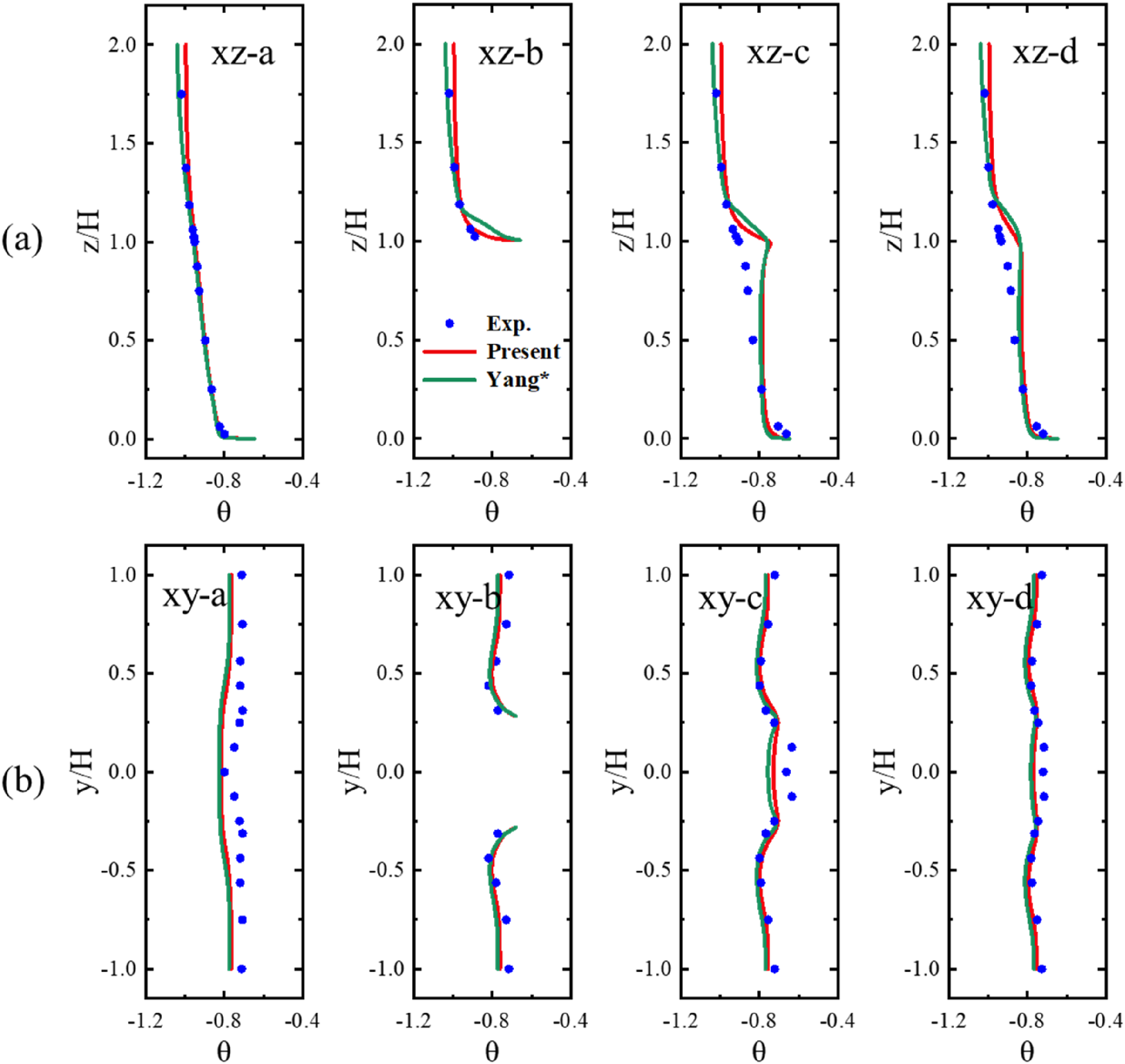

In Figure 9, we compared the spatial distribution of temperature around the building under unstable ABL condition. The performance of Yang* and our models is almost identical, with both providing reliable simulation results when compared to wind tunnel experiments. The major difference occurs in the upper building wake region near the rooftop. The heat transfer process there is considerably overestimated, resulting in an abrupt change in the temperature distribution.

Figure 9.

Comparison of normalized temperature at longitudinal (a) and horizontal (b) planes under unstable ABL flow.

As depicted in Figure 5, the approaching flow refers to the environmental conditions at the building location, assuming the building model is absent. Successfully preserving the turbulent and thermal characteristics of the approaching flow before it encounters the bluff body is crucial for simulating both the wake flow behind the bluff body and the spatial distribution of temperature. Overall, the comparison demonstrates the validity and reliability of applying the newly developed model in the simulation of turbulent wake flow under non-isothermal atmospheric stability.

Concluding remarks

Building on the standard k-ε turbulence model and integrating local equilibrium theory along with the standard gradient diffusion hypothesis, this study has developed a unified model for simulating ABL flows under various thermal stratifications. This new model consists of analytical and self-consistent solutions for inflow profiles, including mean wind velocity, turbulent kinetic energy, turbulence dissipation rate, and temperature. Details are also provided for determining model constants and thermal boundary conditions to ensure the balance of transport and energy equations.

To evaluate the performance of our model, we designed two sets of numerical experiments, i.e., wind flow over flat terrain for horizontal homogeneity test and over a typical square cylinder for practical application purpose. All these numerical simulations are based on previous wind tunnel experiments and are compared with models that are currently widely used. Through a comprehensive step-by-step comparison, the major contribution of our study can be summarized as follows:

(1) The model can effectively maintain horizontal homogeneity over flat terrain, outperforming other popular ones. The Gorlé model, which is only applicable under isothermal conditions, can be identified as a special case of our model. Under non-isothermal conditions, the present model demonstrates greater flexibility and accuracy than existing alternatives.

(2) The model accurately predicts both turbulent wake flow and thermal conditions behind a typical square cylinder, highlighting its significant potential for engineering applications.

(3) Unlike conventional models, the model constants are formulated as functions of spatial location and thermal stratification conditions, rather than relying on empirical values. This improvement offers a more physics-based understanding of the simulation of various ABL flows.

Footnotes

Acknowledgments

FW would like to acknowledge the financial supports from the Research Grants Council - General Research Fund (Project No. 15215723) and the Hong Kong Polytechnic University - Start-up Fund (Project No. P0043763). SMT would like to acknowledge the financial supports from the National Natural Science Foundation of China (Project No. 42275099). Special thanks go to Prof. Yoshie for sharing the experimental data presented in Figures 5, 7 –.

ORCID iD

Fei Wang

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China; General Program/42275099, Research Grants Council, University Grants Committee; General Research Fund/15215723 and Hong Kong Polytechnic University; Start-up Fund/P0043763.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

References

Mak

(2013) CFD simulation of flow and dispersion around an isolated building: effect of inhomogeneous ABL and near-wall treatment. Atmospheric Environment 77: 568–578. https://doi.org/10.1016/j.atmosenv.2013.05.034

Alam

Soppi

Feiz

, et al. (2024) CFD simulation of pollutant dispersion using anisotropic models: application to an urban like environment under neutral and stable atmospheric conditions. Atmospheric Environment 318: 120263. https://doi.org/10.1016/j.atmosenv.2023.120263

Albornoz

Soberanis

Rivera

, et al. (2022) Review of atmospheric stability estimations for wind power applications. Renewable and Sustainable Energy Reviews 163: 112505. https://doi.org/10.1016/j.rser.2022.112505

Alinot

Masson

(2005) k-ε model for the atmospheric boundary layer under various thermal stratifications. Journal of Solar Energy Engineering 127: 438–443. https://doi.org/10.1115/1.2035704

Blocken

(2015) Computational fluid dynamics for urban physics: importance, scales, possibilities, limitations and ten tips and tricks towards accurate and reliable simulations. Building and Environment 91: 219–245. https://doi.org/10.1016/j.buildenv.2015.02.015

Blocken

Carmeliet

Stathopoulos

(2007a) CFD evaluation of wind speed conditions in passages between parallel buildings-effect of wall-function roughness modifications for the atmospheric boundary layer flow. Journal of Wind Engineering and Industrial Aerodynamics 95(9–11): 941–962. https://doi.org/10.1016/j.jweia.2007.01.013

Blocken

Stathopoulos

Carmeliet

(2007b) CFD simulation of the atmospheric boundary layer: wall function problems. Atmospheric Environment 41(2): 238–252. https://doi.org/10.1016/j.atmosenv.2006.08.019

Blocken

Stathopoulos

Van Beeck

JPAJ

(2016) Pedestrian-level wind conditions around buildings: review of wind-tunnel and CFD techniques and their accuracy for wind comfort assessment. Building and Environment 100: 50–81. https://doi.org/10.1016/j.buildenv.2016.02.004

Breedt

Craig

Jothiprakasam

(2018) Monin-obukhov similarity theory and its application to wind flow modelling over complex terrain. Journal of Wind Engineering and Industrial Aerodynamics 182: 308–321. https://doi.org/10.1016/j.jweia.2018.09.026

10.

Brost

Wyngaard

(1978) A model study of the stably stratified planetary boundary layer. Journal of Atmospheric Sciences 35(8): 1427–1440. https://doi.org/10.1175/1520-0469(1978)035<1427:amsots>2.0.co;2

11.

Chang

Schmidt

Dörenkämper

, et al. (2018) A consistent steady state CFD simulation method for stratified atmospheric boundary layer flows. Journal of Wind Engineering and Industrial Aerodynamics 172: 55–67. https://doi.org/10.1016/j.jweia.2017.10.003

12.

Chen

Yang

(2024) A new equilibrium temperature inflow profile for modelling the non-isothermal atmospheric boundary layer in CFD simulation. Building and Environment 262: 111836. https://doi.org/10.1016/j.buildenv.2024.111836

13.

Cindori

Čajić

Džijan

, et al. (2022) A comparison of major steady RANS approaches to engineering ABL simulations. Journal of Wind Engineering and Industrial Aerodynamics 221: 104867. https://doi.org/10.1016/j.jweia.2021.104867

14.

Donat

(1996) Windkanalexperimente Zur Ausbreitung Von Schwergasstrahlen. Ph.D. thesis, University of Hamburg, Meteorological Institute.

15.

Gan

Zhang

(2025) An LES-based fragility methodology for low-rise buildings incorporating net wind pressure and debris-induced failures. Advances in Structural Engineering 28(14): 2615–2635. https://doi.org/10.1177/13694332251340722

16.

Gorlé

Van Beeck

JPAJ

Rambaud

, et al. (2009) CFD modelling of small particle dispersion: the influence of the turbulence kinetic energy in the atmospheric boundary layer. Atmospheric Environment 43(3): 673–681. https://doi.org/10.1016/j.atmosenv.2008.09.060

17.

Guo

Yang

Shi

, et al. (2021) Numerical simulation and wind tunnel experiments on the effect of a cubic building on the flow and pollutant diffusion under stable stratification. Building and Environment 205: 108222. https://doi.org/10.1016/j.buildenv.2021.108222

18.

Jones

Launder

(1972) The prediction of laminarization with a two-equation model of turbulence. International Journal of Heat and Mass Transfer 15(2): 301–314. https://doi.org/10.1016/0017-9310(72)90076-2

19.

Juretić

Kozmar

(2013) Computational modeling of the neutrally stratified atmospheric boundary layer flow using the standard k-ε turbulence model. Journal of Wind Engineering and Industrial Aerodynamics 115: 112–120. https://doi.org/10.1016/j.jweia.2013.01.011

20.

Liu

Xian

, et al. (2025) Optimizing vortex-induced vibration suppression in π-shaped girders using wind tunnel testing and CFD analysis. Advances in Structural Engineering 28(6): 1010–1028. https://doi.org/10.1177/13694332241300671

21.

Ohya

Neff

Meroney

(1997) Turbulence structure in a stratified boundary layer under stable conditions. Boundary-Layer Meteorology 83: 139–162. https://doi.org/10.1023/a:1000205523873

22.

Panofsky

Dutton

(1984) Atmospheric Turbulence: Models and Methods for Engineering Applications. Wiley.

23.

Parente

Gorlé

Van Beeck

, et al. (2011) Improved k-ε model and wall function formulation for the RANS simulation of ABL flows. Journal of Wind Engineering and Industrial Aerodynamics 99(4): 267–278. https://doi.org/10.1016/j.jweia.2010.12.017

24.

Pieterse

Harms

(2013) CFD investigation of the atmospheric boundary layer under different thermal stability conditions. Journal of Wind Engineering and Industrial Aerodynamics 121: 82–97. https://doi.org/10.1016/j.jweia.2013.07.014

25.

Pontiggia

Derudi

Busini

, et al. (2009) Hazardous gas dispersion: a CFD model accounting for atmospheric stability classes. Journal of Hazardous Materials 171(1-3): 739–747. https://doi.org/10.1016/j.jhazmat.2009.06.064

26.

Poroseva

Iaccarino

(2001) Simulating separated flows using the k-ε model. Annual Research Briefs 2001: 375–384.

27.

Richards

Hoxey

(1993) Appropriate boundary conditions for computational wind engineering models using the k-ε turbulence model. Journal of Wind Engineering and Industrial Aerodynamics 46: 145–153. https://doi.org/10.1016/0167-6105(93)90124-7

28.

Richards

Norris

(2019) Appropriate boundary conditions for computational wind engineering: still an issue after 25 years. Journal of Wind Engineering and Industrial Aerodynamics 190: 245–255. https://doi.org/10.1016/j.jweia.2019.05.012

29.

Sathe

Mann

Barlas

, et al. (2013) Influence of atmospheric stability on wind turbine loads. Wind Energy 16(7): 1013–1032. https://doi.org/10.1002/we.1528

30.

Shen

Han

Cai

, et al. (2024) Equilibrium atmospheric boundary layer model for numerical simulation of urban wind environment. Physics of Fluids 36(8): 085177. https://doi.org/10.1063/5.0216503

31.

Simiu

Scanlan

(1996) Wind Effects on Structures: Fundamentals and Applications to Design. John Wiley.

32.

Stull

(1993) An Introduction to Boundary Layer Meteorology. Kluwer Academic Publishers.

33.

Tabor

Baba-Ahmadi

(2010) Inlet conditions for large eddy simulation: a review. Computers & Fluids 39(4): 553–567. https://doi.org/10.1016/j.compfluid.2009.10.007

34.

Takahashi

Kato

Murakami

, et al. (2005) Wind tunnel tests of effects of atmospheric stability on turbulent flow over a three-dimensional hill. Journal of Wind Engineering and Industrial Aerodynamics 93(2): 155–169. https://doi.org/10.1016/j.jweia.2004.11.003

35.

Tamura

Yoshie

(2016) Advanced Environmental Wind Engineering. Japan: Springer.

36.

Tominaga

(2024) CFD simulations of turbulent flow and dispersion in built environment: a perspective review. Journal of Wind Engineering and Industrial Aerodynamics 249: 105741. https://doi.org/10.1016/j.jweia.2024.105741

37.

Toparlar

Blocken

Maiheu

, et al. (2019) CFD simulation of the near-neutral atmospheric boundary layer: new temperature inlet profile consistent with wall functions. Journal of Wind Engineering and Industrial Aerodynamics 191: 91–102. https://doi.org/10.1016/j.jweia.2019.05.016

38.

Uehara

Murakami

Oikawa

, et al. (2000) Wind tunnel experiments on how thermal stratification affects flow in and above urban street canyons. Atmospheric Environment 34(10): 1553–1562. https://doi.org/10.1016/s1352-2310(99)00410-0

39.

van der Laan

Kelly

Sørensen

(2017) A new k‐epsilon model consistent with monin-obukhov similarity theory. Wind Energy 20(3): 479–489. https://doi.org/10.1002/we.2017

40.

Wandji Zoumb

Bwemba

Mbessa

, et al. (2025) Train-bridge interaction under correlated wind and rain using machine learning. Advances in Structural Engineering 28(9): 1627–1644. https://doi.org/10.1177/13694332251313867

41.

Wang

Blocken

Lin

(2025) CFD simulation of the stratified atmospheric boundary layer: consistency between monin-obukhov similarity theory and the standard k-ε model. Building and Environment 267: 112284. https://doi.org/10.1016/j.buildenv.2024.112284

42.

Xie

Voke

Hayden

, et al. (2004) Large-eddy simulation of turbulent flow over a rough surface. Boundary-Layer Meteorology 111: 417–440. https://doi.org/10.1023/b:boun.0000016599.75196.17

43.

Yan

, et al. (2016) RANS simulation of neutral atmospheric boundary layer flows over complex terrain by proper imposition of boundary conditions and modification on the k-ε model. Environmental Fluid Mechanics 16: 1–23. https://doi.org/10.1007/s10652-015-9408-1

44.

Yang

Quan

Jin

, et al. (2008) Influences of equilibrium atmosphere boundary layer and turbulence parameter on wind loads of low-rise buildings. Journal of Wind Engineering and Industrial Aerodynamics 96(10-11): 2080–2092. https://doi.org/10.1016/j.jweia.2008.02.014

45.

Yang

Chen

, et al. (2009) New inflow boundary conditions for modelling the neutral equilibrium atmospheric boundary layer in computational wind engineering. Journal of Wind Engineering and Industrial Aerodynamics 97(2): 88–95. https://doi.org/10.1016/j.jweia.2008.12.001

46.

Yang

Jin

(2012) Consistent inflow boundary conditions for modeling the neutral equilibrium atmospheric boundary layer for the SST k-ω model. Wind and Structures 24(5): 465–480.

A unified k - ε model for atmospheric boundary layer simulation under various thermal stratifications

Abstract

Keywords

Introduction

Theory and methodology

Theoretical foundations based on standard k-ε turbulence model

Development of inflow boundary conditions for various ABL flows

Heat transfer and thermal boundary conditions

Wall function for rough surfaces

Model validation and practical application

Wind flow over flat terrain

Computational domain, mesh and numerical settings

Simulation of isothermal ABL flows

Simulation of non-isothermal ABL flows

Flow over square cylinder

Numerical model and settings

Results and discussion

Concluding remarks

Footnotes

Acknowledgments

ORCID iD

Funding

Declaration of conflicting interests

References
