Abstract

This work presents the development of a numerical model for the elastohydrodynamic lubrication of roll-to-plate nanoimprinting with flexible stamps. Roll-to-plate nanoimprinting is a manufacturing method to replicate micro- and nanotextures on large-area substrates with ultraviolet-curable resins. The roller is equipped with a relatively soft elastomeric layer, which elastically deforms during the imprint process. The elastic deformation is described by linear elasticity theory. It is coupled to the pressure build-up in the liquid resin film, which is described by lubrication theory. The flexible stamp, which is treated as a tensioned web, is pre-tensioned around the roller. The elastic deformation of the tensioned web is described by the large-deflection bending of thin plates equations, considering its non-negligible bending stiffness. A Fischer–Burmeister complementarity condition captures the contact mechanics between the tensioned web and the roller. The governing equations combine in a coupled elastohydrodynamic lubrication model, which is fully described by a set of non-dimensional numbers. These are used in a parameter study to investigate the effect on the pressure and film height distributions. It is shown that the bending stiffness of the tensioned web results in an additional hydrodynamic pressure peak and corresponding minimum in the film height, near the inlet of the roller contact. An increase of the bending stiffness corresponds to a decrease in film height. The numerical results are compared with benchmarks from literature and experimentally validated with layer height measurements from flat layer imprints. Good agreement is found between the numerical and experimental results.

Keywords

Elastohydrodynamic lubrication soft-layered tensioned web roll-to-plate nanoimprinting flexible stamp film thickness

Introduction

Nanoimprint Lithography (NIL) is an emerging manufacturing technology to replicate micro- and nanotextures with high resolution on rigid and flexible substrates.^1,2 The working principle is based on a moulding process, in which a stamp is pressed into a liquid resist material. The resist material is mechanically deformed to conform to the surface topography of the stamp. Ultraviolet (UV) NIL employs photo-polymerizable resins, which can quickly fill the stamp features, in combination with UV-transparent stamps.³ After solidification of the resin by UV-light, the stamp is delaminated and a negative of the textured pattern is left on the substrate. Roller-based nanoimprinting enables an increased fabrication throughput and the possibility to pattern large-area substrates at once.^4–6 The stamps may be re-used many times, which makes roller-based NIL an interesting and versatile technology for cost-effective volume manufacturing.⁷ The patterning method can be used to fabricate functional layers or to enhance the optical or mechanical properties of a substrate. Applications can be found in, for example, anti-reflection or light-trapping films for displays and solar panels,^8,9 optical waveguides for augmented reality,¹⁰ drag reduction films for aviation and shipping,^11,12 antifouling surfaces,^13,14 and many more.

A roller-based imprint system can be equipped with one or multiple rollers. Various configurations of the stamp, roller(s) and substrate are available and can be used to classify the different systems.^15,16 Figure 1 shows a schematic diagram of a UV-cure roll-to-plate nanoimprint system, which is considered in this study. It makes use of a number of rollers to guide a flexible stamp. The rollers are equipped with a relatively soft, elastomeric layer to ensure conformal contact with the substrate. The imprint roller (middle left) presses the flexible stamp into the UV-curable resin droplets, which have been dispensed on the substrate. The resin droplets merge and spread into a thin layer. After UV-curing of the resin layer, the flexible stamp is delaminated from the substrate by the delamination roller (middle right). The final imprint consists of the preferred texture on top of a residual layer. The residual layer is ideally thin and uniform over the entire surface, in order to prevent poor optical performance of the product.¹⁶ Moreover, the imprinted texture can optionally be transferred into the substrate material in a subsequent etching process step by utilizing the imprinted pattern as an etching mask. A thin and uniform residual layer is essential for an efficient and high quality etch.^2,17,18

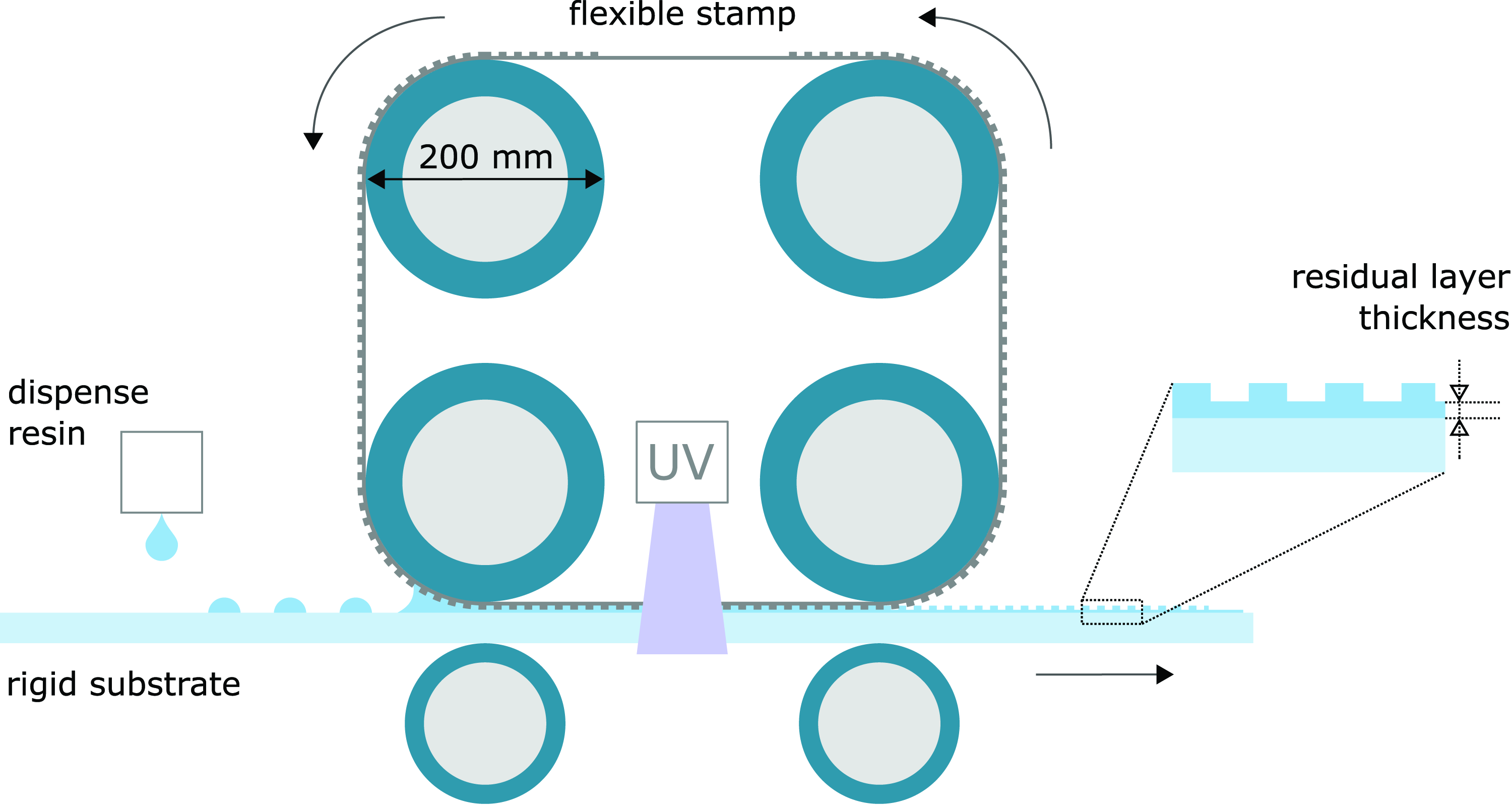

Figure 1.

Reproduced with permission from.¹⁹ Roll-to-plate nanoimprint system.

Simulation of the imprint process will allow for the improved prediction of the residual layer thickness to further improve the imprint quality. The residual layer thickness is governed by the interaction of the hydrodynamic forces in the resin and the elastic forces of the flexible stamp and the elastomeric layer around the imprint roller. The hydrodynamic pressure-build up in the liquid resin film results in elastic deformation of both the flexible stamp and the elastomeric layer. The pre-tensioned, flexible stamp exerts an additional contact pressure on part of the elastomeric layer, after which it loses contact with the roller downstream of the roller contact. The elastic deformation is relatively large compared to the film height and will affect the hydrodynamic pressure build-up, in return. This coupling is described by elastohydrodynamic lubrication (EHL) theory, which can be used to predict the residual layer thickness. Soft-layered EHL deals with the lubrication of relatively soft, elastomeric layers. The finite thickness of the elastomeric layer increases the effective stiffness of the roller contact, which influences the pressure build-up and film height in the roller contact.^20–23

In literature, analytical and numerical models are presented to simulate the residual layer thickness in roller-based imprint systems.^4,24,25 Moreover, when excluding the textures, roller-based imprinting shows a resemblance with forward roll coating and printing.^22,26–29 These are well-known industrial methods to apply thin liquid coatings on flexible, foil-like substrates using rubber covered rollers. EHL theory is used to determine the process dependencies on the coating or printing layer height. In all of these simulations, the influence of the elastic deformation of the flexible stamp or foil and the interaction with the rollers are not taken into account. In previous work, the development of an EHL model to predict the residual layer thickness in roll-to-plate nanoimprint systems with pre-tensioned, flexible stamps is presented.¹⁹ It has been shown that an increase in tension of the flexible stamp, which is assumed to be perfectly flexible, results in a reduction of the residual layer thickness. The contact mechanics between the flexible stamp and the roller are a unique aspect of the roll-to-plate nanoimprint process. Moreover, the bending stiffness of the flexible stamp is not negligible and differs based on the geometry and material properties. Both contact mechanics and bending stiffness must be included in the EHL model to further improve the prediction of the residual layer thickness.

The current work presents the development of a numerical EHL model to accurately describe the physics of the roll-to-plate nanoimprint process with flexible stamps, which are treated as tensioned webs with a non-negligible bending stiffness. The study focuses on the flat layer thickness and the influence of textures is not taken into account. The numerical model is described in detail and the numerical results are experimentally validated with layer height measurements of flat layer imprints. Unique contributions of this work are the implementation of the elastic deformation and contact mechanics of tensioned webs in an EHL system, and the application of this theory in a roll-to-plate nanoimprint process. The model can be used to study the influence of the process parameters, machine parameters, and material properties on the pressure and film height distributions. Moreover, it can be used to directly assess the film thickness for a given set of process parameters. This information is useful to determine the required amount of resin for a specific imprint or to tune the process parameters for a preferred film thickness.

Methods

This section describes the set-up of the numerical EHL model, including the governing equations and the numerical implementation. Thereafter, the experimental validation method is discussed.

Model description

The numerical model is based on the full-system finite element approach for EHL problems.³⁰ The modelled system geometry of the imprint roller contact, which is treated as a line contact, is shown in Figure 2(a).

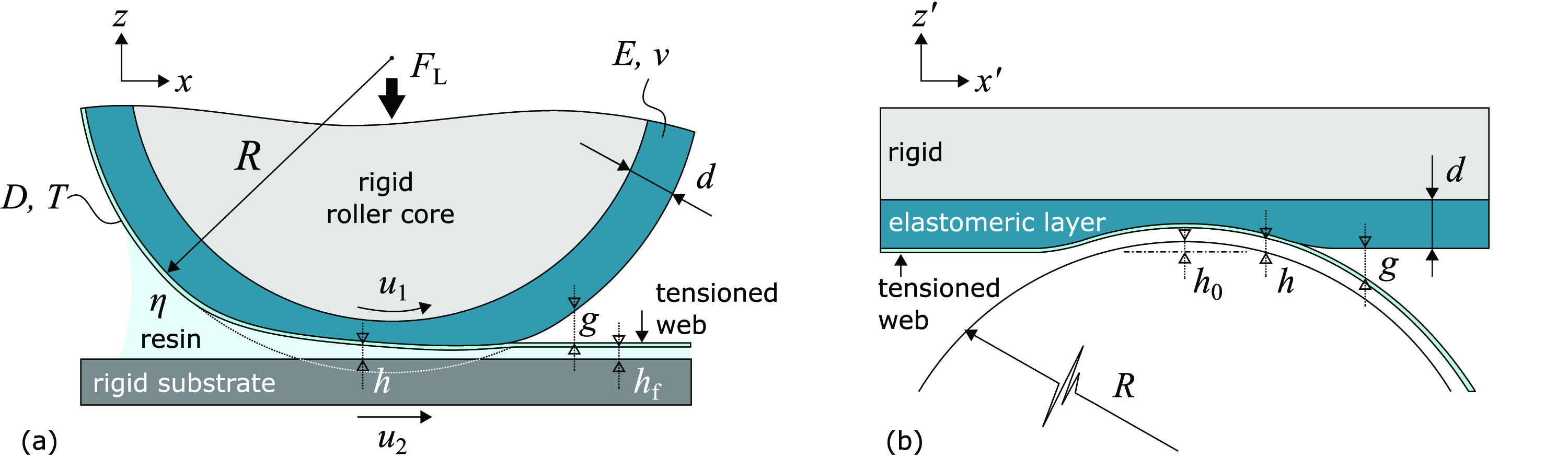

Figure 2.

Adapted with permission from Snieder et al.¹⁹ (a) Schematic diagram of the imprint roller with tensioned web. The elastic deformation of the elastomeric layer is highly exaggerated for illustrative purposes. (b) Equivalent geometry of the imprint roller with tensioned web.

The imprint roller with radius $R$ is pressed onto the rigid substrate. The roller is equipped with an elastomeric layer of thickness $d$ . A tensioned web (i.e. flexible stamp) is partly wrapped around the imprint roller and applies a contact pressure onto the elastomeric layer. Downstream of the roller contact, the tensioned web looses contact with the roller and moves along with the substrate. The tensioned web and substrate are separated by a thin film of resin with film height $h$ . The final film height is indicated by $h_{f}$ . The lubricated roller contact is assumed to be fully flooded and is subject to an effective load $F_{L}$ in vertical $z$ -direction. The load is a combination of the externally applied roller load and web tension. The substrate and tensioned web are assumed to be smooth and are moving with a unidirectional, constant surface speed of $u_{1}$ and $u_{2}$ , respectively. It is assumed that all elastic deformation occurs in the relatively compliant, elastomeric layer. As the contact width is relatively small compared to the roller radius, a simplified equivalent geometry can be used, as shown in Figure 2(b). A rigid roller with radius $R$ is pressed onto the flat, elastomeric layer, which is unwrapped from the roller core. A new coordinate system is introduced: $x^{'}$ is the coordinate tangential to the roller surface and $z^{'}$ is the coordinate normal to the roller surface, pointing towards the rigid roller.

The model is governed by five main equations: linear elasticity equations, Reynolds equation, large-deflection bending of thin plates equations, the Fischer–Burmeister constraint function, and a load balance equation. The equations are solved together to determine the elastic deformation components $u$ and $w$ of the elastomeric layer, the hydrodynamic pressure $p$ , the contact pressure $p_{c}$ , the tensioned web curvature $κ$ , and the elastic deformation of the tensioned web $w_{w}$ . To ensure numerical robustness and faster convergence, the model variables are scaled. Before the governing equations are presented, the definition of the dimensionless scaling is discussed. The following dimensionless variables are used in the description of the equations:

\begin{aligned} P & = \frac{p}{p_{h}}, P_{c} = \frac{p_{c}}{p_{h}} \\ U & = \frac{u R}{a_{h}^{2}}, W = \frac{w R}{a_{h}^{2}}, W_{w} = \frac{w_{w} R}{a_{h}^{2}} \\ G & = \frac{g R}{a_{h}^{2}}, H = \frac{h R}{a_{h}^{2}}, K = R κ \\ X^{'} & = \frac{x^{'}}{a_{h}}, Z^{'} = \frac{z^{'}}{d} \end{aligned}

(1)

with the dimensionless hydrodynamic film pressure

P

, tensioned web contact pressure

P_{c}

, elastic deformation components

U

and

W

, web deformation

W_{w}

, gap

G

, film height

H

, tensioned web curvature

K

, and spatial coordinates

X^{'}

and

Z^{'}

. The parameters

a_{h}

and

p_{h}

correspond to the Hertz dry contact half-width and peak pressure, respectively. They are based on the mechanical properties of the elastomeric layer:

\begin{aligned} a_{h} & = \sqrt{\frac{8 F_{L} R}{π E^{'}}} \\ p_{h} & = \frac{2 F_{L}}{π a_{h}} \end{aligned}

(2)

where

E^{'}

is the effective elastic modulus. As it is assumed that all elastic deformation occurs in the elastomeric layer, it is given by:

\frac{2}{E^{'}} = \frac{1 - ν^{2}}{E}

(3)

where

ν

is the Poisson’s ratio. The equations are applied on the computational domain in Figure 3, which represents the unwrapped elastomeric layer. The dimensionless scaling results in a fixed computational domain with a dimensionless length of 20 and unit dimensionless height, due to the above definition of

X^{'}

and

Z^{'}

. The coordinate

X^{'} = 0

represents the roller centre.

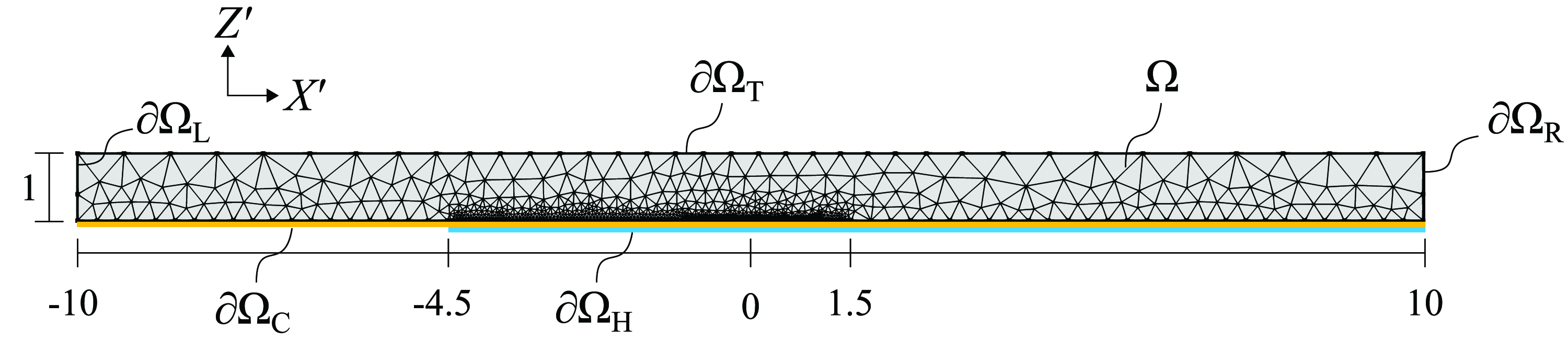

Figure 3.

Adapted with permission from Snieder et al.¹⁹ Dimensionless computational domain and mesh. The contact domain $Ω_{C}$ (yellow) extends over the entire domain length ( $- 10 \leq X^{'} \leq 10$ ), while the hydrodynamic domain $Ω_{H}$ (blue) extends over part of the domain length ( $- 4.5 \leq X^{'} \leq 10$ ).

The dimensionless linear elasticity equations are applied on the elastomeric layer domain $Ω$ in Figure 3. For a derivation of these scaled equations, the reader is referred to Habchi.³¹ They are given by:

\begin{aligned} \frac{\partial}{\partial X^{'}} [(λ + 2 μ) \frac{d}{a_{h}} \frac{\partial U}{\partial X^{'}} + λ \frac{\partial W}{\partial Z^{'}}] \\ + \frac{\partial}{\partial Z^{'}} [μ (\frac{a_{h}}{d} \frac{\partial U}{\partial Z^{'}} + \frac{\partial W}{\partial X^{'}})] = 0 \\ \frac{\partial}{\partial X^{'}} [μ (\frac{\partial U}{\partial Z^{'}} + \frac{d}{a_{h}} \frac{\partial W}{\partial X^{'}})] \\ + \frac{\partial}{\partial Z^{'}} [λ \frac{\partial U}{\partial X^{'}} + (λ + 2 μ) \frac{a_{h}}{d} \frac{\partial W}{\partial Z^{'}}] = 0 \end{aligned}

(4)

where

λ

and

μ

correspond to the Lamé parameters:

\begin{aligned} λ & = \frac{ν E_{eq}}{(1 - 2 ν) (1 + ν)} \\ μ & = \frac{E_{eq}}{2 (1 + ν)} \end{aligned}

(5)

The parameter

E_{eq}

corresponds to the equivalent elastic modulus of the elastomeric layer, which is defined by:

E_{eq} = E \frac{a_{h}}{R p_{h}}

(6)

The elastic modulus is multiplied by

a_{h} / (R p_{h})

to directly use the dimensionless tensioned web contact pressure

P_{c}

as a pressure load on domain boundary

\partial Ω_{C}

.³² The boundary conditions are specified as follows:

{\begin{matrix} \begin{matrix} U & = W = 0 & on \partial Ω_{T} \\ U & = 0 & on \partial Ω_{L} and \partial Ω_{R} \\ σ_{n} & = σ \cdot \vec{n} = σ_{z z} = \\ λ \frac{\partial U}{\partial X} + (λ + 2 μ) \frac{a_{h}}{d} \frac{\partial W}{\partial Z} = P_{c} & on Ω_{C} \\ σ_{n} & = σ_{t} = 0 & elsewhere \end{matrix} \end{matrix}

(7)

The parameters

σ_{n}

and

σ_{t}

are the normal and tangential components of the stress tensor, respectively.

The resin flow is described by lubrication theory, which assumes a constant pressure across the film thickness. The dimensionless, steady-state, incompressible Reynolds equation in one dimension is given by:³³

\frac{\partial}{\partial X^{'}} (- \frac{a_{h}^{3} p_{h}}{12 R^{2} η u_{Σ}} H^{3} \frac{\partial P}{\partial X^{'}} + \frac{H}{2}) = 0

(8)

where

η

is the dynamic viscosity of the resin, and

u_{Σ}

is the sum of the top and bottom surface velocity

u_{1}

and

u_{2}

, respectively. The Reynolds equation assumes Newtonian fluid behaviour and isothermal conditions. The validity of these assumptions is confirmed by viscosity measurements and monitoring of the roller temperature. Equation (8) is applied on domain

\partial Ω_{H}

in Figure 3. It is defined by

- 4.5 \leq X^{'} \leq 10

, which is sufficiently wide to capture the pressure build-up in the thin film of resin.³⁰ Zero pressure boundary conditions are applied on the edges of the domain. The hydrodynamic film pressure

P

is determined for a given film height distribution

H

\begin{aligned} H (X^{'}) & = H_{0} + H_{w} + W_{w} (X^{'}) \\ H_{w} & = {\begin{matrix} \frac{X^{' 2}}{2} & for X^{'} \leq 0 \\ 0 & for X^{'} > 0 \end{matrix} \end{aligned}

(9)

where

H_{0}

is the unknown rigid body displacement. A negative value indicates roller engagement, as shown in Figure 2(b). The second term

H_{w}

describes the initial web shape, which partly follows the roller surface. The last term

W_{w} (X^{'})

represents the web deformation, which will follow from equation (11). It is assumed that the resin can sustain small negative pressures without cavitating. Downstream of the roller contact zone, the resin is trapped between the tensioned web and the substrate. Due to the absence of a diverging roller surface, which is typically present in conventional EHL problems,³⁴ the presence of negative pressures will be minimum.

The tensioned web is a relatively thin plate with a non-negligible bending stiffness, and, therefore, the Föppl–von Kármán equations can be applied to describe the deformation of the web under tension and pressure.^35,36 These equations are based on the extended theory for small deflections of thin plates, by taking into account the in-plane membrane stresses, and they describe the large-deflection bending of thin plates. In the case of an infinite line contact and by assuming a constant web tension, the dimensionless stress balance in normal direction is given by:

(- \frac{D}{{a_{h}}^{2} p_{h} R}) \frac{\partial^{2} K}{\partial X^{' 2}} + (\frac{T}{p_{h} R}) K + P_{n} = 0

(10)

where

D

is the bending stiffness of the web and

T

is the web tension. The normal stress

P_{n}

is equal to the difference of the hydrodynamic film pressure and the tensioned web contact pressure;

P_{n} = P - P_{c}

. The web curvature

K

is approximated by the second spatial derivative of the web shape, which is described by the last two terms in equation (9):

\begin{aligned} K & = \frac{\partial^{2}}{\partial X^{' 2}} (H_{w} + W_{w} (X^{'})) \\ = {\begin{matrix} 1 + \frac{\partial^{2} W_{w}}{\partial X^{' 2}} & for X^{'} \leq 0 \\ \frac{\partial^{2} W_{w}}{\partial X^{' 2}} & for X^{'} > 0 \end{matrix} \end{aligned}

(11)

The bending stiffness of the tensioned web is a function of the elastic modulus

E_{w}

, web thickness

t

and Poisson’s ratio

ν_{w}

of the tensioned web:

D = \frac{E_{w} t^{3}}{12 (1 - ν_{w}^{2})}

(12)

Equations (10) and (11) are applied on domain

\partial Ω_{C}

in equation (3).

The contact mechanics between the roller and tensioned web are described by two variables; the contact pressure $P_{c}$ and the gap between the roller and the tensioned web $G$ . The contact pressure $P_{c}$ can be traced back to equation (10). The dimensionless gap is defined by:

\begin{aligned} G & = G_{0} + W - W_{w} \\ G_{0} & = {\begin{matrix} 0 & for X^{'} \leq 0 \\ \frac{X^{' 2}}{2} & for X^{'} > 0 \end{matrix} \end{aligned}

(13)

in which

G_{0}

is the initial gap between the roller and the tensioned web, and

W

and

W_{w}

are the elastomeric layer and web deformation, respectively. The initial gap is equal to zero at the locations where the tensioned web and roller are initially in contact, and increases with the approximated roller shape from the location where the tensioned web and roller lose contact at

X^{'} = 0

. In general, two different regions can be identified: a contact region in which the contact pressure is unknown (but larger than 0) and the gap is known (namely 0), and a region without contact where the contact pressure is known (namely 0) and the gap is unknown. This reasoning can be captured in a complementarity condition:

\begin{aligned} P_{c} \geq 0 & and G = 0 \\ P_{c} = 0 & and G \geq 0 \end{aligned}

(14)

The complementarity condition of the contact problem is satisfied by adding a modified constraint function to domain

Ω_{C}

in the model, known as the Fischer–Burmeister function:³⁷

P_{c} + G - \sqrt{P_{c}^{2} + G^{2}} = 0

(15)

This function is often used in (elasto)hydrodynamic lubrication models as a mass-conserving cavitation algorithm,^19,38 with the film pressure and the mass fraction as dependent variables. In the present study, the Fischer–Burmeister function will reveal the occurrence of contact between the tensioned web and the roller.

The load equilibrium is derived by balancing the pressure force from the hydrodynamic film pressure build-up with the effective roller load per unit length:

\int_{Ω_{H}} P d X^{'} = \frac{π}{2}

(16)

The right side of this equation relates to the Hertz scaling from equation (2). The equation is satisfied by regulating the gap

H_{0}

in equation (9), which is one of the unknowns in the system of equations.

Numerical implementation

The elastohydrodynamic model is composed of the linear elasticity equations in equation (4), the Reynolds equation in equation (8), the large-deflection bending of plates equations in equations (10) and (11), the Fischer–Burmeister function in equation (15), and the load balance equation in equation (16). The equations are implemented in the finite element method (FEM) software package COMSOL Multiphysics®.³⁹ A second-order (quadratic) discretization is employed for the Reynolds equation, the large-deflection bending of plates equations and the Fischer–Burmeister constraint function. The linear elasticity equations are discretized with third-order (cubic) elements, to ensure a smooth second-order derivative of the web curvature in equation (11). The use of FEM allows for unstructured meshing of the computational domain in Figure 3. The domain $Ω$ is built with a coarse triangular mesh, while the mesh is refined at the lower boundary $\partial Ω_{C}$ , on which the mesh size varies. A relatively coarse mesh is used on the outer parts ( $- 10 \leq X^{'} \leq - 4.5$ and $1.5 \leq X^{'} \leq 10$ ), while the mesh size is fine in the outer regions of the roller contact ( $- 4.5 \leq X^{'} \leq - 1$ and $1 \leq X^{'} \leq 10$ ), finer in the central region of the roller contact ( $- 1 \leq X^{'} \leq 0.5$ ), and finest in the last region of the roller contact ( $0.5 \leq X^{'} \leq 1$ ). These settings have been confirmed by mesh convergence studies.

The starting point of the numerical procedure is the selection of a set of appropriate initial values for the variables as listed in equation (1). The initial hydrodynamic pressure distribution is equal to the Hertz dry contact pressure:

P = {\begin{matrix} \sqrt{(1 - X^{' 2})} & for - 1 \leq X^{'} \leq 1 \\ 0 & elsewhere \end{matrix}

(17)

The initial guess for the elastic deformation components

U

and

W

is equal to the elastic deformation corresponding to the Hertz dry contact pressure. The initial contact pressure is equal to the sum of the Hertz dry contact pressure and the contact pressure from the tensioned web on the locations where the web and roller are initially in contact:

P_{c} = {\begin{matrix} \frac{T}{p_{h} R} + \sqrt{(1 - X^{' 2})} & for X^{'} \leq 0 \\ 0 & for X^{'} > 0 \end{matrix}

(18)

The gap between the roller and tensioned web

G

is initialized with the initial gap

G_{0}

. The initial curvature of the tensioned web is equal to the dimensionless roller curvature of

1

for

X^{'} \leq 0

and equal to zero for

X^{'} > 0

. The initial elastic deformation of the tensioned web

W_{w}

is set to zero. The Fischer–Burmeister complementarity function will directly ensure that the tensioned web follows the roller shape wherever the initial gap is equal to zero. Lastly, the initial constant gap

H_{0}

is set to a small positive number (e.g.

\sim

0.01). Starting from the initial values, the system of equations is iteratively solved to find the hydrodynamic pressure

P

, contact pressure

P_{c}

, film height

H

, elastic deformation components

U

and

W

, tensioned web curvature

K

, and tensioned web deformation

W_{w}

. This is done in a fully coupled manner until convergence is reached. The final film height

H_{f}

is determined by evaluating the film height at the end of the hydrodynamic domain

\partial Ω_{H}

X^{'} = 10

Experimental

The numerical model is validated with multiple flat layer imprints, which have been produced on the Morphotonics Portis NIL1100 roll-to-plate nanoimprint tool in Figure 4. The imprints are fabricated using flexible, transparent stamps, which do not contain any textures. The stamps are given an anti-adhesive treatment to ensure a smooth delamination from the UV-cured resin layer. They are pre-tensioned around test rollers, which are equipped with a 7.5 mm thick elastomeric layer. It has an effective elastic modulus of 3.2 MPa and a Poisson ratio of 0.47. Elastomers are known for their viscoelastic material behaviour. The viscoelasticity can be quantified by the dimensionless Deborah number, which represents the ratio between the material relaxation time and the process time. The linear elastic behaviour of the elastomeric layer is confirmed by compression tests. The combination of a relatively high relaxation time ( $\sim$ 14 s) and a relatively low process time ( $\sim$ 0.35–3.1 s) results in a relatively high Deborah number ( $\sim$ 4.5– 40). This justifies the use of a linear elastic material model with an effective elastic modulus.⁴⁰ Each imprint is performed on a 0.5 mm thick glass substrate with dimensions of 150 mm $\times$ 150 mm. The substrates are placed on a stiff carrier plate during the imprint process. To improve the adhesion between the resin and the glass substrates, the latter are cleaned with isopropyl alcohol and pretreated with an atmospheric pressure oxygen plasma and a primer containing an adhesion promoter. The average thickness of each imprinted layer is determined by optically measuring the step height of multiple small scratches fabricated in the cured imprint layer. These measurements are performed on a Keyence VK-X1100 laser confocal microscope.

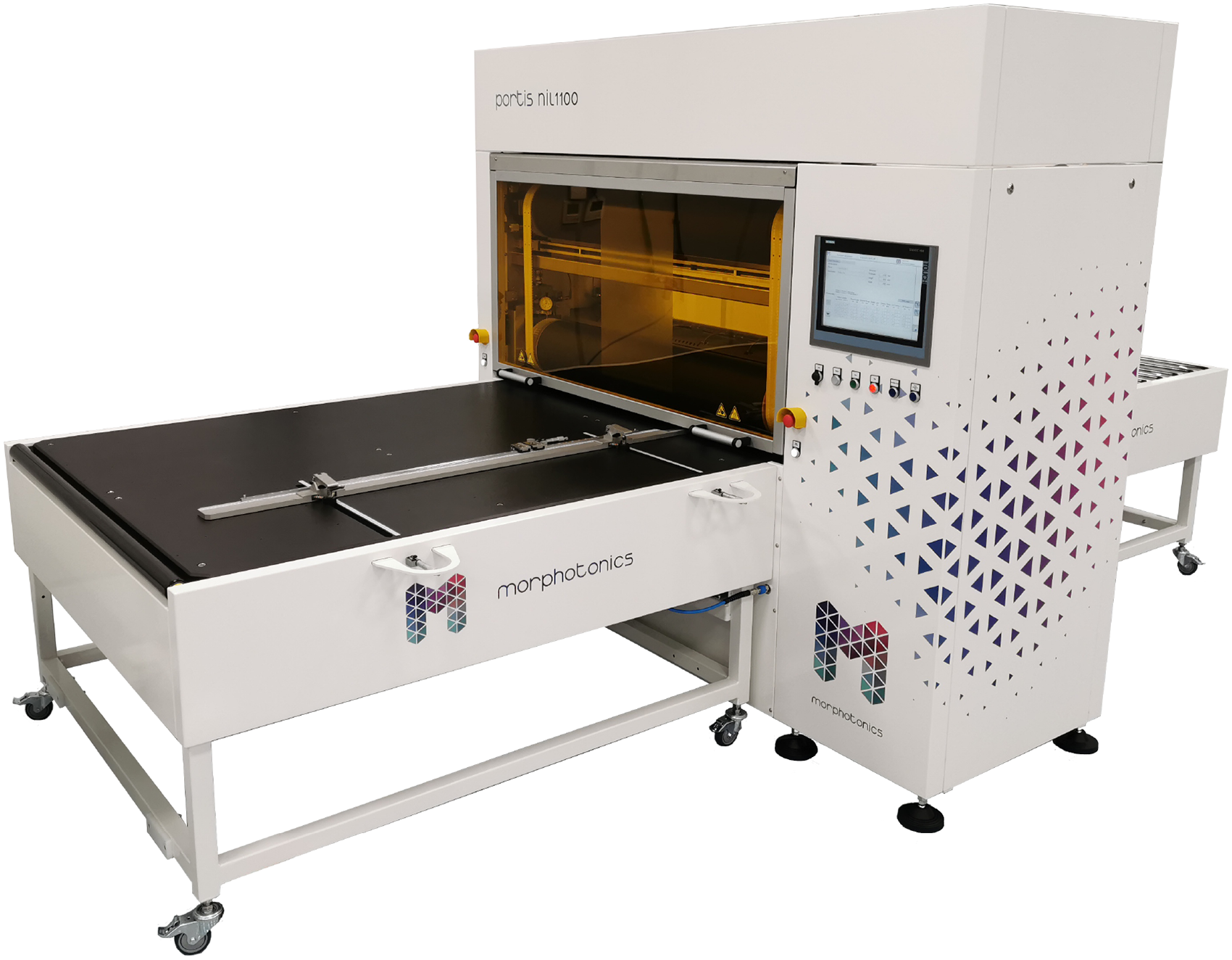

Figure 4.

Morphotonics Portis NIL1100 roll-to-plate nanoimprint equipment.⁴¹

The experimental validation consists of three different measurement datasets. In each dataset, different imprint parameters are varied. The first two datasets originate from previous work.¹⁹ The experimental results are reused in this study. These imprints are performed for a variation of imprint velocity and imprint load and various in-house-developed resins are used. The viscosities and volumetric shrinkage ratios of these acrylate-based resins are shown in Table 1. Additionally, a third measurement dataset is generated. The imprints in this dataset are performed with multiple tensioned webs and a variation of imprint velocity. Each web has a different bending stiffness, as shown in Table 2. Finally, the measured layer heights are converted to the liquid, pre-cured film heights using the volumetric shrinkage values in Table 1, before comparing them to the simulated film heights.

Table 1.

Properties of the imprint resins. The viscosities are measured at $25^{\circ}$ C.

Resin	Viscosity (mPa s)	Shrinkage (%)
A	6.3	12.5
B	38	8.1
C	89	9.0
D	134	7.2
E	181	8.8
F	349	7.8

Table 2.

Calculated bending stiffness of the tensioned webs.

Tensioned web	Bending stiffness (Nm)
A	0.0057
B	0.0223
C	0.0823

Results

This section presents the numerical and experimental results. First, the numerical model will be benchmarked to numerical results from literature. Next, a parameter study will be performed to show the impact of the various parameters in the numerical model. Lastly, the numerical model is validated by experimental results. The results are presented for a minimal set of independent, non-dimensional numbers, which fully describe the EHL problem. These are the non-dimensional modified load number $\bar{M}$ , elastomeric layer thickness number $\bar{d}$ , bending stiffness number $\bar{D}$ , web tension number $\bar{T}$ , and Poisson’s ratio $ν$ :

\begin{aligned} \bar{M} & = \bar{W} {(2 \bar{U})}^{- \frac{1}{2}} \\ \bar{d} & = \frac{d}{a_{h}} \\ \bar{D} & = \frac{D}{{a_{h}}^{2} p_{h} R} \\ \bar{T} & = \frac{T}{p_{h} R} \\ ν \end{aligned}

(19)

The modified load number

\bar{M}

is composed of the non-dimensional load number

\bar{W}

and speed number

\bar{U}

, which are given by:^42,43

\begin{aligned} \bar{W} & = \frac{F_{L}}{E^{'} R} \\ \bar{U} & = \frac{η u_{Σ}}{2 E^{'} R} \end{aligned}

(20)

The non-dimensional numbers

\bar{d}

\bar{D}

, and

\bar{T}

can be traced back to equations (4) and (10), respectively. In contrast to the infinite plane EHL problems, the elastic modulus

E

and Poisson’s ratio

ν

cannot be fully combined in a reduced number

E^{'}

for soft-layered contacts.²² Therefore, the Poisson’s ratio

ν

is a part of the non-dimensional numbers. It represents the effect of the compressibility of the elastomeric layer.

Benchmark validation

The numerical EHL model is benchmarked to results from literature for soft-layered EHL problems without a tensioned web. For this benchmark validation, the influence of the tensioned web in the present work is minimized by setting the bending stiffness number $\bar{D}$ to zero and the web tension number $\bar{T}$ to a very low value of $1 \times 10^{- 6}$ . The comparison between the present work and the results from Dowson and Jin and Xue are shown in Figures 5 and 6, respectively.^21,22 The graphs show the hydrodynamic film pressure $P$ and film height $H$ for a specific set of the non-dimensional numbers $\bar{M}$ , $\bar{d}$ , and $ν$ . The Hertz dry contact pressure and roller height profile are included for a reference. The hydrodynamic film pressure smoothly increases up to a maximum at approximately the centre of the roller contact, after which it decreases. The film height quickly decreases due to the converging roller surface. A more uniform, slowly decreasing film height is shown within the roller contact zone while the minimum film height can be found near the outlet of the roller contact. In contrast to results from literature, in the present work the film height does not diverge downstream the outlet of the roller contact. The tensioned web looses contact with the roller and the film height reaches a constant value. It is interesting to note that this behaviour in the outlet region shows a resemblance with a starved EHL contact, where only part of the gap between the two surfaces in the cavitated zone is filled. A fractional film content is introduced, which represents the film height as a fraction of the diverging roller surface.⁴⁴ The film height in the current problem follows the same trend and remains constant. Despite the differences in modelling approaches, good agreement with results from literature is found for the results obtained within the current work. This confirms the basis of the present EHL model.

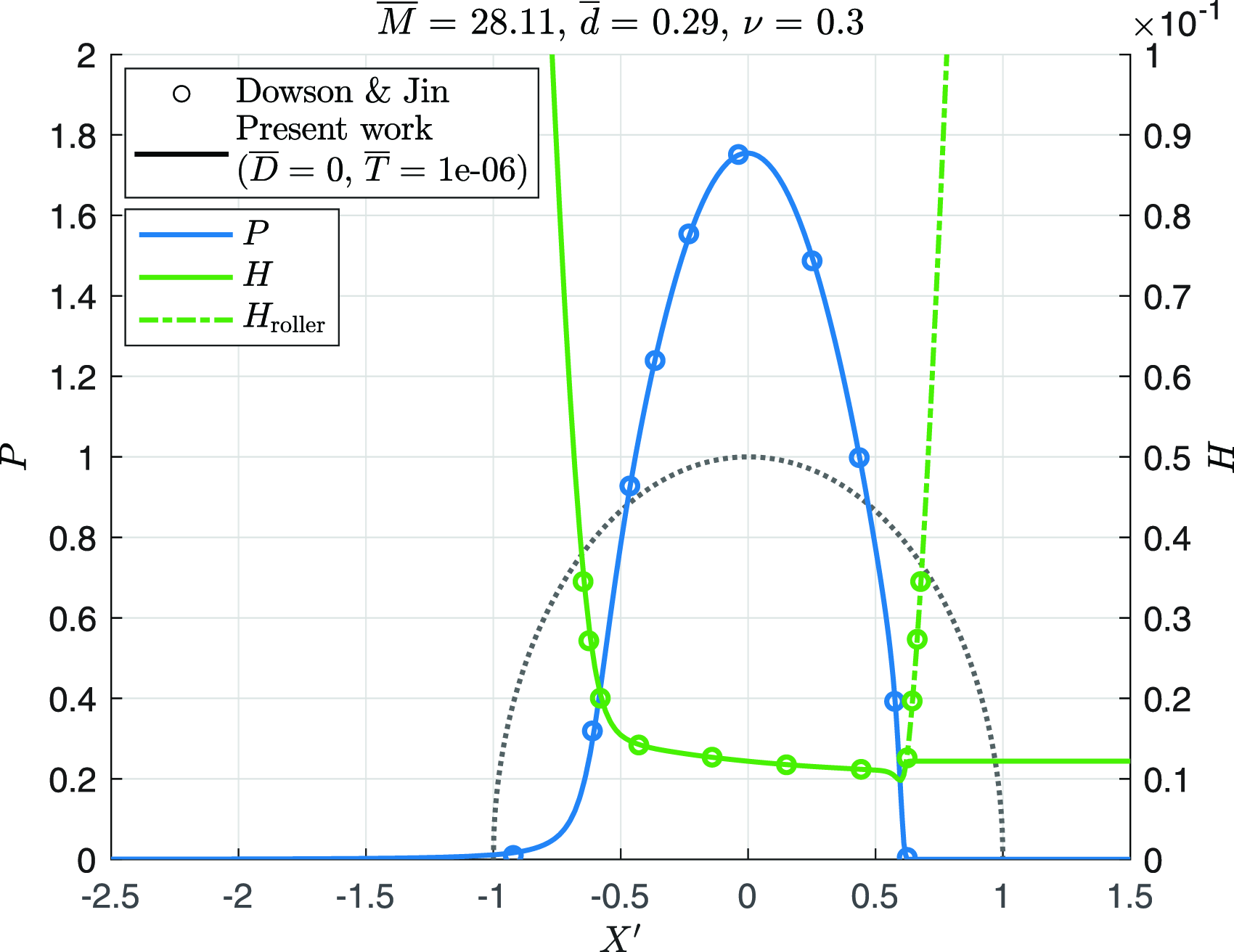

Figure 5.

Comparison of the present work with results Dowson and Jin.²¹ The Hertz dry contact pressure is included for reference (black dotted line).

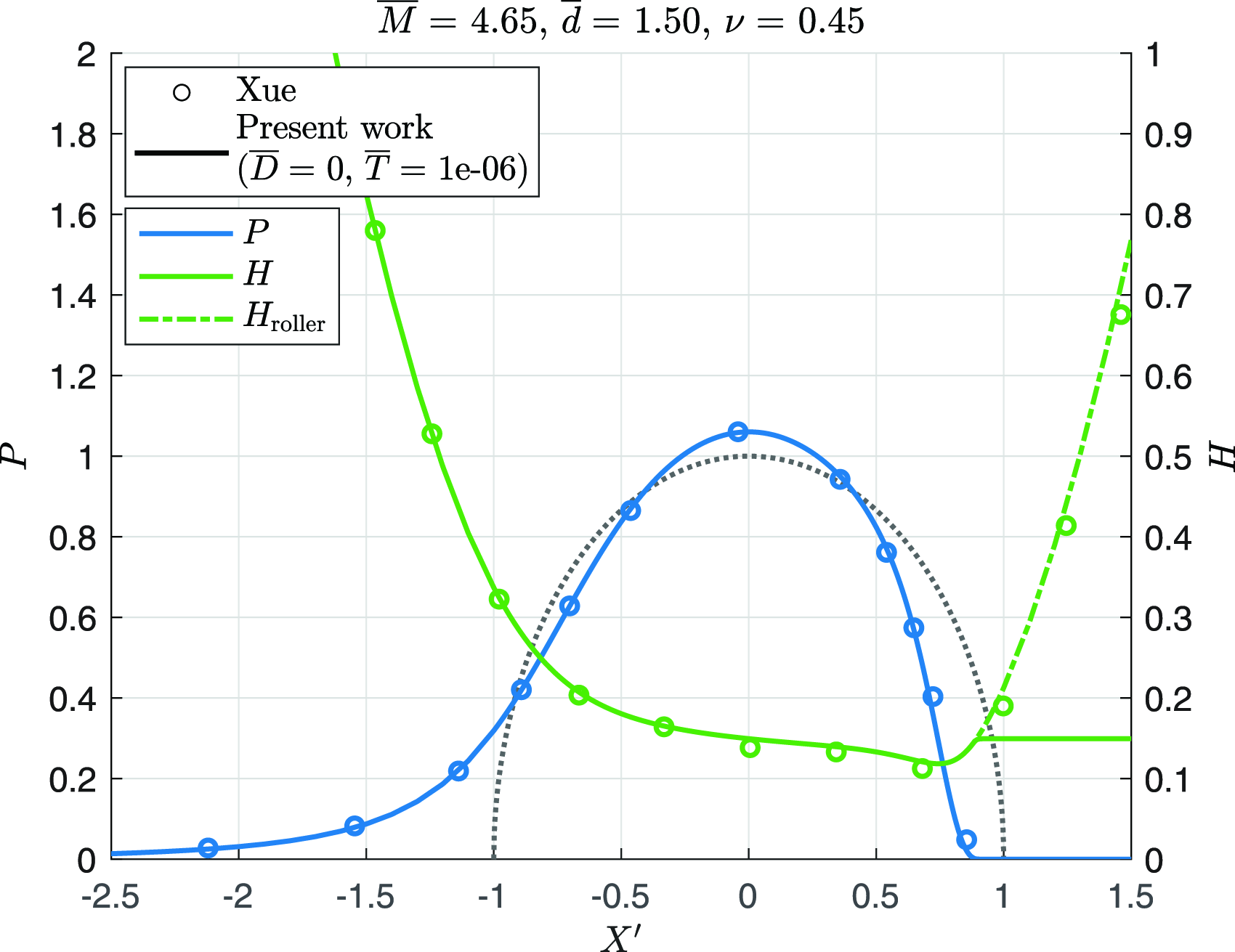

Figure 6.

Comparison of the present work with results Xue.²² The Hertz dry contact pressure is included for reference (black dotted line).

Parameter study

The starting point of the parameter study is the set of input parameters in Table 3, which are typical for a roll-to-plate nanoimprint system. The parameters result in a set of non-dimensional numbers $\bar{M}$ , $\bar{d}$ , $\bar{D}$ , $\bar{T}$ , and $ν$ .

Table 3.

Input parameters used for the parameter study.

Parameter	Value	Unit
$F_{L}$	2000	N/m
$η$	100	mPa s
$R$	100	mm
$E$	3	MPa
$u_{Σ}$	21.2	mm/s
$d$	9.9	mm
$D$	0.01	Nm
$T$	464.3	N/m
$a_{h}$	8.23	mm
$p_{h}$	0.16	MPa
$\bar{M}$	50	–
$\bar{d}$	1.2	–
$\bar{D}$	0.01	–
$\bar{T}$	0.03	–
$ν$	0.45	–

Before the parameter study is presented, the influence of the web tension and bending stiffness of the tensioned web will be illustrated. Figure 7 shows the pressure distributions for varying values of $\bar{D}$ and $\bar{T}$ . The corresponding film height distributions are shown in Figure 8. For a bending stiffness number of zero and a small web tension number, the pressure and film height distributions are qualitatively similar to the benchmark results in Figures 5 and 6. The hydrodynamic pressure profile differs from the Hertz dry contact pressure due to the finite thickness of the elastomeric layer. Moreover, the hydrodynamic pressure and contact pressure are overlapping, due to the lack of web tension and bending stiffness. The film height shows a slowly decreasing profile in the contact zone, with the minimum film height near the outlet. The tensioned web looses contact with the roller once the contact pressure is equal to zero.

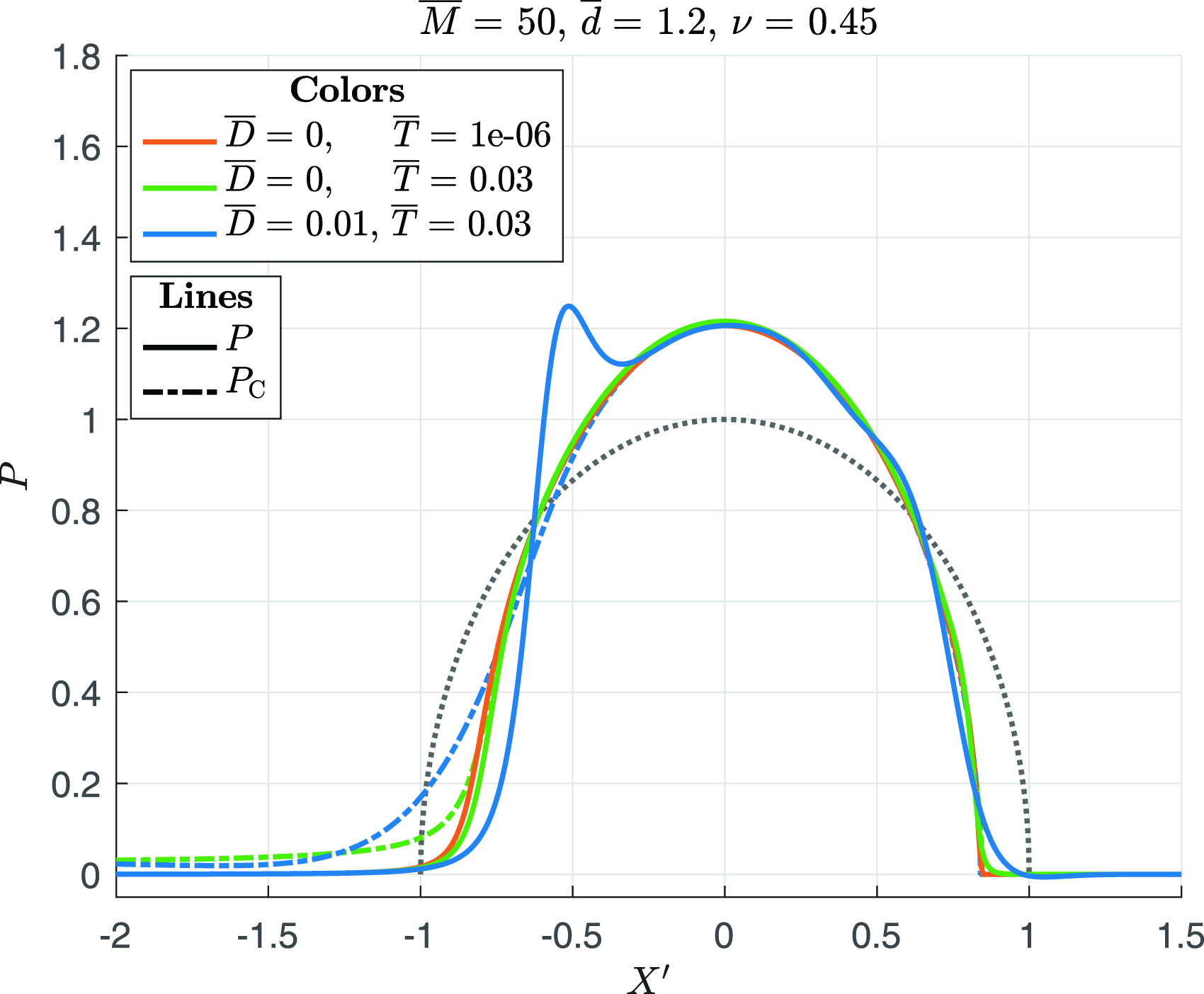

Figure 7.

Hydrodynamic and contact pressure distributions for a varying web tension and bending stiffness number. The Hertz dry contact pressure is included for reference (black dotted line).

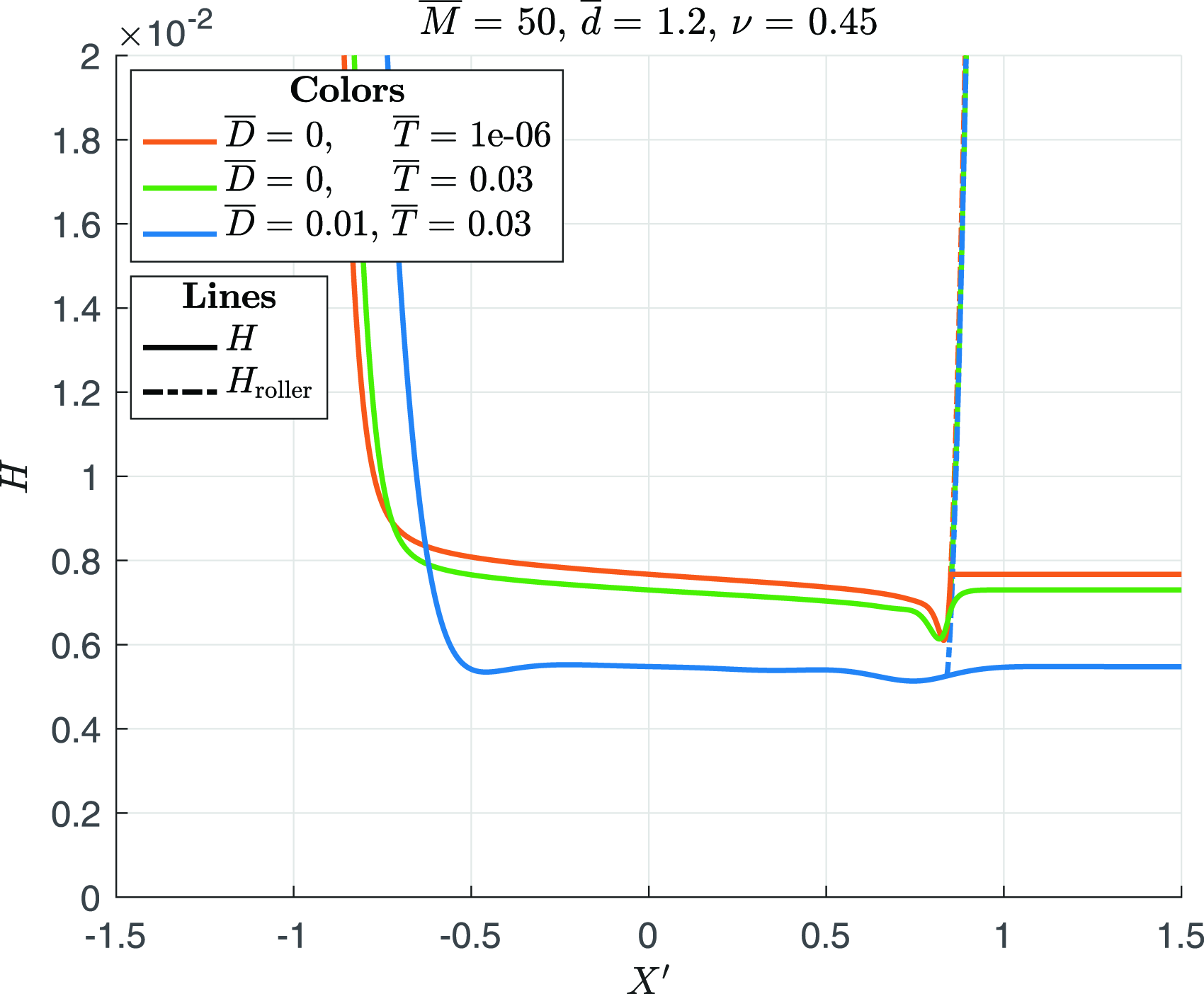

Figure 8.

Film height distribution for a varying web tension and bending stiffness number.

An increase in the web tension number results in a small change in the pressure and film height distribution. In this case, the tensioned web is still considered to be perfectly flexible. It exerts an additional pressure onto the elastomeric layer material, which results in a slightly reduced contact width and film height. The hydrodynamic pressure and contact pressure are no longer overlapping. A uniform contact pressure equal to $\bar{T}$ is found in front of the roller contact, where the hydrodynamic pressure is negligibly small and the web curvature is constant.

The results become different once the bending stiffness is included. The tensioned web with bending stiffness hinders the elastic deformation of the elastomeric layer and increases the effective stiffness of the roller contact. This results in a reduced contact width and film height distribution in Figure 8 and variations in the pressure distributions in Figure 7. The difference between the hydrodynamic pressure and contact pressure is enlarged as well. The impact of web tension and bending stiffness is most severe near the inlet and outlet of the roller contact, where the highest web curvature and the highest web curvature gradients are found. These are relatively small in the centre, where the roller surface is flattened. Just before the inlet of the contact, around the location of maximum curvature at $X^{'} = - 1$ , the contact pressure is increased compared to the situation without bending stiffness. The combination of the bending stiffness and the increased contact pressure results in deformation of the tensioned web in other locations. Far from the inlet, around $X^{'} = - 1.5$ , the contact pressure is reduced due to this deformation. The tensioned web and roller are still in contact as the contact pressure is larger than zero. It can also be observed that the contact pressure approaches the value of $\bar{T}$ further upstream. Deformation of the tensioned web also occurs more downstream, around $X^{'} = - 0.5$ . The tensioned web deforms towards the substrate surface, hereby decreasing the film height. The inlet film constriction, which is clearly visible at the inlet in Figure 8, corresponds to an additional hydrodynamic pressure peak left of the central pressure peak. This second peak is found at the location of the maximum value of the second order derivative of the web curvature. Due to the increase in hydrodynamic pressure, which is applied onto the tensioned web from below, the resulting contact pressure does not vary too much at this location. The argument that the additional hydrodynamic pressure peak and corresponding inlet film constriction are caused by the bending stiffness of the tensioned web is supported by the fact that a similar trend is observed in viscoelastic HL (VEHL).⁴⁰ Here, the hydrodynamic pressure peak and inlet film constriction are a result of the larger rigidity of the material entering the contact. At the outlet of the contact a different phenomenon can be observed. The tensioned web with bending stiffness is not able to follow the sharp curvatures of the elastomeric layer and effectively flattens the minimum film height. A slightly negative hydrodynamic pressure can be observed around $X^{'} = 1$ , due to the deformation of the tensioned web with bending stiffness, which does not directly obtain a stationary film height downstream of the roller contact. The final roller height profile appears to be remarkably symmetric, with a minimum film height near the inlet and outlet and a relatively uniform and constant film height in between.

The non-dimensional numbers are used to sweep through the solution space in an effective manner. Initial numerical experiments have shown that a variation of the non-dimensional numbers $\bar{T}$ and $ν$ has a minor impact on the pressure and film height distribution. The results for a variation in these numbers can be found in the Supplemental Materials. The non-dimensional numbers $\bar{M}$ , $\bar{d}$ , and $\bar{D}$ are varied by changing the sum of the velocities $u_{Σ}$ , the elastomeric layer thickness $d$ , and the bending stiffness $D$ , respectively. Each non-dimensional number is increased and decreased with respect to its reference value in Table 3, while the other non-dimensional numbers are kept constant. The results are shown in Figure 9. Note that the reference solution is equal to the solution for $\bar{D} = 0.01$ and $\bar{T} = 0.03$ in Figures 7 and 8.

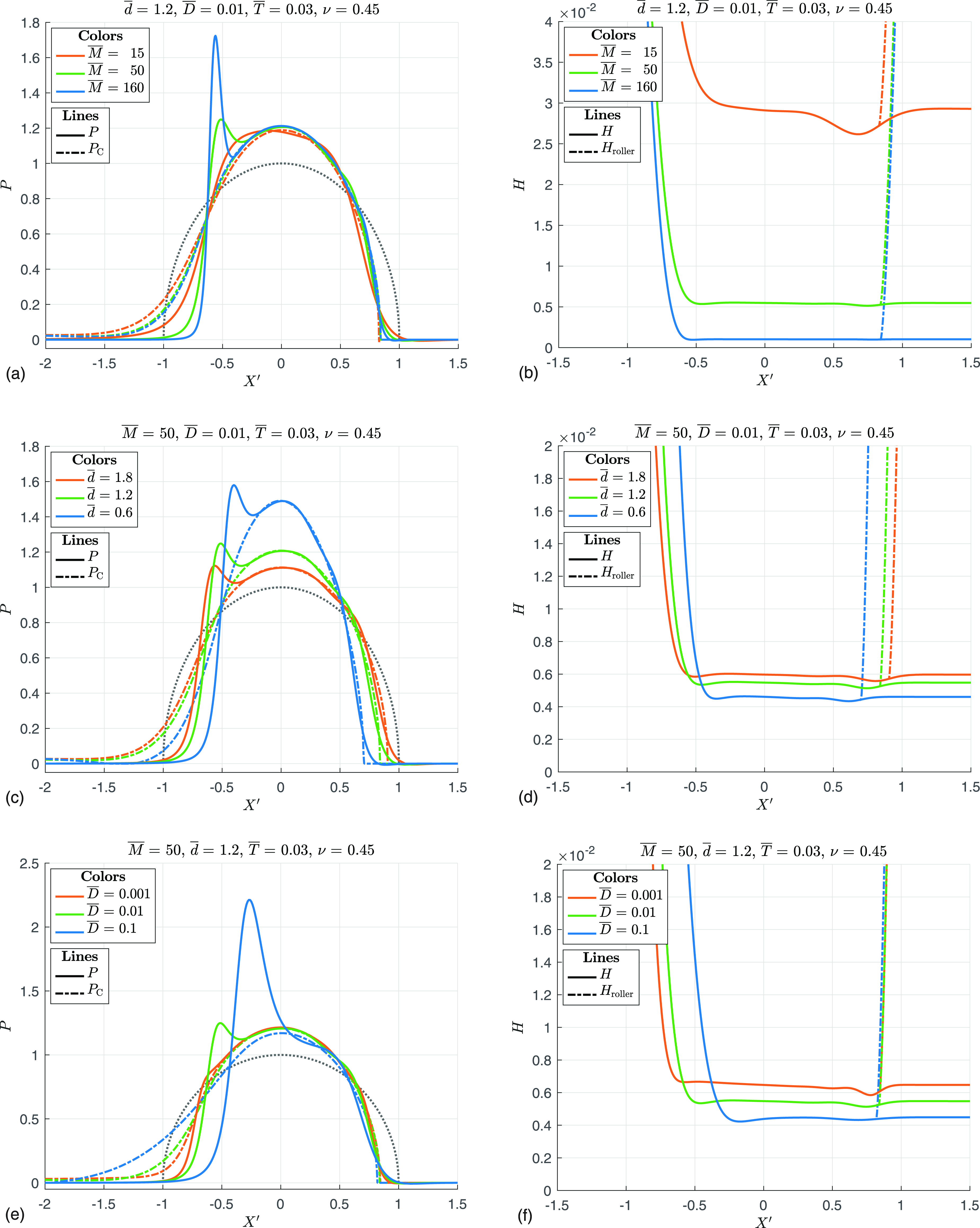

Figure 9.

The figures show the hydrodynamic and contact pressure distributions (left column) and corresponding film height distribution (right column) for a variation of the non-dimensional modified load number $\bar{M}$ (top row), elastomeric layer thickness number $\bar{d}$ (middle row) and bending stiffness number $\bar{D}$ (bottom row). The Hertz dry contact pressure is included for reference (black dotted line).

Figure 9(a) and (b) shows the pressure and film height distributions for a variation of the non-dimensional modified load number $\bar{M}$ . A decrease of $\bar{M}$ results in a reduction of the web curvature near the inlet and outlet and a less pronounced influence of the tensioned web with bending stiffness. The contact pressure does show an increase near the inlet of the roller contact, which is a result of the increased hydrodynamic pressure. This is a typical result for lightly loaded EHL contacts.²⁰ The corresponding film height distribution is increased and a minimum film height near the outlet is still present. The situation is opposite for an increase of $\bar{M}$ , which corresponds to a highly loaded EHL contact. The increased web curvature near the inlet results in a sharp hydrodynamic pressure peak and a corresponding inlet film constriction. The film height distribution is decreased and flattened compared to the reference solution.

The influence of a variation of the non-dimensional elastomeric layer thickness number $\bar{d}$ corresponds to soft-layered EHL results from literature.^20–22 The pressure and film height distributions are presented in Figure 9(c) and (d), respectively. An increase of $\bar{d}$ results in a larger contact width, a decreased hydrodynamic pressure, and an increased film height distribution. On the contrary, a decrease of $\bar{d}$ corresponds to a reduced contact width, an increased hydrodynamic pressure, and a decreased film height distribution. It is interesting to note that for $\bar{d} = 0.6$ , the contact pressure near the inlet is equal to zero for a short distance. The gap between the roller and tensioned web is larger than zero at this location, which means that they are not in contact. This can be explained by the elastic deformation of the tensioned web, which is not able to exactly follow the roller shape. The roller height profiles in Figure 9(d) all show an approximately symmetric shape.

The results for a variation in the non-dimensional bending stiffness number $\bar{D}$ are shown in Figure 9(e) and (f). When the bending stiffness number is decreased to 0.001, the hydrodynamic pressure distribution and the contact pressure distribution approach the solution for $\bar{D} = 0$ and $\bar{T} = 0.03$ in Figure 7. The influence of the low bending stiffness number on the pressure and film height distributions is minor. An increase of $\bar{D}$ gives a large change in the pressure and film height distributions. The high bending stiffness of the tensioned web results in a strong increase of both the contact pressure near the inlet and the hydrodynamic pressure peak, which is also shifted towards the roller centre. The corresponding film height distribution is decreased and the contact width is reduced.

Experimental validation

The numerical EHL model is validated with experimental results. To clearly distinguish the film heights for various imprint parameters, the results are shown for a variation of the non-dimensional speed number $\bar{U}$ , as described in equation (20). Note that the measured layer heights are converted to the liquid, pre-cured film height using the volumetric shrinkage values in equation (1).

Figure 10 shows the numerical and experimental results for a variation of the load case and the non-dimensional speed number $\bar{U}$ . Each load case represents a different imprint load and results in a variation of the non-dimensional numbers $\bar{W}$ , $\bar{d}$ , $\bar{D}$ , and $\bar{T}$ , which are listed in Table 4. All results are generated with tensioned web A from Table 2 and a web tension of 370 N/m. The film heights for each load case are determined for a variation of the imprint velocity or resin viscosity. The film heights for load cases A, C, and E arise from flat layer imprints, which are fabricated with Resin B from Table 1 (viscosity of 38 mPas) and a varying imprint velocity. The experimental results for load cases B and D correspond to a constant imprint velocity of 6.7 mm/s and a variation of the resin viscosity, as listed in Table 1. All resins are used except for Resin C. The film heights increase for an increasing speed number $\bar{U}$ and a decreasing load $F_{L}$ . Good agreement is found between the results from the numerical model and the experiment.

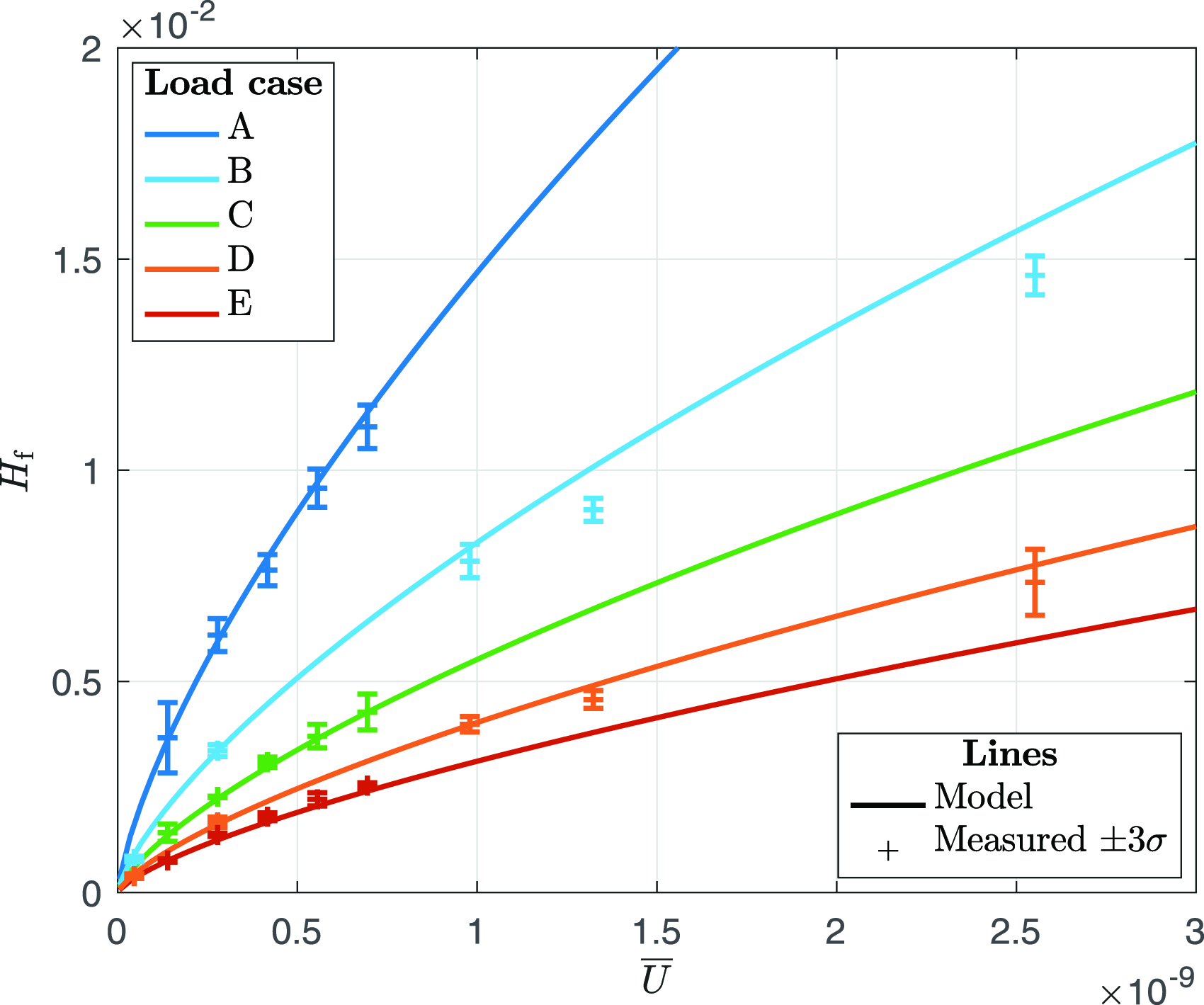

Figure 10.

Numerical and experimental film heights for a variation of the load case and non-dimensional speed number $\bar{U}$ . A specification of the load cases and the corresponding non-dimensional numbers can be found in Table 4.

Table 4.

Specification of the load cases in Figure 10 and the corresponding non-dimensional numbers.

Load	$F_{L}$	$\bar{W}$	$\bar{d}$	$\bar{D}$	$\bar{T}$	$ν$
case	(N/m)
A	1000	0.0011	1.2786	0.0138	0.0307	0.47
B	1500	0.0016	1.0439	0.0075	0.0251	0.47
C	2000	0.0022	0.9041	0.0049	0.0217	0.47
D	2500	0.0027	0.8086	0.0035	0.0194	0.47
E	3000	0.0033	0.7382	0.0027	0.0177	0.47

The numerical and experimental results for a variation of the non-dimensional bending stiffness number $\bar{D}$ and non-dimensional speed number $\bar{U}$ are shown in Figure 11. The bending stiffness numbers correspond to the different tensioned webs in Table 2. A web tension of 555 N/m and an imprint load of 2500 N/m are used in both model and experiment. The film heights for each bending stiffness number are determined for a constant viscosity and a variation of the imprint velocity. The imprints are fabricated with Resin C from Table 1 (viscosity of 89 mPa s). The simulated and measured film heights increase for an increasing speed number $\bar{U}$ , similar to the results in Figure 10. It can also be noticed that the film height decreases for an increasing bending stiffness number $D$ . The simulated and measured film heights agree well.

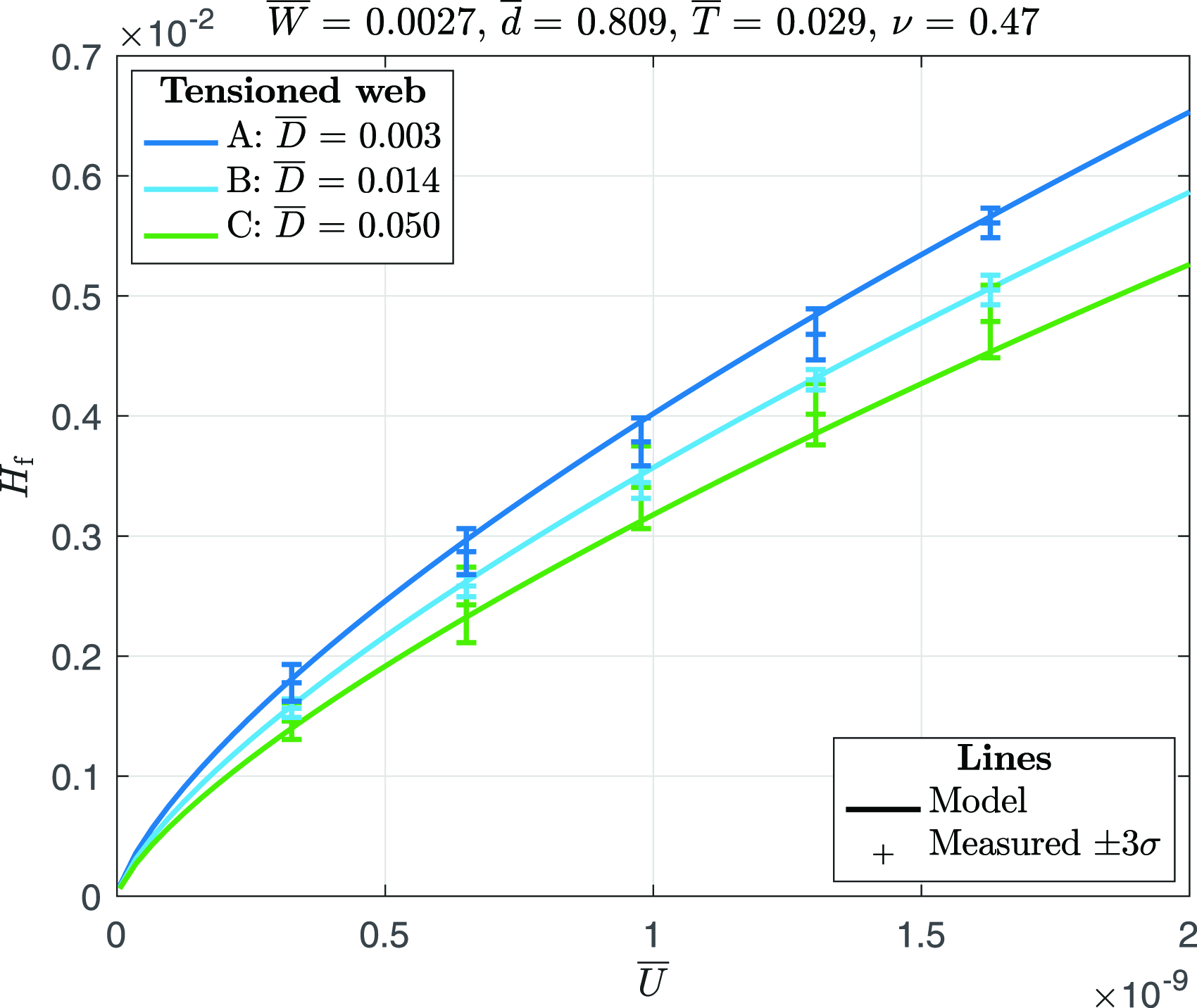

Figure 11.

Numerical and experimental film heights for a variation of the non-dimensional bending stiffness number $\bar{D}$ and speed number $\bar{U}$ .

Discussion and conclusions

In this work, a numerical EHL model is developed to describe the elastohydrodynamic lubrication in roll-to-plate nanoimprinting. The model is a multiphysics simulation with a set of coupled equations to describe the elastic deformation of the elastomeric layer, the pressure build-up in the thin film of resin, the elastic deformation of the tensioned web, and the contact mechanics between the tensioned web and the roller. The numerical results with zero bending stiffness and negligible web tension agree well with benchmark results for soft-layered EHL problems from literature, which confirms the validity of the basis of the current model approach.

The EHL problem is described by the set of non-dimensional numbers $\bar{M}$ , $\bar{d}$ , $\bar{D}$ , $\bar{T}$ , and $ν$ . These are used in a parameter study to investigate the influence of the various process parameters. The results show that web tension has a minor effect on the pressure distribution and film height distribution. On the other hand, the bending stiffness of the tensioned web does have a significant impact. It results in an additional hydrodynamic pressure peak and corresponding inlet film constriction left of the roller centre. Moreover, it effectively flattens the film height distribution, which also decreases in magnitude. The impact of the tensioned web with bending stiffness becomes more severe when the web curvature or bending stiffness is increased. It results in an increase of the additional hydrodynamic pressure peak and a further reduction of the film height distribution. The effect of the tensioned web with bending stiffness does not significantly change when the elastomeric layer thickness is varied. A decrease of the elastomeric layer thickness will result in an increased pressure distribution and decreased film height distribution. The numerical model is validated by experimental results for a wide range of the non-dimensional numbers. Good agreement is found between the numerical results and experimental results.

The present results contribute to a better understanding of the elastohydrodynamic lubrication of soft-layered rollers and tensioned webs in roll-to-plate nanoimprinting. The developed model can be used in the optimisation of a roll-to-plate imprint system for achieving a thin and uniform film height. Moreover, it can directly be used to determine the film height as a function of the process parameters, machine parameters, and material properties. This information can help in optimising the required amount of dispensed resin for a specific imprint or in tuning the process parameters for realising a desired film height. The simulated film heights can be converted to the cured flat layer thickness by taking into account the volumetric shrinkage ratio of the UV-curable resin. The present study is focused on the application of roll-to-plate nanoimprinting, but the model may be useful for the analysis of any EHL process which involves tensioned webs or foils, such as forward roll coating of flexible substrates or printing of paper.

Supplemental Material

sj-pdf-8-pij-10.1177_13506501231183860 - Supplemental material for Elastohydrodynamic lubrication of soft-layered rollers and tensioned webs in roll-to-plate nanoimprinting

Supplemental material, sj-pdf-8-pij-10.1177_13506501231183860 for Elastohydrodynamic lubrication of soft-layered rollers and tensioned webs in roll-to-plate nanoimprinting by Jelle Snieder, Marc Dielen and Ron AJ van Ostayen in Proceedings of the Institution of Mechanical Engineers, Part J: Journal of Engineering Tribology

Supplemental Material

sj-docx-9-pij-10.1177_13506501231183860 - Supplemental material for Elastohydrodynamic lubrication of soft-layered rollers and tensioned webs in roll-to-plate nanoimprinting

Supplemental material, sj-docx-9-pij-10.1177_13506501231183860 for Elastohydrodynamic lubrication of soft-layered rollers and tensioned webs in roll-to-plate nanoimprinting by Jelle Snieder, Marc Dielen and Ron AJ van Ostayen in Proceedings of the Institution of Mechanical Engineers, Part J: Journal of Engineering Tribology

Footnotes

Acknowledgements

The assistance of Morphotonics is greatly acknowledged. We want to thank B Titulaer and JM ter Meulen for the helpful discussions, and M Titou for his assistance in the experimental validation.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This research was funded by the Topsector Energy Subsidy of the Dutch Ministry of Economic Affairs (TEHE119003).

ORCID iDs

Jelle Snieder

Marc Dielen

Ron AJ van Ostayen

Supplemental Material

The supplemental material is available online at /10.1177/13506501231183860

Appendix

References

Chou

Krauss

Renstrom

. Imprint of sub-25 nm vias and trenches in polymers. Appl Phys Lett 1995; 67: 3114–3116.

Schift

Kristensen

. Nanoimprint Lithography. In Bhushan B (ed.) Springer Handbook of Nanotechnology. Springer Handbooks, Berlin, Heidelberg: Springer. ISBN 978-3-540-29857-1, 2007. pp. 239–278. DOI:10.1007/978-3-540-29857-1_8.

Haisma

Verheijen

van den Heuvel

et al. Mold-assisted nanolithography: a process for reliable pattern replication. J Vac Sci Technol B: Microelectron Nanometer Struct Proce, Meas, Phenom 1996; 14: 4124–4128.

Ahn

Guo

. Large-area roll-to-roll and roll-to-plate nanoimprinting lithography: a step toward high-throughput application of continuous nanoimprinting. ACS Nano 2009; 3: 2304–2310.

Kooy

Mohamed

et al. A review of roll-to-roll nanoimprint lithography. Nanoscale Res Lett 2014; 9: 1–13.

Lan

. Large-Area Nanoimprint Lithography and Applications. In Micro/Nanolithography – A Heuristic Aspect on the Enduring Technology. London: IntechOpen, 2018. pp. 43–68.

Tahir

Shim

Kamran

et al. Nanofabrication techniques: challenges and future prospects. J Nanosci Nanotechnol 2021; 21: 4981–5013.

Zhu

Zhang

et al. Lenticular-lens-based colored antiglare dashboard surfaces. Adv Mater Technol 2016; 2: 1–7.

Clasing

Werner-Meier

Veldhuizen

et al. Experimental assessment of nanoimprinted textured frontsheets for PV modules, 2022.

10.

Ter Meulen

Veldhuizen

Kommeren

et al. 33-6: Roll-to-plate nano-imprint lithography for high-volume production of AR glasses: equipment, materials, and processes. SID Symp Digest Tech Pap 2021; 52: 447–449.

11.

Kordy

. Process abilities of the riblet-coating process with dual-cure lacquers. CIRP J Manuf Sci Technol 2015; 11: 1–9.

12.

Benschop

HOG

Guerin

Brinkmann

et al. Drag-reducing riblets with fouling-release properties: development and testing. Biofouling 2018; 34: 532–544.

13.

Dundar Arisoy

Kolewe

Homyak

et al. Bioinspired photocatalytic shark-skin surfaces with antibacterial and antifouling activity via nanoimprint lithography. ACS Appl Mater Interfaces 2018; 10: 20055–20063.

14.

Atthi

Dielen

Sripumkhai

et al. Fabrication of high aspect ratio micro-structures with superhydrophobic and oleophobic properties by using large-area roll-to-plate nanoimprint lithography. Nanomaterials 2021; 11: 339.

15.

Dumond

Yee Low

. Recent developments and design challenges in continuous roller micro- and nanoimprinting. J Vac Sci Technol B 2012; 30: 010801.

16.

Zhang

et al. Roll-to-roll UV imprinting lithography for micro/nanostructures. J Vac Sci Technol B 2015; 33: 060801.

17.

Colburn

Grot

Choi

et al. Patterning nonflat substrates with a low pressure, room temperature, imprint lithography process. J Vac Sci Technol B: Microelectron Nanometer Struct Proce, Meas, Phenom 2001; 19: 2162–2172.

18.

Resnick

Schift

. Imprint Lithography. In Smith BW and Suzuki K (eds.) Microlithography: Science and Technology, third ed. Boca Raton: CRC Press. ISBN 978-1-4398-7675-6, 2020. pp. 595–677.

19.

Snieder

Dielen

van Ostayen

RAJ

. Simulating the residual layer thickness in roll-to-plate nanoimprinting with tensioned webs. Micromachines 2022; 13: 461.

20.

Hooke

. The elastohydrodynamic lubrication of a cylinder on an elastomeric layer. Wear 1986; 111: 83–99.

21.

Dowson

Jin

. The influence of elastic deformation upon film thickness in lubricated bearings with low elastic modulus coatings. Tribol Ser 1990; 17: 263–269.

22.

Xue

Gethin

Lim

. Numerical modelling of the contact between lithographic printing press rollers by soft EHL theory. Proc Inst Mech Eng, Part J: J Eng Tribol 1994; 208: 257–268.

23.

Elsharkawy

Hamrock

. Elastohydrodynamic lubrication of elastomeric-coated surfaces in line contact. Proce Inst Mech Eng, Part J: J Eng Tribol 1995; 209: 119–130.

24.

Taylor

. Fast simulation of pattern formation and process dependencies in roller nanoimprint lithography. MRS Proce 2013; 1529: 205.

25.

Jain

Bonnecaze

. Fluid management in roll-to-roll nanoimprint lithography. J Appl Phys 2013; 113: 234511.

26.

Coyle

. Forward roll coating with deformable rolls: a simple one-dimensional elastohydrodynamic model. Chem Eng Sci 1988; 43: 2673–2684.

27.

MacPhee

Shieh

Hamrock

. The application of elastohydrodynamic lubrication theory to the prediction of conditions existing in lithographic printing press roller nips. Proce Twenty-first Res Conference IARIGAI 1991; 242–276.

28.

Kistler

Schweizer

, (eds.) Liquid Film Coating. Dordrecht: Springer, Netherlands, 1997. ISBN 978-94-010-6246-6 978-94-011-5342-3. doi:10.1007/978-94-011-5342-3.

29.

Grashof

Delgado

. Analysis of influencing parameters in deformable roll coating of counter-rotating rolls. J Coat Technol Res 2015; 12: 63–73.

30.

Habchi

. Finite element modeling of elastohydrodynamic lubrication problems. NJ: John Wiley & Sons: Hoboken, 2018. ISBN 978-1-119-22514-0 978-1-119-22515-7.

31.

Habchi

. A numerical model for the solution of thermal elastohydrodynamic lubrication in coated circular contacts. Tribol Int 2014; 73: 57–68.

32.

Habchi

Eyheramendy

Vergne

et al. Stabilized fully-coupled finite elements for elastohydrodynamic lubrication problems. Adv Eng Softw 2012; 46: 4–18.

33.

Hamrock

Schmid

Jacobson

. Fundamentals of Fluid Film Lubrication. Second ed. Number 169 in Mechanical Engineering, New York: Marcel Dekker, 2004. ISBN 978-0-8247-5371-9.

34.

Dowson

Taylor

. Cavitation in bearings. Annu Rev Fluid Mech 1979; 11: 35–65.

35.

Kármán

. Festigkeitsprobleme im maschinenbau. Teubner: Encyklopädie der mathematischen wissenschaften, 1910.

36.

Timoshenko

Woinowsky-Kreiger

. Theory of plates and shells. Second ed. New York: McGraw-Hill Book Company, 1959. ISBN 978-0-07-064779-4.

37.

Fischer

. A special Newton-type optimization method. Optimization 1992; 24: 269–284.

38.

Bulut

Bader

Poll

. Cavitation and film formation in hydrodynamically lubricated parallel sliders. Tribol Int 2021; 162: 107113.

39.

COMSOL Multiphysics® v. 6.0. COMSOL AB, Stockholm, Sweden. Available online: www.comsol.com/release/6.0. (accessed on 2021-12-15).

40.

Zhao

Liu

Morales-Espejel

et al. Effects of solid viscoelasticity on elastohydrodynamic lubrication of point contacts. Tribol Int 2022; 171: 107562.

41.

Morphotonics Nanoimprint Technologies. Available online: https://www.morphotonics.com. (accessed on 2022-12-13).

42.

Moes

. Lubrication and Beyond (Lecture Notes Code 115531). Technical report, University of Twente, Enschede, The Netherlands, 2000.

43.

Marian

Bartz

Wartzack

et al. Non-dimensional groups, film thickness equations and correction factors for elastohydrodynamic lubrication: a review. Lubricants 2020; 8: 95.

44.

Elrod

. A cavitation algorithm. J Lubr Technol 1981; 103: 350–354.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.01 MB

0.21 MB
