DEELIG: A Deep Learning Approach to Predict Protein-Ligand Binding Affinity

Abstract

Protein-ligand binding prediction has extensive biological significance. Binding affinity helps in understanding the degree of protein-ligand interactions and is a useful measure in drug design. Protein-ligand docking using virtual screening and molecular dynamic simulations are required to predict the binding affinity of a ligand to its cognate receptor. Performing such analyses to cover the entire chemical space of small molecules requires intense computational power. Recent developments using deep learning have enabled us to make sense of massive amounts of complex data sets where the ability of the model to “learn” intrinsic patterns in a complex plane of data is the strength of the approach. Here, we have incorporated convolutional neural networks to find spatial relationships among data to help us predict affinity of binding of proteins in whole superfamilies toward a diverse set of ligands without the need of a docked pose or complex as user input. The models were trained and validated using a stringent methodology for feature extraction. Our model performs better in comparison to some existing methods used widely and is suitable for predictions on high-resolution protein crystal (⩽2.5 Å) and nonpeptide ligand as individual inputs. Our approach to network construction and training on protein-ligand data set prepared in-house has yielded significant insights. We have also tested DEELIG on few COVID-19 main protease-inhibitor complexes relevant to the current public health scenario. DEELIG-based predictions can be incorporated in existing databases including RSCB PDB, PDBMoad, and PDBbind in filling missing binding affinity data for protein-ligand complexes.

Introduction

Proteins are a diverse class of dynamic macromolecular structures in living organisms and are essential for the biochemistry and physiology of the organism. Proteins may bind to other proteins, peptides, nucleic acids, and other nonpeptide ligands with varying affinities thus fulfilling various functional roles. Determining binding affinity between a protein-ligand complex, typically quantified in terms of inhibition constant (Ki), dissociation constant (Kd), changes in free energy measures (ΔG, ΔH, and IC50), helps in understanding interaction strength, reaction mechanism, and kinetics of the reaction, especially when experimental approaches may not be feasible and has applications in drug development and pharmacology. ¹

Although current methods such as flexible docking address several limitations of rigid docking, various problems such including mode of binding, protonation states of charged residues, solvent, and entropic effects still persist. ² Classical prediction methods to score free binding energies of small ligands to biological macromolecules such as MM/GBSA and MM/PBSA typically rely on molecular dynamic simulations for calculations and aid in-silico docking and virtual screening as well as experimental approaches. However, there is a trade-off between computational resources and accuracy. ³

With a recent shift toward the use of machine-learning and deep-learning based methods in the field of structural biology, making biologically significant predictions using regression and “learning” intrinsic patterns in a complex plane of available data has led to resource-optimal predictions without compromising on accuracy. Deep learning has been known to learn representations and patterns in complex data forms. Our aim was to apply deep learning to predict binding affinity of protein-nonpeptide ligand interaction without the need of a docked pose as input.

Convolutional neural networks (CNN) are deep neural networks that use an input layer, output later as well as convolutional hidden layer(s). The first CNN was incorporated by LeCunn in 1998, ⁴ the connectivity pattern of which was inspired by the elegant experiments of Hubert and Weisel on the mammalian visual cortex in the 1960s. ⁵ With the growing technical advancements and massive amounts of data, CNNs have emerged popular in biological fields in the recent decade with various applications. ⁶

In our study, we have used CNNs to provide a quantitative estimate of protein-ligand binding using various sets of features corresponding to protein and ligand, respectively, by finding spatial relationships among the data without using docked poses as user input. Our approach was validated using ligand-bound complexes from kinases superfamily in the protein data bank (PDB). Kinases belong to a class of enzymes required for substrate-dependent phosphorylation. They are represented across diverse cellular functions like signaling, differentiation, and glycolysis. ⁷ We have also tested our model on COVID-19 main protease ⁸ of the novel coronavirus strain complexed with various inhibitors of which binding affinities have not been predicted or experimentally determined so far.

Materials and Methods

Novel data set: raw data

The raw data for our novel database was obtained from the RCSB PDB ⁹ database, where the following were selected as the query parameters.

• Chain type: Protein Chain, No DNA or RNA or DNA/RNA Hybrid.

• Binding affinity: Kd or Ki value present.

• Chemical components: Has ligand (s)

• X-ray crystallography method: Resolution up to 2.5 A.

These criteria resulted in a list of 5464 protein PDB IDs, 2568 complexed ligand(s) and corresponding binding affinity values. The search results include the structures present in PDB, PDBbind ¹⁰ , Binding MOAD^11-12, and scPDB ¹³ for its results.

Initial raw data database created contained protein structures in PDB format, protein sequences in FASTA format, ligands in SDF format, and binding affinity values of corresponding protein-ligand pairs for 5464 complexes.

Data set refinement

The PDB, FASTA, and SDF files filtered were further processed to refine our novel data set, as shown in Figure 1. Protein-ligand complexes were 5464 in number and corresponded to 29 650 complex unique chain-ligand pairs (SM_File3). Binding affinity values were obtained from the RCSB database and protein chain-ligand pairs with corresponding binding affinity as 0 were discarded to reduce statistical errors. This narrowed down the total complexes to 4750 protein-ligand pairs.

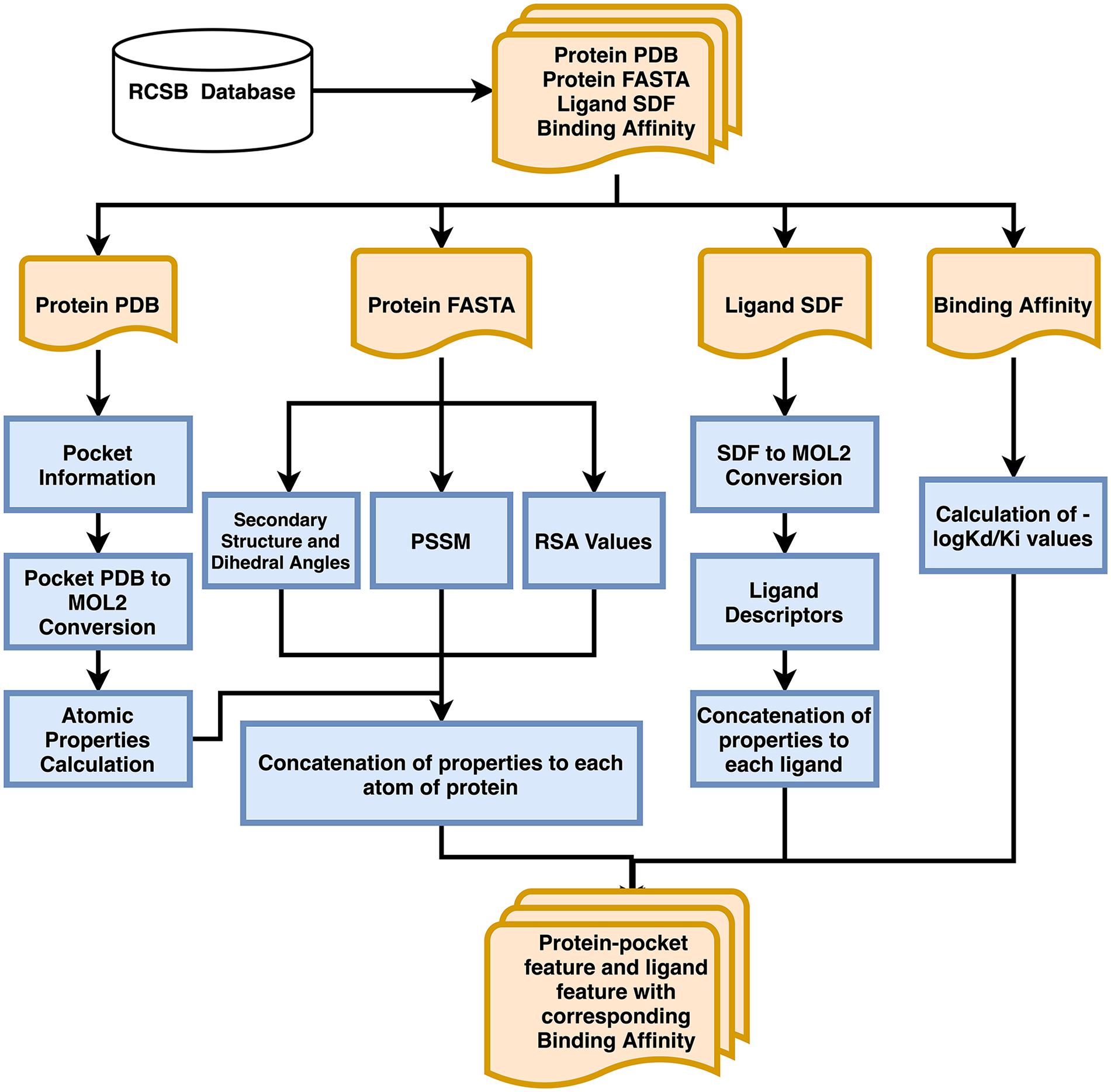

Figure 1.

Feature extraction pipeline.

Pocket information was extracted from the protein using Ghecom ¹⁴ and converted to MOL2 format using Chimera, ¹⁵ which narrowed our dataset from 4699 pocket-ligand pairs to 4286 pocket-ligand pairs.

We discarded other protein-ligand pairs with missing PSSM profiles, secondary structure, or dihedral angle information. It resulted in a total of 4041 pocket-ligand pairs, which corresponds to 7414 pocket-ligand pairs containing unique chains.

Feature extraction

Training the deep learning network on raw information is known to result in a long time for convergence and less accuracy. We followed a conventional methodology for feature extraction and used the deep learning framework to learn the interaction between the protein pocket and ligand for their affinity prediction.

Protein-pocket features

A comprehensive 2-level feature extraction methodology, one at the atomic level and the other at the level of amino acids utilizing structural information and protein sequence respectively.

1. Atomic-level (19 bits)

2. b. 1 integer for hybridization.

3. c. 1 integer representing the number of bonds with heavy atoms.

4. d. 1 integer representing the number of bonds with hetero atoms.

5. e. 5 bits (1 if present) encoding properties defined with SMARTS patterns: hydrophobic, aromatic, acceptor, donor, and ring.

6. f. 1 float for partial charges.

7. g. 1 integer to distinguish between ligand as −1 and protein as 1.

Amino acid level (25 bits): we utilized the sequence information of protein to get more features about the protein pocket-ligand interaction.

a. Position-Specific Scoring Matrix (PSSM): PSSM is a matrix that represents the probability of mutation at each point of the sequence. It gives a 20-bit probability for each amino acid at each location. PSSM profiles were obtained using PSI-BLAST ¹⁶ with SwissProt as subject database and E-value threshold as 0.001. Chains with less than 50 amino acids were removed from the input data set.

b. Relative Solvent Accessibility (RSA): It is encoded by one bit of information for each amino acid that provides whether it is buried or exposed to the solvent. We set a threshold of 25% in RSA values. RSA was obtained using NACCESS. ¹⁷

c. Secondary structure: It is encoded by 1 bit of information about the structure as coil, helix, or plate and was predicted using the DSSP. ¹⁸

d. Dihedral angles: It is encoded by 2 bits of information with phi/psi angles of each of the amino acids and was predicted using DSSP for obtaining dihedral angles.

Ligand features

Standard ligand features were calculated for ligands in our data set using PADEL ¹⁹ and fingerprints (1-dimensional [1D], 2-dimensional [2D], and chemical fingerprints), which include hybridization, atom pair interaction, and counts of various functional groups.

We also used QikProp ²⁰ to derive ADMET (Absorption, Distribution, Metabolism, Excretion, and Toxicity) properties, which include the physical properties, solubility, and partition coefficients.

It resulted in a 1D array of 14 716 dimensions containing the various properties of a given ligand. This is used as a feature vector representing the ligand represented in MOL2 format. A detailed list of ligand features has been provided in Supplementary Material (SM_Appendix).

Grid formation

The 3-dimensional (3D) coordinates of atoms were converted into a 3D grid of resolution 10 Å with 1 Å spacing between the 2 axes centered along the centroid of the ligand. Atoms outside each such grid were discarded. The atoms lying inside the grid were rounded up to the nearest coordinate of the grid where features of corresponding atoms that lay in the same coordinates were added up.

This resulted in projecting ligand-interacting residues into a 3D cube with features representing the atomic as well as protein-based properties of each atom of the protein pocket.

Strategies

Detailed and complete block diagrams with inputs are provided in Figures 2 and 3 as well as in Supplementary Material.

Figure 2.

Training framework for atomic model. The framework is trained on 19 bits features each for protein pocket and ligand together as input.

Figure 3.

Training framework for composite model. The framework is trained on 44 bits features of protein pocket and 14 716 bits of ligand as separate inputs.

Atomic model

Preprocessing

Features were calculated at the atomic level (Methods and Materials - Feature Extraction) corresponding to each atom of an amino acid and ligand. A 19-bit vector was calculated that uniquely identified each of the atoms in the 3D coordinates of a given protein pocket and ligand complex. A 4-dimensional (4D) tensor each of size m × m × m × 19, that is, the 3 coordinates (x, y, and z) and the features, where m represents the number of atoms present in a complex, was constructed as the feature vector representing the given protein pocket-ligand. The 4D vector contains the protein-pocket features and was converted to a 3D grid using grid featurization (section “Feature Extraction”). The 3D-featurized grid is essentially a 4D tensor, where the coordinates are approximated to the points on the grid. The data set is converted to vectors and is divided into training:validation: test sets in the ratio of 80:10:10.

Architecture

Convolutional neural networks have been used to capture spatial features in an image. ²¹ We use CNNs to capture the interaction between ligand and protein atoms in 3D space. A network was constructed (Figure 2) with a 3D CNN of varying channel sizes of [64, 128, 256] with nonlinear activation ReLU after each layer, each 3D CNN had a filter of 5 Å cube which was used to perform convolution operations. MaxPool ²² layer acts in 3 dimensions to lower the dimension with a pool size of 2 Å cube, and batch normalization ²³ layer is added after each CNN layer, which in turn decreases the training time and helps in faster convergence.

The latent features learned from the above CNN layers were then flattened and used for calculating the binding affinity of the protein pocket-ligand pair. The CNN derives the relation among the 3D coordinates and their features, which would correspond well to the binding affinities of complexes.

The features from the last CNN layer are then flattened out and passed through a fully connected neural network having the number of neurons as [5000, 2000, 500, 200] with ReLU as nonlinearity after each layer. ²⁴ Dropout ²⁴ is added after each layer to prevent overfitting by forcing the neural network to learn various other pathways by randomly assigning neurons to 0, 0.50 as the dropout threshold. A dense network predicts a regressive value of binding affinity, corresponding to a single neuron output. The training framework is shown in Figure 2 and a detailed layer network (Appendix_FigureA1) and network parameters have been provided in Supplementary Material (SM_Appendix).

Training

The featurized protein-pocket grid formed was rotated to all 24 combinations possible, such that the network is able to learn in an orientation invariant form. The network was trained by taking the mean square error between the predicted and actual values as a loss function. The network was optimized using Adam ²⁵ as the optimizer with a learning rate of 1e−5 and weight decay of 0.001 for 20 epochs. The network was trained on an Nvidia Pascal GPU using Pytorch ²⁶ as the framework.

Composite model

Preprocessing

Features were calculated at the amino acid level (Methods and Materials – Feature Extraction) and were concatenated alongside the atomic-level features (section 4.1.1) to each atom of amino acid. It results in a 44-bit vector uniquely identifying each of the atoms in the 3D coordinates of a given protein. A 4-dimensional (4D) tensor each of sizes m × m × m × 44, that is, the 3 coordinates (x, y, z) and the features, where m represents the number of atoms present in a complex, is constructed as the feature vector of the protein pocket. Here, the grid size of the binding pocket was 10*10*10*44, that is, 44 000 bits.

The 4D vector contains the protein-pocket features: it was converted to a 3D grid using grid featurization (section “Feature Extraction”). The 3D-featurized grid is essentially a 4D tensor, where the coordinates are approximated to the points on the grid. The ligands were separately featurized by calculating the ligand properties (section “Data set Refinement”), which results in a 1D tensor. The data set is converted to vectors and is divided into training:validation: test sets in ratio 80:10:10.

Architecture

A multi-input network was constructed with a 3D CNN of varying channel sizes of [64, 128, 256] with nonlinear activation ReLU after each layer, each 3D CNN had a filter of 5 Å cube which was used to perform convolution operations. We also added a MaxPool layer that acts three-dimensionally to lower dimensionality while retraining features learned after each CNN layer. A filter size of 2 Å cube was used. A batch normalization layer was added after each CNN module for faster convergence.

The ligand features were passed through the dense layers of sizes [7000, 5000, 2000] with ReLU as nonlinearity after each layer, and we also perform dropout operations after each dense layer to prevent it from overfitting. ²³ This results in a latent vector representing the relevant features for each ligand.

The latent output from the CNN layers is flattened and concatenated with the latent feature vector of ligand, to create one single-feature vector of protein pocket-ligand interactions. This vector is passed through a densely connected neural network having the number of neurons as [7000, 2000, 500, 200] with ReLU as nonlinearity after each layer, and we used dropout after each layer also to prevent overfitting forcing the neural network to learn various other pathways by randomly assigning weights of neurons to zero, with 0.50 as dropout threshold. This dense network finally predicts a regressive value of binding affinity, corresponding to a single-neuron output.

The training framework is shown in Figure 3, a detailed layer network (Appendix_FigureA1), network parameters, and hyperparameters for the Composite Model are shown in the Appendix file under the Supplementary Material section (SM_Appendix).

Training

The featurized protein-pocket grid formed was rotated to all 24 combinations possible, such that the network is able to learn in an orientation invariant form.

The featurized protein pocket-ligand pair of the training set was passed through corresponding the network and trained by taking mean square error between the predicted and actual values as a loss function. The network was optimized using Adam as the optimizer with a learning rate of 1e−5 and a weight decay of 0.001. The network was trained on an Nvidia Pascal GPU using Pytorch as the framework.

Calculation of binding affinity

The predicted value of our regression-based approach is the negative natural logarithmic value of Kd or Ki. This is then converted to its antilog to obtain Kd or Ki value in nanoMolar quantity.

Performance

The accuracy is measured in terms of scores mean absolute error (MAE), root mean squared error (RMSE), and standard deviation (SD).

Time complexity

For the purpose of training and testing models, one NVIDIA Tesla P100 GPU cluster was used. Computational time taken for featurization of data set, training, and testing were 52 hr, 22 hr, and 8 min, respectively.

Additional case studies of specific protein families

Recently deposited complexes of COVID-19 main protease with various inhibitors deposited in the PDB were used for the purpose of our study (Table 4). The crystal structure complexes (PDB IDs: 5R7Y, 5R7Z, 5R82, 5R84) of the COVID-19 main protease with inhibitors ((Z45617795: N-[(5-methylisoxazol-3-yl)carbonyl]alanyl-L-valyl-N~1~-((1R,2Z)-4-(benzyloxy)-4-oxo-1-{[(3R)-2-oxopyrrolidin-3-yl]methyl)but-2-enyl)-L-leucinamide); Z1220452176: (~{N)-[2-(5-fluoranyl-1~{H)-indol-3-yl)ethyl]ethanamide); Z219104216: 6-(ethylamino)pyridine-3-carbonitrile; Z31792168: 2-cyclohexyl-~{N)-pyridin-3-yl-ethanamide)), respectively, has been recently deposited in PDB (2020; unpublished).

Another study has deposited the complex of the COVID-19 main protease with a broad-spectrum inhibitor X77 (N-(4-tert-butylphenyl)-N-[(1R)-2-(cyclohexylamino)-2-oxo-1-(pyridin-3-yl) ethyl]-1H-imidazole-4-carboxamide) (2020; unpublished).

To compare affinity of deoxycholate with homologous proteins of the periplasmic C-type cytochrome (Table 5), Ppc homologs PpcA (PDB: 1OS6), PpcB (PDB: 3BXU), PpcC (PDB: 3H33), PpcD (PDB: 3H4N), and PpcE (PDB: 3H34) and ligand deoxycholic acid (Pubchem CID: 222528) were gathered. DEELIG was used to predict the binding affinity of each homolog with the ligand.

Results

We have created a refined data set that represents a diverse set of ligands by having strict filtering criteria. We created a composite model and pipeline for featurization that takes into account the protein-level properties along with atomic-level properties for proteins. The deep–learning-based model predicts the binding affinity by considering protein and ligand in separate networks.

We have trained 2 models to predict the binding affinity between protein and ligand in a given complex. The first model was trained using a small set of features for protein and ligand, which were represented together in a 3D grid space. This approach has also been part of a previous study. ²⁷ However, the previous study uses a restricted ligand set that does not involve larger ligands. Here, we have used a diverse set of ligands as one of our inputs (SM_File1). While we have used ~68% of the PDBbind core set in our training data set, this subset of the PDBbind core set incorporated constitutes only ~2.9% of our entire training data set.

The performance of the models was quantified using MAE and RMSE. It was tested on validation and testing sets which were initially divided from our data set as mentioned in the training section. Lower error corresponds to better learning capacity of the model. Standard deviation among the real and predicted values was also calculated.

The MAE, RMSE, and SD values are shown in Table 1. Training of atomic model for 35 epochs achieved MAE score of 2.84 (Table 1). In addition, the composite model achieved mean squared error (MSE) score of less than 2 by 20 epochs itself (SM_Appendix).

Table 1.

Predictions accuracy on test set of our novel data set.

Method	MAE	RMSE	SD	PCC
Atomic model	2.84	3.93	2.62	0.758
Composite model	2.27	3.07	2.06	0.794

Abbreviations: MAE, mean absolute error; RMSE, root mean squared error; SD, standard deviation; PCC, percent correct classification.

For the purpose of training and testing models, one NVIDIA Tesla P100 GPU cluster was used. Computational time taken to featurize our data set, training, and testing were 52 hours, 22 hours, and 8 min, respectively. This timeline involves generating features used for atomic- and protein-level properties, training the models, and testing on CASF sets.

We constructed another model that enabled us to improve on the ligand- and protein-based information. To this purpose, we used an increased feature vector size which amounted to 14 716 bits in size for ligand and 44 bits for each atom of protein.

In the case of the atomic model, training for 35 epochs yielded an MAE score of 2.84, whereas training for 20 epochs in case of the composite model yielded MAE score of 2.27 (Table 1), the training and validation curve for the process is attached in Supplementary Material (SM_Appendix). The composite model was chosen further based on input richness and relative performance. The novel framework (composite model) was further tested on the PDBbind core set and with a percent correct classification (PCC) score of 0.89, it outperformed Autodock Vina ²⁸ (core set v13; Table 2) and other methods^29-32 tested on PDBbind (core sets v2013 and 2016) (Table 2).

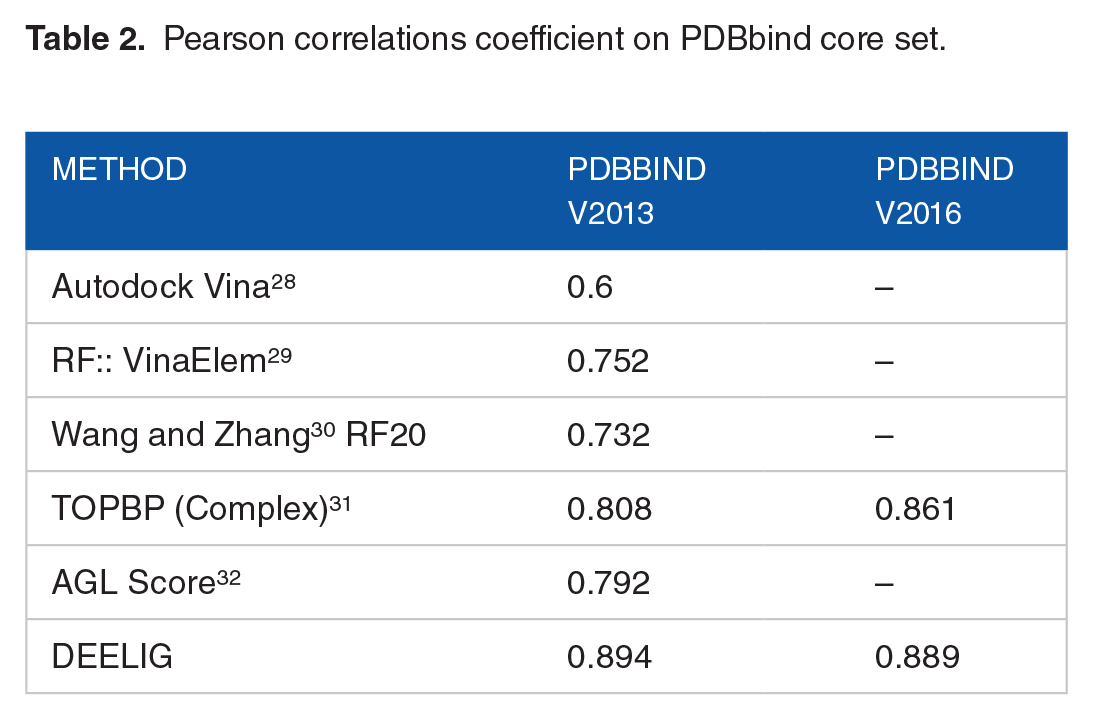

Table 2.

Pearson correlations coefficient on PDBbind core set.

Method	PDBbind v2013	PDBbind v2016
Autodock Vina 28	0.6	–
RF:: VinaElem 29	0.752	–
Wang and Zhang 30 RF20	0.732	–
TOPBP (Complex) 31	0.808	0.861
AGL Score 32	0.792	–
DEELIG	0.894	0.889

The performance of the composite model was further evaluated using ligand-bound complexes from the kinase superfamily from PDB (SM_Appendix). The composite model outperformed the atomic model significantly and with a lower standard deviation (Table 3).

Table 3.

Predictions accuracy on kinases.

Method	MAE	RMSE	SD	PCC
Atomic model	2.48	3.24	3.11	0.73
Composite model	2.24	2.71	2.67	0.77

Abbreviations: MAE, mean absolute error; RMSE, root mean squared error; SD, standard deviation.

In light of the ongoing coronavirus pandemic, we tested protein-ligand complexes from the coronavirus (CoV) family. The COVID-19 main protease is a key enzyme for the novel strain of coronavirus, that is, being implicated in the pandemic. A recent study involved testing of in-vitro binding efficacy of coronavirus COVID-19 virus main protease (M^pro) with a potent irreversible synthetic inhibitor, N3. ⁸ However, the highly potent inhibition by N3 rendered the experimental determination of binding affinity not achievable. Using the structure of M^pro at high resolution (7BQY: 1.7 Angstrom), we have been able to predict the binding affinity of N3 to 3.1e+4 nanoMolar (Table 4). This value agrees with the observed high affinity in the course of recent experiments. ⁸

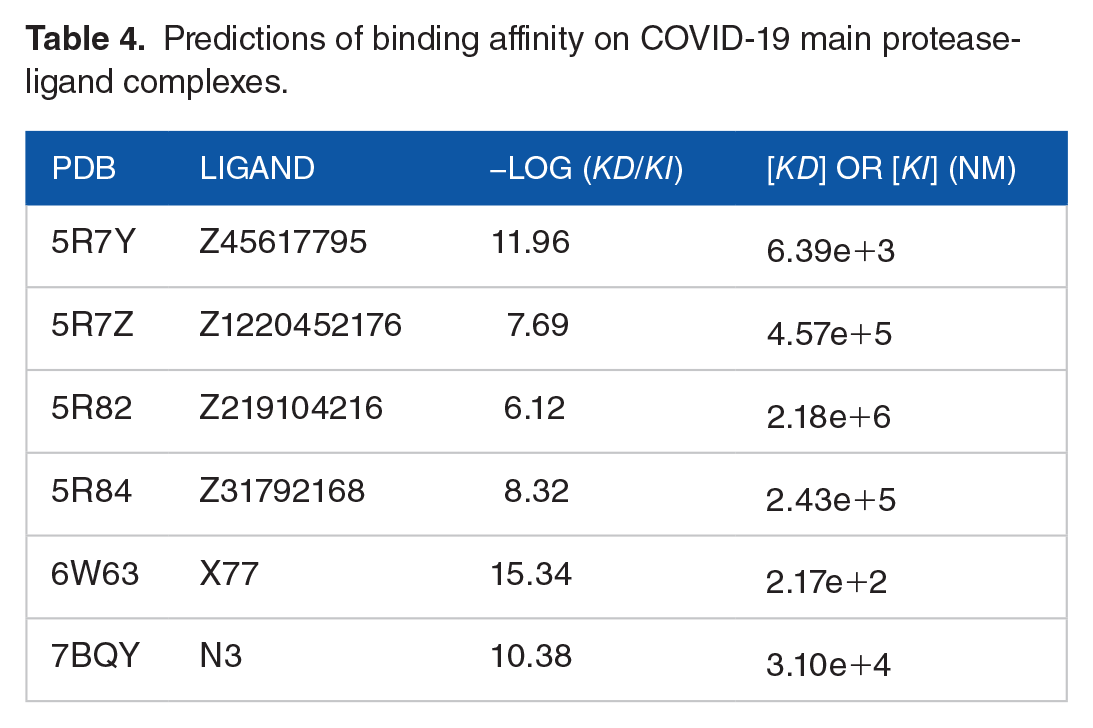

Table 4.

Predictions of binding affinity on COVID-19 main protease-ligand complexes.

PDB	Ligand	−Log (Kd/Ki)	[Kd] or [Ki] (nM)
5R7Y	Z45617795	11.96	6.39e+3
5R7Z	Z1220452176	7.69	4.57e+5
5R82	Z219104216	6.12	2.18e+6
5R84	Z31792168	8.32	2.43e+5
6W63	X77	15.34	2.17e+2
7BQY	N3	10.38	3.10e+4

We used complexes of COVID-19 main protease with various inhibitors (Materials and Methods; Table 4) to predict their respective binding affinities as their experimental values have not been made available. Based on our model-based predictions, broad-spectrum inhibitor X77 scores for highest affinity followed by ligands Z45617795, N3, Z31792168, Z1220452176, and Z219104216 in the order of decreasing binding affinity (Table 4) strengthening the suitability of X77 as a potential candidate against COVID-19 virus protease.

A triheme cytochrome from the sulfur-, metal-, and radionuclide-reducing bacteria, Geobacter sulfurreducens, named PpcA crystallizes only in the presence of anionic deoxycholate ³³ facilitated by its excessively positively charged binding cavity not observed in its paralogs. ³⁴ However, its triheme paralogous counterparts PpcB, PpcC, PpcD, and PpcE do not require deoxycholate to crystallize.^34,35 Our results also predict that ligand deoxycholate binds with high affinity to periplasmic C-type cytochrome A (PpcA) but not to its homologs PpcB, PpcC, PpcD, and PpcE (Table 5).

Table 5.

Predictions of binding affinity on homologs of periplasmic C-type cytochrome (Ppc) family.

Homolog	PDB ID	PredictionKd or Ki (uM)
PpcA	1OS6	4.512
PpcB	3BXU	416.042
PpcC	3H33	835.232
PpcD	3H4N	483.678
PpcE	3H34	187.157

Discussion

Deep-learning-based approaches have been implemented for the prediction of binding affinity. Previously, a study used atomic-level features of complexes in a CNN-based framework for binding affinity prediction, ³⁶ while another study used protein sequence level features in a CNN-based framework for prediction. ³⁷ Another approach used has been to use feature learning along with gradient boosting algorithms to predict binding affinity. ³⁸ Here, we provide a composite model that incorporates tripartite structural, sequence, and atomic-level features with those of the atomic and other chemical features of the ligand to predict the binding affinity of a putative complex.

We propose a deep-learning-based approach to predict ligand (eg, drug)—target-binding affinity using only structures of target protein (PDB format) and ligand (SDF format) as inputs. Convolutional neural networks were used to learn representations from the features extracted from these inputs and the hidden layers in the affinity prediction task. We used 2 approaches for feature extraction (Table 1; SM_Appendix)—atomic level as well as the composite level and compared their performance using the same network. We have trained on complexes from PDB across all taxa filtered as per a few starting criteria including crystal quality. Our results are validated and reflected in the performance scores. The baseline to the results of our approach is the study by Stepniewska-Dziubinska et al, ²⁷ 2018 the performance of which our study has exceeded (Results).

Our algorithm relies on certain inputs including sensitive binding cavity detection by the Ghecom algorithm (Kawabata, 2010) that uses mathematical morphology to find both deep and shallow pockets (if any) in a given protein. The coordinates of the predicted binding cavity of the protein (grid) are rotated to various combinations and are placed around the centroid of the ligand and the resultant 4D tensor is processed further for features along with the CNN (Materials and Method). Hence, ligand-bound poses are not used as input. Our data set has ~5k + complexes (SM_File2 and SM_File3) and also includes complexes that were not part of PDBbind (which is usually used to benchmark and is derived from PDB). The ligand set we have used also represents a diverse set (SM_Fi1e1) and is one of the highlights of our approach. The predictions from DEELIG can in fact help existing databases like RSCB PDB, PDBMoad, and PDBbind in filling missing binding affinity data for complexes.

We have constructed a novel data set that represents a diverse set of ligands and using a novel deep-learning-based approach, we have achieved significant improvement in the prediction of the binding affinity of protein-ligand complexes. To counter filtering and noise reduction in our data set, our data set constructed is smaller than PDBbind,^39-40 but we have overcome constraints on ligand selection part of a previous study. ²⁷ Although our data set contains 5464 complexes compared with 16 151 complexes found in PDBbind, the ligands used as part of our training include 452 unique ligands absent in PDBbind. This helps in achieving ligand diversity (SM_File3) while training the CNN model. The similarity matrix constructed from the binary fingerprints of ligands used in the data set supports our claim of improved ligand diversity in our data set.

As our data set has been derived directly from PDB, our data set also contains complexes that were not part of PDBbind, which updates itself from PDB itself. With increasingly refined methods of biophysical techniques being used to determine complex structures with attention to resolution, we have aimed to minimize noise due to technical constraints in training by filtering our data using few criteria.

We have highlighted a few examples such as complexes of kinases and viral drug targets only to reinforce the broader applicability of our approach (Tables 3 and 4). Our predictions are in line with crystallography-based experimental observations^33-35 that deoxycholate is required to crystallize PpcA cytochrome but not to obtain crystals of homologs PpcB—E cytochrome (Table 5).

We have also eliminated the need to provide ligands in a complex form with protein. Thus a given protein pocket may be tested for the degree of binding for any given ligand. This can be extended to predicting potential binding partners for proteins in other superfamilies as well. It is also important to consider that docking score and pose may not reliably correlate with MM/GBSA poses. ¹ DEELIG can be used to predict binding affinity for a member of any protein superfamily and a nonpeptide ligand, the docking pose of which may or may not be known. Binding affinity predictions through DEELIG can be extended to protein-ligand complexes of protein superfamilies where the affinity is quantitatively unknown due to experimental limitations or where the potential for binding is yet to be explored in vitro.

A webserver to implement DEELIG for easy online access would be useful for the general scientific community and this is in the pipeline. A later version of DEELIG which is trained on peptide ligand data set will also be worked on.
