Abstract

Background:

Midfoot arthritis can cause substantial pain and disability. Intraarticular corticosteroid injections under fluoroscopic guidance into multiple midfoot joints are a common nonoperative treatment. Although recent radiologic studies have suggested interconnections among midfoot joints, comprehensive anatomic investigations remain limited. This cadaveric study aimed to (1) evaluate the accuracy of ultrasound-guided injection into the naviculocuneiform (NC) joint and (2) assess the dye distribution pattern to elucidate potential interconnections among midfoot joints.

Methods:

Fourteen fresh frozen cadaveric feet (mean age, 57.2 ± 10.3 years; all male) were examined. Using a 12-MHz portable ultrasound system, 1 mL of 0.5% methylene blue was injected into the medial NC joint via an out-of-plane approach with the anterior tibial tendon and navicular tuberosity as landmarks. After 5 minutes, specimens were dissected to confirm intraarticular dye delivery and assess extension to adjacent joints. Two board-certified orthopaedic surgeons performed all procedures.

Results:

Successful intraarticular injection into the NC joint was achieved in 13 of 14 specimens (92.9%). Two specimens with osteoarthritic changes and 1 with failed injection were excluded from distribution analysis. Among the remaining 11 specimens, dye spread from the NC joint to the medial intercuneiform (IC) and second to third tarsometatarsal (TMT) joints in 8 specimens (72.7%), with further extension to the fourth TMT joint in 5 (45.4%). In 3 specimens (27.3%), spread was limited by the medial IC joint.

Conclusion:

This cadaveric study shows high accuracy of ultrasound-guided injection into the NC joint and frequent communication with adjacent midfoot joints. These findings suggest that diagnostic injections under image guidance into a specific joint to localize pain generators within the midfoot may have limited diagnostic specificity.

Clinical Relevance:

Ultrasound-guided injection into the naviculocuneiform joint demonstrates high accuracy. Diagnostic image-guided injections into a specific joint to localize pain generators within the midfoot may have limited diagnostic specificity.

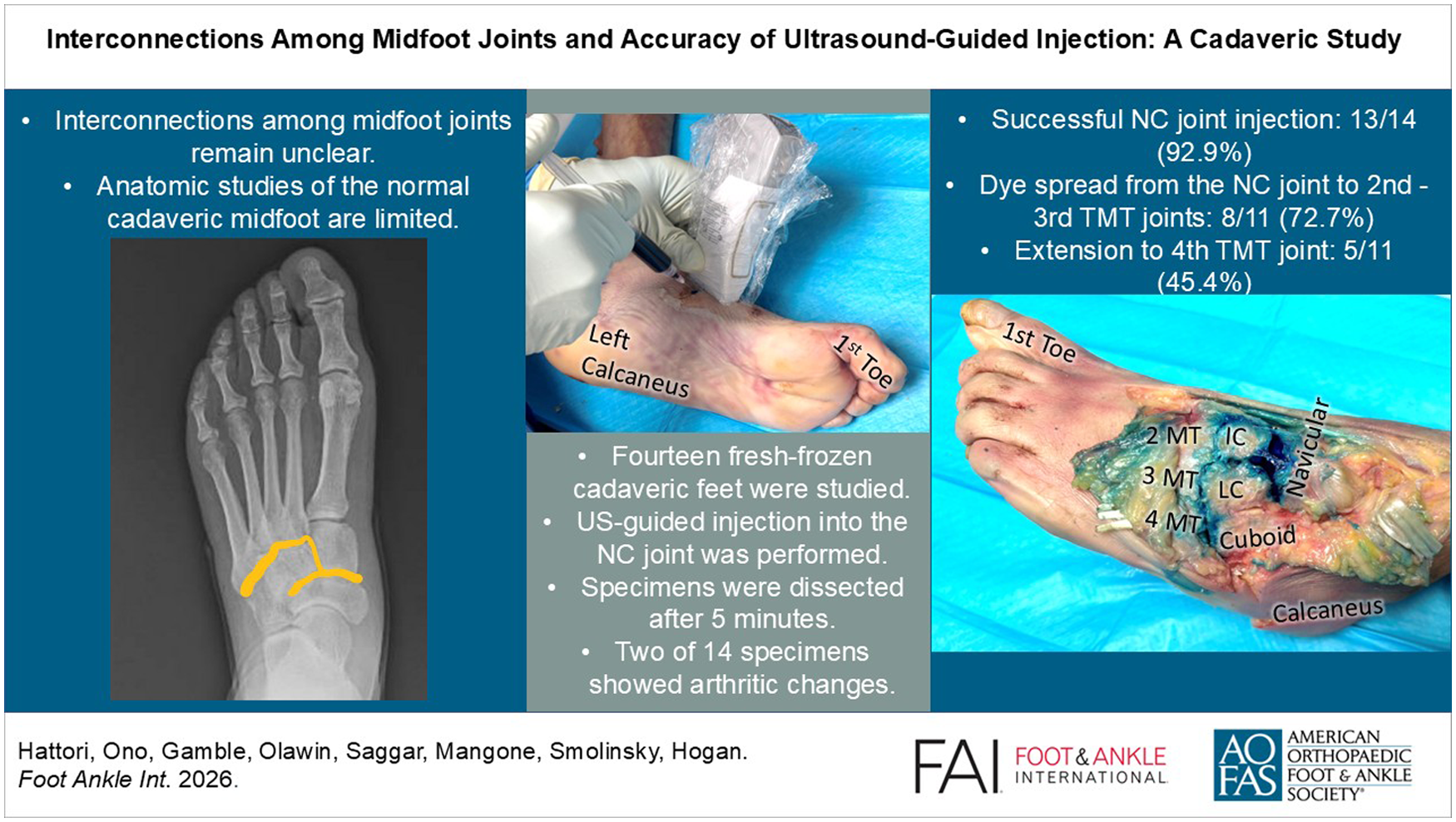

Visual Abstract

This is a visual representation of the abstract.

Keywords

midfoot arthritis anatomy of midfoot interconnection of midfoot joints ultrasound-guided injection

Get full access to this article

View all access options for this article.

References

Sayeed

Khan

Turner

Kitaoka

. Midfoot arthritis. Am J Orthop (Belle Mead NJ). 2008;37(5):251-256.

Thomas

Peat

Rathod

, et al. The epidemiology of symptomatic midfoot osteoarthritis in community-dwelling older adults: cross-sectional findings from the Clinical Assessment Study of the Foot. Arthritis Res Ther. 2015;1(17):178. doi:10.1186/s13075-015-0693-3

Menz

Munteanu

Landorf

Zammit

Cicuttini

. Radiographic evaluation of foot osteoarthritis: sensitivity of radiographic variables and relationship to symptoms. Osteoarthritis Cartilage. 2009;17(3):298-303. doi:10.1016/j.joca.2008.07.011

Khoury

el-Khoury

Saltzman

Brandser

. Intraarticular foot and ankle injections to identify source of pain before arthrodesis. AJR Am J Roentgenol. 1996;167(3):669-673. doi:10.2214/ajr.167.3.8751675

de Palma

Santucci

Sabetta

Rapali

. Anatomy of the Lisfranc joint complex. Foot Ankle Int. 1997;18(6):356-364. doi:10.1177/107110079701800609

Kelikian

. Sarrafian’s Anatomy of the Foot and Ankle. 3rd ed. Lippincott Williams & Wilkins; 2011.

Endo

Nwawka

Smith

Burket

. Tarsometatarsal joint communication during fluoroscopy-guided therapeutic joint injections and relationship with patient age and degree of osteoarthritis. Skeletal Radiol. 2018;47(2):271-277. doi:10.1007/s00256-017-2806-3

Hansford

Mills

Stilwill

McGow

Hanrahan

. Naviculocuneiform and second and third tarsometatarsal articulations: underappreciated normal anatomy and how it may affect fluoroscopy-guided injections. AJR Am J Roentgenol. 2019;212(4):874-882. doi:10.2214/AJR.18.20347

Carmont

Tomlinson

Blundell

Davies

Moore

. Variability of joint communications in the foot and ankle demonstrated by contrast-enhanced diagnostic injections. Foot Ankle Int. 2009;30(5):439-442. doi:10.3113/FAI-2009-0439

10.

Drakonaki

Kho

Sharp

Ostlere

. Efficacy of ultrasound-guided steroid injections for pain management of midfoot joint degenerative disease. Skeletal Radiol. 2011;40(8):1001-1006. doi:10.1007/s00256-010-1094-y

11.

Finnoff

Hall

Adams

, et al. American Medical Society for Sports Medicine (AMSSM) position statement: interventional musculoskeletal ultrasound in sports medicine. PM R. 2015;7(2):151-168.e12. doi:10.1016/j.pmrj.2015.01.003

12.

Ghandour

Taseh

Sussman

, et al. Case Report: Portable handheld ultrasound facilitates intra-articular injections in articular foot pathologies. Front Pain Res (Lausanne). 2024;5:1254216. doi:10.3389/fpain.2024.1254216

13.

Khosla

Thiele

Baumhauer

. Ultrasound guidance for intra-articular injections of the foot and ankle. Foot Ankle Int. 2009;30(9):886-890. doi:10.3113/FAI.2009.0886

14.

Muhammad

Karan

Ahmad

. Foot and Ankle Joint Intra Articular Injection Accuracy; without image guidance. Ann Orthop Trauma Rehabil. 2017;1(2):116.
