Complication and Revision Rate in Complex Intraarticular Calcaneal Fractures: Extended Lateral vs Sinus Tarsi Approach

Abstract

Background:

Adequate surgical treatment of intra-articular calcaneal fractures is challenging. Current clinical evidence on the superiority of either the extended lateral approach (ELA) or the sinus tarsi approach (STA) and their impact on radiologic and functional outcome remains inconclusive, and studies are characterized by low case numbers and short follow-up periods. We hypothesized that using STA would lead to fewer complications and revisions, without impairing fracture reduction or short- to midterm outcome.

Methods:

This retrospective cohort study included 241 patients with intra-articular calcaneal fractures receiving surgical therapy by ELA or STA from 2014 to 2020. A propensity score matching was performed to adjust for covariates distribution after which 140 complete data sets were available for analysis. The primary endpoint was the time to surgical revision. Secondary endpoints were time to complication, complication, as well as revision rate, operating room time, length of stay, and the radiologic and functional outcome (12-Item Short Form Health Survey [SF-12], Visual Analogue Scale for Foot and Ankle [VAS-FA]).

Results:

The hazard ratio for surgical revision was 1.74 (95% CI 0.82-3.68) and for complications 1.66 (95% CI 0.82-3.33), both indicating no difference. Radiologic outcome, assessed by remaining step (P = .437) and gap (P = .911) and the reduction grading (P = .564), as well as the functional outcome assessed by the SF-12 (P = .827) and the VAS-FA (P = .930) was comparable in both groups.

Conclusion:

Compared with conventional ELA, the less invasive surgical technique via STA has similar short- to midterm complications and is associated with comparable anatomical reductions and functional outcomes. The propensity matching of the fracture severity gives us confidence to consider STA a suitable surgical approach in moderate and severe Sanders 3 and 4 type fractures.

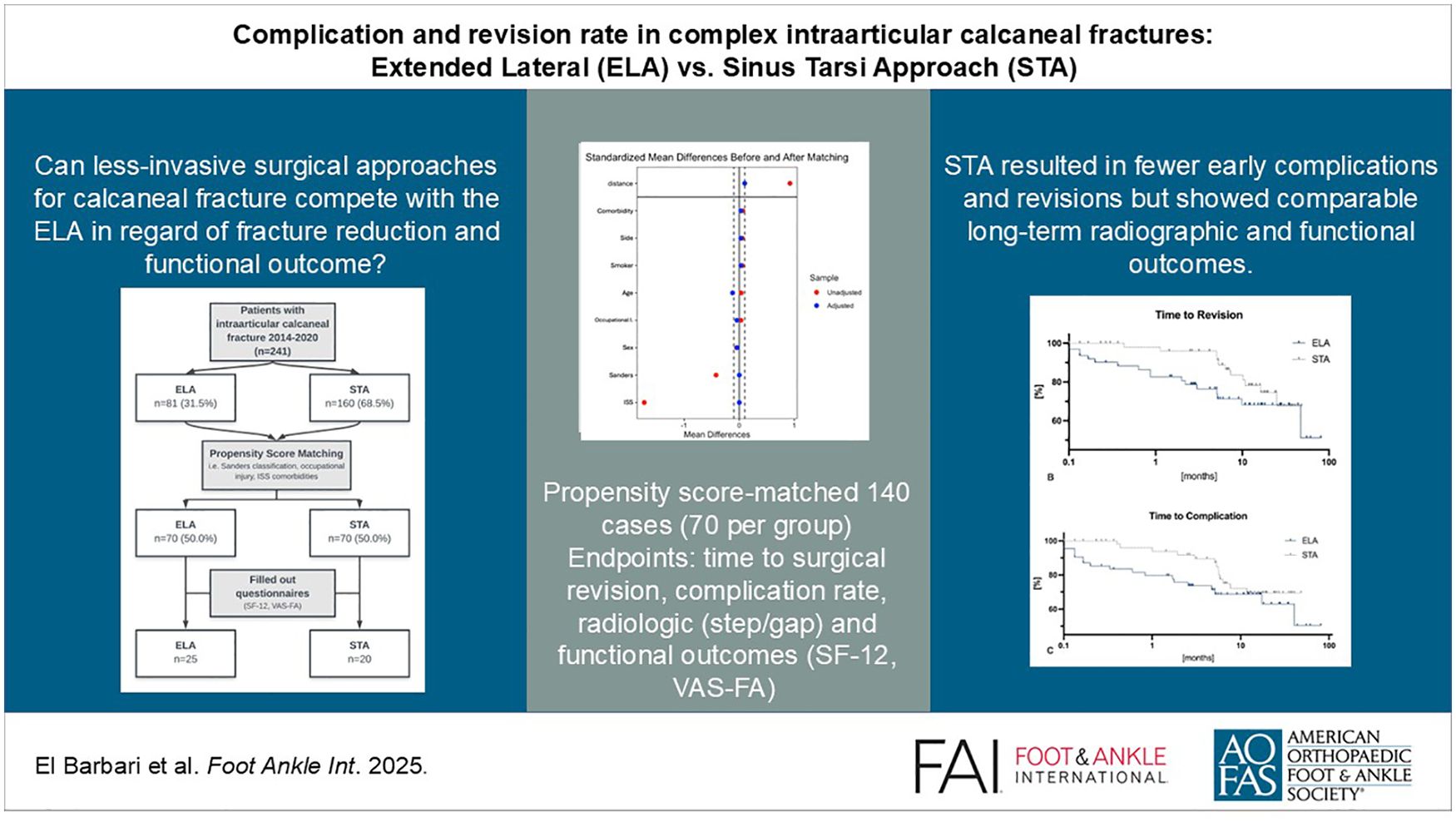

Graphical Abstract

This is a visual representation of the abstract.

Keywords

Intra-articular calcaneal fracture surgical approach complication rate revision rate sinus tarsi approach extended lateral approach

Get full access to this article

View all access options for this article.

References

Backes

Schepers

Beerekamp

Luitse

Goslings

Schep

NW.

Wound infections following open reduction and internal fixation of calcaneal fractures with an extended lateral approach. Int Orthop. 2014;38(4):767-773. doi:10.1007/s00264-013-2181-1

Bai

Hou

Lin

Zhang

Liu

Sinus tarsi approach (STA) versus extensile lateral approach (ELA) for treatment of closed displaced intra-articular calcaneal fractures (DIACF): a meta-analysis. Orthop Traumatol Surg Res. 2018;104(2):239-244. doi:10.1016/j.otsr.2017.12.015

Brauer

Manns

Donaldson

Buckley

An economic evaluation of operative compared with nonoperative management of displaced intra-articular calcaneal fractures. J Bone Joint Surg Am. 2005;87(12):2741-2749. doi:10.2106/JBJS.E.00166

Buckley

Tough

McCormack

, et al. Operative compared with nonoperative treatment of displaced intra-articular calcaneal fractures: a prospective, randomized, controlled multicenter trial. J Bone Joint Surg Am. 2002;84(10):1733-1744. doi:10.2106/00004623-200210000-00001

Burns

AE.

Fractures of the calcaneus. Clin Podiatry. 1985;2(2):311-324.

Busel

Mir

Merimee

, et al. Quality of reduction of displaced intra-articular calcaneal fractures using a sinus tarsi versus extensile lateral approach. J Orthop Trauma. 2021;35(6):285-288. doi:10.1097/BOT.0000000000001971

Daftary

Haims

Baumgaertner

MR.

Fractures of the calcaneus: a review with emphasis on CT. Radiographics. 2005;25(5):1215-1226. doi:10.1148/rg.255045713

Erdmann

Richardson

Templeton

Os calcis fractures: a randomized trial comparing conservative treatment with impulse compression of the foot. Injury. 1992;23(5):305-307.

Isaacs

Baba

Huang

, et al. The diagnostic accuracy of Bohler’s angle in fractures of the calcaneus. J Emerg Med. 2013;45(6):879-884. doi:10.1016/j.jemermed.2013.04.055

10.

Kurozumi

Jinno

Sato

, et al. Open Reduction for Intra-articular Calcaneal Fractures: Evaluation Using Computed Tomography. Foot & Ankle International. 2003;24(12):942-948. doi:10.1177/107110070302401214

11.

Zhou

, et al. Sinus tarsi approach versus the extended lateral approach for displaced intra-articular calcaneal fractures: a systematic review and meta-analysis. Arch Orthop Trauma Surg. 2021;141(10):1659-1667. doi:10.1007/s00402-020-03554-9

12.

Huang

Liu

, et al. Efficacy of sinus tarsal approach compared with conventional L-shaped lateral approach in the treatment of calcaneal fractures: a meta-analysis. Front Surg. 2020;7:602053. doi:10.3389/fsurg.2020.602053

13.

Mehta

VVG

Phan

Sivakumar

Kanawati

Suthersan

Extensile lateral versus sinus tarsi approach for displaced, intra-articular calcaneal fractures: a meta-analysis. J Orthop Surg Res. 2018;13(1):243. doi:10.1186/s13018-018-0943-6

14.

Molloy

Lipscombe

SJ.

Hindfoot arthrodesis for management of bone loss following calcaneus fractures and nonunions. Foot Ankle Clin. 2011;16(1):165-179. doi:10.1016/j.fcl.2010.12.008.

15.

Nosewicz

Knupp

Barg

, et al. Mini-open sinus tarsi approach with percutaneous screw fixation of displaced calcaneal fractures: a prospective computed tomography-based study. Foot Ankle Int. 2012;33(11):925-933. doi:10.3113/FAI.2012.0925

16.

Nosewicz

Dingemans

Backes

Luitse

JSK

Goslings

Schepers

A systematic review and meta-analysis of the sinus tarsi and extended lateral approach in the operative treatment of displaced intra-articular calcaneal fractures. Foot Ankle Surg. 2019;25(5):580-588. doi:10.1016/j.fas.2018.08.006

17.

Peng

Yuan

Guo

Tian

Extensile lateral versus sinus tarsi approach for calcaneal fractures: a meta-analysis. Medicine (Baltimore). 2021;100(31):e26717. doi:10.1097/MD.0000000000026717

18.

Rammelt

Amlang

Sands

Swords

New techniques in the operative treatment of calcaneal fractures. Unfallchirurg. 2016;119(3):225-236; quiz 236-8. doi:10.1007/s00113-016-0150-z

19.

Richter

Krähenbuhl

Ruiz

Susdorf

Horn Lang

Hintermann

Mid- to long-term outcome in patients treated with a mini-open sinus-tarsi approach for calcaneal fractures. Arch Orthop Trauma Surg. 2021;141(4):611-617. doi:10.1007/s00402-020-03530-3

20.

Roukis

Wünschel

Lutz

Kirschner

Zgonis

Treatment of displaced intra-articular calcaneal fractures with triangular tube-to-bar external fixation: long-term clinical follow-up and radiographic analysis. Clin Podiatr Med Surg. 2008;25(2):285-299, vii-viii. doi:10.1016/j.cpm.2007.12.002

21.

Sampath Kumar

Marimuthu

Subramani

Sharma

Bera

Kotwal

. Prospective randomized trial comparing open reduction and internal fixation with minimally invasive reduction and percutaneous fixation in managing displaced intra-articular calcaneal fractures. Int Orthop. 2014;38(12):2505-2512. doi:10.1007/s00264-014-2501-0

22.

Sanders

Displaced intra-articular fractures of the calcaneus. J Bone Joint Surg Am. 2000;82(2):225-250. doi:10.2106/00004623-200002000-00009

23.

Sanders

Letter regarding: extended sinus tarsi approach for treatment of displaced intraarticular calcaneal fractures compared to extended lateral approach. Foot Ankle Int. 2019;40(6):737-738. doi:10.1177/1071100719844835

24.

Seat

Lateral extensile approach versus minimal incision approach for open reduction and internal fixation of displaced intra-articular calcaneal fractures: a meta-analysis. J Foot Ankle Surg. 2020;59(2):356-366. doi:10.1053/j.jfas.2019.08.007

25.

Takasaka

Bittar

Mennucci

de Mattos

Zabeu

JL.

Comparative study on three surgical techniques for intra-articular calcaneal fractures: open reduction with internal fixation using a plate, external fixation and minimally invasive surgery. Rev Bras Ortop. 2016;51(3):254-260. doi:10.1016/j.rboe.2016.04.002

26.

Veltman

Doornberg

Stufkens

Luitse

van den Bekerom

MP.

Long-term outcomes of 1,730 calcaneal fractures: systematic review of the literature. J Foot Ankle Surg. 2013;52(4):486-490. doi:10.1053/j.jfas.2013.04.002

27.

Zeng

Yuan

Zheng

Sun

Huang

Minimally invasive versus extensile lateral approach for sanders type II and III calcaneal fractures: a meta-analysis of randomized controlled trials. Int J Surg. 2018;50:146-153. doi:10.1016/j.ijsu.2017.12.034

28.

Zhang

Tian

, et al. Meta-analysis of two surgical approaches for calcaneal fractures: sinus tarsi versus extensile lateral approach. ANZ J Surg. 2017;87(3):126-131. doi:10.1111/ans.13869

29.

Zhou

Ren

, et al. Clinical comparison of extensile lateral approach and sinus tarsi approach combined with medial distraction technique for intra-articular calcaneal fractures. Orthop Surg. 2017;9(1):77-85. doi:10.1111/os.12310

30.

Zwipp

Rammelt

Barthel

Fracture of the calcaneus. Unfallchirurg. 2005;108(9):737-747; quiz 748. doi:10.1007/s00113-005-1000-6
