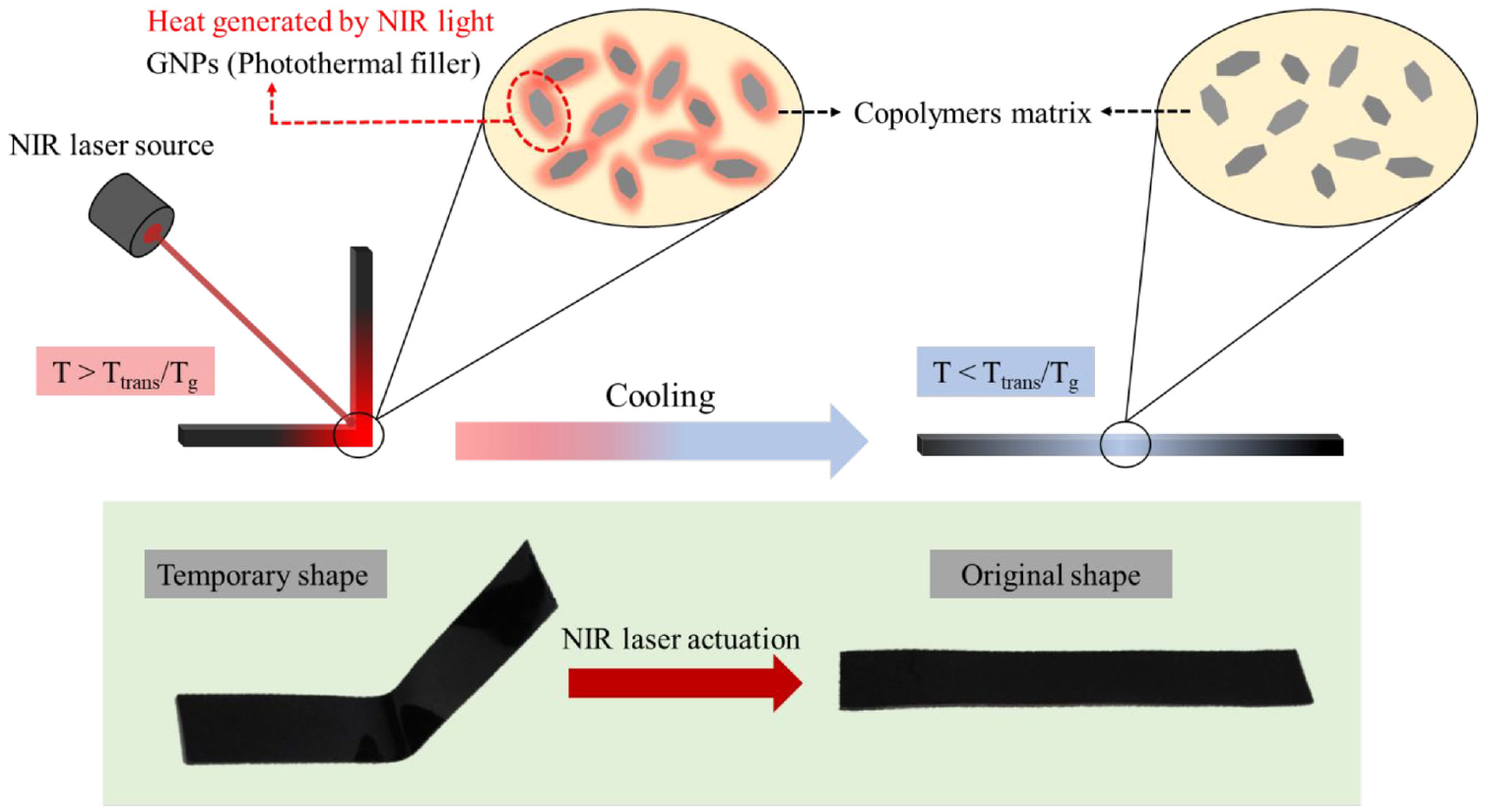

Novel near-infrared (NIR) light-induced bio-based shape memory polymers (SMPs) were prepared from copolymers of vanillin/furfurylamine-based benzoxazine monomer (V-fa monomer) and epoxidized castor oil (ECO). Incorporation of graphene nanoplatelets (GNPs) as photothermal fillers into the copolymers provided shape memory properties under near-infrared (NIR) light actuation. The effects of GNP content on photothermal, thermal, dynamic mechanical, morphology, and shape memory properties of the bio-based benzoxazine/epoxy copolymers (V-fa/ECO copolymers) were investigated. The results showed that the addition of GNPs significantly improved the photothermal, thermal, and dynamic mechanical properties of the copolymers. The uniform dispersion of 3 wt% GNPs in the V-fa/ECO copolymers resulted in the highest shape memory performance with shape fixity of 92% and shape recovery of 99% upon NIR light actuation. The recovery time decreased with the increment of GNP content, and the V-fa/ECO copolymers filled with GNPs displayed good execution in the repeated fold-deploy, in which the shape fixity and shape recovery values were close to the original specimen. Therefore, the outstanding properties of V-fa/ECO copolymers filled with GNPs had a potential to be excellent SMPs under NIR actuation.
BaiYZhangJWenD, et al. (2020) A reconfigurable, self-healing and near infrared light responsive thermoset shape memory polymer. Composites Science and Technology187: 107940.
2.
DaoTDHaNSGooNS, et al. (2018) Design, fabrication, and bending test of shape memory polymer composite hinges for space deployable structures. Journal of Intelligent Material Systems and Structures29(8): 1560–1574.
3.
DoganYESatilmisBUyarT (2019) Synthesis and characterization of bio-based benzoxazines derived from thymol. Journal of Applied Polymer Science136(17): 47371.
4.
DuWJinYLaiS, et al. (2020) Multifunctional light-responsive graphene-based polyurethane composites with shape memory, self-healing, and flame retardancy properties. Composites Part A128: 105686.
5.
EgbeDRollCBircknerE, et al. (2002) Side chain effects in hybrid PPV/PPE polymers. Macromolecules35: 3825–3837.
6.
FangLFangTLiuX, et al. (2017) Precise stimulation of near-infrared light responsive shape-memory polymer composites using upconversion particles with photothermal capability. Composites Science and Technology152: 190–197.
7.
GaoYYHanBZhaoWY, et al. (2019) Light-responsive actuators based on graphene. Frontiers in Chemistry7: 506.
8.
HeLWangHZhuH, et al. (2018) Thermal properties of PEG/graphene nanoplatelets (GNPs) composite phase change materials with enhanced thermal conductivity and photo-thermal performance. Applied Sciences8: 2613.
9.
HerathMEpaarachchiJIslamM, et al. (2019) Effects of selectively triggered photothermal particles on shape mamory polymer composites: An investigation on structural performance, thermomechanical characteristics and photothermal behaviour. Journal of Intelligent Material Systems and Structures30(20): 3124–3135.
10.
HombunmaPParnklangTMoraP, et al. (2020) Shape memory polymers from bio-based benzoxazine/epoxidized natural oil copolymers. Smart Materials and Structures29: 015036.
11.
IshidaHAllenDJ (1996) Mechanical characterization of copolymers based on benzoxazine and epoxy. Polymer37(20): 4487–4495.
12.
LashgariSKarrabiMGhasemiI, et al. (2016) Shape memory nanocomposite of poly(L-lactic acid)/graphene nanoplatelets triggered by infrared light and thermal heating. Express Polymer Letters10(4): 349–359.
13.
LiFLarockRC (2002) New soybean oil-styrene-divinylbenzene thermosetting copolymers. v. shape memory effect. Journal of Applied Polymer Science84(8): 1533–1543.
14.
LiMFuSBastaAH (2020) Light-induced shape-memory polyurethane composite film containing copper sulfide nanoparticles and modified cellulose nanocrystals. Carbohydrate Polymers230: 115676.
15.
LiuTLiuLYuM, et al. (2018) Integrative hinge based on shape memory polymer composites: Material, design, properties and application. Composite Structures206: 164–176.
16.
MoraPSchaferHJubsilpC, et al. (2019) Thermosetting shape memory polymers and composites based on polybenzoxazine blends, alloys and copolymers. Chemistry – An Asian Journal14(23): 4129–4139.
17.
MuTLiuLLanX, et al. (2018) Shape memory polymers for composites. Composites Science and Technology160: 169–198.
18.
PhuangngamphanMOkhawilaiMHizirogluS, et al. (2019) Development of highly conductive graphite-/graphene-filled polybenzoxazine composites for bipolar plates in fuel cells. Journal of Applied Polymer Science136(11): 47183.
19.
PillaiJJAbbasANarayananS, et al. (2018) Synthesis and experimental investigations on the photoconductivity ofp-aminoazobenzene based non-conjugated polybenzoxazine system. Polymer137: 330–337.
20.
PlengudomkitROkhawilaiMRimdusitS (2016) Highly filled graphene-benzoxazine composites as bipolar plates in fuel cell applications. Polymer Composites37(6): 1715–1727.
21.
PrasomsinWParnklangTSapcharoenkunC, et al. (2019) Multiwalled carbon nanotube reinforced bio-based benzoxazine/epoxy composites with NIR-laser stimulated shape memory effects. Nanomaterials9: 881.
22.
PunethaVDHaYMKimY-O, et al. (2019) Interaction of photothermal graphene networks with polymer chains and laser-driven photo-actuation behavior of shape memory polyurethane/epoxy/epoxy-functionalized graphene oxide nanocomposites. Polymer181: 121791.
23.
PunethaVDHaYMKimYO, et al. (2020) Rapid remote actuation in shape memory hyperbranched polyurethane composites using cross-linked photothermal reduced graphene oxide networks. Sensors and Actuators B: Chemical321: 128468.
24.
ShouQUtoKLinWC, et al. (2014) Near-infrared-irradiation-induced remote activation of surface shape-memory to direct cell orientations. Macromolecular Chemistry and Physics215(24): 2473–2481.
25.
SilvaLCOSilvaGGAjayanPM, et al. (2015) Long-term behavior of epoxy/graphene-based composites determined by dynamic mechanical analysis. Journal of Materials Science50(19): 6407–6419.
26.
SiniNKBijweJVarmaI (2014) Renewable benzoxazine monomer from vanillin: Synthesis, characterization, and studies on curing behavior. Journal of Polymer Science, Part A: Polymer Chemistry52: 7–11.
27.
TangLCWanYJYanD, et al. (2013) The effect of graphene dispersion on the mechanical properties of graphene/epoxy composites. Carbon60: 16–27.
28.
WangYTianWXieJ, et al. (2016) Thermoelectric responsive shape memory graphene/hydro-epoxy composites for actuators. Micromachines7: 145.
29.
XieFHuangLLengJ, et al. (2016) Thermoset shape memory polymers and their composites. Journal of Intelligent Material Systems and Structures27(18): 2422–2455.
30.
XieHLiLChengCY, et al. (2019) Poly(ethylene-co-vinyl acetate)/graphene shape-memory actuato with a cyclic thermal/light dual sensitive capacity. Composites Science and Technology173: 41–46.
31.
XieHShaoJMaY, et al. (2018) Biodegradable near-infrared-photoresponsive shape memory implants based on black phosphorus nanofillers. Biomaterials164: 11–21.
32.
YangSYLinWNHuangYL, et al. (2011) Synergetic effects of graphene platelets and carbon nanotubes on the mechanical and thermal properties of epoxy composites. Carbon49(3): 793–803.
33.
ZamanIManshoorBKhalidA, et al. (2014) Interface modification of clay and graphene platelets reinforced epoxy nanocomposites: a comparative study. Journal of Materials Science49(17): 5856–5865.
34.
ZhangYZhouSChongKC, et al. (2019) Near-infrared light-induced shape memory, self-healable and anti-bacterial elastomers prepared by incorporation of a diketopyrrolopyrrole-based conjugated polymer. Materials Chemistry Frontiers3(5): 836–841.
35.
ZhaoWLiuLZhangF, et al. (2019) Shape memory polymers and their composites in biomedical applications. Materials Science and Engineering: C Materials for Biological Applications97: 864–883.
36.
ZhuangWRWangYCuiPF, et al. (2019) Applications of pi-pi stacking interactions in the design of drug-delivery systems. Journal of Controlled Release294: 311–326.
