Abstract

Purpose

: Titanium volar locking plates are widely used in distal radius fractures (DFRs) fixation, but their induction of radiographic shielding hinders fracture assessment. Carbon fiber-reinforced polyether ether ketone (CFR-PEEK) plates are radiolucent and biomechanically comparable to titanium, potentially improving intraoperative visualization and postoperative follow-up. This study aims to compare clinical and radiographic outcomes between CFR-PEEK and titanium plates.

Methods

This retrospective study included 39 patients with DRFs treated with either CFR-PEEK (n = 19) or titanium plates (n = 20) between August 2018 and June 2019. Intraoperative and postoperative parameters were compared between the two groups. The Wilcoxon rank sum test and Fisher’s exact test were applied for statistical analysis.

Results

Satisfactory fracture reduction without implant-related complications was achieved in both groups. At 12 months, wrist range of motion and radiographic alignment did not significantly differ between the groups (both p > 0.05), and Disabilities of the Arm, Shoulder and Hand (DASH) scores were comparable between the groups (11.8 ± 7.0 vs 11.9 ± 4.6, p > 0.05). Notably, intraoperative CFR-PEEK plates significantly reduced the operative time compared with titanium plates (64.16 ± 15.24 min vs 78.4 ± 20.63 min, p = 0.0387). The implant removal rates did not differ between the groups.

Conclusion

CFR-PEEK volar locking plates demonstrated clinical and radiographic outcomes comparable to titanium plates, with added advantages of radiolucency and surgical efficiency, including a significantly shorter operative time. These findings identify CFR-PEEK plates as a safe and effective alternative in DRFs fixation.

Keywords

distal radius fracture carbon fiber-reinforced polyether ether ketone plate titanium plate CFR-PEEK

Introduction

In recent years, orthopedic surgeons have recognized open reduction and internal fixation with plates as a viable treatment method for distal radius fractures (DRFs), especially those with unstable and comminuted fracture patterns, because it ensures immediate stable fixation and promotes early mobilization, which is crucial for recovery.¹ The advent of volar locking plates, such as those with fixed-angle screws, has produced enhanced treatment outcomes for DRFs.¹ Using these plates, surgeons can perform anatomical reduction with relative ease and effectively maintain the reduction until bone healing occurs, thereby permitting immediate postoperative mobilization. Consequently, the use of plates in the surgical treatment of DRFs can facilitate rapid recovery and improve functional mobility.²

This study compared clinical and radiographic outcomes between CFR-PEEK and titanium plates in the treatment of DRFs. CFR-PEEK implants offer several advantages over titanium implants, including a reduced incidence of allergic reactions in patients with metal allergies, avoidance of misinterpretation of local imaging because of radiolucency, and reduced signal interference in magnetic resonance imaging (MRI).^3–5 Moreover, prior studies demonstrated that CFR-PEEK implants exhibit superior strength, toughness, and fatigue resistance compared with metal implants, and CFR-PEEK plates also display high corrosion resistance and a favorable strength-to-weight ratio.⁶

Furthermore, CFR-PEEK has comparable stiffness as bone, which is advantageous for fixation devices because it helps prevent proximal bone density loss, potentially mitigate stress shielding, and potentially decrease the risk of construct failure in osteoporotic bone.⁷ The use of CFR-PEEK plates eliminates the risk of cold welding between screws and the plate, a phenomenon that can occur with titanium plates.⁸ The distinctive design of CFR-PEEK components allows screw insertion in multiple directions relative to the screw axis, thereby conferring robust construct strength to the plate–screw assembly.⁵

There is mounting clinical evidence supporting the efficacy of carbon fiber-reinforced polyether ether ketone (CFR-PEEK) implants in orthopedic, trauma, and spinal surgery.^9–11 CFR-PEEK plates are radiolucent and biomechanically comparable to titanium, and they can potentially improve intraoperative visualization and postoperative follow-up. However, existing research has not provided conclusive evidence that CFR-PEEK plates significantly improve surgical efficiency versus conventional titanium plates.^2,12 Therefore, this retrospective study compared the clinical and radiological outcomes of patients with DRFs treated with CFR-PEEK volar locking plates or conventional titanium volar locking plates.

Given that both implants are volar locking plates with similar geometry and that all procedures were performed by the same surgeon using a standardized technique, our primary aim was to compare 12-months clinical and radiographic outcomes between CFR-PEEK and titanium plates, while a secondary aim was to explore potential intraoperative workflow advantages associated with radiolucency (e.g., operative time).

Materials and methods

Between August 2018 and June 2019, 39 patients with AO/OTA Fracture and Dislocation Classification type A–C DRFs underwent open reduction and internal fixation with CFR-PEEK plates (CarboFix Orthopedics Ltd, Herzliya, Israel) or titanium plates (DePuy Synthes, Raynham, MA, USA) by the same experienced hand surgeon. Patients were followed for at least 12 months after surgery.

Regarding the inclusion criteria, patients with DRFs with surgical indications (shortening >5 mm, radial inclination <15°, dorsal angulation >10° or volar angulation >25°, articular step-off >2 mm, disruption of the lateral radiocarpal alignment) were included. Meanwhile, the exclusion criteria were as follows: open fractures, bilateral wrist fractures, other ipsilateral upper-limb fractures, multiple fractures, concomitant major trauma, and lost to outpatient follow-up.

Surgical technique

Under general anesthesia, patients were positioned supine with the hand on the surgically treated arm extended. A tourniquet was applied to the upper arm, with pressure increased at least 120 mmHg above systolic blood pressure. A modified Henry approach with a pronator quadratus split was used.¹³ After fracture reduction, the CFR-PEEK plate or titanium volar locking plate was positioned under fluoroscopic guidance. The plate–screw construct was completed in a step-by-step manner. Final reduction and the internal fixation construct were subsequently evaluated under fluoroscopic guidance under the anteroposterior, posteroanterior, lateral, and dorsal tangential views, in addition to a lateral view with 30° of elbow flexion, to eliminate the possibility of penetration of the joint space by locking screws and/or extensor tendon injury attributable to incorrect screw length.¹⁴ The wound was irrigated with saline, closed in layers, and covered with gauze, and the wrist was immobilized with a short-arm splint.

Postoperative management

Patients were immobilized in a short-arm splint for 4 weeks. Active finger range-of-motion exercises were initiated immediately after surgery to facilitate edema control. At 4 weeks, the splint was removed and progressive wrist mobilization and formal rehabilitation were commenced. Exercise intensity was advanced according to clinical status, and therapy was continued through postoperative week 8.

Clinical evaluation

A standardized clinical functional assessment was conducted 12 months after to assess progress and outcomes. The Disabilities of the Arm, Shoulder, and Hand (DASH) score (0–100, with 0 denoting no functional impairment and 100 indicating the highest level of disability) and the ranges of wrist extension, flexion, supination, and pronation were evaluated. The operative time and implant removal rate were also assessed.

Radiographic evaluation

Standardized radiological assessments, including dorsopalmar and lateral X-rays, were conducted both before and after surgery. A follow-up evaluation was performed 12 months after surgery. Each assessment was conducted by a senior resident and the same fellow. Postoperative measurements included the scapholunate angle, radial height, radial inclination, volar tilt, and ulnar variance. The scapholunate angle was measured between the longitudinal axis of the lunate (drawn perpendicular to a line joining the dorsal and volar poles of the lunate) and a line paralleling the volar cortices of the proximal and distal convexities of the scaphoid.¹⁵ Volar tilt was assessed on the lateral radiograph as the angle formed by a line drawn perpendicular to the radial shaft axis and a line passing through the tips of the dorsal and volar rims of the distal radial articular surface (normal, 11° ± 5°).¹⁶ Radial inclination was measured on the anteroposterior projection as the angle between a line drawn from the radial styloid to the ulnar border of the distal radius and a line perpendicular to the radial shaft (normal, 22° ± 3°).¹⁷ Radial height represented the difference in length between the ulnar head and the tip of the radial styloid on the PA view (normal, 14 ± 1 mm).¹⁷ Ulnar variance represented the distance between two lines perpendicular to the central axis of the radius at 3 and 5 cm below the midpoint of the proximal lunate articular surface, including one line through the distal ulnar articular surface and the other through the medial radial articular surface. This value is negative when the ulnar articular surface is more proximal and positive when it is more distal.¹⁸

Statistical analysis

Wilcoxon’s rank sum test was used to assess continuous variables (age, body mass index, operative time, DASH score, wrist flexion, extension, pronation, supination, and radiographic parameters). Fisher’s exact test was used for categorical variables (sex and implant removal rate). Statistical significance was denoted by p < 0.05.

As this was a retrospective consecutive cohort, no a priori sample size calculation was performed. Therefore, the study should be considered exploratory, and non-significant differences must be interpreted with caution given the risk of type II error.

Results

Demographic characteristics of the participants

As presented in Table 1, the CFR-PEEK group included 19 patients (4 men and 15 women) with a mean age of 65.8 years. Fourteen patients (73.6%) presented with fractures in the non-dominant arm. According to the AO/OTA classification, the group had four type A2, one type A3, one type B1, six type C1, three type C2, and four type C3 DRFs. The titanium group comprised 20 patients (7 men and 13 women) with a mean age of 59.3 years. Similarly, 14 patients (70%) had fractures in the non-dominant arm. The fractures included one type A1, six type A2, one type A3, three type B2, one type B3, one type C1, two type C2, and five type C3 DRFs.

Table 1.

Demographic characteristics of patients with distal radius fractures treated with CFR-PEEK versus titanium volar locking plates.

	CFR-PEEK (n = 19)	Titanium (n = 20)	p value
Age (years, M ± SD)	65.2 ± 12.3	59.1 ± 16.8	0.1769^a
Gender (n)			0.4801^b
Male	4	7
Female	15	13
Fracture type (n)			0.2067^b
2R3A1	0	1
2R3A2	4	6
2R3A3	1	1
2R3B1	1	0
2R3B2	0	3
2R3B3	0	1
2R3C1	6	1
2R3C2	3	2
2R3C3	4	5
Dominant side affected (n, %)	5 (26.3%)	6 (30%)	>0.999^b
BMI (kg/m2, M±SD)	24.4 ± 4.4	22.8 ± 3.5	0.4880^a

*n: number; M±SD: mean ± standard deviation.

^aWilcoxon rank sum test.

^bFisher’s exact test.

Clinical outcomes

As summarized in Table 2, the operative time was significantly shorter in the CFR-PEEK group than in the titanium group (64.16 ± 15.24 min vs 78.4 ± 20.63 min, p = 0.0387). The mean wrist ROM at 12 months did not differ between the CFR-PEEK and titanium groups (extension, 40.78° ± 6.51° vs 43.05° ± 6.68°; flexion, 60.52° ± 7.24° vs 64.16 ± 10.60°; supination, 78.94° ± 5.91° vs 77.22° ± 6.69°; pronation, 72.10 ± 3.84° vs 68.05° ± 10.30°; all p > 0.05). The DASH score at 12 months also did not differ between the groups (11.78 ± 7.04 vs 11.94 ± 4.56, p > 0.05). The implant removal rate was similar between the groups [1/19 (5.26%) vs 1/20 (5.0%); p > 0.05].

Table 2.

Clinical outcomes.

	CFR-PEEK (n = 19)	Titanium (n = 20)	p value
Wrist ROM (°, M±SD)
Extension	40.78 ± 6.51	43.05 ± 6.68	0.3107^a
Flexion	60.52 ± 7.24	64.16 ± 10.60	0.2288^a
Supination	78.94 ± 5.91	77.22 ± 6.69	0.4109^a
Pronation	72.10 ± 3.84	68.05 ± 10.30	0.1186^a
DASH score (n, M ± SD)	11.78 ± 7.04	11.94 ± 4.56	0.9406^a
Operative time (minutes, M ± SD)	64.16 ± 15.24	78.4 ± 20.63	0.0387^a
Implant removal rate (n, %)	1 (5.26%)	1 (5%)	>0.999^b

*n: number; M±SD: mean ± standard deviation; ROM: range of motion.

^aWilcoxon rank sum test.

^bFisher’s exact test.

Radiographic outcomes

As highlighted in Table 3, radiographic measurements at 12 months did not differ between the CFR-PEEK and titanium groups (scapholunate angle, 63.1 ± 10.1° vs 65.6 ± 10.7°; radial inclination, 21.9° ± 4.7° vs 22.7 ± 4.4°; radial height, 9.23 ± 3.18 mm vs 9.35 ± 2.26 mm; volar tilt, 5.87 ± 7.76° vs 7.84 ± 5.81°; ulnar variance, 2.15 ± 3.30 mm vs 0.98 ± 1.60 mm; all p > 0.05).

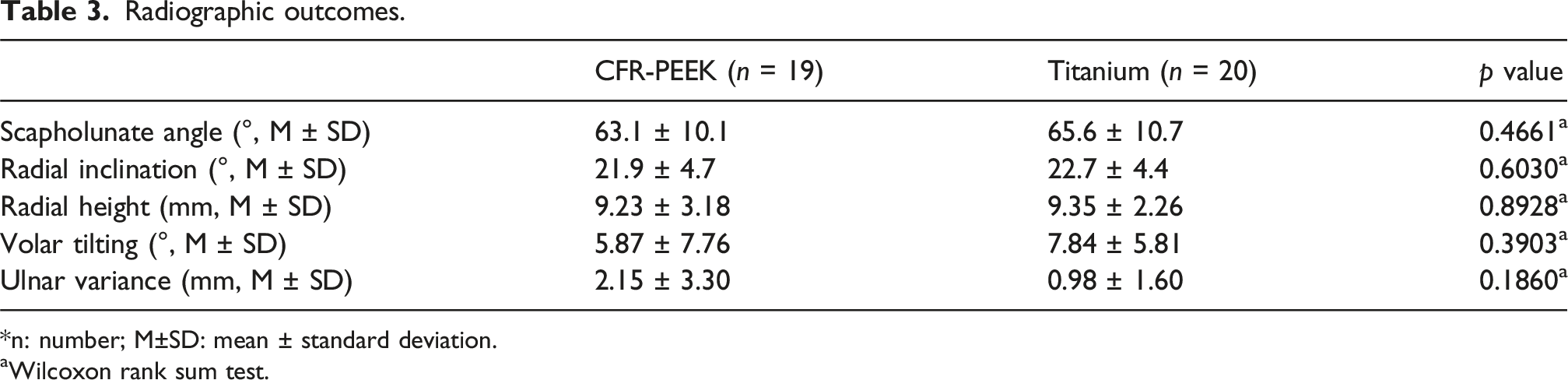

Table 3.

Radiographic outcomes.

	CFR-PEEK (n = 19)	Titanium (n = 20)	p value
Scapholunate angle (°, M ± SD)	63.1 ± 10.1	65.6 ± 10.7	0.4661^a
Radial inclination (°, M ± SD)	21.9 ± 4.7	22.7 ± 4.4	0.6030^a
Radial height (mm, M ± SD)	9.23 ± 3.18	9.35 ± 2.26	0.8928^a
Volar tilting (°, M ± SD)	5.87 ± 7.76	7.84 ± 5.81	0.3903^a
Ulnar variance (mm, M ± SD)	2.15 ± 3.30	0.98 ± 1.60	0.1860^a

*n: number; M±SD: mean ± standard deviation.

^aWilcoxon rank sum test.

Discussion

In this study, CFR-PEEK plates achieved comparable outcomes as titanium plates in terms of fracture alignment, wrist ROM, DASH scores, and implant removal rates. Compared with conventional titanium plates, CFR-PEEK plates offer distinct intraoperative advantages owing to their radiolucency, and they were associated with a significantly shorter operative time, which could confer potential benefits in older patients or patients with multiple comorbidities by minimizing the surgical duration and exposure to general anesthesia, an aspect that was not addressed in previous studies.

Comparison with previous literature

Our results align with those of previous biomechanical studies demonstrating that CFR-PEEK implants provide equivalent stability as metallic plates while reducing stress-shielding effects.^6,19 Recent clinical reports also support the safety of volar PEEK plates in DRF fixation, which achieved comparable complication rates as titanium.^12,20 However, few studies directly compared CFR-PEEK and titanium plates in clinical cohorts. Through this head-to-head comparison, the present study adds important evidence to the growing literature on CFR-PEEK implants.^1–3,5,12

Clinical implications

Titanium volar locking plates are widely used to correct DRFs, but their induction of radiographic shielding hinders fracture assessment. The radiolucency of CFR-PEEK implants represents a practical advantage over titanium plates during both intraoperative fluoroscopy and postoperative follow-up (Figure 1). Unlike titanium plates, CFR-PEEK permits unobstructed visualization of fracture lines, enabling precise reduction and implant placement without temporary Kirschner wire insertion (Figure 2). This technical benefit can translate into shorter operative times and reduced soft-tissue disruption.

Figure 1.

Radiographic comparison during reduction. Left: Titanium volar locking plate used for fracture reduction causes radiographic shielding. Right: CFR-PEEK volar locking plate used for reduction demonstrates radiolucency, permitting clear visualization of the fracture position.

Figure 2.

Surgical technique for the CFR-PEEK plate. Left: During fracture reduction, the CFR-PEEK plate is inserted to facilitate simultaneous reduction and fixation. Right: Final fluoroscopic view after reduction displaying anatomic alignment.

Strengths and limitations

The strengths of this study included the use of a uniform surgical technique by the same experienced hand surgeon and standardized assessments at 12 months. Nonetheless, several limitations must be acknowledged. Specifically, the retrospective design and modest sample size limited statistical power and generalizability, the follow-up period was relatively short, precluding evaluation of long-term complications such as post-traumatic arthritis or late implant failure, and minor imbalances in the fracture type distribution could have influenced outcomes (Figure 3).

Figure 3.

Serial radiographs in anteroposterior and lateral views. Preoperative images (a and b) demonstrate a distal radius fracture. Immediate postoperative images (c and d) show satisfactory fracture reduction and internal fixation with a radiolucent CFR-PEEK volar locking plate. At 3 months postoperatively, follow-up radiographs (e and f) indicate fracture union, which can be more readily appreciated due to the plate’s radiolucency.

The modest sample size limits statistical power to detect small between-group differences. Based on the observed variability of functional scores, the present cohort would be expected to detect only moderate differences; smaller clinically relevant differences may have been missed.

Future directions

Future work should include large-scale post-market surveillance and registry-based real-world evidence to better characterize uncommon mechanical failure modes, complication patterns, reoperation rates, and potential health-economic impact of CFR-PEEK implants. Multicenter prospective studies may complement these data; however, real-world datasets are particularly valuable for evaluating device performance beyond small comparative cohorts.

Conclusion

CFR-PEEK volar locking plates achieved comparable, and in some aspects superior, clinical and radiographic outcomes as conventional titanium plates in the fixation of unstable DRFs, particularly in terms of the operative time. The radiolucency, biocompatibility, and potential of CFR-PEEK plates to improve postoperative functional recovery underscore their translational significance as an advanced implant technology. These findings suggest that CFR-PEEK plates represent both a safe alternative and a paradigm shift in the surgical management of DRFs. Prospective multicenter trials are warranted to further validate their role in shaping future clinical practice.

Footnotes

ORCID iD

Tse-Pu Huang

Consent to participate

Patient consent was waived due to the observational design of this study, with approval granted by the Institutional Review Board.

Author contributions

All authors conceptualized the article. Research design: Kun-Yi Lin. Acquisition, analysis or interpretation of the data: Tse-Pu Huang, Hui-Sen Tseng; Zhi-Hong, Zheng. Drafting the manuscript: Tse-Pu Huang. Revising the manuscript: Zhi-Hong, Zheng; Kun-Yi Lin; Pei-Hung, Shen. All authors have read and approved the final submitted manuscript.

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Data Availability Statement

The data underlying this study are contained in the article. Requests for further details may be directed to the corresponding author.*

Institutional review board statement

This retrospective study received approval from the Institutional Review Board of Tri-Service General Hospital (Approval Number: A202105142). All procedures adhered to applicable guidelines and regulations. This study has been performed in accordance with the ethical standards in the 1964 Declaration of Helsinki.

References

Paracuollo

Coscione

Coppola

, et al. Clinical and radiographic outcomes of distal radius fracture treatment with carbon-fiber-reinforced-polymer volar plates (CFR-PEEK): analysis of 40 cases. Lo Scalpello 2022; 36(3): 185–190. https://doi.org/10.36149/0390-5276-224

Chloros

Prodromidis

Wilson

, et al. Fracture fixation in extremity trauma with carbon fiber-reinforced PEEK plates: a systematic review. Eur J Trauma Emerg Surg 2022; 48(3): 2387–2406. https://doi.org/10.1007/s00068-021-01778-x

Rijs

Weekhout

Daniel

, et al. Carbon-fibre plates for traumatic and (impending) pathological fractures: a scoping review. J Orthop Traumatol 2023; 24(1): 42. https://doi.org/10.1186/s10195-023-00699-5

Shiers-Gelalis

Giannoudis

Rodham

, et al. Surgeons’ perspective on the use of carbon fibre plates for extremity fracture fixation. Eur J Orthop Surg Traumatol. 2024 Nov; 2535(1): 26. https://doi.org/10.1007/s00590-024-04131-1

Saracco

. Safety and reliability of CFR-PEEK plate for the treatment of distal radius fractures: a review of the literature. Orthop Rev 2021; 13(2): 9037. https://doi.org/10.4081/or.2021.9037

Steinberg

Rath

Shlaifer

, et al. Carbon fiber reinforced PEEK optima: biomechanical properties and wear/debris characteristics of CF-PEEK composites for orthopedic trauma implants. J Mech Behav Biomed Mater 2013; 17: 221–228. https://doi.org/10.1016/j.jmbbm.2012.09.013

Rhee

Shin

. The rate of successful four-corner arthrodesis with a locking, dorsal circular polyether-ether-ketone (PEEK-Optima) plate. J Hand Surg Eur Vol 2013; 38(7): 767–773. https://doi.org/10.1177/1753193412472875

Nakahara

Takao

Bandoh

, et al. In vivo implant fixation of carbon fiber-reinforced PEEK hip prostheses in an ovine model. J Orthop Res 2013; 31(4): 485–492. https://doi.org/10.1002/jor.22251

Kasliwal

O’Toole

. Clinical experience using polyetheretherketone (PEEK) intervertebral structural cage for anterior cervical corpectomy and fusion. J Clin Neurosci 2014; 21(2): 217–220. https://doi.org/10.1016/j.jocn.2013.05.016

10.

Conti Mica

Bindra

Moran

. Anatomic considerations when performing the modified Henry approach for exposure of distal radius fractures. J Orthop 2016; 14(1): 104–107. https://doi.org/10.1016/j.jor.2016.09.006

11.

Bergsma

Bulstra

Morris

, et al. A prospective cohort study on accuracy of dorsal tangential views to avoid screw penetration with volar plating of distal radius fractures. J Orthop Trauma 2020; 34(9): e291–e297. https://doi.org/10.1097/BOT.0000000000001779

12.

Perugia

Guzzini

Mazza

, et al. Comparison between carbon-PEEK volar locking plates and titanium volar locking plates in the treatment of distal radius fractures. Injury 2017; 48(Suppl 3): S24–S29. https://doi.org/10.1016/S0020-1383(17)30653-8

13.

Maizlin

Vos

. How to measure scapholunate and Cobb’s angles on MRI and CT. J Digit Imag 2012; 25(4): 558–561. https://doi.org/10.1007/s10278-011-9447-0

14.

Perugia

Guzzini

Civitenga

, et al.

Is it really necessary to restore radial anatomic parameters after distal radius fractures?

Injury 2014; 45(Suppl 6): S21–S26. https://doi.org/10.1016/j.injury.2014.10.018

15.

O’Malley

Rodner

Ritting

, et al. Radiographic interpretation of distal radius fractures: visual estimations versus digital measuring techniques. Hand 2014; 9(4): 488–493. https://doi.org/10.1007/s11552-014-9666-2

16.

Thuysbaert

Ringburg

Petronilia

, et al.

Measurement of ulnar variance and radial inclination on X-rays of healed distal radius fractures: with the axis of the distal radius or ulna?

Acta Orthop Belg 2015; 81(2): 308–314.

17.

Wei

Yang

Luo

, et al. Complications following dorsal versus volar plate fixation of distal radius fracture: a meta-analysis. J Int Med Res 2013; 41(2): 265–275. https://doi.org/10.1177/0300060513476438

18.

Mulders

MAM

Selles

Colaris

, et al. Operative treatment of intra-articular distal radius fractures with versus without arthroscopy: study protocol for a randomised controlled trial. Trials 2018; 19(1): 84. https://doi.org/10.1186/s13063-017-2409-2

19.

Kurtz

Devine

. PEEK biomaterials in trauma, orthopedic, and spinal implants. Biomaterials 2007; 28(32): 4845–4869. https://doi.org/10.1016/j.biomaterials.2007.07.013

20.

Tarallo

Giorgini

Novi

, et al. Volar PEEK plate for distal radius fracture: analysis of adverse events. Eur J Orthop Surg Traumatol 2020; 30(7): 1293–1298. https://doi.org/10.1007/s00590-020-02701-7
