Abstract

This present work investigated the adhesive effect of the material properties and fracture toughness of a thermosetting epoxy polymer modified with micron-sized glass beads. Various surface treatments were used to modify the surfaces of the glass beads in order to consider the effect of the glass bead particle/epoxy adhesion on the material properties and toughness of the polymer-based composites. Adding glass beads into polymer resulted in an increase in the modulus. The maximum value of the modulus was obtained for the polymer composite modified with well-bonded glass beads. The addition of the glass beads to polymers leads to a significant improvement in the fracture toughness. The particle/matrix adhesion strongly affects the toughness of the glass bead-modified polymers. The coupling agent silane treatment and release agent Frekote treatment caused well-bonded particles and poorly-bonded particles with the epoxy matrix. Both of the surface treatments result in a significant increase in the toughening performance. Toughening mechanisms of plastic void growth and crack deflection caused by the addition of the glass beads were found on the fracture surfaces of the tested specimens.

Keywords

Adhesive effect toughness glass bead surface treatment

1. Introduction

Epoxy polymers have now been extensively used as adhesives and as the matrix for the fibre-reinforced polymer (FRP) composites due to various advantages they possess, such as good thermal stability and high Young's modulus. As adhesives, epoxy polymers possess many advantages, e.g. a high resistance to chemical attack, improved stress distribution across bonded joints, relatively high modulus and flexibility in component design¹. Furthermore, adhesives are applied inside the joint, they provide an invisible well-sealed bond with the assembly, and can easily join irregularly shaped surfaces. Also, adhesives can bond dissimilar and heat sensitive materials. All of these are advantages over the conventional methods of joining used in industry, such as welding and bolting. As a polymer matrix for the FRP composites, epoxy resins have a low viscosity which is good for resin infusion. However, epoxy polymers are inherently brittle with a poor resistance to crack propagation due to their highly cross-linked nature when they are cured. Therefore, modification to improve the toughness of the epoxy polymers is required^2–4.

Several studies have reported that the inclusion of toughening particles can efficiently enhance the toughness of the epoxy polymers. The addition of a rubber phase to polymer-based materials leads to an increase in the toughness but at the cost of a decrease in the stiffness of the polymer because rubber is soft⁵. For this reason, rigid particles are increasingly used to toughen epoxy polymers instead of rubber particles because the combination of rigid particles with polymers leads to an increase in the toughness without any compromise of the material properties^6,7. In addition, the viscosity of the rigid particle-modified mixtures can be relatively low, compared to rubber/epoxy mixtures. Suitable surface treatments are needed which can increase the adhesion between the particles and polymer matrix, and result in a positive influence on the toughening potential and the dispersibility of tougheners^7–9. Surfactants are extensively utilized to prevent the agglomeration of fillers and reduce the increase in viscosity caused by adding rigid particles. Although the rigid particles used in this technology are of various types, glass and silica particles are the most widely used. The studies focused on the glass bead-modified polymer bulk composite and fiber-reinforced laminated showed that addition of glass beads led to a significant increase the stiffness and strength due to added glass beads are rigid and can efficiently transfer the load from the matrix to the fibrous reinforcements. The fracture behaviour was also improved by blending rigid glass beads with polymer composite. The glass beads are spherical with micro-sixed in diameter, which is good to act as an obstacle to crack propagation^6–10. In this study, various surface treatments were introduced to these polymer-based composites to give different levels of of the interfacial adhesion between glass beads and epoxy matrix. The effect of the interfacial adhesion on the mechanical properties and toughness was investigated. Toughening mechanisms which can contribute to the improvement on the toughness of glass beads/epoxy composites were found via the fractographic study.

2. Experimental

2.1 Materials

As a polymer matrix, LY-556, a diglycidyl ether of bisphenol-A (DGEBA) epoxy resin produced by Huntsman (Basel, Switzerland) was used in this study. This has an epoxide equivalent weight (EEW) of 185 g/eq. A low viscosity accelerated methylhexahydroph-thalic acid anhydride curing agent with an anhydride equivalent weight (AEW) of 170 g/eq, Albidur HE 600, from Nanoresins (Geesthacht, Germany) was used as a hardener. The mixing ratio of LY-556 (DGEBA epoxy) and HE 600 (curing agent) is 1:0.914 by weight.

The glass beads, produced by MO-SCI (Rolla, USA), used to form the glass bead microparticle/epoxy composites. The glass bead microparticles have a size of −400 mesh. Mesh scale is often used to determine the particle size, and the number of the mesh is identified as the size of openings of the sieve. A microscope was used to measure the diameter of the glass beads, and then compared with the mesh scale. Figure 1 shows the image of the glass beads, and the diameter was measured in a range between 1 μm to 5 μm. This was in a good agreement with it's mesh scale diameter of 3.5 μm.

Figure 1

Optical microscopy images of the glass bead microparticles, showing glass beads with a mean

2.2 Preparation of Glass Bead/Epoxy Polymer Composites

Various surface treatments were used to change the level of the adhesion between the glass beads and the matrix. In order to improve the particle/epoxy adhesion, a liquid silane, A187 from Witco (Silquest A187 silane, γ-glycidoxypropyltrimethoxy-silane) was used to prepare a silane solution. The silane solution consists of 1 wt% of A187 blended with a 90:10 mixture by weight of ethanol:deionised water. The pH value of the mixture was controlled at around five by the addition of acetic acid. This silane solution was then stirred for 60 minutes before use. In contrast to the silane treatment (to improve the adhesion), the adhesion between the glass beads microparticles and the epoxy mixture was reduced using a release agent, Frekote 770-NC from Henkel. A sample containing untreated glass beads was made as the control formulation.

In the modified treatment systems, the glass beads were mixed with 10 wt% (10wt% of the total weight of final mixture, i.e. modifier/epoxy/hardener/treatment) of the silane solution to improve the adhesion or the release agent (Frekote) to reduce the adhesion. The glass beads were left in the solution (silane solution and Frekote) for 30 minutes at room temperature, and then heated using an oven at 150°C for around 2 hours to dry. Hence the silane solution and Frekote release agent were fully coated on the surfaces of these glass beads microparticles. To remove the agglomerates, the treated particles were sieved using the sieve with opening size of 50 μ. Table 1 shows the surface treatments used in the glass bead/epoxy composites, and their effects on the interfacial adhesion.

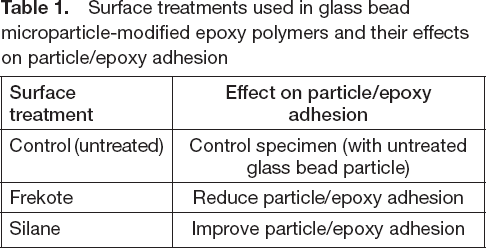

Table 1
Surface treatments used in glass bead microparticle-modified epoxy polymers and their effects on particle/epoxy adhesion

Surface treatment Effect on particle/epoxy adhesion

Control (untreated) Control specimen (with untreated glass bead particle)

Frekote Reduce particle/epoxy adhesion

Silane Improve particle/epoxy adhesion

Surface treatment	Effect on particle/epoxy adhesion
Control (untreated)	Control specimen (with untreated glass bead particle)
Frekote	Reduce particle/epoxy adhesion
Silane	Improve particle/epoxy adhesion

After surface treatment, the treated particles were mixed with the epoxy resin (LY-556) and hardener (HE 600) using a mechanical stirrer (500 rpm) for 30 minutes at room temperature, and then degassed at 60°C for 30 minutes in a vacuum oven. The glass bead-modified mixture was then poured into the casting mould. Due to their size and mass, the glass beads have a tendency to sediment. Therefore, after casting, the mould was turned over every 5 minutes during the cure cycle, until vitrification was reached. All the formulations of the glass bead microparticle-modified polymers with various surface treatments were summarised in Table 2 . A schematic of aerogelmodified CFRP laminates sample preparation is shown in Figure 2 .

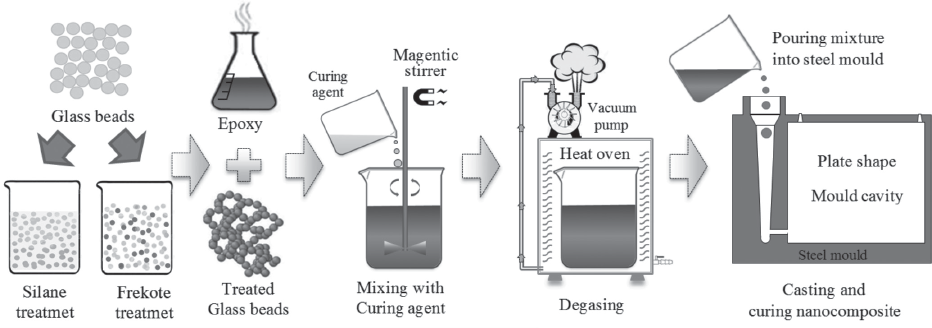

Figure 2

Schematic of the glass bead/epoxy sample preparation

Table 2

Formulations of glass bead microparticle-modified epoxy polymers with various surface treatments

Formulation	Treatment	Particle wt%
Control (unmodified)	NA	NA
10-Control	NA	10
10-Silane	Silane	10
10-Frekote	Frekote	10
20-Control	NA	20
20-Silane	Silane	20
20-Frekote	Frekote	20

(NA: not applicable)

2.3 Mechanical and Fracture Tests

The Young's modulus, E, of the cured glass bead/epoxy composites was measured using an universal testing machine. According to the ASTM D 638¹¹ and BS ISO 527-1¹² testing standards, the tensile testing specimens were prepared by machining from a 2-mm-thick plate for all formulations. The specimens were cut from the polymer plates using a disc saw cutting machine with a diamond-coated carbide wheel. The cutting machine was set at 1500 rpm and the cutting fluid was required to reduce the heat during cutting. The tensile testing specimens have a gauge length of 20 mm. During the tensile testing, the specimen was tested in uniaxial loading with a displacement rate of 1 mm/min at room temperature of around 25°C, and the load versus displacement data was recorded via a load cell and an extensometer. The extensometer used knife edges, and was attached on the gauge length region of the testing specimens to measure accurate strains.

In order to characterise the fracture toughness, single edge notch bend tests (SENB) have been widely used and implemented in accordance with ASTM D 5045¹³ and BS 7448-4¹⁴. The specimen preparation and testing procedure of the SENB are as follows. With a rectangular cross section and made from various formulations, each SENB testing specimen was prepared from a 6-mm-thick plate using a cutting machine with a diamond-coated carbide wheel. The cutting machine was set at 1500 rpm and the cutting fluid was required to prevent the damage caused by the heat during cutting. A sharp notch was made using a milling machine, and the machine was set at a relatively low rpm of 300 rpm to prevent the occurrence of crack during milling the notch. Then the specimens were tapped at the notch root using liquid-nitrogen cooled razor blades to obtain sharp cracks; the crack length should be between 0.45–0.55 of the width of the specimen¹³. After the preparation of the SENB specimens, the width and thickness of the specimens were measured; the crack length was measured after testing. All of these measurements should be accurate within 0.5%, and were taken at not less than three positions. During testing, the specimens were subjected to compressive load at the centre of the specimen in line with the notch, and supported on the two supporting rollers with a span of L_S, and with a diameter of 12 mm. An extensometer was used to measure the change of the interval between the loading-point and the support rollers during the testing. The cracked specimen used in the SENB test was assumed to have elastic behaviour, so certain restrictions on the linearity of the load-displacement trace were imposed. For this reason, the condition for the measurement of the fracture toughness of epoxy-based materials is 1 mm/min for the displacement rate. For each formulation, at least six replicate specimens were tested and the average was used to obtain the fracture toughness, K_Ic.

To identify the toughness mechanisms that might contribute to the increased the mechanical properties and toughness of the polymer modified with glass beads, high-resolution FEG-SEM of the fracture surfaces of the tested specimens was performed. All specimens were coated with a layer of chromium, approximately 5 nm in thickness, before imaging.

3. Results and Discussion

3.1 Mechanical Properties

Tensile tests were carried out on these microparticle-modified epoxy polymers to measure the Young's modulus. Table 3 and Figure 3 show the tensile testing results. All the modified epoxy polymers with the addition of the glass bead particles showed an increase in modulus, compared with the unmodified epoxy polymer (Young's modulus = 2.90 GPa). The modulus increased with increasing glass bead loading. However, when the concentration of the glass beads was increased from 10 wt% to 20 wt%, the modulus increased less greatly, as can be clearly seen in Figure 3 . This indicates that the optimum concentration of these microparticles used to improve the modulus of the anhydride-cured DGEBA epoxy polymer falls at around 10 wt%.

Figure 3

Young's modulus of the glass bead microparticle-modified epoxy polymers

Table 3

The mechanical and thermal properties of the glass bead microparticle-modified epoxy polymers

Formulation	Treatment	Glass bead (wt%)	E (GPa)
Formulation	Treatment	Glass bead (wt%)	Mean	SD
Control	NA	0	2.90	0.09
10-Control	NA	10	3.18	0.08
10-Silane	Silane	10	3.75	0.12
10-Frekote	Frekote	10	3.06	0.05
20-Control	NA	20	3.20	0.07
20-Silane	Silane	20	3.81	0.10
20-Frekote	Frekote	20	3.07	0.05

(NA: not applicable)

The effect of the surface treatments on the modulus, two different surface treatments were used to modify the surfaces of these glass beads, consequently different levels of interfacial adhesion between the beads and epoxy matrix were obtained. For the untreated glass bead microparticles, the Young's modulus was measured to be 3.18 GPa for 10 wt% of glass bead particles. The addition of the silane treatment, which is commonly used to improve the adhesion, led to a significant increase in the Young's modulus. For example, the samples of “10-Silane” and “20-Silane” reveal a relatively high modulus of 3.75 GPa and 3.81 GPa, respectively. This is around a 0.6 GPa increment in the measured Young's modulus, compared with the modified polymer with the untreated glass bead microparticles at corresponding loadings. However, the glass beads with the surface modification using the release agent (Frekote) provided a low ability to improve the stiffness. For example, the Young's modulus of the composites modified with the Frekote treated glass bead particles was measured to be 3.06 GPa for 10 wt% (10-Frekote), and 3.07 GPa for 20 wt% (20-Frekote). This is because of that the silane-treated samples revealed an excellent interfacial property and can efficiently transfer load from the continuous phase of matrix to the glass bead reinforcements, consequently a relatively higher value of the Young's modulus was measured. The effect caused by the surface treatments on the modulus can be clearly seen in Figure 3 .

4. Fracture Toughness and Fracture Energy

Table 4 shows the single-edge notched bend testing results of the microparticle-modified polymers with various surface treatments. The toughness of the epoxy polymer was increased using the glass beads, and the peak value was obtained when the loading was increased to 20 wt%. Figure 4 shows the measured values of the fracture toughness, K_Ic, for the modified polymers containing the glass beads with various surface treatments (silane treatment and Frekote treatment). The inclusion of the glass beads increased the fracture toughness of their composites, and the toughness increased with increasing the content of the glass beads. Further increases in the fracture toughness, K_Ic, was obtained when the glass beads were modified using surface treatments (i.e. silane and release agent treatment). As can be seen in Figure 4 , the systems of “Silane” and “Frekote” shift the fracture toughness to higher values, compared with “Control” system. For example, the addition of 20 wt% of untreated glass beads gave a 32% increment in the fracture toughness, in comparison with the unmodified polymer. With the surface treatments of silane and Frekote, the improvement in the fracture toughness was increased further by a 38% increment for both systems, compared with the unmodified polymer. Xu et al¹⁵ used a silane coupling agent to modify the glass particles, and reported that the glass/epoxy composites with good adhesion have a higher value of fracture toughness. This is in good agreement with the experimental results in this study. However, it was expected that the use of the release agent “Frekote” to coat a thin layer on the glass bead surface should reduce the interfacial adhesion of glass bead/epoxy, consequently a lower toughening effect was expected¹⁶. From the experimental results in this study, both silane and Frekote treatments provided the same effect on the fracture toughness, and similar results were measured for both systems.

Figure 4

Fracture toughness of the glass bead microparticle-modified epoxy polymers

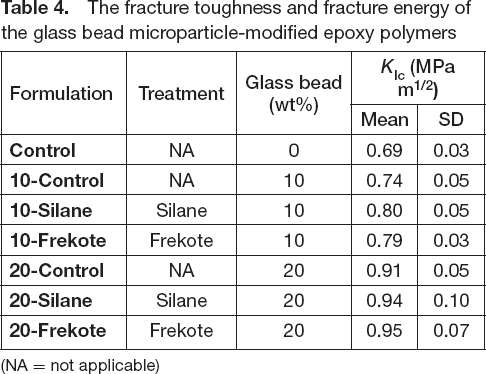

Table 4

The fracture toughness and fracture energy of the glass bead microparticle-modified epoxy polymers

Formulation	Treatment	Glass bead (wt%)	K_Ic (MPa m^1/2)
Formulation	Treatment	Glass bead (wt%)	Mean	SD
Control	NA	0	0.69	0.03
10-Control	NA	10	0.74	0.05
10-Silane	Silane	10	0.80	0.05
10-Frekote	Frekote	10	0.79	0.03
20-Control	NA	20	0.91	0.05
20-Silane	Silane	20	0.94	0.10
20-Frekote	Frekote	20	0.95	0.07

(NA = not applicable)

4.1 Fractographic Studies

The toughening mechanisms responsible for the increased toughness in the glass bead-modified epoxy polymers, and the dispersion of the glass beads, were investigated using field emission gun scanning electron microscopy (FEG-SEM) of the fracture surfaces after the SENB tests. Figure 5 shows the fractography of the polymer-based composites reinforced with the glass beads. River lines were readily found on the fracture surfaces, indicating that these modified polymers are brittle materials¹⁷. Besides, there are several tails which start behind the glass beads. The occurrence of the tail behind each particle was caused by creating different planes (secondary cracks) on the fracture surfaces, consequently more energy was required and the toughness was improved slightly¹⁸. Figure 6 shows schematically the tail structure present on the fracture surface. As can be seen in the lateral view of the fracture surface, the tail structure is formed by creating a new fracture surface (secondary crack), consequently more energy to fracture was required. Also, the crack path is deflected, see Figure 6(a) , and the direction of the secondary crack may be different from the crack growth, see Figure 6(b) . Both of these imply the occurrence of crack deflection^18,19. Although some studies reported that the occurrence of the tail structure implies the crack pinning mechanism, no other pinning feature, i.e. crack bowing between particles^18,20, was found on the fracture surface using the FEG-SEM at high magnificationr.

Figure 5

FEG-SEM images of the fracture surfaces, (a,b) 10-Control, (c,d) 20-Control, (e,f) 10-Silane and (g,h) 10-Frekote

Figure 6

The schematic tail structure on the fracture surface of particle-modified composites

In Figure 5 , the dispersion of the glass beads was also evaluated. The sample of “10-Silane” shows good dispersion. In contrast, the polymers with the untreated and Frekote treated glass beads have several agglomerates, especially for the untreated glass beads. These agglomerates consist of around 5–15 glass beads, and the size of the glass bead agglomerates became larger as the concentration of the glass beads was increased. As can be seen in Figure 6(c,d) , the sample of “20-Control” shows serious agglomeration.

In addition to river line patterns on the fracture surfaces, the toughneing mechanisms and the effect of the glass beads with various surface treatments on the fracture surfaces were identified using the FEG-SEM observation at high magnification. Figure 7 shows the FEG-SEM images of the fracture surfaces of the sample containing 10 wt% untreated glass beads (10-Control). The well-known mechanism in the glass microparticle-modified composites of crack deflection^18,19 was found on the fracture surface. As the tip of advancing cracks came across the glass beads, the direction of the crack was changed, see Figure 7(a) . In this case, the path of the crack propagation was through the equator of the glass bead microparticles, due to these being untreated particles with low interfacial bonding between the particles and epoxy matrix. Poor adhesion of glass bead/epoxy can be clearly seen in Figure 7(c) , the surfaces of the glass beads are clean and relatively smooth, with just a small amount of the epoxy matrix bonded on their surfaces. Clear evidence of interfacial debonding, followed by plastic void growth, was easy to find on the fracture surfaces, see Figure 7(b,c) . This debonding and plastic deformation in the polymer matrix can efficiently contribute to the increase in the toughness. According to the examination of the fracture surfaces, the main toughening mechanisms in the composite reinforced with untreated glass beads are considered to be the crack deflection and plastic void growth.

Figure 7

FEG-SEM images of the microparticle-modified polymers with 10 wt% untreated glass beads, showing (a) crack deflection (b) tail structure behind the particle and (b,c) debonding and subsequent plastic void growth

The fracture surfaces of the sample containing the silane treated glass beads at 10 wt% (10-Silane) are shown Figure 8 . The silane treatment provided good particle/epoxy adhesion. Tails formed behind the glass particle were clearly found on the fracture surface, see Figure 8(a) . This implies the occurrence of the crack deflection. Different fracture surfaces caused by the untreated and silane treated particles were observed in FEG-SEM images at high magnification, as shown in Figure 8(b,c) . The use of the silane surface treatment resulted in good adhesion between the glass particles and epoxy matrix. In Figure 8(c) , the glass particles are not so distinct, compared with the untreated glass bead-modified polymers. The hemispheres of the glass microparticles on the fracture surfaces were well-covered with the epoxy matrix. Therefore, the crack propagation was through the matrix above and below the poles of the glass beads. Figure 9 shows the different paths of crack propagation in rigid particle filled polymers between poorly-bonded and well-bonded particle reinforcements⁷.

Figure 8

FEG-SEM images of the microparticle-modified polymers with 10 wt% silane treated glass beads, showing (a) crack deflection, (b,c) debonding and subsequent plastic void growth

Figure 9

Schematic illustration of the path of a crack around a rigid particle in the composite, showing (a) crack approaching particle, (b) crack tip moving around equator of poorly-bonded particle and (c) crack tip attracted to poles of well-bonded particle⁷

Figure 10 shows the fracture surfaces of the modified polymer containing the glass beads with the release agent (Frekote) surface treatment. Figure 10(a) shows serious glass bead agglomerates. Apart from these, the appearance of the fracture surfaces, as shown in Figure 10(b) , are similar to the fracture surfaces of the untreated glass bead-modified polymer. Both of these systems consist of poorly-bonded particles. The occurrence of the tails behind each glass particle was readily found on the fracture surfaces, indicating the toughening mechanism of crack deflection. The release agent Frekote led to low adhesion between the particle and epoxy matrix, so clean surfaces of the glass beads were observed due to the poorly-bonded particles. Moreover, a relatively high proportion of the glass beads with void growth was found, as shown in Figure 10(b) , compared with the untreated and silane-treated systems.

Figure 10

FEG-SEM images of the microparticle-modified polymers with 10wt% release agent “Frekote” treated glass beads, showing (a) glass bead agglomeration and (b,c) debonding, and subsequent plastic void growth

From the testing results, both surface treatments resulted in a significant improvement in the toughening performance with the treated glass bead microparticles. However, the results in this study are different from previous studies⁷ ¹⁶. Imanaka et al¹⁶ reported that good adhesion between spherical silica particles and epoxy matrix can slightly increase the fracture toughness, compared with the composites with poor particle/epoxy adhesion. In contrast, Spanoudakis and Young⁷ investigated the effect of particle/matrix adhesion on the toughness of glass particle-filled epoxy composites. They reported that the composites with poorly-bonded glass particles had a relatively high value of fracture energy because the particles can promote more plastic void growth, and could consequently improve the toughness even more. The serious agglomeration of the Frekote-treated glass particles formed in this study compromised the toughening contribution of plastic void growth to the composites. This is why the experimental results in this study are different from the previous work⁷.

5. Conclusions

The glass bead microparticles were used to manufacture composites, and the mechanical properties and fracture behaviour of these modified epoxy polymers were investigated. The addition of these rigid particles results in a steady increase in the modulus. Evidence from the SENB fracture tests shows that the inclusion of the glass bead microparticles leads to an improvement in the toughness. The particle/matrix adhesion strongly affects the toughness of the rigid particle-modified polymers. The introduction of the surface treatments to the modified polymers significantly improves the toughness. The coupling agent silane treatment and release agent Frekote treatment caused well-bonded particles and poorly-bonded particles with the epoxy matrix. Both of the surface treatments result in a significant increase in the toughening performance.

The difference in the microstructures of the fracture surfaces between the good and poor adhesion was observed using the FEG-SEM. The glass bead microparticles present on the fracture surfaces were coated well with the epoxy matrix after the silane treatment. The degree of plastic void growth is relatively low for the silane-treated glass bead/epoxy composites, compared with the composites with untreated or Frekote-treated microparticles. The crack deflection mechanism in was also found on the fracture surfaces of the glass bead-modified polymers.

References

Kinloch

A.J.

, Adhesion and Adhesives: Science and Technology, Chapman and Hall, London, 1987.

Kinloch

A.J.

, Yuen

M.L.

, and Jenkins

S.D.

, “Thermoplastic-toughened Epoxy Polymers”, Journal of Materials Science, Vol. 29, pp. 3781–2790, 1994.

Moloney

A.C.

, Kausch

H.H.

, Kaiser

, and Beer

H. R.

, “Review: Parameters Determining the Strength and Toughness of Particulate Filled Epoxide Resins”, Journal of Materials Science, Vol. 22, pp. 381–393, 1987.

Yee

A.F.

, and Pearson

R.A.

, “Toughening Mechanisms in Elastomer-modified Epoxies. Part 1 Mechanical Studies”, Journal of Materials Science, Vol. 21, pp. 2462–2474, 1986.

Hsieh

T.H.

, Kinloch

A.J.

, Masania

, Sohn-Lee

, Taylor

A.C.

, and Sprenger

, “The Toughness of Epoxy Polymers and Fibre Composites Modified with Rubber Microparticles and Silica Nanoparticles”, Journal of Materials Science, Vol. 45, pp. 1193–1210, 2010.

Spanoudakis

, and Young

R.J.

, “Crack Propagation in a Glass Particle-filled Epoxy Resin: Part 1 Effect of Particle Volume Fraction and Size”, Journal of Materials Science, Vol. 19, pp. 473–486, 1984.

Spanoudakis

, and Young

R.J.

, “Crack Propagation in a Glass Particle-filled Epoxy Resin: Part 2 Effect of Particle-matrix Adhesion”, Journal of Materials Science, Vol. 19, pp. 487–496, 1984.

Amdouni

, Sautereau

, and Gerard

J.F.

, “Epoxy Composites Based on Glass Beads. II. Mechanical Properties”, Journal of Applied Polymer Science, Vol. 46, pp. 1723–1735, 1992.

Debnath

, Wunder

S.L.

, McCool

J.I

, and Baran

G.R.

, “Silane Treatment Effects on Glass/resin Interfacial Shear Strength”, Dental Materials, Vol. 19, pp. 441–448, 2003.

10.

Mallick

P.K.

, and Broutman

L.J.

, “Mechanical and Fracture Behaviour of Glass Bead Filled Epoxy Composites”, Materials Science and Engineering, Vol. 18, pp. 63–73, 1975.

11.

ASTM D 638, Standard Test Method of Tensile Properties of Plastics, American Society for Testing and Materials, 2001.

12.

SO-527-1, Plastics - Determination of Tensile Properties - Part 1: General Principles, International Standards Organisation, 1993.

13.

ASTM D 5045, Standard Test Methods for Plane-Strain Fracture Toughness and Strain Energy Release Rate of Plastic Materiasl, American Society for Testing and Materials, 1999.

14.

BS 7448-4, Fracture Mechanics Toughness Tests -Part 4: Method for Determination of Fracture Resistance Curves and Initiation Values for Stable Crack Extension in Metallic Materials, British Standards Institute, 1997.

15.

, Gong

, and Shi

, “Effects of Hyperbranched Poly(ester-silane) as a Coupling Agent on the Mechanical Behavior of Glass Bead Filled Epoxy Resin”, Polymers for Advanced Technologies, Vol. 16, pp. 473–479, 2005.

16.

Imanaka

, Takeuchi

, Nakamura

, Nishimura

, and Iida

, “Fracture Toughness of Spherical Silica-filled Epoxy Adhesives”, International Journal of Adhesion and Adhesives, Vol. 21, pp. 389–396. 2001.

17.

Andrews

E.H.

, Fracture in Polymers, Oliver and Boyd, London, 1986.

18.

Lee

, and Yee

A.F.

, “Fracture of Glass Bead/epoxy Composites: on Micro-mechanical Deformations”, Polymer, Vol. 41, pp. 8363–8373, 2000.

19.

Lee

, and Yee

A.F.

, “Inorganic Particle Toughening I: Micro-mechanical Deformations in the Fracture of Glass Bead Filled Epoxies”, Polymer, Vol. 42, pp. 577–588, 2001.

20.

Brown

S.K.

, “Mechanisms of Fracture in Filled Thermosetting Resins”, The British Polymer Journal, pp. 24–30, March 1980.
