Systematic Analyses of a Chemokine Family-Based Risk Model Predicting Clinical Outcome and Immunotherapy Response in Lung Adenocarcinoma

Abstract

Chemokines exhibited complicated functions in antitumor immunity, with their expression profile and clinical importance of lung adenocarcinoma (LUAD) patients remaining largely undetermined. This study aimed to explore the expression patterns of chemokine family in LUAD and construct a predictive chemokine family-based signature. A total of 497 samples were downloaded from the Cancer Genome Atlas (TCGA) data portal as the training set, and the combination of 4 representative Gene Expression Omnibus (GEO) datasets, including GSE30219, GSE50081, GSE37745, and GSE31210, were utilized as the validation set. A three gene-based signature was constructed using univariate and stepwise multivariate Cox regression analysis, classifying patients into high and low risk groups according to the overall survival. The independent GEO datasets were utilized to validate this signature. Another multivariate analysis revealed that this signature remained an independent prognostic factor in LUAD patients. Furthermore, patients in the low risk group featured immunoactive tumor microenvironment (TME), higher IPS scores and lower TIDE scores, and was regarded as the potential beneficiaries of immunotherapy. Finally, the role of risky CCL20 was validated by immunohistochemistry (IHC), and patients possessed higher CCL20 expression presented shorter overall survival (P = 0.011).

Keywords

lung adenocarcinoma chemokine family clinical prognosis tumor microenvironment immunotherapy

Introduction

Non-small cell lung cancer (NSCLC) is the leading cause of cancer-related mortality worldwide ¹. NSCLC can be further classified as squamous carcinoma, adenocarcinoma and large cell carcinoma according to the histology. Despite the spectacular progress in detection of driver gene mutations and individualized targeted therapy, especially tyrosine kinase inhibitors (TKIs), the 5-year overall survival (OS) of lung adenocarcinoma (LUAD) remains approximately 15%², and the standard platinum-based chemotherapy and targeted therapy seemed to reach a plateau in this setting.

Recently, multiple clinical trials provide exciting results of immune checkpoint inhibitors (ICIs) in solid tumors and ICIs are becoming the first-line treatment option for advanced NSCLCs. KEYNOTE 024 examined the efficacy of pembrolizumab monotherapy or platinum-based chemotherapy in previously untreated NSCLC patients with PD-L1 tumor proportion score ≥ 50%. The median progression-free survival was 10.3 months for the pembrolizumab group and 6.0 months for the platinum-based chemotherapy group. The estimated rate of OS was 44.8% versus 27.8%, respectively³. However, the objective response rate to ICIs ranged from 12% to 23% in solid tumors depending on multiple factors⁴. Current researches focus on several potential biomarkers predictive to ICIs treatment response in NSCLC, including tumor PD-L1 expression, tumor mutational burden (TMB), tumor infiltrative T cells⁵. However, these biomarkers could not fully reflect the heterogeneous tumor microenvironment (TME) of LUAD. As a matter of fact, none of these biomarkers alone or in combination could give optimal predictive value such as those biomarkers (i.e., EGFR mutations, ALK rearrangements) seen in targeted therapies. New biomarkers and prediction models are in urgent need to stratify response and to identify patients who might benefit from ICIs treatment.

The chemokine family, consisting of CC, CXC, CX₃C, and XC subfamilies, exhibit complicated functions in antitumor immunity, with the collective properties being either anti- and pro-cancer. The antitumor chemokines are known to favor the antitumor immunity by forming a concentration gradient of chemokines between tumor lesions and peripheral blood and lymph vessels, therefore recruiting immune cells expressing corresponding receptors. Chemokines also directly suppress tumor growth and metastasis⁶. The pro-cancer chemokines are associated with promoting immunosuppressive TME⁷, supporting tumor growth⁸, angiogenesis, and metastasis⁹. Novel agents targeting the pro-cancer chemokine receptors, such as CXCR4 antagonists and CCR4 antibodies, are currently under clinical investigations in different phases^10
–12. However, chemokine family-related gene expression profiling and the subsequent clinical implications in LUAD remain undetermined.

This comprehensive study aimed to explore the expression profile and clinical implications of chemokine family in LUAD. A chemokine family-based risk model was constructed and validated to predict the clinical outcome of LUAD patients. Given the complex effects of chemokine family on TME and their potential roles in ICI responses, we further investigated this signature related immune-cancer landscape, hoping to provide novel insights to optimize the delivery of immunotherapy.

Methods and Materials

Data Collection and Preprocessing

The RNA-Seq data and clinical information of 497 LUAD patients, acquired from the Cancer Genome Atlas (TCGA) data portal (https://portal.gdc.cancer.gov/), were utilized to construct the training set. Data on somatic mutations were also downloaded from the TCGA data portal. Representative Gene Expression Omnibus (GEO) datasets containing large number of LUAD patients based on the platform of GPL570 (Affymetrix Human Genome U133 Plus 2.0 Array), including 85 cases from GSE30219, 128 cases from GSE50081, 106 cases from GSE37745 and 226 cases from GSE31210 were retrieved from NCBI (https://www.ncbi.nlm.nih.gov/geo) as the validation sets. The mRNA expression profiling from GEO datasets were normalized by Robust Multi-Array average (RMA) algorithm, and experimental batch effects were corrected by limma package. The mean value was employed for genes represented by more than one probe.

Construction and Validation of the Prognostic Model

OS-related chemokine family members were sought out by the univariate Cox regression model and were enrolled in a subsequent stepwise multivariate Cox regression model. Three genes with the most powerful predictive value were finally extracted, and the risk score was calculated as follows: risk score = expression of Gene 1 * coefficient 1 + expression of Gene 2 * coefficient 2+ expression of Gene 3 * coefficient 3. Patients were categorized into high or low risk groups, according to the optimal cutoff value of risk score, which was calculated by the maxstat R package, corresponding to the most significant relation with survival. A total of 4 cohorts from the GEO datasets were utilized to further validate this model.

Prognostic Meta-Analysis

In order to assess the prognostic value of chemokine-based signature, meta-analysis was performed using the meta package. A fixed-effect model was then adopted to compute the pooled hazard ratio (HR) value.

Functional Enrichment Analysis

Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analyses were conducted and visualized by the clusterProfiler package.

Evaluation of Tumor-Infiltrating Immune Cells

We applied CIBERSORT algorithm to infer the abundance of tumor-infiltrating immune cells in different risk groups¹³. LM22 signature file utilized in the analysis were downloaded from the website (http://cibersort.stanford.edu/). The P-value was estimated using the deconvolution approach and P < 0.05 was considered as the main criterion to further select samples enrolled in the analysis. Fractions of individual immune cells between different risk groups were visualized by the pheatmap and ggplot packages.

Prediction of Immunoreactivity

Expression of biomarkers believed or known to be associated with immunotherapy responses, including PD-1, PD-L1, PD-L2, CTLA4, CD4, CD8A, and CD8B, was compared between the high and low risk groups. Immunophenoscore (IPS) for LUAD patients, ranging from 0 to 10, was obtained from The Cancer Immunome Atlas (TCIA) (https://tcia.at/home), with higher scores correlated with stronger immunoreactivity¹⁴. Tumor immune dysfunction and exclusion (TIDE), a calculation method based on two different immune evasion mechanisms, including T cell dysfunction and exclusion¹⁵, was also utilized to predict the immunotherapy response. Upon uploading transcriptome data, the TIDE scores and PD-L1 expression for LUAD patients in TCGA dataset were obtained from TIDE website (http://tide.dfci.harvard.edu/).

Tissue Microarray and Immunohistochemistry (IHC)

Tissue microarray, containing a total of 52 pairs of human lung adenocarcinoma and adjacent normal tissue, were obtained from Zhuoli Biotechnology Co, Shanghai, China. The samples come from the National Human Genetic Resources Sharing Service Platform (2005DKA21300). After the tissue was dewaxed, antigen retrival was performed using the EDTA antigen repair buffer. Tissue section was incubated with the primary antibody for CCL20 (Affinity Biosciences, China, DF2238) at 4°C overnight. Furthermore, the section was incubated with second antibody for 50 minutes and visualized by diaminobenzidine staining. Finally, a counterstain was performed by hematoxylin. IHC scores were analyzed by two independent investigators. Staining intensity was graded as follows: 0 (−, no staining); 1 (+, weak staining, light yellow); 2 (++, moderate staining, yellow brown); 3 (+++, strong staining, brown). Both the intensity and positive percentages of IHC were used to examine the CCL20 expression: the IHC H-score (values 0-300) = staining intensity × the percentage of positive-stained cells × 100.

Statistical Analysis

Univariate Cox regression model and a subsequent stepwise multivariate Cox regression were employed to screen the most significant survival-related genes. Kaplan-Meier method was carried out to evaluate OS for patients in different risk groups or with different CCL20 expression, and a log-rank test was performed to compare survival differences between groups. Wilcoxon test was utilized to evaluate fractions of immune cells, expression of biomarkers, TIDE scores between different risk groups and CCL20 expression between tumor tissues and adjacent tissues. All the aforementioned statistics were conducted using R software (version 3.6.3). A two-sided P value < 0.05 was considered to be statistically significant.

Results

Predictive Value of Chemokine Family Genes in LUAD

The workflow of study design was summarized in Fig. 1. A total of 71 well-specified chemokine genes, divided into four distinct subfamilies-CC, CXC, CX₃C, and XC-and their receptors were enrolled in this study. First, RNA-seq data and clinical information data of LUAD patients were downloaded from the TCGA dataset. Patients without follow-up data were excluded. Demographic characteristics of this cohort were listed in Table 1. RNA expression profile of chemokine family genes was extracted and genes with log2 expression value < 1 were excluded. A univariate Cox proportional hazards regression model was established to identify genes correlated with the OS of LUAD patients. Finally, thirteen genes were shown to be associated with OS (P < 0.05) (Table 2). Among these genes, there existed 12 protective genes, including CXCL17, CCL13, CCL17, XCL2, CX3CL1, CXCR4, CXCR6, CCR2, CCR4, CCR7, CX3CR1, and ACKR1, with hazard ratios (HRs) <less than 1. Quite the reverse, only CCL20 was recognized as a risky gene, with an HR greater than 1.

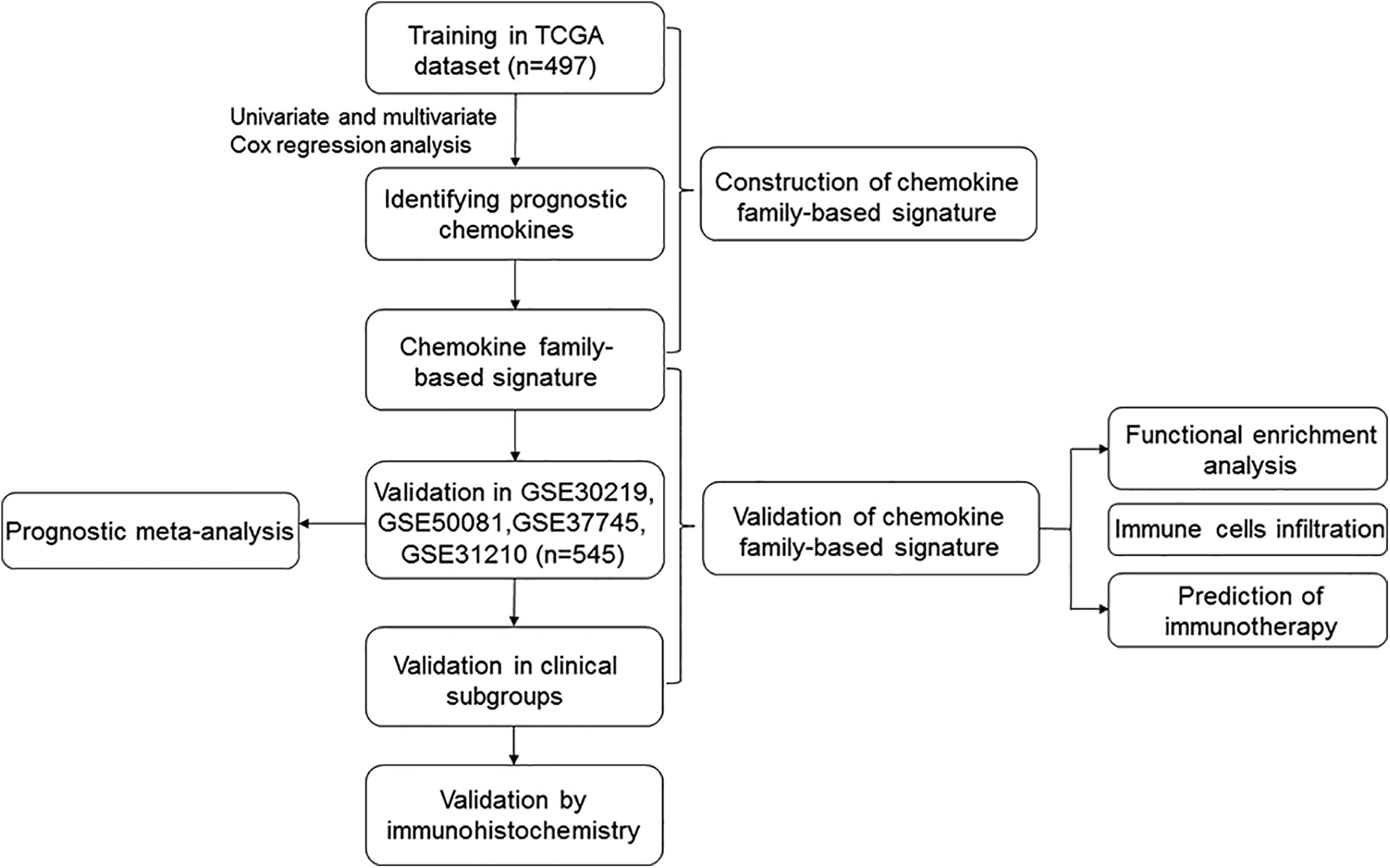

Figure 1.

Flow chart of the study. The TCGA-LUAD cohort was used as the training set, and the combination of GSE30219, GSE50081, and GSE37745, GSE31210 cohort was used as the validation set. TCGA, the Cancer Genome Atlas; LUAD, lung adenocarcinoma.

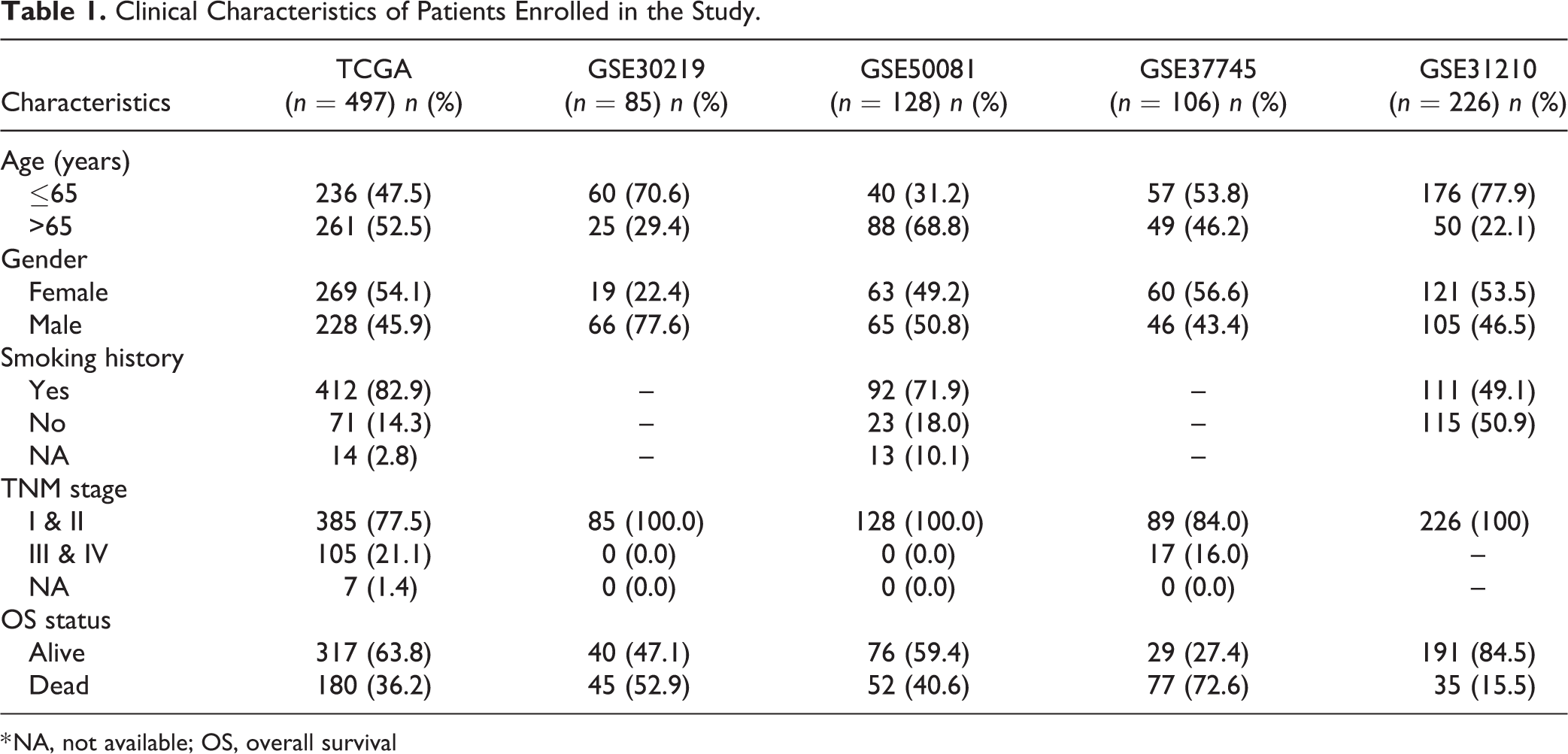

Table 1.

Clinical Characteristics of Patients Enrolled in the Study.

Characteristics	TCGA (n = 497) n (%)	GSE30219 (n = 85) n (%)	GSE50081 (n = 128) n (%)	GSE37745 (n = 106) n (%)	GSE31210 (n = 226) n (%)
Age (years)
≤65	236 (47.5)	60 (70.6)	40 (31.2)	57 (53.8)	176 (77.9)
>65	261 (52.5)	25 (29.4)	88 (68.8)	49 (46.2)	50 (22.1)
Gender
Female	269 (54.1)	19 (22.4)	63 (49.2)	60 (56.6)	121 (53.5)
Male	228 (45.9)	66 (77.6)	65 (50.8)	46 (43.4)	105 (46.5)
Smoking history
Yes	412 (82.9)	–	92 (71.9)	–	111 (49.1)
No	71 (14.3)	–	23 (18.0)	–	115 (50.9)
NA	14 (2.8)	–	13 (10.1)	–
TNM stage
I & II	385 (77.5)	85 (100.0)	128 (100.0)	89 (84.0)	226 (100)
III & IV	105 (21.1)	0 (0.0)	0 (0.0)	17 (16.0)	–
NA	7 (1.4)	0 (0.0)	0 (0.0)	0 (0.0)	–
OS status
Alive	317 (63.8)	40 (47.1)	76 (59.4)	29 (27.4)	191 (84.5)
Dead	180 (36.2)	45 (52.9)	52 (40.6)	77 (72.6)	35 (15.5)

* NA, not available; OS, overall survival

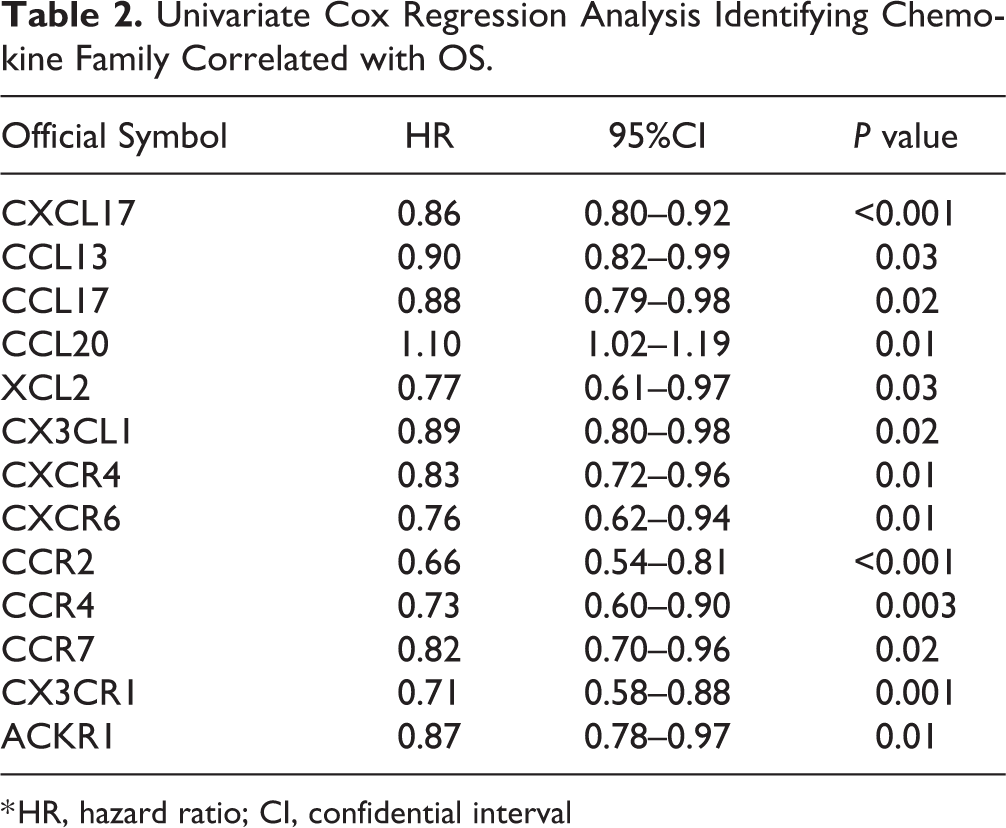

Table 2.

Univariate Cox Regression Analysis Identifying Chemokine Family Correlated with OS.

Official Symbol	HR	95%CI	P value
CXCL17	0.86	0.80–0.92	<0.001
CCL13	0.90	0.82–0.99	0.03
CCL17	0.88	0.79–0.98	0.02
CCL20	1.10	1.02–1.19	0.01
XCL2	0.77	0.61–0.97	0.03
CX3CL1	0.89	0.80–0.98	0.02
CXCR4	0.83	0.72–0.96	0.01
CXCR6	0.76	0.62–0.94	0.01
CCR2	0.66	0.54–0.81	<0.001
CCR4	0.73	0.60–0.90	0.003
CCR7	0.82	0.70–0.96	0.02
CX3CR1	0.71	0.58–0.88	0.001
ACKR1	0.87	0.78–0.97	0.01

* HR, hazard ratio; CI, confidential interval

Construction of Chemokine Family-Based Signature in TCGA Dataset

To explore genes most significantly related with OS, the aforementioned 13 genes were entered into a step-wise multivariate Cox regression model. CXCL17, CCL20, and CCR2 were screened out (Table 3) and risk scores were constructed using the following formula: risk score = (−0.158397 * expression of CXCL17) + (0.135678 * expression of CCL20) + (-0.406781 * expression of CCR2). Risk score for each patient was calculated based on the formula. Fig. 2a demonstrated the expression of CXCL17, CCL20, and CCR2 in detail and displayed the corresponding risk score of each sample.

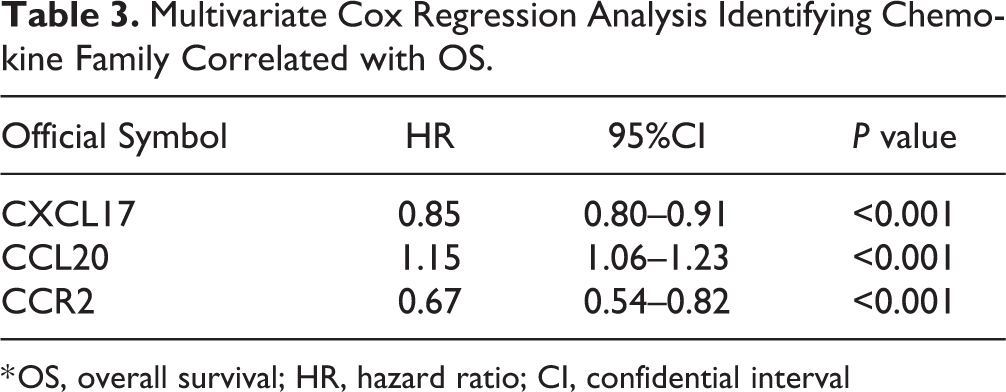

Table 3.

Multivariate Cox Regression Analysis Identifying Chemokine Family Correlated with OS.

Official Symbol	HR	95%CI	P value
CXCL17	0.85	0.80–0.91	<0.001
CCL20	1.15	1.06–1.23	<0.001
CCR2	0.67	0.54–0.82	<0.001

* OS, overall survival; HR, hazard ratio; CI, confidential interval

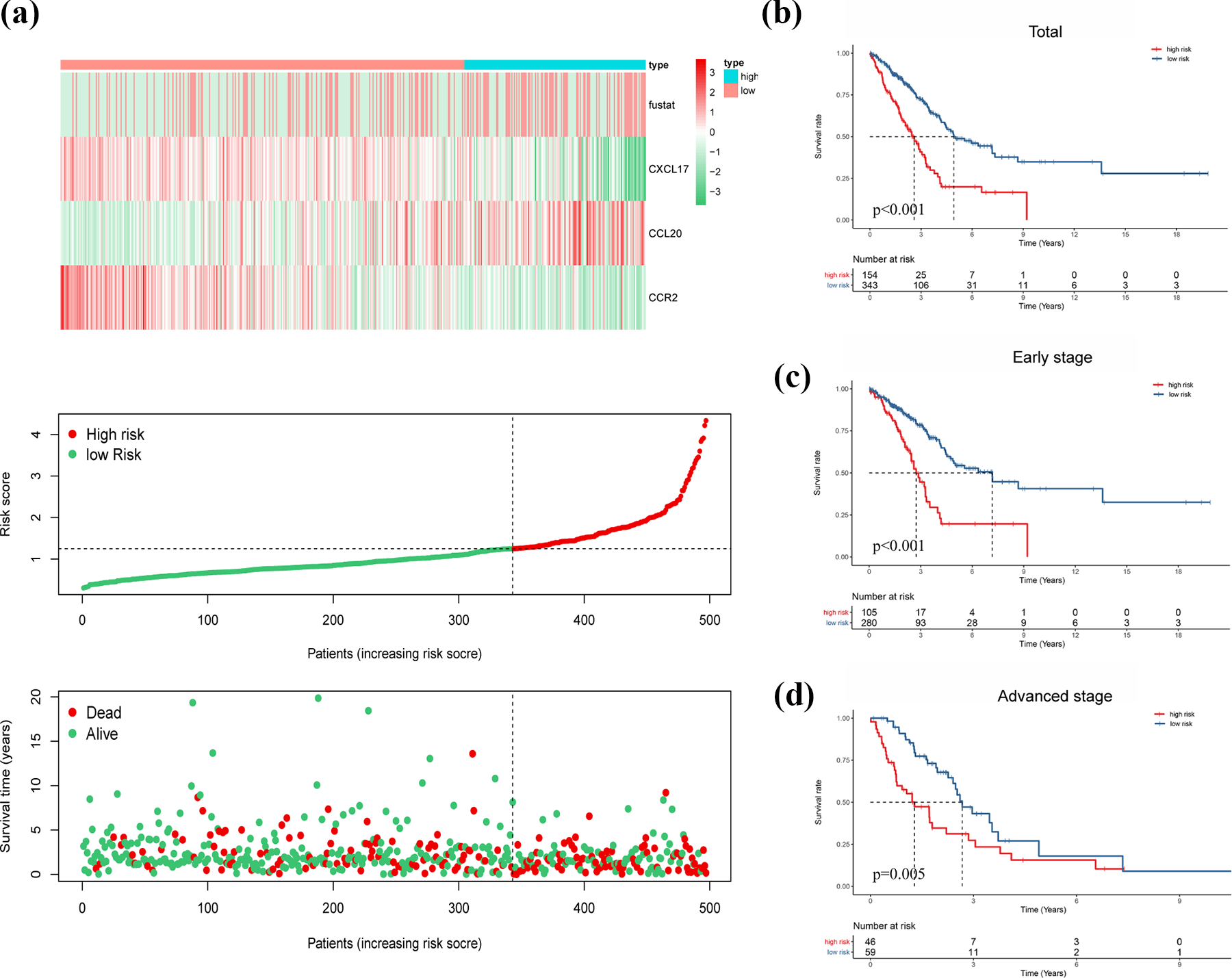

Figure 2.

The construction of chemokine family-based signature in TCGA cohort. (a) the distribution of risk score, survival plot and gene expression patterns. Patients were classified into the high and low risk groups based on the risk scores. (b) Kaplan-Meier curves of OS in total patients (n = 497). (c) Kaplan-Meier curves of OS at early stage (stages I&II) patients (n = 385). (d) Kaplan-Meier curves of OS in advanced stage (stages III&IV) patients (n = 105).

Patients were subdivided into the high (n = 154) and low risk (n = 343) groups according to the optimal cut-off value (risk score = 1.2477). As shown in Fig. 2b-d, the high risk group revealed a relatively adverse clinical outcome for the overall patients (P < 0.001) and patients presented with either early stages (stages I & II, P < 0.001) or advanced stages (stages III & IV, p = 0.005) diseases.

Validation of the Chemokine Family-Based Signature in GEO Cohorts

To validate the reliability of chemokine family-based signature in LUAD patients, 4 cohorts-GSE30219, GSE50081, GSE37745, and GSE31210 from the platform of GPL570 were downloaded and combined. Risk score for each sample was also calculated by the same formula and patients were classified into the high and low risk groups based on the optimal cut-off value (risk score = 0.1543). It is not unexpected that patients in the low risk group exhibited prolonged OS (P < 0.001, Fig. 3a).

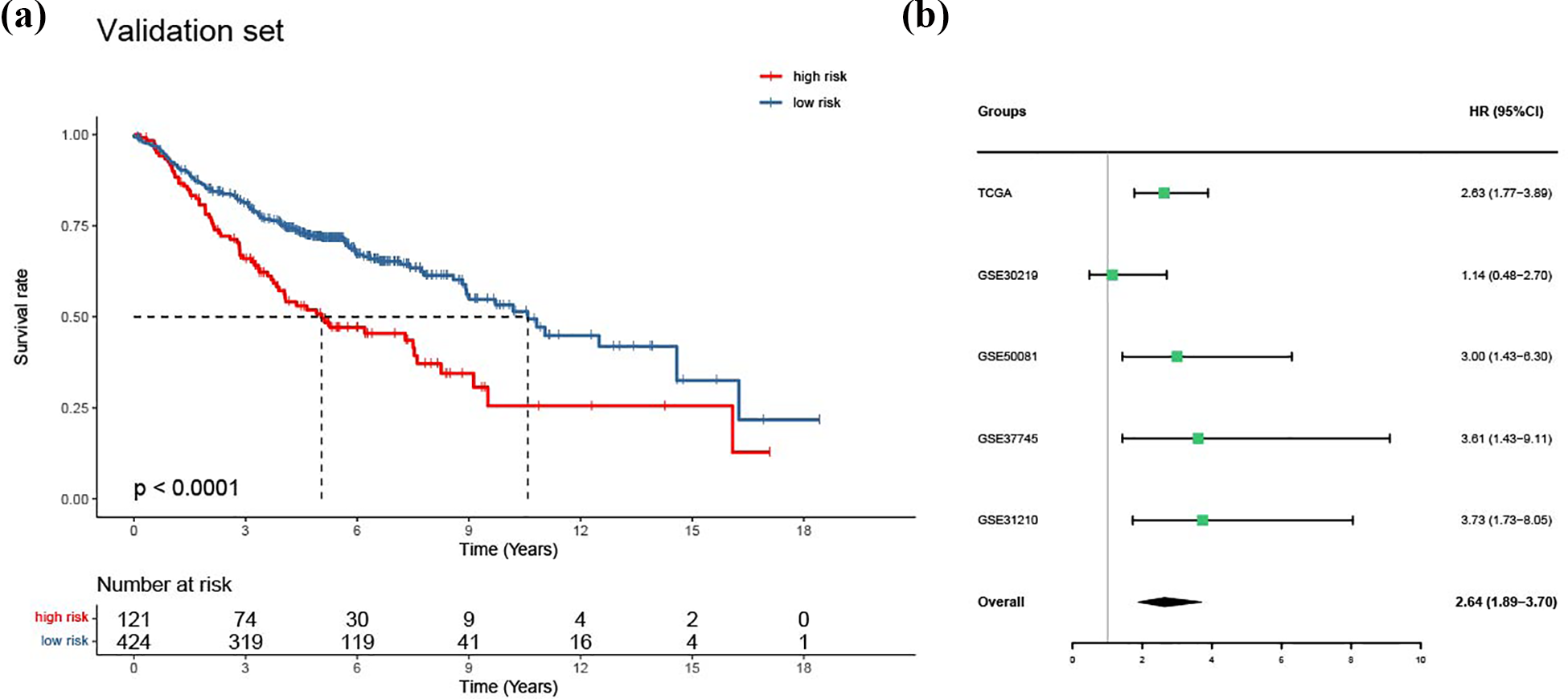

Figure 3.

Validation of chemokine family-based signature in three representative GEO datasets. (a) Combination of GSE30219 (n = 85), GSE50081 (n = 128), GSE37745 (n = 106) and GSE31210 (n = 226). (b) A meta-analysis performed based on the aforementioned TCGA and GEO datasets.

Furthermore, we performed a meta-analysis to confirm the prognostic value of chemokine family-based signature in LUAD patients based on these 5 cohorts. Results showed that the chemokine family-based signature was indeed a risk factor for LUAD patients (pooled HR = 2.64, 95%CI [1.89–3.70], Fig. 3b).

Validation of the Chemokine Family-Based Signature in Clinical Subgroups

In order to validate the chemokine family-based signature in diverse clinical subgroups, we further divided patients from the TCGA database of different sex, age and smoking status into the high and low risk groups based on the cut-off point (risk score=1.2477). Analysis of OS time revealed that patients in the high risk group represented a significantly better prognosis across all stratified subsets (Fig. 4a-f, all P<0.05). In terms of patients with different somatic mutations, likewise, regardless of the mutation status, the chemokine family-based signature displayed robust prognostic value in each subtype, containing EGFR mutation, EGFR wide type (WT), KRAS mutation, KRAS WT, and EGFR/KRAS WT group (Fig. 4g-k, P < 0.05).

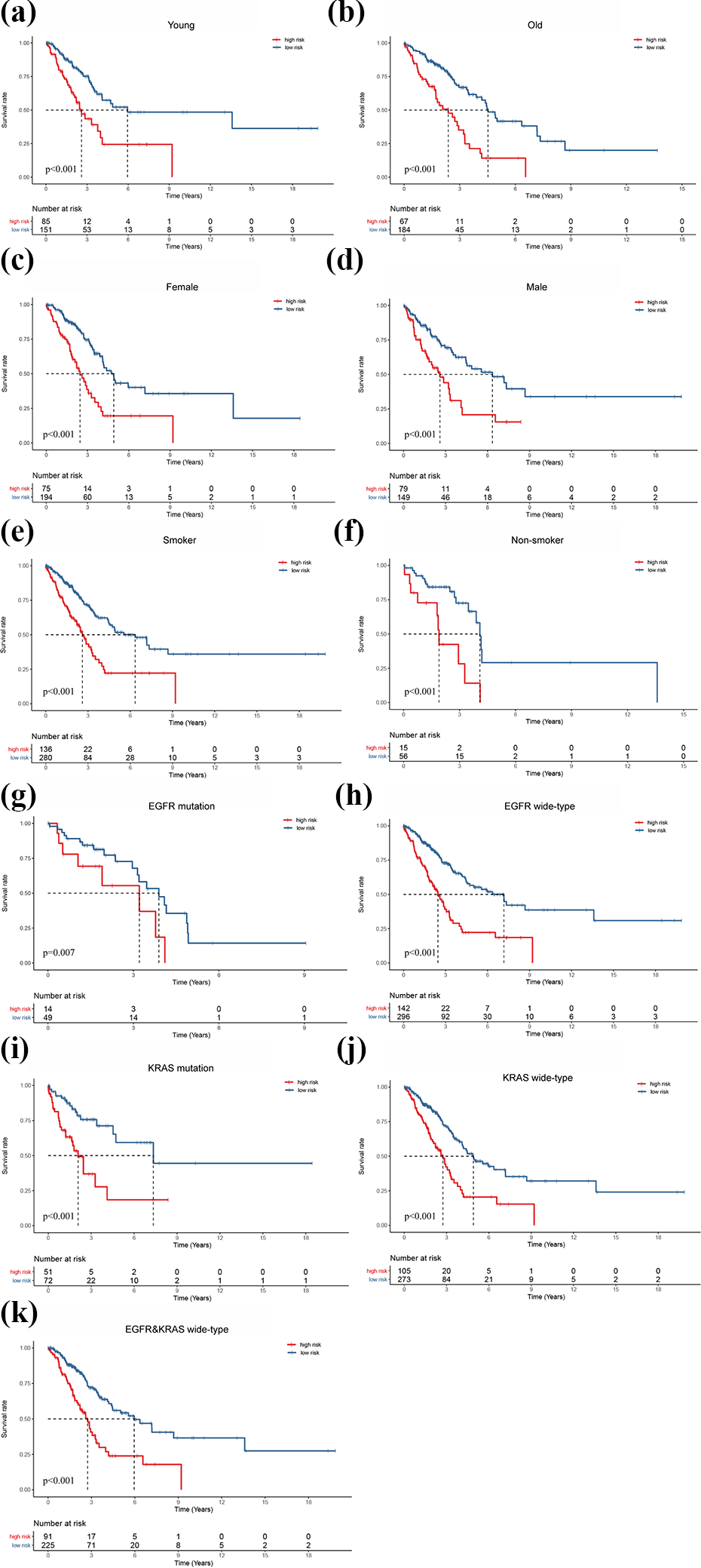

Figure 4.

Validation of chemokine family-based signature in different clinical subsets, including (a) young (age ≤ 65, n = 236), (b) old (age > 65, n = 251), (c) female (n = 269), (d) male (n = 228), (e) smoker (n = 416), (f) non-smoker (n = 71), (g) EGFR mutation (n = 63), (h) EGFR wide-type (n = 438), (i) KRAS mutation (n = 123), (j) KRAS wide-type (n = 378) and (k) EGFR and KRAS wide-type (n = 316).

The Chemokine Family-Based Signature Serves as an Independent risk Factor for LUAD Patients

Univariate and multivariate Cox regression model were performed on the TCGA dataset to explore the relationship between the signature and clinical characteristics. Advanced stages (stages III & IV) and high risk scores were correlated with unfavorable clinical outcome, while EGFR mutation was associated with gratifying OS period in both univariate and multivariate analysis (Table 4), indicating that the risk score was a crucial independent prognostic factor for LUAD patients.

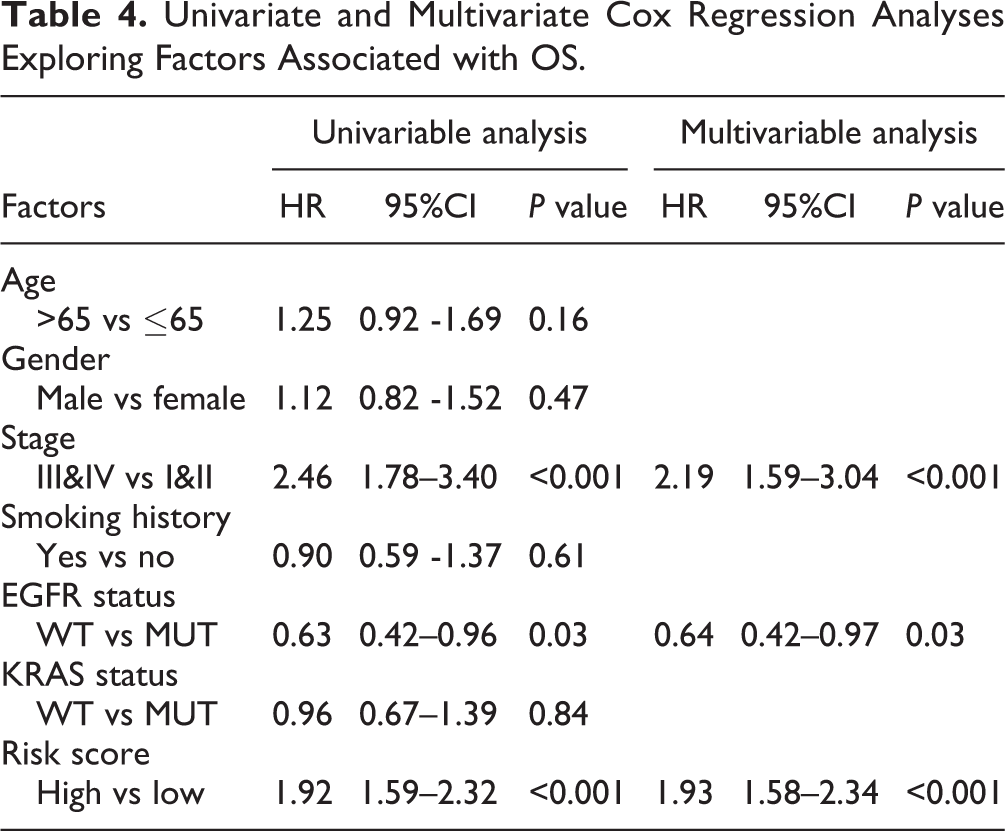

Table 4.

Univariate and Multivariate Cox Regression Analyses Exploring Factors Associated with OS.

	Univariable analysis			Multivariable analysis
Factors	HR	95%CI	P value	HR	95%CI	P value
Age
>65 vs ≤65	1.25	0.92 -1.69	0.16
Gender
Male vs female	1.12	0.82 -1.52	0.47
Stage
III&IV vs I&II	2.46	1.78–3.40	<0.001	2.19	1.59–3.04	<0.001
Smoking history
Yes vs no	0.90	0.59 -1.37	0.61
EGFR status
WT vs MUT	0.63	0.42–0.96	0.03	0.64	0.42–0.97	0.03
KRAS status
WT vs MUT	0.96	0.67–1.39	0.84
Risk score
High vs low	1.92	1.59–2.32	<0.001	1.93	1.58–2.34	<0.001

Functional Enrichment Analysis for Chemokine Family-Based Signature Related Pathways

Genes correlated with the signature were extracted to investigate the biological functions. A total of 357 genes were finally screened out (Pearson |r| > 0.4), of which 45 were positively related and 312 were negatively related (Fig. 5a). GO and KEGG enrichment analysis were then conducted. The top six biological process, cellular component and molecular function terms were illustrated in Fig. 5b. The most significantly enriched pathways were “Cell adhesion molecules,” “Hematopoietic cell lineage,” “Leishmaniasis,” “Rheumatoid arthritis,” “Intestinal immune network for IgA production” and “Viral myocarditis” (Fig. 5c).

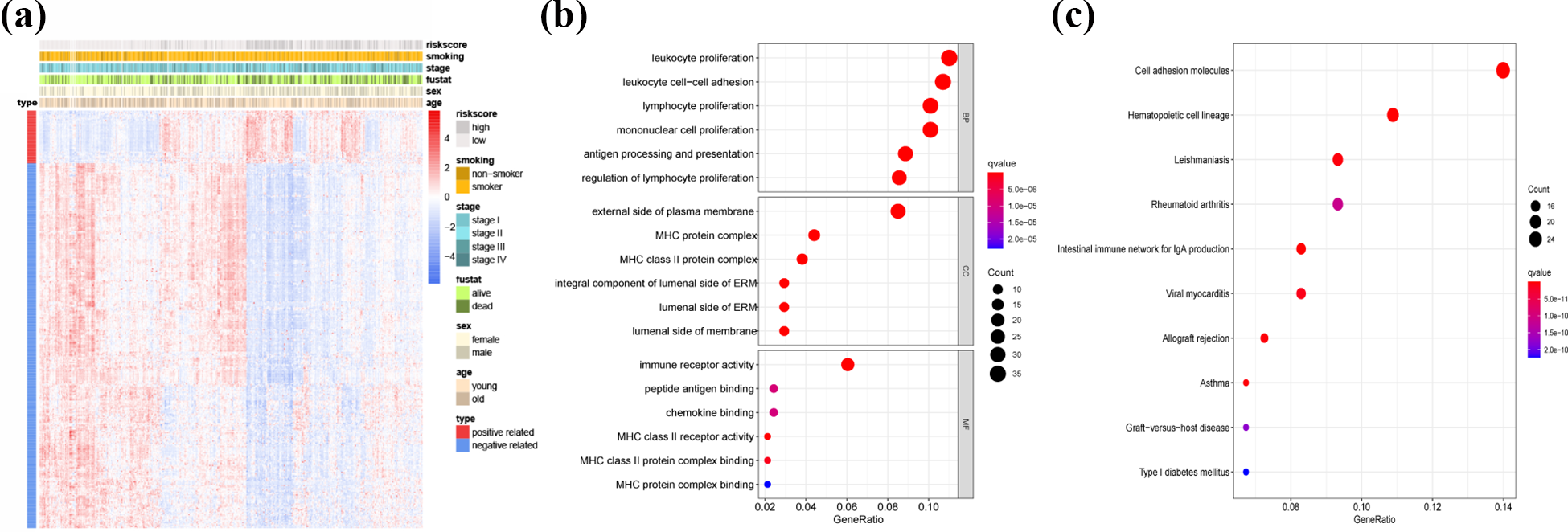

Figure 5.

Function and pathway enrichment analysis of the signature related genes. (a) Heatmap of signature related genes (Pearson |r| > 0.4). (b) and (c) GO and KEGG analyses of biological processes and pathways.

Immune Landscape of the Chemokine Family-Based Signature

The intimate association between chemokine family and immune-related signaling pathways inspired us to conduct an intensely investigation of the signature and related TME. CIBERSORT was carried out to predict the tumor-infiltrating immune cell fractions in each sample. The abundance and different distributions of immune cells between the high and low risk groups were displayed in Fig. 6a, b. In detail, memory B cells, memory CD4 T cells, monocytes, M2 macrophages, resting dendritic cells, resting mast cells and activated mast cells were extensively enriched in the low risk group, while the high risk group had a greater population of activated memory CD4 T cells, resting NK cells and M0 macrophages. Furthermore, we explored the expression patterns of PD-L1, PD-1, CTLA4, PD-L2, CD4, CD8A, and CD8B for immunotherapy responses in these two groups and concluded that patients in the high risk group exhibited lower expression of immune biomarkers (P < 0.001, Fig. 7a). IPS scores were compared for patients in the high versus low risk group. Higher IPS scores were observed in the low risk group (P < 0.001) (Fig. 7b). Lower expression of immune biomarkers and IPS scores in the high risk group indicated an immunosuppressive TME and unfavorable responses to ICIs, which might be associated with the shorter OS period in high risk group. Next, TIDE method was also applied to predict response to immunotherapy. Similarly, patients in high risk group possessed lower PD-L1 expression level (P < 0.001) and higher TIDE scoring (P < 0.001), suggesting poorer response to ICIs (Fig. 7f, g).

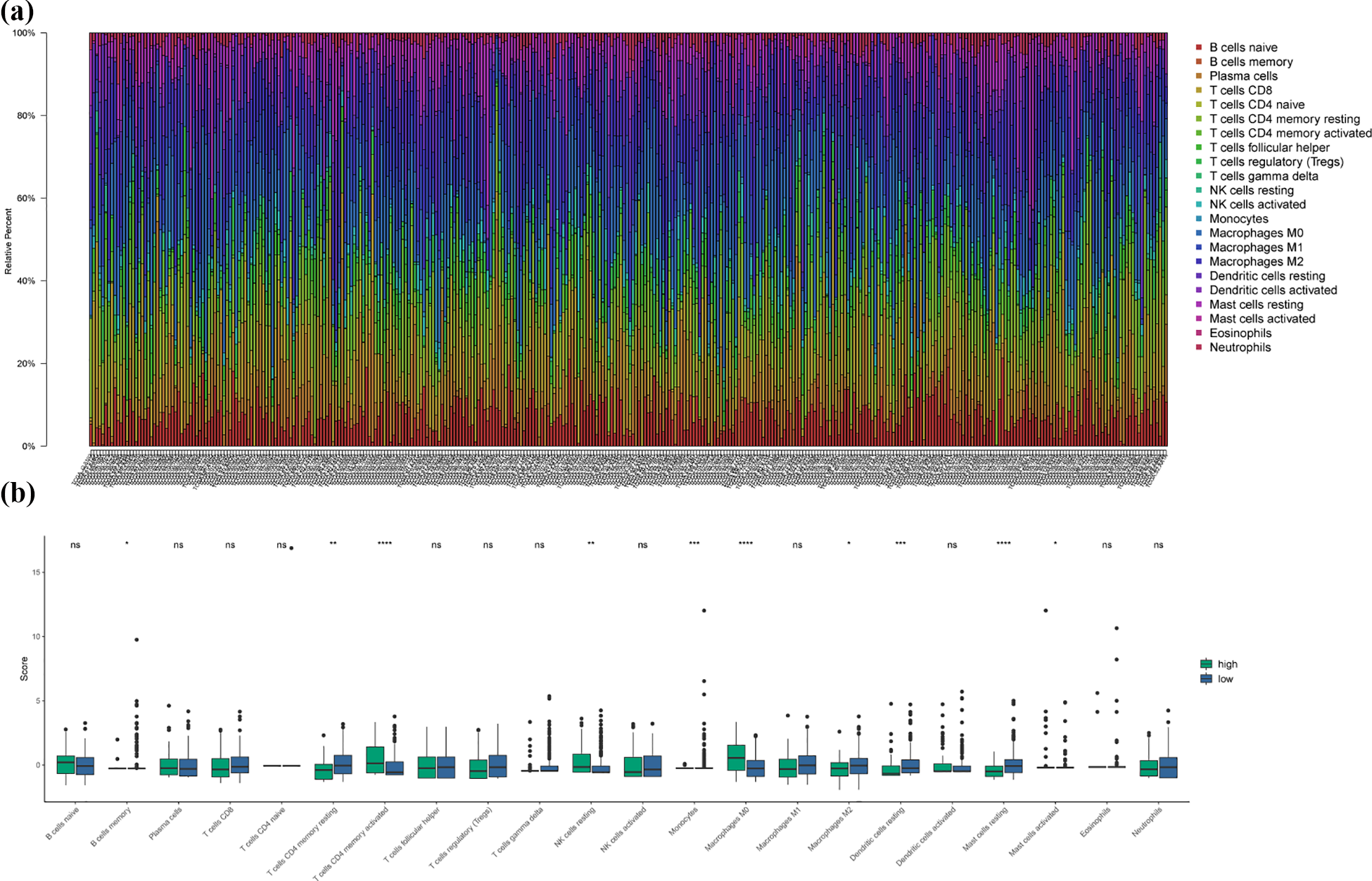

Figure 6.

CIBERSORT algorithm analysis of tumor infiltrating immune cells in TCGA cohort. (a) The abundance of immune cells in each sample. (b) Comparisons of immune-cell fractions between the high and low risk groups. * P < 0.05, ** P < 0.01, *** P < 0.001, **** P < 0.0001.

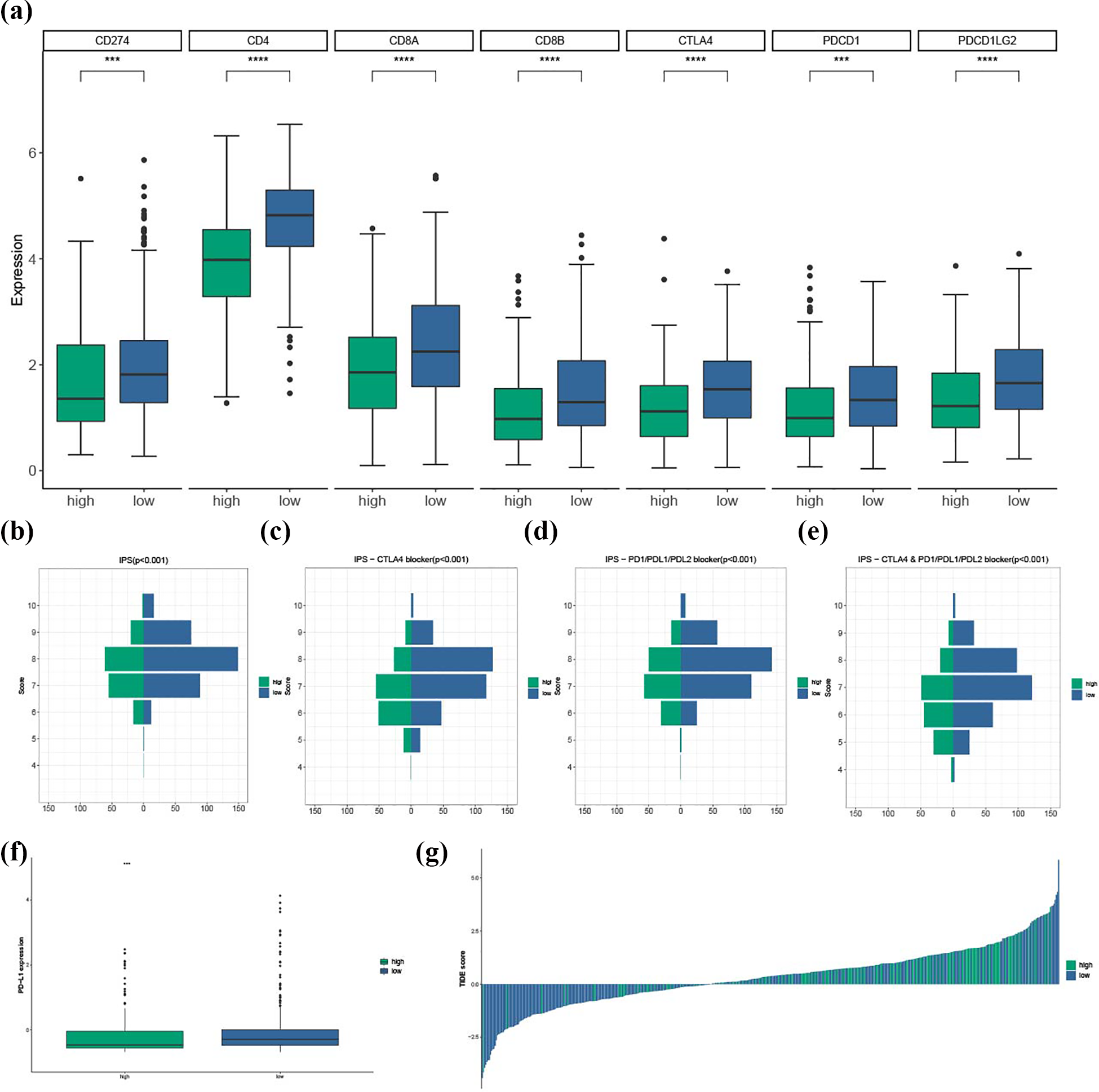

Figure 7.

Expression of immune biomarkers predicting response to immunotherapy. (a) Comparisons of immune biomarker between the high and low risk groups. (b-e) Estimated IPS scores between the high and low risk groups. (f) Estimated PD-L1 expression between the high and low risk groups. (g) Waterfall of TIDE scores in both high and low risk groups. * P < 0.05, ** P < 0.01, *** P < 0.001, **** P < 0.0001.

Validation of the CCL20 Chemokine

To further valiate the results of bioinformatic analysis, CCL20, the representative risky chemokine in the signature, was further investigated by IHC staining using a LUAD tissue microarray (Fig. S1). Considering that CCL20 was mostly expressed in cytomembrane and cytoplasm, we compared the expression levels of CCL20 in these areas. The staining patterns of CCL20 were displayed in Fig. 8a. The levels of the expression were quantitated by the IHC-H score based on tumor cell proportion and staining intensity. The IHC staining further confirmed that CCL20 was significantly elevated in LUAD tissue compared to adjacent tissue (P < 0.001, Fig. 8b). Samples were then split into 2 groups based on the median IHC-H score at 200, and patients possessed higher CCL20 expression displayed shorter OS period (P = 0.011, Fig. 8c).

Figure 8.

CCL20 was highly expressed in LUAD tissues compared to adjacent tissues and related to poor overall survival. (a) The 20 X and 200 X representative IHC staining. (b) The expression of CCL20 was significant higher in LUAD tissues compared to those in paired normal tissues (P < 0.001). (c) Kaplan-Meier plot of 52 patients with survival data (from tissue arrays) stratified by CCL20 expression levels. Patients possessing more CCL20 exhibited poorer overall survival (P = 0.011). LUAD, lung adenocarcinoma; IHC, immunohistochemical.

Discussion

Immunotherapy has opened a new era of anticancer treatment due to its remarkable success in solid tumors. However, biomarkers evaluating the status of TME and predicting benefit of immunotherapy for LUAD patients are quite rare. Chemokines, on functional grounds, pleiotropically participate to inflammatory and homeostatic, with the former induced by inflammation while the latter involved in the process of immune cell homing. As such, circulating chemokines, modulated easier than tumor infiltrating lymphocytes, are closely related to the immune landscape of TME and could be a good candidate for predicting clinical response to immunotherapy. In this study, we constructed the first comprehensive analysis of the prognostic value of chemokine signature based on 71 well-specified chemokine genes from CC, CXC, CX₃C, XC subfamilies and their receptors in TCGA dataset, hoping to provide insight into the multifaceted role of chemokine families in the tumor-immune modulation.

We performed univariate Cox regression analysis followed by stepwise multivariate Cox regression analysis and screened out 3 genes that are significantly correlated with OS of LUAD. We established a risk score signature based on the expression of these 3 genes. A combination of 4 GEO datasets was applied to validate the accuracy of this signature and a meta-analysis was then performed. The chemokine-based signature, associated with adverse OS across all clinical subtypes, was regarded as an independent risk factor for LUAD patients. CIBERSORT, IPS, and TIDE scoring system were utilized to explore the immune landscape of LUAD patients. Interestingly, patients in the low risk group were more likely to have a higher IPS score and lower TIDE score, displaying increased response rate to ICIs. Thus, our model represented strong potential of novel predictors in LUAD patients.

In this analysis, we concluded that the majority of significant chemokine genes appeared as predictive factors for favorable clinical outcomes, which was in consistent with previous studies⁶. CXCL17, CCL20, and CCR2 were extracted to establish the risk model. CXCL17 was a mucous chemokine, with the role in cancer remaining controversial. CXCL17 was reported to facilitate antitumor immune response at early stage intraductal papillary mucinous neoplasm by inducing dendritic cell trafficking to the tumor niche, thus enhancing the susceptibility of tumor cells exposed to cytotoxic T lymphocytes¹⁶. Conversely, CXCL17 was upregulated in breast cancer and hepatocellular carcinoma, correlating with recurrence and poor prognosis^17,18, with the potential mechanisms could be attributed to increased cellular proliferation and metastasis, decreased apoptosis, and presence of immunosuppressive cells in the TME. In the setting of LUAD, previous study had confirmed an upregulation of CXCL17 expression in LUAD patients compared with that in LUSC patients, which had an essential role in recruiting macrophages through phosphorylation of the Src/FAK pathway¹⁹. Our results concluded that CXCL17 was a protective factor for LUAD patients (HR = 0.85, 95% CI [0.80–0.91], P < 0.001). CCL20, also referred to as macrophage inflammatory protein 3α or liver and activation-regulated chemokine^20,21, was considered as a candidate target of antitumoral therapy due to its contributions to tumor progression. In lung carcinomas, investigators had revealed that CCL20, playing a pivotal role in tumor progression, were upregulated in patients with relapsed lung cancer and augmented cell proliferation through the ERK signaling pathway^22,23. Downregulation of CCL20 by docetaxel treatment was strongly implicated with prolonged OS in NSCLC patients²⁴, which was in consistent with our result that CCL20 was a risky gene both in bioinformatic analysis and IHC staining, indicating that CCL20 could be a promising anti-tumor target. CCR2 was a multifunctional and promiscuous receptor, binding not only to CCL2 but also to CCL7, CCL8, and CCL13 ²⁵. The most frequent CCR2/CCL2 axis had both pro- and anti-tumor effects in lung carcinomas. Investigations showed that the activation of CCR2/CCL2 axis could recruit macrophages and subsequently promote cancer cell invasion²⁶. In addition, the CCR2/CCL2 axis served a pivotal role in recruiting immunosuppressive MDSC, while intervention of this signaling led to a significant reduction of tumor growth together with increased cytotoxic T cell infiltration²⁷. However, in the Human Protein Atlas database, CCR2 expression was associated with better prognosis in lung cancer²⁸, which was in line with ours (HR = 0.67, 95% CI [0.54–0.82], P < 0.001). The underlying molecular mechanisms of these genes in this signature for LUAD patients remain largely unknown and require further illumination.

The accuracy of this chemokine family-based signature was validated in four GEO cohorts and a subsequent meta-analysis was carried out to confirm the prognostic value of this signature in these datasets. Generally, this signature performed well in multiple cohorts and across different clinical subgroups. Furthermore, genes related with this signature were enriched into immune biological process and signaling pathways, indicating that the differences in OS between groups might be attributed to the heterogeneity of TME and encouraging us to further explore the potential mechanisms. Abundances of tumor-infiltrating immune cells were calculated using CIBERSORT algorithm. Our results revealed that patients in the low risk group featured a higher population of memory B cells, memory CD4 T cells and resting dendritic cells, leading to an adequate antitumor immunological reaction, which was in consistent with previous studies^29,30. Monocytes played a duel role in different stages of tumorigenesis, functioning on the one hand to differentiate into protumoral tumor associated macrophages and on the other to recruit antitumoral NK cells in lung cancer^31,32. In this study, monocytes were abundant in the low risk group. However, immunosuppressive M2 macrophages were also highly enriched in the low-risk group, which might indicate that patients in the low risk group might be good candidates for anti-M2 vaccination³³. Immune biomarkers for ICIs were explored. Patients in the low risk group displayed upregulation of PD-L1, PD-1, CTLA4, PD-L2, CD4, CD8A, and CD8B as well as remarkably increased IPS scores. Besides, patients in the low risk group also presented significantly decreased TIDE scores. Collectively, these results illustrated that this signature performed well in predicting survival and response to immunotherapy. However, further experiments are needed to validate our findings.

Despite of the aforementioned compelling results, there still exist some limitations that ought to be acknowledged. First, most cases enrolled in the study were obtained from public databases and estimated by bioinformatic methods. Only the role of CCL20 chemokine was validated in tissue microarray by IHC staining. Independent clinical samples and further experiment are still needed to validate other chemokines in this signature. Second, we only focused on the chemokine members, with some crucial genes failing to be investigated. Further researches should certainly take a wider scope. Third, response to immunotherapy were validated indirectly as patients treated with immunotherapy were not included in this study. However, the compelling results outweighed these limitations.

Conclusion

This study investigated the role of chemokine families in LUAD patients, and 13 genes were perceived to be predictors of OS period. A three gene-based signature was subsequently constructed, and the predictive accuracy, related TME and ICI response were then estimated. These findings may serve as a reliable clinical prediction tool and optimize the therapeutic potential of ICIs.

Supplemental Material

Supplemental Material, sj-tif-1-cll-10.1177_09636897211055046 - Systematic Analyses of a Chemokine Family-Based Risk Model Predicting Clinical Outcome and Immunotherapy Response in Lung Adenocarcinoma

Supplemental Material, sj-tif-1-cll-10.1177_09636897211055046 for Systematic Analyses of a Chemokine Family-Based Risk Model Predicting Clinical Outcome and Immunotherapy Response in Lung Adenocarcinoma by Jiarui Chen, Xingyu Liu, Qiuji Wu, Xueping Jiang, Zihang Zeng, Jiali Li, Yanping Gao, Yan Gong and Conghua Xie in Cell Transplantation

Footnotes

Author Contributions

JC, QW, and CX designed the study. YG, XL, and XJ collected the mRNA transcriptome data and clinical information from public databases. JC and XL performed the immunohistochemical staining. YG, ZZ, JL, and XL performed statistical analyses. JC and XL wrote the manuscript. QW and CX improved and revised the manuscript. All authors read and approved the final manuscript.

Jiarui Chen, and Xingyu Liu are authors have contributed equally to this work.

Availability of Data and Materials

The datasets analyzed in this study can be found in TCGA portal (https://portal.gdc.cancer.gov/) and GEO portal (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE30219& https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE50081& https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE37745& ). Further inquiries can be directed to the corresponding author.

Ethical Approval

The human lung adenocarcinoma tissue arrays were purchased from the the tissue array company Zhuoli Biotechnology Co, Shanghai, China. The samples come from the National Human Genetic Resources Sharing Service Platform (2005DKA21300).

Statement of Human and Animal Rights

All following experiments and human rights were complied with relevant guidelines and regulations.

Statement of Informed Consent

There are no subject in this article and informed consent is not applicable.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was supported by National Natural Science Foundation of China (81773236, 81800429, and 81972852), Key Research & Development Project of Hubei Province (2020BCA069), Nature Science Foundation of Hubei Province (2020CFB612), Health Commission of Hubei Province Medical Leading Talent Project, Young and Middle-Aged Medical Backbone Talents of Wuhan (WHQG201902), Application Foundation Frontier Project of Wuhan (2020020601012221), Zhongnan Hospital of Wuhan University Science, Technology and Innovation Seed Fund (znpy2019001 and znpy2019048), and Translational Medicine and Interdisciplinary Research Joint Fund of Zhongnan Hospital of Wuhan University (ZNJC201922 and ZNJC202007).

ORCID iDs

Jiarui Chen

Conghua Xie

Supplemental Material

Supplemental material for this article is available online.
