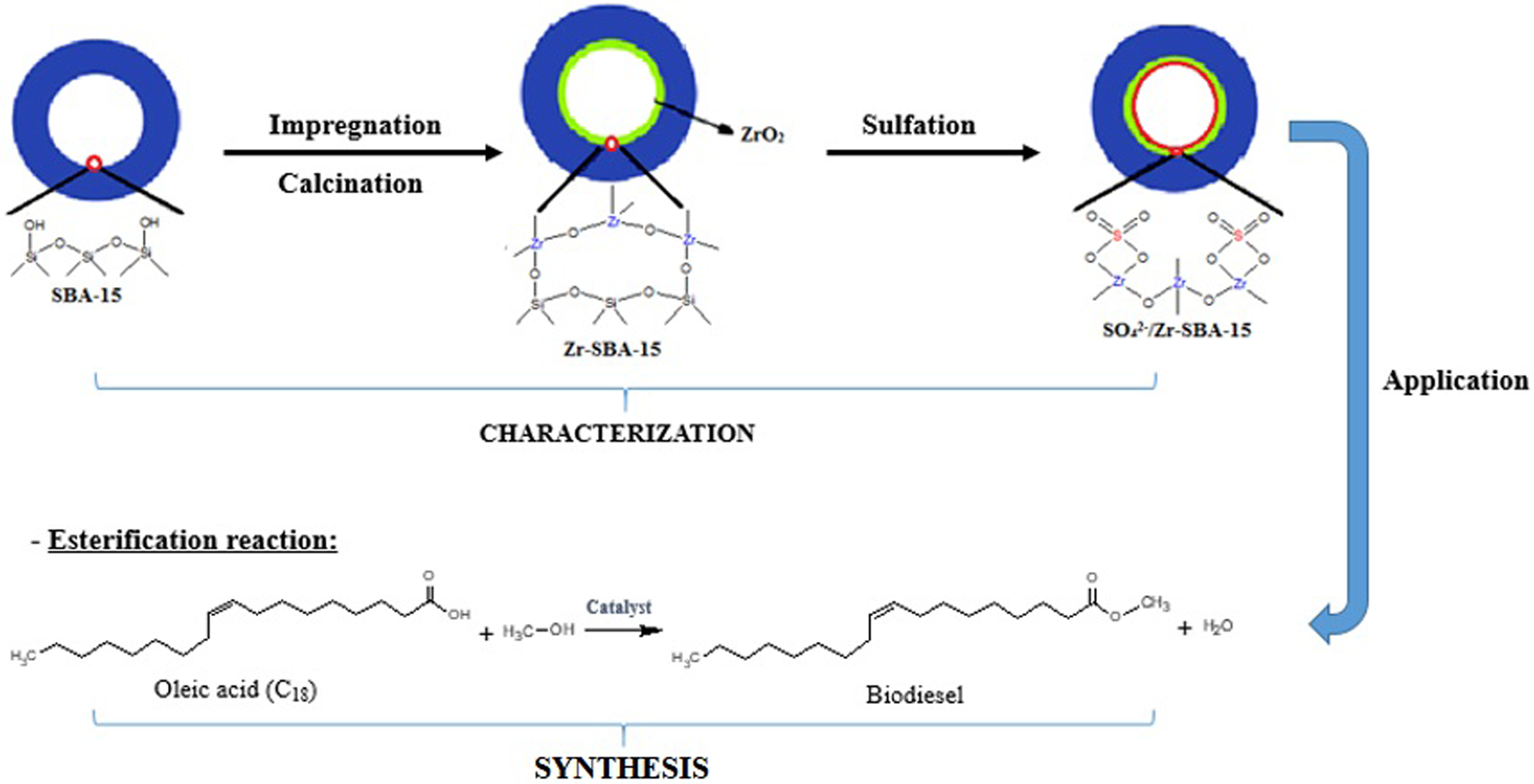

The esterification reaction of oleic acid using heterogeneous catalysts can be a promising alternative for the production of biodiesel. This study proposed to obtain biodiesel from the esterification of oleic acid with the Zr-SBA-15 and SO42−/Zr-SBA-15 catalysts obtained by inserting Zr and subsequent sulphation of SBA-15 synthesized by the hydrothermal method. Zr-SBA-15 and SO42−/Zr-SBA-15 catalysts were initially synthesized by the wet impregnation method, followed by the sulphation process. The characterization of the catalysts was performed by: X-ray diffraction, thermogravimetric analysis, Fourier transform infrared spectroscopy, nitrogen adsorption/desorption, scanning electron microscopy, energy-dispersive X-ray spectroscopy and acidity test, with the aim of identifying the structure, composition and verification of the presence of acidic sites. The characterization results indicated that SBA-15 preserved the ordered hexagonal structure, after the incorporation of Zr, with the presence of nanoparticles of this metal dispersed on the surface and inside the microporous and mesoporous channels of the Zr-SBA-15 catalyst. After sulphation, the amount of acid sites increased and the ordered structure was maintained. For the Zr-SBA-15 and SO42−/Zr-SBA-15 catalysts, there was the formation of tetragonal and monoclinic structures of ZrO2. The catalytic activity was evaluated by the esterification reaction of oleic acid via the methyl route. Biodiesel obtained with SO42−/Zr-SBA-15 presented physico-chemical properties within the standards specified by ANP Resolution N° 798/2019 and a better yield of 80.7%. SBA-15 did not show catalytic activity for the oleic acid esterification reaction under the reaction conditions of this study.
AhmadRMElnaggarAYTeongLK, et al.Sustainable and eco-friendly synthesis of biodiesel from novel and non-edible seed oil of Monotheca buxifolia using green nano-catalyst of calcium oxide. Energy Convers Manag2022; 13. https://doi.org/10.1016/j.ecmx.2021.100142
2.
SeeniappanKVenkatesanBKrishnanNN, et al.A comparative assessment of performance and emission characteristics of a DI diesel engine fuelled with ternary blends of two higher alcohols with lemongrass oil biodiesel and diesel fuel. Energy Environ2022; 33: 1134–1159.
3.
EvangelistaJPCChellappaTCoriolanoACF, et al.Synthesis of alumina impregnated with potassium iodide catalyst for biodiesel production from rice bran oil. Fuel Process Technol2012; 104: 90–95.
4.
SinghAChoudharyAKSinhaS, et al.Analysis of vibrations in a diesel engine produced by Jatropha biodiesel using heterogeneous catalyst. Energy Environ2022; 34: 1–22. https://doi.org/10.1177/0958305X211063935
5.
SujinPDiazPMKingsAJ,et al.Sustainable biodiesel production from Ceiba penandra, Mahua longifolia, and Azadirachta indica using CaO-TiO2 nano catalyst. Energy Environ2022; 34: 1–23. https://doi.org/10.1177/0958305X221115090
6.
FalehNKhilaZWahadaZ, et al.Exergo-environmental life cycle assessment of biodiesel production from mutton tallow transesterification. Renew Energy2018; 127: 74–83.
7.
AwangMSNZulkifliNWMAbbasMM, et al.Effect of addition of plastic pyrolytic oil and waste cooking oil biodiesel in palm oil biodiesel–commercial diesel blends on diesel engine performance, emission, and lubricity. Energy Environ2022; 33: 1061–1089.
8.
ParkJKimBSonJ,et al.Solvo-thermal in situ transesterification of wet spent coffee grounds for the production of biodiesel. Bioresour Technol2018; 249: 494–500.
9.
D'SouzaRVatsTChattreeA,et al.Graphene supported magnetically separable solid acid catalyst for the single step conversion of waste cooking oil to biodiesel. Renew Energy2018; 126: 1064–1073.
10.
KannanTRRojiSSSAgnesA. Process optimization for the production of biodiesel from Azolla Microphylla oil and its fuel characterization. Energy Environ2022; 34: 1–19. https://doi.org/10.1177/0958305X211065423
11.
LiuLHongYYeX, et al.Biodiesel production from microbial granules in sequencing batch reactor. Bioresour Technol2018; 249: 908–915.
12.
KnotherGGerpenJVKrahlJ,et al.Manual de Biodiesel, first ed. São Paulo: Edgard Blucher, 2006.
13.
BurerosGMATanjayAACuizonDES, et al.Cacao shell-derived solid acid catalyst for esterification of oleic acid with methanol. Renew Energy2019; 138: 489–501.
14.
BadiaJHRamírezESotoR, et al.Optimization and green metrics analysis of the liquid-phase synthesis of sec-butyl levulinate by esterification of levulinic acid with 1-butene over ion-exchange resins. Fuel Process Technol2021; 220: 106893.
15.
AlismaeelaZTAbbasASAlbayatiTM,et al.Biodiesel from batch and continuous oleic acid esterification using zeolite catalysts. Fuel2018; 234: 170–176.
16.
SolomonsTWGFryhleC. Química Orgânica, Seventh ed. Rio de janeiro: LTC, 2002.
17.
WangMChenMFangY,et al.Highly efficient conversion of plant oil to bio-aviation fuel and valuable chemicals by combination of enzymatic transesterification, olefin cross-metathesis, and hydrotreating. Biotechnol Biofuel2018; 11. https://doi.org/10.1186/s13068-018-1020-4
18.
SaiBAVSLSubramaniapillaiNMohamedK, et al.Optimization of continuous biodiesel production from rubber seed oil (RSO) using calcined eggshells as heterogeneous catalyst. J Environ Chem Eng2020; 8: 103603.
19.
SaiBAVSLSinghMNijuS, et al.Biodiesel production from rubber seed oil using calcium oxide derived from eggshell as catalyst – optimization and modeling studies. Green Process Synthesis2019; 8: 430–442.
20.
SaiBAVSLNijuSMeeraBKM,et al.Optimization and modeling of biodiesel production using fluorite as a heterogeneous catalyst. Energy Sourc Part A2019; 41: 1862–1878.
21.
SumiyaSOumiYSadakaneM,et al.Facile preparation of SBA-15-supported niobic acid (Nb2O5nH2O) catalyst and its catalytic activity. Appl Catal A2009; 365: 261–267.
22.
DengYHuXChengL, et al.Zirconocene-catalysed biodiesel synthesis from vegetable oil with high free fatty acid contents. J Organomet Chem2018; 870: 116–120.
23.
KanjaikaewUTonguraiCChongkhongS,et al.Two-step esterification of palm fatty acid distillate in ethyl ester production: optimization and sensitivity analysis. Renew Energy2018; 119: 336–344.
24.
MunyentwaliALiHYangQ. Review of advances in bifunctional solid acid/base catalysts for sustainable biodiesel production. Appl Catal A2022; 633: 118525. https://doi.org/10.1016/j.apcata.2022.118525
25.
MeleroJABautistaLFIglesiasJ, et al.Zr-SBA-15 acid catalyst: optimization of the synthesis and reaction conditions for biodiesel production from low-grade oils and fats. Catal Today2012; 195: 44–53.
26.
KhderASEl-SharkawyEAEl-HakamSA,et al.Surface characterization and catalytic activity of sulfated tin oxide catalyst. Catal Commun2008; 9: 769–777.
27.
FurutaSMatsuhashiHArataK. Catalytic action of sulfated tin oxide for etherification and esterification in comparison with sulfated zirconia. Appl Catal A2004; 269: 187–191.
28.
SuFGuoY. Advancements in solid acid catalysts for biodiesel production. Green Chem2014; 16: 2934–2957.
29.
RattanaphraDTemrakANuchdangS, et al.Catalytic behavior of La2O3-promoted SO42−/ZrO2 in the simultaneous esterification and transesterification of palm oil. Energy Reports2021; 7: 5374–5385.
30.
YuSWuSLiaL,et al.Upgrading bio-oil from waste cooking oil by esterification using SO42−/ZrO2 as catalyst. Fuel2020; 276: 118019.
31.
FanMLiuHZhangP. Ionic liquid on the acidic organic-inorganic hybrid mesoporous material with good acid-water resistance for biodiesel production. Fuel2018; 215: 541–550.
32.
WangYTFangZZhangF. Esterification of oleic acid to biodiesel catalyzed by a highly acidic carbonaceous catalyst. Catal Today2019; 319: 172–181.
33.
EvangelistaJPC. Esterificação do ácido oleico utilizando catalisadores ácidos sulfatados e não sulfatados em materiais mesoporosos do tipo SBA-15. 148f. 2015. Tese (Doutorado em Química) – Programa de Pós-Graduação em Química, Universidade Federal do Rio Grande do Norte, Natal.
34.
YamadaTZhouHAsaiK,et al.Pore size controlled mesoporous silicate powder prepared by triblock copolymer templates. Mater Lett2002; 56: 93–96.
35.
ZhaoDHuoQFengJ, et al.Nonionic triblock and star diblock copolymer and oligomeric surfactant syntheses of highly ordered, hydrothermallystable, mesoporous silica structures. J Am Chem Soc1998; 120: 2024–2036.
36.
GalvãoLPFC. Síntese e caracterização de óxidos de zinco e de magnésio suportados em AlSBA-15 para produção de biodiesel. 159 f. 2012. Tese (Doutorado em Química) – Programa de Pós-Graduação em Química, Universidade Federal do Rio Grande do Norte, Natal.
37.
IglesiasJMeleroJABautistaLF, et al.Continuous production of biodiesel from low grade feedstock in presence of Zr-SBA-15: catalyst performance and resistance against deactivation. Catal Today2014; 234: 174–181.
38.
ParkJYWangZMKimDK,et al.Effects of water on the esterification offree fatty acids by acid catalysts. Renew Energy2010; 35: 614–618.
39.
JiangYLuJSunK, et al.Esterification of oleic acid with ethanol catalyzed by sulfonated cation exchange resin: experimental and kinetic studies. Energy Convers Manage2013; 76: 980–985.
40.
Luz Jr.GELimaSHMeloACR, et al.Direct synthesis and characterization of LaSBA-15 mesoporous molecular sieves. J Mater Sci2010; 45: 1117–1122.
41.
ChangBFuJTianY,et al.Mesoporous solid acid catalysts of sulfated zirconia/SBA-15 derived from a vapor–induced hydrolysis route. Appl Catal A2012; 437–438: 149–154.
42.
BrahmkhatriVPatelA. 12-Tungstophosphoric Acid anchored to SBA-15: an efficient, environmentally benign reusable catalysts for biodiesel production by esterification of free fatty acids. Appl Catal A2011; 403: 161–172.
43.
BenamorTVidalLLebeauB,et al.Influence of synthesis parameters on the physico-chemical characteristics of SBA-15 type ordered mesoporous silica. Micropor Mesopor Mater2012; 153: 100–114.
44.
LeeHIKimHJStuckyGD, et al.Morphology-selective synthesis of mesoporous SBA-15 particles over micrometer, submicrometer and nanometer scales. J Mater Chem2010; 20: 8483–8487.
45.
Fernandes JrVJAraujoASFernandesGJT. Thermal analysis applied to solid catalysts – acidity, activity and regeneration. J Therm Anal Calorim1999; 56: 275–285.
46.
AraujoASQuintellaSACoutioACSLS. Synthesis monitoring of SBA-15 nanostructured materials. Adsorption2009; 15: 306–311.
47.
YangLYangXKTianE, et al.Mechanistic insights into the production of methyl lactate by catalytic conversion of carbohydrates on mesoporous Zr-SBA-15. J Catal2016; 333: 207–216.
48.
WangXChanJCCTsengYH,et al.Synthesis, characterization and catalytic activity of ordered SBA-15 materials containing high loading of diamine functional groups. Micropor Mesopor Mater2006; 95: 57–65.
49.
GerakinesPASchutteWAGreenbergJM,et al.The infrared band strengths of H2O, CO and CO2 in laboratory simulations of astrophysical ice mixtures. Astron Astrophys1995; 296: 810–818.
50.
MorenoJIJaimesRGómezR,et al.Evaluation of sulfated tin oxides in the esterification reaction of free fatty acids. Catal Today2011; 172: 34–40.
51.
PatelABrahmkhatriVSinghN. Biodiesel production by esterification of free fatty acid over sulfated zirconia. Renew Energy2013; 51: 227–233.
52.
OguraMGuillet-NicolasRBruoriD, et al.Insights into the accessibility of Zr in Zr/SBA-15 mesoporours sílica supports with increasing Zr loadings. Micropor Mesopor Mater2016; 225: 440–449.
53.
MutluVNYilmazS. Esterification of cetyl alcohol with palmitic acid over WO3/Zr-SBA-15 and Zr-SBA-15 catalysts. Appl Catal A2016; 522: 194–200.
54.
SunYMaSDuY, et al.Solvent-free preparation of nanosized sulfated zirconia with brønsted acidic sites from a simple calcination. J Phys Chem B2005; 109: 2567–2572.
55.
JuanJCZhangJCaoW,et al.The zirconium sulfate microcrystal structure in relation to their activity in the esterification. J Mol Catal A Chem2007; 272: 91–95.
56.
Jiménez-MoralesIRío-TejeroMABraos-GarcíaP, et al.Preparation of stable sulfated zirconia by thermal activation from a zirconium doped mesoporous MCM-41 silica: application to the esterification of oleic acid with methanol. Fuel Process Technol2012; 97: 65–70.
57.
Abu-GhazalaAHAbdelhadyHHMazharAA,et al.Valorization of hazard waste: efficient utilization of white brick waste powder in the catalytic production of biodiesel from waste cooking oil via RSM optimization process. Renew Energy2022; 200: 1120–1133.
