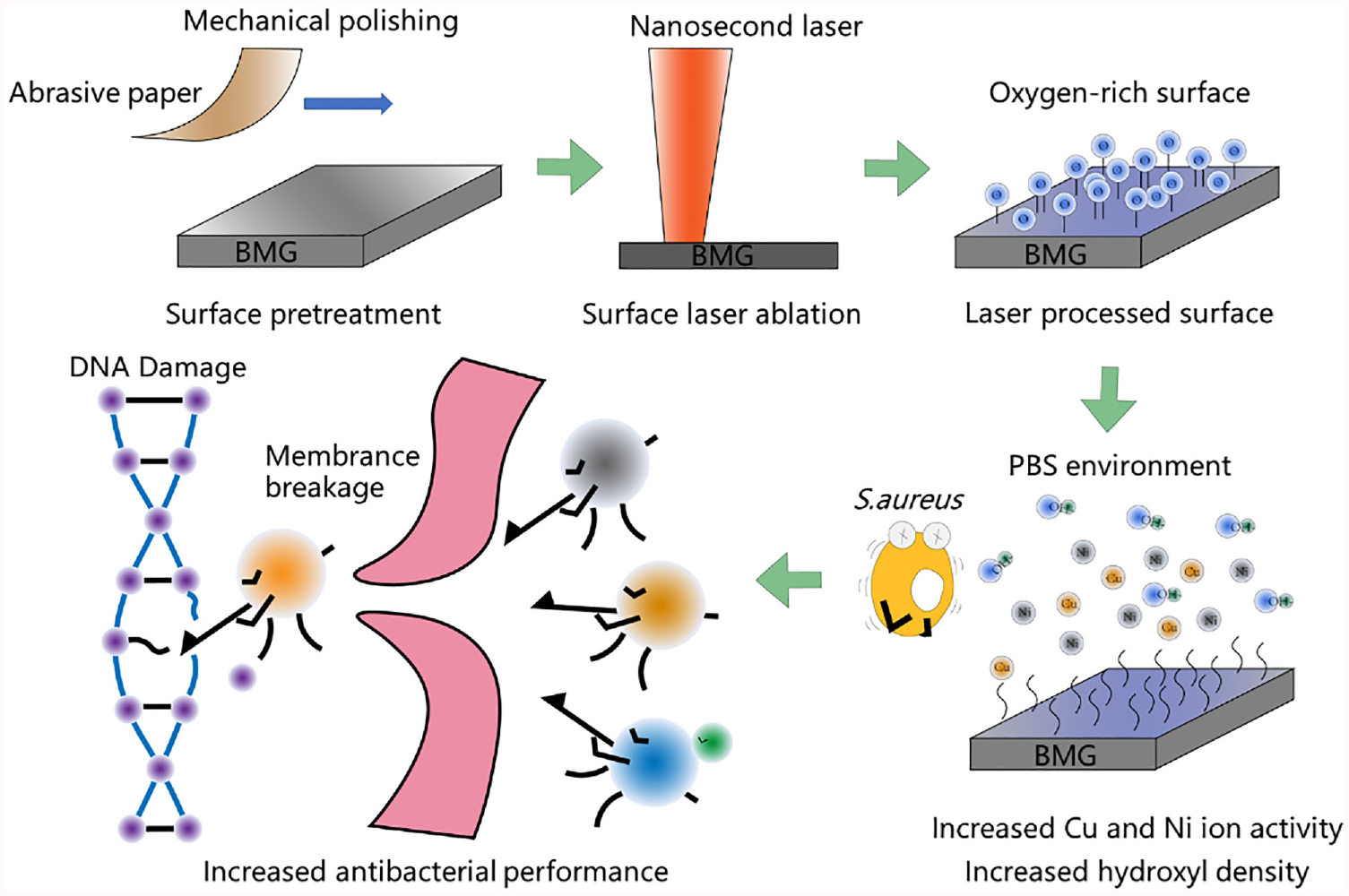

Bulk metallic glasses (BMGs) have garnered significant attention in recent decades due to the outstanding physical, chemical, and biomedical characteristics. The biomedical application of metallic glass also received extensive attention. This report investigates the interplay among antibacterial performance, crystallization and processing parameters of Zr-based bulk metallic glass (Zr-BMG) following nanosecond laser irradiation. We examined surface morphology, crystallization behavior, surface quality, binding energy, and ion release properties post-laser irradiation. Additionally, we evaluated the generation of reactive oxygen species upon immersion of Zr-BMG in phosphate-buffered saline using the 2′,7′-dichlorofluorescin diacetate method. Staphylococcus aureus was chosen to assess Zr-BMG's antibacterial performance, while mouse osteoblasts were utilized to investigate in vitro cytotoxicity. Our findings revealed that at laser energy intensities below 0.08 J/mm2, the amorphous structure of Zr-BMG remained intact after irradiation. Moreover, laser irradiation significantly enhanced the antibacterial performance of Zr-BMG. The release rate of ion, concentration of reactive oxygen species, and antibacterial properties exhibited direct proportionality to laser energy intensity. However, surfaces exhibiting high antibacterial efficacy also displayed elevated cytotoxicity. The surface irradiated with a 7 μJ ablation pulse and 200 mm/s irradiation speed demonstrated a superior balance between antibacterial and cytotoxic properties while maintaining an amorphous state. We hope this research can provide theoretical reference and data support for the application of metallic glass in biomedical application.
SunBAWangWH. The fracture of bulk metallic glasses. Prog Mater Sci2015; 74: 211–307.
2.
QiaoJCWangQPelletierJM, et al. Structural heterogeneities and mechanical behavior of amorphous alloys. Prog Mater Sci2019; 104: 250–329.
3.
LiHFZhengYF. Recent advances in bulk metallic glasses for biomedical applications. Acta Biomater2016; 36: 1–20.
4.
QiuCLChenQLiuL, et al. A novel Ni-free Zr-based bulk metallic glass with enhanced plasticity and good biocompatibility. Scr Mater2006; 55: 605–608.
5.
SunYHuangYFanH, et al. In vitro and in vivo biocompatibility of an Ag-bearing Zr-based bulk metallic glass for potential medical use. J Non-Cryst Solids2015; 419: 82–91.
6.
García-ArnáezIPallaBSuayJ, et al. A single coating with antibacterial properties for prevention of medical device-associated infections. Eur Polym J2019; 113: 289–296.
7.
FerrarisSPereroSCostaP, et al. Antibacterial inorganic coatings on metallic surfaces for temporary fixation devices. Appl Surf Sci2020; 508: 144707.
8.
MunozPHortalJGiannellaM, et al. Nasal carriage of S. Aureus increases the risk of surgical site infection after major heart surgery. J Hosp Infect2008; 68: 25–31.
9.
ThammavongsaVKimHKMissiakasD, et al. Staphylococcal manipulation of host immune responses. Nat Rev Microbiol2015; 13: 529–543.
10.
ZhangSHuBXuJ, et al. Baicalin suppress growth and virulence-related factors of methicillin-resistant Staphylococcus aureus in vitro and vivo. Microb Pathog2020; 139: 103899.
11.
LiYZhangWNiuJ, et al. Mechanism of photogenerated reactive oxygen species and correlation with the antibacterial properties of engineered metal-oxide nanoparticles. ACS Nano2012; 6: 5164–5173.
12.
YueLZhaoJYuX, et al. Interaction of CuO nanoparticles with duckweed (Lemna minor. L): uptake, distribution and ROS production sites. Environ Pollut2018; 243: 543–552.
13.
LvPZhuLYuY, et al. Effect of NaOH concentration on antibacterial activities of Cu nanoparticles and the antibacterial mechanism. Mater Sci Eng C Mater Biol Appl2020; 110: 110669.
14.
HuJLiuZYuQ, et al. Preparation of reactive oxygen species-responsive antibacterial hydrogels for efficient anti-infection therapy. Mater Lett2020; 263: 127254.
15.
DissanayakeDAcholaLAKernsP, et al. Aerobic oxidative coupling of amines to imines by mesoporous copper aluminum mixed metal oxides via generation of Reactive Oxygen Species (ROS). Appl Catal B Environ2019; 249: 32–41.
16.
ChengKPanYYuanB. Cytotoxicity prediction of nano metal oxides on different lung cells via Nano-QSAR. Environ Pollut2024; 344: 123405.
17.
ZouXLiuLChenT, et al. Laser surface treatment to enhance the adhesive bonding between steel and CFRP: effect of laser spot overlapping and pulse fluence. Opt Laser Technol2023; 159: 109002.
18.
WunderlingCMayrLMeyerSP, et al. Laser-based surface pre-treatment for metal-plastic hybrids using a new process strategy. J Mater Process Technol2020; 282: 116675.
19.
WilliamsEBrousseauEB. Nanosecond laser processing of Zr 41.2 Ti 13.8 Cu 12.5 Ni 10 Be 22.5 with single pulses. J Mater Process Technol2016; 232: 34–42.
20.
ShenYLiYTsaiH-L. Effect of pre-existing nuclei on crystallization during laser welding of Zr-based metallic glass. J Non-Cryst Solids2019; 513: 55–63.
21.
ZhangYLinXGaoX, et al. Crystallization behavior of Zr55Cu30Al10Ni5 amorphous alloys produced by selective laser melting of preannealed powders. J Alloys Compd2020; 819: 153013.
22.
Taherzadeh MousavianRZavašnikJHeidarzadehA, et al. Development of BMG-B2 nanocomposite structure in HAZ during laser surface processing of ZrCuNiAlTi bulk metallic glasses. Appl Surf Sci2020; 505: 144535.
23.
ShoenHRCRoseSJRamseySA, et al. Analysis of Staphylococcus infections in a veterinary teaching hospital from 2012 to 2015. Comp Immunol Microbiol Infect Dis2019; 66: 101332.
24.
KhanSRayisMRizviA, et al. ROS mediated antibacterial activity of photoilluminated riboflavin: a photodynamic mechanism against nosocomial infections. Toxicol Rep2019; 6: 136–142.
25.
NegreiCHuditaAGinghinaO, et al. Colon cancer cells gene expression signature as response to 5- fluorouracil, oxaliplatin, and folinic acid treatment. Front Pharmacol2016; 7: 172.
26.
Jamuna-TheviKBakarSAIbrahimS, et al. Quantification of silver ion release, in vitro cytotoxicity and antibacterial properties of nanostuctured Ag doped TiO2 coatings on stainless steel deposited by RF magnetron sputtering. Vacuum2011; 86: 235–241.
27.
HortonDJHaHFosterLL, et al. Tarnishing and Cu Ion release in selected copper-base alloys: implications towards antimicrobial functionality. Electrochim Acta2015; 169: 351–366.
28.
ZhangXMDingTTSunJ. Cu ion release and cell damage effect of Cu-containing IUDs with different surface areas of copper. Adv Mater Res2013; 750–752: 1656–1659.
29.
BernardSABallaVKDaviesNM, et al. Bone cell-materials interactions and Ni ion release of anodized equiatomic NiTi alloy. Acta Biomater2011; 7: 1902–1912.
30.
WengZBaiLLiuY, et al. Osteogenic activity, antibacterial ability, and Ni release of Mg-incorporated Ni-Ti-O nanopore coatings on NiTi alloy. Appl Surf Sci2019; 486: 441–451.
31.
ElshahawyWMWatanabeIKramerP. In vitro cytotoxicity evaluation of elemental ions released from different prosthodontic materials. Dent Mater2009; 25: 1551–1555.
32.
XueDFPanSTHuangG, et al. ROS enhances the cytotoxicity of cisplatin by inducing apoptosis and autophagy in tongue squamous cell carcinoma cells. Int J Biochem Cell Biol2020; 122: 105732.
33.
EgorovaKSSinjushinAAPosvyatenkoAV, et al. Evaluation of phytotoxicity and cytotoxicity of industrial catalyst components (Fe, Cu, Ni, Rh and Pd): a case of lethal toxicity of a rhodium salt in terrestrial plants. Chemosphere2019; 223: 738–747.
34.
ShebanovaONLazorP. Raman study of magnetite (Fe3O4): laser-induced thermal effects and oxidation. J Raman Spectrosc2003; 34: 845–852.
35.
ZhuHEhrhardtMLorenzP, et al. Combined effects of nanosecond laser-induced surface oxidation and nanostructure formation for selective colorization of nickel surfaces. Appl Phys A2019; 125: 1–10.
36.
OhtsuNHiranoYYamaguchiK, et al. Ni ion release, and antibacterial efficacy of anodized NiTi alloy using HNO3 electrolyte of various concentrations. Appl Surf Sci2019; 492: 785–791.
37.
ShiAZhuCFuS, et al. What controls the antibacterial activity of Ti-Ag alloy, Ag ion or Ti2Ag particles?Mater Sci Eng C Mater Biol Appl2020; 109: 110548.
38.
GanjiNChityalaVKMarriPK, et al. DNA incision evaluation, binding investigation and biocidal screening of Cu(II), Ni(II) and Co(II) complexes with isoxazole Schiff bases. J Photochem Photobiol B2017; 175: 132–140.
39.
BegumKAzadAKRahamanMS, et al. Spectroscopic investigations, anti-bacterial activities and DNA-interactions of metal complexes (Cr(III), Zn(II), Ni(II)) containing phendione ligand. J Sci Res2015; 7: 113–128.
40.
GuoXLiQShiJ, et al. Perfluorooctane sulfonate exposure causes gonadal developmental toxicity in Caenorhabditis elegans through ROS-induced DNA damage. Chemosphere2016; 155: 115–126.
41.
YamadaRNomuraNSaidaJ, et al. Selective oxidation/crystallization and their patterning on metallic glass by laser irradiation. J Alloys Compd2017; 727: 549–554.
42.
LuYZhangHLiH, et al. Crystallization prediction on laser three-dimensional printing of Zr-based bulk metallic glass. J Non-Cryst Solids2017; 461: 12–17.
43.
Correa-AfonsoAMCiconne-NogueiraJCPecoraJD, et al. Influence of the irradiation distance and the use of cooling to increase enamel-acid resistance with Er:YAG laser. J Dent2010; 38: 534–540.
44.
ChoiBPearceJAWelchAJ. Modelling infrared temperature measurements: implications for laser irradiation and cryogen cooling studies. Phys Med Biol2000; 45: 541–557.
45.
ZhangWZhangPYanH, et al. Research status of femtosecond lasers and nanosecond lasers processing on bulk metallic glasses (BMGs). Opt Laser Technol2023; 167: 109812.
46.
TangwarodomnukunVMekloyS. Temperature field modeling and cut formation in laser micromachining of silicon in ice layer. J Mater Process Technol2019; 271: 202–213.
47.
SongXXiaoKLWuXQ, et al. Nanoparticles produced by nanosecond pulse laser ablation of a metallic glass in water. J Non-Cryst Solids2019; 517: 119–126.
