Effect of GO content on microstructure and mechanical properties of Ti6Al4V coating reinforced artificial joint

Abstract

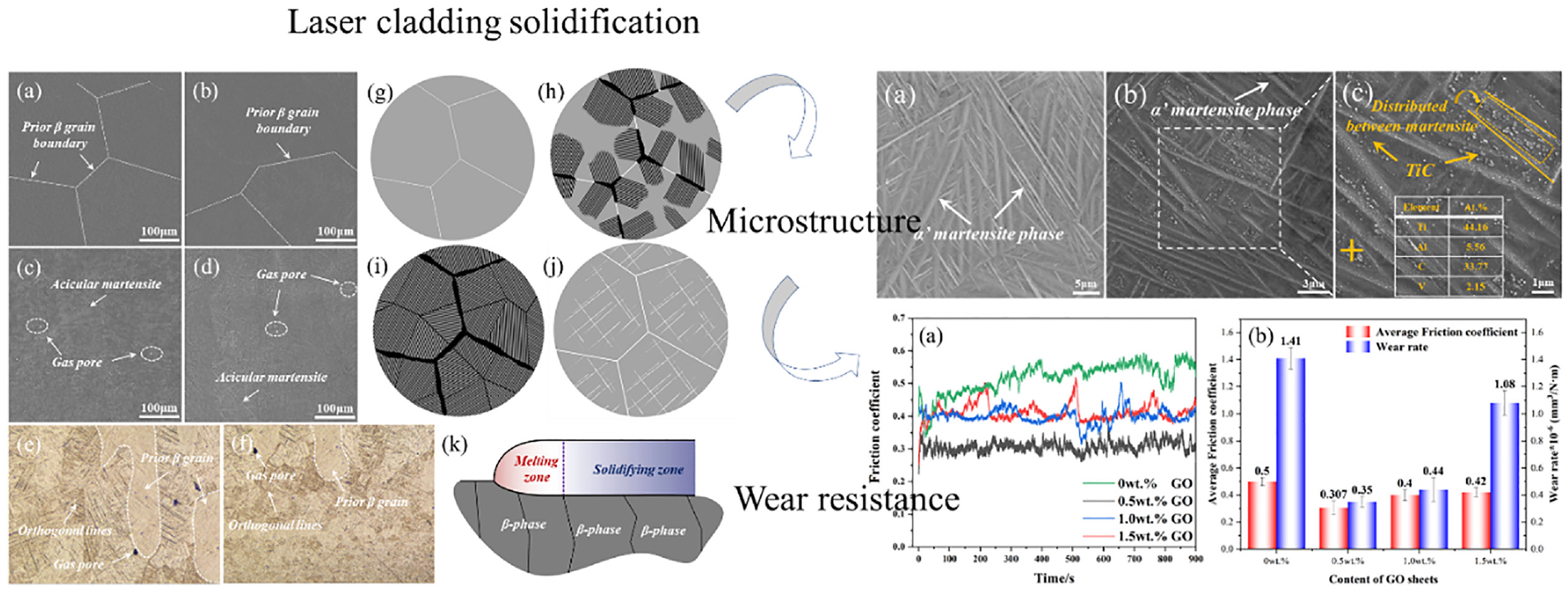

In this study, we have innovatively proposed a method of in-situ synthesized TiC hard phase to improve the surface mechanical properties of artificial joint materials (Ti6Al4V). In order to explore the optimum graphene oxide (GO) addition, GO/Ti6Al4V composite powders with different proportions (0, 0.5, 1.0, and 1.5 wt.%) were prepared. The homogeneously dispersed GO/Ti6Al4V composite powder was prepared on Ti6Al4V substrate by laser cladding technology. The microstructure, phase composition, and mechanical behavior of GO/Ti6Al4V composite coatings were studied by scanning electron microscope (SEM), optical microscope (OM), energy dispersive spectrometer (EDS), tribometer, hardness tester, and surface profiler. The results showed that the addition of GO could significantly improve the mechanical properties of TC4 substrate. During the preparation of the coating, the grain size of in-situ TiC phase was nanoscale and was distributed between acicular martensite, which played a critical role in enhancing the mechanical properties of the coating. The TiC phase distributed between acicular martensite refine the grain size of $\alpha \prime$ phase and improve the cutting resistance of the coating. Nevertheless, excessive GO decreased the fluidity of the molten pool, and micro holes tended to generate in the coating, which had a negative impact on the mechanical properties of the coating. At the GO content of 0.5 wt.%, the microhardness of the GO/Ti6Al4V coating was 1.325 times that of pure Ti6Al4V. Under the friction environment of simulated body fluid solution, the average friction coefficient was approximately 0.307 and the wear rate decreased to 3.5 × 10⁻⁷ mm³/N · m.

Graphical abstract
