Abstract

The hydrothermal performance of a hybrid nanofluid made of graphene, gold/polydimethylsiloxane between two squeezing plates is discussed in this study. In the investigation of thermal transport of the flow, both linear and nonlinear thermal radiation's effects are taken into account. Bejan numbers are used to determine the system's energy efficiency. Viscous and thermal radiation effects on Maxwell hybrid nanofluid flow in a squeezing channel are incorporated to explore the outcomes. By applying similarity transformations, the set of ordinary differential equations in this case is transformed into the governing equations. With the use of the Runge–Kutta–Fehlberg technique converted system is solved numerically. Skin friction and heat transfer rates under the influence of certain oriented parameters are numerically analysed and presented in tabular form. The impacts of different factors on the temperature and velocity profiles are illustrated graphically and briefly described. Important findings include that the Bejan number raises as the radiation parameter Rd rises, but that it falls with respect to the Eckert number effect. Additionally, the skin friction values and Nusselt number in the hybrid nanofluid case are larger than in the nanofluid case. Furthermore, it has been found that the Deborah number-described stress relaxation phenomenon causes the flow field and thermal energy transfer to be less efficient when fluids are moving. There is surprisingly little research on the hybrid fluid integrated into their issues.

Keywords

Hybrid nanofluid graphene gold squeezing channel nonlinear radiation PDMS fluid

1. Introduction

As we know that most of the mechanical devices function with the usual movement of the piston, for example, it can be seen on the inside of the automobile's engine. The actual example of clutching movement is the piston and two plates’ motion in an engine. Additional examples include fluid flow, hydraulic crane pistons, engine operation, and electronic motors. As all we know, the functioning of the human heart is to pump blood through squeezing to all parts of the body. Because of this importance in real life, the squeezed flow among two parallel surfaces is the greatest fascinating field in the research of fluid dynamics as well as it took an equally important role in the biological sciences field also. The most suitable examples of squeezing movement are the flow of fluid in syringes and a nasogastric tube.

The fundamental understanding of the squeezed flow was proposed by Stefan.¹ Through the HAM, Siddiqui et al.² investigated the two-dimensional squeeze flow between two surfaces. Hayat et al.³ examined various situations of heat transfer at the time of squeeze flow via two parallel plates. For more information about the squeezed flow in different geometry can be found in Vajravelu et al.,⁴ Khan et al.,⁵ and Mustafa et al.⁶ Bejan⁷ offered a creative solution to reduce the entropy production in the convective heat transfer phenomenon. Entropy creation is, in essence, a measurement of the unpredictability of the molecules created in a thermodynamic system. The second law of thermodynamics states that the quality of energy degrades as molecular chaos does. Began⁸ emphasised that energy dissipation and heat transfer resulting from temperature differences are the primary drivers for entropy production. The second law was then examined by a number of researchers using a variety of geometries and physical conditions. Gul et al.⁹ described how mixed convection effects the generation of entropy in the Poiselle flow of Jeffry nanofluid using perturbation technique. The effects of thermal radiation, viscosity dissipation, and entropy creation on Maxwell nanofluid through a squeezing channel were studied recently by Shit and Mukherjee¹⁰ using the differential transformation approach. They came to the conclusion that when Deborah increases, the heat transmission rate decreases. In addition to all these mentioned studies, some researchers have reported regarding the studies of entropy generation in Marzougui et al.,¹¹ Sarbazi and Hormozi,¹² Mehta et al.,¹³ Abbasi et al.,¹⁴ and Zheng et al.¹⁵

In the present trend, a serious scientific investigation is going on into the composite of graphene-polymer. It is involved in the applications of science and engineering.¹⁶ Ground-breaking research in this area has demonstrated that graphene-silicon nanoparticles (G-putty) are sensitive electromechanical sensors that can also detect spider footfalls. The thermophysical characteristics of the hybrid graphene-gold/polydimethylsiloxane (PDMS) nanofluid have attracted a lot of attention in recent years. Choi and Eastman¹⁷ initially coined the term “nanofluid” to describe fluids containing suspended nanoparticles (10⁻⁹ nm), which are more commonly known as nanoparticles. The industry uses the special properties of nanofluids, which have higher thermal conductivity with less nanoparticle aggregation, strong temperature dependence of thermal conductivity, and nonlinear increase in thermal conductivities, for cooling nuclear reactions, extracting geothermal energy, producing car fuels, and cooling radiators. Furthermore, it is more beneficial for engineering applications like electronic device cooling, smart fluids, and the biological and pharmaceutical industries. Numerous researchers have contributed to the debate on nanofluid flow across various geometries as a result of the aforementioned applications.^18–24

On the flip side, a mixture of two distinct types of nanoparticles dispersed in a base fluid is referred to as a hybrid nanofluid. Such kind of fluids develops the heat capacity of the base fluid. Basically, hybrid nanofluids are having the capacity to smoothly flow through micro-cavities along with their dispersing properties. Hybrid nanoparticles can achieve good thermal conductivity due to improved convection between them and the base fluid. The major benefits of including nanoparticles to base fluid are to enhance heat transmission, effective surface area, collisions, capacity of strong heat, and interaction between the nanoparticles. Because of such importance, esteemed researchers^25–42 concluded that from their observations fluid heat capacity can be improved by single and hybrid nano-additives.

These research works have considerably motivated us to investigate the characteristics of the flow of graphene-gold/PDMS hybrid Maxwell nanofluid among two parallel squeezing plates. Entropy generation is used to assess energy efficiency. Also, impacts of viscous dissipation and nonlinear radiations as well as the nanoparticles volume fraction are investigated thoroughly. The originality of the current examination is the entropy generation of the hybrid nanofluid taking into account both linear and nonlinear radiation effects. The proposed examination has significant applications in injection modelling, polymer processing, and so on. By adjusting various factors used in the current investigation, Bejan number and Nusselt number are evaluated in depth. Additionally studied are the velocity, temperature, and skin friction coefficient profiles.

2. Modelling of the problem

This study examined the flow of viscid and incompressible hybrid nanoliquid of graphene-gold-PDMS in a compressible channel and studied widely about the features of heat transfer and entropy generation. This content is illustrated by the 2-D Cartesian coordinate system, in which the coordinate $ξ_{1}$ contains plates and coordinate $ξ_{2}$ shows the direction of the normal to the plates as illustrated in Figure 1. The distance among the two parallel plates at time t is $h (t) = H (1 - γ t)^{1 / 2}$ (measured from $ξ_{2} = 0$ ). Here, $γ > 0$ stands for the speed and direction of the plates. The rate of speed of the plates is $v (t) = d h / d t$ , and they ultimately collide at time $t = 1 / γ$ . The $γ < 0$ values show that plates are far apart. Initially, at time $t = 0$ , the distance among the plates is H. In our system, the linear and nonlinear radiative heat flux is considered in our system.

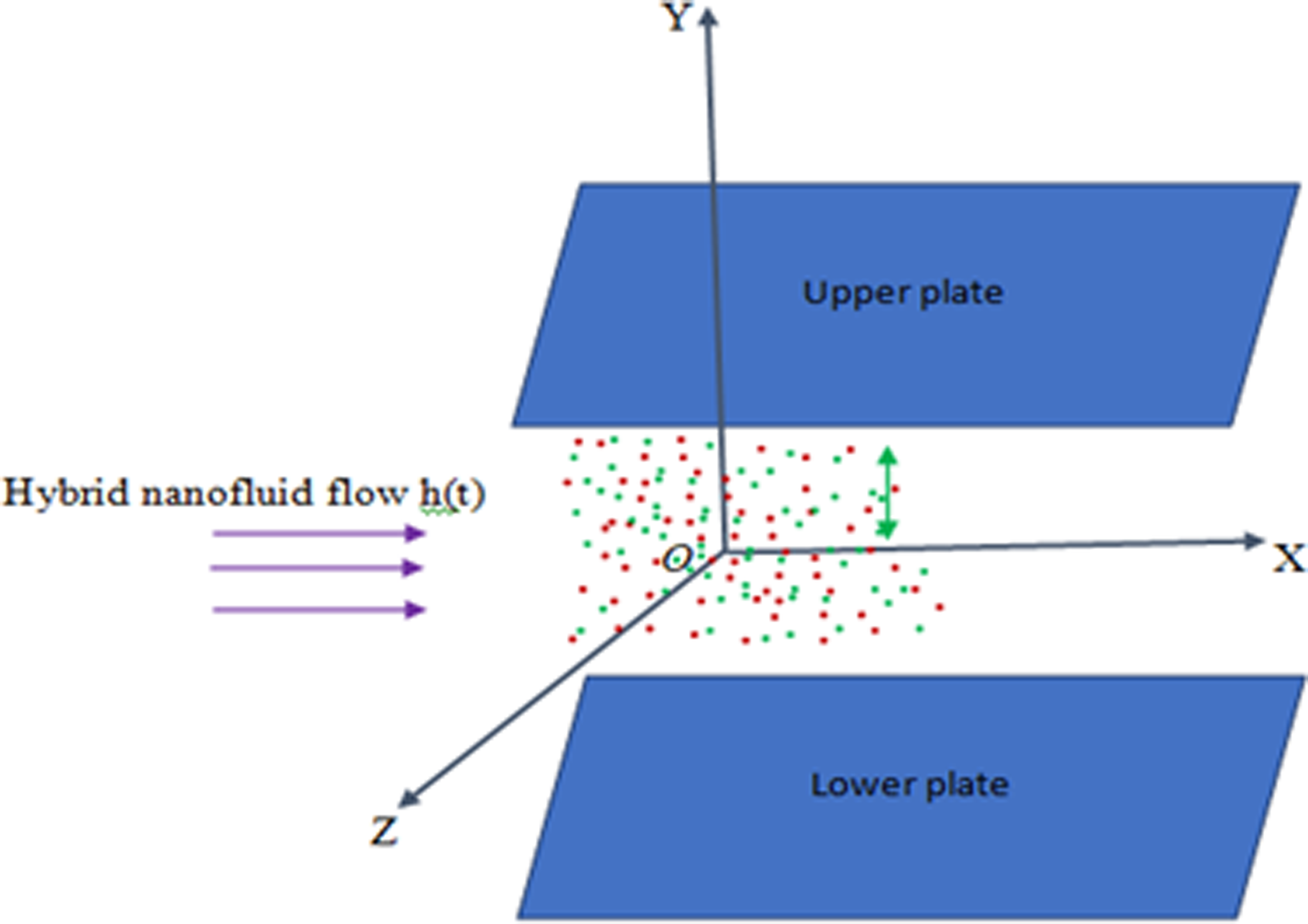

Figure 1.

Physical sketch of the problem.

The thermophysical characteristics of the base fluid, nanofluid and hybrid nanofluid are presented in Table 1. These considerations along with boundary-layer approximations and governing equations for the flow are as follows:

\vec{\nabla} \cdot \vec{V} = 0,

(1)

ρ_{h n f} (\frac{\partial \vec{V}}{\partial t}) + (\vec{V} \cdot \vec{\nabla}) \vec{V} = - \vec{\nabla} p + μ_{h n f} \nabla^{2} \vec{V} + \vec{\nabla} \cdot S,

(2)

(ρ C_{p})_{h n f} ((\frac{\partial \vec{T}}{\partial t}) + (\vec{V} \cdot \vec{\nabla}) \vec{T}) = \vec{\nabla} (k \vec{\nabla} \cdot \vec{T}) + \vec{\nabla} q_{r} + Φ,

(3)

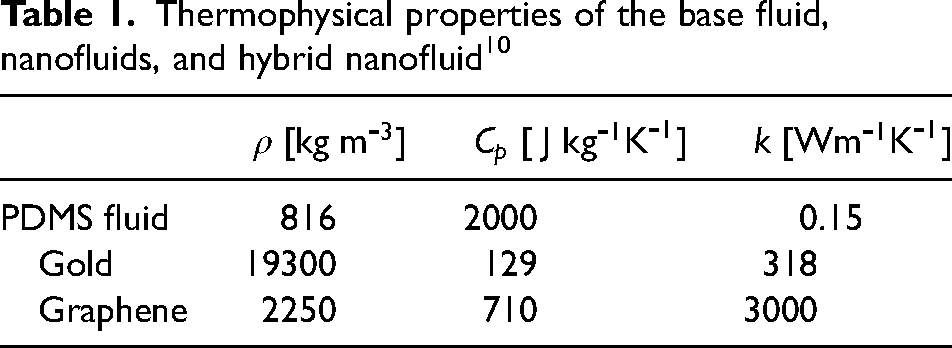

Table 1.

Thermophysical properties of the base fluid, nanofluids, and hybrid nanofluid¹⁰

	$ρ [kg m^{- 3}]$	$C_{p} [J k g^{- 1} K^{- 1}]$	$k [W m^{- 1} K^{- 1}]$
PDMS fluid Gold Graphene	816 19300 2250	2000 129 710	0.15 318 3000

In Equation (2), $S$ is the extra stress tensor for upper-convected Maxwell fluid, which satisfies the following:

S + λ_{1} \frac{D S}{D t} = μ A_{1},

(4)

where

λ_{1}

is the fluid relaxation time,

A_{1} = (\vec{\nabla} \cdot \vec{V}) + (\vec{\nabla} \cdot \vec{V})^{t}

the first Rivlin–Ericksen tensor, and

D / D t

the upper-convected time derivative. Invoking the conventional boundary-layer approximations, equations (1) to (3) can be expressed in component forms¹⁰ as follows:

\frac{\partial f_{1}}{\partial ξ_{1}} + \frac{\partial f_{2}}{\partial ξ_{2}} = 0,

(5)

\begin{aligned} ρ_{h n f} (\frac{\partial f_{1}}{\partial t} + f_{1} \frac{\partial f_{1}}{\partial ξ_{1}} + f_{2} \frac{\partial f_{1}}{\partial ξ_{2}}) = - \frac{\partial p}{\partial ξ_{1}} \\ - ρ_{h n f} λ_{1} (f_{1}^{2} \frac{\partial^{2} f_{1}}{\partial ξ_{1}^{2}} + f_{2}^{2} \frac{\partial^{2} f_{1}}{\partial ξ_{2}^{2}} + 2 f_{1} f_{2} \frac{\partial^{2} f_{1}}{\partial ξ_{1} \partial ξ_{2}}) \\ + μ_{h n f} (\frac{\partial^{2} f_{1}}{\partial ξ_{1}^{2}} + \frac{\partial^{2} f_{1}}{\partial ξ_{2}^{2}}), \end{aligned}

(6)

\begin{aligned} ρ_{h n f} (\frac{\partial f_{2}}{\partial t} + f_{1} \frac{\partial f_{2}}{\partial ξ_{1}} + f_{2} \frac{\partial f_{2}}{\partial ξ_{2}}) = - \frac{\partial p}{\partial ξ_{1}} \\ - ρ_{h n f} λ_{1} (f_{1}^{2} \frac{\partial^{2} f_{2}}{\partial ξ_{1}^{2}} + f_{2}^{2} \frac{\partial^{2} f_{2}}{\partial ξ_{2}^{2}} + 2 f_{1} f_{2} \frac{\partial^{2} f_{2}}{\partial ξ_{1} \partial ξ_{2}}) \\ + μ_{h n f} (\frac{\partial^{2} f_{2}}{\partial ξ_{1}^{2}} + \frac{\partial^{2} f_{2}}{\partial ξ_{2}^{2}}), \end{aligned}

(7)

\begin{aligned} \frac{\partial T}{\partial t} + f_{1} \frac{\partial T}{\partial ξ_{1}} + f_{2} \frac{\partial T}{\partial ξ_{2}} = \frac{κ_{h n f}}{{(ρ c_{p})}_{h n f}} (\frac{\partial^{2} T}{\partial ξ_{1}^{2}} + \frac{\partial^{2} T}{\partial ξ_{2}^{2}}) \\ - \frac{1}{{(ρ c_{p})}_{h n f}} \frac{\partial q_{r}}{\partial ξ_{2}} + \frac{μ_{h n f}}{{(ρ c_{p})}_{h n f}} \\ (2 ({(\frac{\partial f_{1}}{\partial ξ_{1}})}^{2} + {(\frac{\partial f_{2}}{\partial ξ_{2}})}^{2}) + {(\frac{\partial f_{1}}{\partial ξ_{2}} + \frac{\partial f_{2}}{\partial ξ_{1}})}^{2}), \end{aligned}

(8)

where

f_{1}

and

f_{2}

signifies the components in the direction of

ξ_{1}

and

ξ_{2}

axis, correspondingly. The radiative heat flux is estimated by considering Rosseland estimation, as

q_{r} = - \frac{4 σ_{0}}{3 k_{0}} \frac{\partial T^{4}}{\partial ξ_{2}} = - \frac{16 σ_{0}}{3 k_{0}} T^{3} \frac{\partial T}{\partial ξ_{2}},

(9)

where

σ_{0}, k_{0}

are, respectively, the Stefan–Boltzmann constant and mean absorption coefficients. The very high nonlinear energy equation in T is produced by Equation (9), and it is highly tough to get the solution. Although, in earlier, the researchers evaluated this problem by guessing minor temperature differences within the flow (see Gangadhar et al.²²). Under these circumstances, the Rosseland formula can be linearised over ambient temperature

T_{H}

. It just means replacing

T^{3}

in Equation (9) with

T_{H}^{3}

. Now (8) can be expressed as follows:

\begin{aligned} \frac{\partial T}{\partial t} + f_{1} \frac{\partial T}{\partial ξ_{1}} + f_{2} \frac{\partial T}{\partial ξ_{2}} = \frac{κ_{h n f}}{{(ρ c_{p})}_{h n f}} (\frac{\partial^{2} T}{\partial ξ_{1}^{2}} + \frac{\partial^{2} T}{\partial ξ_{2}^{2}}) \\ + \frac{1}{{(ρ c_{p})}_{h n f}} \frac{16 σ_{0} T_{H}^{3}}{3 k_{0}} \frac{\partial^{2} T}{\partial ξ_{2}^{2}} + \frac{μ_{h n f}}{{(ρ c_{p})}_{h n f}} \\ (2 ({(\frac{\partial f_{1}}{\partial ξ_{1}})}^{2} + {(\frac{\partial f_{2}}{\partial ξ_{2}})}^{2}) + {(\frac{\partial f_{1}}{\partial ξ_{2}} + \frac{\partial f_{2}}{\partial ξ_{1}})}^{2}), \end{aligned}

(10)

Although the assumption which is stated earlier is avoided, the radiative heat flow in Equation (8) produces a very high nonlinear expression of radiation that is the subject of the present research. Therefore, the energy equation for the flow of nonlinear thermal radiation will be as follows:

\begin{aligned} \frac{\partial T}{\partial t} + f_{1} \frac{\partial T}{\partial ξ_{1}} + f_{2} \frac{\partial T}{\partial ξ_{2}} = \frac{κ_{h n f}}{{(ρ c_{p})}_{h n f}} (\frac{\partial^{2} T}{\partial ξ_{1}^{2}} + \frac{\partial^{2} T}{\partial ξ_{2}^{2}}) \\ + \frac{1}{{(ρ c_{p})}_{h n f}} \frac{\partial}{\partial ξ_{2}} (\frac{16 σ_{0} T^{3}}{3 k_{0}} \frac{\partial T}{\partial ξ_{2}}) + \frac{μ_{h n f}}{{(ρ c_{p})}_{h n f}} \\ (2 ({(\frac{\partial f_{1}}{\partial ξ_{1}})}^{2} + {(\frac{\partial f_{2}}{\partial ξ_{2}})}^{2}) + {(\frac{\partial f_{1}}{\partial ξ_{2}} + \frac{\partial f_{2}}{\partial ξ_{1}})}^{2}) . \end{aligned}

(11)

2.1. Effective density

$ρ_{n f}$ is the effective density of the convectional nanoliquid and is defined by²⁰

ρ_{n f} = (1 - ϕ) ρ_{b f} + ϕ ρ_{s},

(12)

Here,

φ

denotes solid volume fraction, and ρ denotes density, whereas the subscripts “

b f, s

” indicate, respectively, base fluid and solid nanoparticles, so the effective density

(ρ_{h n f})

of hybrid nanoliquid is given by²¹

ρ_{h n f} = (1 - ϕ_{2}) {(1 - ϕ_{1}) ρ_{f} + ϕ_{1} ρ_{s 1}} + ϕ_{2} ρ_{s 2}

(13)

where

ϕ_{1}, ϕ_{2}

are solid volume fractions of gold and graphene nanoparticles, and

ρ_{s 1}

and

ρ_{s 2}

are densities of gold and graphene, respectively.

2.2. Effective heat capacity

Regular nanoliquid’s effective heat capacity is determined by²⁰

(ρ c_{p})_{n f} = ϕ (ρ c_{p})_{s} + (1 - ϕ) (ρ c_{p})_{b f}

(14)

The effective heat capacitance expression of hybrid nanoliquid

(ρ c_{p})_{h n f}

has the following form²¹:

(ρ c_{p})_{h n f} = (1 - ϕ_{2}) {ϕ_{1} {(ρ c_{p})}_{s 1} + (1 - ϕ_{1}) {(ρ c_{p})}_{f}} + ϕ_{2} (ρ c_{p})_{s 2}

(15)

2.3. Effective thermal conductivity

Based on the Maxwell–Garnetts model,²⁰ $k_{n f}$ is the thermal conductivity of typical nanofluid and is given by

k_{n f} = \frac{(k_{s} + 2 k_{b f}) - 2 ϕ (k_{b f} - k_{s})}{(k_{s} + 2 k_{b f}) + ϕ (k_{b f} - k_{s})} k_{b f},

(16)

Hence, the thermal conductivity of hybrid nanofluid contains spherical nanoparticles²¹ described as

k_{h n f} = \frac{(k_{s 2} + 2 k_{n f}) - 2 ϕ_{2} (k_{n f} - k_{s 2})}{(k_{s 2} + 2 k_{n f}) + ϕ_{2} (k_{n f} - k_{s 2})} k_{b f},

(17)

2.4. Effective dynamic viscosity

$μ$ is the effective dynamic viscosity, the subscripts “nf” and “hnf” correspond to regular nanofluid and hybrid nanofluid based on the Brinkman model^20,21 are accordingly given by

μ_{n f} = \frac{μ_{b f}}{{(1 - ϕ)}^{2.5}},

(18)

μ_{h n f} = \frac{μ_{b f}}{{(1 - ϕ_{1})}^{2.5} {(1 - ϕ_{2})}^{2.5}},

(19)

The boundary conditions are considered as

f_{1} = 0, f_{2} = \frac{d h}{d t}, T = T_{H} at ξ_{2} = h (t)

(20)

\frac{\partial f_{1}}{\partial ξ_{2}} = 0, f_{2} = 0, \frac{\partial T}{\partial ξ_{2}} = 0 at ξ_{2} = 0

(21)

The subsequent parallel alterations and non-dimensional variables are presented¹⁰:

\begin{aligned} η = \frac{ξ_{2}}{H \sqrt{1 - γ t}}, f_{1} = \frac{γ ξ_{1}}{2 (1 - γ t)} F^{'} (η), \\ f_{2} = \frac{- γ H}{2 \sqrt{1 - γ t}}, G = \frac{T - T_{H}}{T_{w} - T_{H}}, \end{aligned}

(22)

with

T = T_{H} (1 + (θ_{w} - 1) G)

and

θ_{w} = \frac{T_{w}}{T_{H}}

(temperature ratio parameter with

T_{w} > T_{H}

). Using these non-dimensional variables and removing the pressure terms by means of the mutual derivatives (6) and (7), the resulting ordinary nonlinear differential equations are derived together with the thermal equations (10) and (11) as follows:

\begin{aligned} F^{i v} & = S q A_{1} (1 - ϕ_{1})^{2.5} (1 - ϕ_{2})^{2.5} \\ (\begin{matrix} 3 {F^{'}}^{'} + η {F^{'}}^{'}^{'} + F^{'} {F^{'}}^{'} - F {F^{'}}^{'}^{'} \\ - \frac{D e}{2} ({F^{'}}^{'} {F^{'}}^{2} - 3 F F^{'} {F^{'}}^{'}^{'} + F {F^{'}}^{'}^{2} - 2 F^{2} F^{i v}) \end{matrix}), \end{aligned}

(23)

(1 + \frac{4}{3} R d) {G^{'}}^{'} + P r S q \frac{A_{2}}{A_{3}} (F G^{'} - η G^{'}) + \frac{P r E c}{A_{3} {(1 - ϕ_{1})}^{2.5} {(1 - ϕ_{2})}^{2.5}} ({F^{'}}^{'}^{2} + 4 δ^{2} {F^{'}}^{2}) = 0,

(24)

\begin{aligned} {[(1 + \frac{4}{3} R d (1 + (θ_{w} - 1) G)) G^{'}]}^{'} + P r S q \frac{A_{2}}{A_{3}} (F G^{'} - η G^{'}) \\ + \frac{P r E c}{A_{3} {(1 - ϕ_{1})}^{2.5} {(1 - ϕ_{2})}^{2.5}} ({F^{'}}^{'}^{2} + 4 δ^{2} {F^{'}}^{2}) = 0, \end{aligned}

(25)

Likewise, the boundary conditions (21) and (22) reduce to

{F^{'}}^{'} (0) = 0, F (0) = 0, G^{'} (0) = 0,

(26)

F^{'} (1) = 0, F (1) = 1, G (1) = 1,

(27)

Equations (19) to (21) contain some dimensional parameters determined as the squeezing number

S q = \frac{γ H^{2}}{2 υ_{f}}, A_{1} = \frac{ρ_{h n f}}{ρ_{f}}, A_{2} = \frac{{(ρ c_{p})}_{h n f}}{{(ρ c_{p})}_{f}}, A_{3} = \frac{k_{h n f}}{k_{f}},

the Eckert number

E c = \frac{ρ_{f}}{{(ρ c_{p})}_{f} T_{H}} {(\frac{a x}{2 (1 - γ t)})}^{2}

, the Prandtl number

P r = \frac{μ_{f} {(ρ c_{p})}_{f}}{ρ_{f} k_{f}}

, the Deborah number

D e = \frac{γ λ_{1}}{1 - γ t}

δ = \frac{H \sqrt{1 - γ t}}{x}

, and the thermal radiation parameter

R d = \frac{4 σ_{0} T_{H}^{3}}{k_{0} k_{f}}

In this article, we investigate the skin friction coefficient $C_{f}$ and the Nusselt number $N u$ which can be stated as

C_{f} = \frac{μ_{h n f} {(\frac{\partial f_{1}}{\partial ξ_{2}})}_{ξ_{2} = h (t)}}{\frac{1}{2} ρ_{h n f} {(\frac{d h}{d t})}^{2}} = \frac{2 {F^{'}}^{'} (1)}{S q δ A_{1} {(1 - ϕ_{1})}^{2.5} {(1 - ϕ_{2})}^{2.5}},

(28)

N u = \frac{- H k_{h n f} {(\frac{\partial T}{\partial ξ_{2}})}_{ξ_{2} = h (t)}}{k_{f} T_{H}} = \frac{- N u_{r}}{\sqrt{1 - γ t}},

(29)

where

N u_{r} = - A_{3} G^{'} (1)

3. Entropy generation

Here, entropy generation is caused due to the irreversible loss of thermal energy in the system. The main goal of the modern research is to achieve the maximum efficiency of any mechanical system by reducing entropy. It can be accomplished by the variations of physical parameters included in the present analysis. Now, the rate of entropy generation per unit volume is given below according to the author¹⁰:

S_{T o t a l} = \frac{k_{h n f}}{k_{f}} ({(\frac{\partial T}{\partial ξ_{2}})}^{2} + \frac{16 σ_{0} T_{H}^{3}}{3 k_{0} k_{h n f}} {(\frac{\partial T}{\partial ξ_{2}})}^{2}) + \frac{μ_{h n f}}{T} {(\frac{\partial f_{1}}{\partial ξ_{2}})}^{2}

(30)

S_{T o t a l} = \frac{k_{h n f}}{k_{f}} ({(\frac{\partial T}{\partial ξ_{2}})}^{2} + \frac{16 σ_{0} T^{3}}{3 k_{0} k_{h n f}} {(\frac{\partial T}{\partial ξ_{2}})}^{2}) + \frac{μ_{h n f}}{T} {(\frac{\partial f_{1}}{\partial ξ_{2}})}^{2}

(31)

Here in Equation (30) involved linear radiation and in Equation (31) involved nonlinear radiation term.

The non-dimensional form for the total entropy generation is as follows:

E s = \frac{h {(t)}^{2}}{k_{h n f}} S_{T o t a l} = E_{S T} + E_{S F F} = \frac{1}{G^{2}} (1 + \frac{4}{3} R d) G^{' 2} + \frac{1}{G A_{3}} \frac{P r E c}{{(1 - ϕ_{1})}^{2.5} {(1 - ϕ_{2})}^{2.5}} F^{″ 2},

(32)

\begin{aligned} E s = \frac{h {(t)}^{2}}{k_{h n f}} S_{T o t a l} = E_{S T} + E_{S F F} = {G^{'}}^{2} (θ_{w} - 1)^{2} \\ [\frac{4}{3} R d (G (θ_{w} - 1) + 1) + \frac{1}{{(G (θ_{w} - 1) + 1)}^{2}}] \\ + \frac{1}{(G (θ_{w} - 1) + 1) A_{3}} \frac{P r E c {(θ_{w} - 1)}^{2}}{{(1 - ϕ_{1})}^{2.5} {(1 - ϕ_{2})}^{2.5}} {F^{'}}^{'}^{2}, \end{aligned}

(33)

where the entropy generation due to the thermal effects is represented by

E_{S T}

and the entropy generation of the fluid friction is

E_{S F F} .

The linear radiation Equation (32), nonlinear radiation Equation (33) shows the contribution to the entropy generation. Compare the contributions graphically and identify the factor which provides more in the total entropy generation. For this reason, a very significant dimensionless number, that is, the Bejan number

B e

which helps us to compare the factors

E_{S T}

to the

E_{s}

. The Bejan number formula is as follows:

B e = \frac{E_{S T}}{E_{S}} .

(34)

4. Method of solution

Equations (23) to (25) are a set of coupled nonlinear differential equations together with the boundary conditions (26) and (27) and are evaluated numerically with the help of shooting technique and fourth- to fifth-order R–K–F integration scheme jointly by altering it into an initial value problem. In this process, it is essential to select an appropriate finite value of $η \to \infty$ , say $η_{\infty}$ , that is, $η_{\infty} = 1$ . We design succeeding the first-order system.

\begin{aligned} {t^{'}}_{1} = t_{2}, \\ {t^{'}}_{2} = t_{3}, \\ {t^{'}}_{3} = t_{4}, \end{aligned}

(35)

\begin{aligned} [1 + 2 S q A_{1} {(1 - ϕ_{1})}^{2.5} {(1 - ϕ_{2})}^{2.5}] {t^{'}}_{4} \\ = S q A_{1} (1 - ϕ_{1})^{2.5} (1 - ϕ_{2})^{2.5} \\ [3 t_{3} + η t_{4} + t_{2} t_{3} - t_{1} t_{4} - \frac{D e}{2} (t_{3} t_{2}^{2} - 3 t_{1} t_{2} t_{4} + t_{1} t_{3}^{2})], \end{aligned}

(36)

t_{5}^{'} = t_{6},

(37)

\begin{aligned} [1 + \frac{4}{3} R d {(1 + (θ_{w} - 1) t_{5})}^{3}] {t^{'}}_{6} = - 4 R d \\ (1 + (θ_{w} - 1) t_{5})^{2} t_{6}^{2} (θ_{w} - 1) \\ - P r S q \frac{A_{2}}{A_{3}} (t_{1} t_{6} - η t_{6}) - \frac{P r E c}{A_{3} {(1 - ϕ_{1})}^{2.5} {(1 - ϕ_{2})}^{2.5}} \\ (t_{3}^{2} + 4 δ^{2} t_{2}^{2}), \end{aligned}

(38)

Boundary conditions are

t_{3} (0) = 0, t_{1} (0) = 0, t_{6} (0) = 0,

(39)

t_{2} (1) = 0, t_{1} (1) = 1, t_{5} (1) = 1.

(40)

To solve equations (23) to (25) along with boundary conditions (26) and (27), the values for

t_{3} (0), that is, F^{″} (0), t_{5} (0), that is, G^{'} (0)

are required but these values are not provided here. Initially, estimate the values for

F^{″} (0)

and

G^{'} (0)

and then use the R–K integration technique of the fourth to fifth order to achieve the solution. Then at η∞ the resulting values of

F^{'} (η)

and

G (η)

are compared to the existing boundary conditions

F^{'} (1) = 1

and

G (1) = 1

and by using the shooting technique adjust the values of

F^{″} (0)

and

G^{'} (0)

to contribute better estimations for the solution. Repeated the process till the desired accuracy of results is achieved, correct up to level 10⁻⁹, which meets the convergence criterion. Table 2 describes the conformation of the present outcomes by comparing with the existing literature for certain limited special cases.^{6,10,15,18,19} The comparison shows an intelligent agreement for all

P r

and

E c

values, confirming the validity of current results. For numerical outcomes, we considered the values of dimensionless parameters as

ϕ_{1} = 0.1, ϕ_{2} = 0.1, S q = 0.5, D e = 0.5, δ = 0.1, R d = 0.2, P r = 6.2, θ_{w} = 2,

and

E c = 0.1

. These values remain valid throughout the study except for the modifications in related figures and tables.

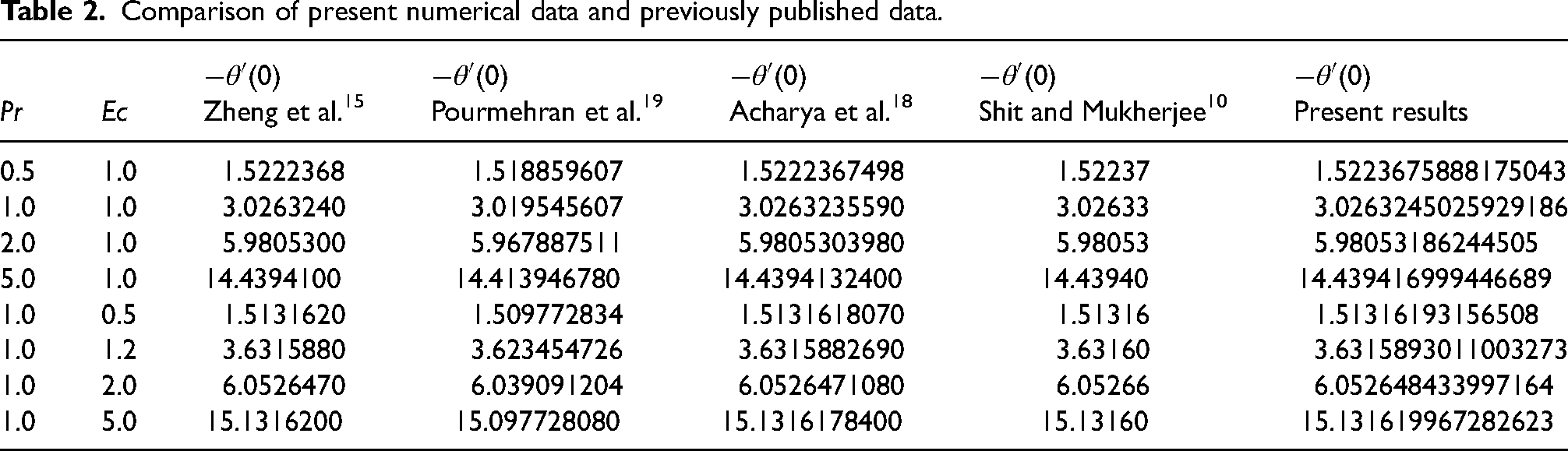

Table 2.

Comparison of present numerical data and previously published data.

$P r$	$E c$	$- θ^{'} (0)$	$- θ^{'} (0)$	$- θ^{'} (0)$	$- θ^{'} (0)$	$- θ^{'} (0)$
$P r$	$E c$	Zheng et al.¹⁵	Pourmehran et al.¹⁹	Acharya et al.¹⁸	Shit and Mukherjee¹⁰	Present results
0.5 1.0 2.0 5.0 1.0 1.0 1.0 1.0	1.0 1.0 1.0 1.0 0.5 1.2 2.0 5.0	1.5222368 3.0263240 5.9805300 14.4394100 1.5131620 3.6315880 6.0526470 15.1316200	1.518859607 3.019545607 5.967887511 14.413946780 1.509772834 3.623454726 6.039091204 15.097728080	1.5222367498 3.0263235590 5.9805303980 14.4394132400 1.5131618070 3.6315882690 6.0526471080 15.1316178400	1.52237 3.02633 5.98053 14.43940 1.51316 3.63160 6.05266 15.13160	1.5223675888175043 3.0263245025929186 5.98053186244505 14.439416999446689 1.51316193156508 3.6315893011003273 6.052648433997164 15.131619967282623

5. Results and discussions

The main goal of this section is to examine the effects of several examination-related parameters, including the radiation parameter, Eckert number, Deborah number, volume fractions of nanoparticles, and squeezing parameter. Hence, Figures 2 to 9 have been plotted for such an objective. Figures 2 to 4 detail the relationship between changes in the axial velocity in the direction of $ξ_{2}$ and the changes in the squeezing parameter $S q$ , the $D e$ number and the solid volume fraction of nanoparticles $ϕ_{2}$ . In fact, squeezing parameter $S q$ illustrates the speed of the parallel plates which are movable relative to each other (or away when $S q$ is chosen as a negative value) and $D e$ number can calculate the proportion of the relaxation time to observation time. From Figure 2, it might be seen that velocity diminishes at the middle region and then the opposite trend is clearly visible near the channel wall for the increase of squeezing parameter $S q$ . Figure 3 displays that as $D e$ number increases to a certain height, the velocity component tends to decrease and after that reverse trend continues. Physically, when the Deborah number $D e$ increases, the stress relaxation phenomenon in viscoelastic fluid increases and the liquid becomes more solid-like for the fluid motion and slows down. According to Figure 4, the velocity increases initially and achieves maximum value as the volume fraction of solid increases, thereafter we can observe a reduction with increasing $η$ even though $ϕ_{2}$ increases.

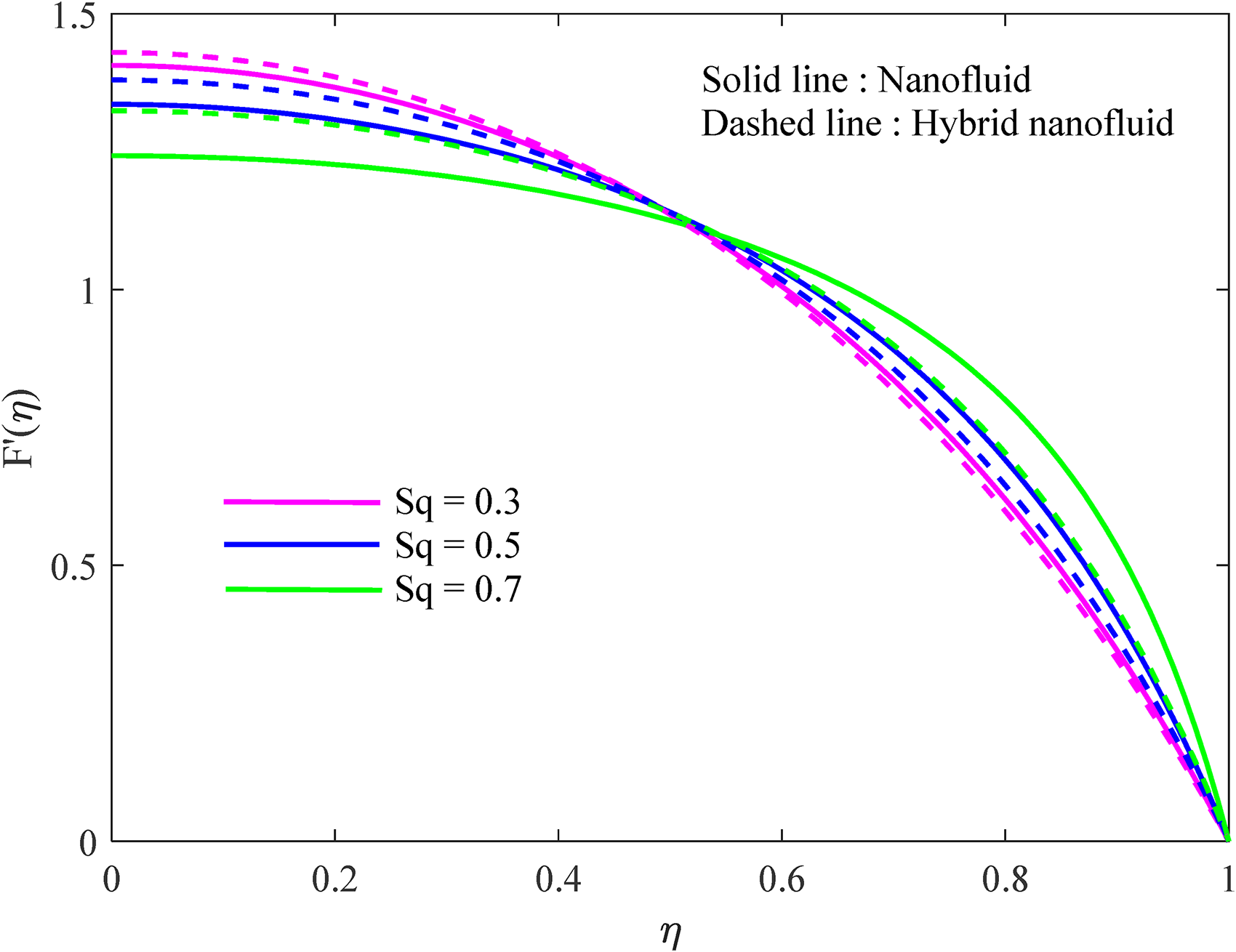

Figure 2.

Velocity versus $S q$ for both nanofluid and hybrid nanofluid when $D e = 0.5, δ = 0.1, R d = 0.2, P r = 6.2, θ_{w} = 2$ , and $E c = 0.1$ .

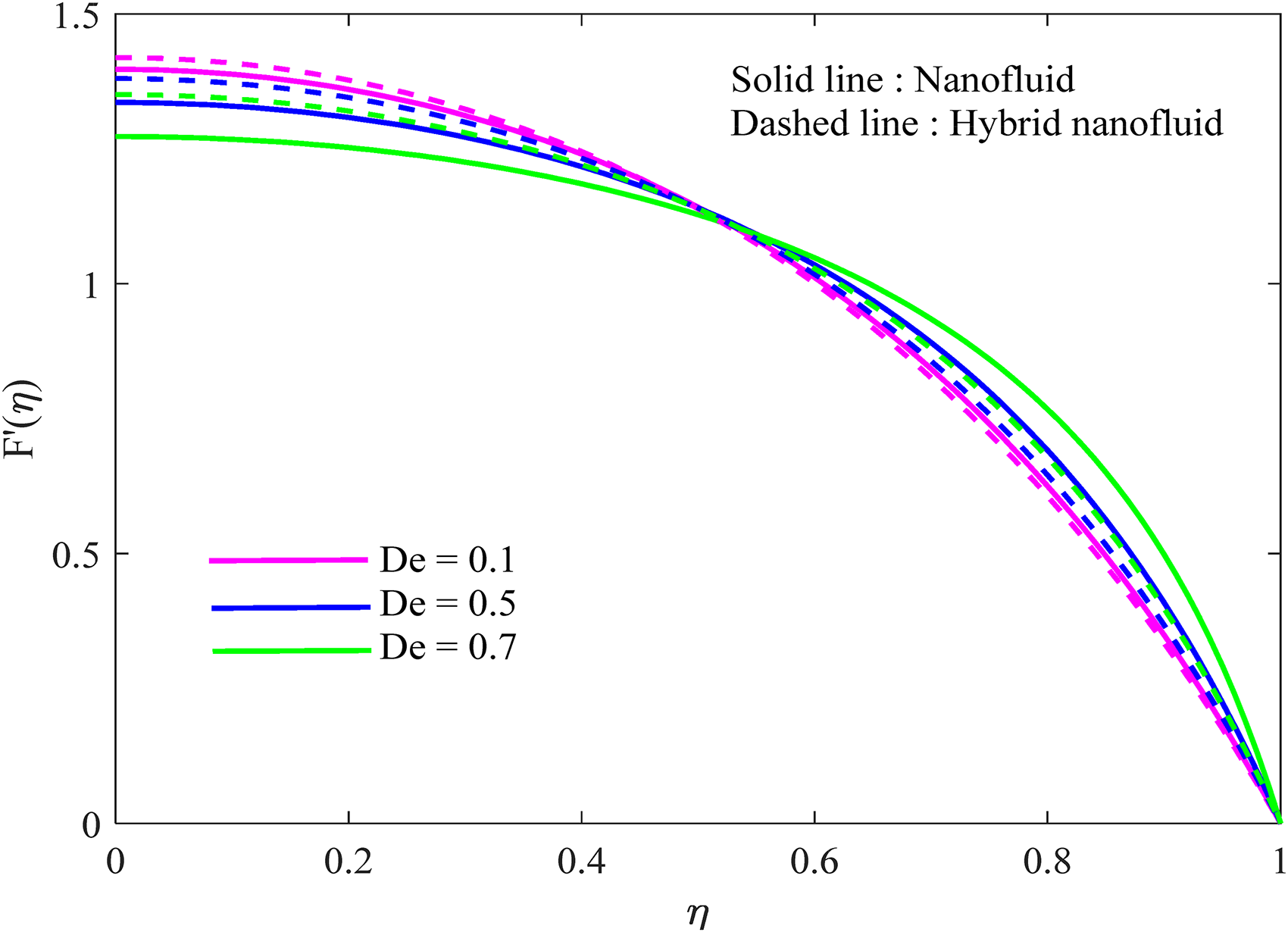

Figure 3.

Velocity versus $D e$ for both nanofluid and hybrid nanofluid when $S q = 0.5, δ = 0.1, R d = 0.2, P r = 6.2, θ_{w} = 2$ , and $E c = 0.1$ .

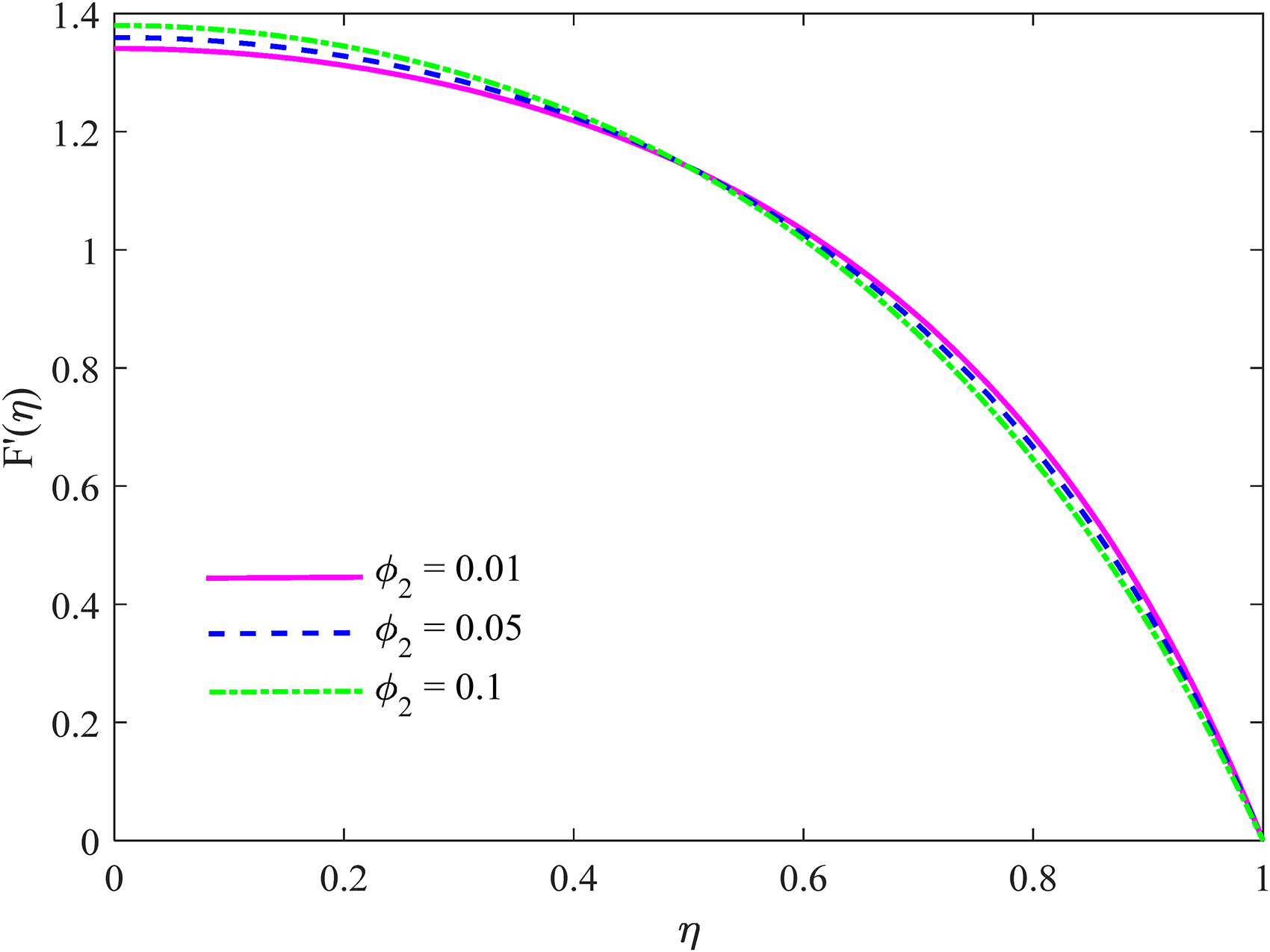

Figure 4.

Velocity versus $ϕ_{2}$ for both nanofluid and hybrid nanofluid when $D e = 0.5, S q = 0.5, δ = 0.1, R d = 0.2, P r = 6.2, θ_{w} = 2$ , and $E c = 0.1$ .

Figures 5 to 10 give us an idea regarding the effect of various parameter values such as $S q, D e, ϕ_{2}, R d, E c,$ and $θ_{w}$ on thermal profiles within the squeezing channel. Figure 5 exhibits the decrease in the thermal response for the positive values of $S q$ and for the negative values of $S q$ . We can observe an increase in the thermal response. The elastic properties of the Maxwell fluid likewise rise as $S q$ grows, whereas the thermal profile decreases. We also found that hybrid nanofluids have a higher thermal profile than nanofluids. Figure 6 illustrates that the higher values of $D e$ number minimise the temperature. Increasing the value of $D e$ will enhance the elastic property of Maxwell fluid; consequently, the heat transfer rate declines. Figure 7 exhibits that the thermal response slowly increases as the volume fraction of nanoparticles $ϕ_{2}$ increases. Supplementary Figure 8 exhibits that the thickness of the associated thermal boundary layer increases as a result of the thermal profile's growing relationship to the radiation parameter. The reason for this is that the Rosseland radiation absorptive diminishes as the radiation parameter rises. As a result, the absorption of Rosseland radiation declines, increasing the divergence of the radiative heat flux $q_{r}$ . As a result, the fluid receives a rate of radiative heat transfer. It is the reason for the increase in fluid temperature and the corresponding boundary-layer thickness. Supplementary Figure 9 shows that temperature increases with an increase in Eckert number $E c$ . From Supplementary Figure 10, we noticed that a rise in the temperature ratio parameter results in decrease in the thermal profile in the boundary-layer flow region.

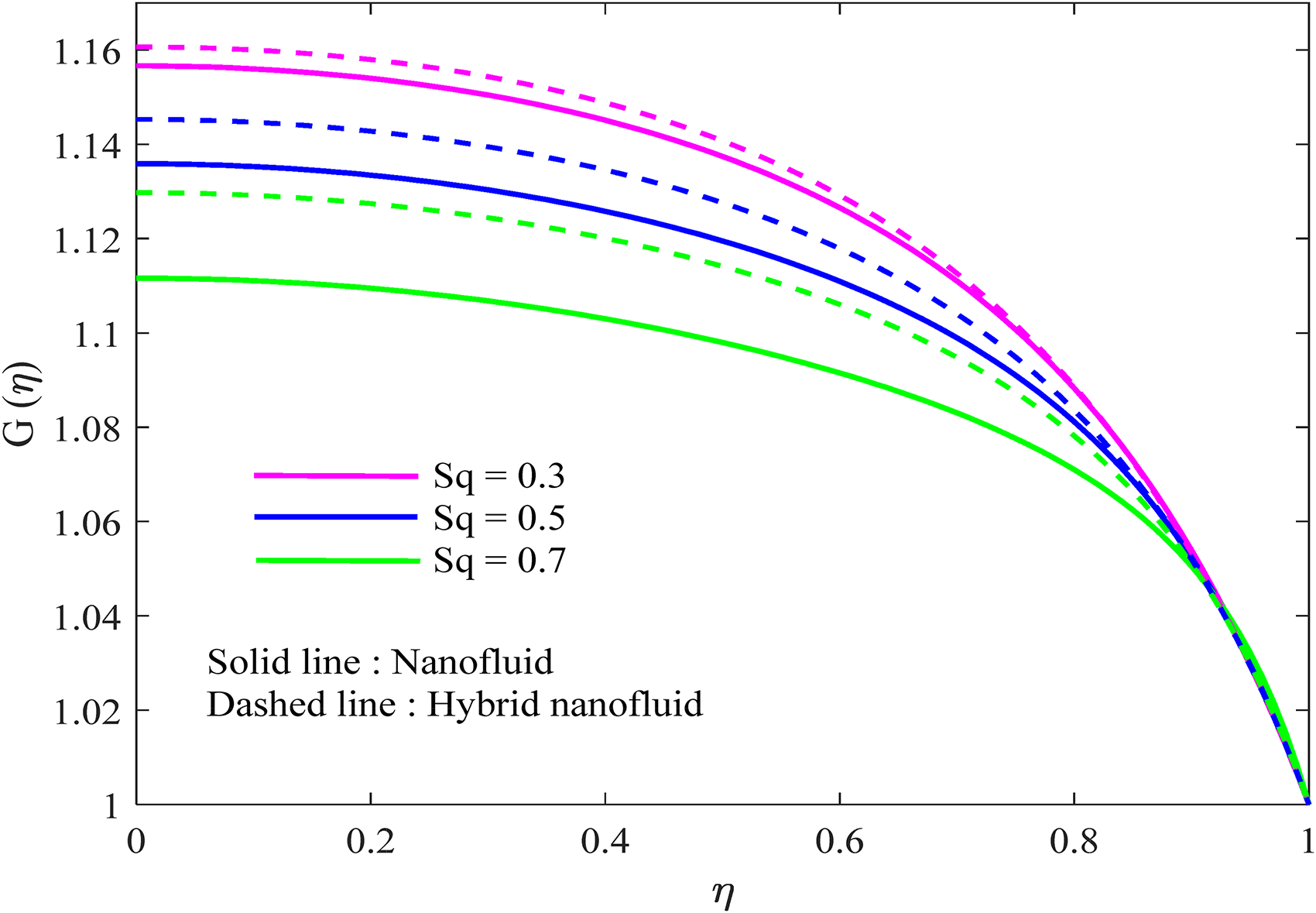

Figure 5.

Temperature versus $S q$ for both nanofluid and hybrid nanofluid when $D e = 0.5, δ = 0.1, R d = 0.2, P r = 6.2, θ_{w} = 2$ , and $E c = 0.1$ .

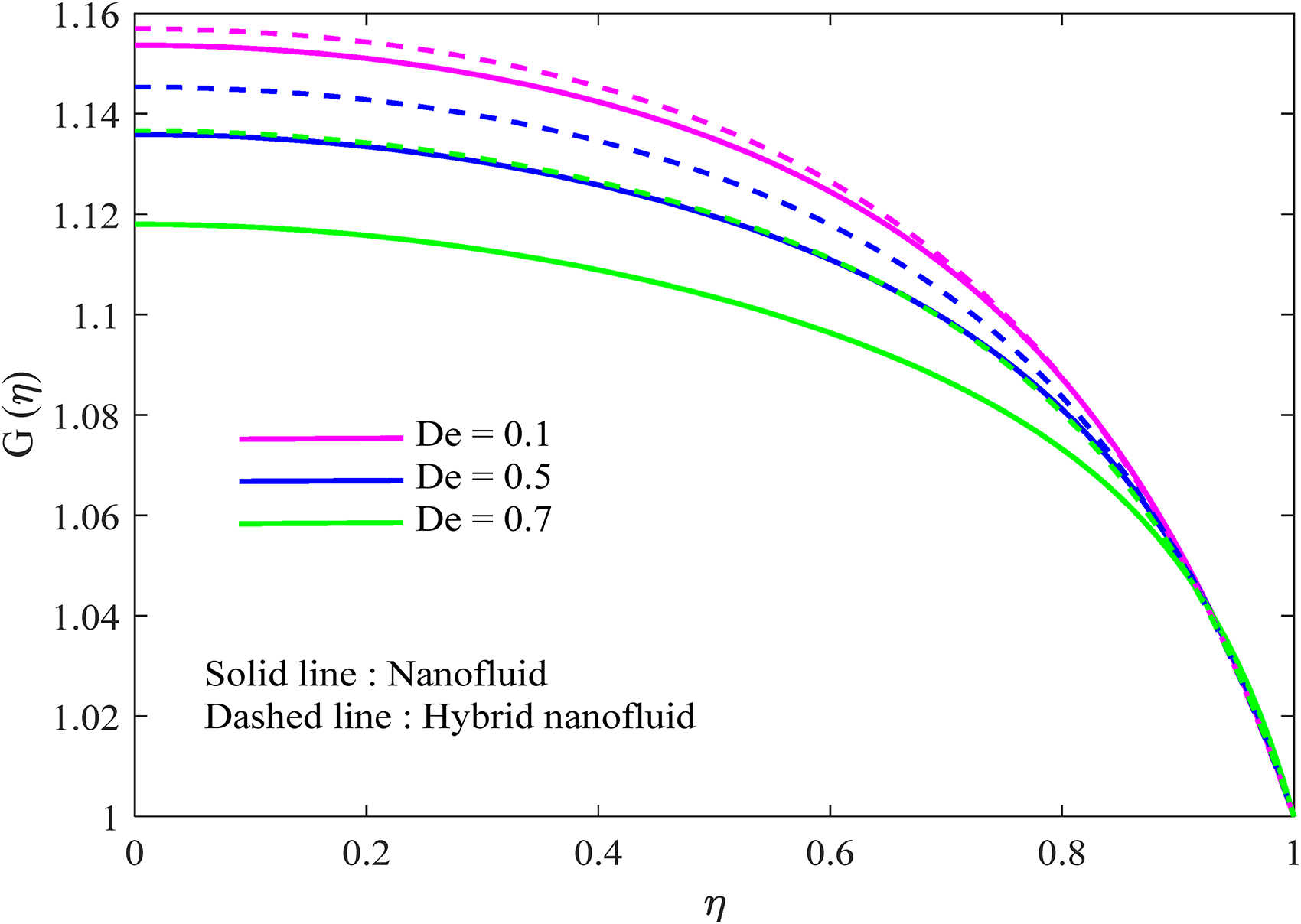

Figure 6.

Temperature versus $D e$ for both nanofluid and hybrid nanofluid when $S q = 0.5, δ = 0.1, R d = 0.2, P r = 6.2, θ_{w} = 2$ , and $E c = 0.1$ .

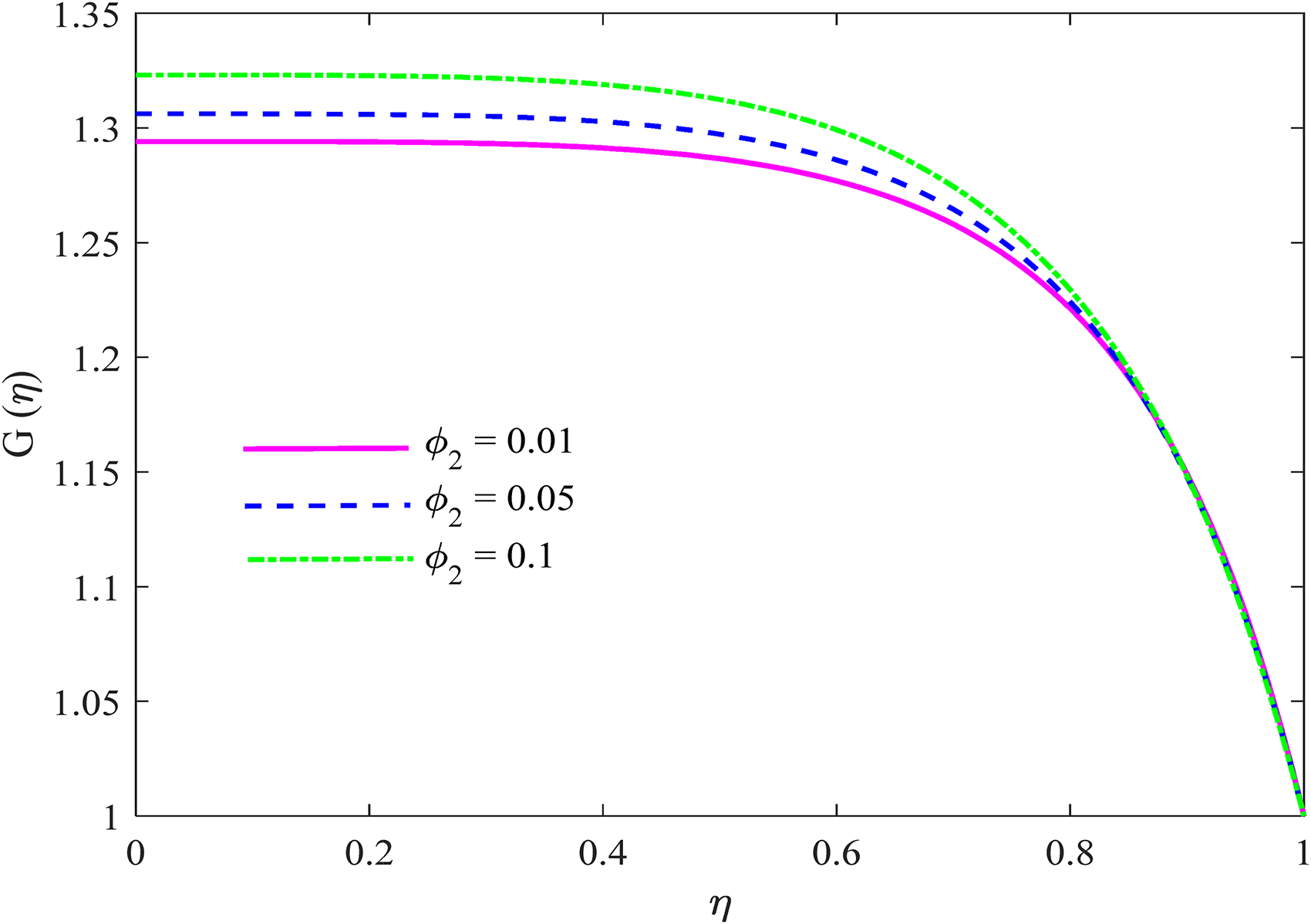

Figure 7.

Temperature versus $ϕ_{2}$ for both nanofluid and hybrid nanofluid when $D e = 0.5, S q = 0.5, δ = 0.1, R d = 0.2, P r = 6.2, θ_{w} = 2$ , and $E c = 0.1$ .

Supplementary Figures 11 and 12 illustrate the impact of radiation parameter $R d$ and Eckert number $E c$ on the Bejan number $B e$ . Supplementary Figure 11 displays the profile of Be number for radiation parameter $R d$ . Bejan number profile is declined for the increase of $R d$ as displayed in Supplementary Figure 11. As demonstrated in Supplementary Figure 12, the Bejan number profile is significantly increased for the Ecker number increments. In view of the fact that, the existence of Eckert number in a squeezing channel diminishes the thermal irreversibility. Supplementary Figures 13 and 14 expose the comparative study of $E_{S T}$ and $E_{S F F}$ for the variations of $ϕ_{2}$ . Entropy generation is high for the frictional forces when compared to thermal response as observed in Supplementary Figures 13 and 14. Moreover, both $E_{S T}$ and $E_{S F F}$ are increased for the increasing estimations of nanoparticles’ volume fraction.

Table 3 gives us an idea regarding the results of skin friction $C_{f}$ and Nusselt number $N u$ for the parameter of $S q, D e, R d, θ_{w}$ and $E c$ . For the rise in the squeezing parameter, it might be noted a decrease in skin friction values, whereas an increase in the Nusselt number. Increases in the physical parameters such as skin friction and Nusselt number follow increases in the De number. In addition, we can see the improvement in the Nusselt number for the increase in temperature ratio and radiation parameters. Final conclusion regarding physical parameters is that numerically these are high in hybrid nanofluid cases than that in nanofluid cases.

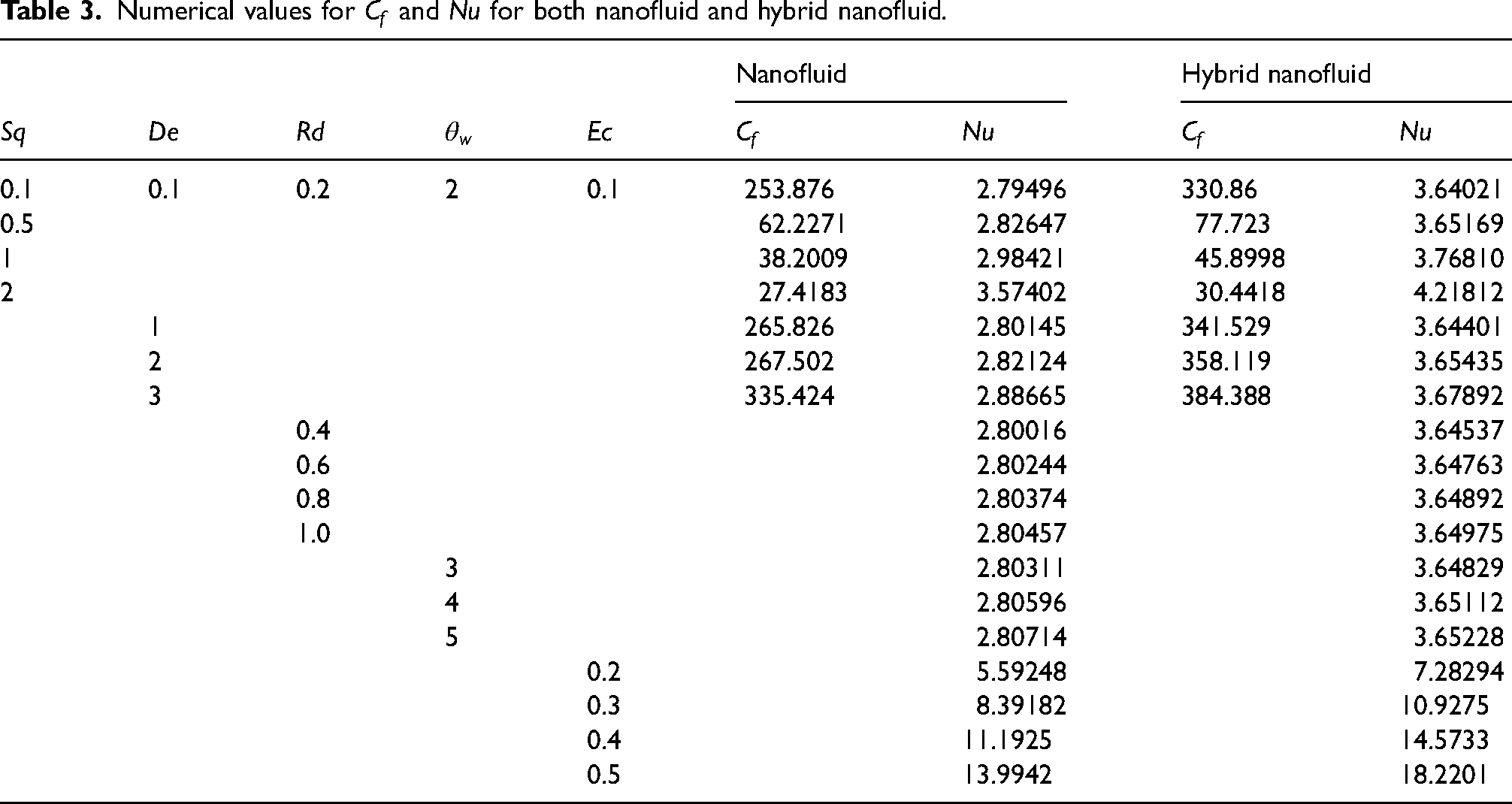

Table 3.

Numerical values for $C_{f}$ and $N u$ for both nanofluid and hybrid nanofluid.

$S q$	$D e$	$R d$	$θ_{w}$	$E c$	Nanofluid		Hybrid nanofluid
$S q$	$D e$	$R d$	$θ_{w}$	$E c$	$C_{f}$	$N u$	$C_{f}$	$N u$
0.1 0.5 1 2	0.1 1 2 3	0.2 0.4 0.6 0.8 1.0	2 3 4 5	0.1 0.2 0.3 0.4 0.5	253.876 62.2271 38.2009 27.4183 265.826 267.502 335.424	2.79496 2.82647 2.98421 3.57402 2.80145 2.82124 2.88665 2.80016 2.80244 2.80374 2.80457 2.80311 2.80596 2.80714 5.59248 8.39182 11.1925 13.9942	330.86 77.723 45.8998 30.4418 341.529 358.119 384.388	3.64021 3.65169 3.76810 4.21812 3.64401 3.65435 3.67892 3.64537 3.64763 3.64892 3.64975 3.64829 3.65112 3.65228 7.28294 10.9275 14.5733 18.2201

6. Conclusion remarks

By accounting for viscous dissipation and the impacts of radiative heat flux, the energy efficiency of the current analysis of squeezing flow of graphene-gold/PDMS hybrid Maxwell nanofluid between two plates is investigated numerically. The well-known Runge–Kutta–Fehlberg method is used to numerically solve the derived nonlinear differential equations. The following is a summary of some of the conclusions from the earlier analysis:

The number Be increases with the increasing radiation parameter $R d$ .

The Be number shows a downward trend with $E c$ .

Both $E_{S T}$ and $E_{S F F}$ increase with the increasing of the nanosize particle.

In squeezing channel, comparatively $E_{S F F}$ is significantly greater than $E_{S T}$ .

The velocity decreases to a certain range with increasing number of $D e$ number, the squeezing parameter, and then the trend is reversed.

With an increase in the radiation parameter Rd and the nanoparticle volume fraction $ϕ_{2}$ , the temperature inside the squeezing channel rises, but the squeezing parameter and the De number show the reverse trend.

Increases in the physical parameters such as skin friction and Nusselt number follow increases in the De number.

Skin friction values and the Nusselt number are higher for hybrid nanofluid than for nanofluid in this scenario.

Supplemental Material

sj-docx-1-pie-10.1177_09544089221139696 - Supplemental material for Graphene-gold/PDMS Maxwell hybrid nanofluidic flow in a squeezed channel with linear and irregular radiations

Supplemental material, sj-docx-1-pie-10.1177_09544089221139696 for Graphene-gold/PDMS Maxwell hybrid nanofluidic flow in a squeezed channel with linear and irregular radiations by Dhanekula Naga Bhargavi, Kotha Gangadhar and Ali J. Chamkha in Proceedings of the Institution of Mechanical Engineers, Part E: Journal of Process Mechanical Engineering

Footnotes

Acknowledgements

We are very grateful to the editor and reviewers for their constructive suggestions.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Kotha Gangadhar

Supplemental material

Supplemental material for this article is available online.

Nomenclature

References

Stefan

. Versucheiiber die scheinbare adhesion. K. Akad. Wissenschaften. Math. NaturwissenchaftlicheKlasse, Wien, Sitzungsberichte 1874; 69:713.

Siddiqui

Irum

Ansari

. Unsteady squeezing flow of a viscous MHD fluid between parallel plates, a solution using the homotopy perturbation method. Math Model Anal 2008; 13: 565–576.

Hayat

Yousaf

Mustafa

, et al. Influence of heat transfer in the squeezing flow between parallel disks. Chem Eng Commun 2012; 199: 1044–1062.

Vajravelu

Prasad

C-O

, et al. MHD Squeeze flow and heat transfer of a nanofluid between parallel disks with variable fluid properties and transpiration. Int J Mech Mater Eng 2017; 12: 9.

Khan

Ahmed

Khan

, et al. Heat transfer analysis for squeezing flow between parallel disks. J Egypt Math Soc 2015; 23: 445–450.

Mustafa

Hayat

Obaidat

. On heat and mass transfer in the unsteady squeezing flow between parallel plates. Meccanica 2012; 47: 1581–1589.

Bejan

. A study of entropy generation in fundamental convective heat transfer. ASME J Heat Transf 1979; 101: 718–725.

Bejan

. Second law analysis in heat transfer. Energy 1980; 5: 720–732.

Gul

Khan

Makhanov

. Entropy generation in a mixed convection Poiseuille flow of molybdenum disulphide Jeffery nanofluid. Results Phys 2018; 9: 947–954.

10.

Shit

Mukherjee

. MHD graphene-polydimethylsiloxane Maxwell nanofluid flow in a squeezing channel with thermal radiation effects. Appl Math Mech -Eng Ed 2019; 40: 1269–1284.

11.

Marzougui

Mebarek-Oudina

Magherbi

, et al. Entropy generation and heat transfer of Cu-water nanoliquid in porous lid-driven cavity through magnetic field. Int J Numer Method H 2022; 32: 2047–2069.

12.

Sarbazi

Hormozi

. Numerical study of entropy generation and forced convection heat transfer of a nanfluid in a channel with different fin cross-sections. Int J Numer Method H 2022; 32: 62–98.

13.

Mehta

Pati

Ahmed

, et al. Analysis of thermo-hydraulic and entropy generation characteristics for flow through ribbed-wavy channel. Int J Numer Method H 2022; 32: 1618–1642.

14.

Abbasi

Gul

Shanakhat

, et al. Entropy generation analysis for magnetized peristaltic movement of nanofluid through a non-uniform asymmetric channel with variable thermal conductivity. Chin J Phys 2022; 78: 111–131.

15.

Zheng

Yaghoubi

Dezfulizadeh

, et al. Free convection/radiation and entropy generation analyses for nanofluid of inclined square enclosure with uniform magnetic field. J Therm Anal Calorim 2020; 141: 635–648.

16.

Boland

Khan

Ryan

, et al. Sensitive electromechanical sensors using viscoelastic graphene-polymer nanocomposites. Science 2016; 354: 1257–1260.

17.

Choi

Eastman

. Enhancing Thermal Conductivity of Fluids with Nanoparticles. Argonne National Lab., IL (United States) 1995.

18.

Acharya

Das

Kundu

. The squeezing flow of Cu-water and Cu-kerosene nanofluids between two parallel plates. Alex Eng J 2016; 55: 1177–1186.

19.

Pourmehran

Rahimi-Gorji

Gorji-Bandpy

, et al. Analytical investigation of squeezing unsteady nanofluid flow between parallel plates by LSM and CM. Alex Eng J 2015; 54: 17–26.

20.

Subhani

Nadeem

. Numerical analysis of 3D micropolar nanofluid flow induced by an exponentially stretching surface embedded in a porous medium. Eur Phys J Plus 2017; 132: 441.

21.

Nadeem

Abbas

Khan

. Characteristics of three dimensional stagnation point flow of Hybrid nanofluid past a circular cylinder. Results Phys 2018; 8: 829–835.

22.

Gangadhar

Keziya

Ibrahim

. Effect of thermal radiation on engine oil nanofluid flow over a permeable wedge under convective heating Keller box method. Multidiscip Model Mater Struct 2019; 15: 187–205.

23.

Butt

Ali

Masood

, et al. Parametric study of entropy generation effects in magneto hydrodynamic radiative flow of second grade nanofluid past a linearly convective stretching surface embedded in a porous medium. J Nanofluids 2018; 7: 1004–1023.

24.

Afridi

Qasim

. Comparative study and entropy generation analysis of CU-H₂O and AG-H₂O nanofluids flow over a slandering stretching surface. J Nanofluids 2018; 7: 783–790.

25.

Saleem

Qasim

Alderremy

, et al. Heat transfer enhancement using different shapes of Cu nanoparticles in the flow of water based nanofluid. Phys Scr 2020; 95: 055209.

26.

Shah

Dawar

Kumam

, et al. Impact of nonlinear thermal radiation on MHD nanofluid thin film flow over a horizontally rotating disk. Appl Sci 2019; 9: 1533.

27.

Shahzadi

Suleman

, et al. Utilization of Cu-nanoparticles as medication agent to reduce atherosclerotic lesions of a bifurcated artery having compliant walls. Comput Methods Programs Biomed 2020; 184: 105123.

28.

Belhaj

Ben-Beya

. Thermal performance analysis of hybrid nanofluid natural convection in a square cavity containing an elliptical obstacle under variable magnetic field. Int J Numer Method H 2022; 32: 1825–1860.

29.

Nemati

Sani

Jahangiri

, et al. MHD Natural convection in a cavity with different geometries filled with a nanofluid in the presence of heat generation/absorption using little Boltzmann method. J Therm Anal Calorim 2022; 147: 9067–9081.

30.

Pathak

Tyagi

Anand

, et al. Advancement in solar still integration with phase change materials-based TES systems and nanofluid for water and wastewater treatment applications. J Therm Anal Calorim 2022; 147: 9181–9227.

31.

Shami

Sajid

Javed

. Analysis of heat transfer in SWCNTs-ethylene glycol-based nanofluid past a vertical complex wavy surface. J Therm Anal Calorim 2022; 147: 2601–2613.

32.

Wahid

Arifin

Khashiie

, et al. Hybrid nanofluid stagnation point flow past a slip shrinking Riga plate. Chin J Phys 2022; 78: 180–193.

33.

Kausar

Hussanan

Waqas

, et al. Buondary layer flow of micropolar nanofluid towards a permeable stretching sheet in the presence of porous medium with thermal radiation and viscous dissipation. Chin J Phys 2022; 78: 435–452.

34.

Subramanian

Senthil Kumar

Vinayagar

, et al. Experimental analyses on heat transfer performance of TiO₂water nanofluid in double-pipe counter-flow heat exchanger for various flow regimes. J Therm Anal Calorim 2020; 140: 603–612.

35.

Khan

Hayat

Alsaedi

, et al. Melting heat transportation in radiative flow of nanomaterials with irreversibility analysis. Renew Sust Energ Rev 2021; 140: 110739.

36.

Hayat

Khan

Alsaedi

. Irreversibility characterization in nanoliquid flow with velocity slip and dissipation by a stretchable cylinder. Alex Eng J 2021; 60: 2835–2844.

37.

Khan

Hayat

Alsaedi

. Entropy optimization in passive and active flow of liquid hydrogen based nanoliquid transport by a curved stretching sheet. Int Commun Heat Mass Transf 2020; 119: 104890.

38.

Hayat

Khan

Alsaedi

, et al. Computational analysis of heat transfer in mixed convective flow of CNTs with entropy optimization by a curved stretching sheet. Int Commun Heat Mass Transf 2020; 118: 104881.

39.

Khan

Hayat

Ijaz Khan

, et al. Salient features of Dufour and Soret effect in radiative MHD flow of viscous fluid by a rotating cone with entropy generation. Int J Hudrog Energy 2020; 45: 14552–14564.

40.

Khan

Saeed

Ijaz Khan

, et al. Entropy optimized CNTs based Darcy-Forchheimer nanomaterial flow between two stretchable rotating disks. Int J Hudrog Energy 2019; 44: 31579–31592.

41.

Hayat

Khan

Ijaz Khan

, et al. Theoretical investigation of Ree–Eyring nanofluid flow with entropy optimization and Arrhenius activation energy between two rotating disks. Comput Methods Programs Biomed 2019; 177: 57–68.

42.

Hayat

Khan

Alsaedi

. Simulation and modeling of entropy optimized MHD flow of second grade fluid with dissipation effect. J Mater Res Technol 2020; 9: 11993–12006.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.14 MB
