Investigation on the effect of strain rate on standard involute and asymmetric polymer gears using the newly design fixture for single tooth testing method
Restricted accessResearch articleFirst published online February, 2024
Investigation on the effect of strain rate on standard involute and asymmetric polymer gears using the newly design fixture for single tooth testing method

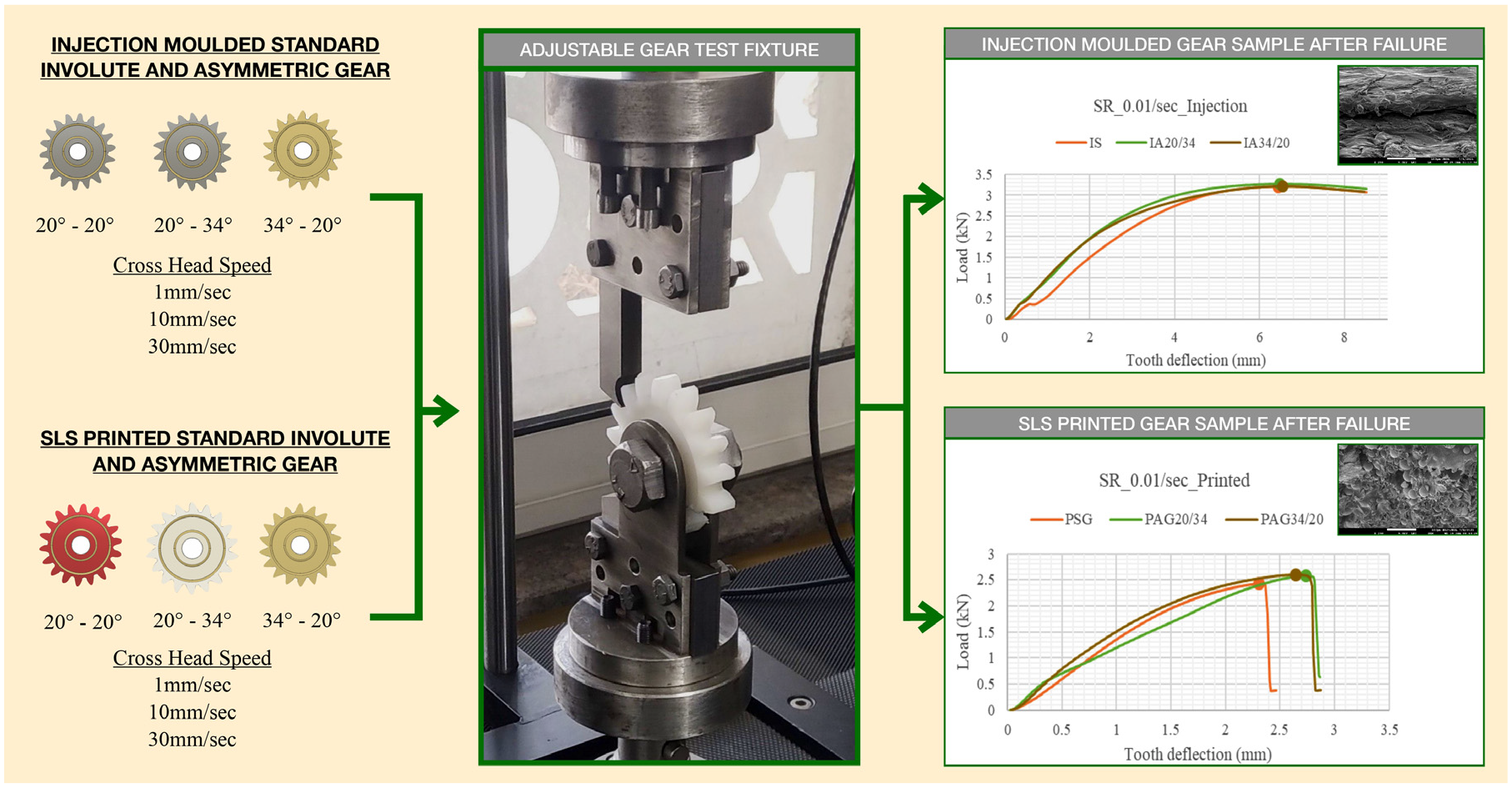

Effect of strain rate on the single tooth strength of nylon-based gear has been investigated using a newly designed testing fixture. An adjustable single tooth testing fixture has been designed and developed for the purposed of single tooth loading test which is able to accommodate the gear with varying thickness. Injection molded nylon-6 and SLS (selective laser sintering) printed glass filled nylon-6 standard involute and asymmetric gear tooth have been investigated for their single tooth loading test at three different strain rates of 0.0003, 0.003, and 0.01 per sec. Single tooth strength for both injection and printed gear is found to increase with the increase in strain rate. Injection molded single gear tooth undergone bending failure whereas SLS printed gear tooth shows fracture failure. Resistance to single tooth deflection at higher strain rate has drastically increased for injection molded standard involute (IS) gear tooth by 23% whereas, asymmetric gear tooth IA20 followed by IA34 shows slight increment. SLS printed asymmetric gear tooth PAG20/34 exhibits maximum single tooth strength among all three types of printed gears at all the three strain rates. At higher strain rate of 0.01 per sec, single tooth strength dominates by tooth profile geometry whereas, at lower strain rate of 0.0003 per sec, it dominates by tooth profile geometry and microstructure.
HaslCIllenbergerCOsterP, et al. Potential of oil-lubricated cylindrical plastic gears. J Adv Mech Des Syst Manuf2018; 12(1): JAMDSM0016–JAMDSM0019.
2.
KarimpourMDearnKWaltonD. A kinematic analysis of meshing polymer gear teeth. J Mater Des Appl2010; 224(3): 101–115.
3.
Van MelickHG. Tooth bending effects in plastic spur gears influence on load sharing, stresses and wear, studied by FEA. Geartechnology2007; 7: 58–66.
4.
MatkovičSKalinM. Effects of slide-to-roll ratio and temperature on the tribological behaviour in polymer-steel contacts and a comparison with the performance of real-scale gears. Wear2021; 477: 1–13.
5.
SardarJBandopadhyaD. Development and fabrication of cement reinforced polypropylene composite material spur gear. J Polym Eng2014; 34(8): 775–786.
6.
YuceCDoganOKarpatF. Effects of asymmetric tooth profile on single-tooth stiffness of polymer gears. Mater Test2022; 64: 513–523.
7.
McphersonDRRaoSB. Methodology for translating single- tooth bending fatigue data to be comparable to running gear data. Gear Technol2008; March/April2008: 42–51.
8.
GaspariniGMarianiUGorlaC, et al. Bending fatigue tests of helicopter case carburized gears: influence of material, design and manufacturing parameters. Am Gear Manuf Assoc - Am Gear Manuf Assoc Fall Tech Meet2008; 2008: 131–142.
9.
AkataEÃAltınbalıkMT. Three point load application in single tooth bending fatigue test for evaluation of gear blank manufacturing methods. Int J Fatigue2004; 26: 785–789.
10.
NagagawaT. Method and tool for testing breakage strength of gear tooth, 2004, p.114.
11.
LisleTJShawBAFrazerRC. External spur gear root bending stress: A comparison of ISO 6336:2006, AGMA 2101-D04, ANSYS finite element analysis and strain gauge techniques. Mech Mach Theory2017; 111: 1–9.
12.
ChengY. Gear bending fatigue test fixture, 2014.
13.
OlssonEOlanderAÖbergM. Fatigue of gears in the finite life regime — experiments and probabilistic modelling. Eng Fail Anal2016; 62: 276–286.
14.
HandschuhRFKrantzTLLerchBA, et al. Investigation of low-cycle bending fatigue of AISI 9310 steel spur gears. In: Proceedings of the ASME International Design Engineering Technical Conferences and Computers and Information in Engineering Conference, 2008, vol. 7, pp.871–877.
15.
LiuGWeiPChenK, et al. Polymer gear contact fatigue reliability evaluation with small data set based on machine learning. J Comput Des Eng2022; 9(2): 583–597.
16.
IllenbergerCMTobieTStahlK. Operating behavior and performance of oil-lubricated plastic gears. Forsch im IngenieurwesenEngineering Res2022; 86(3): 557–565.
17.
BhartiSSenthilvelanS. Transmission efficiency and surface damage of polymer–polymer gear pair under wet lubrication. In: KumarRChauhanVSTalhaMPathakH (eds.), Machines, Mechanism and Robotics. Lecture Notes in Mechanical Engineering. Springer, Singapore. https://doi.org/10.1007/978-981-16-0550-5_77
18.
ZhangYMaoKLeighS, et al. A parametric study of 3D printed polymer gears. Int J Adv Manuf Technol2020; 107(11-12): 4481–4492.
19.
AleksandarDZarkoMRadivojeM, et al. The influence of material on the operational characteristics of spur gears manufactured by the 3D printing technology. J Mech Eng2018; 68(3): 261–270.
20.
PisulaJBudzikGTurekP, et al. An analysis of polymer gear wear in a spur gear train made using FDM and FFF methods based on tooth surface topography assessment. Polymers2021; 13(10): 1649.
21.
PandianAKGautamSSSenthilvelanS. Effect of metal and polymer mating gears on the bending fatigue performance of asymmetric polymer gears. Proc IMechE, Part L: J Materials Design and Applications2021; 235(10): 2324–2339.
22.
MouradAHIElsayedHFBartonDC. Semicrystalline polymers deformation and fracture behaviour under quasistatic strain rates and triaxial states of stress. Strength Fract Complex2004; 2(4): 149–162.
23.
CaoKMaXZhangB, et al. Tensile behavior of polycarbonate over a wide range of strain rates. Mater Sci Eng A2010; 527(16-17): 4056–4061.
24.
NittaKHNomuraH. Stress–strain behavior of cold-drawn isotactic polypropylene subjected to various drawn histories. Polymer2014; 55(25): 6614–6622.
25.
GuoYLiY. Quasi-static/dynamic response of SiO2–epoxy nanocomposites. Mater Sci Eng A2007; 458(1-2): 330–335.
26.
FanJTWeerheijmJSluysLJ. High-strain-rate tensile mechanical response of a polyurethane elastomeric material. Polymer2015; 65: 72–80.
27.
ShanGFYangWYangMB, et al. Effect of temperature and strain rate on the tensile deformation of polyamide 6. Polymer2007; 48(10): 2958–2968.
28.
StarkovaOZhangZZhangH, et al. Limits of the linear viscoelastic behaviour of polyamide 66 filled with TiO2 nanoparticles: effect of strain rate, temperature, and moisture. Mater Sci Eng A2008; 498(1-2): 242–247.
29.
KodeeswaranMSureshRSenthilvelanS. Effect of strain rate on bending and transmission characteristics of injection molded polyamide 66 spur gears. Proc IMechE, Part L: J Materials Design and Applications2019; 233(6): 1145–1155.
30.
ČerneBLorberRDuhovnikJ, et al. Influence of temperature- and strain rate-dependent viscoplastic properties of polyoxymethylene on the thermo-mechanical response of a steel-polyoxymethylene spur gear pair. Mater Today Commun2020; 25: 1–14.
31.
KapelevichA. Direct gear design for asymmetric tooth gears. Mech Mach Sci2016; 34: 117–143.
32.
BrownFWDavidsonHSRWeiresDB, et al. Analysis and testing of gears with asymmetric involute tooth form and optimized fillet form for potential application in helicopter main drives. Gear Tech2011: 46–55.
33.
RaghuwanshiNKPareyA. Experimental measurement of gear mesh stiffness of cracked spur gear by strain gauge technique. Meas J Int Meas Confed2016; 86: 266–275.
34.
SandersAHouserDRKahramanA, et al. An experimental investigation of the effect of tooth asymmetry and tooth root shape on root stresses and single tooth bending fatigue life of gear teeth. In: Proceedings of the ASME 2011 International Design Engineering Technical Conferences & Computers and Information in Engineering Conference, Washington, DC, 2011, Vol 8, pp.1–9.
35.
ConradoEGorlaCDavoliP, et al. A comparison of bending fatigue strength of carburized and nitrided gears for industrial applications. Eng Fail Anal2017; 78: 41–54.
36.
BianXXZhouGTanJZ. Investigation of bending fatigue strength limit of alloy steel gear teeth. Proc IMechE, Part C: J Mechanical Engineering Science2012; 226(3): 615–625.
JainMPatilSSGhoshSS. Development and fabrication of nylon 6 standard and asymmetric spur gear using injection moulding. Advances in Mechanical and Materials Technology. EMSME 2020. Lecture Notes in Mechanical Engineering. Springer, Singapore, 2022. https://doi.org/10.1007/978-981-16-2794-1_78
39.
KumarRRanjanNbabbarA. On investigations of 3D printed nylon 6 parts prepared by fused filament fabrication. Mater Today Proc2022; 48: 1153–1156.
40.
SinghJSinghRSharmaS. Effect of processing parameters on mechanical properties of FDM filament prepared on single screw extruder. Mater Today Proc2022; 50: 886–892.
41.
ZharylkassynBPerveenATalamonaD. Effect of process parameters and materials on the dimensional accuracy of FDM parts. Mater Today Proc2021; 44: 1307–1311.
42.
SinghRSinghS. Development of nylon based FDM filament for rapid tooling application. J Inst Eng Ser C2014; 95(2): 103–108.
SiLHanYZhouM, et al. The influence of process parameters on the performance of nylon 6 selective laser sintering parts. J Phys Conf Ser2021; 1798: 1–4.
