Abstract

Optimizing flexible routing in flexible manufacturing systems ameliorates the efficiency of flexible manufacturing systems. In the present competitive market, accuracy in the planning stage plays an important role. Therefore, in this article, a production simulator system based on genetic algorithms is utilized to find the near-optimal flexible routing for flexible manufacturing systems. A combination of production simulator system and genetic algorithms is introduced to find the appropriate order of a set of operations for jobs that need to be operated on available machine tools in flexible manufacturing systems. In order to augment genetic algorithms, a matrix encoding method is incorporated. The proposed simulation is applied to numerical case studies of flexible routing for flexible manufacturing systems problem. The purpose of case studies is to demonstrate the successful applicability of the proposed method for flexible routing for flexible manufacturing systems problem.

Keywords

Flexible manufacturing system flexible routing production simulator genetic algorithms

Introduction

Presently, most of the production systems are meant for high volume and mass production. However, nowadays, market is customer driven, and there is an increase in demand for customized products. This results in increase in production system complexity, and industries are looking for systems such as flexible manufacturing systems (FMS). In today’s competitive market, production costs play a vital role. Hence, industries are trying to make the production systems planning optimal or near optimal.

Conventionally, the product variety has been produced in a job shop or small batch operation. In comparison to FMS, conventional production systems including job shop result in low productivity and high production cost in mass production environment.¹ FMS realize high-volume mass production with parts variety efficiently. Typically, FMS can reach up to 80% utilization, which is three times higher than the utilization of traditional machines that can operate with as low as 20% utilization.² In order to make FMS more efficient, it should be optimized. Production scheduling is still one of the vital factors that can improve the productivity of FMS. It is a very complicated system and has many unpredictable conditions, especially in dynamic environments. These characteristics of FMS can be augmented by heuristic-based approaches by optimizing its scheduling.

Much research had been conducted concerned with the scheduling of FMS.^3,4 The use and importance of FMS is increasing due to customized product demand. FMS offer flexibility in product variety that results in reduced inventories and faster responses to changes in demand requirements.⁵ Still, there are many issues related to decision making in FMS.⁶ The current literatures have considered flexibility of FMS for specific objective.⁷ In FMS, considering the uncertain arrival of jobs and other dynamic uncertainties leads to complex scheduling problems even for simple breakdowns.³ To study and optimize a FMS, several techniques and methods were introduced such as genetic algorithm (GA).^8–13 Due to the difficulty and complexity in scheduling, finding a near-optimal solution in a reasonable time is very hard for conventional search–based methods.¹⁴ The scheduling problem is considered as non-deterministic polynomial-time (NP)-hard problem, and GA is considered as an effective and popular meta-heuristics method to solve such kind of problems.¹⁵

The majority of research work related to the FMS optimization considered reliable systems because there are few algorithms to measure unreliable systems.^16,17 Further information related to production system evaluation can be acquired from a number of books^18–24 and review papers,^25,26 among others.

Recently, many rules have been developed to solve flexible routing (FR) problems. Threshold-based routing results in lesser waiting time until processing is greater than a certain threshold value for the system.²⁷ In Cogill and Hindi,²⁸ the study presented a linear program formulation for maximum throughput routing and scheduling problem. Flexibility situation for a hypothetical FMS was studied in Bilge et al.²⁹ In addition, the influence of route flexibility degree, open rate of operations, and production type coefficient on makespan was discussed in Witkowski et al.³⁰ In addition, new routing rules were developed that are suitable for the situations in which sequence-dependent setup times exist in dynamic flexible job shop scheduling problem.³¹

Most of the existing research works dealing with routing flexibility have considered the push-type production systems. Although extensive studies have been presented to solve the problems faced by the manufacturing systems in design and operation phases. There are many FMS issues that need more focus from the researchers, such as task scheduling, control of the operations, especially in a dynamic environment including routing of parts and automated guided vehicle (AGV).³²

This study considered one-by-one parts input method³³ to feed the production system with the different types of parts. This method ensures a required production ratio at any instant in production. To the best of author’s knowledge, there has been no any previous work considering one-by-one parts input method in FR problem.

This study considers a production system with dynamic nature. The sequence of high varieties part types is included in the scheduling problem with any production ratio. Furthermore, the production system flexibly is increased since the production ratio can be changed at any instant during the production.

In this article, a production simulator system (PSS) is developed to find the optimal or near-optimal routing in FMS. In the FMS, different product types are processed simultaneously with different processing time on each machine tool. The developed PSS utilizes GA to optimize the flexible routing for flexible manufacturing systems (FR-FMS). The proposed simulation is applied to numerical application examples to demonstrate the successful applicability of the combination of PSS and GA to solve FR-FMS problem. The notations used in this article are listed below.

Modeling of FMS and the model assumptions

FMS is an important manufacturing system with the capability of operating efficiently in mass production with part variety. FMS consists of k different types of machine tools (computer numerical control (CNC) machining centers). Machine tools have finite local buffer capacity and uniform part delivery and holding pallets. All machine tools are capable of processing a required operation (O_ij) on any part type, with different machining time (PT_ijk). In addition, the products enter and leave the FMS through load\unload station and handling system. The part travels between the FMS components by a number of AGVs with one pallet at a time. A typical structure of an FMS is shown in Figure 1. The FMS in this study considered a number of assumptions. These assumptions are summarized below.

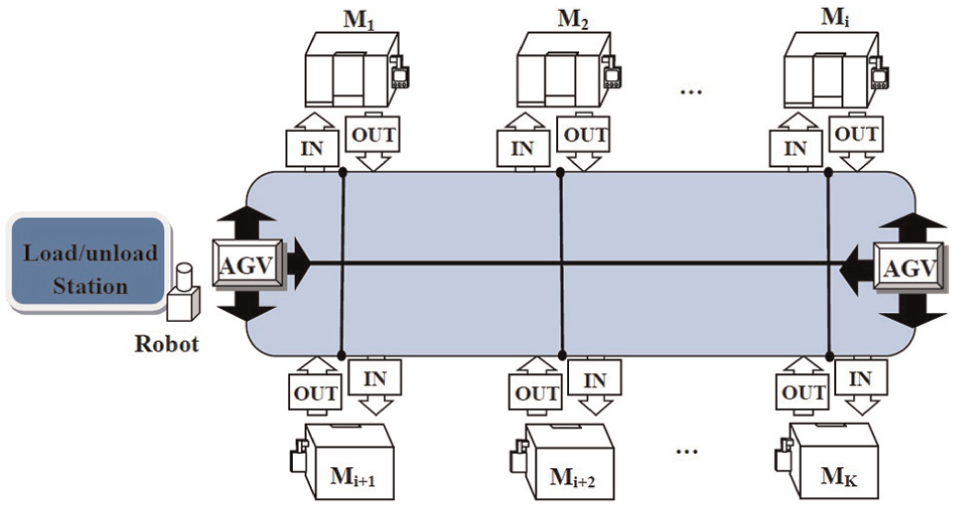

Figure 1.

FMS model.

FMS model assumptions

Large finite products variety can be produced by the FMS.

Handling of parts and materials in the FMS is performed in single units (on unit-load pallets).

The products enter and leave the FMS through load\unload station.

The time required to load and unload a part on\from the pallet is assumed 3 min. It needs 1 min to move the pallet onto or from the AGV.

Each part is transferred on the unit-load pallet while in the system.

The layout of the FMS components is well defined; the components are fixed, and the distance between each pair of components is known.

Buffer allocations are included in the system.

One operation can be performed by each machine tool of FMS at a time.

Tool change times are included in the processing times.

All necessary components are available and fit in the system to execute any work order.

Processing time and setup time for each part type in each machine tool is known.

Some randomly selected machines can be considered as out of order.

Each machine is capable of performing different operations, but only one part can be processed at a time.

Once any operation started, it cannot be interrupted or divided.

Each machine tool stops N times an hour, and N < 5 and selected randomly.

Each machine tool stops for a quality check after every P parts.

It takes 1 min to travel between two neighbor machine tools in vertical and horizontal directions.

Problem definition

The FMS considered in this article can produce l different part types; each type requires O_s operations. Each operation can be processed by any machine tool ( $M_{i} \in M$ ) without any priority within machine tools. Parts can follow different routing among the machine tools to perform a job for P parts. The FMS scheduling problem is to find the optimal or near-optimal route for each part type to maximize the throughput of the FMS. In this article, GA is utilized to find efficient route that results in the maximum throughput.

The problem can be described mathematically as follows:

Given:

A set of machine tools M = {M1, M2, …, M_K}, and a set of jobs J = {J1, J2, …, J_K}. Each job, J, consists of n_i operations, and each operation, $O_{ij}, \forall$ ( $i = 1, 2, \dots, N$ and $j = 1, 2, \dots, n_{i}$ ), and can be processed in a machine tool M_i, $M_{i} \in M$ .

Determine: optimal or near-optimal route for each part type.

So that, TH (R₁, R₂, …, R_l) is maximum.

GAs for the FMS optimal design

GA is a heuristic optimization method which is based on principles of natural selection and genetics.^34,35 GA begins with an initial population which includes a number of randomly generated solutions to the search problem.

The set of solutions in the population are called individuals. Each of the individuals represents one of the possible solutions for the optimization problem. The fitness is measured for all individuals of the initial population. The next population is generated by selecting a number of individuals of higher fitness from the current population and by applying GA operations including crossover and mutation. This iteration will repeat until the fitness value is optimized. The best overall solution becomes the candidate solution to the problem. Figure 2 shows the flow chart of the GA. The characteristics of the GA are described below.

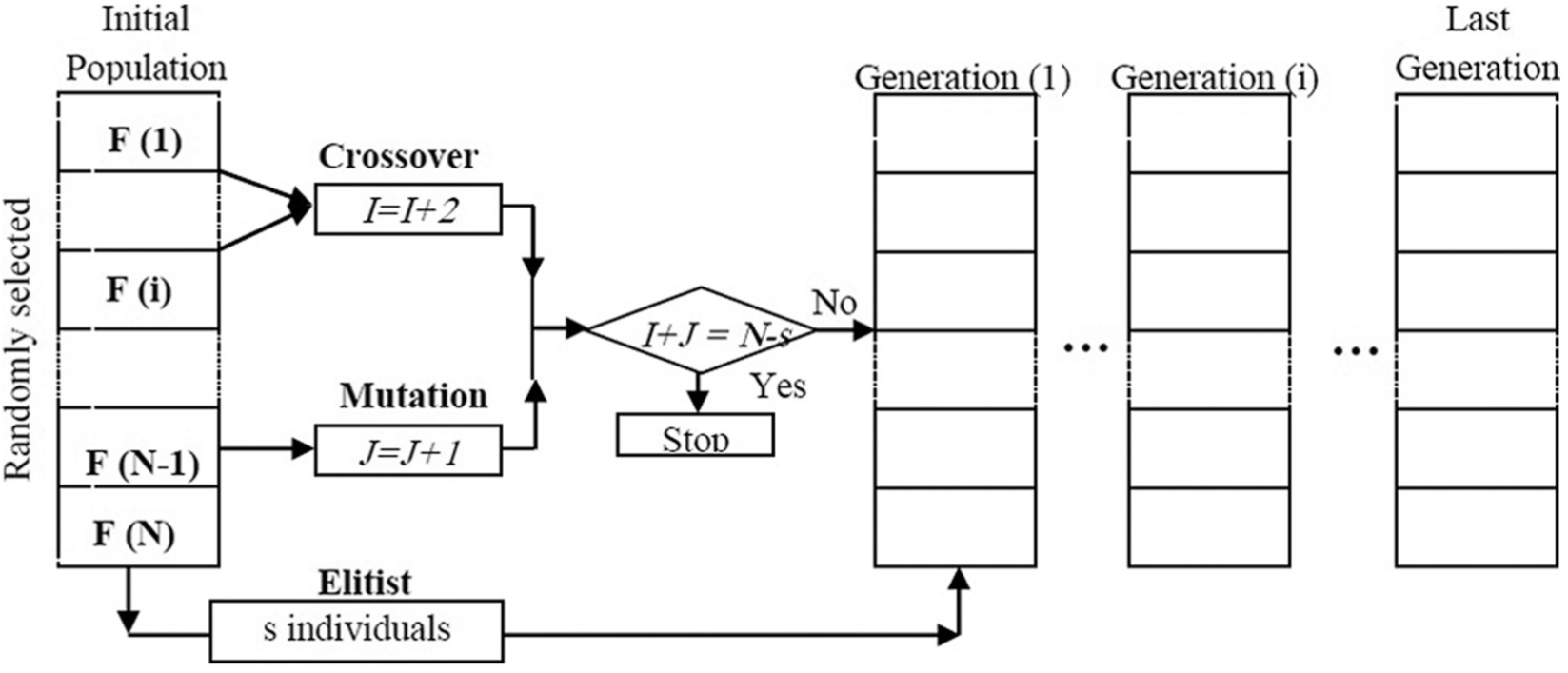

Figure 2.

The GA outline.

Matrix encoding method

The first step of GA is to determine the chromosome encoding method.

The conventional GA individual is generally encoded in a linear gene arrangement. Thus, the encoding of the individual can be expressed as a single vector. In case of FR-FMS, it is difficult to use the conventional linear genes encoding method to express the complex arrangements of the route for all part types. This is because there are many parts types and each part type has a different route. Thus, the expression of routes can be defined by matrix, where the rows of the matrix represent the product types (first row for the first type and so on), and the columns represent the elements in the route of each part type (namely, the operations). This matrix distribution required a matrix expression to be defined.

In this research, a matrix encoding method (MEM) is proposed to express genes in individual. MEM is suitable to FR-FMS problems because the adopted encoding method expresses the genes in chromosome as M × N matrix, where M is the number of the part types (part variety) and N is the number of operations required to produce each type. MEM expresses the individuals according to the number of part types and the number of operations required to produce each type. The individual using MEM is defined as follows

Individual = [\begin{matrix} M_{1}^{1} & M_{2}^{1} & \dots & M_{i}^{1} & \dots & M_{O}^{1} \\ M_{1}^{2} & M_{2}^{2} & \dots & M_{i}^{2} & \dots & M_{O}^{2} \\ ⋮ & ⋮ & ⋮ & ⋮ & ⋮ & ⋮ \\ M_{1}^{j} & M_{2}^{j} & \dots & M_{i}^{j} & \dots & M_{O}^{j} \\ ⋮ & ⋮ & ⋮ & ⋮ & ⋮ & ⋮ \\ M_{1}^{l} & M_{2}^{l} & \dots & M_{i}^{l} & \dots & M_{O}^{l} \end{matrix}]

(1)

Where $M_{i}^{j}$ is the machine that will perform operation i of the part type j, l is number of part types, and $O_{s}$ is number of operations required for part s. Equation (2) shows an example of the MEM

[\begin{matrix} M_{3} & M_{5} & M_{1} & M_{2} & M_{7} & M_{4} & M_{6} \\ M_{7} & M_{1} & M_{4} & M_{2} & M_{5} & M_{6} & M_{3} \\ ⋮ & ⋮ & ⋮ & ⋮ & ⋮ & ⋮ & ⋮ \\ M_{2} & M_{1} & M_{5} & M_{7} & M_{3} & M_{6} & M_{4} \end{matrix}]

(2)

The expression matrix is not limited, and it can be defined with any number of rows and columns. Thus, any FMS structure and with any part varieties can be dealt with this approach.

Initial population and selection of the next generations

The first group generation, POP(0), is selected randomly. Each group contains N individuals, each individual contains l vectors, and each vector contains O elements. Based on current population, GA generates the next generation by applying the following algorithm:

Algorithm 1

Generation of new population

Step 1: Calculate $F (i) \forall i = 1, 2, \dots, IN$ for current population.

Step 2: Select $IN (i) \forall i = 1 \to s$ by applying elitist strategy.

Step 3: For each individual $i \in current population$ and $i = (1, \dots, NI)$ .

Calculate the probability of selecting PR(i) as follows

PR (i) = \frac{F {(i)}^{2}}{\sum_{i = 1}^{NI} F {(i)}^{2}}

(3)

Step 4: Calculate accumulation $A (i) \forall i = 1, 2, \dots, IN$ by using equation (4)

A (i) = \sum_{i = 1}^{i} PR (i) = \sum_{i = 1}^{i} (\frac{F {(i)}^{2}}{\sum_{i = 1}^{NI} F {(i)}^{2}})

(4)

Step 5: Calculate period $P (i) \forall i = 1, 2, \dots, IN$ as follows

P (0) = [0, A (1)]

and

P (i) = [A (i - 1), A (i)], \forall i = 1, 2, \dots, IN

Step 6: Carry out crossover operation on the $IN (i)$ and $IN (j)$ .

Step 7: Define new endpoints of the two selected periods by a constant value n as follows: set $P (i) = [A (i - 1), A (i) - n] for P (i) \subset N 1$ and $P (j) = [A (j - 1), A (j) - n] for P (j) \subset N 2$

Step 8: Select an individual $IN (i) \in P (k)$ and carry out mutation operation.

Step 9: Reduce the endpoint of the selected period by a constant value n as follows: set $P (i) = [A (i - 1), A (i) - n] for P (i) \subset N 1$ .

Step 10: Repeat Steps 6 to 9 to generate N − s individuals of the new population based on C_r and M_r.

Step 11: Repeat Step 1 to Step 10.

Step 12: Repeat step 11 to reach the optimum fitness value and set the individual of this fitness as the optimal individual.

Crossover by MEM

The MEM crossover is different from conventional crossover because the genes in individuals are arranged in matrix form. The main difference between MEM and conventional crossover is that the MEM is applied using crossover line instead of the crossover point as in conventional crossover. The crossover line is suitable for MEM because the MEM individual consists of multi-vectors, and each vector has one crossover point. In MEM, crossover line passes through crossover points located in all vectors, as shown in Figure 3. The MEM crossover is carried out using the following steps.

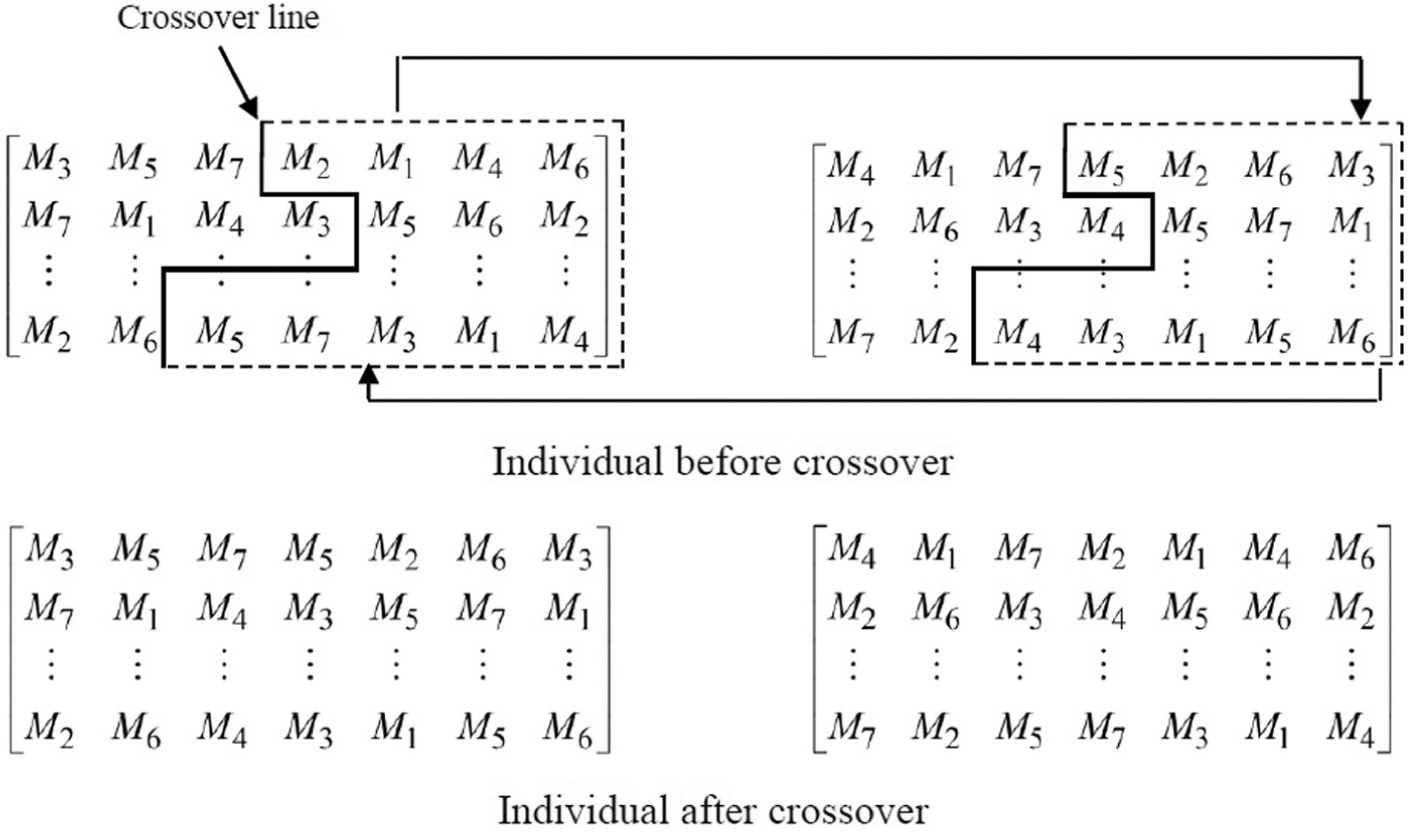

Figure 3.

MEM crossover operation.

Algorithm 2

Crossover for MEM

Step 1: Select two numbers between 0 and A(NI)as follows

N_{1} \leftarrow Random [0, \dots, A (NI)]

and

N_{2} \leftarrow Random [0, \dots, A (NI)]

$I f N_{1} a n d N_{2} \in P (i), \forall i = 1, 2, \dots, N I T h e n, reselect N_{2}$

Step 2: Find $IN (i) \in P (i) \subset N 1 and IN (j) \in P (j) \subset N 2, \forall i, j = 1, 2, \dots, IN$

Step 3: Select l number of crossover points, CP_i, $\forall i = 1, 2, \dots, l$ as follows

$P_{j} \leftarrow Random [1, \dots, i, \dots, O - 1]$

Step 4: Exchange the genes after crossover line between the two individuals.

Mutation by MEM

The mutation of the proposed MEM is different because the gene expression adopts the matrix arrangement. Thus, the swap mutation applied to one vector in conventional method will now be applied to all rows of the MEM matrix. The functional characteristic of the mutation is to change the value of one gene for each row in individual. Mutation operation for the MEM is applied as follows:

Algorithm 3

Mutation for MEM

Step 1: Select one number between 0 and A(NI)as follows

N \leftarrow Random [0, \dots, A (NI)]

Step 2: Find $IN (i) \in P (i) \subset N 1$

Step 3: Select two genes in each of the individual vectors as follows

a, b \leftarrow Random [1, \dots, NI]

Step 4: Swap the location of the two genes in each vector.

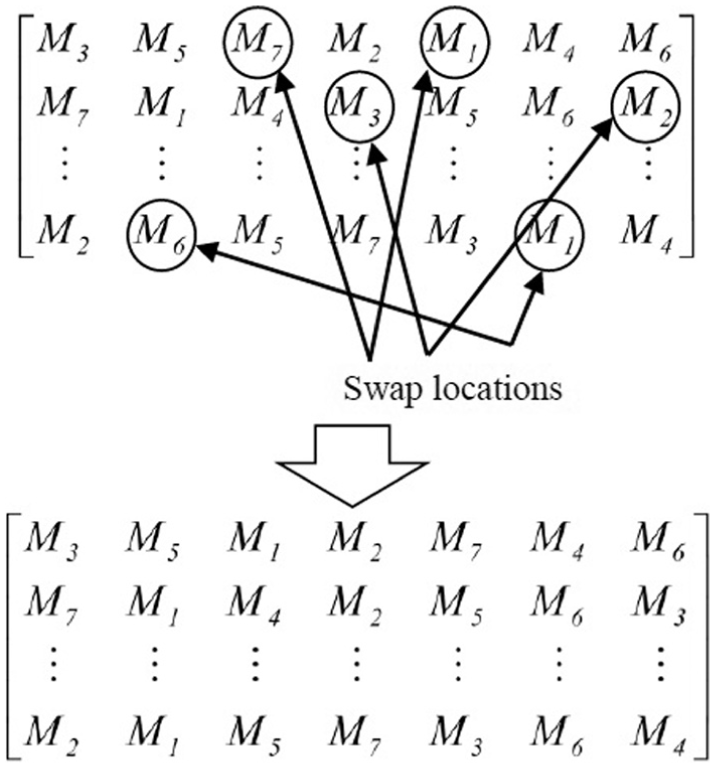

Figure 4 shows the mutation graphically.

Figure 4.

Swap mutation.

Fitness calculation

In order to evaluate the production system at a given routes, the number of parts that can be produced by a given time is calculated. To calculate the number of parts, the total time, T_p, which the product p spends during its trip through the FMS from the moment it leaves the load/unload station until it returns back to load/unload station is needed. The time required to produce a part of type p when it travels through route R_p can be calculated as follows

\begin{matrix} T_{p} = & T_{load \ unload} + {TT}_{0 \to 1} + {TT}_{O_{p} \to 0} + {TT}_{(ir)} \\ + \sum_{j = 1, k \in R_{p}}^{O_{p}} {PT}_{pjk} + \sum_{j = 1, k \in R_{p}}^{O_{p}} {ST}_{pjk} + \sum_{j = 1, k \in R_{p}}^{O_{p}} {WT}_{ipk} \end{matrix}

(5)

Based on equation (5), PSS calculates the throughput of the production system during the given production time.

PSS

To find the route of each part type that maximizes the throughput of the FMS, PSS and GA combination is proposed. The PSS structure is shown in Figure 5. PSS searches the route by repeating the cycle including the discrete simulation and applying the GA in each run of the simulation. The characteristics of the FMS model are entered into the PSS. Based on this input, the simulator gives the optimal or near-optimal route for given input. The PSS algorithm is applied using following steps:

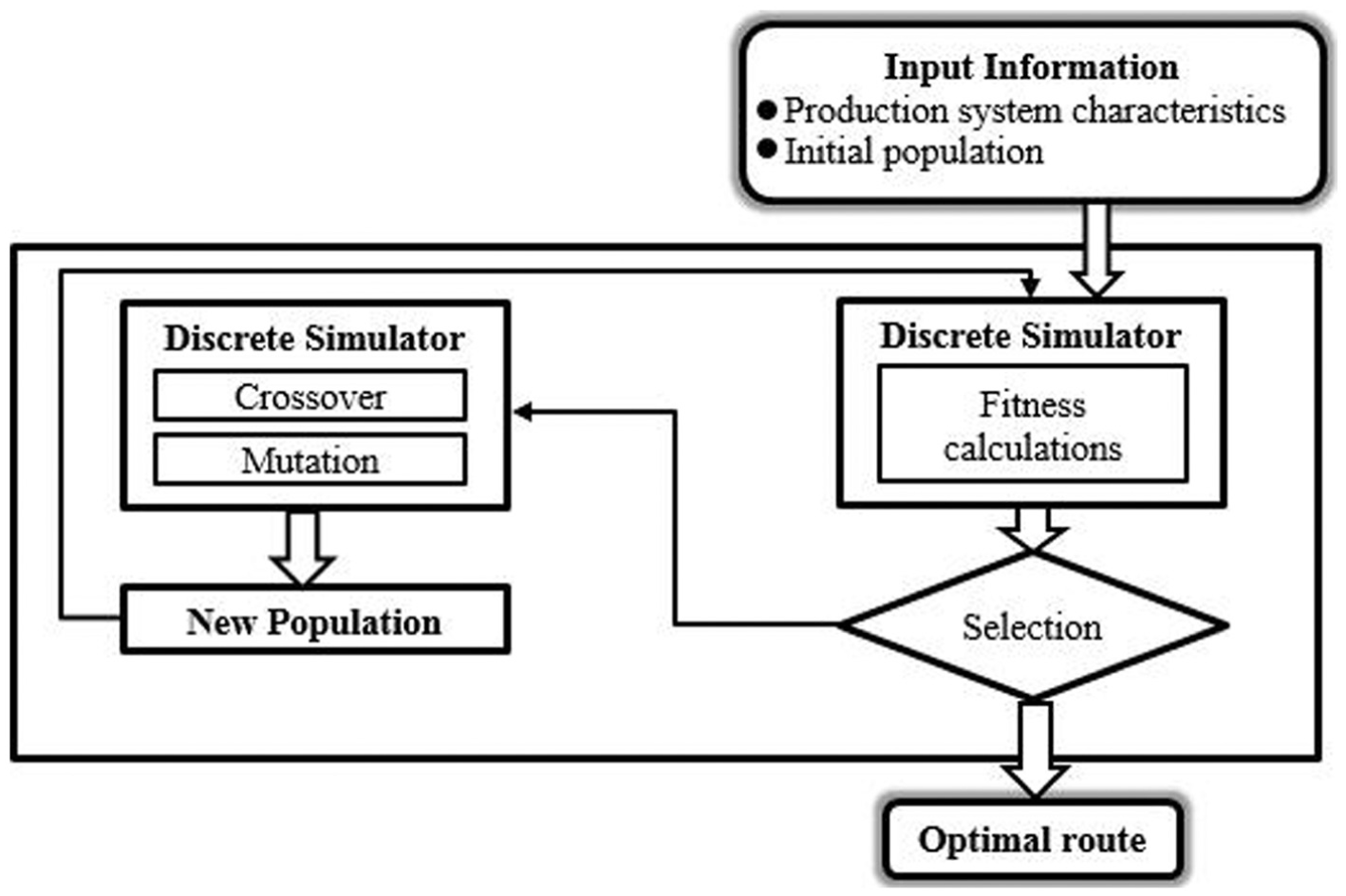

Figure 5.

Production simulator system.

Algorithm 4

PSS algorithm

Step 1: Generate randomly the initial population with N individuals.

Step 1: Generate POP(0) as follows:

Select

IN (i) \leftarrow Random [\begin{matrix} M_{1}^{1} & \dots & M_{Os}^{1} \\ ⋮ & ⋮ & ⋮ \\ M_{1}^{p} & \dots & M_{Os}^{p} \end{matrix}]

\forall i = 1 \to NI

Step 2: Read all characteristics of the desired FMS.

Step 3: Calculate $F (i) \forall i = 1, 2, \dots, IN$ for current population

Step 4: Select $IN (i) \forall i = 1 \to s$ by applying elitist strategy.

Step 5: Calculate PR_i, $\forall i = 1, 2, \dots, NI$

Step 6: Carry out GA operations.

Step 7: If (C_r × NI + M_r × NI) = NI − s, then, continue to Step 8, if not, return to Step 6.

Step 8: Regard the generated individuals as the next-generation population.

Step 9: Repeat until fitness reaches its maximum value.

Case studies

Simulation examples

To show the efficacy of the proposed PSS, four different simulations have been performed. Each simulation is run to produce a specific number of products.

In each of the simulations, the number of machines, which are out of order, is changed. Three different numbers of machines, which are out of order, are used in each simulation condition. The route for each part type is decided for each of the given simulation conditions. In all simulations, the processing times and the setup times are randomly generated as follows: production times between 4 and 10 min, and setup times between 2 and 4 min.

Simulation 1: FMS with four machine tools

In this simulation run, the FMS has four machine tools and is capable of producing four different types of products with the following production ratios: P1:P2:P3:P4 = 8:5:3:1. Each of the four types requires four operations. The number of machines, which are out of order, used in the simulation is as follows:

Simulation 1—type 1 (S1T1): No machine is out of order.

Simulation 1—type 2 (S1T2): One machine is out of order and selected randomly.

Simulation 1—type 3 (S1T3): Two machines are out of order and selected randomly.

Simulation 2: FMS with six machine tools

In this simulation run, the FMS has six machine tools and is capable of producing six different types of products with the following production ratios: P1:P2:P3:P4:P5:P6 = 8:6:4:3:2:1. Each type of products requires four operations. The number of machines, which are out of order, used in the simulation is as follows:

Simulation 2—type 1 (S2T1): No machines are out of order and selected randomly.

Simulation 2—type 2 (S2T2): One machine is out of order and selected randomly.

Simulation 2—type 3 (S2T3): Three machines are out of order and selected randomly.

Simulation 3: FMS with 10 machine tools

For this simulation run, the FMS has 10 machine tools, and it is capable of producing eight different types of products with the following production ratios: P1:P2:P3:P4:P5:P6:P7:P8 = 8:7:6:5:4:3:2:1. Each type of products requires four operations. The numbers of machines, which are out of order, used in simulation are as follows:

Simulation 3—type 1 (S3T1): One machine is out of order and selected randomly.

Simulation 3—type 2 (S3T2): Three machines are out of order and selected randomly.

Simulation 3—type 3 (S3T3): Five machines are out of order and selected randomly.

Simulation 4: FMS with 16 machine tools

For simulation run 4, the FMS has 16 machine tools, and it is capable of producing 10 different types of products with the following production ratios: P1:P2:P3:P4:P5:P6:P7:P8:P9:P10 = 80:70:60:65:50:40:30:20:10:5. Each type of products requires four operations. The number of machines, which are out of order, used in the simulation run 4, is as follows:

Simulation 4—type 1 (S4T1): Two machines are out of order and selected randomly.

Simulation 4—type 2 (S4T2): Four machines are out of order and selected randomly.

Simulation 3—type 3 (S4T3): Six machines are out of order and selected randomly.

GA parameters

For the simulation of the route generation, the following GA parameters are selected based on the experience and after running several trials of the simulator.

Population size of 100, probability of crossover of 0.9, and probability of mutation of 0.05 are used. These parameters are applied to all simulation types. All simulations are run until 500 generations.

Simulations results

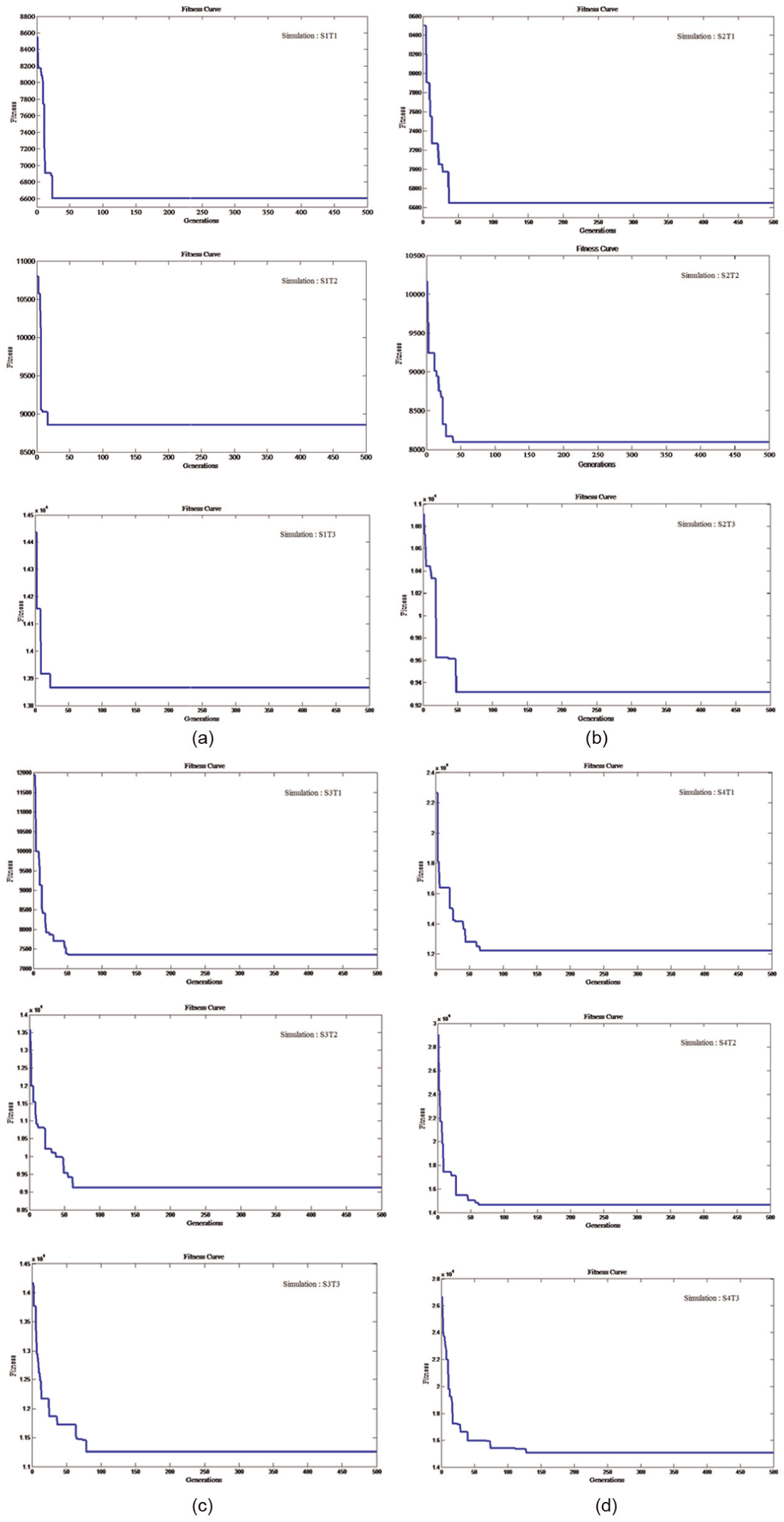

Based on the PSS results, the routes of all products type are optimized. The routes and the maximum fitness for the different types of simulations are given in Tables 1 –4.

Table 1.

Results of Simulation 1.

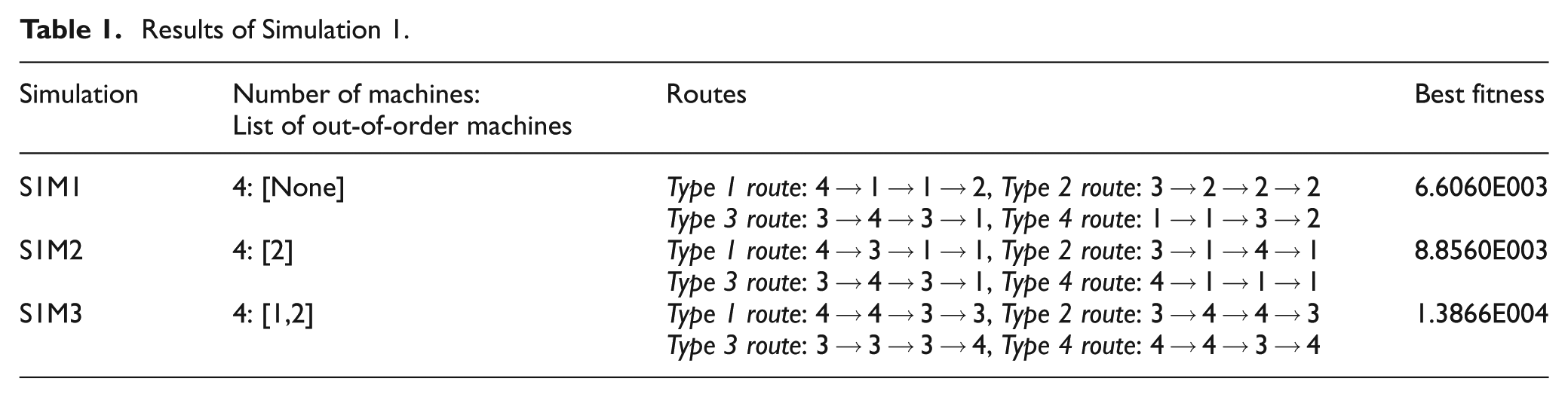

Simulation	Number of machines: List of out-of-order machines	Routes	Best fitness
S1M1	4: [None]	Type 1 route: 4 → 1 → 1 → 2, Type 2 route: 3 → 2 → 2 → 2	6.6060E003
S1M1	4: [None]	Type 3 route: 3 → 4 → 3 → 1, Type 4 route: 1 → 1 → 3 → 2	6.6060E003
S1M2	4: [2]	Type 1 route: 4 → 3 → 1 → 1, Type 2 route: 3 → 1 → 4 → 1	8.8560E003
S1M2	4: [2]	Type 3 route: 3 → 4 → 3 → 1, Type 4 route: 4 → 1 → 1 → 1	8.8560E003
S1M3	4: [1,2]	Type 1 route: 4 → 4 → 3 → 3, Type 2 route: 3 → 4 → 4 → 3	1.3866E004
S1M3	4: [1,2]	Type 3 route: 3 → 3 → 3 → 4, Type 4 route: 4 → 4 → 3 → 4	1.3866E004

Table 2.

Results of Simulation 2.

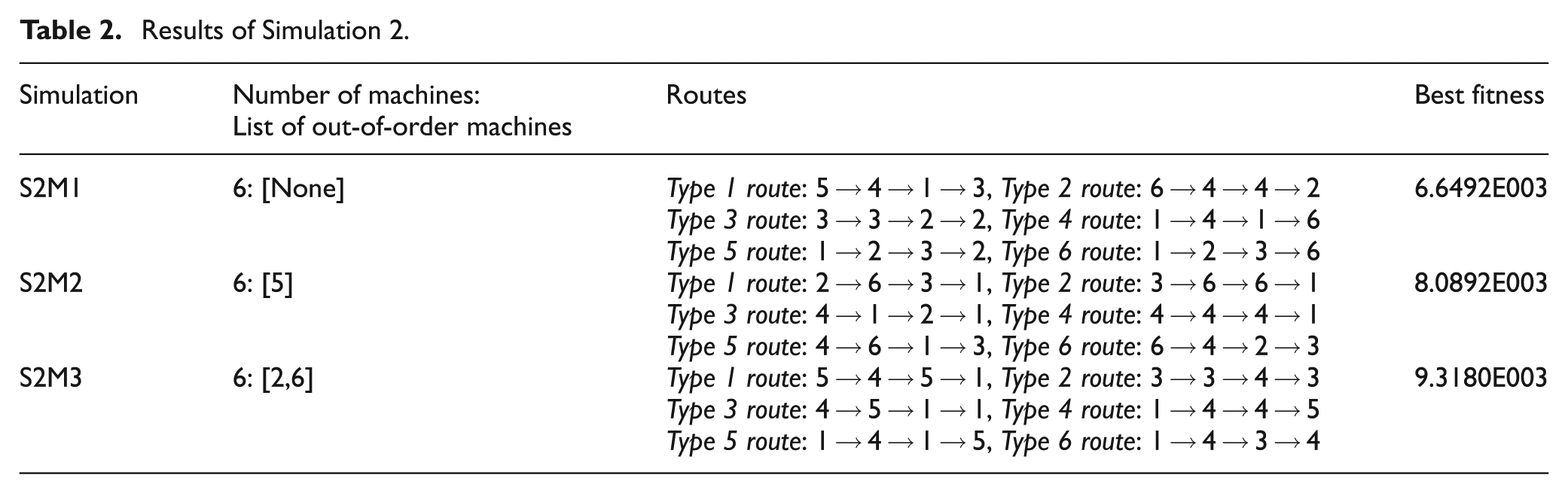

Simulation	Number of machines: List of out-of-order machines	Routes	Best fitness
S2M1	6: [None]	Type 1 route: 5 → 4 → 1 → 3, Type 2 route: 6 → 4 → 4 → 2	6.6492E003
		Type 3 route: 3 → 3 → 2 → 2, Type 4 route: 1 → 4 → 1 → 6
		Type 5 route: 1 → 2 → 3 → 2, Type 6 route: 1 → 2 → 3 → 6
S2M2	6: [5]	Type 1 route: 2 → 6 → 3 → 1, Type 2 route: 3 → 6 → 6 → 1	8.0892E003
		Type 3 route: 4 → 1 → 2 → 1, Type 4 route: 4 → 4 → 4 → 1
		Type 5 route: 4 → 6 → 1 → 3, Type 6 route: 6 → 4 → 2 → 3
S2M3	6: [2,6]	Type 1 route: 5 → 4 → 5 → 1, Type 2 route: 3 → 3 → 4 → 3	9.3180E003
		Type 3 route: 4 → 5 → 1 → 1, Type 4 route: 1 → 4 → 4 → 5
		Type 5 route: 1 → 4 → 1 → 5, Type 6 route: 1 → 4 → 3 → 4

Table 3.

Results of Simulation 3.

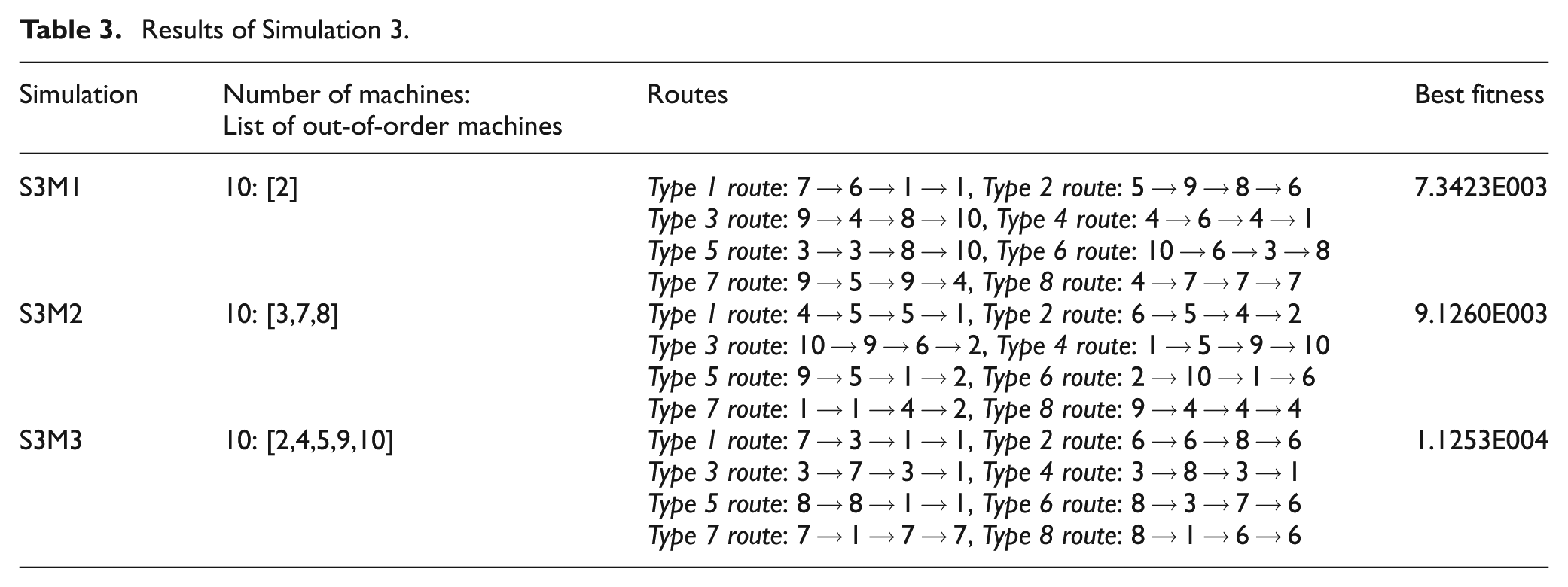

Simulation	Number of machines: List of out-of-order machines	Routes	Best fitness
S3M1	10: [2]	Type 1 route: 7 → 6 → 1 → 1, Type 2 route: 5 → 9 → 8 → 6	7.3423E003
		Type 3 route: 9 → 4 → 8 → 10, Type 4 route: 4 → 6 → 4 → 1
		Type 5 route: 3 → 3 → 8 → 10, Type 6 route: 10 → 6 → 3 → 8
		Type 7 route: 9 → 5 → 9 → 4, Type 8 route: 4 → 7 → 7 → 7
S3M2	10: [3,7,8]	Type 1 route: 4 → 5 → 5 → 1, Type 2 route: 6 → 5 → 4 → 2	9.1260E003
		Type 3 route: 10 → 9 → 6 → 2, Type 4 route: 1 → 5 → 9 → 10
		Type 5 route: 9 → 5 → 1 → 2, Type 6 route: 2 → 10 → 1 → 6
		Type 7 route: 1 → 1 → 4 → 2, Type 8 route: 9 → 4 → 4 → 4
S3M3	10: [2,4,5,9,10]	Type 1 route: 7 → 3 → 1 → 1, Type 2 route: 6 → 6 → 8 → 6	1.1253E004
		Type 3 route: 3 → 7 → 3 → 1, Type 4 route: 3 → 8 → 3 → 1
		Type 5 route: 8 → 8 → 1 → 1, Type 6 route: 8 → 3 → 7 → 6
		Type 7 route: 7 → 1 → 7 → 7, Type 8 route: 8 → 1 → 6 → 6

Table 4.

Results of Simulation 4.

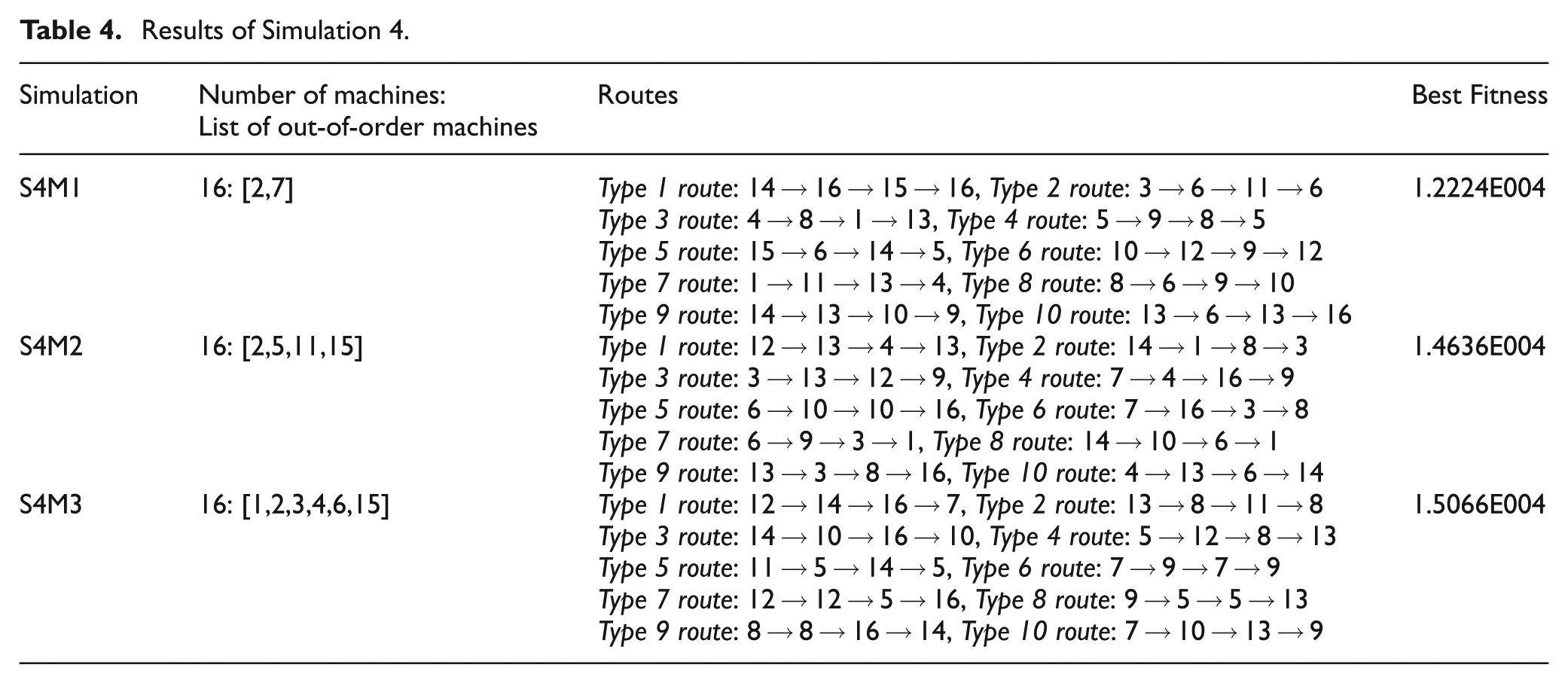

Simulation	Number of machines: List of out-of-order machines	Routes	Best Fitness
S4M1	16: [2,7]	Type 1 route: 14 → 16 → 15 → 16, Type 2 route: 3 → 6 → 11 → 6	1.2224E004
		Type 3 route: 4 → 8 → 1 → 13, Type 4 route: 5 → 9 → 8 → 5
		Type 5 route: 15 → 6 → 14 → 5, Type 6 route: 10 → 12 → 9 → 12
		Type 7 route: 1 → 11 → 13 → 4, Type 8 route: 8 → 6 → 9 → 10
		Type 9 route: 14 → 13 → 10 → 9, Type 10 route: 13 → 6 → 13 → 16
S4M2	16: [2,5,11,15]	Type 1 route: 12 → 13 → 4 → 13, Type 2 route: 14 → 1 → 8 → 3	1.4636E004
		Type 3 route: 3 → 13 → 12 → 9, Type 4 route: 7 → 4 → 16 → 9
		Type 5 route: 6 → 10 → 10 → 16, Type 6 route: 7 → 16 → 3 → 8
		Type 7 route: 6 → 9 → 3 → 1, Type 8 route: 14 → 10 → 6 → 1
		Type 9 route: 13 → 3 → 8 → 16, Type 10 route: 4 → 13 → 6 → 14
S4M3	16: [1,2,3,4,6,15]	Type 1 route: 12 → 14 → 16 → 7, Type 2 route: 13 → 8 → 11 → 8	1.5066E004
		Type 3 route: 14 → 10 → 16 → 10, Type 4 route: 5 → 12 → 8 → 13
		Type 5 route: 11 → 5 → 14 → 5, Type 6 route: 7 → 9 → 7 → 9
		Type 7 route: 12 → 12 → 5 → 16, Type 8 route: 9 → 5 → 5 → 13
		Type 9 route: 8 → 8 → 16 → 14, Type 10 route: 7 → 10 → 13 → 9

The fitness curve for the different simulation types are given in Figure 6(a)–(d).

Figure 6.

(a) S1 fitness curves, (b) S2 fitness curves, (c) S3 fitness curves, and (d) S4 fitness curves.

Based on the results presented, it can be observed that there is always an increase in the fitness as the number of functional machines decreases. For example, in simulation run 3, the numbers of functional machines in the simulation type 1, type 2, and type 3 are 8, 6, and 4, respectively.

The maximum fitness values corresponding to the three simulation types are 7.3423E3, 9.1260E3, and 1.1253E4, respectively. Regarding the numbers of part types, the result shows that the increases in the part variety will result in more iteration to reach the optimum solution.

Conclusion

In this article, a PSS for flexible route optimization in FMS is presented. A FMS production simulator based on GA was developed. The FMS with following characteristics were studied: 4–16 machine tools with 4–10 part types. Unique genetic operations were applied. An MEM was introduced as a gene encoding method to express genes in individuals. Case studies based on numerical simulations for different productions cases showed that the proposed PSS and GA combination was efficient to optimize the flexible route of FMS. Moreover, the example shows that the optimum solution can be achieved by few numbers of iterations, thus saving time and computational power.

Footnotes

Appendix 1 Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This project was financially supported by King Saud University, Vice Deanship of Research Chairs.

References

Groover

. Automation, production systems, and computer-aided manufacturing. Englewood Cliffs, NJ: Prentice Hall, 1980.

Mahdavi

Azar

AHFM

Bagherpour

. Applying fuzzy rule based to flexible routing problem in a flexible manufacturing system. In: IEEE international conference on paper read at industrial engineering and engineering management, 2009 (IEEM 2009), Hong Kong, 8–11 December 2009, pp.2358–2364. New York: IEEE.

Bilkay

Anlagan

Kilic

. Job shop scheduling using fuzzy logic. Int J Adv Manuf Tech 2004; 23(7–8): 606–619.

Rui

Shilong

Zheqi

. An ant colony algorithm for job shop scheduling problem with tool flow. Proc IMechE, Part B: J Engineering Manufacture 2014; 228(8): 959–968.

Gershwin

. Manufacturing systems engineering. Englewood Cliffs, NJ: PTR Prentice Hall, 1994.

SabuncuoŸlu

Lahmar

. An evaluative study of operation grouping policies in an FMS. Int J Flex Manuf Sys 2003; 15(3): 217–239.

Shuiabi

Thomson

Bhuiyan

. Entropy as a measure of operational flexibility. Eur J Oper Res 2005; 165(3): 696–707.

Qudeiri

Yamamoto

Ramli

. Buffer size decision for Flexible Transfer Line with Rework Paths using Genetic Algorithm. Int J Intell Syst Tech Appl 2009; 7(2): 227–240.

Ficko

Kovacic

Brezocnik

. Genetic algorithms: a useful optimization method for manufacturing problems. Acad J Manuf Eng 2004; 2: 21–26.

10.

Chan

FTS

Chung

Chan

. An introduction of dominant genes in genetic algorithm for FMS. Int J Prod Res 2008; 46(16): 4369–4389.

11.

Wong

Chan

FTS

Chung

. A genetic algorithm approach for production scheduling with mold maintenance consideration. Int J Prod Res 2012; 50(20): 5683–5697.

12.

Wong

Chan

FTS

Chung

. A joint production scheduling approach considering multiple resources and preventive maintenance tasks. Int J Prod Res 2013; 51(3): 883–896.

13.

Chung

Chan

FTS

. A workload balancing genetic algorithm for the quay crane scheduling problem. Int J Prod Res. Epub ahead of print 8 May 2013. DOI: 10.1080/00207543.2013.774489.

14.

Fang

H-L

Ross

Corne

. A promising genetic algorithm approach to job-shop scheduling, rescheduling, and open-shop scheduling problems. In: Forrest

(ed.) Proceedings of the fifth international conference on genetic algorithms. San Mateo, CA: Morgan Kaufmann, 1993, pp.375–382.

15.

Young-Ming

Nan-Feng

Hong-Li

. Optimal computing budget allocation based compound genetic algorithm for large scale job shop scheduling. In: Proceeding of the second international conference of fuzzy information and engineering (ICFIE), Guangzhou, China, 13–16 May 2007, pp.384–396.

16.

Heavey

Papadopoulos

Browne

. The throughput rate of multistation unreliable production lines. Eur J Oper Res 1993; 68(1): 69–89.

17.

Seong

Chang

Hong

. Heuristic algorithms for buffer allocation in a production line with unreliable machines. Int J Prod Res 1995; 33(7): 1989–2005.

18.

Askin

Standridge

. Modeling and analysis of manufacturing systems. New York: Wiley, 1993.

19.

Papadopoulos

Heavey

Browne

. Queueing theory in manufacturing systems analysis and design. London; New York: Chapman & Hall, 1993.

20.

Buzacott

Shanthikumar

. Stochastic models of manufacturing systems. Englewood Cliffs, NJ: Prentice Hall, 1993.

21.

Perros

. Queueing networks with blocking: exact and approximate solutions. New York: Oxford University Press, 1994.

22.

Altiok

. Performance analysis of manufacturing systems. New York: Springer, 1997.

23.

Helber

. Performance analysis of flow lines with non-linear flow of material (Lecture notes in economics and mathematical systems). London: Springer, 1999.

24.

Zhou

. Deadlock resolution in automated manufacturing systems: a novel Petri net approach. Berlin: Springer-Verlag, 2009.

25.

Dallery

Gershwin

. Manufacturing flow line systems: a review of models and analytical results. Queueing Syst 1992; 12(1–2): 3–94.

26.

Papadopoulos

Heavey

. Queueing theory in manufacturing systems analysis and design: a classification of models for production and transfer lines. Eur J Oper Res 1996; 92(1): 1–27.

27.

Ozmutlu

Harmonosky

. A real-time methodology for minimizing mean flowtime in FMSs with routing flexibility: threshold-based alternate routing. Eur J Oper Res 2005; 166: 369–384.

28.

Cogill

Hindi

. Optimal routing and scheduling in flexible manufacturing systems using integer programming. In: Proceedings of the 46th IEEE conference on decision and control, New Orleans, LA, 12–14 December 2007, pp.4095–4102. New York: IEEE.

29.

Bilge

ÜC

Fırat

Albey

. A parametric fuzzy logic approach to dynamic part routing under full routing flexibility. Comput Ind Eng 2008; 55: 15–33.

30.

Witkowski

Antczak

. Simulation modeling of manufacturing system in relation to route flexibility degree, open rate of operations and production type. Int J Model Optim 2012; 2(4): 498–503.

31.

Shalaby

EMA

Abdelmaguid

Abdelrasol

. New routing rules for dynamic flexible job shop scheduling with sequence-dependent setup times. In: Proceedings of the 2012 international conference on industrial engineering and operations management, Istanbul, Turkey, 3–6 July 2012.

32.

Jerald

Asokan

Prabaharan

. Scheduling optimisation of flexible manufacturing systems using particle swarm optimisation algorithm. Int J Adv Manuf Tech 2005; 25(9–10): 964–971.

33.

Yamamoto

. One-by-one parts input method by off-line production simulator system with GA. Eur J Autom 2000: 1173–1186.

34.

Abu Qudeiri

Yamamoto

Ramli

. Genetic algorithm for buffer size and work station capacity in serial-parallel production lines. Artif Life Robot 2008; 12(1–2): 102–106.

35.

Goldberg

. Genetic algorithms in search, optimization, and machine learning. Reading, MA: Addison-Wesley, 1989.

Production simulator system for flexible routing optimization in flexible manufacturing systems

Abstract

Keywords

Introduction

Modeling of FMS and the model assumptions

FMS model assumptions

Problem definition

GAs for the FMS optimal design

Matrix encoding method

Initial population and selection of the next generations

Algorithm 1

Crossover by MEM

Algorithm 2

Mutation by MEM

Algorithm 3

Fitness calculation

PSS

Algorithm 4

Case studies

Simulation examples

Simulation 1: FMS with four machine tools

Simulation 2: FMS with six machine tools

Simulation 3: FMS with 10 machine tools

Simulation 4: FMS with 16 machine tools

GA parameters

Simulations results

Conclusion

Footnotes

Appendix 1

Declaration of conflicting interests

Funding

References
