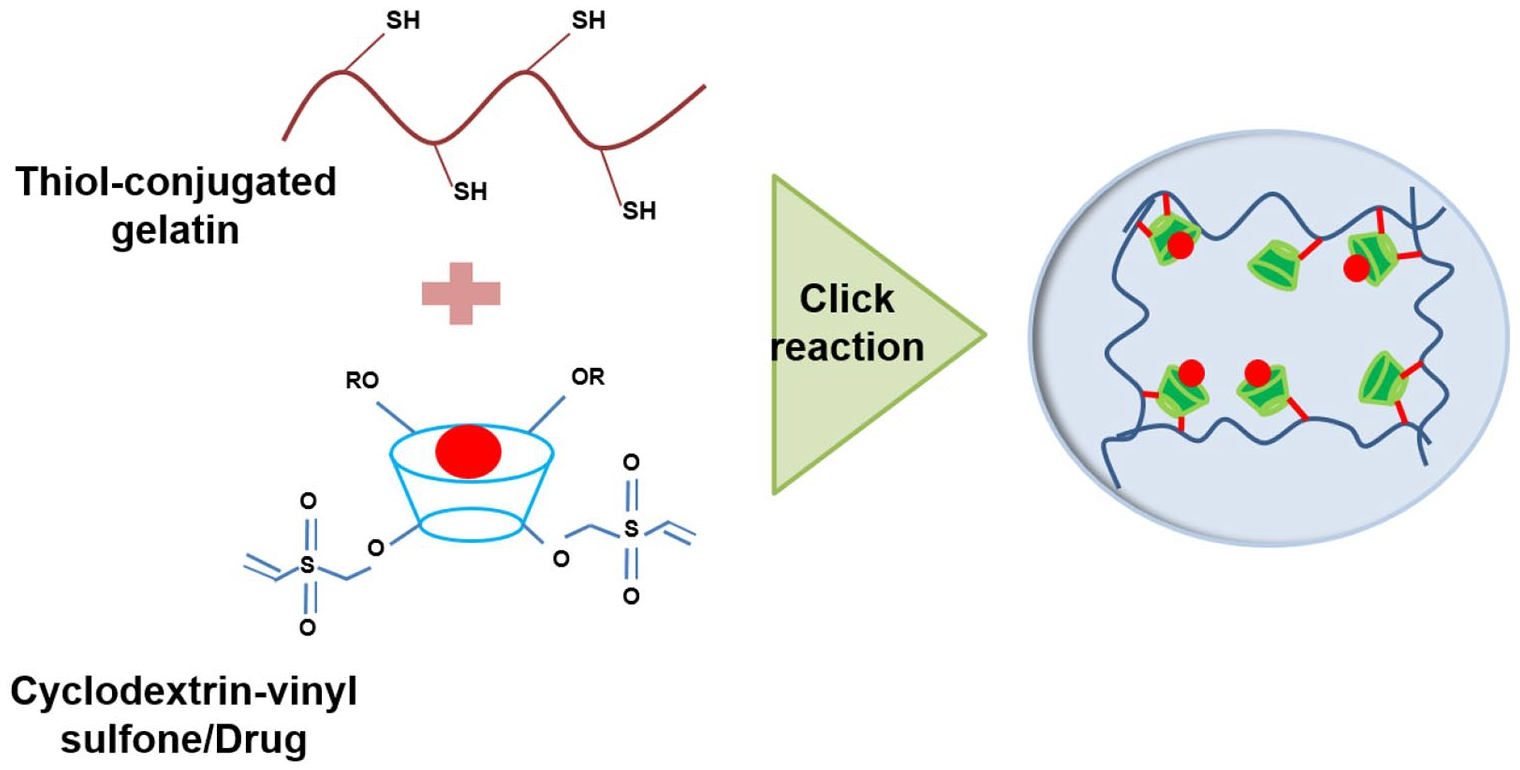

Injectable hydrogels offer a wide range of attractive benefits in drug delivery applications, such as non-invasive administration, easy drug incorporation and locally controlled release at the target sites. Herein, we designed a simple and efficient method to prepare injectable hydrogels composed of gelatin and cyclodextrin (CD) for high loading capacity of hydrophobic drugs. The hydrogels were formed by thiol-functionalized gelatin (GSH) and βCD-vinyl sulfone (βCD-VS) as cross-linker, via thiol-ene “click” chemistry. Hydrogels comprising of different cross-linker feed amount were investigated in terms of their physico-chemical properties, such as gelation time, mechanical strength, swelling ratio, porosity and degradation rates. For the use as a drug delivery vehicle, dexamethasone (DEX), a commonly anti-inflammatory, immunosuppressive but poorly water soluble drug was chosen to show the high drug loading capacity and prolonged drug release of hydrogels. The drug release was found to be depended on the concentration of βCD-VS due to the drug-CD interaction. In vitro cytotoxicity experiment also showed the cell compatibility of these hydrogels against human dermal fibroblasts. In summary, we expect this gelatin-CD “click” hydrogel will be a promising candidate for localized and long-term delivery of hydrophobic drugs.
CoelhoJFFerreiraPCAlvesP, et al. Drug delivery systems: advanced technologies potentially applicable in personalized treatments. EPMA J2010; 1:164–209.
2.
PatraJKDasGFracetoLF, et al. Nano based drug delivery systems: recent developments and future prospects. J Nanobiotechnol2018; 16:71.
3.
DangLHDoanPNhiTTY, et al. Multifunctional injectable pluronic-cystamine-alginate-based hydrogel as a novel cellular delivery system towards tissue regeneration. Int J Biol Macromol2021; 185:592–603.
4.
SivashanmugamAArun KumarRVishnu PriyaM, et al. An overview of injectable polymeric hydrogels for tissue engineering. Eur Polym J2015; 72:543–565.
5.
LiJMooneyDJ. Designing hydrogels for controlled drug delivery. Nat Rev Mater2016; 1:1–17. DOI: 10.1038/natrevmats.2016.71
6.
BaeJWChoiJHLeeY, et al. Horseradish peroxidase-catalysed in situ-forming hydrogels for tissue-engineering applications. J Tissue Eng Regen Med2015; 9:1225–1232.
7.
LiYRodriguesJTomásH. Injectable and biodegradable hydrogels: gelation, biodegradation and biomedical applications. Chem Soc Rev2012; 41:2193–2221.
8.
AhadianSSadeghianRBSalehiS, et al. Bioconjugated hydrogels for Tissue Engineering and Regenerative Medicine. Bioconjug Chem2015; 26:1984–2001.
9.
PhuongNTAnh HoVHai NguyenD, et al. Enzyme-mediated fabrication of an oxidized chitosan hydrogel as a tissue sealant. J Bioact Compat Polym2015; 30(4): 412–423.
10.
MateenRHoareT. Injectable, in situ gelling, cyclodextrin-dextran hydrogels for the partitioning-driven release of hydrophobic drugs. J Mater Chem B2014; 2:5157–5167.
11.
Moya-OrtegaMDAlvarez-LorenzoCConcheiroA, et al. Cyclodextrin-based nanogels for pharmaceutical and biomedical applications. Int J Pharm2012; 428:152–163.
12.
FioricaCPalumboFSPitarresiG, et al. A hyaluronic acid/cyclodextrin based injectable hydrogel for local doxorubicin delivery to solid tumors. Int J Pharm2020; 589:119879.
13.
ArslanMSanyalRSanyalA. Cyclodextrin embedded covalently crosslinked networks: synthesis and applications of hydrogels with nano-containers. Polym Chem2020; 11:615–629.
14.
ArslanMGevrekTNSanyalA, et al. Cyclodextrin mediated polymer coupling via thiol–maleimide conjugation: facile access to functionalizable hydrogels. RSC Adv2014; 4:57834–57841.
15.
LimaACPugaAMManoJF, et al. Free and copolymerized γ-cyclodextrins regulate the performance of dexamethasone-loaded dextran microspheres for bone regeneration. J Mater Chem B2014; 2:4943–4956.
16.
ArslanMGevrekTNSanyalR, et al. Fabrication of poly(ethylene glycol)-based cyclodextrin containing hydrogels via thiol-ene click reaction. Eur Polym J2015; 62:426–434.
17.
ShihHLinCC. Photoclick hydrogels prepared from functionalized cyclodextrin and poly(ethylene glycol) for drug delivery and in situ cell encapsulation. Biomacromolecules2015; 16:1915–1923.
18.
MealyJERodellCBBurdickJA. Sustained small molecule delivery from injectable hyaluronic acid hydrogels through host-guest mediated retention. J Mater Chem B2015; 3:8010–8019.
19.
XuJFengQLinS, et al. Injectable stem cell-laden supramolecular hydrogels enhance in situ osteochondral regeneration via the sustained co-delivery of hydrophilic and hydrophobic chondrogenic molecules. Biomaterials2019; 210:51–61.
20.
LeeHJLePTKwonHJ, et al. Supramolecular assembly of tetronic–adamantane and poly(β-cyclodextrin) as injectable shear-thinning hydrogels. J Mater Chem B2019; 7:3374–3382.
21.
KharkarPMRehmannMSSkeensKM, et al. Thiol-ene click hydrogels for therapeutic delivery. ACS Biomater Sci Eng2016; 2:165–179.
22.
LeeSHLeeYChunYW, et al. in situ crosslinkable gelatin hydrogels for vasculogenic induction and delivery of mesenchymal stem cells. Adv Funct Mater2014; 24:6771–6781.
23.
ParkKMKoKSJoungYK, et al. In situ cross-linkable gelatin–poly(ethylene glycol)–tyramine hydrogel via enzyme-mediated reaction for tissue regenerative medicine. J Mater Chem2011; 21:13180.
24.
AminiAANairLS. Enzymatically cross-linked injectable gelatin gel as osteoblast delivery vehicle. J Bioact Compat Polym2012; 27:342–355.
25.
Hoang ThiTTLeeYRyuSB, et al. Enhanced tissue adhesiveness of injectable gelatin hydrogels through dual catalytic activity of horseradish peroxidase. Biopolymers2018; 109:e23077.
26.
YuYChauY. One-step “click” method for generating vinyl sulfone groups on hydroxyl-containing water-soluble polymers. Biomacromolecules2012; 13:937–942.
27.
ZhouZGuoFWangN, et al. Dual pH-sensitive supramolecular micelles from star-shaped PDMAEMA based on β-cyclodextrin for drug release. Int J Biol Macromol2018; 116:911–919.
28.
SpicerCD. Hydrogel scaffolds for tissue engineering: the importance of polymer choice. Polym Chem2020; 11:184–219.
29.
MaHHeCChengY, et al. Localized Co-delivery of doxorubicin, cisplatin, and methotrexate by thermosensitive hydrogels for enhanced osteosarcoma treatment. ACS Appl Mater Interfaces2015; 7:27040–27048.
HegabRAPardueSShenX, et al. Effect of network mesh size and swelling to the drug delivery from pH responsive hydrogels. J Appl Polym Sci2020; 137:48767.
32.
GhobrilCGrinstaffMW. The chemistry and engineering of polymeric hydrogel adhesives for wound closure: a tutorial. Chem Soc Rev2015; 44:1820–1835.
33.
ZhangDXYoshikawaCWelchNG, et al. Spatially controlled surface modification of porous silicon for sustained drug delivery applications. Sci Rep2019; 9(1): 1367.
34.
XuHLiHChangJ. Controlled drug release from a polymer matrix by patterned electrospun nanofibers with controllable hydrophobicity. J Mater Chem B2013; 1:4182–4188.
35.
Op't VeldRCWalboomersXFJansenJA, et al. Design considerations for hydrogel wound dressings: Strategic and molecular advances. Tissue Eng Part B Rev2020; 26:230–248.
36.
LeeYBaeJWOhDH, et al. In situ forming gelatin-based tissue adhesives and their phenolic content-driven properties. J Mater Chem B2013; 1:2407–2414.
37.
NinomiyaEHattoriTToyodaM, et al. Glucocorticoids promote neural progenitor cell proliferation derived from human induced pluripotent stem cells. Springerplus2014; 3:527.
