Rhodopsin 5 – and Rhodopsin 6 –Mediated Clock Synchronization in Drosophila melanogaster Is Independent of Retinal Phospholipase C-β Signaling

Abstract

Circadian clocks of most organisms are synchronized with the 24-hour solar day by the changes of light and dark. In Drosophila, both the visual photoreceptors in the compound eyes as well as the blue-light photoreceptor Cryptochrome expressed within the brain clock neurons contribute to this clock synchronization. A specialized photoreceptive structure located between the retina and the optic lobes, the Hofbauer-Buchner (H-B) eyelet, projects to the clock neurons in the brain and also participates in light synchronization. The compound eye photoreceptors and the H-B eyelet contain Rhodopsin photopigments, which activate the canonical invertebrate phototransduction cascade after being excited by light. We show here that 2 of the photopigments present in these photoreceptors, Rhodopsin 5 (Rh5) and Rhodopsin 6 (Rh6), contribute to light synchronization in a mutant (norpA^P41) that disrupts canonical phototransduction due to the absence of Phospholipase C-β (PLC-β). We reveal that norpA^P41 is a true loss-of-function allele, resulting in a truncated PLC-β protein that lacks the catalytic domain. Light reception mediated by Rh5 and Rh6 must therefore utilize either a different (nonretinal) PLC-β enzyme or alternative signaling mechanisms, at least in terms of clock-relevant photoreception. This novel signaling mode may distinguish Rhodopsin-mediated irradiance detection from image-forming vision in Drosophila.

Light synchronization of circadian clocks in animals is mediated by both visual and dedicated “circadian” photoreceptors. One of the reasons for this complexity may be the importance of accurate twilight detection for correct light resetting of the clock. In mammals, it has been shown that the rods and cones as well as melanopsin-expressing retinal ganglion cells contribute to light synchronization and that the 2 systems are partly redundant (Panda et al., 2003). Similarly, in Drosophila, the compound eyes and the blue-light photoreceptor Cryptochrome (Cry) mediate clock synchronization (Rieger et al., 2003; Stanewsky et al., 1998). Although Cry is expressed in the photoreceptor cells of the compound eyes, rescue experiments showed that expression of Cry within clock neurons contributes to their light sensitivity and mediates clock synchronization (Emery et al., 2000; Fogle et al., 2011). Within the eyes, the outer R1-R6 photoreceptor cells express the major fly Rhodopsin 1 (Rh1), whereas the inner R7 and R8 cells express either Rh3 or Rh4 (R7) and Rh5 or Rh6 (R8). In addition, Rh6 is expressed in the 4 adult photoreceptor cells comprising the Hofbauer-Buchner (H-B) eyelet, which is a remnant of the larval photoreceptor and located between the retina and the lamina of the optic lobe (Hofbauer and Buchner, 1989; Sprecher and Desplan, 2008; Yasuyama and Meinertzhagen, 1999). The H-B eyelet projects to the ventral group of the clock neurons, and blocking potential signals from these connections interferes with light synchronization of the clock (Helfrich-Förster et al., 2002; Malpel et al., 2002; Veleri et al., 2007). Finally, the Rh2-expressing ocelli may also contribute to light input of the clock (Rieger et al., 2003).

Functional evidence for the contribution of Rhodopsins to circadian light reception is largely restricted to morphological mutants that remove the relevant opsin-expressing photoreceptors (Helfrich-Förster et al., 2001; Klarsfeld et al., 2004; Mealey-Ferrara et al., 2003; Rieger et al., 2003). In contrast, lack of a crucial fly visual phototransduction enzyme (PLC-β encoded by the norpA gene), or of the major Rh1, as well as interference with retinal synthesis more directly argued for the involvement of opsin molecules, as each of the 3 situations increased the amount of light required for light synchronization (Ohata et al., 1998; Stanewsky et al., 1998). Combination of norpA and cry mutants led to severe decrements in light synchronization, arguing for a synergistic function of opsin and Cry-mediated photoreception (Emery et al., 2000; Mealey-Ferrara et al., 2003; Stanewsky et al., 1998).

The remaining light sensitivity of norpA^P41 cry^b double mutants was further decreased by expressing tetanustoxin (TNT) under control of the Rh5 promoter (Veleri et al., 2007). This promoter is active in 30% of the inner R8 photoreceptor cells and in the H-B eyelet (although the latter lacks the Rh5 protein) (Sprecher and Desplan, 2008) (Fig. 1). It followed that the further reduction of light sensitivity in the TNT-expressing norpA^P41 cry^b flies is independent of PLC-β. This finding suggested that the photopigment uncovered in these flies is either not opsin based or that the Rh5 and/or Rh6 opsins use alternative noncanonical modes of phototransduction (Veleri et al., 2007).

Figure 1.

Rh5 and Rh6genes are active in the R8 and H-B eyelet photoreceptor cells. R8 photoreceptor cells are visualized by Rh5 promoter-driven lacZ expression (anti-βGAL staining, green) and antibody staining against the Rh6 protein (red). Whereas anti-Rh6 labels R8 rhabdomeres, anti-βGAL labels the R8 cell bodies. Note that each R8 cell expresses only one of the opsin genes (i.e., it is either red or green) but that in the H-B eyelet, visible as a round, drop-like structure in the upper and lower 3 images (arrows), both genes are active (yellow), even though the Rh5 protein is not detectable (Sprecher and Desplan, 2008). The arc-like processes emanating from the eyelet (arrowheads) project directly to the circadian clock neurons in the central brain. La = lamina; Me = medulla. Scale bars: 100 µm (top row) and 10 µm (middle and bottom rows).

Here, we investigated the involvement of Rh5 and Rh6 in light entrainment of the circadian clock by investigating loss-of-function mutants of both genes individually or in combination. By combining both opsin mutants with cry^b and norpA^P41 cry^b double mutants, we reveal that both opsins contribute to clock resetting independent of PLC-β, suggesting that novel opsin-mediated phototransduction mechanisms contribute to circadian photoreception.

Materials and Methods

Fly Stocks

All stocks were raised at 25 °C in standard medium. All flies tested behaviorally were in the same w¹¹¹⁸ genetic background to avoid behavioral difference caused by genetic background and/or eye color. norpA^P41 and cry^b mutants have been described previously (Veleri et al., 2007), except that here a cry^b version without the recessive marker ss¹ was used (kindly provided by F. Rouyer). The Rh5² and Rh6¹ alleles harbor intragenic deletions of coding sequences described in Yamaguchi et al. (2008) and Cook et al. (2003), respectively. Because the Rh5² stock carried ls-tim and Rh6¹ mutants are linked to s-tim, differences in light sensitivity between the 2 mutants could be caused by the different versions of Tim present in these strains (the L-Tim protein expressed only in ls-tim flies is less light sensitive compared to S-Tim, which is expressed in both ls-tim and s-tim flies) (Sandrelli et al., 2007). We therefore crossed the ls-tim allele into the Rh6¹ stock, so that all flies analyzed here (including the controls) are ls-tim. For the generation of Rh5-tau-lacZ flies, see the supplementary online material (SOM).

Immunohistochemistry

Cephalic ganglia with attached retina of adult males were dissected in Drosophila Ringer solution and fixed in 4% paraformaldehyde overnight at 4 °C. Samples were incubated with primary antibodies against β Galactosidase (β-Gal) or Rh6, as described in detail in the SOM.

Behavioral Analysis

Individual 1- to 3-day-old adult male flies were placed in a glass tube with agar medium to monitor behavior using the DAM system (Drosophila Activity Monitoring System, TriKinetics, Waltham, MA) as described previously (Veleri et al., 2007). Initially, flies were kept for 4 days in 12-hour:12-hour light-dark cycles (LD) of white LED light (400 lux). This was followed by an additional 7 days where the flies were kept in a 6-hour delayed or advanced 12-hour:12-hour LD cycle (compared to the initial LD cycle). Light:dark transitions were not abrupt but performed by 2-hour linear ramping from 0 to 400 lux (see Results). Finally, flies were released for 4 to 5 days in constant dark (DD). Analysis of locomotor activity by plotting daily average histograms and actograms was perf ormed using the fly toolbox and MATLAB software (MathWorks, Natick, MA) as described previously (Levine et al., 2002). HLT Control V2.0 software in combination with an LED light box (Hoenig Lichttechnik, Bonstetten, Germany) was used to control illumination. For phase determination, activity data were transferred to a custom-made Excel macro (Microsoft, Redmond, WA). Briefly, evening activity peaks of individual flies from each genotype and each day were determined by the calculation of average phase values, which were then plotted in Figures 2 to 4 (for details, see Sehadova et al. [2009]).

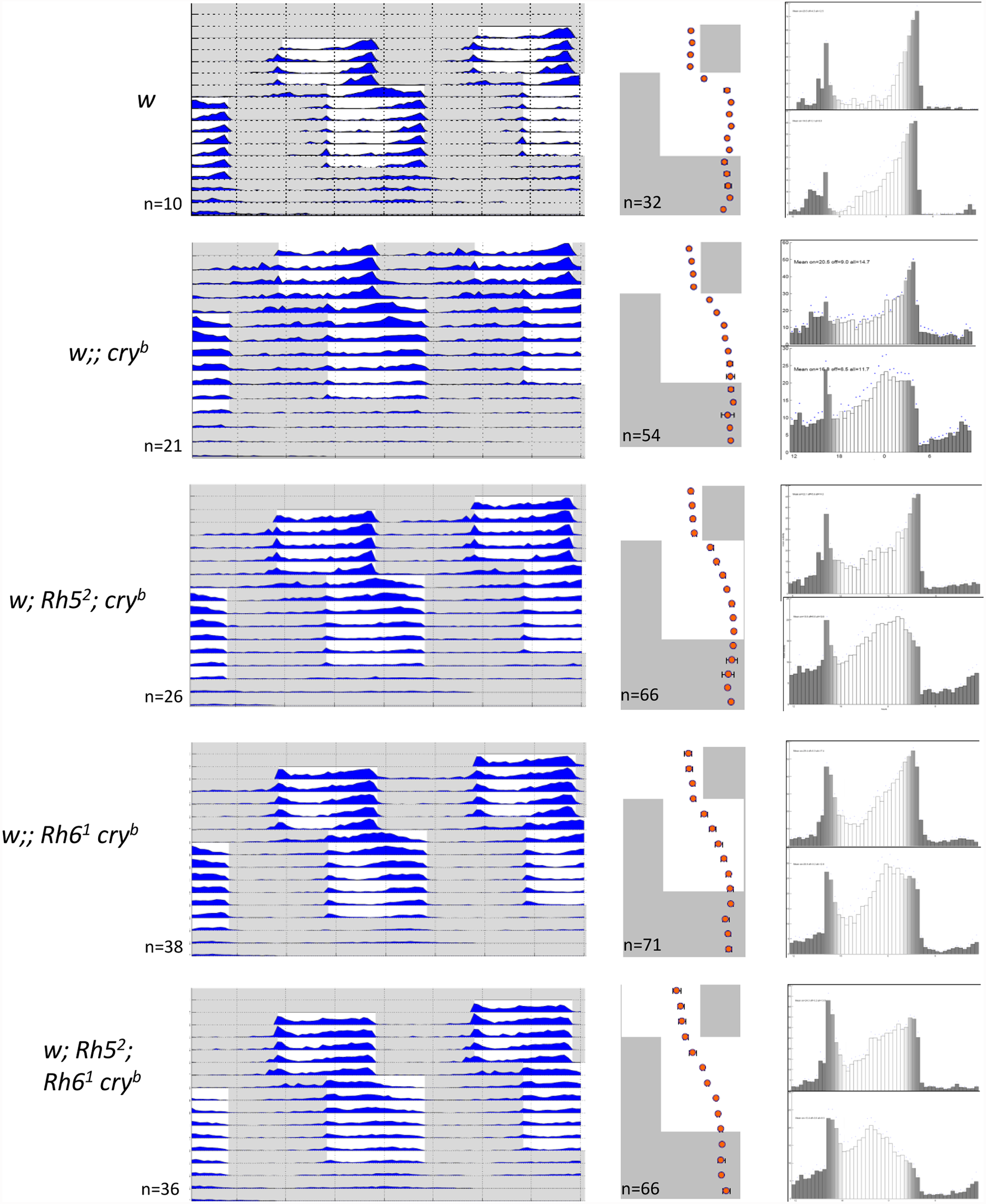

Figure 2.

Rh5 and Rh6 contribute to light resetting. Flies of the indicated genotypes were exposed to 2 “ramped” LD cycles (4 days and 7 days, respectively) separated by a delay, where the lights stayed off for an additional 6 hours. Subsequently, flies were released into DD for at least 3 days. Left panels: double-plotted average actograms showing activity data for each genotype. Middle panels: Phase determination of evening activity peaks for better genotype comparison. Right panels: Daily average histograms (same n as indicated next to the average actograms, except for w, where n = 6) summarizing the daily activity during the first LD cycle (top) and after the 6-hour shift (bottom). Gray or black areas indicate darkness, and white areas indicate lights-on. Gradient shadings in the histograms indicate the linear ramping of light intensities for 2 hours in the morning and evening. See Materials and Methods and text for details.

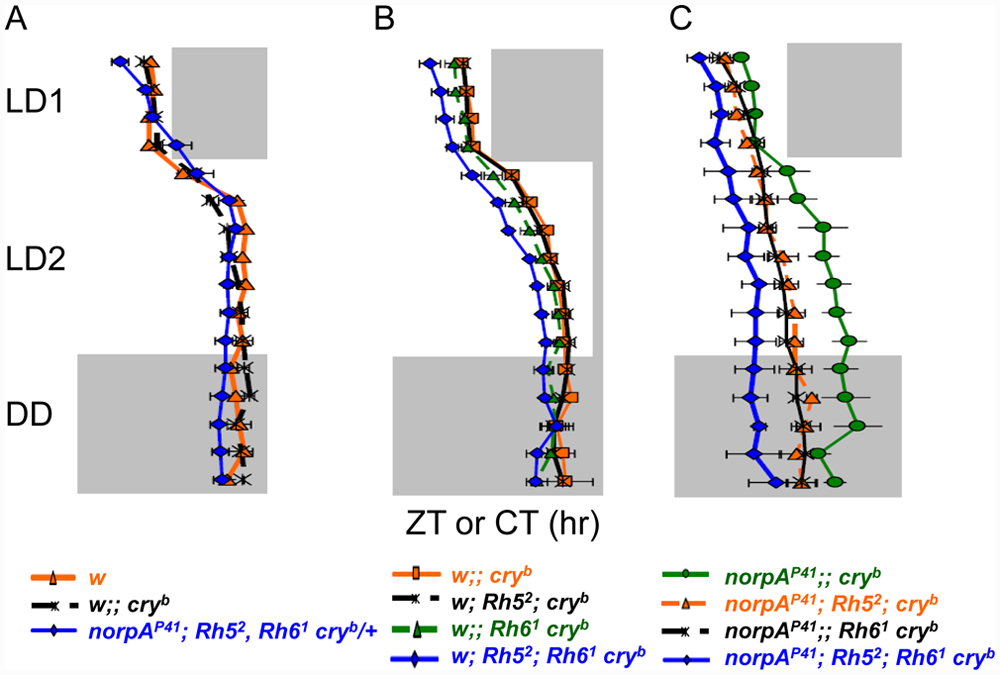

Figure 3.

Direct comparison of evening activity phase during shifted LD cycles. Evening activity peak phase of related genotypes was plotted to allow comparison of the resynchronization kinetics. (A) Comparison of w; cry^b and norpA^P41; Rh5²; Rh6¹ cry^b/+ flies, showing quick resynchronization of cry⁺ compared to homozygous cry^b genotypes. (B) Comparison of single and double Rh5² and Rh6¹ mutants combined with cry^b compared to cry^b single mutants, showing that the 2 Rhodopsin mutants combined slow down resynchronization. (C) Comparison of the same genotypes as shown in the middle panel, additionally carrying norpA^P41. Rh5² and Rh6¹ further slow down resynchronization of norpA^P41; cry^b double mutants, demonstrating their norpA-independent function. n corresponds to those indicated in Figures 2 and 4. Gray or black areas indicate darkness, and white areas indicate lights-on.

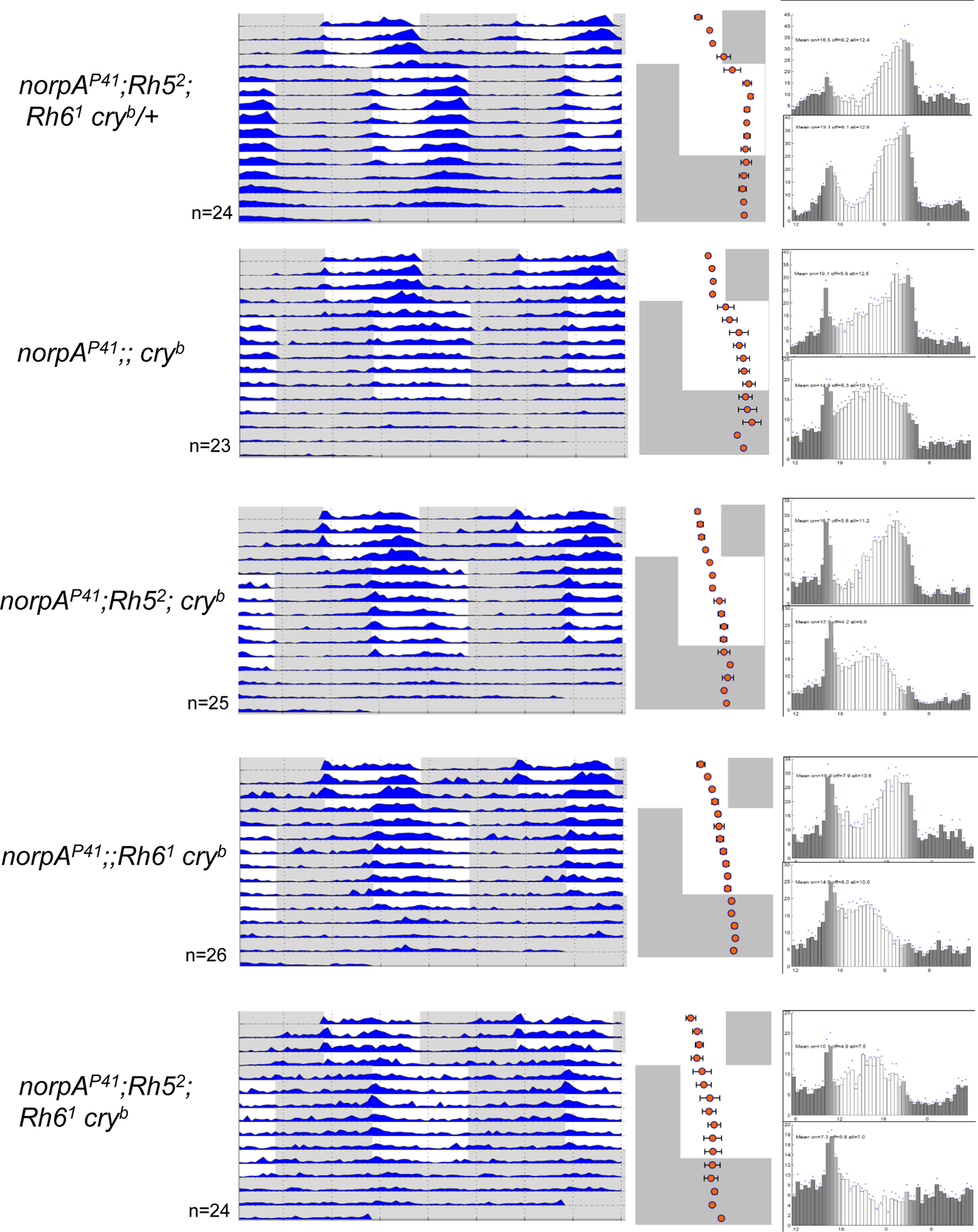

Figure 4.

Rh5 and Rh6 function independent of norpA: Flies of the indicated genotypes were exposed to shifted LD cycles, followed by release into DD, exactly as described in the legend to Figure 2. Note that flies of the norpA^P41; Rh5²; Rh6¹ cry^b/+ genotype (top row) served as norpA mutant cry⁺ controls. They quickly resynchronized to the new LD regime, as previously been reported for norpA^P41 single mutants (Emery et al., 2000), despite being homozygous mutant for Rh5². Data were plotted and analyzed exactly as described in the legend to Figure 2 and in Materials and Methods. n for all data plots is indicated next to average actograms.

Sequencing of the norpA^P41 Allele

Total RNA was isolated from norpA^P41 and control flies with TRI Reagent followed by LiCl purification according to the manufacturer’s instructions (Ambion, Huntingdon, Cambridgeshire, UK). cDNA synthesis was performed with a RT-PCR kit following the manufacturer’s protocol (Applied Biosystems, Foster City, CA). Genomic DNA and cDNA were sequenced with oligonucleotides covering the entire coding sequence. One oligo pair (5′-norpA4a: ATACTGTGATGACTTCTTCGG and 3′-norpA8a: ATTATACTCGA ACTTGCCCTG) revealed that the norpA^P41 contains a large internal deletion, removing 287-bp coding sequences from exon 8 and exon 9, corresponding to 351 bp of genomic DNA deleting intron 9 in addition to the coding sequences (Fig. 5).

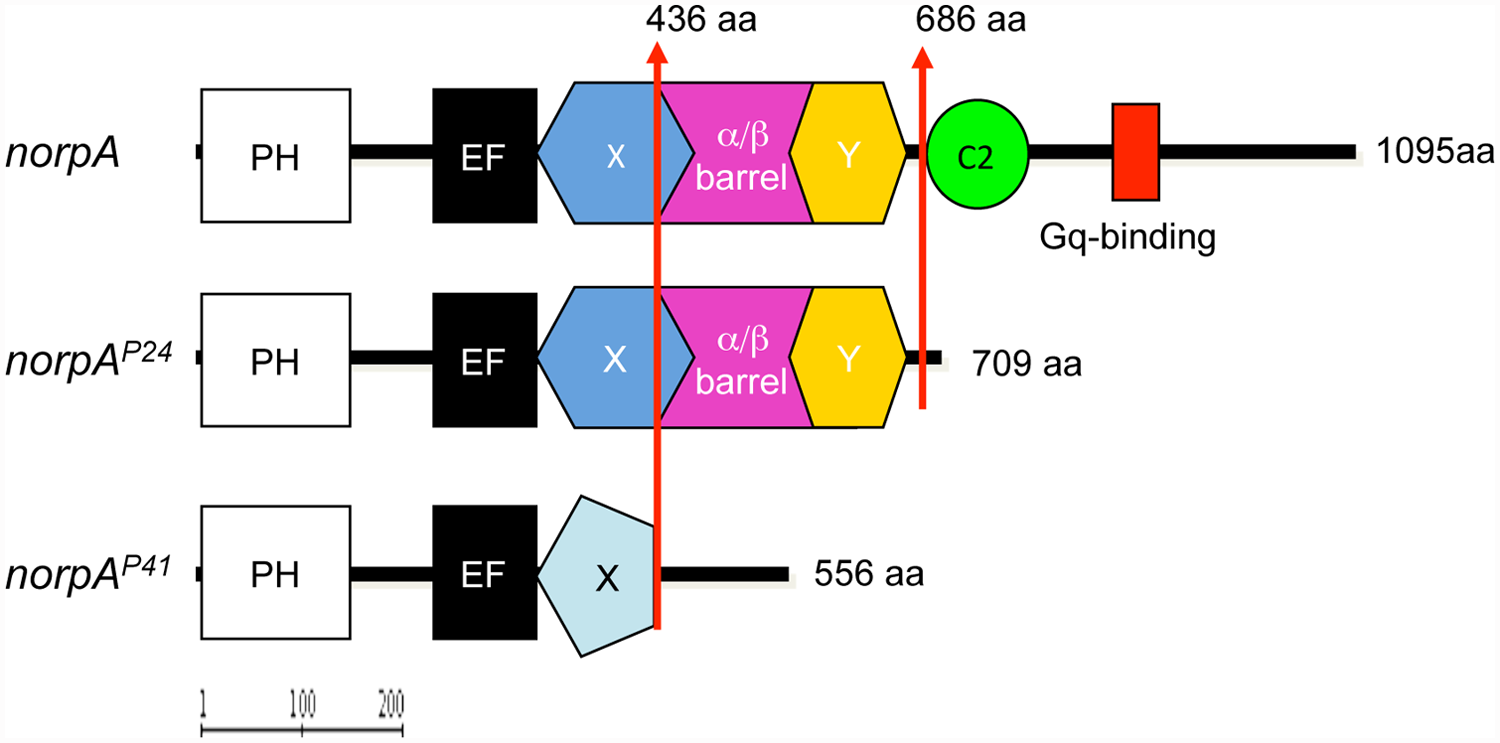

Figure 5.

Functional domains of PLC-β in wild-type and norpA loss-of-function alleles. Upper panel shows the domain structure of Phospholipase C-β (PLC-β) encoded by norpA. In photoreceptors, PLC-β is directly activated by the heterotrimeric G protein Gq to hydrolyze phosphatidylinositol 4,5-bisphosphate into the second messengers diacylglycerol (DAG) and inositol 1,4,5-trisphosphate (IP₃). PH = Pleckstrin homology domain, involved in phosphoinositide and/or Gβγ binding EF = EF hand–like Ca²⁺ binding domain; X/Y = homologous domains found in all eukaryotic PLC enzymes involved in catalytic activity; α/β barrel = α/β barrel domain, catalytic domain, binding of Gß; C2 = Ca²⁺ and lipid binding domain; C-terminal tail = Gq binding, membrane localization. Middle panel: Predicted protein encoded by norpA^P24, which lacks C2 and the C-terminal tail but retains the catalytic domain. Lower panel: norpA^P41-encoded protein, lacking the catalytic domain and all C-terminal sequences. Domain prediction was performed using SMART and InterPro Web tools accessible via Flybase (http://flybase.org).

Results

Rhodopsin 5 and Rhodopsin 6 Contribute to Light Resetting

To investigate the involvement of Rh5 and Rh6 in light entrainment, we exposed flies to 2 consecutive 12-hour:12-hour light-dark (LD) cycles (lasting 4 and 7 days, respectively) that were separated by a 6-hour delay (i.e., the lights stayed “off” for 6 hours longer during the last day of the first LD cycle) (Fig. 2). Light intensity during both LD cycles was linearly ramped up from 0 to 400 lux for 2 hours, remained constant for 8 hours, and was linearly ramped down again to 0 lux for 2 hours. Subsequently, flies were exposed to DD (3-5 days). To determine the ability to resynchronize to the shifted LD cycle, we used 3 different ways of plotting or analyzing the data: 1) plotting of average actograms showing activity throughout the experiment (Fig. 2, left panel). The ability to resynchronize can be estimated by counting the number of days in the second LD cycle during which flies show transient delays of the evening activity peak before reaching a stable phase. If this phase is also the starting point of the evening activity in the subsequent DD, the clock of these flies has been stably resynchronized (Emery et al., 2000). 2) To aid the localization of the daily evening peak, we determined the peak activity phase for each day of the experiment (Fig. 2, middle panel). 3) Daily average histograms were calculated for the 4 days during the first LD cycle (before shift) and for the 7 days of the second LD cycle (after shift) (Fig. 2, right panel). Before the shift, these plots show the typical bimodal behavior of flies, with a morning and evening activity peak and periods of inactivity during the day and night. Resynchronization to the shifted LD cycle is indicated if the same pattern is observed in the “after-shift” histogram, whereas impaired resynchronization leads to an evening peak that is shifted towards the middle of the day (Veleri et al., 2007).

As expected and previously reported (Emery et al., 2000; Hanai and Ishida, 2009; Helfrich-Förster et al., 2001), wild-type flies synchronized their evening activity rapidly (after 1 day) to the shifted LD regime, whereas cry^b mutants needed about 3 to 5 days (Figs. 2 and 3A). We then tested cry^b flies in combination with individual and double mutant loss-of-function alleles for Rh5² (Yamaguchi et al., 2008) and Rh6¹ (Cook et al., 2003) in the above assay. Rh5²; cry^b and Rh6¹ cry^b double mutants resynchronized to the shifted LD cycle with a similar speed as cry^b single mutants (Fig. 2). Careful inspection and direct comparison of the quantified evening peak phases indicate that Rh6¹ cry^b flies need more time to resynchronize compared to cry^b and Rh5²; cry^b flies, but the difference is very subtle (Fig. 3B; compare last day of original LD cycle with days 1-4 after the shift).

The Rh5²; Rh6¹ cry^b triple mutants responded to the shifted LD regime by slowly delaying their evening activity. Even after 7 days in the new regime, we find that in most of the animals (n = 36), the evening activity has moved only to about the middle of the light phase (Fig. 2, bottom row, left and right panels). Determination of the evening peak activity phase of all tested Rh5²; Rh6¹ cry^b individuals (n = 66) also shows that the triple mutants resynchronize slower compared to the double mutants or to cry^b single mutants (Fig. 3B; compare last day of original LD cycle with days 1-6 after the shift). These results show that Rh5 and Rh6 contribute to clock resetting by white light.

Rhodopsin 5 and Rhodopsin 6 Function Independently of norpA

Previously, we reported that the remaining resynchronization ability observed in norpA^P41; cry^b double mutants is aβολished by the additional expression of TNT under control of the Rh5 promoter (Veleri et al., 2007). This suggested that the photopigment acting in the TNT-blocked cells does not require PLC-β encoded by norpA and therefore may not rely on canonical Rhodopsin phototransduction. Because the Rh5 promoter targets both Rh5- and a few Rh6-expressing cells (Fig. 1), this raises the possibility that both opsins could function independent of PLC-β (Veleri et al., 2007). To directly test this possibility, we crossed the Rh5²; cry^b and Rh6¹ cry^b double mutants as well as the Rh5²; Rh6¹ cry^b triple mutants into the norpA^P41 mutant background and tested their ability to resynchronize to shifted LD cycles.

Control norpA^P41; cry^b double mutants slowly resynchronized to the shifted LD regime (Figs. 3C and 4). Comparable to previous reports, these double mutants required about 5 to 7 days before reaching a stable phase of their evening activity peak (Emery et al., 2000; Veleri et al., 2007). The addition of both the Rh5² or Rh6¹ single mutants increased the time required for synchronization further so that even after 7 days in the shifted LD regime, the “evening” activity peak occurred before or in the middle of the day (Fig. 4). Finally, flies lacking both Rhodopsins in the background of norpA^P41 and cry^b (quadruple mutants) showed only minimal tendencies (if any) to resynchronize their behavior. As a consequence, their “evening” activity peak occurred shortly after lights-on in the shifted light-dark regime (Fig. 4). Phase analysis confirmed the observations of the raw activity data and demonstrates that additional removal of Rh5 and/or Rh6 leads to further impairment of the ability to resynchronize to LD cycles (Figs. 3C and 4).

Next, we tested if the PLC-β–independent contribution of Rh5 and Rh6 is restricted to phase delays or if they also show defects in synchronization to phase-advanced LD cycles. For this, flies were subjected to similar conditions as described above, except that instead of a 6-hour delay, the LD cycle was advanced by 6 hours. Wild-type, norpA^P41, and cry^b mutants synchronized quickly to the new regime, whereas norpA^P41; cry^b double mutants needed several days to do so, indicated by “transients” during which activity also occurred after lights-off in the advanced LD regime (Suppl. Fig. S1). Introducing Rh5² or Rh6¹ into the double mutant background interfered more strongly with resynchronization compared to the norpA^P41; cry^b double mutant, and the norpA^P41; Rh5²; Rh6¹ cry^b quadruple mutant showed again the strongest phenotype (Suppl. Fig. S1). Individuals from the latter 3 genotypes kept advancing their evening activity peaks during the advanced LD regime without reaching a stable phase relationship. As a consequence, their evening activity peak occurred well before lights-off at the last day of LD (indicated by arrows in Suppl. Fig. S1). Because the various Rhodopsin mutants show transient delays during delayed LD cycles (Figs. 2-4) and transient advances during advanced LD cycles (Suppl. Fig. S1), it is clear that this behavior represents slow resynchronization and is not caused by an altered endogenous period length compared to the controls. We conclude that Rh5 and Rh6 contribute to phase delays and advances in an additive and PLC-β–independent manner.

Molecular Characterization of the norpA^P41 Allele

The results described above strongly imply that Rh5 and Rh6 do not depend on PLC-β–mediated phototransduction. It is therefore important to confirm if the norpA^P41 (or norpA³⁹ according to new nomenclature) allele applied here is indeed a true null allele, as previously suggested by electrophysiological and behavioral tests (Lindsley and Zimm, 1992; Riesgo-Escovar et al., 1995). We therefore determined the norpA DNA sequence in norpA^P41 mutant flies and revealed that the gene carries a 351-bp genomic deletion removing parts of exon 8, most of exon 9, and the entire intron 9, which corresponds to a 286-bp deletion in the norpA cDNA (nucleotides 1962-2248 according to Bloomquist et al. [1988]) (Fig. 5). The resulting protein that could potentially be encoded by norpA^P41 consists of 436 N-terminal amino acids identical to the wild-type protein (1095 amino acids in total) followed by a frame shift, resulting in the substitution of 120 amino acids and a premature stop codon (Fig. 5). The predicted mutant protein therefore interrupts the catalytic domain (α/β-barrel, extending from residue 318-682) and lacks the C-terminal tail required for Gq protein interaction and localization of PLC-β to the Rhabdomere (Katan, 1998). In contrast, the other frequently used null allele norpA^P24 (or norpA³⁶) carries a 28-bp deletion within exon 10, which results in the absence of the same C-terminal domains, except for retaining the complete catalytic domain (Pearn et al., 1996) (Fig. 5). Although this truncated protein could theoretically retain enzymatic activity, norpA^P24 behaves like a molecular and functional null allele. Due to the additional lack of the catalytic domain in norpA^P41, any residual PLC- activity in flies carrying this allele is essentially ruled out (Fig. 5).

Discussion

In Drosophila, it has been shown that multiple light input routes are used to synchronize the circadian clock (Emery et al., 2000; Helfrich-Förster et al., 2001; Klarsfeld et al., 2004; Mealey-Ferrara et al., 2003; Rieger et al., 2003; Stanewsky et al., 1998; Veleri et al., 2007). The circadian clock of fruit flies responds to moonlight levels of 0.03 lux, both at a molecular and behavioral level (Bachleitner et al., 2007). Wild-type flies robustly resynchronize to shifted LD cycles at light intensities of only 0.0011 lux (Stanewsky et al., 1998) and to even lower intensities of monochromatic blue light (Hirsh et al., 2010). This high sensitivity depends on retinal photoreceptors rather than Cry because it decreases in flies lacking the eyes, Rh1, PLC-β, or retinas but that retain Cry (Bachleitner et al., 2007; Ohata et al., 1998; Stanewsky et al., 1998). Consistent with this, it has recently been shown that Cry-mediated light excitation of clock neurons requires light intensities that are several magnitudes higher (2-19 mW/cm² or about 100,000 lux) (Fogle et al., 2011).

Under natural conditions, light synchronization is a challenging task due to fluctuations of light intensities influenced by weather changes and also because of considerable light levels during the night (see above). Therefore, photoreceptors mediating circadian entrainment probably evolved to detect twilight as a reliable marker for the beginning and the end of the day. In addition to changes in light intensity, light quality also changes during dawn and dusk (Roenneberg and Foster, 1997). This may explain why photopigments with different light spectra, for example, Rh1 (λ_max = 480 nm), Rh5 (λ_max = 437 nm), and Rh6 (λ_max = 508 nm) (Salcedo et al., 1999), have been recruited for clock resetting. In fact, previous studies suggest that these 3 opsins contribute to synchronization to green (472-603 nm, λ_max = 519 nm) and yellow (475-724 nm, λ_max = 580 nm) light (Hanai and Ishida, 2009) and Rh1 and Rh6 also to synchronization to red light (λ_max = 634 nm) (Hanai et al., 2008). Our findings strongly support a role for both Rh5 and Rh6 for circadian entrainment because we show that flies lacking both opsins and Cry show enhanced defects in resynchronization to 400-lux white light compared to cry^b single mutants (Figs. 2 and 3B). Although not analyzed in the current study, based on the discussion above, we predict that the effects of both opsins could also be revealed at much lower light intensities, perhaps even in the presence of Cry.

Rh5 and Rh6 Do Not Depend on PLC-β

Previous observations had suggested that light reception in Rh5-Gal4–positive cells (30% of the R8 cells and the H-B eyelet) (Fig. 1) does not depend on PLC-β encoded by norpA (Veleri et al., 2007). Prompted by this, we tested here if Rh5 (30% of R8 cells) and/or Rh6 (70% of R8 cells and H-B eyelet) depends on norpA. Strikingly, both opsin mutations lead to a further decrement of circadian light entrainment in norpA^P41 cry^b double mutants, demon strating that Rh5 and Rh6 have PLC-β (norpA)–independent yet light-dependent activities (Figs. 3C and 4). This is very surprising because Rh5 and Rh6 are able to restore norpA-dependent ERG light responses in outer R1-R6 photoreceptors lacking Rh1 (Pearn et al., 1996; Salcedo et al., 1999). Moreover, norpA is being expressed in the H-B eyelet (Malpel et al., 2002). One possible explanation would have been that the norpA allele we applied still produces some functional PLC-β. In this scenario, the slow resynchronization seen in norpA^P41 cry^b double mutants could still be mediated by residual opsin-based phototransduction including that of Rh1, Rh5, and Rh6. Importantly, our sequence analysis of norpA^P41 rules out this possibility: norpA^P41 contains a large internal deletion within the norpA gene, resulting in a predicted truncated protein that lacks everything including and downstream of the catalytic domain (Fig. 5). Hence, even if this truncated protein is stable, it could not hydrolyze the membrane-bound phosphoinositide 4,5-biphosphate (PIP₂) into the DAG and IP₃ second-messenger molecules, a reaction normally catalyzed by the full-length PLC-β enzyme. In fact, norpA^P41 is the only allele described so far containing such a severe alteration, resulting in a true functional null allele (Pearn et al., 1996). Therefore, Rh5 and Rh6 must either utilize a different signaling mechanism in addition to the canonical one or they activate other PLC-β enzymes. The only other PLC-β encoded by the Drosophila genome PLC-21C would potentially be a good candidate, as it is expressed at moderate levels in the eyes, head, and brain according to the FlyAtlas adult expression database (Chintapalli et al., 2007). Nevertheless, its function seems to be specific for olfactory signal transduction, and this PLC-β enzyme can be activated by a different Gqα isoform compared to the visual one (Kain et al., 2008).

We favor the idea that Rh5 and Rh6 can use alternative signaling pathways. One reason for this takes into account that it would be disadvantageous for circadian photoreceptors to show adaptation to light. Circadian photoreceptors can be seen as irradiance detectors, whose primary function is to collect light information over time, especially during dawn and dusk (Davies et al., 2010). They do not need to create sharp images of their environment, nor do they need to adapt to rapidly changing light intensities as visual photoreceptors do. In fact, these features of visual photoreceptors, which involve adaptation and termination mechanisms, would counteract the “light sampling” duty of circadian photoreceptors. Several adaptive termination mechanisms operate in the canonical phototransduction cascade, and one of them is coupled to PLC-β itself. In addition to being activated by an active (GTP-bound) Gqα subunit, PLC-β functions as a GTPase activating protein (GAP), leading to inactivation of Gqα (Cook et al., 2000). It would therefore be advantageous if Rh5 and Rh6 activity could somehow circumvent at least some of these termination mechanisms, perhaps by bypassing PLC-β signaling. This would not rule out additional canonical phototransduction by both opsins for image-forming vision. In fact, norpA-dependent opsin-mediated phototransduction does contribute to circadian light reception, as indicated by the phenotypes of single norpA and norpA^P41 cry^b double mutants (see above).

Phenotype and Remaining Light Sensitivity in norpAP⁴¹; Rh⁵²; Rh⁶¹ cry^b Mutants

The quadruple mutants are severely affected in resynchronization to delayed and advanced LD cycles and are only weakly synchronized in the original (preshift) LD cycles (Fig. 3C and Suppl. Fig. S1). Even though this shows that most light entrainment pathways are nonfunctional in these mutants, it is also clear that some light input remains. The cry^b allele applied here is a severe hypomorph and may allow some residual Cry-dependent light input to the clock (Dolezelova et al., 2007; Stanewsky et al., 1998). Alternatively, yet unidentified circadian photoreceptive pathways may contribute to entrainment, most likely located in or close to the clock neurons in the dorsal brain (Chen et al., 2011; Veleri et al., 2003). To distinguish between these possibilities, the current genetic variants should be combined with true cry loss-of-function alleles, like cry⁰¹ or cry^OUT (Dolezelova et al., 2007; Yoshii et al., 2008).

It is known that norpA mutations can lead to age-dependent photoreceptor cell degeneration (Meyertholen et al., 1987), and therefore, it is likely that all genotypes in the current study carrying the norpA^P41 allele suffer from a certain degree of such degeneration. But because norpA^P41 cry^b double mutants retain the ability to synchronize to LD cycles, it is clear that this degeneration does not contribute to the phenotypes observed here. Moreover, norpA-induced retinal degeneration can be rescued by the additional removal of Rhodopsin expression because it depends on endocytosis of Arrestin:Rhodopsin complexes (Alloway et al., 2000). We therefore think we can rule out that the reduced light sensitivity in triple and quadruple mutants can be caused by unspecific retinal degeneration; in fact, removal of Rh5 and/or Rh6 should restore photoreceptor integrity in a norpA^P41 mutant background. Hence, the most likely explanation for the decrement of circadian light sensitivity observed in the triple and quadruple mutants is the lack of PLC-independent Rh5- and Rh6-mediated photoreception.

Light Input to the Molecular Clock

In Drosophila, light-induced degradation of the Timeless (Tim) protein mediated by Cry is thought to be central to molecular clock resetting (Peschel and Helfrich-Förster, 2011), although recent observations suggest the process is more complex (Tang et al., 2010). Nevertheless, observations with the original cry^b mutant revealed that in some clock neurons, light-dependent Tim degradation occurs in the absence of functional Cry and even in norpA^P41 cry^b double mutants (Helfrich-Förster et al., 2001; Stanewsky et al., 1998). This strongly suggests that other Cry-independent molecular mechanisms must exist to reset molecular oscillations, and these may be mediated (at least in part) by the 2 Rhodopsins that were investigated here. Consistent with this idea, neurotoxin expression in the Rh5-expressing R8 cells and the H-B eyelet of norpA^P41 cry^b double mutants drastically interfered with the synchronization of Tim in subsets of the clock neurons that are not affected by the double mutant alone (Veleri et al., 2007). Moreover, Tim degradation is also mediated by a novel Cry-independent pathway involving the clock-controlled gene quasimodo. Quasimodo is a light-responsive membrane-attached ZP domain expressed in (largely Cry-negative) subsets of clock neurons, where it may be activated by yet unknown photoreceptive molecules (Chen et al., 2011).

Conclusions

We demonstrate here that the Drosophila Rhodopsins Rh5 and Rh6 contribute to light resetting of the Drosophila circadian clock independent of the norpA-encoded PLC-β enzyme that normally operates in the visual phototransduction cascade. This suggests that alternative opsin signaling mechanisms exist that may operate in photoreceptors, which participate in irradiance detection rather than image-forming vision. Except for Rh3, all other Drosophila Rhodopsins as well as the mammalian circadian photopigment melanopsin are able to function as thermoreceptors (Shen et al., 2011). Our findings suggest that this unexpected versatility of Rhodopsins may extend to the downstream signaling mechanisms, as already shown for other nonphotoreceptive functions of Rhodopsin (Chang and Ready, 2000).
