Abstract

Membrane filtration processes have been used to treat landfill leachate. On the other hand, closing the leachate treatment loop and finding a final destination for landfill leachate membrane concentrate (LLMC) – residual stream of membrane systems – is challenging for landfill operators. The re-introduction of LLMC into the landfill is typical; however, this approach is critical as concentrate pollutants may accumulate in the leachate treatment facility. From that, leachate concentrate management based on resource recovery rather than conventional treatment and disposal is recommended. This work comprehensively reviews the state-of-the-art of current research on LLMC management from leachate treatment plants towards a resource recovery approach. A general recovery train based on the main LLMC characteristics for implementing the best recovery scheme is presented in this context. LLMCs could be handled by producing clean water and add-value materials. This paper offers critical insights into LLMC management and highlights future research trends.

Keywords

Concentrated leachate landfill leachate membrane concentrate nanofiltration reverse osmosis resource recovery

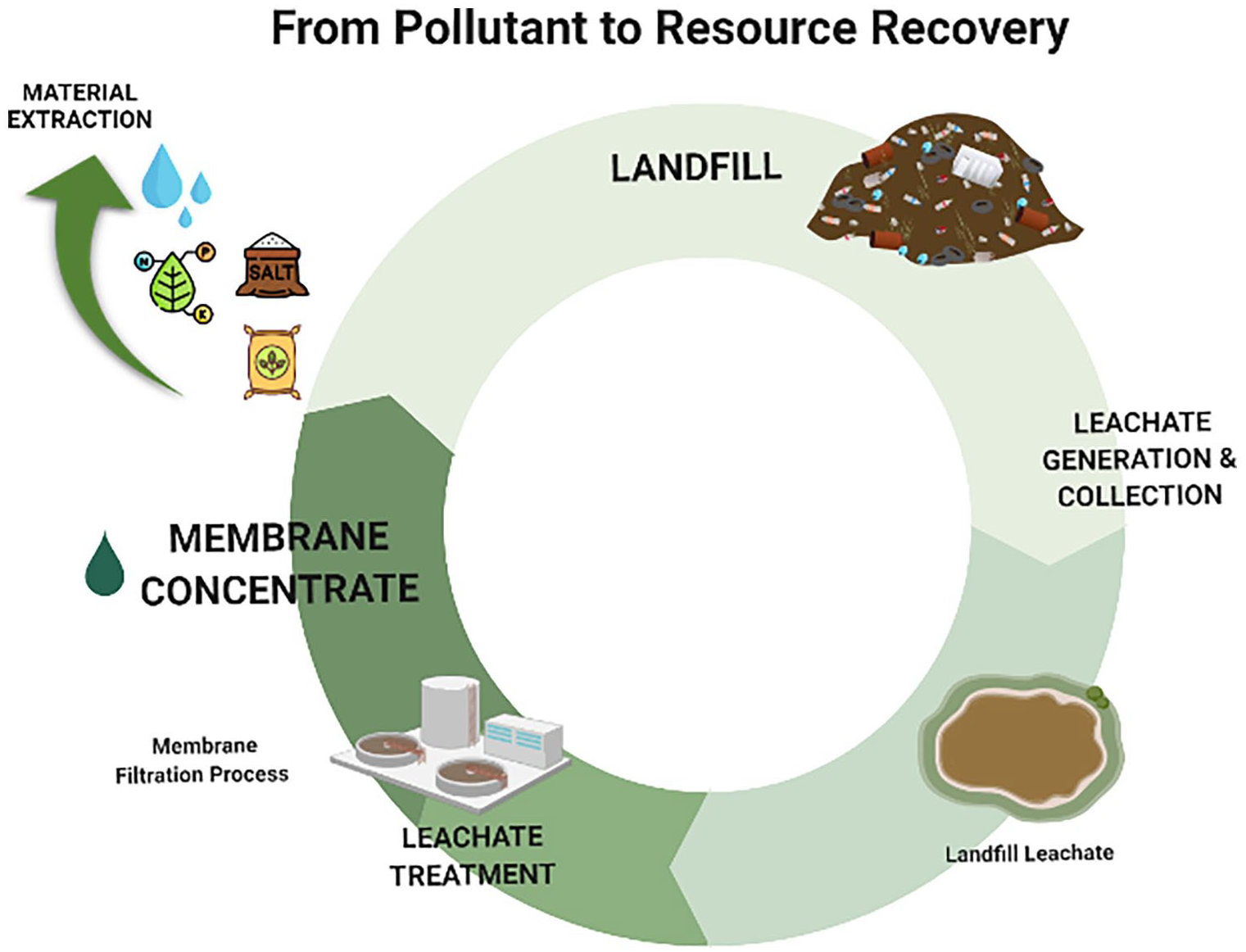

Graphical Abstract

Introduction

Landfill leachate (LFL) contains a wide range of pollutants of varying concentrations, from high values for organic matter, nutrients and inorganics to low values for emerging contaminants (e.g. persistent organic pollutants, pharmaceuticals, personal care products and plastic additives) (Busch et al., 2010; Clarke et al., 2015; Ramakrishnan et al., 2015). Hence, its treatment remains a major socio-environmental and economic issue on the municipal solid waste management chain. Treatment of LFL must meet the wastewater disposal requirements established by regulatory authorities. Moreover, considering that the LFL physicochemical composition undergoes spatial and temporal variations, successful and efficient treatment must be ensured in both the active and post-closure landfill periods (Fan et al., 2006; Stegmann, 2018).

The conventional technologies for leachate treatment are biological and physicochemical processes or their combination in integrated or sequential schemes (Abbas et al., 2009; Kurniawan et al., 2010). Conventional biological systems alone cannot significantly treat methanogenic leachate, which contain contaminants resistant to biodegradation (Torretta et al., 2016). In addition, high ammonia concentrations cannot be removed successfully by biological treatment, such as activated sludge, aerated lagoons, sequence batch reactor or trickling filters (Mojiri et al., 2021). Therefore, the option of advanced technologies should be considered. In this regard, membrane-based technologies, that is, nanofiltration (NF) and reverse osmosis (RO), are considered the most reliable and effective methods for leachate treatment (Chaudhari and Murthy, 2010; Chianese et al., 1999; Cingolani et al., 2017; de Almeida et al., 2020a, 2020b; Linde et al., 1995; Šír et al., 2012).

In contrast, to close the loop of the LFL treatment and to find a final destination for the landfill leachate membrane concentrate (LLMC) – residual stream of the membrane filtration process – is a critical issue, and LLMC management is a challenging task. Several technologies have been proposed and investigated to manage the membrane concentrate, including recirculation (Calabrò et al., 2010; Chamem et al., 2020; He et al., 2015), natural evaporation (Cossu et al., 2018), solidification/stabilization (S/S) (Hunce et al., 2012), chemical coagulation (Long et al., 2017), electrocoagulation (EC) (Fernandes et al., 2019), ozonation (Shah et al., 2017), advanced oxidation processes (AOPs) (e.g. Fenton, photo-Fenton, anodic oxidation) (Fernandes et al., 2017; Hong et al., 2017; Soomro et al., 2020) and thermal treatment (Zhang et al., 2019). The recirculation of the LLMC onto landfill cells is the conventional approach, similar to leachate recycling to adjust moisture content and degrade organic pollutants in landfills (Calabrò and Mancini, 2012; Grossule and Lavagnolo, 2020; Sohoo et al., 2019). However, some critical issues such as failures of landfill stability and accumulation of pollutants in the leachate treatment facility can emerge as negative impacts linked to this practice. Before the study carried out by Henigin (1995), the consequences of the reinjection of concentrated leachate into the landfill body were under-discussed. In recent years, there has been an increasing amount of literature on the effects of this procedure (Calabrò et al., 2018; Chamem et al., 2020; Morello et al., 2016; Talalaj, 2015a; Talalaj and Biedka, 2015). Nonetheless, the published studies show contrasting conclusions. Therefore, further research in this area is still of high importance.

Several other reviews already exist, which do excellent work in describing LFL treatment processes (Abuabdou et al., 2020; Costa et al., 2019; Gao et al., 2014; Luo et al., 2020; Renou et al., 2008; Wiszniowski et al., 2006), utilization of membrane-based technologies for wastewater treatment (Kamali et al., 2019) and treatment technologies for membrane concentrate volume minimization (Joo and Tansel, 2015; Subramani and Jacangelo, 2014). Readers are guided towards these contributions for further background information. Recently, Keyikoglu et al. (2021) reviewed the state-of-the-art of technologies for the treatment of LLMCs. Among existing methods, they paid more attention to AOPs. However, these techniques cannot effectively handle the high salinity of the LLMC and, therefore, are mainly applied as a pre-treatment step rather than a stand-alone treatment. Besides, AOPs are associated with high installation and operational expenses, and the possible generation of intermediates with higher toxicity during the LLMC treatment also represents a limitation for their consolidation on a full-scale application.

As aforementioned, several approaches could be adopted for the management of LLMCs. Considering the demands of efficient water reuse, carbon and nutrients from LLMCs or from LFL itself, efforts have been focused on extracting add-value products from leachate concentrates (e.g. inorganic salts and biofertilizers) (Gu et al., 2019; Kurniawan et al., 2021; Li et al., 2015). At present, a review dealing with the management of LLMCs focusing on resource recovery has not been published yet. This work comprehensively reviews the state-of-the-art of current research on membrane concentrates management from landfill leachate treatment plants (LLTPs) towards a resource recovery approach. Lastly, within a circular bioeconomy context, a general recovery train based on the main LLMC characteristics for implementing the best recovery route is presented.

Materials and methods

The databases, including Web of Science, Scopus and Engineering Village, were explored. The following keywords were combined to find the scientific literature: ‘landfill leachate’, ‘nanofiltration’, ‘reverse osmosis’, ‘membrane concentrate’ and ‘concentrated leachate’. The screening was undertaken using the eligibility and exclusion criteria to include the works relevant to the research topic. Eligibility criteria consisted of selecting articles that deal with NF concentrate (NFC) and RO concentrate (ROC) treatment and management options. In contrast, excluding articles published in a language other than English and papers that do not deal with LLMC management was part of the exclusion criteria.

The present article is structured as follows: first, we discussed the management of LFL emphasizing its treatment processes by NF and RO processes. Second, the main characteristics of NFC and ROC from LLTPs are introduced. Third, a critical analysis of LLMC destination practices and treatment systems are presented. Fourth, resource recovery from LLMCs covering water reuse technologies and material extraction, that is, organic fertilizers, nutrients, inorganic salts recovery and add-value products is comprehensively reviewed. Current trends and challenges are addressed. Last, a management diagram for the best resource recovery route from LLMCs is proposed.

LFL management

The composition of LFL varies depending on the gravimetric composition of landfilled waste, landfill age and mode of its operation, landfill status (i.e. active or closed), site conditions (e.g. climate, site geometry, soil properties and hydrogeology), among others (El-Fadel et al., 2002; Farquhar, 1989). The typical LFL contains a significant amount of biodegradable and non-biodegradable organics, inorganic compounds and xenobiotic organic compounds (Kulikowska and Klimiuk, 2008; Vaccari et al., 2019). Recent studies identified other pollutants such as pharmaceuticals, plasticizers and microplastics in untreated and treated leachate samples from both active and closed landfills (He et al., 2019; Su et al., 2019; van Praagh et al., 2019). Thus, a considerable amount of literature about this topic can be expected in the forthcoming years. Nevertheless, major concerns of the LFL are ammonia nitrogen (NH₃-N), salts (e.g. chloride, sulphate, carbonate and bicarbonate) and organic matter – reported as 5-day biochemical oxygen demand (BOD₅), chemical oxygen demand (COD) and total organic carbon (Ehrig and Robinson, 2010; Iskander et al., 2018b).

According to published studies (Costa et al., 2019; Kurniawan et al., 2006, 2010), the landfill age plays an important role in leachate characteristics; therefore, LFL can be classified into three categories on an age basis: young, intermediate and mature (Table 1). Overall, biodegradable organic matter (evaluated by BOD₅) reduces over time, and leachate organic matter stabilizes (Kjeldsen et al., 2002; Luo et al., 2020). In other words, the BOD₅/COD ratio (biodegradability index) decreases as the landfill age increases. The biodegradability index can even be more diminutive in tropical regions compared to others of temperate climate. The warmer conditions tend to boost microbial activity, which accelerates organic matter stabilization; thus, a high concentration of non-biodegradable compounds such as humic substances (HSs) can also be a concern in the short term for landfills located in tropical regions (Lebron et al., 2021). Besides, as stated earlier, the composition of landfilled residues can affect LFL characteristics; for instance, in regions where waste separation, pre-treatment and recycling of organic fraction are effective, inorganic leachate parameters such as total dissolved solids (TDS), conductivity and chloride may be more relevant (de Almeida and Campos, 2020).

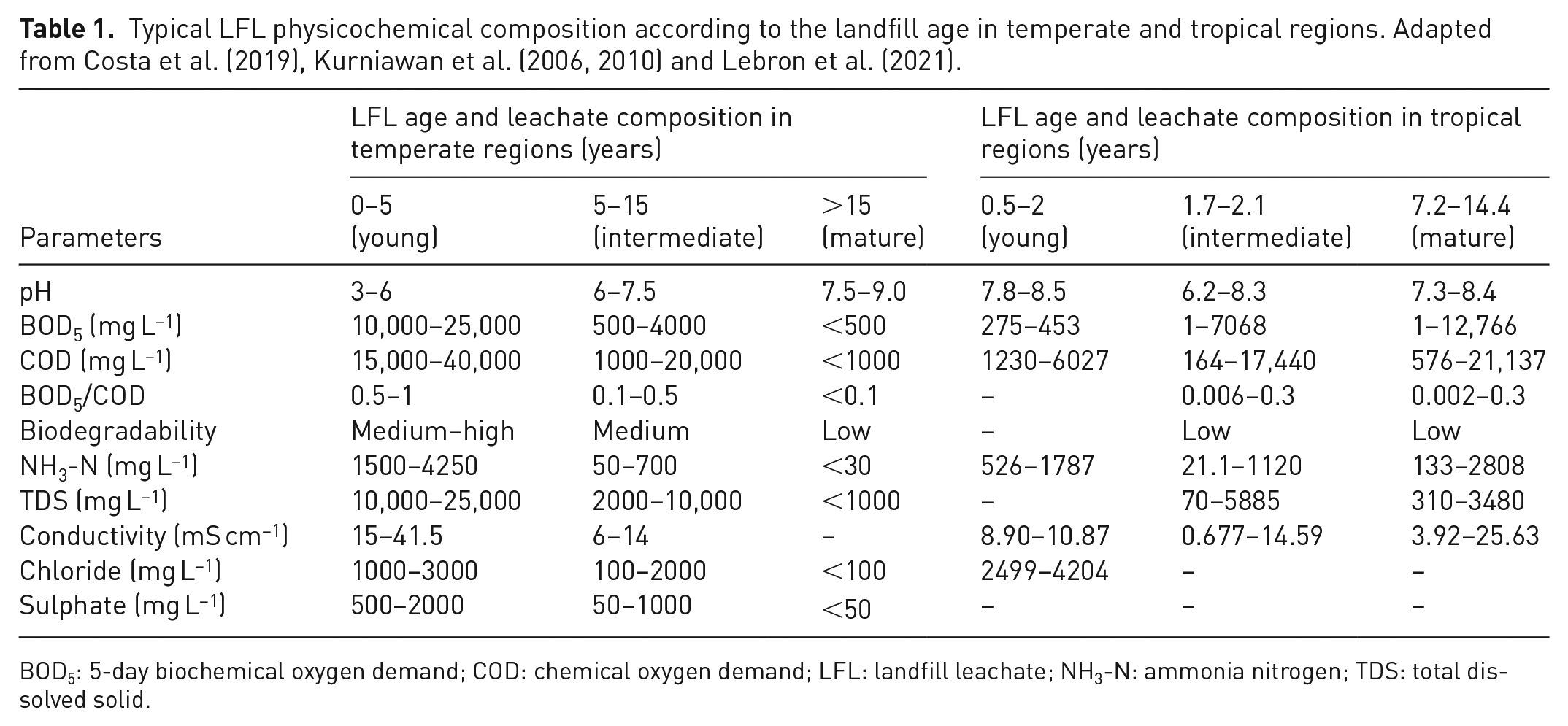

Table 1.

Typical LFL physicochemical composition according to the landfill age in temperate and tropical regions. Adapted from Costa et al. (2019), Kurniawan et al. (2006, 2010) and Lebron et al. (2021).

	LFL age and leachate composition in temperate regions (years)			LFL age and leachate composition in tropical regions (years)
Parameters	0–5 (young)	5–15 (intermediate)	>15 (mature)	0.5–2 (young)	1.7–2.1 (intermediate)	7.2–14.4 (mature)
pH	3–6	6–7.5	7.5–9.0	7.8–8.5	6.2–8.3	7.3–8.4
BOD₅ (mg L⁻¹)	10,000–25,000	500–4000	<500	275–453	1–7068	1–12,766
COD (mg L⁻¹)	15,000–40,000	1000–20,000	<1000	1230–6027	164–17,440	576–21,137
BOD₅/COD	0.5–1	0.1–0.5	<0.1	–	0.006–0.3	0.002–0.3
Biodegradability	Medium–high	Medium	Low	–	Low	Low
NH₃-N (mg L⁻¹)	1500–4250	50–700	<30	526–1787	21.1–1120	133–2808
TDS (mg L⁻¹)	10,000–25,000	2000–10,000	<1000	–	70–5885	310–3480
Conductivity (mS cm⁻¹)	15–41.5	6–14	–	8.90–10.87	0.677–14.59	3.92–25.63
Chloride (mg L⁻¹)	1000–3000	100–2000	<100	2499–4204	–	–
Sulphate (mg L⁻¹)	500–2000	50–1000	<50	–	–	–

BOD₅: 5-day biochemical oxygen demand; COD: chemical oxygen demand; LFL: landfill leachate; NH₃-N: ammonia nitrogen; TDS: total dissolved solid.

Several methods for LFL treatment have been in use, such as co-treatment with sewage on wastewater treatment plants (Brennan et al., 2017; Dereli et al., 2021); recirculation of leachate into the landfill body (Bae et al., 2019; Beaven and Knox, 2018); constructed wetlands (Bakhshoodeh et al., 2020); physicochemical processes – coagulation-flocculation (C/F), chemical precipitation, chemical oxidation, air stripping, carbon adsorption and AOPs (Deng and Englehardt, 2006; Fernandes et al., 2015; Ferraz et al., 2013; Foo and Hameed, 2009; Lins et al., 2015); and biological processes – aerated lagoons, sequencing batch reactor process, activated sludge process, membrane bioreactor, biofilms in rotating biological contactors and trickling filters (Ahmed and Lan, 2012; Chelliapan et al., 2020; El-Gohary and Kamel, 2016; Robinson, 2019).

Conventional treatments of LFL are generally classified into three major groups: (1) biological processes (aerobic or anaerobic), (2) physicochemical processes and (3) a combination of biological and physicochemical processes (Luo et al., 2020). Biological treatment is often used to remove biodegradable organics and total nitrogen due to its reliability, simplicity and high cost-effectiveness (Ehrig et al., 2018). On the other hand, physical and chemical processes can be effective as a pre-treatment for leachate’s biological degradation since it helps to reduce the content of non-biodegradable substances, which can compromise the efficiency of the biological treatment (Mojiri et al., 2021). Recently, low-cost treatment schemes have been tested, including pre-treatment with biomass bottom ash (chemical precipitation) followed by microalgae remediation, which shows an excellent removal of leachate pollutants. Besides, it could enable the valorization of treatment residues (i.e. biomass and sludge) through the production of biofuels and add-value materials (Viegas et al., 2021). Figure 1 depicts the performance of different leachate treatment processes according to the landfill age, that is, young, intermediate and mature.

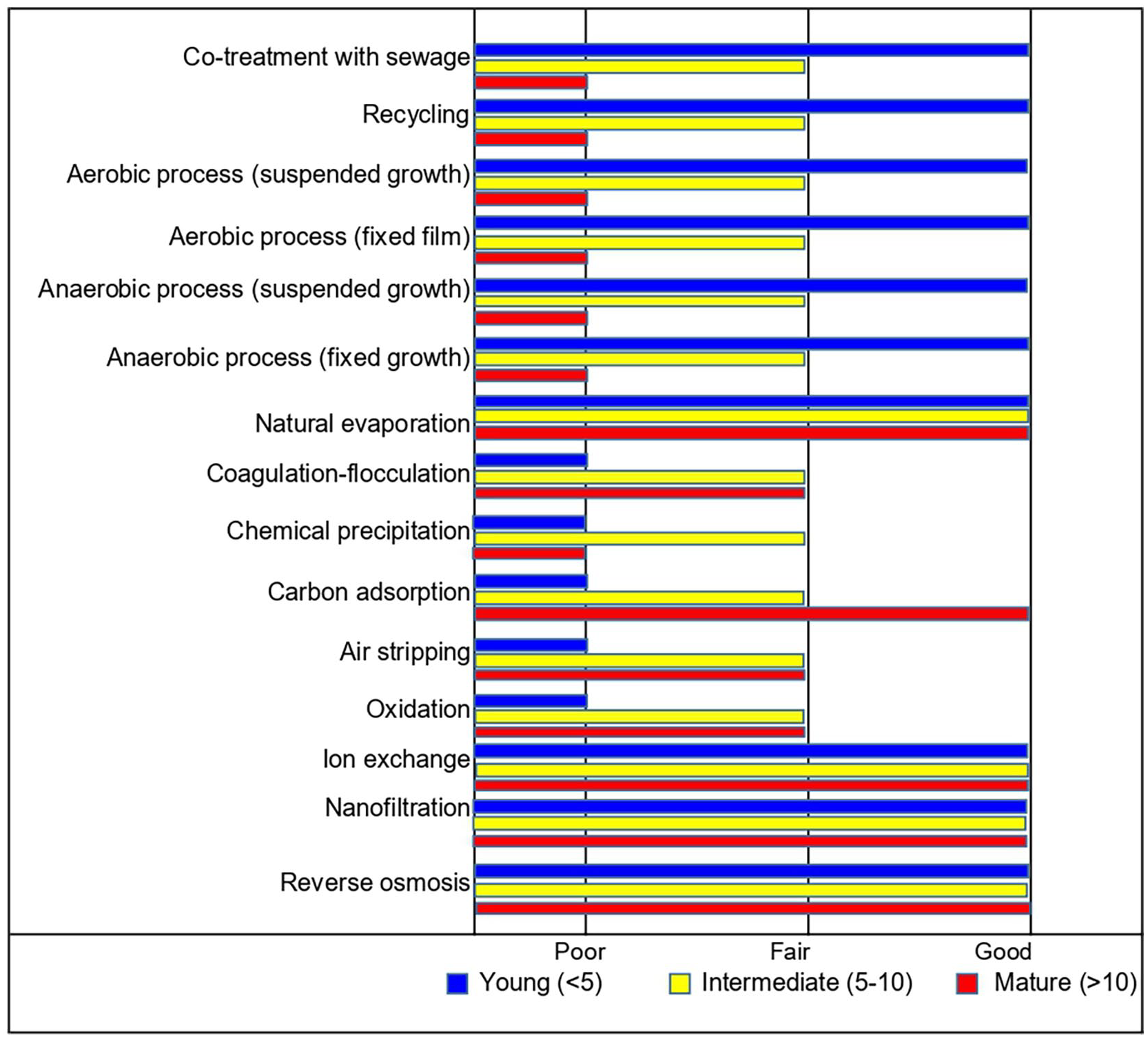

Figure 1.

Performance of different leachate treatment processes according to the landfill age. Based on Luo et al. (2020).

As mentioned before, several technologies are available for LFL treatment, and each of them has its merits and limitations. The selection of the best treatment route depends mainly on the LFL composition and economic feasibility. As leachate composition undergoes spatial and seasonal variation, treatment strategies cannot be standardized. Every scenario is unique, and treatment approaches should vary accordingly (Mukherjee et al., 2015).

From a techno-economic point of view, NF and RO seem to be the most promising and efficient methods among the existing technologies. NF and RO, either as a foremost or as a polishing step in a leachate treatment chain, have shown to be an essential technology to meet the most restrictive standards for water discharge or reuse (Chen et al., 2021b). NF and RO processes can (1) provide high-quality treated leachate (Chen et al., 2021b); (2) reduce the environmental footprint and size of the LLTP (modular design/installation) (Jamaly et al., 2014; Peter-Varbanets et al., 2009); (3) be automated and easily scaled (Peter-Varbanets et al., 2009); and (4) be easily moved from site to site (Kumano and Fujiwara, 2008). Since the late 1980s, the use of RO has become a proven technology in use for LFL treatment. In 2018, there were over 300 leachate treatment RO plants installed worldwide (Balkema et al., 2018). For this reason and considering the scope of the present article, the following section focuses on NF/RO processes applied to the treatment of LFL.

NF and RO

NF and RO are high-pressure-driven membrane filtration processes. NF/RO systems generate two output streams, which are named permeate and concentrate. The permeate is the treated liquid, and the concentrate, also known as retentate, is the residual stream (Baker, 2012).

NF membranes have pore sizes in the range of 0.5–2 nm, which corresponds to molecular weight cut-off (MWCO) of 100–500 Da. NF is also described as a process that removes particles and dissolved compounds smaller than 2 nm (Mohammad et al., 2015). Similarly, the RO process uses a physical mechanism, in which the operating pressure must be kept higher than the solution osmotic pressure. The transport mechanism across the RO membrane follows the dissolution/diffusion model, where both solvent and solute dissolve in the dense surface layer of the membrane and diffuse separately due to the chemical potential gradient of each species. In wastewater treatment systems, RO membranes are primarily used to remove low molecular mass solutes such as salts and heavy metals (Baker, 2012; Wilf, 2014).

NF process can remove colloids, low-molecular-weight organic matter and dissolved salts. However, NF membranes generally allow monovalent ions such as sodium and chloride to pass through while achieving high rejection for organic matter and suspended solids (Abdel-Fatah, 2018). On the other hand, RO membranes can separate monovalent/divalent ions and small neutral molecules. Both systems can separate organic and inorganic compounds from the influent, producing water with low levels of dissolved solids content (Yang et al., 2020). From the perspective of LFL treatment, they are the major membrane techniques used in LLTPs (Chen et al., 2021b).

The standard operating mode of full-scale NF/RO systems is cross-flow with high internal flow rate concentrate recirculation. Typical NF/RO system modules include tubular, spiral wound, hollow fibre and disc tube (Yang et al., 2020). Due to their modular configuration, these modules are available in standardized containers from various suppliers and adapted to each landfill site (ISWA, 2019). RO systems are generally used in a stand-alone mode, and depending on the effluent requirements, several steps can be combined, where leachate gets filtered in two or more stages before final discharge. On the other hand, the NF process is usually applied as a post-treatment step of biological or physicochemical processes into the LFL treatment chain (de Almeida et al., 2020c).

NF and RO have been widely applied in full-scale LFL treatment projects (Chen et al., 2021b; Di Maria et al., 2018; Lebron et al., 2021). A body of scientific research recognizes their importance for the LFL treatment (Anna Tałałaj et al., 2021; Dolar et al., 2016; Mariam and Nghiem, 2010; Ramaswami et al., 2018; Smol and Włodarczyk-Makuła, 2017), and several studies have operated NF/RO in pilot and full-scale application (Table 2), demonstrating the membrane technology maturity. For example, according to Argun et al. (2020), the NF process used as a final step of an LFL facility located in Turkey is essential to meet the local leachate disposal limits. The NF system is composed of 60 spiral wound modules, polyethersulfone membranes. It operates at pump pressure <18 bar, recovery rate of 85% and permeate flux of 16 L m⁻² h⁻¹. COD, NH₃-N, TDS and colour removal efficiencies are, on average, 84%, 70%, 51% and >99%, respectively. Several full-scale RO systems are also documented in other studies that looked at the RO process (Cingolani et al., 2018; Rukapan et al., 2012; Theepharaksapan et al., 2011). In Poland, a 72 m³ d⁻¹ LLTP has performed the disc-tube RO system at an operating pressure of 65 bar, permeate flux of up to 50 L m⁻² h⁻¹ and recovery of 75%. Treatability results showed removal efficiencies of BOD₅, COD and NH₃-N greater than 90% (Talalaj, 2015b).

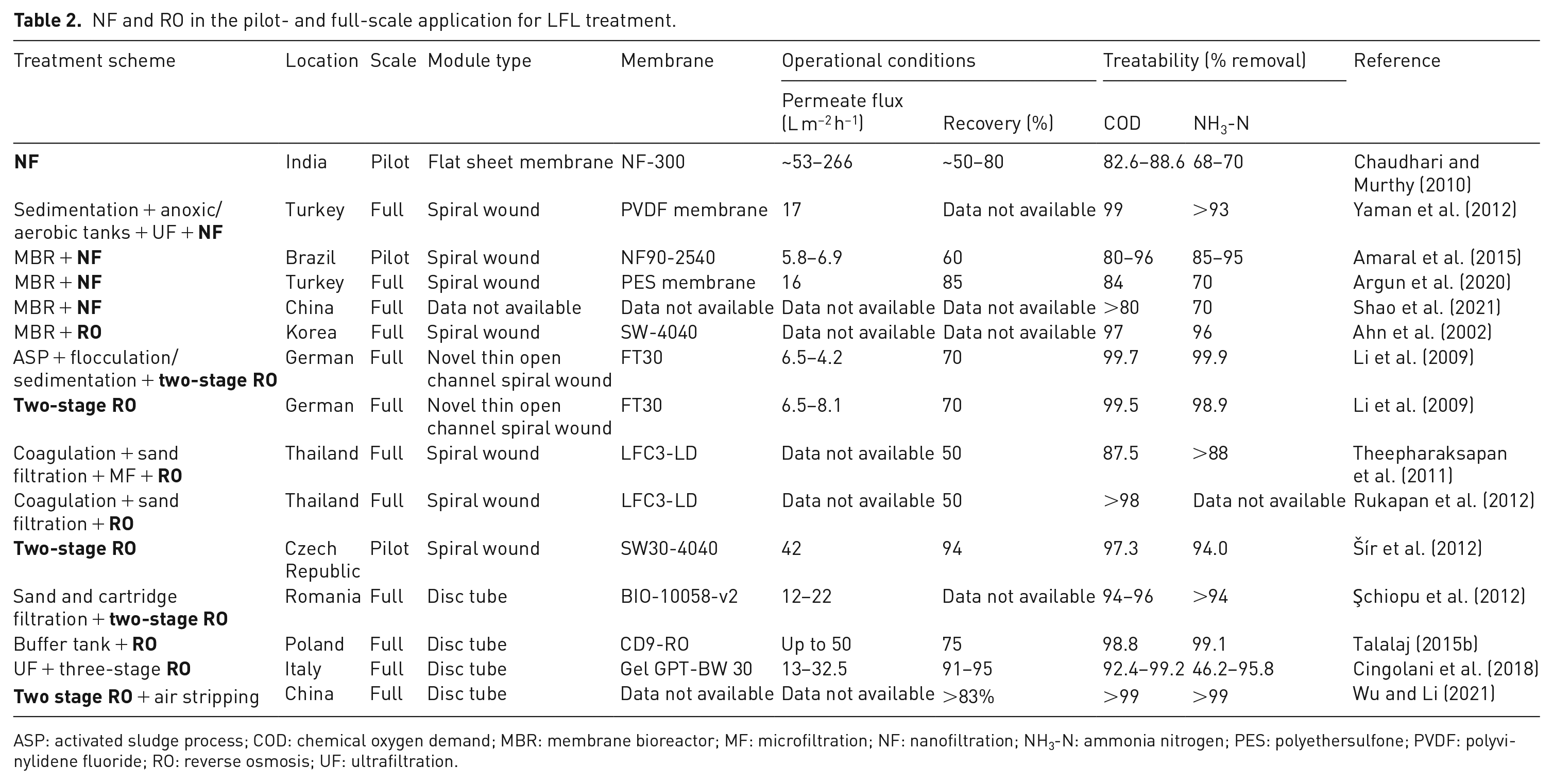

Table 2.

NF and RO in the pilot- and full-scale application for LFL treatment.

Treatment scheme	Location	Scale	Module type	Membrane	Operational conditions		Treatability (% removal)		Reference
Treatment scheme	Location	Scale	Module type	Membrane	Permeate flux (L m⁻² h⁻¹)	Recovery (%)	COD	NH₃-N	Reference
NF	India	Pilot	Flat sheet membrane	NF-300	~53–266	~50–80	82.6–88.6	68–70	Chaudhari and Murthy (2010)
Sedimentation + anoxic/aerobic tanks + UF + NF	Turkey	Full	Spiral wound	PVDF membrane	17	Data not available	99	>93	Yaman et al. (2012)
MBR + NF	Brazil	Pilot	Spiral wound	NF90-2540	5.8–6.9	60	80–96	85–95	Amaral et al. (2015)
MBR + NF	Turkey	Full	Spiral wound	PES membrane	16	85	84	70	Argun et al. (2020)
MBR + NF	China	Full	Data not available	Data not available	Data not available	Data not available	>80	70	Shao et al. (2021)
MBR + RO	Korea	Full	Spiral wound	SW-4040	Data not available	Data not available	97	96	Ahn et al. (2002)
ASP + flocculation/sedimentation + two-stage RO	German	Full	Novel thin open channel spiral wound	FT30	6.5–4.2	70	99.7	99.9	Li et al. (2009)
Two-stage RO	German	Full	Novel thin open channel spiral wound	FT30	6.5–8.1	70	99.5	98.9	Li et al. (2009)
Coagulation + sand filtration + MF + RO	Thailand	Full	Spiral wound	LFC3-LD	Data not available	50	87.5	>88	Theepharaksapan et al. (2011)
Coagulation + sand filtration + RO	Thailand	Full	Spiral wound	LFC3-LD	Data not available	50	>98	Data not available	Rukapan et al. (2012)
Two-stage RO	Czech Republic	Pilot	Spiral wound	SW30-4040	42	94	97.3	94.0	Šír et al. (2012)
Sand and cartridge filtration + two-stage RO	Romania	Full	Disc tube	BIO-10058-v2	12–22	Data not available	94–96	>94	Şchiopu et al. (2012)
Buffer tank + RO	Poland	Full	Disc tube	CD9-RO	Up to 50	75	98.8	99.1	Talalaj (2015b)
UF + three-stage RO	Italy	Full	Disc tube	Gel GPT-BW 30	13–32.5	91–95	92.4–99.2	46.2–95.8	Cingolani et al. (2018)
Two stage RO + air stripping	China	Full	Disc tube	Data not available	Data not available	>83%	>99	>99	Wu and Li (2021)

ASP: activated sludge process; COD: chemical oxygen demand; MBR: membrane bioreactor; MF: microfiltration; NF: nanofiltration; NH₃-N: ammonia nitrogen; PES: polyethersulfone; PVDF: polyvinylidene fluoride; RO: reverse osmosis; UF: ultrafiltration.

However, two major issues can be identified as drawbacks for the implementation of membrane filtration processes: (1) membrane fouling, which decreases the permeate flux and water quality, and (2) concentrate stream management. Membrane fouling requires extensive pre-treatment or chemical cleaning of the membrane, resulting in a short lifespan of membranes. This fact is still the bottleneck problem in membrane promotion and application, as fouling can also increase operational costs. In general, before NF/RO filtration, there are pre-treatment steps to remove suspended solids and colloids and, consequently, prevent fouling and biofilm growth on the membrane surface (Jamaly et al., 2014).

Finally, the management of LLMCs is a challenge that must be deal with. The development of technologies and process breakthroughs in the water desalination field have helped to tackle the concentrate management issue in LLMC areas. There is a pool of patented technologies to improve the overall feed water recovery, aiming to reduce concentrate volume and achieve minimal liquid discharge (MLD) or zero liquid discharge (ZLD) (Joo and Tansel, 2015; Subramani and Jacangelo, 2014). However, their high costs linked mainly with energy requirements limit the implementation of full-scale ZLD systems. Furthermore, it is important to note that MLD/ZLD systems are associated with unintended environmental impacts as a result of their high energy demand and carbon footprint. Other major issues of MLD/ZLD systems include fouling, scaling and expensive metallic materials (Voutchkov and Kaiser, 2020). Therefore, future research to addresses these drawbacks are needed.

LFL membrane concentrate management

LLMC characteristics

Different factors can affect the composition of concentrate streams from LLTPs, including leachate characteristics, pre-treatment applied, additional chemicals used, that is, fouling/biofouling prevention chemicals or reagents used for pH control, and treatment configurations (Ladewig and Asquith, 2012; Van Der Bruggen et al., 2003). These influence factors have been found in the analysis of NFC and ROC from the LLTP in Xiamen (China), where concentrate streams were collected from two different leachate treatment configurations. The NFC contained a high amount of refractory organics; conversely, recalcitrant contaminants in the ROC were lower because most of these were removed by pre-treatment processes used in the treatment chain (Chu et al., 2020). From that, it is presumable that the LLMC composition can vary depending on the LLTP’s defined treatment scheme.

As NF and RO are the preferred membrane processes for leachate treatment, the main characteristics of NFC and ROC from LLTPs reported in various studies are summarized in Table 3. It must be emphasized that this table intends to highlight the characteristics of the main concentrate streams generated in LLTPs (i.e. NFC and ROC), focusing on the reported values instead of the treatment scheme that generated the concentrate stream. For instance, the values of some parameters like NH₃-N and total Kjeldahl nitrogen (TKN) have a wide range since, in some cases, nitrogen can be removed by biological process in the leachate treatment chain, confirming what was discussed above.

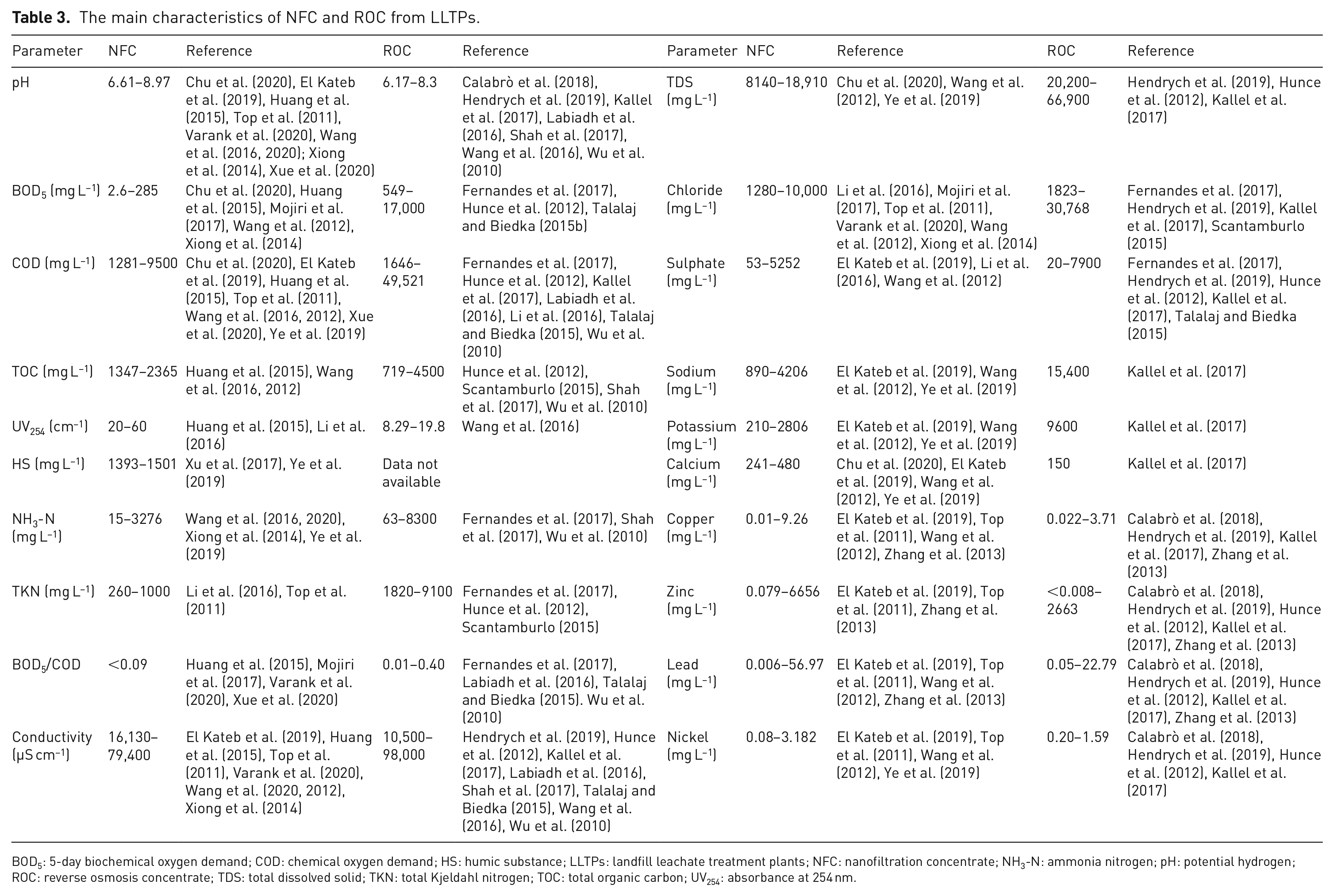

Table 3.

The main characteristics of NFC and ROC from LLTPs.

Parameter	NFC	Reference	ROC	Reference	Parameter	NFC	Reference	ROC	Reference
pH	6.61–8.97	Chu et al. (2020), El Kateb et al. (2019), Huang et al. (2015), Top et al. (2011), Varank et al. (2020), Wang et al. (2016, 2020); Xiong et al. (2014), Xue et al. (2020)	6.17–8.3	Calabrò et al. (2018), Hendrych et al. (2019), Kallel et al. (2017), Labiadh et al. (2016), Shah et al. (2017), Wang et al. (2016), Wu et al. (2010)	TDS (mg L⁻¹)	8140–18,910	Chu et al. (2020), Wang et al. (2012), Ye et al. (2019)	20,200–66,900	Hendrych et al. (2019), Hunce et al. (2012), Kallel et al. (2017)
BOD₅ (mg L⁻¹)	2.6–285	Chu et al. (2020), Huang et al. (2015), Mojiri et al. (2017), Wang et al. (2012), Xiong et al. (2014)	549–17,000	Fernandes et al. (2017), Hunce et al. (2012), Talalaj and Biedka (2015b)	Chloride (mg L⁻¹)	1280–10,000	Li et al. (2016), Mojiri et al. (2017), Top et al. (2011), Varank et al. (2020), Wang et al. (2012), Xiong et al. (2014)	1823–30,768	Fernandes et al. (2017), Hendrych et al. (2019), Kallel et al. (2017), Scantamburlo (2015)
COD (mg L⁻¹)	1281–9500	Chu et al. (2020), El Kateb et al. (2019), Huang et al. (2015), Top et al. (2011), Wang et al. (2016, 2012), Xue et al. (2020), Ye et al. (2019)	1646–49,521	Fernandes et al. (2017), Hunce et al. (2012), Kallel et al. (2017), Labiadh et al. (2016), Li et al. (2016), Talalaj and Biedka (2015), Wu et al. (2010)	Sulphate (mg L⁻¹)	53–5252	El Kateb et al. (2019), Li et al. (2016), Wang et al. (2012)	20–7900	Fernandes et al. (2017), Hendrych et al. (2019), Hunce et al. (2012), Kallel et al. (2017), Talalaj and Biedka (2015)
TOC (mg L⁻¹)	1347–2365	Huang et al. (2015), Wang et al. (2016, 2012)	719–4500	Hunce et al. (2012), Scantamburlo (2015), Shah et al. (2017), Wu et al. (2010)	Sodium (mg L⁻¹)	890–4206	El Kateb et al. (2019), Wang et al. (2012), Ye et al. (2019)	15,400	Kallel et al. (2017)
UV₂₅₄ (cm⁻¹)	20–60	Huang et al. (2015), Li et al. (2016)	8.29–19.8	Wang et al. (2016)	Potassium (mg L⁻¹)	210–2806	El Kateb et al. (2019), Wang et al. (2012), Ye et al. (2019)	9600	Kallel et al. (2017)
HS (mg L⁻¹)	1393–1501	Xu et al. (2017), Ye et al. (2019)	Data not available		Calcium (mg L⁻¹)	241–480	Chu et al. (2020), El Kateb et al. (2019), Wang et al. (2012), Ye et al. (2019)	150	Kallel et al. (2017)
NH₃-N (mg L⁻¹)	15–3276	Wang et al. (2016, 2020), Xiong et al. (2014), Ye et al. (2019)	63–8300	Fernandes et al. (2017), Shah et al. (2017), Wu et al. (2010)	Copper (mg L⁻¹)	0.01–9.26	El Kateb et al. (2019), Top et al. (2011), Wang et al. (2012), Zhang et al. (2013)	0.022–3.71	Calabrò et al. (2018), Hendrych et al. (2019), Kallel et al. (2017), Zhang et al. (2013)
TKN (mg L⁻¹)	260–1000	Li et al. (2016), Top et al. (2011)	1820–9100	Fernandes et al. (2017), Hunce et al. (2012), Scantamburlo (2015)	Zinc (mg L⁻¹)	0.079–6656	El Kateb et al. (2019), Top et al. (2011), Zhang et al. (2013)	<0.008–2663	Calabrò et al. (2018), Hendrych et al. (2019), Hunce et al. (2012), Kallel et al. (2017), Zhang et al. (2013)
BOD₅/COD	<0.09	Huang et al. (2015), Mojiri et al. (2017), Varank et al. (2020), Xue et al. (2020)	0.01–0.40	Fernandes et al. (2017), Labiadh et al. (2016), Talalaj and Biedka (2015). Wu et al. (2010)	Lead (mg L⁻¹)	0.006–56.97	El Kateb et al. (2019), Top et al. (2011), Wang et al. (2012), Zhang et al. (2013)	0.05–22.79	Calabrò et al. (2018), Hendrych et al. (2019), Hunce et al. (2012), Kallel et al. (2017), Zhang et al. (2013)
Conductivity (µS cm⁻¹)	16,130–79,400	El Kateb et al. (2019), Huang et al. (2015), Top et al. (2011), Varank et al. (2020), Wang et al. (2020, 2012), Xiong et al. (2014)	10,500–98,000	Hendrych et al. (2019), Hunce et al. (2012), Kallel et al. (2017), Labiadh et al. (2016), Shah et al. (2017), Talalaj and Biedka (2015), Wang et al. (2016), Wu et al. (2010)	Nickel (mg L⁻¹)	0.08–3.182	El Kateb et al. (2019), Top et al. (2011), Wang et al. (2012), Ye et al. (2019)	0.20–1.59	Calabrò et al. (2018), Hendrych et al. (2019), Hunce et al. (2012), Kallel et al. (2017)

BOD₅: 5-day biochemical oxygen demand; COD: chemical oxygen demand; HS: humic substance; LLTPs: landfill leachate treatment plants; NFC: nanofiltration concentrate; NH₃-N: ammonia nitrogen; pH: potential hydrogen; ROC: reverse osmosis concentrate; TDS: total dissolved solid; TKN: total Kjeldahl nitrogen; TOC: total organic carbon; UV₂₅₄: absorbance at 254 nm.

As can be seen from Table 3, NFCs/ROCs are rich in some heavy metals such as copper, zinc, lead and nickel (up to 9.26 mg Cu L⁻¹, 6,656 mg Zn L⁻¹, 56.97 mg Pb L⁻¹ and 3.182 mg Ni L⁻¹), which can cause environmental pollution and potential bioaccumulation in living organisms and human body resulting in adverse effects (Briffa et al., 2020). Besides, priority pollutants such as toluene, ethylbenzene, chlorobenzene and dibutyl phthalate were also identified in LLMC samples. These chemicals are highly toxic pollutants, representing an environmental hazard (Zhang et al., 2013).

The BOD₅ and COD concentrations in LLMCs range from 2.6 to 17,000 mg L⁻¹ and 1281 to 49,521 mg L⁻¹, respectively. BOD₅/COD ratios are in the range of 0.002–0.34, indicating low biodegradability. The differences between LFL and LLMC, such as non-biodegradable content and organic matter composition, were investigated in three LLTPs. HSs, including humic acid (HA) and fulvic acid (FA), accounted for the highest fraction of organic matter in LLMCs, ranging from 61.7% to 69.2% (Zhang et al., 2013). Chan et al. (2007) stand out that high-molecular-weight and non-biodegradable compounds are removed mainly by membrane processes and accumulate in the residual stream. He et al. (2015) reported that concentrates from a full-scale NF-plant had an average COD of 5357 mg L⁻¹, a value about twofold higher than that found in the LFL (2623 mg L⁻¹).

A COD of 6200 mg L⁻¹ was found in concentrates from an NF full-scale plant in Odayeri Sanitary Landfill, Istanbul (Turkey). From the same site, concentrations of ammonia (110 mg L⁻¹), TKN (1000 mg L⁻¹) and chloride (10,000 mg L⁻¹) were recorded (Top et al., 2011). Similar concentrations were found in NFCs from landfills in Shenzhen and Beijing (China) (3450 mg COD L⁻¹, 80 mg TNK L⁻¹ and 2519 mg Cl⁻ L⁻¹) (Li et al., 2016). Previous studies have also confirmed that NFC and ROC are heavily polluted by organic and inorganic compounds (Mojiri et al., 2017; Xiong et al., 2014; Xu et al., 2017).

Similarly, as shown in Table 3, a high concentration of salts (evaluated by conductivity) is found in ROCs – values range from 10,500 to 98,000 µS cm⁻¹. Kallel et al. (2017) reported that ROCs from an LLTP located in Tunisia contained high levels of TDS (66,900 mg L⁻¹), chloride (30,768 mg L⁻¹), sodium (15,400 mg L⁻¹) and potassium (9600 mg L⁻¹). Similar findings have been reported by Hendrych et al. (2019). ROCs from Erzurum landfill (Turkey) were also characterized by high levels of BOD₅ and COD, reaching values up to 4800 mg L⁻¹ and 8882 mg L⁻¹, respectively (Hunce et al., 2012).

Conventional management of LLMCs

Conventional membrane concentrate management from LLTPs can be categorized into two main groups: (1) disposal and (2) treatment. The former includes natural evaporation and recirculation to the landfill body, and the latter involves processes aiming at pollutants removal. These two approaches are critically discussed in the following items.

Disposal

The disposal of LLMC streams into the landfill body is the simplest and cheapest method. In general, LLMCs are accumulated in lagoons where physicochemical processes occur, and depending on climatic conditions, there is a moderate reduction of the concentrate volume. Afterwards, the concentrate is injected onto the waste mass by vertical and/ or horizontal drains (Calabrò et al., 2018; ISWA, 2019; Robinson, 2005). Before the work of Henigin (1995), the consequences of concentrate injection were under-discussed. Many scientific researches were published in the last two decades. However, literature findings have revealed contrasting conclusions; therefore, this practice’s sustainability is not a consensus.

Robinson (2005) presented monitoring data of a German landfill that operated a RO system for 1 year, returning the concentrate to the landfill. The study showed that ROC infiltration increased COD, ammonia and conductivity of the generated leachate, which immediately affected the RO performance. Similar results were found by Talalaj (2015a) and Talalaj and Biedka (2015). On the other hand, 15-year monitoring data of an Italian landfill revealed a moderate change in leachate composition (slight increase in NH₄⁺, Cl⁻ and SO₄⁻²) and leachate quantity (i.e. leachate volume increased). However, RO treatment performance was not impacted (Calabrò et al., 2018). In a previous study at the same Italian site, Calabrò et al. (2010) observed a moderate rise in COD, nickel and zinc concentrations; on the other hand, no significant change in leachate quantity was identified in this case. Table 4 summarizes the main findings of LLMC infiltration monitoring studies found in the relevant literature.

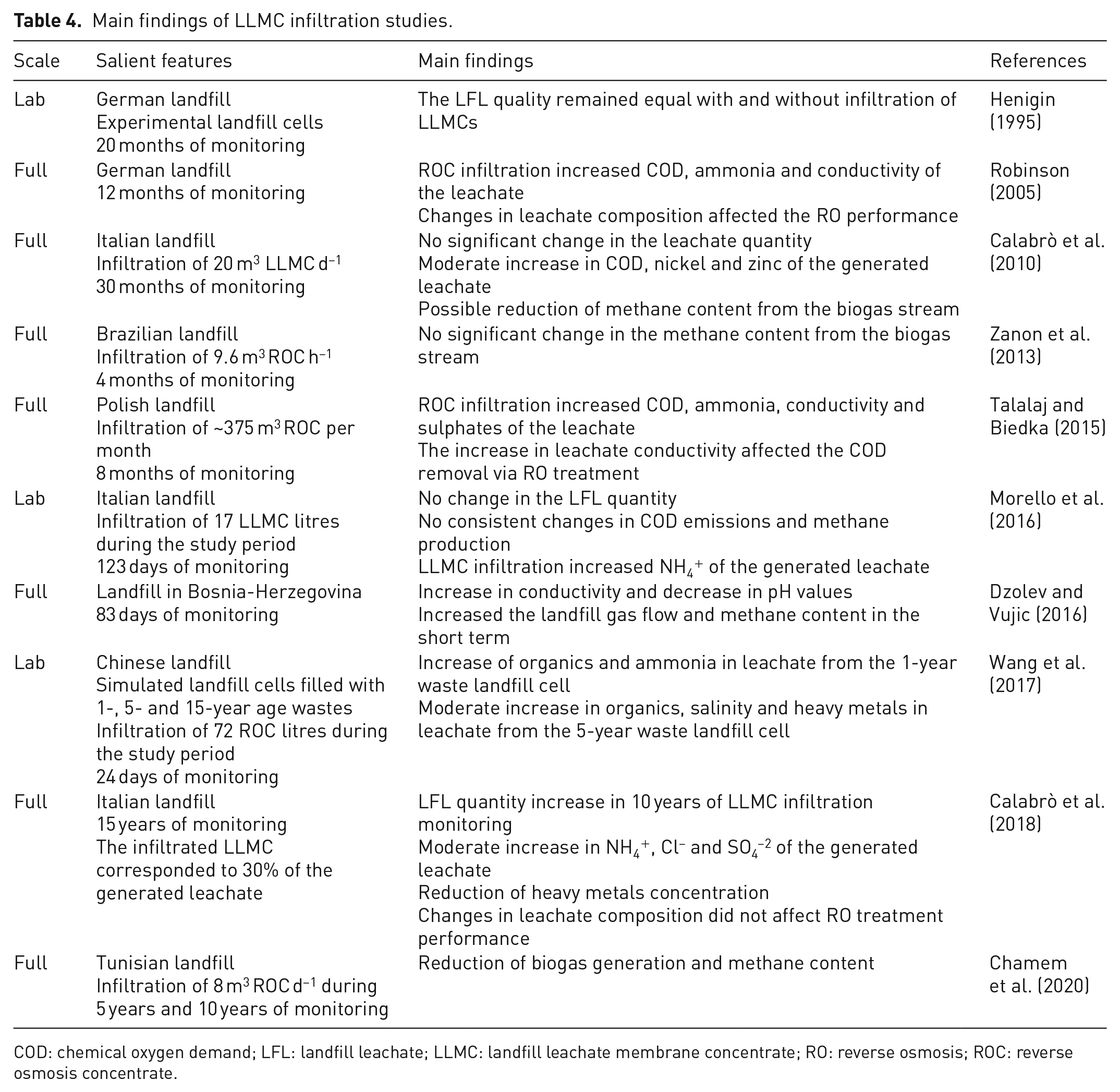

Table 4.

Main findings of LLMC infiltration studies.

Scale	Salient features	Main findings	References
Lab	German landfillExperimental landfill cells20 months of monitoring	The LFL quality remained equal with and without infiltration of LLMCs	Henigin (1995)
Full	German landfill12 months of monitoring	ROC infiltration increased COD, ammonia and conductivity of the leachateChanges in leachate composition affected the RO performance	Robinson (2005)
Full	Italian landfillInfiltration of 20 m³ LLMC d⁻¹ 30 months of monitoring	No significant change in the leachate quantityModerate increase in COD, nickel and zinc of the generated leachatePossible reduction of methane content from the biogas stream	Calabrò et al. (2010)
Full	Brazilian landfillInfiltration of 9.6 m³ ROC h⁻¹ 4 months of monitoring	No significant change in the methane content from the biogas stream	Zanon et al. (2013)
Full	Polish landfillInfiltration of ~375 m³ ROC per month8 months of monitoring	ROC infiltration increased COD, ammonia, conductivity and sulphates of the leachateThe increase in leachate conductivity affected the COD removal via RO treatment	Talalaj and Biedka (2015)
Lab	Italian landfillInfiltration of 17 LLMC litres during the study period123 days of monitoring	No change in the LFL quantityNo consistent changes in COD emissions and methane productionLLMC infiltration increased NH₄⁺ of the generated leachate	Morello et al. (2016)
Full	Landfill in Bosnia-Herzegovina83 days of monitoring	Increase in conductivity and decrease in pH valuesIncreased the landfill gas flow and methane content in the short term	Dzolev and Vujic (2016)
Lab	Chinese landfillSimulated landfill cells filled with 1-, 5- and 15-year age wastesInfiltration of 72 ROC litres during the study period24 days of monitoring	Increase of organics and ammonia in leachate from the 1-year waste landfill cellModerate increase in organics, salinity and heavy metals in leachate from the 5-year waste landfill cell	Wang et al. (2017)
Full	Italian landfill15 years of monitoringThe infiltrated LLMC corresponded to 30% of the generated leachate	LFL quantity increase in 10 years of LLMC infiltration monitoringModerate increase in NH₄⁺, Cl⁻ and SO₄⁻² of the generated leachateReduction of heavy metals concentrationChanges in leachate composition did not affect RO treatment performance	Calabrò et al. (2018)
Full	Tunisian landfillInfiltration of 8 m³ ROC d⁻¹ during 5 years and 10 years of monitoring	Reduction of biogas generation and methane content	Chamem et al. (2020)

COD: chemical oxygen demand; LFL: landfill leachate; LLMC: landfill leachate membrane concentrate; RO: reverse osmosis; ROC: reverse osmosis concentrate.

In summary, the literature shows that the consequences of concentrate disposal to landfills are site specific. If adopted as a concentrate management strategy, proper engineering design must be done by monitoring site conditions. For example, in Rio de Janeiro State (Brazil), according to the recently sanctioned law number #9055/2020, landfill managers can recirculate the LLMC to the landfill body up to 1/3 of waste streams from the LLTP, that is, the by-products of the leachate treatment chain (e.g. sludge and LLMC) disposed of into the landfill body cannot exceed 1/3 in volume or mass (Rio de Janeiro State Governor, 2020). However, it should be stated that the concentrate recirculation may be only a temporary solution resulting in never-ending re-introduction of pollutants as concentrate contaminants may eventually accumulate in LLTPs. Moreover, this practice should be no longer acceptable within a circular and sustainable wastewater management system, if resources from LLMC streams can be extracted and recovered.

Treatment

LLMC treatment options include physicochemical processes (e.g. C/F, EC, adsorption, AOPs, ozonation and S/S) (An et al., 2012; Chen et al., 2019; He et al., 2021; Hong et al., 2017; Kallel et al., 2017; Ren et al., 2021; Top et al., 2011; Wang et al., 2020), biological methods (Yang et al., 2018) and thermal processes, including membrane distillation (MD) – a thermally driven membrane filtration technique (Chen et al., 2021a; Yue et al., 2007; Zhang et al., 2019, 2020) or even combinations of them (Ding et al., 2021; Woo et al., 2019). Several treatment technologies have been proposed and assessed in laboratory investigations; however, full-scale project data are scarce, and research is needed to cover this aspect. Some of LLMC treatment procedures and their salient features are summarized in Table 5.

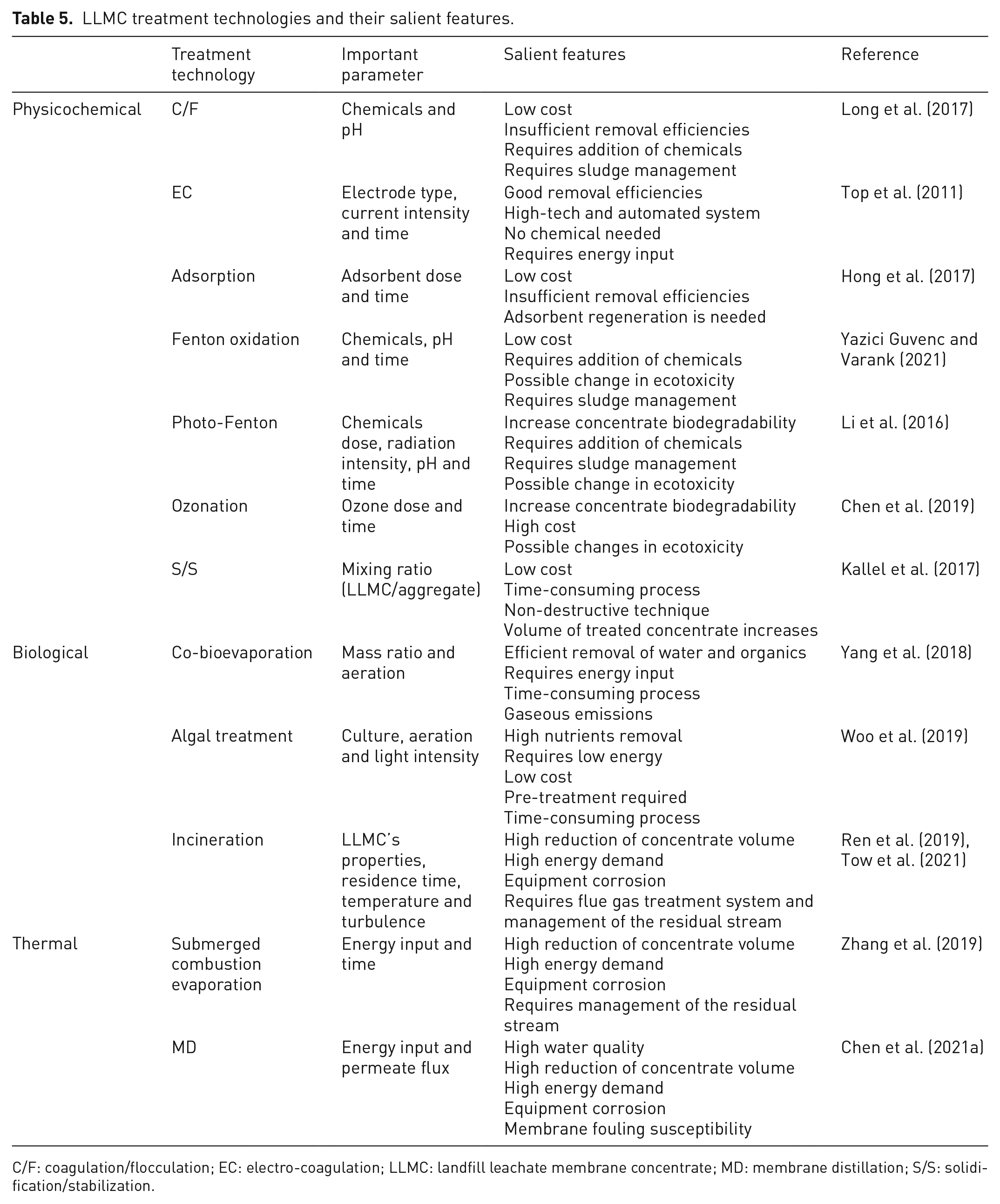

Table 5.

LLMC treatment technologies and their salient features.

	Treatment technology	Important parameter	Salient features	Reference
Physicochemical	C/F	Chemicals and pH	Low costInsufficient removal efficienciesRequires addition of chemicalsRequires sludge management	Long et al. (2017)
	EC	Electrode type, current intensity and time	Good removal efficienciesHigh-tech and automated systemNo chemical neededRequires energy input	Top et al. (2011)
	Adsorption	Adsorbent dose and time	Low costInsufficient removal efficienciesAdsorbent regeneration is needed	Hong et al. (2017)
	Fenton oxidation	Chemicals, pH and time	Low costRequires addition of chemicalsPossible change in ecotoxicityRequires sludge management	Yazici Guvenc and Varank (2021)
	Photo-Fenton	Chemicals dose, radiation intensity, pH and time	Increase concentrate biodegradabilityRequires addition of chemicalsRequires sludge managementPossible change in ecotoxicity	Li et al. (2016)
	Ozonation	Ozone dose and time	Increase concentrate biodegradabilityHigh costPossible changes in ecotoxicity	Chen et al. (2019)
	S/S	Mixing ratio (LLMC/aggregate)	Low costTime-consuming processNon-destructive techniqueVolume of treated concentrate increases	Kallel et al. (2017)
Biological	Co-bioevaporation	Mass ratio and aeration	Efficient removal of water and organicsRequires energy inputTime-consuming processGaseous emissions	Yang et al. (2018)
Biological	Algal treatment	Culture, aeration and light intensity	High nutrients removalRequires low energyLow costPre-treatment requiredTime-consuming process	Woo et al. (2019)
	Incineration	LLMC’s properties, residence time, temperature and turbulence	High reduction of concentrate volumeHigh energy demandEquipment corrosionRequires flue gas treatment system and management of the residual stream	Ren et al. (2019), Tow et al. (2021)
Thermal	Submerged combustion evaporation	Energy input and time	High reduction of concentrate volumeHigh energy demandEquipment corrosionRequires management of the residual stream	Zhang et al. (2019)
Thermal	MD	Energy input and permeate flux	High water qualityHigh reduction of concentrate volumeHigh energy demandEquipment corrosionMembrane fouling susceptibility	Chen et al. (2021a)

C/F: coagulation/flocculation; EC: electro-coagulation; LLMC: landfill leachate membrane concentrate; MD: membrane distillation; S/S: solidification/stabilization.

Physicochemical processes are among the most investigated treatment route. C/F, EC and adsorption are low-cost techniques with good removal efficiencies. However, they are primarily applied as a pre-treatment step rather than a stand-alone technology because of their low salinity removal. In contrast, although AOPs and ozonation can produce a high-quality treated concentrate, these processes have high installation and operational costs, limiting a full-scale implementation. Similarly, thermal processes are associated with expensive operating costs, which contributes to few large-scale projects.

Biological techniques stand out in terms of simplicity and low cost. However, due to the high salinity and poor concentrate biodegradability, they are not recommended for the treatment of LLMCs. A novel biological method for LLMCs treatment has been investigated in a laboratory study. Yang et al. (2018) evaluated a named co-bioevaporation (coBE) process mixing LLMCs with food waste (FW). In coBE, the concentrate is evaporated by the metabolic heat released from aerobic microbial degradation of organic compounds. Under optimal operating conditions (1:1.1 (m/m) mixing ratio of LLMC and FW and 0.035 m³ h⁻¹ airflow per kg TS), 96.7% of water was removed by consuming 96.5% of VS contained in the mixture during five cycles of operation (Yang et al., 2018). However, coBE is time-consuming and requires energy input for aeration, increasing the footprint and operational costs. Recently, the authors proposed intermittent aeration as an energy-saving strategy and found that at a regime of 10 min on/20 min off, more than 50% of energy could be saved with similar treatability results (Liu et al., 2021). Even though the coBE process seems promising, more research is needed to optimize the technique and assess its techno-economic feasibility in large-scale applications. Besides, air pollutant emissions from this process are a significant source of pollution; therefore, carbon footprint and related environmental impacts should also be considered in future investigations.

Resource recovery options

The development of sustainable and cost-effective methods for LLMCs treatment combining resource recovery processes is a promising field of research. LLMC components that would be infiltrated on the landfill waste mass could be extracted and transformed into valuable products such as organic fertilizer and solid salts with commercial value or used for energy purposes. This section summarizes the literature on concentrated leachate treatment techniques and their application in LLMCs’ resource recovery.

Reclaimed water

Typically, 50–80% of the NF/RO feed is recovered as water. The maximization of high-quality water recovery during the LFL treatment through membrane processes can reduce the concentrate volume and guarantee high reclaimed water production (Iskander et al., 2017b). As mentioned earlier, several patented technologies to improve feed water recovery based on MLD and ZLD strategies are available. However, these systems are high capital costs and energy-intensive, which hampers their implementation in LLTPs. For example, Panagopoulos and Haralambous (2020) assessed two different scenarios considering the MLD and ZLD framework. The MLD scheme comprises membrane-based technologies, and the ZLD is membrane and thermal-based. At the freshwater recovery of 84.60% (MLD system) and 98.15% (ZLD system), the energy consumption of MLD and ZLD systems was estimated at 5.40 and 10.43 kWh m⁻³, respectively.

On the other hand, multi-stage RO has proved to improve permeate recovery and reduce specific energy demand when less than five stages are used (Judd, 2017). Cingolani et al. (2018) proposed a three-stage RO system (RO1, RO2 and RO3) to maximize water recovery of LFL treatment and reach standards for water discharge or reuse. The water recovery was optimized to >90% following RO1 and RO2 stages, while the RO3 step was needed to achieve boron and nitrogen local requirements for reuse.

Another approach beyond concentrate minimization would be treating LLMC streams to accomplish minimal concentrate disposal producing high-quality water. In this regard, a microbial desalination cell (MDC) was studied to treat the concentrated leachate from a forward osmosis (FO) system. The FO concentrate was desalinated in the MDC and the treated concentrate was returned to the FO for further water extraction (Figure 2). FO water recovery increased from 51.5% to 83.5% when operated along with the MDC system at the hydraulic retention time of 10 h (Iskander et al., 2018a).

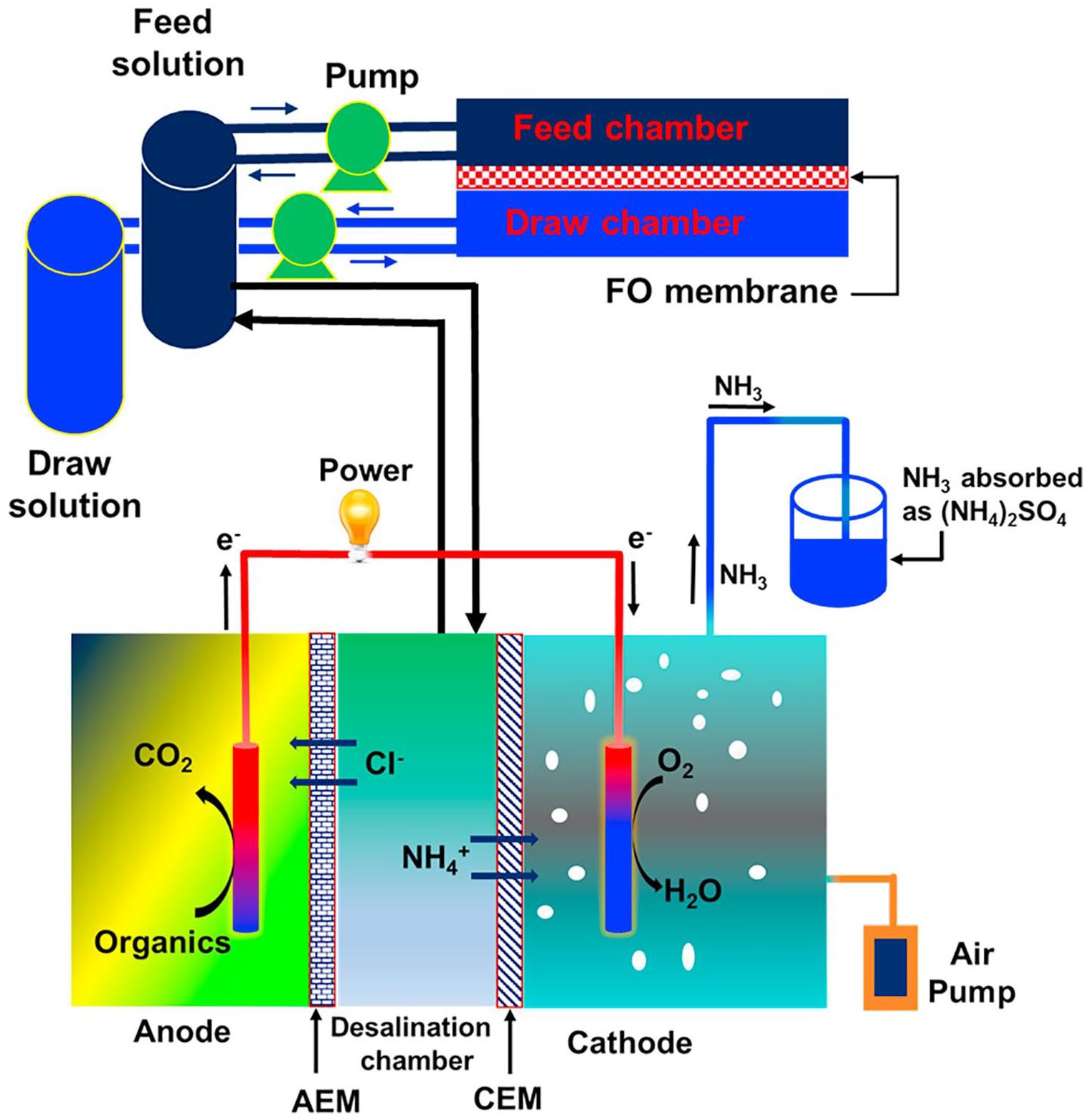

Figure 2.

Schematic diagram of the FO–MDC system. Reprinted from Iskander et al. (2018a) with permission from Elsevier (license number: 5117181379011).

It should be highlighted that FO technology has received increased attention for water recovery due to its low energy requirements and the low fouling propensity of FO membranes (Li et al., 2019). The FO technology uses the osmotic pressure gradient to transport freshwater through the membrane. In this process, a draw solution (DS) with high salinity creates an osmotic pressure difference, leading water to flow from the feed effluent across the semipermeable FO membrane. Further separation of the diluted DS is required after the FO process to obtain reclaimed water as a product (Shaffer et al., 2015).

CaCl₂, Ca(NO₃)₂, NaCl and thermolytic solutes based on ammonia and carbon dioxide, similar to NH₄HCO₃, are the most DS employed for FO applications (Achilli et al., 2010). At the end of the FO filtration, the DS is recovered and recycled back to the FO unit while the permeate may need further treatment for its direct discharge or reuse (Wu et al., 2018). The energy consumption of FO systems without DS regeneration is notably lower (0.2–0.9 vs 10–14 kWh m⁻³) (Voutchkov and Kaiser, 2020); therefore, from an energy-efficient and resource recovery point of view, the selection of a fertilizer draw solute for FO application can be an attractive strategy. Li et al. (2017) investigated a FO system using NH₄HCO₃ (3 mol L⁻¹) as the DS to treat LFL. FO recovery was higher than 90%, and the water product met the regulatory standards for agricultural fertigation. In another study, Qin et al. (2016) proposed to use the recovered NH₄HCO₃ (2 mol L⁻¹) as DS in a hybrid-FO system for water recovery from LFL.

Humic substances

As discussed earlier, LLMCs are rich in refractory organic compounds, mainly consisting of HSs – high molecular weight compounds (300–10,000 Da) with phenolic, carboxylic and alkoxy groups along with the occasional presence of esters and quinones (Gu et al., 2019; Lima et al., 2017; Xu et al., 2017). In agriculture, HSs are used as organic fertilizer and play a key role in improving soil proprieties (e.g. soil physical structure, nutrient retention and water-holding capacity), increase soil organic content and microbial diversity, and boost fertilizer efficiency. Due to its high salinity, the LLMC cannot be applied directly as an HS-containing liquid fertilizer (Ye et al., 2019). Thus, the enrichment and extraction of HSs from LLMCs have raised strong interest.

To date, the main methods for HS extraction from LFL are chemical precipitation and membrane filtration. Chemical precipitation requires low pH (pH < 2), and therefore, the recovered product is not suitable for direct soil applications. Membrane processes have been used for the efficient extraction of HSs (Gu et al., 2019). Overall, ultrafiltration (UF) and NF membranes with MWCO ranges of 200–1000 Da and 1–10 kDa are the primary techniques to fractionate these compounds (Xu et al., 2017; Ye et al., 2019, 2020). However, tight NF membranes can jeopardize the purification process for producing liquid fertilizer. The high salt rejection of NF membranes can result in excessive salts in the target product (i.e. concentrate stream) when the NF process is applied for desalination. On the other hand, UF membranes have wide pore sizes and enable almost unrestricted passage of inorganic salts, failing to efficiently fractionate salts and humic compounds due to inadequate rejection of substances of low molecular weight (300–3500 Da) such as FAs (Ye et al., 2019).

Xu et al. (2017) employed two-stage tight UF (MWCO = 1000 Da) for extracting HSs from leachate concentrate. At the end of the concentration process, organic content was 45,370 mg HS L⁻¹. With the addition of nutrient macroelements in the obtained liquor, the recovered stream could be used as liquid fertilizer. The authors estimated the economic benefit of the HS-containing soluble fertilizer production at 4672 USD m⁻³. This value could offset production costs, including operating and purchase costs of macronutrients and generates an attractive profit margin.

To efficient fractionating and desalting of NFCs, Ye et al. (2019) propose to use loose NF membrane with MWCO of 860 Da, which takes the merits of both NF and UF membranes. At a concentration factor of 9.6, the HS content was enriched from 1765 to 15,287 mg L⁻¹ with about 86% desalting efficiency. As a water-soluble fertilizer, the recovered liquor stimulated the seed germination and enhanced the growth of green mungbean plants, presenting no phytotoxicity. In recent work, the same research group proposed an integrated bio-inspired self-polymerization procedure to tailor loose NF proprieties for efficient fractionation of HSs and desalination. Using the modified loose NF (298 Da), the LLMC was preconcentrated by a factor of 10.0 without permeate recirculation into the feed. Subsequently, a diafiltration step was performed to demineralize the pre-treated LLMC. The bio-inspired membrane showed superior selectivity between HSs and inorganic salts. The concentration of HSs was enriched from 1779.4 to 17,247.1 mg L⁻¹ and desalting efficiency of 99.5% was achieved, resulting in high HS purity (i.e. 98.3%) for potential liquid fertilizer applications (Ye et al., 2020).

Table 6 depicts recovering schemes for organic components extraction of concentrated leachate.

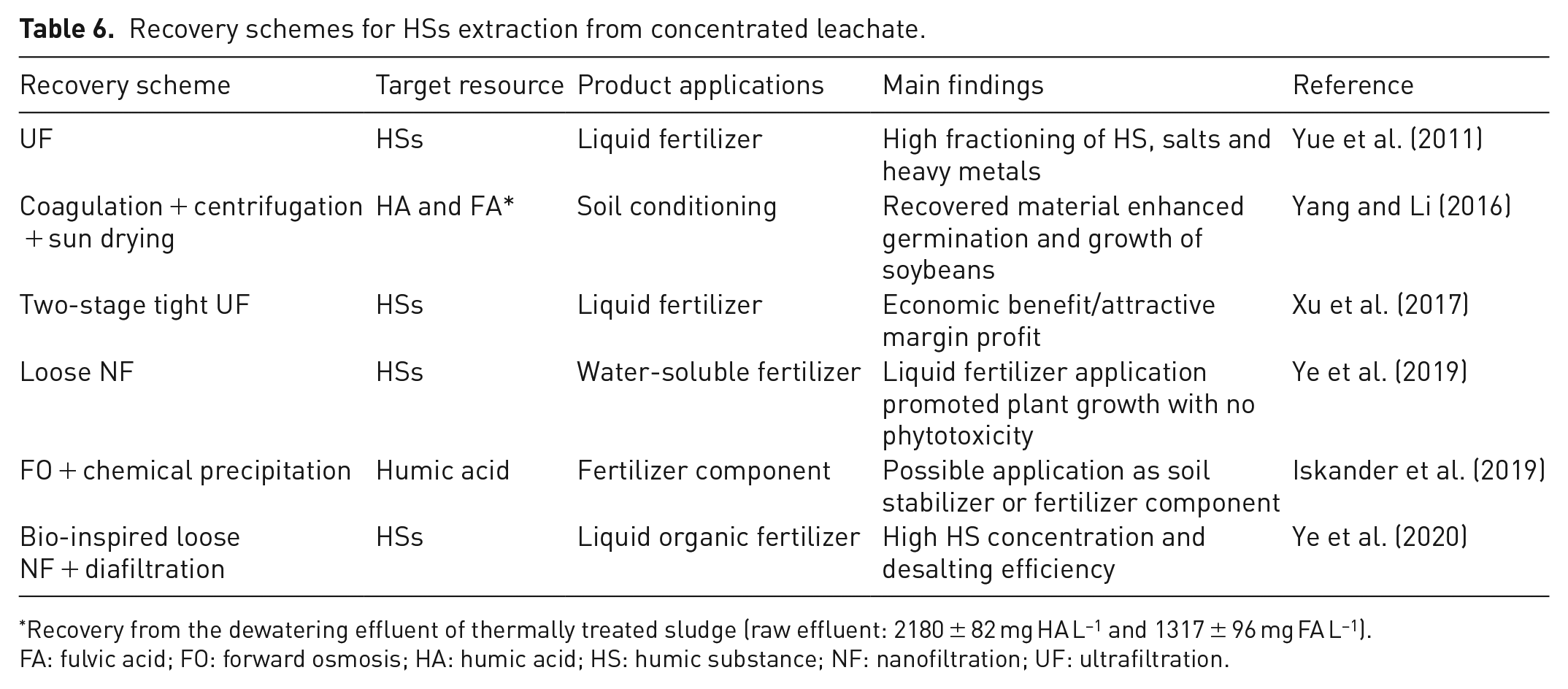

Table 6.

Recovery schemes for HSs extraction from concentrated leachate.

Recovery scheme	Target resource	Product applications	Main findings	Reference
UF	HSs	Liquid fertilizer	High fractioning of HS, salts and heavy metals	Yue et al. (2011)
Coagulation + centrifugation + sun drying	HA and FA*	Soil conditioning	Recovered material enhanced germination and growth of soybeans	Yang and Li (2016)
Two-stage tight UF	HSs	Liquid fertilizer	Economic benefit/attractive margin profit	Xu et al. (2017)
Loose NF	HSs	Water-soluble fertilizer	Liquid fertilizer application promoted plant growth with no phytotoxicity	Ye et al. (2019)
FO + chemical precipitation	Humic acid	Fertilizer component	Possible application as soil stabilizer or fertilizer component	Iskander et al. (2019)
Bio-inspired loose NF + diafiltration	HSs	Liquid organic fertilizer	High HS concentration and desalting efficiency	Ye et al. (2020)

Recovery from the dewatering effluent of thermally treated sludge (raw effluent: 2180 ± 82 mg HA L⁻¹ and 1317 ± 96 mg FA L⁻¹).

FA: fulvic acid; FO: forward osmosis; HA: humic acid; HS: humic substance; NF: nanofiltration; UF: ultrafiltration.

It should be underlined that membrane concentrates may have a certain level of toxic pollutants (e.g. heavy metals and xenobiotic organic compounds), which may hinder the direct reuse of the recovered HS as organic fertilizer; thus, further purification will be needed. An interesting work investigated the use of encapsulated HAs in alginate beds extracted from anaerobic sewage sludge to allow controlled and slow release of HSs in the soil. The agronomic tests showed that the dry biomass of the treated plants was remarkably higher than that for non-treated plants. The encapsulation of HAs within alginate beads could immobilize toxic compounds as well as reduce the amount of added product, ensuring a proper dose of HAs in the soil at lower operational costs (Cristina et al., 2020).

Following another recovery approach, the recalcitrant substances in LLMC streams could be reused for energetic proposes. Ben Hassen-Trabelsi et al. (2020) investigated the co-pyrolysis of ROC and sewage sludge to recycle organics as biofuels. At optimum conditions (mixture of 30:70 ROC/sewage sludge, 550°C and 10°C min⁻¹ as heating rate), the process produced high energy gas (12.29 MJ kg⁻¹), which could be at least employed as an energy source for pyrolytic conversion.

Nutrients

Nitrogen (N) and phosphorus (P) are the major nutrients that are present in LFL. Ammonia nitrogen is one of the main LFL pollutants and therefore most of the LLTPs are designed to remove N. As contaminants, N and P stimulate excessive plant and algal growth, leading to waterbody eutrophication and associated adverse impacts. NH₃-N removal of LFL has been extensively studied (Antwi et al., 2020; Costa et al., 2021; de Almeida et al., 2019; Genethliou et al., 2021). As resources, N and P are critical macronutrients for crops and hence are key components for fertilizer production. Besides, phosphate shortage linked to food security has intensified interest in P recovering of wastewater. In NFC and ROC, the ammonia nitrogen concentration is generally high, reaching levels of 3273–8300 mg L⁻¹ (Table 3); such levels are high enough to shift the focus from removal to recovery.

Stripping technology and chemical precipitation are the main methods for nutrients recovery from wastewater. Stripping technology is based on the ammonia gas–liquid equilibrium in an aqueous solution. In an alkaline environment, usually pH from 10.5 to 11.5 at 25°C, the balance of ammoniacal nitrogen in leachate tends to produce more ammonia than ammonium (NH₄⁺_(aq) + OH⁻_(aq) ↔ NH_3(g)↑ + H₂O_(l)) (Campos et al., 2013). Ammonia is a water-soluble gas. Thus, passing an air stream through the wastewater, the ammonia concentration reaches the gas–liquid equilibrium in the system and ammonia can be recovered from the stripped gas. The primary factors affecting ammonium stripping are pH, airflow and temperature. High-temperature water vapour can be used as the air stream to boost the ammonia mass transfer. The stripping gas must be allocated into an acid solution for recovery purposes, so ammonia is recovered as an ammonium salt like NH₄Cl and (NH₄)₂SO₄. The recovered salt can be reused in different industrial and commercial applications (Campos et al., 2013; Kurniawan et al., 2021; Xiang et al., 2020).

However, full-scale applications of ammonia stripping may be costly, making nitrogen recovery from membrane concentrates unfeasible. dos Santos et al. (2020) estimated the total cost of ammonia recovery from concentrated leachate at 51.64 USD m⁻³. This cost was mainly dependent on the price of the tower (in which the mass transfer occurs), chemicals for absorption and electricity consumption. In each scenario, a detailed techno-economic evaluation should be performed, considering the process energy demand, system robustness, product quality and local market demands (Kurniawan et al., 2021).

In the precipitation method, nutrients are recovered via struvite precipitation. Struvite (MgNH₄PO₄ ^⋅ 6H₂O) is a phosphate mineral and can be used as a slow-release fertilizer or raw material for the chemical industry. In struvite precipitation, an alkaline solution is obtained either by the addition of alkali solution or aeration stripping of carbon dioxide, followed by the introduction of magnesium salts for MgNH₄PO₄ ^⋅ 6H₂O formation, which has a 1:1:1 molar ratio of ammonium (NH₄⁺), phosphate (PO₄⁻³) and magnesium (Mg⁺²). When the concentrations of NH₄⁺, PO₄⁻³ and Mg⁺² exceed their solubility limit, struvite formation recovers both N and P from leachate (Li et al., 2019). The main drawback is that, in general, struvite precipitation requires external magnesium and phosphorus to promote struvite crystallization. As leachate contain less magnesium and phosphate ammonium, a large amount of chemicals may be required. Besides, P recovery is ideal at a pH higher than 9.5, requiring the addition of an alkaline solution (Kurniawan et al., 2021).

Moreover, struvite precipitation is susceptible to interference by heavy metals and some inorganic ions such as Ca⁺², K⁺, Fe⁺³ and CO₃^-2, which also reduces the purity of the recovered mineral. Therefore, a compromise between process control and cost-effectiveness is needed to ensure the product quality and the process sustainability with more economic benefits (Li et al., 2019; Xiang et al., 2020). According to Kurniawan et al. (2021), P recovery from waste streams is hardly carried out because the cost of the recovered P is higher than that of natural rock-phosphate and the current technologies have a long cost recovery time of up to 7 years.

Recently, techniques such as microbial electrolysis, MD and FO have been proposed for nutrients recovery of LFL (Qin et al., 2016; Xie et al., 2016; Zico et al., 2021). Considering the demerits of each technology, the hybridization of these processes with existing precipitation methods could benefit nutrients reclamation from waste streams. Hybrid systems could improve nutrient recovery efficiency and integrate different resource platforms, making nutrient recovery cost-effective and more attractive to be an option for valorization of LLMC streams (Xie et al., 2016).

A submerged FO process linked to struvite precipitation was proposed to focus on both water and nutrient extraction. Three arrangements were tested to determine the optimal configuration about effects of struvite recovery on the FO performance (Figure 3): FO – calcium pre-treatment – struvite precipitation (A1), calcium pre-treatment – FO – struvite precipitation (A2) and calcium pre-treatment – struvite precipitation – FO (A3). The A2 system was the optimum arrangement in terms of FO performance. Calcium pre-treatment mitigated FO membrane fouling and improved the purity of the obtained struvite. The submerged FO system efficiently recovered water from the leachate and reduced its volume by 37%. The recovered mineral in chemical precipitation had a similar crystal structure and composition to that of standard struvite. The proposed system recovered about 4.34 kg struvite and 366 kg of water per m³ of treated leachate in optimum conditions. The net profit was estimated at 0.80 USD m⁻³ (Wu et al., 2018).

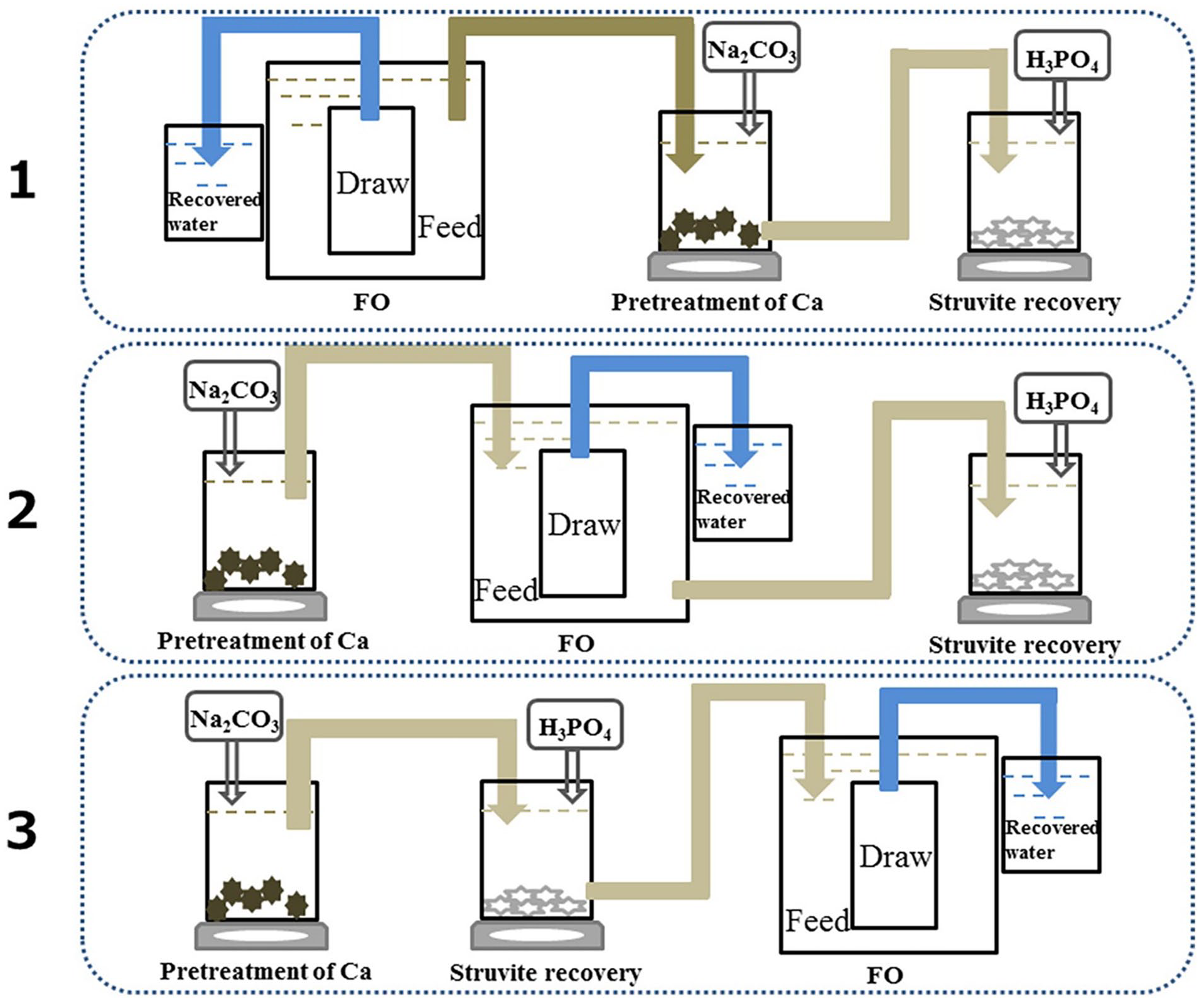

Figure 3.

Schematic diagram of three systems for different arrangements of FO process, calcium pre-treatment and struvite precipitation. A1: FO – calcium pre-treatment – struvite precipitation, A2: calcium pre-treatment – FO – struvite precipitation and A3: calcium pre-treatment – struvite precipitation – FO. Reprinted from Wu et al. (2018) with permission from Elsevier (license number: 5121960273804).

Inorganic salts

NFC and ROC from LLTPs contain valuable inorganic ions such as Na⁺, K⁺ and Cl⁻, often located at levels higher than 890, 210 and 1280 mg L⁻¹, respectively (Table 3). Some of these inorganic species like potassium ions are scarce and therefore could exist a driving force behind their possible extraction. Other elements like chloride ions could be recovered as mixed salts or even transformed into high add-value products. Therefore, in this scenario, mineral reclamation of waste streams could make leachate treatment more sustainable and potentially economical (Huang et al., 2020; Le Dirach et al., 2005; Li et al., 2015).

At present, few published studies focus on mineral recovery from concentrated leachate. Most of the researches has investigated mineral extraction from sea-water brines. For example, Mohammadesmaeili et al. (2010) applied RO and isothermal evaporation to manage lima-soda pre-treated concentrate from desalination plants. The proposed system recovered freshwater and produced mixed solid salt (i.e. Na₂SO₄ and NaCl) with potential resale value. However, it should be noted that the current energy demand of thermal-based technologies (7.7–72 kWh m⁻³) can hinder field applications (Panagopoulos, 2021). Therefore, more studies are still needed to evaluate the process economics considering the influence factors of each situation.

A combined process composed of cation-exchange membrane electrolysis and chemical precipitation was developed to simultaneously treat NFCs and recover K⁺ and Cl⁻ ions as commercial by-products. The combined system exhibited excellent treatability results and allowed efficient recovery of gaseous chlorine and potassium-containing struvite. However, a preliminary economic analysis showed that the net profit of products resale would not offset the system’s operating costs, which were most associated with the high electricity consumption of the electrochemical process (Li et al., 2015).

In another work, through a simple chemical precipitation method, antichlors of Bi(III) containing oxides with quantum dots or two-dimensional structures were synthesized and then mixed with spinel ferrites (M-Fe₃O₄) and titanium dioxide (TiO₂) to combine with Bi₂O₃ for magnetic recycling and photocatalysis improvement. The constructed antichlor was then used to treat concentrated leachate. Under optimum conditions, Cl⁻ removal efficiencies ranged from 60% to 90%. The treatment of concentrated leachate with the antichlors led to the formation of Bi-precipitates that contained coated BiOCl on the residual Bi₂O₃/TiO₂ structure. This by-product was recovered and further used to treat the dechlorinated leachate. It was concluded that due to the excellent photocatalytic activity of the recovered material under UV–vis-near-infrared irradiation, better than that of commercial BiOCl in the mineralization of methyl orange, they could be used as a photocatalyst for the degradation of organic compounds of dechlorinated wastewater (Huang et al., 2020). Figure 4 shows a schematic illustration of the overall experiment. This research provides insights into chlorine removal techniques and the potential production of commercial photocatalytic materials. Further research in this field could help finding alternatives for the valorization of membrane concentrates and other chlorinated effluents.

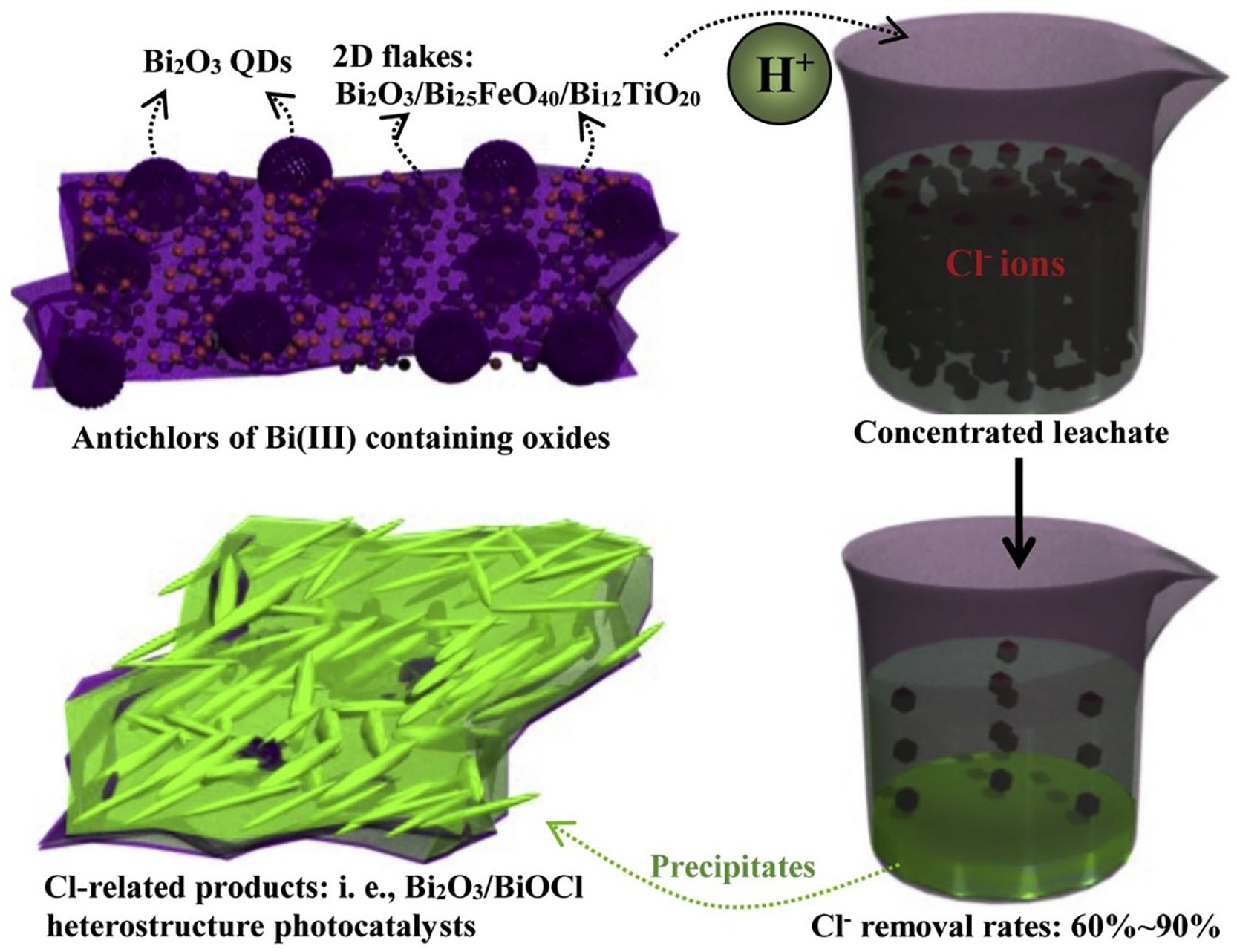

Figure 4.

Illustration of the concentrated leachate treatment with constructed antichlors along with the recovery of Cl-related by-products. Reprinted from Huang et al. (2020) with permission from Elsevier (license number: 5122441160351).

Future perspectives and management diagram for resource recovery

Environmental concerns and resources depletion are expected to accelerate greener and sustainable practices. Most of the literature findings are based on laboratory studies, showing that LLMC resource recovery systems are at the embryonic stage. At present, few technologies appear to be techno-economically applicable at a commercial scale, and some critical aspects (e.g. energy demand and process robustness) still need to be solved. Considering that future researches are required, we propose a recovery train to select the best recovery route. The proposed diagram can be helpful to define and test the overall performance of the selected recovery route. In general, a sequential scheme for concentrate valorization should include volume reduction with the recovery of clean water, followed by extraction of add-value materials. As discussed earlier, different types of LFL and applied membrane treatment will result in different organic, salt and nutrient contents in the LLMC. Figure 5 shows the recovery train for implementing the best management route based on the main characteristics of LLMCs.

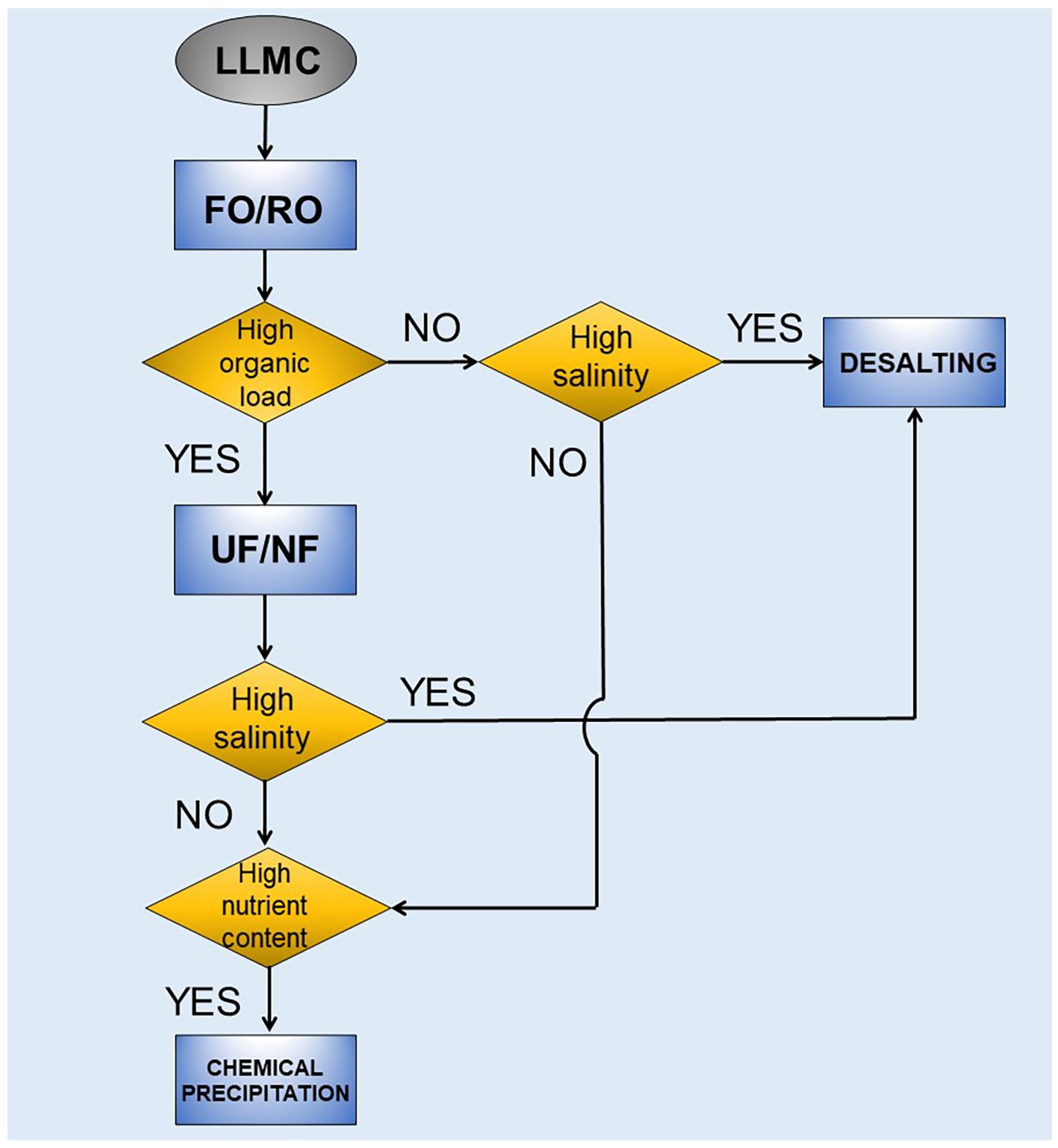

Figure 5.

General recovery train for the selection of resource recovery route.

The recovery scheme’s first step incorporates FO for water reclamation. The FO process appears the most promising technology for volume reduction and water recovery from membrane concentrates. As FO permeate stream is not clean water but a diluted DS, a regeneration step is required. The hybrid FO-RO process is more energy efficient than standalone FO; therefore, coupling these processes helps save energy and reduce operational costs (Singh et al., 2021).

After volume reduction, a membrane-based process, that is, tight UF or loose NF, can fractionate heavily organic streams, recovering HSs as liquid fertilizer. A desalting process should be employed if either FO concentrate stream or UF/NF permeate has high salinity. Thermal-based technologies such as thermal evaporation and crystallization are the preferred systems for the valorization of saline effluents (Panagopoulos, 2021). However, high energy consumption and operational expenses can hamper its implementation in LLTPs. A renewable energy source such as biogas, commonly available in landfills, could produce energy input for desalting systems. In addition, mixed salts (e.g. NaCl, Na₂SO₄, CaCl₂ and MgCl₂) resale can generate net profit and make them more economically attractive.

The tertiary step is optional if the quality of the concentrate stream is acceptable to be recycled back to the beginning of LLTP or sent to the FO-RO system for further water recovery. On the other hand, high nutrient loads imply that instead of being moved back to the beginning of LLTP, struvite could be precipitated out and sold as fertilizer. The treated effluent could then be recycled to the beginning of LLTP, reducing the effluent’s nutrient load.

The proposed recovery train intends to recommend LLMC management based on resource recovery approaches rather than treatment and disposal. Recommended technologies in the diagram are not limited to those described here. For example, emerging resource recovery systems have been tested in laboratory studies, and further research on pilot scale is expected for its implications and economic feasibility. Bioelectrochemical systems (BESs) have grabbed attention for simultaneous nutrient reclamation and energy production from leachate (Iskander et al., 2018a; Qin et al., 2016). Iskander et al. (2017a) demonstrated that a BES producing 0.123 kWh m⁻³ could treat LFL. Hybrid processes involving BESs coupled to FO might be promising to recover both water and chemicals, improving FO efficiency with less energy consumption. Low-cost phytoremediation systems can be implemented as a polishing step for nutrients and heavy metals removal depending on the concentrate composition. Harvested biomasses are useful for bioenergy production (biogas, biofuels, combustion for energy recuperation and heating) (Gomes, 2012; Wijekoon et al., 2021). Thus, energy recovery can further improve the proposed system’s overall economic and commercial viability.

The following aspects are recommended during the assessment of the defined resource recovery framework: (1) Material balance aiming to describe the resource recovery route in a quantitative way before its implementation; (2) detailed analysis of product quality, applicability and local market demand for the recovered material and (3) evaluation of potential impacts of the management route through a life cycle analysis perspective.

Conclusions

The state-of-the-art of current research about membrane concentrates from LLTPs was critically examined in this article. Although LLMC recycling into the landfill body is the convenient management option, a more sustainable strategy is recommended. A general recovery train for implementing the best LLMC recovery route was proposed within this context. Low energy demand and membrane fouling propensity have made FO indispensable for volume reduction and water reclamation of concentrate streams. Material extraction (e.g. fertilizers and inorganic salts) from the FO-treated effluent could generate net profit and increase the system’s economic feasibility. However, few technologies appear to be techno-economically applicable at a commercial scale, and some critical aspects (e.g. energy requirements and process robustness) still need to be solved. Future studies should focus on developing novel integrated systems combining benefits of each recovering technology, scale-up, techno-economic evaluation of recovering processes and assessment based on a life cycle perspective (i.e. environmental impacts and carbon footprint). Besides, the extraction of non-conventional add-value products (e.g. catalysts and bio-fuels) via existing or novel technologies is a promising area for future investigations.

Footnotes

Author contributions

Almeida, R.: Conceptualization, Investigation and data analysis; Methodology; Writing – Original draft preparation; Writing – Reviewing and Editing. Porto, R. F.: Involved in investigation. Quintaes, B. R.: Supervision. Bila, D. M.: Writing – Reviewing and Editing; Supervision. Lavagnolo, M. C.: Writing – Reviewing and Editing; Supervision. Campos, J. C.: Writing – Reviewing and Editing, Supervision; Funding acquisition.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship and/or publication of this article.

Funding

The authors disclosed receipt of the following financial support for the research, authorship and/or publication of this article: The authors gratefully acknowledge the financial support received from Fundação Carlos Chagas Filho de Amparo à Pesquisa do Estado do Rio de Janeiro (Faperj) (Grant Number 200.065/2020 and 202.923/2018) and Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq) (Grant Number 165018/2018-6).

ORCID iDs

Ronei de Almeida

Raphael Ferreira Porto

Juacyara Carbonelli Campos

References

Abbas

Jingsong

Ping

, et al. (2009) Review on landfill leachate treatments. American Journal of Applied Sciences 6: 672–684.

Abdel-Fatah

(2018) Nanofiltration systems and applications in wastewater treatment: Review article. Ain Shams Engineering Journal 9: 3077–3092.

Abuabdou

SMA

Ahmad

Aun

, et al. (2020) A review of anaerobic membrane bioreactors (AnMBR) for the treatment of highly contaminated landfill leachate and biogas production: Effectiveness, limitations and future perspectives. Journal of Cleaner Production 255: 120215.

Achilli

Cath

Childress

(2010) Selection of inorganic-based draw solutions for forward osmosis applications. Journal of Membrane Science 364: 233–241.

Ahmed

Lan

(2012) Treatment of landfill leachate using membrane bioreactors: A review. Desalination 287: 41–54.

Ahn

W-Y

Kang

M-S

Yim

S-K

, et al. (2002) Advanced landfill leachate treatment using an integrated membrane process. Desalination 149(1–3): 109–114.

Amaral

MCS

Pereira

Nani

, et al. (2015) Treatment of landfill leachate by hybrid precipitation/microfiltration/nanofiltration process. Water Science and Technology 72: 269–276.

(2012) Treatment of concentrated liquid of landfill leachate by coagulation and micro-electrolysis strengthened by H₂O₂. Adv Mater Res 573–574: 492–496.

Anna Tałałaj

Bartkowska

Biedka

(2021) Treatment of young and stabilized landfill leachate by integrated sequencing batch reactor (SBR) and reverse osmosis (RO) process. Environmental Nanotechnology, Monitoring & Management 16: 100502.

10.

Antwi

Zhang

, et al. (2020) Nitrogen removal from landfill leachate by single-stage anammox and partial-nitritation process: Effects of microaerobic condition on performance and microbial activities. Journal of Water Process Engineering 38: 101572.

11.

Argun

Akkuş

Ateş

(2020) Investigation of micropollutants removal from landfill leachate in a full-scale advanced treatment plant in Istanbul city, Turkey. Science of the Total Environment 748: 141423.

12.

Bae

Kim

Lee

Chung

(2019) Effect of leachate circulation with ex situ nitrification on waste decomposition and nitrogen removal for early stabilization of fresh refuse landfill. Journal of Hazardous Materials 371: 721–727.

13.

Baker

(2012) Membrane Technology and Applications, Membrane Technology and Applications. Newark, California: Wiley, p. 575.

14.

Bakhshoodeh

Alavi

Oldham

, et al. (2020) Constructed wetlands for landfill leachate treatment: A review. Ecological Engineering 146: 105725.

15.

Balkema

Tollenaere

Pat Stanford (2018) Reverse Osmosis to the Rescue [WWW Document]. Available at: https://www.mswmanagement.com/home/article/13035294/reverse-osmosis-to-the-rescue (accessed 26 July 2020).

16.

Beaven

Knox

(2018) Leachate Recirculation, Solid Waste Landfilling. Amsterdam, Netherlands: Elsevier Inc, pp. 703–727.

17.

Ben Hassen-Trabelsi

Kallel

Ben Amor

, et al. (2020). Up-grading biofuel production by co-pyrolysis of landfill leachate concentrate and sewage sludge mixture. Waste and Biomass Valorization 11: 291–301.

18.

Brennan

Clifford

Devroedt

, et al. (2017) Treatment of landfill leachate in municipal wastewater treatment plants and impacts on effluent ammonium concentrations. Journal of Environmental Management 188: 64–72.

19.

Briffa

Sinagra

Blundell

(2020) Heavy metal pollution in the environment and their toxicological effects on humans. Heliyon 6: e04691.

20.

Busch

Ahrens

Sturm

, et al. (2010) Polyfluoroalkyl compounds in landfill leachates. Environmental Pollution 158: 1467–1471.

21.

Calabrò

Gentili

Meoni

, et al. (2018) Effect of the recirculation of a reverse osmosis concentrate on leachate generation: A case study in an Italian landfill. Waste Management 76: 643–651.

22.

Calabrò

Mancini

(2012) Possible interactions between recirculated landfill leachate and the stabilized organic fraction of municipal solid waste. Waste Management and Research 30: 551–557.

23.

Calabrò

Sbaffoni

Orsi

, et al. (2010) The landfill reinjection of concentrated leachate: Findings from a monitoring study at an Italian site. Journal of Hazardous Materials 181: 962–968.

24.

Campos

Moura

Costa

, et al. (2013) Evaluation of pH, alkalinity and temperature during air stripping process for ammonia removal from landfill leachate. Journal of Environmental Science and Health, Part A 48: 1105–1113.

25.

Chamem

Fellner

Zairi

(2020) Ammonia inhibition of waste degradation in landfills – A possible consequence of leachate recirculation in arid climates. Waste Management & Research: The Journal for a Sustainable Circular Economy 38: 1078–1086.

26.

Chan

GYS

Chang

Kurniawan

, et al. (2007) Removal of non-biodegradable compounds from stabilized leachate using VSEPRO membrane filtration. Desalination 202: 310–317.

27.

Chaudhari

Murthy

ZVP

(2010) Treatment of landfill leachates by nanofiltration. Journal of Environmental Management 91: 1209–1217.

28.

Chelliapan

Arumugam

Md. Din

, et al. (2020) Anaerobic treatment of municipal solid waste landfill leachate. In: Singh

Yousuf

Mahapatra

(eds) Bioreactors: Sustainable Design and Industrial Applications in Mitigation of GHG Emissions. Amsterdam, The Netherlands: Elsevier, pp.175–193.

29.

Chen

Wang

, et al. (2021a) Effective treatment of leachate concentrate using membrane distillation coupled with electrochemical oxidation. Separation and Purification Technology 267: 118679.

30.

Chen

Ran

, et al. (2021b) Application of membrane separation technology in the treatment of leachate in China: A review. Waste Management 121: 127–140.

31.

Chen

Wen

, et al. (2019) Degradation of refractory organic contaminants in membrane concentrates from landfill leachate by a combined coagulation-ozonation process. Chemosphere 217: 411–422.

32.

Chianese

Ranauro

Verdone

(1999) Treatment of landfill leachate by reverse osmosis. Water Research 33: 647–652.

33.

Chu

Chen

(2020) Interactions among low-molecular-weight organics, heavy metals, and Fe(III) during coagulation of landfill leachate nanofiltration concentrate. Waste Management 104: 51–59.

34.

Cingolani

Eusebi

Battistoni

(2017) Osmosis process for leachate treatment in industrial platform: Economic and performances evaluations to zero liquid discharge. Journal of Environmental Management 203: 782–790.

35.

Cingolani

Fatone

Frison

(2018) Pilot-scale multi-stage reverse osmosis (DT-RO) for water recovery from landfill leachate. Waste Management 76: 566–574.

36.

Clarke

Anumol

Barlaz

, et al. (2015) Investigating landfill leachate as a source of trace organic pollutants. Chemosphere 127: 269–275.

37.

Cossu

Ehrig

H-J

Muntoni

(2018) Physical–chemical leachate treatment. In: Solid Waste Landfilling. Elsevier, pp.575–632.

38.

Costa

Alfaia

Campos

(2019) Landfill leachate treatment in Brazil – An overview. Journal of Environmental Management 232: 110–116.

39.

Costa

dos Santos Valentim

da Silva

, et al. (2021) Comparison between Aliivibrio fischeri and activated sludge microorganisms in the evaluation of the toxic pollutants of leachates from Brazilian landfills. Environmental Science and Pollution Research 29: 1546–1558.

40.

Cristina

Camelin

Ottone

, et al. (2020) Recovery of humic acids from anaerobic sewage sludge: Extraction, characterization and encapsulation in alginate beads. International Journal of Biological Macromolecules 164: 277–285.

41.

de Almeida

Bila

Quintaes

, et al. (2020a) Cost estimation of landfill leachate treatment by reverse osmosis in a Brazilian landfill. Waste Management & Research: The Journal for a Sustainable Circular Economy 38: 1087–1092.

42.

de Almeida

Campos

(2020) Análise tecnoeconômica do tratamento de lixiviado de aterro sanitário. Revista Ineana 8: 6–27.

43.

de Almeida

Campos

de Oroski

(2020b) Techno-economic evaluation of landfill leachate treatment by hybrid lime application and nanofiltration process. Detritus 10: 170–181.

44.

de Almeida

de Souza Couto

Gouvea

, et al. (2020c) Nanofiltration applied to the landfill leachate treatment and preliminary cost estimation. Waste Management & Research: The Journal for a Sustainable Circular Economy 38: 1119–1128.

45.

de Almeida

Moraes Costa

de Almeida Oroski

, et al. (2019) Evaluation of coagulation–flocculation and nanofiltration processes in landfill leachate treatment. Journal of Environmental Science and Health, Part A: Toxic/Hazardous Substances and Environmental Engineering 54: 1091–1098.

46.

Deng

Englehardt

(2006) Treatment of landfill leachate by the Fenton process. Water Research 40: 3683–3694.

47.

Dereli

Clifford

Casey

(2021) Co-treatment of leachate in municipal wastewater treatment plants: Critical issues and emerging technologies. Critical Reviews in Environmental Science and Technology 51(11): 1079–1128.

48.

Di Maria

Sisani

Contini

, et al. (2018) Impact of different schemes for treating landfill leachate. Waste Management 71: 255–266.

49.

Ding

Jiang

Zhao

, et al. (2021) Treatment of leachate concentrate by electrocoagulation coupled with electro-Fenton-like process: Efficacy and mechanism. Separation and Purification Technology 255: 117668.

50.

Dolar

Košutić

Strmecky

(2016) Hybrid processes for treatment of landfill leachate: Coagulation/UF/NF-RO and adsorption/UF/NF-RO. Separation and Purification Technology 168: 39–46.

51.

dos Santos

HAP

de Castilhos Júnior

Nadaleti

, et al. (2020) Ammonia recovery from air stripping process applied to landfill leachate treatment. Environmental Science and Pollution Research 27: 45108–45120.

52.

Dzolev

Vujic

(2016) Impact assessment of concentrate recirculation on the landfill gas production. Thermal Science 20: 1283–1294.

53.

Ehrig

H-J

Robinson

(2010) Landfilling: Leachate treatment. In: Christensen

(ed). Solid Waste Technology & Management. Chichester, UK: John Wiley & Sons, Ltd, pp.858–897.

54.

Ehrig

H-J

Stegmann

Robinson

(2018) Biological Leachate Treatment, Solid Waste Landfilling. Elsevier Inc.

55.

El-Fadel

Bou-Zeid

Chahine

, et al. (2002) Temporal variation of leachate quality from pre-sorted and baled municipal solid waste with high organic and moisture content. Waste Management 22: 269–282.

56.

El-Gohary

Kamel

(2016) Characterization and biological treatment of pre-treated landfill leachate. Ecological Engineering 94: 268–274.

57.

El Kateb

Trellu

Darwich

, et al. (2019) Electrochemical advanced oxidation processes using novel electrode materials for mineralization and biodegradability enhancement of nanofiltration concentrate of landfill leachates. Water Research 162: 446–455.

58.

Fan

Shu

Yang

, et al. (2006) Characteristics of landfill leachates in central Taiwan. Science of the Total Environment 361: 25–37.

59.

Farquhar

(1989) Leachate: Production and characterization. Canadian Journal of Civil Engineering 16: 317–325.

60.

Fernandes

Chamem

Pacheco

, et al. (2019) Performance of electrochemical processes in the treatment of reverse osmosis concentrates of sanitary landfill leachate. Molecules 24: 2905.

61.

Fernandes

Labiadh

Ciríaco

, et al. (2017) Electro-Fenton oxidation of reverse osmosis concentrate from sanitary landfill leachate: Evaluation of operational parameters. Chemosphere 184: 1223–1229.

62.

Fernandes

Pacheco

Ciríaco

, et al. (2015) Review on the electrochemical processes for the treatment of sanitary landfill leachates: Present and future. Applied Catalysis B: Environmental 176–177: 183–200.

63.

Ferraz

Povinelli

Vieira

(2013) Ammonia removal from landfill leachate by air stripping and absorption. Environmental Technology (United Kingdom) 34: 2317–2326.

64.

Foo

Hameed

(2009) An overview of landfill leachate treatment via activated carbon adsorption process. Journal of Hazardous Materials 171: 54–60.

65.

Gao

Oloibiri

Chys

, et al. (2014) The present status of landfill leachate treatment and its development trend from a technological point of view. Reviews in Environmental Science and Bio/Technology 14: 93–122.

66.

Genethliou

Triantaphyllidou

Giannakis

, et al. (2021) Simultaneous removal of ammonium nitrogen, dissolved chemical oxygen demand and color from sanitary landfill leachate using natural zeolite. Journal of Hazardous Materials 406: 124679.

67.

Gomes

(2012) Phytoremediation for bioenergy: Challenges and opportunities. Environmental Technology Reviews 1: 59–66.

68.

Grossule

Lavagnolo

(2020) Lab tests on semi-aerobic landfilling of MSW under varying conditions of water availability and putrescible waste content. Journal of Environmental Management 256: 109995.

69.

Liu

, et al. (2019) Bioenergy, ammonia and humic substances recovery from municipal solid waste leachate: A review and process integration. Biomass and Biofuels Association 293: 122159.

70.

Chen

, et al. (2021) Synergistic heat/UV activated persulfate for the treatment of nanofiltration concentrated leachate. Ecotoxicology and Environmental Safety 208: 111522.

71.

Chen

Shao

, et al. (2019) Municipal solid waste (MSW)landfill: A source of microplastics? Evidence of microplastics in landfill leachate. Water Research 159: 38–45.

72.

Wei

X-M

Tian

B-H

, et al. (2015) Characterization of a joint recirculation of concentrated leachate and leachate to landfills with a microaerobic bioreactor for leachate treatment. Waste Management 46: 380–388.

73.

Hendrych

Hejralová

Kroužek

, et al. (2019) Stabilisation/solidification of landfill leachate concentrate and its residue obtained by partial evaporation. Waste Management 95: 560–568.

74.

Henigin

PLA

(1995) Recirculation of leachate concentrate from reverse osmosis treatment. In: Proceedings of the Fifth International Landfill Symposium, Sardinia 95. S. Margherita di Pula, Cagliari, Italy, pp. 2–6.

75.

Hong

Hou

, et al. (2017) Advanced treatment of landfill leachate membrane concentrates: Performance comparison, biosafety and toxic residue analysis. Water Science & Technology 76: 2949–2958.

76.

Huang

Chen

Xie

, et al. (2015) Treatment of nanofiltration concentrates of mature landfill leachate by a coupled process of coagulation and internal micro-electrolysis adding hydrogen peroxide. Environmental Technology (United Kingdom) 36: 1001–1007.

77.

Huang

Zhu

, et al. (2020) Removal and recovery of chloride ions in concentrated leachate by Bi(III) containing oxides quantum dots/two-dimensional flakes. Journal of Hazardous Materials 382: 121041.

78.

Hunce

Akgul

Demir

, et al. (2012) Solidification/stabilization of landfill leachate concentrate using different aggregate materials. Waste Management 32: 1394–1400.

79.

Iskander

Novak

Brazil

, et al. (2017a) Simultaneous energy generation and UV quencher removal from landfill leachate using a microbial fuel cell. Environmental Science and Pollution Research 24: 26040–26048.

80.

Iskander

Novak

(2019) Reduction of reagent requirements and sludge generation in Fenton’s oxidation of landfill leachate by synergistically incorporating forward osmosis and humic acid recovery. Water Research 151, 310–317. https://doi.org/10.1016/j.watres.2018.11.089

81.

Iskander

Novak

(2018a) Enhancing forward osmosis water recovery from landfill leachate by desalinating brine and recovering ammonia in a microbial desalination cell. Bioresource Technology 255: 76–82.

82.

Iskander

Zhao

Pathak

, et al. (2018b) A review of landfill leachate induced ultraviolet quenching substances: Sources, characteristics, and treatment. Water Research 145, 297–311.

83.

Iskander

Zou

Brazil

(2017b) Energy consumption by forward osmosis treatment of landfill leachate for water recovery. Waste Management 63: 284–291.

84.

ISWA (2019) Landfill Operational Guidelines. A Report from ISWA’s Working Group on Landfill 2019. Region: International. ISWA.

85.

Jamaly

Darwish

Ahmed

, et al. (2014) A short review on reverse osmosis pretreatment technologies. Desalination 354: 30–38.

86.

Joo

Tansel

(2015) Novel technologies for reverse osmosis concentrate treatment: A review. Journal of Environmental Management 150: 322–335.

87.

Judd

(2017) Membrane technology costs and me. Water Research 122: 1–9.

88.

Kallel

Ellouze

Trabelsi

(2017) Co-management of landfill leachate concentrate with brick waste by solidification/stabilization treatment. Arabian Journal of Geosciences 10: 81.

89.

Kamali

Suhas

Costa

, et al. (2019) Sustainability considerations in membrane-based technologies for industrial effluents treatment. Chemical Engineering Journal 368: 474–494.

90.

Keyikoglu

Karatas

Rezania

, et al. (2021) A review on treatment of membrane concentrates generated from landfill leachate treatment processes. Separation and Purification Technology 259: 118182.

91.

Kjeldsen

Barlaz

Rooker

, et al. (2002) Present and long-term composition of MSW landfill leachate: A review. Critical Reviews in Environmental Science and Technology 32: 297–336.

92.

Kulikowska

Klimiuk

(2008) The effect of landfill age on municipal leachate composition. Bioresource Technology 99: 5981–5985.

93.

Kumano

Fujiwara

(2008) Cellulose Triacetate Membranes for Reverse Osmosis. In: Li

Fane

Winston Ho

, et al. (eds) Advanced Membrane Technology and Applications. Hoboken, New Jersey: John Wiley & Sons, Inc, pp.21–46.

94.

Kurniawan

Chan

, et al. (2010) Biological processes for treatment of landfill leachate. Journal of Environmental Monitoring 12: 2032.

95.

Kurniawan

Chan

GYS

(2006) Physico-chemical treatments for removal of recalcitrant contaminants from landfill leachate. Journal of Hazardous Materials 129: 80–100.

96.

Kurniawan

Singh

Avtar

, et al. (2021) Resource recovery from landfill leachate: An experimental investigation and perspectives. Chemosphere 274: 129986.

97.

Labiadh

Fernandes

Ciríaco

, et al. (2016) Electrochemical treatment of concentrate from reverse osmosis of sanitary landfill leachate. Journal of Environmental Management 181: 515–521.

98.

Ladewig

Asquith

(2012) Desalination Concentrate Management, Emerging Compounds Removal from Wastewater, SpringerBriefs in Molecular Science. Berlin, Heidelberg: Springer Berlin Heidelberg.

99.

Le Dirach

Nisan

Poletiko

(2005) Extraction of strategic materials from the concentrated brine rejected by integrated nuclear desalination systems. Desalination 182: 449–460.

100.

Lebron

YAR

Moreira

Brasil

, et al. (2021) A survey on experiences in leachate treatment: Common practices, differences worldwide and future perspectives. Journal of Environmental Management 288: 112475.

101.

Boiarkina

, et al. (2019) Phosphorous recovery through struvite crystallization : Challenges for future design. Science of the Total Environment 648: 1244–1256.

102.

Wichmann

Heine

(2009) Treatment of the methanogenic landfill leachate with thin open channel reverse osmosis membrane modules. Waste Management 29: 960–964.

103.

Niu

C-J

, et al. (2017) A novel forward osmosis system in landfill leachate treatment for removing polycyclic aromatic hydrocarbons and for direct fertigation. Chemosphere 168: 112–121.

104.

Zhao

Qin

, et al. (2016) Removal of refractory organics in nanofiltration concentrates of municipal solid waste leachate treatment plants by combined Fenton oxidative-coagulation with photo – Fenton processes. Chemosphere 146: 442–449.

105.

Shi

(2019) Research on forward osmosis membrane technology still needs improvement in water recovery and wastewater treatment. Water 12, 107. https://doi.org/10.3390/w12010107

106.

Zhu

, et al. (2015) Recovery of potassium from landfill leachate concentrates using a combination of cation-exchange membrane electrolysis and magnesium potassium phosphate crystallization. Separation and Purification Technology 144: 1–7.

107.

Lima

LSMS

De Almeida

Quintaes

, et al. (2017) Evaluation of humic substances removal from leachates originating from solid waste landfills in Rio de Janeiro State, Brazil. Journal of Environmental Science and Health Part A 52: 1–9.

108.

Linde

Jönsson

Wimmerstedt

(1995) Treatment of three types of landfill leachate with reverse osmosis. Desalination 101: 21–30.

109.

Lins

CMMS

Alves

MCM

Campos

, et al. (2015) Removal of ammonia nitrogen from leachate of Muribeca municipal solid waste landfill, Pernambuco, Brazil, using natural zeolite as part of a biochemical system. Journal of Environmental Science and Health Part A Toxic/Hazardous Substances & Environmental Engineering 50: 980–988.

110.

Liu

Wang

Zhou

, et al. (2021) Evaporation efficiency and important microorganisms under different ventilation strategies of co-bioevaporation process. Environmental Technology & Innovation 21: 101374.

111.

Long

Shen

, et al. (2017) Effective removal of contaminants in landfill leachate membrane concentrates by coagulation. Chemosphere 167: 512–519.

112.

Luo

Zeng

Cheng

, et al. (2020) Recent advances in municipal landfill leachate: A review focusing on its characteristics, treatment, and toxicity assessment. Science of the Total Environment 703: 135468.

113.

Mariam

Nghiem

(2010) Landfill leachate treatment using hybrid coagulation-nanofiltration processes. Desalination 250: 677–681.

114.

Mohammad

Teow

Ang

, et al. (2015) Nanofiltration membranes review: Recent advances and future prospects. Desalination 356: 226–254.

115.

Mohammadesmaeili

Badr

Abbaszadegan

, et al. (2010) Mineral recovery from inland reverse osmosis concentrate using isothermal evaporation. Water Research 44, 6021–6030. https://doi.org/10.1016/j.watres.2010.07.070

116.

Mojiri

Zhou

Ratnaweera

, et al. (2021) Treatment of landfill leachate with different techniques: An overview. Journal of Water Reuse and Desalination 11: 66–96.

117.

Mojiri

Ziyang

Hui

, et al. (2017) Concentrated landfill leachate treatment with a combined system including electro-ozonation and composite adsorbent augmented sequencing batch reactor process. Process Safety and Environmental Protection 111: 253–262. https://doi.org/10.1016/j.psep.2017.07.013

118.

Morello

Cossu

Raga

, et al. (2016) Recirculation of reverse osmosis concentrate in lab-scale anaerobic and aerobic landfill simulation reactors. Waste Management 56: 262–270.

119.

Mukherjee

Mukhopadhyay

Hashim

, et al. (2015) Contemporary environmental issues of landfill leachate: Assessment and remedies. Critical Reviews in Environmental Science and Technology 45: 472–590.

120.

Panagopoulos

(2021) Beneficiation of saline effluents from seawater desalination plants: Fostering the zero liquid discharge (ZLD) approach – A techno-economic evaluation. Journal of Environmental Chemical Engineering 9: 105338.

121.

Panagopoulos

Haralambous

K-J

(2020) Minimal Liquid Discharge (MLD) and Zero Liquid Discharge (ZLD) strategies for wastewater management and resource recovery – Analysis, challenges and prospects. Journal of Environmental Chemical Engineering 8: 104418.

122.

Peter-Varbanets

Zurbrügg

Swartz

, et al. (2009) Decentralized systems for potable water and the potential of membrane technology. Water Research 43: 245–265.

123.

van Praagh

Hartman

Brandmyr

, 2019. Microplastics in Landfill Leachates in the Nordic Countries, TemaNord NV – 2018:557, TemaNord. Nordic Council of Ministers, Copenhagen. https://doi.org/10.6027/TN2018-557

124.

Qin

Molitor

Brazil

, et al. (2016) Recovery of nitrogen and water from landfill leachate by a microbial electrolysis cell–forward osmosis system. Bioresource Technology 200: 485–492. https://doi.org/10.1016/j.biortech.2015.10.066

125.

Ramakrishnan

Blaney

Kao

, et al. (2015) Emerging contaminants in landfill leachate and their sustainable management. Environmental Earth Sciences 73: 1357–1368.

126.

Ramaswami

Behrendt

Otterpohl

(2018) Comparison of NF-RO and RO-NF for the treatment of mature landfill leachates: A guide for landfill operators. Membranes (Basel). 8: 17.

127.

Ren

Song

Chen

, et al. (2021) Treatment of membrane concentrated leachate by two-stage electrochemical process enhanced by ultraviolet radiation: Performance and mechanism. Separation and Purification Technology 259: 118032.

128.

Ren

Song

Xiao

, et al. (2019) Constituent transformation mechanism of concentrated leachate after incineration at different temperatures. Environmental Science and Pollution Research 26: 34613–34621.

129.

Renou

Givaudan

Poulain

, et al. (2008) Landfill leachate treatment: Review and opportunity. Journal of Hazardous Materials 150: 468–493.

130.

Robinson

(2005) Landfill leachate treatment. Membrane Technology 2005: 6–12.

131.

Robinson

(2019) aerobic biological treatability studies on landfill leachate with nitrification and denitrification. Detritus 7: 1.

132.

Rukapan

Khananthai

Chiemchaisri

, et al. (2012) Short- and long-term fouling characteristics of reverse osmosis membrane at full scale leachate treatment plant. Water Science and Technology 65: 127–134.

133.

Şchiopu

Piuleac

Cojocaru

, et al. (2012) Reducing environmental risk of landfills: Leachate treatment by reverse osmosis. Environmental Engineering and Management Journal 11: 2319–2331.

134.

Scantamburlo

(2015) Reinjection of Leachate Reverse Osmosis Concentrate in the Landfill Body. University of Padova.

135.

Shaffer

Werber

Jaramillo

, et al. (2015) Forward osmosis: Where are we now? Desalination 356: 271–284.

136.

Shah

Ramaswami

Behrendt

, et al. (2017) Simultaneous removal of organics and ammonium-nitrogen from reverse osmosis concentrate of mature landfill leachate. Journal of Water Process Engineering 19: 126–132.

137.

Shao

Deng

Qiu

, et al. (2021) DOM chemodiversity pierced performance of each tandem unit along a full-scale “MBR+NF” process for mature landfill leachate treatment. Water Research 195: 117000.

138.

Singh

Sharma

Maiti

(2021) A comprehensive review of standalone and hybrid forward osmosis for water treatment: Membranes and recovery strategies of draw solutions. Journal of Environmental Chemical Engineering 9: 105473.

139.

Šír

Podhola

Patočka

, et al. (2012) The effect of humic acids on the reverse osmosis treatment of hazardous landfill leachate. Journal of Hazardous Materials 207–208: 86–90.

140.

Smol

Włodarczyk-Makuła

(2017) Effectiveness in the removal of organic compounds from municipal landfill leachate in integrated membrane systems: Coagulation–NF/RO. Polycyclic Aromatic Compounds 37: 456–474.

141.

Sohoo

Ritzkowski

Kuchta

(2019) Evaluation of behavior of waste disposal sites in Karachi, Pakistan and effects of enhanced leaching on their emission potential. Detritus 7: 1.

142.

Soomro

Ren

, et al. (2020) Efficient removal of refractory organics in landfill leachate concentrates by electrocoagulation in tandem with simultaneous electro-oxidation and in-situ peroxone. Environmental Research 183: 109249.

143.

Rio de Janeiro State Governor (2020) Law number #9055. Mandatory control and treatment of leachate in solid waste disposal systems, dumps, controlled landfills and sanitary landfills, as well as the remediation of dumps in the State of Rio de Janeiro and other measures. Diário Oficial do Estado do Rio de Janeiro (DOERJ), Brazil, 8th October 2020. Available at: https://leisestaduais.com.br/rj/lei-ordinaria-n-9055-2020-rio-de-janeiro-institui-a-obrigatoriedade-do-controle-e-tratamento-do-chorume-nos-sistemas-de-destinacao-final-de-residuos-solidos-vazadouros-aterros-controlados-e-aterros-sanitarios-bem-como-a-remediacao-de-vazadouros-no-estado-do-rio-de-janeiro-e-da-outras-providencias [In Portuguese] (accessed April 2022).

144.

Stegmann

(2018) Strategic Issues in Leachate Management, Solid Waste Landfilling. Amsterdam, Netherlands: Elsevier Inc, pp. 501–509.

145.

Zhang

, et al. (2019) Occurrence of microplastics in landfill systems and their fate with landfill age. Water Research 164: 114968.

146.

Subramani

Jacangelo

(2014) Treatment technologies for reverse osmosis concentrate volume minimization: A review. Separation and Purification Technology 122: 472–489.

147.

Talalaj

(2015a) Mineral and organic compounds in leachate from landfill with concentrate recirculation. Environmental Science and Pollution Research 22: 2622–2633.

148.

Talalaj

(2015b) Removal of nitrogen compounds from landfill leachate using reverse osmosis with leachate stabilization in a buffer tank. Environmental Technology 36: 1091–1097.

149.

Talalaj

Biedka

(2015) Impact of concentrated leachate recirculation on effectiveness of leachate treatment by reverse osmosis. Ecological Engineering 85: 185–192.

150.

Theepharaksapan

Chiemchaisri

, et al. (2011) Removal of pollutants and reduction of bio-toxicity in a full scale chemical coagulation and reverse osmosis leachate treatment system. Bioresource Technology 102: 5381–5388.

151.

Top

Sekman

Hoşver

, et al. (2011) Characterization and electrocaogulative treatment of nanofiltration concentrate of a full-scale landfill leachate treatment plant. Desalination 268: 158–162.

152.

Torretta

Ferronato

Katsoyiannis

, et al. (2016) Novel and conventional technologies for landfill leachates treatment: A review. Sustainability 9: 9.

153.

Tow

Ersan

Kum

, et al. (2021) Managing and treating per- and polyfluoroalkyl substances (PFAS) in membrane concentrates. AWWA Water Science 3: 1–23.

154.

Vaccari

Tudor

Vinti

(2019) Characteristics of leachate from landfills and dumpsites in Asia, Africa and Latin America: An overview. Waste Management 95: 416–431.

155.

Van Der Bruggen

Lejon

Vandecasteele

(2003) Reuse, treatment, and discharge of the concentrate of pressure-driven membrane processes. Environmental Science and Technology 37: 3733–3738.

156.

Varank

Yazici Guvenc

Dincer

, et al. (2020) Concentrated leachate treatment by electro-fenton and electro-persulfate processes using central composite design. International Journal of Environmental Research 14: 439–461.

157.

Viegas

Nobre

Mota

, et al. (2021) A circular approach for landfill leachate treatment: Chemical precipitation with biomass ash followed by bioremediation through microalgae. Journal of Environmental Chemical Engineering 9: 105187.

158.

Voutchkov

Kaiser

(2020). Zero-liquid discharge concentrate disposal systems, In: Management of Concentrate from Desalination Plants. Amsterdam, Netherlands: Elsevier, pp. 187–208.

159.

Wang

Liu

Tao

, et al. (2017) The impact on the effects of leachate concentrates recirculation for different fill age waste. Journal of Material Cycles and Waste Management 19: 1211–1219.

160.

Wang

, et al. (2016) Removal of humic substances from reverse osmosis (RO) and nanofiltration (NF) concentrated leachate using continuously ozone generation-reaction treatment equipment. Waste Management 56,: 271–279.

161.

Wang

Zhen

, et al. (2012) Electro-Fenton treatment of concentrates generated in nanofiltration of biologically pretreated landfill leachate. Journal of Hazardous Materials 229–230: 115–121.

162.

Wang

Zhou

Meng

, et al. (2020) Treatment of landfill leachate membrane filtration concentrate by synergistic effect of electrocatalysis and electro-Fenton. Journal of Water Process Engineering 37: 101458.

163.

Wijekoon

Wickramasinghe

Athapattu

BCL

, et al. (2021) Biomass valorization and phytoremediation as integrated Technology for Municipal Solid Waste Management for developing economic context. Biomass Conversion and Biorefinery 11: 363–382.

164.

Wilf

(2014) The Reverse Osmosis process. In: Kucera

(ed.) Desalination. Hoboken, NJ: John Wiley & Sons, Inc., pp.155–204.

165.

Wiszniowski

Robert

Surmacz-Gorska

, et al. (2006) Landfill leachate treatment methods: A review. Environmental Chemistry Letters 4: 51–61.

166.

Woo

Yang

Timmes

, et al. (2019) Treatment of reverse osmosis concentrate using an algal-based MBR combined with ozone pretreatment. Water Research 159: 164–175.

167.

(2021) Characteristics of organic matter removed from highly saline mature landfill leachate by an emergency disk tube-reverse osmosis treatment system. Chemosphere 263: 128347.

168.

Zou

Liang

, et al. (2018) Enhancing recovery of magnesium as struvite from landfill leachate by pretreatment of calcium with simultaneous reduction of liquid volume via forward osmosis. Science of the Total Environment 610–611: 137–146.

169.

Zhou

Qin

, et al. (2010) Removal of humic substances from landfill leachate by Fenton oxidation and coagulation. Process Safety and Environmental Protection 88: 276–284.

170.

Xiang

Liu

Zhang

, et al. (2020) New progress of ammonia recovery during ammonia nitrogen removal from various wastewaters. World Journal of Microbiology and Biotechnology 36: 144.

171.

Xie

Shon

Gray

, et al. (2016) Membrane-based processes for wastewater nutrient recovery: Technology, challenges, and future direction. Water Research 89: 210–221.

172.

Xiong

Zhang

, et al. (2014) Technique for advanced electrochemical oxidation treatment of nanofiltration concentrate of landfill leachate. Wuhan University Journal of Natural Sciences 19: 355–360.

173.

Chen

, et al. (2017) Recovery of humic substances from leachate nanofiltration concentrate by a two-stage process of tight ultrafiltration membrane. Journal of Cleaner Production 161: 84–94.

174.

Xue

W-J

Cui

Y-H

Liu

Z-Q

, et al. (2020) Treatment of landfill leachate nanofiltration concentrate after ultrafiltration by electrochemically assisted heat activation of peroxydisulfate. Separation and Purification Technology 231: 115928.

175.

Yaman

Ozcan

Demir

, et al. (2012) Landfill leachate treatment: A case study for Istanbul City. Clean Soil, Air, Water 40: 706–711.

176.

Yang

B-Q

Yang

J-M

Yang

, et al. (2018) Co-bioevaporation treatment of concentrated landfill leachate with addition of food waste. Biochemical Engineering Journal 130: 76–82.

177.

Yang

Monnot

Ercolei

, et al. (2020) Membrane-based processes used in municipal wastewater treatment for water reuse: State-of-the-art and performance analysis. Membranes (Basel) 10: 131.

178.

Yang

(2016) Recovering humic substances from the dewatering effluent of thermally treated sludge and its performance as an organic fertilizer. Frontiers of Environmental Science & Engineering 10: 578–584.

179.

Yazici Guvenc

Varank

(2021) Degradation of refractory organics in concentrated leachate by the Fenton process: Central composite design for process optimization. Frontiers of Environmental Science & Engineering 15: 2.

180.

Liu

Jiang

, et al. (2019) Sustainable management of landfill leachate concentrate through recovering humic substance as liquid fertilizer by loose nanofiltration. Water Research 157: 555–563.

181.

Liu

Lin

, et al. (2020). Elevated nanofiltration performance via mussel-inspired co-deposition for sustainable resource extraction from landfill leachate concentrate. Chemical Engineering Journal 388: 124200.

182.

Yue

Han

, et al. (2011) Recovery of humic substances from landfill leachate via 2500 Da ultrafiltration membrane. In: Brebbia

Popov

(eds). WIT Transactions on Ecology and the Environment. Ashurst, UK: IT Press, pp. 737–746.

183.

Yue

Mahar

, et al. (2007) Laboratory-scale experiments applied to the design of a two-stage submerged combustion evaporation system. Waste Management 27: 704–710.

184.

Zanon

Ferrari

Lima

, et al. (2013) Implantation of Leachate treatment by reverse Osmosis and the influence of controlled infiltration of retentate on biogas generation in a sanitary landfill – A Case Study. In: Proceedings Sardinia 2013, Fourteenth International Waste Management and Landfill Symposium. S. Margherita di Pula, Cagliari, Italy, 30 September–October. CISA Publisher.

185.

Zhang

Lavagnolo

Bai

, et al. (2019). Environmental and economic assessment of leachate concentrate treatment technologies using analytic hierarchy process. Resources, Conservation and Recycling 141: 474–480.

186.

Zhang

Wang

Yue

(2020) Effect of submerged combustion evaporation on Cd complexation potential of organic matter in municipal solid waste landfill leachate. Environmental Pollution 267: 115573.

187.

Zhang

Q-Q

Tian

B-H

Zhang

, et al. (2013) Investigation on characteristics of leachate and concentrated leachate in three landfill leachate treatment plants. Waste Management 33: 2277–2286.

188.

Zico

Ricci

Reis

, et al. (2021) Sustainable ammonia resource recovery from landfill leachate by solar-driven modified direct contact membrane distillation. Separation and Purification Technology 264: 118356.

A review on membrane concentrate management from landfill leachate treatment plants: The relevance of resource recovery to close the leachate treatment loop

Abstract

Keywords

Graphical Abstract

Introduction

Materials and methods

LFL management

NF and RO

LFL membrane concentrate management

LLMC characteristics

Conventional management of LLMCs

Disposal

Treatment

Resource recovery options

Reclaimed water

Humic substances

Nutrients

Inorganic salts

Future perspectives and management diagram for resource recovery

Conclusions

Footnotes

Author contributions

Declaration of conflicting interests

Funding

ORCID iDs

References
