Abstract

Communication delay is detrimental to the performance of cooperative adaptive cruise control (CACC) systems. In this paper, we incorporate communication delay explicitly into control design and propose a delay-compensating CACC. In this new CACC system, the semi-constant time gap (Semi-CTG) policy, which is modified on the basis of the widely-used CTG policy, is employed by a linear feedback control law to regulate the spacing error. The semi-CTG policy uses historical information of the predecessor instead of its current information. By doing so, communication delay is fully compensated, which leads to better stability performance. Three stability properties—local stability, string stability, and traffic flow stability—are analyzed. The local stability and string stability of the proposed CACC system are guaranteed with the desired time gap as small as the communication delay. Both theoretical analysis and simulation results show that the delay-compensating CACC has better string stability and traffic flow stability than the widely-used CACC system. Furthermore, the proposed CACC system also shows the potential for improving traffic throughput and fuel efficiency. Robustness of the proposed system against uncertainties of sensor delay and vehicle dynamics is also verified with simulation.

Cooperative Adaptive Cruise Control (CACC) systems have been attracting wide research attention in recent years. It is one of first connected and automated vehicle (CAV) applications aimed at cooperative vehicle following control with short spacing. A well designed CACC system can greatly improve traffic throughput ( 1 – 3 ), and reduce fuel consumption and emissions ( 4 ). To enable CACC, the system must rely on vehicle-to-vehicle (V2V) communication and a rigorously designed controller, in addition to on-board sensors and actuators.

Communication delay, the lag between sending and receiving the information via communication systems, has been shown to be detrimental to the performance of CACC systems ( 5 – 7 ). CACC systems which are designed without considering communication delay are likely to show poor performance in the real world under extreme communication delay scenarios. In ( 5 ), it is shown that CACC systems may not operate stably when the communication between the subject vehicle and the leading vehicle or the preceding vehicle is delayed. Furthermore, even a very small delay in the communication system can seriously compromise the benefits of CACC systems. ( 8 ) and ( 9 ) show that to keep CACC systems string stable with communication delay of 100 ms, the time gap needs to be as high as 600 ms. As a higher time gap naturally leads to lower throughput, such time gaps will definitely limit the potential of CACC systems to improve improvement.

To this end, compensating communication delay explicitly in control design would be beneficial but remains as a challenging task. In this paper, we present a strategy to compensate for communication delay by adopting the semi-constant time gap (Semi-CTG) policy and correspondingly modifying the involved feed-forward information in the control law. Three stability criteria, namely local stability, string stability, and traffic flow stability, of the proposed CACC system will be analyzed theoretically and verified in simulation. The local stability and string stability conditions of the proposed system are derived. Both theoretical analysis and simulation results show that the delay-compensating CACC has better string stability and traffic flow stability. Furthermore, the proposed CACC system also shows the potential for improving mobility and fuel efficiency.

This paper is organized as follows. The next section reviews the related work on CACC control design and delay compensation. The following section designs the control logic and control law of the delay-compensating CACC. The paper then looks at the theoretical analysis of the proposed CACC controller on local stability, string stability, and traffic flow stability. This is followed by some insights revealed by the delay-compensating strategy. Simulation results proving the efficiency of the proposed controller are then examined and followed by a discussion of the merits and disadvantages of the proposed strategy. The concluding section inlcudes remarks on future research. The main variables in this work are listed in Table 1.

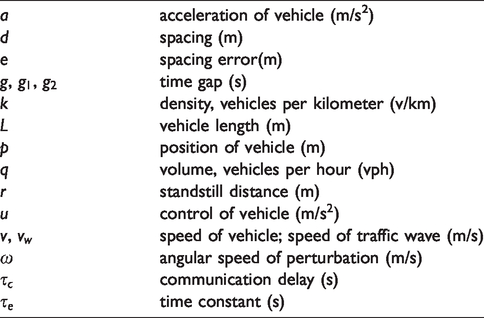

Table 1.

Variables and Notation

$a$	acceleration of vehicle (m/s²)
$d$	spacing (m)
$e$	spacing error(m)
$g$ , $g_{1}$ , $g_{2}$	time gap (s)
$k$	density, vehicles per kilometer (v/km)
$L$	vehicle length (m)
$p$	position of vehicle (m)
$q$	volume, vehicles per hour (vph)
$r$	standstill distance (m)
$u$	control of vehicle (m/s $^{2}$ )
$v$ , $v_{w}$	speed of vehicle; speed of traffic wave (m/s)
$ω$	angular speed of perturbation (m/s)
$τ_{c}$	communication delay (s)
$τ_{e}$	time constant (s)

Literature Review

In this section, previous studies related to the CACC control design and delay compensation are reviewed. When designing a CACC controller, spacing policy and control law are two primary concerns. While a spacing policy specifies how the desired spacing is formulated as a function of the state (for instance, speed) of the subject vehicle and surrounding vehicles, a control law gives the controlled input such as commanded acceleration to reach the desired spacing.

On the subject of spacing policy, well studied policies include constant spacing policy ( 10 , 11 ), constant time gap (CTG) policy ( 8 , 9 ) and variable time gap policy ( 12 ). Constant spacing policy encourages the subject vehicle to follow its predecessor with a predefined constant distance whatever the vehicle speed, while CTG policy defines the desired spacing linearly proportional to the subject vehicle’s speed. Studies show that CTG policy helps to improve the string stability of the CACC system, at the expense of compromising traffic throughput. Variable time gap policies in literature include quadratic speed policy ( 13 ), adaptive policy ( 14 ), and other variants ( 15 ). Variable time gap policy renders the controller nonlinear and consequently it makes the string stability analysis much more complex.

Prevailing control laws in literature include state/output feedback-feedforward control methods and optimization-based control methods. Feedback-feedforward based CACC controllers regulate the error between desired and real spacing by incorporating both feedforward information (the preceding vehicle’s control signal, acceleration, etc.) and feedback information (spacing error, the derivative, integral of spacing error, etc.) ( 8 , 9 , 16 ). Optimization-based methods determine CACC system’s acceleration by solving an optimal control problem ( 15 , 17 , 18 ). While feedback-feedforward based CACC features a low computation burden and easy implementation. Optimal-control based CACC, on the other hand, can achieve optimal behavior and anticipative behavior under state and input constraints. However, the computational load of optimization-based CACC systems makes the real-time application a daunting task. Apart from feedback control-based and optimization-based systems, learning-based CACC systems ( 19 ) have also emerged in recent years.

However, most of the aforementioned control laws do not consider communication delay which leaves systems that have been developed to show poor performance in a real-world environment ( 5 , 8 ). A few studies dealing with communication delay in CACC design were found in the literature, but these methods have shortcomings. A prevailing delay-compensating method involves predicting the future status (position, speed, acceleration, etc.) of the preceding vehicle or the subject vehicle ( 20 – 22 ). It thus needs an accurate estimation of the vehicle dynamics and a precise prediction of the future driving maneuver. Consequently, when faced with uncertainties, the existing predictive methods for compensating delay may fail to work. Other works resort to methods incorporating multi-predecessor states, in which more complicated communication topology is assumed and the heterogeneity in inter-vehicle communication is neglected ( 16 ). To this end, delay-compensating methods that are robust to uncertainties and heterogeneity in the communication system are preferred.

In the remainder, we propose a strategy to compensate for delay in the controller by taking advantage of an adapted CTG policy and feedback control. This strategy takes the historical driving information of the preceding vehicle, rather than the future one, into the control law, and thus needs no prediction. Furthermore, simulation experiments also show the robustness of the proposed method against uncertainties of sensor delay and vehicle dynamics.

Control Design

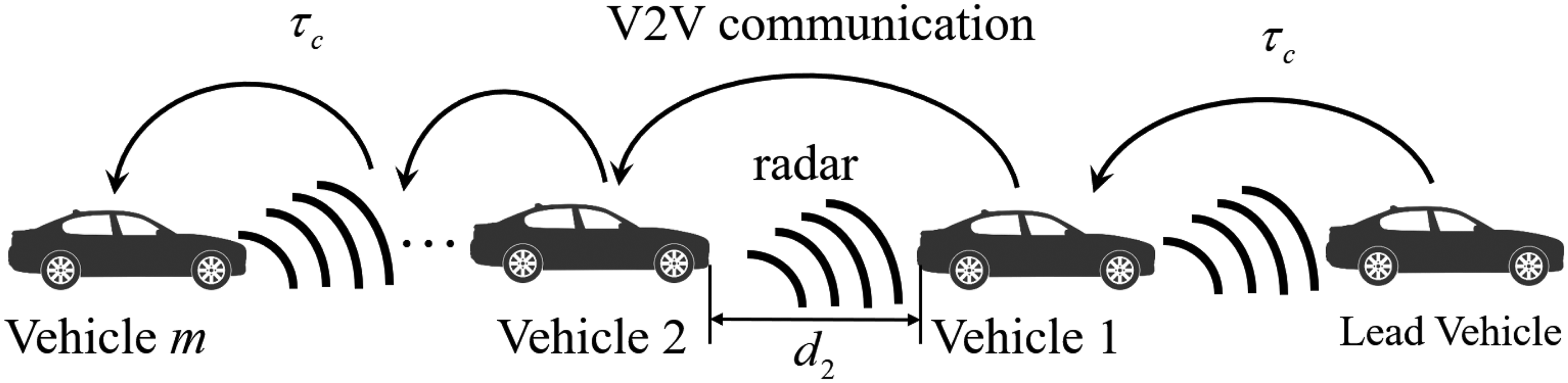

A platoon with $m + 1$ vehicles, as shown in Figure 1, is discussed. The main control objective is to regulate the subject vehicle’s longitudinal motion to follow its predecessor with a constant time gap. The inter-vehicle spacing, the speed of the subject vehicle and the predecessor, and the acceleration of the subject vehicle are assumed to be detected by on-board sensors, including radar, speedometer, and accelerometer. The acceleration and control of the predecessor are collected by the V2V communication system. The communication topology is assumed to be predecessor-follower (PF) topology, which is a distributed communication structure that is more resilient to communication failure compared with centralized communication topology. Communication delay, $τ_{c}$ , and time constant, $τ_{e}$ , are introduced to model the delay of the communication system and the time lag of the vehicle actuation system respectively. The inter-vehicle communication delays are assumed to be heterogeneous.

Figure 1.

Cooperative adaptive cruise control fleet with communication delay.

The longitudinal vehicle dynamics model, which is assumed to be the same for all the vehicles, is first formulated as follows.

\dot{a} (t) = \frac{u (t) - a (t)}{τ_{e}}

(1)

where

a

is acceleration,

u

is control, and

τ_{e}

is time constant.

In the remainder of this section, the original CACC ( 8 , 9 ) and delay-compensating CACC (DC-CACC) are introduced. Both CACC systems are linear feedback controllers. The difference between the two CACC systems lies in the formulation of desired spacing.

Spacing Policy of the Original CACC

In the widely-used CACC with a constant time gap (CTG) policy, the prevailing definition of time gap denotes the time it takes the subject vehicle to approach its predecessor at the current speed. The desired spacing for this CACC family is formulated as

d_{r, i} (t) = r_{i} + v_{i} (t) \times g

(2)

where

i

is the index of the subject vehicle,

r

is the standstill distance,

v_{i}

is the speed of the subject vehicle, and

g

is the desired time gap.

Under this formulation, the spacing error is

\begin{array}{l} e_{i} (t) = d_{i} (t) - d_{r, i} (t) \\ = p_{i - 1} (t) - p_{i} (t) - v_{i} (t) \times g - L_{i} - r_{i} \end{array}

(3)

where

i - 1

is the index of the preceding vehicle,

p_{i - 1}

and

p_{i}

are longitudinal rear-bumper positions of the preceding vehicle and the subject vehicle respectively, and

L

is the vehicle length.

Spacing Policy of the Delay-Compensating CACC

We propose adapted desired spacing, namely semi-constant time gap policy (Semi-CTG) ( 23 ), as

{\tilde{d}}_{r, i} (t) = r_{i} + v_{i} (t) \times g_{1} + \int_{t^{'} = t - g_{2}}^{t} v_{i - 1} (t^{'}) d t^{'}

(4)

The tilde symbol is used to distinguish the variables of the delay-compensating CACC and those of the original. In this spacing policy ( 4 ), the second part is proportional to the subject vehicle speed and the third part is the running distance of the preceding vehicle in the past $g_{2}$ seconds. In this way, the desired spacing involves both the current driving state of the subject vehicle and the historical driving state of the preceding vehicle. $\tilde{g} = g_{1} + g_{2}$ is then the equivalent desired time gap.

For communication delay which is small enough (as is the case with next generation communication systems), the desired spacing can be also approximated as follows to simplify the control design.

{\tilde{d}}_{r, i} (t) \approx r_{i} + v_{i} (t) \times g_{1} + v_{i - 1} (t) \times g_{2}

(5)

The spacing error is written as

\begin{array}{l} e_{i} (t) = d_{i} (t) - {\tilde{d}}_{r, i} (t) \\ = [p_{i - 1} (t) - \int_{t^{'} = t - g_{2}}^{t} v_{i - 1} (t^{'}) d t^{'}] - p_{i} (t) \\ - v_{i} (t) g_{1} - L_{i} - r_{i} \\ = p_{i - 1} (t - g_{2}) - p_{i} (t) - v_{i} (t) g_{1} - L_{i} - r_{i} \end{array}

(6)

Comparing the spacing errors of the original CACC of Equation 3 and the delay-compensating CACC of Equation 6, it becomes clear that the original CACC requires the current position of preceding vehicle while the delay-compensating CACC only needs the historical information of the predecessor. As long as $g_{2} > τ_{c}$ , the required information about the preceding vehicle is fully at hand and the controller is not affected by communication delay.

Control Law

The control laws of both the original CACC and the delay-compensating CACC are formulated in the same form in this section. The original CACC is a prevalent system proposed in ( 8 , 9 ) that has been widely used in CACC design literature.

Then error dynamics is formulated as

(\begin{matrix} e_{1, i} \\ e_{2, i} \\ e_{3, i} \end{matrix}) = (\begin{matrix} e_{i} \\ {\dot{e}}_{i} \\ {\ddot{e}}_{i} \end{matrix})

(7)

We formulate the control law as follows, in which the utilized information of the preceding vehicle is all historical information.

q_{i} (t) = (\begin{matrix} k_{p} & k_{d 1} & k_{d 2} \end{matrix}) (\begin{matrix} e_{1, i} \\ e_{2, i} \\ e_{3, i} \end{matrix}) + u_{i - 1} (t - g_{2})

(8)

with

q_{i} (t) = u_{i} (t) + g_{1} {\dot{u}}_{i} (t)

(9)

where

k_{p}

k_{d 1}

, and

k_{d 2}

are controller parameters; and

q

is a variable introduced to ease the expression of the control law. Note that, by taking

g_{2} = 0

and

g = g_{1}

, the control law is the same as ( 8 ), which is exactly the control law of the original CACC.

Stability Analysis

Delay is critical to several stability properties. Three stability concepts—local stability, string stability, and traffic flow stability—have been widely adopted to evaluate the performance of the CACC system.

Local stability requires that any perturbation on speed, acceleration, or both, will gradually settle down over time ( 8 ).

String stability refers to non-amplifying propagation of perturbation on state (speed, acceleration, etc.), error (spacing error, time gap error, etc.), or control signal through a string of vehicles ( 9 , 13 ). This stability criterion guarantees that any oscillation will be attenuated when propagating upstream.

Traffic flow stability focuses on the evolution of density, velocity, or both, in response to the addition or removal of vehicles to/from the flow ( 24 ). If any density/velocity perturbation eventually attenuates after a time period, then the system is traffic flow stable.

All the three stability concepts are analyzed in this section. It can be proved that the proposed delay-compensating CACC is local stable and string stable. All the three stability criteria of the delay-compensating CACC are stronger than the original CACC.

Local Stability

In this section, the local stability conditions are first given in Lemma 1. Moreover, the delay-compensating CACC is proved to have stronger local stability than the original CACC in Lemma 2. Lemma 1.

The delay-compensating CACC is local stable as long as $k_{p} > 0$ , $k_{d 1} > 0$ , $1 + k_{d 2} > 0$ , $(1 + k_{d 2}) k_{d 1} > k_{p} τ_{e}$ , and $g_{1} > 0$ .

Proof: Combining the vehicle dynamics (Equation 1), error dynamics (Equation 7) and control law (Equations 8 and 9 ), a fourth-order closed-loop model can be derived as

\begin{array}{l} (\begin{matrix} {\dot{e}}_{1, i} \\ {\dot{e}}_{2, i} \\ {\dot{e}}_{3, i} \\ {\dot{u}}_{i} \end{matrix}) = (\begin{matrix} 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 \\ - \frac{k_{p}}{τ_{e}} & - \frac{k_{d 1}}{τ_{e}} & - \frac{1 + k_{d 2}}{τ_{e}} & 0 \\ \frac{k_{p}}{g_{1}} & \frac{k_{d 1}}{g_{1}} & \frac{k_{d 2}}{g_{1}} & - \frac{1}{g_{1}} \end{matrix}) (\begin{matrix} e_{1, i} \\ e_{2, i} \\ e_{3, i} \\ u_{i} \end{matrix}) \\ + (\begin{matrix} 0 \\ 0 \\ 0 \\ \frac{1}{g_{1}} \end{matrix}) u_{i - 1} (t - g_{2}) \end{array}

(10)

The sufficient condition for local stability indicated by the Routh–Hurwitz stability criterion is then given as $k_{p} > 0$ , $k_{d 1} > 0$ , $1 + k_{d 2} > 0$ , $(1 + k_{d 2}) k_{d 1} > k_{p} τ_{e}$ , and $g_{1} > 0$ . This concludes the proof of lemma 1. $■$

Note that the local stability condition of the delay-compensating CACC is the same as that of the original one given in ( 8 ). Lemma 2.

Smaller $g_{1}$ leads to faster system response; the delay-compensating CACC responds and converges faster than the original system if they are both local-stable systems with the same time gap $g = \tilde{g}$ and the same controller parameters.

Proof: Equation 10 directly gives the following third-order closed-loop model as

(\begin{matrix} {\dot{e}}_{1, i} \\ {\dot{e}}_{2, i} \\ {\dot{e}}_{3, i} \end{matrix}) = (\begin{matrix} 0 & 1 & 0 \\ 0 & 0 & 1 \\ - \frac{k_{p}}{τ_{e}} & - \frac{k_{d 1}}{τ_{e}} & - \frac{1 + k_{d 2}}{τ_{e}} \end{matrix}) (\begin{matrix} e_{1, i} \\ e_{2, i} \\ e_{3, i} \end{matrix})

(11)

which shows that the error response is not related to

g_{1}

or preceding vehicle’s feedforward information. On the other hand, Equations 8 and 9 together lead to

\begin{array}{l} u_{i} (t) + g_{1} {\dot{u}}_{i} (t) = (\begin{matrix} k_{p} & k_{d 1} & k_{d 2} \end{matrix}) (\begin{matrix} e_{1, i} \\ e_{2, i} \\ e_{3, i} \end{matrix}) \\ + u_{i - 1} (t - g_{2}) \end{array}

(12)

the right hand side of which is independent of

g_{1}

. The left-hand side shows first-order linear system with time constant

g_{1}

. Linear system theory indicates that smaller

g_{1}

results in faster system response ( 25 ). Furthermore, the right hand side is bounded (as the delay-compensating and the original CACC are both local stable) and the left-hand side is exponentially stable, thus faster response also means faster convergence.

For the delay-compensating system and the original system with the same time gap, the delay-compensating system has a smaller $g_{1}$ (because for the original CACC, $g_{2} = 0$ ). It then naturally holds that the delay-compensating CACC responds and converges faster, in other words, has stronger local stability. □

String Stability

String stability conditions of the proposed delay-compensating CACC are derived in this section. By comparing the minimum time gap required by the CACC system, it is then shown that the proposed delay-compensating CACC can achieve stronger string stability when adopting the same time gap $g = \tilde{g}$ . Lemma 3.

The delay-compensating CACC is string stable if it is local stable; higher $g_{1}$ leads to stronger string stability.

Proof: To prove the string stability of the proposed delay-compensating CACC, we adopt a performance based approach ( 9 ), that is, to examine the transfer function of the system. For more details about this approach, interested readers can refer to ( 6 , 9 , 16 , 26 ) for more information. The string stability criterion is chosen as the transfer function between the preceding vehicle’s acceleration and the subject vehicle’s acceleration, that is

a_{i} (s) = Γ_{i} (s) a_{i - 1} (s)

(13)

where

a (s)

denotes the Laplace transform of

a (t)

. Linear system theory indicates that the following relation holds:

{‖ Γ_{i} (s) ‖}_{H_{\infty}} = \underset{a_{i - 1} \neq 0}{\underset{\sup}{}} \frac{{‖ a_{i} (t) ‖}_{L_{2}}}{{‖ a_{i - 1} (t) ‖}_{L_{2}}}, i \geq 2

(14)

where

{‖ \cdot ‖}_{H_{\infty}}

denotes the

H_{\infty}

norm and

{‖ \cdot ‖}_{L_{2}}

denotes

L_{2}

norm. To guarantee the right-hand side of the above equation to be no more than unity, we then only need to make sure the left-hand side never exceeds 1.

On the other hand, in previous works ( 23 , 27 ), the authors revealed that by combining the vehicle dynamics, the spacing error, and the control law, the transfer function of the proposed CACC system can be derived as

Γ_{i} (s) = \frac{1}{H_{i} (s)} \frac{{\tilde{D}}_{i} (s) + {\tilde{D}}_{i} (s) G_{i} (s) K_{i} (s)}{1 + G_{i} (s) K_{i} (s)} = \frac{{\tilde{D}}_{i} (s)}{H_{i} (s)}

(15)

where

$H_{i} (s) = 1 + g_{1} s$ is the part of spacing policy associated with subject vehicle’s status,

${\tilde{D}}_{i} (s) = e^{- g_{2} s}$ is the delay introduced by the integral part of the semi-CTG policy,

$K_{i} (s) = k_{p} + k_{d 1} s + k_{d 2} s^{2}$ is the feedback part of the control law, and

$G_{i} (s) = \frac{1}{(τ_{e} s +) s^{2}}$ is vehicle dynamics model.

Then it naturally holds that

‖ Γ_{i} (s) ‖ = ‖ Γ_{i} (j ω) ‖ = \sqrt{\frac{1}{1 + {(g_{1} ω)}^{2}}} \leq 1

(16)

where

j

denotes imaginary numbers and

ω

is the angular speed of the oscillation imposed on the preceding vehicle. This shows that for oscillation with any angular speed

ω

, it will be attenuated gradually when propagating upstream. This shows the string stability of the proposed delay-compensating CACC. Also, a greater

g_{1}

gives a smaller transfer function value, and thus stronger string stability.

Lemma 4. For the proposed delay-compensating CACC, the minimum time gap guaranteeing string stability equals the communication delay of the system.

Proof: Lemma 3 shows that for any non-negative $g_{1}$ , the CACC system is stable, which is $g_{1} \geq 0$ . On the other hand, to fully compensate the communication delay, it requires that $g_{2} \geq τ_{c}$ . Together, it leads to

\tilde{g} = g_{1} + g_{2} \geq τ_{c}

(17)

This concludes the proof of lemma 4.

An example of the minimum time gap as a function of communication delay is given in Figure 2 by adopting parameters $k_{p} = 0. 2$ , $k_{d 1} = 0. 7$ , $k_{d 2} = 0$ , which are the same parameters adopted in the section analyzing the simulation results. The minimum time gap of the original CACC system in this figure is derived from the result of ( 8 ). This table shows that delay-compensation CACC requires a lower time gap to guarantee string stability. To stabilize a system with communication delay being 100 ms, which is a fair estimate of current communication technology, the original CACC must employ a time gap of at least 0.57 s, while the delay-compensating CACC requires only 0.10 s. Even for the next generation communication technology, the difference is still huge. 10 ms of communication delay results in a time gap of 0.18 s for the original CACC, which is 18 times the delay-compensating case.

Figure 2.

Minimum time gap guaranteeing string stability. $k_{p} = 0. 2$ , $k_{d 1} = 0. 7$ , $k_{d 2} = 0$ , $τ_{e} = 0. 3$ .

The discussion above indicates that when adopting the same time gap $g = \tilde{g}$ , there are cases where the delay-compensating CACC is string stable but the original one is not (for instance, $g = \tilde{g} = 0. 4$ s with communication delay being $τ_{c} = 0. 1$ s). On the other hand, when the original CACC is string stable, the delay-compensating CACC will definitely be stable. This shows the stronger string stability of the delay-compensating CACC.

Traffic Flow Stability

This section discusses the traffic flow stability of the proposed delay-compensating CACC. The fundamental diagram corresponding to the proposed CACC systems is first derived by assuming that all vehicles in the fleet adopt the same spacing policy. By comparing the fundamental diagram of the delay-compensating CACC and the original CACC, it can be asserted that the delay-compensating strategy helps to improve both traffic flow stability and mobility.

Remark 1. The fundamental diagram of the CACC system with constant time gap (CTG) policy is the triangular fundamental diagram.

The basic values in the triangular fundamental diagram are listed as follows.

Critical density (capacity density): $k_{c} = \frac{1000}{g v_{f} + L}$ ;

Capacity speed: $v_{f}$ ;

Capacity: $q_{c} = \frac{3600}{g + L / v_{f}}$ ;

Jam density: $k_{j} = \frac{1000}{L}$ ;

where $v_{f}$ is free speed, $k$ is density, and $q$ is volume.

Remark 2.

The proposed delay-compensating CACC provides higher traffic volume and stronger traffic flow stability than the original CACC. Also, with the same density, the delay-compensating CACC gives higher running speeds in the jam traffic.

The delay-compensating strategy helps to shorten the car-following time gap, which then leads to a higher capacity and higher critical density. An example of fundamental diagram is given in Figure 3. With the same traffic density, the delay-compensating CACC and the original CACC may have a totally different response to the addition or removal of vehicle to/from the flow. For example, when the traffic density is between the critical densities of the two systems, after a vehicle joins or leaves the flow, the original CACC will produce a disturbance of velocity/density propagating upstream, while the delay-compensating CACC will not. Considering the assertion given in ( 24 ) that the propagation of such disturbances is not undesirable whether they decay or amplify, it can be asserted that the delay-compensating provides stronger traffic flow stability. The delay-compensating CACC also helps to improve mobility. This can be partially shown by the capacity, which increases and the time gap decreases. Furthermore, for any density, a lower time gap will always lead to a higher or equal stable speed (as shown in Figure 3), which then further leads to higher traffic volume.

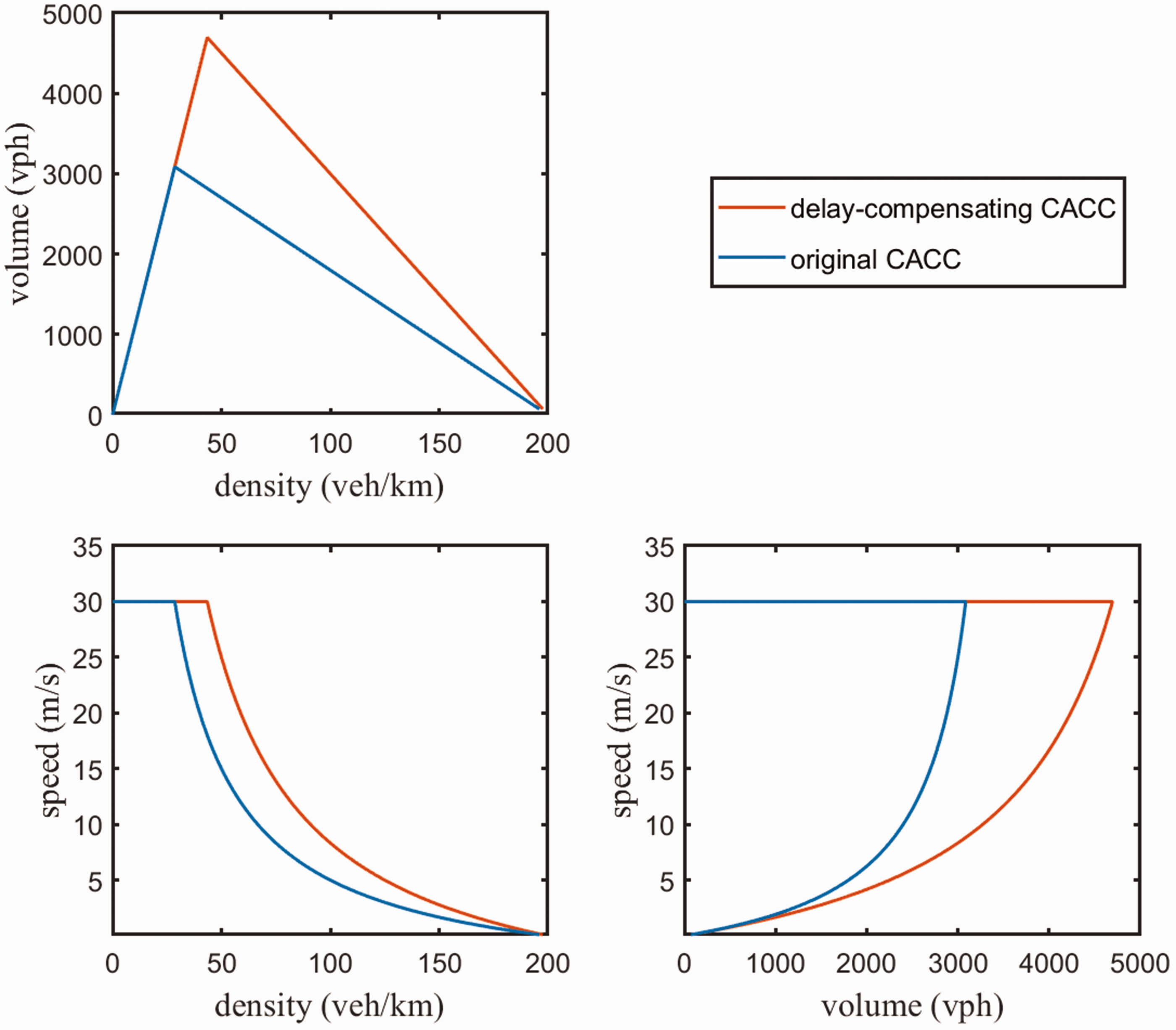

Figure 3.

Fundamental diagram of the delay-compensating CACC and the original CACC: the fundamental diagram of the delay-compensating case has a higher critical density than the original case. $L = 4$ m, $r = 1$ m, $v_{f} = 30$ m/s, $g = 0. 6$ s for the delay-compensating CACC, $g = 1. 0$ s for the original CACC.

Insights from the Delay-Compensating Strategy

Some insights we get from the control design of the delay-compensating CACC are included in this section by revisiting the control logic of the delay-compensating CACC from two different perspectives.

Data synchronizing: The nature of the delay-compensating strategy is not to get rid of communication delay, but to synchronize the data collected by on-board sensors and V2V communication by adding an extra delay to the preceding vehicle’s state (position and speed). This can be clarified by examining the block diagrams. The block diagrams of the original CACC and the proposed delay-compensating CACC are shown in Figure 4, a and b, respectively. There is only one delay component for the preceding vehicle’s control in the original CACC, while there are two for the delay-compensating CACC. The insight here is that it is the lag between different data collecting devices that is detrimental to the CACC’s performance, rather than the delay of any specific data source (note that a similar conclusion was made in [28]). When incorporating data from multiple devices (exactly the case of CAVs), data synchronizing is much more helpful for improving the control effect. This also explains why human-driven vehicles can sometimes keep strong string stability even with very high delay (the average reaction time is 250 ms for visual stimulus) and a low time gap. This shows that humans get information on the preceding vehicle mainly via a single data source, namely visual sense.

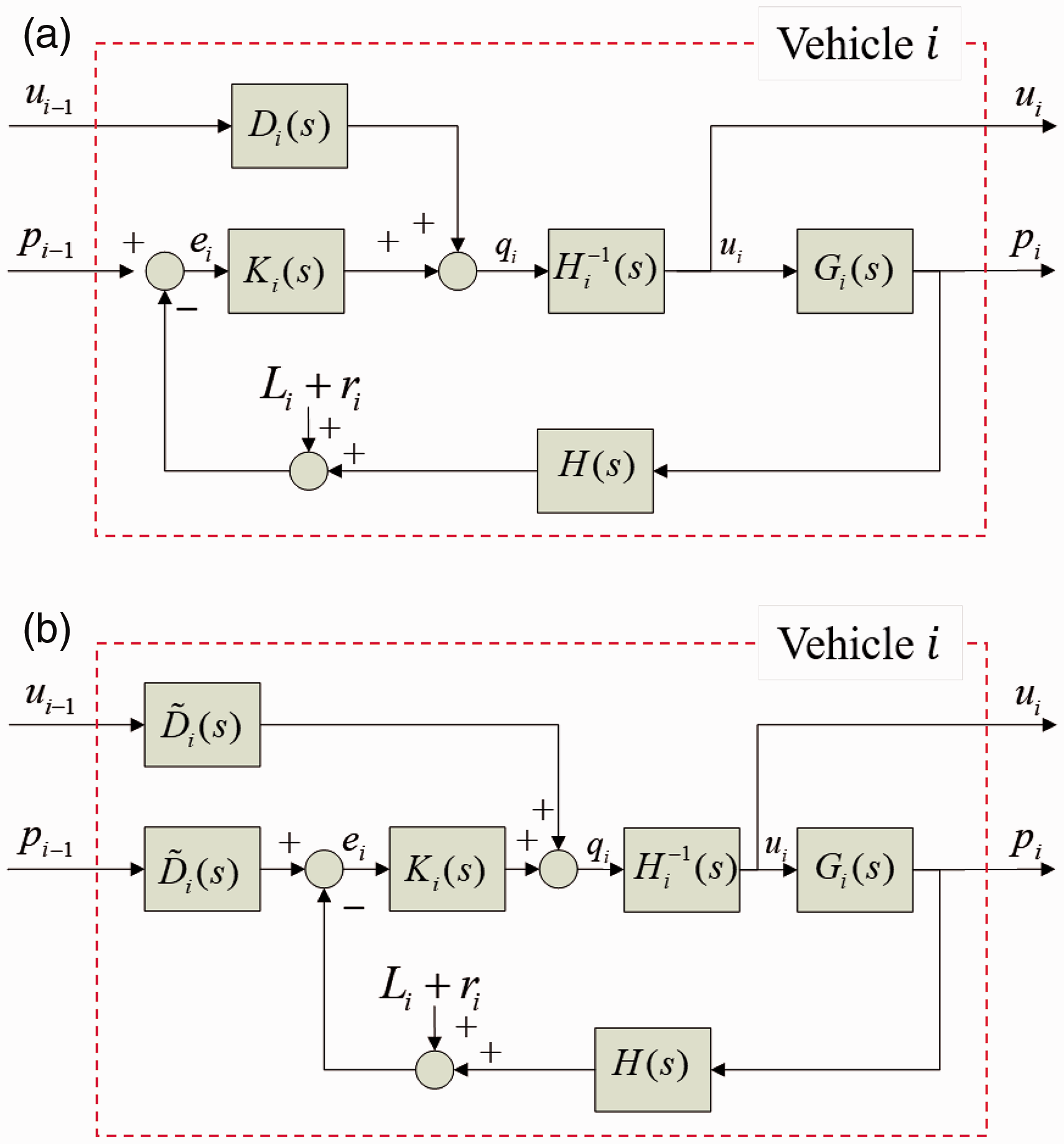

Figure 4.

Block diagrams of the original and delay-compensating CACC systems. $D_{i} (s) = e^{- τ_{c} s}$ is communication delay; $K_{i} (s) = k_{p} + k_{d 1} s + k_{d 2} s^{2}$ is the feedback part of the control law; $H_{i} (s) = 1 + g_{1} s$ is the spacing policy associated with the ego vehicle’s status; $G_{i} (s) = \frac{1}{(τ_{e} s +) s^{2}}$ is the vehicle dynamics model; and ${\tilde{D}}_{i} (s) = e^{- g_{2} s}$ is the delay introduced by the integral part of the semi-CTG policy. The block diagram of the original CACC is excerpted from (8). (a) Block diagram of the original CACC and (b) block diagram of the delay-compensating CACC.

Information synthesis: Another perspective to inspect the delay-compensating CACC is to look at the information involved when formulating the desired spacing. While the spacing policy of the original CACC only considers the subject vehicle’s speed (see Equation 2), that of the delay-compensating CACC makes use of the speed of both the subject vehicle and the preceding vehicle (see Equation 4). The implication is that properly synthesizing the status of consecutive vehicles can make CACC systems perform better. Furthermore, it reveals that synthesizing the preceding vehicle’s status by integrating the speed over a period (Equation 4) is a better choice than multiplying the speed by a time gap (Equation 5). If Equation 5 is adopted as the spacing policy, the derived local-stability conditions and string-stability conditions will differ from the ones in the section on theoretical analysis and lead to a larger minimum time gap. Intuitively, the running distance, which is equivalent to the integral of speed over a period, rather than multiplying the speed by a time gap, can be also adopted to construct spacing policy.

Verification

Simulation is carried out in this section to verify the impact of the proposed delay-compensating CACC on local stability, string stability, traffic flow stability, and mobility. The baseline is the original CACC.

Experiment Setting

The simulation scenarios are depicted in Figure 5. Three different scenarios are simulated—straight lane, merging zone, and circuit. Straight lane is simulated with $N$ vehicles consecutively in a string; merging zone is simulated with $N - 2$ vehicles on the main road and two vehicles on the inlet ramp; and circuit is simulated with $N - 1$ vehicles on the circuit (the circumference of which is $C$ ) and one vehicle trying to cut in. The first and second scenarios are tested to show the performance of the proposed delay-compensating CACC on typical freeway, while the last one serves to show the traffic operation with a predefined density.

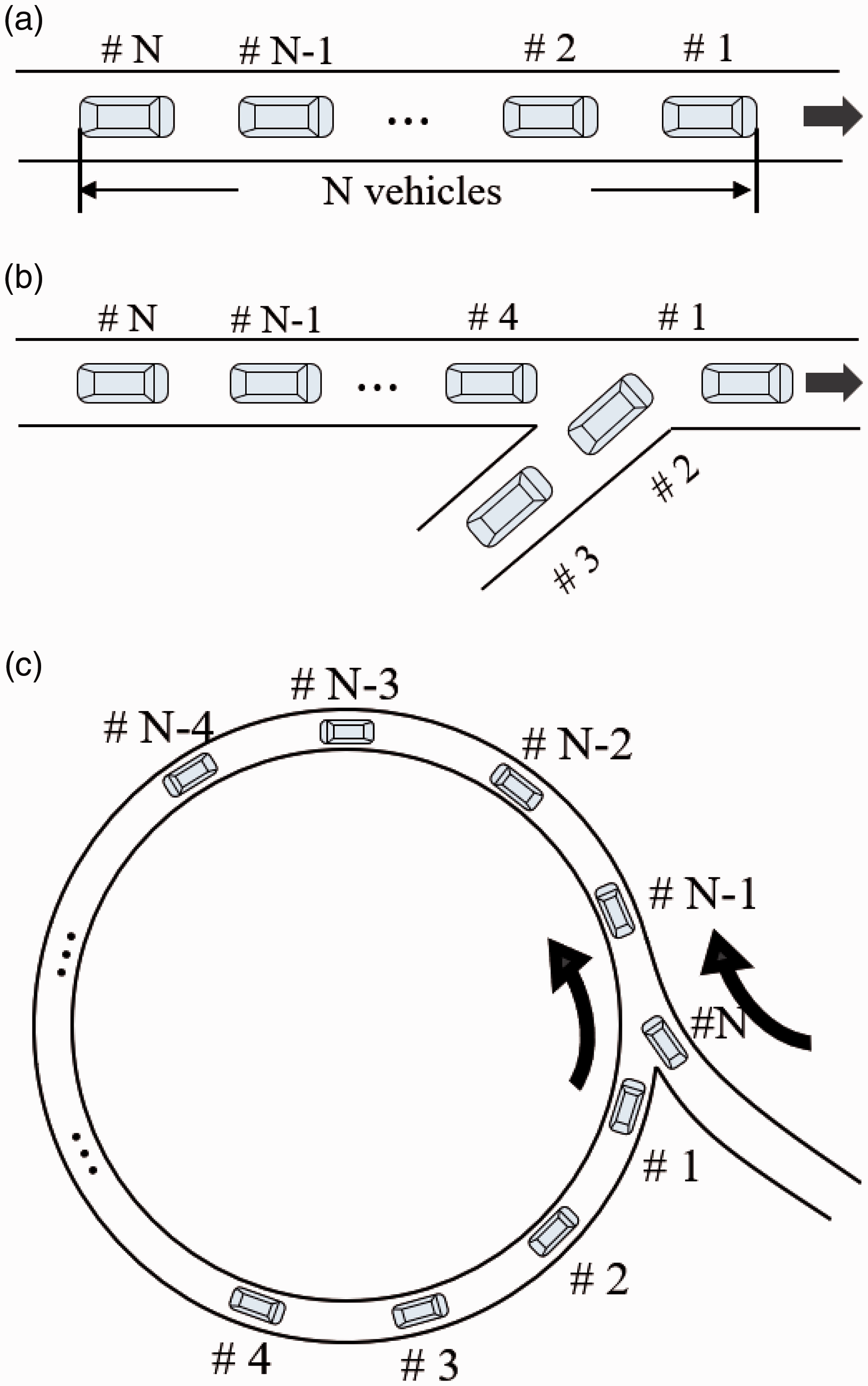

Figure 5.

Experiment scenario. (a) Platoon with N vehicles on straight lane, (b) merging zone with two vehicles trying to cut in, and (c) platoon on circuit with one vehicle trying to cut in.

Based on the three scenarios, four sets of simulation are carried out. The four experiments are respectively designed to verify the effect of the delay-compensating CACC on local stability, string stability, traffic flow stability, and mobility. The four experiments are detailed as follows.

Local stability experiment: A string of vehicles is simulated with the lead vehicle keeping constant speed in the whole simulation round. At $t = 0$ s, each vehicle deviates from stable position with uniform distribution [–2.5 m, 2.5 m] and deviates from stable speed with uniform distribution [–1.5 m/s, 1.5 m/s]. This experiment is designed to verify the positive influence of the delay-compensating CACC on local stability.

String stability experiment: A string of vehicles is simulated with stable initial state. The lead vehicle decelerates from 30 m/s to 5 m/s with constant desired deceleration of –1 m/s². This experiment is designed to verify the positive effect of the delay-compensating CACC on string stability.

Traffic flow stability experiment: This experiment is simulated in the merging zone with two on-ramp vehicles cutting in between the lead vehicle and the second vehicle on the main road. The initial distances between vehicles on the main road are 35 m. The lead vehicle keeps constant speed in the whole simulation round. This experiment is designed to verify the positive influence of the delay-compensating CACC on traffic flow stability.

Circuit experiment: The circuit scenario is simulated. All the vehicles runs with stable initial state. At $t = 0$ s, one vehicle cuts in the flow. This experiment is carried out to show that the delay compensating CACC helps to improve mobility.

Experiment parameters are as follows.

Simulation resolution: 0.1 s; simulation horizon: 100 s.

Controller parameters:

k_{p} = 0. 2

k_{d 1} = 0. 7

k_{d 2} = 0

, standstill distance

r = 1

m, free-flow speed

v_{f} = 30

m/s, time gap is listed in Table 2;

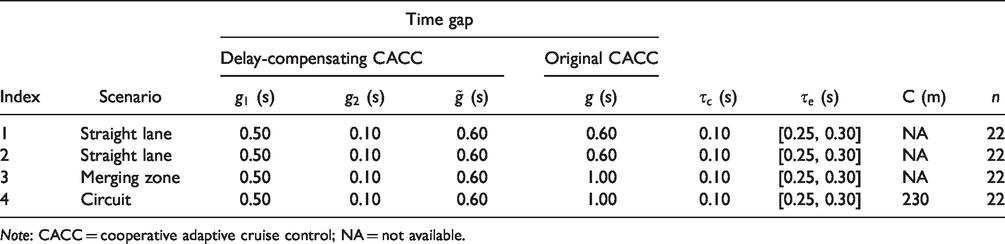

Table 2.

Experiment Setting

Index	Scenario	Time gap				$τ_{c}$ (s)	$τ_{e}$ (s)	C (m)	n
		Delay-compensating CACC			Original CACC
		$g_{1}$ (s)	$g_{2}$ (s)	$\tilde{g}$ (s)	g (s)
1	Straight lane	0.50	0.10	0.60	0.60	0.10	[0.25, 0.30]	NA	22
2	Straight lane	0.50	0.10	0.60	0.60	0.10	[0.25, 0.30]	NA	22
3	Merging zone	0.50	0.10	0.60	1.00	0.10	[0.25, 0.30]	NA	22
4	Circuit	0.50	0.10	0.60	1.00	0.10	[0.25, 0.30]	230	22

Note: CACC = cooperative adaptive cruise control; NA = not available.

Vehicle properties: vehicle length $L = 4$ m, communication delay $τ_{c}$ and time constant $τ_{e}$ are listed in Table 2; Moreover, a sensor delay which is uniformly distributed in [0.05 s, 0.10 s] is assumed.

Controller parameters ( $k_{p}$ , $k_{d 1}$ , and $k_{d 2}$ ) are the same as those given in ( 8 ), which are well tuned. Time gaps are chosen to guarantee the same mobility in the first two experiments, and to produce the similar string stability in the last two experiments. The circumference and vehicle number are the same with the experiment setting of ( 29 ). Furthermore, time constant $τ_{e}$ and sensor delay are both supposed to be uniformly distributed to simulate uncertainty.

Measurements of Effectiveness

Measurements associated with fuel consumption, emissions, mobility, and driving stability are examined. Both fuel consumption and emissions are computed by a VT-Micro model ( 30 ). Mobility is measured by average speed $\bar{v}$ ; driving stability is used to measure all the three stability criteria and is formulated as the ratio of the average $L_{2}$ norm of acceleration and the average speed.

{\bar{σ}}_{a} = \frac{\sum_{i = 1}^{N} \sqrt{\sum_{t = 1}^{T} a_{i, t}^{2}}}{N \sqrt{T} \bar{v}}

(18)

where

N

is vehicle number,

T

is steps of simulation, and

a_{i, t}

is the acceleration of vehicle

i

at simulation step

t

Note that increases in average velocity and decreases in other measurements indicate improvements.

Simulation Results

Computed measurements of effectiveness (MOE) are listed in Table 3. The two CACC controllers perform closely in the local stability experiment. However, for the last three experiments, the delay-compensating CACC outperforms the original CACC by a great scale, which shows the benefits of the proposed delay-compensating strategy on fuel efficiency, emissions, mobility, and stability. The simulation results of the four sets of simulation are shown in Figures 6 –9. The simulation results conform well with the theoretical analysis. Both the local stability and string stability can be verified. All the three stability criteria are shown to be stronger than that of the original CACC. Furthermore, the robustness of the proposed delay-compensating CACC against uncertainties can also be verified.

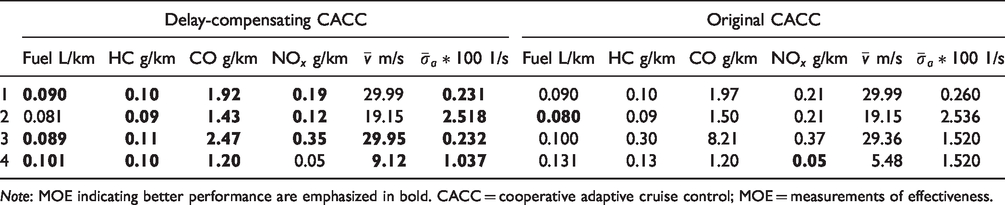

Table 3.

Measurements of Effectiveness

	Delay-compensating CACC						Original CACC
	Fuel L/km	HC g/km	CO g/km	NO $_{x}$ g/km	$\bar{v}$ m/s	${\bar{σ}}_{a} * 100$ 1/s	Fuel L/km	HC g/km	CO g/km	NO $_{x}$ g/km	$\bar{v}$ m/s	${\bar{σ}}_{a} * 100$ 1/s
1	0.090	0.10	1.92	0.19	29.99	0.231	0.090	0.10	1.97	0.21	29.99	0.260
2	0.081	0.09	1.43	0.12	19.15	2.518	0.080	0.09	1.50	0.21	19.15	2.536
3	0.089	0.11	2.47	0.35	29.95	0.232	0.100	0.30	8.21	0.37	29.36	1.520
4	0.101	0.10	1.20	0.05	9.12	1.037	0.131	0.13	1.20	0.05	5.48	1.520

Note: MOE indicating better performance are emphasized in bold. CACC = cooperative adaptive cruise control; MOE = measurements of effectiveness.

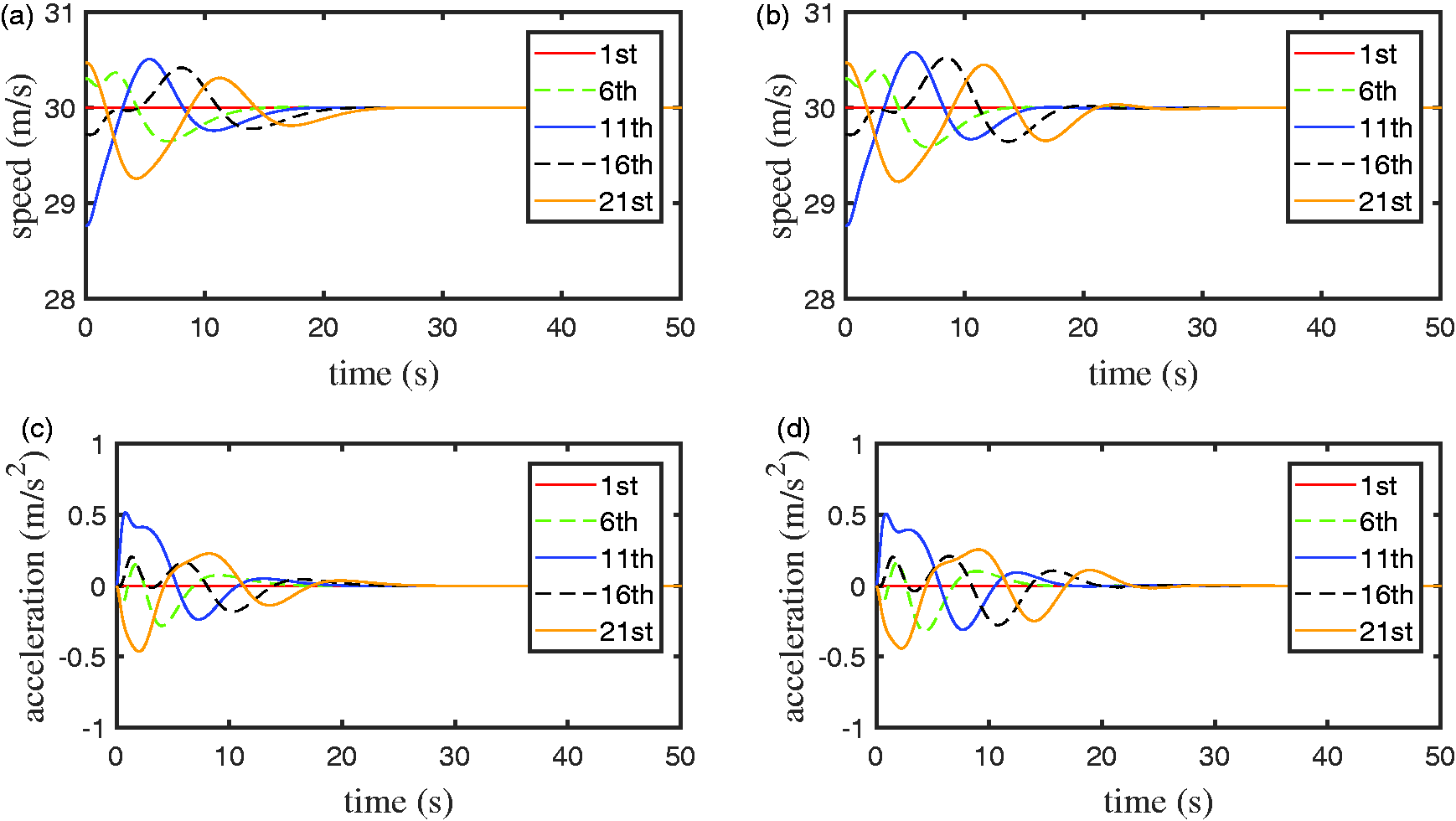

Figure 6.

Local stability experiment: the platoon controlled by both the delay-compensating CACC and the original CACC gradually gets back to the stable state; the delay-compensating CACC converges faster, which indicates stronger local stability. $k_{p} = 0. 2$ , $k_{d 1} = 0. 7$ , $k_{d 2} = 0$ , $τ_{e} \sim U [0. 25 s, 0. 30 s]$ , time gaps for both controllers are 0.6 s. (a) Speed profile of local stability experiment with delay compensation, (b) speed profile of local stability experiment without delay compensation, (c) acceleration profile of local stability experiment with delay compensation, and (d) acceleration profile of local stability experiment without delay compensation.

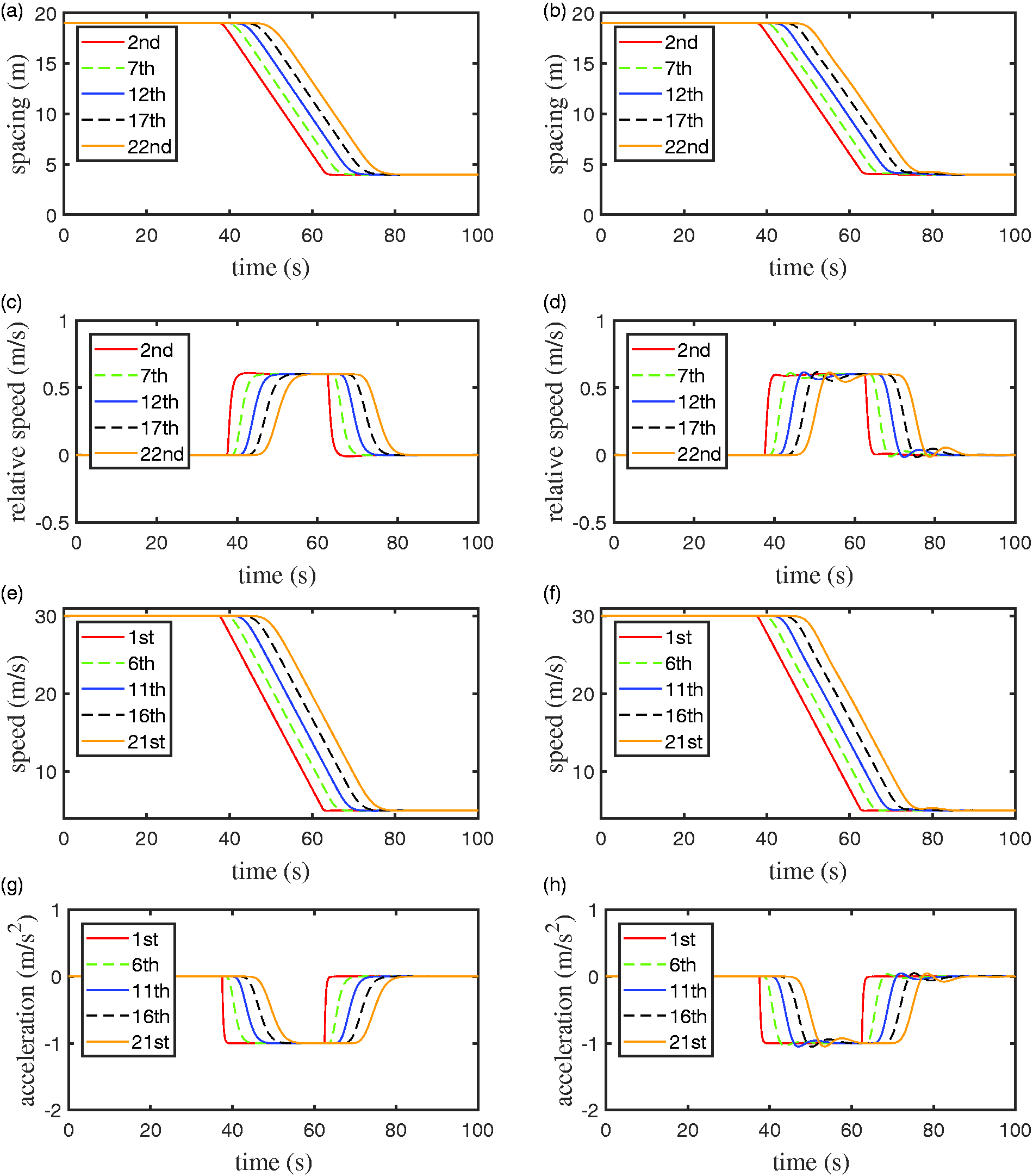

Figure 7.

String stability experiment: the delay-compensating CACC is string stable while the original CACC is not. $k_{p} = 0. 2$ , $k_{d 1} = 0. 7$ , $k_{d 2} = 0$ , $τ_{e} \sim U [0. 25 s, 0. 30 s]$ , time gap for both controllers are 0.6 s. (a) Spacing of string stability experiment with delay compensation, (b) spacing of string stability experiment without delay compensation, (c) relative speed (v_i – v_i–₁) of string stability experiment with delay compensation, (d) relative speed (v_i – v_i–₁) of string stability experiment without delay compensation, (e) speed profile of string stability experiment with delay compensation, (f) speed profile of string stability experiment without delay compensation, (g) acceleration profile of string stability experiment with delay compensation, and (h) acceleration profile of string stability experiment without delay compensation.

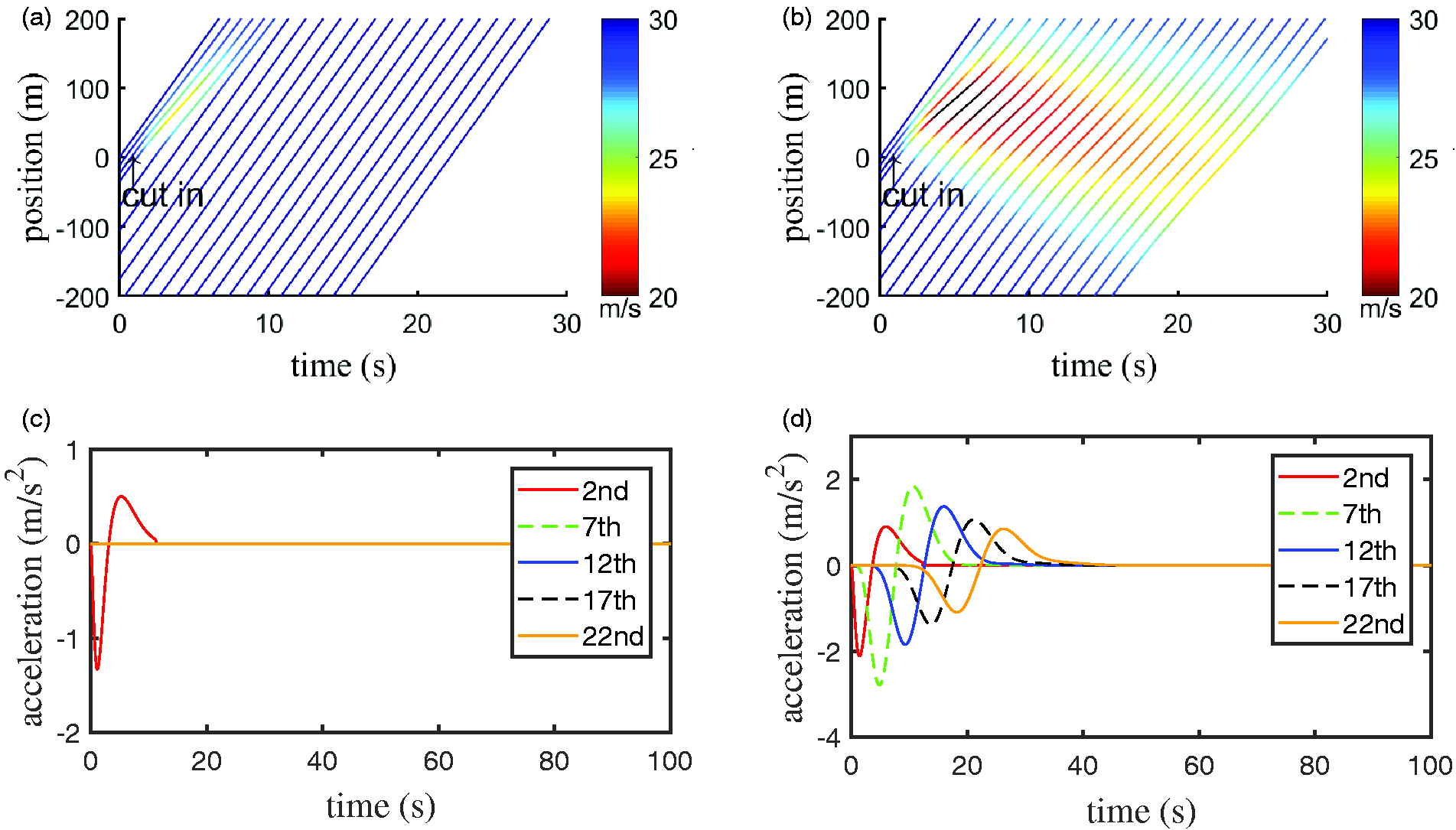

Figure 8.

Traffic flow stability experiment: the delay-compensating CACC leads to free flow and the original CACC leads to congested flow. The color map in (a) and (b) represents instantaneous speed. $k_{p} = 0. 2$ , $k_{d 1} = 0. 7$ , $k_{d 2} = 0$ , $τ_{e} \sim U [0. 25 s, 0. 30 s]$ , $g = 0. 6$ s for the delay-compensating CACC, $g = 1. 0$ s for the original CACC. (a) Position of traffic flow stability experiment with delay compensation, (b) position of traffic flow stability experiment without delay compensation, (c) acceleration profile of traffic flow stability experiment with delay compensation, and (d) acceleration profile of traffic flow stability experiment without delay compensation.

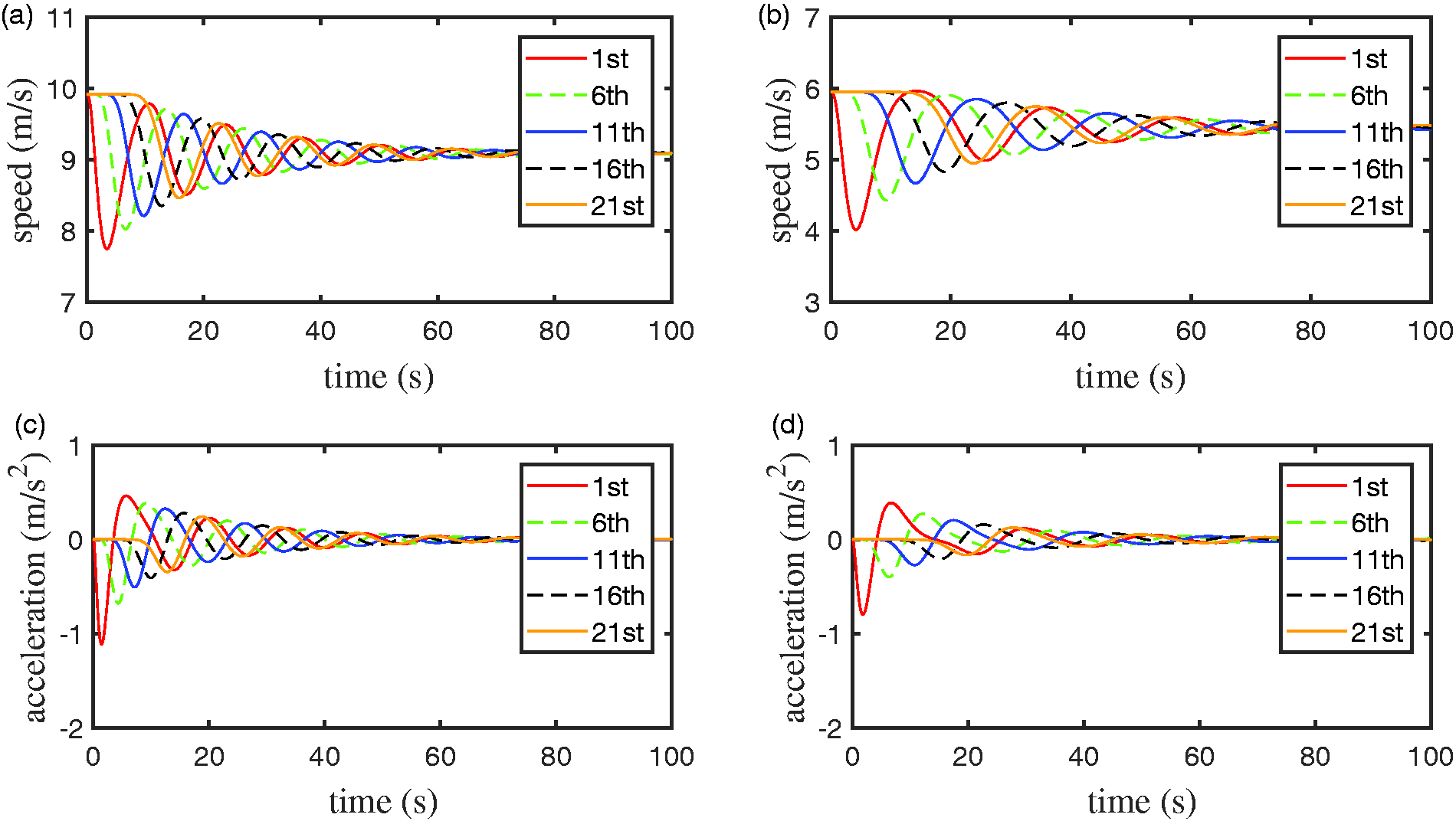

Figure 9.

Circuit experiment with cut-in vehicle (circumference: 230 m): the delay-compensating CACC helps to enhance mobility. $k_{p} = 0. 2$ , $k_{d 1} = 0. 7$ , $k_{d 2} = 0$ , $τ_{e} \sim U [0. 25 s, 0. 30 s]$ , $g = 0. 6$ s for the delay-compensating CACC, $g = 1. 0$ s for the original CACC. (a) Speed profile of circuit experiment with delay compensation, (b) speed profile of circuit experiment without delay compensation, (c) acceleration profile of circuit experiment with delay compensation, and (d) acceleration profile of circuit experiment without delay compensation.

For the first set of simulations, the platoon is running with an unstable initial state (as shown in Figure 6). In the first 20 s, the oscillation is much damped and the platoon gradually gets back to a stable state. This shows the local stability of the proposed delay-compensating CACC. Moreover, the response of the delay-compensating CACC is faster. This can be clearly shown by the acceleration/speed profile of the 21-th vehicle, which takes much more time to get back to a stable state.

The second set of simulations shows the different string stability properties of the original CACC and the delay-compensating CACC (see Figure 7). When the leading vehicle decelerates suddenly, the fleet controlled by the original CACC features amplified oscillation in both acceleration and speed when propagating upstream (see Figure 7, f and h), which implies string instability. On the contrary, a string-stable fleet is shown in the delay-compensating case. The maximum deceleration and the speed range of the followers do not exceed those of the leading vehicle. Furthermore, even with uncertainties in vehicle dynamics and sensor delay, the proposed controller still operates in a string-stable way.

The performance of the two controllers are extremely different in the third set of simulations, as shown in Figure 8. For the delay-compensating CACC, after the initial few seconds, all the vehicles get back to a free flow state. But for the original CACC, the speed and acceleration of the vehicles oscillate for a long time. This is partially caused by the low string stability of the original CACC, which makes the oscillation hard to settle down, and partially because of the low traffic flow stability, which cause density/velocity propagating upstream. Notice that in the braking process, the vehicles run with small inter-vehicle spacing while keeping remarkable speed difference, which may lead to rear-end collision in emergent situations. Unfortunately, greater communication delay than the current setting, for example, 0.2 s, will considerably exacerbate the string-instability of the original CACC, thus increasing the collision risk. One limitation of the proposed linear controller, and many widely-used linear CACC controllers, is that it does not handle state constraints. In safety-critical conditions, a collision avoidance system ( 31 ) is needed, which is beyond the scope of this paper. Another way that deals with safety is to use a model predictive control approach ( 15 ).

For the fourth set of simulations (see Figure 9), when the platoon gets back to a stable state, the delay-compensating platoon runs with a stable speed of 9.09 m/s, while the platoon controlled by the original CACC runs at 5.45 m/s. This is in accordance with the fundamental diagram as shown in Figure 3. In the speed-density diagram, a density of 95.65 v/km (1000/230 × 22 = 95.65) corresponds to exactly 9.09 m/s and 5.45 m/s.

Discussion

The merits and disadvantages of the proposed delay-compensating strategy are discussed in this section.

As mentioned before, the first merit of the proposed strategy is the robustness against the uncertainties and heterogeneity in both the communication and actuation delays. In the proposed controller, the communication delays can be time-varying and delays between different vehicle pairs are not necessarily the same. Furthermore, as indicated by the simulation results, neither the uncertainties nor the heterogeneity in the actuation systems have obvious negative effects on the system’s operation.

The second advantage is the ease of implementation. Compared with the prediction-based method ( 20 – 22 ), no prediction of the predecessor’s maneuver or state is required. Compared with the method resorting to incorporating multi-predecessor states ( 16 ), the proposed system only involves the communication between the subject vehicle and the direct predecessor. The distributed communication topology and absence of prediction help to simplify the system’s implementation.

One disadvantage of the proposed method is the higher requirement for memory capacity. Compared with the original CACC ( 8 , 9 ), more memory is required as the proposed method involves past information, which needs to be stored into and retrieved from the local database. Yet, the extra memory expense is acceptable compared with the memory capacity of the state-of-the-art on-board computers. Another limitation of the proposed controller is that it is a linear state-feedback controller and does not handle state constraints. In safety-critical conditions, a collision avoidance system ( 31 ) is needed.

Conclusion

A delay-compensating CACC controller is proposed in this work. The main idea behind the delay-compensating method is to modify the traditional constant time gap policy. By doing so, the minimum time gap required by the CACC system to guarantee string stability can be reduced to be as small as the communication delay, which is much smaller than that of the original CACC. Three stability criteria—local stability, string stability, and traffic flow stability—are respectively analyzed to reveal the merits of the proposed delay-compensating CACC. Detailed analysis reveals that:

The delay-compensating controller can guarantee both local stability and string stability with time gap as small as the communication delay;

The local stability, string stability, and traffic flow stability of the delay-compensating CACC are stronger than that of the original CACC;

By adopting smaller time gap, the delay-compensating CACC helps to enhance throughput while still attenuating traffic disturbances.

Apart from communication delay, there are two other kinds of delay existing in CACC system—sensor delay and actuator delay. The effects and compensating strategy of these delays are left for future study. Moreover, a generic delay-compensating framework which can be applied to different spacing policies (constant spacing, constant time gap, variable time gap, etc.) and different communication topologies (predecessor-follower, leader-predecessor-follower, etc.) will be covered by future work. Furthermore, the safety effects of the proposed delay-compensating strategy will also be analyzed in future work.

Footnotes

Author Contributions

The authors confirm contribution to the paper as follows: study conception: Y. Zhang, Y. Bai, J. Hu, M. Wang; controller: Y. Zhang; analysis and interpretation of results: Y. Zhang, M. Wang; draft manuscript preparation: Y. Zhang, M. Wang. All authors reviewed the results and approved the final version of the manuscript.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was partially supported by the National Natural Science Foundation of China under Grant number 71871163 and 61803284, National Key R&D Program of China under Grant number 2018YFB1600600, Chinese Scholarship Council (CSC) under Grant number 201806260147, and Research Institute of Highway Fundamental Research Program under Grant number 2018-9060.

Data Accessibility Statement

Data sharing is not applicable to this article as no new data were created or analyzed in this study.

References

Van Arem

, C. J. van Driel, and R. Visser. The Impact of Cooperative Adaptive Cruise Control on Traffic-Flow Characteristics. IEEE Transactions on Intelligent Transportation Systems, Vol. 7, No. 4, 2006, pp. 429–436.

Shladover

, D. Su, and X. Lu. Impacts of Cooperative Adaptive Cruise Control on Freeway Traffic Flow. Transportation Research Record: Journal of the Transportation Research Board, 2012. 2324: 63–70.

Schakel

W. J.

, B. van Arem, and B. D. Netten. Effects of Cooperative Adaptive Cruise Control on Traffic Flow Stability. Proc., 13th International IEEE Conference on Intelligent Transportation Systems, Funchal, Portugal, IEEE, NewYork, 2010, pp. 759–764.

, Y. Shao, Z. Sun, M. Wang, J. Bared, and P. Huang. Integrated Optimal Eco-Driving on Rolling Terrain for Hybrid Electric Vehicle with Vehicle-Infrastructure Communication. Transportation Research Part C: Emerging Technologies, Vol. 68, 2016, pp. 228–244.

Liu

, A. Goldsmith, S. S. Mahal and J. K. Hedrick. Effects of Communication Delay on String Stability in Vehicle Platoons Proc., 2001 IEEE Conference on Intelligent Transportation Systems, Oakland, CA, IEEE, New York, 200l, pp. 625–630.

Dey

K. C.

, L. Yan, X. Wang, Y. Wang, H. Shen, M. Chowdhury, L. Yu, C. Qiu, and V. Soundararaj. A Review of Communication, Driver Characteristics, and Controls Aspects of Cooperative Adaptive Cruise Control (CACC). IEEE Transactions on Intelligent Transportation Systems Vol. 17, No. 2, 2016, pp. 491–509.

Gao

, S. E. Li, Y. Zheng and D. Kum. Robust Control of Heterogeneous Vehicular Platoon with Uncertain Dynamics and Communication Delay. IET Intelligent Transport Systems, Vol. 10, No. 7, 2016, pp. 503–513.

Ploeg

, B. T. Scheepers, E. Van Nunen, N. Van De Wouw, and H. Nijmeijer. Design and Experimental Evaluation of Cooperative Adaptive Cruise Control. Proc., 2011 IEEE Conference on Intelligent Transportation Systems, Washington, D. C., IEEE, New York, 2011, pp. 260–265.

Naus

G. J.

, R. P. Vugts, J. Ploeg, M. J. van De Molengraft, and M. Steinbuch. String-Stable CACC Design and Experimental Validation: A Frequency-Domain Approach. IEEE Transactions on Vehicular Technology, Vol. 59,No. 9, 2010, pp. 4268–4279.

10.

Swaroop

, and J. K. Hedrick. Constant Spacing Strategies for Platooning in Automated Highway Systems. Journal of Dynamic Systems, Measurement, and Control, Vol. 121, No. 3, 1999, pp. 462–470.

11.

Barooah

, and J. P. Hespanha. Error Amplification and Disturbance Propagation in Vehicle Strings with Decentralized Linear Control. Proc., 44th IEEE Conference on Decision and Control, Seville, Spain, IEEE, New York, 2005, pp. 4964–4969.

12.

Wang

, and R. Rajamani. Should Adaptive Cruise-Control Systems be Designed to Maintain a Constant Time Gap between Vehicles? IEEE Transactions on Vehicular Technology Vol. 53, No. 5, 2004, pp. 1480–1490.

13.

Zhou

, and H. Peng. Range Policy of Adaptive Cruise Control Vehicles for Improved Flow Stability and String Stability. IEEE Transactions on Intelligent Transportation Systems, Vol. 6, No. 2, 2005, pp. 229–237.

14.

Rödönyi

An Adaptive Spacing Policy Guaranteeing String Stability in Multi-Brand Ad Hoc Platoons. IEEE Transactions on Intelligent Transportation Systems, Vol. 19, No. 6, 2018, pp. 1902–1912.

15.

Wang

, W. Daamen, S. P. Hoogendoorn, and B. van Arem. Rolling Horizon Control Framework for Driver Assistance Systems. Part II: Cooperative Sensing and Cooperative Control. Transportation Research Part C: Emerging Technologies, Vol. 40, 2014, pp. 290–311.

16.

Ploeg

, D. P. Shukla, N. van de Wouw, and H. Nijmeijer. Controller Synthesis for String Stability of Vehicle Platoons. IEEE Transactions on Intelligent Transportation Systems, Vol. 15, No. 2, 2014, pp. 854–865.

17.

Zhou

, S. Ahn, M. Chitturi, and D. A. Noyce. Rolling Horizon Stochastic Optimal Control Strategy for ACC and CACC under Uncertainty. Transportation Research Part C: Emerging Technologies, Vol. 83, 2017, pp. 61–76.

18.

Gong

, J. Shen, and L. Du. Constrained Optimization and Distributed Computation Based Car Following Control of a Connected and Autonomous Vehicle Platoon. Transportation Research Part B: Methodological, Vol. 94, 2016, pp. 314–334.

19.

Gao

, J. Gao, K. Ozbay, and Z. P. Jiang. Reinforcement-Learning-Based Cooperative Adaptive Cruise Control of Buses in the Lincoln Tunnel Corridor with Time-Varying Topology. IEEE Transactions on Intelligent Transportation Systems, Vol. 20, No. 10, 2019, pp. 3796–3805.

20.

Molnár

T. G.

, W. B. Qin, T. Insperger, and G. Orosz. Application of Predictor Feedback to Compensate Time Delays in Connected Cruise Control. IEEE Transactions on Intelligent Transportation Systems, Vol. 19, No. 2, 2018, pp. 545–559.

21.

Bekiaris-Liberis

, C. Roncoli, and M. Papageorgiou. Predictor-Based Adaptive Cruise Control Design. IEEE Transactions on Intelligent Transportation Systems Vol. 19, No. 99, 2017, pp. 1–15.

22.

Wang

, S. P. Hoogendoorn, W. Daamen, B. vanArem, B. Shyrokau, and R. Happee. Delay-Compensating Strategy to Enhance String Stability of Adaptive Cruise Controlled Vehicles. Transportmetrica B: Transport Dynamics, Vol. 6, No. 3, 2018, pp. 211–229.

23.

Zhang, Y, B. Bai, J. Hu, and M. Wanget al. Gap Policy for Cacc Platoons to Compensate Communication Delay. In 2nd COTA International Symposium on Emerging Trends in Transportation (ISETT 2019). Rome, October, 2019.

24.

Darbha

, and K. Rajagopal. Intelligent Cruise Control Systems and Traffic Flow Stability. Transportation Research Part C: Emerging Technologies, Vol. 7, No. 6, 1999, pp. 329–352.

25.

Kuo

B. C.

, and F. Golnaraghi. Automatic Control Systems, Volume 9. Prentice-Hall Englewood Cliffs, N.J., 1995.

26.

Wang

Infrastructure Assisted Adaptive Driving to Stabilise Heterogeneous Vehicle Strings. Transportation Research Part C: Emerging Technologies, Vol. 91, 2018, pp. 276–295.

27.

Zhang

, M. Wang, J. Hu, and N. Bekiaris-Liberis. Semi-Constant Spacing Policy for Leader-Predecessor-Follower Platoon Control via Delayed Measurements Synchronization. Proc., 21st IFAC World Congress, Berlin, 2020.

28.

Jin

I. G.

, G. Orosz, D. Hajdu, T. Insperger, and J. Moehlis. To Delay or Not to Delay—Stability of Connected Cruise Control. In Time Delay Systems (T. Insperger, T. Ersal, G. Orosz eds.), Springer, Cham, 2017, pp. 263–282.

29.

Sugiyama

, M. Fukui, M. Kikuchi, K. Hasebe, A. Nakayama, K. Nishinari, S. I. Tadaki, and S. Yukawa. Traffic Jams without Bottlenecks—Experimental Evidence for the Physical Mechanism of the Formation of A Jam. New Journal of Physics, Vol. 10, No. 3, 2008, p. 033001.

30.

Ahn

, H. Rakha, A. Trani, and M. VanAerde. Estimating Vehicle Fuel Consumption and Emissions Based on Instantaneous Speed and Acceleration Levels. Journal of Transportation Engineering, Vol. 128, No. 2, 2002, pp. 182–190.

31.

Moon

, I. Moon, and K. Yi. Design, Tuning, and Evaluation of a Full-Range Adaptive Cruise Control System with Collision Avoidance. Control Engineering Practice, Vol. 17, No. 4, 2009, pp. 442–455.

Control Design,Stability Analysis,and Traffic Flow Implications for Cooperative Adaptive Cruise Control Systems with Compensation of Communication Delay

Abstract

Literature Review

Control Design

Spacing Policy of the Original CACC

Spacing Policy of the Delay-Compensating CACC

Control Law

Stability Analysis

Local Stability

String Stability

Traffic Flow Stability

Insights from the Delay-Compensating Strategy

Verification

Experiment Setting

Measurements of Effectiveness

Simulation Results

Discussion

Conclusion

Footnotes

Author Contributions

Declaration of Conflicting Interests

Funding

Data Accessibility Statement

References
