Effect of zinc supplementation on chronic hepatorenal toxicity following oral exposure to glyphosate-based herbicide (Bushfire®) in rats

Abstract

Objectives

To assess the effects of zinc pretreatment on hepatorenal toxicity following chronic exposure to glyphosate-based herbicides in male rats.

Methods

Following zinc pretreatment (50 mg/kg and 100 mg/kg), 14.4 to 750 mg/kg of oral glyphosate (Bushfire® herbicide) was administered daily for 36 weeks. Thereafter, serum samples were obtained following jugular venipuncture. Liver and kidney samples were processed for histopathological examination.

Results

Serum aspartate aminotransferase, alanine aminotransferase, and alkaline phosphatase activity as well as levels of bicarbonate, calcium, creatinine were significantly increased following chronic exposure to Bushfire®. Serum levels of sodium, potassium, chloride, total protein, albumin, globulin and urea were unchanged. Moderate to severe coagulative necrosis of hepatocytes as well as glomerular and renal tubular necrosis were observed in herbicide-treated rats. Zinc pretreatment reduced the elevation of serum enzymes associated with hepatobiliary lesions, abrogated hypercalcemia and metabolic alkalosis, and mitigated serum accumulation of creatinine following Bushfire® exposure, but was ineffective in completely preventing histological lesions.

Conclusion

Chronic Bushfire® exposure in rats caused hepatorenal toxicity. The effects of exposure on serum parameters were ameliorated by zinc pretreatment, but the histopathological changes associated with toxicity persisted in milder forms in zinc-pretreated animals.

Keywords

Zinc liver kidney dysfunction glyphosate-based herbicide chronic exposure toxicity Wistar rat

Introduction

Glyphosate is a non-selective, post-emergent, systemic herbicide that inhibits 5-enolpyruvylshikimate 3-phosphate synthase in the shikimic acid pathway, preventing aromatic acid synthesis in plants.¹ Low toxicity of glyphosate in humans and animals was anticipated because the shikimic acid pathway is restricted to plants and some microorganisms.² In animals, glyphosate interferes with mitochondrial oxidative phosphorylation leading to increased generation of reactive oxygen species and induction of oxidative stress. These effects occur even at permissible daily intake levels.^3–7 Human and animal exposure to the herbicide occurs through consumption of residues in foodstuffs and drinking water, which emanate from surface runoff and leach into the soil following vegetation sprays.^8–10 Over the past decade, an accumulating body of evidence has illustrated the toxic effects of glyphosate.⁵,⁷,¹¹,¹² Hepatorenal toxicity of glyphosate in animals has been reported in previous studies at low and ultralow doses.^5,11,13–15 Zinc is an essential component of the structure of the enzyme, superoxide dismutase, catalyzing the conversion of two superoxide radicals into hydrogen peroxide and molecular oxygen, thereby reducing the toxicity of reactive oxygen species.¹⁶,¹⁷ Zinc also influences the activity of glutamate-cysteine ligase, the rate limiting enzyme for de novo synthesis of glutathione, and acts as a cofactor for glutathione peroxidase¹⁸ in the antioxidant defence system. Therefore, zinc supplementation has been used in some studies to mitigate oxidative stress induced by environmental toxicants.^15,19–22 Frequent dietary intake of or supplementation with zinc is required to meet physiological needs, especially with respect to its function in antioxidant defence system, because this trace element is not stored in substantial amounts in tissues.²³

Our previous study demonstrated that oral zinc supplementation ameliorated the serum biochemical and histological aberrations associated with subchronic glyphosate toxicity (10% LD₅₀) to the liver and kidney following oral exposure of rats for 8 weeks.¹⁴,¹⁵ In this subsequent study, the effect of zinc supplementation on serum biochemical changes and the histological lesions was investigated in rats chronically exposed to glyphosate (up to 20% LD₅₀) for a period of 36 weeks. Our goal was to ascertain whether prolonged zinc supplementation could mitigate the chronic toxicity induced by increasing doses of glyphosate in a herbicide.

Materials and Methods

Experimental animals

Approval was obtained from the Ethics Committee on Animal Use and Care of Ahmadu Bello University, Zaria, Kaduna State, Nigeria prior to commencement of the study.²² Eighty adult male Wistar rats, with initial weights of 140 to 150 g, were obtained from the National Institute for Trypanosomiasis and Onchocerciasis Research (NITOR), Vom, Nigeria. The housing, feeding, and handling of the animals were as previously described.²²

Herbicide composition and zinc supplementation

The glyphosate-based herbicide (Bushfire®, Ningbo Agro-star Industrial Co., Ltd., Zhejiang, China) contained 360 g/L of glyphosate in the form of 441 g/L of the potassium salt. A 2% glyphosate solution was prepared by diluting 1 mL of the glyphosate-based herbicide solution with 49 mL of distilled water. The herbicide was used for toxicity studies at the standard concentration applied in agricultural spraying for a herbicidal effect (2% solution of the herbicide in distilled water).

The oral zinc supplement was prepared as a 2% aqueous solution of zinc chloride (1 g of zinc chloride crystal dissolved in 50 mL of distilled water).

Chronic toxicity study

Eighty rats were randomly divided into eight groups of 10 animals as follows:

Group I (DW) rats served as controls and were administered 2 mL/kg of distilled water daily.

Group II (Z) rats were administered zinc chloride at a dose of 50 mg/kg body weight.²¹

Group III (G1) rats were administered glyphosate orally at 14.4 mg/kg body weight (low dose, <1% LD₅₀).²⁴

Group IV (G2) rats were administered glyphosate orally at 375 mg/kg body weight (10% LD₅₀).²⁴

Group V (G3) rats were administered glyphosate at 750 mg/kg body weight (20% LD₅₀).²⁴

Group VI (ZG1) rats were pretreated with zinc chloride (50 mg/kg) and then administered glyphosate at 14.4 mg/kg body weight 1 hour later.

Group VII (ZG2) rats were pretreated with zinc chloride (50 mg/kg) and then administered glyphosate at 375 mg/kg body weight (10% LD₅₀) 1 hour later.

Group VIII (ZG3) rats were pretreated with zinc (100 mg/kg) and then administered glyphosate at 750 mg/kg (20% LD₅₀) 1 hour later.

Treatments were administered per os by gavage once daily for 36 weeks as recommended for standard toxicological studies.²⁵ Body weight changes were monitored weekly using a digital electronic balance (Hangzhou Gongheng, Hangzhou, China) to enable appropriate dosing. Blood and tissue (liver and kidney) samples were collected from each rat at the end of the 36-week study period to evaluate hepatorenal toxicity via serum biochemical and histopathological evaluations.

Serum biochemical analysis

Blood samples (about 5 mL) were collected without anticoagulant from the jugular vein of each rat. The blood samples were allowed to clot at room temperature for 30 minutes, then centrifuged at 800 × g for 10 minutes to obtain sera. Serum aspartate aminotransferase (AST), alanine aminotransferase (ALT), and alkaline phosphatase (ALP) activities and levels of total protein, albumin, electrolytes (sodium, chloride, potassium, bicarbonate, calcium), urea and creatinine were determined using the Bayer Express plus Clinical Chemistry Autoanalyser (Bayer®, Leverkusen, Germany). Globulin concentration was calculated by subtracting the albumin concentration from the total protein concentration.

Histopathological examination

Tissue samples of the liver and kidney were collected and fixed in 10% neutral buffered formalin. The samples were dehydrated in graded concentrations of alcohol (70%, 80%, 95% and 100%), cleared using xylene, impregnated with paraffin wax, incubated in a vacuum air oven at 60°C, embedded in plastic embedding rings, cut into 5-µm sections using a microtome, deparaffinized with xylene, rehydrated in graded concentrations of alcohol (100%, 95%, 80% and 70%) and stained with haematoxylin and eosin (H&E).²⁶ The tissue sections were examined by light microscopy to assess the presence of lesions and photomicrographs were taken.

Statistical analysis

Data were presented as means ± standard errors of the means. Differences among multiple groups were evaluated by one-way analysis of variance followed by Tukey’s post-hoc test using GraphPad Prism Version 4.0 for Windows (GraphPad Inc., La Jolla, CA, USA). Values of p < 0.05 were considered statistically significant. Any relative difference of >10% was noted even in the absence of statistical significance.

Results

Effects of zinc and glyphosate treatments on serum electrolyte concentrations

There was no significant difference in sodium (Na⁺), chloride (Cl^-) or potassium (K⁺) concentrations between any of the groups (Figure 1a). However, there were decreasing trends in K⁺ concentrations observed in groups ZG1 (13.1%), G1 (13.8%), G3 (15.4%) and G2 (18.0%) compared with the DW group (Figure 1a). There was a significant (p = 0.02) increase in the bicarbonate (HCO₃^-) concentration in the G3 group compared with the DW group. There were increased trends in HCO₃⁻ concentrations in groups Z (25%), ZG3 (50%), ZG1 (85%), ZG2 (102.8%), G1 (131%) and G2 (150%) compared with the DW group (Figure 1a). There was a significant (p = 0.002) increase in calcium (Ca²⁺) concentrations in the G2 group compared with the DW group (Figure 1b).

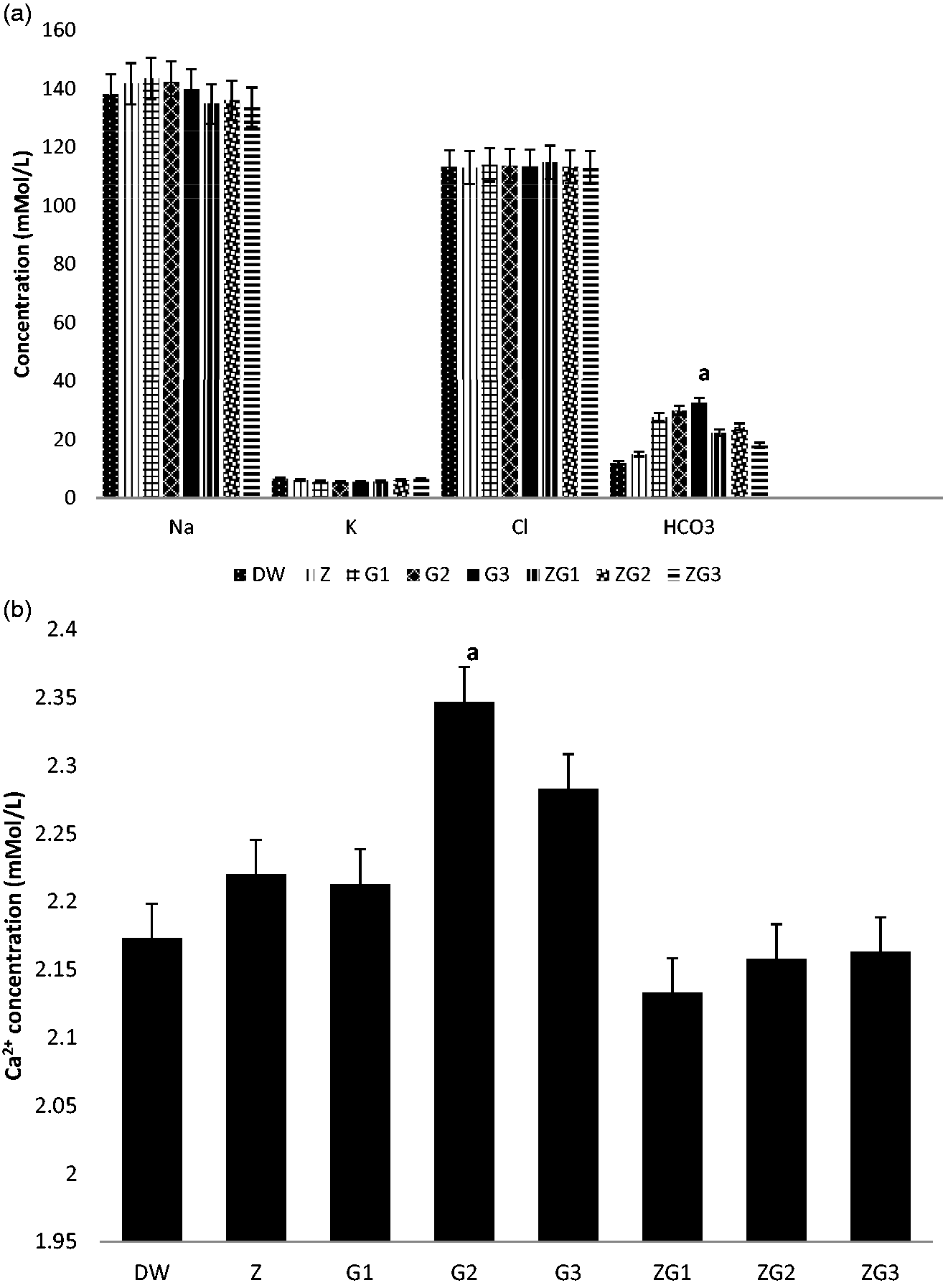

Figure 1.

(a) Serum electrolyte concentrations in Wistar rats treated with 2 mL/kg distilled water (DW), 50 mg/kg zinc (Z), 14.4 mg/kg glyphosate (G1), 375 mg/kg glyphosate (G2), 750 mg/kg glyphosate (G3), 50 mg/kg zinc + 14.4 mg/kg glyphosate (ZG1), 50 mg/kg zinc + 375 mg/kg glyphosate (ZG2), or 100 mg/kg zinc + 750 mg/kg glyphosate (ZG3) for 36 weeks. a, p = 0.02. (b) Serum calcium concentrations in Wistar rats treated with 2 mL/kg distilled water (DW), 50 mg/kg zinc (Z), 14.4 mg/kg glyphosate (G1), 375 mg/kg glyphosate (G2), 750 mg/kg glyphosate (G3), 50 mg/kg zinc + 14.4 mg/kg glyphosate (ZG1), 50 mg/kg zinc + 375 mg/kg glyphosate (ZG2), or 100 mg/kg zinc + 750 mg/kg glyphosate (ZG3) for 36 weeks. a, p = 0.002.

Effects of zinc and glyphosate treatments on serum enzyme activities

There were significant (p < 0.001) increases in AST activity in the G3, G2 and G1 groups compared with the DW group. There were increasing trends in AST activity in the Z (26%), ZG1 (104%), ZG2 (109%) and ZG3 (109%) groups compared with the DW group (Figure 2).

Figure 2.

Serum enzyme activity in Wistar rats treated with 2 mL/kg distilled water (DW), 50 mg/kg zinc (Z), 14.4 mg/kg glyphosate (G1), 375 mg/kg glyphosate (G2), 750 mg/kg glyphosate (G3), 50 mg/kg zinc + 14.4 mg/kg glyphosate (ZG1), 50 mg/kg zinc + 375 mg/kg glyphosate (ZG2), or 100 mg/kg zinc + 750 mg/kg glyphosate (ZG3) for 36 weeks. a, p < 0.001.

ALT activity was significantly (p < 0.001) higher in the G2 and G3 groups compared with the DW group. There was an increasing trend in ALT activity in the G1 group (80.9%) compared with the DW group and a decreasing trend in ALT activity in the ZG1 (12%), ZG3 (29%) and Z (54%) groups compared with the DW group (Figure 2).

There was a significant (p < 0.001) increase in ALP activity in the G3 group compared with the DW group. There was an increasing trend in ALP activity in the ZG1 (16%), G1 (46%), ZG3 (55%), ZG2 (58%) and G2 (65%) groups compared with the DW group. There was a decreasing trend in ALP activity in the Z group (23%) compared with the DW group (Figure 2).

Effects of zinc and glyphosate treatments on serum total protein concentration

There were no significant differences in total serum protein between any of the groups. There were decreasing trends in total serum protein in the ZG2 (10%), ZG1 (13%), G1 (14%), G2 (16%) and G3 (21%) groups compared with the DW group (Figure 3).

Figure 3.

Serum protein levels in Wistar rats treated with 2 mL/kg distilled water (DW), 50 mg/kg zinc (Z), 14.4 mg/kg glyphosate (G1), 375 mg/kg glyphosate (G2), 750 mg/kg glyphosate (G3), 50 mg/kg zinc + 14.4 mg/kg glyphosate (ZG1), 50 mg/kg zinc + 375 mg/kg glyphosate (ZG2), or 100 mg/kg zinc + 750 mg/kg glyphosate (ZG3) for 36 weeks. T/Protein, total protein.

Effects of zinc and glyphosate treatments on serum albumin concentration

Levels of serum albumin showed no significant changes between any of the groups. There were decreasing trends in albumin concentrations in the ZG2 (16%), ZG1 (18%), ZG3 (19%), G1 (19%), G2 (20%) and G3 (29%) groups compared with the DW group (Figure 3).

Effects of zinc and glyphosate treatments on serum globulin concentration

There were no significant differences in serum globulin concentration among the groups. There was an increasing trend in globulin concentrations in the ZG2 (13%) group compared with the DW group and relative decreasing trends in the serum globulin concentrations of the ZG3 (18%), G1 (18%), G3 (18%) and G2 (37%) groups compared with the DW group (Figure 3).

Effects of zinc and glyphosate treatments on serum urea concentration

There was no significant difference in the serum urea concentrations between any of the groups. There were increasing trends in the serum urea concentrations of groups Z (13%), ZG1 (42%), G1 (79%), ZG2 (102%), ZG3 (122%), G2 (172%) and G3 (265%) compared with the DW group (Figure 4).

Figure 4.

Serum urea concentrations in Wistar rats treated with 2 mL/kg distilled water (DW), 50 mg/kg zinc (Z), 14.4 mg/kg glyphosate (G1), 375 mg/kg glyphosate (G2), 750 mg/kg glyphosate (G3), 50 mg/kg zinc + 14.4 mg/kg glyphosate (ZG1), 50 mg/kg zinc + 375 mg/kg glyphosate (ZG2), or 100 mg/kg zinc + 750 mg/kg glyphosate (ZG3) for 36 weeks.

Effects of zinc and glyphosate treatments on serum creatinine concentration

There was a significant (p = 0.01) increase in the serum creatinine levels of the G2 group compared with the DW group. There were increasing trends in the serum creatinine concentrations of the ZG1 (55%), ZG2 (109%), ZG3 (128%), G1 (126%) and G3 (181%) groups compared with the DW group (Figure 5).

Figure 5.

Serum creatinine concentrations in Wistar rats treated with 2 mL/kg distilled water (DW), 50 mg/kg zinc (Z), 14.4 mg/kg glyphosate (G1), 375 mg/kg glyphosate (G2), 750 mg/kg glyphosate (G3), 50 mg/kg zinc + 14.4 mg/kg glyphosate (ZG1), 50 mg/kg zinc + 375 mg/kg glyphosate (ZG2), or 100 mg/kg zinc + 750 mg/kg glyphosate (ZG3) for 36 weeks. a, p = 0.01.

Histopathological findings

The livers of rats in group I (DW) showed no observable lesions (Figure 6a). The livers of rats in group II (Z) showed moderate fatty degeneration, coagulative necrosis of hepatocytes and mononuclear cell infiltration (Figure 6b). Severe fatty degeneration was observed in the livers of rats in group III (G1) (Figure 6c). The livers of rats in group IV (G2) showed severe fatty degeneration and coagulative necrosis of hepatocytes (Figure 6d). Moderate fatty degeneration, congestion and coagulative necrosis of hepatocytes were observed in the livers of rats in group V (G3) (Figure 6e). Fatty degeneration, congestion, coagulative necrosis of hepatocytes and mononuclear cell infiltration were observed in the livers of rats in group VI (ZG1) (Figure 6f). Histopathological changes observed in the livers of rats in group VII (ZG2) included fatty degeneration, congestion, coagulative necrosis of hepatocytes and mononuclear cell infiltration, especially at the perivascular areas (Figure 6g). Fatty degeneration and coagulative necrosis were observed in the livers of rats in group VIII (ZG3) (Figure 6h).

Figure 6.

Photomicrographs of liver of rats administered distilled water (DW) (a), zinc (Z) (b), glyphosate 14.4 mg/kg (G1) (c), glyphosate at 375 mg/kg (G2) (d), glyphosate at 750 mg/kg (G3) (e), zinc 50 mg/kg + glyphosate 14.4 mg/kg (ZG1) (f), zing 50 mg/kg + glyphosate 375 mg/kg (ZG2) (g), or zinc 100 mg/kg + glyphosate 750 mg/kg (ZG3) (h) for 36 weeks (H&E). No observable microscopic lesions were observed in panel (a). Moderate fatty degeneration (fd) can be observed in panels (b), (e), (g) and (h) and severe fd can be observed in panels (c) and (d). Hepatocyte degeneration (hd) can be observed in panel (c) and congestion (c) can be observed in panel (d). Perivascular mononuclear cell infiltration (mnc) can be observed in panels (e) and in milder form in (f). Coagulative necrosis of hepatocytes (nhc) can be observed in panel (e) and severe hepatocellular coagulation (hcn) can be observed in panel (f).

The kidneys of rats in group I (DW) and group II (Z) showed no observable lesions (Figures 7a and 7b, respectively). Mild coagulative necrosis of the glomeruli and renal tubules and moderate mononuclear cell infiltration into the periglomerular spaces and interstices of the tubules were observed in the kidneys of rats in group III (G1) (Figure 7c). Moderate coagulative necrosis of the glomeruli, mild renal tubular coagulation necrosis, mild mononuclear cell infiltration into the periglomerular spaces and interstices of the tubules, and shrunken glomeruli were observed in the kidneys of rats in group IV (G2) (Figure 7d). Severely shrunken glomeruli, severe coagulation necrosis of the glomeruli and renal tubules, and mild mononuclear cell infiltration into the interstices of the tubules were observed in the kidneys of rats in group V (G3) (Figure 7e). The kidneys of rats in group VI (ZG1) showed coagulative necrosis of the glomeruli and renal tubules and mononuclear cell infiltration into the periglomerular spaces and interstices of the tubules (Figure 7f). The kidneys of rats in group VII (ZG2) showed pyknosis of the glomerular epithelial cells, coagulative necrosis of the glomeruli and renal tubules, and mononuclear cell infiltration into the periglomerular spaces and interstices of the tubules (Figure 7g). Pyknosis of the glomerular epithelial cells, coagulative necrosis of the glomeruli and renal tubules, and mononuclear cell infiltration into the periglomerular spaces and interstices of the tubules were observed in the kidneys of rats in group VIII (ZG3) (Figure 7h).

Figure 7.

Photomicrographs of kidneys of rats administered distilled water (DW) (a), zinc (Z) (b), glyphosate 14.4 mg/kg (G1) (c), glyphosate at 375 mg/kg (G2) (d), glyphosate at 750 mg/kg (G3) (e), zinc 50 mg/kg + glyphosate 14.4 mg/kg (ZG1) (f), zing 50 mg/kg + glyphosate 375 mg/kg (ZG2) (g), or zinc 100 mg/kg + glyphosate 750 mg/kg (ZG3) (h) for 36 weeks (H&E). No observable microscopic lesions were observed in panels (a) or (b). Coagulative necrosis of the glomerulus (n) can be observed in mild form in panel (c), in moderate form in panel (d), and in panel (f). Renal tubular necrosis (tn) can b observed in mild form in panels (c) and (d), in severe form in panel (e), and in panels (f), (g) and (h). Moderate and mild periglomerular mononuclear cell infiltration (pgmnc) can be observed in panels (c) and (d), respectively, as well as in panel (f) where it is indicated as (mnc). Mononuclear cell infiltration into the interstices of the tubules (mnc) can be observed in panel (g). A severely shrunken glomerulus (sg) and edematous fluid (e) are present in panel (e). Pyknosis of the glomerular epithelial cells (pyk) can be observed in panels (g) and (h).

Discussion

We observed significant increases in serum parameters associated with damage to the liver (AST, ALT, ALP) and kidney (creatinine) following chronic oral exposure of rats to glyphosate present in the herbicide, Bushfire®. These serum changes occurred in tandem with degenerative and necrotic changes in the tissues as shown by histopathological examination. Our earlier report showed that subchronic glyphosate exposure caused relative changes (>10%) in serum parameters that were biomarkers of hepatorenal damage¹⁴ and mild histomorphological lesions in the organs.¹⁵ The current study suggests that chronic exposure caused more severe hepatorenal lesions than subchronic exposure at 10% LD₅₀. Increasing the exposure dose to 20% LD₅₀ appeared to further increase hepatorenal damage in a dose-dependent manner. Tissue damage induced by glyphosate has been reported after glyphosate exposures that were acute and subacute,^4,27–29 subchronic,¹¹,³⁰,³¹ and chronic.⁵,⁶

The hepatotoxicity of glyphosate is associated with cell membrane damage, resulting in leakage of intracellular enzymes (ALT, AST) into the circulation.¹³,³² Hepatic inflammation characterized by increasing numbers of mononuclear cells and proliferation of collagen fibres in the liver may be responsible for the increased serum ALP activity; in line with this, hepatic enzyme secretion is elevated following cholestasis in the presence of glyphosate-induced steatohepatitis.^33–36 Damage to the liver was expected to affect the functional capacity of the liver to synthesize proteins, thereby influencing serum total protein and albumin levels. However, chronic glyphosate exposure did not significantly affect these values, indicating that the compensatory synthetic capacity of the liver was sustained despite any toxicity.³⁷ It has been reported that the global proteome of rapidly-dividing cells was not impacted by exposure to glyphosate, implying that glyphosate might not impair protein synthesis and protein metabolism.

Renal damage resulting from chronic glyphosate toxicity caused reduction of glomerular filtration as shown by elevated serum creatinine concentrations, without any effect on serum urea concentrations. Elevations of both serum creatinine and urea concentrations in subchronic glyphosate toxicity was previously reported following 12 weeks of exposure in rats.³⁰ Serum creatinine level was reported as the better biomarker of nephrotoxicity following glyphosate exposure³⁸ and its association with renal damage was sustained until the chronic stage as shown by the present study. Factors that prevented the elevation of serum urea concentrations during chronic renal impairment may include excretion of urea from the blood circulation into the intestinal lumen and failure of intestinal microbiota to metabolize urea to absorbable ammonia.³⁹,⁴⁰ This potential loss of blood urea through the intestine might not have resulted in negative nitrogen balance affecting the plasma protein concentration. In addition, renal loss of nitrogen affecting the plasma protein concentration might not also have occurred because proteinuria is not a prominent feature of glyphosate-induced glomerular damage, even during acute glyphosate poisoning.³²

Renal impairment was accompanied by significant elevation of serum calcium and bicarbonate levels, implying that chronic glyphosate exposure caused hypercalcemia and metabolic alkalosis without affecting other serum electrolytes. Hypercalcemia could result from parathormone action stimulated by the hypocalcemic tendency associated with preceding subchronic glyphosate toxicity. Metabolic alkalosis could arise from altered renal tubular function caused by hypercalcemia. This is at odds with reports of metabolic acidosis and hyperkalaemia in acute and subacute glyphosate poisoning.^41–43 Following subchronic glyphosate exposure in rats, there was slight and insignificant depression of serum calcium concentrations.¹⁴ The ability of glyphosate to decrease serum calcium levels may arise from reduced intestinal calcium absorption when calcium is chelated by glyphosate⁴⁴ in tandem with decreased production of active vitamin D following kidney damage.⁴⁵ Mild and chronic hypocalcemic stimulation of the parathyroid gland may induce secondary upregulation of parathormone action resulting in calcium mobilization from the bone into the blood stream. This hypercalcemia induces renal tubular excretion of sodium, with fluid loss and bicarbonate retention, leading to dehydration and metabolic alkalosis.⁴⁶

Pretreatment with zinc ameliorated glyphosate-induced serum biochemical changes following chronic exposure. A similar ameliorative effect of zinc was reported previously following subchronic glyphosate exposure.¹⁴,¹⁵ Hepatorenal protection by zinc was attributed to its antioxidant properties,¹⁶,¹⁷ which might have promoted the integrity of cell membranes and reduced the impact of oxidative stress; this is considered to be the principal factor promoting toxic injury following glyphosate exposure.³,⁴,⁶,⁷,³⁰,³³,⁴⁷ In addition, the inflammatory effect induced by glyphosate⁵,³⁴,³⁶ might be counteracted by the anti-inflammatory properties of zinc.¹⁷ During a chronic toxicity study, zinc pretreatment may not be capable of preventing the metabolic effects of glyoxylate, a metabolite of glyphosate.⁴⁸ Therefore, lesions caused by glyoxylate may persist in rats exposed to glyphosate even with zinc pretreatment. Glyoxylate inhibits metabolic enzymes containing cysteine, downregulates fatty acid oxidation, and promotes cellular lipid accumulation and lipidotic cell damage.⁴⁸ The pro-oxidant action of zinc may occur in hepatorenal cells overloaded with zinc during pretreatment, such that intracellular mobilization of zinc may promote some level of lesion development via aberrant zinc homeostasis.⁴⁹ Slight oxidative stress arising from mobilized zinc may be responsible for the mild microscopic lesions observed in zinc-pretreated rats that were unexposed to glyphosate.

In conclusion, zinc pretreatment of rats chronically exposed to a glyphosate-based herbicide ameliorated hepatorenal toxicity by minimizing serum biochemical changes without preventing morphological lesions. These effects might have been derived from the antioxidant and anti-inflammatory properties of zinc. The persistence of some lesions may be related to the metabolic effects of a glyphosate metabolite (glyoxylate) against which zinc has no activity.

Footnotes

Acknowledgements

The authors sincerely appreciate the kind assistance of Dr. Uchendu Chidiebere (Department of Veterinary Physiology, Pharmacology and Biochemistry, University of Jos, Nigeria) with data analysis. We also thank Mr. Peter Akpulu for preparation of histopathological slides in the histochemistry laboratory, Ahmadu Bello University, Zaria, Nigeria.

Declaration of conflicting interest

The authors declare that there is no conflict of interest.

Funding

This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.

ORCID iD

Emmanuel Vandi Tizhe

References

Dill

Sammons

Feng

PCC

, et al. Glyphosate: discovery, development, applications, and properties. In: Nandula

(ed) Glyphosate resistance in crops and weeds: history, development, and management. Hoboken: Wiley, 2010, pp.1–33.

Williams

Watson

DeSesso

JM.

Developmental and reproductive outcomes in humans and animals after glyphosate exposure: a critical analysis.

J Toxicol Environ Health B Crit Rev 2012; 15: 39–96.

Olorunsogo

Bababunmi

Bassir

Effect of glyphosate on rat liver mitochondria in vivo. Bull Envron Contam Toxicol 1979; 22: 357–364.

Jasper

Locatelli

Pilati

, et al. Evaluation of biochemical, hematological and oxidative parameters in mice exposed to the herbicide glyphosate-Roundup®. Interdisc Toxicol 2012; 5: 133–140.

Mesnage

Arno

Costanzo

, et al. Transcriptome profile analysis reflects rat liver and kidney damage following chronic ultra-low dose Roundup exposure. Envron Health 2015; 14: 70–83.

Bailey

Todt

Burchfield

, et al. Chronic exposure to glyphosate containing pesticides leads to mitochondrial dysfunction and increased reactive oxygen species production in Caenorhabditis elegans. Environ Toxicol Pharmacol 2018; 57: 46–52.

Turkmen

Birdane

Demirel

, et al. Protective effects of resveratrol on biomarkers of oxidative stress, biochemical and histopathological changes induced by subchronic oral glyphosate-based herbicide in rats. Toxicol Res 2019; 8: 238–245.

Bohn

Cuhra

Traavik

, et al. Compositional differences in soybeans on the market: glyphosate accumulates in Roundup ready GM soybeans. Food Chem 2014; 153: 207–215.

European Food Safety Authority. The 2011 European Union report on pesticide residues in food. EFSA J 2014; 12: 3694.

10.

Majewski

Coupe

Foreman

, et al. Pesticides in Mississippi air and rain: a comparison between 1995 and 2007. Envron Toxicol Chem 2014; 33: 1283–1293.

11.

Caglar

Kolankaya

The effect of subacute and subchronic exposure of rats to the glyphosate-based herbicide Roundup®. Environ Toxicol Pharmacol 2008; 25: 57–62.

12.

Modesto

Martinez

CBR.

Effects of Roundup® transcorp on fish: hematology, antioxidant defences and acetylcholinesterase activity.

Chemosphere 2010; 81: 781–787.

13.

Benedetti

Vituri

Trentin

, et al. The effects of subchronic exposure of Wistar rats to the herbicide glyphosate-Biocarb®. Toxicol Letters 2004; 153: 227–232.

14.

Tizhe

Ibrahim

NDG

Fatihu

, et al. Influence of zinc supplementation on histopathological changes in the stomach, liver, kidney, brain, pancreas and spleen during subchronic exposure of Wistar rats to glyphosate. Comp Clin Pathol 2014a; 23: 1535–1543.

15.

Tizhe

Ibrahim

NDG

Fatihu

, et al. Serum biochemical assessment of hepatic and renal functions of rats during oral exposure to glyphosate with zinc. Comp Clin Pathol 2014b; 23: 1043–1050.

16.

Powell

SR.

The antioxidant properties of zinc.

J Nutr 2000; 130: 1447S–1454S.

17.

Prasad

AS.

Zinc is an antioxidant and anti inflammatory agent: its role in human health. Front Nutri 2014; 1: 14.

18.

Eide

DJ.

The oxidative stress of zinc deficiency.

Metallonics 2011; 3: 1124–1129.

19.

Amara

Abdelmelek

Garrel

, et al. Preventive effect of zinc against cadmium-induced oxidative stress in the rat testis. J Reprod Dev 2008; 54: 129–134.

20.

Kumar

Malhotra

Nair

, et al. Protective role of zinc in ameliorating arsenic-induced oxidative stress and histopathological changes in rat liver. J Environ Pathol Toxicol Oncol 2010; 29: 91–100.

21.

Ambali

Abubakar

Shittu

, et al. Chlorpyrifos-induced alteration of haematological parameters in Wistar rats: ameliorative effect of zinc. Res J Environ Toxicol 2010; 4: 55–66.

22.

Tizhe

Ibrahin

NDG

Fatihu

, et al. Pancreatic function and histoarchitecture in Wistar rats following chronic exposure to Bushfire®: the mitigating role of zinc. J Int Med Res 2018; 46: 3296–3305.

23.

Zalewski

Dion

, et al. Zinc metabolism in airway epithelium and airway inflammation: basic mechanisms and clinical targets: a review. Pharmacol Ther 2005; 105: 127–149.

24.

Tizhe

Ibrahim

NDG

Fatihu

, et al. Haematological changes induced by subchronic glyphosate exposure: ameliorative effect of zinc in Wistar rats. Sok J Vet Sc 2013; 11: 28–35.

25.

Organization for Economic Cooperation and Development. Chronic toxicity studies – duration of study. OECD Guideline for Testing Chemicals. 2009, 452.

26.

Baker

Silverton

Pillister

CJ.

Dehydration, impregnation, embedding technique and section preparation. Introd Med Lab Tech, 7th ed. 2000, pp.199–242.

27.

Ayoola

SO.

Histopathological effects of glyphosate on juvenile African catfish (Clarias gariepinus). Am-Eu J Agric Environ Sci 2008; 4: 362–367.

28.

Liu

,et al. Multi-tissue metabolic responses of gold fish (Carassius auratus) exposed to glyphosate-based herbicide. Toxicol Res (Camb) 2016; 5: 1039–1052.

29.

Nakayama

Mimura

Hirano

Renal cortical hypoperfusion caused by glyphosate-surfactant herbicide. Clin Exp Nephrol 2019; 23: 865–866.

30.

Dedeke

Owagboriaye

Ademolu

, et al. Comparative assessment on mechanism underlying renal toxicity of commercial formulation of Roundup herbicide and glyphosate alone in male albino rat. Int J Toxicol 2018; 37: 285–295.

31.

Verderame

Scudiero

How glyphosate impairs liver condition in field lizard Podarcissiculus (Rafinesque-Schmaltz, 1810): histological and molecular evidence.

BioMed Res Int 2019; 2019: 4746283.

32.

Khot

Bhise

Joshi

,et al. Glyphosate poisoning with acute fulminant hepatic failure. Asia Pac J Med Toxicol 2018; 7: 86–88.

33.

Mesnage

Renney

Séralini

,et al. Multiomics reveal non-alcoholic fatty liver disease in rats following chronic exposure to an ultra-low dose of Roundup herbicide. Sci Rep 2017; 7: 39328.

34.

Saleh

SMM

Elghareeb

Ahmed

MAI

, et al. Hepato-morphology and biochemical studies on the liver of albino rats after exposure to glyphosate-Roundup®. J Basic Appl Zool 79: 48.

35.

Mills

Caussy

Loomba

Glyphosate excretion is associated with steatohepatitis and advanced liver fibrosis in patients with fatty liver disease. Clin Gastroenterol Hepatol 2020; 18: 741–743. doi 10.1016/j.cgh.2019.03.045.

36.

Pandey

Dhabade

Kumarasamy

Inflammatory effects of subacute exposure of Roundup in rat liver and adipose tissue. Dose-Response 2019; 17: 1559325819843380.

37.

Antoniou

Nicolas

Mesnage

, et al. Glyphosate does not substitute for glycine in proteins of actively dividing cells. BMC Research Notes 2019; 12: 494.

38.

Wunnapuk

Gobe

Endre

, et al. Use of a glyphosate-based herbicide-induced nephrotoxicity model to investigate a panel of kidney injury biomarkers. Toxicol Lett 2014; 225: 192–200.

39.

Vaziri

Yuan

Norris

Role of urea in intestinal barrier dysfunction and disruption of epithelial tight junction in CKD. Am J Nephrol 2013; 37: 1–6.

40.

Yun

Gao

, et al. Excretory function of intestinal tract enhanced in kidney impaired rats caused by adenine. Scientific World J 2016; 2016: 2695718.

41.

Bradberry

Proudfoot

Vale

JA.

Glyphosate poisoning. Toxicol Rev 2004; 23: 159–167.

42.

Chang

CC.

Cardiopulmonary failure after glyphosate surfactant intoxication: a case report. J Occup Med Toxicol 2009; 4: 2.

43.

Beswick

Millo

Fatal poisoning with glyphosate-surfactant herbicide. JICS 2011; 12: 37–39.

44.

Madsen

HEL

Christensen

Gottlieb-Petersen

Stability constants of copper (II), zinc, manganese (II), calcium, and magnesium complexes of N-(phosphonomethyl)glycine (glyphosate). Acta Chem Scand A 1978; 32: 79–83.

45.

Dusso

Tokumoto

Defective renal maintenance of the vitamin D endocrine system impairs vitamin D renoprotection: a downward spiral in kidney disease.

Kidney Int 2011; 79: 715–729. doi: 10.1038/ki.2010.543.

46.

Vanherweghem

Ducobu

d’Hollander

, et al. Effect of hypercalcemia on water and sodium excretion by isolated dog kidney. Pflugers Arch 1976; 363: 75–80.

47.

El-Shenawy

NS.

Oxidative stress responses of rats exposed to Roundup® and its active ingredient glyphosate.

Environ Toxicol Pharmacol 2009; 28: 379–385.

48.

Ford

Bateman

Gutierrez-Palominos

, et al. Mapping proteome-wide targets of glyphosate in mice. Cell Chem Biol 2017; 24: 1–8.

49.

Maret

The redox biology of redox-inert zinc ions.

Free Radical Biol Med 2019; 134: 311–326.
