Striatal dopamine transporter and receptor availability correlate with relative cerebral blood flow measured with [ 11 C]PE2I,[ 18 F]FE-PE2I and [ 11 C]raclopride PET in healthy individuals

Abstract

The aim of this retrospective study was to investigate relationships between relative cerebral blood flow and striatal dopamine transporter and dopamine D2/3 availability in healthy subjects. The data comprised dynamic PET scans with two dopamine transporter tracers [¹¹C]PE2I (n = 20) and [¹⁸F]FE-PE2I (n = 20) and the D2/3 tracer [¹¹C]raclopride (n = 18). Subjects with a [¹¹C]PE2I scan also underwent a dynamic scan with the serotonin transporter tracer [¹¹C]DASB. Binding potential (BP_ND) and relative tracer delivery (R₁) values were calculated on regional and voxel-level. Striatal R₁ and BP_ND values were correlated, using either an MRI-based volume of interest (VOI) or an isocontour VOI based on the parametric BP_ND image. An inter-tracer comparison between [¹¹C]PE2I BP_ND and [¹¹C]DASB R₁ was done on a VOI-level and simulations were performed to investigate whether the constraints of the modeling could cause correlation of the parameters. A positive association was found between BP_ND and R₁ for all three dopamine tracers. A similar correlation was found for the inter-tracer correlation between [¹¹C]PE2I BP_ND and [¹¹C]DASB R₁. Simulations showed that this relationship was not caused by cross-correlation between parameters in the kinetic model. In conclusion, these results suggest an association between resting-state striatal dopamine function and relative blood flow in healthy subjects.

Keywords

Binding potential dopamine system kinetic modelling PET relative cerebral blood flow

Introduction

There is an increased interest in dual-biomarker approaches with positron emission tomography (PET) to aid in differential diagnosis of patients with neurodegenerative disorders, where both blood flow and, for example, receptor or transporter availability, amyloid load or other characteristics are determined from the same PET scan.^1–5 There are several PET tracers that target the dopamine system, and three of them are [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride. While [¹¹C]PE2I and [¹⁸F]FE-PE2I bind to the dopamine transporter (DAT),^6–8 [¹¹C]raclopride binds to dopamine D2/3 receptors⁹ and all three tracers show a high affinity and selectivity for their respective target.^10,11 A dynamic PET scan with either of these tracers can give information both on the non-displaceble binding potential (BP_ND), as a measure of DAT or dopamine D2/3 receptor availability, and relative tracer delivery (R₁).^12–14 For tracers that are not limited by blood flow, the extraction in target and reference tissue can be assumed to be similar and R₁ can serve as a proxy of relative cerebral blood flow (rCBF).¹⁵

It is important that the two measures are independent to ensure that they can be interpreted correctly when both are used in the differential diagnosis of neurodegenerative disorders, such as suggested for example for parkinsonism with [¹¹C]PE2I.¹ This can be further complicated when using simplified binding measures instead of BP_ND. For example, the semi-quantitative standardized uptake value ratio (SUVR) estimate, a simplified measure of target availability used as a surrogate for BP_ND, can be affected by delivery of the tracer which has been shown for several tracers including [¹¹C]PE2I and [¹⁸F]FE-PE2I.¹⁶ This can affect longitudinal measures of SUVR if changes in blood flow occur over time, which for example has been shown for amyloid imaging¹⁷ where increased tracer binding with progressing disease is counteracted by decreases in regional CBF, resulting in underestimation of disease progression if SUVR was assumed to represent tracer binding only.

In addition, lack of fulfillment of the underlying assumptions of the simplified reference tissue model could possibly result in cross-correlations of model parameters.^13,18 In a previous study, Cumming et al. (2013) found a relationship between the dopamine D2/3 specific tracer [¹⁸F]fallypride binding and a surrogate marker for CBF.¹⁹ They suggested that this might be due to high extraction fraction of the tracer and that the observed relationship might be attributed to early specific binding. However, neither [¹¹C]PE2I, [¹⁸F]FE-PE2I or [¹¹C]raclopride have as high extraction fraction as [¹⁸F]fallypride and the BP_ND values based on tracer kinetic modeling from a longer scan duration are assumed not to be dependent on blood flow. In a more recent simultaneous PET/MR study in non-human primates, Sander et al. showed that controlled changes in the cerebral blood flow did not alter the [¹¹C]raclopride or [¹⁸F]fallypride binding, and they concluded that the hemodynamic and receptor binding parameters are independent.²⁰

The purpose of this retrospective study was to investigate the relation between resting-state striatal DAT or dopamine D2/3 availability and rCBF using dynamic [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride PET data.

Materials and methods

Subjects

In this retrospective study, data of 58 healthy controls previously included in three different studies were used.^21–23 The data comprised dynamic PET scans with [¹¹C]PE2I and [¹¹C]DASB (n = 20, mean ± SD age 39.4 ± 13.1 years), [¹⁸F]FE-PE2I (n = 20; mean ± SD age 61.8 ± 6.9 years) and [¹¹C]raclopride (n = 18; mean ± SD age 25.2 ± 4.8 years). Written informed consent was obtained from all subjects and each study was approved by the regional board of medical ethics and radiation safety committee in Uppsala or Stockholm according to the ethical standards of the Helsinki Declaration of 1975 (and as revised in 1983) and according to the Swedish Law on ethics review for research in humans.

Data acquisition

Dynamic [¹¹C]PE2I PET scans were acquired on an ECAT Exact HR+ scanner (Siemens/CTI) at Uppsala University Hospital (Sweden).²¹ A 10 min transmission scan, with three retractable ⁶⁸Ge rotating line sources, was performed for attenuation correction prior to the emission scans. [¹¹C]PE2I was administered intravenously as a bolus of 350–400 MBq, simultaneously with the start of the emission scan and the data were acquired in 22 time frames over 80 min (4 × 60 s, 2 × 120 s, 4 × 180 s, 12 × 300 s). In addition, these subjects also underwent a dynamic [¹¹C]DASB PET scan, on the same day, using identical injection and scanning procedures. The [¹¹C]DASB data were acquired in 22 time frames over 60 min (1 × 60 s, 4 × 30 s, 3 × 60 s, 4 × 120 s, 2 × 180 s, 8 × 300 s). The dynamic [¹¹C]PE2I and [¹¹C]DASB scans were reconstructed using ordered subset expectation maximization (OSEM) with 6 iterations and 8 subsets and a 4 mm Hanning post-filter with a matrix size of 128 × 128 × 63 and a voxel size of 2.06 × 2.06 ×2.43 mm³.

[¹⁸F]FE-PE2I PET scans were acquired on a High Resolution Research Tomograph (HRRT) system (Siemens/CTI) at the PET-center at Karolinska Institutet (Stockholm, Sweden).²² For attenuation correction, a 6-min transmission scan with a single ¹³⁷Cs source, was acquired before each emission scan. A 93 min dynamic PET acquisition was obtained after bolus injection of about 200 MBq [¹⁸F]FE-PE2I. The images were reconstructed into 37 time frames (8 × 10 s, 5 × 20 s, 4 × 30 s, 4 × 60 s, 4 × 180 s, 12 × 360 s) using OSEM with 10 iterations and 16 subsets, including modeling of the point spread function, with a matrix size of 256 × 256 × 207 and an isotropic voxel size of 1.22 mm.

Dynamic [¹¹C]raclopride PET scans were acquired during 90 min in an integrated Signa PET/MR scanner (GE Healthcare) at the Uppsala University PET/MR facility (Sweden).²³ A bolus infusion protocol was used with a total amount of radioactivity of approximately 400 MBq and a k_bol of 107 min.²⁴ The [¹¹C]raclopride images were reconstructed into 5-min frames using OSEM with 4 iterations and 28 subsets, including resolution recovery and a 5 mm gauss post-filter, with a matrix size of 128 × 128 × 89 and a voxel size of 2.34 × 2.34 × 2.78 mm³. An atlas-based method, provided by the manufacturer, was used for attenuation correction. The scan started with 50 min PET data collection in resting-state, which were followed by a challenge. This, however, is outside the scope of this investigation and only data from the first 45 min of the [¹¹C]raclopride PET scan are used in this paper.

All appropriate corrections were applied when reconstructing the PET images. In addition, each subject received an anatomical T1-weighted magnetic resonance image (MRI) scan on either a 3T Achieva scanner (Philips Healthcare), a 3T Discovery MR750 scanner (GE Healthcare) or a 3T Signa PET-MR scanner (GE Healthcare).

Image analysis

Volumes of interest based quantification

The dynamic PET data were realigned to correct for inter-frame subject movement using VOIager (GE Healthcare, Uppsala, Sweden). A rigid transformation was used to co-register each subject's MRI scan to an early summed PET image and the MR-images were segmented into gray matter, white matter and CSF using SPM8 (Statistical Parametric Mapping; fil.ion.ucl.ac.uk/spm). An automated VOI template, implemented in the PVElab software,²⁵ was used to define grey matter VOIs on the co-registered MR-images. Three bilateral VOIs were included for each subject: cerebellum, putamen and caudate. The VOIs were applied to the dynamic PET data to extract time activity curves (TACs) from which BP_ND and R₁ were calculated using the simplified reference tissue model (SRTM)¹³ with grey matter cerebellum as reference region. In addition, for [¹¹C]raclopride data acquired using the bolus infusion protocol, BP_ND was also estimated as the ratio between the activity concentration in the target region and the reference region minus 1 at 35–45 min p.i. The relationship between BP_ND and R₁ from the same PET scan was assessed for [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride. The SRTM modeling was performed using in-house developed software in Matlab (The Mathworks, Natick, USA).

Voxel-wised quantification

Parametric images, showing BP_ND and R₁ at the voxel level, were computed using receptor parametric mapping (RPM),²⁶ a basis function implementation of SRTM. A set of one hundred basis functions were predefined for each scan, with a discrete set of values for the exponential variable ranging from 0.01–0.5 min⁻¹ for both [¹¹C]PE2I and [¹⁸F]FE-PE2I and 0.01–0.2 min⁻¹ for [¹¹C]raclopride. Weights were included to account for the different counts in each frame. Before the voxel-level analysis, the [¹⁸F]FE-PE2I images were smoothed with a 5 mm gauss filter and a highly constrained back projection (HYPR) method²⁷ were applied to ensure a similar spatial resolution as the [¹¹C]PE2I and [¹¹C]raclopride images and to reduce noise in the images. Also, a 5 mm gauss filter was applied to the [¹¹C]raclopride data before the analysis for noise reduction. Parametric image calculations were done in Matlab.

To preclude influence of partial volume effects on the correlation between R₁ and BP_ND in the caudate and putamen, an isocontour VOI of the striatum was defined on the parametric BP_ND image for each scan. A threshold of 70% of the maximum BP_ND value was applied individually for every subject and tracer and only voxels with BP_ND exceeding the threshold were included in the isocontour analysis. The images were masked using the gray matter, white matter and CSF segmentation, to only include pixels within the brain. Mean BP_ND values within the isocontour volume were obtained and the same isocontour VOIs were transferred to the corresponding parametric R₁ image to derive a mean striatal R₁ value.

The parametric images were normalized to MNI standard space by first normalizing the co-registered MR-images in SPM12, and then applying the transformation matrices to each parametric image. The normalized images were resampled to 2 mm voxels and smoothed with an 8 mm gauss filter.

Inter-tracer relationship

In addition to the intra-tracer relationship, VOI-based correlations between [¹¹C]PE2I BP_ND and [¹¹C]DASB R₁, as well as [¹¹C]PE2I R₁ and [¹¹C]DASB R₁, were also assessed to investigate the inter-tracer relationship within the same subjects. This was evaluated for the 20 subjects receiving both [¹¹C]PE2I and [¹¹C]DASB.

Simulations

Simulations were performed to investigate a possible cross-correlation between the parameters due to the modelling. One hundred reference and target TACs were simulated using the two-tissue compartment model with a constructed plasma input curve, random parameters and rate constants determined based on literature values.²⁸ A small amount of random noise was added to the TACs to match the magnitude of noise seen in actual cerebellum and striatal TACs. The parameters were chosen to reflect the behavior of high [¹¹C]PE2I binding in striatum, with BP_ND ranging from 10 to 20 and R₁ between 1 and 1.5. For the refence TACs the rate constants were chosen as K_1ref = 0.29–0.31, k_2ref = 0.09–0.11, k_3ref = 0.019–0.021 and k_4ref = 0.059–0.061. For the target TACs, K₁ was calculated as K_1ref × R₁ and k₂ as k_2ref × R₁ with an added extra ± 10% variation, k₄ was set to a constant of 0.03 and random k₃ was calculated as k₃ × BP_ND. The chosen parameters challenge the assumptions for SRTM, having reference TACs that can not be described by a one tissue compartment model (1TCM), since this is the case for [¹¹C]PE2I.^28–30 In addition, the simulations were also performed with an optimal SRTM reference region with k_3ref and k_4ref set to zero. The TACs were analyzed using SRTM and a set of 100 R₁ and BP_ND values were obtained for each simulation.

Statistical analysis

Pearson’s correlation test was performed to assess the relationship between the [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride BP_ND and corresponding R₁ values using GraphPad Prism (GraphPad Software, San Diego, Ca, USA) and the square of the correlation coefficient (R²) was calculated. These intra-tracer relationships were done for both the VOI-based and voxel-wise quantification of BP_ND and R₁. Correlation maps, showing R² at a voxel level, were calculated between the normalized parametric R₁ and BP_ND images for [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride, applying thresholds at BP_ND > 1 and p-value < 0.05. To investigate effects of the size of the VOIs on the BP_ND values, multiple linear regression analysis was performed in Matlab with BP_ND as the dependent variable and R₁, size of the cerebellum VOI and size of the isocontour VOI as independent variable. Inter-tracer relationship were assessed by means of VOI-based correlation between [¹¹C]PE2I BP_ND and [¹¹C]DASB R₁, as well as [¹¹C]PE2I R₁ and [¹¹C]DASB R₁, in the same subjects. In the simulation study, Pearsons correllations between BP_ND and R₁ were assessed for the non-zero and zero k_3ref and k_4ref datasets.

Results

VOI analysis

Significant correlations were found between the template VOI-based SRTM R₁ and BP_ND in caudate and putamen, for [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride, Figure 1. [¹⁸F]FE-PE2I showed the highest correlation (R² = 0.72), followed by [¹¹C]raclopride (R² = 0.59) and [¹¹C]PE2I (R² = 0.52). BP_ND estimated during the equilibrium analysis for [¹¹C]raclopride showed a similar correlation to SRTM R₁ (R² = 0.64) and a very high agreement between SRTM BP_ND and equilibrium BP_ND was found (R² = 0.95, slope = 1.08). The p-values for all correlations were <0.0001. Mean SRTM BP_ND and R₁ values for the caudate and putamen for all three tracers are given in Table 1.

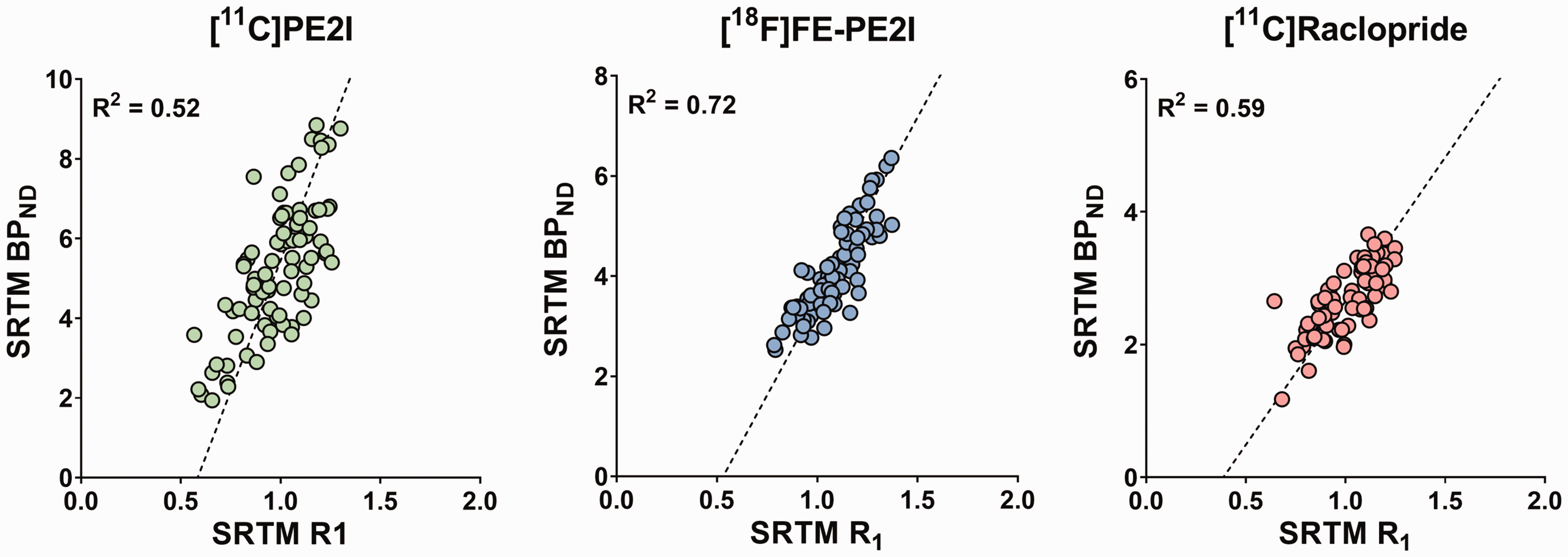

Figure 1.

Relationship between VOI-based SRTM R₁ and BP_ND values in putamen and caudate for [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride.

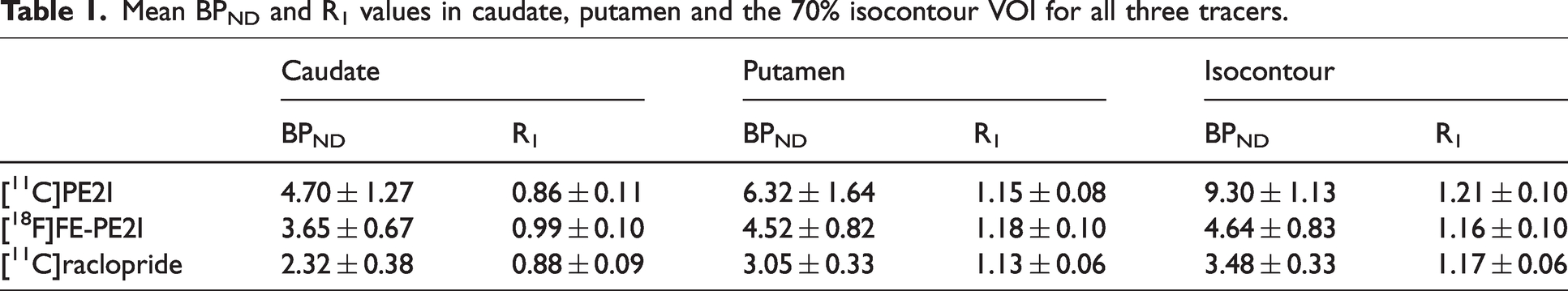

Table 1.

Mean BP_ND and R₁ values in caudate, putamen and the 70% isocontour VOI for all three tracers.

	Caudate		Putamen		Isocontour
	BP_ND	R₁	BP_ND	R₁	BP_ND	R₁
[¹¹C]PE2I	4.70 ± 1.27	0.86 ± 0.11	6.32 ± 1.64	1.15 ± 0.08	9.30 ± 1.13	1.21 ± 0.10
[¹⁸F]FE-PE2I	3.65 ± 0.67	0.99 ± 0.10	4.52 ± 0.82	1.18 ± 0.10	4.64 ± 0.83	1.16 ± 0.10
[¹¹C]raclopride	2.32 ± 0.38	0.88 ± 0.09	3.05 ± 0.33	1.13 ± 0.06	3.48 ± 0.33	1.17 ± 0.06

Isocontour VOIs

In Figure 2, examples of parametric RPM BP_ND and R₁ images are shown for [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride. The striatum was delineated, in both sets of images, with the isocontour VOI based on the 70% of the maximum BP_ND value. The relationships between the R₁ and BP_ND values extracted from the parametric images using the isocontour VOIs are given in Figure 3. The correlation was highest for [¹⁸F]FE-PE2I (R² = 0.51) and slightly lower for [¹¹C]PE2I (R² = 0.42) and [¹¹C]raclopride (R² = 0.48). The correlations were lower than for the SRTM analysis of the anatomical VOIs of the putamen and caudate, but significant for all three tracers (p-value ≤0.002). Mean RPM BP_ND and R₁ values for all three tracers are given in Table 1.

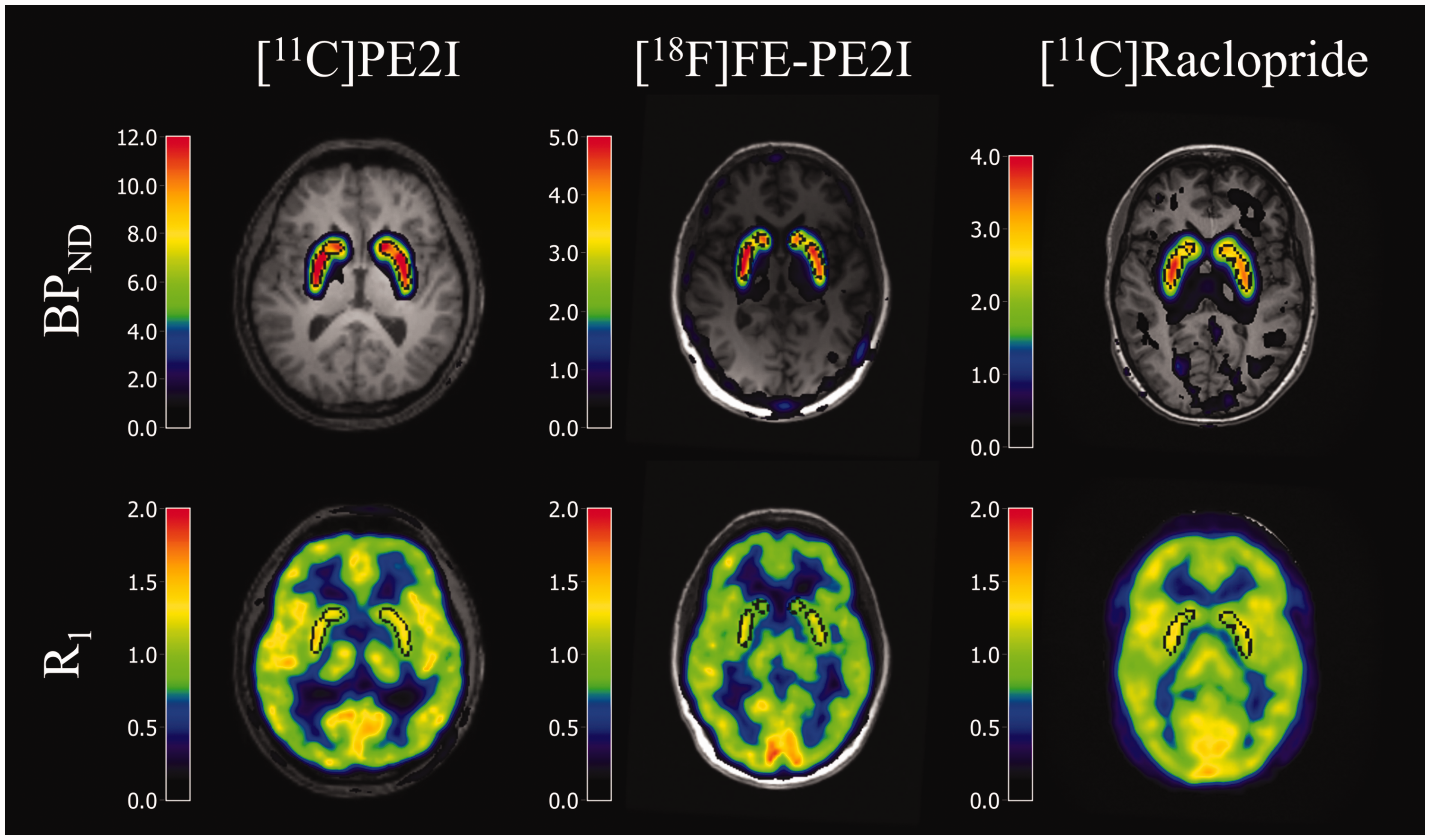

Figure 2.

Parametric BP_ND and R₁ images of [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride. Images are overlaid on the subject’s co-registered MRI scan and the edges of the 70% isocontour VOIs are delineated in black over the striatum.

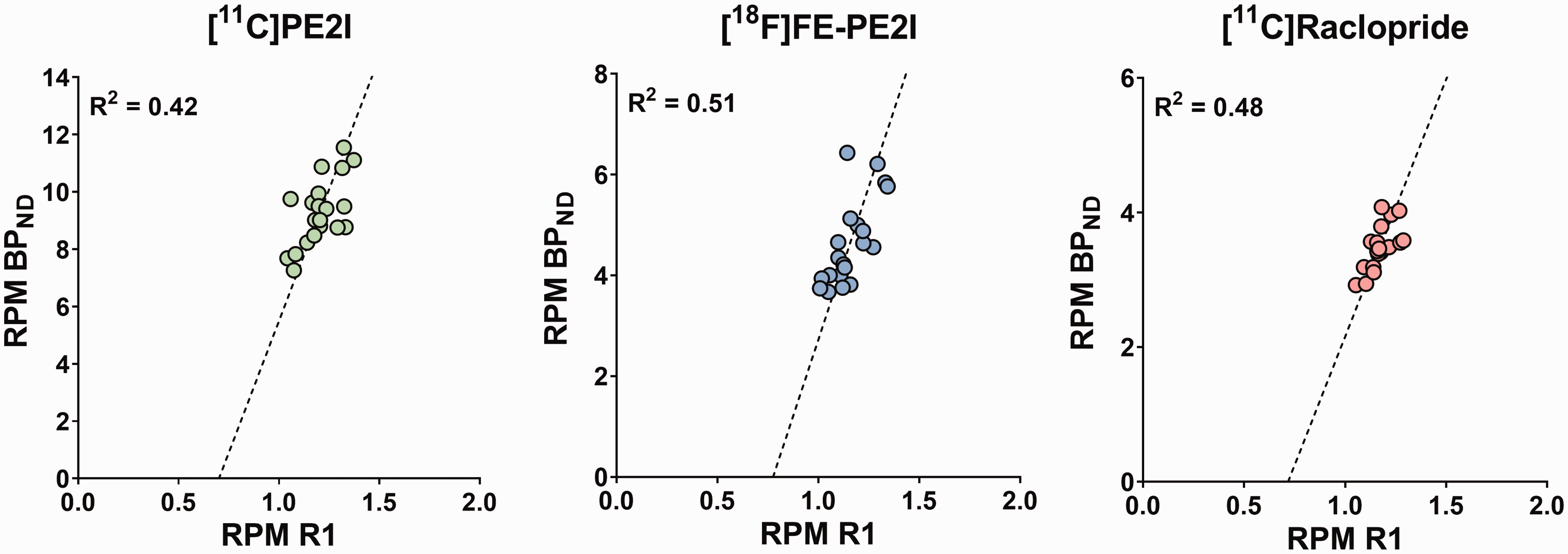

Figure 3.

Relationship between RPM R₁ and BP_ND values extracted with a 70% isocontour VOI over the striatum in the parametric images of [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride.

Multilinear and voxel-wise regression analysis

In Figure 4, the voxel-wise R² maps are displaying the correlation between R₁ and BP_ND, with a threshold p-value of 0.05, for [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride. In the multilinear regression analysis, with R₁, isocontour VOI size and cerebellum VOI size as independent variables, R₁ came out as the strongest predictor of BP_ND for [¹¹C]PE2I and [¹⁸F]FE-PE2I, p < 0.001. For [¹¹C]PE2I, the cerebellum VOI size also came out as a significant predictor with p = 0.04, but a linear regression between cerebellum VOI size and BP_ND did not show significant correlation, p = 0.82. For [¹¹C]raclopride, R₁ did not show a significant association with BP_ND, p = 0.098, but instead, the isocontour VOI size was the only significant predictor of BP_ND with a p-value < 0.001 and a negative correlation with BP_ND.

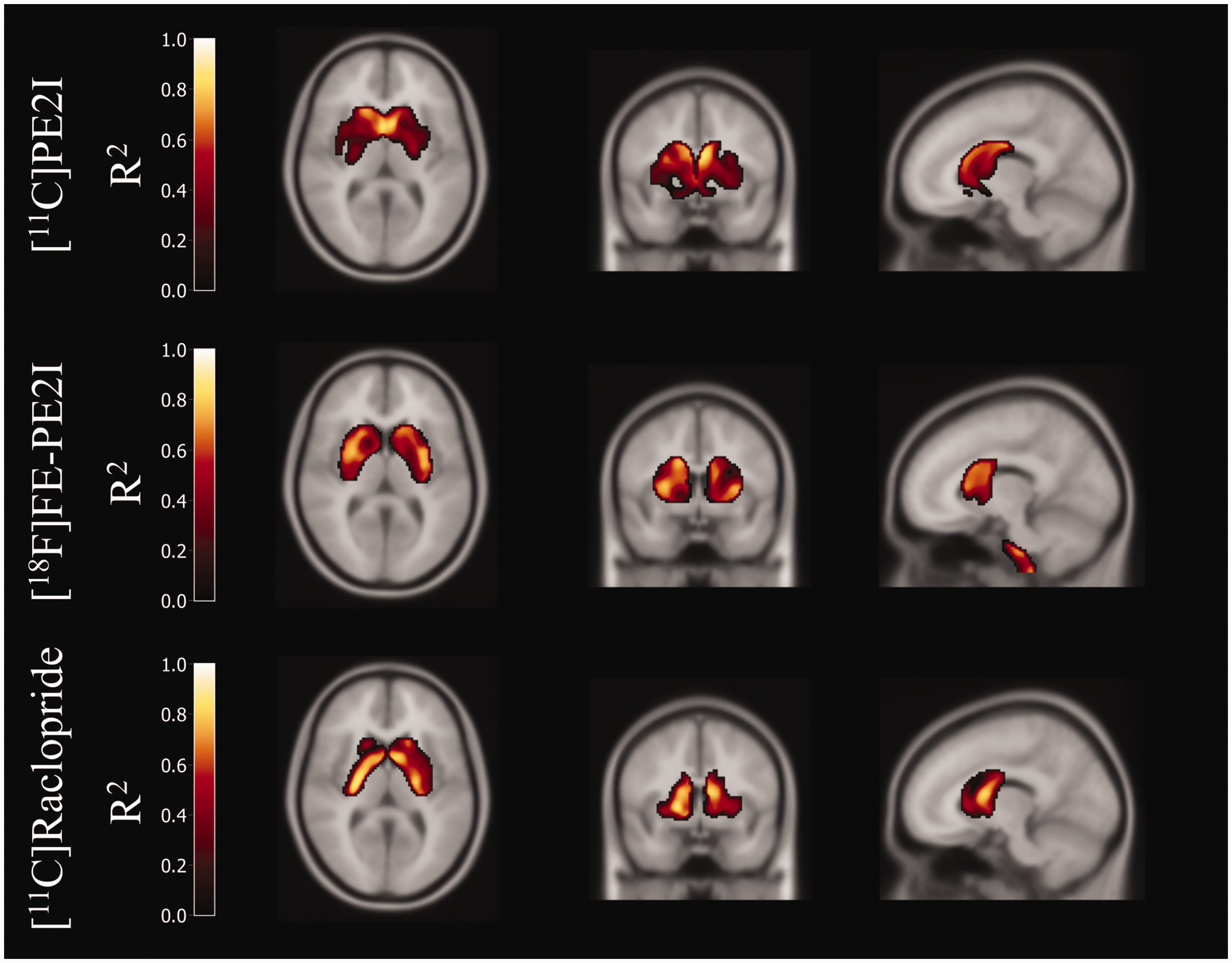

Figure 4.

Voxel-wise correlation coefficient (R²) between normalized R₁ and BP_ND parametric images for [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride, applying thresholds at BP_ND > 1 and p-value <0.05.

Inter-tracer correlation

The relationship between [¹¹C]DASB R₁ and [¹¹C]PE2I BP_ND is given in Figure 5. The correlation was similar to the intra-tracer relationship of R₁ and BP_ND of [¹¹C]PE2I (R² = 0.54, p-value < 0.0001). In addition, there was a high inter-tracer correlation between the R₁ values from [¹¹C]PE2I and [¹¹C]DASB, (R² = 0.90, slope = 1.01), also shown in Figure 5.

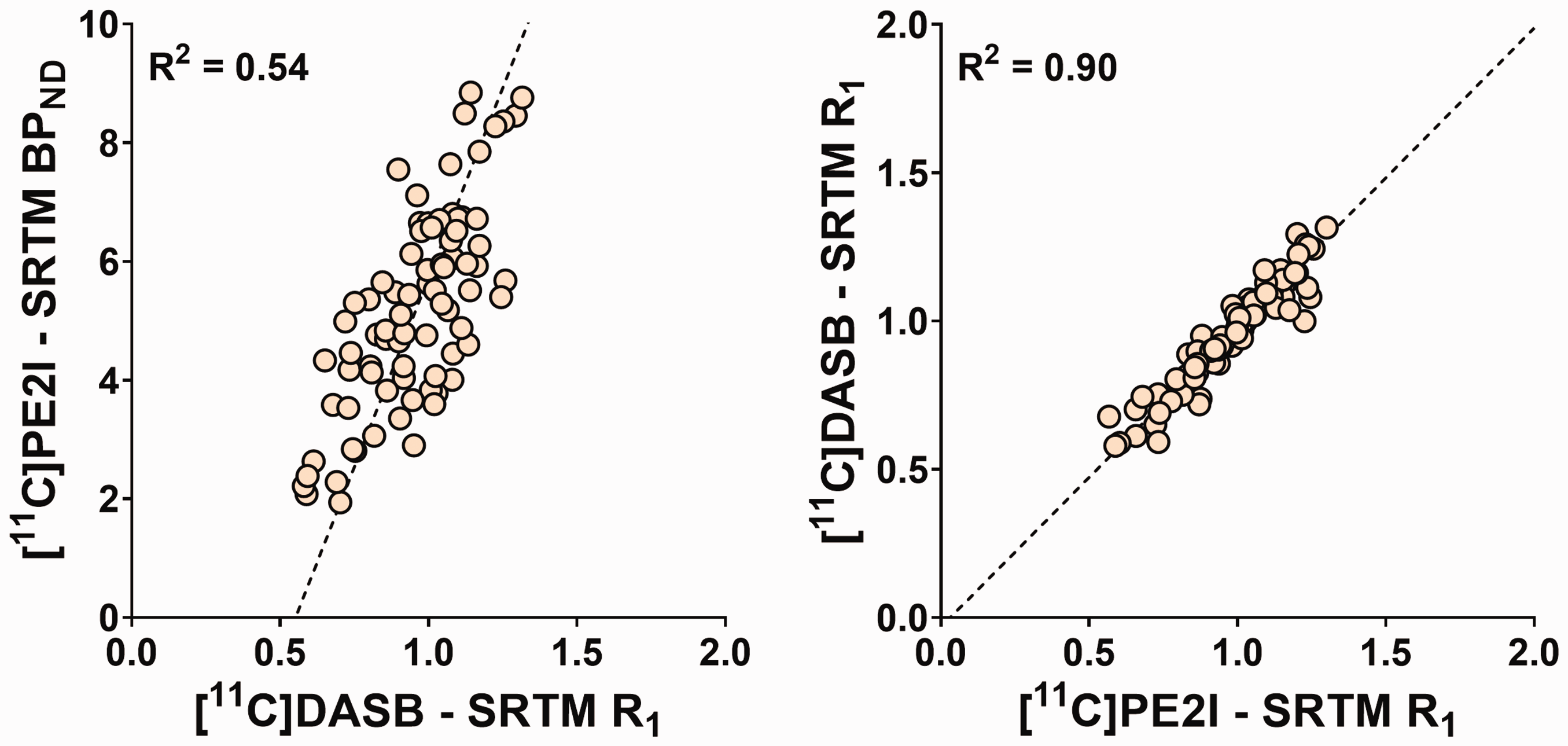

Figure 5.

Inter-tracer correlation of VOI-based SRTM values in putamen and caudate between [¹¹C]DASB R₁ and [¹¹C]PE2I BP_ND and [¹¹C]DASB R₁ and [¹¹C]PE2I R₁.

Simulations

The relationships between the computed R₁ and BP_ND values from the simulated TACs, for both sets of parameters, are given in Figure 6. For the non-zero k_3ref and k_4ref, the resulting R₁ and BP_ND values were approximately in the same range as found in striatal regions for healthy controls with [¹¹C]PE2I. These values were about 50% lower than for the simulations with a k_3ref and k_4ref set to zero, since SRTM underestimates BP_ND in case of a violation of the 1TC kinetics in the reference TAC.³¹ However, the correlations between R₁ and BP_ND from the simulation analyses were much lower than the results from clinical data, regardless of reference TAC kinetics (R² = 0.07, p-value = 0.006 and R² = 0.03, p-value = 0.09).

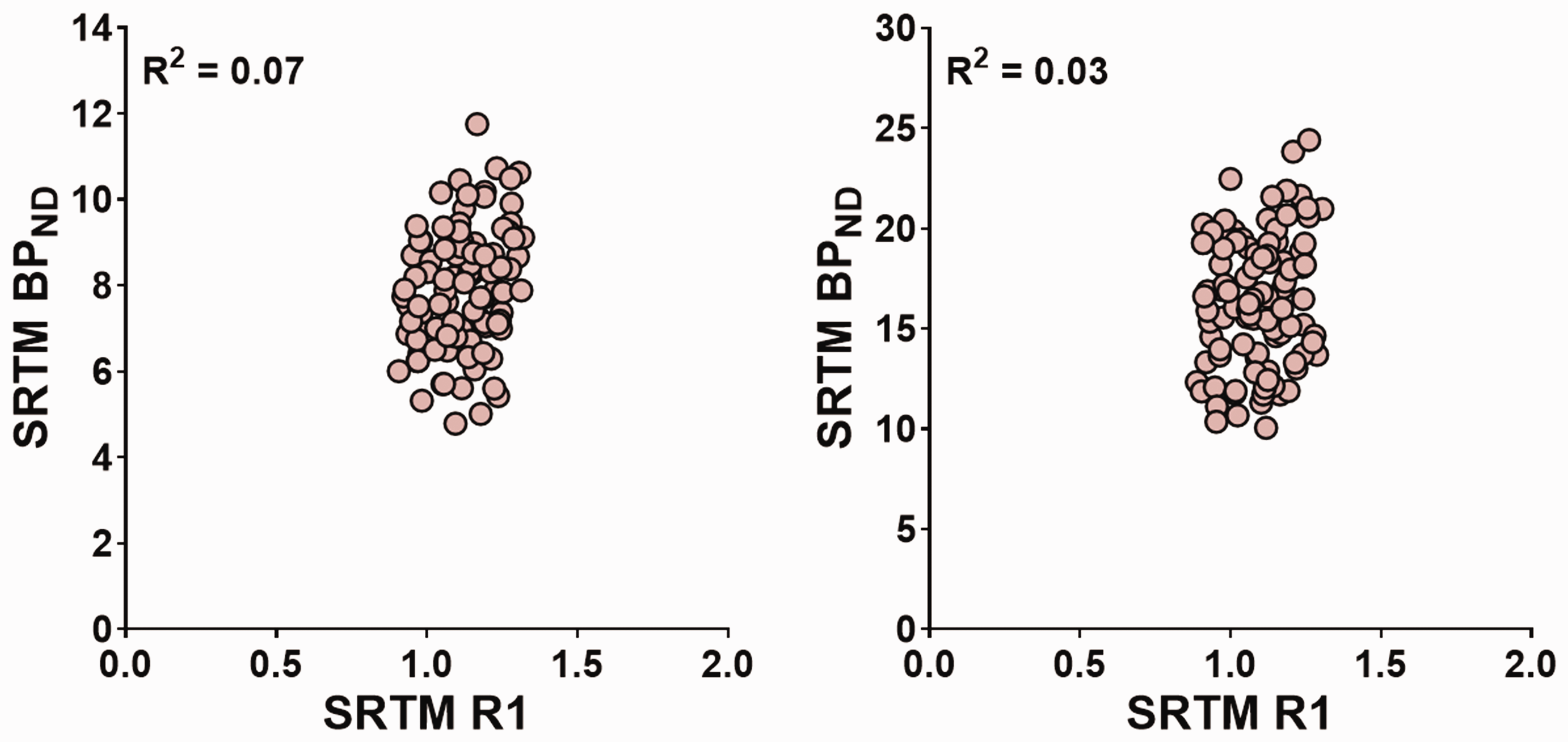

Figure 6.

Relationship between SRTM R₁ and BP_ND values based on simulations of high bindning [¹¹C]PE2I time activity curves with non-zeros k_3ref and k_4ref (left) and zero k_3ref and k_3ref (right).

Discussion

In this retrospective study, the relationship between relative blood flow and availability of DAT and dopamine receptors in the striatum was investigated for [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride PET. The correlation between R₁ and BP_ND was assessed using SRTM analysis with MRI-based VOIs as well as isocontour VOIs based on maximum BP_ND values of parametric images computed with RPM. In addition, an inter-tracer correlation was evaluated between [¹¹C]PE2I BP_ND and [¹¹C]DASB R₁ within the same subjects and simulations was performed to further clarify any link between the parameters due to the modeling.

The VOI-based analysis showed a substantial, positive correlation between R₁ and BP_ND in caudate and putamen, for all three dopamine tracers. As such a correlation was not expected, this raised the question whether there is a true physiological relationship. One possible explanation is the occurrence of different degrees of partial volume effects. Another explanation might be that the automatically generated VOIs based on the subject’s individual MRI, although having a good anatomical fit, are not covering the actual uptake of the tracer in striatum. As a consequence, the BP_ND and R₁ values in the same subjects will be underestimated. This will induce a larger variation between subjects, and altogether causing a correlated underestimation of the outcome parameters.

To preclude the effect of potential partial volume effects or a mismatch between the VOIs and the PET uptake, isocontour VOIs were defined on the parametric BP_ND images. The positive correlations between R₁ and BP_ND, extracted from the parametric images using isocontour VOIs, were slightly lower than when using the anatomical VOIs but the correlations were still substantial for all three dopamine tracers. The result of the multilinear regression showed that there was no significant contribution of striatal VOI sizes to the relation between R₁ and BP_ND for either [¹¹C]PE2I or [¹⁸F]FE-PE2I. This outcome precludes that VOI-size dependent partial volume effects could explain the R₁ and BP_ND relationship in these cases. A further support for this finding was demonstrated by the voxel-level regression analysis between normalized R₁ and BP_ND parametric images, with resulting R² maps, which showed a clear correlation in the striatum for all three tracers.

The correlation found may be enhanced by the higher BP_ND and R₁ values in putamen than caudate, as seen in Table 1. However, correlations remain significant for the isocontour VOI where the two regions are combined, as well as at the voxel level. It remains to be seen how strong the relationship is with tracers for which putamen does not have the highest target density.

In contrast to the multivariate analysis of [¹¹C]PE2I and [¹⁸F]FE-PE2I, for [¹¹C]raclopride, R₁ did not show a significant association to BP_ND, but instead the striatal isocontour VOI size was a significant predictor with a negative correlation to BP_ND. This negative relationship might be explained by the fact that the parametric [¹¹C]raclopride images were noisy and had to be filtered to enable the use of isocontour VOIs. However, the SRTM results for [¹¹C]raclopride (Figure 1) were based on unfiltered TAC data and show a substantial, positive correlation between R₁ and BP_ND. For [¹¹C]raclopride, a bolus infusion protocol was used which makes it possible to determine BP_ND as the ratio between the target region and the reference region, and should be a measure independent of flow. The correlation between SRTM R₁ and equilibrium BP_ND was similar to that found between SRTM R₁ and SRTM BP_ND, which further supports the findings in this work.

The correlation that was found between [¹¹C]PE2I BP_ND and [¹¹C]DASB R₁ was in accordance with the intra-tracer relationship for [¹¹C]PE2I BP_ND and R₁. As the correlation between [¹¹C]PE2I BP_ND and an independent measurement of R₁ from the [¹¹C]DASB scan was similar to the relationship found between BP_ND and R₁ from the same [¹¹C]PE2I scan, it indicates that this correlation is not due to a model induced coupling of the parameters. The opposite relationship, between [¹¹C]PE2I R₁ and serotonin transporter [¹¹C]DASB binding, was also observed with an R² = 0.78 (data not shown). This would of course also imply a high agreement between the relative blood flow measures within subjects, which indeed also was the case, with very high correlation and agreement between [¹¹C]PE2I R₁ and [¹¹C]DASB R₁, with R² = 0.9 and a slope very close to one.

The relationship between R₁ and BP_ND found for the clinical data could not be reproduced in the simulation. Thus, this is an additional confirmation that these findings are not depending on the kinetic modelling. Although a significance level less than 0.05 was found, the correlation was still very low. [¹¹C]PE2I does not fulfill all the underlying assumptions for SRTM, and the simulated parameters were chosen to reflect that. However, adjusting the parameters to not violate the assumptions of a 1TCM reference kinetics, with k_{3 ref} and k_{4 ref} set to zero, only lowered the correlation coefficient and increased the p-value.

The physiological implications of the findings in this work remain to be clarified. For example, a more active dopamine system might require a higher striatal perfusion or the activity of the dopamine system is limited by the blood flow in healthy individuals. The present study assessed the relationship between dopamine transporter and receptor availability and relative cerebral blood flow, but it provides no information on the relation with absolute cerebral blood flow. Hence, the relevance of this finding should be subject of further investigations to assess quantitative measures of blood flow, optimally with [¹⁵O]water PET, in connection with dopamine PET investigations. In addition, it would be interesting to explore the association between the blood flow and the dopamine system in specific patient groups with impaired dopamine function.

Conclusion

A positive association was found between relative blood flow and availability of DAT and dopamine D2/3 receptors in the striatum using kinetic analysis of dynamic PET scans with [¹¹C]PE2I, [¹⁸F]FE-PE2I and [¹¹C]raclopride. A relationship between DAT availability and relative blood flow from two different tracers, which was observed between [¹¹C]PE2I BP_ND and [¹¹C]DASB R₁, further enhances the relevance of this finding. Model-related cross-correlation between parameters could not explain this relationship. These results suggest an association between resting-state striatal dopamine function and relative blood flow in healthy subjects.
