Effect of serotonin transporter genotype on carbon dioxide-induced fear-related behavior in mice

Abstract

Background:

Inhaling 35% carbon dioxide induces an emotional and symptomatic state in humans closely resembling naturally occurring panic attacks, the core symptom of panic disorder. Previous research has suggested a role of the serotonin system in the individual sensitivity to carbon dioxide. In line with this, we previously showed that a variant in the SLC6A4 gene, encoding the serotonin transporter, moderates the fear response to carbon dioxide in humans. To study the etiological basis of carbon dioxide-reactivity and panic attacks in more detail, we recently established a translational mouse model.

Aim:

The purpose of this study was to investigate whether decreased expression of the serotonin transporter affects the sensitivity to carbon dioxide.

Methods:

Based on our previous work, wildtype and serotonin transporter deficient (+/–, –/–) mice were monitored while being exposed to carbon dioxide-enriched air. In wildtype and serotonin transporter +/– mice, also cardio-respiration was assessed.

Results:

For most behavioral measures under air exposure, wildtype and serotonin transporter +/– mice did not differ, while serotonin transporter –/– mice showed more fear-related behavior. Carbon dioxide exposure evoked a marked increase in fear-related behaviors, independent of genotype, with the exception of time serotonin transporter –/– mice spent in the center zone of the modified open field test and freezing in the two-chamber test. On the physiological level, when inhaling carbon dioxide, the respiratory system was strongly activated and heart rate decreased independent of genotype.

Conclusion:

Carbon dioxide is a robust fear-inducing stimulus. It evokes inhibitory behavioral responses such as decreased exploration and is associated with a clear respiratory profile independent of serotonin transporter genotype.

Introduction

Panic attacks (PAs) are highly prevalent in many psychiatric disorders but are most commonly associated with panic disorder (PD). PAs are sudden surges of intense fear or discomfort peaking within minutes. During this period, four or more specified symptoms such as palpitations, a feeling of choking, or dizziness develop (American Psychiatric Association, 2013).

In humans, PAs can be reliably provoked in the laboratory by inhaling air enriched with carbon dioxide (CO₂). Various concentrations of CO₂ have been examined over the years. Exposure to a low concentration (5–7%) for up to 20 min elicits symptoms as seen in a state of general anxiety and is therefore nowadays considered to represent a model for generalized anxiety disorder (Ainsworth et al., 2015; Bailey et al., 2005, 2007), while a deep breath of 35% CO₂ provokes the sudden symptoms and intense fear associated with PAs in patients with PD (for extensive review see Leibold et al., 2015). Interestingly, a comparably intense emotional response can be triggered in healthy individuals when using a higher dosage of CO₂ (i.e. taking two vital capacity breaths of 35% CO₂ instead of one as in PD patients) (Griez et al., 2007), suggesting a spectrum of CO₂-sensitivity.

To study the molecular basis of CO₂-sensitivity in depth, the use of CO₂ as an experimental stimulus in animal models has gained increasing attention in recent years (D’Amato et al., 2011; Johnson et al., 2012; Taugher et al., 2014; Vollmer et al., 2016; Winter et al., 2017; Ziemann et al., 2009). As it is not feasible to apply one or two vital capacity breaths of 35% CO₂ in rodents as it is done in humans, a lower percentage of up to 20% is commonly used for 10–20 min to allow assessment of behavior in a testing box filled with CO₂. Using this methodology, studies showed that CO₂ elicits robust fear-related behavior in rodents. A major aim of such rodent research is the translation of findings to humans. However, it is uncertain how well behavioral assessments in rodents correspond to the self-reported experience in humans. To address this challenge we used CO₂ as the experimental stimulus in both rodents and humans and went beyond the traditional outcome measurements by recording additional physiological parameters (Leibold et al., 2016). Next to the finding that CO₂ induces a strong fear-related behavioral response in mice and humans alike, we showed comparable cardio-respiratory effects. In detail, we calculated and statistically compared effect sizes, taking into account that the frequency per minute varies between both species. This allowed us to perform a quantitative comparison to demonstrate that exposure to a low concentration of CO₂ in rodents corresponds to the response to a 35% CO₂ inhalation in humans. Therefore, while the paradigms are not identical, the comparable effects of the cardio-respiratory system in addition to the behavioral fear response suggests that this rodent model represents a model of panic and is a promising approach to bring closer research in rodents and humans.

The mechanisms of how CO₂ causes fear and exerts effects such as respiratory stimulation are not fully understood. Under physiological conditions the concentration of CO₂ and pH level within the body are maintained within a narrow range. Small fluctuations are not consciously perceived, while larger acute changes typically induce adaptive physiological responses, sensations such as breathlessness, feelings of arousal and panic, and avoidance behavior (Brannan et al., 2001; Diaper et al., 2011; Ziemann et al., 2009). Emotions, in turn, can influence breathing (Homma and Masaoka, 2008) and thereby affect the respiratory response to CO₂. Chemoreceptors that detect changes in CO₂/pH are located in the peripheral carotid bodies and throughout the entire brain. For instance, Mitchell et al. did groundbreaking work on identifying the location of CO₂-chemosensitivity in the medulla (1963b) and showed that increased CO₂ in this region mediates an increase in breathing (1963a). Later experiments showed that also the medullary retrotrapezoid nucleus (Guyenet and Bayliss, 2015), and subsets of serotonergic neurons in the medullary raphe nucleus and the dorsal raphe nucleus are pH-sensitive (Richerson, 2004). The retrotrapezoid nucleus receives excitatory serotonergic innervation from both of these raphe nuclei, which can shift the CO₂ threshold and stimulate respiration (Guyenet and Bayliss, 2015; Mulkey et al., 2007). Particularly serotonin (5-HT) neurons of the medullary raphe nucleus have been associated with driving the respiratory response to CO₂. In contrast, midbrain 5-HT neurons have been associated with arousal and anxiety (Richerson, 2004).

In line with these basic research findings, many studies in humans provided support for a role of the 5-HT system in emotional sensitivity to CO₂. For instance, tryptophan depletion, a method to reduce brain 5-HT levels, increased the fear response to CO₂ inhalation in PD patients and healthy individuals (Miller et al., 2000; Schruers et al., 2000; Schruers and Griez, 2003), whereas administration of a 5-HT precursor, increasing brain 5-HT levels, reduced the response (Schruers et al., 2002). Blocking the 5-HT transporter (5-HTT) and thereby increasing the extracellular availability of 5-HT also reduced the response to CO₂ (e.g. Bertani et al., 1997; Perna et al., 2002; Schruers and Griez, 2004). Further, our group showed that the fear reaction to CO₂ is moderated by a functional polymorphism in the transcriptional control region of the gene encoding the 5-HTT (polymorphism referred to as 5-HTT gene-linked polymorphic region, 5-HTTLPR). In brief, subjects homozygously carrying the long (L)-allele reported more fear than short (S)-allele carriers (Schruers et al., 2011). In line with this, we also reported a negative association between DNA methylation in the 5-HTT regulatory region and emotional CO₂-sensitivity (Leibold et al., 2020).

Making use of our rodent model and as translational follow-up to our previous studies in humans, we here aimed to explore whether partial or complete loss of 5-HTT moderates the response to CO₂. For this purpose, wildtype (WT), hetero- (+/–), and homozygous (–/–) 5-HTT knockout mice were exposed to CO₂, while the response was examined in terms of fear-related behavior and by monitoring cardio-respiration. Based on the findings of our previous studies, we hypothesized that wildtype mice would show the strongest sensitivity to CO₂.

Materials and methods

For overview see Figure 1.

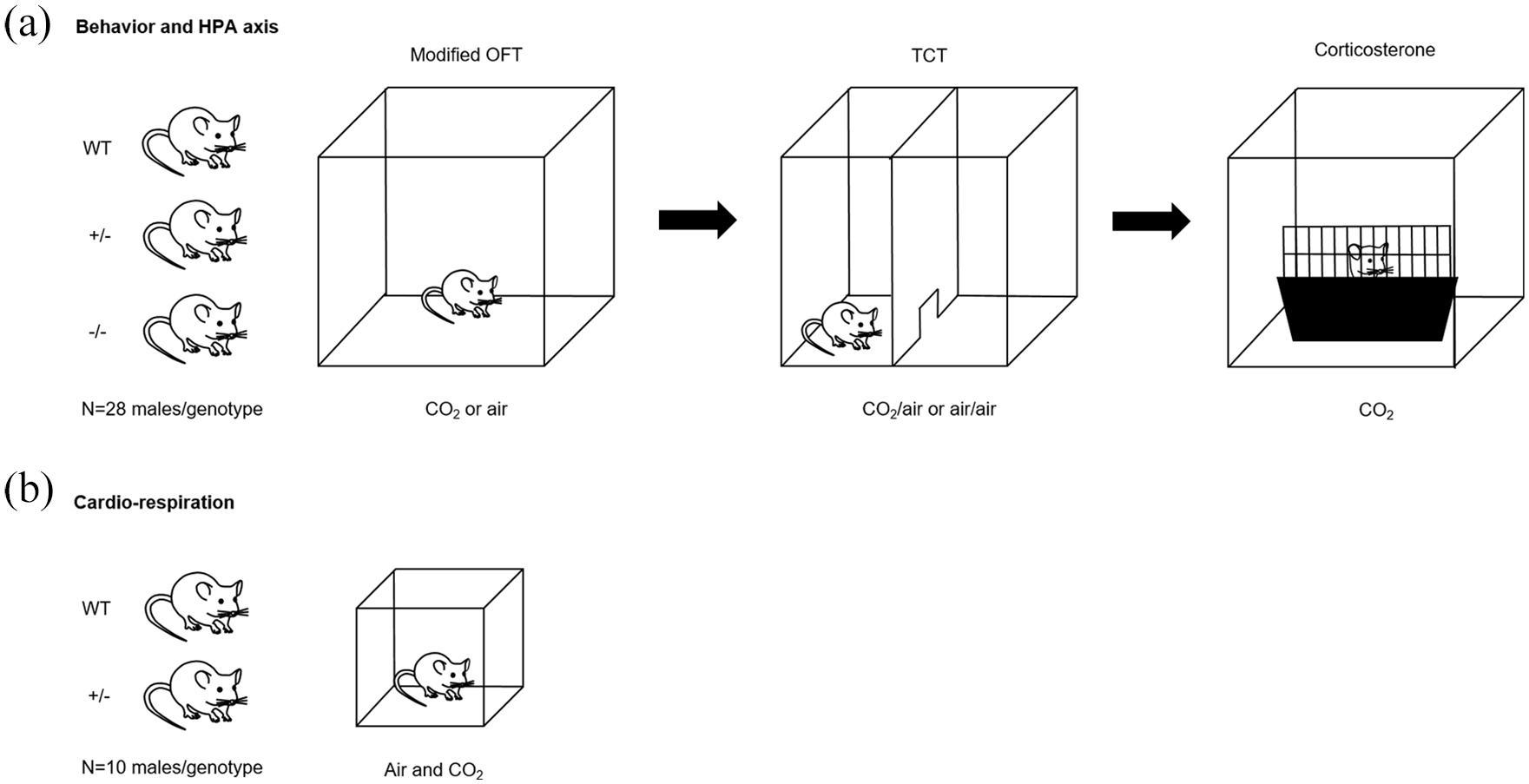

Figure 1.

Overview of experimental design.

Fear-related behavior

Animals

Male 5-HTT deficient (Slc6a4^tm1Kpl; 5-HTT^+/– (n = 28); 5-HTT^–/–(n = 28)) mice and their WT littermates (n = 28) were housed individually in ventilated cages within a temperature-controlled environment (21±1°C) and under a reversed day/night cycle (12 h light/12 h dark cycle). Standard rodent chow and water were provided ad libitum. From postnatal day 90 onwards, mice were subjected to fear-related behavioral tasks. For this purpose, per genotype 14 mice were assigned randomly to the experimental group (10% CO₂) and 14 mice to the control group (air, 0% CO₂): (a) WT mice exposed to air, (b) 5-HTT +/– mice exposed to air, (c) 5-HTT –/– mice exposed to air, (d) WT mice exposed to CO₂, (e) 5-HTT +/– mice exposed to CO₂, (f) 5-HTT –/– mice exposed to CO₂. All procedures of this study were executed according to protocols approved by the Animal Ethics Board of Maastricht University, the Netherlands.

Behavioral testing

Modified open field test (OFT)

All animals were first tested in the modified OFT. The OFT chamber consisted of a transparent Plexiglas square (50×50×40 cm), covered with a clear lid, allowing live monitoring of behavior during gas exposure. Gas was infused using an infusion port on the upper part of the box. Overpressure was prevented by two holes at the opposite site. In addition, two computer fans (5×5 cm, 26 dB), fixed to the lid, were used to ensure a homogenous concentration of the infused gas throughout the entire chamber. The CO₂ concentration was constantly controlled using a 30% CO₂ Sampling Data Logger (CO₂ meter, Ormond Beach, Florida, USA).

Mice were placed in the center of the chamber that was pre-filled with either compressed air or 10% CO₂ (premixed gas tanks, SOL Nederland B.V., Landgraaf, The Netherlands) depending on the experimental group. Movements were scored automatically with a computerized system (Ethovision Color Pro, Noldus, The Netherlands) for 20 min. For analysis purposes, the floor was subdivided into a 30×30 cm central zone, 10×10 cm corners, and 30×10 cm walls. Time spent in the different zones and total distance moved were analyzed. At the end of the trial, the boxes were cleaned thoroughly.

Behavioral testing was performed under low light conditions during the animals’ dark phase and by an investigator blind to genotype.

Two-chamber test (TCT)

After completing the modified OFT, mice were tested in the TCT. The apparatus consisted of two Plexiglas chambers (each 50×25 cm with 40 cm high walls) that were connected by an open door (3.5×3.5 cm) to allow free crossing, whilst limiting mixing of the gasses between chambers. Each chamber had a separate gas infusion port, a hole to prevent overpressure, and a computer fan (5×5 cm, 26 dB) to ensure a homogenous gas concentration throughout the chamber.

For mice assigned to air exposure, both chambers were pre-filled with air. For mice subjected to CO₂ exposure, a chamber was pre-filled with 10% CO₂ and the other one with air. The chamber that was filled with CO₂ and the chamber in which mice were placed at the beginning of the test were randomized. The concentration of CO₂ was continuously controlled using a 30% CO₂ Sampling Data Logger (CO₂ meter, Ormond Beach, Florida, USA; a steady state of 9% and 2% was reached in case of CO₂ infusion). Movements, number of crossings, and time spent in each chamber were automatically scored with a computerized system (Ethovision Color Pro, Noldus, The Netherlands) for a period of 10 min. At the end of each trial, the box was thoroughly cleaned. As in the modified OFT, testing was done under low light conditions during the animals’ dark phase and by an investigator blind to genotype.

CO₂-evoked freezing

In both behavioral tests, freezing was scored by a trained observer blind to exposure and genotype. Freezing was defined as absence of any movements apart from respiration and is considered to reflect fear-related behavior in rodents (Mongeluzi et al., 2003).

CO₂-induced plasma corticosterone secretion

To assess the hypothalamo-pituitary-adrenal (HPA) axis responsiveness to CO₂, plasma corticosterone levels were determined. Immediately after taking the mice from their home cage, the first blood sample was drawn via saphenous vein puncture (pre-CO₂ level) using heparinized blood collection tubes (Microvette CB300, Sarstedt, Germany). Then, mice were returned to their home cage and exposed to 10% CO₂ for 20 min, after which a second blood sample was taken (post-CO₂ level). Blood samples were kept on ice and centrifuged at 2000 g for 10 min at 4°C. Plasma was collected and stored at −80°C until further processing. Blood corticosterone levels were analyzed using radioimmunoassay. An ImmunuChem Double antibody corticosterone ¹²⁵I RIA Kit for rodents (MP Biomedicals, Orangeburg, New York, USA) was used according to the manufacturer’s instructions. Per sample 5 µL plasma was diluted in steroid diluents (1:100 for pre-CO₂ and 1:200 for post-CO₂ samples). Fifty μL of corticosterone ¹²⁵I and 100 μL anti-corticosterone were added per 50 µL of diluted sample, after which the tubes were incubated for 2 h at room temperature. Then, 250 µL precipitant solution was added to each sample and subsequently centrifuged at 2300 rpm for 15 min. After removing the supernatant the precipitation was counted in a Wizard gamma counter 2470 (PerkinElmer, Waltham, Massachusetts, USA).

Cardio-respiratory response

In a next step, separate groups of WT and 5-HTT +/– knockout mice (background C57BL/6, n = 20/genotype, all male) were tested to assess the cardio-respiratory response to CO₂. 5-HTT +/– mice might be considered the best model for the human 5-HTTLPR, because the S-allele is associated with a reduced expression of 5-HTT and not a complete deficiency as seen in 5-HTT –/– mice. Mice were housed in pairs of the same genotype within a temperature-controlled environment (25±1°C) and under reversed day/night cycle (12 h light/12 h dark cycle). Animals had access to standard rodent chow and water ad libitum. All procedures were approved by the Institutional Animal Care and Use Committee at Yale University, New Haven, Connecticut, USA. All assessments were made under low-light conditions during the dark phase. Mice were weighted on testing days. Breathing and heart rate were recorded simultaneously in a custom-made whole-body Plexiglas chamber (350 cm³). After habituation to the chamber for 30 min (with air infusion, all tanks from Airgas, Cheshire, Connecticut, USA), mice were exposed to air for 20 min, followed by 9% CO₂ for 10 min. Flow rates were controlled using a digital flowmeter (0.4 L/min; WU-32446-33, Cole-Parmer, Inc., Hoffman Estates, Illinois, USA). Breathing was measured using a low pressure transducer (DC002NDR5; Honeywell International, Inc.; Minneapolis, USA) that was fitted to the recording chamber. Pressure oscillations induced by breathing were calibrated with 150 pulses/min (300 µL). Heart rate was measured non-invasively using two electrodes placed on the sides of the shaved thorax. The electrodes were connected to an amplifier (Model 440 Instrumentation Amplifier, Brownlee Precision Co., San Jose, California, USA). Ambient temperature (BAT-12 microprobe, Physiotemp Instruments, Inc., Clifton, New Jersey, USA) and relative humidity (HIH-4602-A sensor; Honeywell International, Inc., Minneapolis, Minnesota, USA) within the chamber were recorded throughout the entire experiment. Immediately after the experiment, the animal’s temperature was measured rectally (BAT-12 microprobe, Physiotemp Instruments, Inc., Clifton, New Jersey, USA). Signals were digitized (PCI-6221 or USB-6008 National Instruments Corp., Austin, Texas, USA) and displayed in Matlab (version R2011b, Mathworks Co., Natick, Massachusetts, USA) with a custom-written acquisition program.

Statistical analysis

All analyses were done using the Statistical Package for the Social Sciences (SPSS 25, Inc., Chicago, Illinois, USA). Statistical significance was considered as p < 0.05. Data are presented as mean + standard error of the mean (SEM). Behavioral data were analyzed using 3×2-way analysis of variance (ANOVA) to assess interaction effects of genotype (WT, 5-HTT +/– or 5-HTT –/–) and exposure (air or CO₂), which were followed by separate ANOVA and post-hoc Bonferroni tests. For the TCT, additionally univariate analyses were used to assess genotype effects in the CO₂ or air chamber (separate analyses). Corticosterone levels were ln-transformed before being analyzed using repeated measures ANOVA and separate ANOVAs for distinct time points. Physiological data of WT mice was published previously (Leibold et al., 2016), and here analyzed using repeated measures ANOVA on ln-transformed values. About 400 breathing-induced pressure changes of the second half of each gas exposure were analyzed. Artifacts due to moving, coughing, sniffing, and sighs were excluded. Animal temperature and body weight were considered to calculate tidal volume (amplitude) and ventilation. Heart rate was analyzed in terms of 30 s of the second half of each gas exposure and using the quick peaks gadget in Origin 9.0 (Origin Lab Corp., USA).

Results

Fear-related behavior

Modified OFT

In the modified OFT, significant overall effects of genotype (F(2,78) = 14.081, p < 0.001), exposure (F(1,78) = 552.442, p < 0.001), and a genotype × exposure interaction (F(2,78 = 18.996, p < 0.001) were observed on total distance moved (Figure 2(a)). Post-hoc analysis showed that within all three genotypes, CO₂ exposure strongly reduced the distance covered compared to air exposure (p < 0.001). In addition, when exposed to air, 5-HTT –/– mice covered less distance in comparison with both WT and 5-HTT +/– mice (both p < 0.001). This effect was not present during CO₂ exposure (both p = 1.000).

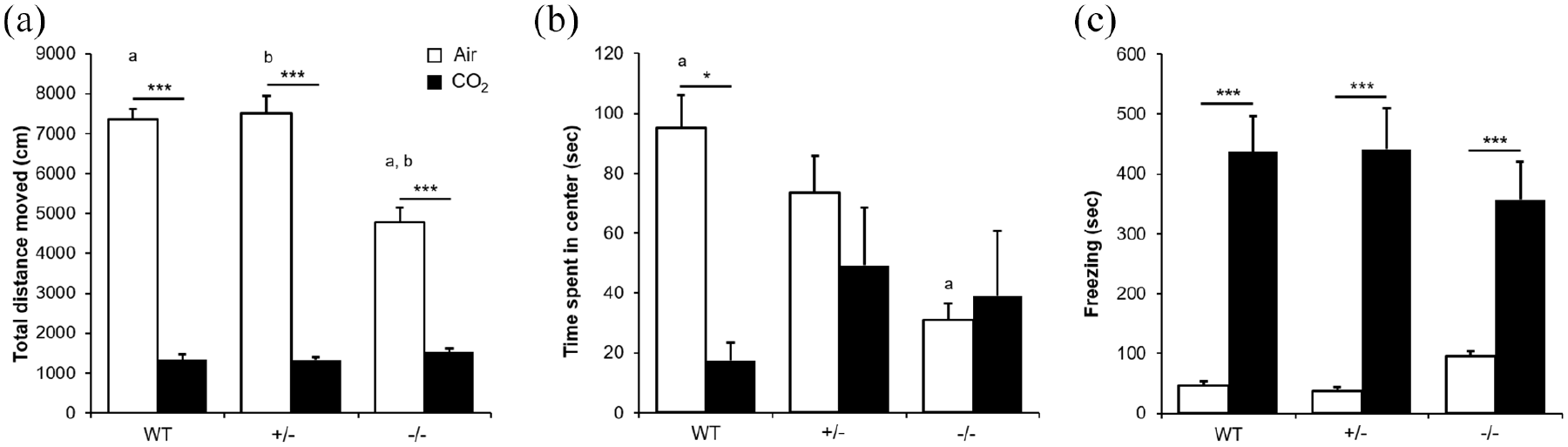

Figure 2.

Assessment of the behavioral performance in the modified open field test. (a) Under air exposure serotonin transporter (5-HTT) –/– mice covered less distance than mice of other genotypes. Exposure to carbon dioxide (CO₂) significantly reduced the total distance moved in all genotypes. (b) During air exposure 5-HTT –/– mice spent less time in the center zone in comparison with wildtype (WT) mice. When exposed to CO₂, only WT mice spent less time in the center compared to air exposure, no difference was found in 5-HTT +/– and 5-HTT –/– mice. (c) In all genotypes, CO₂ exposure resulted in a robust freezing response compared to air exposure. Bars represent mean + standard error of the mean (SEM). +/–: heterozygous 5-HTT knockout mice; –/–: homozygous 5-HTT knockout mice. *p < 0.05, ***p < 0.001; same letters indicate a group difference of p < 0.05.

With regard to time spent in center (Figure 2(b)), there was no overall genotype effect (F(2,78) = 1.953, p = 0.149), but a significant exposure effect (F(1,78 = 1.953, p = 0.008) and a genotype × exposure interaction (F(2,78) = 4.731, p = 0.011). Post-hoc follow-up revealed that CO₂ exposure decreased the time spent in the center zone within WT mice only (p = 0.003). Furthermore, the duration spent was shorter in 5-HTT –/– air-exposed mice compared to WT air-exposed mice (p = 0.028), indicative of relatively more fear-related behavior in 5-HTT –/– mice. However, under CO₂ exposure, 5-HTT –/– and 5-HTT +/– spent a comparable amount of time in the center as they did during air exposure (both p = 1.000), while WT mice spent less time in the center during CO₂ exposure (p = 0.003). Comparing 5-HTT –/– and 5-HTT +/– mice with WT mice during CO₂ exposure did not lead to a statistically relevant difference (both p = 1.000).

Moreover, regarding freezing (Figure 2(c)), overall analysis showed that there was no main effect of genotype (F(2,78) = 0.069, p = 0.933), while CO₂ exposure was associated with alterations in freezing behavior (F(1,78) = 88.88, p < 0.001). The interaction genotype × exposure was not significant (F(2,78) = 1.503, p = 0.229). When exposed to CO₂, mice showed a robust freezing response in comparison with air exposure (WT and 5-HTT +/–: p < 0.001, 5-HTT –/–: p = 0.002), reflecting fear-related behavior.

TCT

In the TCT, with one chamber filled with CO₂ and one with air, or both filled with air, overall effects of genotype (F(2,78) = 5.647, p = 0.005), exposure (F(1,78) = 319.772, p < 0.001) and an interaction of genotype × exposure (F(2,78) = 3.266, p = 0.043) on total distance moved were present (Figure 3(a)). Post-hoc comparisons showed that in line with the modified OFT, when exposed to CO₂, the distance covered was significantly reduced in all genotypes when compared to air exposure (p < 0.001). Again, under air exposure, 5-HTT –/– mice travelled less than WT mice (p = 0.007) and 5-HTT +/– mice (p = 0.015), a difference that was absent when exposed to CO₂ (both p = 1.000).

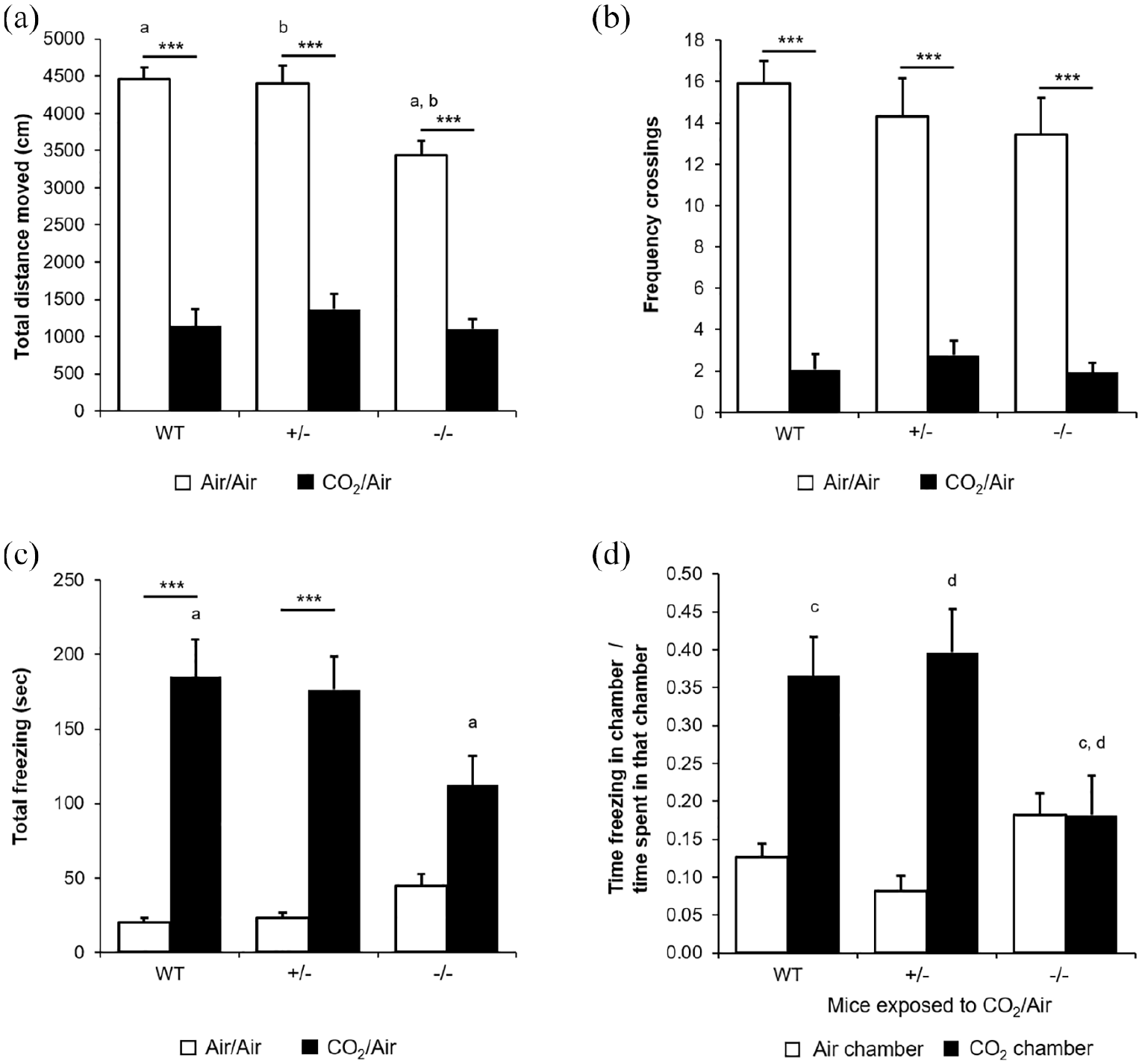

Figure 3.

Assessment of the behavioral performance in the two-chamber test. (a) The total distance moved was strongly reduced under carbon dioxide (CO₂) exposure in all genotypes. Serotonin transporter (5-HTT) –/– mice covered less distance than wildtype (WT) and 5-HTT +/– mice during air exposure. (b) Under CO₂ exposure the number of crossings was significantly lower than during air exposure. (c) When exposed to air, no genotype differences were found. When exposed to CO₂, a marked freezing response was observed only in WT and 5-HTT +/– mice compared to air-exposure. 5-HTT –/– mice froze less to CO₂ than WT mice. (d) The ratio of time spent and freezing per chamber indicated that WT and 5-HTT +/– mice froze longer in the chamber filled with CO₂ than 5-HTT –/– mice. No effect was found within the chamber filled with air. Bars indicate mean + standard error of the mean (SEM). +/–: heterozygous 5-HTT knockout mice; –/–: homozygous 5-HTT knockout mice. ***p < 0.001; a, b, d same letters indicate a group difference of p < 0.05; c, same letters indicate a group difference of 0.05.

Further, genotype did not significantly affect the number of crossings between the chambers (F(2,78) = 0.587, p = 0.559; Figure 3(b)). There was an overall exposure effect (F(1,78) = 147.743, p < 0.001), but not a genotype × exposure interaction (F(2,78) = 92.967, p = 0.549). Within all genotypes, the number of crossings was reduced under CO₂ exposure compared to air exposure (p < 0.001). Regarding time spent in each chamber, when both chambers were filled with air, there was no overall effect of genotype (e.g. left chamber p = 0.653). Likewise, when one chamber was filled with CO₂, there was no genotype difference in the duration spent in the CO₂ chamber (F(2,39) = 1.425, p = 0.253). As in the modified OFT, overall, there was no genotype effect (F(2,789) = 1.272, p = 0.286), but a significant exposure effect (F(1,78) = 92.967, p < 0.001). Moreover, we observed a genotype × exposure interaction (F(2,78) = 5.382, p = 0.006) on the total freezing duration (Figure 3(c)). Post-hoc analyses showed that within genotype, both WT and 5-HTT +/– mice froze significantly more under CO₂ exposure than when exposed to air (p < 0.001), which was not the case for 5-HTT –/– mice (p = 0.072). Between genotypes, 5-HTT –/– mice froze less to CO₂ than WT mice (p = 0.034).

Evidently, the freezing duration influences the time spent in a particular chamber. To correct for this, for mice exposed to CO₂ in one chamber and to air in the other chamber a ratio of time spent freezing relative to the total time spent in that particular chamber was calculated (Figure 3(d)). Within the CO₂ chamber, an overall effect of genotype was found (F(2,37) = 4.623, p = 0.016). Post-hoc analysis revealed that the freezing/time spent ratio tended to be lower in 5-HTT –/– mice compared to WT (p = 0.067) and was significantly lower than in 5-HTT +/– mice (p = 0.022). No overall genotype effect was found in the other chamber, i.e. the one filled with air (F(2,30) = 0.776, p = 0.469).

CO₂-induced plasma corticosterone secretion

Repeated measures ANOVA on plasma corticosterone levels showed a significant effect (F(1,78) = 334.286, p < 0.001) of increased levels after CO₂ exposure for 20 min, but no time × genotype interaction (F(2,78) = 2.232, p = 0.114) (Figure 4). Analysis of the distinct time points showed no genotype differences in corticosterone levels (pre-CO₂: F(2,78) = 1.423, p = 0.247; stress: F(2,78) = 1.841, p = 0.166). However, there was a significant effect of previous CO₂ exposure in the behavioral tasks on pre-CO₂ (F(1,78) = 5.707, p = 0.019) and post-CO₂ corticosterone levels (F(1,78) = 17.929, p < 0.001), with higher levels when previously exposed to CO₂.

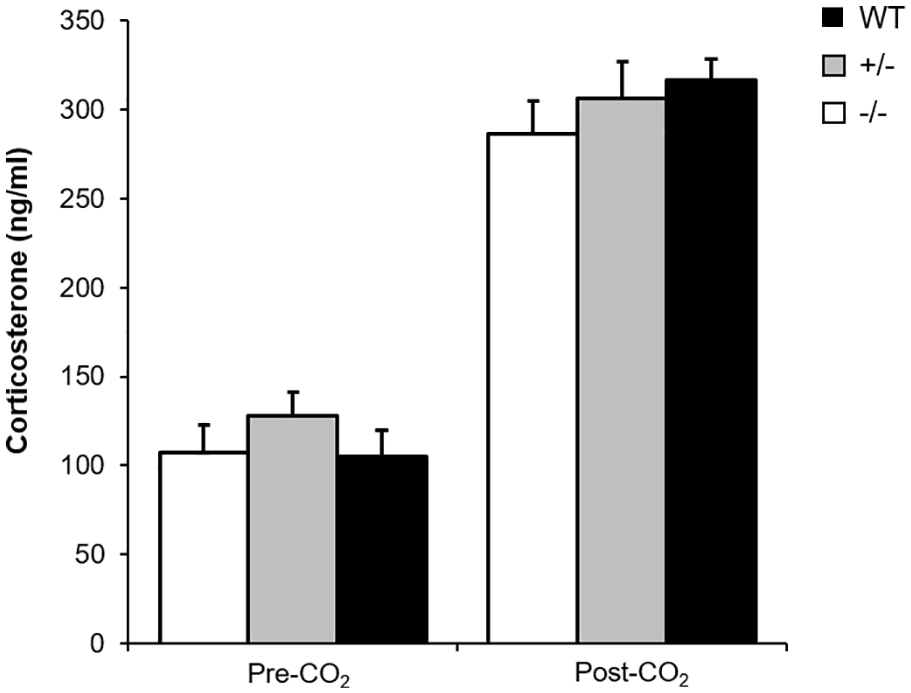

Figure 4.

Plasma corticosterone secretion before and after exposure to 10% carbon dioxide (CO₂) for 20 min. CO₂ exposure strongly increased corticosterone levels in mice of all genotypes (exposure effect p = 0.002). Bars represent mean + standard error of the mean (SEM). +/–: heterozygous 5-HTT knockout mice; –/–: homozygous 5-HTT knockout mice; 5-HTT: serotonin transporter; WT: wildtype mice.

Breathing and heart rate recordings

In a next step, the cardio-respiratory response was assessed in WT and 5-HTT +/– mice only, i.e. excluding 5-HTT –/– mice, because these genotypes might represent the best model for the human 5-HTTLPR that is associated with a reduced and not complete deficiency of 5-HTT, and because re-analyzing the behavioral response of WT and 5-HTT +/– mice retained a significant genotype × exposure interaction (F(1,52) = 4.156, p = 0.047) on the time spent in the center zone of the modified OFT. WT animals spent less time in the center when exposed to CO₂ compared to air-exposure (p = 0.001), while there was no difference in 5-HTT +/– animals (p = 1.000).

Analyzing breathing frequency, repeated measures analysis showed no main effect of genotype (F(1,37) = 1.887, p = 0.178) or genotype × exposure interaction (F(1,37) = 1.224, p = 0.276) (Figure 5(a)). However, a strong main effect of exposure was observed (F(1,37) = 123.192, p < 0.001), with increased breathing frequency during CO₂ compared to air exposure. Similarly, overall, tidal volume was not affected by genotype (F(1,37) = 0.245, p = 0.623), but by exposure (F(1,37) = 392.665, p < 0.001) and a tendency towards an interaction of both (F(1,37) = 3.563, p = 0.067). CO₂ appeared to increase tidal volume in comparison with air exposure (see Table 1 for mean + SEM). Furthermore, there was no overall effect of genotype (F(1,37) = 0.158, p = 0.693) and no genotype × exposure interaction (F(1,37) = 2.661, p = 0.111) on ventilation. However, a main effect of exposure was present F(1,37) = 340.193, p < 0.001), with increased ventilation when exposed to CO₂ compared to air. With regard to heart rate, there was no genotype effect (F(1,36) = 0.508, p = 0.481), but overall, CO₂ exposure decreased the mean heart rate compared to air exposure (F(1,36) = 54.219, p < 0.001) (Figure 5(b)). No interaction of genotype × exposure was observed (F(1,36) = 2.241, p = 0.143).

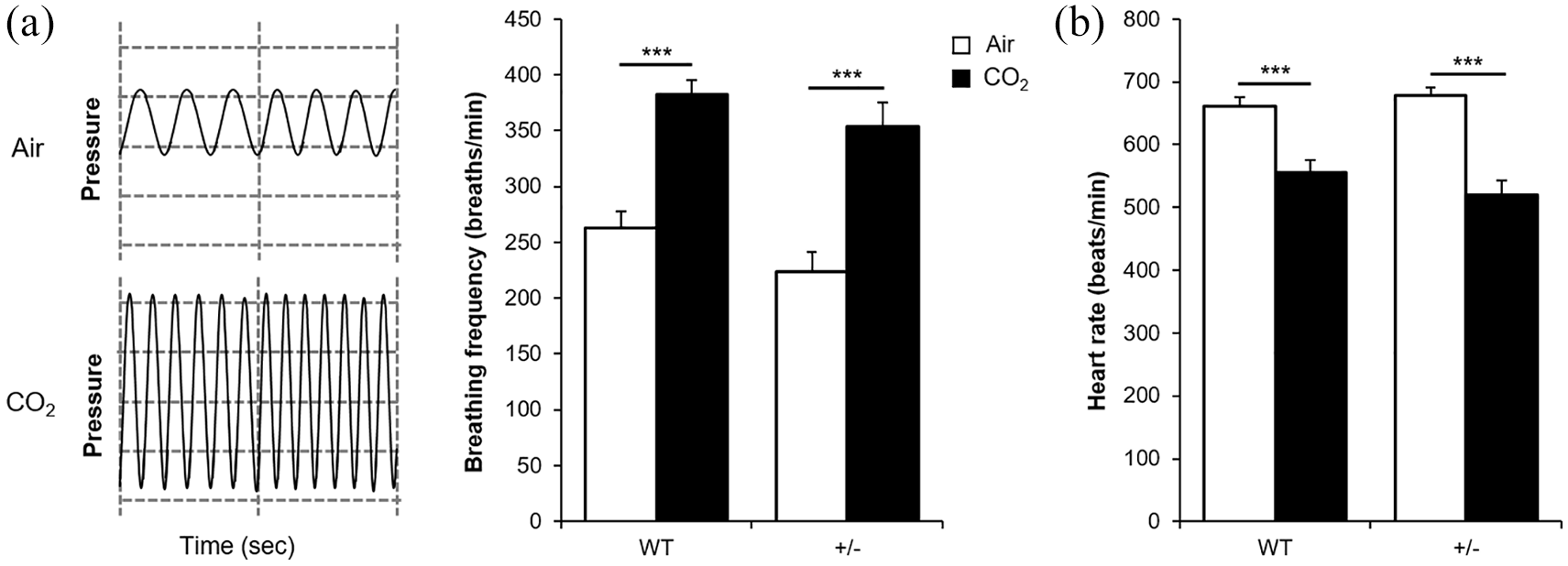

Figure 5.

Respiratory and cardiovascular monitoring during exposure to air and carbon dioxide (CO₂). (a) Schematic representation of a 2 s epoch of pressure-induced changes to assess breathing frequency and tidal volume (amplitude) during inhaling air (top) and CO₂ (bottom). CO₂ strongly increased breathing frequency in comparison with air exposure. (b) Heart rate decreased during inhaling CO₂. No genotype effect was present in any outcome measurement. Bars represent mean + standard error of the mean (SEM). +/–: heterozygous 5-HTT knockout mice; 5-HTT: serotonin transporter; WT: wildtype mice. ***p < 0.001.

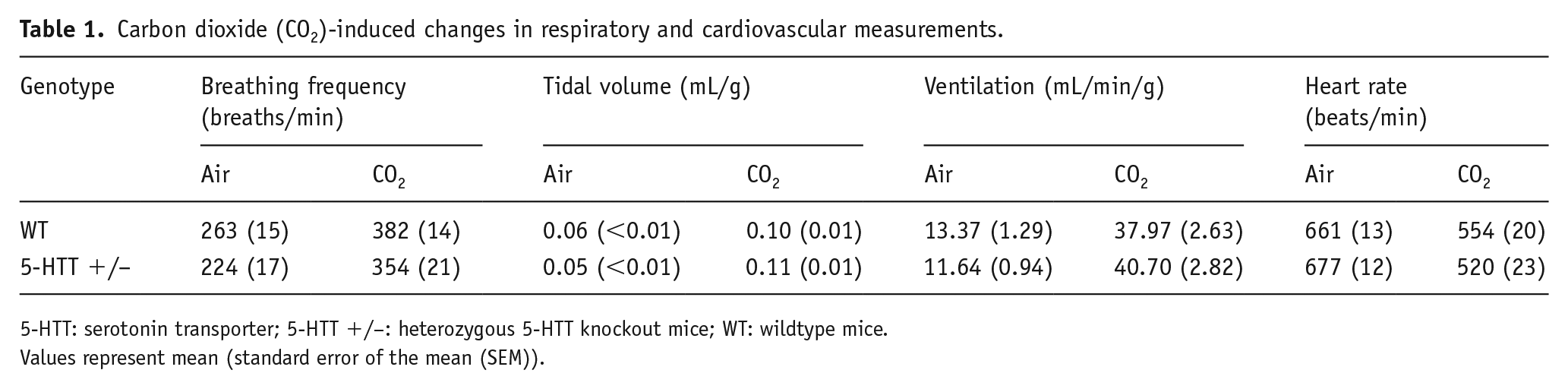

Table 1.

Carbon dioxide (CO₂)-induced changes in respiratory and cardiovascular measurements.

Genotype	Breathing frequency (breaths/min)		Tidal volume (mL/g)		Ventilation (mL/min/g)		Heart rate (beats/min)
	Air	CO2	Air	CO2	Air	CO2	Air	CO2
WT	263 (15)	382 (14)	0.06 (<0.01)	0.10 (0.01)	13.37 (1.29)	37.97 (2.63)	661 (13)	554 (20)
5-HTT +/–	224 (17)	354 (21)	0.05 (<0.01)	0.11 (0.01)	11.64 (0.94)	40.70 (2.82)	677 (12)	520 (23)

5-HTT: serotonin transporter; 5-HTT +/–: heterozygous 5-HTT knockout mice; WT: wildtype mice.

Values represent mean (standard error of the mean (SEM)).

Discussion

As follow-up to our previous study in humans showing a differential self-reported fear response to CO₂ depending on the 5-HTTLPR genotype (Schruers et al., 2011), we further investigated the relationship between chemosensitivity and the 5-HT system by exposing WT, 5-HTT +/–, and 5-HTT –/– mice to CO₂. In line with our previous studies in humans (Leibold et al., 2016; Schruers et al., 2011) and mice (Leibold et al., 2016), CO₂ induced robust fear-related behaviors and strongly activated the respiratory system. However, in contrast to our hypothesis, there were only minor effects of differential 5-HTT expression on behavior.

In humans, the use of CO₂ as experimental panic-stimulus is well established in PD patients and, when using a higher dosage, also in healthy individuals (for review see Leibold et al., 2015). This is suggestive of the involvement of fundamental neurobiological mechanisms. Inhaling air enriched with CO₂ is associated with an acute drop in brain pH (Schuchmann et al., 2006; Ziemann et al., 2008, 2009) that can trigger various adaptive responses, as such a pH drop can have life-threatening consequences. In this study, we investigated the responses to CO₂ by using two behavioral tasks (modified OFT and TCT) and by assessing cardio-respiration. Generally, the OFT is considered an anxiety test, in which avoidance of the center zone (open zone) is one of the main outcome measurements. It has to be mentioned that anxiety is distinct from fear/panic and that different brain structures and behaviors are involved (Blanchard and Blanchard, 1990). Anxiety predominates when the distance to a threat is large, i.e. when there is a potential threat. This is associated with risk assessment and approach behavior. Fear dominates when the distance to a threat is small, i.e. when there is a direct threat. This leads to primitive survival responses. Conceptually, prefilling the OFT testing box with CO₂ that reduces the pH within the body and thus causes a threat from the smallest distance possible, namely from within body, can be considered to elicit a state of fear/panic rather than anxiety. Further support for this notion is provided by our previous study in mice, in which we showed that that exposure to a low concentration of CO₂ in rodents leads to cardio-respiratory effects corresponding to the ones evoked by a 35% CO₂ inhalation in humans (Leibold et al., 2016). In the TCT, with one chamber being filled with CO₂ and one with air, avoidance to an aversive stimulus is tested. It is assumed that mice spend more time in the chamber filled with air to avoid the effects of CO₂ (Ziemann et al., 2009).

Examining the effects of CO₂ in these tasks showed that CO₂ induced a robust fear-related behavioral response in mice, in line with previous reports (Johnson et al., 2011, 2012; Leibold et al., 2016; Ziemann et al., 2009). However, unexpectedly, there were only minor effects of 5-HTT genotype. More specifically, total distance moved was strongly decreased in both tasks, independent of genotype. Likewise, the total duration of freezing, a correlate of fear and panic in mice (Mongeluzi et al., 2003; Ziemann et al., 2009), in the modified OFT and the number of crossings between compartments in the TCT were similarly affected in all genotypes. Exceptions are the duration spent in the center zone of the modified OFT, an outcome measurement that is relatively independent on locomotor activity, and freezing in the TCT. With regard to the duration spent in the center zone of the modified OFT, 5-HTT –/– mice show no decrease in time spent in the center zone during CO₂ exposure compared to air exposure. This suggests an altered threat perception and/or altered coping strategy in mice carrying the full knockout. For instance, the fact that 5-HTT –/– mice already spent very little time in the center during air exposure could represent heightened aversion to the OFT itself in this genotype, leading to a ceiling effect. In the TCT, however, 5-HTT –/– mice spent less time freezing over the total time spent in the aversive compartment. This, again, could indicate that mice carrying the full knockout perceive CO₂ differently or have an altered coping strategy. Furthermore, it cannot be excluded that the TCT is less aversive in comparison to the OFT, as the compartments are smaller. These observations are in line with previous work showing, e.g., that mice fully deficient of 5-HTT performed worse in the more stressful water maze test compared to WT and 5-HTT +/– littermates, while no differences were observed in Barnes maze (Karabeg et al., 2013).

Next to direct effects on animal behavior, we aimed to measure avoidance of CO₂ as an aversive stimulus. In the TCT, animals had the option to leave the compartment filled with CO₂. Unexpectedly, we did not observe any avoidance, in contrast to previous studies in mice, in which WT mice spent most of the time in the chamber filled with air (D’Amato et al., 2011; Ziemann et al., 2009). This discrepancy can be explained by the immense freezing response that we observed in the present study when CO₂ was present, which seems to have prevented the animals from leaving the CO₂ chamber. This notion is supported by the strongly reduced crossing frequency between both chambers in the presence of CO₂ Ziemann et al. (2009) used 15% CO₂ in this task in their previous study. In our study, a steady state of 9% CO₂ was reached, which is lower than the previously used concentration of 15% CO₂. In addition, care was taken to use an optimized methodological approach, including fans to homogenize the air, continuous measurement of the CO₂ concentration, and a randomization regarding side of CO₂ administration and side, in which mice were placed at the beginning of the test. Moreover, the chambers of our set-up were bigger compared to the set-up used by Ziemann et al. The combination of a larger box in our study and CO₂ may have been a particularly aversive stimulus. Possibly, this led to a ceiling effect and prevented finding any subtle genotype differences under CO₂ exposure. CO₂ exposure is stressful in nature as shown by the observed increase in plasma corticosterone, which is in line with previous reports (D’Amato et al., 2011). This effect of CO₂ is independent of genotype and suggests that differences in behavioral performance are not primarily dependent on HPA axis reactivity.

In addition, to studying the behavioral effects of CO₂ exposure, also the effects on the cardio-respiratory system were explored. CO₂ strongly activated the respiratory system with an increase in breathing frequency and tidal volume; heart rate decreased in comparison to air exposure. These results are consistent with those previously reported in, for example, freely moving rats (Annerbrink et al., 2003) and phrenic nerve recordings of anesthetized rats under CO₂ exposure (Dumont et al., 2011). In the present study, effects were independent of genotype. To the best of our knowledge, little research has been done regarding examining the respiratory response to CO₂ in mice deficient for 5-HTT or in humans related to the 5-HTTLPR genotype. Li and Nattie (2008) observed in their study that 5-HTT –/– males had a smaller increase in ventilation to CO₂ than WT mice. 5-HTT +/– mice were not tested. The lack of a difference between WT and 5-HTT +/– mice in our study might be explained by 5-HT neurons sufficiently acting as chemosensors and initiating an adaptive response (Richerson, 2004), independent of 5-HT availability, or by a functionally insufficient difference in extracellular 5-HT availability to exert effects in this regard.

In addition to the potential explanations above that could contribute to the lack of clear differential 5-HTT expression effects in our study, another possibility is that several genetic and environmental vulnerability factors have to interact to lead to an altered functioning in the brain and a phenotype of heightened CO₂-sensitivity. For instance, likewise to 5-HT neurons, many other neurons including noradrenergic neurons in the locus coeruleus (LC) are activated by CO₂/pH (Biancardi et al., 2008; Filosa et al., 2002; Pineda and Aghajanian, 1997). The LC receives major input from the medullary nucleus paragigantocellularis, a key region in cardio-respiratory regulation (Aston-Jones et al., 1986), and was shown to modulate the respiratory response to CO₂ (Biancardi et al., 2008). Furthermore, LC neurons are involved in the behavioral response to stress (Stanford, 1995) and by projecting to nuclei of the limbic system these neurons likely mediate fear. Based on basic research findings like these and other research, it has been suggested that the central noradrenergic system, particularly the LC, is the common site for mediating the increases in fear and physiology to a 35% CO₂ inhalation in humans (Bailey et al., 2003). It is noteworthy that the LC and the dorsal raphe nucleus are connected by extensive reciprocal connections (Kim et al., 2004). CO₂ was shown to stimulate the release of 5-HT in the LC. By exerting inhibitory effects, 5-HT reduces the stimulatory effects of the LC on breathing in response to CO₂ (de Souza Moreno et al., 2010). Contrary to this effect, in general, projections from the LC have excitatory effects on dorsal raphe nucleus neurons (Brown et al., 2002). These connections make it interesting to investigate, e.g. pharmacologically, whether disturbances in both systems might interact to express a phenotype of heightened CO₂-sensitivity. While it is known that both 5-HT and noradrenergic neurons are sensitive to pH/CO₂, it is unknown which neuronal molecule senses these changes and an alteration in that molecule could also contribute to a higher sensitivity to CO₂. An interesting candidate is the acid-sensing ion channel 1a (ASIC1a). Genetic knockout of ASIC1a significantly blunts the CO₂-induced behavioral effects (Ziemann et al., 2009) and antagonism normalizes the hyperreactivity to CO₂ that is seen in a specific mouse model (Battaglia et al., 2019). Further, in addition to genetic factors, also their interaction with environmental stimuli shape behavioral phenotypes. For example, early life adversities such as maternal separation and repeated cross-fostering have been shown to increase the sensitivity to CO₂ in rodents (Battaglia et al., 2019; D’Amato et al., 2011). Therefore, interplays of genetic vulnerabilities and environmental stressors could provide important insights for understanding the pathophysiology in more depth.

Some potential limitations of the present study should be kept in mind: As only male animals were tested no potential sex effects were examined. In humans, a higher prevalence of PD is reported in females (Dick et al., 1994; Gater et al., 1998), while CO₂ studies did not consistently find this effect (Kelly et al., 2006; Leibold et al., 2013; Nardi et al., 2007; Nillni et al., 2012; Poonai et al., 2000). Therefore, more research into the effect of sex and menstrual cycle phase is warranted. Further, cardio-respiration was not assessed in 5-HTT –/– mice. As mice of this genotype were affected differentially in the behavioral tasks, physiological alterations associated with CO₂ exposure should also be assessed in this genotype in future studies.

Conclusion

Overall, under CO₂ exposure there was no effect of differential 5-HTT expression on physiological parameters and only minor interaction effects on behavior. Future research is needed that also addresses the interplays with other systems. These insights could contribute to a better understanding of the pathophysiology underlying CO₂-sensitivity and eventually to develop better treatments.
