Platinum surface complexes as precursors for H 2

Abstract

In this work, the adsorption of platinum (II, IV) chloride complexes from acidic solutions on silica gel modified with quaternary ammonium salts (QAS) was studied. The uptake of the platinum chloride complexes is caused by the formation of ionic (QAS⁺)₂[PtCl _x ]²⁻ (x = 4, 6) associates on the surface of silica gel. The isotherms of adsorption are fitted by the Langmuir model. The maximum capacity for [PtCl₄]²⁻ and [PtCl₆]²⁻ is 0.99 and 1.13 mmol/g, correspondingly. The respective adsorption constants K_L = 6.8 and 10 × 10⁵l/mol prove the high affinity of the adsorbates to the QAS-modified surface. Platinum metal nanoparticles supported on the surface of the silica gel were prepared by reducing the adsorbed platinum (II, IV) complexes. Such nanoparticles functioning at the moderate temperature regime have demonstrated a reasonable catalytic activity for the hydrogen and oxygen recombination, and an excellent stability over 35 cycles of the reaction.

Keywords

Adsorption silica platinum chloride complexes acid complexes quaternary ammonium salts hydrogen and oxygen recombination

Introduction

Sorbents, in particular, modified with reagents contained N-donor atoms are today used for solid phase extraction and pre-concentration of platinum metals from acid solutions (Tarkovskaya et al., 1997). Sorbents on the base of silica gel (SG) modified with highmolecular weight quaternary ammonium salts (QAS) are found to be the most efficient for the uptake of metals in the form of the acidic complex (Zaporozhets et al., 2000). Such sorbents are stable in the acid medium due to strong electrostatic/dispersion interactions between QAS and silica surface groups. Earlier, the QAS-SG sorbents were successfully applied for the solid-phase extraction and pre-concentration of cobalt, iron, and bismuth acidic complexes before their spectroscopic determination (Zaporozhets et al., 1998, 1999). From our point of view, such ion-exchange sorbents should have an affinity to the acidic complexes of platinum metals that form in the hydrochloric acid solutions. Besides their analytical application, the sorbents can be of interest for the preparation of platinum metal nanoparticles supported on the surface of SG. Platinum catalysts are known to be required in converters recombining a gas mixture of air oxygen (O₂) and leaked hydrogen (H₂). Emitting from the tanks fed the power engines or fuel cells (Folkson, 2013), the hydrogen accumulates in confined spaces giving rise to fire and explosion risks (Butler et al., 2009; Molokov and Bragin, 2015). No doubt, the catalytic technology can keep the H₂ level at values compatible with safety requirements (Safety of Hydrogen as an Energy Carrier [HYSAFE], 2009), and so prevents the oxyhydrogen formation (Bradley et al., 2013; Hajji et al., 2015). To enhance converters efficiency, one can use the advanced catalysts (Yatsimirsky et al., 2000; Yatsimirsky and Boldyreva, 2003) that satisfy the operation requirements influenced by the mixture composition and temperature (Zarko et al., 1999). In this context, supported platinum metal nanoparticles could be effective in this field. The synthesis of platinum catalysts includes the stage of reduction of the platinum surface complexes adsorbed on QAS-SG.

Taking all this into account, here we report on the adsorption of QAS on SG, and solid-phase uptake of [PtCl₄]²⁻ and [PtCl₆]²⁻ using QAS-SG. The activity for hydrogen and oxygen (H₂–O₂) recombination found for the catalysts prepared is also discussed.

Materials and methods

Quaternary ammonium salts (QAS, TSI, Japan): tetradecyl ammonium nitrate (QAS1) and bromide (QAS2) were dissolved in chloroform (Merck, 98% w/w). The static mode adsorption experiments were conducted in chloroform–hexane 1:9 (v/v) mixture: 1.000 g of silica gel (Merck SG-60, S_BET = 490 m²/g) was mixed with 2.5 ml of 0.01 M of QAS chloroform solution and 37.5 ml of hexane (Sigma, 98% w/w) and then stirred for 15 min. After that, the modified sorbent (QAS-SG) was decanted and dried. The equilibrium concentration of QAS was measured by absorption at 620 nm of (QAS)₂[Co^II(SCN)₄] extracted with chloroform–hexane.

The platinum adsorption experiments carried out at 285 K and 293 K were disclosed below. From 10.0 to 100.0 ml of 2 mg/ml of Pt (II, IV) in 2 M HCl solution was prepared by sequential dilution of standard H₂PtCl₆ and K₂PtCl₄ solutions. These solutions were prepared from H₂PtCl₆·6H₂O and K₂PtCl₄ (Aldrich, A.r. reagents).

To find adsorption dependence against acidity, pH was adjusted with either 0.1 M NaOH or HCl. The ionic strength of 0.1 M was fixed with 1 M NaCl solution. The resulted mixture was stirred for 1–20 min with 0.05–0.10 g of QAS-SG. Thereafter, the adsorbate was centrifuged and dried in air. The uptake percentage (R), the capacity of sorbent (a), and the separation coefficient (D) were calculated as

R (%) = 100 \times (C - [C]) / C

(1)

a (mol / g) = (C - [C]) \times V / m

(2)

D (ml / g) = (R \times 1 0^{3} \times V) / [(100 - R) \times m]

(3)

where C and [C] are the initial and the equilibrium (residual) concentration of platinum, respectively (mol/l), V is the volume of the solution (l), m is the mass of QAS-SG (g). The value of [C] was determined at pH 3.0, by measuring the absorbance at 260 and 540 nm for the colored [PtCl₆]²⁻ and Rhodanine-Pt(II) complex, correspondingly. Ultraviolet-visible (UV-Vis) absorption measurements were done with a UNICO UV-2800 spectrophotometer. The diffuse reflection (DR) spectra were recorded on a Carl Zeiss Jena Specord M40 spectrometer. The platinum concentration in solutions was controlled with a Carl Zeiss Jena AAS N1 flame spectrometer.

The sorbents containing 0.1, 0.3, and 0.5 wt% Pt were converted into the supported metal catalysts by treating in hydrogen stream (10 vol% H₂ in Ar; 50 ml/h) at below 503 K for 2 h. The catalyst activity in the H₂–O₂ recombination reaction was measured in a flow reactor operating at atmospheric pressure. A gas mixture of 1:20 H₂/O₂ (v/v) was diluted with argon and fed through a catalyst fixed-bed at the rate of 50 ml/h. The catalyst loading was ∼0.5 g/1 cm³ and the grain size was 1–2 mm. Programmed temperature regime of 273–393 K was controlled with digital thermopiles inside the reactor. The mixture composition was analyzed at the reactor outlet by gas chromatography (GC) using a Shimadzu GC 2100 instrument with a thermal conductivity detector. The kinetic studies were performed as reported earlier (Lesnyak et al., 2009). To compare the activity, a commercial 0.1 wt% Pt/Al₂O₃ catalyst was used as the reference. Single-point surface area (SPSA) was measured by nitrogen adsorption at 77 K. Transmission electron microscopy (TEM, JEM 1400 microscope) and scanning electron microscopy (SEM, JSM 7700 F microscope combined with energy dispersive spectrometer [EDS, Oxford Energy 350]) were used for the morphology imaging and element mapping.

Results and discussion

H-type isotherms are best characterized by the strong interaction between the SG surface and the long-chain aliphatic QAS (Figure 1). The isotherms initial branches are well plotted in Langmuir coordinates.

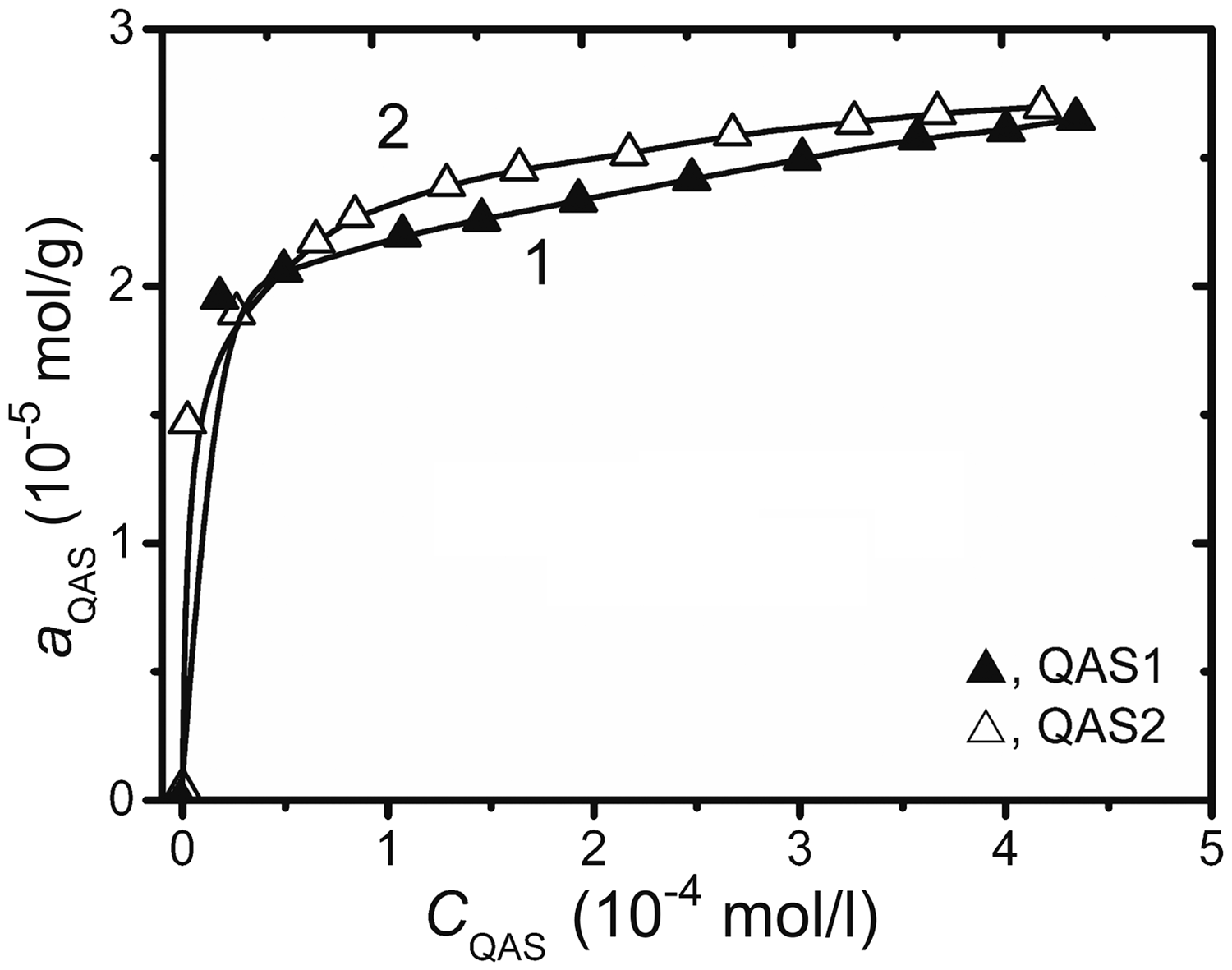

Figure 1.

The isotherms of quaternary ammonium salts (QAS) adsorption for SG-60, V/m, 800 ml/g (1), 100 ml/g (2).

The capacity of SG for all QAS, with respect to chemisorption area of a single QAS molecule, is ∼0.1 mmol/g. And, probably, the counter ion of QAS could not affect the platinum ions uptake. The monolayer capacity of SG for QAS1 and QAS2 is practically the same, of ∼0.025 mmol/g. That is why both of the prepared samples further will be mentioned as QAS-SG. The quantitative uptake of [PtCl₄]²⁻ is reached between 2.5 ≤ pH ≤ 6.0, while [PtCl₆]²⁻—at pH ≤ 6.0 (Figure 2).

Figure 2.

Influence of pH (1, 2) and time (3, 4) at 293 K on adsorption of 10⁻⁵M [PtCl₄]²⁻ (1, 3) and [PtCl₆]²⁻ (2, 4) on SG-QAS, V/m = 200 ml/g, a_SG–QAS = 0.025 mmol/g, T, 285 K (1, 2), 293 K (3, 4), τ_c = 20 min (1, 2). SG-QAS: silica gel-quaternary ammonium salts.

Caused the partial hydrolysis of the chlorides, the optimal pH value is found to be 2.0 ± 0.1 for [PtCl₄]²⁻ and 3.0 ± 0.1 for [PtCl₆]²⁻. The adsorption equilibrium at the optimal pH is reached for 3 and 15 min, correspondingly.

Figure 3 shows the quantitative uptake of the platinum in the form of acidic complexes (R > 90%) at V/m ∼ 1000.0 ml/g. Under this condition, the D value is ∼1.0 × 10⁴ml/g. Therefore, further research was conducted with 0.1 g of sorbent at the sample volume of 100 ml. The adsorption isotherms of [PtCl₄]²⁻ and [PtCl₆]²⁻ belong to high-affinity H1 and H2 types, correspondingly, the saturation is reached at a_QAS:a_Pt ∼ (2:1). The H-type isotherms and high K_L values (Table 1) indicate the strong binding of the chloride complexes of platinum.

Figure 3.

Adsorption isotherms and uptake against V/m for 5 µmol [PtCl₄]²⁻ and [PtCl₆]²⁻ solutions, pH: 2 (1, 3) and 3 (2, 4), correspondingly, time, 3 min (3), 15 min (4).

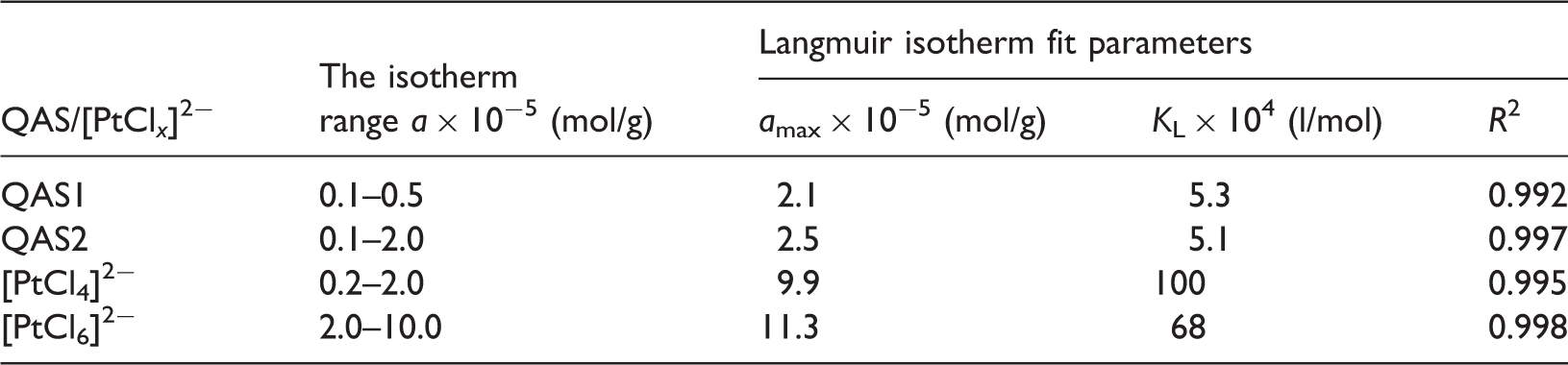

Table 1.

Adsorption isotherms fitting parameters.

QAS/[PtCl _x ]²⁻	The isotherm range a × 10⁻⁵ (mol/g)	Langmuir isotherm fit parameters
QAS/[PtCl _x ]²⁻	The isotherm range a × 10⁻⁵ (mol/g)	a_max × 10⁻⁵ (mol/g)	K_L × 10⁴ (l/mol)	R ²
QAS1	0.1–0.5	2.1	5.3	0.992
QAS2	0.1–2.0	2.5	5.1	0.997
[PtCl₄]²⁻	0.2–2.0	9.9	100	0.995
[PtCl₆]²⁻	2.0–10.0	11.3	68	0.998

QAS: quaternary ammonium salts.

Perhaps, the platinum complexes uptake caused the formation of the surface ion associates (QA⁺)₂[PtCl _x ]²⁻, where x is 4 or 6. To confirm the hypothesis, we compared the normalized and extrapolated spectra of the heterochromatic ionic associates that adsorbed on SG and extracted in the chloroform–hexane 1:4 (Figure 4).

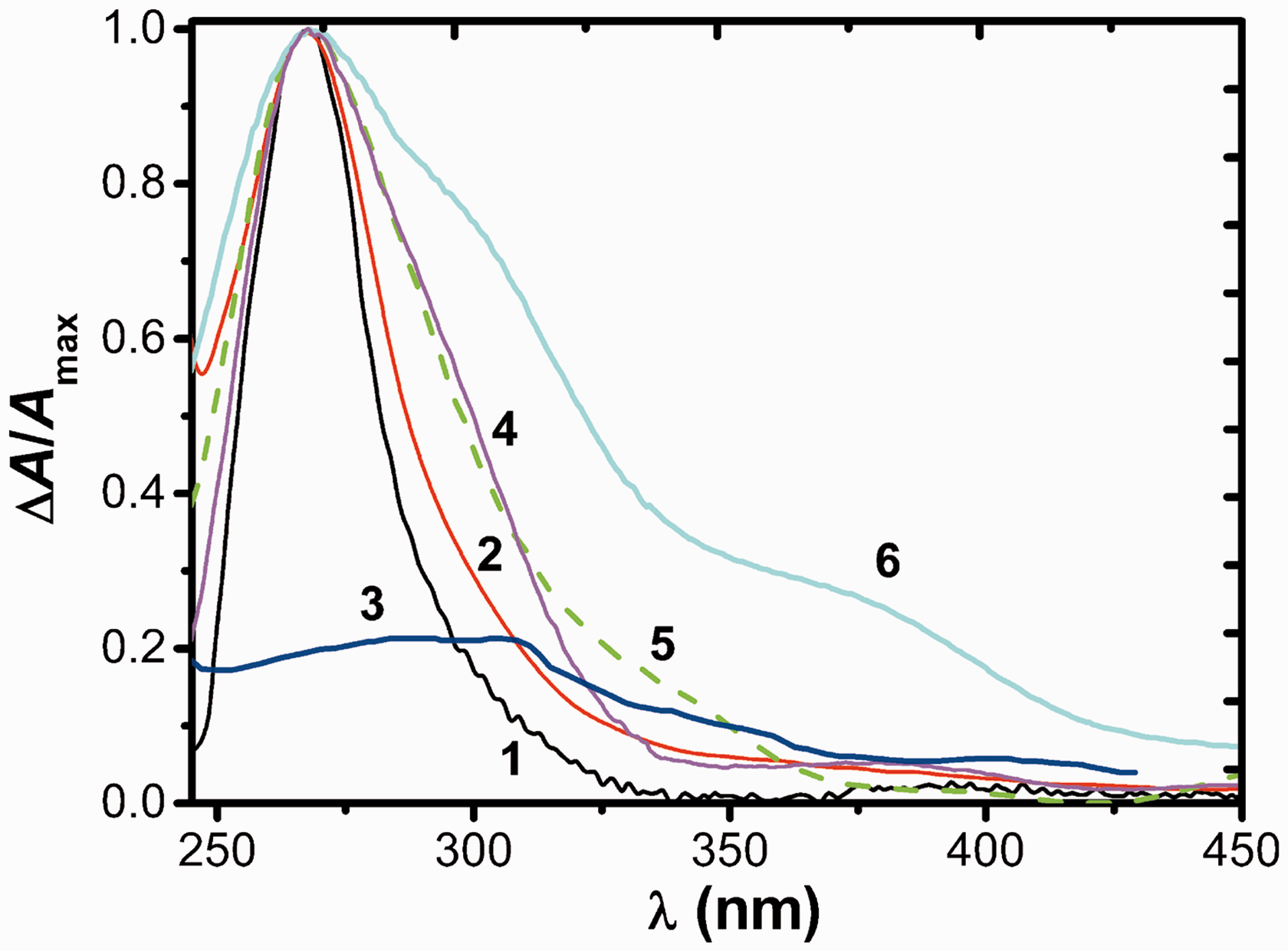

Figure 4.

Comparison of normalized UV-Vis absorption spectra of extracts: (QA⁺)₂[PtCl₄]²⁻ (1), (QA⁺)₂[PtCl₆]²⁻ (2), aqueous solutions: [PtCl₄]²⁻ (3), [PtCl₆]²⁻ (4); diffuse reflection (DR) spectra of silica gel-quaternary ammonium salts (SG-QAS) treated with [PtCl₄]²⁻ (5) and [PtCl₆]²⁻ (6); pH: 2.0 (1, 3, 5), 3.0 (2, 4, 6); V/m, 250 ml/g (5, 6); time, 2 min (5), 15 min (6), C_NaCl = 0.1 M, ΔA = A_I − A₆₀₀.

This comparison shows a good agreement between the spectra proving that QAS forms the ion associates with the platinum chloride complexes. Obviously, the pure SG does not uptake the platinum metal ions in the form of the chloride platinum complexes.

The partial destruction at the mild reduction of the surface (QA⁺)₂[PtCl _x ]²⁻ complexes supports the dispersed platinum metal over SG (Figure 5(a) and (b)). The samples prepared contain from 0.1% to 0.5% (by weight per total catalyst weight) of the platinum metal loadings. This shows the ability of the prepared ion-exchange substrates (QAS-SG) pre-concentrating the platinum chloride complexes from very dilute acidic solutions. Such retain of metal complexes could be a valuable technique in order to support platinum, in the form of nanoscale metal particles, to be future used for catalysis needs.

Figure 5.

Distribution evaluation of platinum by scanning electron microscopy–energy dispersive spectrometer (SEM–EDS) element map (a) and (b) insert transmission electron microscopy (TEM) photo of 0.5 wt% Pt/silica gel-quaternary ammonium (SG-QA) catalyst; (c) H₂ conversion vs. reaction temperature over Pt/SG-QA catalysts and (d) concentration dependence of reaction rate (r) over 0.1 wt% Pt/SG-QA catalyst, filled/unfilled points are the data collected at heating/cooling mode.

SPSA of the resulted SG solids with supported platinum metal is ∼480–490 m²/g, maintaining a large surface area-to-volume ratio of the initial carrier. Prepared catalysts exhibit a high efficiency in the oxygen-rich H₂/O₂ gas mixture. The conversion of H₂ about 50% is reached in the temperature range from 310 to 350 K (Figure 5(c)). The catalysts show lowering the temperature at the conversion of 50% with an increase in the metal loading. The thermal hysteresis is clearly seen on the H₂ conversion plots. This effect may be due, among other possible explanations collected in (Marin and Yablonsky, 2011; Rubtsov, 2016), to the passage of heterogeneous–homogeneous reactions involving free radicals. Typically, the branching radical chain reactions of H- and O-containing species are highly exothermic (Rubtsov, 2016). Radicals, such as ^•OH and ^•HO₂, can form on the platinum catalysts surface and can desorb in the near-catalyst gas volume (Golodets and Vorotyntsev, 1984). This situation is observed at the initial stages of the reaction. At the same time, the high conversion of hydrogen at a low temperature and atmospheric pressure was registered. Obviously, the realization of rapid stages at the radical chain oxidation of H₂ numerously increases the temperature at the catalyst surface and heats the near-surface volume of the reacting gas phase (Rubtsov, 2016). All this causes a subsequent increase in the number of the radicals giving ∼100% conversion. In this regime, the reaction can pass in the absence of the external heating. Consequently, at the cooling regime, the conversion maintains a certain time. This time is enough to provide an explanation of the reason for the presence of the hysteresis loop seen in the stated temperature range. It is noteworthy that the effective formation of radicals was observed at relatively low temperatures even in the case of more high-temperature oxidation reactions, such as the catalytic oxidation of carbon monoxide over complex oxides (Ishchenko et al., 2005).

Under the operation conditions, platinum metal particles (Figure 5(b)) are stable enough and maintain the steady performance over 35 reaction cycles. The recombination is the first-order reaction, and the Eley-Rideal model fits precisely the kinetic data (Lesnyak et al., 2009). Based on the experimental data (Figure 5(d)), the kinetic parameters for the platinum catalyst (0.1 wt%) were estimated and compared with that of the reference with the same platinum content (Table 2).

Table 2.

H₂–O₂ recombination kinetic parameters.

Catalyst	k₂ (×10³, l/(g × s))			E_a (kJ/mol)	D_av (nm)
Catalyst	313 K	333 K	353 K	E_a (kJ/mol)	D_av (nm)
0.1 wt% Pt/SG-QA	0.82	1.31	2.61	27 ± 1	35
Reference	333 K	353 K	373 K
0.1 wt% Pt/Al₂O₃	0.34	1.44	3.01	54 ± 1	55

k₂: the reaction constant; E_a: the reaction activation energy; D_av.: the average diameter of supported platinum metal; SG-QA: silica gel-quaternary ammonium sorbent.

Clearly, the highly dispersed platinum metal over silica, which is the most effective catalyst, can be obtained under proposed technique. Perhaps, the high effective catalyst is formed as a result of agglomeration of platinum from the island structures of (QA⁺)₂[PtCl _x ]²⁻ that after the reduction with H₂ transforming into submicron or nm particles (Figure 5(a) and (b)).

Conclusions

In summary, the adsorption studies prove the effective uptake of platinum, in a form of chloride complexes, from acidic solutions. At the quaternary amine monolayer, the surface ionic associates of (QA⁺)₂[PtCl _x ]²⁻, where х = 4 or 6, are formed. Arguably, the catalysts prepared from the used sorbents reduction are highly active in the H₂–O₂ recombination. This caused the effect of average platinum particle size that is smaller than in the traditional, supported aluminum–platinum catalyst, 0.1 wt% Pt/Al₂O₃. Besides pre-concentration, the modified silica with adsorbed platinum chloride complex can be applied to prepare efficient catalysts for the total oxidation reactions.

Footnotes

Acknowledgements

This work was first presented at the 15th Ukrainian-Polish Symposium on theoretical and Experimental Studies of Interfacial Phenomena and their Technological Applications, Lviv, Ukraine, 12–15 September 2016.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: Partially funded by the Ministry of Education and Sciences of Ukraine, No 0114U003554.

References

Bradley

Makhviladze

Molkov

et al. (2013) Fire and Explosion Hazards, Singapore: Research Publishing.

Butler

Moran

Sunderland

et al. (2009) Limits for hydrogen leaks that can support stable flames. International Journal of Hydrogen Energy 34: 5174–5182.

Folkson

(2013) Alternative Fuels and Advanced Vehicle Technologies, Cambridge: Woodhead Publishing.

Golodets

Vorotyntsev

(1984) Temperature hysteresis in oxidation reactions on platinum. Reaction Kinetics and Catalysis Letters 25: 75–78.

Hajji

Bouteraa

El Cafsi

et al. (2015) Natural ventilation of hydrogen during a leak in a residential garage. Renewable and Sustainable Energy Reviews 50: 810–818.

Ishchenko

Yatsimirsky

Gaidai

(2005) Temperature hysteresis in oxidation of CO on complex oxide catalysts. Theoretical and Experimental Chemistry 41: 340–345.

Lesnyak

Yatsimirskii

Kinder

et al. (2009) Effect of Pt and Pd additives on the state of the surface layer and catalytic activity of niobium oxides in the oxidation of hydrogen. Theoretical and Experimental Chemistry 45: 331–337.

Marin

Yablonsky

(2011) Kinetics of Chemical Reactions, New York, NY: Wiley.

Molokov

Bragin

(2015) Hydrogen–air deflagrations: Vent sizing correlation for low-strength equipment and buildings. International Journal of Hydrogen Energy 40: 1256–1266.

10.

Rubtsov

(2016) Key Factors of Combustion: From Kinetics to Gas Dynamics, Cham: Springer.

11.

Safety of Hydrogen as an Energy Carrier (HYSAFE) (2009) Initial Guidance for Using Hydrogen in Confined Spaces – Results from InsHyde. Available at: http://www.hysafe.org/download/1710/HYSAFE_D113_version_1.1.pdf (accessed 10 July 2016).

12.

Tarkovskaya

Tikhonova

Kulik

(1997) Sorption of platinum metal ions from aqueous solutions by inorganic and synthetic ion exchange materials. Journal of Water Chemistry and Technology 19: 227–241.

13.

Yatsimirsky

Belyakova

Oleksenko

et al. (2000) The structure and catalytic activity of Pt complexes heterogenized on a silica surface. Adsorption Science and Technology 18: 665–674.

14.

Yatsimirsky

Boldyreva

OYu

(2003) Catalytic oxidation of small molecules in a gas phase in the presence of heterogenized platinum and palladium complexes with chemically different ligands. Kinetics and Catalysis 44: 669–676.

15.

Zaporozhets

Nadzhafova

OYu

Verba

et al. (1998) Solid-phase reagents for the determination of anionic surfactants in water. Analyst 123: 1583–1586.

16.

Zaporozhets

Nadzhafova

OYu

Verba

et al. (1999) Silica gel and cellulose loaded with bis-quaternary ammonium salts as sensitive reagents for iron, bismuth and anionic surfactants determination in water. International Journal of Environmental Analytical Chemistry 74: 243–254.

17.

Zaporozhets

Shulga

Nadzhafova

OYu

et al. (2000) The nature of the binding of high-molecular weight aminoammonium and quaternary ammonium salts with the amorphous silica surface. Colloids and Surfaces A: Physicochemical and Engineering Aspects 168: : 103–108.

18.

Zarko

Weiser

Eisenrich

et al. (1999) Prevention of Hazardous Fires and Explosions, Dordrecht: Springer.
