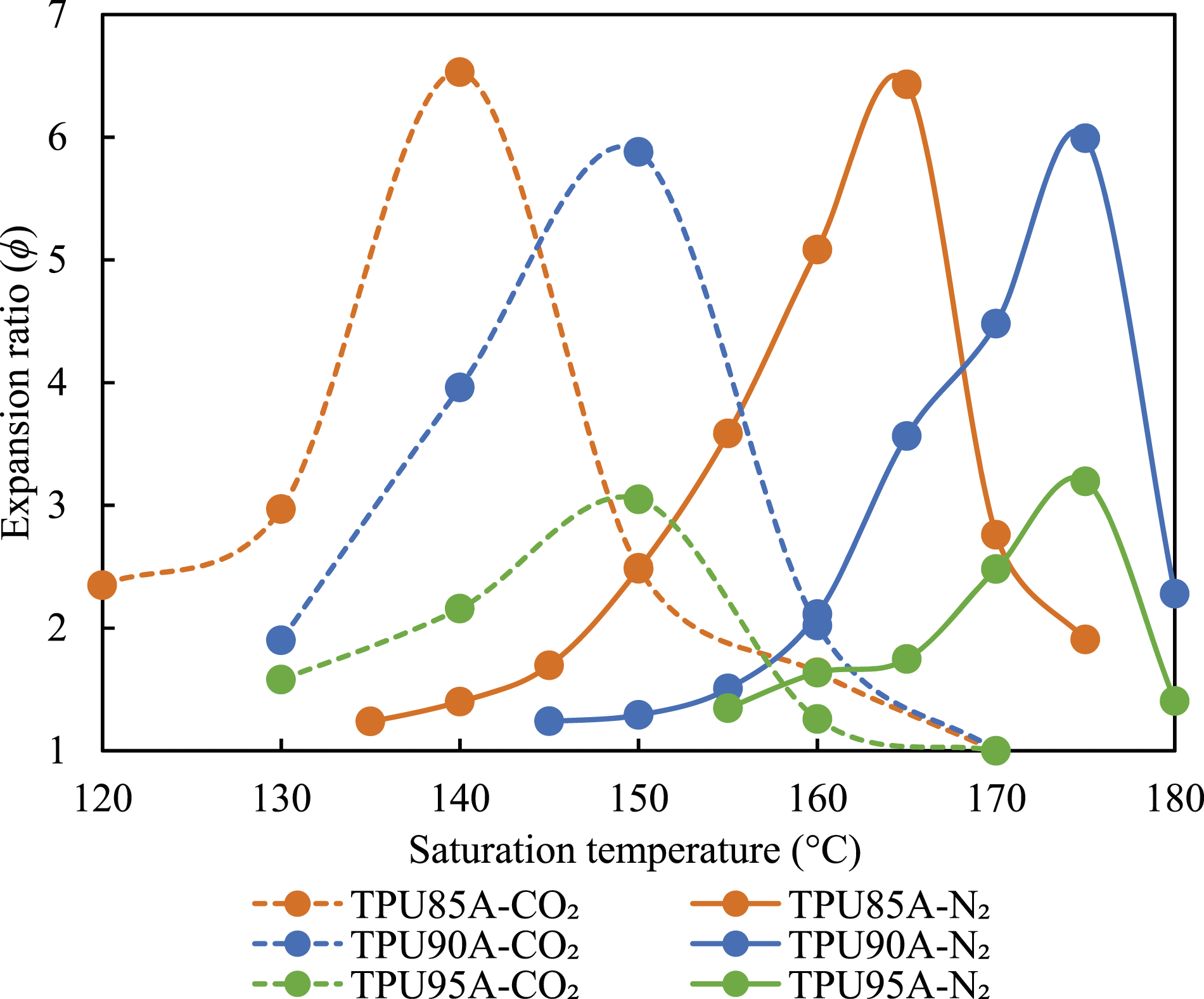

Fabricating low-density elastomeric foams with a homogenous cell structure has been challenging because of foam shrinkage. The low modulus of the elastomers and the high diffusivity of blowing agents lead to foam shrinkage and poor surface quality. Using N2 as a physical blowing agent (PBA) is an eco-friendly foaming method to overcome foam shrinkage. In this study, PTMEG-MDI/BD-based TPU with a hardness of 85A, 90A, and 95A were foamed using N2. Nitrogen as a blowing agent created a homogeneous cell structure with an expansion ratio of more than five times, an average cell size of less than 25 μm, and a cell density of more than 109 cells/cm3. The shrinkage ratio and cellular morphology of CO2- and N2-blown TPU foam were compared at their maximum expansion ratio. At the maximum expansion ratio, the N2-blown foams exhibited a fine cell structure with a shrinkage ratio of less than 4%. However, the CO2-blown TPU foam showed a shrinkage ratio of 12.7% with significant cracks in the sample. The results demonstrate that using N2 as a blowing agent can achieve an expansion ratio similar to that of CO2-blown foam, and the shrinkage problems of elastomeric foams can be significantly eliminated, which may help to maintain the physical properties of the foam.
ZhaiWJiangJParkCB. A review on physical foaming of thermoplastic and vulcanized elastomers. Polym Rev2022; 62: 95–141.
2.
KongZTianQZhangR, et al.Reexamination of the microphase separation in MDI and PTMG based polyurethane: fast and continuous association/dissociation processes of hydrogen bonding. Polymer2019; 185: 121943.
3.
KasprzykPSadowskaEDattaJ. Investigation of thermoplastic polyurethanes synthesized via two different prepolymers. J Polym Environ2019; 27: 2588–2599.
4.
LanBLiPYangQ, et al.Dynamic self-generation of hydrogen bonding and relaxation of polymer chain segment in stabilizing thermoplastic polyurethane microcellular foams. Mater Today Commun2020; 24: 101056.
5.
DrobnyJG. Handbook of thermoplastic elastomers. 2nd ed.Amsterdam: Elsevier, 2014, pp. 1–11.
6.
XuZWangGZhaoJ, et al.Anti-shrinkage, high-elastic, and strong thermoplastic polyester elastomer foams fabricated by microcellular foaming with CO2 & N2 as blowing agents. J CO2 Util2022; 62: 102076.
7.
TominMKmettyA. Polymer foams as advanced energy absorbing materials for sports applications-A review. J Appl Polym Sci2022; 139: 51714.
8.
HossienyNJBarzegariMRNofarM, et al.Crystallization of hard segment domains with the presence of butane for microcellular thermoplastic polyurethane foams. Polymer2014; 55: 651–662.
9.
HossienyNShaayeganVAmeliA, et al.Characterization of hard-segment crystalline phase of thermoplastic polyurethane in the presence of butane and glycerol monosterate and its impact on mechanical property and microcellular morphology. Polymer2017; 112: 208–218.
10.
NofarMBatıBKüçükEB, et al.Effect of soft segment molecular weight on the microcellular foaming behavior of TPU using supercritical CO2. J Supercrit Fluids2020; 160: 104816.
11.
NofarMMohammadiMCarreauPJ. Effect of TPU hard segment content on the rheological and mechanical properties of PLA/TPU blends. J Appl Polym Sci2020; 137: 49387.
12.
YehS-KRangappaRHsuT-H, et al.Effect of extrusion on the foaming behavior of thermoplastic polyurethane with different hard segments. J Polym Res2021; 28: 244.
13.
NofarMBüşra KüçükEBatıB. Effect of hard segment content on the microcellular foaming behavior of TPU using supercritical CO2. J Supercrit Fluids2019; 153: 104590.
14.
ItoSMatsunagaKTajimaM, et al.Generation of microcellular polyurethane with supercritical carbon dioxide. J Appl Polym Sci2007; 106: 3581–3586.
15.
FakirovS. Handbook of condensation thermoplastic elastomers. Weinheim: Wiley-VCH, 2005.
16.
PattanayakAJanaSC. Thermoplastic polyurethane nanocomposites of reactive silicate clays: effects of soft segments on properties. Polymer2005; 46: 5183–5193.
17.
BarzegariMRHossienyNJahaniD, et al.Characterization of hard-segment crystalline phase of poly(ether-block-amide) (PEBAX®) thermoplastic elastomers in the presence of supercritical CO2 and its impact on foams. Polymer2017; 114: 15–27.
BriscoeBJSavvasT. Gas diffusion in dense poly(ethylene) foams. Adv Polym Technol1998; 17: 87–106.
20.
KiranESarverJAHasslerJC. Solubility and diffusivity of CO2 and N2 in polymers and polymer swelling, glass transition, melting, and crystallization at high pressure: a critical review and perspectives on experimental methods, data, and modeling. J Supercrit Fluids2022; 185: 105378.
21.
TomaskoDLLiHLiuD, et al.A review of CO2 applications in the processing of polymers. Ind Eng Chem Res2003; 42: 6431–6456.
22.
LiRLeeJHWangC, et al.Solubility and diffusivity of CO2 and N2 in TPU and their effects on cell nucleation in batch foaming. J Supercrit Fluids2019; 154: 104623.
23.
ShiehYTSuJHManivannanG, et al.Interaction of supercritical carbon dioxide with polymers .1. Crystalline polymers. J Appl Polym Sci1996; 59: 695–705.
24.
ShiehYTSuJHManivannanG, et al.Interaction of supercritical carbon dioxide with polymers .2. Amorphous polymers. J Appl Polym Sci1996; 59: 707–717.
25.
BriscoeBJZakariaS. Gas-induced damage in elastomeric composites. J Mater Sci1990; 25: 3017–3023.
26.
BriscoeBJZakariaS. Sorption and dilation of silicone elastomer composites at high gas pressures: the role of interfacial quality. J Polym Sci B Polym Phys1992; 30: 959–969.
27.
ZakariaS. Gas-polymer interaction at high pressures. PhD Thesis. London, UK: Imperial College, 1990.
28.
BureauMNKumarV. Fracture toughness of high density polycarbonate microcellular foams. J Cell Plast2006; 42: 229–240.
29.
ColliasDIBairdDG. Impact behavior of microcellular foams of polystyrene and styrene-acrylonitrile copolymer, and single-edge-notched tensile toughness of microcellular foams of polystyrene, styrene-acrylonitrile copolymer, and palycarbonate. Polym Eng Sci1995; 35: 1178–1183.
30.
MasaharuONobumasaKKokiN, et al.Thermoplastic polyurethane foamed particles and method for manufacturing thermoplastic polyurethane foamed particle molded article. Patent US10899904B2, USA, 2021.
31.
KumarVSuhNP. A process for making microcellular thermoplastic parts. Polym Eng Sci1990; 30: 1323–1329.
32.
ZhangRHuangKHuS, et al.Improved cell morphology and reduced shrinkage ratio of ETPU beads by reactive blending. Polym Test2017; 63: 38–46.
33.
ObiBE. Fundamentals of polymeric foams and classification of foam types. In: Polymeric foams structure-property-performance. Oxford: William Andrew, 2018, pp. 93–129.
34.
ParkCBPadarevaVLeePC, et al.Extruded open-celled LDPE-based foams using non-homogeneous melt structure. J Polym Eng2005; 25: 239–260.
35.
YehS-KLiuY-CChuC-C, et al.Mechanical properties of microcellular and nanocellular thermoplastic polyurethane nanocomposite foams created using supercritical carbon dioxide. Ind Eng Chem Res2017; 56: 8499–8507.
36.
Di CaprioMRImmirziBDi MaioE, et al.Mass transport and physical properties of polymeric methylene diphenyl diisocyanate/CO2 solutions. Fluid Ph Equilibria2018; 456: 116–123.
37.
Di CaprioMRDal PoggettoGPastore CarboneMG, et al.Polyether polyol/CO2 solutions: solubility, mutual diffusivity, specific volume and interfacial tension by coupled gravimetry-axisymmetric drop shape analysis. Fluid Ph Equilibria2016; 425: 342–350.
38.
GuoZHYehSKWingertMJ, et al.Comparison of nanoclay and carbon nanofiber particles on rheology of molten polystyrene nanocomposites under supercritical carbon dioxide. J Appl Polym Sci2010; 116: 1068–1076.
39.
RangappaRYehS-K. Effect of N2 plasticization on the crystallization of different hardnesses of thermoplastic polyurethanes. J Supercrit Fluids2022; 189: 105726.
40.
PrimelAFérecJAusiasG, et al.Solubility and interfacial tension of thermoplastic polyurethane melt in supercritical carbon dioxide and nitrogen. J Supercrit Fluids2017; 122: 52–57.
41.
BriscoeBJSavvasTKellyCT. Explosive decompression failure” of rubbers: a review of the origins of pneumatic stress induced rupture in elastomers. Rubber Chem Technol1994; 67: 384–416.
42.
TakiK. Experimental and numerical studies on the effects of pressure release rate on number density of bubbles and bubble growth in a polymeric foaming process. Chem Eng Sci2008; 63: 3643–3853.
43.
UrbanczykLCalbergCDetrembleurC, et al.Batch foaming of SAN/clay nanocomposites with scCO2: a very tunable way of controlling the cellular morphology. Polymer2010; 51: 3520–3531.
44.
GeCWangSZhengW, et al.Preparation of microcellular thermoplastic polyurethane (TPU) foam and its tensile property. Polym Eng Sci2018; 58: E158–E166.
45.
NotarioBPintoJSolorzanoE, et al.Experimental validation of the Knudsen effect in nanocellular polymeric foams. Polymer2015; 56: 57–67.
46.
NotarioBPintoJRodríguez-PérezMA. Towards a new generation of polymeric foams: PMMA nanocellular foams with enhanced physical properties. Polymer2015; 63: 116–126.
47.
KimSGParkCBKangBS, et al.Foamability of thermoplastic vulcanizates (TPVs) with carbon dioxide and nitrogen. Cell Polym2006; 25: 19–33.
48.
Di MaioEMensitieriGIannaceS, et al.Structure optimization of polycaprolactone foams by using mixtures of CO2 and N2 as blowing agents. Polym Eng Sci2005; 45: 432–441.
49.
ColtonJSSuhNP. The nucleation of microcellular thermoplastic foam with additives: part I: theoretical considerations. Polym Eng Sci1987; 27: 485–492.
50.
LeungSNWongAParkCB, et al.Ideal surface geometries of nucleating agents to enhance cell nucleation in polymeric foaming processes. J Appl Polym Sci2008; 108: 3997–4003.
51.
LeungSNWongAGuoQ, et al.Change in the critical nucleation radius and its impact on cell stability during polymeric foaming processes. Chem Eng Sci2009; 64: 4899–4907.
52.
HsuT-H. Foaming behavior of thermoplastic polyurethane with different hardness by supercritical CO2. Mater Thesis. Taiwan: Natioanl Taiwan University of Science and Technology, 2018.
53.
GibsonLJAshbyMF. Mechanics of three-dimensional cellular materials. Proc R Soc Lond A Math Phys Sci1982; 382: 43–59.
54.
Martín-de LeónJVan LoockFBernardoV, et al.The influence of cell size on the mechanical properties of nanocellular PMMA. Polymer2019; 181: 121805.
55.
PangYCaoYZhengW, et al.A comprehensive review of cell structure variation and general rules for polymer microcellular foams. J Chem Eng2022; 430: 132662.
56.
WellerJEKumarV. Solid-state microcellular polycarbonate foams. II. The effect of cell size on tensile properties. Polym Eng Sci2010; 50: 2170–2175.
57.
ZhaoJWeiCWangG, et al.Miscible polymethyl methacrylate/polylactide blend with enhanced foaming behavior and foam mechanical properties. J CO2 Util2022; 61: 102065.
58.
KumarVVander WelMWellerJ, et al.Experimental characterization of the tensile behavior of microcellular polycarbonate foams. J Eng Mater Technol1994; 116: 439–445.
Supplementary Material
Please find the following supplemental material available below.
For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.
For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.
