Corrigendum

Corrigendum to ICRP Publication 137: Occupational intakes of radionuclides: Part 3. [Ann. ICRP 46(3/4), 2017]. DOI: 10.1177/0146645317734963.

The following errors have been identified. ICRP apologises for any inconvenience or confusion caused by these errors.

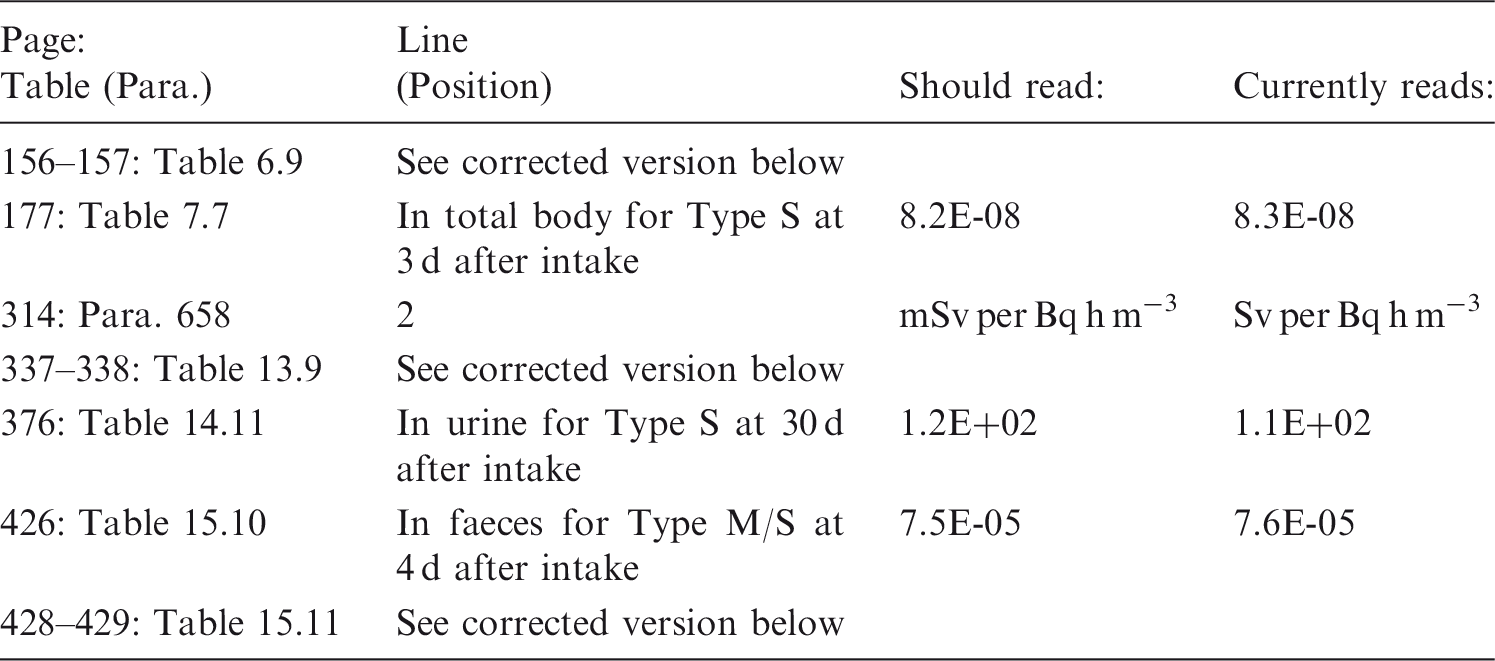

Page: Table (Para.)	Line (Position)	Should read:	Currently reads:
156–157: Table 6.9	See corrected version below
177: Table 7.7	In total body for Type S at 3 d after intake	8.2E-08	8.3E-08
314: Para. 658	2	mSv per Bq h m−3	Sv per Bq h m−3
337–338: Table 13.9	See corrected version below
376: Table 14.11	In urine for Type S at 30 d after intake	1.2E+02	1.1E+02
426: Table 15.10	In faeces for Type M/S at 4 d after intake	7.5E-05	7.6E-05
428–429: Table 15.11	See corrected version below

Table 6.9.

Dose per activity content of ¹³⁷Cs (^137mBa measured) in total body, lungs, and in daily excretion of urine (Sv Bq⁻¹); 5-µm activity median aerodynamic diameter aerosols inhaled by a reference worker at light work.

Time after intake (d)	Type F			Type M			Type S
	Total body	Lungs	Urine	Total body	Lungs	Urine	Total body	Lungs	Urine
1	1.5E-08	2.7E-07	3.5E-07	9.6E-09	1.0E-07	1.2E-06	8.7E-08	8.6E-07	2.2E-04
2	1.5E-08	2.7E-07	7.4E-07	1.5E-08	1.1E-07	1.9E-06	1.6E-07	8.9E-07	3.4E-04
3	1.6E-08	2.7E-07	1.1E-06	2.4E-08	1.1E-07	3.1E-06	3.4E-07	9.1E-07	5.5E-04
4	1.6E-08	2.8E-07	1.5E-06	3.1E-08	1.1E-07	4.1E-06	5.9E-07	9.3E-07	7.3E-04
5	1.6E-08	2.8E-07	1.8E-06	3.4E-08	1.2E-07	4.9E-06	7.6E-07	9.4E-07	8.8E-04
6	1.6E-08	2.9E-07	2.0E-06	3.5E-08	1.2E-07	5.5E-06	8.2E-07	9.6E-07	9.9E-04
7	1.7E-08	2.9E-07	2.1E-06	3.5E-08	1.2E-07	6.0E-06	8.5E-07	9.7E-07	1.1E-03
8	1.7E-08	2.9E-07	2.3E-06	3.5E-08	1.2E-07	6.3E-06	8.6E-07	9.8E-07	1.1E-03
9	1.7E-08	2.9E-07	2.4E-06	3.6E-08	1.2E-07	6.6E-06	8.7E-07	9.9E-07	1.2E-03
10	1.7E-08	2.9E-07	2.5E-06	3.6E-08	1.2E-07	6.8E-06	8.8E-07	1.0E-06	1.2E-03
15	1.8E-08	3.0E-07	2.7E-06	3.7E-08	1.3E-07	7.5E-06	9.1E-07	1.0E-06	1.4E-03
30	2.0E-08	3.4E-07	3.1E-06	4.1E-08	1.4E-07	8.4E-06	9.6E-07	1.1E-06	1.5E-03
45	2.2E-08	3.8E-07	3.4E-06	4.5E-08	1.6E-07	9.1E-06	9.9E-07	1.1E-06	1.7E-03
60	2.5E-08	4.2E-07	3.9E-06	4.9E-08	1.8E-07	1.0E-05	1.0E-06	1.1E-06	1.8E-03
90	3.1E-08	5.2E-07	4.8E-06	5.9E-08	2.2E-07	1.2E-05	1.1E-06	1.2E-06	2.2E-03
180	5.9E-08	1.0E-06	9.3E-06	1.0E-07	4.0E-07	2.0E-05	1.3E-06	1.4E-06	3.7E-03
365	2.3E-07	3.9E-06	3.6E-05	3.2E-07	1.3E-06	6.2E-05	1.8E-06	1.9E-06	9.0E-03

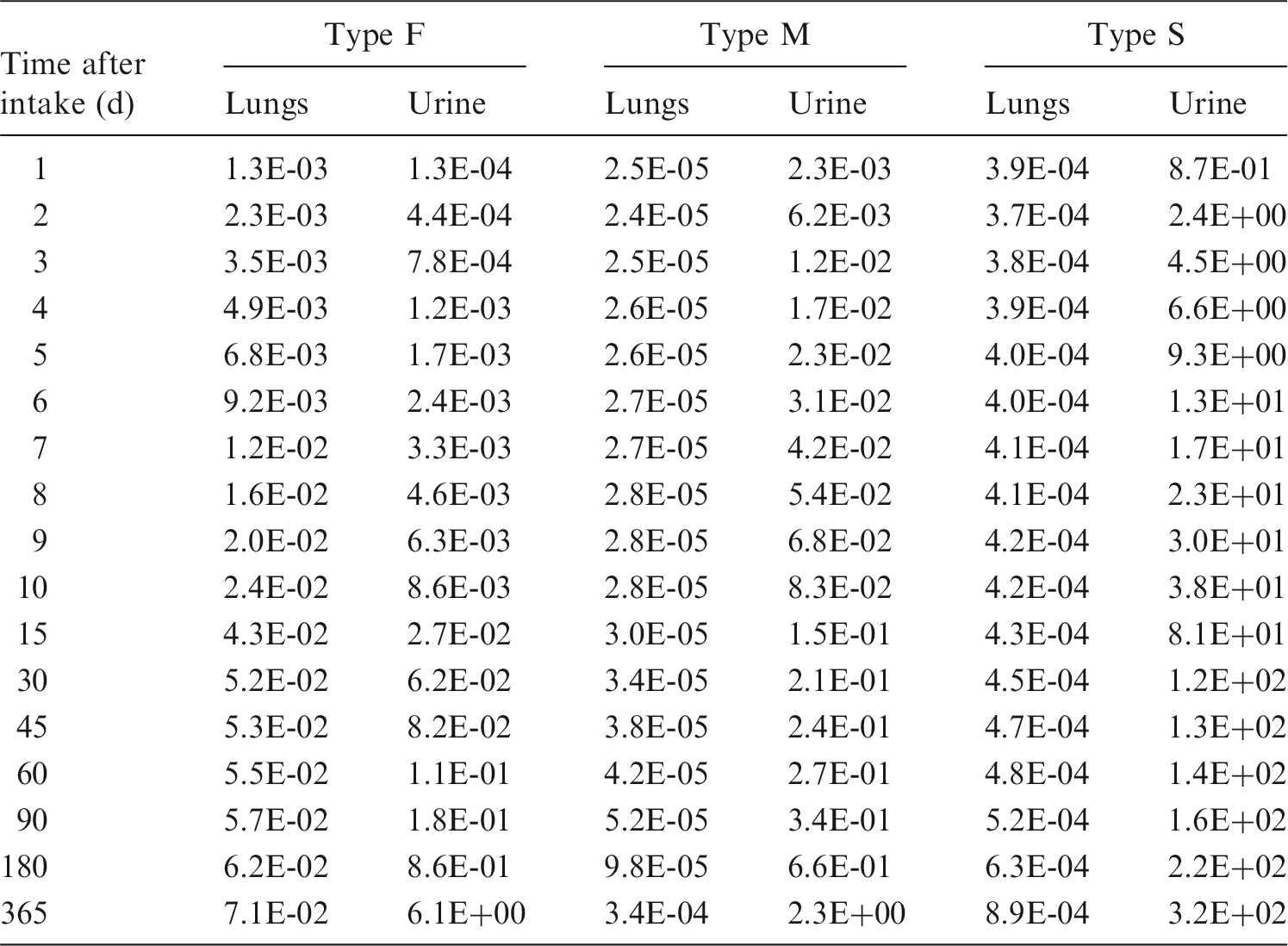

Table 13.9.

Dose per activity content of ²²⁸Ra in lungs (²²⁸Ac measured) and in daily excretion of urine (Sv Bq⁻¹); 5-µm activity median aerodynamic diameter aerosols inhaled by a reference worker at light work.

Time after intake (d)	Type F		Type M		Type S
	Lungs	Urine	Lungs	Urine	Lungs	Urine
1	1.3E-03	1.3E-04	2.5E-05	2.3E-03	3.9E-04	8.7E-01
2	2.3E-03	4.4E-04	2.4E-05	6.2E-03	3.7E-04	2.4E+00
3	3.5E-03	7.8E-04	2.5E-05	1.2E-02	3.8E-04	4.5E+00
4	4.9E-03	1.2E-03	2.6E-05	1.7E-02	3.9E-04	6.6E+00
5	6.8E-03	1.7E-03	2.6E-05	2.3E-02	4.0E-04	9.3E+00
6	9.2E-03	2.4E-03	2.7E-05	3.1E-02	4.0E-04	1.3E+01
7	1.2E-02	3.3E-03	2.7E-05	4.2E-02	4.1E-04	1.7E+01
8	1.6E-02	4.6E-03	2.8E-05	5.4E-02	4.1E-04	2.3E+01
9	2.0E-02	6.3E-03	2.8E-05	6.8E-02	4.2E-04	3.0E+01
10	2.4E-02	8.6E-03	2.8E-05	8.3E-02	4.2E-04	3.8E+01
15	4.3E-02	2.7E-02	3.0E-05	1.5E-01	4.3E-04	8.1E+01
30	5.2E-02	6.2E-02	3.4E-05	2.1E-01	4.5E-04	1.2E+02
45	5.3E-02	8.2E-02	3.8E-05	2.4E-01	4.7E-04	1.3E+02
60	5.5E-02	1.1E-01	4.2E-05	2.7E-01	4.8E-04	1.4E+02
90	5.7E-02	1.8E-01	5.2E-05	3.4E-01	5.2E-04	1.6E+02
180	6.2E-02	8.6E-01	9.8E-05	6.6E-01	6.3E-04	2.2E+02
365	7.1E-02	6.1E+00	3.4E-04	2.3E+00	8.9E-04	3.2E+02

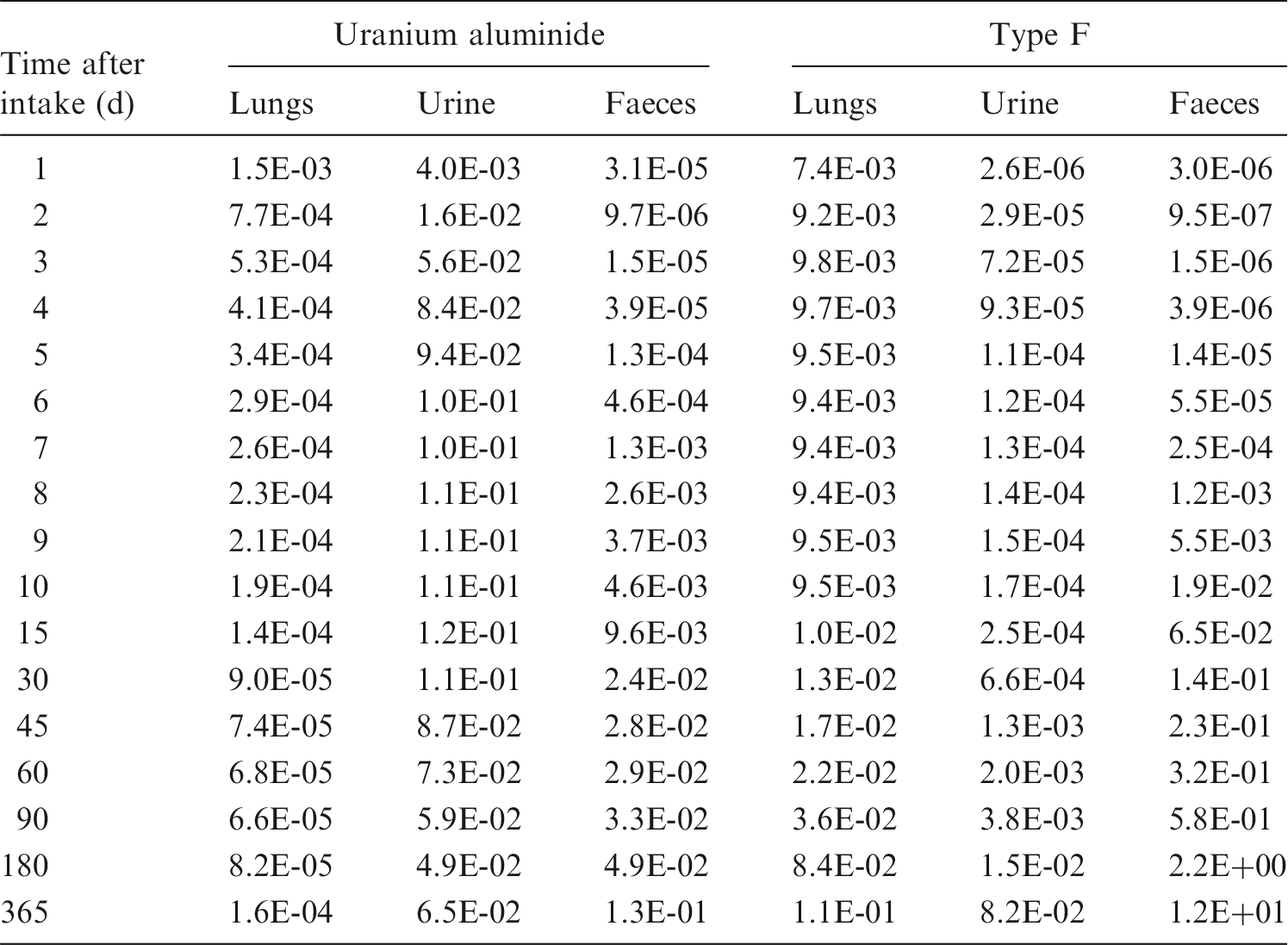

Table 15.11.

Dose per activity content of ²³⁸U in lungs (²³⁴Th measured) and in daily excretion of urine and faeces (Sv Bq⁻¹); 5-µm activity median aerodynamic diameter aerosols inhaled by a reference worker at light work.

Time after intake (d)	Uranium aluminide			Type F
	Lungs	Urine	Faeces	Lungs	Urine	Faeces
1	1.5E-03	4.0E-03	3.1E-05	7.4E-03	2.6E-06	3.0E-06
2	7.7E-04	1.6E-02	9.7E-06	9.2E-03	2.9E-05	9.5E-07
3	5.3E-04	5.6E-02	1.5E-05	9.8E-03	7.2E-05	1.5E-06
4	4.1E-04	8.4E-02	3.9E-05	9.7E-03	9.3E-05	3.9E-06
5	3.4E-04	9.4E-02	1.3E-04	9.5E-03	1.1E-04	1.4E-05
6	2.9E-04	1.0E-01	4.6E-04	9.4E-03	1.2E-04	5.5E-05
7	2.6E-04	1.0E-01	1.3E-03	9.4E-03	1.3E-04	2.5E-04
8	2.3E-04	1.1E-01	2.6E-03	9.4E-03	1.4E-04	1.2E-03
9	2.1E-04	1.1E-01	3.7E-03	9.5E-03	1.5E-04	5.5E-03
10	1.9E-04	1.1E-01	4.6E-03	9.5E-03	1.7E-04	1.9E-02
15	1.4E-04	1.2E-01	9.6E-03	1.0E-02	2.5E-04	6.5E-02
30	9.0E-05	1.1E-01	2.4E-02	1.3E-02	6.6E-04	1.4E-01
45	7.4E-05	8.7E-02	2.8E-02	1.7E-02	1.3E-03	2.3E-01
60	6.8E-05	7.3E-02	2.9E-02	2.2E-02	2.0E-03	3.2E-01
90	6.6E-05	5.9E-02	3.3E-02	3.6E-02	3.8E-03	5.8E-01
180	8.2E-05	4.9E-02	4.9E-02	8.4E-02	1.5E-02	2.2E+00
365	1.6E-04	6.5E-02	1.3E-01	1.1E-01	8.2E-02	1.2E+01
