Abstract

This paper introduces a novel sliding mode controller to regulate frequency within a decentralized control framework. The decentralized frequency regulation model is a continuous-time linear system with mismatch disturbance that cannot be effectively removed. The proposed method combines the sliding mode and active disturbance rejection theories to reject the effects of mismatched disturbances with the aid of a disturbance observer to achieve a fully decentralized frequency regulation control. Furthermore, the sliding variables can be directly computed using the proposed steady-state method. In addition, by incorporating a constant delay into the input of the sliding mode controller, the transient performance is improved, resulting in a smaller overshoot and a shorter response time. Specifically, the proposed method demonstrated enhancements over the liner active disturbance rejection algorithm (5.04% and 54.4%, respectively), conventional proportional integral derivative method (5.09% and 68.03%, respectively), disturbance observer–based integral sliding mode control method (6.59% and 84.34%, respectively), and disturbance observer–based adaptive integral sliding mode control method (5.93% and 82.47%) in terms of both overshoot and response time.

Keywords

Integral sliding mode control decentralized control load frequency control (LFC)disturbance observer

Introduction

load frequency control (LFC) is a critical aspect of power system operation, essential for maintaining grid stability, ensuring system reliability, and managing economic implications. In recent years, the uncontrollable renewable resources (electric vehicles, household batteries, etc.) installed on the consumer side and stochastic power demand can cause undesired frequency fluctuations, which push the pressure on the generators to stabilize the power system (Lu et al., 2016). Therefore, an LFC technique is urgently required to maintain the frequency within tolerable limits.

Considerable research efforts have been dedicated to the investigation of LFC. The LFC methods can be classified into centralized LFC control and decentralized LFC control. In the first category, the tie-line powers are employed for constructing an input signal. The proportional–integral–derivative (PID) control methods (Khodabakhshian and Edrisi, 2008), optimal control (Daneshfar and Bevrani, 2012), and H-∞ control (Davidson and Ushakumari, 2016) are widely used due to their simple design procedure. In contrast, decentralized LFC is another category that regards tie-line power as an external disturbance (Khousa and Ismail, 2013). It involves aggregating disturbances and rejecting them at the input channel. However, the performance can be further improved. In recent years, the power system has shifted toward decentralized control (Shirkhani et al., 2023), which only necessitates local measurements. This has led to a notable reduction in communication requirements. As a result, our main goal is to regulate frequency through decentralized control.

Among variable control methods, sliding mode control (SMC) is considered a promising solution for frequency regulation because of its strong robustness. SMC is believed to enhance system performance by providing fast response times, easy implementation, resistance to plant parameter variations, and robust rejection of external disturbances. Various integral sliding mode control (ISMC) has been proposed to regulate the frequency. A predictive-based ISMC is proposed by Dev et al. (2021), which utilizes an ISMC to regulate the frequency. Nevertheless, this approach is constructed upon a centralized control framework. Furthermore, the disturbance observer-based ISMC (DOB-ISMC) is widely used. The adaptive disturbance observer adaptive ISMC is proposed by Mi et al. (2016) and Wang et al. (2016) to regulate the frequency. However, the proposed method is built based on the centralized scheme, and the estimated disturbance is not fully utilized. A novel sliding surface based on the state variable transformations is proposed by Liao and Xu (2017) to stabilize the power system. However, this method is not generalizable and can only be applied to specific systems. In addition, a new sliding surface based on a transferred system is constructed and proposed by Tummala et al. (2018), which highly depends on the estimation accuracy of the disturbance observer. In Farivar et al. (2022) and Zhang et al. (2016), a novel sliding surface is constructed by combining H-∞ theory. However, the advantage of sliding mode theory is not fully taken.

Motivated by the above discussion, the first goal of this paper is to design a sliding surface that can fully take advantage of the SMC employed in the decentralized LFC control scheme. In addition, the impact of the estimation accuracy of the observer on the performance of LFC has often been overlooked. Therefore, the second goal is to design a method to mitigate estimation errors in the DOB-ISMC performance.

Simplifying the process of tuning the parameters of an ISMC system is another consideration in this paper. In recent years, various parameter tunning methods have been taken for optimal performance including artificial bee colony (ABC) (Bagheri et al., 2021), particle swarm optimization (PSO) (Mu et al., 2017), marine predators algorithm (MPA) (Guha, 2023), gray wolf optimization (GWO) (Guha et al., 2016), and genetic algorithm (GA) (Vrdoljak et al., 2010) to regulate frequency. However, these methods can be time-consuming and computationally complex due to multiple iterations and evaluations required. A T-S fuzzy method (Kuppusamy and Joo, 2019) is taken to modify sliding variable gains. Nonetheless, proper rules, membership functions, and training data set choices are required. Thus, the fourth goal is to design a sliding surface that can quickly and adequately calculate the sliding gains. Table 1 summarizes the related literature and the advantages of the proposed method.

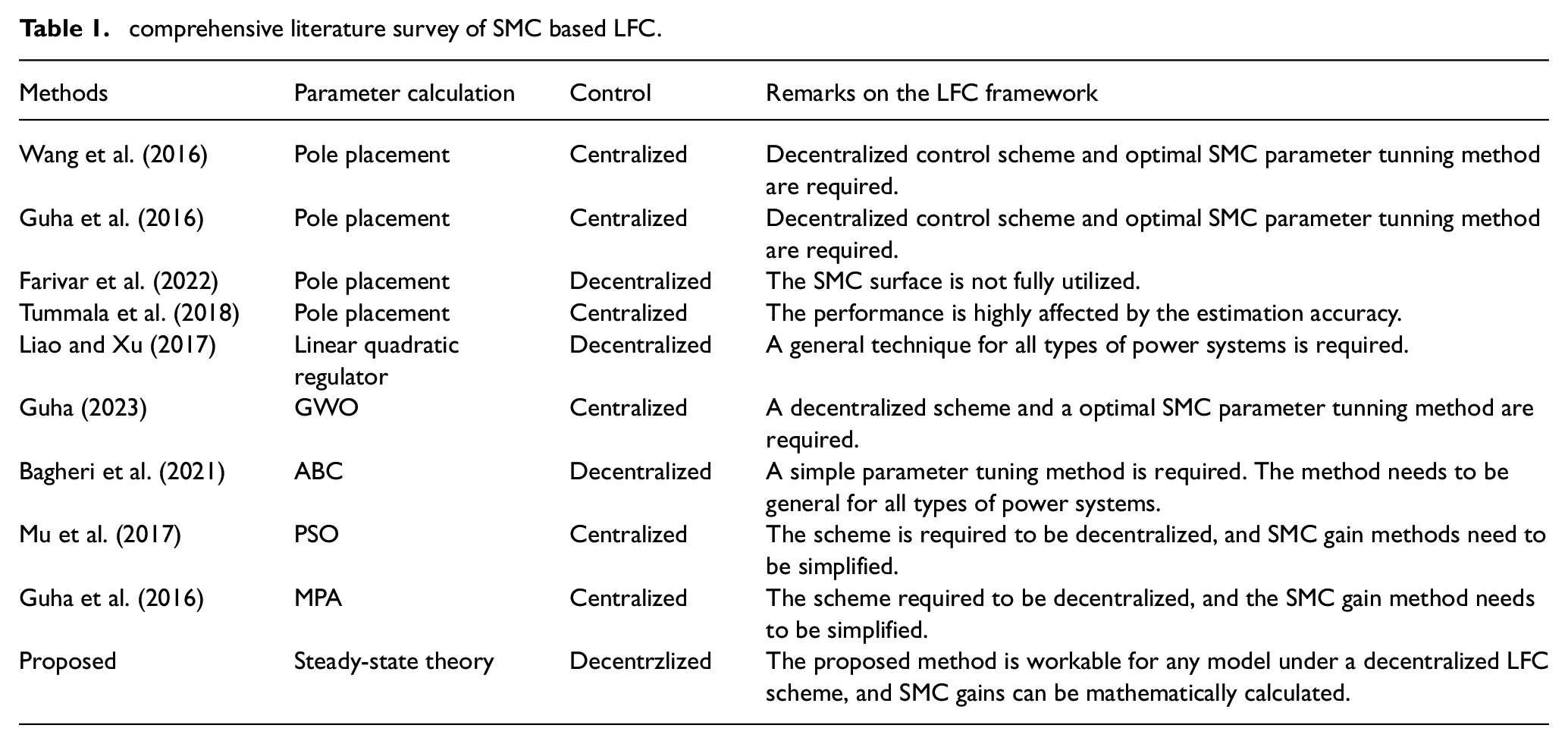

Table 1.

comprehensive literature survey of SMC based LFC.

Methods	Parameter calculation	Control	Remarks on the LFC framework
Wang et al. (2016)	Pole placement	Centralized	Decentralized control scheme and optimal SMC parameter tunning methodare required.
Guha et al. (2016)	Pole placement	Centralized	Decentralized control scheme and optimal SMC parameter tunning methodare required.
Farivar et al. (2022)	Pole placement	Decentralized	The SMC surface is not fully utilized.
Tummala et al. (2018)	Pole placement	Centralized	The performance is highly affected by the estimation accuracy.
Liao and Xu (2017)	Linear quadraticregulator	Decentralized	A general technique for all types of power systems is required.
Guha (2023)	GWO	Centralized	A decentralized scheme and a optimal SMC parameter tunning method arerequired.
Bagheri et al. (2021)	ABC	Decentralized	A simple parameter tuning method is required. The method needs to begeneral for all types of power systems.
Mu et al. (2017)	PSO	Centralized	The scheme is required to be decentralized, and SMC gain methods need tobe simplified.
Guha et al. (2016)	MPA	Centralized	The scheme required to be decentralized, and the SMC gain method needsto be simplified.
Proposed	Steady-state theory	Decentrzlized	The proposed method is workable for any model under a decentralized LFCscheme, and SMC gains can be mathematically calculated.

The summary of contributions in this work is as follows:

A method that is adaptable to any generator configuration within a decentralized LFC scheme is proposed.

A novel sliding surface is proposed to mitigate this dependence on estimation errors, thereby ensuring more reliable performance.

A novel combination of ADRC and ISMC theories is proposed to directly eliminate the influence of mismatched disturbances from the output channel, which presents a distinctive perspective compared to conventional DOB-ISMC methods.

A steady-state approach is employed to calculate sliding variables, which eliminates the need for laborious computational procedures.

A novel constant delay term is incorporated as a part of the input to enhance LFC transient performance.

The paper is structured as follows: First, an introduction is provided, which includes a description of the LFC power system model. Subsequently, the design procedures of the disturbance observer and a comprehensive explanation of the DOB-ISMC control scheme are presented. Extensive simulation results demonstrate the effectiveness of the proposed approach, which is further validated through a performance comparison with existing methods. Finally, a conclusion is provided.

Model of power system

The control architecture for a distinct region within a multiarea power system is illustrated in Figure 1. The dynamics of the $i th$ area mathematically presented by equation (1).

{\begin{matrix} Δ {\overset{\cdot}{f}}_{i} = - \frac{D_{i}}{M_{i}} Δ f_{i} + \frac{1}{M_{i}} Δ P_{mi} - \frac{1}{M_{i}} Δ P_{Li} - \frac{1}{M_{i}} Δ P_{tie, i, j} \\ Δ {\overset{\cdot}{P}}_{mi} = - \frac{1}{T_{ti}} Δ P_{mi} + \frac{1}{T_{ti}} Δ P_{gi} \\ Δ {\overset{\cdot}{P}}_{gi} = - \frac{1}{R_{i} T_{gi}} Δ f_{i} + \frac{1}{T_{gi}} u_{i} + \frac{1}{T_{gi}} Δ P_{gi} \\ Δ {\overset{\cdot}{P}}_{tie, i, j} = 2 π \sum_{i = 1, j \neq i}^{N} T_{ij} (Δ f_{i} - Δ f_{j}) \end{matrix}

(1)

where $i$ and $j$ are different area numbers; $Δ f_{i}$ , $Δ P_{mi}$ , and $Δ P_{gi}$ are frequency deviation, the turbine output, and the valve position; $u_{i}$ and $Δ P_{Li}$ stand for the control signal and external disturbance; $T_{ij}$ is the coefficient of power transmission between two areas; $R_{i}$ , $D_{i}$ , and $M_{i}$ represents the speed droop, the damping value, and inertia constant value of the generator; $T_{gi}$ and $T_{ti}$ represent time constant value of the governor, and time constant of the turbine; $Δ P_{tie, i, j}$ is the exchanged power between different areas in the power system. Assuming that $x' = [Δ f, Δ P_{G}, Δ P_{t}, Δ P_{tie, i, j}]^{T}$ represents the state vector, and the state-space function can be formulated in the following manner.

{\begin{matrix} \overset{\cdot}{x}' (t) & = {A'}_{i} x (t) + {B'}_{i} u (t) + {F'}_{i} P_{Li} \\ y' (t) & = {C'}_{i} x (t) \end{matrix}

(2)

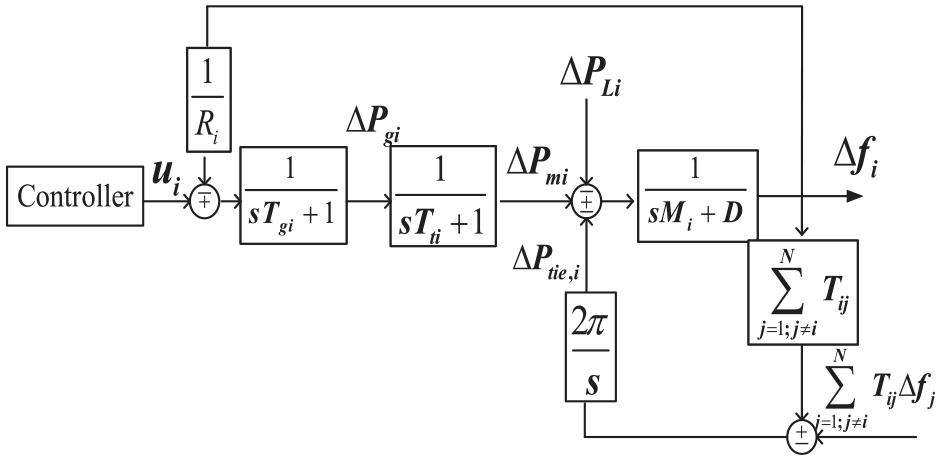

Figure 1.

Structure of the controller of $i th$ area in the multi-area power system.

The corresponding matrices can be acquired as follows:

\begin{matrix} {A'}_{i} = [\begin{matrix} - \frac{D_{i}}{M_{i}} & \frac{1}{M_{i}} & 0 & - \frac{1}{M_{i}} \\ 0 & - \frac{1}{T_{ti}} & \frac{1}{T_{ti}} & 0 \\ - \frac{1}{R_{i} T_{gi}} & 0 & - \frac{1}{T_{gi}} & 0 \\ 2 π \sum_{j \neq i}^{N} T_{ij} & 0 & 0 & 0 \end{matrix}] \\ {B'}_{i} = [\begin{matrix} 0 \\ 0 \\ \frac{1}{T_{gi}} \\ 0 \end{matrix}], {C'}_{i} = {[\begin{matrix} 1 \\ 0 \\ 0 \\ 0 \end{matrix}]}^{'}, {F'}_{i} = [\begin{matrix} - \frac{1}{M_{i}} \\ 0 \\ 0 \\ 0 \end{matrix}] \end{matrix}

(3)

For decentralized control, the tie-line power is combined with other disturbances as $P_{di} = Δ P_{Li} + Δ P_{tie, i, j}$ . The decentralized model is taken to design the proposed method, and the associated system dynamic is shown as follows:

{\begin{matrix} \overset{\cdot}{x} (t) & = Ax (t) + Bu (t) + F P_{di} \\ y (t) & = Cx (t) \end{matrix}

(4)

where

\begin{matrix} A = [\begin{matrix} - \frac{D_{i}}{M_{i}} & \frac{1}{M_{i}} & 0 \\ 0 & - \frac{1}{T_{ti}} & \frac{1}{T_{ti}} \\ - \frac{1}{R_{i} T_{gi}} & 0 & - \frac{1}{T_{gi}} \end{matrix}], \\ B = [\begin{matrix} 0 \\ 0 \\ \frac{1}{T_{gi}} \end{matrix}], C = {[\begin{matrix} 1 \\ 0 \\ 0 \end{matrix}]}^{'}, F = [\begin{matrix} - \frac{1}{M_{i}} \\ 0 \\ 0 \end{matrix}] \end{matrix}

(5)

The decentralized LFC model is a single input and single output model, wherein a mismatched disturbance operates in a channel distinct from the control input. While mitigating the effects of mismatched disturbance with conventional DOB-ISMC methods is possible, rejecting it altogether is more difficult. Therefore, the control object is to design an approach that involves precisely estimating and ultimately eliminating the impact of mismatched disturbance.

The proposed DOB-ISMC LFC control scheme

Disturbance observer design

A nonlinear disturbance observer (Mi et al., 2016) is proposed to estimate the aggregated disturbance. In this paper, the $F$ matrix with $P_{di}$ can be aggregated as a disturbance at the first row of matrix $A$ . We consider $d \in R^{3 \times 1}$ as a continuous function containing disturbance at different channels. Then, the augmented model of equation (5) is shown as:

[\begin{matrix} \overset{\cdot}{x} (t) \\ \overset{\cdot}{d} (t) \end{matrix}] = [\begin{matrix} A & I \\ 0 & 0 \end{matrix}] [\begin{matrix} x (t) \\ d (t) \end{matrix}] + [\begin{matrix} B \\ 0 \end{matrix}] u (t) + [\begin{matrix} 0 \\ \overset{\cdot}{d} (t) \end{matrix}]

(6)

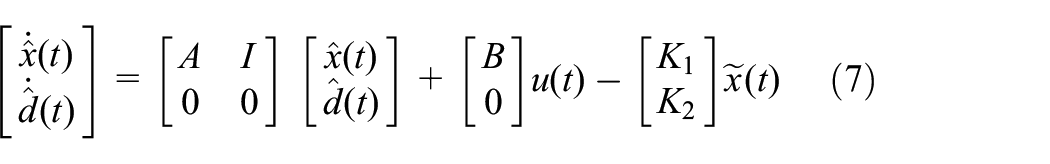

From equation (6), the disturbance observer matrix can be constructed as:

[\begin{matrix} \overset{\cdot}{\hat{x}} (t) \\ \overset{\cdot}{\hat{d}} (t) \end{matrix}] = [\begin{matrix} A & I \\ 0 & 0 \end{matrix}] [\begin{matrix} \hat{x} (t) \\ \hat{d} (t) \end{matrix}] + [\begin{matrix} B \\ 0 \end{matrix}] u (t) - [\begin{matrix} K_{1} \\ K_{2} \end{matrix}] \tilde{x} (t)

(7)

where $\hat{x} (t)$ represents the estimated state variables, $\hat{d} (t)$ denotes the estimated disturbance, $I$ denotes the identity matrix, and $K_{1}$ and $K_{2}$ correspond to the designed observer gain matrix.

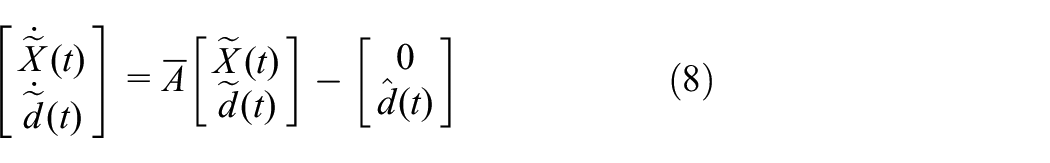

From equations (6) and (7), the error state values are defined as $\tilde{x} = x - \hat{x}$ and $\tilde{d} = d - \hat{d}$ . Let $\bar{A} = [\begin{matrix} A - K_{1} & I \\ - K_{2} & 0 \end{matrix}]$ , the error dynamic function is derived in the following manner:

[\begin{matrix} \overset{\cdot}{\tilde{X}} (t) \\ \overset{\cdot}{\tilde{d}} (t) \end{matrix}] = \bar{A} [\begin{matrix} \tilde{X} (t) \\ \tilde{d} (t) \end{matrix}] - [\begin{matrix} 0 \\ \hat{d} (t) \end{matrix}]

(8)

The eigenvalues of matrix $\bar{A}$ are positioned in the left half-plane, and estimation errors can converge to zero as $t \to \infty$ , when $K_{1}$ and $K_{2}$ are well designed.

Proposed sliding surface and input design

To achieve the disturbance rejection function, the memoryless disturbance observer–based feedback control signal is created as equation (9), which is the same as by Zhang et al. (2023).

u_{1} (t) = - K_{x} x (t) - K_{d} \hat{d} (t)

(9)

The first term signifies the feedback control law designed to guarantee system convergence. The subsequent term constitutes the disturbance rejection component, where $K_{d}$ is the disturbance rejection gains. The basic idea of designing $K_{d}$ is to alleviate the impact of disturbance in a steady state. This paper introduces a novel memory-based control signal as:

u_{1} (t) = - K_{x} x (t) - K_{m} x (t - τ) - K_{d} \hat{d} (t)

(10)

where $K_{m}$ , $τ$ are memory controller gain and memory parameter, respectively. Then, the disturbance gain can be designed as follows: $K_{d} = [K_{d 1}, 0, K_{d 3}]$ . Based on the investigation of Li et al. (2011), the match disturbance gain value can be set as $K_{d 3} = T_{gi}$ . Then, a novel surface is devised in the following manner:

s (t) = K_{d} (x (t) - \int_{0}^{t} (Ax (s) + B u_{1} (s) + \hat{d} (s)) ds)

(11)

To control the frequency, the input singnal is formulated as:

u (t) = u_{1} (t) + u_{eq} (t)

(12)

where $u_{eq}$ represents the equivalent signal utilized to guide the state trajectories toward the designated sliding surface. To facilitate controller construction, a constant rate-reaching law is employed. Consequently, the $u_{eq}$ is formulated as follows:

u_{eq} (t) = - (β + J) \tanh (s)

(13)

where $β$ represents the boundary of the disturbance with gains $K_{d}$ ; $J$ is a positive constant value. The $u_{eq}$ can be determined by setting $\overset{\cdot}{s} (t) = 0$ , resulting in the following expression:

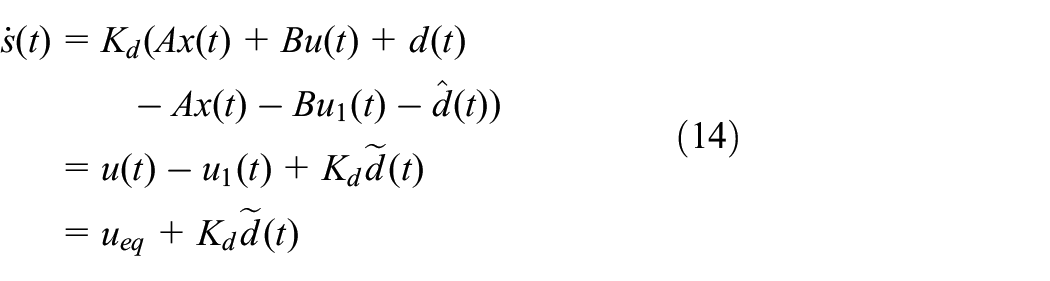

\begin{matrix} \overset{\cdot}{s} (t) = K_{d} (Ax (t) + Bu (t) + d (t) \\ - Ax (t) - B u_{1} (t) - \hat{d} (t)) \\ = u (t) - u_{1} (t) + K_{d} \tilde{d} (t) \\ = u_{eq} + K_{d} \tilde{d} (t) \end{matrix}

(14)

Upon the fulfillment of the switching condition $s (t) \overset{\cdot}{s} (t) < 0$ , the state trajectory is capable of reaching the proposed sliding surface.

\begin{matrix} \overset{\cdot}{W} (t) = s (t) \overset{\cdot}{s} (t) \\ = s (t) (- (β + J) \tanh (s) + K_{d} \tilde{d} (t)) \\ = - (β + J) ∥ S ∥ + s (t) K_{d} \tilde{d} (t) \\ \leq - (β + J) ∥ S ∥ + ∥ S ∥ ∥ K_{d} \tilde{d} (t) ∥ \\ \leq - J ∥ S ∥ \end{matrix}

(15)

It is evident that Lyapunov stability, represented by $\overset{\cdot}{W} < 0$ , can be ensured with the designed control input when $β > ∥ K_{d} \tilde{d} (t) ∥$ .

The proposed method introduces a novel constant delay to construct the control input. To ensure optimal LFC performance, the linear matrix inequality (LMI) technique is utilized to design the feedback control gain $K_{x}$ and memory gain $K_{m}$ . From equation (14), we can get the equivalent control law as $u_{eq} = - K_{d} \tilde{d}$ . Substituting the composite control law $u (t) = u_{1} (t) + u_{eq} (t)$ into equation (4), the sliding dynamic is depicted as follows:

\begin{matrix} \overset{\cdot}{x} (t) = Ax (t) + Bu (t) + d (t) \\ = Ax (t) - B K_{x} x (t) - B K_{m} x (t - τ) - B K_{d} \hat{d} (t) \\ - B K_{d} \tilde{d} + d \\ = (A - B K_{x}) x (t) - B K_{m} x (t - τ) - B K_{d} d (t) + d (t) \end{matrix}

(16)

In equation (16), the disturbance is rejected by the $[- B K_{d} d (t) + d (t)]$ part. However, it should be noted that disturbance at each channel cannot be totally attenuated (Isidori, 1985) before the system dynamic reaches a steady state. Therefore, the disturbance matrix in sliding dynamic is designed as $D = [1, 1, 1]^{T}$ . The sliding mode controller $u_{1}$ achieves robustness performance if there exist positive definite matrices $X$ , $Q_{t}$ , and $Q_{u}$ , and matrices $V$ , $S$ , $T_{R}$ , $T_{S}$ , $N_{s}$ , and $N_{r}$ satisfying the following LMI:

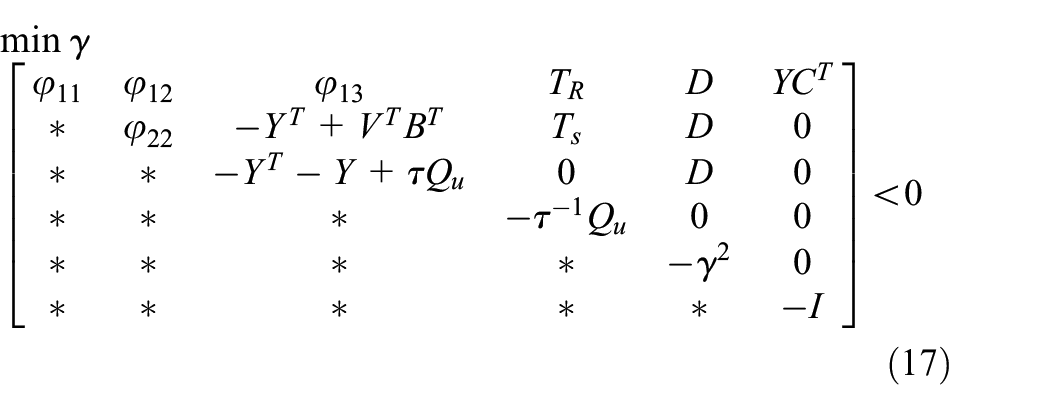

\begin{matrix} min γ \\ [\begin{matrix} φ_{11} & φ_{12} & φ_{13} & T_{R} & D & Y C^{T} \\ * & φ_{22} & - Y^{T} + V^{T} B^{T} & T_{s} & D & 0 \\ * & * & - Y^{T} - Y + τ Q_{u} & 0 & D & 0 \\ * & * & * & - τ^{- 1} Q_{u} & 0 & 0 \\ * & * & * & * & - γ^{2} & 0 \\ * & * & * & * & * & - I \end{matrix}] < 0 \end{matrix}

(17)

where $φ_{11} = A Y^{T} + Y^{T} A + BS + S^{T} B^{T} + Q_{t} + N_{r} + N_{r}^{T}$ ; $φ_{12} = BV + Y A^{T} + S^{T} B^{T} - N_{r} + N_{s}$ ; $φ_{13} = - Y^{T} + X + Y A^{T} + S^{T} B^{T}$ ; $φ_{22} = BV + V^{T} B^{T} - N_{s} - N_{s}^{T} - Q_{t}$

The corresponding controller parameters can then be obtained as:

K_{x} = S Y^{- 1}

(18)

and

K_{m} = V Y^{- 1}

(19)

Proof: By integrating $D$ into the sliding dynamic system, we have:

\overset{\cdot}{x} (t) = A_{x} x (t) + B_{m} + Dd

(20)

where $A_{x} = (A + B K_{x})$ , $B_{m} = B K_{m}$ . Then a LKF is built as:

\begin{matrix} V (t) = x^{T} (t) Ux (t) + \int_{t - τ}^{t} x^{T} (s) Q_{1} x (s) ds \\ + \int_{- τ}^{0} \int_{t - μ}^{t} \overset{\cdot}{x} {(s)}^{T} Q_{2} \overset{\cdot}{x} (s) dsd μ \end{matrix}

(21)

Take time derivative on equation (21), we get:

\begin{matrix} \overset{\cdot}{W} (t) = x^{T} (t) Q_{1} x (t) - x^{T} (t - τ) Q_{1} x (t - τ) + τ \overset{\cdot}{x} (t)^{T} Q_{2} \overset{\cdot}{x} (t) \\ - \int_{t - τ}^{t} \overset{\cdot}{x} (s)^{T} Q_{2} \overset{\cdot}{x} (s) ds - {\overset{\cdot}{x}}^{T} (t) Ux (t) + x^{T} (t) U \overset{\cdot}{x} (t) \end{matrix}

(22)

Now use the Newton–Leibniz formula (Wen et al., 2015)

\begin{matrix} x (t) - x (t - τ) - \int_{t - τ}^{t} {\overset{\cdot}{x}}^{T} (s) ds = 0 \end{matrix}

(23)

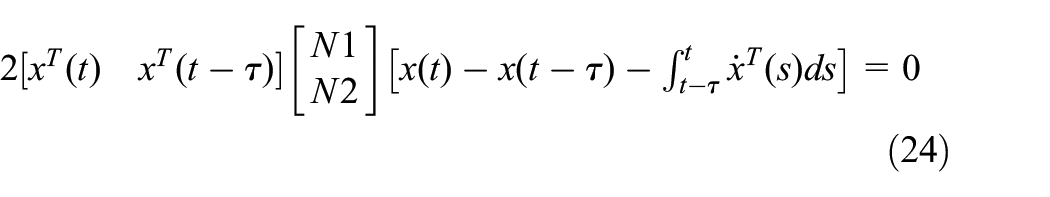

By taking free-weight matrices, the following function can be constructed:

\begin{matrix} 2 [x^{T} (t) x^{T} (t - τ)] [\begin{matrix} N 1 \\ N 2 \end{matrix}] [x (t) - x (t - τ) - \int_{t - τ}^{t} {\overset{\cdot}{x}}^{T} (s) ds] = 0 \end{matrix}

(24)

where $N 1$ , $N 2$ are two appropriate dimensional matrices.

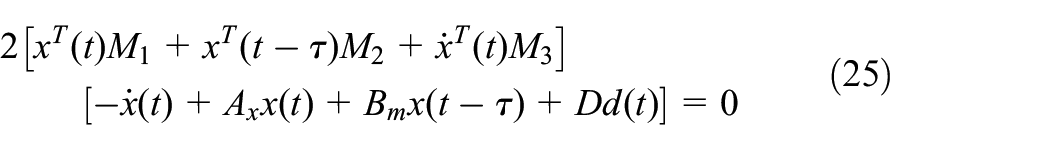

Selecting appropriate free-weight matrices $M_{1}$ , $M_{2}$ , $M_{3}$ , one function can be obtained:

\begin{matrix} 2 [x^{T} (t) M_{1} + x^{T} (t - τ) M_{2} + {\overset{\cdot}{x}}^{T} (t) M_{3}] \\ [- \overset{\cdot}{x} (t) + A_{x} x (t) + B_{m} x (t - τ) + Dd (t)] = 0 \end{matrix}

(25)

Let $ζ (t) = [x^{T} (t) x^{T} (t - τ) {\overset{\cdot}{x}}^{T} (t)]$ , equation (25) can be transformed to matrices as:

ζ^{T} (t) [\begin{matrix} ψ_{11} & ψ_{12} & ψ_{13} \\ * & ψ_{22} & ψ_{23} \\ * & * & ψ_{33} \end{matrix}] ζ (t) + 2 ζ^{T} (t) [\begin{matrix} M_{1} \\ M_{2} \\ M_{3} \end{matrix}] Dd (t)

(26)

where $ψ_{11} = M_{1} A_{x} + A_{x}^{T} M_{1}^{T}$ ; $ψ_{12} = M_{1} B_{m} + A_{x}^{T} M_{2}^{T}$ ; $ψ_{13} = - M_{1} + A_{x}^{T} M_{3}^{T}$ ; $ψ_{22} = M_{2} B_{m} + B_{m}^{T} M_{2}^{T}$ ; $ψ_{23} = - M_{2} + B_{m}^{T} M_{3}^{T}$ ; $ψ_{33} = - M_{3} - M_{3}^{T}$ . The second term of equation (26) can be separated as follows:

\begin{matrix} 2 ζ^{T} (t) [\begin{matrix} M_{1} \\ M_{2} \\ M_{3} \end{matrix}] Dd (t) \leq γ^{- 2} ζ^{T} (t) [\begin{matrix} M_{1} D \\ M_{2} D \\ M_{3} D \end{matrix}] {[\begin{matrix} M_{1} D \\ M_{2} D \\ M_{3} D \end{matrix}]}^{T} \\ ζ (t) + γ^{2} d^{T} (t) d (t) \end{matrix}

(27)

Combining equations (22), (23), and (27) yields:

\begin{matrix} \overset{\cdot}{W} \leq ζ^{T} (t) [\begin{matrix} Ω_{11} & Ω_{12} & Ω_{13} \\ * & Ω_{22} & Ω_{23} \\ * & * & Ω_{33} \end{matrix}] ζ (t) + ζ^{T} (t) [\begin{matrix} N_{1} \\ N_{2} \\ 0 \end{matrix}] τ Q_{2}^{- 1} {[\begin{matrix} N_{1} \\ N_{2} \\ 0 \end{matrix}]}^{T} \\ ζ (t) + ζ^{T} (t) γ^{- 2} [\begin{matrix} M_{1} D \\ M_{2} D \\ M_{3} D \end{matrix}] {[\begin{matrix} M_{1} D \\ M_{2} D \\ M_{3} D \end{matrix}]}^{T} ζ (t) + γ^{2} d^{T} (t) d (t) \end{matrix}

(28)

where

\begin{matrix} Ω_{11} = ψ_{11} + Q_{1} + N_{1} + N_{1}^{T}, Ω_{12} = ψ_{12} - N_{1} + N_{2}^{T}, \\ Ω_{13} = ψ_{13} + U, Ω_{22} = ψ_{22} - N_{2} - N_{2}^{T}, Ω_{23} = ψ_{23}, \\ Ω_{33} = ψ_{33} + τ Q_{2}, Ω_{23} = ψ_{23} . \end{matrix}

Combining with equation (22), the H-∞ objective becomes now to ensure $J \leq 0$ . The function is expressed as follows:

\begin{matrix} J = \int_{0}^{\infty} [y^{T} (t) y (t) - γ d^{T} (t) d (t) + \overset{\cdot}{W}] dt \end{matrix}

(29)

The goal is to transform the inequality into an LMI structure to derive the controller parameters. The combined matrices can be expressed as:

[\begin{matrix} Ω_{11} & Ω_{12} & Ω_{13} & N_{1} & M_{1} D & C^{T} \\ * & Ω_{22} & Ω_{23} & N_{2} & M_{2} D & 0 \\ * & * & Ω_{33} & 0 & M_{3} D & 0 \\ * & * & * & - τ^{- 1} Q_{2} & 0 & 0 \\ * & * & * & * & - γ^{2} & 0 \\ * & * & * & * & * & - I \end{matrix}] < 0

(30)

Assume $M = M_{1} = M_{2} = M_{3}$ , and Pre- and post-multiply equation (30) with diag $[M^{- 1} M^{- 1} M^{- 1} M^{- 1} I I]$ and its transpose matrix. By taking the variable as $M^{- 1} = Y$ , $K M^{- T} = K Y^{T} = S$ , $K_{m} M^{- T} = V$ , $M^{- 1} Q_{1} M^{- T} = Q_{t}$ , $M^{- 1} Q_{2} M^{- T} = Q_{u}$ , $M^{- 1} U M^{- T} = X$ , $M^{- 1} N_{1} M^{- T} = N_{r}$ , $M^{- 1} N_{2} M^{- T} = N_{s}$ , equation (17) can be obtained and the proof is completed.

Disturbance rejection gain and sliding variable design

In the aforementioned section, the feedback control gain value $K_{x}$ and memory value $K_{m}$ is designed. The conceptual basis for the formulation of a disturbance rejection gain lies in its purpose to mitigate the effects of disturbances originating from the output channel. Therefore, a steady-state theory is utilized to derive the gain values. When we take $A_{x} = A - B K_{x}$ and $A_{m} = - B K_{m}$ , the following conditions should be met: $C (A_{x} + A_{m})^{- 1} (F - B K_{d}) = 0$ . Then, disturbance rejection gain and sliding variable of mismatch disturbance can be calculated as:

\begin{matrix} K_{d 1} = (C (A_{x} + A_{m}) B)^{- 1} C ((A_{x} + A_{m})) F \end{matrix}

(31)

Simulation studies

Multiple test cases are designed to assess the LFC performance, taking into account governor deadband and generation rate constraints. In case 1, a standard IEEE 39 bus testbed is employed to evaluate the effectiveness of the novel memory-based control signal. In case 2, the LFC is validated on a three-area system. In case 3, a three-area system comprising various types of generators is employed. Four other methods are considered for comparison: Conventional PID method (Khousa and Ismail, 2013); liner active disturbance rejection method (LADRC) (Dorado-Rojas et al., 2019); disturbance observer–based integral sliding mode control (DOISMC) (Farivar et al., 2022); disturbance observer–based adaptive integral sliding mode control (DOAISMC) (Wang et al., 2016).

Case 1: IEEE 39 bus system

A standard IEEE 39-bus system is utilized to evaluate the performance of the memory-based control input in contrast to the method with memoryless control input proposed in the study (Zhang et al., 2023). The structure of the IEEE 39 testbed, as shown in Figure 2, utilizes parameters derived from Dorado-Rojas et al. (2019). Each area of the IEEE 39 bus testbed introduces a step load disturbance, as shown in Figure 3(a). Figure 3(b)–(d) demonstrate the performance comparison of the controller with one constant delay term. The results of three areas show that one delay constant term can highly improve LFC transient performance. The constant delay term can regulate the frequency with lower overshoot and smooth oscillation.

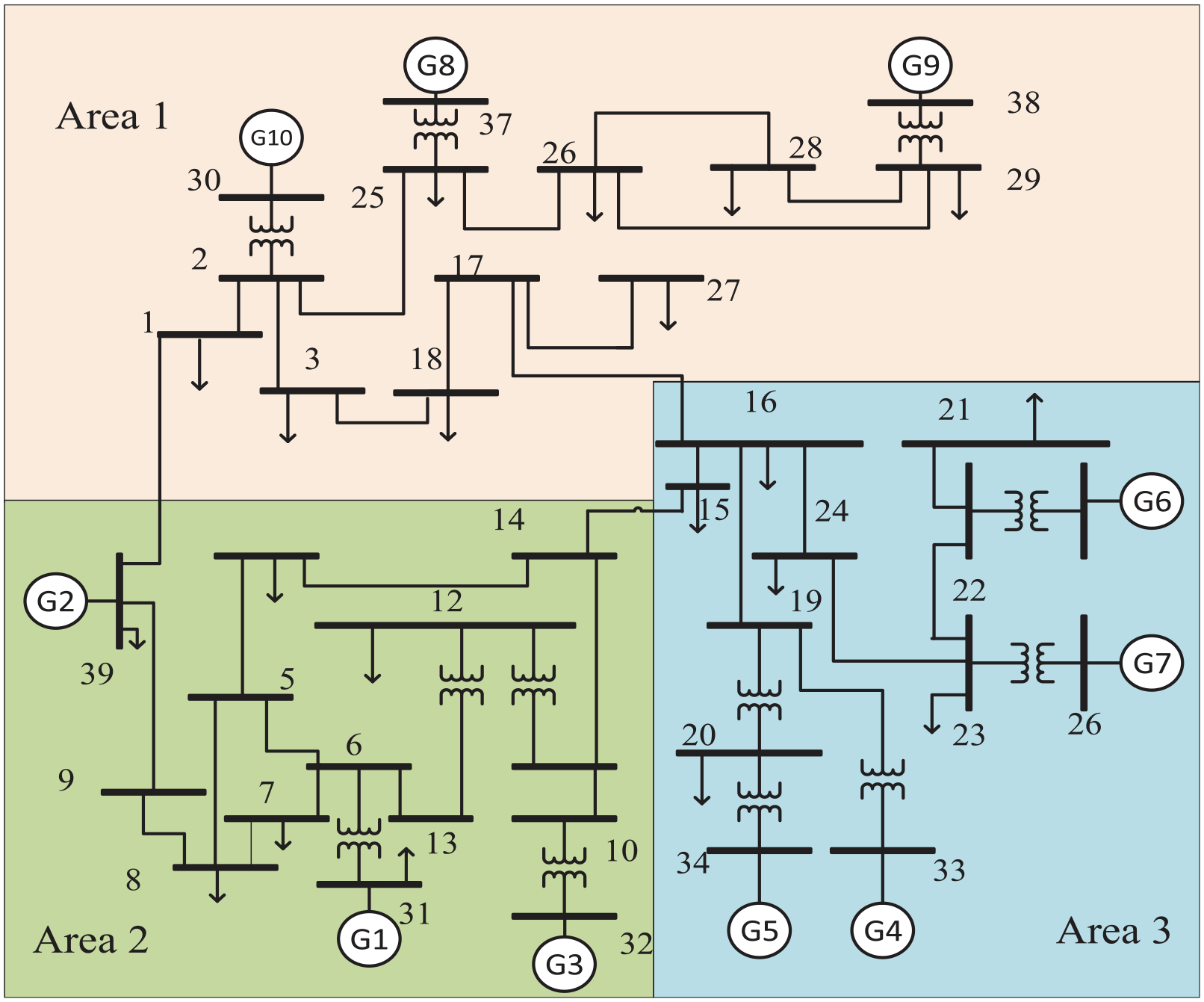

Figure 2.

Structure of the IEEE 39 bus system.

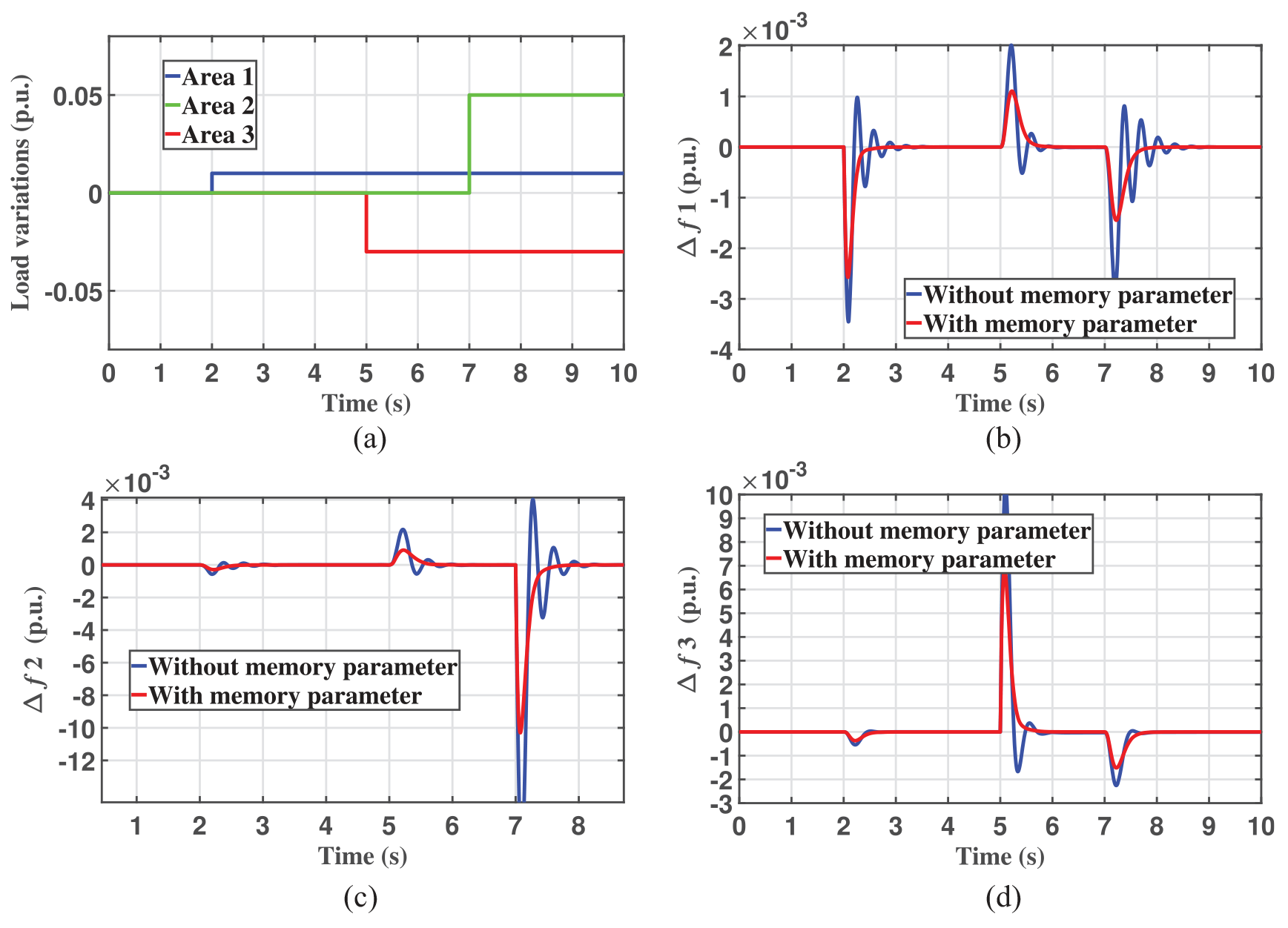

Figure 3.

Load variations and dynamic performance of frequency regulation: (a) load variations in three areas, (b) LFC performance of area 1, (c) LFC performance of area 2, and (d) LFC performance of area 3.

Case 2: Single-area power system

Letting $Υ = d i a g [λ 1, \dots, λ 6]$ and taking the $K 1 = A + ϒ$ and $K_{2} = ϒ^{2} I$ , the eigenvalue of $\bar{A}$ can be assigned to selected poles. In case 1, we place all of the poles at $- 10$ . Figure 4(a) depicts the transient behavior of the proposed approach under a sudden 0.01 p.u increment. Clearly, the proposed method notably improves the transient performance of LFC by reducing overshoot and improving response speed. In particular, the proposed method exhibited improvements over the LADRC algorithm by 5.04% and 54.4%, over PID by 5.09% and 68.03%, over DOISMC by 6.59% and 84.34%, and over DOAISMC by 5.93% and 82.47%, concerning both overshoot and response time, as shown in Table 2. In Figure 4(b), the control efforts from each controller are depicted. However, this method will lead to a slight chattering problem.

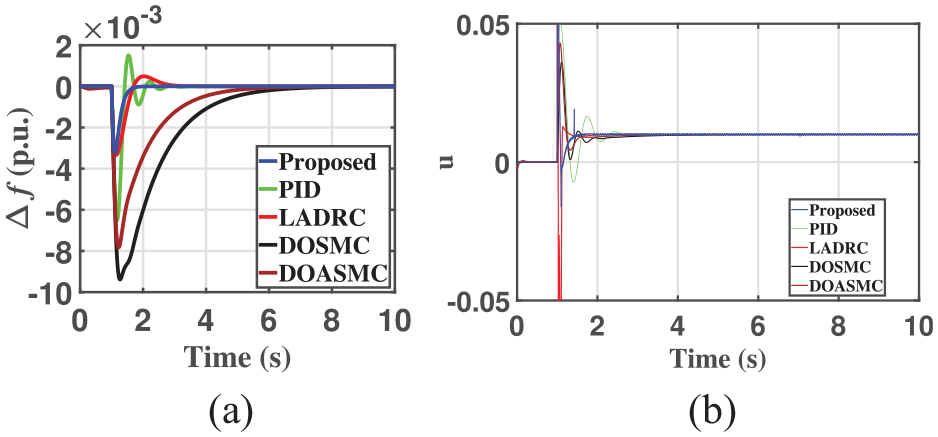

Figure 4.

(a) Dynamic performance of LFC in a single area and (b) control signal.

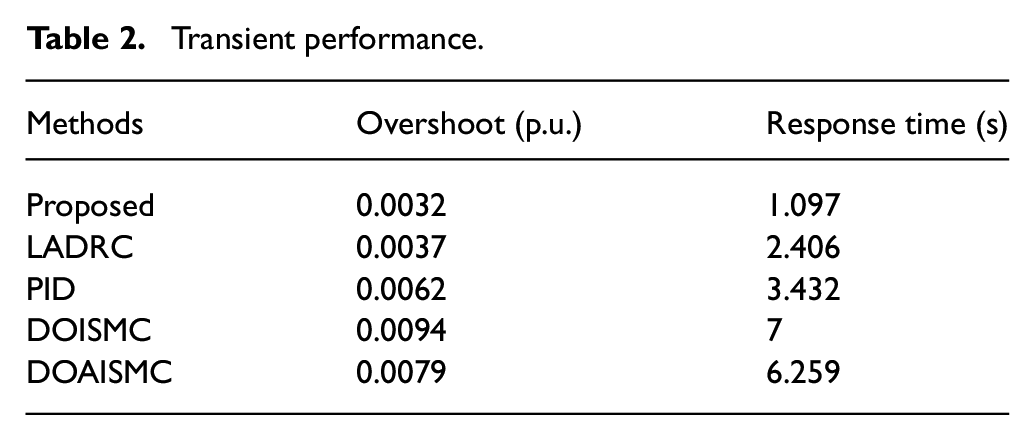

Table 2.

Transient performance.

Methods	Overshoot (p.u.)	Response time (s)
Proposed	0.0032	1.097
LADRC	0.0037	2.406
PID	0.0062	3.432
DOISMC	0.0094	7
DOAISMC	0.0079	6.259

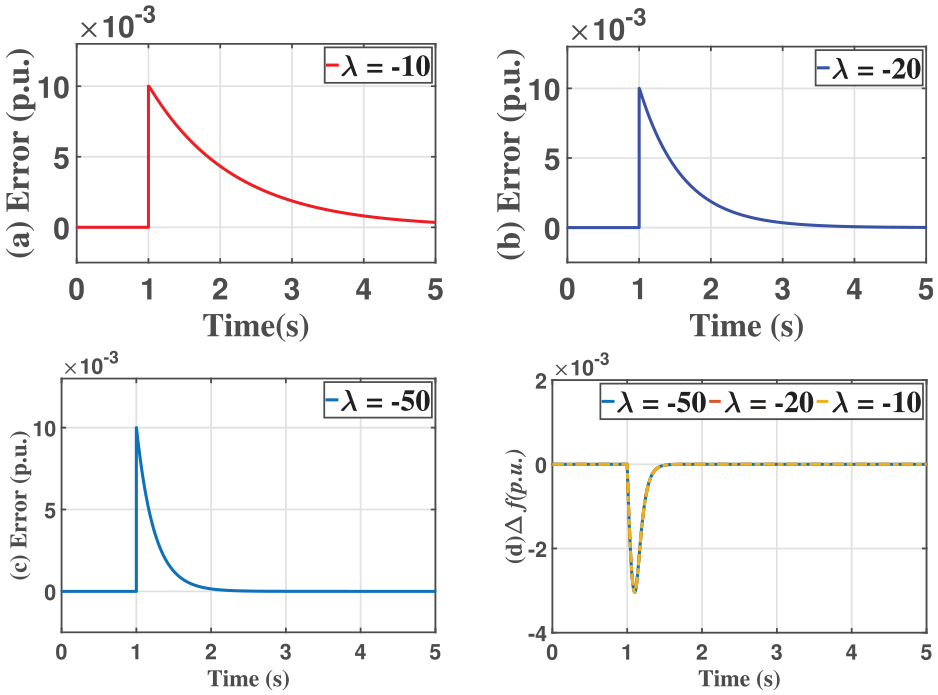

Figure 5 presents the disturbance estimated error and the dynamic performance with different parameters for the disturbance observer. Three sets of parameters are used to allocate the eigenvalue value of matrices $\bar{A}$ to $λ = - 10$ , $λ = - 20$ , and $λ = - 50$ . Figure 5(a)–(c) show the estimation error with different pole values. It is obvious that the larger the poles the designer selected, the faster the convergency time the system can achieve. Figure 5(d) shows the LFC performance when the observer has different convergency times. It can be seen that three frequency deviation trajectories overlap, which means the proposed method highly alleviates the convergency time effect to achieve a better disturbance rejection performance.

Figure 5.

Dynamic performance of the disturbance observer and proposed control method with different disturbance observer poles.

Case 3: Three-area interconnected power system

The power system model in this case is built based on other literature, for example, Cai et al. (2016) and Oshnoei et al. (2021). The three-area LFC structure, depicted in Figure 6, is employed to validate its adaptability to a more complex power system. To replicate a more intricate setting, a third area is introduced into the system, incorporating a reheat turbine. The transfer function of the reheat turbine is constructed as follows (Oshnoei et al., 2021),

T_{reheater} = \frac{K_{r} T_{s} s + 1}{T_{r} + 1}

(32)

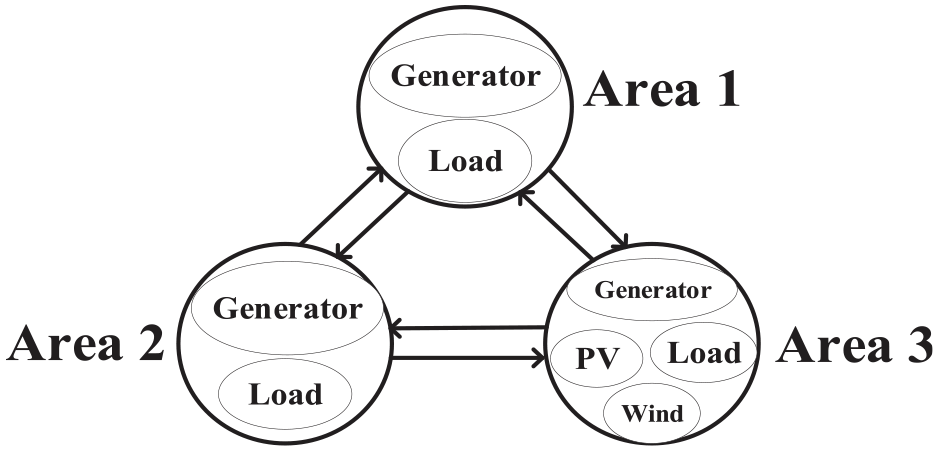

Figure 6.

Structure of the studied three-area power system.

Figure 7(a) illustrates the scenario in which five sequential step load variations are introduced to both area 1 and area 2. In addition, a random renewable power is introduced in area 3. The system performance in three areas with different methods is demonstrated in Figure 7(b)–(d). To quantitatively compare the results of the five methods, the integral of absolute error (IAE), which represents the accumulated frequency deviation over time, is taken as the performance index to compare the results, as shown in Table 3. The superiority of the proposed method over the other three approaches is apparent, as illustrated in Table 3.

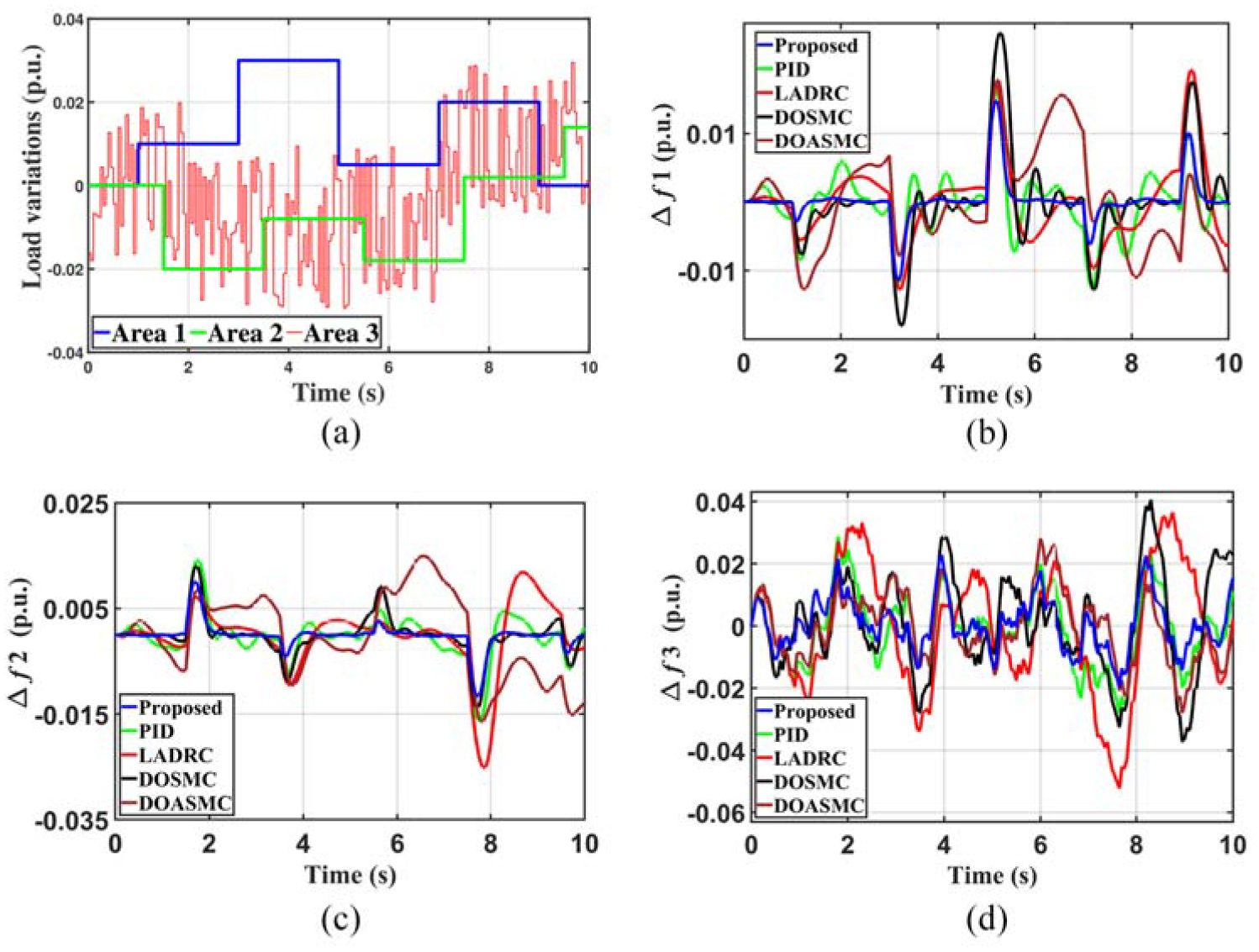

Figure 7.

Load variations and dynamic performance of frequency deviation: (a) lumped disturbance in area 3, (b) LFC performance of area 1, (c) LFC performance of area 2, and (d) LFC performance of area 3.

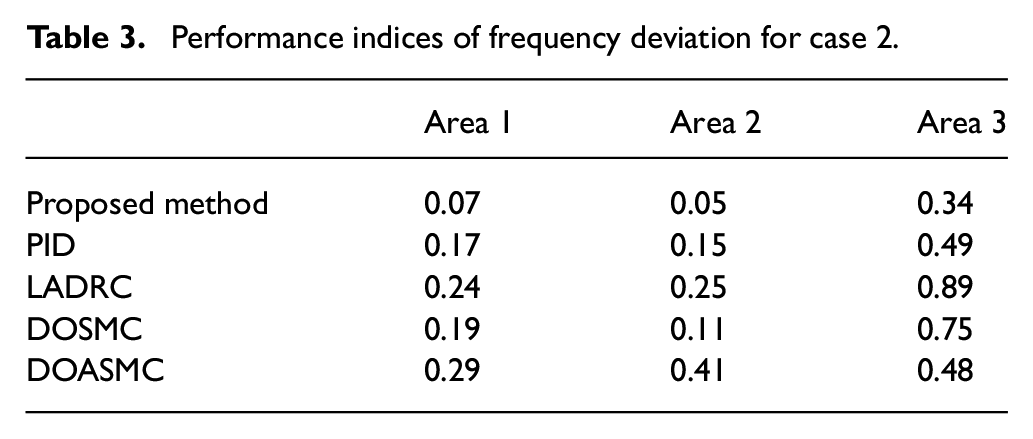

Table 3.

Performance indices of frequency deviation for case 2.

	Area 1	Area 2	Area 3
Proposed method	0.07	0.05	0.34
PID	0.17	0.15	0.49
LADRC	0.24	0.25	0.89
DOSMC	0.19	0.11	0.75
DOASMC	0.29	0.41	0.48

Conclusion

A novel DOB-ISMC LFC is proposed to regulate frequency. The results demonstrate effective frequency regulation with reduced dependence on the disturbance observer. The steady-state theory simplifies the parameter tuning process. Moreover, the inclusion of a memory-based control input term in comparison to a memoryless input significantly improves the transient performance of LFC. Through extensive case studies, the DOB-ISMC LFC method presented in this study offers a promising solution for stabilizing power systems, effectively regulating frequency, and improving transient performance. The findings of this research contribute to the advancement of LFC techniques and provide valuable insights for power system engineers and researchers working toward the reliable and efficient operation of power grids. However, there are limitations to the proposed method. First, the proposed SMC reaching law causes high chattering problems. Second, practical LFC in power systems typically involves sample-based control. Consequently, the proposed method may not be applicable to discrete systems, particularly when the sampling interval is large. As a future step, there is a need to extend the proposed method to accommodate a sample-based LFC model, addressing the practical considerations of discrete systems.
