Abstract
The purpose of the study was to examine the development of a multiple linear regression model to estimate heart rate variability (HRV) parameters using easy-to-measure independent variables in preliminary experiments. HRV parameters (time domain: SDNN, RMSSD, NN50, pNN50; frequency domain: TP, VLF, LF, HF) and the independent variables (e.g., sex, age, body height, body weight, BMI, HR, HRmax, HRR) were measured in 75 healthy adults (male n = 27, female n = 48) for estimating HRV. The HRV estimation multiple linear regression model was developed using the backward elimination technique. The regression model’s coefficient of determination for the time domain variables was significantly high (SDNN = R2: 72.2%, adjusted R2: 69.8%, P < .001; RMSSD = R2: 93.1%, adjusted R2: 92.1%, P < .001; NN50 = R2: 78.0%, adjusted R2: 74.9%, P < .001; pNN50 = R2: 89.1%, adjusted R2: 87.4%, P < .001). The coefficient of determination of the regression model for the frequency domain variable was moderate (TP = R2: 75.6%, adjusted R2: 72.6%, P < .001; VLF = R2: 41.6%, adjusted R2: 40.3%, P < .001; LF = R2: 54.6%, adjusted R2: 49.2%, P < .001; HF = R2: 67.5%, adjusted R2: 63.4%, P < .001). The coefficient of determination of time domain variables in the developed multiple regression models was shown to be very high (adjusted R2: 69.8%–92.1%, P < .001), but the coefficient of determination of frequency domain variables was moderate (adjusted R2: 40.3%–72.6%, P < .001). In addition to the equipment used for measuring HRV in clinical trials, this study confirmed that simple physiological variables could predict HRV.
Keywords
What Do We Already Know About This Topic?
HRV can provide useful information regarding complex environmental, physiological, and psychological conditions that affect an individual’s abilities.
How Does Your Research Contribute to the Field?
Based on simple demographic and physiological variables (e.g., sex, age, height, body mass, BMI, HR, HRmax, and HRR), we can predict HRV.
What are Your Research’s Implications Toward Theory, Practice, or Policy?
HRV analysis can be regarded as a clinical tool to evaluate heart activity and overall ANS health, but not a particular mental or physical condition. However, HRV as a parameter can be easily used to measure stress. In modern society, stress management is essential, and tools are needed for quick and accurate evaluation.
Introduction
Heart rate variability (HRV) has created substantial interest among researchers, with corresponding significant increase in the number of publications in this area. 1 According to PubMed, currently there are more than 17000 research articles with HRV. 2 In general, the autonomic nervous system (ANS) controls the heart rate (HR) and HRV. The HRV analysis can be used as a non-invasive method to assess the interplay between the sympathetic nervous (SNS) and parasympathetic nervous systems (PNS) of the ANS.3-6 HRV analysis involves measurement of variations in RR intervals, indicating cardiovascular autonomic function. 7 HRV analysis was first used in the medical sciences before its application in sports science.8-10 The measurement and analysis of HRV became common because this method was non-invasive, comfortable for the patient, and sensitive to physiological and psychological changes. 7
Although there are multiple physiological signs such as respiration rate, blood pressure, and ECG parameters that can be used to identify stress, HRV is currently one of the most well-studied parameter used for evaluating mental stress. 11 Moreover, HRV is a more robust method for evaluation of stress than the heart rate alone. 12 HRV has been recognized as a potential biomarker for effective monitoring of momentary mental stress. In general, mental stress is known to disrupt ANS homeostasis, which is responsible for the regular functioning of human physiology.11,13 Its disruption in turn changes the vibration of the heart cycle and negatively affects mental and cardiovascular health.14,15
In clinical settings, decrease in HRV has been shown to reflect poor prognosis for cardiovascular disease, acute myocardial infarction, arterial hypertension, and other cardiac diseases.16-18 HRV can provide useful information regarding complex environmental, physiological, and psychological conditions that affect an individual’s abilities. 19 HRV has also been used in sports science for the evaluation of several factors including endurance training, recovery, overtraining, and during exercise. 20
Technological advances in sports science have provided athletes, coaches, and researchers with economical, efficient, and reliable means to record RR data through wireless chest strap electrodes and heart rate monitors (HRMs) worn on the wrist. Using instruments such as the Polar’s HRMs, RR intervals are recorded for HRV analysis not only in athletes but also in sports science- and medicine-related studies. 21 The development of HRMs allowed RR data to be recorded in situations where it was impossible to measure ECG, even with physical activity and exercise ECGs.22,23 HRV represents the variation in the interval between successive peaks of the R-R waveform in the ECG. By analyzing the R-R waveform, changes in the time, frequency, and nonlinear areas of the HRV can be measured. The use of HRMs to accurately and reliably record RR intervals for clinical or research purposes has been verified. 24 However, it is necessary to develop algorithms that can easily and accurately predict HRV without HRM equipment. Also, the connected gains of novel analytical techniques, reliable and portable devices, and comprehensive software programs due to the quaternary industry suggest that HRV and ANS functions research will increase in the future. 25
This was a preliminary study that aimed to develop multiple regression equations to predict HRV using sex, age, body height, body weight, body mass index (BMI), resting HR, maximal heart rate (HRmax), and heart rate reserve (HRR) in healthy Korean adults.
Material and Methods
Participants
Definition of Acronyms.

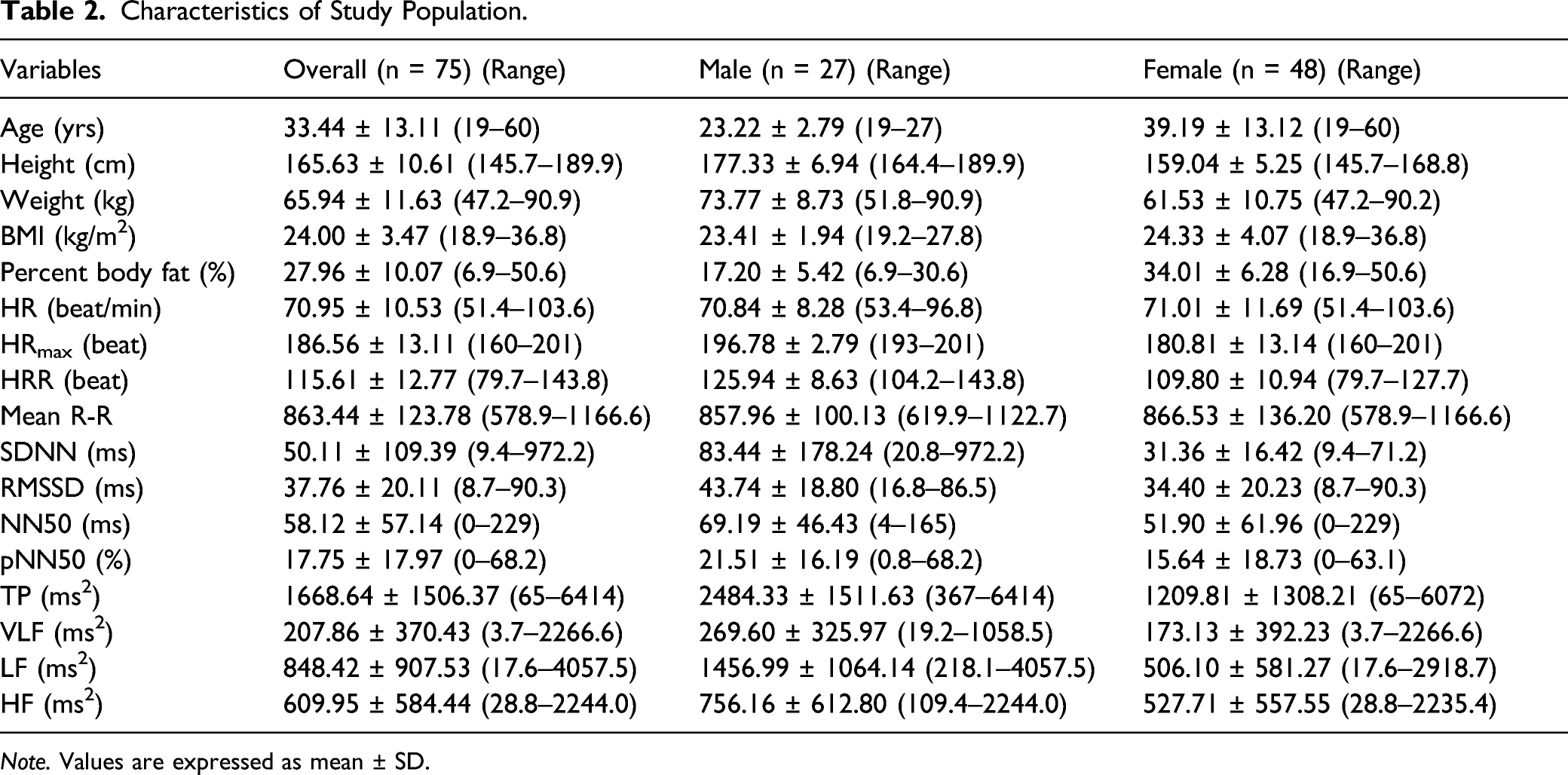

Characteristics of Study Population.
Note. Values are expressed as mean ± SD.
Measurements
Body Height and Body Weight
Body height and body weight were measured using bioelectrical impedance analysis equipment (Inbody 770, Inbody, Seoul, Korea). All subjects fasted overnight before the measurement of body height and body weight. Participants wore lightweight clothing and were asked to remove any metal items. BMI was calculated by dividing body weight (kg) by the square of body height (m2).
Heart Rate Variables
Resting HR was measured using an autonomic HRM (V800, Polar Electro OY, Kempele, Finland). HRmax and HRR were calculated for individuals using the Karvonen formula (HRmax: 220 – age, HRR: HRmax – resting HR). 26 Further, various independent variables were calculated using resting HR, HRmax, and HRR (e.g., HR+HRmax, HR+HRR, HRmax+HRR, HR+HRmax+HRR, HRR−HR, HRmax−HRR, HR+HRmax−HRR, HRmax+HRR−HR, HRmax/HR, HR/HRmax, HRR/HR and HR/HRR).
Heart Rate Variability Data
RR interval data were recorded using a V800 Polar with a Polar H10 chest strap. Unfiltered RR interval data was exported from the Polar Flow web service as a time delimited CSV file for the raw HRM. HRV analysis can be performed on 24 h nominal recordings (defined as long term HRV analysis), 5 min recordings (defined as short term HRV analysis), or even shorter recordings. 27 In this study, ultra-short-term HRV analysis was defined as the analysis performed on HRV excerpts shorter than 5 min. 28 The N-N interval is another way to represent the R-R interval or the time interval between the R peaks. For the calculation of HRV parameters, an identical last 5 min segment of NN intervals was selected from the total 10 min of the corrected HRM recordings. These selected segments were analyzed using Kubios HRV (Version 3.3.1) for time- and frequency domain components. 29
The time domain measures are the simplest to calculate. However, it does not provide information on the temporal distribution of power or means for quantifying the autonomic balance in other branches of the autonomic nervous system. 30 Several parameters may be calculated: SDNN is the standard deviation of the NN intervals, RMSSD is the root mean squared of successive difference of NN intervals, NN50 is the number of interval differences of successive NN intervals greater than 50 ms, and pNN50 is the number of successive differences of intervals that differ by more than 50 ms expressed as a percentage of the total number of successive differences of intervals.24,27,31
The frequency domain analysis is used for identifying the effect of both sympathetic and parasympathetic pathways of the ANS on HRV. Non-parametric power spectrum density analysis gives essential information on how power, that is, dispersion, is distributed as a function of frequency using a fast Fourier transform. A fast Fourier transformation provides the analysis of the power spectrum density components to be quantified into different frequency bands for further analysis. 32 Total power (TP) is a short-term estimate of the total power of power spectral density in the frequency range of 0.00 and 0.40 Hz. Additionally, 3 spectral components were calculated: very low frequency (VLF: 0.00–0.04 Hz), low frequency (LF: 0.04–0.15 Hz), and high frequency (HF: 0.15–0.40 Hz).
Statistical Analysis
The means and standard deviations were calculated for all measured parameters. The normality of distribution of all outcome variables was verified using the Kolmogorov–Smirnov test. To perform multiple linear regression analysis, we verified if the independent variables had explanatory power by checking the β-value, which is the regression coefficient of each independent variable.33-35 Multiple regression analysis using backward elimination technique was used to predict HRV parameters (SDNN, RMSSD, NN50, pNN50, TP, VLF, LF, HF) using sex, age, body height, body weight, BMI, HR, HRmax, HRR, HR+HRmax, HR+HRR, HRmax+HRR, HR+HRmax+HRR, HRR−HR, HRmax−HRR, HR+HRmax−HRR, HRmax+HRR−HR, HRmax/HR, HR/HRmax, HRR/HR, and HR/HRR. The backward elimination begins with all variables of the model. At each stage, the variables that contribute the least to the discriminatory power of the model are removed. If all the remaining variables meet the remaining criteria in the model, the process will be stopped. In addition, we rigorously conformed to the basic assumptions of the regression model: linearity, independence, continuity, normality, homoscedasticity, autocorrelation, and outliers. 36 The outlier data in the multiple regression model were identified and deleted when the absolute value of the studentized residual was ≥2. We verified the significance of the model using the F-test for each multiple regression model developed. We calculated the coefficients of determination (R2), adjusted coefficients of determination (adjusted R2), and standard error of estimate (SEE) for the estimated multiple regression model. Also, two-tailed Pearson correlation analysis was performed to estimate relationships between measured and predicted HRV parameters. Statistical Package for the Social Sciences (SPSS) version 25.0 (IBM Corporation, Armonk, NY, USA) was used for the statistical analysis, and the level of significance was set at 0.05.
Results
Correlation Between Dependent Variables and HRV Parameters for Estimating Regression Model.
Note. Significant correlation between measured HRV parameters and dependent variables, # P < .05, ## P < .01.
Performance Evaluation of Regression Models and Regression Equations—Mean R-R
Estimated Regression Equations Predicting Mean R-R.
Note. #Significant difference, P < .05. SEX: 1 = male, 2 = female.
Performance Evaluation of Regression Models and Regression Equations—Time Domain Variables
Estimated Regression Equations Predicting Time Domain Variables.
Note. #Significant difference, P < .05. SEX: 1 = male, 2 = female.
Performance Evaluation of Regression Models and Regression Equations—Frequency Domain Variables

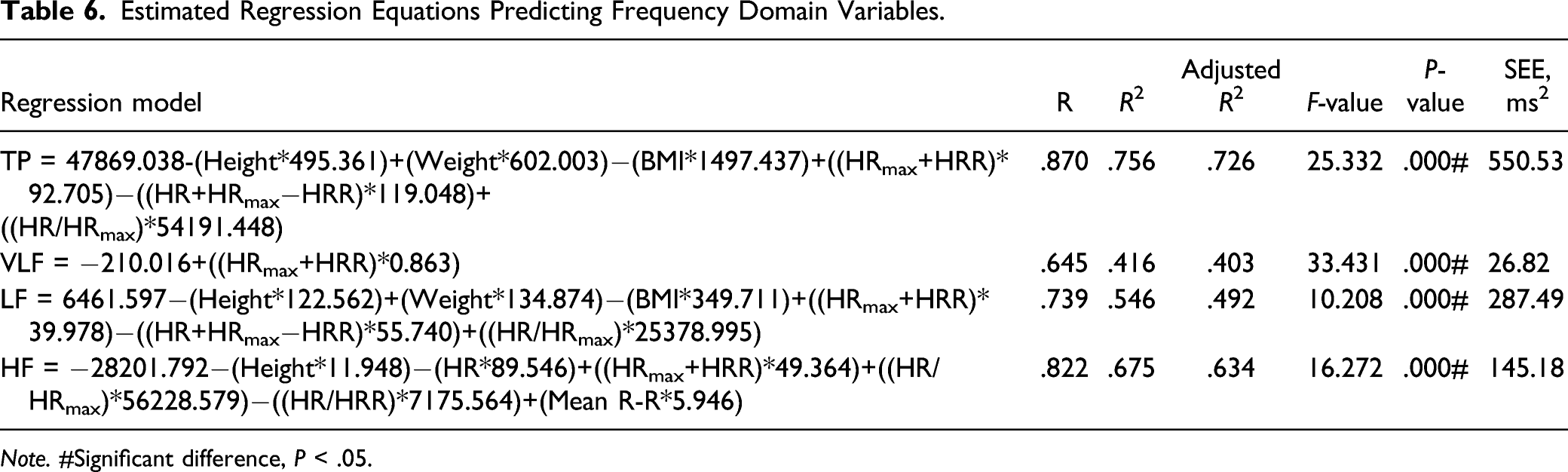

Estimated Regression Equations Predicting Frequency Domain Variables.
Note. #Significant difference, P < .05.
Relationship Between Measured and Predicted HRV Parameters

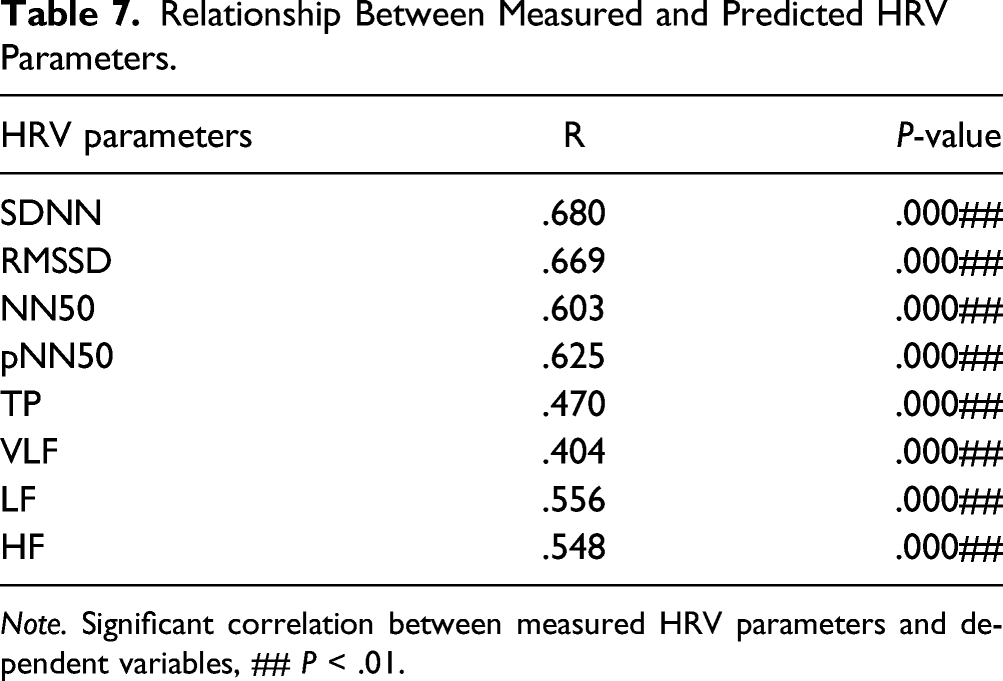

Relationship Between Measured and Predicted HRV Parameters.
Note. Significant correlation between measured HRV parameters and dependent variables, ## P < .01.
Relationship between measured and predicted time domain variables. (A) SDNN: standard deviation of the NN interval. (B) RMSSD: square root of the mean of the sum of the square of differences between adjacent NN intervals. (C) NN50: number of interval differences of successive NN intervals greater than 50 ms. (D) pNN50: proportion derived by dividing NN50 by the total number of NN interval. Significant correlation between measured and predicted variables, **P < .01.

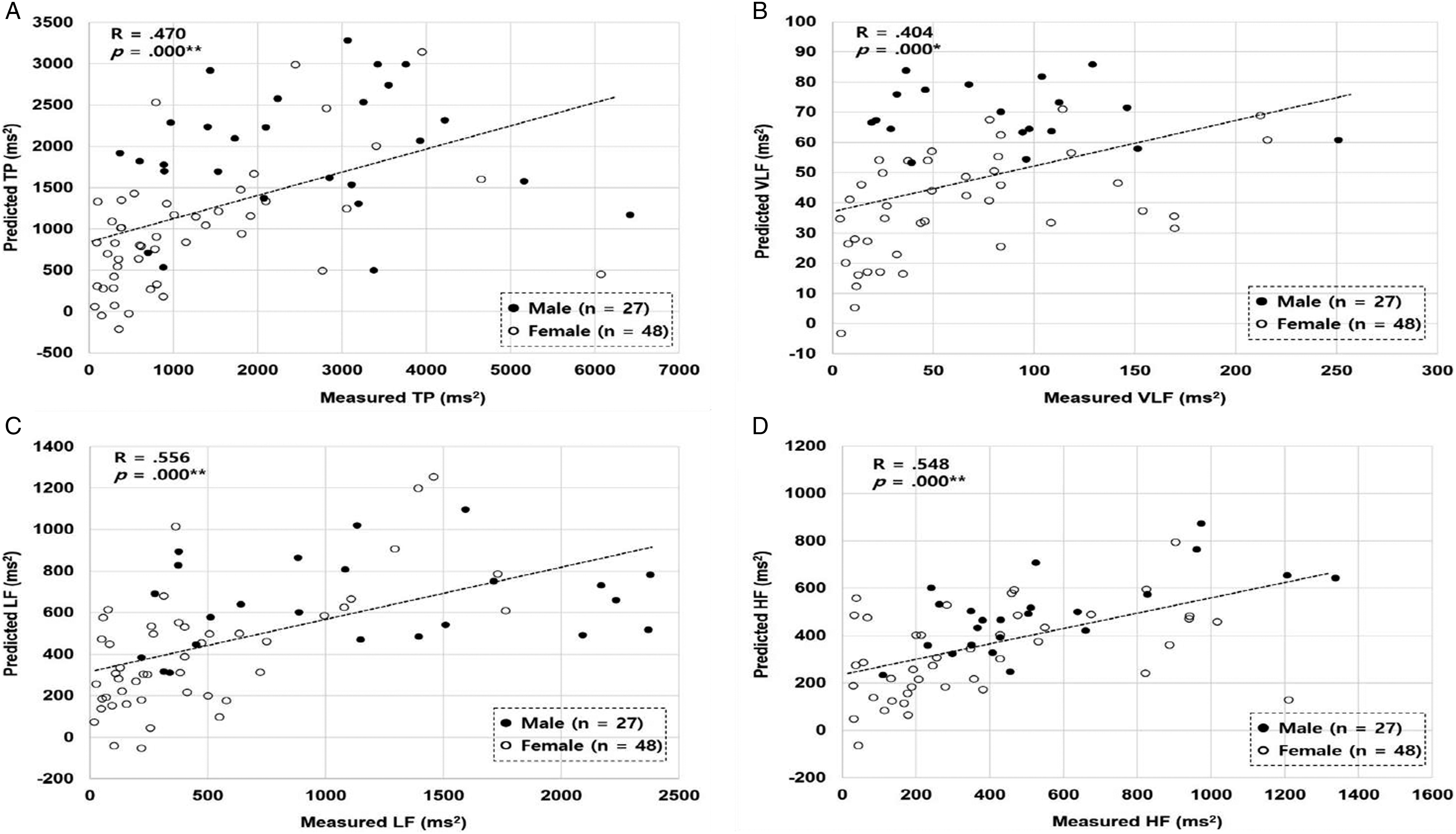

Relationship between measured and predicted frequency domain variables. (A) TP: total power. (B) VLF: very low frequency. (C) LF: low frequency. (D) HF: high frequency. Significant correlation between measured and predicted variables, **P < .01.
Discussion
In this preliminary study, we were able to develop a multiple regression model for estimating the HRV parameters (time and frequency domain) in healthy Korean adults using various easy-to-measure independent variables. We were able to develop a time and frequency domain multiple regression model to estimate the HRV parameters in healthy Korean adults through preliminary experiments. Before performing multiple regression to estimate HRV parameters, it is essential to eliminate outliers because they increase predictive error. The absolute value of the studentized residual was used to eliminate outliers in the multiple regression analysis.
In clinical settings, studies on HRV and stress have been increasing in number. Low HRV indicates a monotonous, regular HR. Additionally, low HRVs reduces the body’s ability to cope with internal and external stress factors due to reduced regulatory and homeostatic ANS functions. 37 Therefore, HRV can be used to measure ANS in a variety of clinical settings (e.g., during mental stress evaluations) as a non-invasive ECG method. 38 To date, numerous researchers have conducted studies to measure stress using HRV, assuming that HRV is a reliable stress index. Here, we aimed to develop a predictable and straightforward HRV regression model that measures psychological stress.
We developed an HRV multiple regression model with a significant determinant using simple independent variables. The coefficient of determination of HRV parameters in the newly developed multiple regression models was shown to be moderate to very high (R2: 41.6%–93.1%, adjusted R2: 40.3%–92.1%). The time domain and frequency domain indices of HRV parameters are standard clinical parameters. Time domain analysis involves calculating the variance between the mean NN interval and the NN interval. One of the most straightforward time domain analysis variables is the SDNN; SDNN values increase when the HRV is large and irregular. Therefore, SDNN is evaluated as an index of physiological resilience to stress. The SDNN regression model’s mean explanatory power estimated in our study was 72.2% (R2) and 69.8% (adjusted R2). Unlike SDNN, which is calculated directly from NN intervals, RMSSD, NN50, and pNN50 are derived from the difference between adjacent NN intervals. These variables are affected by the PNS because they reflect the beat-to-beat change.39,40 This study showed that the regression model’s coefficient of determination of the variables evaluating PNS activity was significantly high (RMSSD = R2: 93.1%, adjusted R2: 92.1%; NN50 = R2: 78.0%, adjusted R2: 74.9%; pNN5 0= R2: 89.1%, adjusted R2: 87.4%).
HRV consists of multiple frequencies. The frequency domain method analyzes the waveform by looking at various frequency components of the waveform. 41 The frequency domain TP is similar to the time domain SDNN and evaluates the overall ANS function. The mean explanatory power of the TP regression model estimated in our study was 75.6% (R2) and 72.6% (adjusted R2). Among the frequency domain components, the 2 main components representing ANS activity are LF and HF. Frequency domain measurements confirm that the LF and HF variability factors are relative indices of cardiac sympathetic and parasympathetic activity, respectively.42,43 As a result of this study, the coefficient of determination of the regression model for the variable evaluating ANS activity was found to be moderate (LF = R2: 54.6%, adjusted R2: 49.2%; VLF = R2: 41.6%, adjusted R2: 40.3%; HF = R2: 67.5%, adjusted R2: 63.4%). Further, the relationship between the measured and predicted HRV parameters was moderate and statistically significant (time domain variables: r = 0.603 to 0.680, P <.01; frequency domain variables: r = 0.404 to 0.556, P < .01). Frequency domain components analysis of HRV has often been used to evaluate cardiac autonomic function. However, the association between cardiac sympathetic tone and the LF power of HRV has been unclear. 44 Also, whether there is the adjustment to HF power, total power, or breathing, LF power appears to provide an index of baroreflex function, not cardiac sympathetic tone. 44 Manipulation that Change LF Power does not directly affect cardiac autonomic outflows but can directly affect the regulation of outflows by baroreflexes. 44
HRV analysis can be regarded as a clinical tool to evaluate heart activity and overall ANS health, but not a particular mental or physical condition. However, HRV as a parameter can be easily used to measure stress. Stress management is essential in modern society and there is a need for tools for quick and accurate evaluation. In addition to the equipment used for measuring HRV in clinical trials, this study confirmed that simple physical characteristic variables (e.g., sex, age, body height, body weight, BMI, HR, HRmax, and HRR) could predict HRV.
Conclusion
In this preliminary study, we developed a multiple regression model using sex, age, height, weight, BMI, HR, HRmax, and HRR to estimate HRV parameters (time and frequency domain) in healthy Korean adults. The coefficient of determination of the time domain variables in the multiple regression models developed was very high (adjusted R2: 69.8%–92.1%), but the coefficient of determination of frequency domain variables was moderate (adjusted R2: 40.3%–72.6%).
Limitations and Suggestions
This is a preliminary study to develop a multiple regression model that estimates HRV parameters (time and frequency domain) in healthy Korean adults using various independent variables that are easy to measure. Among the HRV parameters, the nonlinear region was excluded because a higher computational complexity was required. 25 Researchers must also ensure accurate estimation of the high-frequency spectrum in short-time recordings, low signal-to-noise ratio, and low variability of signals when using the nonlinear method. 25 We used a small sample size, so it was not possible to estimate the regression models for each sex (male and female) and conduct validity tests. Future studies should develop a multiple regression model that estimates HRV parameters (time and frequency domain) for both healthy Korean males and females with higher coefficient of determination by securing larger sample sizes and adding a stress questionnaire. Furthermore, validation of the multiple regression models should be performed. Also, previous studies have reported that there may be differences in the measurements of HRV variables depending on their posture.45-48 In this study, HRV measurement was performed in a supine position at the time of rest. Therefore, the measurement posture should be considered in the interpretation of the results of this study.
