Abstract
Introduction:
The use of syndromic surveillance has expanded from its initial purpose of bioterrorism detection. We present 6 use cases from New York City that demonstrate the value of syndromic surveillance for public health response and decision making across a broad range of health outcomes: synthetic cannabinoid drug use, heat-related illness, suspected meningococcal disease, medical needs after severe weather, asthma exacerbation after a building collapse, and Ebola-like illness in travelers returning from West Africa.
Materials and Methods:
The New York City syndromic surveillance system receives data on patient visits from all emergency departments (EDs) in the city. The data are used to assign syndrome categories based on the chief complaint and discharge diagnosis, and analytic methods are used to monitor geographic and temporal trends and detect clusters.
Results:
For all 6 use cases, syndromic surveillance using ED data provided actionable information. Syndromic surveillance helped detect a rise in synthetic cannabinoid-related ED visits, prompting a public health investigation and action. Surveillance of heat-related illness indicated increasing health effects of severe weather and led to more urgent public health messaging. Surveillance of meningitis-related ED visits helped identify unreported cases of culture-negative meningococcal disease. Syndromic surveillance also proved useful for assessing a surge of methadone-related ED visits after Superstorm Sandy, provided reassurance of no localized increases in asthma after a building collapse, and augmented traditional disease reporting during the West African Ebola outbreak.
Practice Implications:
Sharing syndromic surveillance use cases can foster new ideas and build capacity for public health preparedness and response.
Syndromic surveillance, defined as the use of routinely collected electronic health data for public health surveillance and response, began in earnest in New York City the day after the 9/11 attacks on the World Trade Center towers. 1 Although early detection of a bioterrorist attack was the initial intent of emergency department (ED) syndromic surveillance, it soon became apparent that tracking ED visits was most useful for monitoring seasonal disease trends, specifically influenza. 2,3 During the past decade, several other advantageous uses of ED syndromic surveillance have emerged—namely, surveillance of noninfectious disease syndromes and situational awareness. As a result, several groups within the New York City Department of Health and Mental Hygiene (DOHMH) now routinely use syndromic surveillance data.
This article provides a brief sketch of 6 use cases for syndromic surveillance using ED data that span a broad range of programs and needs, including (1) synthetic cannabinoid drug use, (2) heat-related illness, (3) unreported cases of suspected meningococcal disease or unnecessary prophylaxis, (4) medical needs immediately after severe weather, (5) asthma exacerbation after a building collapse, and (6) Ebola-like illness in travelers returning from West Africa. Collectively, these 6 use cases illustrate the ways in which we have used ED data and the value of these data for detecting and responding to events of public health concern.
Materials and Methods
The New York City DOHMH syndromic surveillance system receives data on patient visits from all 53 hospital EDs in the city. Data are transmitted electronically daily in either flat files via file transfer protocol or through Health Level 7 messaging. Variables include date and time of patient visit, medical record number, reason for visit or chief complaint, mode of patient arrival, discharge diagnosis (
Syndrome definitions vary depending on surveillance objectives and disease. Keywords may be highly specific (eg, meningitis or Ebola) or more general (eg, cough). Some syndromes have specific
The analytical methods we apply also vary by surveillance objective. For surveillance of heat-related illness, we use 2 Poisson generalized linear regression models to estimate expected heat-related illness—one adjusting for temporal trends and the other adjusting for temporal trends and weather. We then compare expected heat-related ED visit counts with observed counts for the previous day, in the context of the time of year and weather conditions. For daily surveillance of synthetic cannabinoids, we use a Poisson-based risk ratio to compare and test the previous day’s count with an expected count based on a 1-year baseline period, with
The 6 syndromes presented in this article all require previous knowledge or awareness of the disease or condition to design a definition to capture data on syndrome-related visits. For example, after Superstorm Sandy made landfall near New York City in October 2012, we recognized the need for a different approach to identifying health outcomes and community needs based on ED visits. We implemented a word analysis in 2013 to identify aberrations in the mentions of words in ED chief complaint data by comparing daily frequencies of unique words in the chief complaint with their average daily frequencies from the previous year. Words with a current frequency at least 4 times that of the previous year are listed in a report that is examined by a syndromic surveillance analyst to determine if further investigation is needed. This analysis can be adapted to run following special circumstances (eg, building collapse) or emergencies. The 6 use cases presented here were considered exempt from institutional review board review because the data were collected as part of routine public health surveillance, could not be linked to individuals, and were analyzed anonymously.
Results
We summarize the results of 6 use cases (Table).

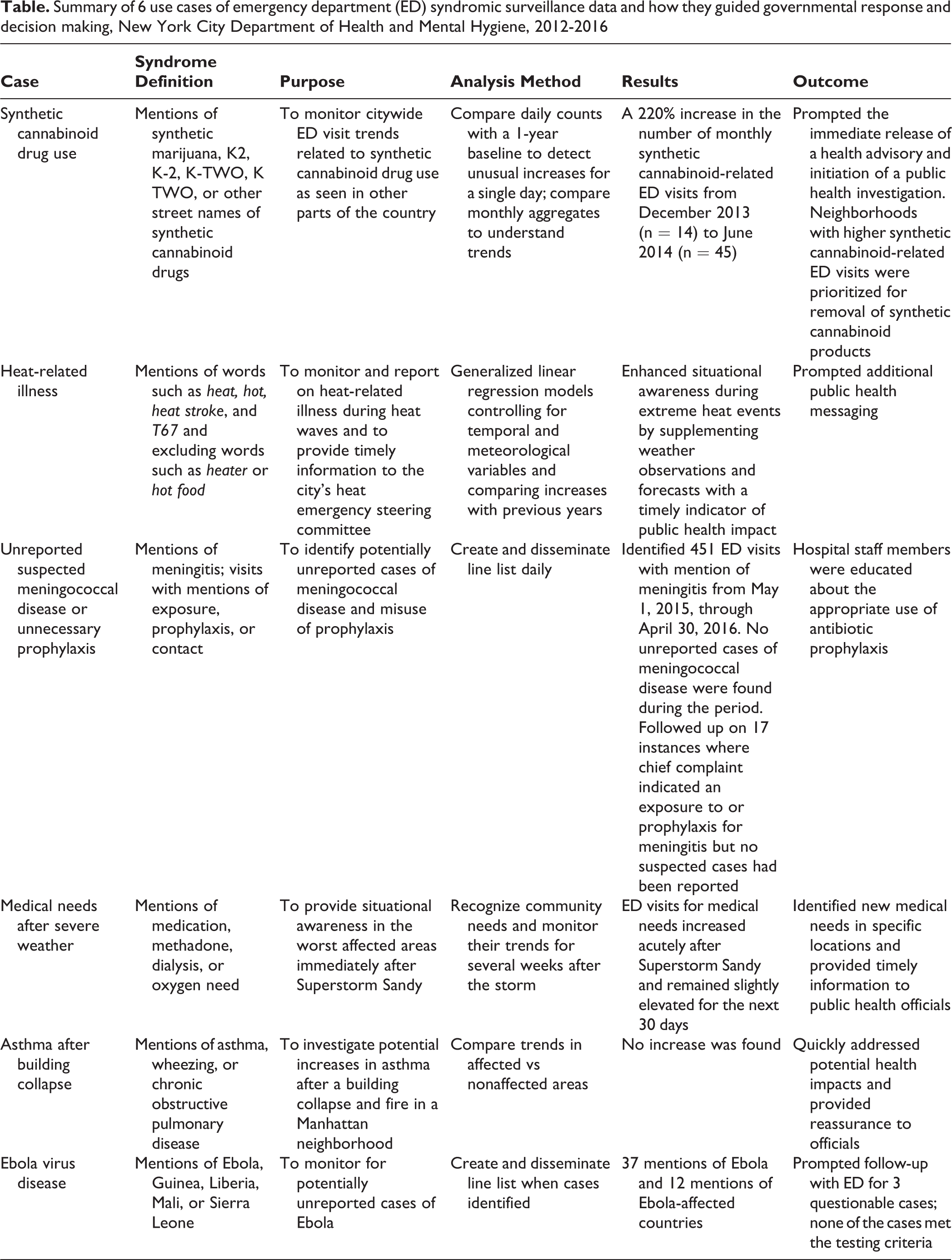

Summary of 6 use cases of emergency department (ED) syndromic surveillance data and how they guided governmental response and decision making, New York City Department of Health and Mental Hygiene, 2012-2016
Synthetic Cannabinoid Drug Use
Prompted by increasing morbidity observed in Wyoming and several other jurisdictions in 2012,
5
we began daily surveillance of synthetic cannabinoid-related ED visits in late 2012. Syndrome keywords included common packaging names of synthetic cannabinoids (eg, K2 and spice). Through the word analysis, we identified a new keyword used by hospitals—

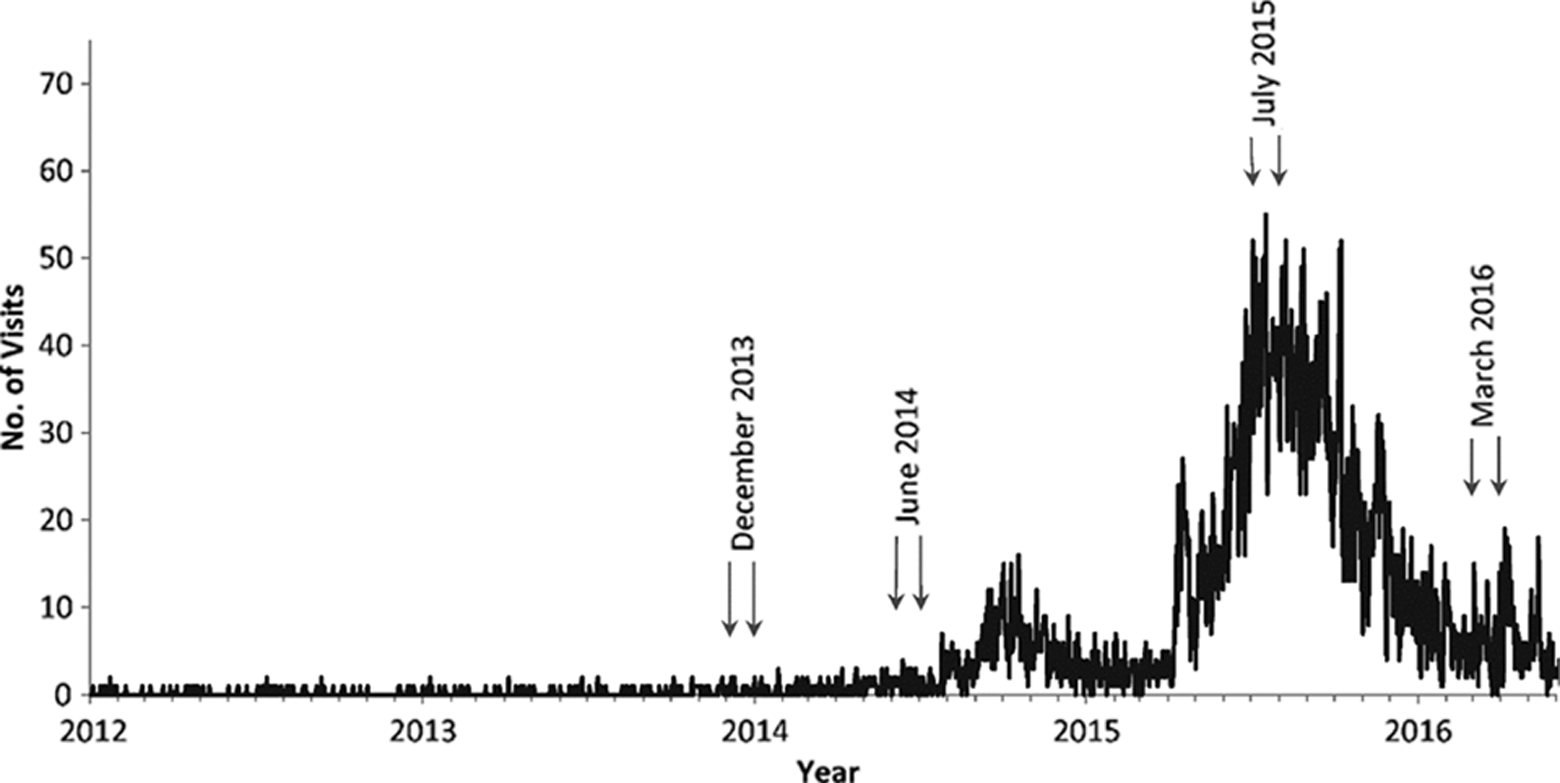

Synthetic cannabinoid-related emergency department (ED) visit trends, New York City, January 2012 through May 2016. The periods highlighted with arrows indicate the initial detection of increases in cannabinoid-related ED visits (December 2013 to June 2014) and subsequent decreases in cannabinoid-related ED visits (July 2015–March 2016) after an intervention that included removal of synthetic cannabinoid products through a multiagency response.
The initial increase (December 2013 through June 2014) in synthetic cannabinoid-related ED visits prompted the immediate release of a health advisory 7 and initiation of a public health investigation, including medical chart reviews that confirmed the patient’s reason for the visit. As synthetic cannabinoid-related ED visits continued to rise in 2015, neighborhoods with higher numbers of these visits were prioritized for removal of synthetic cannabinoid products through a multiagency response. After these efforts, ED syndromic surveillance detected an 85% reduction in synthetic cannabinoid-related ED visits from July 2015 through March 2016 (Figure 1). 8
Heat-Related Illness
Heat-related illnesses are particularly dangerous for the very young and very old. New York City activates a heat emergency plan when the heat index is ≥95°F for ≥2 consecutive days or the predicted heat index is ≥100°F for ≥1 day. An interagency Heat Emergency Steering Committee conference call is held daily during declared heat emergencies to provide situational awareness, gather agency-specific data, and discuss other response options. Participating agencies include emergency services, public health, city utilities, and several others. Analysis of heat-related ED visits is conducted daily from May through September; the findings are summarized on the interagency call during a heat emergency.
Heat-related ED visits are expected during extreme heat events, but when increases are greater than expected and ongoing extreme heat is forecasted, syndromic surveillance provides information that supports additional or earlier public health actions. 9 ED syndromic surveillance data could be especially useful during a heat wave complicated by another hazard, such as a widespread power outage.
Unreported Suspected Meningococcal Disease or Unnecessary Prophylaxis
On July 23, 2013, soon after implementing word analysis, we discovered a large single-day increase in the mention of the words

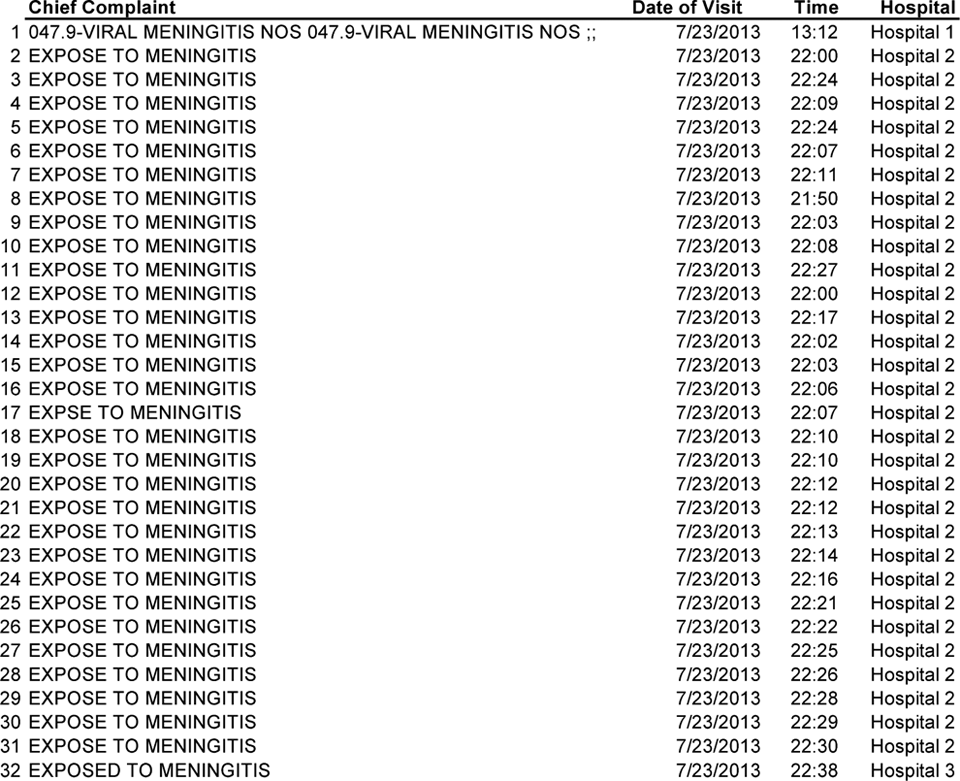

Partial emergency department (ED) line list of a cluster of patients exposed to meningitis on a single day, identified using the word analysis of the ED chief complaints, New York City, July 23, 2013. Abbreviations: HOSP, hospital; NOS, not otherwise specified.
Immediate reporting of suspected cases of meningococcal disease to the DOHMH by health care entities is required under the New York City Health Code. Culture-negative meningococcal disease is a common phenomenon. Therefore, when suspected cases are reported to the DOHMH, polymerase chain reaction testing is conducted. This test is not usually available in hospital laboratories. Antibiotic prophylaxis is indicated for close contacts of people with confirmed or suspected meningococcal disease to prevent secondary transmission.
Daily ED surveillance for meningitis was initiated in May 2015. A line list of all ED visits with a mention of
To quantify the burden of this surveillance effort, we conducted a retrospective study from May 1, 2015, through April 30, 2016. During this time period, we identified 451 ED visits with a mention of meningitis, of which 62 patients had a mention of
In June 2016, two patients identified through the daily line list were found, and further investigation connected them to a suspected meningococcal case that had not been reported. Hospital culture results were negative for the suspected case, and the DOHMH arranged for polymerase chain reaction testing, which confirmed meningococcal infection.
Medical Needs Immediately After Severe Weather
In October 2012, Superstorm Sandy, a category 2 hurricane, caused extensive damage in New York City, primarily from heavy winds and flooding. The storm underscored the need for timely situational awareness of storm-related health events, including drownings, electrocutions, mental health–related issues, and other injuries. We monitored the expected health events using our syndromic surveillance system and stratified the syndromes by impacted vs nonimpacted areas to compare trends. We also observed a surge in some unexpected health events, such as methadone-related ED visits in a highly affected area immediately after the storm. This observation prompted further investigation into ED visits for medications and other medical needs (eg, oxygen, dialysis). As part of surveillance efforts after Superstorm Sandy, time-series graphs were circulated daily to DOHMH analysts, subject matter experts, and public health officials. ED visits for medications and medical needs increased acutely during and immediately after the storm. After the storm, the daily number of medication-related visits (mean = 111, standard deviation [SD] = 39.7) and medical needs visits (mean = 7, SD = 10.1) remained elevated through November 2012 (Figure 3). During the 2-month period before the storm, the comparable number of medication-related visits (mean = 74, SD = 18.6) and medical needs visits (mean = 2, SD = 1.5) was substantially lower.

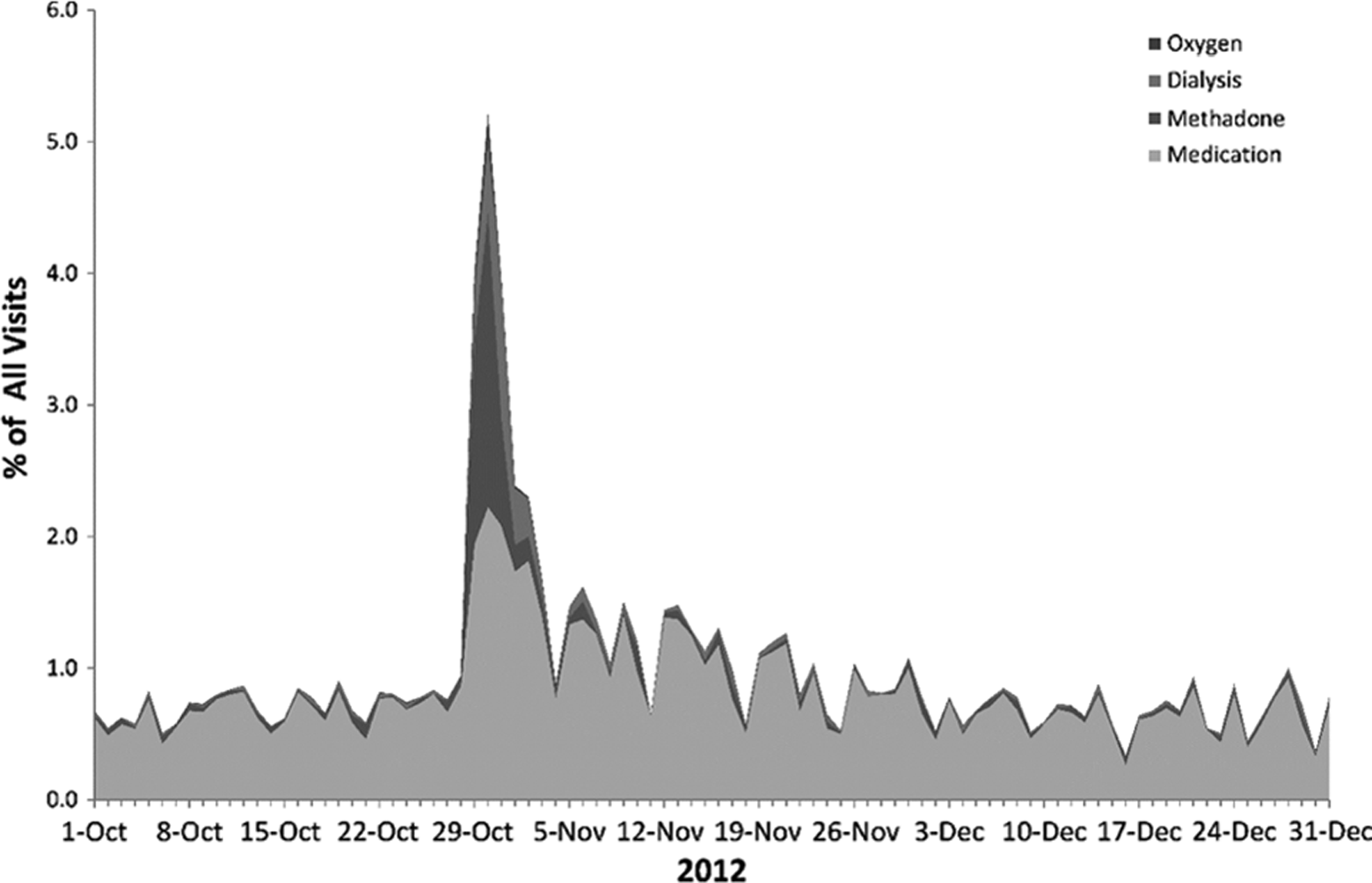

Syndromic surveillance of medical needs trends of patients visiting New York City emergency departments (EDs) after Superstorm Sandy (October 28 and 29, 2012), as reported through ED chief complaint data, October 1 to December 31, 2012.
Superstorm Sandy also presented an opportunity to test the utility of the word analysis. Several months after the storm, we ran a retrospective analysis for all ED visits on the days of the storm (October 28-29, 2012). We noted increases in the words
Asthma After a Building Collapse
In March 2015, a gas leak caused an explosion, a 7-alarm fire, and the collapse of 3 mixed-use buildings in Manhattan’s East Village neighborhood. The size of the fire and subsequent release of building debris prompted concerns about potential localized increases in asthma-related ED visits because of higher levels of particulate matter air pollution. We monitored ED visits for asthma symptoms among residents of the East Village and asthma-related visits to hospitals near the explosion and found that the number of asthma-related visits did not increase. Syndromic surveillance helped to monitor the health impact of the event, inform the response, and provide reassurance to government leaders that the health of the community was not at risk.
Ebola During the West African Outbreak
During the 2014-2016 Ebola epidemic in West Africa, New York City hospitals were advised to report suspected cases of Ebola in people who had recently traveled to an affected country who presented for care with compatible symptoms. To augment passive Ebola surveillance and ensure no suspected cases were missed, we implemented a simple chief complaint keyword search for
Discussion
These 6 use cases for syndromic surveillance illustrate how syndromic surveillance has been used in New York City to advance public health goals. The cases show the important role that ED syndromic surveillance can play in providing timely situational awareness, identifying new and emerging trends, aiding in governmental decision making, helping frame public health messaging, and informing the public during a public health crisis. Although the original intent of ED syndromic surveillance data was to detect bioterrorism, these 6 cases demonstrate the broader utility of these data. Among the use cases presented here, the contribution of ED syndromic surveillance data to public health surveillance and investigations varied from being the only available data source (synthetic cannabinoids) to supplementing an established reporting system (Ebola). Few other data sources are comparable for understanding population-level health and health needs in near-real time.
Several previous studies have described the utility of ED syndromic surveillance data for bioterrorism-related early aberration detection, 10 for routine surveillance of infectious 2,11 –13 and noninfectious 14 –17 diseases, and for surveillance during emergencies. 18 –21 As these studies found, ED syndromic surveillance data are a valuable resource for understanding a wide range of diseases, conditions, and patient needs. The challenge is to incorporate ED syndromic surveillance into regular protocols and governmental decision-making processes (eg, heat-related illness surveillance during heat waves). It is important to continually refine strategies and statistical methods during emergency situations, such as the building collapse, for application during future public health emergencies. Future investigations would benefit from using methodological approaches such as word analysis to aid in the identification of adverse health effects in populations. Insights gained through syndromic surveillance data can provide guidance on how the government should respond and provide timely information to the public.
Most published studies on syndromic surveillance focus on broad syndrome categories (eg, influenza-like illness or injuries). All of the syndromes described here, with the exception of asthma, used specific terms in the chief complaint (eg,
Limitations
Several challenges to ED syndromic surveillance should be noted. First, hospital chief complaint coding practices vary, and as a result, the quality and level of detail in the chief complaint field is not standardized. This variation makes it challenging to develop a uniform syndrome definition that is applicable to all hospitals. Some hospitals provide few words in the chief complaint field; therefore, creating syndromes with multiple symptoms (eg, fever, rash, and arthralgia for Zika virus) is not always useful. In certain situations (eg, Superstorm Sandy, building collapse), knowing which syndromes or keywords should be tracked may not be immediately evident. In such instances, the traditional approach of having a predetermined set of syndromes will have limitations.
To detect changes in patterns of ED use or unusual events, the word analysis provides an alert to sudden and unusual increases in words appearing in the chief complaint field. However, the DOHMH word analysis does not currently group misspellings, abbreviations, and synonyms and is most effective for rare words. We are exploring preprocessing the chief complaint and statistical approaches that detect both sudden and gradual increases to advance this technique beyond rare words. Based on our experience with surveillance of synthetic cannabinoid use, we are expanding the word analysis to alert analysts to new words being entered in the chief complaint field and to check for the increasing frequency of these words.
As demonstrated by the meningitis-related cluster identified via the word analysis, many clusters in ED data do not fall into an existing syndrome category. New approaches to cluster detection that do not require prespecifying syndromes are emerging to uncover such clusters. 22,23 Such methods could reveal multiple clusters in a single day of ED visits without first requiring their categorization into a syndrome. 24 Incorporating such an approach might enhance the utility of ED syndromic surveillance data; however, the burden of assessing and responding to an increased number of clusters must be weighed before this advancement can be incorporated into routine practice.
Practice Implications
Dozens of practical cases of ED syndromic surveillance data use are being developed and used by local and state health departments nationally and globally. These use cases are infrequently presented at conferences and are rarely published. An online collection of use cases of syndromic surveillance data could provide a searchable catalog of current practice and lessons learned. We developed a prototype website (https://sites.google.com/site/ssusecases) that is simple to use and facilitates new entries. A participatory community repository such as this would allow for timely documentation and sharing of syndrome definitions, statistical methods, alternative uses, and novel visualizations. Sharing use cases and methodologies among syndromic surveillance practitioners can benefit the surveillance community at large and help build capacity for public health preparedness and response.
