Abstract

The bilateral teleoperation system is susceptible to model parameter uncertainty and unknown disturbances in both the master and slave manipulators, resulting in instability and inaccuracies in the force and position tracking performance. To address these issues, a novel nonlinear model reference adaptive impedance controller has been designed to achieve coordinated force and position synchronization of dual manipulators. The adaptive control laws, based on sliding mode functions, have been designed to compensate for the uncertainty of the manipulator model. Furthermore, an adaptive estimation law has been employed to appraise the unknown upper bound of external disturbances. This ensures that the closed-loop model parameters of the dual manipulator converge to the reference impedance model respectively. Simultaneously, it enables the position error between the reference model response and the end-effector task space position to asymptotically converge to zero. To verify the effectiveness of the proposed controller, simulations have been conducted on the MATLAB platform and experiments on a single degree of freedom teleoperation system have been performed. The results demonstrate that the controller exhibits strong robustness and has the capability of force-position tracking ability.

Keywords

Adaptive impedance control force-position tracking bilateral control underwater manipulator teleoperation system

Introduction

For complex underwater environments with high water pressure,¹ a bilateral teleoperation manipulator system is proposed to ensure operator safety and enable intelligent operations.² The system involves a slave manipulator located in the working area that interacts directly with the objects, tracking motion signals from a master manipulator and transmitting slave operation forces to a local master manipulator.³ It allows the operator to perceive force information from the slave manipulator while operating the local master manipulator with coordinated force and position synchronization of the master and slave manipulators.⁴ However, there are challenges in teleoperation systems that need to be considered.⁵ The challenges include the nonlinear characteristics of the manipulator,⁶ uncertainties in manipulator dynamics caused by factors such as joint friction, external disturbances and communication time-delay,⁷ as well as the disturbance caused by water attached to the underwater manipulator that affects the mathematical model of the slave manipulator.⁸ The unknown and uncertain disturbances in the aquatic environment will bring difficulties of system stability and tracking performance in the manipulator operation process.⁹ What is more, the external influences of ocean currents, heterogeneous movements of water currents, and pressure variations in the underwater environment play a key role in the stability control of the underwater manipulator.¹⁰

Moreover, the underwater manipulator’s movement is affected by uncertain disturbances such as water resistance,¹¹ which further complicates the design of the teleoperation controller to ensure global stability and achieve force and position tracking between the master and slave manipulators.¹² The uncertainty in manipulator dynamics poses challenges for the controller design and jeopardizes the overall system stability, making it crucial to enhance the robustness and accuracy of force and position tracking in the bilateral system.

The operator and the operated object can be considered as passive,¹³ and the master-slave teleoperation system can be regarded as a dual closed-loop control system that realizes the master force tracking convergence in the outer loop and the slave manipulator position tracking convergence in the inner loop.¹⁴ The control of the master-slave teleoperation system mostly has two feedback methods based on force feedback¹⁵ and position feedback,¹⁶ to achieve the goal of force¹⁷ and position coordination between the master and slave robot.¹⁸ In order to guarantee the force¹⁹ and position asymptotic convergence performance with model uncertainty²⁰ and external disturbance in teleoperation system,²¹ many scholars have proposed different control methods to make sure the stability²² and transparency situation.²³

For the problem that the slave uncertain disturbance problem in the bilateral teleoperation system.²⁴ Aiming at the problem of unmeasurable speed and uncertain dynamics,²⁵ Yana Yang designed a robust sliding mode control based on a speed observer with neural network uncertainty compensation,²⁶ which realized the force position synchronization of master and slave. A novel adaptive force-position control based on state observer is proposed to achieve the position and force tracking in the teleoperation systems with nonlinear parameter.²⁷ In paper,²⁸ combining the neural network approximation and adaptive law,²⁹ a sliding mode adaptive controller was proposed for the robot to guarantee the trajectory tracking.³⁰ The effective adaptive fuzzy and neural network control methods were proposed for dynamical uncertainties for the general nonlinear systems in reference.³¹ An adaptive switching-based controller is demonstrated with four-channel wave variable transformation method for the force and position tracking problems of teleoperation system under dynamic uncertainty.³² Cho and Park³³ proposed the slave impedance control and integral sliding mode control to eliminate the unknown disturbance to achieve force and position tracking,³⁴ however, it did not consider the master joint friction and external disturbance.¹⁵ Majtaba proposed an adaptive bilateral control method for the manipulator dynamics uncertainty,¹⁶ and applied to the medical equipment teleoperation process,³⁵ but the uncertainty caused by external disturbance is not considered.³⁶

In such special field, for example, clearance of mines teleoperation,³⁷ underwater teleoperation³⁸ and nuclear radiation teleoperation, the master is close to the slave robot,³⁹ so that the communication time-delay is not the important factor to the stability¹⁵ and tracking convergence which can be ignored especially for the development of 5 G communication technology,¹⁶ as a result the master⁴⁰ and slave robots can be considered as two independent³⁵ and the influence of the time-delay in the controller design can be neglected.⁴¹

Drawing inspiration from previous observations, a bilateral adaptive controller is proposed in this study to achieve synchronized force and position coordination with flexible performance during the operation process,⁴² considering the uncertainties in the dynamics of both the master and slave manipulators, as well as the presence of external disturbances.⁴³ The proposed controller employs two reference impedance models based on linear second-order differential equations for the master and slave manipulators, utilizing a novel model reference adaptive law. The controller incorporates reference adaptive law and adaptive estimate law to facilitate convergence of the manipulator models to the reference models, while simultaneously minimizing the position error between the reference impedance model response position and the end-effector position of the dual manipulator, aiming for asymptotic convergence to zero. The Lyapunov stability theorem is utilized to ensure the stability of the closed-loop system and achieve robust position and force tracking performance with the proposed bilateral adaptive impedance scheme.

The remainder of this paper is arranged as below. In Section 2, both kinematic and dynamic models of the dual manipulators are introduced and the corresponding manipulator properties are also introduced. In Section 3, the overall structure design of the bilateral robust adaptive impedance controller is achieved. In Section 4, the bilateral adaptive impedance controller of the underwater teleoperation system is explained in detail and the stability analysis with Lyapunov-based stability theory is derived. The simulation verification of two degree of freedom (DOF) teleoperation system is completed in Section 5. In Section 6, an experimental setup of a single degree-of-freedom (DOF) teleoperation system is established to validate the force and position tracking performance of the dual manipulators with the designed controller. The experimental results provide evidence of the effectiveness of the proposed controller in achieving the desired force and position coordination during teleoperation. Finally, in Section 7, the main conclusions of the study are presented, summarizing the findings and contributions of the research. The whole structure instruction of the paper is expressed as Figure 1.

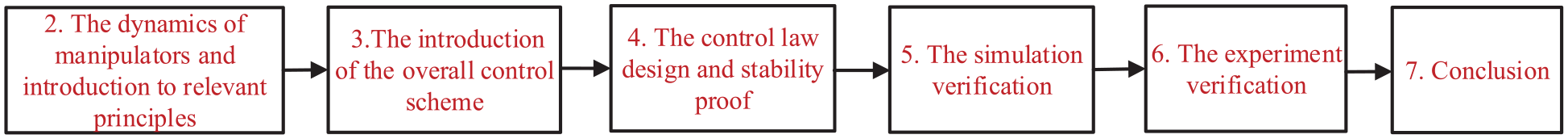

Figure 1.

The whole structure instruction.

System formation

The dynamics of master and slave manipulators with a serial architecture modeled in the joint space are represented by the followingequations⁴⁴:

\begin{matrix} M_{m} (θ_{m}) {\overset{\cdot\cdot}{θ}}_{m} + C_{m} (θ_{m}, {\overset{\cdot}{θ}}_{m}) {\overset{\cdot}{θ}}_{m} + g_{m} (θ_{m}) + F_{m} ({\overset{\cdot}{θ}}_{m}) \\ = τ_{m} + d_{m} - J_{m}^{T} (θ_{m}) F_{h} \\ M_{s} (θ_{s}) {\overset{\cdot\cdot}{θ}}_{s} + C_{s} (θ_{s}, {\overset{\cdot}{θ}}_{s}) {\overset{\cdot}{θ}}_{s} + g_{s} (θ_{s}) + F_{s} ({\overset{\cdot}{θ}}_{s}) \\ = τ_{s} + d_{s} - J_{s}^{T} (θ_{s}) F_{e} \end{matrix}

(1)

where $θ_{i}$ , ${\overset{\cdot}{θ}}_{i}$ and ${\overset{\cdot\cdot}{θ}}_{i} \in R^{n \times 1} (i = m / s)$ represent the joint angular position vectors, velocity vectors and acceleration velocity vectors of the dual manipulators respectively; $M_{i} (θ_{i}) \in R^{n \times n}$ is the symmetric and positive definite inertia matrix; $C_{i} (θ_{i}, {\overset{\cdot}{θ}}_{i}) \in R^{n \times n}$ is the effect of Centripetal and Coriolis torques matrix; $g_{i} (θ_{i}) \in R^{n \times 1}$ is the gravitational torque vectors; $F_{i} (θ_{i}) \in R^{n \times 1}$ represent the friction torque vectors; $τ_{m}$ and $τ_{s}$ are the control input torque vectors; $F_{h} \in R^{n \times 1}$ and $F_{e} \in R^{n \times 1}$ are the human-operator force and the environment force respectively; $d_{m} \in R^{n \times 1}$ and $d_{s} \in R^{n \times 1}$ represent the unknown external bounded disturbance torque vectors of the master and slave manipulators, respectively. It is supposed that $F_{h}$ and $F_{e}$ can be measurable with the tactile force sensor. It is assumed that $F_{m} ({\overset{\cdot}{θ}}_{m})$ and $F_{s} ({\overset{\cdot}{θ}}_{s})$ are generated from the internal joint friction, which can be mathematically formulated as $F_{i} ({\overset{\cdot}{θ}}_{i}) = D_{i} {\overset{\cdot}{θ}}_{i} + N_{i} \underset{({\overset{\cdot}{θ}}_{i})}{sgn}$ , where $D_{i}$ and $N_{i}$ represent the sticky coefficient and the Cullen coefficient, respectively. The sticky coefficient $D_{i}$ models the viscous friction in the joints, while the Cullen coefficient $N_{i}$ models the Coulomb friction in the joints.

To achieve force and position tracking in Cartesian coordinates, the dynamics of the dual manipulator in joint space are transformed and expressed in the operation space:

x_{i} = Ω_{i} (θ_{i})

(2)

where $x_{i} \in R^{n \times 1}$ is the position vector of master and slave manipulators end-effector in the task space; $Ω_{i} (θ_{i})$ represent the mapping relationship between the joint space and task space of the dual manipulators and in the joint space ${\overset{\cdot}{x}}_{i}$ is described by:

{\overset{\cdot}{x}}_{i} = J_{i} (θ_{i}) {\overset{\cdot}{θ}}_{i}

(3)

Assuming that the manipulator joint is non-redundant, the Jacobian matrix $J_{i} (θ_{i})$ can be expressed as:

J_{i} = \frac{\partial x_{i}}{\partial θ_{i}} = \frac{\partial Ω_{i}}{\partial θ_{i}}

(4)

According to equation (1), the relationship between joint acceleration and acceleration in task space is described by:

{\overset{\cdot\cdot}{x}}_{i} = J_{i} (θ_{i}) {\overset{\cdot\cdot}{θ}}_{i} + {\overset{\cdot}{J}}_{i} (θ_{i}) {\overset{\cdot}{θ}}_{i}

(5)

According to equations (4) and (5), ${\overset{\cdot}{θ}}_{i} = J_{i}^{- 1} {\overset{\cdot}{x}}_{i}$ and ${\overset{\cdot\cdot}{θ}}_{i} = J_{i}^{- 1} {\overset{\cdot\cdot}{x}}_{i} - J_{i}^{- 1} {\overset{\cdot}{J}}_{i} J_{i}^{- 1} {\overset{\cdot}{x}}_{i}$ can be concluded and combining with the joint dynamic equation (1), the dynamic model based on task space can be obtained:

\begin{matrix} M_{xm} (θ_{m}) {\overset{\cdot\cdot}{x}}_{m} + C_{xm} (θ_{m}, {\overset{\cdot}{θ}}_{m}) {\overset{\cdot}{x}}_{m} + g_{xm} (θ_{m}) + F_{xm} ({\overset{\cdot}{θ}}_{m}) \\ = τ_{xm} + d_{xm} - F_{h} \\ M_{xs} (θ_{s}) {\overset{\cdot\cdot}{x}}_{s} + C_{xs} (θ_{s}, {\overset{\cdot}{θ}}_{s}) {\overset{\cdot}{x}}_{s} + g_{xs} (θ_{s}) + F_{xs} ({\overset{\cdot}{θ}}_{s}) \\ = τ_{xs} + d_{xs} - F_{e} \end{matrix}

(6)

Combining equations (1) and (6), the relations of the dynamic matrices between the joint space and the task space with the non-singular Jacobian matrices $J_{i}$ can be concluded that:

\begin{matrix} {M_{x}}_{i} (θ_{i}) = {J_{i}}^{- T} M_{i} (θ_{i}) {J_{i}}^{- 1}, {C_{x}}_{i} (θ_{i}, {\overset{\cdot}{θ}}_{i}) \\ = {J_{i}}^{- T} (C_{i} (θ_{i}, {\overset{\cdot}{θ}}_{i}) - M_{i} (θ_{i}) {J_{i}}^{- 1} {\overset{\cdot}{J}}_{i}) {J_{i}}^{- 1} \\ {g_{x}}_{i} (θ_{i}) = {J_{i}}^{- T} g_{i} (θ_{i}), {τ_{x}}_{i} = {J_{i}}^{- T} τ_{i}, {d_{x}}_{i} \\ = {J_{i}}^{- T} d_{i}, {F_{x}}_{i} ({\overset{\cdot}{θ}}_{i}) = {J_{i}}^{- T} F_{i} ({\overset{\cdot}{θ}}_{i}) \end{matrix}

(7)

Generally, the same with the general teleoperation system, the n-link underwater manipulator system have the following properties:

Property 1. $J_{i}$ and $J_{i}^{- 1}$ are bounded satisfying $‖ J_{i} ‖ \leq δ_{0}$ and $‖ J_{i}^{- 1} ‖ \leq δ_{1}$ , and $δ_{0}$ and $δ_{1}$ are positive constants.

Property 2. The linear parameterizable of teleoperation manipulator in equation (1) may be rewritten as $M_{i} (θ_{i}) φ_{i 1} + C_{i} (θ_{i}, {\overset{\cdot}{θ}}_{i}) φ_{i 2} + g_{i} (θ_{i}) + F_{i} ({\overset{\cdot}{θ}}_{i}) = Y_{i} (φ_{i 1}, φ_{i 2}, θ_{i}, {\overset{\cdot}{θ}}_{i}) ξ_{i}$ , where $Y_{i} (φ_{i 1}, φ_{i 2}, θ_{i}, {\overset{\cdot}{θ}}_{i})$ is the regression matrix, $φ_{i 1} \in R^{n}$ and $φ_{i 2} \in R^{n}$ are arbitrary known vectors, $ξ_{i}$ is a constant vector which contains unknown parameter of the manipulator dynamic.

Supposing the external unknown disturbance items $d_{m}$ and $d_{s}$ of the master and slave manipulators are bound, according to Property 1 we can obtain: $‖ d_{xm} ‖ = ‖ J_{m}^{- T} d_{m} ‖ \leq Θ_{m 0}$ and $‖ d_{xs} ‖ = ‖ J_{s}^{- T} d_{s} ‖ \leq Θ_{s 0}$ , where $Θ_{m 0}$ and $Θ_{s 0}$ are the upper bounds of the master and slave manipulators external disturbance in the operation space, and $‖ • ‖$ represents the Euclid norm of the corresponding vector. For the convenient of controller scheme and stability conclusion, some assumptions are listed as below:

Assumption 1. During the motion process of the dual manipulator model, there are Viscous friction and Coulomb friction in the dual manipulators model under movement process. Additionally, the dual manipulators are also subjected to unknown external disturbances that are bounded, which arise from the complex environment.

Assumption 2. Due to the short distance in the underwater teleoperation system, the time delay in data transmission between the master and slave manipulator can be considered negligible.

The overall control scheme

In the teleoperation system, the operator applies a force $F_{h}$ on the master manipulator. The master control board collects the master force signal $F_{h}$ and receives the slave force signal $F_{e}$ through the slave communication channel. The master controller calculates the master force tracking the slave force by adjusting the master position $x_{m}$ . The master position $x_{m}$ and its velocity ${\overset{\cdot}{x}}_{m}$ are then transmitted to the remote slave control board through the master communication channel. The slave control board receives the master position $x_{m}$ and its velocity ${\overset{\cdot}{x}}_{m}$ as the target for slave position tracking, and collects the slave force $F_{e}$ between the slave manipulator and the operation object. The slave controller calculates the slave position $x_{s}$ to track the master position $x_{m}$ , using $x_{m}$ , ${\overset{\cdot}{x}}_{m}$ , and $F_{e}$ . At the same time, the slave force $F_{e}$ and the slave position $x_{s}$ are transmitted to the local master control board through the slave communication channel. The bilateral controller design ensures consistent force-position synchronization between the master and slave manipulator, allowing the operator to perceive the tactile force at the slave side. This achieves the goal of force feedback teleoperation, where the operator can feel the force applied by the slave manipulator during the teleoperation process.

The architecture of the bilateral teleoperation adaptive controller based on the reference impedance model is described in Figure 2. Two different impedance models are designed to achieve the interaction between the operator and the master manipulator as well as the interaction between the slave manipulator and the operation object to guarantee the coordination of master and slave force and position. The master controller with reference adaptive law and adaptive estimate law is utilized to achieve the manipulator model convergence to the master reference model. The slave system also incorporates a desired impedance model, established using the slave manipulator’s grasping force and the master operation position. The slave task space position is then tracked to the desired position using a robust adaptive controller. The objective of the reference adaptive impedance control, based on the desired impedance model, is to ensure coordinated force and position control between the master and slave manipulators while maintaining system stability in the presence of uncertainties such as joint friction and external disturbances. The design details of the master and slave controllers are elaborated in the subsequent section.

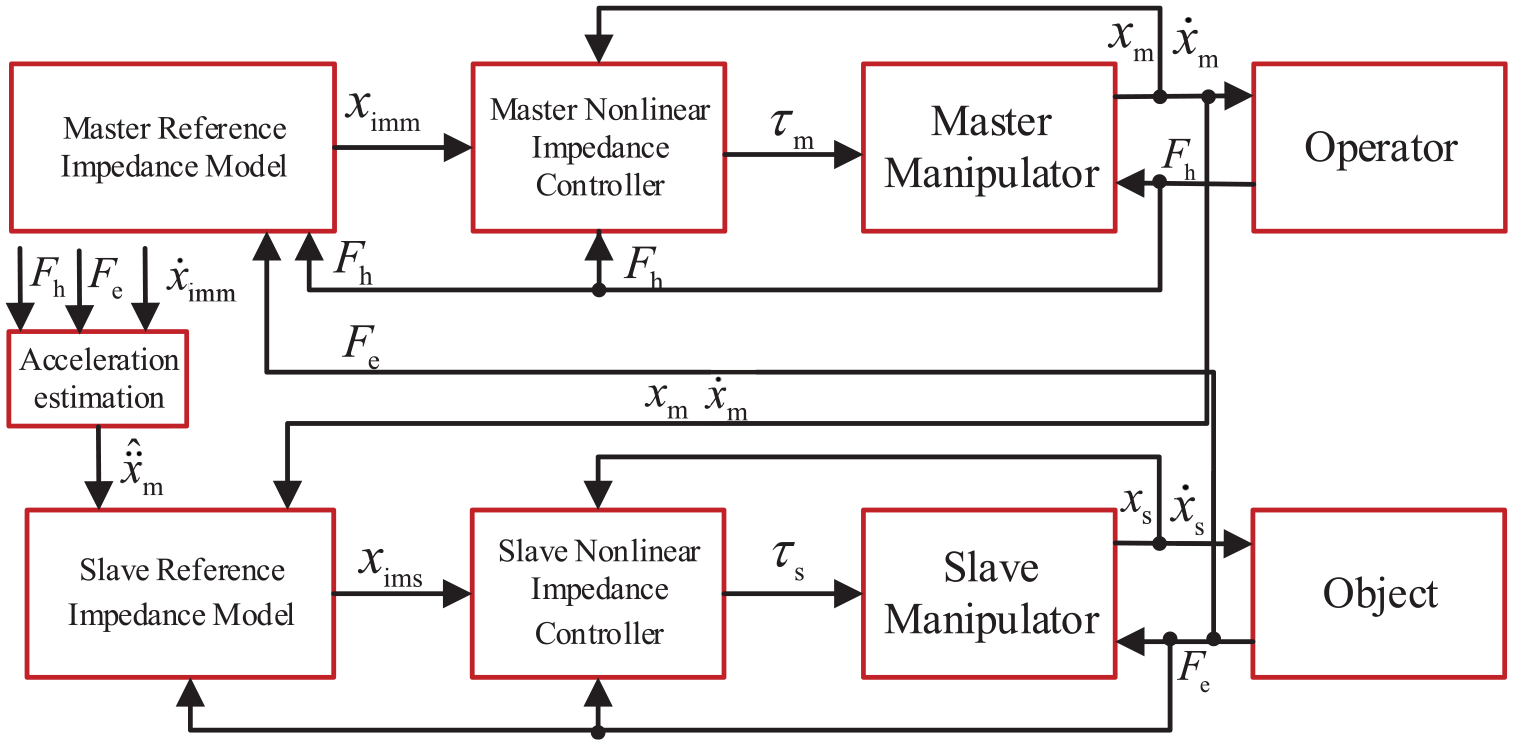

Figure 2.

The control structure diagram of teleoperation system.

The controller design and stability proof

The controller design

The impedance control adjusts the target impedance model set by the user to make the manipulator end-effector achieve a flexible movement target, and adds impedance control to the adaptive attribute to make the tactile force signal of the master manipulator track the slave manipulator tactile force signal with robust performance under uncertain external condition. In the teleoperation system, two impedance models are defined based on the interaction between the master manipulator and the operator, as well as the interaction between the slave manipulator and the operation object. The desired impedance models for the dual manipulator are designed as follows⁴⁵:

M_{md} {\overset{\cdot\cdot}{x}}_{imm} + B_{md} {\overset{\cdot}{x}}_{imm} = F_{h} - F_{e}

(8)

M_{sd} {\overset{\cdot\cdot}{\tilde{x}}}_{ims} + B_{sd} {\overset{\cdot}{\tilde{x}}}_{ims} + K_{sd} {\tilde{x}}_{ims} = - F_{e}

(9)

where $x_{imm}$ in equation (8) denoting the master desired position is the response of the master manipulator desired impedance model. $M_{md}$ and $B_{md}$ are positive definite diagonal matrix, indicating the virtual inertia and damp. When the master manipulator is in a stable state, $x_{imm}$ is a constant to cause ${\overset{\cdot}{x}}_{imm} = 0$ , ${\overset{\cdot\cdot}{x}}_{imm} = 0$ and $F_{h} = F_{e}$ , accordingly $F_{h}$ tracking to $F_{e}$ is implemented. Correspondingly ${\tilde{x}}_{ims}$ in equation (9) representing the error between the slave desired position $x_{ims}$ and master manipulator position $x_{m}$ is the response of the slave desired impedance model. $M_{sd}$ , $B_{sd}$ , $K_{sd}$ are all the positive definite diagonal matrix, denoting the virtual inertia, damp and stiffness respectively. The slave desired position $x_{ims}$ can be obtained according to $x_{ims} = {\tilde{x}}_{ims} + x_{m}$ . Two sliding mode functions of master and slave manipulator are designed as follows:

s_{m} = {\overset{\cdot}{\tilde{x}}}_{m} + λ_{m} {\tilde{x}}_{m}

(10)

s_{s} = {\overset{\cdot}{\tilde{x}}}_{s} + λ_{s} {\tilde{x}}_{s}

(11)

where ${\tilde{x}}_{m} = x_{m} - x_{imm}$ and ${\tilde{x}}_{s} = x_{s} - x_{ims}$ , respectively denotes the position tracking errors of the master and slave manipulators with respect to the responses of their desired impedance models equations (8) and (9). $λ_{m}$ and $λ_{s}$ are positive constant matrices that ensure the stability of the sliding surfaces when ${\tilde{x}}_{i} \to 0$ as $s_{i} \to 0 (i = m / s)$ . $x_{m}$ , $x_{s}$ , ${\overset{\cdot}{x}}_{m}$ and ${\overset{\cdot}{x}}_{s}$ represent the position and velocity of the dual manipulators in task space, respectively.

The auxiliary variables for the master and slave manipulators for the controller design are defined as ${\overset{\cdot}{r}}_{m} = {\overset{\cdot}{x}}_{imm} - λ_{m} {\tilde{x}}_{m}$ and ${\overset{\cdot}{r}}_{s} = {\overset{\cdot}{x}}_{ims} - λ_{s} {\tilde{x}}_{s}$ . Combining with the sliding mode functions $s_{m}$ and $s_{s}$ in equations (10) and (11), the master and slave sliding model surfaces can be rewritten as $s_{m} = {\overset{\cdot}{x}}_{m} - {\overset{\cdot}{r}}_{m}$ and $s_{s} = {\overset{\cdot}{x}}_{s} - {\overset{\cdot}{r}}_{s}$ . Taking the first derivative with respect to time $t$ for the sliding mode surfaces $s_{m}$ and $s_{s}$ , and left multiplying by $M_{xm}$ and $M_{xs}$ , respectively, we can conclude:

\begin{matrix} M_{xm} {\overset{\cdot}{s}}_{m} = M_{xm} (θ_{m}) {\overset{\cdot\cdot}{x}}_{m} - M_{xm} (θ_{m}) {\overset{\cdot\cdot}{x}}_{imm} + λ_{m} M_{xm} (θ_{m}) {\overset{\cdot}{\tilde{x}}}_{m} \\ = - λ_{m} M_{xm} (θ_{m}) s_{m} - C_{xm} (θ_{m}, {\overset{\cdot}{θ}}_{m}) s_{m} \\ + M_{xm} (θ_{m}) (λ_{m} s_{m} - {\overset{\cdot\cdot}{r}}_{m}) - C_{xm} (θ_{m}, {\overset{\cdot}{θ}}_{m}) {\overset{\cdot}{r}}_{m} - g_{xm} (θ_{m}) \\ - F_{xm} ({\overset{\cdot}{θ}}_{m}) + τ_{xm} + d_{xm} - F_{h} \end{matrix}

(12)

\begin{matrix} M_{xs} {\overset{\cdot}{s}}_{s} = M_{xs} (θ_{s}) {\overset{\cdot\cdot}{x}}_{s} - M_{xs} (θ_{s}) {\overset{\cdot\cdot}{x}}_{ims} + λ_{s} M_{xs} (θ_{s}) {\overset{\cdot}{\tilde{x}}}_{s} \\ = - λ_{s} M_{xs} (θ_{s}) s_{s} - C_{xs} (θ_{s}, {\overset{\cdot}{θ}}_{s}) s_{s} + M_{xs} (θ_{s}) (λ_{s} s_{s} - {\overset{\cdot\cdot}{r}}_{s}) \\ - C_{xs} (θ_{s}, {\overset{\cdot}{θ}}_{s}) {\overset{\cdot}{r}}_{s} - g_{xs} (θ_{s}) - F_{xs} ({\overset{\cdot}{θ}}_{s}) + τ_{xs} + d_{xs} - F_{e} \end{matrix}

(13)

According to equations (12) and (13), suppose the parameters of the dynamics $M_{xs}$ , $C_{xm}$ , $g_{xm}$ , $F_{xm}$ are all known, the external disturbance $d_{xm}$ , $d_{xs}$ are also known, as a result, we can design the nominal controller $τ_{xm - eq}$ and $τ_{xs - eq}$ which can be expressed as:

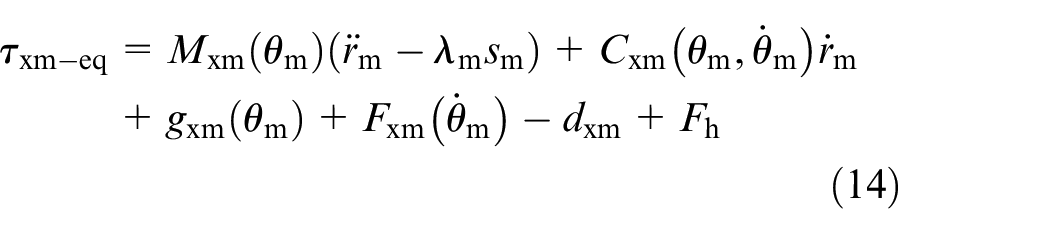

\begin{matrix} τ_{xm - eq} = M_{xm} (θ_{m}) ({\overset{\cdot\cdot}{r}}_{m} - λ_{m} s_{m}) + C_{xm} (θ_{m}, {\overset{\cdot}{θ}}_{m}) {\overset{\cdot}{r}}_{m} \\ + g_{xm} (θ_{m}) + F_{xm} ({\overset{\cdot}{θ}}_{m}) - d_{xm} + F_{h} \end{matrix}

(14)

\begin{matrix} τ_{xs - eq} = M_{xs} (θ_{s}) ({\overset{\cdot\cdot}{r}}_{s} - λ_{s} s_{s}) + C_{xs} (θ_{s}, {\overset{\cdot}{θ}}_{s}) {\overset{\cdot}{r}}_{s} \\ + g_{xs} (θ_{s}) + F_{xs} ({\overset{\cdot}{θ}}_{s}) - d_{xs} + F_{e} \end{matrix}

(15)

Theorem 1. Suppose the n-link actual dynamic parameters ${M_{x}}_{i} (θ_{i})$ , ${C_{x}}_{i} (θ_{i}, {\overset{\cdot}{θ}}_{i})$ , ${g_{x}}_{i} (θ_{i})$ , ${F_{x}}_{i} ({\overset{\cdot}{θ}}_{i})$ of the dual manipulators are fully known, and the external disturbance item ${d_{x}}_{i}$ is also completely known, the sliding mode surface function $s_{m}$ and $s_{s}$ are chosen as equations (10) and (11), the master and slave controller are chosen as equations (14) and (15), we can conclude the dual closed loop dynamic are global stability and the master and slave trajectory tracking convergence to the sliding surface ( $s_{m} = 0$ and $s_{s} = 0$ as $t \to \infty$ ) respectively, and the end-effector position $x_{m}$ and $x_{s}$ globally convergence to the desired position $x_{imm}$ and $x_{ims}$ respectively as $t \to \infty$ .

Proof. Substituting the master and slave controller equations (14) and (15) into the transformed performance of the dynamics of the dual manipulators equations (12) and (13), we can concluded:

M_{xm} {\overset{\cdot}{s}}_{m} = - λ_{m} M_{xm} (θ_{m}) s_{m} - C_{xm} (θ_{m}, {\overset{\cdot}{θ}}_{m}) s_{m}

(16)

M_{xs} {\overset{\cdot}{s}}_{s} = - λ_{s} M_{xs} (θ_{s}) s_{s} - C_{xs} (θ_{s}, {\overset{\cdot}{θ}}_{s}) s_{s}

(17)

where equations (16) and (17) are the master and slave closed dynamics with the controller equations (14) and (15). Design a Lyapunov function expressed as follows:

V_{0} = \frac{1}{2} (s_{m}^{T} M_{xm} (θ_{m}) s_{m} + s_{s}^{T} M_{xs} (θ_{s}) s_{s})

(18)

It is obvious that $V_{0} > 0$ according to the positive matrix $M_{xm} (θ_{m})$ and $M_{xs} (θ_{s})$ . Taking the first derivative with the time $t$ for $V_{0}$ , we can conclude:

\begin{matrix} {\overset{\cdot}{V}}_{0} = \frac{1}{2} s_{m}^{T} {\overset{\cdot}{M}}_{xm} (θ_{m}) s_{m} + s_{m}^{T} M_{xm} (θ_{m}) {\overset{\cdot}{s}}_{m} \\ + \frac{1}{2} s_{s}^{T} {\overset{\cdot}{M}}_{xs} (θ_{s}) s_{s} + s_{s}^{T} M_{xs} (θ_{s}) {\overset{\cdot}{s}}_{s} \end{matrix}

(19)

Therefore, with the property that $ς^{T} ({\overset{\cdot}{M}}_{i} (θ_{i}) - 2 C_{i} (θ_{i}, {\overset{\cdot}{θ}}_{i})) ς = 0$ we can obtain:

\begin{matrix} {\overset{\cdot}{V}}_{0} = - λ_{m} s_{m}^{T} M_{xm} (θ_{m}) s_{m} - λ_{s} s_{s}^{T} M_{xs} (θ_{s}) s_{s} \\ \leq 0 \end{matrix}

(20)

The aforementioned expression makes sure the system global stability and global convergence with the proposed scheme when $s_{m} = 0$ and $s_{s} = 0$ as $t \to \infty$ if the dual dynamics and the external disturbance item ${d_{x}}_{i}$ are all known. On the contrary, the dynamics parameters cannot be completely known. Refer to the controller with nominal model equations (14) and (15), the novel controller can be designed as:

\begin{matrix} τ_{xm} = {\hat{M}}_{xm} (θ_{m}) ({\overset{\cdot\cdot}{r}}_{m} - λ_{m} s_{m}) + {\hat{C}}_{xm} (θ_{m}, {\overset{\cdot}{θ}}_{m}) {\overset{\cdot}{r}}_{m} + {\hat{g}}_{xm} (θ_{m}) \\ + {\hat{F}}_{xm} ({\overset{\cdot}{θ}}_{m}) + τ_{xm 0} + F_{h} \end{matrix}

(21)

\begin{matrix} τ_{xs} = {\hat{M}}_{xs} (θ_{s}) ({\overset{\cdot\cdot}{r}}_{s} - λ_{s} s_{s}) + {\hat{C}}_{xs} (θ_{s}, {\overset{\cdot}{θ}}_{s}) {\overset{\cdot}{r}}_{s} + {\hat{g}}_{xs} (θ_{s}) + {\hat{F}}_{xs} ({\overset{\cdot}{θ}}_{s}) \\ + τ_{xs 0} + F_{e} \end{matrix}

(22)

where ${\hat{M}}_{xi} (θ_{i})$ , ${\hat{C}}_{xi} (θ_{i}, {\overset{\cdot}{θ}}_{i})$ , ${\hat{g}}_{xi} (θ_{i})$ and ${\hat{F}}_{xi} ({\overset{\cdot}{θ}}_{i})$ are the estimated values referring to $M_{xi} (θ_{i})$ , $C_{xi} (θ_{i}, {\overset{\cdot}{θ}}_{i})$ , $g_{xi} (θ_{i})$ and $F_{xi} ({\overset{\cdot}{θ}}_{i})$ of the manipulator dynamic in the task space. $τ_{xm 0} = J_{m}^{- T} τ_{m 0}$ and $τ_{xs 0} = J_{s}^{- T} τ_{s 0}$ are the function to reduce the external disturbance and $τ_{m 0}$ , $τ_{s 0}$ can be respectively designed as $τ_{m 0} = - {K_{p}}_{m} s_{m} - s_{m} Θ_{m} / (‖ s_{m} ‖ + e^{- a_{m} t})$ and $τ_{s 0} = - {K_{p}}_{s} s_{s} - s_{s} Θ_{s} / (‖ s_{s} ‖ + e^{- a_{s} t})$ , where $τ_{m 0}$ and $τ_{s 0}$ are respectively denoted the robust items to eliminate the external disturbance and reduce the errors between adaptive estimates and real dynamic models of the dual manipulators. Let $Θ_{m}$ and $Θ_{s}$ represent the upper bound estimates of unknown disturbance, and let $a_{m}$ and $a_{s}$ be positive constants, respectively. Based on the term $τ_{i} = J_{i}^{T} τ_{xi}$ in equation (7), the task space controllers $τ_{xm}$ and $τ_{xs}$ can be transformed into $τ_{m}$ and $τ_{s}$ in the joint space, which can be rephrased as:

\begin{matrix} τ_{m} = {\hat{M}}_{m} (θ_{m}) J_{m}^{- 1} (θ_{m}) ({\overset{\cdot\cdot}{r}}_{m} - λ_{m} s_{m}) \\ + ({\hat{C}}_{m} (θ_{m}, {\overset{\cdot}{θ}}_{m}) - {\hat{M}}_{m} (θ_{m}) J_{m}^{- 1} (θ_{m}) {\overset{\cdot}{J}}_{m} (θ_{m})) J_{m}^{- 1} {\overset{\cdot}{r}}_{m} \\ + {\hat{g}}_{m} (θ_{m}) + {\hat{F}}_{m} ({\overset{\cdot}{θ}}_{m}) - K_{pm} s_{m} - s_{m} Θ_{m} / (‖ s_{m} ‖ + e^{- a_{m} t}) \\ + J_{m}^{T} (θ_{m}) F_{h} \end{matrix}

(23)

\begin{matrix} τ_{s} = {\hat{M}}_{s} (θ_{s}) J_{s}^{- 1} (θ_{s}) ({\overset{\cdot\cdot}{r}}_{s} - λ_{s} s_{s}) \\ + ({\hat{C}}_{s} (θ_{s}, {\overset{\cdot}{θ}}_{s}) - {\hat{M}}_{s} (θ_{s}) J_{s}^{- 1} (θ_{s}) {\overset{\cdot}{J}}_{s} (θ_{s})) J_{s}^{- 1} {\overset{\cdot}{r}}_{s} \\ + {\hat{g}}_{s} (θ_{s}) + {\hat{F}}_{s} ({\overset{\cdot}{θ}}_{s}) - K_{ps} s_{s} - s_{s} Θ_{s} / (‖ s_{s} ‖ + e^{- a_{s} t}) \\ + J_{s}^{T} (θ_{s}) F_{e} \end{matrix}

(24)

Since the acceleration ${\overset{\cdot\cdot}{x}}_{m}$ must be obtained to calculate ${\overset{\cdot\cdot}{r}}_{s}$ in slave controller equation (24). As we all know, there is a accuracy error in the acceleration measurement. The acceleration ${\overset{\cdot\cdot}{x}}_{m}$ is estimated from equation (8) which can be expressed as:

{\hat{\overset{\cdot\cdot}{x}}}_{m} = M_{md}^{- 1} (F_{h} - F_{e} - B_{md} {\overset{\cdot}{x}}_{imm})

(25)

Correspondingly the term ${\overset{\cdot\cdot}{x}}_{ims} = {\overset{\cdot\cdot}{x}}_{m} + {\overset{\cdot\cdot}{\tilde{x}}}_{ims}$ can be represented as:

\begin{matrix} {\hat{\overset{\cdot\cdot}{x}}}_{ims} = {\hat{\overset{\cdot\cdot}{x}}}_{m} + {\overset{\cdot\cdot}{\tilde{x}}}_{ims} \\ = {\overset{\cdot\cdot}{x}}_{m} + {\hat{\overset{\cdot\cdot}{x}}}_{m} + Δ {\overset{\cdot\cdot}{x}}_{m} \\ = {\overset{\cdot\cdot}{x}}_{ims} + Δ {\overset{\cdot\cdot}{x}}_{m} \end{matrix}

(26)

where $Δ {\overset{\cdot\cdot}{x}}_{m}$ is the error of the estimated value ${\hat{\overset{\cdot\cdot}{x}}}_{m}$ and ${\overset{\cdot\cdot}{x}}_{m}$ . Consequently ${\overset{\cdot\cdot}{r}}_{s} = {\overset{\cdot\cdot}{\tilde{x}}}_{ims} - λ_{s} {\overset{\cdot}{\tilde{x}}}_{s}$ can be rewritten as ${\hat{\overset{\cdot\cdot}{r}}}_{s} = {\hat{\overset{\cdot\cdot}{x}}}_{ims} - λ_{s} {\overset{\cdot}{\tilde{x}}}_{s}$ , so that $τ_{s}$ with equation (24) can be transformed as:

\begin{matrix} τ_{s} = {\hat{M}}_{s} (θ_{s}) J_{s}^{- 1} ({\overset{\cdot\cdot}{r}}_{s} - λ_{s} s_{s}) + ({\hat{C}}_{s} (θ_{s}, {\overset{\cdot}{θ}}_{s}) - {\hat{M}}_{s} (θ_{s}) J_{s}^{- 1} {\overset{\cdot}{J}}_{s}) J_{s}^{- 1} {\overset{\cdot}{r}}_{s} \\ + {\hat{g}}_{s} (θ_{s}) + {\hat{F}}_{s} ({\overset{\cdot}{θ}}_{s}) - K_{ps} s_{s} - k_{es} sgn (s_{s}) + {\hat{M}}_{s} (θ_{s}) J_{s}^{- 1} Δ {\overset{\cdot\cdot}{x}}_{m} \\ - s_{s} Θ_{s} / (‖ s_{s} ‖ + e^{- a_{s} t}) + J_{s}^{T} (θ_{s}) F_{e} \end{matrix}

(27)

The term $k_{es} sgn (s_{s})$ is an auxiliary item used to mitigate the bounded estimation error of ${\overset{\cdot\cdot}{x}}_{m}$ for the slave position in task space. The controllers for the master and slave manipulators in the joint space, as described by equations (14) and (27), can be represented as:

\begin{matrix} τ_{m} = Y_{m} (η_{m 1}, η_{m 2}, θ_{m}, {\overset{\cdot}{θ}}_{m}) {\hat{α}}_{m} - J_{m}^{T} (θ_{m}) K_{pm} s_{m} \\ - J_{m}^{T} (θ_{m}) s_{m} Θ_{m} / (‖ s_{m} ‖ + e^{- a_{m} t}) + J_{m}^{T} (θ_{m}) F_{h} \end{matrix}

(28)

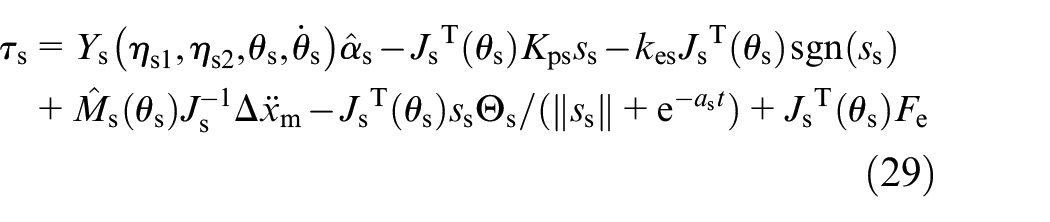

\begin{matrix} τ_{s} = Y_{s} (η_{s 1}, η_{s 2}, θ_{s}, {\overset{\cdot}{θ}}_{s}) {\hat{α}}_{s} - {J_{s}}^{T} (θ_{s}) K_{ps} s_{s} - k_{es} {J_{s}}^{T} (θ_{s}) sgn (s_{s}) \\ + {\hat{M}}_{s} (θ_{s}) J_{s}^{- 1} Δ {\overset{\cdot\cdot}{x}}_{m} - {J_{s}}^{T} (θ_{s}) s_{s} Θ_{s} / (‖ s_{s} ‖ + e^{- a_{s} t}) + {J_{s}}^{T} (θ_{s}) F_{e} \end{matrix}

(29)

The terms ${\hat{α}}_{m}$ and ${\hat{α}}_{s}$ in equations (28) and (29) denote the master and slave unknown estimated vectors, $Y_{i} (η_{i 1}, η_{i 2}, θ_{i}, {\overset{\cdot}{θ}}_{i})$ denotes the regression matrix of which $η_{m 1}$ , $η_{m 2}$ , $η_{s 1}$ and $η_{s 2}$ can be represented as:

\begin{matrix} η_{m 1} & = J_{m}^{- 1} ({\overset{\cdot\cdot}{r}}_{m} - λ_{m} s_{m} - {\overset{\cdot}{J}}_{m} J_{m}^{- 1} {\overset{\cdot}{r}}_{m}) \\ η_{m 2} & = J_{m}^{- 1} {\overset{\cdot}{r}}_{m} \end{matrix}

(30)

\begin{matrix} η_{s 1} & = J_{s}^{- 1} ({\overset{\cdot\cdot}{r}}_{s} - λ_{s} s_{s} - {\overset{\cdot}{J}}_{s} J_{s}^{- 1} {\overset{\cdot}{r}}_{s}) \\ η_{s 2} & = J_{s}^{- 1} {\overset{\cdot}{r}}_{s} \end{matrix}

(31)

${\hat{α}}_{m}$ , ${\hat{α}}_{s}$ and the upper boundary estimation law $Θ_{m}$ , $Θ_{s}$ are respectively designed as:

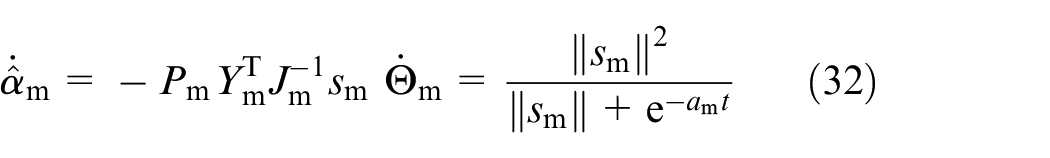

{\overset{\cdot}{\hat{α}}}_{m} = - P_{m} Y_{m}^{T} J_{m}^{- 1} s_{m} {\overset{\cdot}{Θ}}_{m} = \frac{{‖ s_{m} ‖}^{2}}{‖ s_{m} ‖ + e^{- a_{m} t}}

(32)

{\overset{\cdot}{\hat{α}}}_{s} = - P_{s} Y_{s}^{T} J_{s}^{- 1} s_{s} {\overset{\cdot}{Θ}}_{s} = \frac{{‖ s_{s} ‖}^{2}}{‖ s_{s} ‖ + e^{- a_{s} t}}

(33)

where $P_{m}$ and $P_{s}$ are positive definite diagonal matrices.

The stability proof

Theorem 2. Suppose the dynamic parameters ${M_{x}}_{i}$ , ${C_{x}}_{i}$ , ${g_{x}}_{i}$ , ${F_{x}}_{i} (i = m / s)$ of the dual n-link manipulators are unknown, and the external bounded disturbance items ${d_{x}}_{m}$ and ${d_{x}}_{s}$ are also unknown, the sliding mode surface function $s_{m}$ and $s_{s}$ are chosen as equations (10) and (11), the adaptive controllers of the two manipulators are chosen as equations (28) and (29), the adaptive law are chosen as equations (32) and (33), the master and slave closed loop dynamic are global stability and the master and slave trajectory globally tracking convergence to the sliding surface ( $s_{m} = 0$ and $s_{s} = 0$ as $t \to \infty$ ), and the end-effector position $x_{m}$ , $x_{s}$ globally convergence to the desired position $x_{imm}$ , $x_{ims}$ as $t \to \infty$ .

Proof. Choose the Lyapunov function candidate $V_{1}$ expressed as:

V_{1} = V_{m} + V_{s}

(34)

where $V_{m}$ and $V_{s}$ can be expressed as follows:

V_{m} = \frac{1}{2} (s_{m}^{T} M_{xm} (θ_{m}) s_{m} + {\tilde{α}}_{m}^{T} {P_{m}}^{- 1} {\tilde{α}}_{m}) + \frac{1}{2} {(Θ_{m} - Θ_{m 0})}^{2}

(35)

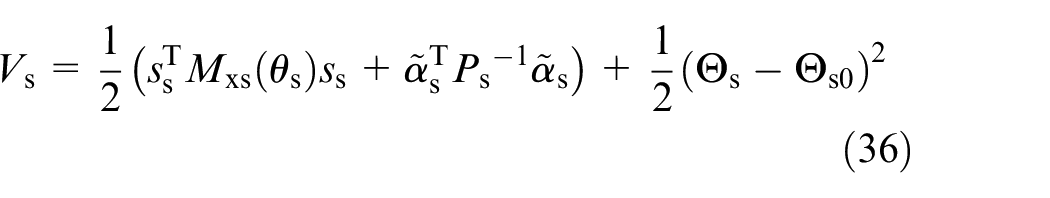

V_{s} = \frac{1}{2} (s_{s}^{T} M_{xs} (θ_{s}) s_{s} + {\tilde{α}}_{s}^{T} {P_{s}}^{- 1} {\tilde{α}}_{s}) + \frac{1}{2} {(Θ_{s} - Θ_{s 0})}^{2}

(36)

where ${\tilde{α}}_{m}$ and ${\tilde{α}}_{s}$ represent the error between the actual parameter and the estimated parameter of the master and slave manipulator unknown part, in other word, ${\tilde{α}}_{m} = α_{m} - {\hat{α}}_{m}$ and ${\tilde{α}}_{s} = α_{s} - {\hat{α}}_{s}$ , and $Θ_{m 0}$ and $Θ_{s 0}$ are unknown disturbance upper bound. Since $P_{m}$ and $P_{s}$ are positive definite matrix, $P_{m}^{- 1}$ and $P_{s}^{- 1}$ are also positive definite, and $V_{1} > 0$ can be obtained. Taking the derivative of time for $V_{m}$ and $V_{s}$ , and the controller laws equations (28) and (29) with the adaptive laws equations (32) and (33) are substituted in the ${\overset{\cdot}{V}}_{m}$ and ${\overset{\cdot}{V}}_{s}$ respectively, we can obtain that:

\begin{matrix} {\overset{\cdot}{V}}_{m} = \frac{1}{2} s_{m}^{T} [{\overset{\cdot}{M}}_{xm} (θ_{m}) - 2 C_{xm} (θ_{m}, {\overset{\cdot}{θ}}_{m})] s_{m} \\ - λ_{m} s_{m}^{T} M_{xm} (θ_{m}) s_{m} + s_{m}^{T} J_{m}^{- T} Y_{m} ({\hat{α}}_{m} - α_{m}) + {\overset{\cdot}{\tilde{α}}}_{m}^{T} P_{m}^{- 1} {\tilde{α}}_{m} \\ + s_{m}^{T} (- K_{pm} s_{m} - \frac{s_{m}}{‖ s_{m} ‖ + e^{- a_{m} t}} Θ_{m} + d_{xm}) \\ + (Θ_{m} - Θ_{m 0}) \frac{{‖ s_{m} ‖}^{2}}{‖ s_{m} ‖ + e^{- a_{m} t}} \end{matrix}

(37)

Since $s_{m}^{T} d_{xm} \leq ‖ s_{m} ‖ Θ_{m 0}$ we can obtain $s_{m}^{T} d_{xm} - Θ_{m 0} \frac{{‖ s_{m} ‖}^{2}}{‖ s_{m} ‖ + e^{- a_{m} t}} \leq Θ_{m 0} e^{- a_{m} t}$ , equation (37) can be solved and expressed as:

\begin{matrix} {\overset{\cdot}{V}}_{m} = - λ_{m} s_{m}^{T} M_{xm} (θ_{m}) s_{m} - s_{m}^{T} K_{pm} s_{m} + s_{m}^{T} d_{xm} \\ - Θ_{m 0} \frac{{‖ s_{m} ‖}^{2}}{‖ s_{m} ‖ + e^{- a_{m} t}} \\ \leq - s_{m}^{T} K_{pm} s_{m} - λ_{m} s_{m}^{T} M_{xm} (θ_{m}) s_{m} + Θ_{m 0} e^{- a_{m} t} \end{matrix}

(38)

The same with the derivation method of $V_{m}$ , taking the derivative of time for $V_{s}$ , and the controller equation (29) with the adaptive law equation (33) are substituted into ${\overset{\cdot}{V}}_{s}$ , we can obtain that:

\begin{matrix} {\overset{\cdot}{V}}_{s} = \frac{1}{2} s_{s}^{T} [{\overset{\cdot}{M}}_{xs} (θ_{s}) - 2 C_{xs} (θ_{s}, {\overset{\cdot}{θ}}_{s})] s_{s} - λ_{s} s_{s}^{T} M_{xs} (θ_{s}) s_{s} \\ + s_{s}^{T} J_{s}^{- T} Y_{s} ({\hat{α}}_{s} - α_{s}) + {\overset{\cdot}{\tilde{α}}}_{s}^{T} P_{s}^{- 1} {\tilde{α}}_{s} \\ + s_{s}^{T} (- K_{ps} s_{s} - \frac{s_{s}}{‖ s_{s} ‖ + e^{- a_{s} t}} Θ_{s} + d_{xs}) \\ + (Θ_{s} - Θ_{s 0}) \frac{{‖ s_{s} ‖}^{2}}{‖ s_{s} ‖ + e^{- a_{s} t}} \\ + s_{s}^{T} (- k_{es} sgn (s_{s}) + J_{s}^{- T} {\hat{M}}_{s} (θ_{s}) J_{s}^{- 1} Δ {\overset{\cdot\cdot}{x}}_{m}) \end{matrix}

(39)

When $k_{es} \geq ‖ J_{s}^{- T} {\hat{M}}_{s} (θ_{s}) J_{s}^{- 1} Δ {\overset{\cdot\cdot}{x}}_{m} ‖_{\infty}$ , $s_{s}^{T} (- k_{es} sgn (s_{s}) + {\hat{M}}_{s} (θ_{s}) J_{s}^{- 1} Δ {\overset{\cdot\cdot}{x}}_{m}) \leq 0$ , where $‖ • ‖_{\infty}$ is the infinite norm. Substituting the inequality $s_{s}^{T} d_{xs} \leq ‖ s_{s} ‖ Θ_{s 0}$ into equation (39), we can obtain:

\begin{matrix} {\overset{\cdot}{V}}_{s} = - λ_{s} s_{s}^{T} M_{xs} (θ_{s}) s_{s} - s_{s}^{T} K_{ps} s_{s} + s_{s}^{T} d_{xs} - Θ_{s 0} \frac{{‖ s_{s} ‖}^{2}}{‖ s_{s} ‖ + e^{- a_{s} t}} \\ + s_{s}^{T} (- k_{es} sgn (s_{s}) + J_{s}^{- T} {\hat{M}}_{s} (θ_{s}) J_{s}^{- 1} Δ {\overset{\cdot\cdot}{x}}_{m}) \\ \leq - s_{s}^{T} K_{ps} s_{s} - λ_{s} s_{s}^{T} M_{xs} (θ_{s}) s_{s} + Θ_{s 0} e^{- a_{s} t} \end{matrix}

(40)

Since ${\overset{\cdot}{V}}_{1} = {\overset{\cdot}{V}}_{m} + {\overset{\cdot}{V}}_{s}$ , combining with equations (38) and (40) we can obtain:

\begin{matrix} {\overset{\cdot}{V}}_{1} \leq - s_{m}^{T} K_{pm} s_{m} - λ_{m} s_{m}^{T} M_{xm} (θ_{m}) s_{m} - s_{s}^{T} K_{ps} s_{s} \\ - λ_{s} s_{s}^{T} M_{xs} (θ_{s}) s_{s} + Θ_{m 0} e^{- a_{m} t} + Θ_{s 0} e^{- a_{s} t} \end{matrix}

(41)

From 0 to t, integrating both sides of equation (41), we can obtain:

\begin{matrix} V_{1} (t) - V_{1} (0) \leq - \int_{0}^{t} (s_{m}^{T} K_{pm} s_{m} + λ_{m} s_{m}^{T} M_{xm} (θ_{m}) s_{m} \\ + s_{s}^{T} K_{ps} s_{s} + λ_{s} s_{s}^{T} M_{xs} (θ_{s}) s_{s}) d t \\ + Θ_{m 0} \int_{0}^{t} e^{- a_{m} t} d t + Θ_{s 0} \int_{0}^{t} e^{- a_{s} t} d t \\ \leq - \int_{0}^{t} (s_{m}^{T} K_{pm} s_{m} + s_{s}^{T} K_{ps} s_{s}) d t \\ + Θ_{m 0} \int_{0}^{t} e^{- a_{m} t} d t + Θ_{s 0} \int_{0}^{t} e^{- a_{s} t} d t \end{matrix}

(42)

Because $V_{1} (t) \geq 0$ , $\int_{0}^{t} e^{- a_{m} t} d t \leq \infty$ and $\int_{0}^{t} e^{- a_{s} t} d t \leq \infty$ , we can obtain:

\begin{matrix} lim_{t \to \infty} sup \frac{1}{t} \int_{0}^{t} (K_{pm} {‖ s_{m} ‖}^{2} + K_{ps} {‖ s_{s} ‖}^{2}) dt \leq \\ (V_{1} (0) + Θ_{m 0} \int_{0}^{t} e^{- a_{m} t} d t + Θ_{s 0} \int_{0}^{t} e^{- a_{s} t} d t) lim_{t \to \infty} \frac{1}{t} = 0 \end{matrix}

(43)

From equations (42) and (43) we can obtain $s_{m} \to 0$ and $s_{s} \to 0$ as $t \to \infty$ , therefore, the position tracking errors ${\tilde{x}}_{m}$ , ${\tilde{x}}_{s}$ and the velocity tracking errors ${\overset{\cdot}{\tilde{x}}}_{m}$ , ${\overset{\cdot}{\tilde{x}}}_{s}$ asymptotically converge to 0 according to the sliding surface equations (10) and (11), which ensure the master and slave positions $x_{m}$ and $x_{s}$ asymptotically converge to $x_{imm}$ and $x_{ims}$ as $t \to \infty$ , respectively.

Simulation verification

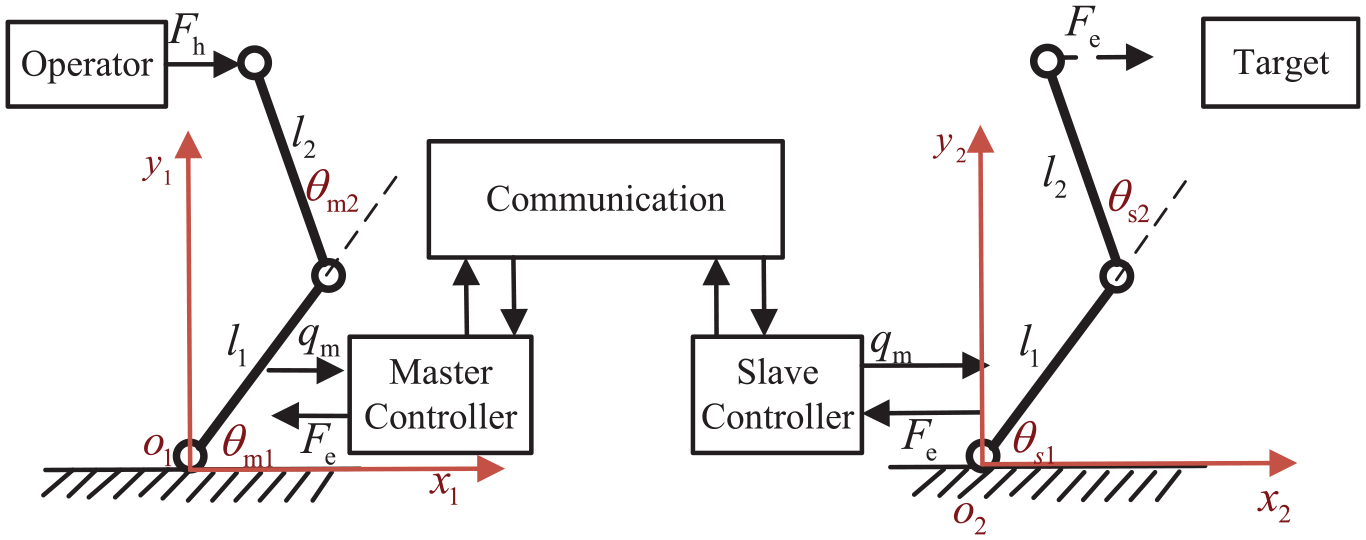

In this section, a two degree of freedom manipulator as shown in Figure 3 is employed on the MATLAB/Simulink platform to verify the performance of the proposed controller. Only the uncertainty of the dynamic model of the manipulator and external disturbance are considered, and the influence of the carrier such as the underwater vehicle on the attitude of the underwater manipulator is ignored, so that the dual manipulators are assumed to move in the vertical plane.

Figure 3.

The control structure of two-link manipulator teleoperation system.

Assuming that the operating object is static, the force model of the operating object can be considered as a passive linear spring force model,⁴⁶ which can be expressed as:

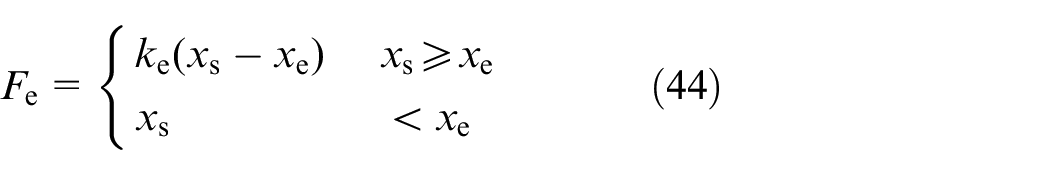

F_{e} = {\begin{matrix} k_{e} (x_{s} - x_{e}) x_{s} \geq x_{e} \\ x_{s} < x_{e} \end{matrix}

(44)

$x_{e}$ represents the critical position where the slave manipulator comes into contact with the operation target. When $x_{s} < x_{e}$ , it indicates that the slave manipulator is in free space, and when $x_{s} \geq x_{e}$ , it generates the operation force.

The physical parameters and system parameters

The master parameters of the desired impedance model and master adaptive law are set as: $M_{md} = diag (1, 1)$ , $B_{md} = diag (10, 10)$ , $λ_{md} = diag (30, 30)$ , $P_{md} = diag (1, 1)$ . The physical parameters of master manipulator are set as $m_{1} = 0.1 kg$ , $m_{2} = 0.1 kg$ , $l_{1} = 0.1 m$ , $l_{2} = 0.1 m$ , where $m_{1}$ , $m_{2}$ , $1_{1}$ and $1_{2}$ respectively denotes the mass and length of joint 1 and joint 2. The master initial motion parameters are set as: $θ_{m 1} = π / 3 rad$ , $θ_{m 2} = π / 6 rad$ , ${\overset{\cdot}{θ}}_{m 1} = 0 rad / s$ , ${\overset{\cdot}{θ}}_{m 2} = 0 rad / s$ . As shown in Figure 3, the definition of $θ_{m 1}$ is the angle between the positive semi-axis of the x-axis and joint 1, and the definition of $θ_{m 2}$ is the angle between the extension line of joint 1 and joint 2.

The similar to the master manipulator, the slave parameters of the desired impedance model and slave adaptive law are set as: $M_{sd} = diag (1, 1)$ , $B_{sd} = diag (10, 10)$ , $λ_{sd} = diag (30, 30)$ , $P_{sd} = diag (1, 1)$ . The physical parameters of slave manipulator are set as $m_{1} = 0.1 kg$ , $m_{2} = 0.1 kg$ , $l_{1} = 0.1 m$ , $l_{2} = 0.1 m$ . The slave initial motion parameters are also set as: $θ_{s 1} = π / 3 rad$ , $θ_{s 2} = π / 6 rad$ , ${\overset{\cdot}{θ}}_{s 1} = 0 rad / s$ , ${\overset{\cdot}{θ}}_{s 2} = 0 rad / s$ .

The master and slave adaptive law for the uncertain disturbance are respectively set as: $a_{m} = a_{s} = 2$ , $Θ_{m 0} = Θ_{s 0} = 0.7$ . The parameter to eliminate the estimation error is set as: $k_{es} = 1.8$ and $K_{pm} = K_{ps} = 10$ . And the detailed components of parameters in equation (1) is explained in Appendix.

Simulation

The manipulator receptor is positioned at the end of the x-axis direction. In the first simulation, the master force $F_{h}$ is set as a square-wave signal with an amplitude of 20N and a duty cycle of 50%. The slave critical position is set as $x_{e} = 0.15 m$ , and the rigidity coefficient of the slave manipulator’s operation object is denoted as $k_{e} = 100 N / m$ . The operation time is set to 60s, and the simulation results are illustrated in Figures 4 to 10. Figure 4 denotes the force tracking curve of the master manipulator following the slave manipulator; Figures 5 to 7 respectively represent the operation space position, the joint space position, and the joint space velocity curves of the dual manipulators; Figure 8 is the controller curve and the next Figures 9 and 10 show the adaptive estimation law of the dual manipulators.

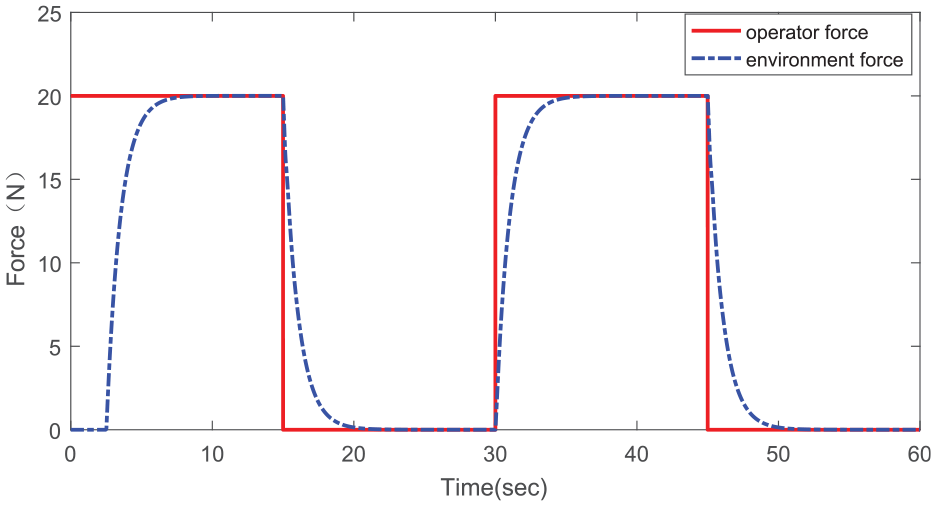

Figure 4.

The force tracking results with square-wave signal.

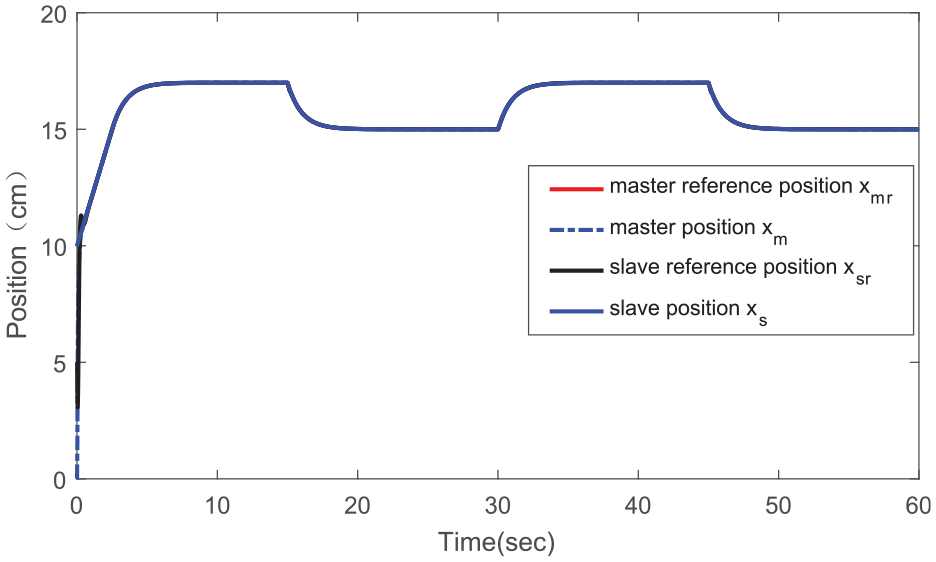

Figure 5.

The position tracking results under Cartesian coordinate with square-wave signal.

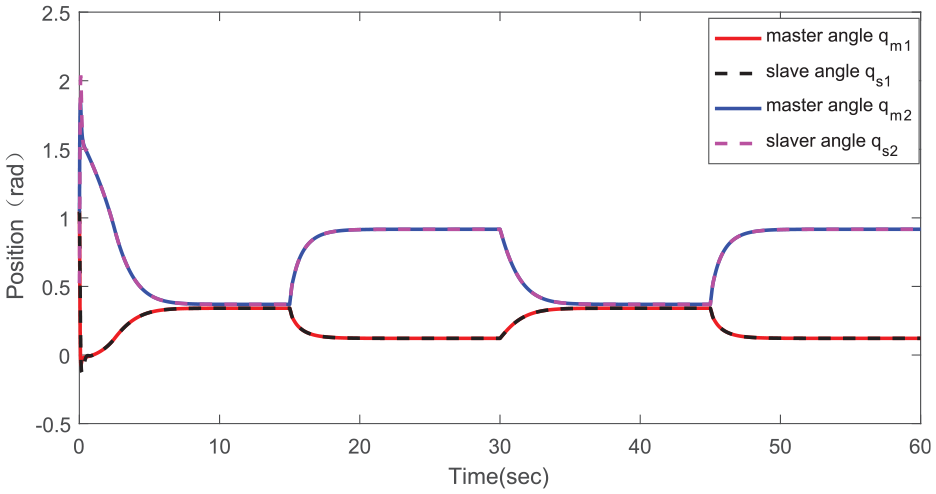

Figure 6.

The angular joint tracking results with square-wave signal.

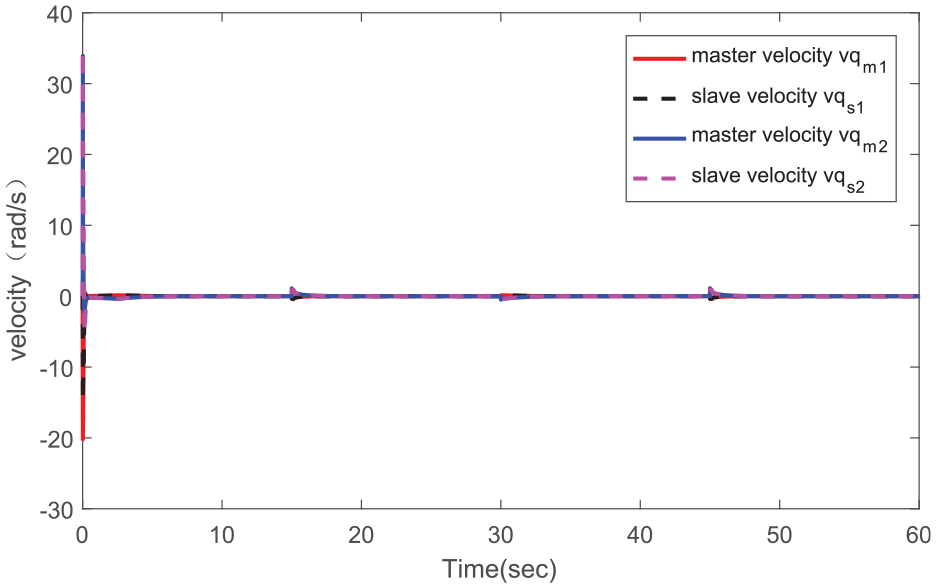

Figure 7.

The angular velocity tracking results with square-wave signal.

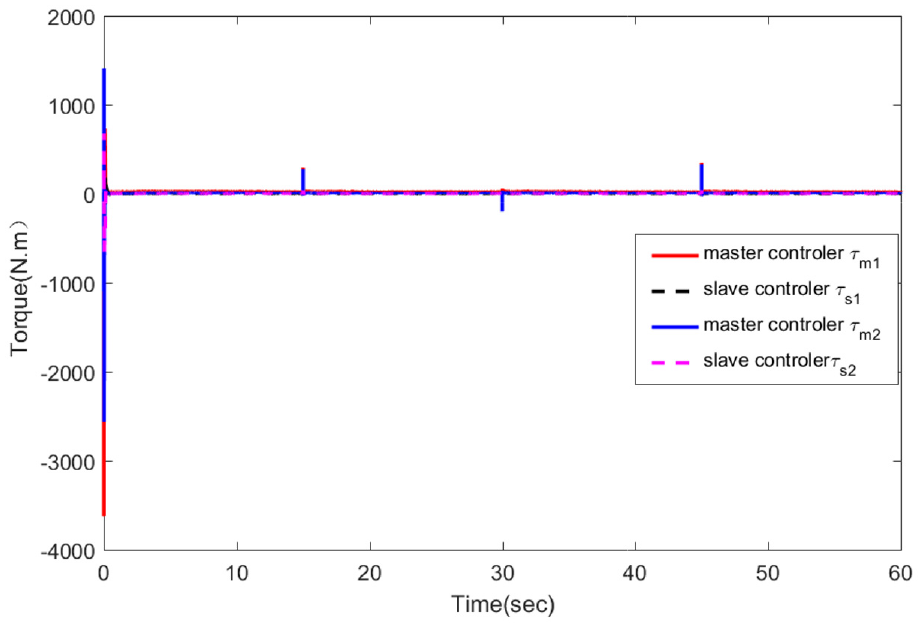

Figure 8.

The controller curves with square-wave signal.

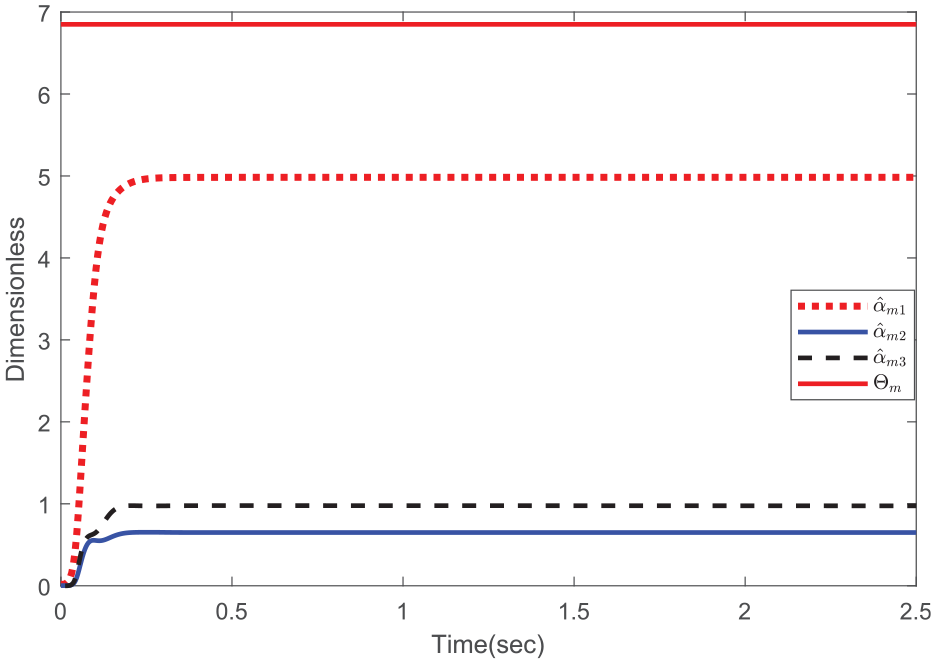

Figure 9.

The master adaptive law estimation with square-wave signal.

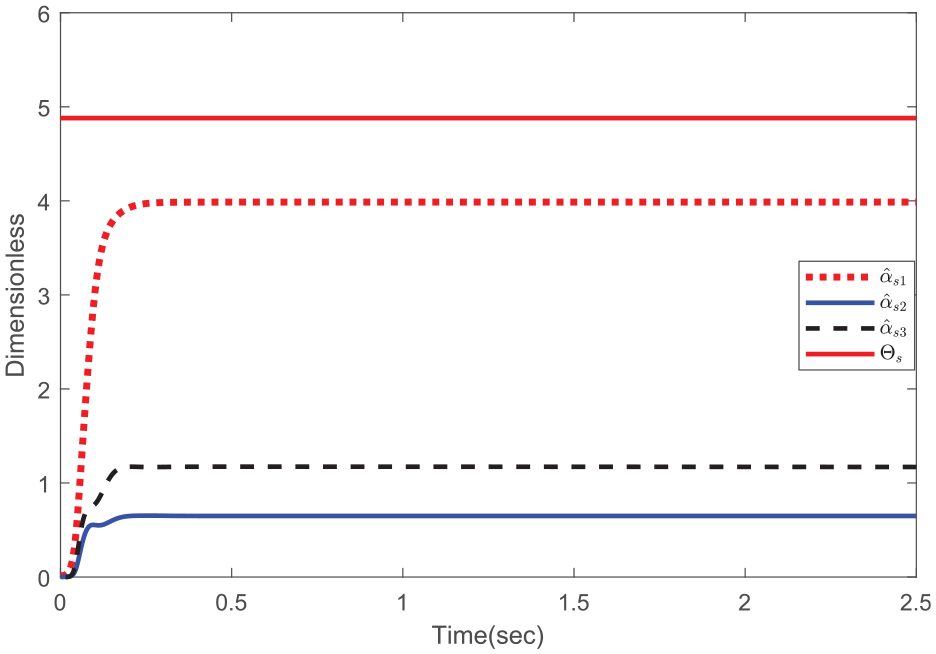

Figure 10.

The slave adaptive law estimation with square-wave signal.

According to Figures 4 and 5, the master manipulator operator applied interaction force guarantees to track the slave force, at the same time, the slave manipulator achieves the position tracking of the master manipulator weather the slave manipulator exists in the free state or the contacting status with the operation target. The force applied by the operator on master manipulator is coordinated with the interaction force between the slave manipulator and the operating object. The bilateral adaptive impedance control realizes that the operator can sense the interaction force between the slave manipulator and the operating object while operating the master manipulator, and realize the consistent and equal position of master and slave manipulators, which increases the operator’s immersion and actual experience.

According to Figure 4, the master and slave operation space positions achieve to track of the positions of desired impedance model output respectively, and similarly the slave position realizes to track of the master position in joint space. The initial position of the slave manipulator is at a free position that is not in contact with the operation target. When the master manipulator position is tracked to 0.15 m, it can interact with the operation target. Currently, the slave manipulator still realizes the position tracking of the master manipulator. After interacting with the operating object on the slave manipulator, the master controller adjusts the operating force to converge to the interaction force between the slave manipulator and the operating object, so that the force tracking of the master to the slave manipulator and the position tracking error of the slave to the master manipulator gradually converge to zero.

Based on the results shown in Figure 4, the static errors in both master force tracking and slave position tracking are $\leq 5 %$ , and there is no overshoot during the entire tracking process. After the master manipulator releases the applied force, both the master and slave manipulators come to a stationary position at the critical contact point with the operational object, with the slave manipulator ensuring position tracking and the master manipulator achieving force tracking to the slave manipulator. Furthermore, as demonstrated in Figures 9 and 10, the adaptive law output parameters of both the master and slave systems are bounded, and the estimation of uncertain parameters does not require an initial estimate, thereby ensuring the effectiveness of the estimation and achieving system control stability.

It can be seen from Figures 4 to 8 that under the condition of uncertain system model and external disturbance, the overall system still guarantees the force tracking of the master to the slave manipulator and the position tracking of the slave to the master manipulator. The utilization of the model uncertainty adaptive law and the external interference upper bound estimation adaptive law allows for compensation of both external disturbances and model uncertainties, ensuring the robust stability characteristics of the system.

In the second simulation, $F_{h}$ is set as sinusoidal signal which can be expressed as $F_{h} = 10 (1 + \sin (2 π t / 60))$ , and the setting time t is 60s. The simulation results are shown in Figures 11 to 17 respectively. It is evident from the results that the proposed controller ensures the force and position asymptotic convergence ability of the dual manipulators with sinusoidal signal force $F_{h}$ applied. Moreover, the proposed scheme satisfies both stability and transparency requirements.

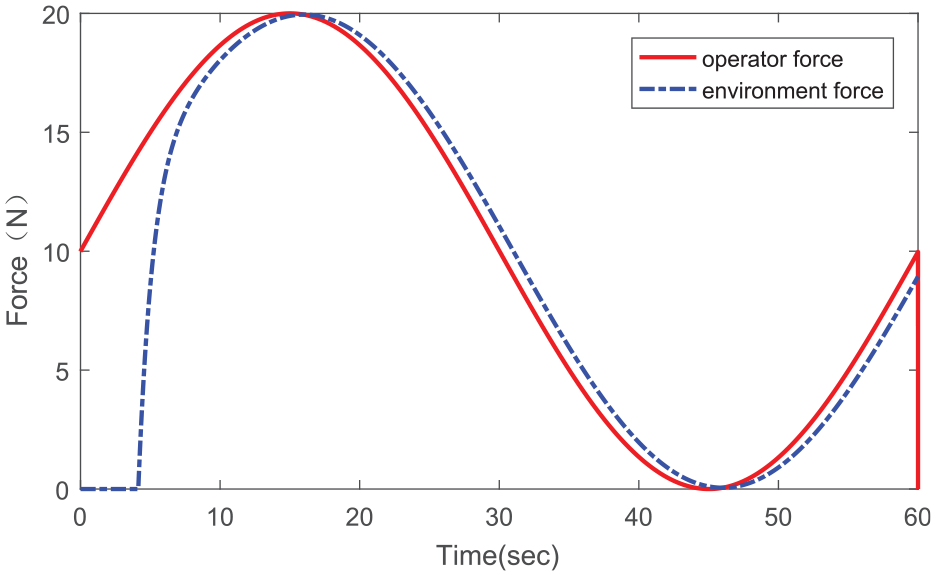

Figure 11.

The force tracking results with sinusoidal signal.

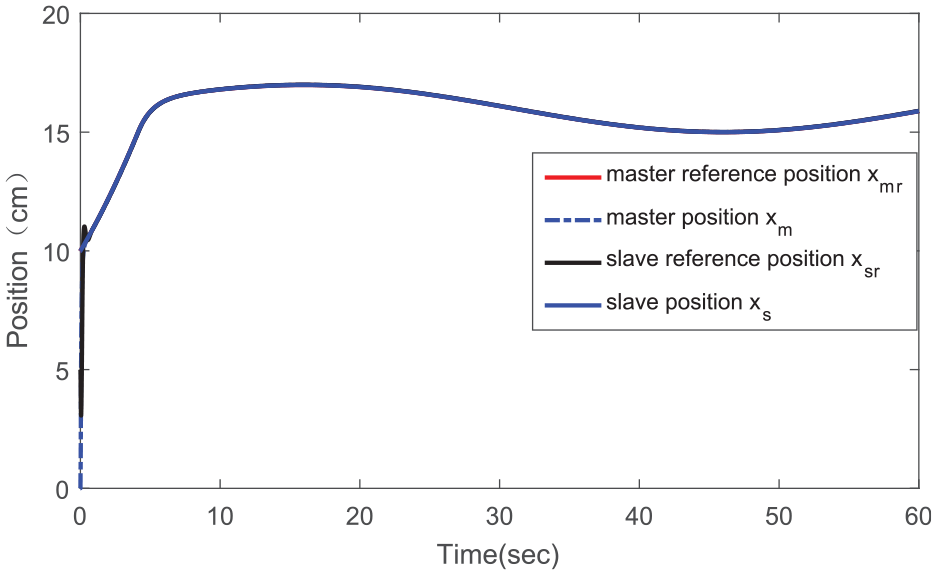

Figure 12.

The position tracking results under Cartesian coordinate with sinusoidal signal.

Figure 13.

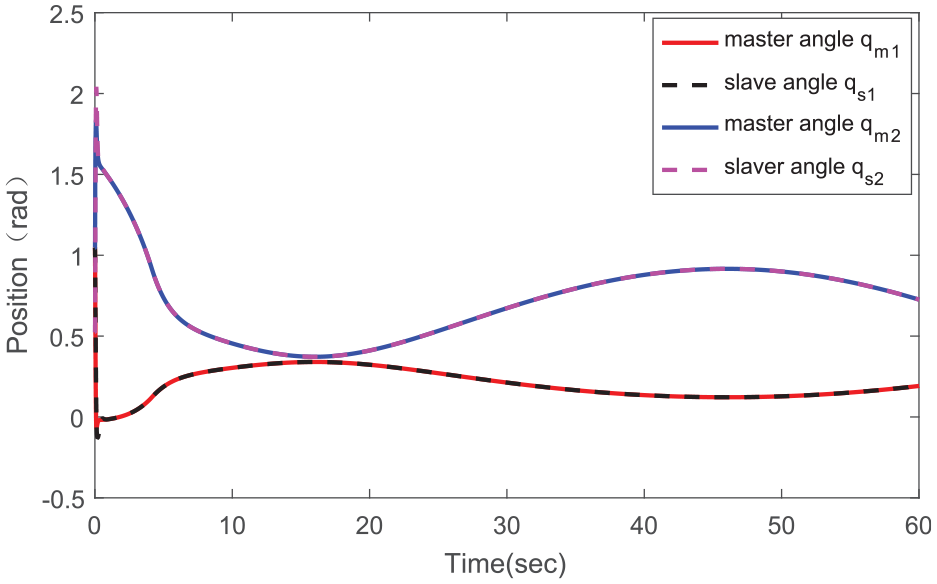

The angular joint tracking results with sinusoidal signal.

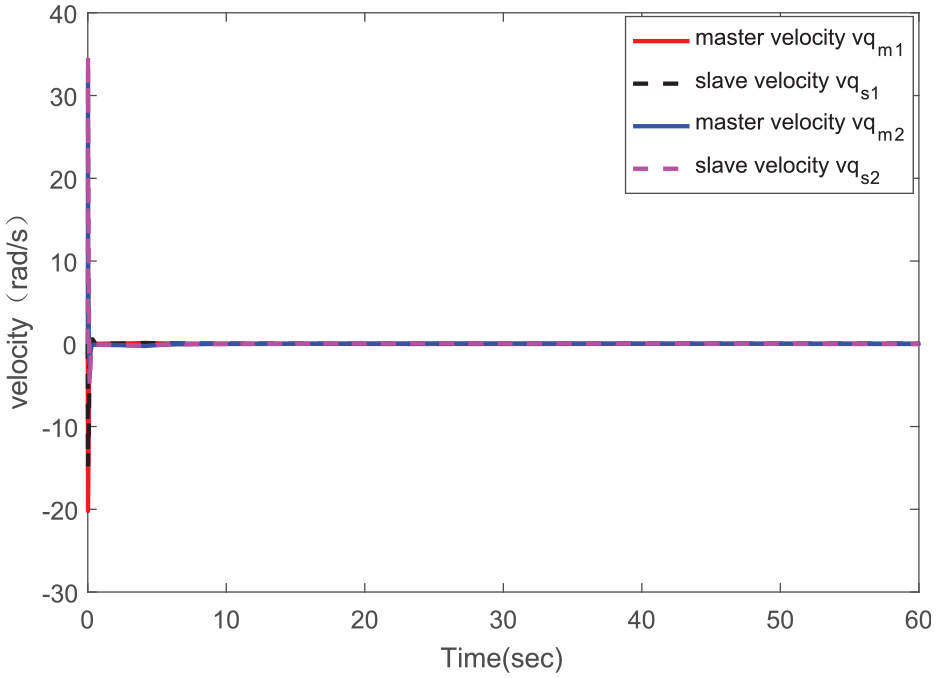

Figure 14.

The angular velocity tracking results with sinusoidal signal.

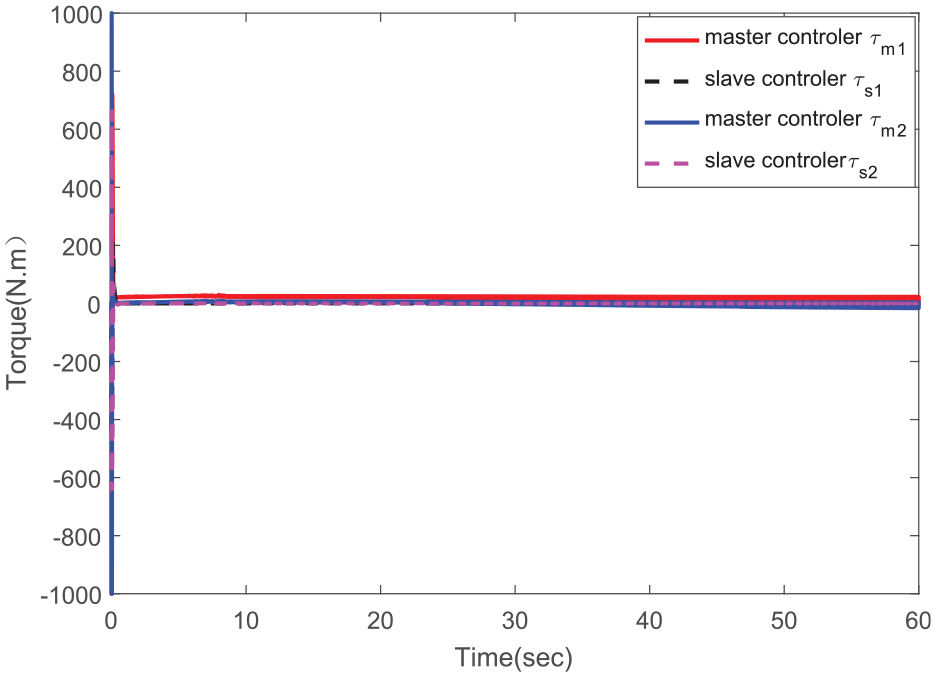

Figure 15.

The controller curves with sinusoidal signal.

Figure 16.

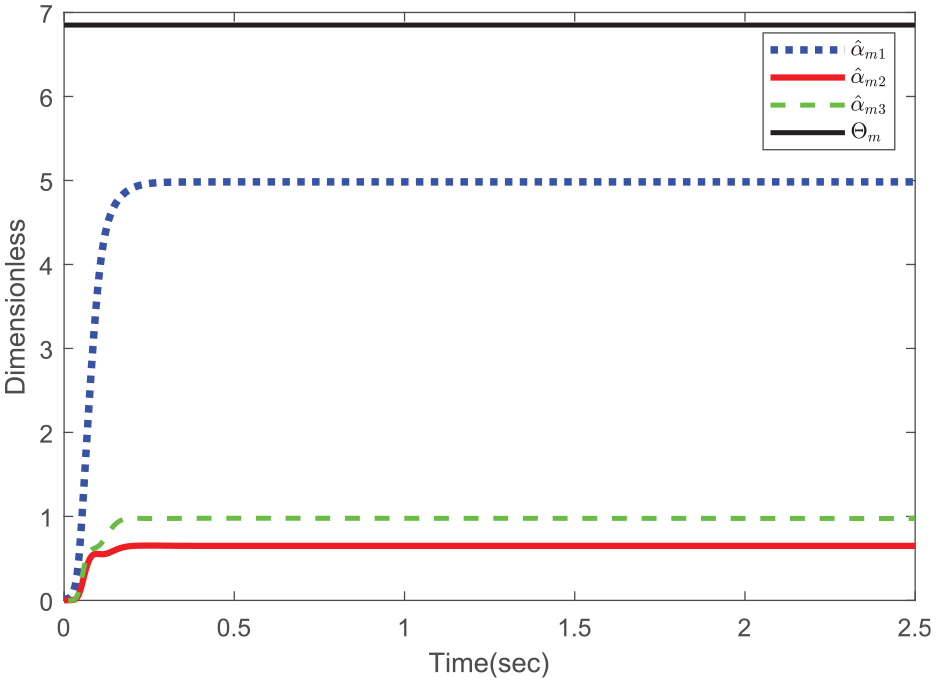

The master adaptive law estimation with sinusoidal signal.

Figure 17.

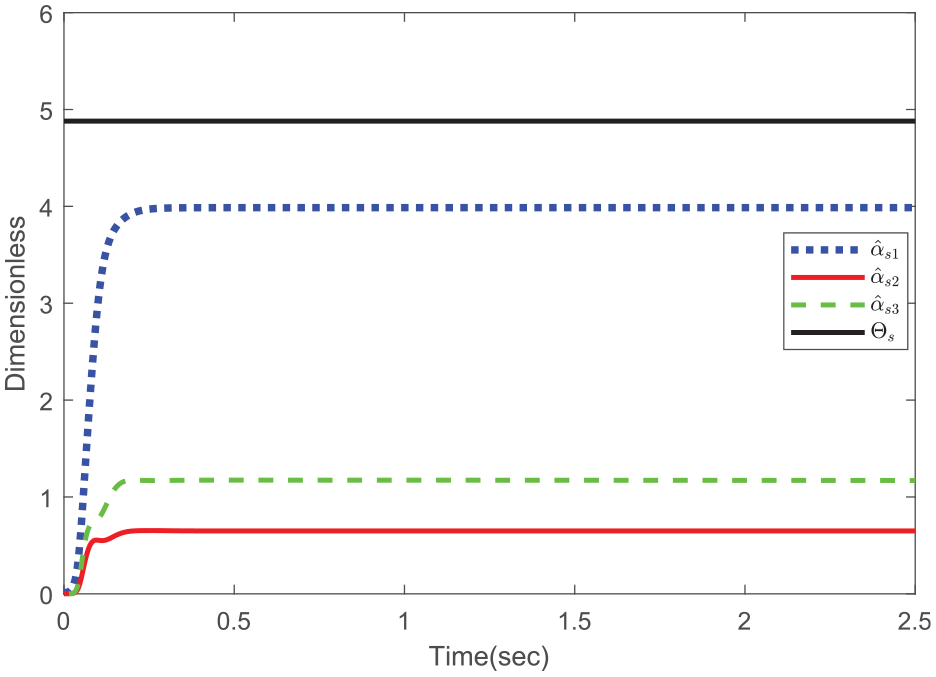

The slave adaptive law estimation with sinusoidal signal.

To verify the effectiveness and reliability of the newly designed approach, a comparison is made with the PD+like scheme as proposed in Ref.⁴⁷ and the model reference adaptive impedance control (MRAIC) as illustrated in Ref.¹⁵ The manipulator dynamics are described by equation (1) and the two-link degree-of-freedom (DOF) serial teleoperation system shown in Figure 3 is subjected to joint friction and external disturbances. A 10 N force is applied in the x-axis direction on the master manipulator, and the force and position responses of the three controllers are recorded and depicted in Figures 18 and 19.

Figure 18.

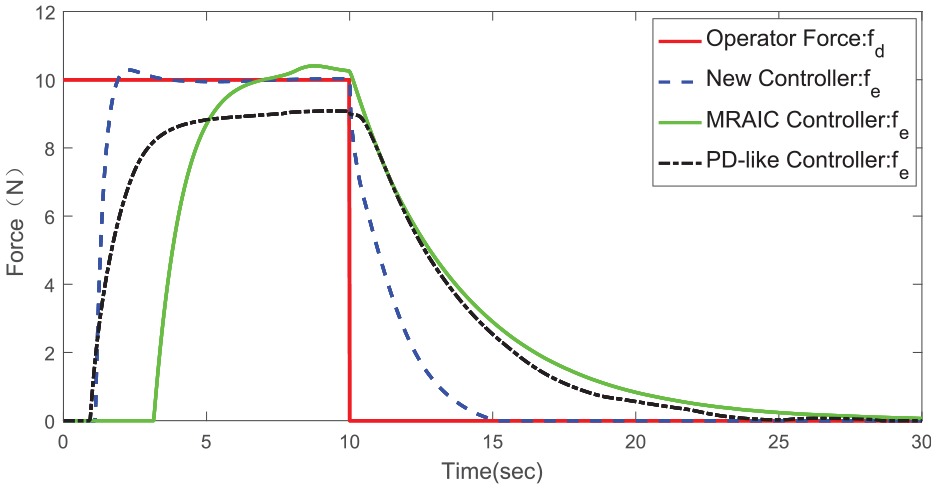

The curves of master and slave force in different controller.

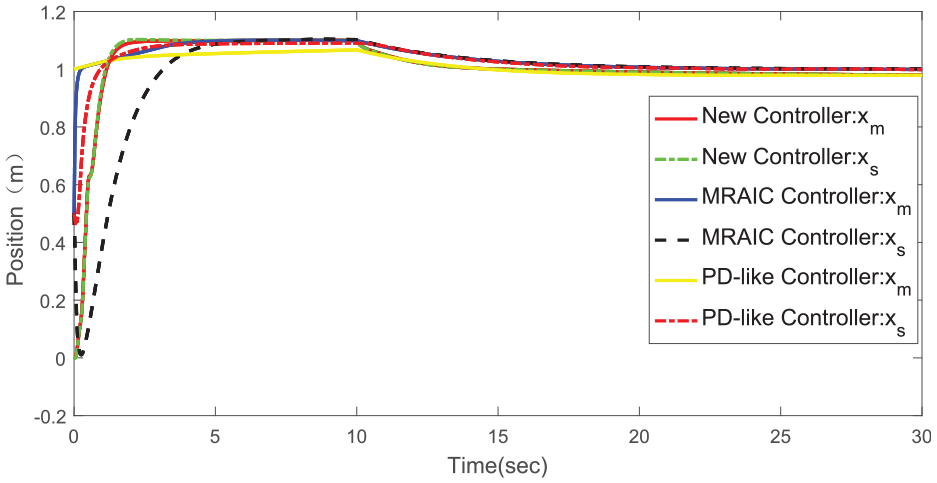

Figure 19.

The curves of master and slave position in different controller.

From Figures 18 and 19 we can conclude that the proposed adaptive control strategy exhibits superior force-position tracking convergence performance compared to the other two controllers, especially in the presence of system uncertainty and external disturbances. The response of the designed approach is with the characteristics of little overshoot and no static errors, and the response shacking is suppressed with the new controller under external disturbances.

Experimental verification

According to the simulation verification above, an effective performance of force and position tracking ability is investigated with the proposed approach. For the further research and verification, a single DOF manipulator teleoperation experimental system is set up with the proposed controller. Similar to the simulation system, the whole structure diagram with the proposed controller is expressed as Figure 20.

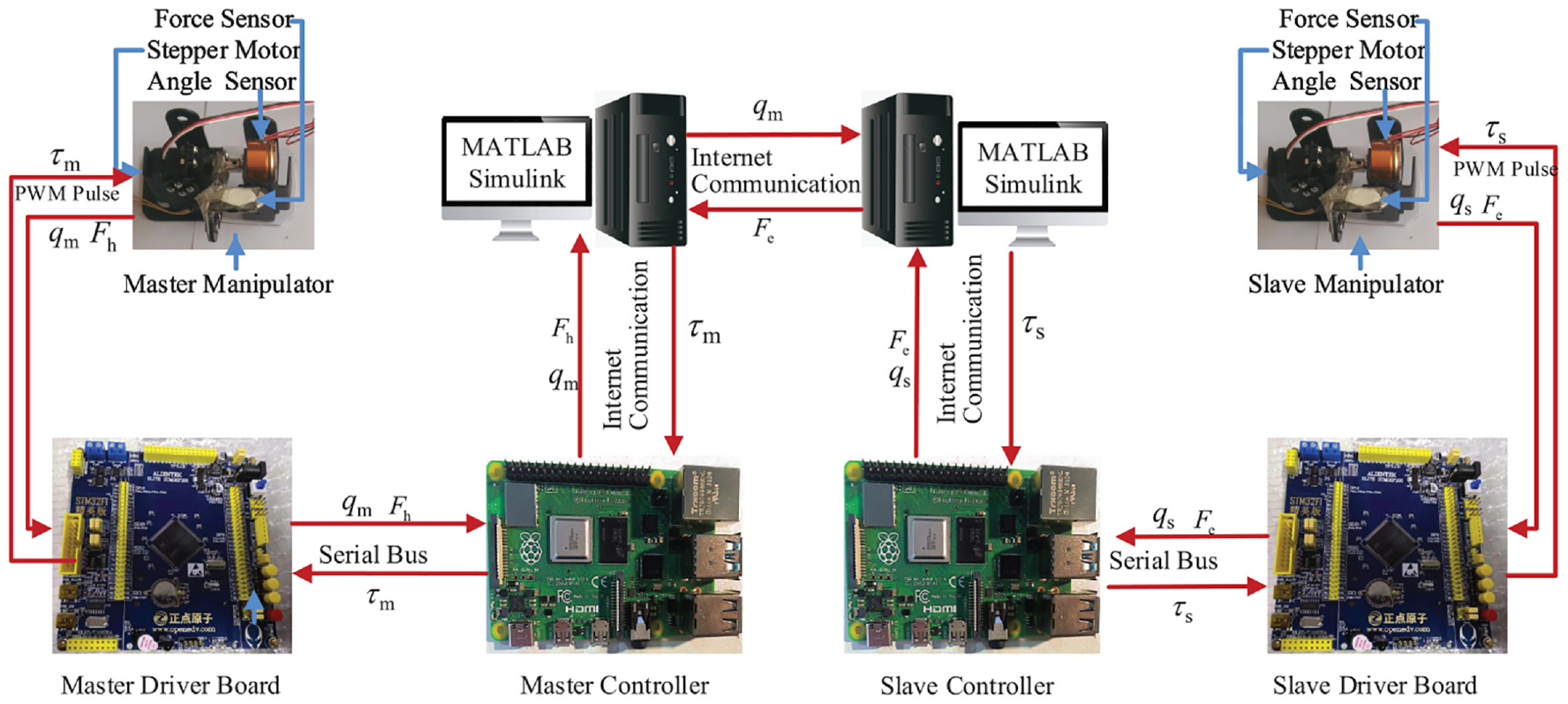

Figure 20.

The experiment setup of single joint teleoperation system.

Both the master and slave manipulators are designed with the same structure. They consist of a single degree-of-freedom(DOF) manipulator driven by a stepper motor to achieve drive torque output. An angle sensor is coaxially connected with the linkage to measure the rotation joint position. Additionally, a piezoelectric film type tactile force sensor is installed at the force sensing point of the linkage end to measure the force exerted by the master operator.

The master driver board is responsible for acquiring the angle and tactile force signals through A/D conversion. It also receives the control law for the master manipulator from the master controller through the serial bus and sends the collected force and position information of the master manipulator back to the master controller through the same serial bus. The master controller is connected to the master host computer via the internet, and it transmits the master force and position signals to the master computer. It also receives the control law from the master host computer, which is then converted into PWM pulse performance and sent to the master driver board for execution. The master host computer mainly runs the Matlab/Simulink platform, which supports the Peter Corke and Haviland’s robot toolbox⁴⁸ and supports the hardware board structure. The hardware support is realized by installing the driver package in the Matlab environment. The Matlab/Simulink platform obtains the master position and force information from the master controller, simultaneously it obtains the slave position and force information from the slave host computer with internet communication. The robot toolbox and the single DOF manipulator model are used to calculate the adaptive impedance control law, and the solution control law is sent to the master controller.

Simultaneously, the Matlab/Simulink platform running on the master computer transmits the master position and force information to the slave host computer via internet communication. Similarly, the slave host computer runs mainly on the Matlab/Simulink platform. It receives the slave position and force information through internet communication from the slave controller. By combining this information with the master position and force information, the slave adaptive law is calculated and transmitted back to the slave controller. At the same time, the slave position and force information are also transmitted to the master host computer.

The slave controller obtains the control law from the slave host computer, and converts it into PWM pulse performance and sends it to the slave driver board. At the same time the slave controller obtains the slave force and position information from the driver board and transmits it to the slave host computer. The slave driver board is responsible for collecting the force and position signals through A/D conversion. It also controls the slave stepper motor using PWM pulse signals. The Matlab/Simulink platform supports the robot toolbox and supports hardware boards such as the Raspberry Pi. Choosing the Raspberry Pi 4B as the controller of the master and slave manipulators, which is equivalent to a microcomputer and it supports network communication and serial communication.

The A/D conversion process is used to obtain force and position signals as shown in Figure 21. We express the force unit in mV instead of N, as the true force value is not required for this experiment. It is important to emphasize that the accuracy and precision of the A/D conversion process are critical to the success of this experiment. Any errors or noise in the A/D conversion process can have a significant impact on the quality of the acquired signals. Therefore, it is imperative to ensure that the A/D converter is correctly calibrated and that the input signal is within the valid input range.

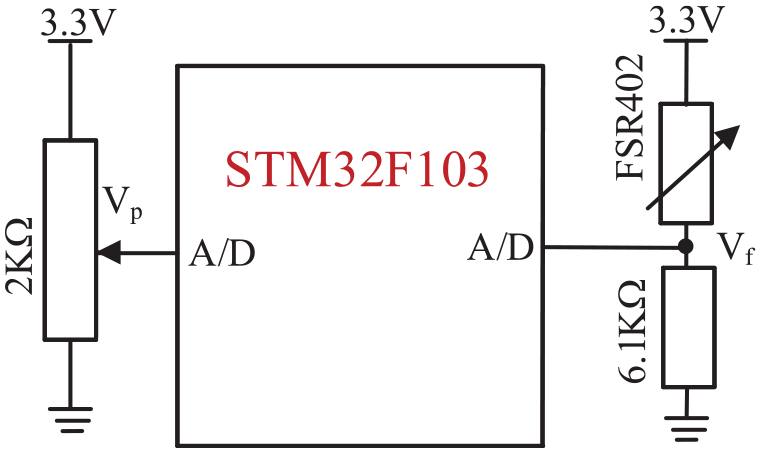

Figure 21.

The measurement principle of force and position signal.

In conclusion, this experiment highlights the use of A/D conversion for force and position signal acquisition using a tactile force sensor and a precision conductive potentiometer. The A/D conversion process’s accuracy and precision are crucial factors for the experiment’s success, and care must be taken to calibrate the A/D converter correctly and ensure a valid input signal.

In order to better display the effect of the experiment, directly sensing the stiffness of operation object and avoiding to block the stepper motor of the slave manipulator with force insufficient contacting the force sensor, the virtual force $f_{e}$ is formulated instead of the real slave operation force measurement. the slave feedback force is considered as the linear function of the slave rotation joint position which is expressed as equation (45). The operation object is seemed as a spring, and the greater the rotation angle, the greater the feedback force. The initial rotation position is 0° and $k_{e}$ is the virtual spring coefficient. As a result, the soft or hard degree can be acquired by operator with different $k_{e}$ .

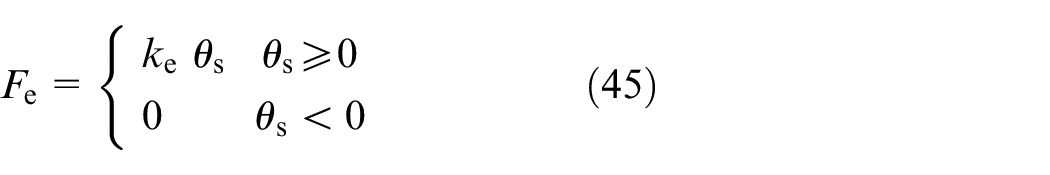

F_{e} = {\begin{matrix} k_{e} θ_{s} θ_{s} \geq 0 \\ 0 θ_{s} < 0 \end{matrix}

(45)

The uncertainty disturbance is added to the dynamic model in the linkage in Matlab/Simulink environment. The direction of the master and slave force denoted as $f_{h}$ and $f_{e}$ changes from time to time with the different rotation angle, as a result, $F_{h}$ and $F_{e}$ in the master and slave desired impedance models equations (8) and (9) can be respectively described as $F_{h} = [f_{h} \cos (θ_{m}); f_{h} \sin (θ_{m})]$ and $F_{e} = [f_{e} \cos (θ_{s}); f_{e} \sin (θ_{s})]$ in MATLAB/Simulink platform. In the experimental process, Exerting the force on the master force sensor on the master end-linkage, Releasing the force and applying the force with several cycles, record the force and position data and plot the diagram demonstrated in Figures 22 to 24. What is more, the virtual spring elasticity coefficient is setting as $k_{e} = 32$ , 52 and 61 mV/° respectively.

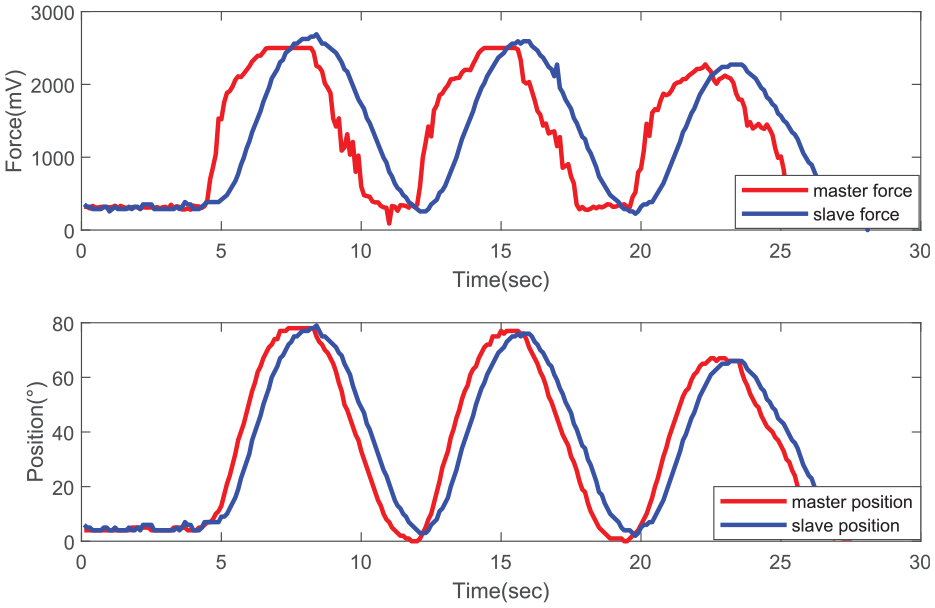

Figure 22.

The force and position tracking curves $(k_{e} = 32 mV / °)$ .

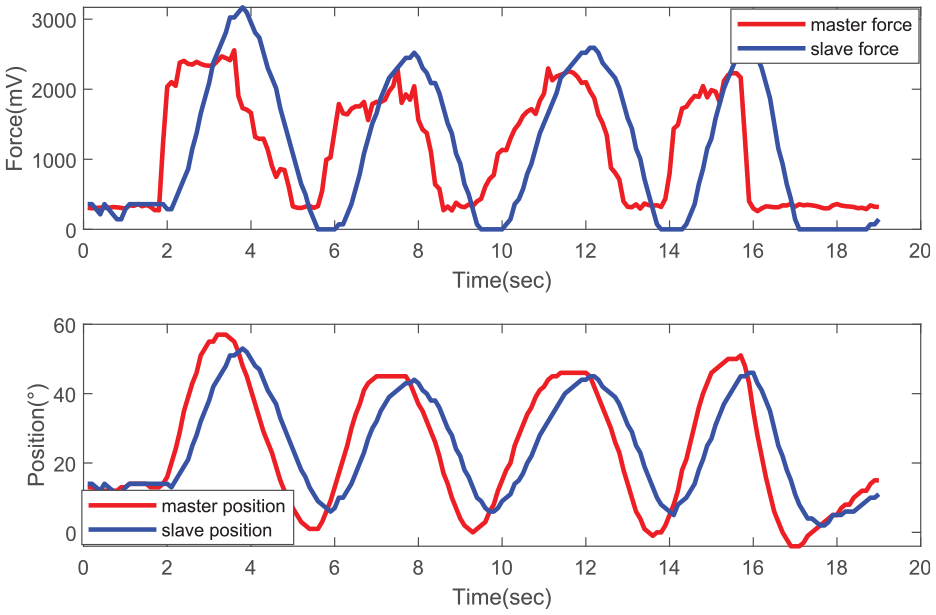

Figure 23.

The force and position tracking curves $(k_{e} = 52 mV / °)$ .

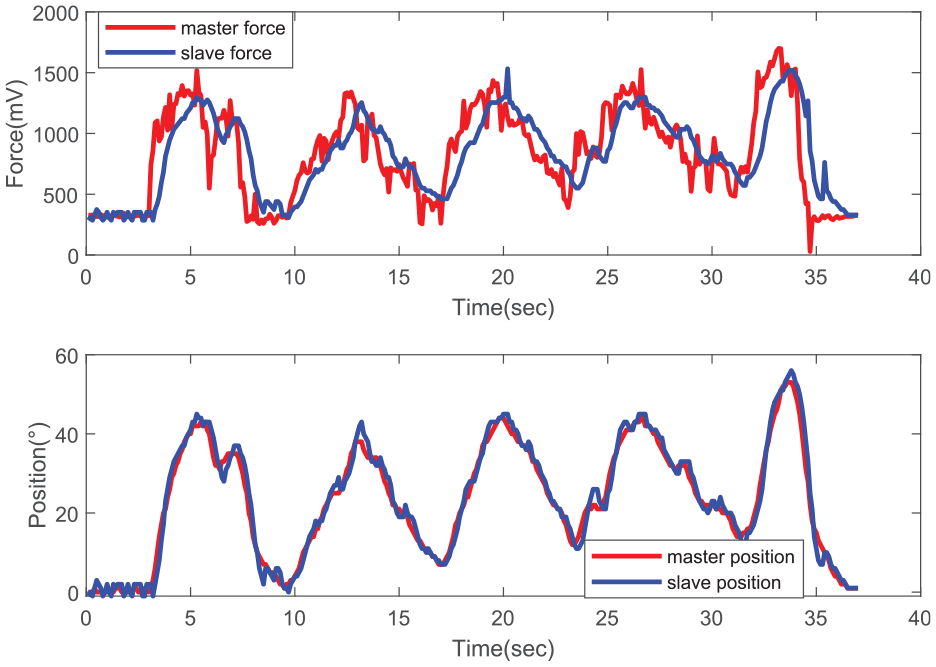

Figure 24.

The force and position tracking curves $(k_{e} = 61 mV / °)$ .

According to Figures 22 to 24, it can be concluded that the force and position asymptotic convergence of the dual manipulators is achieved with the controller under the force periodically applying and releasing on the master manipulator. The response characteristics of the master force tracking and slave position tracking are fast following response and small overshoot. The controller ensures the operator who applying force on the master manipulator can immediately sensor the slave’s operation force. After master force released, the dual manipulators still guarantees the force and position coordinated synchronization and finally the dual manipulators stay at the critical position with the operation object.

It is evident from Figures 22 to 24 that even with an uncertain system model and external disturbances, the overall system maintains the force tracking of the master to the slave manipulator and the position tracking of the slave to the master manipulator. This achievement is attributed to the implementation of the model uncertainty adaptive law and the adaptive law for estimating the upper bound of external interferences, which effectively compensates for both external disturbances and model uncertainties, thus ensuring the robust stability characteristics of the system. The designed control law for the master-slave robotic manipulators ensures consistent synchronous performance in the teleoperation system, and guarantees the system stability and robustness.

According to Figures 22 to 24, the rotation angle range is $0 ° ~ 79 °$ when $k_{e} = 32 mV / °$ , comparatively, the rotation angle range is $0 ° ~ 41 °$ when $k_{e} = 61 mV / °$ with the same maximum tactile force 2500 mV on the master manipulator. The larger the stiffness coefficient, the smaller the rotation angle range, which means the operator can sense the stiffness of the slave operation object with the same master force applying. As a result, the whole experiment verifies the effectiveness of the proposed controller which satisfies the force-position coordinated synchronization of the dual manipulators and the immersion sensing for the slave environment.

Conclusion

To achieve compliant operation of the slave manipulator while compensating for uncertainties in the manipulator model parameters and external disturbances, we propose a novel bilateral model reference adaptive impedance controller that achieves force and position coordinated synchronization. Two robust adaptive controllers are designed to compensate for uncertain errors in the master and slave manipulator models. In the robust adaptive controller process, the adaptive law estimates the upper bound of external disturbances, ensuring the closed-loop dynamics of the master and slave manipulators are consistent with the reference impedance model. The Lyapunov candidate function is employed to prove the tracking performance and global stability. We conduct two degrees of freedom teleoperation simulations with the robust adaptive controllers on the MATLAB/Simulink platform, verifying the force-position tracking asymptotic convergence ability. Finally, a single degree of freedom teleoperation system is set up to verify the designed controller.

The results show that the proposed controller has good force-position tracking performance under the influence of model parameter uncertainties and unknown external disturbances, and the overall system exhibits good stability and strong robustness. The proposed model uncertainty adaptive law and the external interface upper bound estimation adaptive law provide the compensation of the model uncertainty and external disturbance, ensuring the force and position tracking ability and the features of the robustness and stability.

Footnotes

Appendix

The inertia matrix $M_{i} (θ_{i})$ of equation (1) can be formulated as $M_{i} (θ_{i}) = [M_{11} (θ_{i}) M_{12} (θ_{i}); M_{21} (θ_{i}) M_{22} (θ_{i})]$ , where each component is denoted as:

(A.1)

\begin{matrix} M_{11} (θ_{i}) & = (m_{1} + m_{2}) l_{1}^{2} + m_{2} l_{2}^{2} + 2 m_{2} l_{1} l_{2} \cos (θ_{i 2}) \\ M_{12} (θ_{i}) & = m_{2} l_{2}^{2} + m_{2} l_{1} l_{2} \cos (θ_{i 2}) \\ M_{21} (θ_{i}) & = m_{2} l_{2}^{2} + m_{2} l_{1} l_{2} \cos (θ_{i 2}) \\ M_{22} (θ_{i}) & = m_{2} l_{2}^{2} \end{matrix}

The Centripetal and Coriolis matrix $C_{i} (θ_{i}, {\overset{\cdot}{θ}}_{i})$ can be denoted as $C_{i} (θ_{i}, {\overset{\cdot}{θ}}_{i}) = [C_{11} (θ_{i}, {\overset{\cdot}{θ}}_{i}) C_{12} (θ_{i}, {\overset{\cdot}{θ}}_{i}); C_{21} (θ_{i}, {\overset{\cdot}{θ}}_{i}) C_{22} (θ_{i}, {\overset{\cdot}{θ}}_{i})]$ , where each component is denoted as follows:

(A.2)

\begin{matrix} C_{11} (θ_{i}, {\overset{\cdot}{θ}}_{i}) & = - m_{2} l_{1} l_{2} \sin (θ_{i 2}) {\overset{\cdot}{θ}}_{2} \\ C_{12} (θ_{i}, {\overset{\cdot}{θ}}_{i}) & = - m_{2} l_{1} l_{2} \sin (θ_{i 2}) ({\overset{\cdot}{θ}}_{1} + {\overset{\cdot}{θ}}_{2}) \\ C_{21} (θ_{i}, {\overset{\cdot}{θ}}_{i}) & = m_{2} l_{1} l_{2} \sin (θ_{i 2}) {\overset{\cdot}{θ}}_{2} \\ C_{22} (θ_{i}, {\overset{\cdot}{θ}}_{i}) & = 0 \end{matrix}

and also the gravity torques vector $g_{i} (θ_{i}) = [g_{11} (θ_{i 1}); g_{12} (θ_{i 2})]$ are formulated as:

(A.3)

\begin{matrix} g_{1} (θ_{i 1}) & = (m_{1} + m_{2}) l_{1} g \cos (θ_{i 2}) + m_{2} l_{2} g \cos (θ_{1} + θ_{2}) \\ g_{2} (θ_{i 2}) & = m_{2} l_{2} g \cos (θ_{1} + θ_{2}) \end{matrix}

where the gravity acceleration $g = 9.8 N / s^{2}$ . $Y_{m}$ can be denoted as $Y_{m} = [Y_{11} Y_{12} Y_{13}; Y_{21} Y_{22} Y_{23}]$ , and each component is listed as:

\begin{matrix} Y_{11} = {\overset{\cdot\cdot}{θ}}_{m 1} + g \cos (θ_{m 2}) / l_{1} \\ Y_{12} = {\overset{\cdot\cdot}{θ}}_{m 1} + {\overset{\cdot\cdot}{θ}}_{m 2} \\ Y_{13} = 2 {\overset{\cdot\cdot}{θ}}_{m 1} \cos (θ_{m 2}) + {\overset{\cdot\cdot}{θ}}_{m 2} \cos (θ_{m 2}) - {\overset{\cdot}{θ}}_{m 2} {\overset{\cdot}{θ}}_{m 1} \sin (θ_{m 2}) \\ - ({\overset{\cdot}{θ}}_{m 2} + {\overset{\cdot}{θ}}_{m 1}) {\overset{\cdot}{θ}}_{m 2} \sin (θ_{m 2}) + g \cos (θ_{m 2} + θ_{m 1}) / l_{1} \\ Y_{21} = 0 \\ Y_{22} = {\overset{\cdot\cdot}{θ}}_{m 1} + {\overset{\cdot\cdot}{θ}}_{m 2} \\ Y_{23} = {\overset{\cdot}{θ}}_{m 1} {\overset{\cdot}{θ}}_{m 2} \sin (θ_{m 2}) + {\overset{\cdot\cdot}{θ}}_{m 1} \cos (θ_{m 2}) + g \cos (θ_{m 2} + θ_{m 1}) / l_{1} \end{matrix}

The Jacobian matrix $J_{m} (θ_{m})$ in equation (1) is formulated as $J_{m} (θ_{m}) = [J_{11} J_{12}; J_{21} J_{22}]$ , where each component is expressed as below:

\begin{matrix} J_{11} = - l_{1} \sin (θ_{m 1}) - l_{2} \sin (θ_{m 1} + θ_{m 2}) \\ J_{12} = - l_{2} \sin (θ_{m 1} + θ_{m 2}) \\ J_{21} = l_{1} \cos (θ_{m 1}) + l_{2} \cos (θ_{m 1} + θ_{m 2}) \\ J_{22} = l_{2} \cos (θ_{m 1} + θ_{m 2}) \end{matrix}

The elements of the slave Jacobian $J_{s} (θ_{s})$ are the same as those of the master Jacobian $J_{m} (θ_{m})$ . Both the master and slave manipulators are subject to viscous friction and Coulomb friction torque, which are influenced by the internal joint friction. As a result, the terms $F_{m}$ and $F_{s}$ in equation (1) can be considered as functions of joint velocity, and can be expressed respectively as:

(A.4)

F_{m} ({\overset{\cdot}{θ}}_{m}) = [\begin{matrix} F_{m 1} ({\overset{\cdot}{θ}}_{m 1}) \\ F_{m 2} ({\overset{\cdot}{θ}}_{m 2}) \end{matrix}] = [\begin{matrix} 8 {\overset{\cdot}{θ}}_{m 1} + 4 sign ({\overset{\cdot}{θ}}_{m 1}) \\ 8 {\overset{\cdot}{θ}}_{m 2} + 4 sign ({\overset{\cdot}{θ}}_{m 2}) \end{matrix}]

(A.5)

F_{s} ({\overset{\cdot}{θ}}_{s}) = [\begin{matrix} F_{s 1} ({\overset{\cdot}{θ}}_{s 1}) \\ F_{s 2} ({\overset{\cdot}{θ}}_{s 2}) \end{matrix}] = [\begin{matrix} 10 {\overset{\cdot}{θ}}_{s 1} + 6 sign ({\overset{\cdot}{θ}}_{s 1}) \\ 10 {\overset{\cdot}{θ}}_{s 2} + 6 sign ({\overset{\cdot}{θ}}_{s 2}) \end{matrix}]

where the unit of $F_{m}$ and $F_{s}$ is $N \cdot m$ . The external bounded uncertain disturbance torques $d_{m}$ and $d_{s}$ in equation (1) are assumed to be functions of time $t$ , and can be expressed as:

(A.6)

d_{m} = [\begin{matrix} d_{m 1} \\ d_{m 2} \end{matrix}] = [\begin{matrix} 1.2 \sin (t) \\ 1.2 \sin (t) \end{matrix}]

(A.7)

d_{s} = [\begin{matrix} d_{s 1} \\ d_{s 2} \end{matrix}] = [\begin{matrix} 2 \sin (t) \\ 2 \sin (t) \end{matrix}]

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by Key Scientific Research Projects of University in Henan Province(No.24B413003), The Basic Research Business Fund Special Project of Henan Polytechnic University(No. NSFRF230434), Natural Science Foundation of Henan (No.232300421152) and Henan Province Scientific and Technological Project of China (Nos.232102240036, 232102220030, 232102240103 and 232102211004).

ORCID iDs

Jianjun Zhang

Zhonghua Wu

Data availability statement

Data sharing not applicable to this article as no datasets were generated or analyzed during the current study.

References

Sivčev

Coleman

Omerdić

, et al. Underwater manipulators: a review. Ocean Eng 2018; 163: 431–450.

Huang

Bian

Cai

, et al. A review on visual servoing for underwater vehicle manipulation systems automatic control and case study. Ocean Eng 2022; 260: 1–15.

Chen

Zhang

. Design of synchronization tracking adaptive control for bilateral teleoperation system with time-varying delays. Sensors 2022; 22(20): 7798.

Liu

Wang

, et al. Adaptive control of teleoperation systems with prescribed tracking performance: a blf-based approach. Int J Control 2022; 95(6): 1600–1610.

Zhang

Liu

, et al. Neural-network-based adaptive control for bilateral teleoperation with multiple slaves under round-robin scheduling protocol. Int J Control 2021; 94(6): 1461–1474.

Bejczy

Bozyil

Vaičekauskas

, et al. Mixed reality interface for improving mobile manipulator teleoperation in contamination critical applications. Procedia Manuf 2020; 51: 620–626.

Huang

. Robust control of two-link manipulator with disturbance torque and time-varying mass loads. Trans Inst Meas Contr 2020; 42(9): 1667–1674.

Zhang

Song

, et al. Adaptive finite-time control scheme for teleoperation with time-varying delay and uncertainties. IEEE Trans Syst Man Cybern Syst 2022; 52(3): 1552–1566.

Cheng

Duan

Liu

, et al. Numerical study on hydrodynamic performance of underwater manipulator in the subcritical region. Ocean Eng 2022; 262: 1–17.

10.

Zhang

, et al. Human–robot collaboration for on-site construction. Autom Constr 2023; 150: 1–11.

11.

Kinaci

Bayezit

Reyhanoglu

. A practical feedforward speed control system for autonomous underwater vehicles. Ocean Eng 2020; 218: 1–11.

12.

Bao

Wang

Liu

. Finite-time synchronization control for bilateral teleoperation systems with asymmetric time-varying delay and input dead zone. IEEE/ASME Trans Mechatron 2020; 26(3): 1570–1580.

13.

Ban

Zhang

, et al. Adaptive control of time delay teleoperation system with uncertain dynamics. Front Neurorobot 2022; 16: 1–15.

14.

Zhu

Chen

, et al. Graphical force and haptic feedback teleoperation system for live power lines maintaining robot. In: 2019 IEEE International conference on mechatronics and automation (ICMA), 2019, pp.2565–2570. New York: IEEE.

15.

Sharifi

Salarieh

Behzadipour

, et al. Tele-echography of moving organs using an impedance-controlled telerobotic system. Mechatronics 2017; 45: 60–70.

16.

Sharifi

Behzadipour

Salarieh

, et al. Assist-as-needed policy for movement therapy using telerobotics-mediated therapist supervision. Control Eng Pract 2020; 101: 1–19.

17.

Chopra

Spong

Lozano

. Synchronization of bilateral teleoperators with time delay. Automatica 2008; 44(8): 2142–2148.

18.

Zhang

Wang

. (2020) Task-space adaptive control of bilateral teleoperators with time-varying delay. In: 2020 39th Chinese Control Conference (CCC), 2020, pp.4586–4591.

19.

Liu

Chopra

. Control of semi-autonomous teleoperation system with time delays. Automatica 2013; 49(6): 1553–1565.

20.

Nuño

Ortega

Basañez

. An adaptive controller for nonlinear teleoperators. Automatica 2010; 46(1): 155–159.

21.

Liu

Tavakoli

. Adaptive inverse dynamics four-channel control of uncertain nonlinear teleoperation systems. Adv Robot 2011; 25(13-14): 1729–1750.

22.

Tan

Zhang

, et al. Toward unified adaptive teleoperation based on damping ZNN for robot manipulators with unknown kinematics. IEEE Trans Ind Electron 2023; 70(9): 9227–9236.

23.

Gong

Wang

Mou

, et al. Improved four-channel PBTDPA control strategy using force feedback bilateral teleoperation system. Int J Control Autom Syst 2022; 20(3): 1002–1017.

24.

Islam

Sunda-Meya

. Robust sliding mode based finite-time bilateral shared teleoperation system with unsymmetrical time-varying delay. In: IECON 2022C48th Annual Conference of the IEEE Industrial Electronics Society, October 2022, pp.1–6. New York: IEEE.

25.

Aboutalebian

Talebi

Etedali

, et al. Adaptive control of teleoperation system based on nonlinear disturbance observer. Eur J Control 2020; 53: 109–116.

26.

Yang

, et al. Adaptive synchronization control of multimanipulator teleoperation system under constrained discrete?time network communication. Int J Robust Nonlinear Control 2023; 33(3): 1807–1820.

27.

Huang

, et al. Cooperative manipulation of deformable objects by single-leader–dual-follower teleoperation. IEEE Trans Ind Electron 2022; 69(12): 13162–13170.

28.

Zhai

Xia

. Adaptive fuzzy control of multilateral asymmetric teleoperation for coordinated multiple mobile manipulators. IEEE Trans Fuzzy Syst 2016; 24(1): 57–70.

29.

Chen

Huang

Yang

, et al. Adaptive fuzzy backstepping control for stable nonlinear bilateral teleoperation manipulators with enhanced transparency performance. IEEE Trans Ind Electron 2020; 67(1): 746–756.

30.

Kebria

Khosravi

Nahavandi

, et al. Adaptive type-2 fuzzy neural-network control for teleoperation systems with delay and uncertainties. IEEE Trans Fuzzy Syst 2020; 28(10): 2543–2554.

31.

Wang

Sun

Liang

. Synchronization control for bilateral teleoperation system with position error constraints: A fixed-time approach. ISA Trans 2019; 93: 125–136.

32.

Hua

Wang

Yang

, et al. Force feedback control for bilateral teleoperation system with unknown prandtl-ishlinskii hysteresis. J Franklin Inst 2020; 357(13): 8321–8341.

33.

Cho

Park

. Stable bilateral teleoperation under a time delay using a robust impedance control. Mechatronics 2005; 15(5): 611–625.

34.

Sharifi

Behzadipour

Salarieh

, et al. Cooperative modalities in robotic tele-rehabilitation using nonlinear bilateral impedance control. Control Eng Pract 2017; 67: 52–63.

35.

Yang

Hua

, et al. Finite-time output-feedback synchronization control for bilateral teleoperation system via neural networks. Inf Sci 2017; 406-407: 216–233.

36.

Dehghan

SAM

Koofigar

Sadeghian

, et al. Observer-based adaptive force–position control for nonlinear bilateral teleoperation with time delay. Control Eng Pract 2021; 107: 1–10.

37.

Frutuoso Barroso

. Broadband optical wireless communications for the teleoperation of mining equipment. Doctoral dissertation, Laurentian University of Sudbury, 2017.

38.

Zhang

Liu

Gao

, et al. The master adaptive impedance control and slave adaptive neural network control in underwater manipulator uncertainty teleoperation. Ocean Eng 2018; 165: 465–479.

39.

Bandala

West

Monk

, et al. Vision-based assisted tele-operation of a dual-arm hydraulically actuated robot for pipe cutting and grasping in nuclear environments. Robotics 2019; 8(2): 42–24.

40.

Sharifi

Behzadipour

Vossoughi

. Nonlinear model reference adaptive impedance control for human–robot interactions. Control Eng Pract 2014; 32: 9–27.

41.

Hua

Yang

Guan

. Neural network-based adaptive position tracking control for bilateral teleoperation under constant time delay. Neurocomputing 2013; 113(3): 204–212.

42.

Kana

Tee

Campolo

. Human–robot co-manipulation during surface tooling: a general framework based on impedance control, haptic rendering and discrete geometry. Robot Comput Integr Manuf 2021; 67: 1–18.

43.

Garate

Gholami

Ajoudani

. A scalable framework for multi-robot tele-impedance control. IEEE Trans Robot 2021; 37(6): 2052–2066.

44.

Zhang

Wang

Wen

. Sliding-mode control for teleoperation system with uncertain kinematics and dynamics: an observer-based approach. J Franklin Inst 2023; 360: 8300–8319.

45.

Mazare

Tolu

Taghizadeh

. Adaptive variable impedance control for a modular soft robot manipulator in configuration space. Meccanica 2022; 57: 1–15.

46.

Zakerimanesh

Hashemzadeh

Torabi

, et al. A cooperative paradigm for task-space control of multilateral nonlinear teleoperation with bounded inputs and time-varying delays. Mechatronics 2019; 62: 1–16.

47.

Liu

Khong

. Nonlinear bilateral teleoperators with non-collocated remote controller over delayed network. Mechatronics 2017; 45: 25–36.

48.

Corke

Haviland

. Not your grandmothers toolboxCthe robotics toolbox reinvented for python. In: 2021 IEEE international conference on robotics and automation (ICRA), May 2021, pp.11357–11363. New York: IEEE.

The nonlinear model reference adaptive impedance control for underwater manipulator operation objects in bilateral teleoperation system

Abstract

Keywords

Introduction

System formation

The overall control scheme

The controller design and stability proof

The controller design

The stability proof

Simulation verification

The physical parameters and system parameters

Simulation

Experimental verification

Conclusion

Footnotes

Appendix

Declaration of conflicting interests

Funding

ORCID iDs

Data availability statement

References
