Observer-based adaptive ISMC for connected vehicles against cyber-attacks

Abstract

This paper concentrates on decentralized variable structure adaptive integral sliding mode control (ISMC) for connected vehicles (CV) against cyber-attacks. First of all, a novel vehicle leader-follower model is established by jointly considering the cyber-attacks which involve replay attack and DoS attack simultaneously. Secondly, a decentralized control scheme is designed on the basis of the variable structure observer and adaptive integral sliding mode technique. The Lyapunov-Razumikhin method is adopted such that the state estimation error of CV system is asymptotically converged to zero, which can overcome the replay attack, DoS attack, and measurement delays, then a corrective signal is designed for the deception attack to eliminate the influence of deception attack on the CV system. Furthermore, the robust asymptotic stability of CV system is guaranteed by exploiting the emerging technique of robust control for time-delay systems. Meanwhile, the string stability of CV is guaranteed, even under the condition of heterogeneous vehicles. Finally, extensive simulations are conducted to verify the theoretical analysis and demonstrate the effectiveness and superiority of the proposed method.

Introduction

With the rapid development of urbanization, the volume of automobiles has increased remarkably, which brings significant convenience to life, but meanwhile unprecedentedly aggravates the issues of road congestion, environmental pollution, traffic accidents, etc. It is imperative to develop Intelligent Transportation Systems (ITS) to manage the vehicle traffic more effectively. Among all the ITS paradigms, the Connected vehicles (CV) system has been attracting wide attention from both academia and industry. CV empowers the vehicles on the road to communicate and cooperate with each other through wireless sensor networks, and drive safely and independently with a small inter-vehicle distance, thus effectively reducing fuel consumption, improving traffic safety and increasing traffic throughput. As a result, CV is becoming one of the most important trends in the research field of ITS.^1,2

In the CV control design, there are two issues that need to be specially considered, namely, individual vehicle stability and string stability. The stability of individual vehicle refers to that the relative distance and relative velocity of all adjacent vehicles should be close to the equilibrium state, and it is also the stability condition that most tracking control systems must meet.^3–9 String stability is a special problem of CV, which mainly solves the problem of tracking error propagation along the string of vehicles. Up to now, string stability has received significant research attention from different aspects. The readers can refer to Feng et al. ⁷ to better outline the research work of string stability. For string stability under variable spacing strategy, no inter-vehicle communication is required. On the contrary, this paper focuses on CV control scheme based on constant spacing (CS) policy. A smaller inter-vehicle distance in this scheme means more stringent requirements for string stability. For instance, Wu et al. ⁸ proposed a pulse control method for an uncertain second-order homogeneous CV system under CS strategy. Wang et al. ⁹ considered the CV control problem with time delay, obtained the maximum time delay and guaranteed the string stability. A distributed sliding mode control framework was designed which supports multiple information flow topologies to guarantee the string stability. ¹⁰

It is worth noting that most of the existing works about CV systems generally assume that the communication networks are secure all the time. However, due to the openness of the wireless network, it is difficult to ensure the security of CV communication based on wireless sensor network. Various cyber-attacks widely exist in the communication network. These malicious attacks on CV may cause personal privacy leakage, significantly reduce cooperative control performance, even lead vehicle out of control and paralyze the entire CV system, leading to major public security problems.^11,12 Typical cyber-attacks on CV can be divided into replay attack, denial-of-service (DoS) attack, and deception attack. The replay attack is implemented in two stages: (1) In the incubation period, the attacker monitors and stores the transmitted data packets through the communication channel without injecting malicious information into the CV; (2) The attacker manipulates the CV by repeatedly sending recorded data to change the signal from the controller, resulting in vehicle rear-end or platoon disintegration.^13,14 DoS attack aims to interfere with the communication channels and isolate information exchange between vehicles. From a technical point of view, DoS attack can destroy the radio frequency on the wireless channel through malicious programs to consume communication bandwidth leading to channel congestion and cutoff of the information interaction between the execution device and the controller.^15,16 Deception attack is a behavior that destroys the integrity of the control layer by modifying the system data, thus enabling the system to perform what attackers expect. Successful deception attacks usually require the attackers to have sufficient understanding of the information transmitted in real time through the communication channel.^17,18

Up to date, cyber-attacks that corrupt control and measurement signals of CV system can be disguised as disturbances or control behavior, and researchers have studied this from different aspects. For example, Liu et al. ¹⁹ suggested the change of communication topology caused by DoS attack, and studied the consensus of multi-agent systems under replay attack and DoS attack. Xiao et al. ²⁰ investigated the distributed adaptive CV control problem for automatic vehicle security based on vehicular ad-hoc networks with intermittent DoS attack. Mousavinejad et al. ²¹ studied the autonomous platoon control problem under DoS attack, which described the attack as the delay and packet loss, and further designed a resilient controller to guarantee the stability of the system. Biroon et al. ²² developed an observer-based diagnostic algorithm to detect and isolate the replay attack, and the stability of CV can be achieved. Zhao et al. ²³ also designed an attack detection framework, which can realize the safe driving by estimation and prediction when the vehicle cannot obtain the complete state information. Debruhl et al. ²⁴ extended the attack detection strategy based on sensor-based proportional differential link and communication feedforward link to real-time switching control strategy in the presence of cyber-attacks. As far as we know, how to design a controller that can effectively suppress the gradual amplification of interference along a string of vehicles with cyber-attacks while ensuring individual stability still remains as an open and challenging problem.

In this research, observer-based adaptive integral sliding mode controller for CVs is designed based on the CS strategy. Furthermore, the corresponding individual stability and string stability in the presence of cyber-attacks are theoretically analyzed. The main contributions of this article are summarized as follows.

1. A variable structure observer is proposed, and an optional boundary layer observer strategy is provided. The CV state under cyber-attacks combined with measurement delay is estimated. Based on the analysis of system performance, the expression of system state error is derived, and it is proved that the state error of CV is always asymptotically convergent for cyber-attacks.

2. An adaptive ISMC strategy based on an improved variable structure observer is designed to solve the security problem of CV under cyber-attacks. The uncertainty caused by cyber-attacks is accurately compensated from the initial time, and the asymptotic stability of CV system can be guaranteed according to the conditions derived from Lyapunov-Razumikhin functions.

The rest of this article is arranged as follows. In Section II, the structure of CV system is briefly described, followed by the control model considering cyber-attacks. In Section III, the adaptive ISMC algorithm derived from variable structure observer is proposed for CV system with cyber-attacks and measurement delay. Section IV gives the sufficient conditions for CV control algorithms which achieve individual stability and string stability. Numerical simulation results are provided in Section V. Section VI concludes the paper.

System model and problem formulation

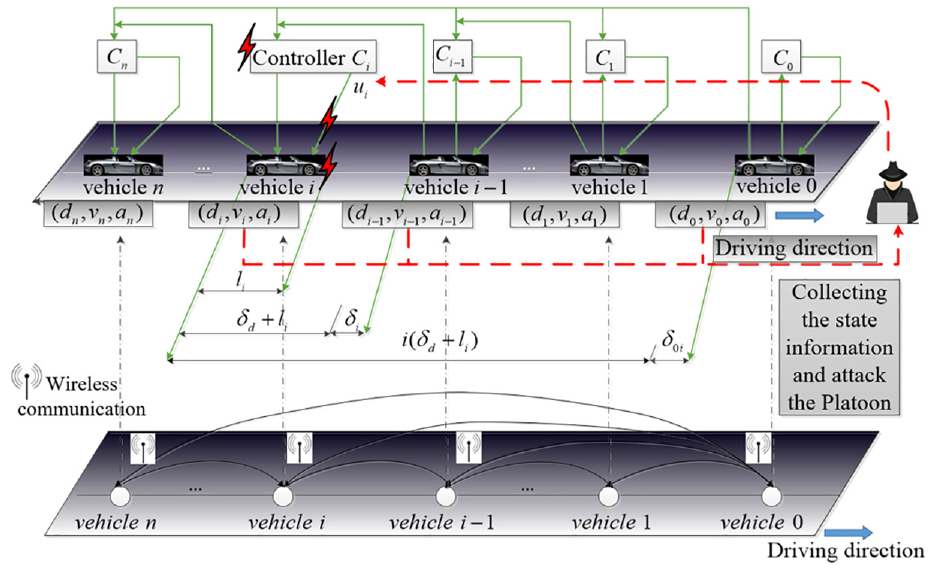

This article studies an CV system composed of n + 1 vehicles, as shown in Figure 1, where i = 0 represents the leading vehicle which periodically broadcasts its state signals (including position, velocity, and acceleration) to the i-th vehicle via wireless network. The distance of neighboring vehicles are measured by radar. The position, velocity, and acceleration of all vehicles in the CV system can be measured by GPS, magnetic encoder, and accelerometer, respectively. Hereinafter, the CV dynamics, cyber-attacks, and our objectives will be detailed in turn.

Figure 1.

CV system structure.

CV modeling

The tracking error between two adjacent vehicles can be defined as

$${\delta }_i(t)=d_{i-1}(t)-d_i(t)-{\delta }_d-l_i$$

(1)

where $d_i$ and $d_{i-1}$ are the position of i-th vehicle and (i−1)-th vehicle, respectively, ${\delta }_d$ is the ideal distance, $l_i$ is the length of the vehicle, and $d_0$ represents the leader’s position.

The distance error for the i-th following vehicles with the lead vehicle is defined as

$${\delta }_{0i}(t)=d_0(t)-d_i(t)-i({\delta }_d+l_i)$$

(2)

According to (1) and (2), one can get

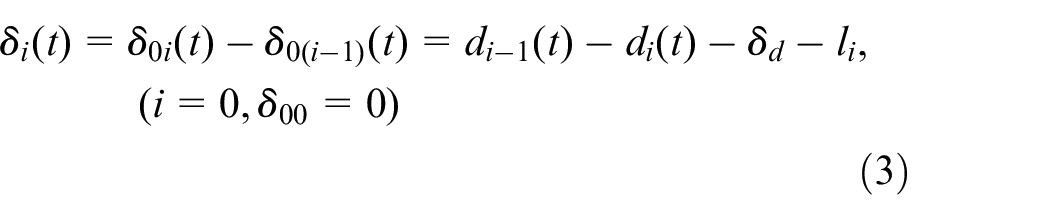

$$\begin{array}{c}{\delta }_i(t)={\delta }_{0i}(t)-{\delta }_{0(i-1)}(t)=d_{i-1}(t)-d_i(t)-{\delta }_d-l_i,\hfill \\ (i=0,{\delta }_{00}=0)\hfill \end{array}$$

(3)

According to the nonlinear model described in Refs,^25–27 the i-th vehicle and (i−1)-th vehicle can be jointly modeled as

$${\stackrel{·}{\delta }}_i(t)=v_{i-1}(t)-v_i(t)$$

(4a)

$${\stackrel{·}{v}}_i(t)=a_i(t)$$

(4b)

$${\stackrel{·}{a}}_i(t)=f_i(v_i,a_i)+c_i/{\varsigma }_i{m}_i$$

(4c)

where $v_{i-1}(t)$ and $v_i(t)$ denotes the velocity of (i−1)-th vehicle and i-th vehicle, respectively, ${\varsigma }_i$ , $m_i$ , and $a_i(t)$ is engine time constant, the mass, and the acceleration of i-th vehicle, respectively, $c_i$ denotes the engine input, the nonlinear term $f_i(v_i,a_i)$ is given as

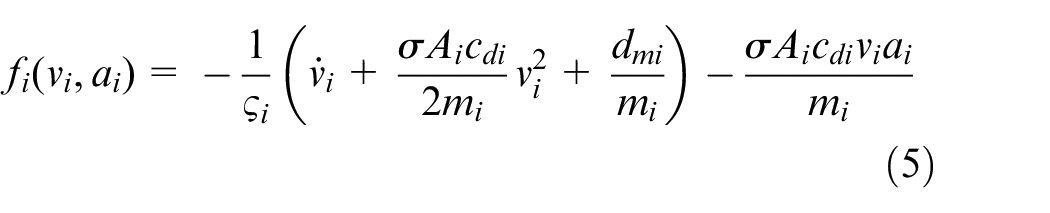

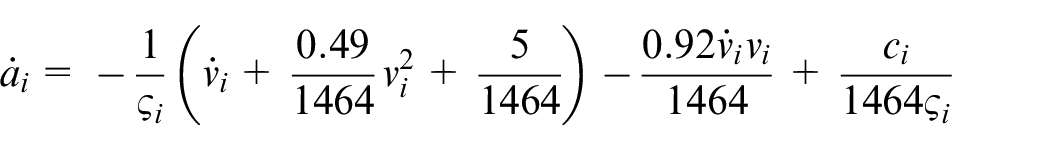

$$f_i(v_i,a_i)=-\frac{1}{{\varsigma }_i}({\stackrel{·}{v}}_i+\frac{\sigma A_i{c}_{\mathrm{di}}}{2m_i}{v}_i^2+\frac{d_{\mathrm{mi}}}{m_i})-\frac{\sigma A_i{c}_{\mathrm{di}}{v}_i{a}_i}{m_i}$$

(5)

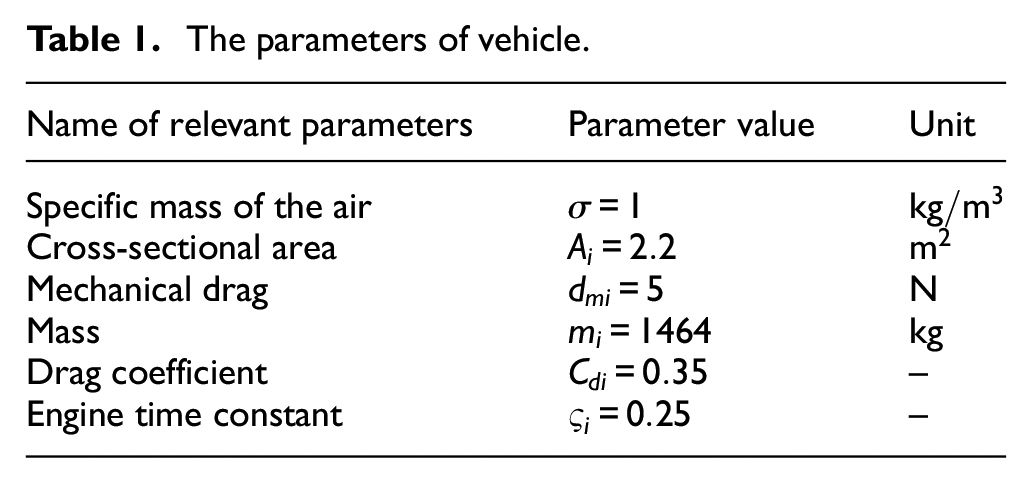

where $\sigma$ represents the specific mass of the air, $A_i$ , $c_{\mathrm{di}}$ , and $d_{\mathrm{mi}}$ denotes the cross-sectional area, drag coefficient, and mechanical drag of the i-th vehicle, respectively.

After introducing feedback linearization technique

$$c_i=u_i{m}_i+\sigma A_i{c}_{\mathrm{di}}{v}_i^2/2+d_{\mathrm{mi}}+{\varsigma }_i\sigma A_i{c}_{\mathrm{di}}{v}_i{a}_i$$

(6)

the equation (4c) becomes

$${\stackrel{·}{a}}_i(t)=-\frac{1}{{\varsigma }_i}{a}_i(t)+\frac{1}{{\varsigma }_i}{u}_i(t)$$

(7)

where $u_i(t)$ represents the additional control input, which is designed to make CV system to meet certain criterion.

• Remark 1. The feedback linearization technique is used to convert the complex nonlinear models into linear so that the controller design can be better achieved, the engine input in (4c) plays the role of the first-layer controller in our architecture, and the additional control input in (7) is the new input signal to be designed after linearization. After excluding some characteristic parameters from its dynamics the system model is simplified.

Define the state variable as $x_i(t)={\left[\begin{array}{cccc}{\delta }_i(t)\hfill & {\stackrel{·}{\delta }}_i(t)\hfill & {\stackrel{·}{\delta }}_{0i}(t)\hfill & {\stackrel{··}{\delta }}_{0i}(t)\hfill \end{array}\right]}^T$ . We can get the equation of CV system in the following form:

$${\stackrel{·}{x}}_i(t)=A_{1i}{x}_i(t)+A_{2i}{x}_{i-1}(t)+B_i{u}_i(t)$$

(8a)

$$y_i(t)=C_i{x}_i(t)$$

(8b)

where

$$\begin{array}{c}{A}_{1i}=\left[\begin{array}{cccc}0\hfill & 1\hfill & 0\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill & 1\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill & 1\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill & -1/{\varsigma }_i\hfill \end{array}\right],A_{2i}=\left[\begin{array}{cccc}0\hfill & 0\hfill & 0\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill & -1\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill & 0\hfill \end{array}\right],\hfill \\ B_i=\left[\begin{array}{c}0\hfill \\ \multicolumn{1}{c}{0}\\ \multicolumn{1}{c}{0}\\ \multicolumn{1}{c}{-1/{\varsigma }_i}\end{array}\right],C_i=\left[\begin{array}{cccc}1\hfill & 1\hfill & 0\hfill & 1\hfill \end{array}\right].\hfill \end{array}$$

The general controller structure for CV is designed as follows

$$u_i(t)=f_i(x_i(t))+{\mathbb{C}}_i(t)$$

(9)

Obviously, the structure of the controller is based on the combination of state variables, ${\delta }_i(t)$ can be measured by onboard sensors, and ${\delta }_{0i}(t)$ are obtained through wireless communication channel. ${\mathbb{C}}_i(t)$ is a corrective signal that suppresses or counteracts the effect of deception attack.

Effect of cyber-attacks

We study the presence of an adversary scenario, which aims to manipulate data transmitted over wireless networks to destroy the stability of CV. The general cyber-attacks including replay attacks, DoS attacks, and deception attacks. In the following, we will analyze what impact each of the attacks will has on the CV.

Replay attack

Replay attack refers to a malicious behavior that the attacker can obtain all the control information transmitted in the communication channel during the incubation period, and then repeat the input using the non-current input information, thus becoming a malicious act that interferes with or destroys the normal transmission of information between CV. We consider two common modes of replay attack, as in Ge et al., ¹⁵ namely, pseudo-value replay attack and truth-value replay attack, as shown in Figure 2 with $t_{\mathrm{in}}$ indicating the length of incubation period. In order to successfully launch attacks and reduce the probability of being detected, the data error between the starting position and the adjacent points should be as small as possible, namely, $|f_i^r(x_i(t))$ $-f_i(x_i(t+{\Delta }_t)|\le \Delta$ as the start point of attack, where $f_i^r(·)$ represents the attack data collected by the attacker, $f_i(·)$ denotes the health data when no replay attack occurs, ${\Delta }_t$ is a sufficiently small time length and satisfies ${\Delta }_t\ge 0$ , and $\Delta$ stands for a sufficiently small normal number.

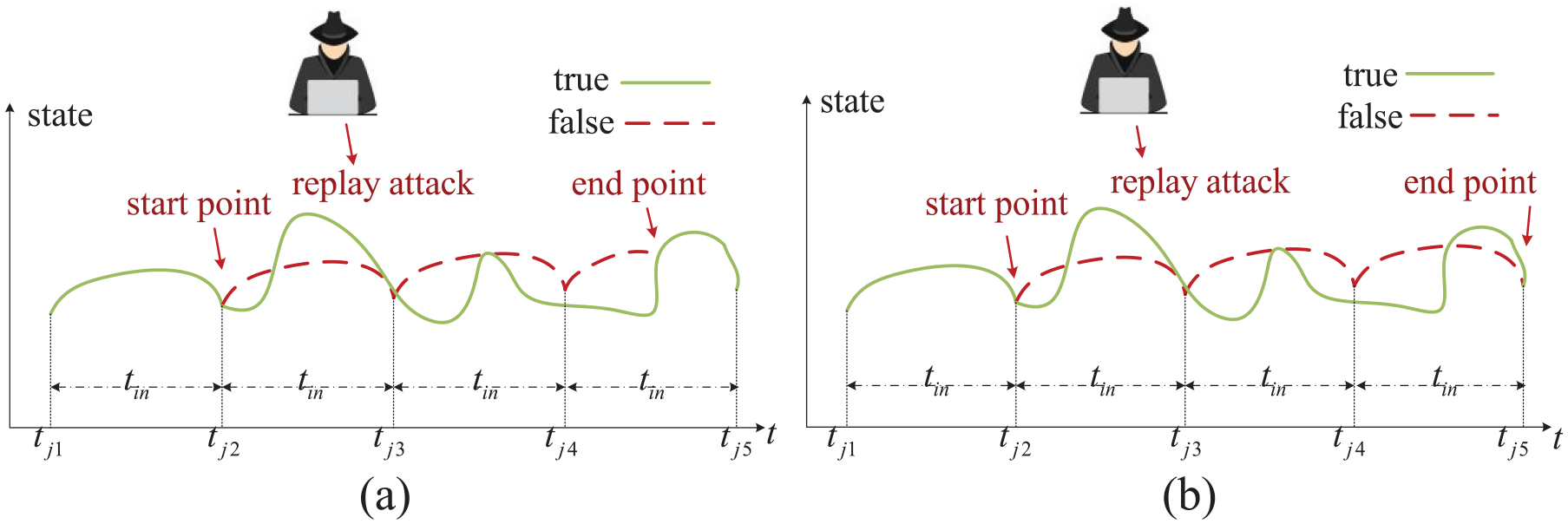

Figure 2.

(a) Pseudo-value replay attack and (b) truth-value replay attack.

The real-time value at the end of the pseudo-value replay attack is not equal to the attack value, meanwhile the real-time value at the end of the truth-value replay attack is equal to the attack values, which are described as follows

End point of the pseudo-value replay attack satisfies

$$|f_i^r(x_i(t+t_{\mathrm{in}}))-f_i(x_i(t+t_{\mathrm{in}}))|<\Delta .$$

(10a)

End point of the truth-value replay attack satisfies

$$|f_i^r(x_i(t+t_{\mathrm{in}}))-f_i(x_i(t+t_{\mathrm{in}}))|=0$$

(10b)

When replay attack occurs, the controller can be transformed into

$$u_i^r(t)=f_i(x_i(t))+p_i{f}_i^r(x_i(t_{\mathrm{in}}))=u_i(t)+p_i\Delta u_i^r(t_{\mathrm{in}}),$$

(11)

where $u_i^r(t)$ represents the input affected by replay attack, $p_i$ stands for the number of replay attack, and $\Delta u_i^r(t_{\mathrm{in}})$ is the attack data.

DoS attack

DoS attack is a malicious attack that makes the controller unable to provide services, which is one of the common attacks and destruction for hackers. DoS attack can cause the control loop to be disconnected and the controller cannot get feedback information in time, so that the CV system is out of control, and the final performance becomes bad or even collapses. During DoS attack, there is neither sending nor receiving information in the communication channel.

The intermittent DoS attack, as shown in Figure 3, and the DoS interval and Non-DoS interval can be formulated as

$$U_i^{\mathrm{dos}}={\cup }_{\mathrm{ij}}\{u_{\mathrm{ij}}^{\mathrm{dos}}+{\tau }_{\mathrm{ij}},u_{i(j+1)}^{\mathrm{dos}}\}$$

(12a)

$$U_i^{\mathrm{nor}}={\cup }_{\mathrm{ij}}\left\{u_{\mathrm{ij}}^{\mathrm{dos}}\right\}\cup [u_{\mathrm{ij}}^{\mathrm{dos}},u_{\mathrm{ij}}^{\mathrm{dos}}+{\tau }_{\mathrm{ij}})$$

(12b)

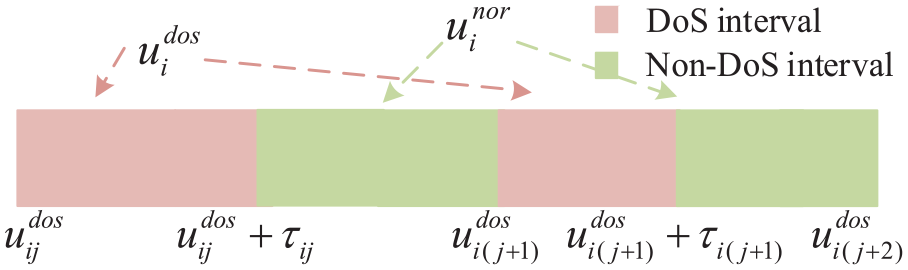

Figure 3.

Denial-of service attack.

where ${\tau }_{\mathrm{ij}}$ denotes the j-th DoS duration time of the i-th vehicle, $u_i^{\mathrm{dos}}$ represents the control input with DoS attack, and $u_i^{\mathrm{nor}}$ represents the normal control input.

The control signals grabbed by the attacker are described as

$${\overline{u}}_i^{\mathrm{dos}}={\mathrm{\Gamma }}_{\mathrm{ui}}{f}_i(x_i(t))$$

(13)

where ${\mathrm{\Gamma }}_{\mathrm{ui}}\in \{0,1\}$ is used to indicate whether it is attacked by DoS, “1” represents successful DoS attack, and “0” indicates the inverse case.

However, DoS occurs randomly in most cases. Therefore, the DoS attack model can be modeled as

$$u_i^{\mathrm{dos}}=f_i(x_i(t))-P\{{\mathrm{\Gamma }}_{\mathrm{ui}}=1\}{f}_i(x_i(t))=u_i(t)-{\alpha }_i{u}_i(t)$$

(14)

where $P\{{\mathrm{\Gamma }}_{\mathrm{ui}}=1\}={\alpha }_i$ with ${\alpha }_i\in [0,1)$ denotes the probability of successful DoS attack, $P\{{\mathrm{\Gamma }}_{\mathrm{ui}}=0\}={\overline{\alpha }}_i$ with ${\overline{\alpha }}_i=1-{\alpha }_i$ , which represents the probability that information is transmitted safely from the controller to the actuator. When ${\alpha }_i=0$ , DoS attack did not occur.

Deception attack

Deception attack means that the attacker monitors the communication information of the system, maliciously and secretly adds the attack signal to the system information, and sends the attack data and real data together through the shared network, thereby reducing and deteriorating the performance of the CV system. Suppose ${\varphi }_{\mathrm{ia}}(a_i(t))$ represents the malicious attacker injected attack signal on the controller. The deception attack in the i-th vehicle is parameterized by setting $\varphi (a_i(t))={\psi }_i^T(t){\phi }_i(x_i(t))$ , where ${\psi }_i^T(t)$ is an unknown time-varying weighting matrix and ${\phi }_i(x_i(t))$ is a nonlinear function with a known structure and with $x_i(t)$ . When the CV system is attacked, the compromised input signal can be expressed as

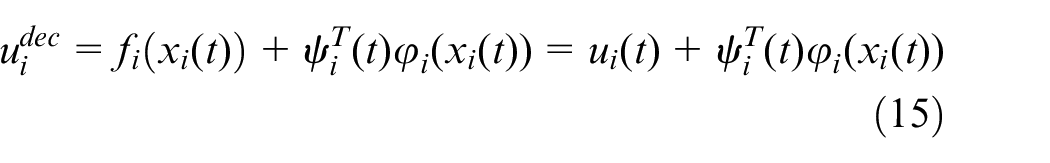

$$u_i^{\mathrm{dec}}=f_i(x_i(t))+{\psi }_i^T(t){\phi }_i(x_i(t))=u_i(t)+{\psi }_i^T(t){\phi }_i(x_i(t))$$

(15)

• Remark 2. The form of attack can be basically expressed in the above three forms. It is worth noting that the attacks on the system come from the malicious intervention of hackers on information artificially and initiatively, with the ultimate purpose of destroying the stability of the CV system, which can be described as a special form of disturbance but different from the general disturbance is random and without subjective. In the actual CV system, the effect of attack is difficult to obtain accurately, and further research is needed to achieve accurate prevention effect.

System model transformation

Further considering a more realistic vehicle model with measurement delay, and combined with attack models (11), (14), and (15), CV system (8) can be converted to the following form

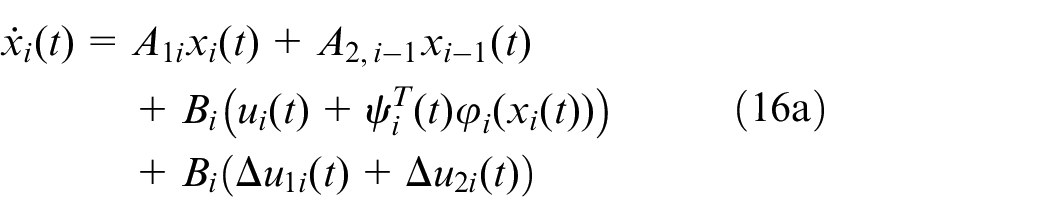

$$\begin{array}{c}{\stackrel{·}{x}}_i(t)=A_{1i}{x}_i(t)+A_{2,i-1}{x}_{i-1}(t)\hfill \\ +B_i(u_i(t)+{\psi }_i^T(t){\phi }_i(x_i(t)))\hfill \\ +B_i(\Delta u_{1i}(t)+\Delta u_{2i}(t)\hfill \end{array}$$

(16a)

$$y_i^d(t)=C_i{x}_i(t-{\delta }_{\mathrm{yi}}(t))$$

(16b)

where $\Delta u_{1i}(t)=p_i\Delta u_i^r(t_{\mathrm{in}})$ , $\Delta u_{2i}(t)=-{\alpha }_i{u}_i(t)$ , ${\delta }_{\mathrm{yi}}(t)$ represents the time-varying delay with ${\delta }_{\mathrm{ym}}\le {\delta }_{\mathrm{yi}}(t)\le {\delta }_{\mathrm{yM}}$ , ${\delta }_{\mathrm{ym}}$ and ${\delta }_{\mathrm{yM}}$ denotes the lower and upper bound of delay, respectively. Note that for the convenience of description, we use $x_i$ instead of $x_i(t)$ .

• Remark 3. It should be noted that when $p_i=0$ , no replay attack occurred. When $P\{{\mathrm{\Gamma }}_{\mathrm{ui}}=1\}={\alpha }_i=0$ , DoS attack will not be successfully launched. If ${\varphi }_{\mathrm{ia}}(a_i(t))=0$ , it means that the attacker did not launch a deception attack.

The CV in (16) is a coupled system, that is, the state information of the i-th vehicle is related to that of the (i−1)-th vehicle. In order to design a decentralized controller and improve the practicability of the control method, the inclusion principle in Xu et al. ²⁸ and Stankovic et al. ²⁹ is used to decouple the coupling system (16). Then, the following extended equation can be obtained

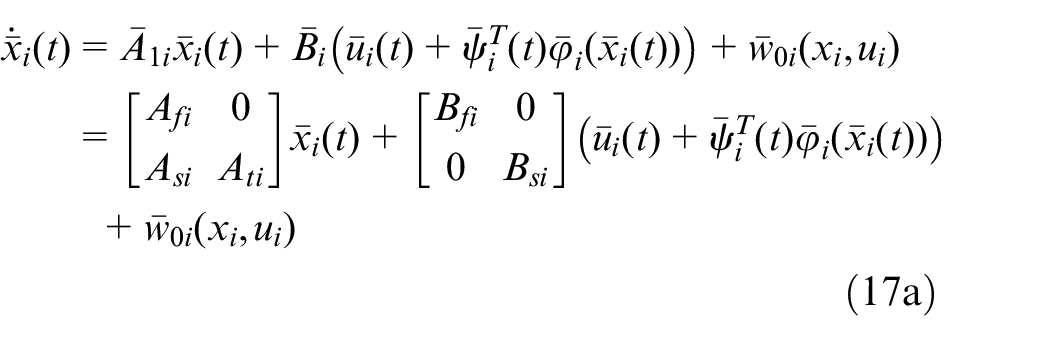

$$\begin{array}{c}\multicolumn{1}{c}{{\stackrel{·}{\overline{x}}}_i(t)={\overline{A}}_{1i}{\overline{x}}_i(t)+{\overline{B}}_i({\overline{u}}_i(t)+{\overline{\psi }}_i^T(t){\overline{\phi }}_i({\overline{x}}_i(t)))+{\overline{w}}_{0i}(x_i,u_i)}\\ =\left[\begin{array}{cc}{A}_{\mathrm{fi}}\hfill & 0\hfill \\ \multicolumn{1}{c}{A_{\mathrm{si}}}& A_{\mathrm{ti}}\hfill \end{array}\right]{\overline{x}}_i(t)+\left[\begin{array}{cc}{B}_{\mathrm{fi}}\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& B_{\mathrm{si}}\hfill \end{array}\right]({\overline{u}}_i(t)+{\overline{\psi }}_i^T(t){\overline{\phi }}_i({\overline{x}}_i(t)))\hfill \\ +{\overline{w}}_{0i}(x_i,u_i)\hfill \end{array}$$

(17a)

$${\overline{y}}_i(t)={\overline{C}}_i{\overline{x}}_i(t-{\delta }_{\mathrm{yi}}(t))$$

(17b)

where ${\overline{x}}_i(t)={\left[\begin{array}{cccccc}{\stackrel{·}{\delta }}_{0(i-1)}\hfill & {\stackrel{··}{\delta }}_{0(i-1)}\hfill & {\delta }_i\hfill & {\stackrel{·}{\delta }}_i\hfill & {\stackrel{·}{\delta }}_{0i}\hfill & {\stackrel{··}{\delta }}_{0i}\hfill \end{array}\right]}^T$ represents the state vector of i-th vehicle. ${\overline{u}}_i(t)={\left[\begin{array}{cc}{u}_{i-1}(t)\hfill & u_i(t)\hfill \end{array}\right]}^T$ is control vector, ${\overline{\psi }}_i^T$ is an unknown weighted matrix, and ${\Vert {\overline{\psi }}_i\Vert }_F\le {\stackrel{⌣}{\psi }}_i$ , ${\overline{\phi }}_i(x_i(t))$ is an unknown nonlinear function.

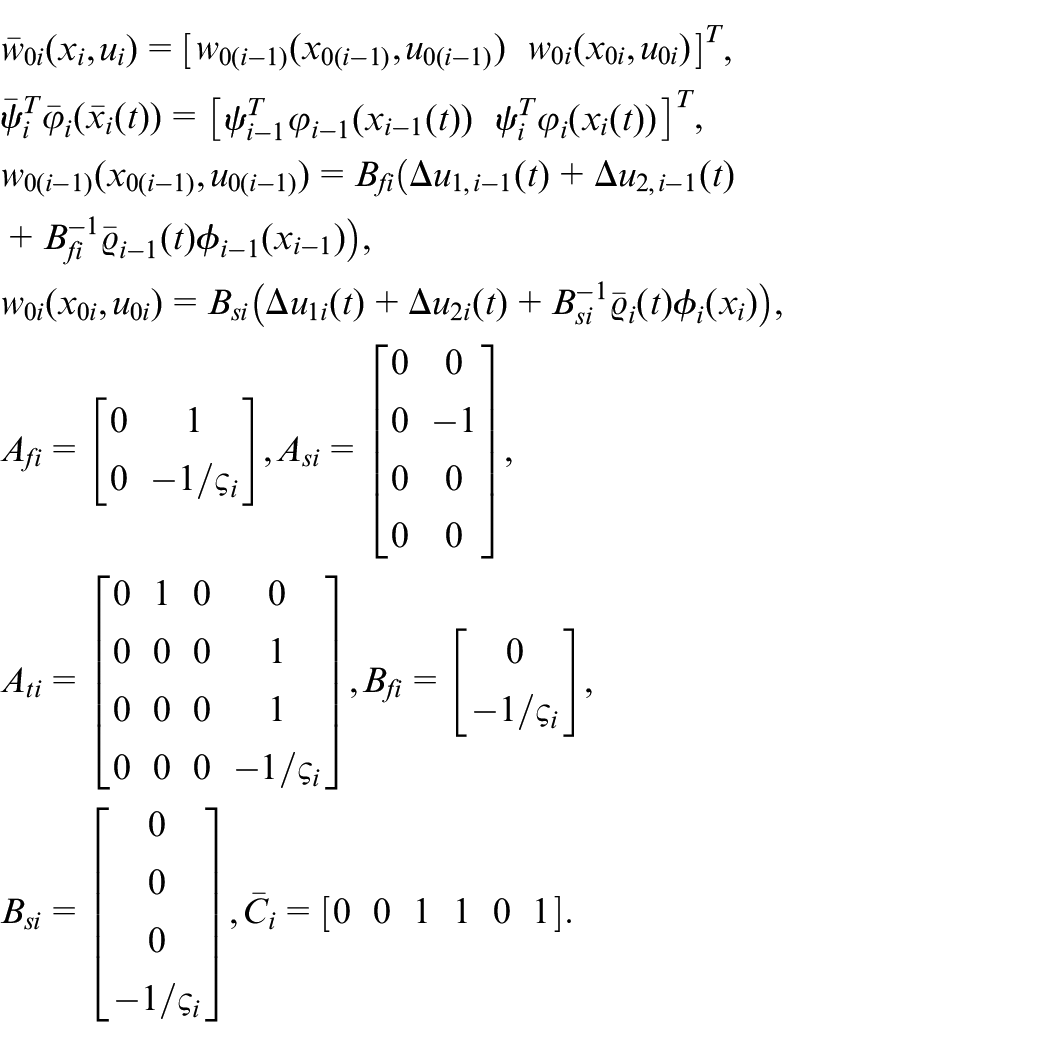

$$\begin{array}{l}{\overline{w}}_{0i}(x_i,u_i)={\left[\begin{array}{cc}{w}_{0(i-1)}(x_{0(i-1)},u_{0(i-1)})& w_{0i}(x_{0i},u_{0i})\end{array}\right]}^T,\\ {\overline{\psi }}_i^T{\overline{\phi }}_i({\overline{x}}_i(t))={\left[\begin{array}{cc}{\psi }_{i-1}^T{\phi }_{i-1}(x_{i-1}(t))& {\psi }_i^T{\phi }_i(x_i(t))\end{array}\right]}^T,\\ w_{0(i-1)}(x_{0(i-1)},u_{0(i-1)})=B_{fi}(\Delta u_{1,i-1}(t)+\Delta u_{2,i-1}(t)\\ +B_{fi}^{-1}{\overline{\varrho }}_{i-1}(t){\varphi }_{i-1}(x_{i-1}))\\ w_{0i}(x_{0i},u_{0i})=B_{si}\left(\Delta u_{1i}(t)+\Delta u_{2i}(t)+B_{si}^{-1}{\overline{\varrho }}_i(t){\varphi }_i(x_i)\right),\\ A_{fi}=\left[\begin{array}{cc}0& 1\\ 0& -1/{\varsigma }_i\end{array}\right],A_{si}=\left[\begin{array}{cc}0& 0\\ 0& -1\\ 0& 0\\ 0& 0\end{array}\right],\\ A_{ti}=\left[\begin{array}{cccc}0& 1& 0& 0\\ 0& 0& 0& 1\\ 0& 0& 0& 1\\ 0& 0& 0& -1/{\varsigma }_i\end{array}\right],B_{fi}=\left[\begin{array}{c}0\\ -1/{\varsigma }_i\end{array}\right],\\ B_{si}=\left[\begin{array}{c}0\\ 0\\ 0\\ -1/{\varsigma }_i\end{array}\right],{\overline{C}}_i=\left[\begin{array}{cccccc}0& 0& 1& 1& 0& 1\end{array}\right].\end{array}$$

${\overline{w}}_{0i}(x_i,u_i)$ can be parameterized as ${\overline{w}}_i(x_i,u_i)=P_i^{-1}{J}_i^T(h_i(x_i,u_i)+g_i(x_i,u_i))$ , where $P_i$ denotes a positive definite symmetric matrix, $J_i=\left[\begin{array}{cccccc}0\hfill & 0\hfill & 0\hfill & 0\hfill & 0\hfill & 1\hfill \end{array}\right]$ . $h_i(x_i,u_i)$ , and $g_i(x_i,u_i)$ are functions, satisfying $\Vert h_i(x_i,u_i)\Vert \le {\rho }_i(t,u_i)$ , and $\Vert g_i(x_i,u_i)\Vert \le {\chi }_i(t,u_i)$ . ${\rho }_i$ , and ${\chi }_i$ are positive scalar valued functions.

• Remark 4. The inclusion principle is used to re-model the system to improve the practicability of the system (17), as the coupled model (16) is difficult to analyze and deduce later.

The objective

The object of the research is to propose a decentralized adaptive integral sliding mode controller, so that the CV system can satisfy the following requirements.

1. The CV system satisfies uniform ultimate boundedness under the proposed controller.

2. String Stability: Spacing error will not propagate and enlarge along the string of vehicles, namely, $\Vert {\delta }_i(s)/{\delta }_{i-1}(s)\Vert \le 1$ , where ${\delta }_i\left(s\right)$ is the Laplace transform of ${\delta }_i\left(t\right)$ .

• Remark 5. Different from previous studies,^19–24 which only consider system stability under different attacks, this paper analyze the string stability of CV, which can effectively suppress the gradual amplification of interference along a string of vehicles with cyber-attacks.

Observer design

In this section, a variable structure observer is constructed to estimate the vehicle states under cyber-attacks and measurement delays.

Variable structure observer design

Define $\widehat{\overline{x_i}}(t)$ as the estimation of the state ${\overline{x}}_i(t)$ . Then a Luenburger-type observer based on the extended state can be designed in the following form

$$\begin{array}{c}\stackrel{·}{\widehat{{\overline{x}}_i}}(t)={\overline{A}}_{1i}{\hat{\overline{x}}}_i(t)+{\overline{B}}_i({\overline{u}}_i(t)+{\overline{\psi }}_i^T(t){\overline{\phi }}_i({\overline{x}}_i(t)))\hfill \\ +w_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})+L_i({\overline{y}}_i(t)-{\overline{C}}_i{\hat{\overline{x}}}_i(t-{\delta }_{\mathrm{yi}}(t)))\hfill \end{array}$$

(18a)

$${\hat{\overline{y}}}_i(t)={\overline{C}}_i{\hat{\overline{x}}}_i(t-{\delta }_{\mathrm{yi}}(t))$$

(18b)

where $L_i$ denotes the observer gain to be designed,

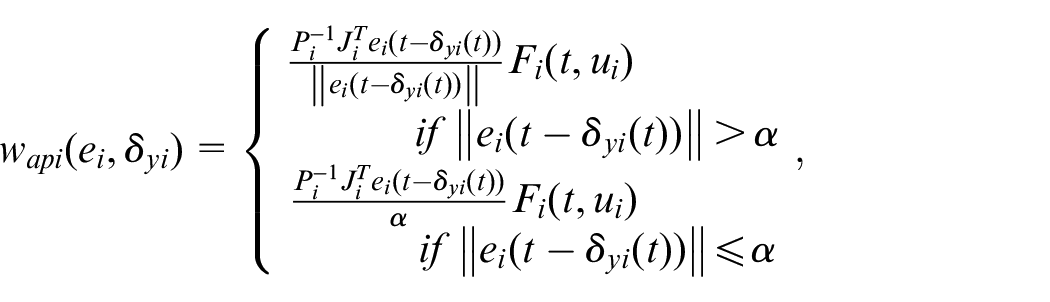

$$w_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})=\{\begin{array}{c}\begin{array}{c}\frac{P_i^{-1}{J}_i^T{e}_i(t-{\delta }_{\mathrm{yi}}(t))}{\Vert e_i(t-{\delta }_{\mathrm{yi}}(t))\Vert }{F}_i(t,u_i)\hfill \\ \multicolumn{1}{c}{\mathrm{if}\Vert e_i(t-{\delta }_{\mathrm{yi}}(t))\Vert >\alpha }\end{array}\hfill \\ \multicolumn{1}{c}{\begin{array}{c}\frac{P_i^{-1}{J}_i^T{e}_i(t-{\delta }_{\mathrm{yi}}(t))}{\alpha }{F}_i(t,u_i)\hfill \\ \multicolumn{1}{c}{\mathrm{if}\Vert e_i(t-{\delta }_{\mathrm{yi}}(t))\Vert \le \alpha }\end{array}}\end{array},$$

with $e_i(t-{\delta }_{\mathrm{yi}}(t))={\overline{x}}_i(t-{\delta }_{\mathrm{yi}}(t))-{\hat{\overline{x}}}_i(t-{\delta }_{\mathrm{yi}}(t))$ denoting the estimation delay error, $\alpha$ denotes the parameter of the boundary layer, and $F_i(t,u_i)={\rho }_i(t,u_i)+{\chi }_i(t,u_i)$ .

• Remark 6. The proposed optional boundary layer observer strategy can be used in the case that the CV system is destroyed by the additive bounded attack. The existence of boundary layer parameters $\alpha$ makes the system continuous, which significantly reduces the bad phenomenon of chattering. At the same time, it ensures that the estimated state approaches the real state.

• Remark 7. The vehicle leader-follower model with variable structure observer proposed in this paper can ensure the whole string stability, which the distance between adjacent vehicles will not increase as the number of vehicles increase.

• Lemma 1. Consider matrix inequalities as follows

$$({\overline{A}}_{1i}+D_i{)}^T{P}_i+P_i({\overline{A}}_{1i}+D_i)+N_i+{\epsilon }_i{P}_i\le 0$$

(19)

where $D_i=-L_i{\overline{C}}_i$ , ${\epsilon }_i$ is real constant, and $N_i$ is a positive definite symmetric matrix. For any positive number ${\epsilon }_i$ and matrix $N_i$ , by selecting an appropriate $L_i$ , there is always a matrix $P_i>0$ such that (19) holds.

See Appendix for the proof process.

Next, the convergence properties of the observer (18) are proved as following lemma.

• Lemma 2. ³⁰ If that inequality $V_i({\epsilon }_t(\theta ))\le p_i{V}_i(\epsilon (t))$ holds, where $V_i(\epsilon (t))$ is a candidate of the Lyapunov-Razumikhin function, ${\epsilon }_t(\theta )=\epsilon (t+\theta )$ , $p_i>1$ can arbitrarily choose infinitely close to 1, and $\forall \theta \in [-2{\delta }_{\mathrm{yM}},0]$ , if ${\stackrel{·}{V}}_i(\epsilon (t))\le -{\upsilon }_i\Vert \epsilon (t)\Vert$ is continuous, positive definite, nondecreasing, then $\epsilon (t)$ uniformly asymptotically converges to zero.

• Theorem 1. For ${\overline{x}}_i(t)$ defined by (17) and ${\hat{\overline{x}}}_i(t)$ defined as in (18) with give bounded ${\overline{w}}_{0i}(x_i,u_i)$ , if $\Vert e_i(t)\Vert \ge \overline{e}$ holds, with $\overline{e}=max\{e_1,e_2\}$ , and ${\delta }_{\mathrm{ym}}\le {\delta }_{\mathrm{yi}}(t)\le {\delta }_{\mathrm{yM}}$ , where ${\delta }_{\mathrm{yM}}$ is obtained as ${\delta }_{\mathrm{yM}}=min\{{\delta }_{1\mathrm{yM}},{\delta }_{2\mathrm{yM}}\}$ , $e_1=[\left(2H_i\right)/({\epsilon }_i\Delta {\lambda }_{min}(P_i))]$ , $e_2=[\left(2S_i\right)/({\epsilon }_i{\lambda }_{min}(P_i))]$ , ${\delta }_{1\mathrm{yM}}=[({\lambda }_{min}(N_i))/(\Delta {\lambda }_{max}(Q_i))]$ , ${\delta }_{2\mathrm{yM}}=[({\lambda }_{min}(N_i-T_i))/(\Delta {\lambda }_{max}(Q_i+E_i))]$ , $H_i={\lambda }_{max}(P_i)\Vert {\overline{w}}_{0i}(x_i,u_i)\Vert +{\delta }_{\mathrm{yM}}{\lambda }_{max}(D_i){\lambda }_{max}(P_i)\Vert {\overline{w}}_{0i}(x_i,u_i)\Vert +{\delta }_{\mathrm{yM}}\Vert P_i{D}_i{P}_i^{-1}{J}_i^T\Vert \Vert F_i(t,u_i)\Vert +\Vert J_i^T\Vert \Vert F_i(t,u_i)\Vert ,E_i={\alpha }^{-1}(P_i{D}_i{P}_i^{-1}{J}_i^T{J}_i{P}_i^{-1}{J}_i^T{J}_i{P}_i^{-1}{D}_i^{T}P+p_i{P}_i)F_i(t,u_i),$

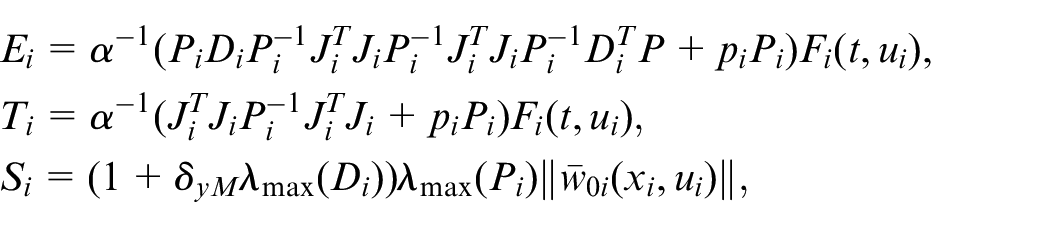

$T_i={\alpha }^{-1}(J_i^T{J}_i{P}_i^{-1}{J}_i^T{J}_i+p_i{P}_i)F_i(t,u_i),$

$S_i=(1+{\delta }_{\mathrm{yM}}{\lambda }_{max}(D_i)){\lambda }_{max}(P_i)\Vert {\overline{w}}_{0i}(x_i,u_i)\Vert ,$

$Q_i=P_i{D}_i{\overline{A}}_{1i}{P}_i^{-1}{\overline{A}}_{1i}^T{D}_i^T{P}_i+P_i{D}_i{D}_i{P}_i^{-1}{D}_i^T{D}_i^T{P}_i+2p_i{P}_i$ , then there exists a vector $L_i$ such that $\underset{t\to \infty }{lim}\Vert {\overline{x}}_i(t)-{\hat{\overline{x}}}_i(t)\Vert =0$ .

Proof: From (17) and (18) we know that

$${\stackrel{·}{e}}_i(t)={\overline{A}}_{1i}{e}_i(t)-L_i{\overline{C}}_i{e}_i(t-{\delta }_{\mathrm{yi}}(t))-w_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})+{\overline{w}}_{0i}(x_i,u_i)$$

(20)

Define $D_i=-L_i{\overline{C}}_i$ , so we have

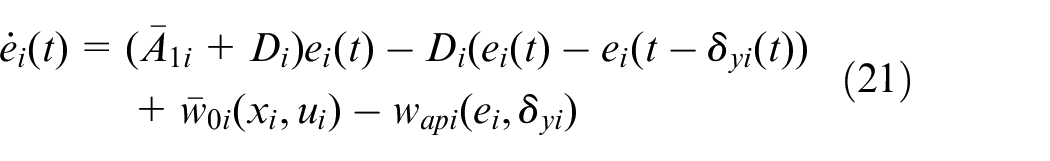

$$\begin{array}{c}{\stackrel{·}{e}}_i(t)=({\overline{A}}_{1i}+D_i)e_i(t)-D_i(e_i(t)-e_i(t-{\delta }_{\mathrm{yi}}(t))\hfill \\ +{\overline{w}}_{0i}(x_i,u_i)-w_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})\hfill \end{array}$$

(21)

then

$$\begin{array}{c}{e}_i(t)-e_i(t-{\delta }_{\mathrm{yi}}(t))={\int }_{-{\delta }_{\mathrm{yi}}(t)}^0{\overline{A}}_{1i}{e}_i(t+\theta )+D_i{e}_i(t+\theta \hfill \\ -{\delta }_{\mathrm{yi}}(t+\theta ))-w_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})+{\overline{w}}_{0i}(x_i,u_i)d\theta \hfill \end{array}$$

(22)

with $\theta =\tau -t$ , then (22) substitute (21) as follows

$$\begin{array}{c}{\stackrel{·}{e}}_i(t)=({\overline{A}}_{1i}+D_i)e_i(t)-w_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})+{\overline{w}}_{0i}(x_i,u_i)\hfill \\ -{\delta }_{\mathrm{yi}}(t)D_i{\overline{w}}_{0i}(x_i,u_i)-D_i{\int }_{-{\delta }_{\mathrm{yi}}(t)}^0{\overline{A}}_{1i}{e}_i(t+\theta )\hfill \\ +D_i{e}_i(t+\theta -{\delta }_{\mathrm{yi}}(t))-w_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})d\theta \hfill \end{array}$$

(23)

Now define

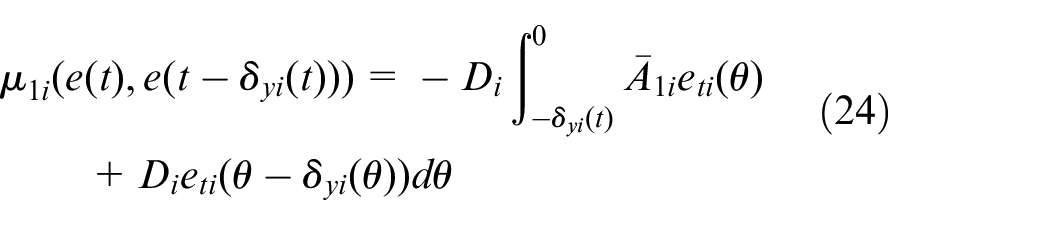

$$\begin{array}{c}{\mu }_{1i}(e(t),e(t-{\delta }_{\mathrm{yi}}(t)))=-D_i{\int }_{-{\delta }_{\mathrm{yi}}(t)}^0{\overline{A}}_{1i}{e}_{\mathrm{ti}}(\theta )\hfill \\ +D_i{e}_{\mathrm{ti}}(\theta -{\delta }_{\mathrm{yi}}(\theta ))d\theta \hfill \end{array}$$

(24)

$${\mu }_{2i}(e_i,{\delta }_{\mathrm{yi}})=D_i{\int }_{-{\delta }_{\mathrm{yi}}(t)}^0{w}_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})d\theta$$

(25)

where $e_{\mathrm{ti}}(\theta )=e_i(t+\theta )$ and $e_{\mathrm{ti}}(\theta -{\delta }_{\mathrm{yi}}(\theta ))=e_i(t+\theta -{\delta }_{\mathrm{yi}}(\theta ))$ . So we can turn (23) into (26)

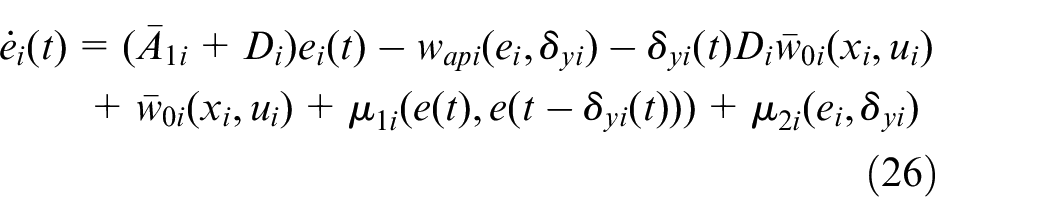

$$\begin{array}{c}{\stackrel{·}{e}}_i(t)=({\overline{A}}_{1i}+D_i)e_i(t)-w_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})-{\delta }_{\mathrm{yi}}(t)D_i{\overline{w}}_{0i}(x_i,u_i)\hfill \\ +{\overline{w}}_{0i}(x_i,u_i)+{\mu }_{1i}(e(t),e(t-{\delta }_{\mathrm{yi}}(t)))+{\mu }_{2i}(e_i,{\delta }_{\mathrm{yi}})\hfill \end{array}$$

(26)

Define the Lyapunov-Razumikhin function candidate as

$$V_i(e)=e_i^T(t)P_i{e}_i(t)$$

(27)

where $P_i$ is introduced in (19), so the derivative $V_i(e)$ is

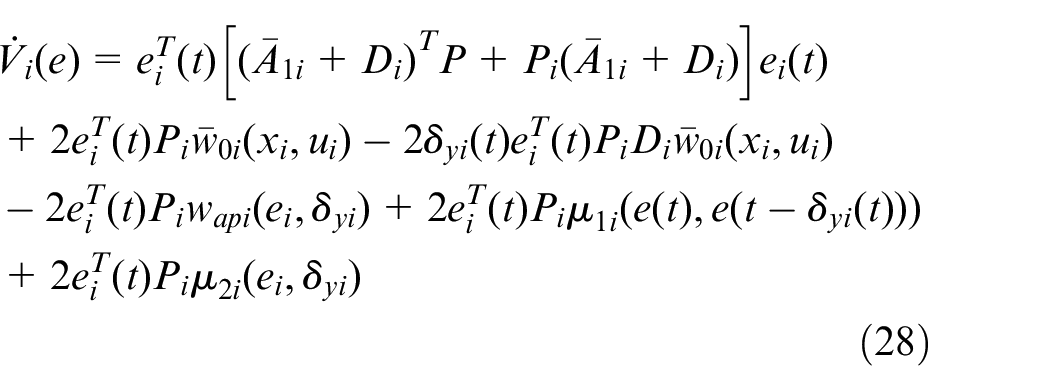

$$\begin{array}{c}{\stackrel{·}{V}}_i(e)=e_i^T(t)[{({\overline{A}}_{1i}+D_i)}^{T}P+P_i({\overline{A}}_{1i}+D_i)]e_i(t)\hfill \\ +2e_i^T(t)P_i{\overline{w}}_{0i}(x_i,u_i)-2{\delta }_{\mathrm{yi}}(t)e_i^T(t)P_i{D}_i{\overline{w}}_{0i}(x_i,u_i)\hfill \\ -2e_i^T(t)P_i{w}_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})+2e_i^T(t)P_i{\mu }_{1i}(e(t),e(t-{\delta }_{\mathrm{yi}}(t)))\hfill \\ +2e_i^T(t)P_i{\mu }_{2i}(e_i,{\delta }_{\mathrm{yi}})\hfill \end{array}$$

(28)

Consider each of these terms separately, namely

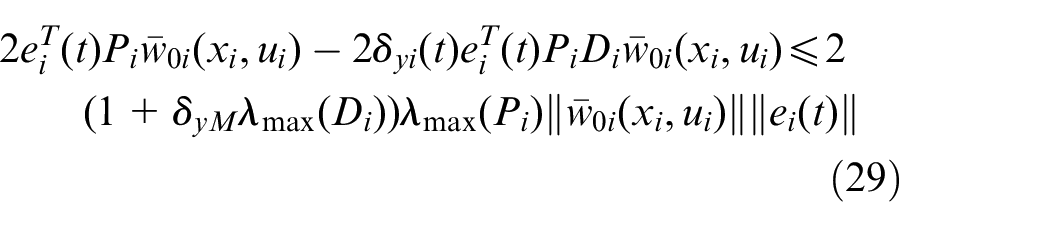

$$\begin{array}{c}2e_i^T(t)P_i{\overline{w}}_{0i}(x_i,u_i)-2{\delta }_{\mathrm{yi}}(t)e_i^T(t)P_i{D}_i{\overline{w}}_{0i}(x_i,u_i)\le 2\hfill \\ (1+{\delta }_{\mathrm{yM}}{\lambda }_{max}(D_i)){\lambda }_{max}(P_i)\Vert {\overline{w}}_{0i}(x_i,u_i)\Vert \Vert e_i(t)\Vert \hfill \end{array}$$

(29)

Then the $2e_i^T(t)P_i{\mu }_{1i}(e(t),e(t-{\delta }_{\mathrm{yi}}(t)))$ is analyzed,

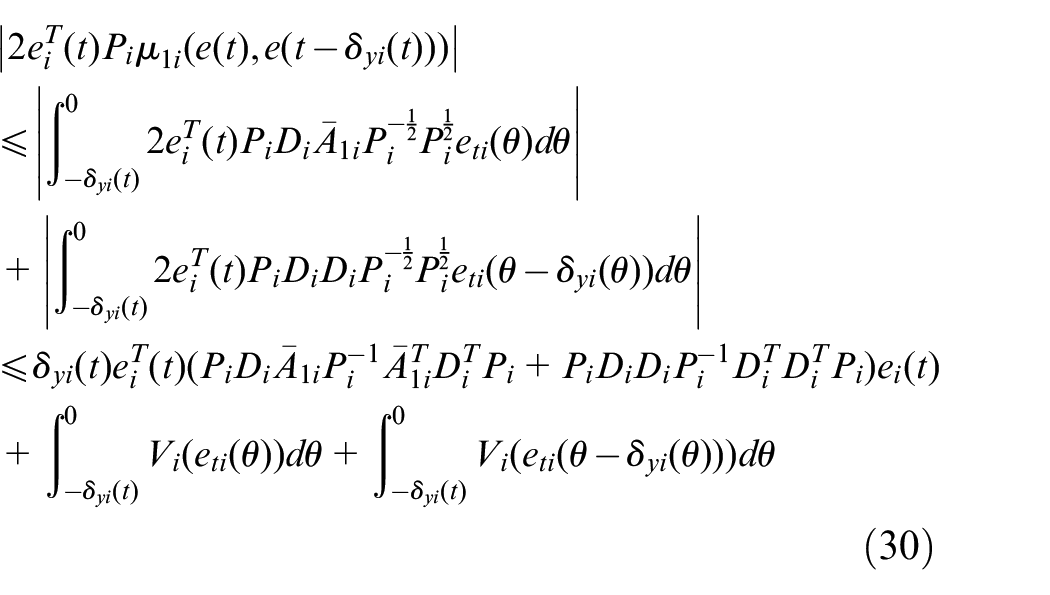

$$\begin{array}{c}|2e_i^T(t)P_i{\mu }_{1i}(e(t),e(t-{\delta }_{\mathrm{yi}}(t)))|\hfill \\ \le |{\int }_{-{\delta }_{\mathrm{yi}}(t)}^{0}2e_i^T(t)P_i{D}_i{\overline{A}}_{1i}{P}_i^{-\frac{1}{2}}{P}_i^{\frac{1}{2}}{e}_{\mathrm{ti}}(\theta )d\theta |\hfill \\ +|{\int }_{-{\delta }_{\mathrm{yi}}(t)}^{0}2e_i^T(t)P_i{D}_i{D}_i{P}_i^{-\frac{1}{2}}{P}_i^{\frac{1}{2}}{e}_{\mathrm{ti}}(\theta -{\delta }_{\mathrm{yi}}(\theta ))d\theta |\hfill \\ \le {\delta }_{\mathrm{yi}}(t)e_i^T(t)(P_i{D}_i{\overline{A}}_{1i}{P}_i^{-1}{\overline{A}}_{1i}^T{D}_i^T{P}_i+P_i{D}_i{D}_i{P}_i^{-1}{D}_i^T{D}_i^T{P}_i)e_i(t)\hfill \\ +{\int }_{-{\delta }_{\mathrm{yi}}(t)}^0{V}_i(e_{\mathrm{ti}}(\theta ))d\theta +{\int }_{-{\delta }_{\mathrm{yi}}(t)}^0{V}_i(e_{\mathrm{ti}}(\theta -{\delta }_{\mathrm{yi}}(\theta )))d\theta \hfill \end{array}$$

(30)

From Razumikhin theorem $V_i(e_{\mathrm{ti}}(\theta ))\le p_i{V}_i(e_i(t))$ , it can be known that (30) will change into the following form:

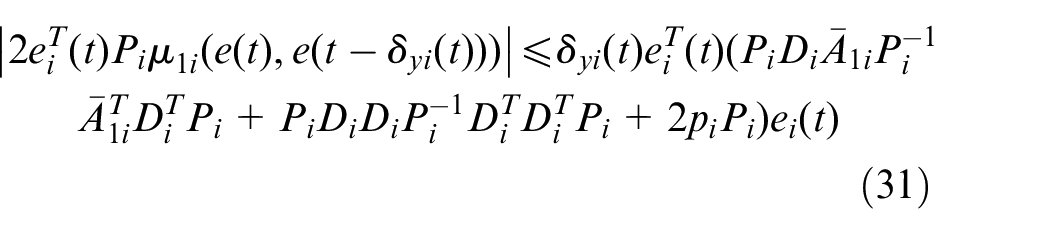

$$\begin{array}{c}|2e_i^T(t)P_i{\mu }_{1i}(e(t),e(t-{\delta }_{\mathrm{yi}}(t)))|\le {\delta }_{\mathrm{yi}}(t)e_i^T(t)(P_i{D}_i{\overline{A}}_{1i}{P}_i^{-1}\hfill \\ {\overline{A}}_{1i}^T{D}_i^T{P}_i+P_i{D}_i{D}_i{P}_i^{-1}{D}_i^T{D}_i^T{P}_i+2p_i{P}_i)e_i(t)\hfill \end{array}$$

(31)

Consider the last part, when $\Vert e_i(t-{\delta }_{\mathrm{yi}}(t))\Vert >\alpha$ ,

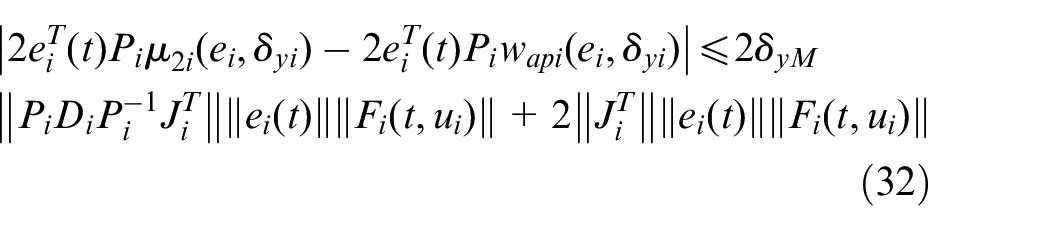

$$\begin{array}{c}|2e_i^T(t)P_i{\mu }_{2i}(e_i,{\delta }_{\mathrm{yi}})-2e_i^T(t)P_i{w}_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})|\le 2{\delta }_{\mathrm{yM}}\hfill \\ \Vert P_i{D}_i{P}_i^{-1}{J}_i^T\Vert \Vert e_i(t)\Vert \Vert F_i(t,u_i)\Vert +2\Vert J_i^T\Vert \Vert e_i(t)\Vert \Vert F_i(t,u_i)\Vert \hfill \end{array}$$

(32)

When $\Vert e_i(t-{\delta }_{\mathrm{yi}}(t))\Vert \le \alpha$ ,

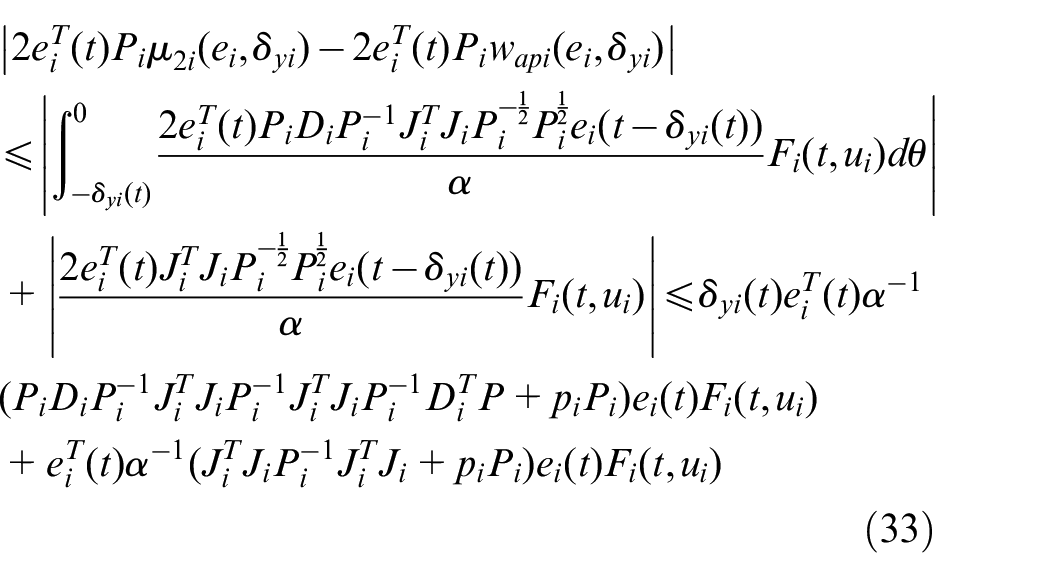

$$\begin{array}{c}|2e_i^T(t)P_i{\mu }_{2i}(e_i,{\delta }_{\mathrm{yi}})-2e_i^T(t)P_i{w}_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})|\hfill \\ \le |{\int }_{-{\delta }_{\mathrm{yi}}(t)}^0\frac{2e_i^T(t)P_i{D}_i{P}_i^{-1}{J}_i^T{J}_i{P}_i^{-\frac{1}{2}}{P}_i^{\frac{1}{2}}{e}_i(t-{\delta }_{\mathrm{yi}}(t))}{\alpha }{F}_i(t,u_i)d\theta |\hfill \\ +|\frac{2e_i^T(t)J_i^T{J}_i{P}_i^{-\frac{1}{2}}{P}_i^{\frac{1}{2}}{e}_i(t-{\delta }_{\mathrm{yi}}(t))}{\alpha }{F}_i(t,u_i)|\le {\delta }_{\mathrm{yi}}(t)e_i^T(t){\alpha }^{-1}\hfill \\ (P_i{D}_i{P}_i^{-1}{J}_i^T{J}_i{P}_i^{-1}{J}_i^T{J}_i{P}_i^{-1}{D}_i^{T}P+p_i{P}_i)e_i(t)F_i(t,u_i)\hfill \\ +e_i^T(t){\alpha }^{-1}(J_i^T{J}_i{P}_i^{-1}{J}_i^T{J}_i+p_i{P}_i)e_i(t)F_i(t,u_i)\hfill \end{array}$$

(33)

So from Lemma 1, we know that $({\overline{A}}_{1i}+D_i{)}^T{P}_i+P_i({\overline{A}}_{1i}+D_i)\le -N_i-{\epsilon }_i{P}_i$ , and define $Q_i=P_i{D}_i{\overline{A}}_{1i}{P}_i^{-1}{\overline{A}}_{1i}^T{D}_i^T{P}_i+P_i{D}_i{D}_i{P}_i^{-1}{D}_i^T{D}_i^T{P}_i+2p_i{P}_i$ , combining (29) and (31), when $\Vert e_i(t-{\delta }_{\mathrm{yi}}(t))\Vert >\alpha$ , (28) can be changed into the following form:

$$\begin{array}{c}{\stackrel{·}{V}}_i(e)\le e_i^T(t)(-N_i-{\epsilon }_i{P}_i)e_i(t)+{\delta }_{\mathrm{yi}}(t)e_i^T(t)Q_i{e}_i(t)\hfill \\ +2({\lambda }_{max}(P_i)\Vert {\overline{w}}_{0i}(x_i,u_i)\Vert +{\delta }_{\mathrm{yM}}{\lambda }_{max}(D_i){\lambda }_{max}(P_i)\Vert {\overline{w}}_{0i}(x_i,u_i)\Vert \hfill \\ +{\delta }_{\mathrm{yM}}\Vert P_i{D}_i{P}_i^{-1}{J}_i^T\Vert \Vert F_i(t,u_i)\Vert +\Vert J_i^T\Vert \Vert F_i(t,u_i)\Vert )\Vert e_i(t)\Vert \hfill \end{array}$$

(34)

define $H_i={\lambda }_{max}(P_i)\Vert {\overline{w}}_{0i}(x_i,u_i)\Vert +{\delta }_{\mathrm{yM}}{\lambda }_{max}(D_i){\lambda }_{max}(P_i)\Vert {\overline{w}}_{0i}(x_i,u_i)\Vert +{\delta }_{\mathrm{yM}}\Vert P_i{D}_i{P}_i^{-1}{J}_i^T\Vert \Vert F_i(t,u_i)\Vert +\Vert J_i^T\Vert \Vert F_i(t,u_i)\Vert$ , then

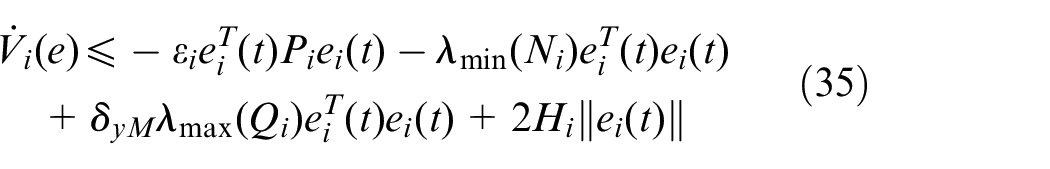

$$\begin{array}{c}{\stackrel{·}{V}}_i(e)\le -{\epsilon }_i{e}_i^T(t)P_i{e}_i(t)-{\lambda }_{min}(N_i)e_i^T(t)e_i(t)\hfill \\ +{\delta }_{\mathrm{yM}}{\lambda }_{max}(Q_i)e_i^T(t)e_i(t)+2H_i\Vert e_i(t)\Vert \hfill \end{array}$$

(35)

Define ${\delta }_{1\mathrm{yM}}=[({\lambda }_{min}(N_i))/(\Delta {\lambda }_{max}(Q_i))]\ge 1$ , then

$${\stackrel{·}{V}}_i(e)\le -{\epsilon }_i{\lambda }_{min}(P_i)\Vert e_i(t){\Vert }^2+2H_i\Vert e_i(t)\Vert$$

(36)

Thus, if $\Vert e_i(t)\Vert \ge e_1=[\left(2H_i\right)/({\epsilon }_i\Delta {\lambda }_{min}(P_i))]$ , then ${\stackrel{·}{V}}_i(e)\le -{\upsilon }_i\Vert e_i(t)\Vert$ .

When $\Vert e_i(t-{\delta }_{\mathrm{yi}}(t))\Vert \le \alpha$ , then

$$\begin{array}{c}{\stackrel{·}{V}}_i(e)\le e_i^T(t)(-N_i-{\epsilon }_i{P}_i)e_i(t)+{\delta }_{\mathrm{yi}}(t)e_i^T(t)Q_i{e}_i(t)\hfill \\ +2(1+{\delta }_{\mathrm{yM}}{\lambda }_{max}(D_i)){\lambda }_{max}(P_i)\Vert {\overline{w}}_{0i}(x_i,u_i)\Vert \Vert e_i(t)\Vert \hfill \\ +e_i^T(t){\alpha }^{-1}({\delta }_{\mathrm{yi}}(t)P_i{D}_i{P}_i^{-1}{J}_i^T{J}_i{P}_i^{-1}{J}_i^T{J}_i{P}_i^{-1}{D}_i^{T}P\hfill \\ +{\delta }_{\mathrm{yi}}(t)p_i{P}_i+J_i^T{J}_i{P}_i^{-1}{J}_i^T{J}_i+p_i{P}_i)e_i(t)F_i(t,u_i)\hfill \end{array}$$

(37)

Define

$$\begin{array}{c}{E}_i={\alpha }^{-1}(P_i{D}_i{P}_i^{-1}{J}_i^T{J}_i{P}_i^{-1}{J}_i^T{J}_i{P}_i^{-1}{D}_i^{T}P+p_i{P}_i)F_i(t,u_i),\hfill \\ T_i={\alpha }^{-1}(J_i^T{J}_i{P}_i^{-1}{J}_i^T{J}_i+p_i{P}_i)F_i(t,u_i),\hfill \\ S_i=(1+{\delta }_{\mathrm{yM}}{\lambda }_{max}(D_i)){\lambda }_{max}(P_i)\Vert {\overline{w}}_{0i}(x_i,u_i)\Vert ,\hfill \end{array}$$

then

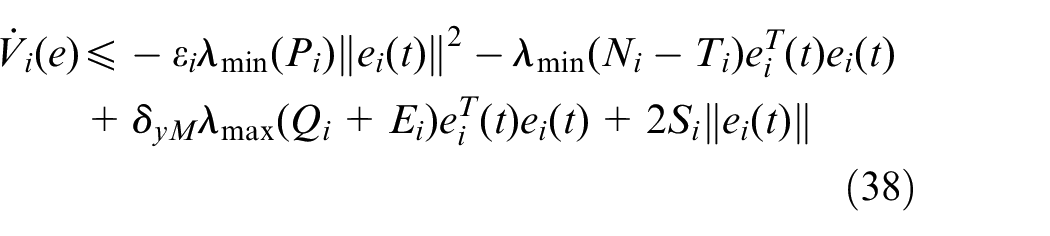

$$\begin{array}{c}{\stackrel{·}{V}}_i(e)\le -{\epsilon }_i{\lambda }_{min}(P_i)\Vert e_i(t){\Vert }^2-{\lambda }_{min}(N_i-T_i)e_i^T(t)e_i(t)\hfill \\ +{\delta }_{\mathrm{yM}}{\lambda }_{max}(Q_i+E_i)e_i^T(t)e_i(t)+2S_i\Vert e_i(t)\Vert \hfill \end{array}$$

(38)

Define ${\delta }_{2\mathrm{yM}}=[({\lambda }_{min}(N_i-T_i))/(\Delta {\lambda }_{max}(Q_i+E_i))]\ge 1$ , then

$${\stackrel{·}{V}}_i(e)\le -{\epsilon }_i{\lambda }_{min}(P_i)\Vert e_i(t){\Vert }^2+2S_i\Vert e_i(t)\Vert$$

(39)

Thus, if $\Vert e_i(t)\Vert \ge e_2=[\left(2S_i\right)/({\epsilon }_i{\lambda }_{min}(P_i))]$ , then ${\stackrel{·}{V}}_i(e)\le -{\upsilon }_i\Vert e_i(t)\Vert$ .

Based on the above analysis, if the estimation error $e_i(t)$ satisfies $\Vert e_i(t)\Vert \ge \overline{e}$ , with $\overline{e}=max\{e_1,e_2\}$ , and ${\delta }_{\mathrm{ym}}\le {\delta }_{\mathrm{yi}}(t)\le {\delta }_{\mathrm{yM}}$ , where ${\delta }_{\mathrm{yM}}=min\{{\delta }_{1\mathrm{yM}},{\delta }_{2\mathrm{yM}}\}$ , then ${\stackrel{·}{V}}_i(e)$ satisfies ${\stackrel{·}{V}}_i(e)\le -{\upsilon }_i\Vert e_i(t)\Vert$ . Namely, $\underset{t\to \infty }{lim}\Vert {\overline{x}}_i(t)-{\hat{\overline{x}}}_i(t)\Vert =0$ the uniform asymptotical stability of (21) can be guaranteed. The proof is completed.

Observer gain design

Since $({\overline{A}}_{1i},{\overline{C}}_i)$ pairs are observable, the eigenvalues of ${\overline{A}}_{1i}-L_i{\overline{C}}_i$ can be assigned by computing $L_i={\left[\begin{array}{cccccc}{l}_{1i}\hfill & l_{2i}\hfill & l_{3i}\hfill & l_{4i}\hfill & l_{5i}\hfill & l_{6i}\hfill \end{array}\right]}^T$ . Assume that ${\overline{\lambda }}_i=\left\{{\lambda }_{\mathrm{ji}}\right\}$ with $j=1,2,\dots ,6$ are the six different eigenvalues of ${\overline{A}}_{1i}-L_i{\overline{C}}_i$ , then $L_i$ can be computed as: $L_i=-V^{-1}({\overline{\lambda }}_i){\left[\begin{array}{cccccc}{\lambda }_{1i}^6\hfill & {\lambda }_{2i}^6\hfill & {\lambda }_{3i}^6\hfill & {\lambda }_{4i}^6\hfill & {\lambda }_{5i}^6\hfill & {\lambda }_{6i}^6\hfill \end{array}\right]}^T$ , where $V({\overline{\lambda }}_i)$ is Vandermonde matrix, and set as

$$V({\overline{\lambda }}_i)=\left[\begin{array}{cccc}{\lambda }_{1i}^5\hfill & \cdots \hfill & {\lambda }_{1i}\hfill & 1\hfill \\ \multicolumn{1}{c}{⋮}& \ddots \hfill & ⋮\hfill & ⋮\hfill \\ \multicolumn{1}{c}{{\lambda }_{6i}^5}& \cdots \hfill & {\lambda }_{6i}\hfill & 1\hfill \end{array}\right].$$

As a result, the matrix ${\overline{A}}_{1i}-L_i{\overline{C}}_i$ can be diagonalized by $V({\overline{\lambda }}_i)$ , and it is clear that $V({\overline{\lambda }}_i)({\overline{A}}_{1i}-L_i{\overline{C}}_i)V^{-1}({\overline{\lambda }}_i)=\mathrm{diag}\left\{{\lambda }_{\mathrm{ji}}\right\}={\Lambda }_i({\overline{\lambda }}_i)={\Lambda }_i$ holds, which is equivalent to ${\overline{A}}_{1i}-L_i{\overline{C}}_i=V^{-1}({\overline{\lambda }}_i){\Lambda }_{i}V({\overline{\lambda }}_i)$ .

Controller design

Adaptive ISMC design

In this section, an equivalent sliding mode controller is designed for the CV system under multiple cyber-attacks, and then a corrective signal is designed for the unprocessed deception attack to eliminate the influence of deception attack on the CV system. The specific design is as follows.

According to the form of variable structure state observer, a new sliding surface can be chosen as:

$$\begin{array}{c}{s}_i(t)=G_i{\hat{\overline{x}}}_i(t)-G_i{\hat{\overline{x}}}_i(0)+G_i{\int }_0^t{\overline{B}}_i{K}_i{\hat{\overline{x}}}_i(\theta )\hfill \\ +L_i{\overline{C}}_i{\hat{\overline{x}}}_i(\theta -{\delta }_{\mathrm{yi}}(\theta ))d\theta \hfill \end{array}$$

(40)

where $G_i$ is the pre-designed matrix, let $G_i=({\overline{B}}_i^T{\overline{B}}_i{)}^{-1}{\overline{B}}_i^T$ to satisfied $G_i{\overline{B}}_i$ is nonsingular matrix. $K_i=\left[\begin{array}{cccccc}{k}_{11i}\hfill & k_{12i}\hfill & k_{13i}\hfill & k_{14i}\hfill & k_{15i}\hfill & k_{16i}\hfill \\ \multicolumn{1}{c}{k_{21i}}& k_{22i}\hfill & k_{23i}\hfill & k_{24i}\hfill & k_{25i}\hfill & k_{26i}\hfill \end{array}\right]$ is a real matrix.

By derivation of $s_i(t)$ and substituting (18) into it, we can obtain

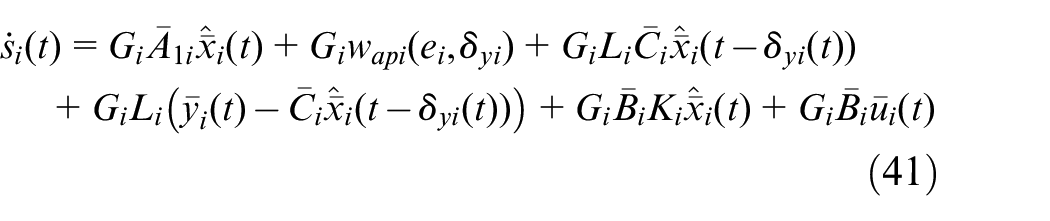

$$\begin{array}{c}{\stackrel{·}{s}}_i(t)=G_i{\overline{A}}_{1i}{\hat{\overline{x}}}_i(t)+G_i{w}_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})+G_i{L}_i{\overline{C}}_i{\hat{\overline{x}}}_i(t-{\delta }_{\mathrm{yi}}(t))\hfill \\ +G_i{L}_i({\overline{y}}_i(t)-{\overline{C}}_i{\hat{\overline{x}}}_i(t-{\delta }_{\mathrm{yi}}(t)))+G_i{\overline{B}}_i{K}_i{\hat{\overline{x}}}_i(t)+G_i{\overline{B}}_i{\overline{u}}_i(t)\hfill \end{array}$$

(41)

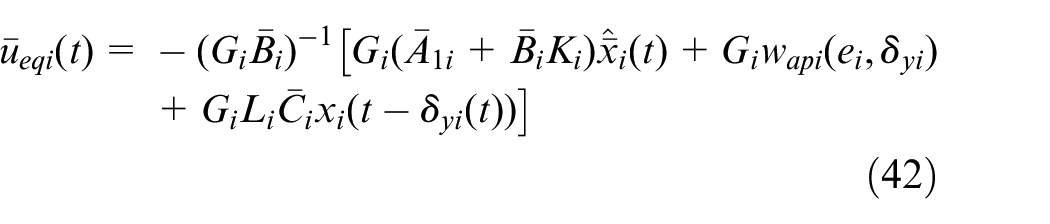

Therefore, equivalent control ${\overline{u}}_{\mathrm{eqi}}(t)$ can be obtained by making ${\stackrel{·}{s}}_i(t)=0$ .

$$\begin{array}{c}\multicolumn{1}{c}{{\overline{u}}_{\mathrm{eqi}}(t)=-(G_i{\overline{B}}_i{)}^{-1}[G_i({\overline{A}}_{1i}+{\overline{B}}_i{K}_i){\hat{\overline{x}}}_i(t)+G_i{w}_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})}\\ +G_i{L}_i{\overline{C}}_i{x}_i(t-{\delta }_{\mathrm{yi}}(t))]\hfill \end{array}$$

(42)

In order to achieve the ultimate boundedness of CV system under deception attack, the correction signal is designed as follows:

$${\mathbb{C}}_i(t)=-{\hat{\psi }}_i^T(t){\phi }_i({\hat{\overline{x}}}_i(t))$$

(43)

where ${\stackrel{·}{\hat{\psi }}}_i(t)={\kappa }_i\mathrm{Pro}{\mathrm{j}}_m[{\hat{\psi }}_i(t),{\phi }_i({\hat{\overline{x}}}_i(t)){\hat{\overline{x}}}_i^T(t)D_{1i}]$ , ${\hat{\psi }}_i(t)$ is the estimation of parameter uncertainty ${\overline{\psi }}_i(t)$ , ${\kappa }_i$ is a positive design gain, $\mathrm{Proj}$ is a projection operator, defined as

$$\mathrm{Proj}(\theta ,y)\stackrel{\Delta }{=}\{\begin{array}{cc}y\hfill & \mathrm{if}ƛ(\theta )<0\hfill \\ \multicolumn{1}{c}{y}& \mathrm{if}ƛ(\theta )\ge 0\mathrm{and}\mathrm{if}{ƛ}^{\prime }(\theta )y\le 0\hfill \\ \multicolumn{1}{c}{y-\frac{{ƛ}^{\prime T}(\theta )ƛ(\theta )y}{{ƛ}^{\prime }(\theta ){\overline{\lambda }\prime }^T(\theta )}ƛ(\theta )}& \mathrm{if}ƛ(\theta )\ge 0\mathrm{and}\mathrm{if}{ƛ}^{\prime }(\theta )y>0\hfill \end{array}$$

(44)

where $ƛ(\theta )\stackrel{\Delta }{=}\frac{({\epsilon }_{\theta }+1){\theta }^T\theta -{\theta }_{max}^2}{{\epsilon }_{\theta }{\theta }_{max}^2}$ is a continuously differentiable convex function. ${\theta }_{max}$ is the projection norm bound of $\theta$ , and ${\epsilon }_{\theta }$ is the projection tolerance bound. From the definition of projection operator, we can see $(\theta -{\theta }^{*}{)}^T(\mathrm{Proj}(\theta ,y)-y)\le 0$ . In addition, $\mathrm{Pro}{\mathrm{j}}_m$ is defined as

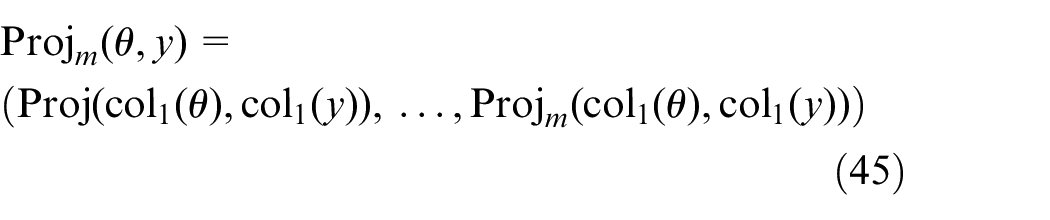

$$\begin{array}{c}\mathrm{Pro}{\mathrm{j}}_m(\theta ,y)=\hfill \\ (\mathrm{Proj}(\mathrm{co}{\mathrm{l}}_1(\theta ),\mathrm{co}{\mathrm{l}}_1(y)),\dots ,\mathrm{Pro}{\mathrm{j}}_m(\mathrm{co}{\mathrm{l}}_1(\theta ),\mathrm{co}{\mathrm{l}}_1(y)))\hfill \end{array}$$

(45)

where $\mathrm{col}$ represents a column vector.

At this point, the controller structure changes from (42) to the following form

$$\begin{array}{c}{\overline{u}}_i(t)={\overline{u}}_{\mathrm{eqi}}(t)+{\mathbb{C}}_i(t)=-(G_i{\overline{B}}_i{)}^{-1}[G_i({\overline{A}}_{1i}+{\overline{B}}_i{K}_i){\hat{\overline{x}}}_i(t)\hfill \\ +G_i{w}_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})+G_i{L}_i{\overline{C}}_i{x}_i(t-{\delta }_{\mathrm{yi}}(t))]-{\hat{\psi }}_i^T(t){\phi }_i({\hat{\overline{x}}}_i(t))\hfill \end{array}$$

(46)

• Remark 8. The designed Adaptive ISMC makes the CV system reach the ideal state in a short time, and the uncertainty caused by cyber-attacks is accurately compensated from the initial time. And then, the robust stability of the system is given in detail as follow.

Robust stability analysis

Substituting (46) into (18), one can get

$$\stackrel{·}{\widehat{{\overline{x}}_i}}(t)=-{\overline{B}}_i{K}_i{\hat{\overline{x}}}_i(t)-L_i{\overline{C}}_i{\hat{\overline{x}}}_i(t-{\delta }_{\mathrm{yi}}(t))+{\overline{B}}_i{\psi }_{\lambda i}^T{\overline{\phi }}_i({\hat{\overline{x}}}_i(t))$$

(47)

$$\begin{array}{c}{\stackrel{·}{\psi }}_{\lambda i}(t)=[{\stackrel{·}{\psi }}_i(t)-{\kappa }_i\mathrm{Pro}{\mathrm{j}}_m({\hat{\psi }}_i(t),{\phi }_i({\hat{\overline{x}}}_i(t)){\hat{\overline{x}}}_i^T(t)D_{1i})]\hfill \\ +\frac{1}{2}{\psi }_{\lambda i}(t)(48)\mathrm{where}{\psi }_{\lambda i}(t)\stackrel{\Delta }{=}{\overline{\psi }}_i(t)-{\hat{\psi }}_i(t).\hfill \end{array}$$

Combining (20) with (47), the augmented equation of CV system can be obtained as

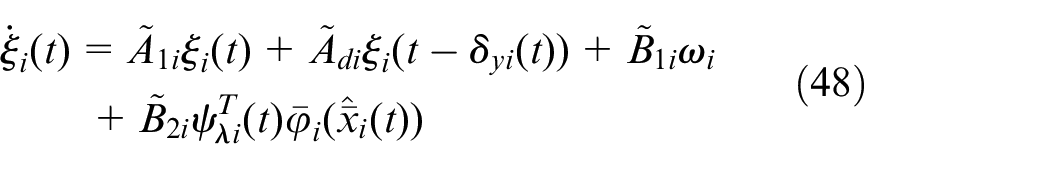

$$\begin{array}{c}{\stackrel{·}{\xi }}_i(t)={\tilde{A}}_{1i}{\xi }_i(t)+{\tilde{A}}_{\mathrm{di}}{\xi }_i(t-{\delta }_{\mathrm{yi}}(t))+{\tilde{B}}_{1i}{\omega }_i\hfill \\ +{\tilde{B}}_{2i}{\psi }_{\lambda i}^T(t){\overline{\phi }}_i({\hat{\overline{x}}}_i(t))\hfill \end{array}$$

(48)

where

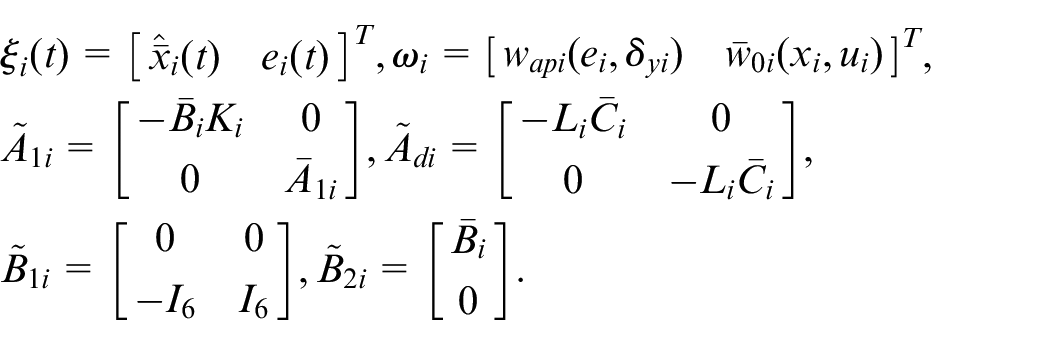

$$\begin{array}{c}{\xi }_i(t)={\left[\begin{array}{cc}{\hat{\overline{x}}}_i(t)\hfill & e_i(t)\hfill \end{array}\right]}^T,{\omega }_i={\left[\begin{array}{cc}{w}_{\mathrm{api}}(e_i,{\delta }_{\mathrm{yi}})\hfill & {\overline{w}}_{0i}(x_i,u_i)\hfill \end{array}\right]}^T,\hfill \\ {\tilde{A}}_{1i}=\left[\begin{array}{cc}-{\overline{B}}_i{K}_i\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& {\overline{A}}_{1i}\hfill \end{array}\right],{\tilde{A}}_{\mathrm{di}}=\left[\begin{array}{cc}-L_i{\overline{C}}_i\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& -L_i{\overline{C}}_i\hfill \end{array}\right],\hfill \\ {\tilde{B}}_{1i}=\left[\begin{array}{cc}0\hfill & 0\hfill \\ \multicolumn{1}{c}{-I_6}& I_6\hfill \end{array}\right],{\tilde{B}}_{2i}=\left[\begin{array}{c}{\overline{B}}_i\hfill \\ \multicolumn{1}{c}{0}\end{array}\right].\hfill \end{array}$$

The conditions for CV in (48) to be uniformly bounded are given in the following theorem.

• Theorem 2. For given scalars ${\delta }_{\mathrm{yM}}>{\delta }_{\mathrm{ym}}>0$ , the control gain $K_i$ and $L_i$ , if there is $\Vert {\overline{\psi }}_i(t){\Vert }_F\le \overline{\psi }$ , $\Vert {\overline{\stackrel{·}{\psi }}}_i(t){\Vert }_F\le \overline{\stackrel{·}{\psi }}$ , and there is a positive definite matrices ${\mathfrak{D}}_i=\left[\begin{array}{cc}{D}_{1i}\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& D_{2i}\hfill \end{array}\right]$ , ${\vartheta }_i$ , ${\Phi }_i$ , ${\mathcal{M}}_{\mathrm{ji}}$ , and ${\mathcal{F}}_{\mathrm{ji}}$ $(j=1,2)$ , such that the following inequalities hold

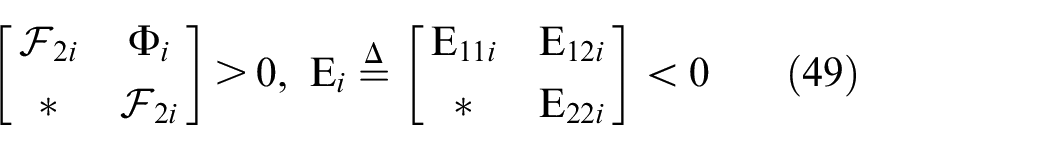

$$\left[\begin{array}{cc}{\mathcal{F}}_{2i}\hfill & {\Phi }_i\hfill \\ \multicolumn{1}{c}{*}& {\mathcal{F}}_{2i}\hfill \end{array}\right]>0,{\mathrm{E}}_i\stackrel{\Delta }{=}\left[\begin{array}{cc}{\mathrm{E}}_{11i}\hfill & {\mathrm{E}}_{12i}\hfill \\ \multicolumn{1}{c}{*}& {\mathrm{E}}_{22i}\hfill \end{array}\right]<0$$

(49)

then the CV system (48) under (46) control is uniformly bounded and the ultimate limit satisfies

$$\begin{array}{c}\Vert {\hat{\overline{x}}}_i(t){\Vert }_2\le {\left[\frac{1}{{\lambda }_{min}(D_{1i})}[{\lambda }_{max}(D_{1i})d_1+{\kappa }_i^{-1}{(\overline{\psi }+{\hat{\psi }}_{max})}^2]\right]}^{\frac{1}{2}}\hfill \end{array}$$

(50a)

$$\Vert {\psi }_{\lambda i}(t){\Vert }_F\le {[{\kappa }_i{\lambda }_{max}(D_{1i})d_1+{(\overline{\psi }+{\hat{\psi }}_{max})}^2]}^{\frac{1}{2}}$$

(50b)

where

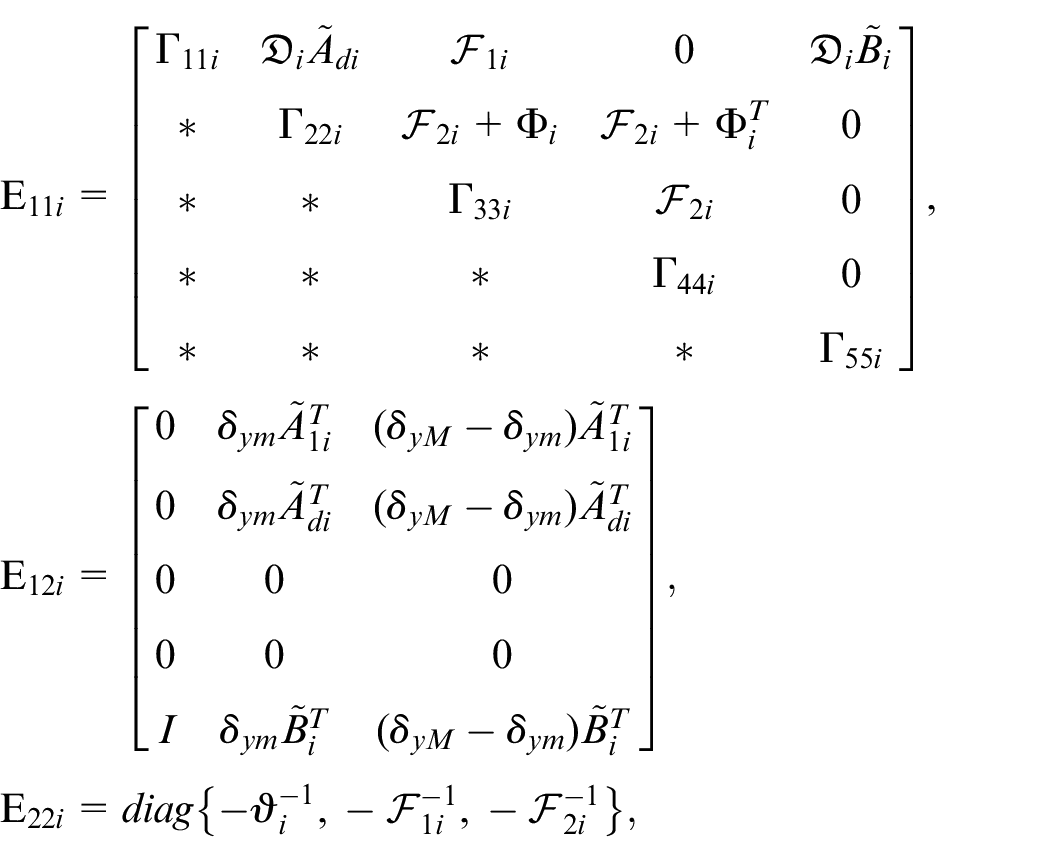

$$\begin{array}{c}{\mathrm{E}}_{11i}=\left[\begin{array}{ccccc}{\mathrm{\Gamma }}_{11i}\hfill & {\mathfrak{D}}_i{\tilde{A}}_{\mathrm{di}}\hfill & {\mathcal{F}}_{1i}\hfill & 0\hfill & {\mathfrak{D}}_i{\tilde{B}}_i\hfill \\ \multicolumn{1}{c}{*}& {\mathrm{\Gamma }}_{22i}\hfill & {\mathcal{F}}_{2i}+{\Phi }_i\hfill & {\mathcal{F}}_{2i}+{\Phi }_i^T\hfill & 0\hfill \\ \multicolumn{1}{c}{*}& *\hfill & {\mathrm{\Gamma }}_{33i}\hfill & {\mathcal{F}}_{2i}\hfill & 0\hfill \\ \multicolumn{1}{c}{*}& *\hfill & *\hfill & {\mathrm{\Gamma }}_{44i}\hfill & 0\hfill \\ \multicolumn{1}{c}{*}& *\hfill & *\hfill & *\hfill & {\mathrm{\Gamma }}_{55i}\hfill \end{array}\right],\hfill \\ {\mathrm{E}}_{12i}=\left[\begin{array}{ccc}0\hfill & {\delta }_{\mathrm{ym}}{\tilde{A}}_{1i}^T\hfill & ({\delta }_{\mathrm{yM}}-{\delta }_{\mathrm{ym}}){\tilde{A}}_{1i}^T\hfill \\ \multicolumn{1}{c}{0}& {\delta }_{\mathrm{ym}}{\tilde{A}}_{\mathrm{di}}^T\hfill & ({\delta }_{\mathrm{yM}}-{\delta }_{\mathrm{ym}}){\tilde{A}}_{\mathrm{di}}^T\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill \\ \multicolumn{1}{c}{I}& {\delta }_{\mathrm{ym}}{\tilde{B}}_i^T\hfill & ({\delta }_{\mathrm{yM}}-{\delta }_{\mathrm{ym}}){\tilde{B}}_i^T\hfill \end{array}\right],\hfill \\ {\mathrm{E}}_{22i}=\mathrm{diag}\{-{\vartheta }_i^{-1},-{\mathcal{F}}_{1i}^{-1},-{\mathcal{F}}_{2i}^{-1}\},\hfill \end{array}$$

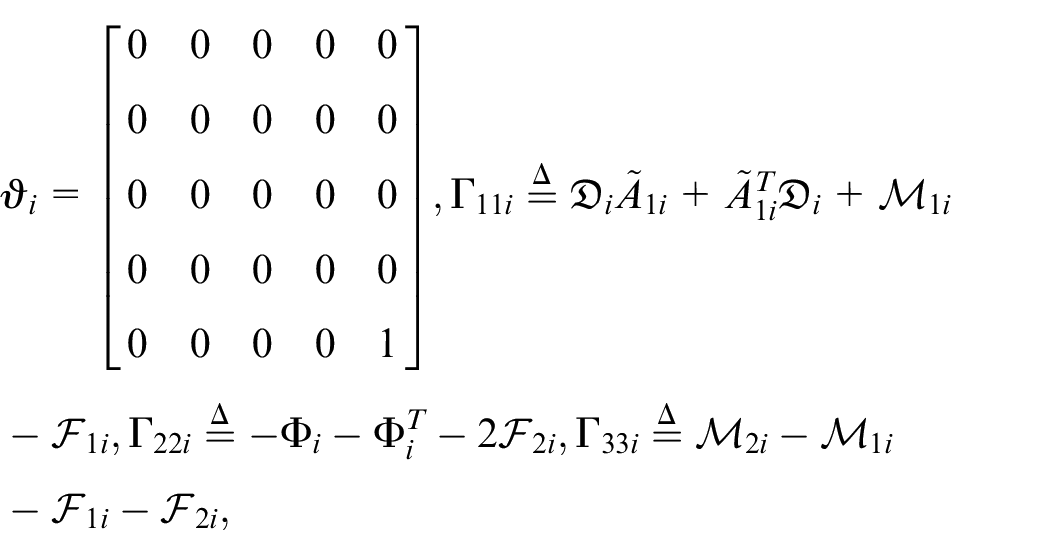

$$\begin{array}{c}{\vartheta }_i=\left[\begin{array}{ccccc}0\hfill & 0\hfill & 0\hfill & 0\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill & 0\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill & 0\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill & 0\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill & 0\hfill & 1\hfill \end{array}\right],{\mathrm{\Gamma }}_{11i}\stackrel{\Delta }{=}{\mathfrak{D}}_i{\tilde{A}}_{1i}+{\tilde{A}}_{1i}^T{\mathfrak{D}}_i+{\mathcal{M}}_{1i}\hfill \\ -{\mathcal{F}}_{1i},{\mathrm{\Gamma }}_{22i}\stackrel{\Delta }{=}-{\Phi }_i-{\Phi }_i^T-2{\mathcal{F}}_{2i},{\mathrm{\Gamma }}_{33i}\stackrel{\Delta }{=}{\mathcal{M}}_{2i}-{\mathcal{M}}_{1i}\hfill \\ -{\mathcal{F}}_{1i}-{\mathcal{F}}_{2i},\hfill \end{array}$$

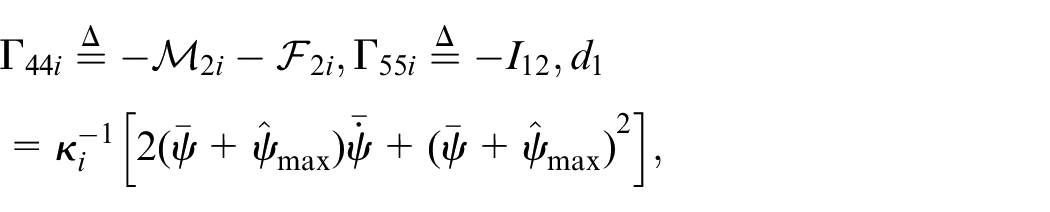

$$\begin{array}{c}{\mathrm{\Gamma }}_{44i}\stackrel{\Delta }{=}-{\mathcal{M}}_{2i}-{\mathcal{F}}_{2i},{\mathrm{\Gamma }}_{55i}\stackrel{\Delta }{=}-I_{12},d_1\hfill \\ ={\kappa }_i^{-1}[2(\overline{\psi }+{\hat{\psi }}_{max})\overline{\stackrel{·}{\psi }}+{(\overline{\psi }+{\hat{\psi }}_{max})}^2],\hfill \end{array}$$

where ${\hat{\psi }}_{max}$ is a projection norm bound.

Proof: Define a Lyapunov–Krasovskii function as:

$$\begin{array}{c}{V}_{1i}(t)=\hfill \\ V_{11i}(t)+V_{12i}(t)+V_{13i}(t)+V_{14i}(t)+V_{15i}(t)+V_{16i}(t)\hfill \end{array}$$

(51)

where

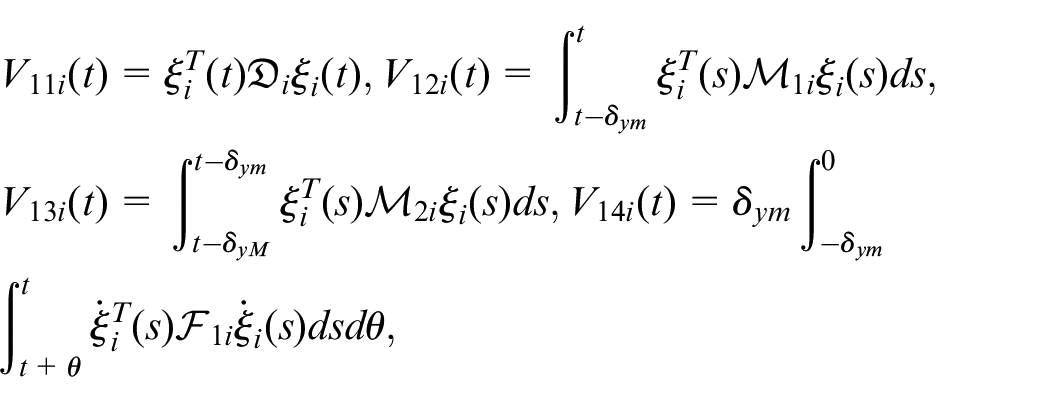

$$\begin{array}{c}{V}_{11i}(t)={\xi }_i^T(t){\mathfrak{D}}_i{\xi }_i(t),V_{12i}(t)={\int }_{t-{\delta }_{\mathrm{ym}}}^t{\xi }_i^T(s){\mathcal{M}}_{1i}{\xi }_i(s)\mathrm{ds},\hfill \\ V_{13i}(t)={\int }_{t-{\delta }_{\mathrm{yM}}}^{t-{\delta }_{\mathrm{ym}}}{\xi }_i^T(s){\mathcal{M}}_{2i}{\xi }_i(s)\mathrm{ds},V_{14i}(t)={\delta }_{\mathrm{ym}}{\int }_{-{\delta }_{\mathrm{ym}}}^0\hfill \\ {\int }_{t+\theta }^t{\stackrel{·}{\xi }}_i^T(s){\mathcal{F}}_{1i}{\stackrel{·}{\xi }}_i(s)\mathrm{dsd}\theta ,\hfill \end{array}$$

$$\begin{array}{c}{V}_{15i}(t)=({\delta }_{\mathrm{yM}}-{\delta }_{\mathrm{ym}}){\int }_{-{\delta }_{\mathrm{yM}}}^{-{\delta }_{\mathrm{ym}}}{\int }_{t+\theta }^t{\stackrel{·}{\xi }}_i^T(s){\mathcal{F}}_{2i}{\stackrel{·}{\xi }}_i(s)\mathrm{dsd}\theta ,\hfill \\ V_{16i}(t)={\kappa }_i^{-1}\mathrm{tr}({\psi }_{\lambda i}^T(t){\psi }_{\lambda i}(t)).\hfill \end{array}$$

Then the time derivative of $V_{1i}(t)$ along the trajectory of the closed-loop CV is given as:

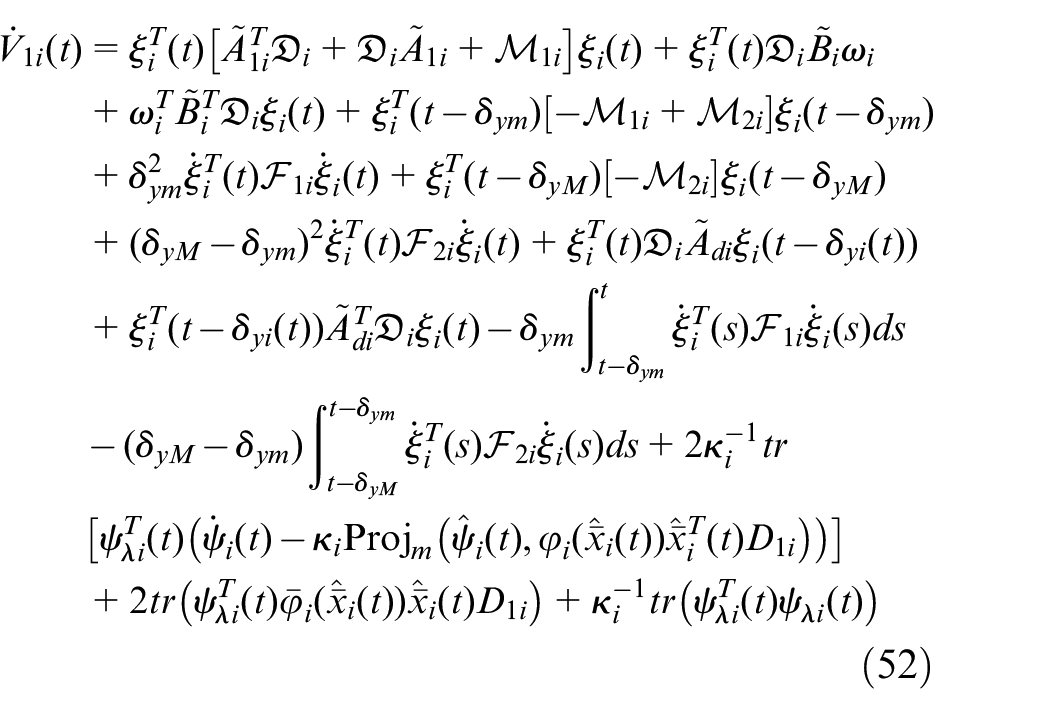

$$\begin{array}{l}{\stackrel{.}{V}}_{1i}(t)={\xi }_i^T(t)\left[{\tilde{A}}_{1i}^T{\mathfrak{D}}_i+{\mathfrak{D}}_i{\tilde{A}}_{1i}+{ℳ}_{1i}\right]{\xi }_i(t)+{\xi }_i^T(t){\mathfrak{D}}_i{\tilde{B}}_i{\omega }_i+{\omega }_i^T{\tilde{B}}_i^T{\mathfrak{D}}_i\\ {\xi }_i(t)+{\xi }_i^T(t-{\delta }_{ym})\left[-{ℳ}_{1i}+{ℳ}_{2i}\right]{\xi }_i(t-{\delta }_{ym})+{\delta }_{ym}^2{\stackrel{.}{\xi }}_i^T(t){ℱ}_{1i}{\stackrel{.}{\xi }}_i(t)+{\xi }_i^T(t-{\delta }_{yM})\left[-{ℳ}_{2i}\right]{\xi }_i(t-{\delta }_{yM})+{({\delta }_{yM}-{\delta }_{ym})}^2{\stackrel{.}{\xi }}_i^T(t){ℱ}_{2i}{\stackrel{.}{\xi }}_i(t)\\ +{\xi }_i^T(t){\mathfrak{D}}_i{\tilde{A}}_{di}{\xi }_i(t-{\delta }_{yi}(t))+{\xi }_i^T(t-{\delta }_{yi}(t)){\tilde{A}}_{di}^T{\mathfrak{D}}_i{\xi }_i(t)-{\delta }_{ym}{\int }_{t-{\delta }_{ym}}^t{\stackrel{.}{\xi }}_i^T(s){ℱ}_{1i}{\stackrel{.}{\xi }}_i(s)ds-({\delta }_{yM}-{\delta }_{ym}){\int }_{t-{\delta }_{yM}}^{t-{\delta }_{ym}}{\stackrel{.}{\xi }}_i^T(s){ℱ}_{2i}{\stackrel{.}{\xi }}_i(s)ds\\ +2{\kappa }_i^{-1}tr\left[{\psi }_{\lambda i}^T(t)\left({\stackrel{.}{\psi }}_i(t)-{\kappa }_i{\mathrm{Proj}}_m\left({\widehat{\psi }}_i(t),{\phi }_i({\widehat{\overline{x}}}_i(t)){\widehat{\overline{x}}}_i^T(t)D_{1i}\right)\right)\right]+2tr\left({\psi }_{\lambda i}^T(t){\overline{\phi }}_i({\widehat{\overline{x}}}_i(t)){\widehat{\overline{x}}}_i(t)D_{1i}\right)+{\kappa }_i^{-1}tr\left({\psi }_{\lambda i}^T(t){\psi }_{\lambda i}(t)\right)\end{array}$$

(52)

There is also

$$\begin{array}{c}-{\kappa }_i^{-1}\mathrm{tr}[{\psi }_{\lambda i}^T(t)\left({\kappa }_i\mathrm{Pro}{\mathrm{j}}_m({\hat{\psi }}_i(t),{\phi }_i({\hat{\overline{x}}}_i(t)){\hat{\overline{x}}}_i^T(t)D_{1i})\right)]\hfill \\ +\mathrm{tr}({\psi }_{\lambda i}^T(t){\overline{\phi }}_i({\hat{\overline{x}}}_i(t)){\hat{\overline{x}}}_i(t)D_{1i})\le 0\hfill \end{array}$$

(53)

By using Jensen inequality and considering (53), one can get

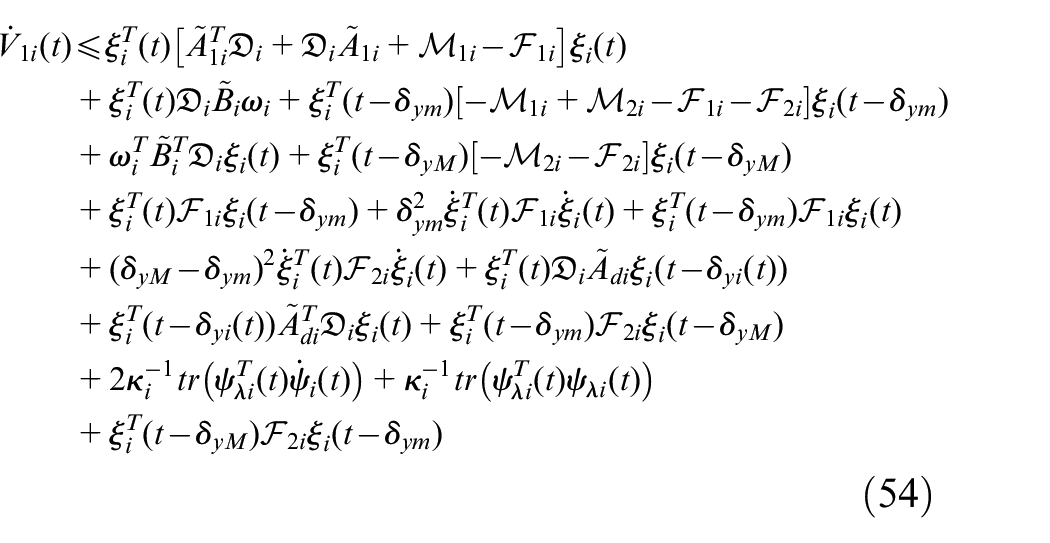

$$\begin{array}{c}\multicolumn{1}{c}{{\stackrel{·}{V}}_{1i}(t)\le {\xi }_i^T(t)[{\tilde{A}}_{1i}^T{\mathfrak{D}}_i+{\mathfrak{D}}_i{\tilde{A}}_{1i}+{\mathcal{M}}_{1i}-{\mathcal{F}}_{1i}]{\xi }_i(t)}\\ +{\xi }_i^T(t){\mathfrak{D}}_i{\tilde{B}}_i{\omega }_i+{\xi }_i^T(t-{\delta }_{\mathrm{ym}})[-{\mathcal{M}}_{1i}+{\mathcal{M}}_{2i}-{\mathcal{F}}_{1i}-{\mathcal{F}}_{2i}]{\xi }_i(t-{\delta }_{\mathrm{ym}})\hfill \\ +{\omega }_i^T{\tilde{B}}_i^T{\mathfrak{D}}_i{\xi }_i(t)+{\xi }_i^T(t-{\delta }_{\mathrm{yM}})[-{\mathcal{M}}_{2i}-{\mathcal{F}}_{2i}]{\xi }_i(t-{\delta }_{\mathrm{yM}})\hfill \\ +{\xi }_i^T(t){\mathcal{F}}_{1i}{\xi }_i(t-{\delta }_{\mathrm{ym}})+{\delta }_{\mathrm{ym}}^2{\stackrel{·}{\xi }}_i^T(t){\mathcal{F}}_{1i}{\stackrel{·}{\xi }}_i(t)+{\xi }_i^T(t-{\delta }_{\mathrm{ym}}){\mathcal{F}}_{1i}{\xi }_i(t)\hfill \\ +({\delta }_{\mathrm{yM}}-{\delta }_{\mathrm{ym}}{)}^2{\stackrel{·}{\xi }}_i^T(t){\mathcal{F}}_{2i}{\stackrel{·}{\xi }}_i(t)+{\xi }_i^T(t){\mathfrak{D}}_i{\tilde{A}}_{\mathrm{di}}{\xi }_i(t-{\delta }_{\mathrm{yi}}(t))\hfill \\ +{\xi }_i^T(t-{\delta }_{\mathrm{yi}}(t)){\tilde{A}}_{\mathrm{di}}^T{\mathfrak{D}}_i{\xi }_i(t)+{\xi }_i^T(t-{\delta }_{\mathrm{ym}}){\mathcal{F}}_{2i}{\xi }_i(t-{\delta }_{\mathrm{yM}})\hfill \\ +2{\kappa }_i^{-1}\mathrm{tr}({\psi }_{\lambda i}^T(t){\stackrel{·}{\psi }}_i(t))+{\kappa }_i^{-1}\mathrm{tr}({\psi }_{\lambda i}^T(t){\psi }_{\lambda i}(t))\hfill \\ +{\xi }_i^T(t-{\delta }_{\mathrm{yM}}){\mathcal{F}}_{2i}{\xi }_i(t-{\delta }_{\mathrm{ym}})\hfill \end{array}$$

(54)

Similarly, we have

$$\begin{array}{c}{\stackrel{·}{V}}_{1i}(t)\le {\tilde{\xi }}_i^T(t){\Theta }_i{\tilde{\xi }}_i(t)+{\kappa }_i^{-1}\mathrm{tr}({\psi }_{\lambda i}^T(t){\psi }_{\lambda i}(t))+{\omega }_i^T{\omega }_i\hfill \\ +2{\kappa }_i^{-1}\mathrm{tr}({\psi }_{\lambda i}^T(t){\stackrel{·}{\psi }}_i(t))\hfill \end{array}$$

(55)

where ${\tilde{\xi }}_i(t)={\left[\begin{array}{ccccc}{\xi }_i^T(t)\hfill & {\xi }_i^T(t-{\delta }_{\mathrm{yi}}(t))\hfill & {\xi }_i^T(t-{\delta }_{\mathrm{ym}})\hfill & {\xi }_i^T(t-{\delta }_{\mathrm{yM}})\hfill & {\omega }_i^T\hfill \end{array}\right]}^T$ , ${\Theta }_i={\mathrm{E}}_{11i}+{\eta }_{1i}^T[{\delta }_{\mathrm{ym}}^2{\mathcal{F}}_{1i}+{({\delta }_{\mathrm{yM}}-{\delta }_{\mathrm{ym}})}^2{\mathcal{F}}_{2i}]{\eta }_{1i}$ , ${\eta }_{1i}=\left[\begin{array}{ccccc}{\tilde{A}}_{1i}\hfill & {\tilde{A}}_{\mathrm{di}}\hfill & 0\hfill & 0\hfill & {\tilde{B}}_i\hfill \end{array}\right]$ .

Transform (55) into the following form:

$$\begin{array}{c}{\stackrel{·}{V}}_{1i}(t)\le 2{\kappa }_i^{-1}\mathrm{tr}({\psi }_{\lambda i}^T(t){\stackrel{·}{\psi }}_i(t))+{\kappa }_i^{-1}\mathrm{tr}({\psi }_{\lambda i}^T(t){\psi }_{\lambda i}(t))\hfill \\ +{\tilde{\xi }}_i^T(t)[{\mathrm{E}}_{11i}+{\eta }_{1i}^T({\delta }_{\mathrm{ym}}^2{\mathcal{F}}_{1i}+{({\delta }_{\mathrm{yM}}-{\delta }_{\mathrm{ym}})}^2{\mathcal{F}}_{2i}){\eta }_{1i}+{\vartheta }_i]{\tilde{\xi }}_i(t)\hfill \end{array}$$

(56)

By using Schur complement theorem, if the condition (49) holds, then

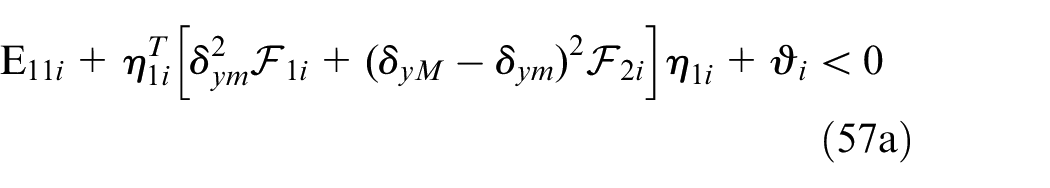

$${\mathrm{E}}_{11i}+{\eta }_{1i}^T[{\delta }_{\mathrm{ym}}^2{\mathcal{F}}_{1i}+{({\delta }_{\mathrm{yM}}-{\delta }_{\mathrm{ym}})}^2{\mathcal{F}}_{2i}]{\eta }_{1i}+{\vartheta }_i<0$$

(57a)

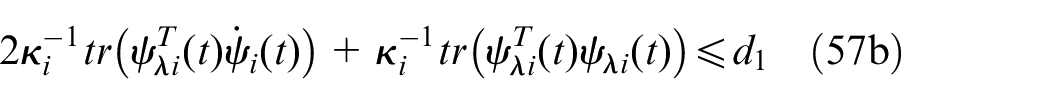

$$2{\kappa }_i^{-1}\mathrm{tr}({\psi }_{\lambda i}^T(t){\stackrel{·}{\psi }}_i(t))+{\kappa }_i^{-1}\mathrm{tr}({\psi }_{\lambda i}^T(t){\psi }_{\lambda i}(t))\le d_1$$

(57b)

Hence, ${\stackrel{·}{V}}_{1i}(t)\le 0$ outside of the compact set

$$\mathbb{Q}\stackrel{\Delta }{=}\{{\Vert {\hat{\overline{x}}}_i(t)\Vert }_2\le {\ell }_1,{\Vert {\psi }_{\lambda i}(t)\Vert }_F\le {\ell }_2\}$$

(58)

where ${\ell }_1\stackrel{\Delta }{=}\sqrt{d_1},{\ell }_2\stackrel{\Delta }{=}\overline{\psi }+{\hat{\psi }}_{max}$ , this proves that the CV system given by (47) and (48) is uniformly bounded in any case.

To show the ultimate bounds for ${\hat{\overline{x}}}_i(t)$ , ${\psi }_{\lambda i}(t)$ given by (49), note that, for any time

$${\lambda }_{min}(D_{1i})\Vert {\hat{\overline{x}}}_i(t){\Vert }_2^2+{\kappa }_i^{-1}\Vert {\psi }_{\lambda i}(t){\Vert }_F\le {\Pi }_{max}$$

(59)

where $\underset{max}{\Pi }\stackrel{\Delta }{=}{\lambda }_{max}(D_{1i}){\ell }_1^2+{\kappa }_i^{-1}{\ell }_2^2$ . It can be seen from (59) that $\Vert {\hat{\overline{x}}}_i(t){\Vert }_2^2\le \frac{\underset{max}{\Pi }}{{\lambda }_{min}(D_{1i})}$ , $\Vert {\psi }_{\lambda i}(t){\Vert }_F^2\le {\kappa }_i\underset{max}{\Pi }$ .

Therefore, if (49) satisfies, then (48) is uniformly bounded.

String stability analysis

Since the correction signal C_i(t) is infinitely close to the deception attack, the correction signal can be offset with the deception attack signal. Therefore, it is only necessary to consider whether the CV system satisfies the string stability under the control of the equivalent controller (42). The string stability analysis of the CV system is given below.

First, substituting the controller (42) into (7) yields

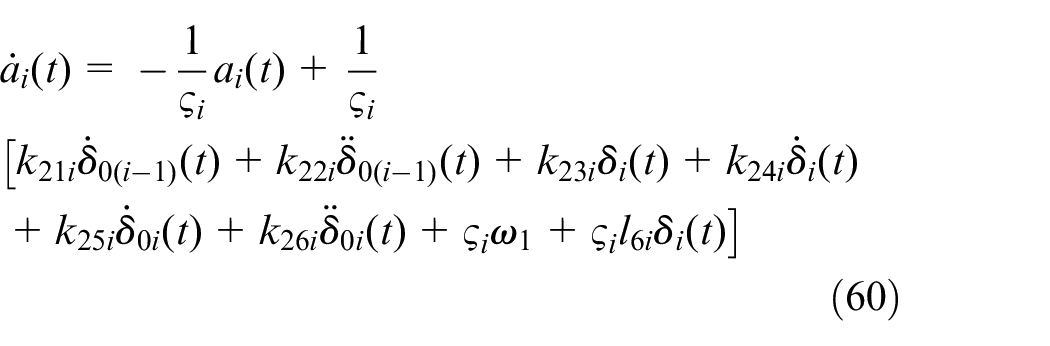

$$\begin{array}{c}{\stackrel{·}{a}}_i(t)=-\frac{1}{{\varsigma }_i}{a}_i(t)+\frac{1}{{\varsigma }_i}\hfill \\ [k_{21i}{\stackrel{·}{\delta }}_{0(i-1)}(t)+k_{22i}{\stackrel{··}{\delta }}_{0(i-1)}(t)+k_{23i}{\delta }_i(t)+k_{24i}{\stackrel{·}{\delta }}_i(t)\hfill \\ +k_{25i}{\stackrel{·}{\delta }}_{0i}(t)+k_{26i}{\stackrel{··}{\delta }}_{0i}(t)+{\varsigma }_i{\omega }_1+{\varsigma }_i{l}_{6i}{\delta }_i(t)]\hfill \end{array}$$

(60)

Then, based on (1) and (56), we have

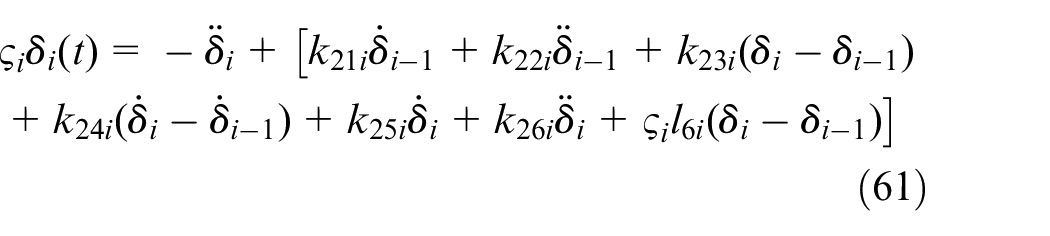

$$\begin{array}{c}{\varsigma }_i{\delta }_i(t)=-{\stackrel{··}{\delta }}_i+[k_{21i}{\stackrel{·}{\delta }}_{i-1}+k_{22i}{\stackrel{··}{\delta }}_{i-1}+k_{23i}({\delta }_i-{\delta }_{i-1})\hfill \\ +k_{24i}({\stackrel{·}{\delta }}_i-{\stackrel{·}{\delta }}_{i-1})+k_{25i}{\stackrel{·}{\delta }}_i+k_{26i}{\stackrel{··}{\delta }}_i+{\varsigma }_i{l}_{6i}({\delta }_i-{\delta }_{i-1})]\hfill \end{array}$$

(61)

Obviously, the string stability depends on the relationship between adjacent vehicles, and through simple algebraic operations, one can derive

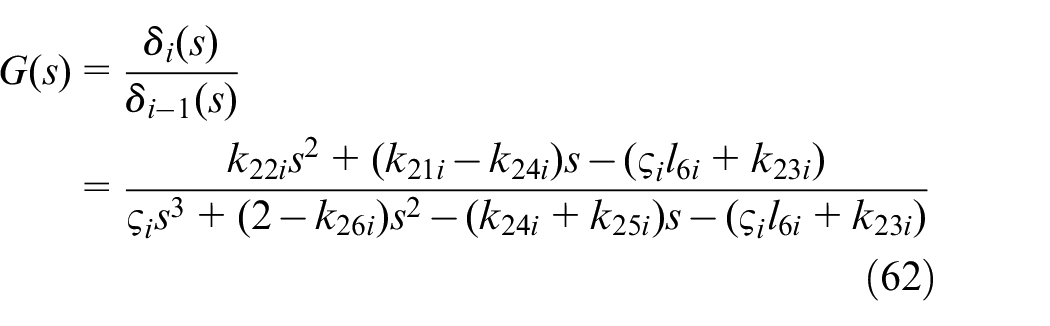

$$\begin{array}{c}\multicolumn{1}{c}{G(s)=\frac{{\delta }_i(s)}{{\delta }_{i-1}(s)}}\\ =\frac{k_{22i}{s}^2+(k_{21i}-k_{24i})s-({\varsigma }_i{l}_{6i}+k_{23i})}{{\varsigma }_i{s}^3+(2-k_{26i})s^2-(k_{24i}+k_{25i})s-({\varsigma }_i{l}_{6i}+k_{23i})}\hfill \end{array}$$

(62)

• Theorem 4. $|{\delta }_i(\mathrm{jw})/{\delta }_{i-1}(\mathrm{jw})|\le 1$ , $\forall w>0$ , if

$$2{\varsigma }_i{k}_{21i}+2{\varsigma }_i{k}_{25i}-4k_{22i}-4k_{26i}+4\ge 0$$

(63)

Proof: First, $|{\delta }_i(\mathrm{jw})/{\delta }_{i-1}(\mathrm{jw})|$ can be formed as

$$G(\mathrm{jw})=\left|\frac{{\delta }_i(\mathrm{jw})}{{\delta }_{i-1}(\mathrm{jw})}\right|=\sqrt{\frac{a}{a+b}}$$

where

$$a=(-k_{22i}{w}^2-{\varsigma }_i{l}_{6i}-k_{23i}{)}^2+(k_{21i}w-k_{24i}w{)}^2,$$

$$\begin{array}{c}b=(k_{22i}+k_{26i}{)}^2{w}^4+(2{\varsigma }_i{k}_{21i}+2{\varsigma }_i{k}_{25i}-4k_{22i}-4k_{26i}\hfill \\ +4)w^4+{\varsigma }_i^2{w}^6+(k_{21i}+k_{25i}{)}^2{w}^2.\hfill \end{array}$$

Thus, the results of Theorem 4 are directly used as the gains selection conditions to meet the string stability. This completes the proof.

Simulations

In this section, the designed controller is applied to the CV system composed of five vehicles to verify it’s effectiveness in suppressing attacks under various driving conditions. The virtual simulation experiments are established in MATLAB.

In order to achieve the maximum effect of the replay attack and reduce the probability of being detected, the number of replay attacks against the following vehicle may be different under different road conditions. Therefore, the number of replay attack against the following vehicle is set as $p_1=2$ , $p_2=3$ , $p_3=1$ , and $p_4=2$ , respectively. The parameterized positive scalar functions are ${\rho }_1(t,u_1)=3.8\cos (0.1t)$ , ${\rho }_2(t,u_2)=5.7\cos (0.1t)$ , ${\rho }_3(t,u_3)=1.9\cos (0.1t)$ , and ${\rho }_4(t,u_4)=3.8\cos (0.1t)$ , respectively. In the simulation, each following vehicle is considered to be subject to different levels of DoS attack, that is, the probability of successful launch is taken as ${\alpha }_1=0.1$ , ${\alpha }_2=0.3$ , ${\alpha }_3=0.2$ , ${\alpha }_4=0.1$ , and the parameterized positive scalar functions are ${\chi }_1(t,u_1)=0.2\sin (0.25t)$ , ${\chi }_2(t,u_2)=0.6\sin (0.25t)$ , ${\chi }_3(t,u_3)=0.4\sin (0.25t)$ , and ${\chi }_4(t,u_4)=0.2\sin (0.25t)$ , respectively. The deception attack is $\varphi (a_j(t))={\left[\begin{array}{cccccc}0\hfill & 0\hfill & 0\hfill & 0\hfill & 0\hfill & 0.5\cos (t)\hfill \end{array}\right]}^{T}0.2\sin ({\stackrel{··}{\delta }}_{0j}(t))$ , with $j=1,\dots ,4$ . To design the correction signal given by (43), we set ${\kappa }_j=0.8,j=1,\dots ,4$ . The minimum safe distance between two adjacent vehicles is set as ${\delta }_d=5$ and length of vehicle is 5 m. The other vehicle parameters are shown in Table 1.

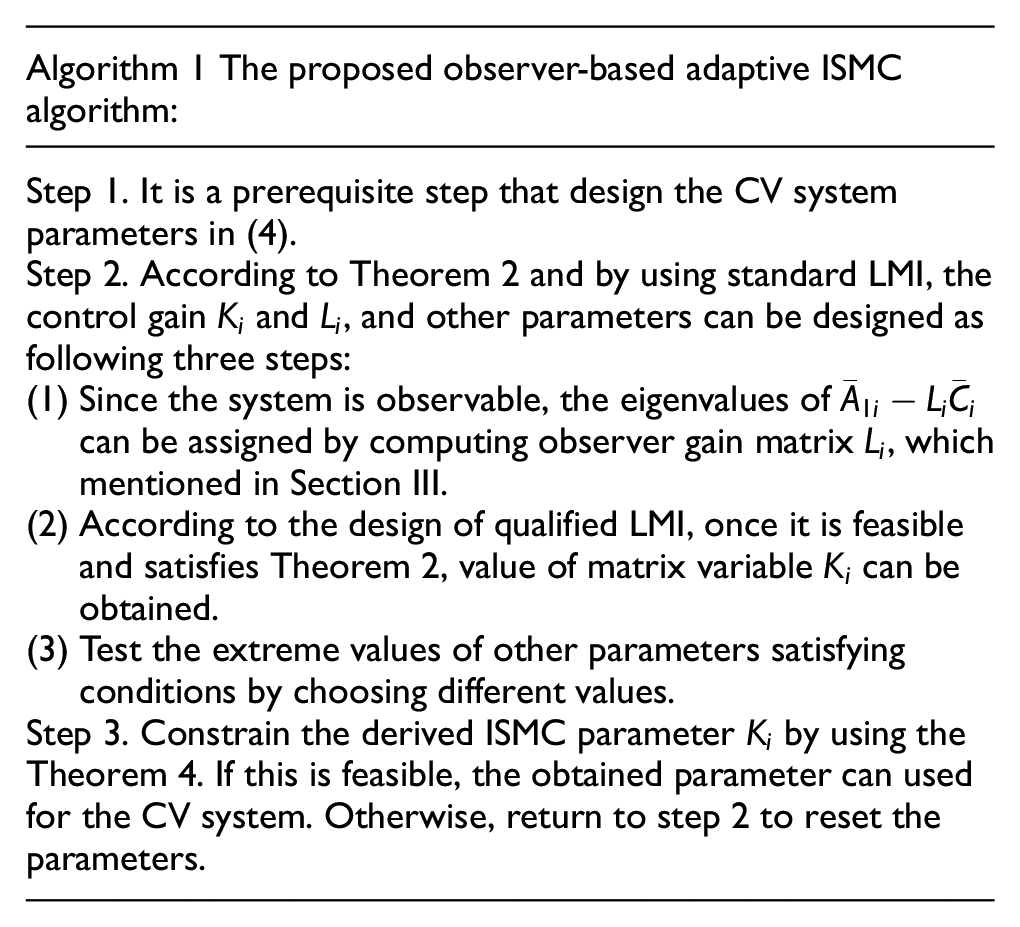

Algorithm 1 The proposed observer-based adaptive ISMC algorithm:

Step 1. It is a prerequisite step that design the CV system parameters in (4).Step 2. According to Theorem 2 and by using standard LMI, the control gain $K_i$ and $L_i$ , and other parameters can be designed as following three steps: (1) Since the system is observable, the eigenvalues of ${\overline{A}}_{1i}-L_i{\overline{C}}_i$ can be assigned by computing observer gain matrix $L_i$ , which mentioned in Section III. (2) According to the design of qualified LMI, once it is feasible and satisfies Theorem 2, value of matrix variable $K_i$ can be obtained. (3) Test the extreme values of other parameters satisfying conditions by choosing different values.Step 3. Constrain the derived ISMC parameter $K_i$ by using the Theorem 4. If this is feasible, the obtained parameter can used for the CV system. Otherwise, return to step 2 to reset the parameters.

Table 1.

The parameters of vehicle.

Name of relevant parameters	Parameter value	Unit
Specific mass of the air	$\sigma =1$	$\mathrm{kg}/{\mathrm{m}}^3$
Cross-sectional area	$A_i=2.2$	${\mathrm{m}}^2$
Mechanical drag	$d_{\mathrm{mi}}=5$	$\mathrm{N}$
Mass	$m_i=1464$	$\mathrm{kg}$
Drag coefficient	$C_{\mathrm{di}}=0.35$	–
Engine time constant	${\varsigma }_i=0.25$	–

Substituting these parameters into dynamic equations (4c) and (5) yields

$${\stackrel{·}{a}}_i=-\frac{1}{{\varsigma }_i}({\stackrel{·}{v}}_i+\frac{0.49}{1464}{v}_i^2+\frac{5}{1464})-\frac{0.92{\stackrel{·}{v}}_i{v}_i}{1464}+\frac{c_i}{1464{\varsigma }_i}$$

The linearization controller in (6) is given as

$$c_i=1464u_i+0.49v_i^2/2+5+0.92{\stackrel{·}{v}}_i{v}_i{\varsigma }_i$$

This set of parameters are selected to simulate a CV with smart sensors

$A_{\mathrm{fi}}=\left[\begin{array}{cc}0\hfill & 1\hfill \\ \multicolumn{1}{c}{0}& -4\hfill \end{array}\right],A_{\mathrm{si}}=\left[\begin{array}{cc}0\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& -1\hfill \\ \multicolumn{1}{c}{0}& 0\hfill \\ \multicolumn{1}{c}{0}& 0\hfill \end{array}\right],A_{\mathrm{ti}}=\left[\begin{array}{cccc}0\hfill & 1\hfill & 0\hfill & 0\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill & 1\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill & 1\hfill \\ \multicolumn{1}{c}{0}& 0\hfill & 0\hfill & -4\hfill \end{array}\right],$ $B_{\mathrm{fi}}=\left[\begin{array}{c}0\hfill \\ \multicolumn{1}{c}{-4}\end{array}\right]$ , $B_{\mathrm{si}}=\left[\begin{array}{c}0\hfill \\ \multicolumn{1}{c}{0}\\ \multicolumn{1}{c}{0}\\ \multicolumn{1}{c}{-4}\end{array}\right]$ , ${\overline{C}}_i=\left[\begin{array}{cccccc}0\hfill & 0\hfill & 1\hfill & 1\hfill & 0\hfill & 1\hfill \end{array}\right]$ .

The details on how to compute observer gain matrix $L_i$ can be found in section III. The eigenvalues of ${\overline{A}}_{1i}-L_i{\overline{C}}_i$ , ${\lambda }_i=\{{\lambda }_{1i},{\lambda }_{2i},{\lambda }_{3i},{\lambda }_{4i},{\lambda }_{5i},{\lambda }_{6i}\}$ , are selected as: ${\lambda }_{1i}=-0.1$ , ${\lambda }_{2i}=-0.2$ , ${\lambda }_{3i}=-0.3$ , ${\lambda }_{4i}=-0.4$ , ${\lambda }_{5i}=-0.5$ , ${\lambda }_{6i}=-0.6$ . The output measurement time-varying delay ${\delta }_y(t)$ is shown in Figure 4, with design shown below:

Figure 4.

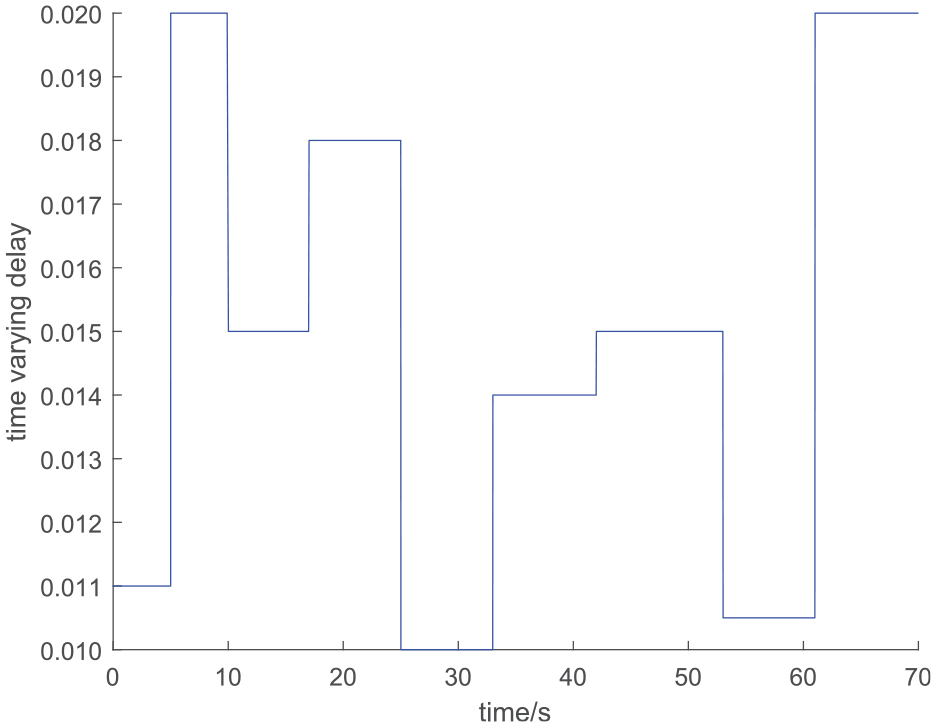

Time-varying delay.

${\delta }_y(t)=\{\begin{array}{cc}0.03\mathrm{s}\hfill & 0\le t\le 1\mathrm{s}\hfill \\ \multicolumn{1}{c}{0.01\mathrm{s}}& 1<t\le 5\mathrm{s}\hfill \\ \multicolumn{1}{c}{0.015\mathrm{s}}& 5<t\le 23\mathrm{s}\hfill \\ \multicolumn{1}{c}{0.02\mathrm{s}}& 23<t\le 42\mathrm{s}\hfill \\ \multicolumn{1}{c}{0.018\mathrm{s}}& 42<t\le 53\mathrm{s}\hfill \\ \multicolumn{1}{c}{0.01\mathrm{s}}& \mathrm{otherwise}\hfill \end{array}$ , the gain matrices $\left\{K_i\right\}$ are designed as follow: $K_1=\left[\begin{array}{cccccc}1\hfill & 1\hfill & 1\hfill & 1\hfill & 1\hfill & 1\hfill \\ \multicolumn{1}{c}{2}& 20\hfill & 1\hfill & 19\hfill & 0.01\hfill & 50\hfill \end{array}\right]$ , $K_2=\left[\begin{array}{cccccc}1\hfill & 1\hfill & 1\hfill & 1\hfill & 1\hfill & 1\hfill \\ \multicolumn{1}{c}{1}& 20\hfill & 1\hfill & 19\hfill & 0.01\hfill & 50\hfill \end{array}\right]$ , $K_3=\left[\begin{array}{cccccc}1\hfill & 1\hfill & 1\hfill & 1\hfill & 1\hfill & 1\hfill \\ \multicolumn{1}{c}{1}& 20\hfill & 3\hfill & 27\hfill & 0.01\hfill & 30\hfill \end{array}\right]$ , $K_4=\left[\begin{array}{cccccc}1\hfill & 1\hfill & 1\hfill & 1\hfill & 1\hfill & 1\hfill \\ \multicolumn{1}{c}{1}& 20\hfill & 5\hfill & 25\hfill & 2\hfill & 20\hfill \end{array}\right]$ .

In order to well illustrate the effectiveness of the controller designed in this paper, numeral simulation is carried out in the following two scenarios.

Emergency acceleration of leading vehicle

In this scenario, the leader quickly accelerates from 0 to 36 m/s within 22 s and then maintained a constant speed. The comparison between the proposed controller and the controller in Yue et al. ³¹ are shown in Figures 5 and 6, respectively. It can be seen from Figures 5 and 6 that the maximum distance errors under the two control methods are 0.49 and 9.71 m, respectively. Although both simulation results satisfy the string stability, the tracking error in Yue et al. ³¹ is too large, which will lead to vehicle rear-end tracking. The comparison between Figures 5(b), (c) and 6(b), (c) shows that the jitter of velocity and acceleration tracking in Yue et al. ³¹ is larger than that in this paper, which results in a very poor ride experience in practical applications. Obviously, in this scenario, the performance of the controller designed in this paper is much better than the control method in Yue et al. ³¹

Figure 5.

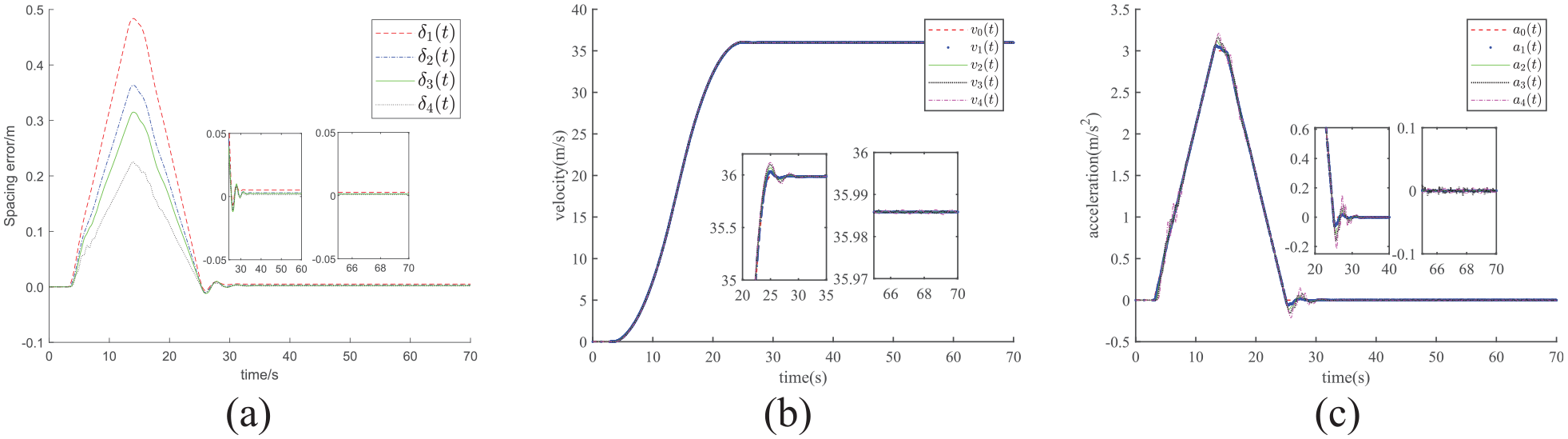

The control performance of CV under the proposed controller: (a) position error, (b) velocity tracking, and (c) acceleration tracking.

Figure 6.

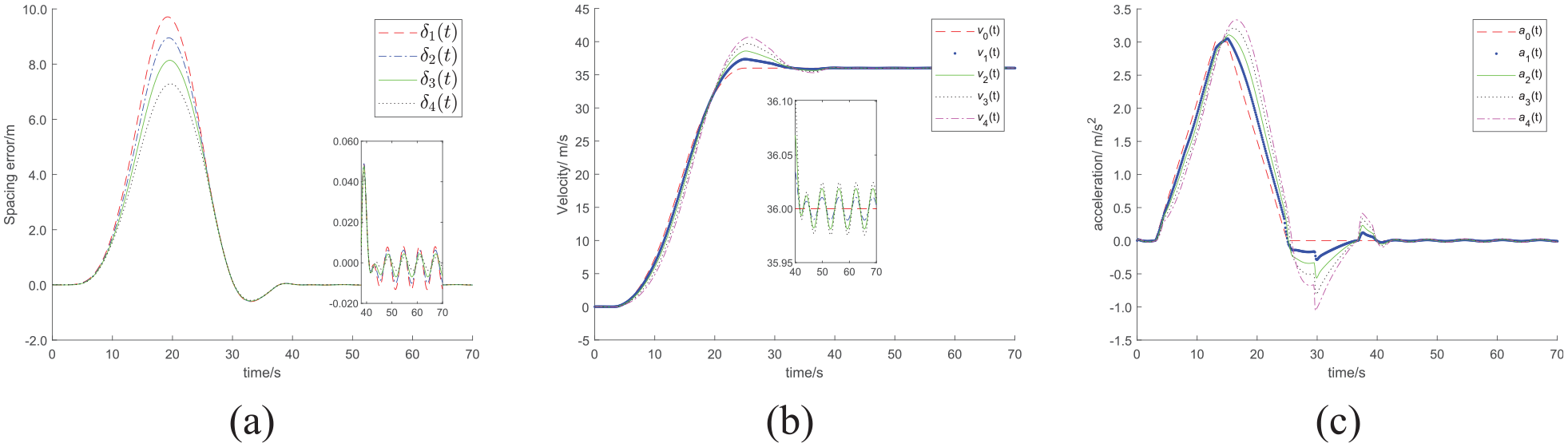

The control performance of CV under the controller in Yue et al. ³¹ (a) position error, (b) velocity tracking, and (c) acceleration tracking.

Frequent acceleration and deceleration of leading vehicle

In this scenario, the leading vehicle accelerates from 0 to 21.50 m/s in 11 s, and then accelerates to 30.40 m/s after a short uniform speed of 2.00 s, then slows down to 21.40 m/s in 5 s, and then immediately accelerates to 23.20 m/s and maintains uniform motion.

The maximum spacing error in Figure 7(a) is 0.57 m, but the maximum spacing error in Figure 8(a) is 8.12 m, which is much larger than the safe distance of CV and the inevitable rear-end traffic accident. It can be seen from Figure 7(b) and (c) that even in this complex scenario, the proposed controller in this paper can achieve fast and accurate tracking of velocity and acceleration, while the control effect obtained with the controller in Yue et al. ³¹ is as good. It can be clearly seen that there is jitter in Figure 8(a) to (c). In addition, the CV system with the proposed controller achieves stability at 41.2 s, while the CV system with the controller in Yue et al. ³¹ tends to be stable at 49.5 s.

Figure 7.

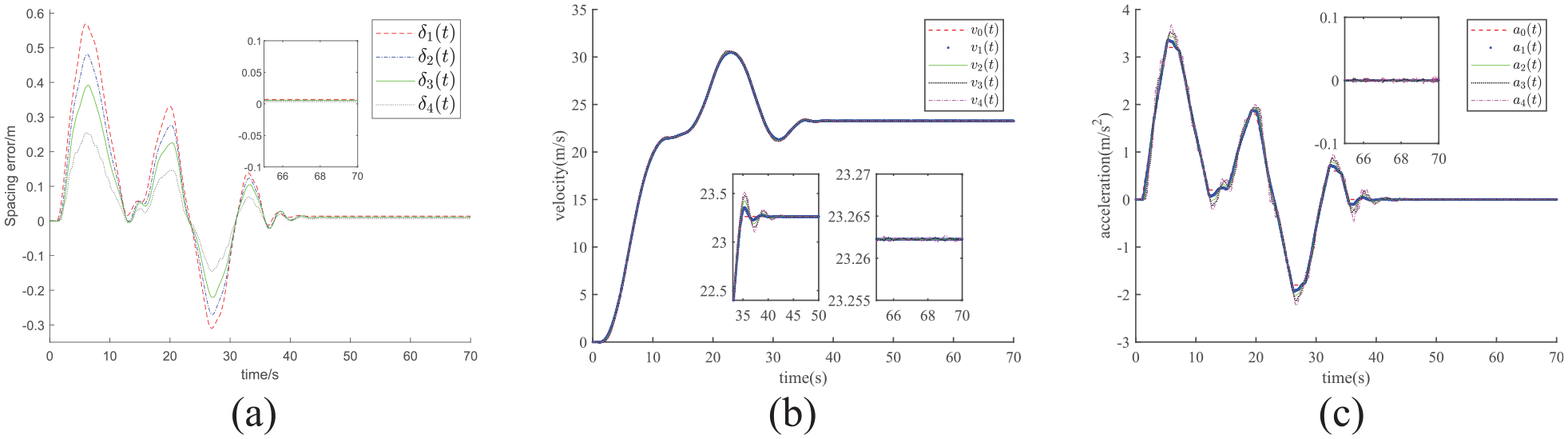

The control performance of CV under the proposed controller: (a) position error, (b) velocity tracking, and (c) acceleration tracking.

Figure 8.

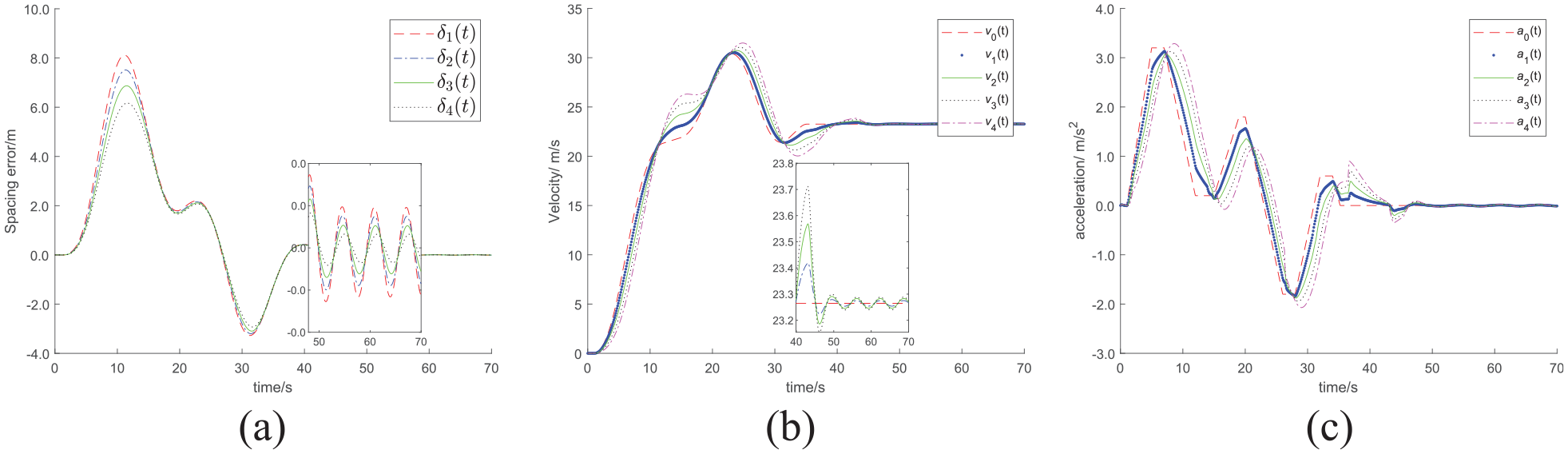

The control performance of CV under the controller in Yue et al. ³¹ (a) position error, (b) velocity tracking, and (c) acceleration tracking.

However, once the attack is too large, the degree of attacks: $\Vert h_i(x_i,u_i)\Vert \le {\rho }_i(t,u_i)$ and $\Vert g_i(x_i,u_i)\Vert \le {\chi }_i(t,u_i)$ is exceeded, the CV system will become uncontrollable, which is shown in Figure 9.

Figure 9.

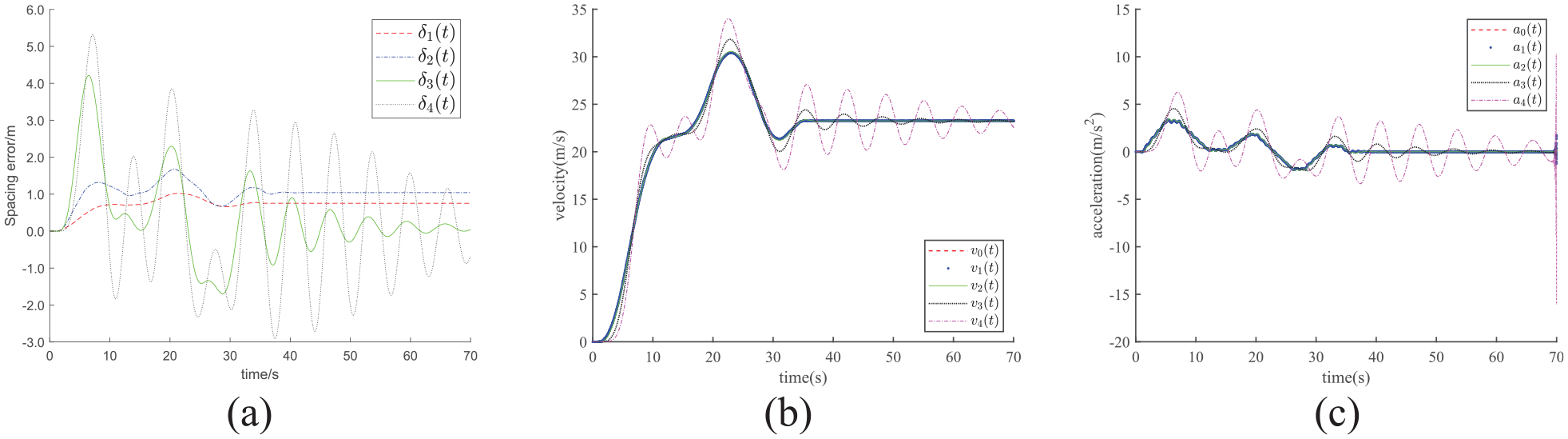

The control performance of CV under the proposed controller: (a) position error, (b) velocity tracking, and (c) acceleration tracking.

Conclusion and future work

In this paper, a novel decentralized CV control scheme based on the variable structure observer and adaptive integral sliding mode technique has been developed with replay attack, DoS attack, and output delay. A corrective signal is designed for the deception attack to eliminate the influence of deception attack on the CV system. By adopting Lyapunov-Razumikhin method, the state estimation error of CV system has been shown to asymptotically converge to zero, which can reduce the negative effect of the replay attack and DoS attack. Furthermore, the robust asymptotic stability of CV system has been guaranteed by using the emerging technique of robust control for time-delay systems. At the same time, the string stability of CV has also been guaranteed, even under the condition of heterogeneous vehicles. The superiority of the proposed scheme has been demonstrated by extensive simulations.

An interesting future topic that merits this research is how to improve the CV performance by considering both longitudinal and lateral control which raise various open problems. One possibility is to apply the method presented in Shao et al.^32,33 and Yue et al. ³⁴ to CV control.
