Active vibration optimal control of piezoelectric cantilever beam with uncertainties

Abstract

Considering the stiffness characteristics of piezoelectric layer, the bending stiffness of piezoelectric cantilever beam is obtained by applying the first-order shear deformation theory. The finite element model of piezoelectric cantilever beam is established by Hamilton variation principle, and the modal superposition method is employed to reduce the order of the finite element model. At the maximum strain point, the sensors/actuators are equipped in pairs. Based on the uncertain dynamic model of piezoelectric cantilever beam, the independent modal space control method based on LQR (linear quadratic regulator) control is employed for the active control of the smart beam structure, and the weighted matrices Q and R are selected according to the energy criterion. The numerical simulations and experiments verify the effectiveness of the proposed finite element model and the active vibration optimal control.

Introduction

Piezoelectric smart materials and structures are being more and more used in aerospace, shipbuilding, and automobile manufacturing and other fields owing to their light weight, low cost, high-specific strength and stiffness, excellent thermal characteristics, ease of manufacture and other significant features. ^1,2 Accurate prediction of the dynamic behavior and active vibration control of piezoelectric cantilever beam are vital to the engineering design and manufacture of piezoelectric cantilever beam. In recent years, several researches have focused on the vibration analysis and control of these structures. Piezoelectric smart structures, particularly piezoelectric cantilever beams, are among the most commonly used flexible members in aerospace structures and aircrafts. Consequently, extensive research has been conducted on vibration control of flexible beams. One of the most interesting and feasible active control configurations in this field includes the implementation of the excellent sensing and actuating properties exhibited by piezoelectric materials. ³

For the modeling of piezoelectric cantilever beam, the change of stiffness and mass caused by sticking piezoelectric material or embedding piezoelectric material is usually ignored, and a distributed moment is used to express the control effect of piezoelectric layer on the structure, ^4–7 which can not accurately reflect the intrinsic mechanical characteristics of the piezoelectric smart structure. The finite element model of piezoelectric structure usually has a high order, which can not be directly used in the design of controller. Model reduction is the link between the finite element model and controller design. Moreover, in the following research works , ^8–11 in order to avoid the electromechanical coupling effect, some assumptions are adopted. The constitutive equation of piezoelectric body is directly decoupled by the electrical mechanical quantity, which makes the problem greatly simplified but does not conform to the actual situation. ^12–14 In this work, applying the first-order transverse shear deformation theory of laminated beams, the equivalent transverse bending stiffness of piezoelectric cantilever beams is obtained. The finite element model of piezoelectric cantilever beams is established by Hamilton variational principle. Modal superposition method is used to reduce the order of the original system. Therefore, based on this reduced order mathematical model, a state feedback controller is designed to make the active vibration control of piezoelectric cantilever beams possible.

The main control algorithms used in the active vibration control of piezoelectric cantilever beam are as follows: PD control based on optimal position feedback, ¹⁵ robust control, ^16,17 adaptive control, ^18–29 fuzzy control, ³⁰ artificial neural network control, ³¹ LQR control method ^32–38 etc. The purpose of control is to quickly suppress bending and torsional modal vibration. It can be seen from the existing research ^15–40 that the large amplitude vibration of the flexible cantilever beam can be rapidly attenuated to a small amplitude value, but the small amplitude vibration will last for a long time. In order to ensure the rapid attenuation of large and small amplitude vibration of the flexible beam with uncertainties, the sliding mode control algorithms ^39–41 are proposed.

Among these control methods, the research of LQR control method is mostly focused on piezoelectric intelligent materials, and different physical quantities are used as control objectives. The selection of weighting matrix Q and R is crucial to the control effect of the controlled closed-loop system. In, ³² the LQR method is used to study the vibration control of simply supported laminated plates on four sides, Q and R are only determined by experience. In, ³³ the weight matrix Q and R are determined by the criterion of minimum energy. In, ^34–36 the LQR controller is proposed to use a lightweight mirror flexible system, and the two weighting factors Q and R on the control performance are also investigated. In, ³⁷ the LQR state feedback control is designed for the flexible shell structronic systems, and the gain matrix is estimated based on minimizing a performance criterion function. However, in LQR algorithm, it has rarely been reported that all kinds of boundary conditions are taken into account and a clear basis is given for the determination of the weight matrix Q and R. ³⁸

The main contribution of the paper is the dynamic modeling and vibration control method of piezoelectric the cantilevered beam. Specifically, considering the stiffness characteristics of piezoelectric layer, the equivalent transverse bending stiffness of piezoelectric laminated beams is derived from the first-order transverse shear deformation theory of laminated beams. The finite element model of piezoelectric laminated beams is established by Hamilton variation principle, and the original system is reduced by mode superposition method. Futhermore, considering the uncertainty of system parameters, the vibration control of piezoelectric cantilever beams is carried out by using the independent modal space control method based on LQR. Different from the traditional LQR method, the weighted matrices Q and R of the LQR method designed in this paper are selected according to the energy criterion.

This paper is organized as follows. In Mathematical modeling, we present the mathematical modeling of cantilever beams with piezoelectric layer. In Design of active vibration controller, the LQR optimal vibration controller is designed for piezoelectric cantilever beams. Simulation and experiment results are discussed in Simulations and experiments. Finally, Conclusion gives some conclusions.

Mathematical modeling

Transverse bending rigidity for piezoelectric laminate beam

The thickness and width of the symmetrical piezoelectric laminated beams with sensors/actuators are h and b, according to the first-order transverse shear deformation theory of the laminated beam, the displacement of any point outside the middle plane of beam is as follows ³ :

$$\begin{array}{l}u=u^0\left(x,y\right)-z{\varphi }_x\left(x,y\right)\\ v=v^0\left(x,y\right)-z{\varphi }_y\left(x,y\right)\\ w=w^0\left(x,y\right)\end{array}$$

(1)

where $u^0$ , $v^0$ and $w^0$ are the displacement of a reference point (x, y) on the middle plane (z=0), ${\varphi }_x$ and ${\varphi }_y$ represent the rotation angle on the xz plane and yz beam after the deformation of the normal of the middle plane. From equation (1), the strain ${\left[{\epsilon }_{xx},{\epsilon }_{yy},{\epsilon }_{xy}\right]}^{\text{T}}$ can be obtained as ⁶

$$\left[\begin{array}{c}{\epsilon }_{xx}\\ {\epsilon }_{yy}\\ {\epsilon }_{xy}\end{array}\right]=\left[\begin{array}{c}{\epsilon }_{xx}^0\\ {\epsilon }_{yy}^0\\ {\gamma }_{xy}^0\end{array}\right]+z\left[\begin{array}{c}{\chi }_{xx}\\ {\chi }_{yy}\\ {\chi }_{xy}\end{array}\right]$$

(2)

where

$$\begin{array}{l}{\epsilon }_{xx}^0=\frac{\partial u^0}{\partial x},{\epsilon }_{yy}^0=\frac{\partial v^0}{\partial y},{\gamma }_{xy}^0=\frac{\partial u^0}{\partial y}+\frac{\partial v^0}{\partial x}\\ {\chi }_{xx}=-\frac{\partial {\varphi }_x}{\partial x},{\chi }_{yy}=-\frac{\partial {\varphi }_y}{\partial y},{\chi }_{xy}=-\frac{\partial {\varphi }_x}{\partial y}-\frac{\partial {\varphi }_y}{\partial x}\end{array}$$

(3)

In each beam, stress-strain relationships are as followings

$$\left[\begin{array}{c}{\sigma }_{xx}\\ {\sigma }_{yy}\\ {\tau }_{xy}\end{array}\right]=\left[\begin{array}{ccc}{\overline{Q}}_{11}& {\overline{Q}}_{12}& {\overline{Q}}_{16}\\ {\overline{Q}}_{12}& {\overline{Q}}_{22}& {\overline{Q}}_{26}\\ {\overline{Q}}_{16}& {\overline{Q}}_{26}& {\overline{Q}}_{66}\end{array}\right]\left[\begin{array}{c}{\epsilon }_{xx}\\ {\epsilon }_{yy}\\ {\gamma }_{xy}\end{array}\right]$$

(4)

where ${\overline{Q}}_{ij}\left(i,j=\mathrm{1,2,6}\right)$ is the off-axis stiffness coefficient after coordinate conversion. Equation (4) is integrated along the thickness of laminated beam, and considers (2) and (3), we can obtain as

$$\left[\begin{array}{c}{M}_{xx}\\ M_{yy}\\ M_{xy}\end{array}\right]=\left[\begin{array}{ccc}{D}_{11}& D_{12}& D_{16}\\ D_{12}& D_{22}& D_{26}\\ D_{16}& D_{26}& D_{66}\end{array}\right]\left[\begin{array}{c}{\chi }_{xx}\\ {\chi }_{yy}\\ {\chi }_{xy}\end{array}\right]$$

(5)

where $\left(M_{xx},M_{yy},M_{xy}\right)={\displaystyle {\int }_{-h/2}^{h/2}\left({\sigma }_{xx},{\sigma }_{yy},{\tau }_{xy}\right)zdz}$ ,

$D_{ij}={\displaystyle {\int }_{-h/2}^{h/2}{\overline{Q}}_{ij}}{z}^{2}dz,i,j=\mathrm{1,2,6}$ , $D_{ij}\left(i,j=\mathrm{1,2,6}\right)$ are bending stiffness. Considering that the laminated cantilever beams is a one-dimensional component, the following approximate conditions are introduced as

$$M_{yy}=M_{xy}=0$$

(6)

Then, (5) can be simplified as:

$$M_{xx}={\overline{D}}_{11}{\chi }_{xx}$$

(7)

where ${\overline{D}}_{11}$ is the equivalent bending stiffness per unit width. From (5) and (7), we can obtain

$${\overline{D}}_{11}=D_{11}+\frac{D_{16}{D}_{26}-D_{12}{D}_{66}}{D_{22}{D}_{66}-D_{26}{D}_{26}}{D}_{12}+\frac{D_{12}{D}_{26}-D_{16}{D}_{22}}{D_{22}{D}_{66}-D_{26}{D}_{26}}{D}_{16}$$

(8)

Element equation of piezoelectric laminated beam

The piezoelectric equation reflecting the electromechanical coupling characteristics of piezoelectric materials can be derived strictly from the thermodynamic theory. ⁷

$$\begin{array}{l}\epsilon =S^{\text{E}}\sigma +d^{\text{T}}E\\ D=d\sigma +{\lambda }^{\text{σ}}E\end{array}$$

(9)

where $\epsilon$ is the strain vector, $S^{\text{E}}$ is the closed-circuit flexibility matrix, $\sigma$ is the stress vector, d is the piezoelectric strain constant matrix, E is the electric field strength vector, D is the electric displacement vector, ${\lambda }^{\sigma }$ is the free dielectric constant matrix.

The beam element with piezoelectric layer is shown in Figure 1, with length l, width b, thickness of base material h, thickness of piezoelectric layer c, and input voltage $v_d$ . It is assumed that the piezoelectric material and the substrate material are well coupled, and the deformation is continuous. Then the internal displacement of the piezoelectric laminated beam element can be written as ²⁷ :

$$w\left(x,t\right)=N\delta$$

(10)

where N is the shape function matrix and $\delta$ is the node displacement matrix. The strain in the x-axis direction of the piezoelectric chip can be obtained as

$${\epsilon }_1=\frac{\left(h+c\right)}{2}\frac{{\partial }^2}{\partial x^2}w\left(x,t\right)=\frac{\left(h+c\right)}{2}G\delta$$

(11)

where G is the geometric matrix. The z-direction electric field intensity of piezoelectric chip is as following

$$E_3=\frac{v_d}{c}$$

(12)

If Hamilton variational principle is applied, the dynamic model of piezoelectric beam element is derived as following

$$\delta {\displaystyle {\int }_{t_1}^{t_2}Ldt}=\delta {\displaystyle {\int }_{t_1}^{t_2}\left(T-H+W^{\text{*}}\right)dt}=0$$

(13)

where L, T, H and W ^* are Lagrangian function, kinetic energy, enthalpy and external force work of the system respectively, they can be calculated by the following equations

$$\begin{array}{l}T=\frac{1}{2}{\displaystyle {\int }_v{\dot{w}}^{\text{T}}}\rho \dot{w}dv\\ H=\frac{1}{2}{\displaystyle {\int }_0^l{\left(G\delta \right)}^{\text{T}}}\left(DG\delta \right)dx-\frac{1}{2}{\displaystyle {\int }_v{E}_3{D}_3}dv\\ W^{\text{*}}=P^{\text{T}}\delta -{\displaystyle {\int }_s{v}_d}{D}_{3}ds\end{array}$$

(14)

where $D={\overline{D}}_{11}b$ , ${\overline{D}}_{11}$ can be obtained by (8), $D_3$ is the electric displacement, ρ is the average density of piezoelectric laminated beam, p is the nodal force matrix. Substituting equation (14) into equation (13) and applying the first-order variation, then the dynamic equation of piezoelectric laminated beam element is obtained as

$$\begin{array}{l}M\ddot{\delta }+K\delta =P^{\text{T}}+K_d{v}_d\\ \frac{e_{31}\left(h+c\right)b}{4}{\widehat{G}}^{\text{T}}\delta +\frac{{\epsilon }_{33}^{\epsilon }bl}{c}{v}_d=Q\end{array}$$

(15)

where $K_d=\frac{e_{31}\left(h+c\right)b}{4}{\widehat{B}}^{\text{T}}$ is the input voltage coefficient matrix, ${\epsilon }_{33}^{\epsilon }$ is the clamping dielectric constant, $e_{31}$ is the piezoelectric stress constant, $M={\displaystyle {\int }_v{N}^{\text{T}}\rho N}dv$ is the mass matrix, $K={\displaystyle {\int }_0^l{G}^{\text{T}}}DGdx$ is the stiffness matrix, $Q={\displaystyle {\int }_s{D}_3}ds$ is the free charge on the surface of the piezoelectric chip, $\widehat{G}={\displaystyle {\int }_0^{l}G}dx$ .

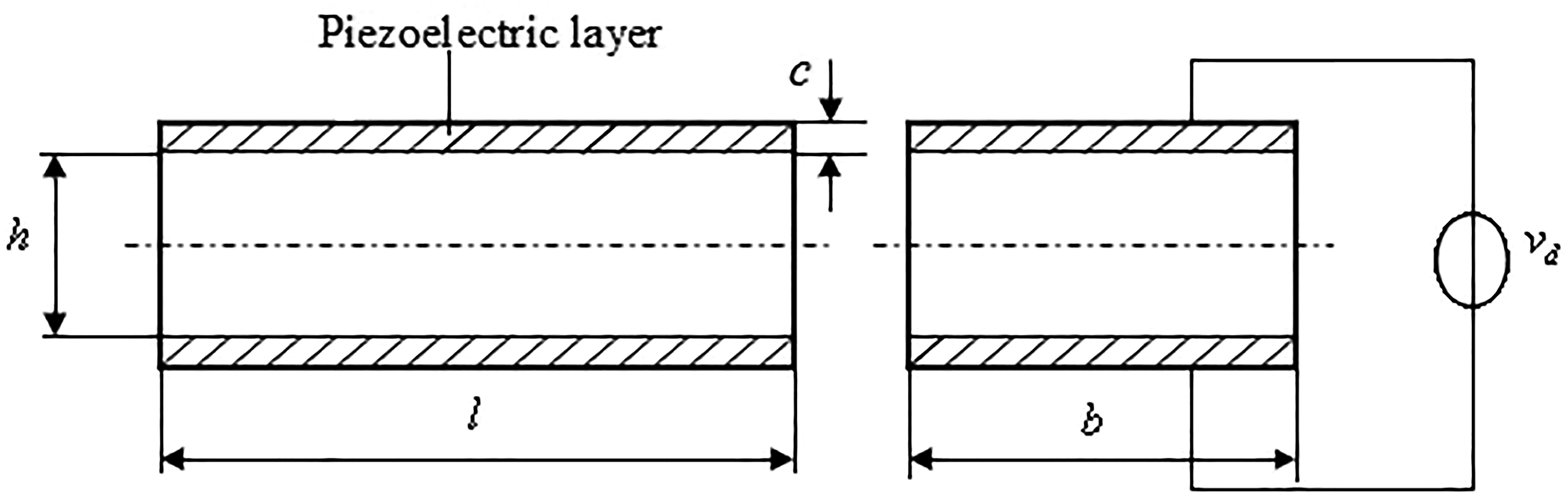

Figure 1.

Unit of piezoelectric laminated beam.

Remark 1. The finite element equation determined by equation (15) is applicable to both piezoelectric actuator and sensor: when acting as actuator, input voltage $v_d$ is known, node displacement can be obtained from the first equation in (15); when acting as sensor, input voltage $v_d=0$ , and the relationship between total charge and node displacement can be obtained from the second equation in (15).

Position optimization of piezoelectric actuator

An important problem in active vibration control of flexible structures is how to determine the position of sensors and actuators to achieve the best sensing effect and control effect. It is generally believed that the vibration energy of flexible structure is mainly concentrated in the low frequency range, and the purpose of vibration suppression can be achieved as long as the vibration energy of previous vibration modes is consumed. ⁶ Both the piezoelectric sensors and actuators act through the electromechanical coupling effect. According to, ⁶ the best paste position of piezoelectric chip is located at the position with the largest strain of piezoelectric laminated beam.

$$\frac{{\partial }^{3}W\left(x,t\right)}{\partial x^3}=0$$

(16)

In equation (16), the maximum curvature position of different modes can be obtained by using vibration mode function $W_i\left(x\right)$ instead of deflection $w\left(x,t\right)$ .

Remark 2. However, because the control effect is related to the position of the sensors and actuators, the position optimization method of sensors and actuators proposed in this paper is approximate and rough, and the authors have a further research on the better optimization method of the position of the sensors and actuators in the future.

Combination of system finite element equations

In Figure 2, a right-hand coordinate system is established at the fixed end of the cantilever beam, which includes a base part and a piezoelectric sensor/actuator part. According to (16), several piezoelectric sensors and actuators are arranged in pair into corresponding positions. The cantilever beam is divided into n elements, some of which are beam elements with piezoelectric layer, the others are ordinary beam elements.

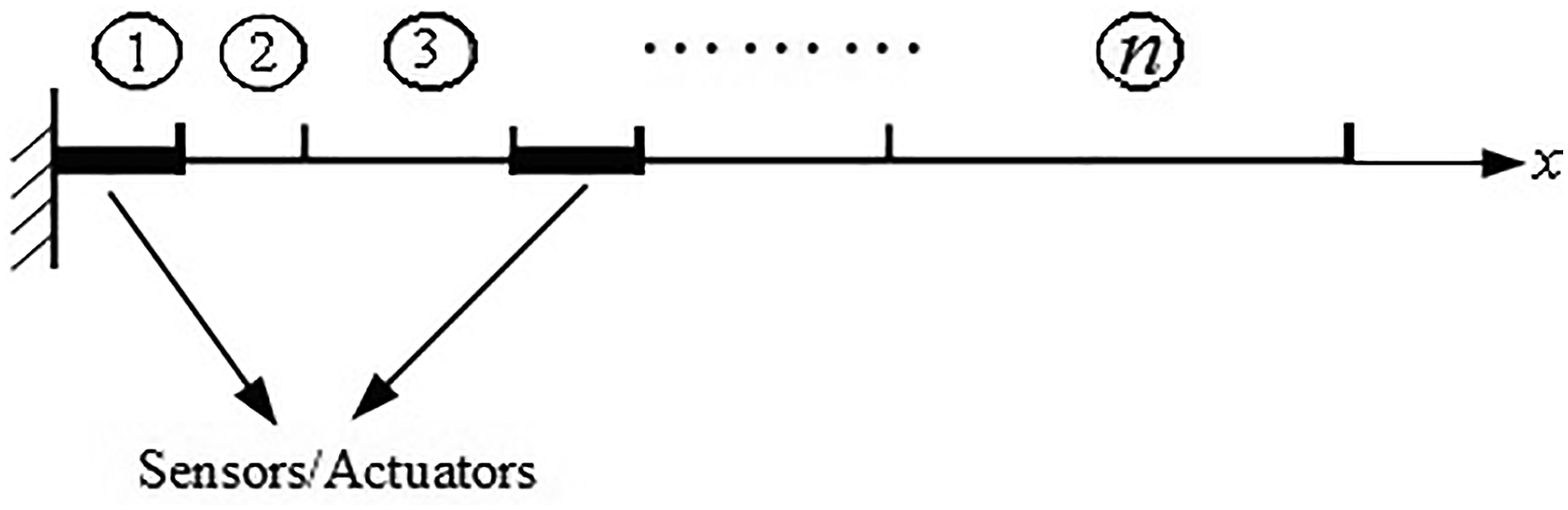

Figure 2.

Division of n elements for the cantilever beam.

According to equation (15), the dynamic equation of piezoelectric laminated beam element is obtained, which is combined with other ordinary beam elements without piezoelectric layer. After dealing with the boundary conditions, the finite element equation of the system is obtained as

$$\begin{array}{l}\overline{M}\ddot{W}+\overline{K}W={\overline{K}}_d{\overline{V}}_d\\ {\overline{V}}_s=\overline{R}{\overline{K}}_d^{\text{T}}\dot{W}\end{array}$$

(17)

where $\overline{M}$ is the total mass matrix, $\overline{K}$ is the total stiffness matrix, ${\overline{K}}_d$ is the input voltage coefficient matrix, W is the node displacement vector, ${\overline{V}}_d$ is the input voltage vector, ${\overline{V}}_s$ is the output voltage vector, and $\overline{R}$ is the resistance matrix of the sensor amplifier circuit, n is the total number of cantilever elements and m is the number of piezoelectric elements. From (15), each variable in (17) can be obtained as follows

$$\begin{array}{l}\overline{M}=\text{diag}\left(M_1,M_2,\cdots ,M_n\right),W={\left[{\delta }_1,{\delta }_2,\cdots ,{\delta }_n\right]}^{\text{T}},\\ \overline{K}=\text{diag}\left(K_1,K_2,\cdots ,K_n\right),{\overline{K}}_d=\text{diag}\left(K_{d1},K_{d2},\cdots ,K_{dn}\right),\\ {\overline{V}}_d={\left[v_{d1},v_{d2},\cdots ,v_{dm}\right]}^{\text{T}},{\overline{V}}_s={\left[v_{s1},v_{s2},\cdots ,v_{sm}\right]}^{\text{T}},\\ \overline{R}=\text{diag}\left(R_1,R_2,\cdots ,R_m\right).\end{array}$$

Design of active vibration controller

In order to facilitate the design of the controller by using the linear quadratic optimal control theory, equation (17) is written in the form of state space as following

$$\begin{array}{l}\dot{x}=Ax+Bu\\ y=Cx\end{array}$$

(18)

where $x={\left[\begin{array}{cc}W& \dot{W}\end{array}\right]}^{\text{T}}$ , $u={\overline{V}}_d$ , $y={\overline{V}}_s$ , $A=\left[\begin{array}{cc}0& I\\ -{\overline{M}}^{-1}\overline{K}& 0\end{array}\right]$ ,

$$B=\left[\begin{array}{c}0\\ {\overline{M}}^{-1}{\overline{K}}_d\end{array}\right],C=\left[\begin{array}{cc}0& \overline{R}{\overline{K}}_d^{\text{T}}\end{array}\right].$$

Considering the uncertainty of system parameters, (18) can be written as following

$$\begin{array}{l}\dot{x}=\left(A+\mathrm{\Delta }A\left(t\right)\right)x+\left(B+\mathrm{\Delta }B\left(t\right)\right)u\\ y=\left(C+\mathrm{\Delta }C\left(t\right)\right)x\end{array}$$

(19)

where $\mathrm{\Delta }A\left(t\right)$ , $\mathrm{\Delta }B\left(t\right)$ and $\mathrm{\Delta }C\left(t\right)$ are time-varying uncertainties of the system parameter matrixes. Let $A^{\text{*}}\left(t\right)=A+\mathrm{\Delta }A\left(t\right)$ , $B^{\text{*}}\left(t\right)=B+\mathrm{\Delta }B\left(t\right)$ , $C^{\ast }\left(t\right)=C+\mathrm{\Delta }C\left(t\right)$ , then (19) can be written as following

$$\begin{array}{l}\dot{x}=A^{\ast }\left(t\right)x+B^{\ast }\left(t\right)u\\ y=C^{\ast }\left(t\right)x\end{array}$$

(20)

The linear transformation matrix $\varphi$ composed of the first and second vibration mode vectors is used to reduce the order of equation (20), and the reduced equation is written in the form of the state space as following

$$\begin{array}{l}\dot{q}=\overline{A}q+\overline{B}u\\ y=\overline{C}q\end{array}$$

(21)

where q is a state vector composed of modal coordinates and modal velocity, q and x satisfy the linear transformation relationship as following

$$x=\left[\begin{array}{cc}\varphi & 0\\ 0& \varphi \end{array}\right]q=\mathrm{\Phi }q$$

(22)

where $\varphi$ is a linear transformation matrix composed of the first and second vibration mode vectors, $\mathrm{\Phi }=\left[\begin{array}{cc}\varphi & 0\\ 0& \varphi \end{array}\right]$ , so we have

$$\begin{array}{l}q={\mathrm{\Phi }}^{-1}x,\overline{A}={\mathrm{\Phi }}^{-1}{A}^{\ast }\left(t\right),\\ \overline{B}={\mathrm{\Phi }}^{-1}{B}^{\ast }\left(t\right),\overline{C}=C^{\ast }\left(t\right)\mathrm{\Phi }\end{array}$$

(23)

where x and q are the states of the system before and after reduction order, respectively. ${\mathrm{\Phi }}^{-1}$ denotes the inverse matrix of matrix $\mathrm{\Phi }$ .

Remark 3. The parameter uncertainties of system (21) are considered, in which matrices $\overline{A}$ , $\overline{B}$ and $\overline{C}$ are all time-varying.

It is easy to verify that the linear system (21) is fully controllable by the controllability criterion, so the linear quadratic optimal control of the system (21) can be realized by state feedback. LQR method is used to design the controller, and the objective function is defined as

$$J={\displaystyle {\int }_0^{\infty }\left[q^{\text{T}}\left(t\right)Qq\left(t\right)+u^{\text{T}}\left(t\right)Ru\left(t\right)\right]}dt$$

(24)

where Q is a semi positive definite matrix and R is a positive definite matrix. Using Pontryagin maximum/minimum principle, ⁴² $J\to \min$ , the optimal control law is designed as follows. Hamilton function is design as

$$\begin{array}{l}H=\frac{1}{2}\left[q^{\text{T}}\left(t\right)Qq\left(t\right)+u^{\text{T}}\left(t\right)Ru\left(t\right)\right]\\ +{\lambda }^{\text{T}}\left(\overline{A}q+\overline{B}u-\dot{q}\right)\end{array}$$

(25)

Using Pontryagin maximum/minimum principle, ⁴² we obtain

$$\{\begin{array}{l}\frac{\partial H}{\partial u}=Ru+{\overline{B}}^{\text{T}}\lambda =0\\ \dot{q}=\frac{\partial H}{\partial \lambda }=\overline{A}q-\overline{B}u=\overline{A}q-\overline{B}{R}^{-1}{\overline{B}}^{\text{T}}\lambda \\ \dot{\lambda }=-\frac{\partial H}{\partial q}=-Rq-{\overline{A}}^{\text{T}}\lambda \end{array}$$

(26)

From (25)-(26), we can obtain the optimal control law

$$u=-R^{-1}{\overline{B}}^{\text{T}}\left(t\right)P\left(t\right)q\left(t\right)$$

(27)

where the positive definite matrix p satisfies the Ricatti equation as following

$$P\overline{A}+{\overline{A}}^{\text{T}}P+Q-P\overline{B}{R}^{-1}{\overline{B}}^{\text{T}}P=-\dot{P}$$

(28)

As the controller is designed by LQR algorithm, the weight matrix Q and R are two important control parameters, which determine the control force and the sensitivity of the controlled structure response. The performance index is shown in (24), we can see that the Q is the larger, the structural response is the smaller, and the control force is the greater; the R is the smaller, the control force is the greater, and the structural response is the smaller. According to the energy criterion, ³³ the weighted matrices Q and R are selected as follows:

$$Q=\alpha \left[\begin{array}{cc}\overline{K}& 0\\ 0& \overline{M}\end{array}\right],R=\beta I$$

(29)

where $\overline{M}$ is the total quality matrix mass matrix, $\overline{K}$ is the overall stiffness matrix, $I_{\text{n}\times \text{n}}$ is a unit matrix, $\alpha$ and $\beta$ are positive constants.

Remark 4. If matrix Q and R are determined according to equation (29), the designed active control force will minimize the energy of the structural control system. According to reference, ³³ we know that as long as $\alpha /\beta$ is the same, the control effect is the same, regardless of the absolute value of $\alpha$ and $\beta$ .

In simulation and experiment, $\dot{P}$ can be calculated as

$$\dot{P}=\frac{P\left(t+T\right)-P\left(t\right)}{T}$$

(30)

where T is the sample period. Accordingly, the Ricatti equation (28) is also discretized, and we can obtain

$$\begin{array}{l}P\left(t+T\right)\approx \\ P\left(t\right)+T\left[-P\left(t\right)\overline{A}-{\overline{A}}^{\text{T}}P\left(t\right)-Q+P\left(t\right)\overline{B}{R}^{-1}{\overline{B}}^{\text{T}}P\left(t\right)\right]\end{array}$$

(31)

Remark 5. In (31), on the premise of ensuring the real-time performance of the control system, in order to reduce the chattering caused by discretization, the sampling period should be selected as small as possible.

Simulations and experiments

The base part of piezoelectric cantilever beam is aluminum beam of A16061 (See Figure 3), with the size of $300\text{mm}\times 150\text{mm}\times 30\text{mm}$ . Piezoelectric ceramic (PZT-4) is selected as the sensor/actuator, with the geometric size of $30\text{mm}\times 30\text{mm}\times 0.4\text{mm}$ . The material constants are shown in Table 1. Considering the vibration control effect and sensor cost, the cantilever beam is divided into six units. The first and fourth units are beam units with piezoelectric layer, with a length of 30 mm. The others are ordinary beam units, with a length of 45 mm for the second unit, 60 mm for the third and fifth units, and 75 mm for the sixth unit. According to (16), the left ends of two pairs of piezoelectric actuators and sensors are symmetrically arranged at $x=0\text{mm}$ and $x=159\text{mm}$ respectively.

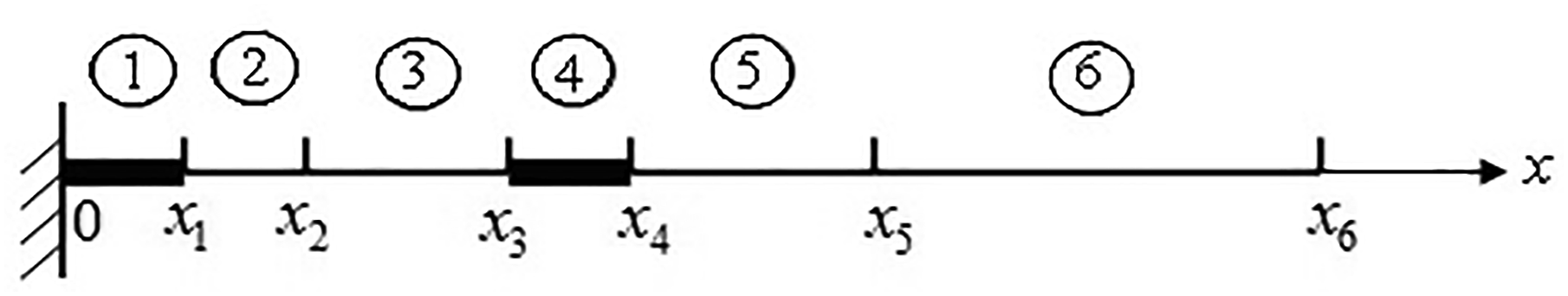

Figure 3.

Element division of cantilever beam in simulation.

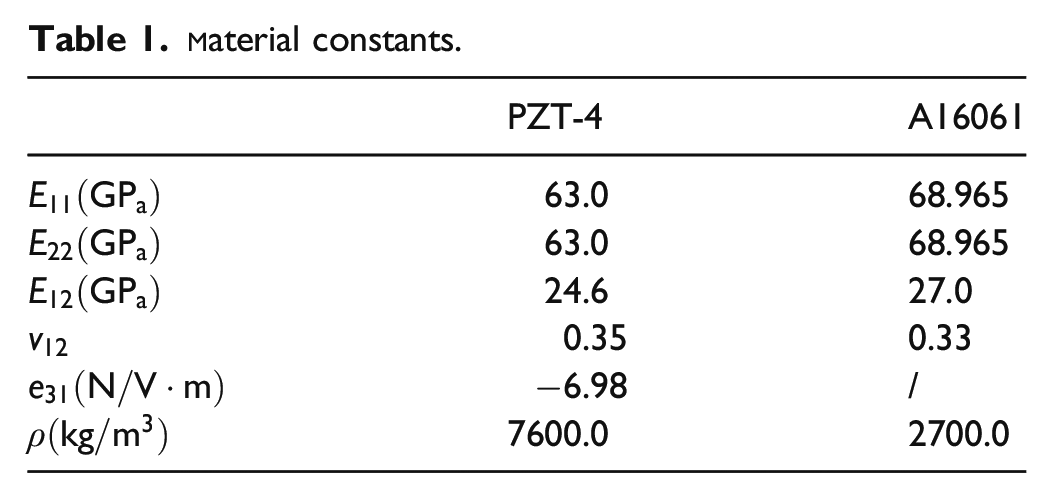

Table 1.

Material constants.

	PZT-4	A16061
$E_{11}\left({\text{GP}}_{\text{a}}\right)$	63.0	68.965
$E_{22}\left({\text{GP}}_{\text{a}}\right)$	63.0	68.965
$E_{12}\left({\text{GP}}_{\text{a}}\right)$	24.6	27.0
$v_{12}$	0.35	0.33
$e_{31}\left(\text{N}/\text{V}\cdot \text{m}\right)$	−6.98	/
$\rho \left(\text{kg}/{\text{m}}^3\right)$	7600.0	2700.0

Simulation of frequency domain response

In order to verify the correctness of the cantilever beam model established in this paper, the natural frequencies the first three modals are obtained by the following method: we assume that the initial displacement at node x ₆ is 0.028 m, the open-loop response of the system can be obtained from (18). Figure 4 shows the open-loop time-domain response and frequency-domain response of node x ₆.

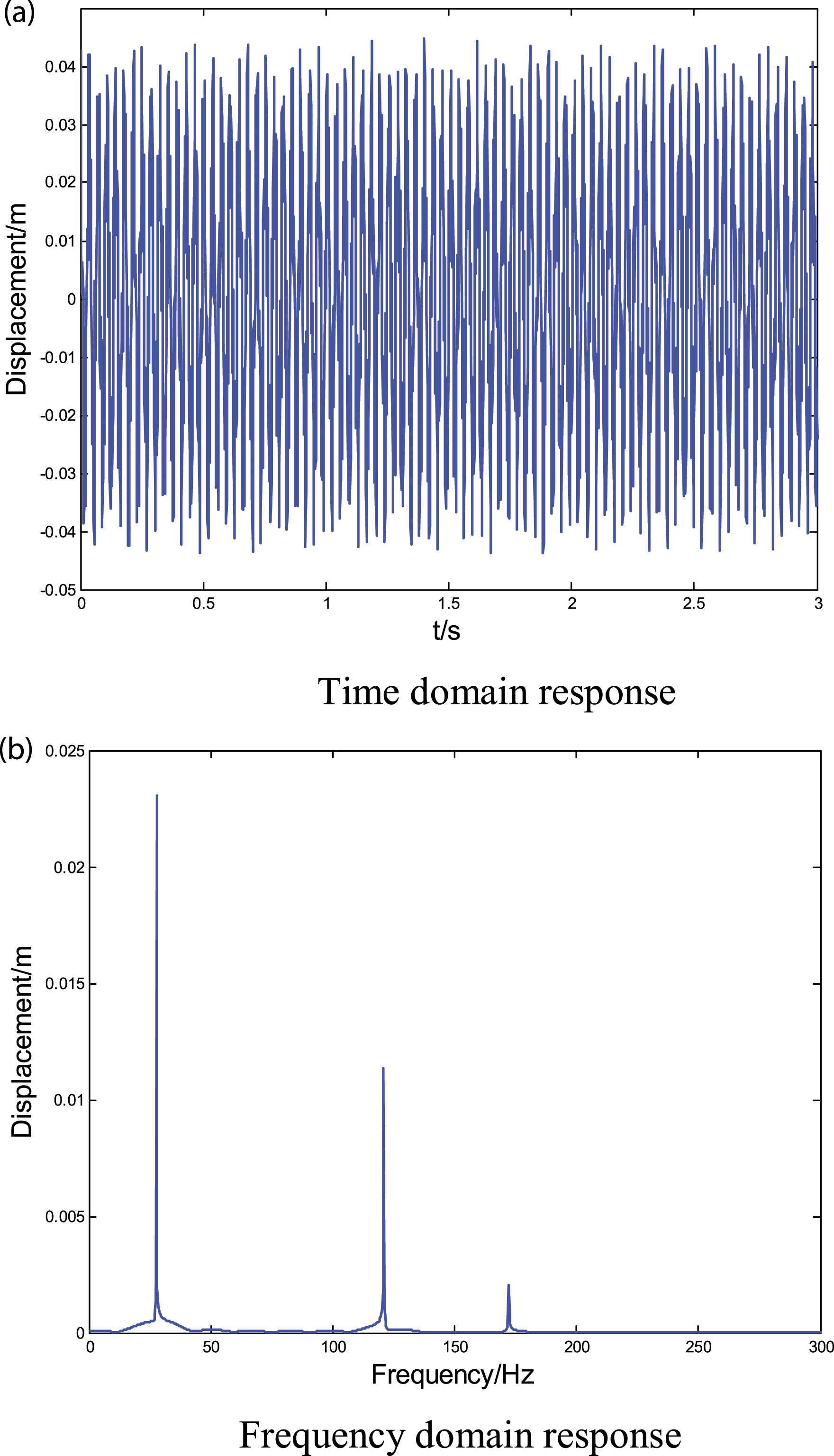

Figure 4.

Open-loop response at the end of the sixth node.

The first three natural angular frequencies of the piezoelectric cantilever beam model established in this paper and the calculation results of ANSYS are all shown in Table 2. We can see that the frequency value calculated by the method in this paper is close to the calculated value of ANSYS software in the low frequency range, and the frequency error is within 2%. This implies that the piezoelectric cantilever beam model established in this paper can well simulate the dynamic characteristics of the structure

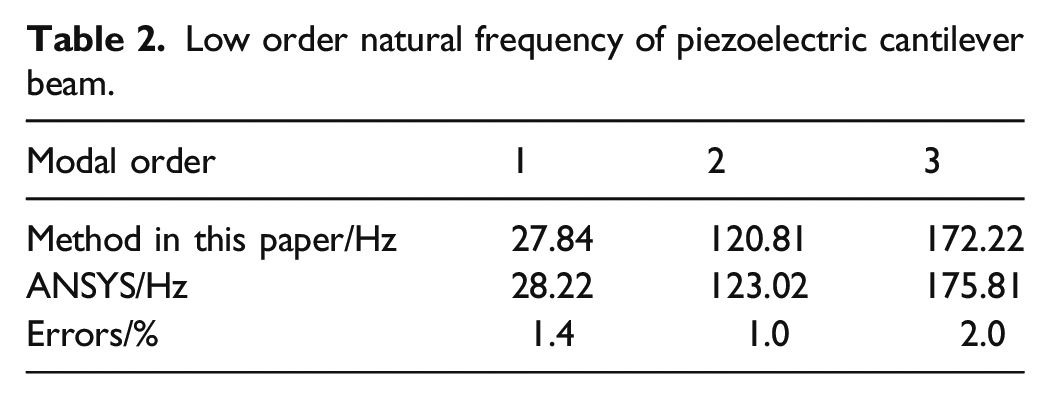

Table 2.

Low order natural frequency of piezoelectric cantilever beam.

Modal order	1	2	3
Method in this paper/Hz	27.84	120.81	172.22
ANSYS/Hz	28.22	123.02	175.81
Errors/%	1.4	1.0	2.0

Simulation of transient vibration control response under instantaneous excitation

In order to verify the effectiveness and superiority of the proposed LQR control method based on the independent modal space, LQR control method and conventional PID method are respectively employed to control the vibration system of cantilever beam. In the analysis, it is assumed that the middle point of the beam is impacted by a force, resulting in an initial displacement of 0.028 m at the end of the sixth node. Figures 5(a) and (b) shows the vibration control effect of the first and second vibration modes of the controlled cantilever beam, which is measured by the displacement response at the fifth and sixth node under the action of the designed LQR controller. The uncertainties of system (19) is chosen as

$$\begin{array}{l}\mathrm{\Delta }A=\left[\begin{array}{cc}0& 0\\ 3\sin \left(0.1t\right)& 0\end{array}\right],\mathrm{\Delta }B=\left[\begin{array}{c}0\\ 3\cos \left(0.1t\right)\end{array}\right],\\ \mathrm{\Delta }C=\left[\begin{array}{cc}0& 3\cos \left(0.1t\right)\end{array}\right]\end{array}$$

(34)

In (28), two sets of control parameters are chosen as follows: one is $\alpha =50$ , $\beta =4\times {10}^{-6}$ , the other is $\alpha =100$ , $\beta =8\times {10}^{-6}$ . In the case of these two sets of control parameters, the control effect of LQR method is the same. Further, we find that as long as the value of $\alpha /\beta$ is the same, the effect of vibration control is the same. The parameters of PID is chosen as follows: proportional coefficient $k_p=132$ , integral coefficient $k_i=35$ and differential coefficient $k_d=15$ .

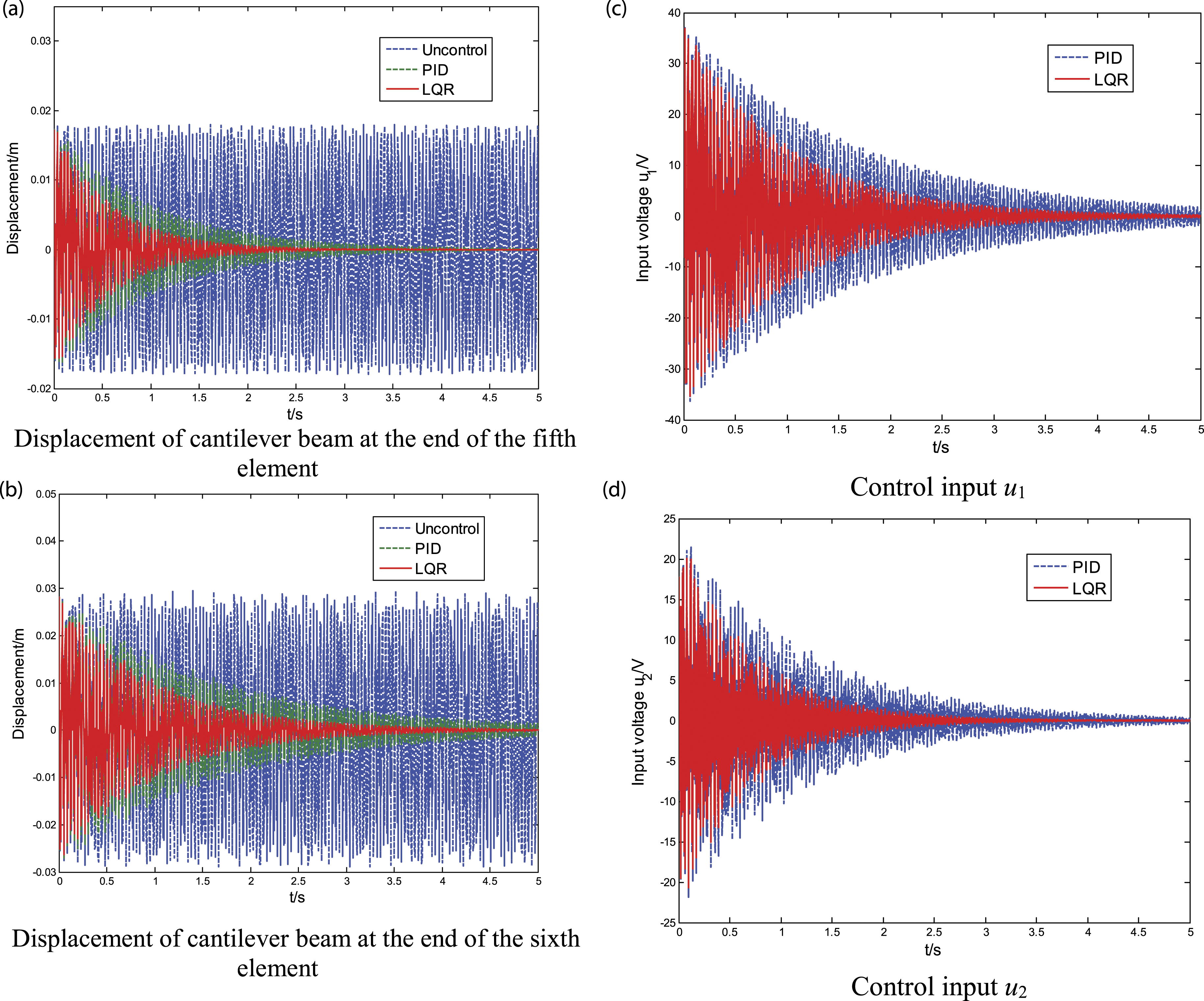

Figure 5.

Transient state vibration control under initial disturbance.

The input voltage vector $u={\overline{V}}_d={\left[u_1\text{,}{u}_2\right]}^{\text{T}}$ , where $u_1$ is the input voltage of the first actuator (the first element of cantilever beam in Figure 3), $u_2$ is the input voltage of the first actuator (the fourth element of cantilever beam in Figure 3. In simulations, $u_1$ and $u_2$ are shown in Figures 4(c) and (d).

Simulation of vibration control response under continuous excitation

In order to investigate the vibration control effect of piezoelectric cantilever beam under continuous external excitation, the random excitation signal is selected as the external excitation signal in simulations. Random excitation is a common excitation method in the field of vibration engineering, which can fully excite various vibration modes of the vibration isolation system in the vibration control experiments. Under the condition of keeping the physical parameters and controller parameters unchanged, we obtain the control effect of the cantilever beam system under the pseudo-random excitation. The displacement responses at the end of the fifth and sixth elements (two elements without piezoelectric layer) of the cantilever beam are shown in Figure 6.

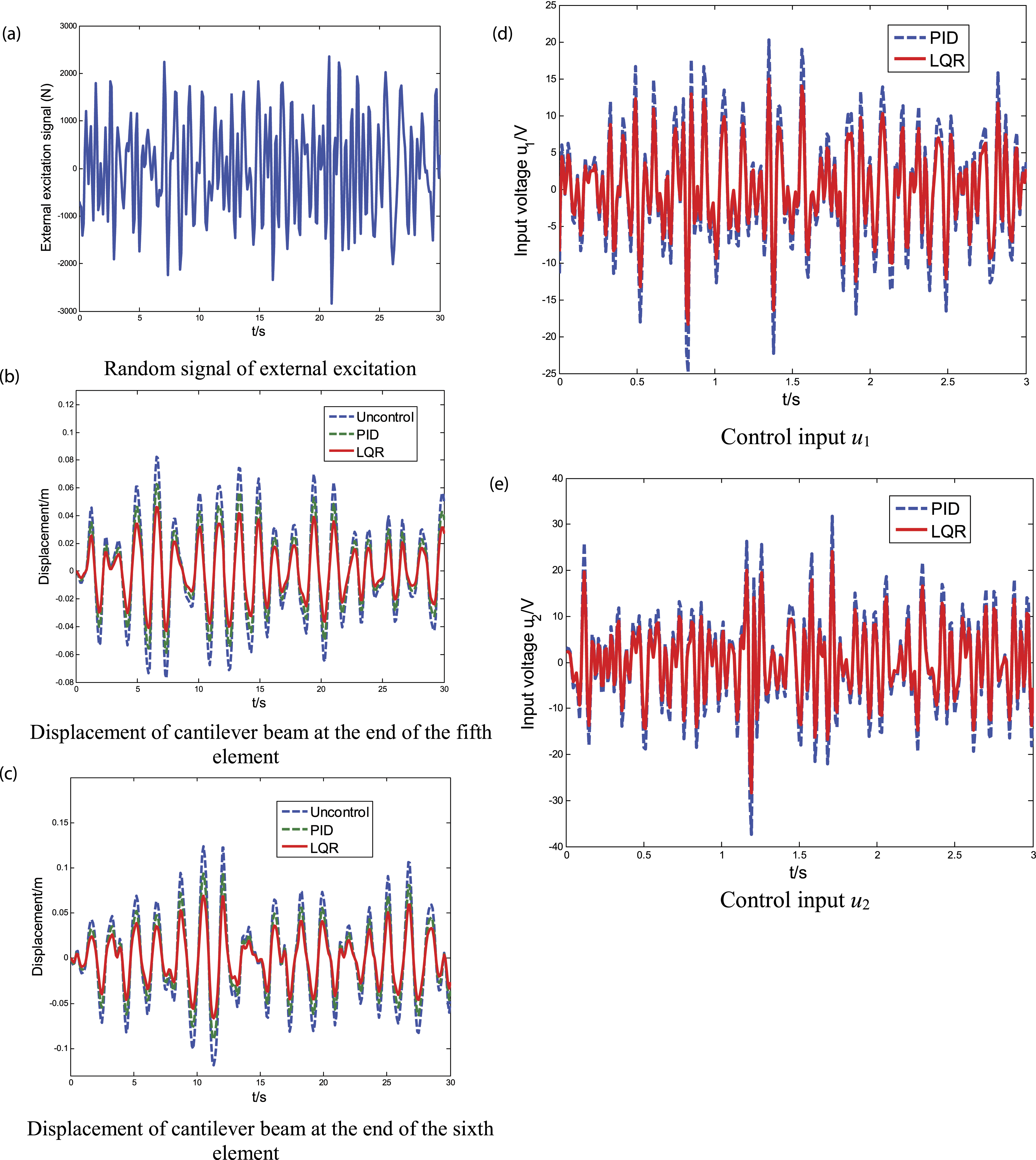

Figure 6.

Steady state vibration control under continuous excitation.

In order to further quantitatively analyze the vibration control effect of the system, the following two evaluation indexes are introduced: the amplitude ratio of the system response and the mean square value of the system response, ⁴³ the specific expression are as follows:

$$C_1=\frac{\max \left(x_c\right)-\min \left(x_c\right)}{\max \left(x_{uc}\right)-\min \left(x_{uc}\right)}\times 100\%$$

(35)

$$C_2=\frac{\sqrt{{\displaystyle \sum _{k=1}^N{\left(x_c\left(k\right)\right)}^2}}}{\sqrt{{\displaystyle \sum _{k=1}^N{\left(x_{uc}\left(k\right)\right)}^2}}}\times 100\%$$

(36)

where $x_c$ and $x_{uc}$ are the displacement responses of the system with and without control, respectively, $\max (·)$ and $\min (·)$ are the are maximum and minimum functions respectively. The vibration control effects of the system under different excitation are shown in Table 3, where $x_5$ and $x_6$ are coordinate values of measuring points.

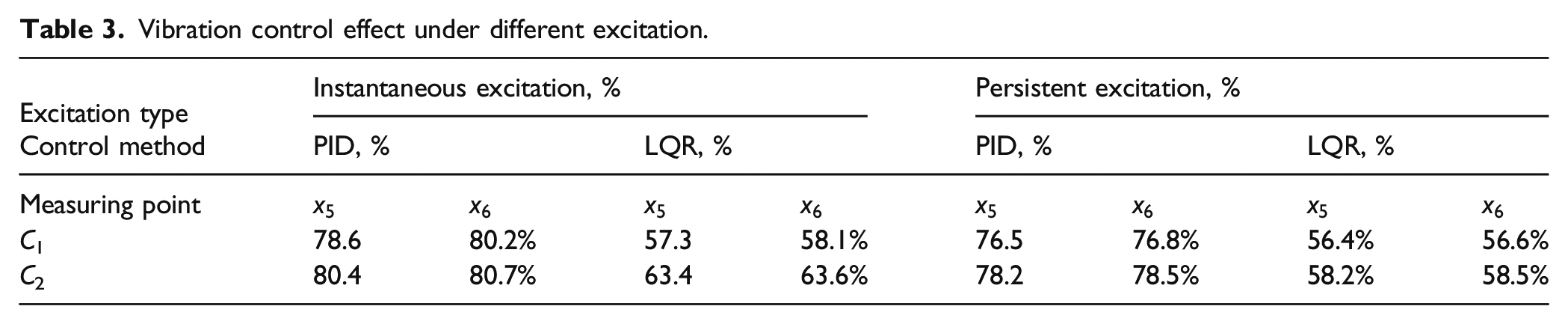

Table 3.

Vibration control effect under different excitation.

Excitation type	Instantaneous excitation, %				Persistent excitation, %
Control method	PID, %		LQR, %		PID, %		LQR, %
Measuring point	$x_5$	$x_6$	$x_5$	$x_6$	$x_5$	$x_6$	$x_5$	$x_6$
C 1	78.6	80.2%	57.3	58.1%	76.5	76.8%	56.4%	56.6%
C 2	80.4	80.7%	63.4	63.6%	78.2	78.5%	58.2%	58.5%

From Figure 5(a) and (b), Figure 6(b) and (c) and Table 3, it is seen that the control effect of PID control method of the system is very limited, while the proposed LQR control method based on the independent modal space method can reduce the root mean square value of displacement from abou 80% to within 60%. At the same time, in Table 3, it is seen that the system’s control precision varies with different external excitation signals, and the control accuracy of the random excitation is lower than that of the instantaneous excitation signal due to the signal uncorrelation between the front and rear time.

Real experiments

The active control system of piezoelectric laminated beam vibration mainly includes three parts: information acquisition and transmission system, active controller system and actuator system. The composition and work flow of the system are shown in Figure 7. It can be seen from Figure 6 that the system is a closed control system. According to the vibration state of the controlled structure, it carries out real-time external force control to make the vibration state track the balance state. The steps of the active vibration control system are as follows:

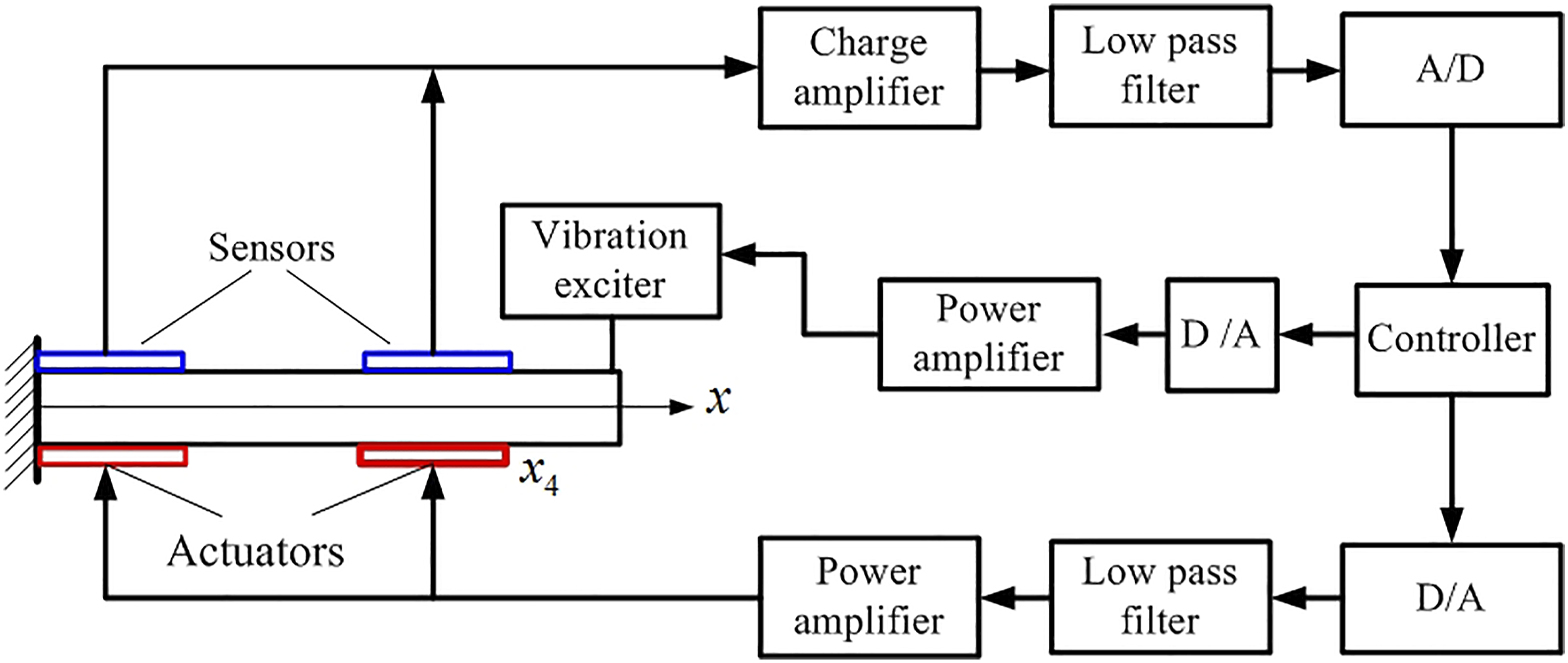

Figure 7.

Experimental principle block diagram of vibration control system for piezoelectric cantilever beam.

Step 1. The displacement of piezoelectric laminate structure at x ₄ under external excitation is measured online by sensors.

Step 2. The vibration signal measured by the sensor is amplified, filtered and transmitted to the A/D converter.

Step 3. A/D conversion.

Step 4. The controller transforms the digital voltage signal into the displacement and velocity of the controlled piezoelectric structure through scalar transformation, and calculates the voltage of the control force according to the proposed LQR control algorithm.

Step 5. D/A conversion, second filtering and power amplification.

Step 6. The piezoelectric actuator generates strain according to the input voltage, thus exerting control force on the piezoelectric laminated beam.

Repeat steps 1–6 to minimize the vibration response of the structure.

The parameters of piezoelectric intelligent cantilever beam, sensor and actuator in the experiment are the same as those in the simulation. The EL-Centro wave generated by the vibration exciter is applied to the end of the piezoelectric cantilever, and the displacement and acceleration of the end of the piezoelectric intelligent cantilever beam are measured. Comparing the LQR control method designed in this paper with the conventional PID, the results of active vibration control are shown in Figure 8.

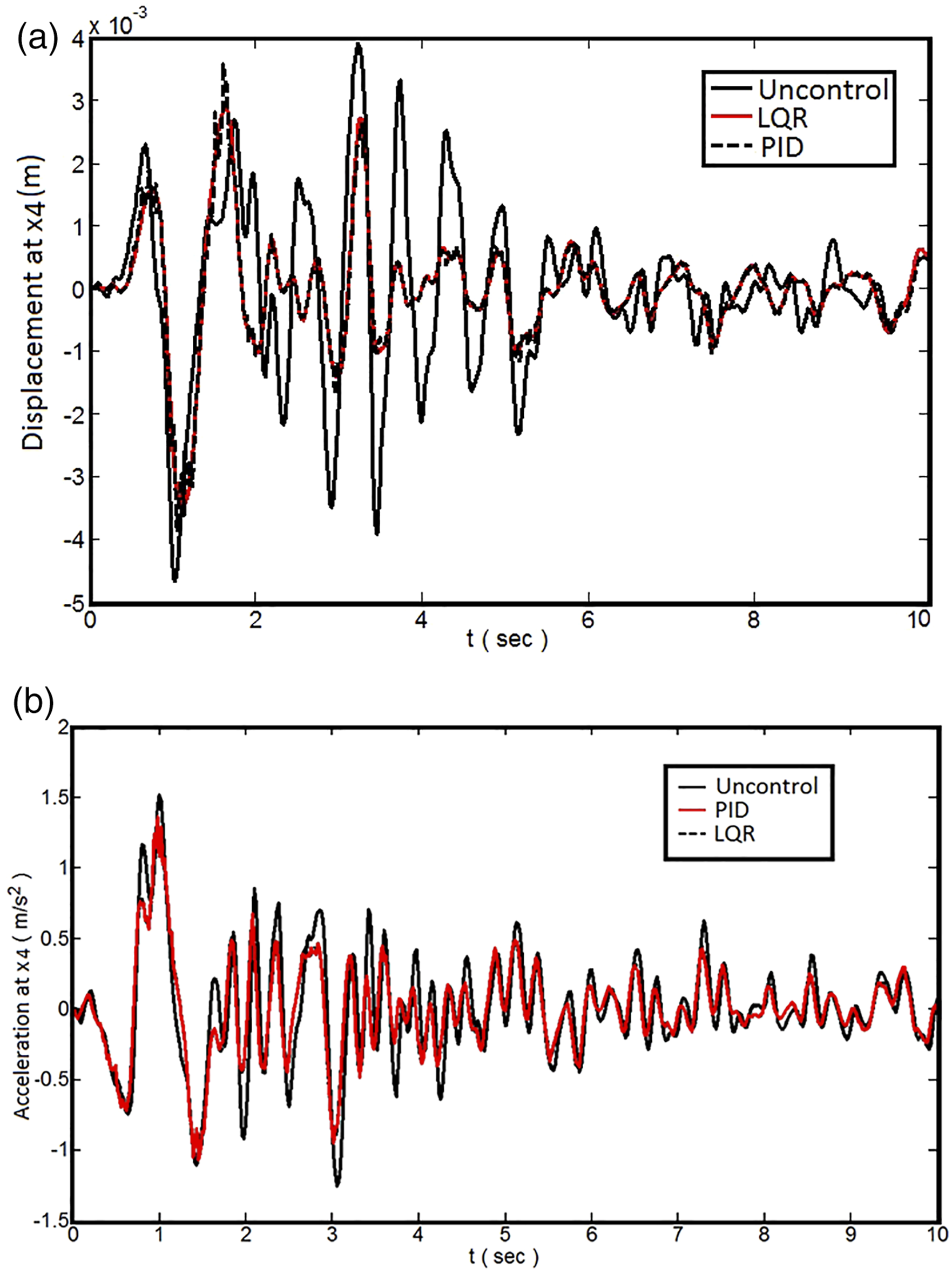

Figure 8.

Results of active vibration control under EL-Centro wave.

Conclusion

According to the first-order transverse shear deformation theory of laminated beams, the equivalent transverse bending stiffness of cantilever laminated beams considering the stiffness characteristics of piezoelectric materials can accurately reflect the inherent characteristics of piezoelectric structures. Because the model established by the finite element method usually has a large degree of freedom, which is not conducive to the design of the controller, the finite element model is reduced by the modal superposition principle. Considering the time-varying of the system parameters, the independent modal space control method based on LQR is designed respectively to suppress the vibration of the structure, the weighted matrices Q and R are selected as according to the energy criterion. In the simulation analysis, the low-order frequency value calculated by the proposed method is compared with the calculation result of ANSYS software, and the results are almost the same. In addition, from the simulation and experiment results of the LQR control method, it can be seen that the LQR control method designed in this paper can effectively control the vibration of the cantilever laminated beam. In the future, in order to improve the robustness and adaptability of vibration controller for piezoelectric intelligent cantilever beam with uncertainties, the robust adaptive control method will be studied.
