Finite-time interval observer design for discrete-time switched systems: A linear programming approach

Abstract

This paper deals with the finite-time interval observer design method for discrete-time switched systems subjected to disturbances. The disturbances of the system are unknown but bounded. The framework of the finite-time interval observer is established and the sufficient conditions are derived by the multiple linear copositive Lyapunov function. Furthermore, the conditions which are expressed by the forms of linear programming are numerically tractable by standard computing software. One example is simulated to illustrate the validity of the designed observer.

Introduction

State estimation is very important since it can be used in stabilization, synchronization, fault diagnosis and detection and so on. As we know, the uncertainties always exist in the real systems. When we design the observers for uncertain systems, the uncertainties should be taken into account. For the purpose of estimation of bounds of the states, the definition of interval observer (IO) was first introduced by Gouze et al. ¹ Then, the IO design method has been established for a large amount of systems, such as linear systems,^2,3 linear parameter varying systems,^4,5 singular systems,^6,7 discrete systems,^8,9 impulsive systems ¹⁰ and so on.

If we consider a linear discrete system without disturbance, that is, $x(k+1)=\mathrm{Ax}(k)+\mathrm{Bu}(k)$ , the task of IO design is to find a gain L such that the corresponding upper (or lower) error system $e^{+(-)}(k+1)=$ $(A-\mathrm{LC})e^{+(-)}(k)$ is both positive and stable. Equivalently, it is desired that $A-\mathrm{LC}$ is both non-negative and Schur stable. Whereas it only requires that $A-\mathrm{LC}$ is Schur stable in the context of conventional observers. From the aspect of computation, the non-negative of $A-\mathrm{LC}$ is not easy to be verified by existing toolbox. Thus, the design of IO is much more complicated than that of conventional observer.^11,12 In order to overcome the drawback, Mazenc and Bernard, ³ Chebotarev et al., ⁵ Zheng et al. ⁷ and Wang et al. ⁹ employed the coordinate transformation method to get more freedom of the construction of the IO. Actually, the IOs designed in these works are a class of asymptotical IOs.

The investigation of switched systems has drawn considerable attention in recent years.^13–15 Switched systems are ubiquitous in many practical systems, such as traffic networks, ¹⁶ chemical engineering systems, ¹⁷ circuit systems ¹⁸ and so on. It is known that the works on IOs of switched systems are still challenging.^19–22 He and Xie ¹⁹ and Ifqir et al. ²⁰ designed the IOs for switched systems under the assumption that $A_i-L_i{C}_i$ is the Metzler matrix. In order to improve the former results, Guo and Zhu ²¹ and Ethabet et al. ²² presented the IO design approaches for uncertain discrete-time and continuous-time switched systems using coordinate transformation, respectively. Recently, Huang et al. ²³ improved the result of Guo and Zhu ²¹ using the zonotope method, ²⁴ designed an asynchronous IO for switched systems. In addition, the functional IO for linear discrete-time systems with disturbances and fixed-time observer for switched systems were also studied by Che et al. ²⁵ and Gao et al. ²⁶ respectively. However the finite-time interval observer (FTIO) for discrete-time switched systems has not been reported.

Motivated by above discussion, the goal of this paper is to design FITO for discrete-time switched systems. In the light of definition of finite-time stability,^27–29 the observer gains are selected such that the observation errors are bounded in finite time. The contribution of this work can be concluded as the following aspects:

1. The bounds of the original systems can be recovered in a prescribed time interval.

2. The existence conditions of the IO are derived by the multiple linear copositive Lyapunov function (MLCLF), which is a useful tool when dealing with switched systems.

3. The derived conditions are given by linear programming (LP) constraints which are more tractable than linear matrix inequalities.

The rest of paper is organized as follows. In section “Problem statement and preliminary,” the plant as well as the structure of FTIO is given. In section “Main result,” using MLCLF, sufficient conditions in the forms of LP are presented. Finally, in section “Numerical example,” two examples are simulated to demonstrate the validity of the proposed method.

Notations: throughout this paper, $x^T$ is the transposition of the vector $x$ , and $A^T$ is the transposition of the matrix $A$ . $||x|{|}_1$ represents the 1-norm of the vector $x$ . The symbols ≤, <, ≥ and > are understood component-wise for any vector or matrix. $E^{+}$ represents $\max \{E,O\}$ , where $O$ is the zero matrix, and $E^{-}$ equals to $E^{+}-E$ . $\overline{\kappa }(x)$ and $\underset{¯}{\kappa }(x)$ denote the maximum value and the minimum value of the elements of $x$ , respectively.

Problem statement and preliminary

Consider the following plant

$$\{\begin{array}{c}x(k+1)=A_{\theta \left(k\right)}x(k)+B_{\theta \left(k\right)}u(k)+E_{\theta \left(k\right)}w(k),\hfill \\ \multicolumn{1}{c}{y(k)=C_{\theta \left(k\right)}x(k),}\\ \multicolumn{1}{c}{\underset{¯}{x}(0)\le x(0)\le \overline{x}(0).}\end{array}$$

(1)

where $x(k)\in R^n$ , $u(k)\in R^m$ and $y(k)\in R^q$ are the state, input and output, respectively. $w(k)\in R^r$ is the perturbation with $w^{-}\le w(k)\le w^{+}$ , where $w^{-}$ and $w^{+}$ are the given vectors. $\theta (k)$ is the switching signal and $\theta (k)\in S=\left\{\begin{array}{c}1,2,\dots ,N\hfill \end{array}\right\}$ . $A_{\theta (k)}\in R^{n\times n}$ , $B_{\theta (k)}\in R^{n\times m}$ , $E_{\theta (k)}\in R^{n\times r}$ and $C_{\theta (k)}\in R^{q\times n}$ are the given matrices. $\underset{¯}{x}(0)\in R^n$ and $\overline{x}(0)\in R^n$ are the known vectors. For simplicity, $\theta (k)$ is short for $\theta$ , and the system (1) becomes

$$\{\begin{array}{c}x(k+1)=A_{\theta }x(k)+B_{\theta }u(k)+E_{\theta }w(k),\hfill \\ \multicolumn{1}{c}{y(k)=C_{\theta }x(k),}\\ \multicolumn{1}{c}{\underset{¯}{x}(0)\le x(0)\le \overline{x}(0).}\end{array}$$

(2)

Definition 1

The interval frame $\{\overline{x}(k),\underset{¯}{x}(k)\}$ is called an asymptotical IO for (1) if for $\forall k>0$ ²

$$\{\begin{array}{c}\underset{k\to \infty }{lim}\Vert \overline{x}(k)-x(k){\Vert }_1=\alpha ,\hfill \\ \multicolumn{1}{c}{\underset{k\to \infty }{lim}\Vert x(k)-\underset{¯}{x}(k){\Vert }_1=\beta ,}\end{array}$$

where $\alpha$ and $c_2$ are the positive constants.

Remark 1

Definition 1 is just the extension of Definition 2 in Rami et al. ² when the discrete case is discussed. In the light of positive switched system,^30,31 we use the MLCLF to analyze stability of the error; thus, 1-norm is employed to describe the bound of the error in this paper.

Definition 2

The interval frame $\{\overline{x}(k),\underset{¯}{x}(k)\}$ is called an FTIO if there exists $\mathrm{K}>0$ such that

$$\Vert \overline{x}(0)-x(0){\Vert }_1\le {\alpha }_1\Rightarrow \Vert \overline{x}(k)-x(k){\Vert }_1\le {\alpha }_2,\forall k\in [0,K],$$

(3)

$$\Vert x(0)-x(0){\Vert }_1\le {\beta }_1\Rightarrow \Vert x(k)-\underset{¯}{x}(k){\Vert }_1\le {\beta }_2,\forall k\in [0,K],$$

(4)

where ${\alpha }_1$ , ${\alpha }_2$ , ${\beta }_1$ and ${\beta }_2$ are the positive constants, and ${\alpha }_1<{\alpha }_2$ , ${\beta }_1<{\beta }_2$ .

Remark 2

From the aspect of application, the FTIO is necessary. Definition 1 is known to characteristic of the error in infinite-time interval, but Definition 2 is with respect to the boundedness of the error in finite time. In fact, an FTIO may not be an asymptotical IO and vice versa.

We now extend the results of Farina and Rinaldi ³² to positive switched systems. The system is considered as

$$\{\begin{array}{c}x(k+1)=M_{\vartheta }x(k)+f_{\vartheta }(k),\hfill \\ \multicolumn{1}{c}{x(0)=x_0\ge 0,}\end{array}$$

(5)

where $x(k)\in R^n$ , and $\theta$ is the switched law. $M_{\theta }\in R^{n\times n}$ is the constant matrix, and $f_{\theta }(k)\in R^n\ge 0$ .

Lemma 1

The system (5) is positive if and only if the matrix $M_{\theta }\ge 0$ .

Then, we construct the IO for the system (2), which has the following form

$$\{\begin{array}{c}\overline{x}(k+1)=A_{\theta }\overline{x}(k)+B_{\theta }u(k)+E_{\theta }^{+}{w}^{+}-E_{\theta }^{-}{w}^{-}\hfill \\ \multicolumn{1}{c}{+L_{\theta }(y(k)-C_{\theta }\overline{x}(k)),}\\ \multicolumn{1}{c}{\underset{¯}{x}(k+1)=A_{\theta }\underset{¯}{x}(k)+B_{\theta }u(k)+E_{\theta }^{+}{w}^{+}-E_{\theta }^{-}{w}^{-}}\\ \multicolumn{1}{c}{+L_{\theta }(y(k)-C_{\theta }\underset{¯}{x}(k)),}\\ \multicolumn{1}{c}{\overline{x}(0)=x^{+}(0),}\\ \multicolumn{1}{c}{\underset{¯}{x}(0)=x^{-}(0).}\end{array}$$

(6)

Let $\overline{x}(k)\le x(k)\le \underset{¯}{x}(k)$ and $e^{-}(k)=x(k)-\underset{¯}{x}(k)$ . Comparing (6) with (2), we have

$$\{\begin{array}{c}{e}^{+}(k+1)=(A_{\theta }-L_{\theta }{C}_{\theta })e^{+}(k)+{\mathrm{\Gamma }}_{\theta }^{+}-E_{\theta }w(k)\hfill \\ \multicolumn{1}{c}{e^{-}(k+1)=(A_{\theta }-L_{\theta }{C}_{\theta })e^{-}(k)+E_{\theta }w(k)-{\mathrm{\Gamma }}_{\theta }^{-},}\\ \multicolumn{1}{c}{e^{-}(0)\ge 0,e^{+}(0)\ge 0,}\end{array}$$

(7)

where ${\mathrm{\Gamma }}_{\theta }^{+}=E_{\theta }^{+}{w}^{+}-E_{\theta }^{-}{w}^{-}$ and ${\mathrm{\Gamma }}_{\theta }^{-}=E_{\theta }^{+}{w}^{-}-E_{\theta }^{-}{w}^{+}$ .

Definition 3

Consider the system (7). Let $c_1$ , $c_2$ , $c_3$ , $c_4$ , $K$ and $h$ be the positive constants with $c_1<c_2$ and $c_3<c_4$ . If $\forall w(k):\sum _{k=0}^{K-1}||w(k)|{|}_1\le h$ ^27,28

$$\Vert e^{+}(0){\Vert }_1\le c_1\Rightarrow \Vert e^{+}(k){\Vert }_1\le c_2,\forall k\in [0,K],$$

(8)

$$\Vert e^{-}(0){\Vert }_1\le c_3\Rightarrow \Vert e^{-}(k){\Vert }_1\le c_4,\forall k\in [0,K],$$

(9)

then the upper and lower error system (7) is finite-time bound (FTB).

Definition 4

Denote the switching number of $\theta$ on the interval $[l_1,l_2)$ by $N_{\theta }(l_1,l_2)$ . If ³³

$$N_{\theta }(l_1,l_2)\le N_0+(l_2-l_1)/{\tau }^{*}$$

holds for given $N_0\ge 0$ and ${\tau }^{*}>0$ , then ${\tau }^{*}$ is the average dwell time (ADT). In what follows, $N_0$ is supposed to be 0.

Lemma 2

Let $\Theta (k)\in R^n$ with ${\Theta }^{-}(k)\le \Theta (k)\le {\Theta }^{+}(k)$ , then the following holds ³⁴

$$\begin{array}{c}\multicolumn{1}{c}{W^{+}{\Theta }^{-}(k)-W^{-}{\Theta }^{+}(k)\le W\Theta (k)\le W^{+}{\Theta }^{+}(k)}\\ \multicolumn{1}{c}{-W^{-}{\Theta }^{-}(k),}\end{array}$$

where $W\in R^{m\times n}$ is any given constant matrix.

Main result

In this section, the performance analysis of the error system (7) is presented.

Theorem 1

Let $\nu >1$ and $\varrho >1$ be the two constants. If there are vectors $v_i\in R^n>0$ , $v_j\in R^n>0$ , $z_i\in R^q$ , and the prescribed vector ${\xi }_i\in R^n\ne 0$ for $i,j\in S$ , $i\ne j$ such that

$$(A_i^T-\nu I)v_i+C_i^T{z}_i<0$$

(10)

$$v_i\le \varrho v_j$$

(11)

$${\xi }_i^T{v}_i({\xi }_i^T{v}_i{A}_i+{\xi }_i{z}_i^T{C}_i)\ge 0$$

(12)

and the observer gain $L_i$ has the following form

$$L_i=-\frac{{\xi }_i{z}_i^T}{{\xi }_i^T{v}_i}$$

(13)

then the upper and lower error system (7) satisfies the property of positive and FTB. Furthermore, denote that

$${\max }_{i\in S}\left\{{\left({\mathrm{\Gamma }}_i^{+}\right)}^T{v}_i\right\}=\lambda$$

(14)

$${\max }_{i\in S}\left\{{\left({\mathrm{\Gamma }}_i^{-}\right)}^T{v}_i\right\}=\delta$$

(15)

$${\max }_{i\in S}\left\{{\Vert E_i^T{v}_i\Vert }_1\right\}=\gamma$$

(16)

where $\lambda$ , $\delta$ and $\gamma >0$ are the constants, then ADT satisfies

$${\tau }^{*}\ge \max \{\frac{K\ln \varrho }{\ln {\mu }_1-\ln {\zeta }_1-K\ln \nu },\frac{K\ln \varrho }{\ln {\mu }_2-\ln {\zeta }_2-K\ln \nu }\}$$

(17)

where ${\mu }_1=c_2{l}_1$ , ${\mu }_2=c_4{l}_1$ , ${\zeta }_1=c_1{l}_2+\gamma h+|\lambda |K$ , ${\zeta }_2=c_3{l}_2+\gamma h+|\delta |K$ with $l_1=\underset{i\in S}{\min }\{\underset{¯}{\kappa }(v_i)\}$ , $l_2=\overline{\kappa }(v_{\theta (0)})$ , ${\mu }_1>{\zeta }_1{\nu }^K$ and ${\mu }_2>{\zeta }_2{\nu }^K$ .

Proof

From Definition 2 and Definition 3, the following proof will be divided into steps:

First, by (13), we obtain

$$A_i-L_i{C}_i=A_i+\frac{{\xi }_i{z}_i^T}{{\xi }_i^T{v}_i}{C}_i$$

(18)

which follows from (12) that

$$A_i-L_i{C}_i=A_i+\frac{{\xi }_i{z}_i^T}{{\xi }_i^T{v}_i}{C}_i\ge 0$$

(19)

By Lemma 2, we have ${\mathrm{\Gamma }}_i^{+}-E_{i}w(k)\ge 0$ and $E_{i}w(k)-{\mathrm{\Gamma }}_i^{-}\ge 0$ . That means $e^{-}(0)\ge 0$ and $e^{+}(0)\ge 0$ , so that the residual error of the system is bounded by the designed observer. Thus, in view of Lemma 1, the error system (7) is positive. We have

$$\underset{¯}{x}\left(k\right)\le x\left(k\right)\le \overline{x}\left(k\right)$$

Second, the following error system is considered

$$\{\begin{array}{c}{e}^{+}(k+1)=(A_{\theta }-L_{\theta }{C}_{\theta })e^{+}(k)+{\mathrm{\Gamma }}_{\theta }^{+}-E_{\theta }w(k),\hfill \\ \multicolumn{1}{c}{e^{+}(0)\ge 0.}\end{array}$$

(20)

Let $\{k_p,p=1,2,...\}$ with $0<k_1<k_2<\dots$ be the switching time sequence. If $\theta (k_s)=i\in S$ , then the MLCLF is chosen as follows

$$V_t(K)=(e^{+}(K){)}^T{v}_t,i\in S.$$

(21)

When $K\in [k_p,k_{p+1})$ , taking the backward difference of $V_i(K)$ yields

$$\begin{array}{c}\nabla V_t(K)=V_t(K)-V_t(K-1)\hfill \\ =(e^{+}(K-1){)}^T(A_t^T-C_t^T{L}_t^T)v_1-(e^{+}(K-1){)}^T{v}_t\hfill \\ +({\mathrm{\Gamma }}_t^{+}{)}^T{v}_t-(w(K-1){)}^T{E}_t^T{v}_t.\hfill \end{array}$$

(22)

Substituting (13) into (22) results in

$$\begin{array}{c}\multicolumn{1}{c}{\nabla V_i\left(K\right)={\left(e^{+}(K-1)\right)}^T(A_i^T{v}_i+C_i^T{z}_i-v_i)}\\ \multicolumn{1}{c}{+{\left({\mathrm{\Gamma }}_i^{+}\right)}^T{v}_i-{\left(w(K-1)\right)}^T{E}_i^T{v}_i}\end{array}$$

(23)

By (10), (14) and (16), we can obtain

$$\begin{array}{c}\multicolumn{1}{c}{\nabla V_t(K)\le (v-1)(e^{+}(K-1){)}^T{v}_t+\lambda +{\Vert w(K-1)\Vert }_1}\\ \multicolumn{1}{c}{\Vert E_t^T{v}_t{\Vert }_1}\\ \multicolumn{1}{c}{\le (v-1)V_t(K-1)+\lambda +\gamma \Vert w(K-1){\Vert }_1,}\end{array}$$

(24)

that is

$$V_t(K)\le v{V}_t(K-1)+\lambda +\gamma {\Vert w(K-1)\Vert }_1.$$

(25)

For the interval $[k_p,K)$ , it is concluded that

$$V_t(K)\le v^{K-k_p}{V}_t(k_p)+\gamma \sum _{s=k_p}^{K-1}{v}^{K-1-z}{\Vert w(s)\Vert }_1+\lambda \sum _{s=k_p}^{K-1}{v}^{K-1-z}.$$

(26)

Suppose that $\theta (k_{p-1})=j$ , it follows from (11) and (26) that

$$V_t(K)\le \varrho v^{K-k_p}{V}_t(k_p)+\gamma \sum _{s=k_p}^{K-1}{v}^{K-1-s}{\Vert w(s)\Vert }_1+\lambda \sum _{s=k_p}^{K-1}{v}^{K-1-z}.$$

(27)

Repeating (26) and (27) yields

$$\begin{array}{c}{V}_i(K)\le \varrho v^{K-k_p}{V}_{\theta (k_p-1)}(k_p)+\gamma \sum _{s=k_p}^{K-1}{v}^{K-1-s}\Vert w(s){\Vert }_1\hfill \\ \multicolumn{1}{c}{+\lambda \sum _{s=k_p}^{K-1}{v}^{K-1-s}}\\ \le {\varrho }^{N_{\theta }(0,K)}{v}^K{V}_{\theta (0)}(0)+\gamma \sum _{s=0}^{K-1}{\varrho }^{N_{\theta }(s,K)}{v}^{K-1-s}\Vert w(s){\Vert }_1\hfill \\ +\lambda \sum _{s=0}^{K-1}{\varrho }^{N_{\theta }(s,K)}{v}^{K-1-s}\hfill \\ \le {\varrho }^{N_{\theta }(0,K)}{v}^K{V}_{\theta (0)}(0)+\gamma \sum _{s=0}^{K-1}{\varrho }^{N_{\theta }(s,K)}{v}^{K-1-s}\Vert w(s){\Vert }_1\hfill \\ +|\lambda |\sum _{s=0}^{K-1}{\varrho }^{N_{\theta }(s,K)}{v}^{K-1-s}.\hfill \end{array}$$

(28)

From Definition 4, we have $N_{\theta }\le N_0+K/{\tau }^{*}=K/{\tau }^{*}$ . Since $\nu >1$ and $\sum _{s=0}^{K-1}{||w(s)||}_1\le h$ , the above equality (28) becomes

$$\begin{array}{c}{V}_i(K)\le {\varrho }^{N_{\theta }(0,K)}{v}^K(V_{\theta (0)}(0)+\gamma h+\left|\lambda \right|K)\hfill \\ \le {\varrho }^{\frac{K}{{\tau }^{*}}}{v}^K(V_{\theta (0)}(0)+\gamma h+\left|\lambda \right|K).\hfill \end{array}$$

(29)

It is the fact that

$$\{\begin{array}{c}{V}_i(K)=(e^{+}(K){)}^T{v}_i\ge l_1\Vert e^{+}(K){\Vert }_1,\hfill \\ \multicolumn{1}{c}{V_{\theta (0)}(0)=(e^{+}(0){)}^T{v}_{\theta (0)}\ge l_2\Vert e^{+}(0){\Vert }_1.}\end{array}$$

(30)

Substituting (30) into (29) results in

$$l_1{\Vert e^{+}\left(K\right)\Vert }_1\le {\varrho }^{\frac{K}{{\tau }^{*}}}{\nu }^K\left(l_2{\Vert e^{+}\left(0\right)\Vert }_1+\gamma h+\left|\lambda \right|K\right)$$

(31)

In view of (17) and $\varrho >1$ , (31) implies that

$$\Vert e^{+}\left(K\right){\Vert }_1\le \frac{{\mu }_1}{l_1{\zeta }_1}(l_2{\Vert \left(e^{+}\left(0\right)\right)\Vert }_1+\gamma h+\left|\lambda \right|K)$$

(32)

When $||e^{+}(0)|{|}_1\le c_1$ , it is deduced from (32) that

$$\Vert e^{+}(K){\Vert }_1\le \frac{{\mu }_1}{l_1\zeta }(c_1{l}_2+\gamma h+\left|\lambda \right|K).$$

(33)

Considering the expressions ${\mu }_1=c_2{l}_1$ , ${\zeta }_1=c_1{l}_2+\gamma h+|\lambda |K$ , (33) means

$$\Vert e^{+}\left(K\right){\Vert }_1\le c_2$$

(34)

Let us turn to the following error system

$$\{\begin{array}{c}{e}^{-}(k+1)=(A_{\theta }-L_{\theta }{C}_{\theta })e^{-}(k)+E_{\theta }w(k)-{\mathrm{\Gamma }}_{\theta }^{-},\hfill \\ \multicolumn{1}{c}{e^{-}(0)\ge 0.}\end{array}$$

(35)

The MLCLF candidate is chosen as

$$\widetilde{V_i}(K)=(e^{-}(K){)}^T{v}_i,i\in S.$$

(36)

By the same treatment as that in the upper error system, one can get

$${\tilde{V}}_i\left(K\right)\le {\varrho }^{N_{\theta }(0,K)}{\nu }^K({\tilde{V}}_{\theta (0)}\left(0\right)+\gamma h+\left|\delta \right|K)$$

(37)

By (17), we have

$$\Vert e^{-}\left(K\right){\Vert }_1\le \frac{{\mu }_2}{l_1{\zeta }_2}(l_2{\Vert \left(e^{-}\left(0\right)\right)\Vert }_1+\gamma h+\left|\delta \right|K)$$

(38)

In view of ${\mu }_2=c_4{l}_1$ , ${\zeta }_2=c_3{l}_2+\gamma h+|\delta |K$ , when $||e^{-}(0)|{|}_1\le c_3$ , we obtain

$$\Vert e^{-}\left(K\right){\Vert }_1\le c_4$$

(39)

In view of Definition 3, the system (7) satisfies the property of FTB. Thus, we can conclude that (6) is an FTIO for the system (2).

Remark 3

The constraints (10)–(12) are the existence conditions of the FTIO (6), while the expressions (14)–(16) are used for the estimation of the boundness of the error. However, the feasible solutions cannot be solved from the conditions (10)–(12) by the MATLAB because of the term $({\xi }_i^T{v}_i{)}^2$ in (12). Thus, we need to derive the equivalent forms instead of (10)–(12).

We now give the following theorem, which is necessary from the aspect of computation.

Theorem 2

Let $\nu >1$ and $\varrho >1$ be the two constants. Assume that $L_i$ is determined by (13) and ${\tau }^{*}$ satisfies (17). If there exist vectors $v_i\in R^n>0$ , $v_j\in R^n>0$ , $z_i\in R^q$ , and the prescribed vector ${\xi }_i\in R^n\ne 0$ for $i,j\in S$ , $i\ne j$ such that

$$(A_i^T-\nu I)v_i+C_i^T{z}_i<0$$

(40)

$$v_i\le \varrho v_j$$

(41)

$${\xi }_i^T{v}_i>0$$

(42)

$${\xi }_i^T{v}_i{A}_i+{\xi }_i{z}_i^T{C}_i\ge 0$$

(43)

or

$$(A_i^T-\nu I)v_i+C_i^T{z}_i<0$$

(44)

$$v_i\le \varrho v_j$$

(45)

$${\xi }_i^T{v}_i<0$$

(46)

$${\xi }_i^T{v}_i{A}_i+{\xi }_i{z}_i^T{C}_i\le 0$$

(47)

the upper and lower error system (7) is positive and FTB.

Proof

Let us consider the bilinear constraint (12). If ${\xi }_i^T{v}_i>0$ , then (12) means that ${\xi }_i^T{v}_i{A}_i+{\xi }_i{z}_i^T{C}_i\ge 0$ . If ${\xi }_i^T{v}_i<0$ , then (12) implies that ${\xi }_i^T{v}_i{A}_i+{\xi }_i{z}_i^T{C}_i\le 0$ . Thus, the conditions (40)–(43) or (44)–(47) indicate (10)–(12).

Remark 4

In order to design the IO (6) and give the estimation of the error, we employ the following steps:

• Step 1: solve $z_i$ , $v_i$ (40)–(43) or (44)–(47) by LP in MATLAB.

• Step 2: determine $L_i$ by (13) and $\lambda$ , $\delta$ , $\gamma$ by (14)–(16), respectively.

• Step 3: compute ${\mu }_1$ , ${\zeta }_1$ , ${\mu }_2$ and ${\zeta }_2$ with ${\mu }_1>{\zeta }_1{\nu }_1^K$ and ${\mu }_2>{\zeta }_2{\nu }_2^K$ .

• Step 4: estimate $c_2$ and $c_4$ .

From Remark 4, $c_2$ and $c_4$ are only the bounded constants when we obtain the feasible solutions from the sufficient conditions. From the aspect of practice, $c_2$ and $c_4$ are both expected to be minimal. Thus, the following theorem is stated.

Theorem 3

If the following convex optimization problem can be solved

$$\{\begin{array}{l}\min c_2,c_4\\ \mathrm{subject}\mathrm{to}:\\ \left(A_i^T-\nu I\right)v_i+C_i^T{z}_i<0\\ v_i\le \varrho v_j\\ {\xi }_i^T{v}_i>0\\ {\xi }_i^T{v}_i{A}_i+{\xi }_i{z}_i^T{C}_i\ge 0\end{array}$$

(48)

or

$$\{\begin{array}{c}\min c_2,c_4\hfill \\ \multicolumn{1}{c}{\mathrm{subject}\mathrm{to}:}\\ \multicolumn{1}{c}{(A_i^T-\nu I)v_i+C_i^T{z}_i<0}\\ \multicolumn{1}{c}{v_i\le \varrho v_j}\\ \multicolumn{1}{c}{{\xi }_i^T{v}_i<0}\\ \multicolumn{1}{c}{{\xi }_i^T{v}_i{A}_i+{\xi }_i{z}_i^T{C}_i\le 0}\end{array}$$

(49)

then the IO (6) is an optimal FTIO.

Remark 5

By Theorem 1, $c_2$ is dependent on $\gamma$ , $\delta$ , $l_2$ and $c_1$ , while $c_4$ is dependent on $\gamma$ , $\delta$ , $l_2$ and $c_3$ . It is also the fact that $\gamma$ , $\lambda$ , $\delta$ , $l_2$ are determined, once $v_i$ is fixed. In order to minimize the error estimation, $c_2$ should be chosen as small as possible by computing (48) or (49), and it is the same with $c_4$ . A suggested algorithm is given as follows: the first step updates all the parameters such as $\nu$ , $\varrho$ by the path-following method proposed in Hassibi et al.; ³⁵ and the second step fixes the parameters $\nu$ , $\varrho$ to solve $v_i$ . We repeat the above two steps until $c_2$ and $c_4$ reach the minimum values.

Numerical example

Considerthe system (2) with two modes, and the system matrices are given as

$$\begin{array}{c}{A}_1=\left[\begin{array}{cc}1.2\hfill & 2.2\hfill \\ \multicolumn{1}{c}{1.8}& 1.6\hfill \end{array}\right],A_2=\left[\begin{array}{cc}1.5\hfill & 1.6\hfill \\ \multicolumn{1}{c}{2.5}& 2.3\hfill \end{array}\right],B_1=\left[\begin{array}{cc}1.3\hfill & 1.2\hfill \\ \multicolumn{1}{c}{1.5}& 1.7\hfill \end{array}\right]\hfill \\ B_2=\left[\begin{array}{cc}2.1\hfill & 1.9\hfill \\ \multicolumn{1}{c}{1.8}& 1.4\hfill \end{array}\right],C_1=\left[\begin{array}{cc}1.5\hfill & 1.4\hfill \\ \multicolumn{1}{c}{1.1}& 1.2\hfill \end{array}\right],C_2=\left[\begin{array}{cc}1.3\hfill & 1.6\hfill \\ \multicolumn{1}{c}{1.5}& 1.7\hfill \end{array}\right]\hfill \\ E_1=\left[\begin{array}{cc}0.7\hfill & -1\hfill \\ \multicolumn{1}{c}{-0.8}& 0.5\hfill \end{array}\right],E_2=\left[\begin{array}{cc}-0.6\hfill & 0.5\hfill \\ \multicolumn{1}{c}{0.4}& -0.9\hfill \end{array}\right]\hfill \end{array}$$

For the purpose of simulation, $u(k)$ , $\omega (k)$ , $x_0$ , $x_0^{+}$ and $x_0^{-}$ are chosen as follows

$$\begin{array}{c}u\left(k\right)=\left[\begin{array}{c}{\sin }^{2}k\hfill \\ \multicolumn{1}{c}{\cos 2k}\end{array}\right],\omega \left(k\right)=\left[\begin{array}{c}0.1{\cos }^{2}k\hfill \\ \multicolumn{1}{c}{0.1\sin k}\end{array}\right],x_0=\left[\begin{array}{c}5\hfill \\ \multicolumn{1}{c}{10}\end{array}\right]\hfill \\ x_0^{+}=\left[\begin{array}{c}10\hfill \\ \multicolumn{1}{c}{20}\end{array}\right],x_0^{-}=\left[\begin{array}{c}0\hfill \\ \multicolumn{1}{c}{0}\end{array}\right]\hfill \end{array}$$

Let ${\xi }_1=[1;2]$ , ${\xi }_2=[2;1]$ , $K=4$ . By solving the sufficient conditions of Theorem 3, we have

$$\begin{array}{c}{v}_1=\left[\begin{array}{c}49.656\hfill \\ \multicolumn{1}{c}{52.4553}\end{array}\right],z_1=\left[\begin{array}{c}-58.4805\hfill \\ \multicolumn{1}{c}{-23.2261}\end{array}\right],v_2=\left[\begin{array}{c}53.543\hfill \\ \multicolumn{1}{c}{40.9385}\end{array}\right]\hfill \\ z_2=\left[\begin{array}{c}-19.9887\hfill \\ \multicolumn{1}{c}{-44.6094}\end{array}\right],\nu =1.775,\varrho =1.3\hfill \end{array}$$

Thus, we can determine the observer gain

$$L_1=\left[\begin{array}{cc}0.3784\hfill & 0.1503\hfill \\ \multicolumn{1}{c}{0.7567}& 0.3005\hfill \end{array}\right],L_2=\left[\begin{array}{cc}0.2701\hfill & 0.6027\hfill \\ \multicolumn{1}{c}{0.135}& 0.3014\hfill \end{array}\right]$$

the ADT ${\tau }^{*}\ge 1.8$ , $c_2\le 24.8142$ and $c_4\le 23.3343$ . In the sequel, we use the Simulink in MATLAB to complete the simulation. The switching signal $\theta (k)$ is depicted in Figure 1. The performance of the IO (6) is given in Figure 2. We can see that ${\overline{x}}_1(k)-x_1(k)$ and $x_1(k)-{\underset{¯}{x}}_1(k)$ are always positive and bounded. And it is the same in Figure 3. The response of errors is presented in Figures 4 and 5, where the errors are bounded within 1.5 and 4 s. Thus, the errors are FTB.

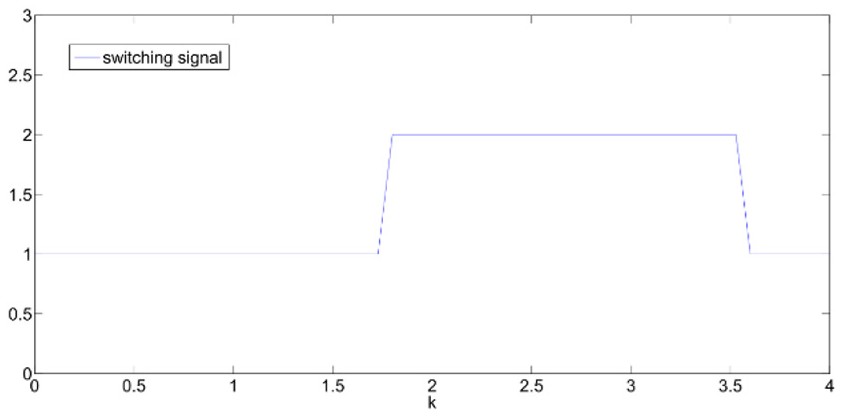

Figure 1.

Switching signal $\theta (k)$ with ADT property.

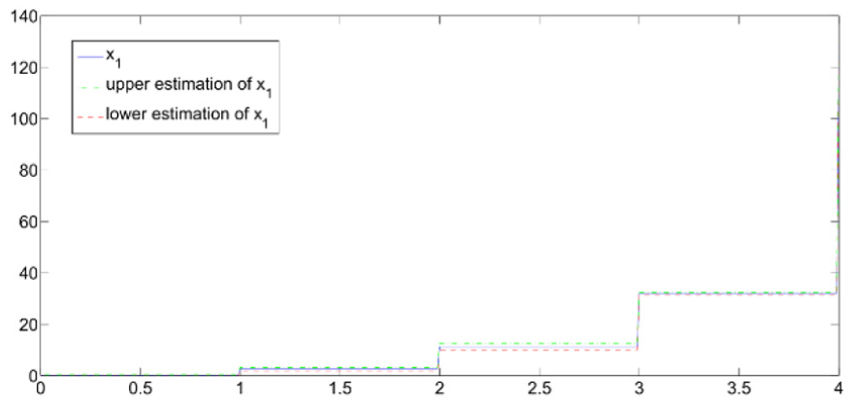

Figure 2.

Response of $x_1(k)$ , ${\overline{x}}_1(k)$ and ${\underset{¯}{x}}_1(k)$ .

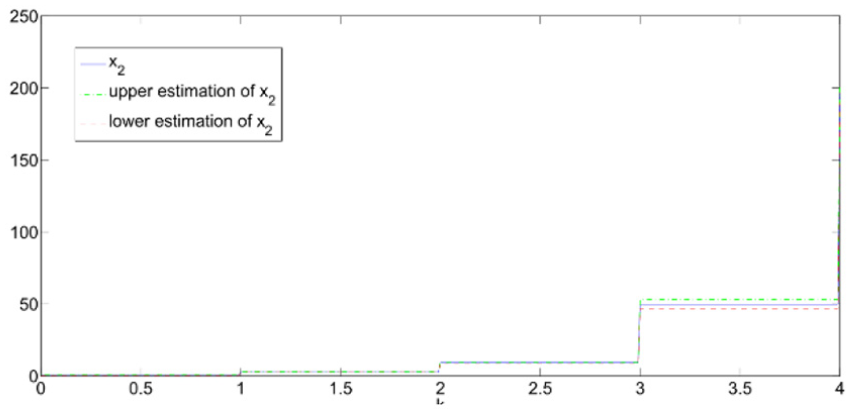

Figure 3.

Response of $x_2(k)$ , ${\overline{x}}_2(k)$ and ${\underset{¯}{x}}_2(k)$ .

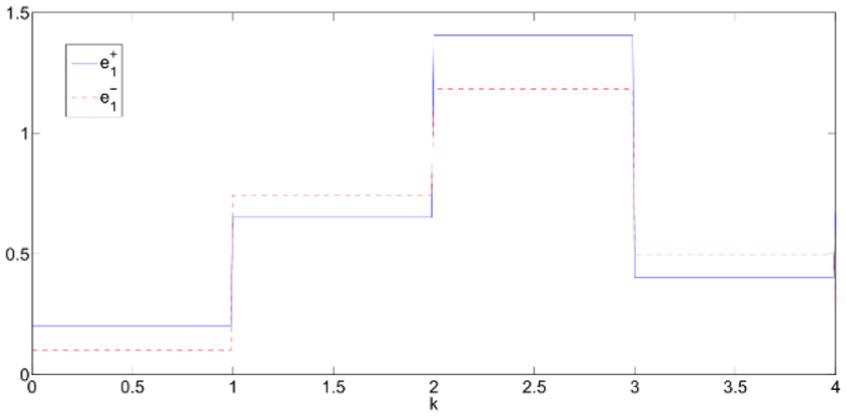

Figure 4.

Response of the errors $e_1^{+}(k)$ , $e_1^{-}(k)$ .

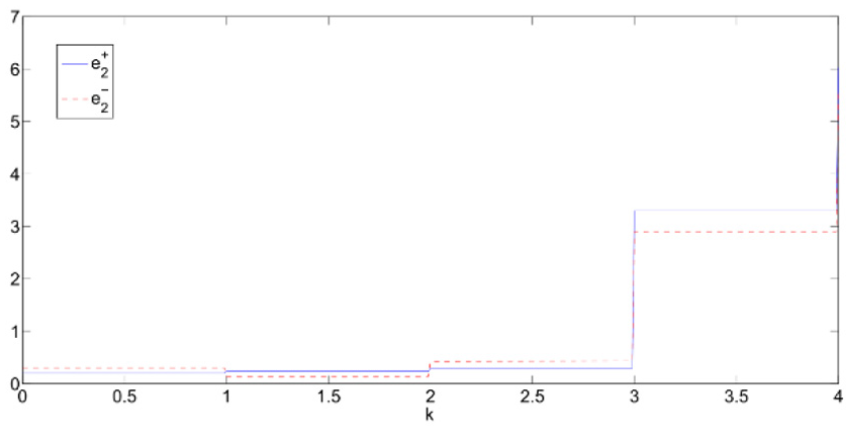

Figure 5.

Response of the errors $e_2^{+}(k)$ , $e_2^{-}(k)$ .

Conclusion

An FTIO design framework for discrete-time switched systems subjected to disturbances is presented. The framework of the FTIO is constructed and the stability conditions are obtained using the MLCLF. Different from the works herein, such as in the literature,^19–22 all the conditions established are given by the forms of LP. Besides, the errors can be kept in a bounded neighborhood for a given time interval. In the future, the FTIO design method for nonlinear switched systems will be investigated.
