Abstract

Job shop scheduling is one of the major issues in which the scheduling process is associated with the real-time manufacturing industry. A flexible job shop scheduling problem is one of the most important issues among the hardest combinatorial advancement issues. Flexible job shop scheduling is extremely a nondeterministic polynomial combinatorial problem. In this paper, it is proposed that a mixture of improvement demonstrates to make makespan minimization in the flexible job shop scheduling problem issue. This paper includes the hybridization of social spider optimization and genetic algorithm that is effectively controlled by the calculation via optimization techniques. Most of the part in this method is given as the scavenging methodology of social insects, which use the vibrations spread over the bug-catching network to decide the position of the target. These hybridization approaches after arachnid upgrading process hereditary calculation chromosomes are chosen to produce new arrangements nearer to the minimum makespan time. The main objective of this paper is to minimize the makespan time of “n” jobs and “m” machines. The proposed algorithms have effectively investigated many benchmark problems and the computational results were compared with existing metaheuristic, including progressive calculations and algorithms for the swarm intelligence in the flexible job shop scheduling problem.

Keywords

Social spider genetic algorithm optimization makespan time and flexible job shop scheduling

Introduction

A decision-making methodology issues the portion of limited sources among contending commitments during that time with the motivation behind enhancing at least one objective.¹ Simulation of an ant-based job shop scheduling (JSS) with genetic algorithm (GA) generates the job schedules, the process to minimize the waiting time. New GA and time complexity are opposite in nature and are used to determine the path toward service with resources.² This advancement focuses on the distinction between the two diverse search specialists (insects): males and females. In the proposed methodology, a few earlier guidelines are displayed to develop the underlying population with an abnormal state of value. In the proposed investigation, a few earlier standards were exhibited to build the underlying population with an abnormal state of value. Imitation comes on the standard test case which demonstrates that social spider optimization (SSO) has a superior merging execution contrasted and single-goal existing roused optimization process. For the examination of 20 benchmark problems, this result has demonstrated that the minimum makespan achieves in the benchmark problem LA03 as 524 in the SSO algorithm. This proposed work accomplished 92.33% exactness in SSO strategy contrasted with other optimization process, and this algorithm reduces the computational time and is less expensive.³

Most booking issues are characterized as unpredictable combinatorial streamlining issues; job shop scheduling problem (JSSP) is one of the greatest essential issues in gadget planning.⁴ The JSS bother involves deciding a period table for occupations that have pre-extraordinary operation groupings in a multi-framework surrounding.⁵ A better arrangement than JSSP streamlines machine to use, lessens lead times, enhances the execution of generation framework, and diminishes costs. There are two crucial procedures to settle JSSP, that is, correct methodologies and inexact systems.⁶ JSSP had been centered around real techniques together with division and bound to find best answers for little size issues, be that as it may, they bombed in taking care of issues of a bigger size in viable computational esteem.⁷ Estimation methodologies can give almost dependable answers for direct to entangle issues, indirect figuring time.⁸

The established JSSP is normally portrayed as it has n occupations, each which incorporates a chosen group of operations which must be prepared with the guide of m machines or artistic creations stations inside a given time length.⁹ Successfully adopted JSSP for the processes of reproduction of water weeds from water sources and to minimize the makespan evaluated benchmark problems.¹⁰ The JSSP is also a stagnant scheduling hassle in which all operations belonging to the equal task should be processed in a unique order and no hole needs to be taken into consideration between the end of the first operation and the start of proceeding operation.¹¹ An agenda is a complete set of operations, with start and quit times for every activity, to be carried out with the aid of each system.¹² The time c program language period between the beginning of the primary process on the first system and the completing time of the remaining activity on the final machine is called as makespan.¹³

The purpose of this problem is to decrease the makespan, which is described as crowning glory time of the ultimate process completed.¹⁴ Aside from the makespan, it tried to limit the total glide time for a JSSP by way of using an optimization algorithm.¹⁵ In the activity-keep scheduling trouble, many production parameters need to be optimized, which includes minimizing the whole tardiness time, the average completion time, the system idle time, the makespan, and many others.¹⁶ As increasingly real-global optimization issues growth to an increasing number of complicated algorithms, with greater capable optimizations also growing.¹⁷ Estimation of obscure parameters of the inconvenience was computed by method for the utilization of a crossbreed calculation which is a blend of particle swarm optimization algorithm (PSO) and GA.¹⁸ The half-breed PSO-principally based arrangement of principles is a reasonable and successful strategy for the employment continues planning both.¹⁹

From the literatures, it was found that swarm optimization was proposed in most of the investigations. In the proposed investigation, the hybrid algorithm was developed for a single objective to minimize the makespan in the flexible job shop scheduling problem (FJSSP). For hybridization, SSO with GA was proposed as a new method to develop and to reduce the completion time effectively. Proposed research focuses on the combination of SSO with GA to extract the solutions found to be very close to the global optima.

Literature review

In 2016, Rajkumar and Muthiah²⁰ had suggested that the stage job shop planning issue with the goal of diminishing make the traverse. Counterfeit Artificial Bee Colony (ABC) algorithm is the inquiry heuristics used to take care of worldwide improvement issues in intricate pursuit spaces. It was watched so that the productivity of ABC in taking care of a job shop issue can be enhanced essentially by fitting another procedure GA to outfit the arrangement of an issue. A viable GA for correcting job shop booking issues is also recommended. The multi-target workshop planning issue can amend and will enhance the outrageous execution of the proposed half-breed ABC-GA approach.

Muthiah and Rajkumar²¹ had anticipated that the ABC count would decrease the navigation of the occupation booking errand to the base. On examination and adjustment of the results, it is explicitly settled that ABC count is talented to finish amazing outcomes. Moreover, they made use of five machines, each executing five jobs reaching toward eight outcomes. Along these lines, 40 frames are present in a solitary machine. Thus, the reduction in the maintenance of break-in ABC is observed, and hence, the usage of each machine is decreased.

Muthiah et al.²² proposed that with an objective of minimizing makespan in JSSP using GA had displayed to keep most of our machines well—kept to keep any issues; however, there is one way to deal with absolutely deflect down time. With abundance machines, they have the security of understanding that is not going to be stuck in an appalling circumstance meeting our due dates if a machine has any astounding down times. Finally, they can work to get our pack sizes as meager as is sensibly possible while in like manner diminishing the setup time of each bunch. This lets us to wipe out a sizable piece of each part holding up while the straggling leftovers of the parts in the bunch are being machined.

Lei and Guo²³ had studied about the two-master booking issues (two-agent hybrid flow shop scheduling problem (TAHFSP)) and its unimportance model, and a novel modified rearranged frog-jumping calculation (shuffled frog-leaping algorithm (SFLA)) is proposed to minimize the total objectives of two administrators. The going with new gauges are associated in SFLA: an opposition assurance-based method was used to segment masses, not all game plans of people are apportioned into memeplexes, the best course of action of each memeplex goes about as the subject of the request system and the interesting strategy inside memeplex involves the overall ventures on two sub-issues progressively and various range look for. They attempted the execution of SFLA using different events and the test comes to fruition shows the prominent favored stance of the SFLA when diverged from various counts of TAHFSP.

Palacios et al.²⁴ proposed benchmarks for fuzzy job shop problems, and had played out to fill the gap around by investigating existing benchmarks and moreover proposing new benchmark issues. In the light of this examination, they had proposed another gathering of all troublesome benchmark issues and gave cut down points of confinement to the typical makes of the dish of each event, and likewise, reference makespan values procured with a mimetic computation from the composition. The ensuing benchmark will be made open to support in investigating reproducibility and engage in investigating competition.

Gao et al.²⁵ had presented the multipurpose FJSSP with new job combination. FJSSP with a new job was solved in two phases: presenting plans and rescheduling after each new business incorporation. Presenting reports is the standard FJSSP issue while rescheduling is an FJSSP with different occupations start time and various machine start time. A perfect chance to do rescheduling is the same as the period of new business expansion. Four gatherings of heuristics are proposed for booking FJSSP with new business expansion. The goals are to minimize the most noteworthy completing time (makespan), to minimize the typical of earliness and delay (E/T), to minimize most extraordinary machine workload (M workload), and to minimize total machine workload (T workload). Wide computational tests were finished on eight honest to goodness events from remanufacturing undertaking.

Milošević et al.²⁶ had offered advanced hereditary calculation based on methodologies for taking care of occupation shop planning issues. Hereditary calculations spoke to a standout among the most prominent and, for the most part, utilized metaheuristic strategies connected for taking care of numerous improvement issues inside the most recent couple of decades. Workshop planning spoke to one of the hardest combinatorial streamlining issues where it increments with the number of operations and machines and number of conceivable calendars radically. Here, various sorts of hereditary segments utilized for this specific issue were considered.

Abdeljaouad et al.²⁷ had exhibited the occupation shop planning issue with turnaround streams. This nondeterministic polynomial (NP)-difficult issue is described by two streams of employments that cover similar machines in inverse bearings. The objective is to minimize the maximal finish time of the occupations (i.e. the makespan). They started by researching the multifaceted nature and recognizing particular cases of the issue. At that point, they gave a numerical model that we use in conjunction with a solver to decide the computational circumstances. These circumstances are frequently too long because the issue is NP-hard. Along these lines, in this paper, they displayed another heuristic technique for explaining the NP-hard three-machine case. These tests gave fulfilling outcomes and demonstrated that the heuristic guarantees great execution when the two streams have equivalent quantities of occupations.

Wang et al.²⁸ had displayed that the ant colony optimization (ACO) has been proved with two disadvantages which include low computational efficiency and local optimum. To overcome this issue, improved ant colony optimization (IACO) has been developed and the main objective of the proposed IACO is to minimize the makespan time. The number of Kazeem benchmarks is investigated and the proposed IACO can provide better computational results.

Gonzalez et al.²⁹ had played out the benchmarks for fuzzy job shop problems, that fill the gap around thereby investigating existing benchmarks and moreover proposing new benchmark issues. The ensuing benchmark will be made open to support in investigating reproducibility and engage in investigating competition.

Gao et al.³⁰ had displayed the versatile FJSSP with new occupation incorporation. FJSSP with new occupation expansion fuses two phases: presenting plans and rescheduling after each new business incorporation. The goals are to minimize the most noteworthy completing time (makespan), to diminish the typical of earliness and delay (E/T), to minimize most extraordinary machine workload (M workload), and to minimize total machine workload (T workload).

Lin et al.³¹ had suggested that the stage job shop planning issue with the goal of diminishing make the traverse. The algorithm of ABC is the inquiry heuristics used to take care of worldwide improvement issues in complex search spaces. The multi-target workshop planning issue can amend and will enhance the outrageous execution of a proposed half-breed ABC-GA approach.

Many investigators have done research on JSSP under static and dynamic conditions. Very few researches concentrated in the FJSSP. Depending on the selection of benchmark issues, they developed the algorithms like GA, ACO, ABC, PSO, and hybrid with new metaheuristic, to solve the complexity problem, and the computational results show better performance in optimization techniques. Based on the kinds of literatures, new algorithms developed for the benchmark problems. So we need to reschedule the process using the parameters to be reconsidered in FJSSP. The rescheduling in FJSSP were machining time, ideal time, breakdown time, and so on, for a new job arrival problem is more complex and needs to resolve the minimum makespan time in this field. Still, there is a challenge in the research community to get the global optimum value in the FJSSP using metaheuristic. So this issue is addressed in this research.

Proposed methodology

The FJSSP is a greatly troublesome combinatorial headway issue. This new research work crossbreeds SSO close by GA which is used to finish the single objective of FJSSP issues. Here consider the objective as minimization of makespan time for JSS handle. Altogether, the most outrageous term of completion (make navigate) of the whole errand is decreased to the base. Differentiated and the standard JSSP (JSSP, the versatile FJSSP) is a growth of the customary JSSP, which is a more personality boggling troublesome issue. Each operation of FJSSP business can be taken care of by anyone among a course of action of open machines and operation on various machines requires a remarkable time. This cream progression for the JSSP method of unpredictable journeys of both the parts are used by GA embodied in after SSO redesigning process. This proposed mutt SSO-GA approach showed up in Figure 1.

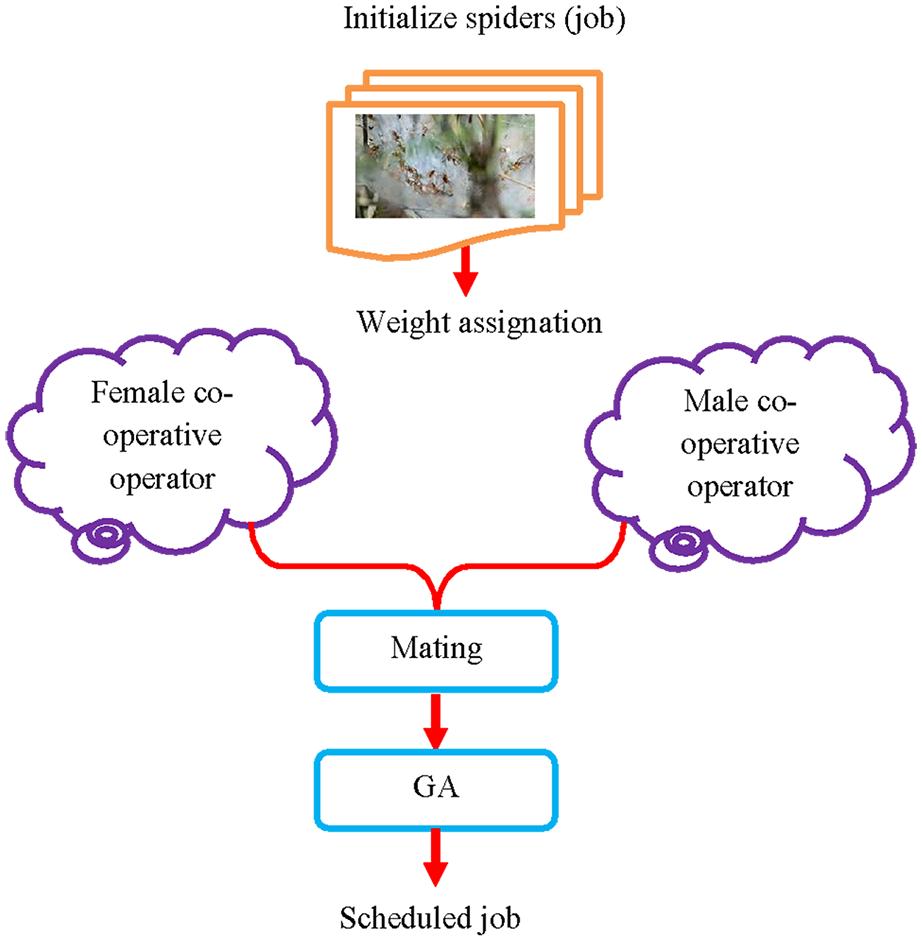

Figure 1.

Proposed enclose work.

On this investigation, some parameters were lowered that includes:

Minimization of make traverse of the obligations.

Minimization of maximal gadget workload spoke to with the guide of the most runtime by any machine.

Minimization of the total workload, symbolized by utilizing the general runtime assigned to the majority of the machines.

Objective Functions in FJSSP

This proposed work of art considers that the first objective takes minimum makespan time and specific jobs are done in separate machines

F_{i} = min (f_{t})

(1)

Minimum completion time for makespan in total jobs can be defined as

f_{t} = min ({max}_{j = 1}^{n} T_{i - 1, j})

(2)

where $f_{t}$ is the makespan time and $T$ is the processing time of each $i th$ job-based and $j th$ machine order.

For decrease in the makespan time hybridization of SSO and GA strategies, these were explained in the below section.

SSO

The operational standards from the social arachnid state have been utilized as rules for building up another swarm advancement calculation. The SSO accepts that whole inquiry space is a public web, where all the social-bugs connect. Each insect gets weight as indicated by the wellness estimation of the arrangement that is symbolized by the social creepy crawly. The calculation models two diverse pursuit specialists (bugs): males and females. Contingent upon gender, all individuals are structured by an arrangement of various developmental administrators which mirror characteristic agreeable practices that are usually accepted inside the province. An intriguing normal for social insects is the exceptionally female-one-sided populaces. Thereafter, the calculation begins by characterizing the quantity of female and male creepy crawlies which will be portrayed as people in the hunt space,²⁶ the whole system was neglected in our last research paper unmistakably.

GA

Hereditary calculations are developmental inquiry strategies used to recognize inexact answers for enhancement issues. The calculation begins with an entire or incomplete arbitrarily created populace. The development is mimicked in eras. Every person in this populace has connected a wellness capacity that speaks to the individual execution because of various criteria. The GA steps are explained below.

Steps involved in GA for FJSSP

Step 1. Initialize the chromosomes and the information employments and machines.

Step 2. Evaluate the wellness work that is making traverse time.

Step 3. Selection prepare: select based on best half chromosome arrangements.

Step 4. Crossover: in view of single or twofold point hybrid.

Step 5. Mutation: randomly select the qualities from the chromosome.

Step 6. The procedure is rehashed until the halting least make traverse time came to.

Hybridization process (SSO-GA) for FJSSP

The hybrid overall improvement approach relies on the recombination of the two estimations most persistent in the field of overall progress estimations: the SSO and GA. Our present work SSO procedure is used to achieve the base makespan time and to upgrade the execution of hybrid in this GA framework. Remembering the true objective to overcome the hindrances present in the two counts, the suggested recombination technique between the ABC and PSO is used. Figure 2 shows the crossbreed tactic for SSO and GA strategies.

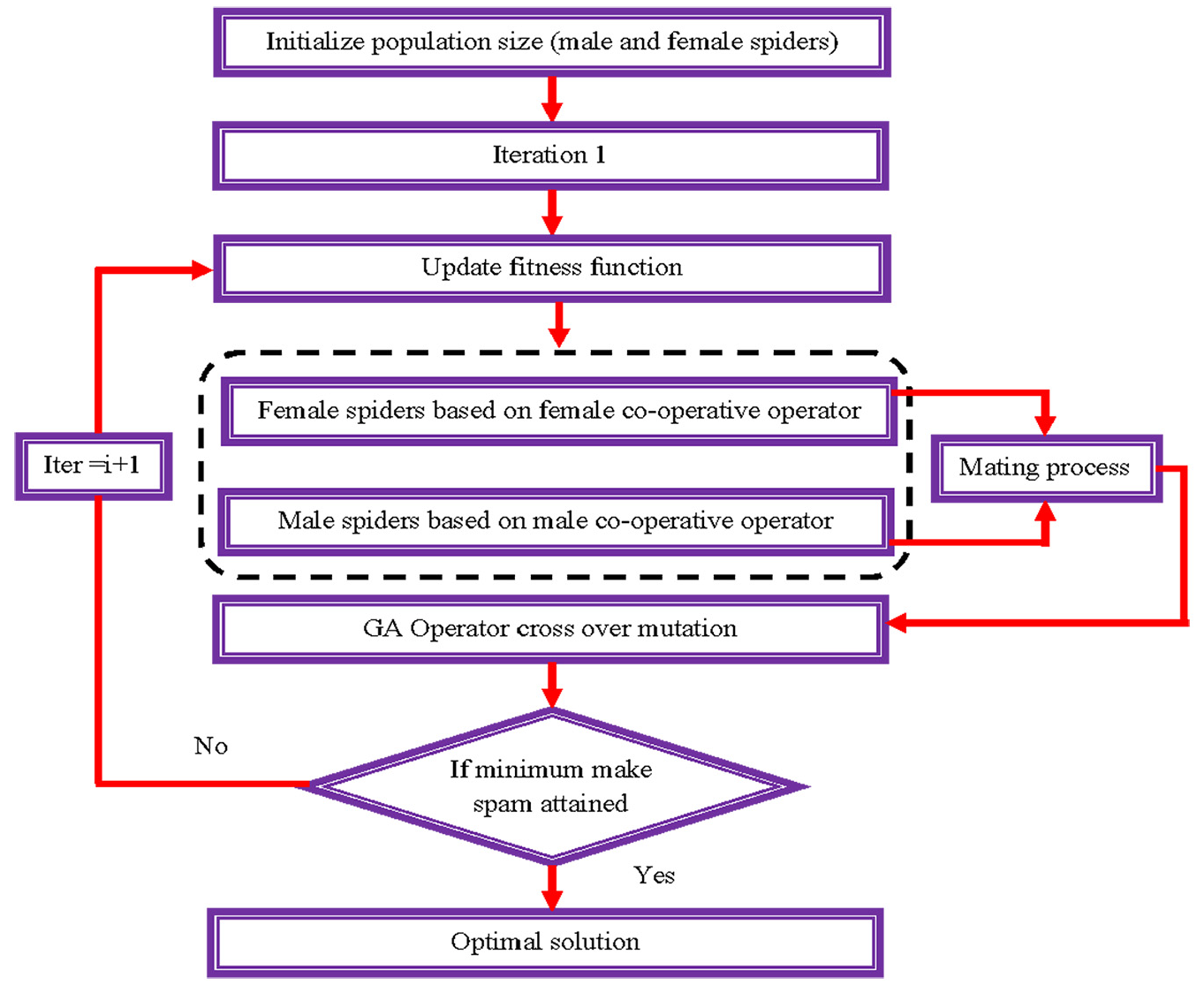

Figure 2.

Flowchart for hybrid technique.

Initialization process

This is the beginning period of the SSO calculation. The underlying arrangements arbitrarily produced D-dimensional genuine vectors because of the machines and occupations. As we probably are aware, the underlying arrangement greatly affects the speed of meeting and the nature of the calculation. Consequently, a few tragedies are used to produce the underlying populace including operation arrangement and machine task and we create the machine task vector first.²⁷

New solution updating process

The new arrangement upgrading process SSO technique is considered. Dependent upon sexual orientation introduction, all individuals are driven by a game plan of different formative heads which mimic various co-specialist rehearses that are generally acknowledged inside the settlement. Consider the aggregate time as the entire measure of n-dimensional province part; the quantity of male and females are indicated as creepy crawlies in the in-place inhabitants

T_{f} = floor [(0.9 - rand 0.025) . T] and T_{m} = T - T_{f}

(3)

where r is a random number between [0–1] and floor (·) which maps a true numeral to an integer.

Each spider gets a weight which speaks to the organizing of the quality that relates to the spider (independent of sexual orientation) of the populace S. Determine the heaviness of each spider of S where condition (4) is utilized

w_{i} = \frac{F (S_{i}) - wors t_{S}}{bes t_{s} - wors t_{s}}

(4)

Cooperative operator phase

After discovering the weights of male and female creepy crawly in the redesigning process, assess male agreeable administrator and male helpful administrator. Female insects demonstrate an interest or a form over others free of sexual orientation. For a particular female creepy crawly, such interest or loathing was usually made over various bugs as demonstrated by their vibrations which are transmitted over the mutual web. The primary incorporates the conformity as for the nearest part to (i) that holds a higher weight and conveys the vibration $Vib c_{i}$ . Male characters, with a weight rate surpassing the middle esteem contained by the male populace, are measured by the prime people as D. Thereafter, those under the middle esteem are marked as non-overwhelming guys ND.

Mating process

The mating in a social creepy crawly province which is completed by the main and the female individuals. In this case, while the main male $m_{g}$ insect $(g \in D)$ discovers an arrangement of $E^{g}$ female individuals inside the predetermined range “r” (which is measured as the scope of mating), it mates, delivering another brood $V_{new}$ which is created because of a record of the whole components of the set which, thus, has been made by the union $E^{g} \cup m_{g}$ . It is germane to highlight that while the set $T^{g}$ is empty, the mating capacity of bees are deserted.

GA updating process: crossover

By using the better arrangement of (chromosomes) future generations, it is delivered by the hybrid operation. Every two people are looked over the better arrangement of the chromosome to deliver two new posterity by single hybrid point. Likelihood is appended to every sort of hybrid and every time anyone writes, it is chosen utilizing Monte-Carlo recreation. Figure 3 demonstrates the hybrid operation. The probability of crossover is considered as 0.3.

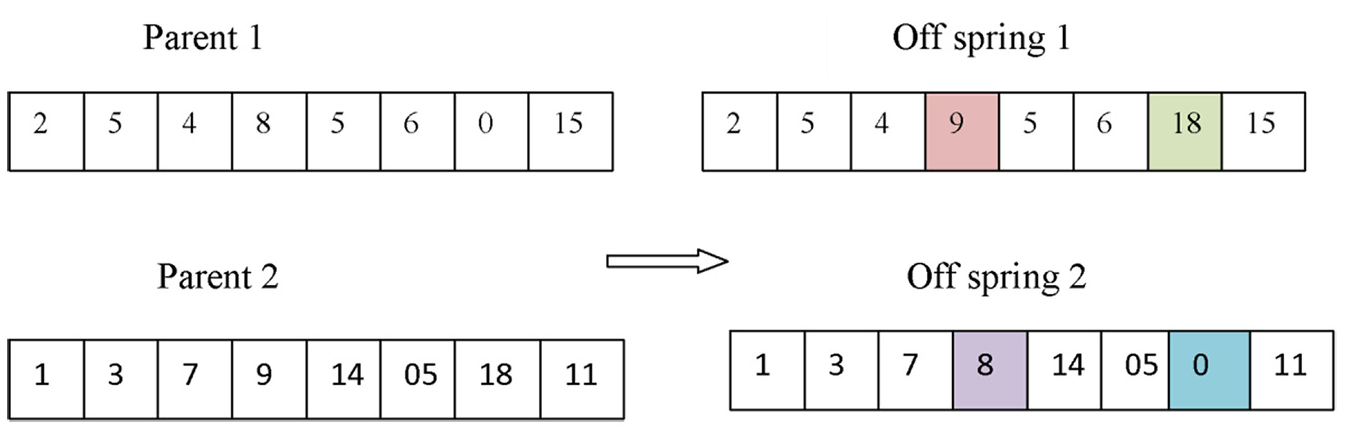

Figure 3.

Crossover process.

Mutation

The change in chairman sticks improvement in the interest and it picks the subjective change. Change is a genetic executive used to keep up inherited arranged qualities from one time of masses of innate count chromosomes to the accompanying which intently takes after the regular change. Change adjusts no less than one quality value in a chromosome from its basic form and the game plan inclines to modify absolutely from the past game plan. Subsequently, GA achieves better arrangement by utilizing change. In this work, three sorts of transformation administrators are utilized, which are portrayed as takes after, and the mutation process is represented in Figure 4. The probability of mutation is considered as 0.015.

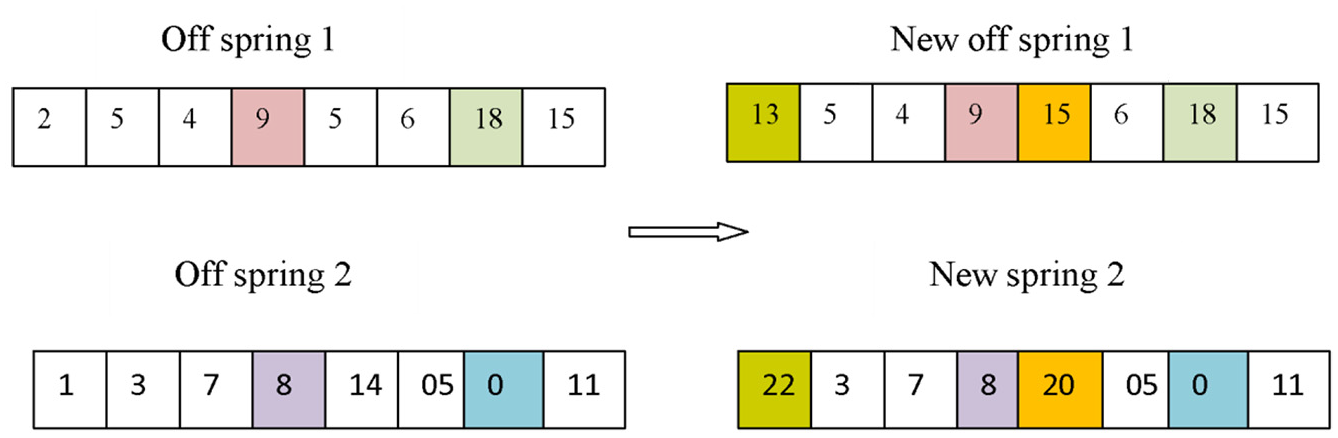

Figure 4.

Mutation process.

Restart phase

In the setting of early chose handle, the new diagram sets are refined. By then, the flourishing thankfulness was attained for the new approaches. Henceforth, the blueprint provides that the reduced set aside 2 or 3 min is utilized as the ideal system. The above strides are overseen for the new arrangement sets. This method will be reiterated until a perfect game plan with the slightest makes dish time.

Steps for proposed FJSSP

Step 1. Prepare the spider resolution T_i = (1 …n).

Step 2. Compute the fitness for the initial solution.

Step 3. Grounded on the capability update the new spider population.

Find the number of female and male spiders (T_f and T_m).

Evaluate the weight (w_i) based on the fitness (F_i).

Fitness-based initializes the population (f_i,j and m_k,j).

Find the cooperative operator.

Female cooperative operator (f_i^k+1).

Male cooperative operator (m_i^k+1).

Mating process find the probability (p_si).

Crossover and mutation process.

Step 4. Locate the fitness for the latest spider solution (F_i_(new))

Step 5. Accumulate the preeminent spider of the solution consequently intended to attain Repetition = repetition + 1.

Step 6. Bring to a standstill awaiting the best resolution (F_optimal) accomplish.

Step 7. End.

Result and discussion

The estimated strategy is actualized in the phase of MATLAB 2015a with the framework arrangement is i5 processors with 4GB RAM which is used for minimization of makespan time handle in FJSSP with various benchmark issues. These proposed work results are contrasted with the current writing review¹⁸ and¹⁹ papers.

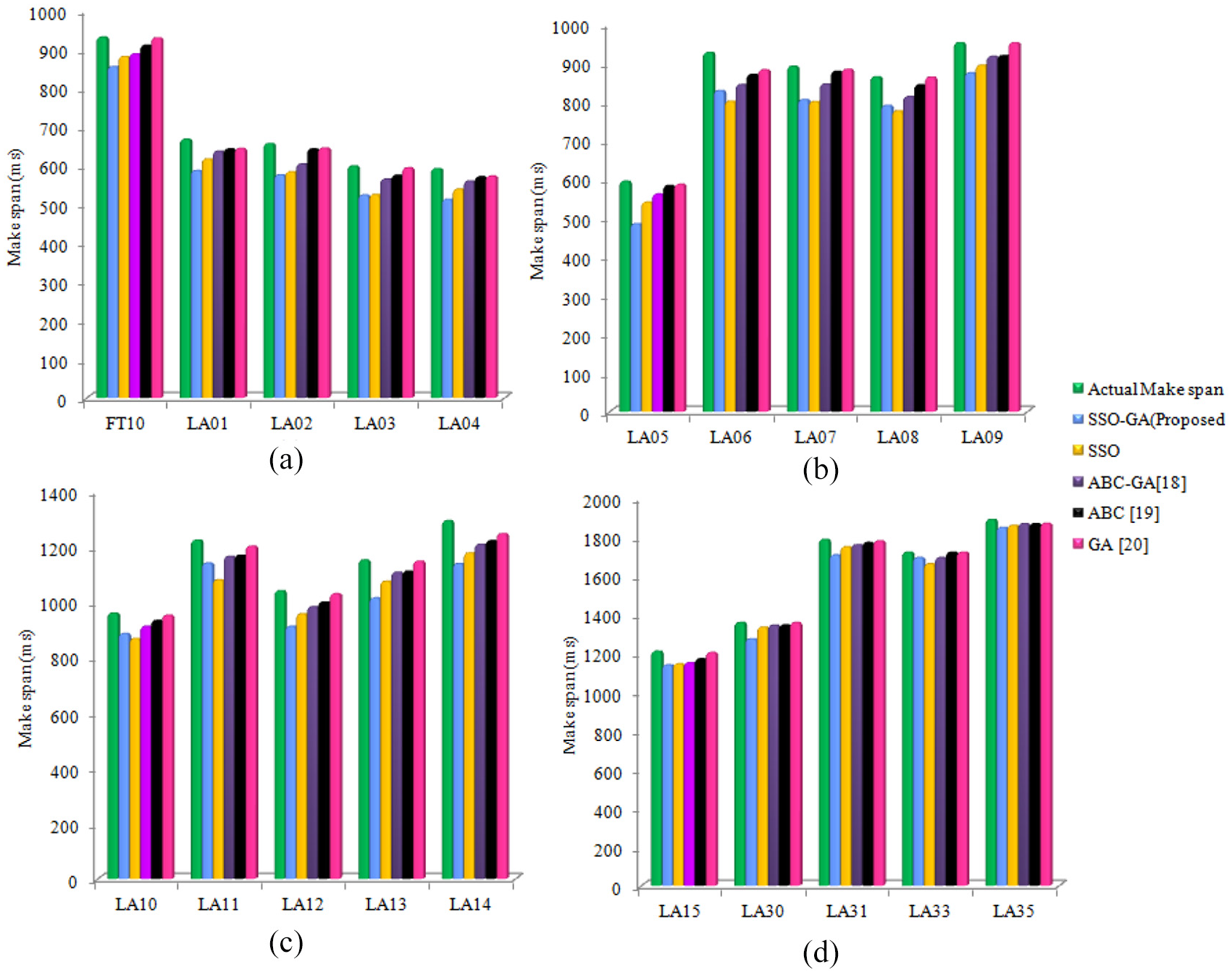

Figure 5 counts a similar examination of real makespan qualities to five sorts of existing calculations. The investigation is in light of 20 benchmark issues, the primary commitment of this correlation is to minimize the makespan time by utilizing improved calculations and locate the ideal calculation. Figure 5(a) represents five diverse enhancement methods (SSO-GA, SSO, ABC-GA, ABC, and GA) contrasted with real makespan time for five benchmark issues (FT10, LA01, LA02, LA13, and LA14). For FT10, the real makespan time is 925, the half-breed calculation (SSO-proposed GA) achieves 892, SSO advancement accomplishes 896, ABC-GA gets 896.5, ABC acquires 900, and GA is 910. In contrast with every one of those informations, the half-breed SSO, and proposed GA accomplishes the least makespan time than different calculations. Correspondingly, other benchmark issues have additionally accomplished the most reduced time the makespan reaches in SSO and proposed GA. Figure 5(b)–(d) are additionally like Figure 5(a). In all the figures, the calculated qualities are contrasted with the real esteem and get minimized makespan for all the benchmark issues.

Figure 5.

Comparative analysis.

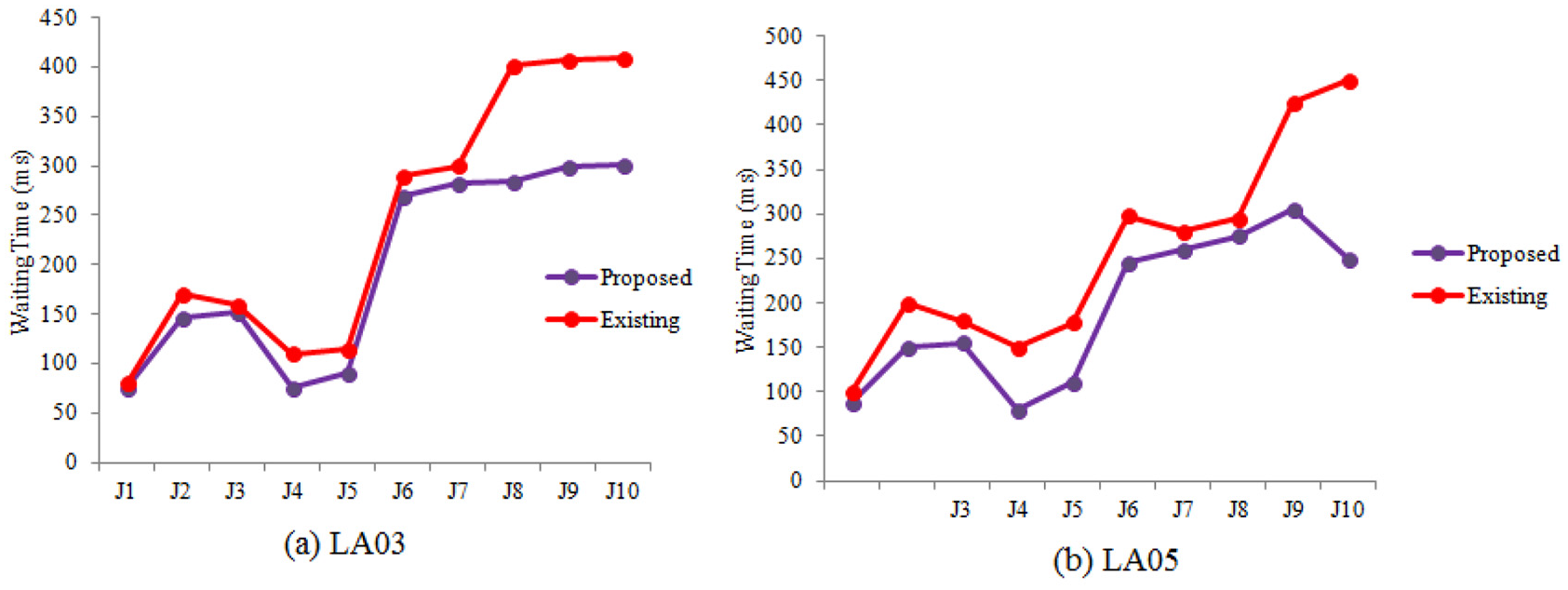

Figure 6 demonstrates the example of greatest employment culmination time. It investigates the sitting tight time for every machine when one employment finishes the procedure for separate machines. This chart analyzes the proposed method and the existing strategy for two benchmark issues (LA03 and LA05). Figure 6(a) and (b) shows sitting tight time for occupation 1–10, work 1 has accomplished the sitting tight time as 74 for both procedures. Contrast with the current systems, the proposed method accomplishes least sitting tight time for each benchmark issues prepared at every employment. Essentially, other benchmark issues were additionally getting a similar outcome like this benchmark issue.

Figure 6.

Sample maximum job completion time: (a) LA03 and (b) LA05.

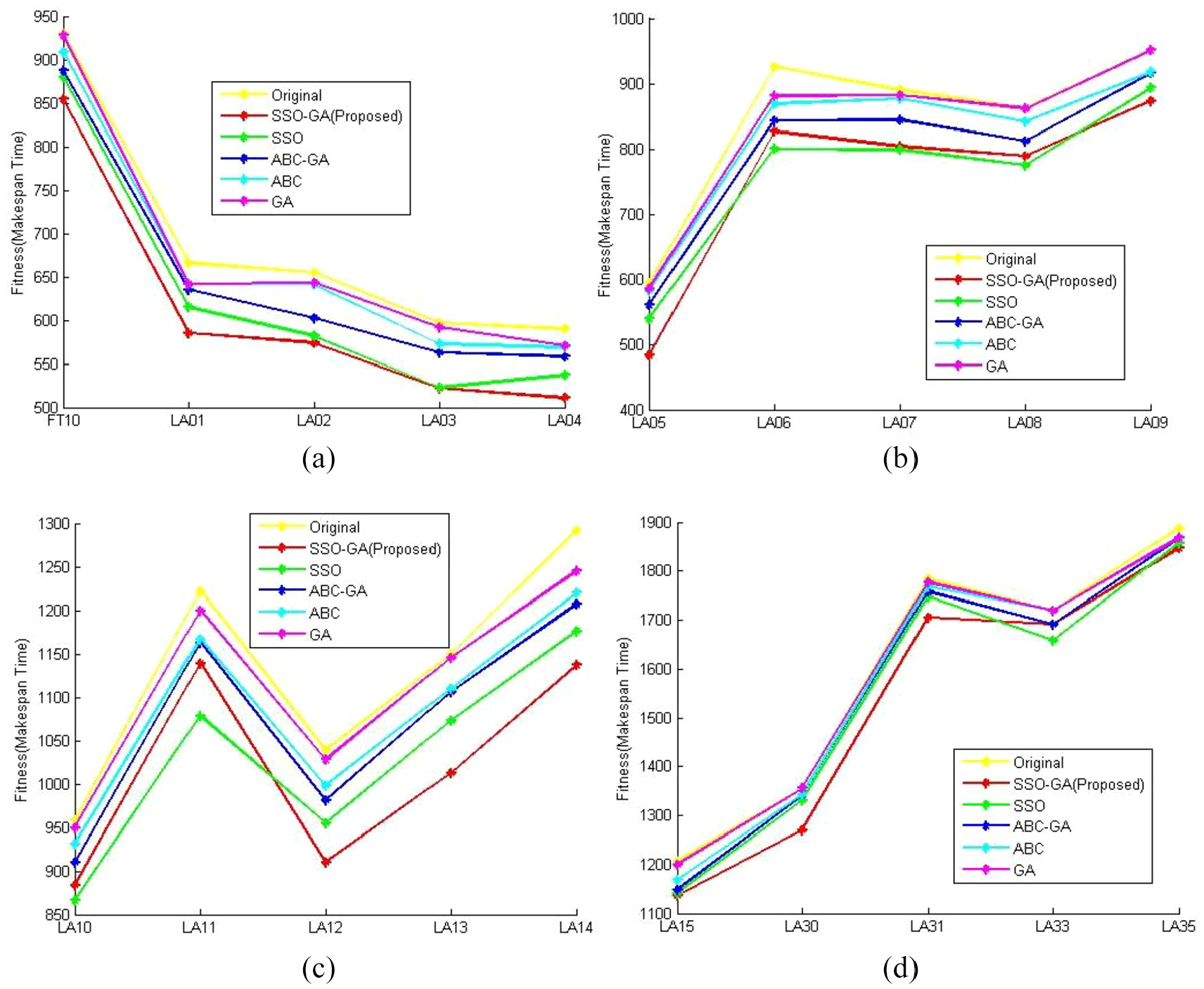

Figure 7 demonstrates the investigation chart in light of makespan time and thinks about the five enhancement values into unique qualities because of benchmark issues. Figure 7(a)–(d) shows 20 benchmark issues for regarded makespan time by utilizing five streamlining procedures and contrasted and unique makespan time. For each benchmark issues, the occupation is prepared at a specific time, the machine cannot take rest. Here, we noticed the preparing time for each occupation coursed in a machine. This execution time is called makespan time. For the correlation, the outcomes portray least makespan time got in half-and-half (SSO-proposed GA) streamlining as it was. The ideal wellness esteem likewise accomplishes in the half-and-half calculation.

Figure 7.

Comparative analysis based on benchmark problem database.

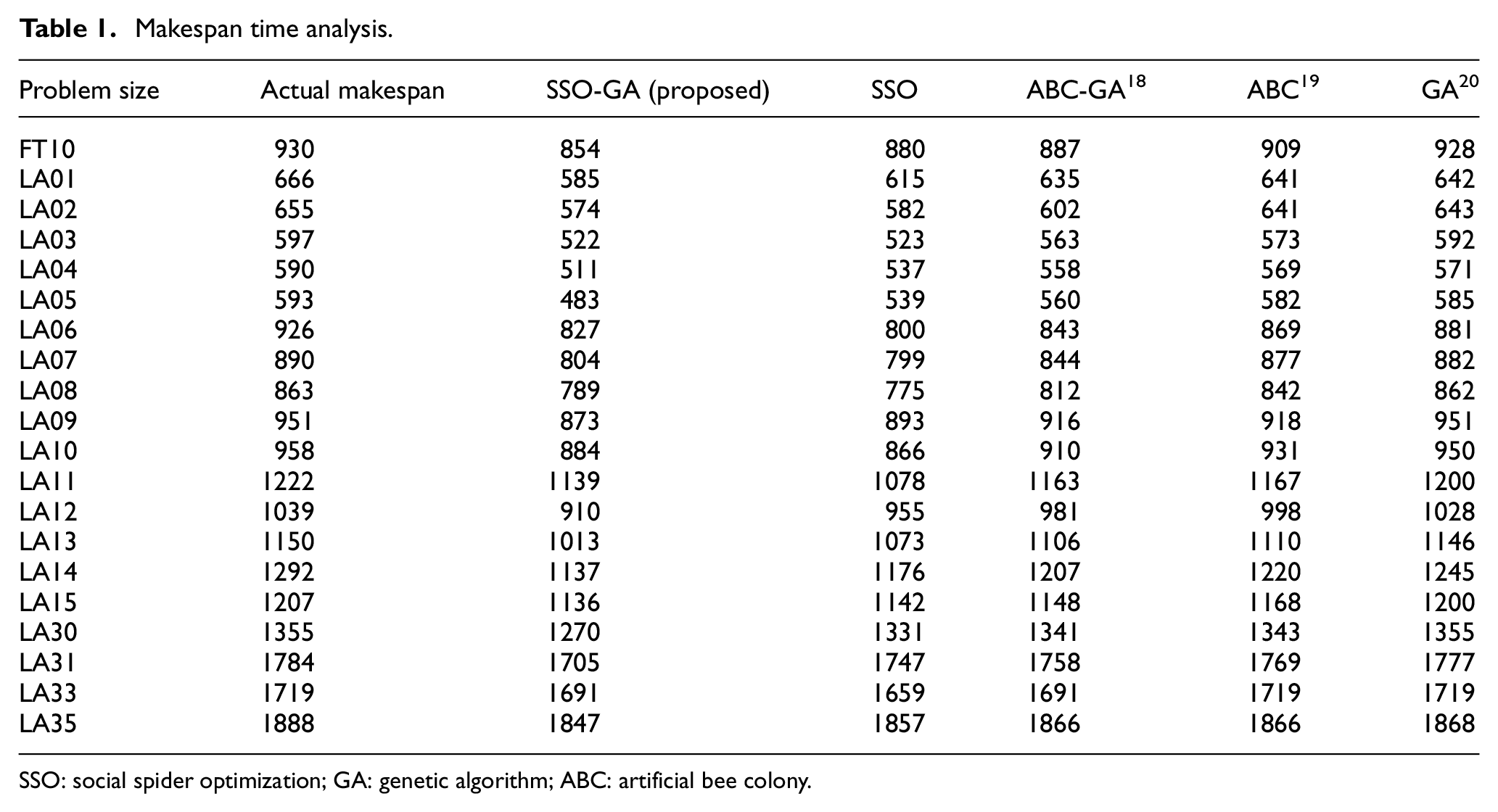

Table 1 pictures the makespan time investigation for 20 benchmark issues. The table shows five sorts of streamlining methods: they are crossbreed social arachnid advancement (SSO) and proposed GA, SSO, half-and-half ABC and GA, singular calculations GA, and ABC for 20 benchmark issues (FT10, LA01, LA02, LA03, LA04, LA05, LA06, LA07, LA08, LA09, LA10, LA11, LA12, LA13, LA14, LA15, LA30, LA31, LA33, and LA35). These makespan times for these advancement calculations are contrasted with the genuine makespan time. For instance, for LA01, the real makespan time is 666. Half-and-half SSO-proposed GA accomplishes 585, SSO achieves 615, and the qualities from the reference as a mixture (ABC-GA) are 635, ABC achieves 641 and GA gets 642. As indicated by the investigation of these above estimations of specific calculations, the makespan time for half-and-half SSO-proposed GA gets least makespan time than other existing calculations. This calculation gives the ideal outcome and better precision; this similarly reduces the most extreme completion time. Essentially, other benchmark issues likewise had demonstrated the ideal outcome in hybrid SSO-proposed GA improvement calculations. Regularly, the crossover calculation improves result than individual calculations this review can likewise think about and demonstrates the half-breed advancement that gives ideal wellness esteem than discrete calculations.

Table 1.

Makespan time analysis.

Problem size	Actual makespan	SSO-GA (proposed)	SSO	ABC-GA¹⁸	ABC¹⁹	GA²⁰
FT10	930	854	880	887	909	928
LA01	666	585	615	635	641	642
LA02	655	574	582	602	641	643
LA03	597	522	523	563	573	592
LA04	590	511	537	558	569	571
LA05	593	483	539	560	582	585
LA06	926	827	800	843	869	881
LA07	890	804	799	844	877	882
LA08	863	789	775	812	842	862
LA09	951	873	893	916	918	951
LA10	958	884	866	910	931	950
LA11	1222	1139	1078	1163	1167	1200
LA12	1039	910	955	981	998	1028
LA13	1150	1013	1073	1106	1110	1146
LA14	1292	1137	1176	1207	1220	1245
LA15	1207	1136	1142	1148	1168	1200
LA30	1355	1270	1331	1341	1343	1355
LA31	1784	1705	1747	1758	1769	1777
LA33	1719	1691	1659	1691	1719	1719
LA35	1888	1847	1857	1866	1866	1868

SSO: social spider optimization; GA: genetic algorithm; ABC: artificial bee colony.

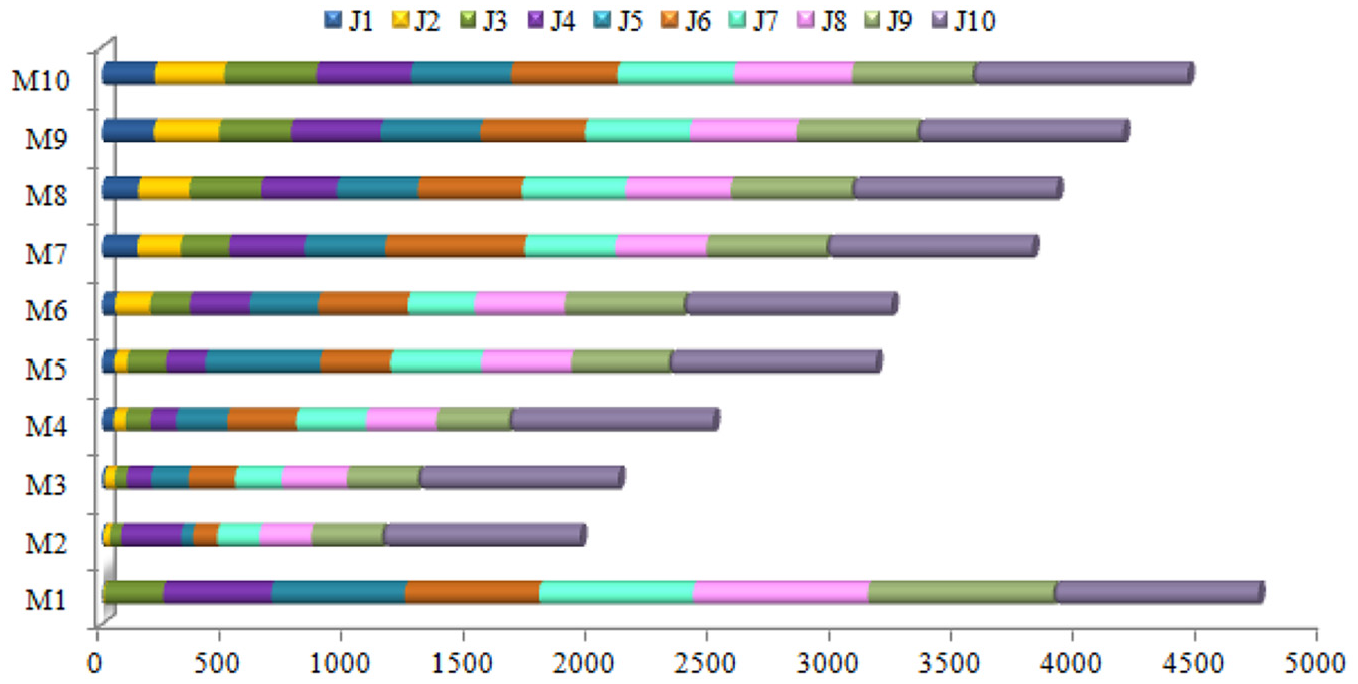

Figure 8 represents the Gantt diagram for M1 to M10. This outline examines the makespan time at the period of each occupation prepared as a specific machine. In x-pivot speaks to the day and age (0–5000) and y-hub scale speaks to the machine sorts, that is, M1 to M10. In each machine, there are 10 occupations prepared specifically era, that is, in a steady progression. The most extreme fulfillment was achieved in machines M1, M10, M9, M8, and M7, however, least finishing time was reported in M2, M3, M4, M5, and M6. By the correlation of the considerable number of machines, M2 gives the ideal estimation of least makespan time for all the 10 occupations.

Figure 8.

Gantt chart.

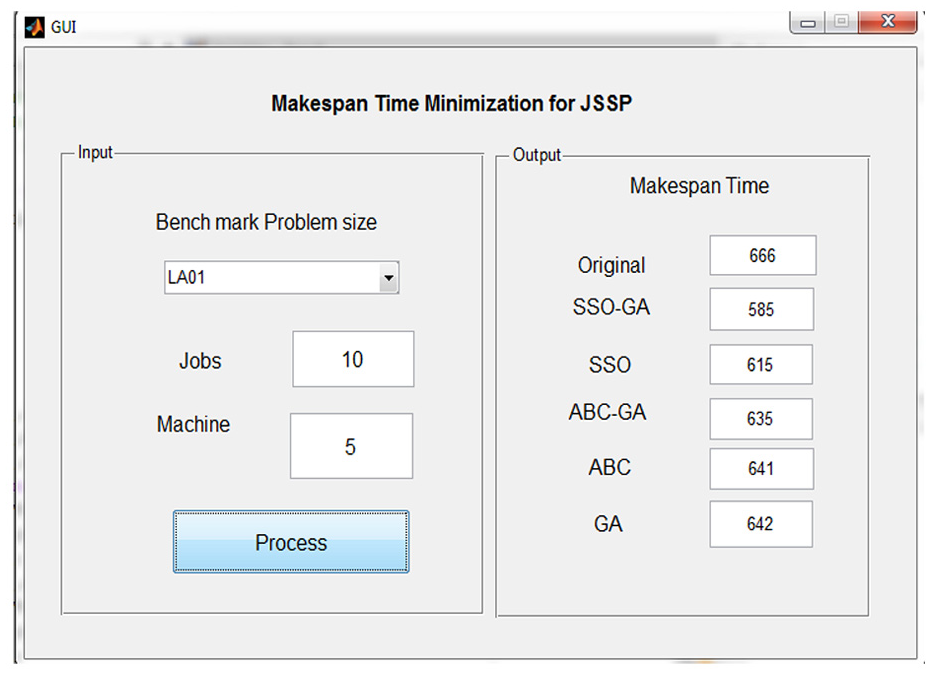

Figure 9 indicates the graphical user interface (GUI) different imperatives for SSO, GA, ABC, ABC-GA, and crossbreed proposed SSO with GA. Taking each one of these requirements, the yield of all streamlining were assessed as represented above.

Figure 9.

Graphical user interface (GUI).

Conclusion

The hybridization of SSO and GA was successfully implemented for 20 benchmark problems and FJSSP was enhanced. The makespan time obtained using SSO-GA hybrid algorithm was reduced by 5.13% when compared to SSO algorithm implemented for same benchmark problems. Similarly, 8.55%, 9.57%, and 9.74% reduction in makespan time was observed while comparing the hybrid algorithm with ABC-GA, ABC, and GA, respectively.

This research breaks down the delicate registering method by means of contrasting various streamlining strategies and existing calculations. The best exactness was accomplished in half-breed SSO with proposed GA furthermore decreasing the makespan time for all machines.

The limitations of the proposed hybrid algorithm was found to be restricted to single objective problem that is minimizing makespan time. This proposed work limits to only one constraint listed amid the makespan time, workload, breaking time, machine loading time, tardiness, and so on. The same hybrid algorithm may lead to further research work to handle multi-objective large-scale problems considering more number of constraints.
