Abstract

Quantum genetic algorithm (QGA) is an optimization algorithm based on the probability that combines the idea of quantum computing and traditional genetic algorithm. In this paper, a new type of control law is developed for an underwater vehicle along with the desired path. The proposed controller is based on sliding mode control (SMC) in which the reaching law is modified to overcome two challenging problems, chattering, and sensitivity against noise. The disturbance is considered as a set of sinus waves with different frequencies which its parameters are estimated by Particle Swarm Optimization (PSO). Since QGA has some advantages such as fast convergence speed, small population size, and strong global search capabilities, we use QGA to determine the gain of the proposed controller. Finally, the Lyapunov theorem is used to prove that trajectory-tracking error converges to zero. Simulation results show that QGA can converge to the optimal response with a population consist of one chromosome.

Keywords

Sliding mode control underwater vehicle particle swarm optimization quantum genetic algorithm

Introduction

A lot of control methods are used in the autonomous underwater vehicles (AUVs) such as fuzzy and neural network methods, nonlinear control, adaptive control. Because of the nonlinear nature of AUVs, controllers which are used in AUVs should be accurate and they have to robust against noise, disturbance, and uncertainties.

Uncertainties in the modeling, environmental changes, and disturbance are reasons that many papers use intelligent methods and fuzzy logic control for controlling an AUV. Fuzzy control method in AUVs is studied in Smith et al.,¹ Raeisy et al.,² Shi et al.,³ Huajun et al.,⁴ and intelligent methods are surveyed in Venugopal et al.,⁵ Kodogiannis et al.,⁶ and Van De Ven et al.⁷ Disturbance and noise are inevitable in many systems. There has been the number of works in the literature which address this problem in nonlinear systems such as Zhu et al.,⁸ Zhu,⁹ and Wang and Zhu.¹⁰

Due to some important factor such as the high nonlinearity and time-varying dynamics, ocean currents, and unpredictable disturbances, many kinds of literature use the nonlinear and adaptive methods to control an AUV. Nonlinear control is surveyed in Lapierre et al.,¹¹ Lapierre and Soetanto¹². An adaptive control using a regressor matrix consist of unknown parameters was designed in Sahu and Subudhi¹³. Also, an adaptive terminal sliding mode controller based on nonlinear disturbance observer was applied for an AUV in Chen et al.¹⁴ They could estimate disturbance with a fairly good approximation. In Chang,¹⁵ an adaptive sliding surface designed for a class of multi-input nonlinear systems with perturbations and regulation problem is solved based on the Lyapunov stability and back-stepping technique.

Quantum genetic algorithm (QGA) is a combination of GA and quantum computing. In 1996, QGA is proposed by Narayanan and Moor to solve the traveling salesman problem (TSP). The efficiency of QGA is significantly better than the conventional genetic algorithm. Some advantages of the QGA are a small value of the population and a fast speed of convergence and a great capability of global optimization.¹⁶ Quantum computation is the product of quantum mechanics applying in the field of an algorithm. The ability of parallelism is the essential difference between classical computation and quantum computation. In the concept of probability calculation, the system is not in an invariable state. Conversely, it has a certain probability, and the state probability vector is corresponding to different possible states. Quantum computation is similar to it, the probability amplitudes of quantum states are used in quantum computation, and probability amplitudes of quantum states are squared normalized. Quantum rotating gates are used for realizing quantum transformation. There are some specific properties of quantum computation relative to classical computation.¹⁶

In Layeb and Saidouni,¹⁷ a QGA was also used to solve the binary decision diagram ordering problem. In Roy et al.,¹⁸ it was explained why and how quantum algorithms provide a fundamental improvement over classical ones; also it analyzed the benefits and drawbacks of QGA. In Laboudi and Salim,¹⁹ QGA and conventional GA were compared and they have shown that QGA can be a very promising tool for exploring search spaces.

To accelerate the evolutionary process and increase the probability to find the optimal solution, Wang et al.¹⁶ proposed a method to improve QGA performance. They improved the determination of the rotating angle by self-adaptive strategy and they added the quantum mutation operation and disaster operation.

Particle swarm optimization (PSO) was proposed by Kennedy and Eberhart in 1995. It is a population-based search algorithm which is simple and easy to realize. PSO can optimize a function only by modifying some parameters. In Chang et al.,²⁰ amplitude and phase of harmonic are estimated by PSO.

In the concept of control of an AUV, trajectory tracking of an AUV along the desired path is an important task. It is difficult to develop a controller for an AUV in the presence of uncertainties, disturbances, and noises. Under these hardships, this paper focuses on developing a new control law for trajectory tracking for AUV in the depth plane.

This paper is based on our previous work²¹ in which we applied a sliding mode control (SMC) with adaptive gains such that some of its parameters should be specified by the designer with trial and error. Therefore, we use the QGA to determine the gains of proposed control law, so a QGA is employed instead of adaptive gains for trajectory tracking of the underwater vehicle in the depth channel. We have modified the reaching law and have used a QGA to obtain the gain of the SMC. In the presented reaching law, a continuous term instead of the discrete sign function is used and also the velocity term is entered in the reaching law. To avoid selection of big constant gain, which is one of the factors causing chattering, the gain of the controller is obtained by quantum genetic, such that when the small gain is sufficient for the controller, the big gain is not selected. Since there is no sign function in the proposed controller, so our controller is not vulnerable to noise. Since the disturbance entered the system is usually unknown, we have used PSO algorithm to determine disturbance and applied it to control signal. In this paper, the disturbance is considered as a function of two sinus waves with different frequencies^14,22,23 and we will try to estimate its amplitude and frequency. Simulation results of the proposed controller are compared with sliding mode controller with boundary layer technique. Minimization of tracking error and boundedness of the closed-loop signals are proved via Lyapunov stability theorem. Results show that the proposed control law can provide a good performance in the presence of external disturbances and noise.

Contributions of the paper are listed as follows:

In this paper, we extend our previous sliding mode controller with a new reaching law for controlling an underwater vehicle in the depth plane. In the presented reaching law, a continuous term instead of the discrete sign function is used; also the velocity term is entered in the reaching law. Because we do not use sign function, proposed controller is not vulnerable to noise.

Due to existence of uncertainties and disturbances, we determine the gains of our controller with an intelligent method instead of trial and error method. Since QGA has more advantages than conventional genetic algorithm (as it is mentioned in our paper), we use QGA for finding the gains of sliding mode controller for the first time.

We have considered disturbances interred the system as a function of two sinus waves (which is a reasonable assumption for disturbances in AUV problems) with different frequencies and amplitudes. We estimate this disturbance with PSO algorithm and apply it to proposed controller.

In simulation results, we have shown QGA can reach to the desired gains with a population consist of one chromosome.

It can be seen the QGA can be reach to desired response with a less size of population than that in the conventional genetic algorithm.

This paper is organized as follows: in section “Dynamic model,” dynamic model of vehicle is presented. In section “Depth control,” an overview of SMC for depth control of an underwater vehicle is surveyed and then proposed controller and estimation of disturbances by PSO are presented. QGA for determining the gains of the proposed controller is studied in section “An overview of QGA.” Finally, the simulation results for two cases are shown in section “Simulation results.”

Dynamic model

The motion equations for underwater vehicles are presented in Figure 1 with respect to an inertial reference frame or to a body-fixed reference frame. It is conventional to express the dynamic model of underwater vehicles based on the inertial reference frame by the position/attitude vector $X = {[x, y, z, ϕ, θ, ψ]}^{T}$ . In the particular case of remotely operated vehicle (ROV), for keeping the roll $ϕ$ and pitch $θ$ angles small, that is, $ϕ \approx 0, θ \approx 0$ , the distance between buoyancy and gravity centers are selected usually large enough. Besides the self-stabilizing property, this design characteristic allows the vertical motion (heave) of the vehicle to be considered decoupled from the motion in the horizontal plane.²⁴ So, keeping this in mind and considering Morison equation,²⁵ the vertical motion along z-axis is described by

m \overset{\cdot\cdot}{z} + c \overset{\cdot}{z} | \overset{\cdot}{z} | + d = u

(1)

where $z$ is the depth, $u$ the control input (thrust force), $d$ the disturbance caused by external forces, $c$ the coefficient of the hydrodynamic quadratic damping, and m represents vehicle’s mass plus the hydrodynamic added mass. With respect to the dynamic model, the following physically motivated assumptions can be made.²⁴

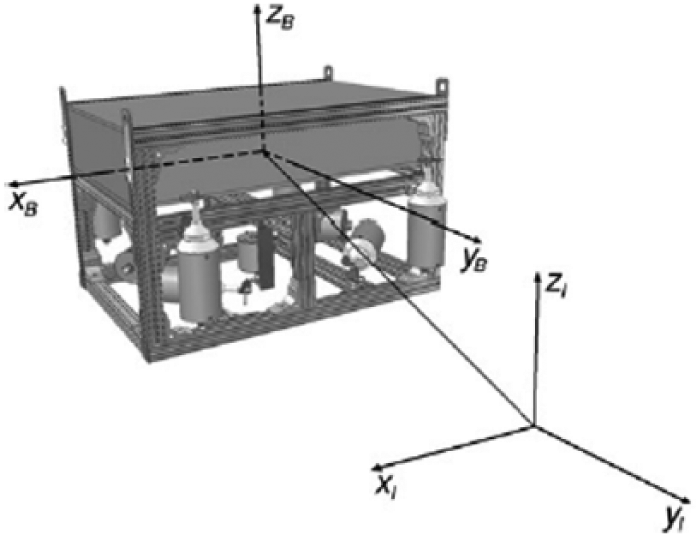

Figure 1.

Underwater vehicle with both inertial and body-fixed reference frames.²⁴

Assumption 1

The parameter $m (t)$ is time-varying and unknown but positive and bounded, that is, 0 ≤ m_min ≤ $m (t) \leq m_{m a x}$ .

Assumption 2

The parameter $c (t)$ is time-varying and unknown but bounded, that is, c_min ≤ c(t) ≤ c_max as in Bessa et al.²⁴

Depth control

In this section, at first, the sliding mode controller for the described system is explained and then we design a new sliding mode controller.

SMC

Let $S (t)$ be a sliding surface defined in the state space by the equation $s (\tilde{z}, \dot{\tilde{z}}) = 0$ , with the function $s : R^{2} \to R$ satisfying²⁴

s (\tilde{z}, \dot{\tilde{z}}) = \dot{\tilde{z}} + λ \tilde{z}

(2)

where

\tilde{z} = z - z_{d}

(3)

is the tracking error, $\dot{\tilde{z}}$ is the time derivative of $\tilde{z}$ , $z_{d}$ is the desired trajectory, and $λ$ is a strictly positive constant. Regarding the development of the control law, the following assumptions must be considered.

Assumption 3

The states $z$ and $\dot{z}$ are available and the disturbance $d (t)$ is time-varying and unknown but bounded by a known function of $z$ , $\dot{z}$ , and $t$ , that is, $| d (t) | \leq δ (t, z, \dot{z})$ . In many papers, it is reasonable to considered that disturbances are bounded.^26–28

Assumption 4

Furthermore, $z_{d}, {\dot{z}}_{d}$ , and ${\overset{\cdot\cdot}{z}}_{d}$ are available and have known bounds.

In this paper, the problem of controlling the vertical motion of a remotely operated underwater vehicle, is considered by equation (2), where a control law composed by two components: the equivalent control term that is defined as $u_{e} = c \dot{z} | \dot{z} | + m ({\overset{\cdot\cdot}{z}}_{d} - λ \dot{\tilde{z}}) + \hat{d}$ and the reaching law term that is defined as $u_{r} = - K s g n (s)$ . Where $\hat{d}$ is an estimation of disturbance $d$ which we use PSO algorithm to obtain $\hat{d}$ . Then conventional SMC law is defined as $u = u_{e} + u_{r}$ that is rewritten as follows

u = c \dot{z} | \dot{z} | + m ({\overset{\cdot\cdot}{z}}_{d} - λ \dot{\tilde{z}}) + \hat{d} - K s g n (s)

(4)

where $- K s g n (s)$ is a discontinuous term, $K$ is the control gain, and $s g n (s)$ is defined as

s g n (s) = {\begin{matrix} - 1 i f x < 0 \\ 0 i f x = 0 \\ 1 i f x > 0 \end{matrix}

(5)

In the conventional SMC, $K$ is considered constant. Pure sliding mode controller has disadvantages such as chattering and being too vulnerable to noise. The first problem is chattering which causes high-frequency oscillation of the controller output and the second problem is sensitivity. This controller is very sensitive to the noise when the input signals are very close to the zero.²⁹ As shown in the simulations, in the presence of external disturbances, the controller has a good track but chattering may occur in the control input. One strategy for canceling the chattering is boundary layer control (BLC) in which the saturation function is used instead of sign function as follows

u = c \dot{z} | \dot{z} | + m ({\overset{\cdot\cdot}{z}}_{d} - λ \dot{\tilde{z}}) + \hat{d} - K s a t (s / φ)

(6)

where $s a t (x)$ is defined as

s a t (x) = {\begin{matrix} s g n (x) i f | x | > 1 \\ x i f | x | \leq 1 \end{matrix}

(7)

It can be easily verified that equation (3) is sufficient to impose the sliding condition

\frac{1}{2} \frac{d}{d t} s^{2} \leq - η | s |

(8)

where $η$ is a strictly positive constant related to the reaching time.⁵

Disturbance estimation by PSO

In order to get a good disturbance approximation $d (t)$ , we estimate $\hat{d}$ by PSO. Initially, PSO is equipped with a swarm of $N$ possible particles randomly generated. A particle $i$ at its tth iteration consists of a position vector, $x_{i} (t)$ and a velocity vector, $v_{i} (t)$ . At each iteration, the particle $i$ is updated by means of two important vectors. The first vector is $p b e s t_{i}$ , which amounts to the best solution (i.e. position) found by the particle $i$ , so far. The second vector is $g b e s t (t)$ , which is the best of $p b e s t_{k} (t)$ , $\forall k$ . Unless the termination criteria are met, each particle is updated in each iteration by the following rule

\begin{matrix} v^{i} [t + 1] = w v^{i} [t] + c_{1} r_{1} (x^{p b e s t} [t] - x^{i} [t]) \\ + c_{2} r_{2} (x^{g b e s t} [t] - x^{i} [t]) \end{matrix}

(9)

x^{i} [t + 1] = x^{i} [t] + v^{i} [t + 1]

(10)

where $i (\in {1, \dots, N})$ is the particle’s index in the swarm and $j (\in {1, \dots, n})$ denotes the component’s index of the corresponding particle. Also, $w$ is the positive inertia weight, $c_{1}$ and $c_{2}$ are the cognitive and social learning factors, respectively, and $r_{1}$ and $r_{2}$ are two random numbers uniformly distributed from 0 to 1. Note that $w$ controls the influence of the past velocity on the present one, and $c_{1}$ and $c_{2}$ determine the effect of the local best and the global best solutions on the present velocity of the particle, respectively;^30,31

Considering disturbance as a sinus function with two different frequencies, we try to estimate it with

\hat{d} = a_{1} \cos (a_{2} t) + a_{3} \sin (a_{4} t)

(11)

in which $a_{i}, i = 1, \dots, 4$ is defined by PSO with considering root mean square error (RMSE) between $d$ and $\hat{d}$ as cost function. $a_{1}$ and $a_{3}$ are amplitudes and $a_{2}$ and $a_{4}$ are two different frequencies.

Proposed sliding mode controller and stability analysis

In the design of BLC, the width of the boundary layer plays two conflicting roles; the width must be large to reduce chattering and vice versa it should be small to achieve a good control accuracy. When noise is larger than the width of the boundary layer, the high-frequency fluctuations in the noise will be reflected and reinforced.^32,33 In our method by modifying the reaching law and using the QGA for finding the optimal gain in the SMC, these problems are eliminated from the input signal.

We modify the reaching law in SMC and apply a combination of sliding surface and its derivative instead of sign function. Since the states which quickly encounter to the sliding surface causing the states to be separated from the sliding surface and creating chattering, the velocity term is entered in the reaching law. Coefficient $K$ in equation (6) implies that tracking error converges exponentially to zero in a system without disturbance. The selection of this switching gain ( $K$ ) is important if this is selected small, it causes the attraction condition not create so duration of reaching stage takes long which results slide on the surface does not happen. If the switching gain is selected big, it causes instability within the boundary layer. To solve this problem, we use QGA to find the gain of the proposed controller because the QGA has many advantages than the conventional genetic algorithm which we will explain in next section. Using the proposed controller, the control signal will be smooth and it is not vulnerable to noise, compared with conventional SMC and BLC.

There are external disturbances, noise, and uncertainties in the system dynamics and modeling, so states may be separate from the surface and cause chattering. To avoid selection of the big constant gain, which is one of the factors causing chattering, the gain of the controller is selected by QGA.

Consider the sliding surface defined in equation (2). Differencing with respect to time yields

\dot{s} = \overset{\cdot\cdot}{\tilde{z}} + λ \dot{\tilde{z}}

(12)

By defining

γ = [s, \dot{s}]

(13)

The proposed control input is defined as

u = c \dot{z} | \dot{z} | + m ({\overset{\cdot\cdot}{z}}_{d} - λ \dot{\tilde{z}}) + \hat{d} - k_{1} s - k_{2} \dot{s}

(14)

which can be rewritten as follows

u = c \dot{z} | \dot{z} | + m ({\overset{\cdot\cdot}{z}}_{d} - λ \dot{\tilde{z}}) + \hat{d} - \sum_{i = 1}^{2} k_{i} γ_{i}

(15)

where $k_{1}, k_{2}$ are the positive gains of the controller which will be obtained with the QGA.

Theorem 1

The tracking error $\tilde{z}$ asymptotically converges to zero and the parameters estimations converge to certain bounds with the proposed sliding mode controller (equation (15)).

Proof

Consider the Lyapunov function as

V = \frac{1}{2} s^{2}

(16)

\dot{V} = s \dot{s}

(17)

From equation (3), we have

\overset{\cdot\cdot}{\tilde{z}} = \overset{\cdot\cdot}{z} - {\overset{\cdot\cdot}{z}}_{d}

(18)

and from equation (12), it is concluded that

λ \dot{\tilde{z}} = \dot{s} - \overset{\cdot\cdot}{\tilde{z}}

(19)

Combining equations (15) and (19) yields

\dot{s} = \frac{- k_{1} s - d + \hat{d}}{m + k_{2}}

(20)

Then from equations (17) and (20) and defining $ε = (d - \hat{d})$ , we have

\begin{matrix} \dot{V} = s \dot{s} = (\frac{- k_{1} s^{2}}{m + k_{2}} + \frac{(- d + \hat{d}) s}{m + k_{2}}) = - \frac{k_{1} s^{2}}{m + k_{2}} - (\frac{ε}{m + k_{2}}) s \\ = \frac{1}{m + k_{2}} (- k_{1} s^{2} - ε s + \frac{ε^{2} s^{2}}{4 k_{1}} - \frac{ε^{2} s^{2}}{4 k_{1}}) \\ = \frac{1}{m + k_{2}} (- k_{1} s^{2} - ε s - \frac{ε^{2} s^{2}}{4 k_{1}}) + \frac{1}{m + k_{2}} \frac{ε^{2} s^{2}}{4 k_{1}} \\ = - \frac{1}{m + k_{2}} {(\sqrt{k_{1}} + \frac{ε}{2 \sqrt{k_{1}}})}^{2} s^{2} + \frac{1}{m + k_{2}} \frac{ε^{2} s^{2}}{4 k_{1}} < 0 \end{matrix}

(21)

Then $\tilde{V} (t) \leq - η s^{2}$ which implies that V(t) ≤ V(0) and $s$ is bounded. Based on Assumption 4 and equation (2), we can write $\tilde{s}$ is bounded. Integrating both sides of inequality $\tilde{V} (t) \leq - η s^{2}$ shows that

\lim_{t \to \infty} \int_{0}^{t} η s^{2} d τ \leq \lim_{t \to \infty} [V (0) - V (t)] \leq V (0) = \frac{1}{2} s^{2} (0) < \infty

From Barbalat’s lemma, we conclude that $s \to 0$ as $t \to \infty$ which ensures the convergence of states to the sliding surface and desired trajectory tracking.

An overview of QGA

QGA is a combination of GA and quantum computing. The efficiency of QGA is significantly better than the conventional genetic algorithm. The QGA uses a small population size and results to achieve rapid convergence in global search. The ability of parallelism is the essential difference between quantum computation and classical computation. The probability amplitudes of quantum states are used in quantum computation and probability amplitudes of quantum states are squared normalized, so the speed of calculation of quantum computation is faster than the speed of classic calculation.¹⁶ Due to these capabilities, we use QGA to find sub-optimal gains of proposed sliding mode controller. In quantum computing, we use a quantum bit (qubit) as the smallest unit of information storage. Each par of $(\begin{matrix} a_{i} \\ b_{i} \end{matrix})$ is the representation of a qubit, where $a$ and $b$ are complex numbers satisfying

{| a |}^{2} + {| b |}^{2} = 1

(22)

A qubit can adopt state 1, state 0, or a superposition of both. The state representation of a qubit is as follows¹⁷

| Ψ 〉 = a | 0 〉 + b | 1 〉

(23)

where $| 0 〉$ and $| 1 〉$ represent the value of classical bits 0 and 1, respectively; ${| a |}^{2}$ is the probability of a qubit in the state 0 and ${| b |}^{2}$ is the probability of a qubit in the state 1. When the measure is taken, the superposition is destroyed and one of the values will be available for use.

In classical GA, the representation of chromosomes is a binary string, but in QGA the representation of chromosomes is based on vectors of qubits such that a chromosome can represent the superposition of all possible states. In other words, a chromosome is a string of m qubits which forms a quantum register.¹⁷ QGA maintains a population of Q-bit individuals, $Q (t) = {q_{1}^{t}, q_{2}^{t}, \dots, q_{n}^{t}}^{T}$ at generation $t$ , where $n$ is the size of the population, and $q_{j}^{t}$ is a Q-bit individual which is defined as

q_{j}^{t} = [\begin{matrix} a_{j 1}^{t} \\ b_{j 1}^{t} \end{matrix} | \begin{matrix} a_{j 2}^{t} \\ b_{j 2}^{t} \end{matrix} |, \dots, | \begin{matrix} a_{j \bar{m}}^{t} \\ b_{j \bar{m}}^{t} \end{matrix}]

(24)

where $\bar{m}$ is the number of Q-bits, that is, the string of the length of the Q-bit is individual, and $j = 1, 2, \dots, n$ .³⁴ The algorithm of QGA is illustrated in Figure 2.

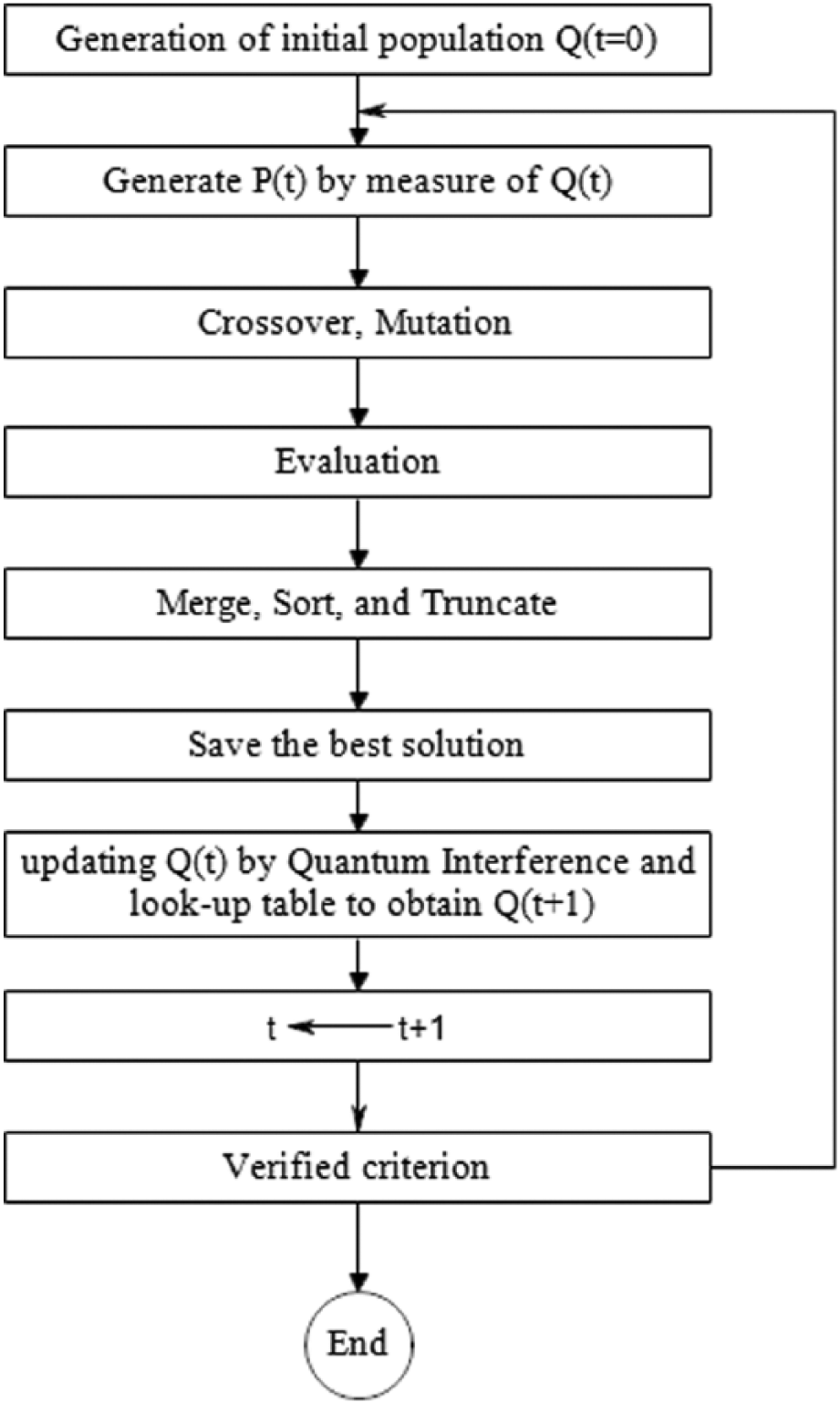

Figure 2.

QGA algorithm.

Initializing the population

Without loss of generality, we suppose that all the amplitude of qubits is initialized to $1 / \sqrt{2}$ . It means that all the quantum superposition states are in an equal probability.¹⁹

Evaluation of individuals

This stage allows to quantify the quality of each chromosome in the population to help a better population to be built. Such as conventional GA to evaluate each individual, we need to an objective function. Here the objective function is considered the difference between the desired state and real state.¹⁹

Quantum genetic operations

Measurement

In order to use of effectively of superposed states of qubits, we must observe each qubit. The process of generating binary string from the qubit string is called observation.³⁵ This leads to getting a classic chromosome as shown in Figure 3.

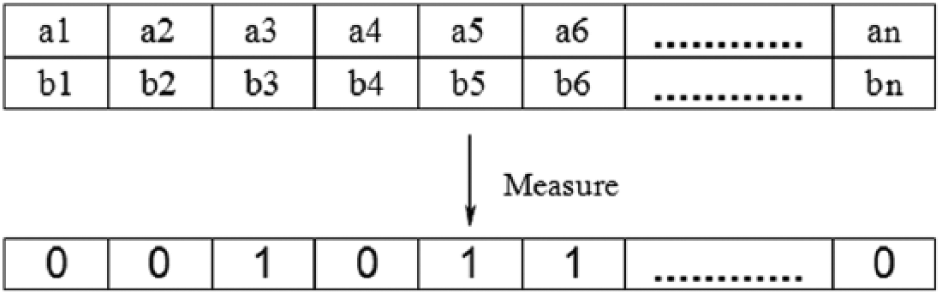

Figure 3.

Measured chromosome.¹⁹

Interference

This operation allows modifying the amplitudes of individuals in order to improve performance. It mainly consists of moving the state of each qubit in the sense of the value of the best solution. This is useful for intensifying the search around the best solution. It can be performed using a unit transformation that allows a rotation whose angle is a function of the $x_{i}$ (ith observed bit) and the value of the corresponding bit in the best solution.

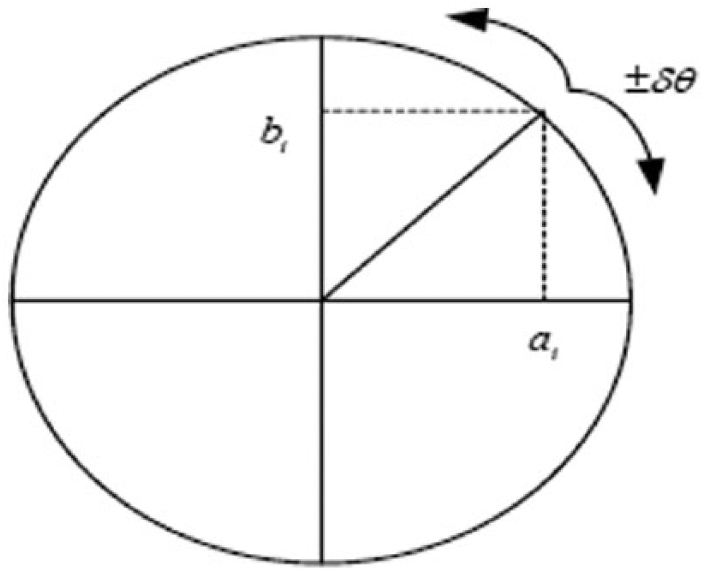

Figure 4 illustrates quantum interference and its direction is determined by Table 1 as a function of the value of $x_{i}$ (ith observed bit) and the value of the corresponding bit of the best solution. In this table, $f (.)$ is the fitness function and $s (a_{i}, b_{i})$ is the sign of the rotation angle $θ_{i}$ . For our purpose, we used the strategy in Laboudi and Salim.¹⁹ According to Table 1, one can easily see that for each individual, this strategy improves such that the the amplitudes of qubits that are bad according to an angle $δ θ_{1} = 0.08 π$ while it decreases, those that are good according to an angle $δ θ_{2} = 0.001 π$ . The amplitude values were empirically determined (following a suggestion from Layeb and Saidouni¹⁷). The modification of the amplitudes of qubits is done according to the signs of the amplitudes, the best solution and the solution extracted by the individual container. It is natural that $δ θ_{1} ≫ δ θ_{2}$ because decreasing amplitudes serves only to correct stochastic errors to avoid a genetic drift and to ensure a genetic diversity in the population.¹⁹

Figure 4.

Quantum interference.¹⁷

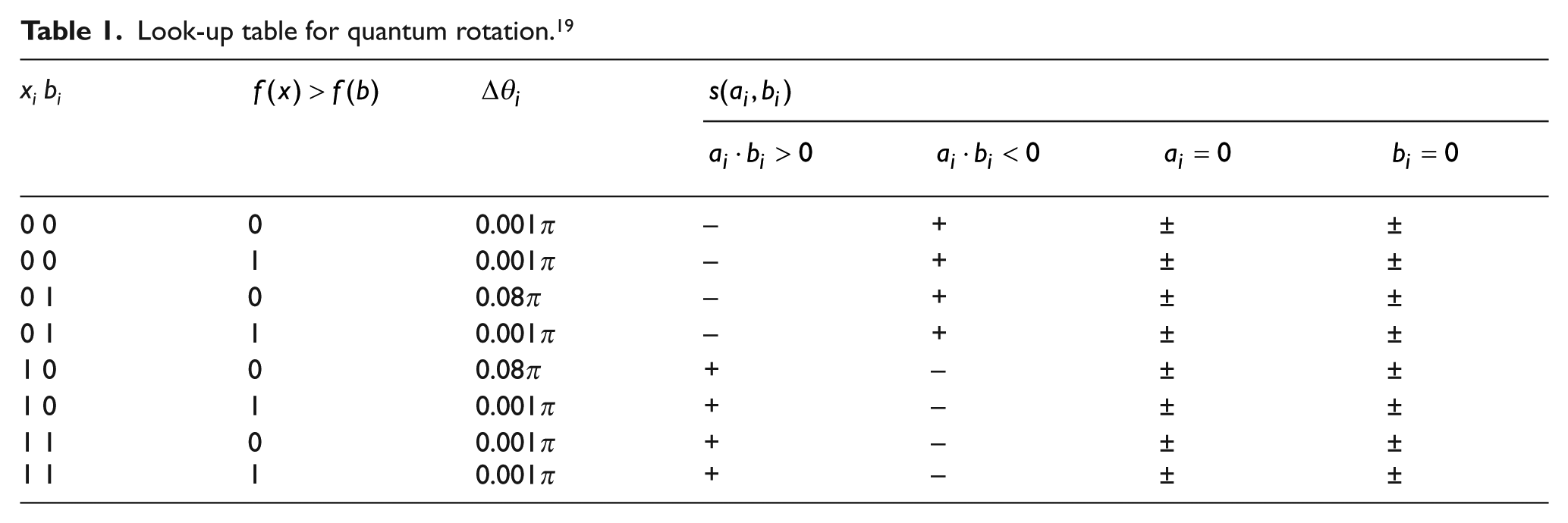

Table 1.

Look-up table for quantum rotation.¹⁹

x_i b_i	$f (x) > f (b)$	$Δ θ_{i}$	$s (a_{i}, b_{i})$
x_i b_i	$f (x) > f (b)$	$Δ θ_{i}$	$a_{i} \cdot b_{i} > 0$		$a_{i} = 0$	$b_{i} = 0$
0 0	0	0.001π	–	+	±	±
0 0	1	0.001π	–	+	±	±
0 1	0	0.08π	–	+	±	±
0 1	1	0.001π	–	+	±	±
1 0	0	0.08π	+	–	±	±
1 0	1	0.001π	+	–	±	±
1 1	0	0.001π	+	–	±	±
1 1	1	0.001π	+	–	±	±

The population Q(t) is updated with a quantum gate of qubits. It is adopted by the new probability amplitudes, $a_{i}^{t + 1}$ and $b_{i}^{t + 1}$ , which are calculated using rotation gate as³⁵

[\begin{matrix} a_{i}^{t + 1} \\ b_{i}^{t + 1} \end{matrix}] = [\begin{matrix} \cos (Δ θ_{i}) & - \sin (Δ θ_{i}) \\ \sin (Δ θ_{i}) & \cos (Δ θ_{i}) \end{matrix}] [\begin{matrix} a_{i}^{t} \\ b_{i}^{t} \end{matrix}]

(25)

where $Δ θ_{i}$ is the rotation angle of qubit quantum gate $i$ of each quantum chromosome which obtained from look-up table to guarantee convergence.

Mutation operator

Quantum mutation is an assistant operation with the purpose to increase the local searching ability of QGA algorithm and avoid the loss of important information in the population.¹⁶ This operator performs permutation between two qubits (Figure 5). It selects randomly an individual; then two qubits is selected randomly and exchange with each other.

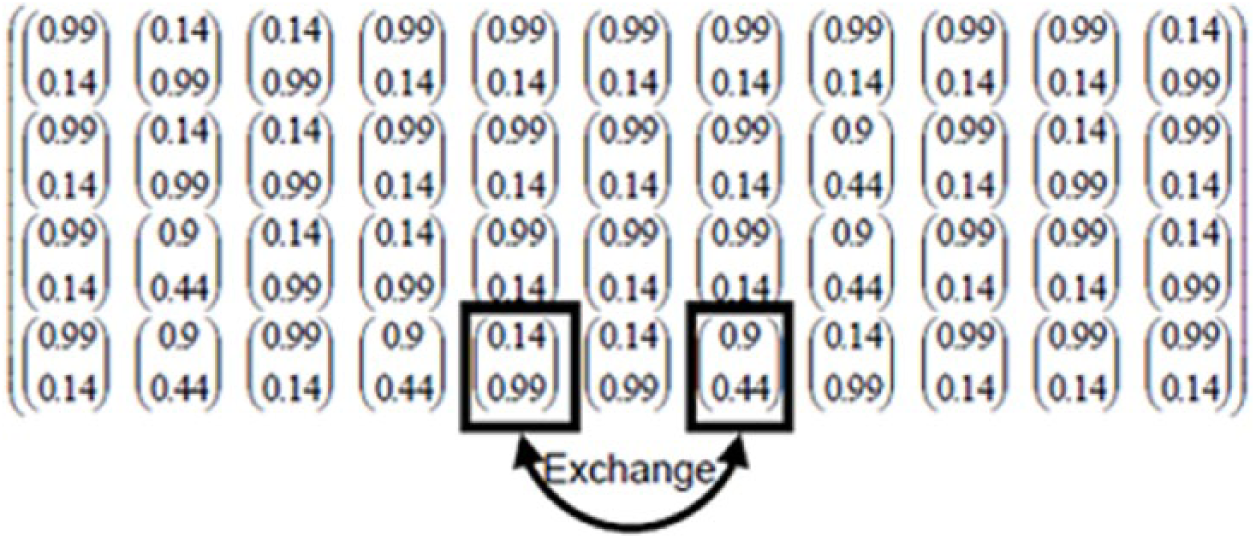

Figure 5.

Mutation operator.¹⁷

Crossover operator

Single-point crossover is applied to the algorithm (Figure 6). To reach this, two individuals have been selected randomly afterward the parts of them are changed with each other around a cut point. The cut point of crossover is selected randomly. After crossover, we apply the objective function to the offspring.

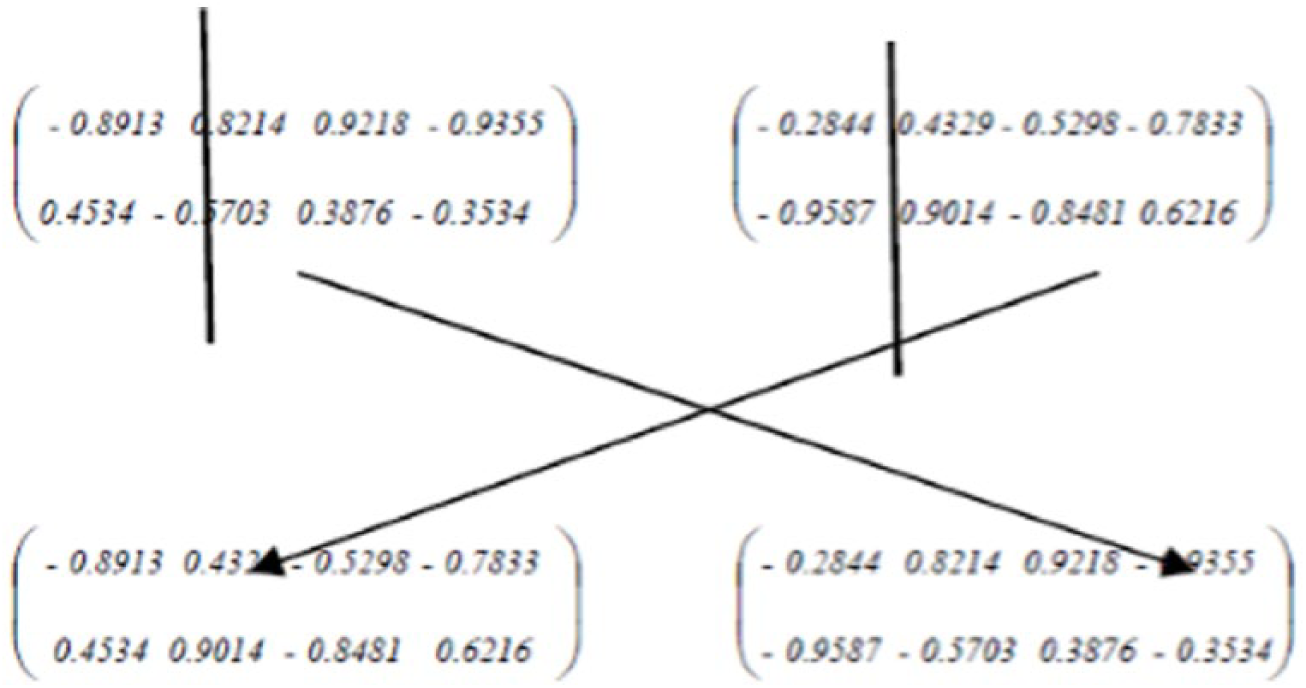

Figure 6.

Quantum crossover.¹⁷

Mapping binary string into real numbers

To map the binary string into a real number $x$ in the interval $[α_{1}, β_{1}]$ , we consider the length of the binary string as $β_{1} - α_{1}$ and rewrite the binary string as follows³⁶

s_{N - 1} s_{N - 2} \dots s_{1} s_{0}

(26)

where $s_{0}$ is the least significant bit (LSB) and $s_{N - 1}$ is the most significant bit (MSB). We convert this binary string to decimal number by

m_{0} = \sum_{i = 0}^{N - 1} s_{i} 2^{i}

(27)

Second, we calculate the corresponding real number on the interval $[α_{1}, β_{1}]$ by the following equation

x = α_{1} + m_{0} \frac{β_{1} - α_{1}}{2^{N} - 1}

(28)

In this paper, we have the two-dimensional domain $[α_{1}, β_{1}] \times [α_{2}, β_{2}]$ where $x_{1} \in [α_{1}, β_{1}]$ and $x_{2} \in [α_{2}, β_{2}]$ . Consider binary string of length N as follows

s_{N - 1} s_{N - 2} \dots s_{N 1} s_{N 1 - 1} s_{N 1 - 2} \dots s_{1} s_{0}

(29)

where

N = N_{1} + N_{2}

(30)

where $m_{1} = s_{N 1 - 1} s_{N 1 - 2} \dots s_{1} s_{0}$ and $m_{2} = s_{N - 1} s_{N - 2} \dots s_{N 1}$ . We use equations (25) and (26) to get corresponding real number of $m_{1}$ and $m_{2}$ as

m_{1} = \sum_{i = 0}^{N_{1} - 1} s_{i} 2^{i}

(31)

x_{1} = α_{1} + m_{1} \frac{β_{1} - α_{1}}{2^{N_{1}} - 1}

(32)

m_{2} = \sum_{i = N_{1}}^{N - 1} s_{i} 2^{i - N_{1}}

(33)

x_{2} = α_{2} + m_{2} \frac{β_{2} - α_{2}}{2^{N_{2}} - 1}

(34)

N 2 = N - N 1

(35)

Now we assign $k_{1}$ and $k_{2}$ by QGA. The cost function which is going to minimize is the root mean square error (RMSE) between $z$ and $z_{d}$ .

Simulation results

To evaluate the proposed controller, it is compared with the conventional SMC and boundary layer SMC. Also proposed controller is simulated with conventional GA and QGA and its results are compared. The results of the simulations are shown in the following figures. Finally, the controller performance is evaluated in the presence of noise. It is considered that the model parameters, m and c, have uncertainties. Regarding controller and model parameters as Table 2, the uncertainty of the parameters is modeled as $m = m (1 + 0.1 \sin (0.1 π t)), c = c (1 + 0.1 \sin (0.1 π t))$ and desired trajectory is selected are $z_{d} = 0.5 (1 - \cos (0.1 π t))$

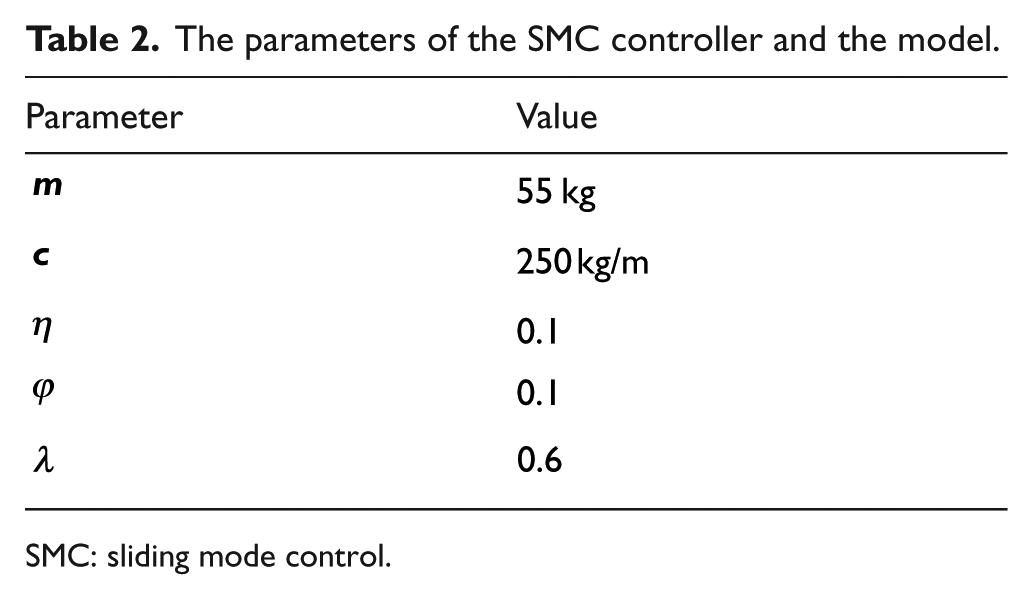

Table 2.

The parameters of the SMC controller and the model.

Parameter	Value
$m$	$55 kg$
$c$	$250 kg/m$
$η$	$0.1$
$φ$	$0.1$
$λ$	$0.6$

SMC: sliding mode control.

Consider n = 5 and $\bar{m}$ = 6 are the size of the population and the number of qubits respectively for QGA. The cost function which is going to minimize is the RMSE between $z$ and $z_{d}$ . Maximum iteration of QGA algorithm is 100.

Because QGA is capable of showing any linear superposition of states, it can converge to the optimal response with a population consist of one chromosome.

Remark 1

We consider two cases for the population in the both QGA and conventional GA:

Case 1: in the QGA, number of population is n = 5 and in the conventional GA, the size of the population is considered n = 20.

Case 2: in the QGA, number of population is n = 1 and in the conventional GA n = 1 is considered for the second case.

Remark 2

We considered noise as white Gaussian noise with signal-to-noise (SNR) ratio (SNR = 30) for surveying vulnerability of controllers against noise. For conventional SMC and boundary layer SMC, $K = 10$ has been considered. The results of the SMC are shown in Figure 7. As Figure 7 shows in conventional SMC, there is chattering in control signal ( $u$ ). Figure 8 shows the simulation result of BLC in which there is no chattering but the initial amplitude of the control signal is bigger than the one in the proposed method, also as we see in Figure 9(a) this controller is not robust against noise. In the presence of noise, BLC is vulnerable. The results of the proposed quantum genetic sliding mode controller are shown in Figures 10 and 11 in two cases. Although trajectory tracking in BLC and SMC are faster than that in the the proposed controller,but in the proposed control there are not drawbacks of BLC and SMC for the control signal. Figure 9(b) shows that our proposed controller is not vulnerable to noise because we do not use sign function in control law. The gains of proposed controller are shown in Table 3 for both methods (GA and QGA).

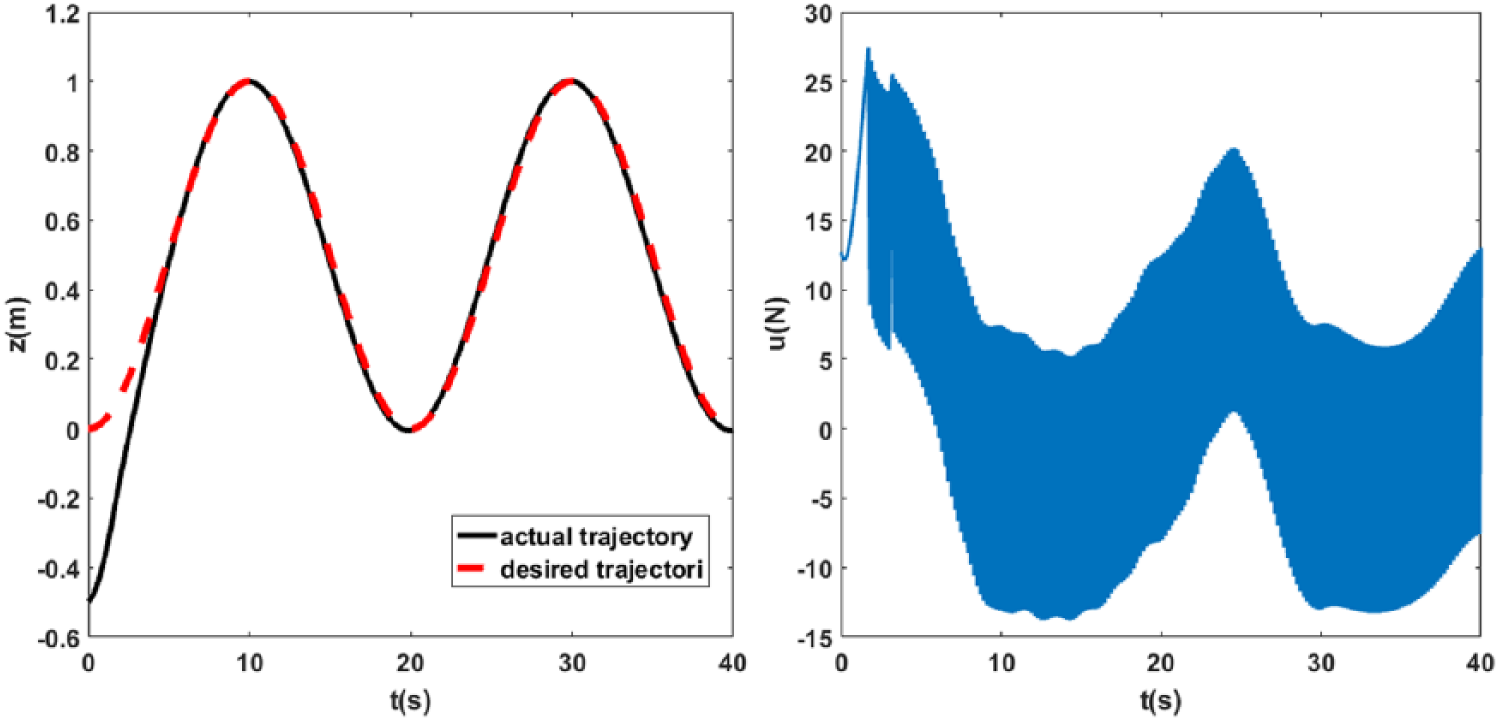

Figure 7.

Conventional SMC with z(0) = –0.5.

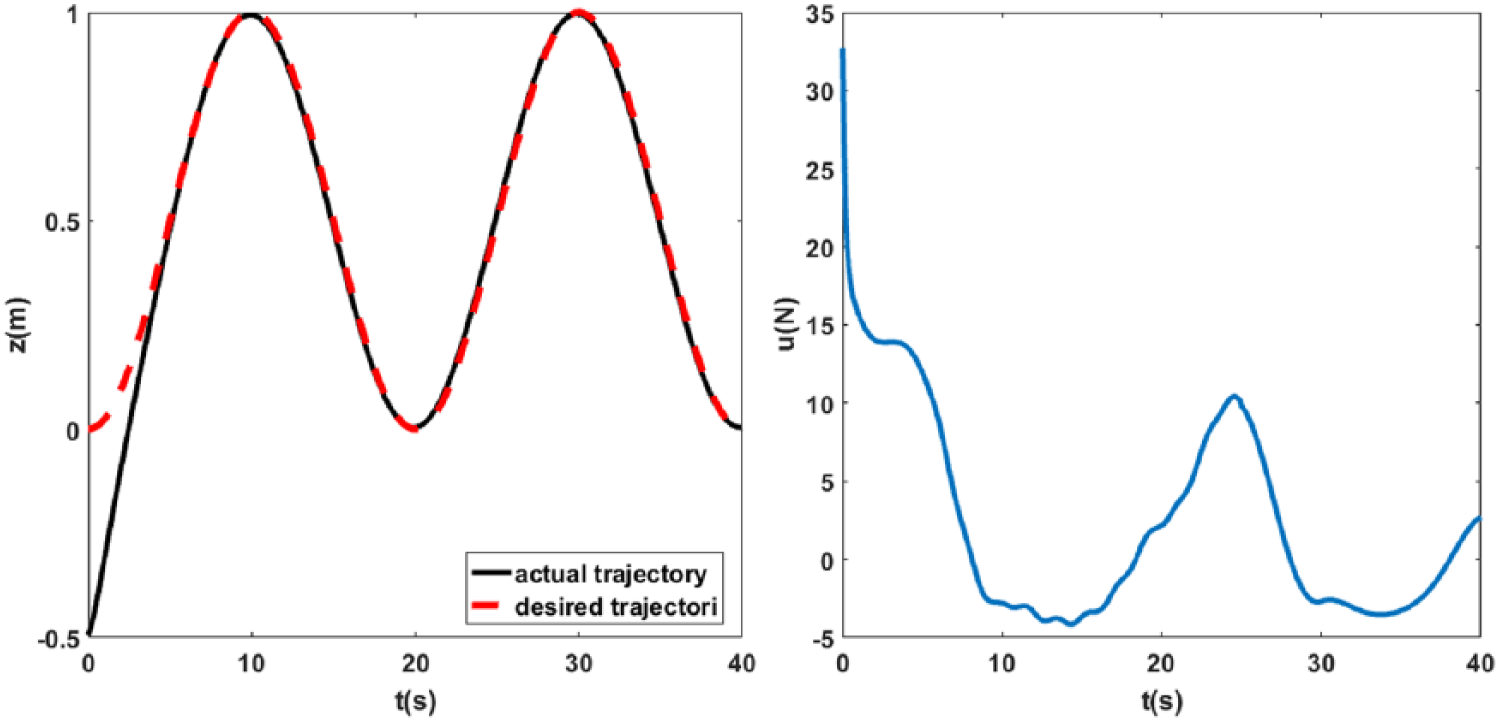

Figure 8.

BLC with z(0) = –0.5.

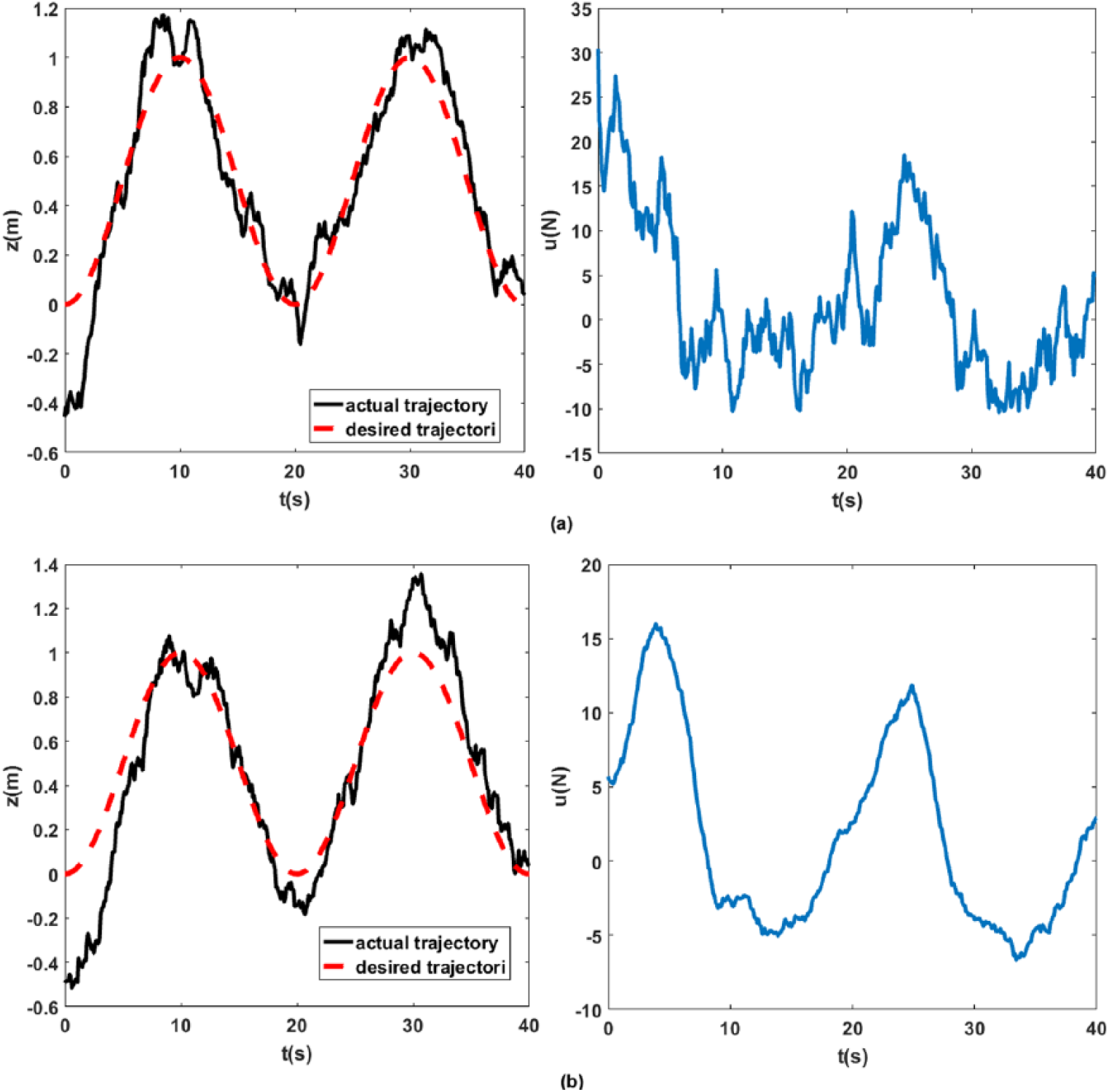

Figure 9.

(a) BLC with applied noise and (b) proposed controller with applied noise in Case 1.

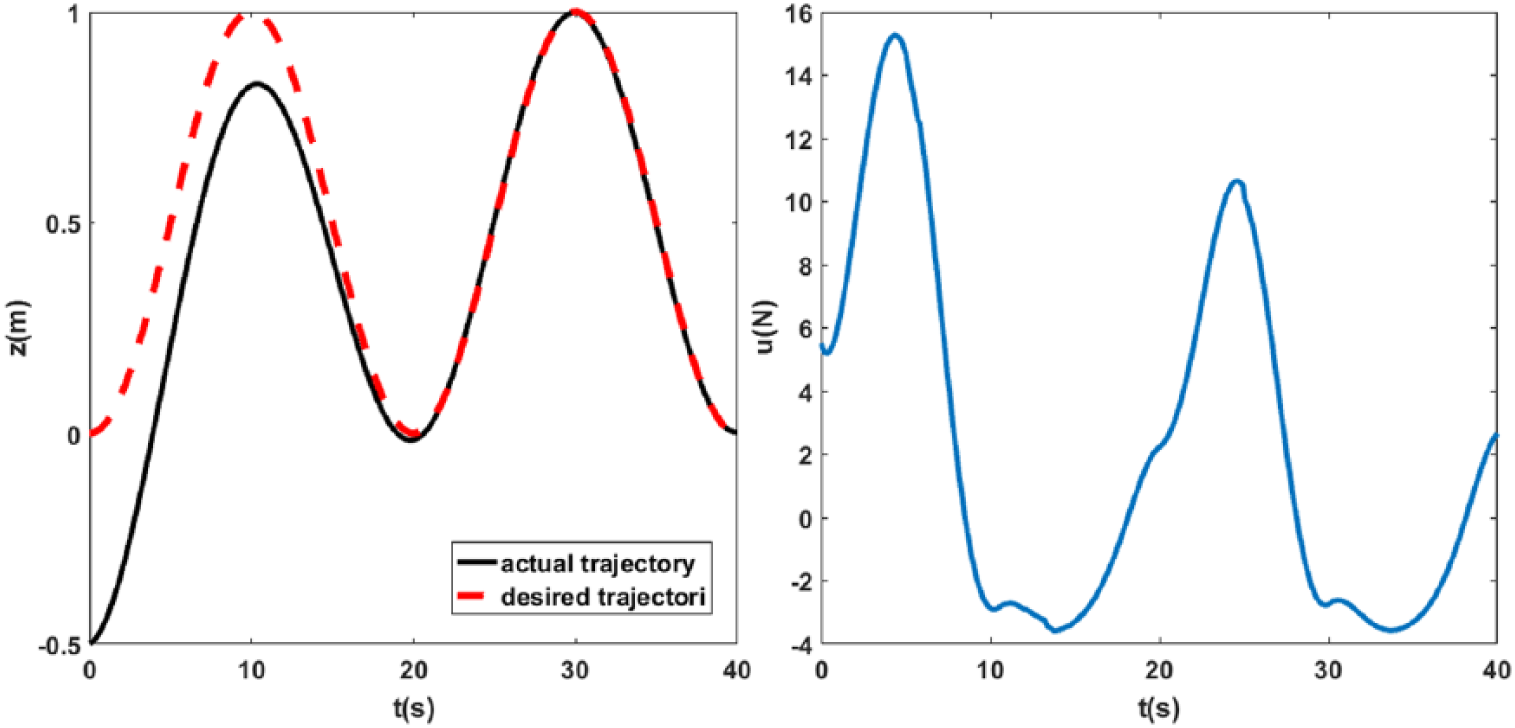

Figure 10.

Proposed controller with QGA and disturbance estimation in Case 1.

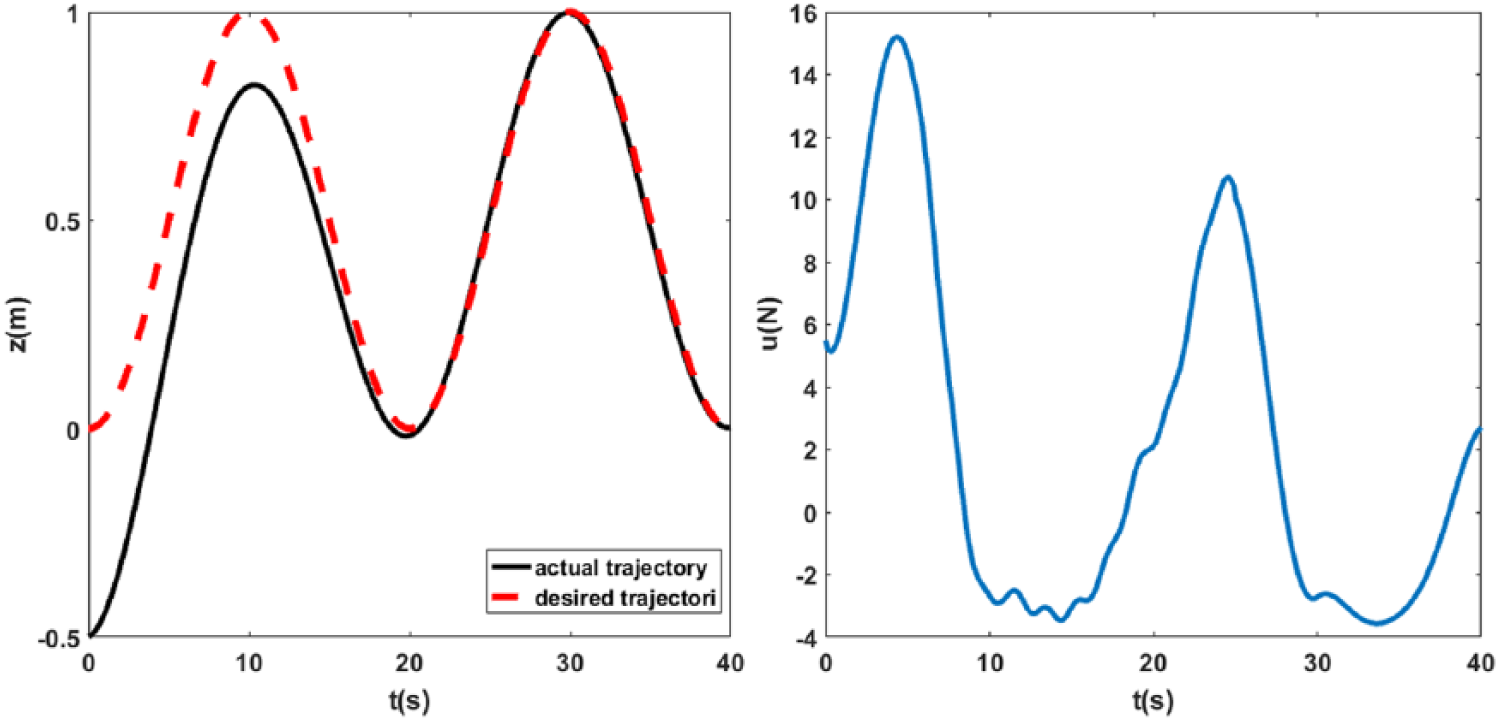

Figure 11.

Proposed controller with QGA with one-chromosome population in Case 2.

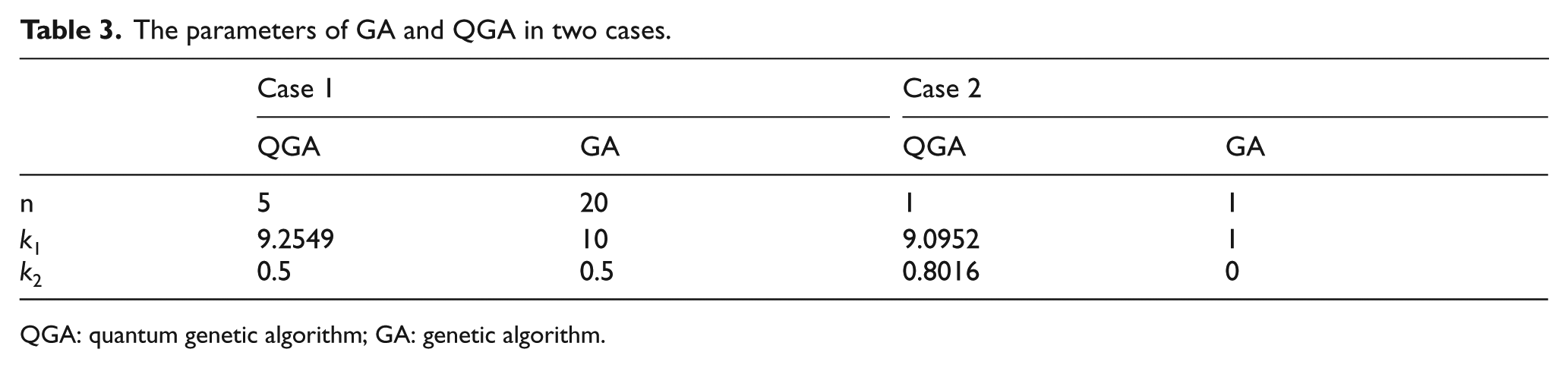

Table 3.

The parameters of GA and QGA in two cases.

	Case 1		Case 2
	QGA	GA	QGA	GA
n	5	20	1	1
k ₁	9.2549	10	9.0952	1
k ₂	0.5	0.5	0.8016	0

QGA: quantum genetic algorithm; GA: genetic algorithm.

We consider disturbance as a sinus function with two different frequencies, $d = 0.2 \sin (0.8 t) + 0.5 \cos (0.2)$ . We have only shown the simulation results for this disturbance that is actuated at time t = 5 s and is ended at t = 20 s to the system. We try to estimate the disturbance with $\hat{d} = a_{1} \sin (a_{2} t) + a_{3} \cos (a_{4} t)$ in which $a_{i}, i = 1, \dots, 4$ is defined by PSO with considering RMSEs between $d$ and $\hat{d}$ as the cost function. It is assumed that swarm size is 100, a maximum number of iterations is 400, and $c_{1} = c_{2} = 2$ , $w = 1$ . Simulation result for estimation of disturbance is shown in Figure 12. Estimated parameters and the best cost function for every 50 iterations are shown in Table 4.

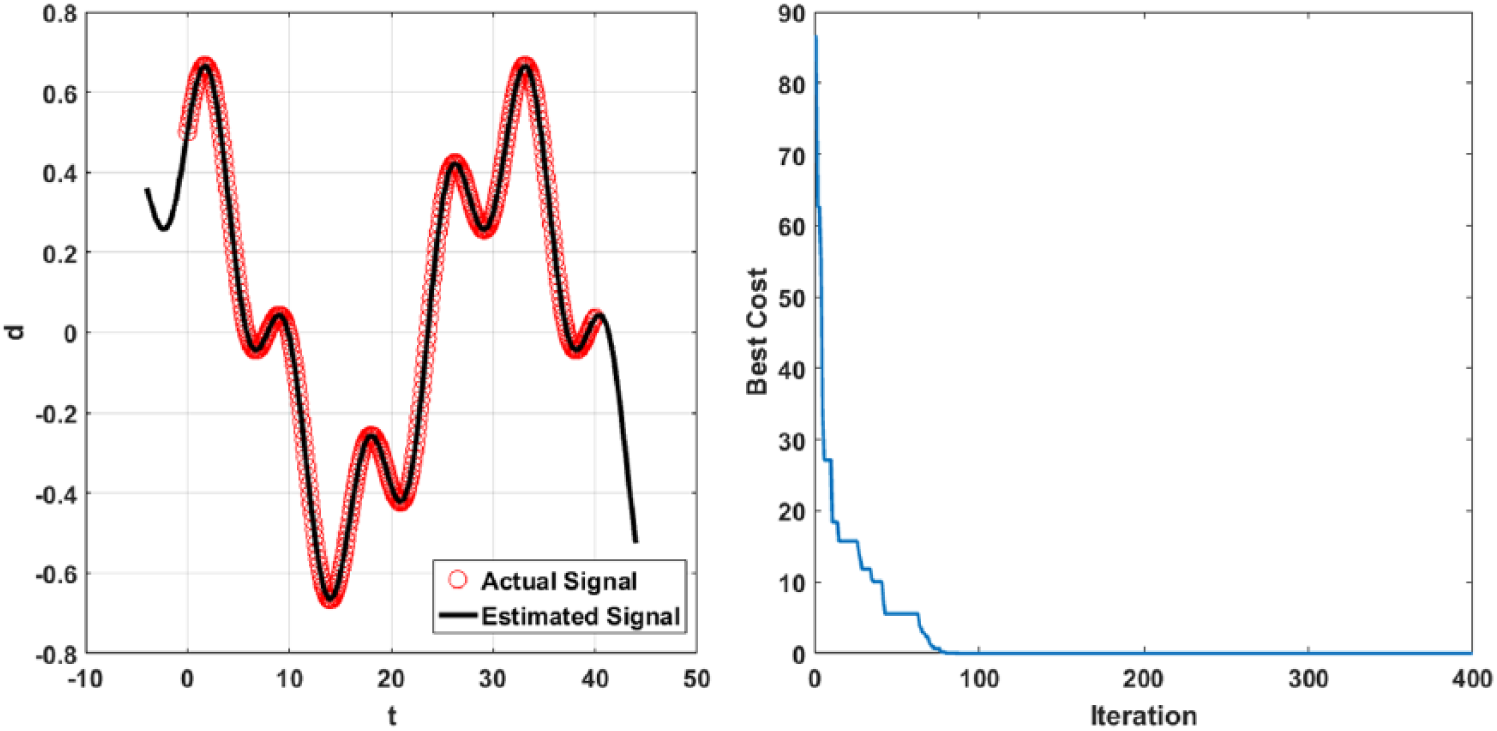

Figure 12.

Disturbance estimation by PSO and best cost function.

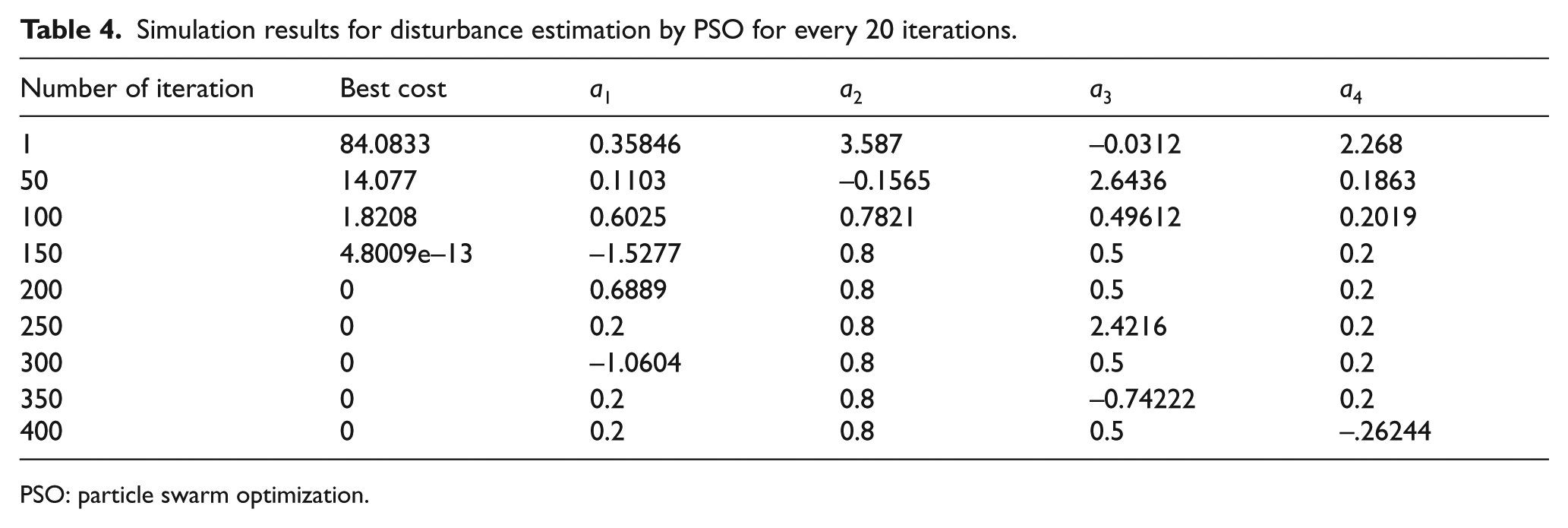

Table 4.

Simulation results for disturbance estimation by PSO for every 20 iterations.

Number of iteration	Best cost	a ₁	a ₂	a ₃	a ₄
1	84.0833	0.35846	3.587	–0.0312	2.268
50	14.077	0.1103	–0.1565	2.6436	0.1863
100	1.8208	0.6025	0.7821	0.49612	0.2019
150	4.8009e–13	–1.5277	0.8	0.5	0.2
200	0	0.6889	0.8	0.5	0.2
250	0	0.2	0.8	2.4216	0.2
300	0	–1.0604	0.8	0.5	0.2
350	0	0.2	0.8	–0.74222	0.2
400	0	0.2	0.8	0.5	–.26244

PSO: particle swarm optimization.

Figures 13 and 14 show the proposed controller which its gains are determined by conventional GA in two cases. As Figures 11 and 14 show the speed of convergence to the desired trajectory with conventional GA in the case of the one-chromosome population is much slower than the speed of convergence in the proposed controller.

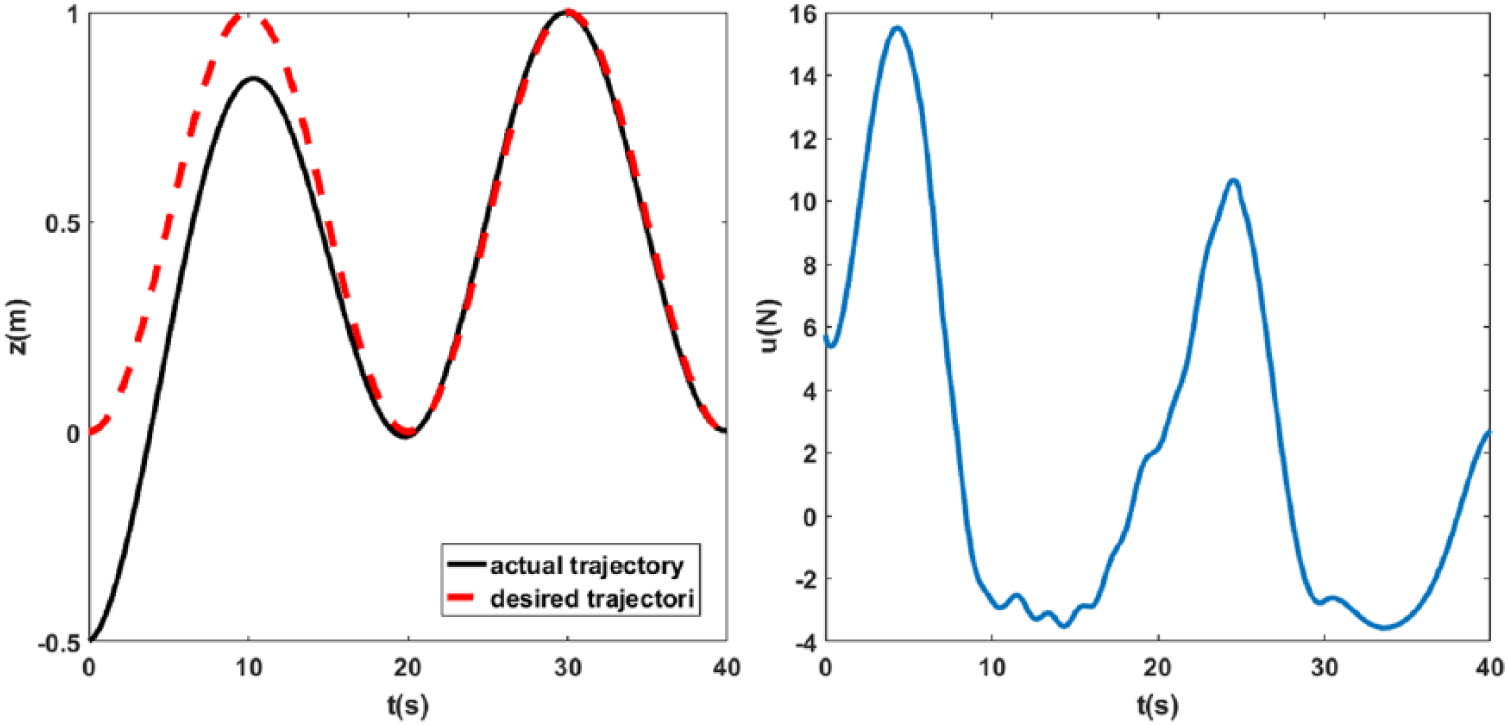

Figure 13.

Proposed controller with conventional GA in Case 1.

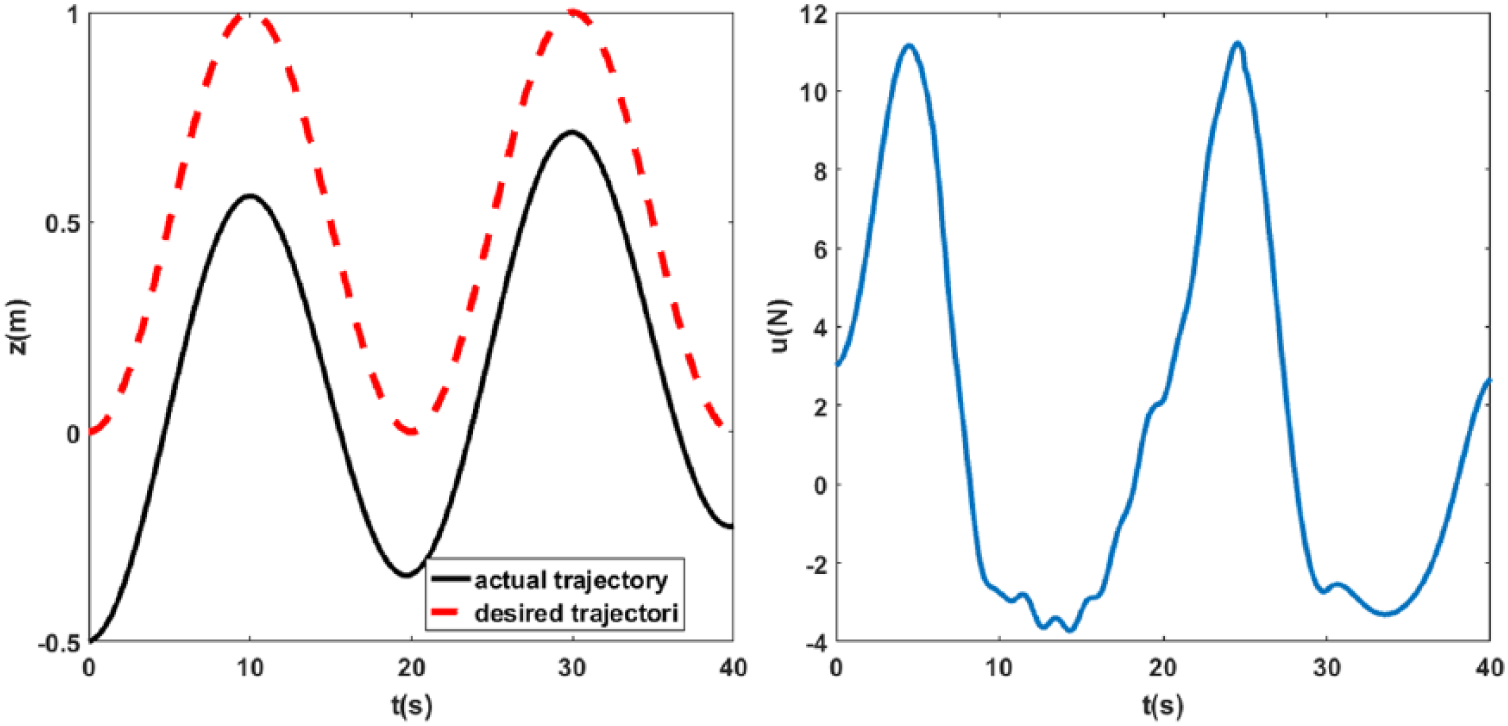

Figure 14.

Proposed controller with conventional GA with one-chromosome population in Case 2.

Conclusion

A quantum genetic SMC was developed for trajectory tracking of an AUV. Pure sliding mode controller has disadvantages such as chattering and being too vulnerable to noise. The key idea behind the proposed controller was to modify the reaching law in SMC and apply a combination of sliding surface and its derivative instead of sign function to solve these problems. We used PSO algorithms to determine amplitude and frequencies of disturbance and applied it to control signal. Because QGA has some advantages than the conventional genetic algorithm, the gains of the proposed controller are defined by QGA. Because of linear superposition of states in QGA, simulation results show that a population consist of one chromosome can converge to the optimal response. As future works one can design a new sliding mode controller based on disturbance observers via an analytical method, or one can apply the proposed method on more complex systems such as industrial systems, and robots.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Mohamad Reza Ramezani-al

References

Smith

Rae

GJS

Anderson

et al . Fuzzy logic control of an autonomous underwater vehicle. Control Eng Pract 1994; 2(2): 321–331.

Raeisy

Safavi

Khayatian

. Optimized fuzzy control design of an autonomous underwater vehicle. Iranian J Fuzzy Syst 2012; 9(2): 25–41.

Shi

Xiong

Wang

et al . A new model of fuzzy CMAC network with application to the motion control of AUV. In: Proceedings of the IEEE international conference on mechatronics and automation, vol. 4, Niagara Falls, ON, Canada, 29 July–1 August 2005, pp. 2173–2178. New York: IEEE.

Huajun

Jin

Tao

et al . Fuzzy controller and rules optimization used for the surface maneuver control of submarine in calm sea area. In: Proceedings of the Chinese control and decision conference, Guilin, China, 17–19 June 2009, pp. 5453–5458. New York: IEEE.

Venugopal

Pandya

Sudhakar

. A recurrent neural network controller learning algorithm for the on-line learning control of autonomous underwater vehicles. Neural Netw 1994; 7(5): 833–846.

Kodogiannis

Lisboa

Lucas

. Neural network modelling and control for underwater vehicles. Artif Intel Eng 1996; 10(3): 203–212.

Van

Ven

Flanagan

Toal

. Neural network control of underwater vehicles. Eng Appl Artif Intel 2005; 18(5): 533–547.

Zhu

Song

Tang

. Mean square exponential stability of stochastic nonlinear delay systems. Int J Control 2017; 90(11): 2384–2393.

Zhu

. Razumikhin-type theorem for stochastic functional differential equations with Lévy noise Markov switching. Int J Control 2017; 90(8): 1703–1712.

10.

Wang

Zhu

. Global stabilization of stochastic nonlinear systems via C¹ and C^∞ controllers. IEEE T Autom Control 2017; 62(11): 5880–5887.

11.

Lapierre

Soetanto

Pascoal

. Nonlinear path following with applications to the control of autonomous underwater vehicles. In: Proceedings of the 42nd IEEE international conference on decision and control (IEEE Cat. No.03CH37475), Maui, HI, 9–12 December 2003. New York: IEEE.

12.

Lapierre

Soetanto

. Nonlinear path-following control of an AUV. Ocean Eng 2007; 34(11): 1734–1744.

13.

Sahu

Subudhi

. Adaptive tracking control of an autonomous underwater vehicle. Int J Autom Comput 2014; 11(3): 299–307.

14.

Chen

Wei

Zeng

et al . Adaptive terminal sliding mode NDO-based control of underactuated AUV in vertical plane. Discrete Dyn Nat Soc 2016; 2016: 6590517.

15.

Chang

. Adaptive sliding mode control of multi-input nonlinear systems with perturbations to achieve asymptotical stability. IEEE T Autom Control 2009; 54(12): 2863–2869.

16.

Wang

Liu

Zhi

et al . The improvement of quantum genetic algorithm and its application on function optimization. Math Probl Eng 2013; 2013: 730749.

17.

Layeb

Saidouni

. Quantum genetic algorithm for binary decision diagram ordering problem. Int J Comput Sci Netw Secur 2007; 7(9): 130–135.

18.

Roy

Nayek

. Optimization with quantum genetic algorithm. Int J Comput Appl 2014; 102(16): 1–7.

19.

Laboudi

Salim

. Comparison of genetic algorithm and quantum genetic algorithm. Int Arab J Inf Technol 2012; 9(3): 243–249.

20.

Chang

Cheng

Hsu

et al . Parameter identification of nonlinear systems using a particle swarm optimization approach. In: Proceedings of the third international conference on networking and computing (ICNC), Okinawa, Japan, 5–7 December 2012, pp. 113–117. New York: IEEE.

21.

Tavanaei Sereshki

Pariz

Kardan

. New adaptive sliding mode controller for depth control of autonomous underwater robot. Majlesi J Electr Eng 2015; 9(3): 1–6.

22.

Zhao

Yuh

. Adaptive DOB control of underwater robots. In: Proceedings of the IEEE/RSJ international conference on intelligent robots and systems, Las Vegas, NV, 27–31 October 2003, pp. 571–576. New York: IEEE.

23.

Cui

Yang

et al . Adaptive neural network control of AUVs with control input nonlinearities using reinforcement learning. IEEE T Syst Man Cyb: Syst 2017; 47(6): 1019–1029.

24.

Bessa

Dutra

Kreuzer

. Depth control of remotely operated underwater vehicles using an adaptive fuzzy sliding mode controller. Robot Auton Syst 2008; 56(8): 670–677.

25.

Newman

. Marine hydrodynamics. 5th ed. Cambridge, MA: MIT Press, 1986.

26.

Lee

. Design of an adaptive nonlinear controller for depth control of an autonomous underwater vehicle. Ocean Eng 2005; 32(17–18): 2165–2181.

27.

Ozguner

. Adaptive seeking sliding mode control. In: Proceedings of the American control conference, Minneapolis, MN, 14–16 June 2006, pp. 4694–4699. New York: IEEE.

28.

Nguyen

Rye

et al . Fuzzy sliding-mode controllers with applications. IEEE T Ind Electron 2001; 48(1): 38–46.

29.

Tong

. Fuzzy adaptive sliding-mode control for MIMO nonlinear systems. IEEE T Fuzzy Syst 2003; 11(3): 354–360.

30.

Schwaab

Biscaia

Jr Monteiro

et al . Nonlinear parameter estimation through particle swarm optimization. Chem Eng Sci 2008; 63(6): 1542–1552.

31.

Ahn

Yoo

. Estimation of particle swarm distribution algorithms: combining the benefits of PSO and EDAs. Inform Sci 2012; 92: 109–119.

32.

Chen

Yang

. An LTR-observer-based dynamic sliding mode control for chattering reduction. Automatica 2007; 43(6): 1111–1116.

33.

Slotine

JJE

. Applied nonlinear control. vol. 60. Englewood Cliffs, NJ: Prentice-Hall, 1991.

34.

Han

Kim

. Quantum-inspired evolutionary algorithm for a class of combinatorial optimization. IEEE T Evolut Comput 2002; 6(6): 580–593.

35.

Sailesh Babu

Bhagwan Das

Patvardhan

. Real-parameter quantum evolutionary algorithm for economic load dispatch. IET Gener Transm Dis 2008; 2(1): 22–31.

36.

Hardy

Steeb

. Classical and quantum computing: with C++ and Java simulations. Basel: Birkhäuser Verlag.

Quantum genetic sliding mode controller design for depth control of an underwater vehicle

Abstract

Keywords

Introduction

Dynamic model

Assumption 1

Assumption 2

Depth control

SMC

Assumption 3

Assumption 4

Disturbance estimation by PSO

Proposed sliding mode controller and stability analysis

Theorem 1

Proof

An overview of QGA

Initializing the population

Evaluation of individuals

Quantum genetic operations

Measurement

Interference

Mutation operator

Crossover operator

Mapping binary string into real numbers

Simulation results

Remark 1

Remark 2

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References
