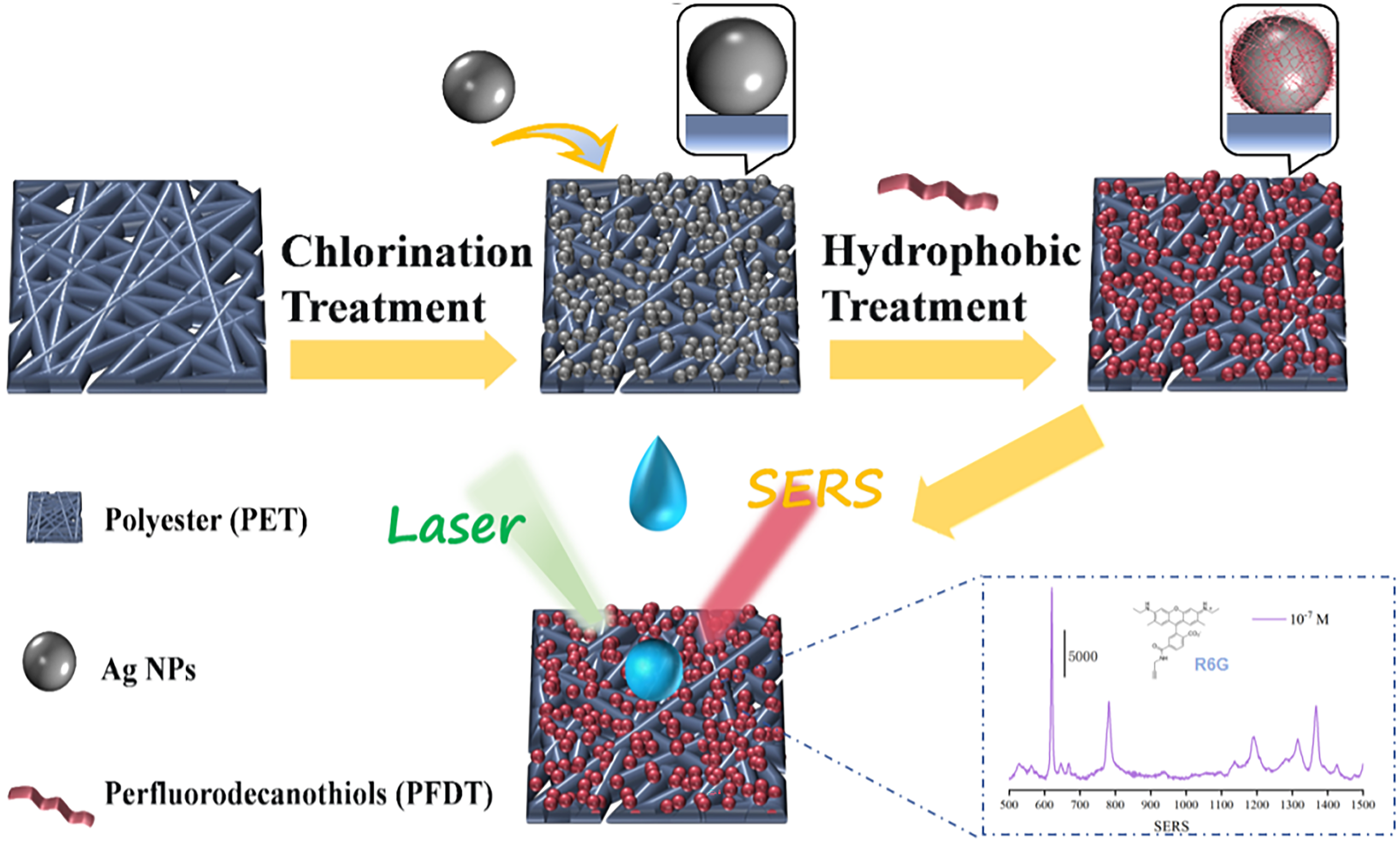

The insufficient capabilities of current surface-enhanced Raman scattering (SERS) substrates in enriching dilute analytes from complex media severely restrict detection sensitivity, hampering practical applications. To meet this demand, in this study, a novel super hydrophobic membrane that can be directly prepared on a large scale based on the silver nanoparticles (AgNPs) functioning with perfluorodecanethiol (PFDT) is fabricated and evaluated as an SERS substrate. Firstly, polyester (PET) films modified with sodium chloride were proven to be capable of loading AgNPs, and the sizes of AgNPs were investigated. In addition, the PFDT concentration and reaction time for functionalizing the surface of AgNPs have been optimized. The relationship between the hydrophobic properties of the film and its SERS performance was then studied. The PET@Ag-PFDT film demonstrates two orders of magnitude superior SERS performance than the unmodified PET@Ag substrate, with a detection limit of folic acid approaching 5 × 10–10 M.
AkannyE.BonhommeA.BessueilleF.BourgeoisS., et al. “Surface Enhanced Raman Spectroscopy for Bacteria Analysis: A Review”. Appl Spectrosc Rev. 2021. 56(5): 380–422. https://doi.org/10.1080/05704928.2020.1796698
2.
PangS.T.R.YangT.X.HeL.L.. “Review of Surface Enhanced Raman Spectroscopic (SERS) Detection of Synthetic Chemical Pesticides”. TrAC, Trends Anal Chem. 2016. 85(Part A): 73–82. https://doi.org/10.1016/j.trac.2016.06.017
3.
FenikJ.TankiewiczM.BiziukM.. “Properties and Determination of Pesticides in Fruits and Vegetables”. TrAC, Trends Anal Chem. 2011. 30(6): 814–826.
4.
AhmadR.Boubekeur-LecaqueL.NguyenM.Lau-TruongS., et al. “Tailoring the Surface Chemistry of Gold Nanorods Through Au–C/Ag–C Covalent Bonds Using Aryl Diazonium Salts”. J Phys Chem C. 2014. 118(33): 19098–19105.
5.
MandalP.TewariB.S.. “Progress in Surface Enhanced Raman Scattering Molecular Sensing: A Review”. Surf Interfaces. 2022. 28: 101655–101684.
6.
GaoY.YangN.YouT.ZhangC., et al. “Superhydrophobic ‘Wash Free’ 3D Nanoneedle Array for Rapid, Recyclable and Sensitive SERS Sensing in Real Environment”. Sens Actuators, B. 2018. 267: 129–135.
7.
LiuY.ZhangN.TuaD.ZhuY., et al. “Superhydrophobic 3D-Assembled Metallic Nanoparticles for Trace Chemical Enrichment in SERS Sensing”. Small. 2022. 18(51): e2204234.
8.
LiY.YuL.LiJ.S.WangL.J., et al. “Polyamide@Ag Coralloid Nanoarrays with 3D High-Density Hot Spots for Ultrasensitive SERS Sensing”. Chem Eng J. 2020. 397: 125434.
9.
LeitererC.ZopfD.SeiseB.JahnF., et al. “Fast Self-Assembly of Silver Nanoparticle Monolayer in Hydrophobic Environment and its Application as SERS Substrate”. J Nanopart Res. 2014. 16(9): 2467.
10.
LiY.XinX.L.ZhangT.T.LiW.H., et al. “Raspberry-Like Polyamide@Ag Hybrid Nanoarrays with Flexible Cores and SERS Signal Enhancement Strategy for Adenosine Detection”. Chem Eng J. 2021. 422: 129983.
11.
LeeM.OhK.ChoiH.K.LeeS.G., et al. “Subnanomolar Sensitivity of Filter Paper-Based SERS Sensor for Pesticide Detection by Hydrophobicity Change of Paper Surface”. ACS Sens. 2018. 3(1): 151–159.
12.
ZhangT.WangG.BaoJ.LiuC., et al. “Fabrication of an Ag-Based SERS Nanotag for Histamine Quantitative Detection”. Talanta. 2023. 256: 124256.
13.
De AngelisF.GentileF.MecariniF.DasG., et al. “Breaking the Diffusion Limit with Super-Hydrophobic Delivery of Molecules to Plasmonic Nanofocusing SERS Structures”. Nat Photonics. 2011. 5(11): 682–687.
14.
SunC.ZhangS.WangJ.GeF.. “Enhancement of SERS Performance Using Hydrophobic Or Superhydrophobic Cotton Fabrics”. Surf Interfaces. 2022. 28: 101616.
15.
SahinF.CelikN.CeylanA.PekdemirS., et al. “Antifouling Superhydrophobic Surfaces with Bactericidal and SERS Activity”. Chem Eng J. 2022. 431(4): 133445.
16.
GengZ.Q.ZhengJ.J.LiY.P.ChenY., et al. “A Disposable Paper-Based Hydrophobic Substrate for Highly Sensitive Surface-Enhanced Raman Scattering Detection”. Talanta. 2020. 220: 121340.
17.
SongJ.ChengW.NieM.HeX., et al. “Partial Leidenfrost Evaporation-Assisted Ultrasensitive Surface-Enhanced Raman Spectroscopy in a Janus Water Droplet on Hierarchical Plasmonic Micro-/Nanostructures”. ACS Nano. 2020. 14(8): 9521–9531.
18.
WuX.ChenX.GaoF.MaW., et al. “SERS Encoded Nanoparticle Heterodimers for the Ultrasensitive Detection of Folic Acid”. Biosens Bioelectron. 2016. 75: 55–58.
19.
ShinS.LeeJ.LeeS.KimH., et al. “A Droplet-Based High-Throughput SERS Platform on a Droplet-Guiding-Track-Engraved Superhydrophobic Substrate”. Small. 2017. 13(7): 1602865.
XuD.TengF.WangZ.LuN.. “Droplet-Confined Electroless Deposition of Silver Nanoparticles on Ordered Superhydrophobic Structures for High Uniform SERS Measurements”. ACS Appl Mater Interfaces. 2017. 9(25): 21548–21553.
22.
YuJ.WuJ.YangH.LiP., et al. “Extremely Sensitive SERS Sensors Based on a Femtosecond Laser-Fabricated Superhydrophobic/-Philic Microporous Platform”. ACS Appl Mater Interfaces. 2022. 14(38): 43877–43885.
23.
ZhuK.WangZ.ZongS.LiuY., et al. “Hydrophobic Plasmonic Nanoacorn Array for a Label-Free and Uniform SERS-Based Biomolecular Assay”. ACS Appl Mater Interfaces. 2020. 12(26): 29917–29927.
24.
HeX.LiuY.XueX.G.LiuJ.H., et al. “Ultrasensitive Detection of Explosives via Hydrophobic Condensation Effect on Biomimetic SERS Platforms”. J Mater Chem C. 2017. 5(47): 12384–12392.
25.
ZhaoH.Y.JinJ.TianW.J.LiR., et al. “Three-Dimensional Superhydrophobic Surface-Enhanced Raman Spectroscopy Substrate for Sensitive Detection of Pollutants in Real Environments”. J Mater Chem A. 2015. 3(8): 4330–4337.
26.
RuanS.Y.LiX.T.JiangT.. “Hydrophilic–Hydrophobic Poly(Dimethyl Siloxane)-Based SERS Substrate with Internal Raman Signaling”. Mater Chem Phys. 2020. 255: 123582.
27.
ZhangC.YouT.YangN.GaoY., et al. “Hydrophobic Paper-Based SERS Platform for Direct-Droplet Quantitative Determination of Melamine”. Food Chem. 2019. 287: 363–368.
KuizovaA.PrikrylM.ProchazkaM.KocisovaE.. “Drop Coating Deposition Raman (DCDR) Spectroscopy of Contaminants”. Spectrochim Acta, Part A. 2021. 262: 120109.
30.
ReynoldsE.. “Vitamin B12, Folic Acid, and the Nervous System”. Lancet Neurol. 2006. 5(11): 949–960.
31.
WangX.WangZ.ZhangK.SzetoI.M.-Y., et al. “Evaluating the Binding Mechanism, Structural Changes and Stability of Ternary Complexes Formed by the Interaction of Folic Acid with Whey Protein Concentrate-80 and L-Ascorbyl 6-Palmitate”. Food Chem. 2024. 457: 139924.
32.
DasU.N.. “Folic Acid and Polyunsaturated Fatty Acids Improve Cognitive Function and Prevent Depression, Dementia, and Alzheimer's Disease—But How and Why?”. Prostaglandins, Leukotrienes Essent Fatty Acids. 2008. 78(1): 11–19.
33.
JayramN.D.AishwaryaD.SoniaS.MangalarajD., et al. “Analysis on Superhydrophobic Silver Decorated Copper Oxide Nanostructured Thin Films for SERS Studies”. J Colloid Interface Sci. 2016. 477: 209–219.
34.
LeeP.C.MeiselD.. “Adsorption and Surface-Enhanced Raman of Dyes on Silver and Gold Sols”. J Phys Chem. 2002. 86(17): 3391–3395.
35.
SosulinI.S.ShiryaevaE.S.TyurinD.A.FeldmanV.I.. “Communication: A Hydrogen-Bonded Difluorocarbene Complex: Ab Initio and Matrix Isolation Study”. J Chem Phys. 2017. 147(13): 131102.
36.
WanY.GuoZ.JiangX.FangK., et al. “Quasi-Spherical Silver Nanoparticles: Aqueous Synthesis and Size Control by the Seed-Mediated Lee–Meisel Method”. J Colloid Interface Sci. 2013. 394: 263–268.
37.
CaiJ.LiuR.JiaS.FengZ., et al. “SERS Hotspots Distribution of the Highly Ordered Noble Metal Arrays on Flexible Substrates”. Opt Mater. 2021. 122(Part B): 111779.
38.
WangC.T.LeungW.T.XuJ.C.FuS.C., et al. “Droplet Detachment Behavior from a Rough Hydrophilic Surface”. J Aerosol Sci. 2020. 139: 105469.
39.
GaoQ.HuJ.HuangY.LinQ., et al. “Facile Preparation of Multifunctional Bamboo with Superhydrophobic, Conductive, and Flame-Retardant Properties”. Ind Crops Prod. 2022. 188(Part A): 115676.
40.
XuJ.LiuJ.W.ZhangX.LingP., et al. “Chemical Imaging of Coal in Micro-Scale with Raman Mapping Technology”. Fuel. 2020. 264: 116826.
41.
CeborskaM.Kedra-KrolikK.KowalskaA.A.KozbialM.. “Comparative Study of Molecular Recognition of Folic Acid Subunits with Cyclodextrins”. Carbohydr Polym. 2018. 184: 47–56.
