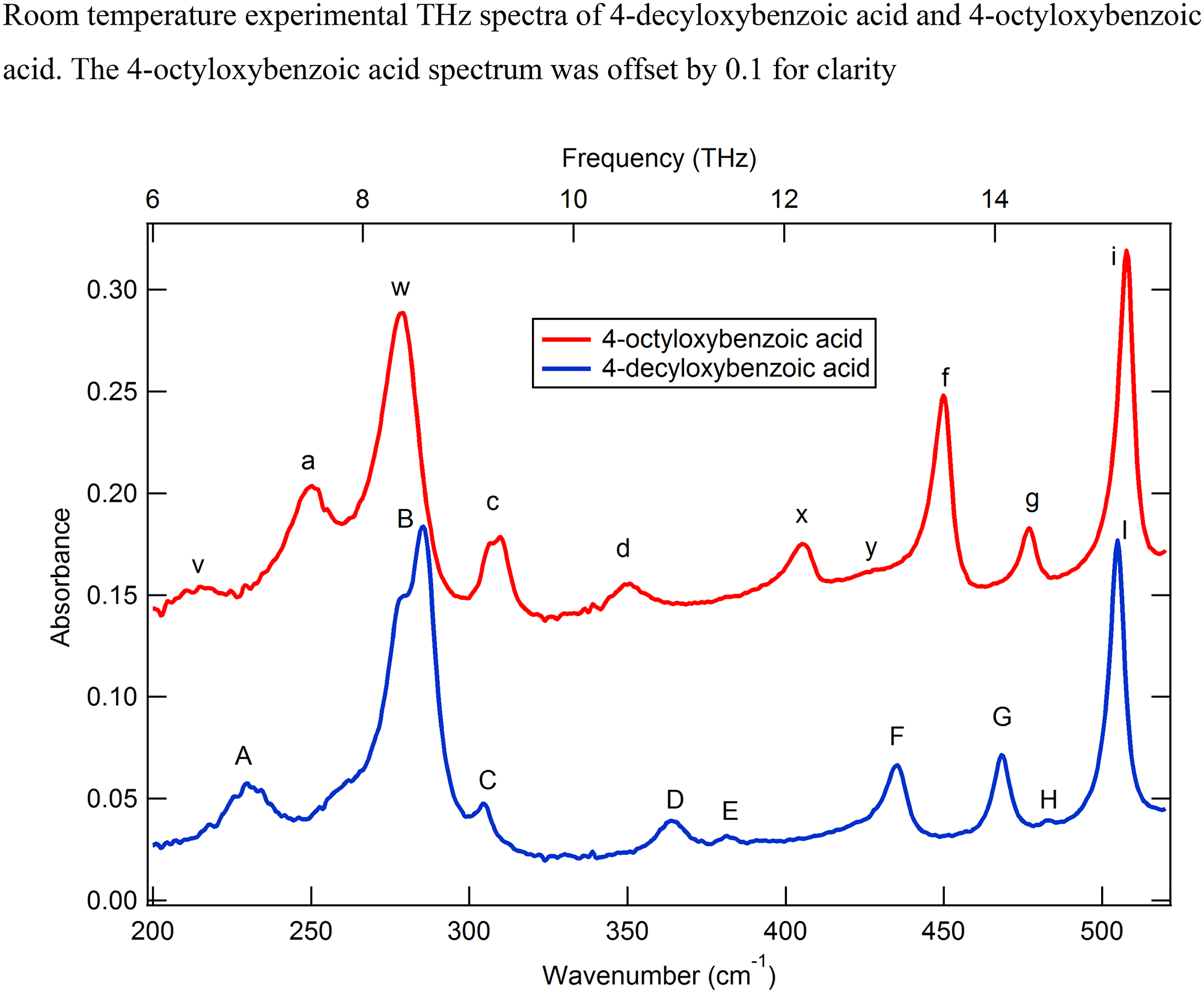

Fourier transform infrared spectroscopy was performed for two structurally similar liquid crystals: 4-octyloxybenzoic acid and 4-decyloxybenzoic acid in 6–15 THz range. Density functional theory modeling at PBE0/def2-TZVPP level was used to assign the vibrational modes to each observed absorption peak. We observed six peaks that are common for both liquid crystals, assigned to the same vibrational modes and appearing at similar energies. Each of the samples also had additional peaks unique to itself. A strong absorption peak appears at about 280 cm–1 for both samples; however, it corresponds to different vibrational modes for the two samples. This work shows that the spectroscopy in this often-neglected frequency range can easily distinguish structurally similar compounds.
DaviesA.G.LinfieldE.H.JohnstonM.B.. “The Development of Terahertz Sources and Applications”. Phys. Med. Biol. 2002. 47(21): 3679–3689.
2.
SmithR.M.ArnoldM.A.. “Terahertz Time-Domain Spectroscopy of Solid Samples: Principles, Applications and Challenges”. Appl. Spectrosc. Rev. 2011. 46(8): 636–679.
3.
GeorgeD.K.MarkelzA.G.. “Terahertz Spectroscopy of Liquids and Biomolecules”. In: PeiponenK.-E.ZeitlerA.Kuwata-GonokamiM., editors. Terahertz Spectroscopy and Imaging. Berlin; Heidelberg: Springer, 2013. Pp. 229–250.
4.
TheuerM.HarshaS.S.MolterD.TorosyanG.BeigangR.. “Terahertz Time Domain Spectroscopy of Gases, Liquids and Solids”. ChemPhysChem. 2011. 12(15): 2695–2705.
5.
JepsenP.U.CookeD.G.KochM.. “Terahertz Spectroscopy and Imaging: Modern Techniques and Applications”. Laser Photonics Rev. 2011. 5(1): 124–166.
6.
OrlandoA.R.GalleranoG.P.. “Terahertz Radiation Effects and Biological Applications”. J. Infrared, Millimeter, Terahertz Waves. 2009. 30: 1308–1318.
7.
SunY.SyM.Y.WangY.X.AhujaA.T., et al. “A Promising Diagnostic Method: Terahertz Pulsed Imaging and Spectroscopy”. World J. Radiol. 2011. 3(3): 55–65.
8.
WoodwardR.M.ColeB.E.WallaceV.P.PyeR.J., et al. “Terahertz Pulse Imaging in Reflection Geometry of Human Skin Cancer and Skin Tissue”. Phys. Med. Biol. 2002. 47(21): 3853–3863.
9.
MeledinD.V.MarroneD.P.TongC.-Y.E.GibsonH., et al. “A 1-THz Superconducting Hot-Electron-Bolometer Receiver for Astronomical Observations”. IEEE Trans. Microwave Theory Tech. 2004. 52(10): 2338–2343.
10.
HaleP.J.MadeoJ.ChinC.DhillonS.S., et al. “20 THz Broadband Generation Using Semi Insulating GaAs Interdigitated Photoconductive Antennas”. Opt. Express. 2014. 22(21): 26358–26364.
11.
LepodiseL.M.HorvatJ.LewisR.A.. “Superficial and Fundamental Correspondences in the Terahertz/IR (6–15 THz) Absorption Spectra of Aspirin and Benzoic Acid”. J. Phys. Chem. A. 2018. 122(34): 6886–6893.
12.
ZelsmannH.R.MielkeZ.. “Far Infrared Spectra of Benzoic Acid”. Chem. Phys. Lett. 1991. 186(6): 501–508.
13.
MirandaM.D.Vaca ChávezF.MariaT.M.R.EusébioM.E.S., et al. “Synthesis of Liquid Crystals Based on Hydrogen-Bonding of 4-(Octyloxy) Benzoic Acid with 4-Alkylbenzoic Acids”. Mol. Cryst. Liq. Cryst. 2016. 630(1): 87–101.
14.
OkumusM.. “Synthesis and Characterization of Hydrogen Bonded Liquid Crystal Complexes by 4-Octyloxy Benzoic Acid and some Dicarboxylic Acids”. J. Mol. Liq. 2018. 266: 529–534.
15.
RajanandkumarR.Pongali Sathya PrabuN.Madhu MohanM.L.N.. "Characterization of Hydrogen Bonded Liquid Crystals Formed by Suberic Acid and Alkyl Benzoic Acids”. Mol. Cryst. Liq. Cryst. 2013. 587(1): 60–79.
16.
OkumusM.. “Thermal Properties of Liquid Crystal Hexylbenzoic Acid/Octyloxybenzoic Acid Mixture”. AIP Conf. Proc. 2015. 1653(1): 020080.
17.
GoodbyJ.W.. “The Nanoscale Engineering of the Nematic Liquid Crystals for Displays”. Liq. Cryst. 2011. 38(11–120): 1363–1387.
18.
ViewegN.M FischerB.ReuterM.KulaP., et al. “Ultrabroadband Terahertz Spectroscopy of a Liquid Crystal”. Opt. Express. 2012. 20(27): 28249–28256.
19.
ViewegN.CelikM.A.ZakelS.GuptaV., et al. “Terahertz Absorption of Nematic Liquid Crystals”. J. Infrared, Millimeter, Terahertz Waves. 2014. 35: 478–485.
20.
ZezhangC.YurongJ.MengL.LuluJ.HengM.. “Molecular Vibration Mode Assignment of Nematic Liquid Crystal 5CB on Terahertz Spectra”. Liq. Crystals. 2015. 42(7): 947–953.
21.
KishorM.H.Madhu MohanM.L.N.. “An Innovative Technique to Achieve Tunable Filtering Action by Ferroelectric Material in Infrared Region”. J. Electron. Mat. 2020. 49: 2311–2316.
NeeseF.. “The ORCA Program System". Wiley Interdiscip. Rev.: Comput. Mol. Sci. 2012. 2(1): 73–78.
26.
KrishnanR.BinkleyJ.S.SeegerR.PopleJ.A.. “Self-Consistent Molecular Orbital Methods. XX. A Basis Set for Correlated Wave Functions”. J. Chem. Phys. 1980. 72(1): 650.
27.
McLeanA.D.ChandlerG.S.. “Contracted Gaussian Basis Sets for Molecular Calculations. I. Second Row Atoms, Z =11–18”. J. Chem. Phys. 1980. 72(10): 5639.
28.
BlandeauJ.-P.McGrathM.P.CurtissL.A.RadomL.. “Extension of Gaussian-2 (G2) Theory to Molecules Containing Third-Row Atoms K and Ca”. J. Chem. Phys. 1997. 107(13): 5016.
29.
CurtissL.A.McGrathM.P.BlaudeauJ.-P.DavisN.E., et al. “Extension of Gaussian-2 Theory to Molecules Containing Third-Row Atoms Ga–Kr”. J. Chem. Phys. 1995. 103(14): 6104.
30.
ClarkT.ChandrasekharJ.SpitznagelG.W.Von Rague SchleyerP.. “Efficient Diffuse Function-Augmented Basis Sets for Anion Calculations. III. The 3-21+G Basis Set for First-Row Elements, Li–F”. J. Comput. Chem. 1983. 4(3): 294–301.
31.
GrimmeS.. “Semi-Empirical GGA-Type Density Functional Constructed with a Long-Range Dispersion Correction”. J. Comput. Chem. 2006. 27(15): 1787–1799.
LaaksonenL.. “A Graphics Program for the Analysis and Display of Molecular Dynamics Trajectories”. J. Mol. Graphics. 1992. 10(1): 33–34.
34.
LepodiseL.M.HorvatJ.LewisR.A.. “Terahertz (6–15 THz) Spectroscopy and Numerical Modeling of Intermolecular Vibrations in Benzoic Acid and its Derivatives”. Appl. Spectrosc. 2015. 69(5): 590–596.
35.
ZhengZ.FanW.XueB.. “Study on Benzoic Acid by THz Time-Domain Spectroscopy and Density Functional Theory”. Chin. Opt. Lett. 2011. 9(Suppl.): 105061–105063.
36.
BoczarM.SzczeponekK.WojcikM.J.PaluszkiewiczC.. “Theoretical Modeling of Infrared Spectra of Benzoic Acid and its Deuterated Derivative”. J. Mol. Struct. 2004. 700 (1–3): 39–48.
