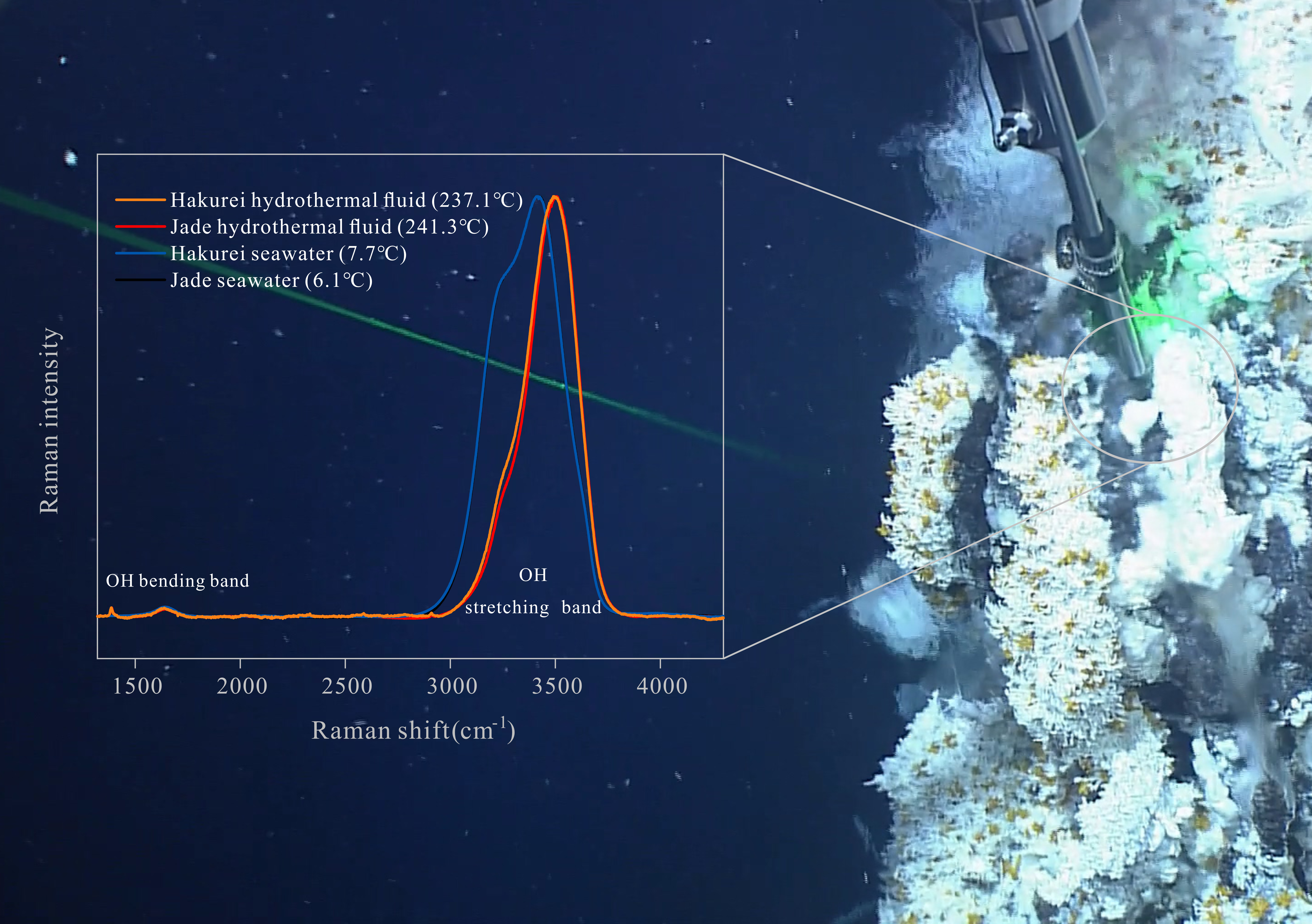

The chlorinity of deep-sea hydrothermal fluids, representing one of the crucial deep-sea hydrothermal indicators, indicates the degree of deep phase separation of hydrothermal fluids and water/rock reactions. However, accurately measuring the chlorinity of high-temperature hydrothermal fluids is still a significant challenge. In this paper, a piecewise chlorinity model to measure the chlorinity of high-temperature hydrothermal fluids was developed based on the OH stretching band of water, exhibiting an accuracy of 96.20%. The peak position, peak area ratio, and F value were selected to establish the chlorinity piecewise calibration model within the temperature ranges of 0–50 ℃, 50–200 ℃, and 200–300 ℃. Compared with that of the chlorinity calibration model built based on a single parameter, the accuracy of this piecewise model increased by approximately 4.83–12.33%. This chlorinity calibration model was applied to determine the concentrations of Cl for high-temperature hydrothermal fluids in the Okinawa Trough hydrothermal field.
R.F. Weiss, P. Lonsdale, J.E. Lupton, et al. “Hydrothermal Plumes in the Galapagos Rift”. Nature. 1977. 267: 600–603.
2.
PetersenJ.M.ZielinskiF.U.PapeT., et al.“Hydrogen is an Energy Source for Hydrothermal Vent Symbioses”. Nature. 2011; 476(7359): 176–180.
3.
McNicholJ.StryhanyukH.SylvaS.P., et al.“Primary Productivity Below the Seafloor at Deep-Sea Hot Springs”. Proc. Natl. Acad. Sci. U.S.A. 2018; 115(26): 6756–6761.
4.
KonnC.DonvalJ.P.GuyaderV., et al.“Organic, Gas, and Element Geochemistry of Hydrothermal Fluids of the Newly Discovered Extensive Hydrothermal Area in the Wallis and Futuna Region (SW Pacific)”. Geofluids. 2018; 2018: 1–25. Article ID 7692839.
5.
TaoC.H.SeyfriedW.E.JrLowellR.P., et al.“Deep High-Temperature Hydrothermal Circulation in a Detachment Faulting System on the Ultra-Slow Spreading Ridge”. Nat Commun. 2020; 11(1): 1300.
6.
HuberC.KlimantI.KrauseC., et al.“Optical Sensor for Seawater Salinity”. Fresenius’ J. Anal. Chem. 2000; 368(2–3): 196–202.
7.
DouvilleE.CharlouJ.L.OelkersE.H., et al.“The Rainbow Vent Fluids (36° 14′N, Mar): The Influence of Ultramafic Rocks and Phase Separation on Trace Metal Content in Mid-Atlantic Ridge Hydrothermal Fluids”. Chem. Geol. 2002; 184(1–2): 37–48.
8.
CoumouD.DriesnerT.WeisP., et al.“Phase Separation, Brine Formation, and Salinity Variation at Black Smoker Hydrothermal Systems”. J. Geophys. Res. 2009; 114(B3): B03212.
9.
WoosterW.S.LeeA.J.DietrichG. “Redefinition of Salinity”. Limnol. Oceanogr. 1969; 14(3): 437–438.
10.
BischoffJ.L.RosenbauerR.J. “Salinity Variations in Submarine Hydrothermal Systems by Layered Double-Diffusive Convection”. Chicago J. 1989; 97(5): 613–623.
11.
FontaineF.J.WilcockW.S.D.ButterfieldD.A. “Physical Controls on the Salinity of Mid-Ocean Ridge Hydrothermal Vent Fluids”. Earth Planet. Sci. Lett. 2007; 257(1–2): 132–145.
12.
CorlissJ.B.DymondJ.GordonL.I., et al.“Submarine Thermal Springs on the Galápagos Rift”. Science. 1979; 203(4385): 1073–1083.
13.
P. Nehlig. “Salinity of Oceanic Hydrothermal Fluids: A Fluid Inclusion Study”. Earth Planet. Sci. Lett. 1991. 102: 310–325.
14.
PesterN.J.RoughM.DingK., et al.“A New Fe/Mn Geothermometer for Hydrothermal Systems: Implications for High-Salinity Fluids at 13°N on the East Pacific Rise”. Geochim. Cosmochimi. Acta. 2011; 75(24): 7881–7892.
MetzS.TrefryJ.H. “Chemical and Mineralogical Influences on Concentrations of Trace Metals in Hydrothermal Fluids”. Geochim. Cosmochimi. Acta. 2000; 64(13): 2267–2279.
17.
BonifacieM.CharlouJ.L.JendrzejewskiN., et al.“Chlorine Isotopic Compositions of High Temperature Hydrothermal Vent Fluids over Ridge Axes”. Chem. Geol. 2005; 221(3–4): 279–288.
18.
PrienR.D. “The Future of Chemical in Situ Sensors”. Mar. Chem. 2007; 107(3): 422–432.
19.
GrossoP.MennM.L.TocnayeJ.B., et al.“Practical Versus Absolute Salinity Measurements: New Advances in High Performance Seawater Salinity Sensors”. Deep Sea Res., Part I. 2010; 57(1): 151–156.
20.
Y. Zhao, Q.L. Wu, Y.N. Zhang. “Theoretical Analysis of High-Sensitive Seawater Temperature and Salinity Measurement Based on C-Type Micro-Structured Fiber”. Sens. Actuators, B. 2018. 258: 822–828.
21.
SeewaldJ.S.DohertyK.W.HammarT.R., et al.“A New Gas-Tight Isobaric Sampler for Hydrothermal fluids”. Deep Sea Res., Part I. 2001; 49(1): 189–196.
22.
HuangH.C.YangC.J.ChenS.C., et al.“Novel Gas-Tight Multi-Sampler for Discrete Deep-Sea Water”. Chin. J. Mech. Eng. 2012; 25(4): 722–728.
23.
WuS.J.YangC.J.HuangH.C., et al.“Development of an Electric Control Gas-Tight Sampler for Seafloor Hydrothermal Fluids”. J. Zhejiang Univ., Sci., A. 2014; 15(2): 120–129.
24.
WhiteS.N. “Qualitative and Quantitative Analysis of CO2 and CH4 Dissolved in Water and Seawater Using Laser Raman Spectroscopy”. Appl. Spectrosc. 2010; 64(7): 819–827.
25.
X.L. Wang, Y. Qiu, J.J. Lu, et al. “In Situ Raman Spectroscopic Investigation of the Hydrothermal Speciation of Tungsten: Implications for the Ore-Forming Process”. Chem. Geol. 2020. 532.
26.
ZhangX.DuZ.F.LuanZ.D., et al.“In Situ Raman Detection of Gas Hydrates Exposed on the Seafloor of the South China Sea”. Geochem., Geophys., Geosyst. 2017; 18(10): 3700–3713.
27.
FrezzottiM.L.TecceF.CasagliA. “Raman Spectroscopy for Fluid Inclusion Analysis”. J. Geochem. Explor. 2012; 112: 1–20.
28.
SunQ.ZhaoL.LiN., et al.“Raman Spectroscopic Study for the Determination of Cl− Concentration (Molarity Scale) in Aqueous Solutions: Application to Fluid Inclusions”. Chem. Geol. 2010; 272(1–4): 55–61.
29.
BrewerP.G.PeltzerE.T.WalzP.M., et al.“The Speciation of Water in Sea Water and in Gelatinous Marine Animals”. Mar. Chem. 2017; 195: 94–104.
30.
CaumonM.C.RobertP.LaverretE., et al.“Determination of Methane Content in NaCl–H2O Fluid Inclusions by Raman Spectroscopy. Calibration and Application to the External Part of the Central Alps (Switzerland)”. Chem. Geol. 2014; 378: 52–61.
31.
BurikovS.A.ChurinaI.V.DolenkoS.A., et al.“New Approaches to Determination of Temperature and Salinity of Seawater by Laser Raman Spectroscopy”. EARSeL eProceedings. 2004; 3: 298–305.
32.
M. Baumgartner, R. J. Bakker. “Raman Spectroscopy of Pure H2O and NaCl–H2O Containing Synthetic Fluid Inclusions in Quartz: A Study of Polarization Effects”. Mineral. Petrol. 2008. 95(1–2): 1–15.
33.
CaumonM.C.TarantolaA.RégineM.R. “Raman Spectra of Water in Fluid Inclusions: I. Effect of Host Mineral Birefringence on Salinity Measurement”. J. Raman Spectrosc. 2015; 46(10): 969–976.
34.
MernaghT.P.WildeA.R. “The Use of the Laser Raman Microprobe for the Determination of Salinity in Fluid Inclusions”. Geochim. Cosmochim. Acta. 1989; 53(4): 765–771.
35.
FuricK.CigleneckiI.CosovicB. “Raman Spectroscopic Study of Sodium Chloride Water Solutions”. J. Mol. Struct. 2000; 550(SI): 225–234.
36.
CaumonM.C.DubessyJ.RobertP., et al.“Fused-Silica Capillary Capsules (FSCCs) as Reference Synthetic Aqueous Fluid Inclusions to Determine Chlorinity by Raman Spectroscopy”. Eur. J. Mineral. 2014; 25(5): 755–763.
37.
HuQ.C.GuoH.R.LuW.J., et al.“Raman Spectroscopic Investigation on Aqueous NaCl Solutions at Temperatures from 273 to 573k: Effect of NaCl on Water Structure”. J. Mol. Liq. 2014; 199: 83–87.
38.
WuX.G.LuW.J.OuW.J., et al.“Temperature and Salinity Effects on the Raman Scattering Cross Section of the Water OH-Stretching Vibration Band in NaCl Aqueous Solutions from 0 to 300 ℃”. J. Raman Spectrosc. 2017; 48(2): 314–322.
39.
ZhangX.DuZ.F.ZhengR.E., et al.“Development of a New Deep-Sea Hybrid Raman Insertion Probe and Its Application to the Geochemistry of Hydrothermal Vent and Cold Seep Fluids”. Deep Sea Res., Part I. 2017; 123: 1–12.
40.
C. P. Artlett, H. M. Pask. “New Approach to Remote Sensing of Temperature and Salinity in Natural Water Samples”. Opt Express. 2017. 25(3): 2840–2851.
41.
CowanJ.CannJ. “Supercritical Two-Phase Separation of Hydrothermal Fluids in the Troodos Ophiolite”. Nature. 1988; 333(19): 259–261.
42.
PesterN.J.ReevesE.P.RoughM.E., et al.“Subseafloor Phase Equilibria in High-Temperature Hydrothermal Fluids of the Lucky Strike Seamount (Mid-Atlantic Ridge, 37°17′N)”. Geochim. Cosmochim. Acta. 2012; 90: 303–322.
43.
LeonardD.A.CaputoB.HogeF.E. “Remote Sensing of Subsurface Water Temperature by Raman Scattering”. Appl. Optics. 1979; 18(11): 1732–1745.
44.
BecucciM.CavalieriS.EramoR., et al.“Accuracy of Remote Sensing of Water Temperature by Raman Spectroscopy”. Appl. Optics. 1999; 38(6): 928–931.
45.
WalrafenG.E.HokmabadiM.S.YangW.H., et al.“High-Temperature High-Pressure Raman Spectra from Liquid Water”. J. Phys. Chem. 1987; 92(15): 4540–4542.
46.
A.F. Goncharov. “Raman Spectroscopy at High Pressures”. Int. J. Spectrosc. 2012. 2012: 1–16.
47.
LiL.F.ZhangX.LuanZ.D., et al.“A New Approach to Measuring the Temperature of Fluids Reaching 300 and 2 mol/Kg NaCl Based on the Raman Shift of Water”. Appl. Spectrosc. 2018; 72(11): 1621–1631.
48.
RomanenkoA.V.RashchenkoS.V.GoryainovS.V., et al.“In Situ Raman Study of Liquid Water at High Pressure”. Appl Spectrosc. 2018; 72(6): 847–852.
49.
GamoT.SakaiH.KimE.S., et al.“High Alkalinity Due to Sulfate Reduction in the Clam Hydrothermal Field, Okinawa Trough”. Earth Planet. Sci. Lett. 1991; 107(2): 328–338.
50.
LiL.F.ZhangX.LuanZ.D., et al.“In Situ Quantitative Raman Detection of Dissolved Carbon Dioxide and Sulfate in Deep-Sea High-Temperature Hydrothermal Vent Fluids”. Geochem., Geophys., Geosyst. 2018; 19(6): 1809–1823.
51.
NunouraT.OidaH.NakaseamaM., et al.“Archaeal Diversity and Distribution Along Thermal and Geochemical Gradients in Hydrothermal Sediments at the Yonaguni Knoll IV Hydrothermal Field in the Southern Okinawa Trough”. Appl. Environ. Microbiol. 2010; 76(4): 1198–1211.
52.
KonnoU.TsunogaiU.NakagawaF., et al.“Liquid CO2 venting on the Seafloor: Yonaguni Knoll IV Hydrothermal System, Okinawa Trough”. Geophys. Res. Lett. 2006; 33(16): L16607.
53.
SakaiH.GamoT.KimE.-S., et al.“Unique Chemistry of the Hydrothermal Solution in the Mid-Okinawa Trough Backarc Basin”. Geophys. Res. Lett. 1990; 17(12): 2133–2136.
54.
IshibashiJ.-I.NoguchiT.TokiT., et al.“Diversity of Fluid Geochemistry Affected by Processes During Fluid Upwelling in Active Hydrothermal Fields in the Izena Hole, the Middle Okinawa Trough Back-Arc Basin”. Geochem. J. 2014; 48(4): 357–369.
55.
L.F. Li, X. Zhang, Z.D. Luan, et al. “Hydrothermal Vapor‐Phase Fluids on the Seafloor: Evidence from in Situ Observations”. Geophys. Res. Lett. 2020. 47(10): e2019GL085778.
56.
LiL.F.DuZ.F.ZhangX., et al.In Situ Raman Spectral Characteristics of Carbon Dioxide in a Deep-Sea Simulator of Extreme Environments Reaching 300 and 30 MPa”. Appl. Spectrosc. 2018; 72(1): 48–59.
