Optimization Process of Potassium Carbonate Activated Carbon through Jute-Based Core Materials by Using Artificial Neural Network with Response Surface Methodology

Abstract

Potassium carbonate was tested as novel information for producing carbonaceous materials from jute cores. Two quadratic models have been developed for both answers to link the preparatory parameters: activating temperatures, molar ratio, and incubation time. The RSM and ANN models were used to improve the processing conditions to maximise the quantities of iodine and methylene blue penetration. The best charcoal was obtained using 900°C activating temperatures, a 1.5 molar ratio, and a 4-hour activating time. This resulted in iodine and methylene blue absorption of 1260.07 mg/g and 369.21 mg/g, respectively. It was discovered that the K₂CO₃-based pyrolysis process might be anticipated to become a safe yet incredibly efficient process of making activated carbons with a very well-defined and monocultural porous structure. Even though the precise emphasis given to K₂CO₃ is unknown at the moment, given the creation of K₂C₃O₄ just after evolvement with one additional molarity of CO at approximately 870°C, these same porous and papule responses begun by K₂CO₃ stimulation might be temporarily posited to be quite comparable to an initiation action needed to make progress by K₂C₃O_4. The influence of control parameters was examined in this study using variance analysis like the ANOVA test. Furthermore, the response surface (RSM) and artificial neural networks (ANN) are employed to improve the output results while optimising the methylene blue and iodine qualities. Consequently, the experimental findings correlate well with the statistics.

1. Introduction

Activated carbon is a flexible, highly porous concept widely used as an adsorbent in fluid and gas processes and heterogeneous catalysis. As contamination has become a much more significant issue, the demand for carbonaceous materials grows. The characteristics of carbonaceous materials are determined by the activating agent’s quality and activating techniques [1, 2]. In practice, anthracite, hardwood, and coconut husks are the historical documents of commercially carbonaceous materials. Owing to their cheap cost, durability, and ease of handling, several agricultural wastes have subsequently gained a lot of interest as alternate materials for manufacturing carbonaceous materials [3, 4].

Pollutants encircled humans, which appears to be a significant threat to all life forms. Developed countries attempt to reduce pollution by adopting drastic measures to substitute polluting resources with sustainable alternatives [5]. Scientists have developed an organic biobased alternative to the existing composite polymers. Composites are regarded as essential components in a wide range of large-scale operations [6]. Substantial expenditures were invested in developing synthetic composites that have functioned admirably in various uses. However, with increasing global warming and risks, significant attention has shifted to creating biological and nanocomposite materials [7]. Consequently, the production of such hybrids has received considerable attention in recent history. Biocomposites were already being researched to replicate the success of synthetic fibre. Such biocomposites are recyclable, and various natural fibres were employed in their creation to make them sustainable and environmentally friendly in origin, with fewer emissions [8, 9]. Compared to proprietary brands, the composite material has also gained popularity due to its excellent compressive and flexural qualities. Biocomposites are organic, compact, lightweight, emitting little CO2, and having minimal material and production costs. Above everything, the fibres employed in the production of biocomposites are plentiful in the environment. Because of their numerous practical uses, biocomposites are now on the verge of being intrinsic community members [10, 11].

Furthermore, jute fibres are environmentally benign, recyclable, inexpensive, and disposable. Jute fibres are mainly composed of lignocellulosic materials [12]. Cellulose is a polymer that aids in the presence of hydrogen among substrates with fibres, hence increasing interface contractures. Jute fibre is in significant demand outside the composites and biopolymer sectors [13]. Jute fibre qualities are often influenced by the tree’s age, fibre content, and hybrid production procedures. Jute fibre is now employed in various industries, including fabrics, cars, and many uses [14]. Jute plant, also known as ligno, was used in the automotive industry to make a variety of components such as side panels, hatchback linings, and centre consoles. In particular, large automakers like Daimler, as well as numerous European and American automakers, are eager to incorporate increasingly sustainable composite and polymeric materials. Jute-based biocomposites comprising natural substances have evolved in recent years with excellent tensile qualities over native jute-based hybrids [15, 16].

Because jute core fibre has a considerably large lignin concentration but little coal ash, it is a suitable substrate for commercially generating quality charcoal filters to increase financial benefit [17]. Munawar et al. [8] reported the combustion accompanied by potassium iodide activation of jute matting to produce active carbon fibre (ACF) with the most excellent permeability of 582 m²/g. To the aim of contributing, published studies on the use of discarded jute cores for the generation of chemical activation are scarce [18]. Various activating processes are used in synthesising carbonaceous materials: physiological, chemical, and biophysical engagement. Carbonization has unique benefits, including solitary activation, higher production, and improved micropores [19]. The more powerful and successful molecular enhancers in manufacturing high surface energy carbonaceous materials are phosphoric acid, zinc chloride, potassium hydroxide, and potassium carbonate [20]. Potassium salts were discovered to be more effective activation chemicals than most in producing activated charcoal materials of high porosity and permeability values. Nonetheless, our understanding of carbonization pathways is far from complete [21, 22].

The Box-Behnken experimental setup for RSM and ANN ware was used to analyse the impact of important evaluation factors using potassium iodide and methylene blue adsorbent value systems as reactions to identify the most appropriate initiation method for creating jute-based charcoal filters to preferred adsorbent performance this season by K₂CO₃ stimulation. In the proposed investigation, potassium carbonate has been used as an alternate efficient activating agent to manufacture jute-based chemical activation. This is because the iodine amount and adsorption isotherm values are the most commonly used metrics for accurately measuring the adsorption ability of the porous structure architectures of the carbon materials generated. On the other hand, the iodine number can be roughly comparable to the absorber plate area of a charcoal molecule in m²/g. As a result, the iodine number and the sorbent grade are commonly employed as adsorbed species indicators, exhibiting excellent significant associations with the adsorption process of sorbent material in small and medium-scale molecules separately. The outcomes of this study help generate a prospective new pharmacological activation and produce good use of jute to make charcoal filters have desirable characteristics by determining the ideal operating settings using RSM and ANN approaches.

2. Investigational Works

2.1. Materials

The jute came from the Jute Research Farm Salam in Tamil Nadu, India. That production’s chemical products were of analytical reagents. Before any additional interventions, the viscose cores were cleaned with water to eliminate impurities, dry at 110°C for 48 hours, and crushed; then, samples were filtered to 100-212 mesh size.

2.2. Creation of Activated Carbon

The research was conducted at various K₂CO₃/forerunner insemination concentrations. The 25 g of dried precursors were steeped in a 25% K₂CO₃ mixture at ambient atmospheric conditions for 14 hours, with periodic mixing. The mixture was then continuously dried in a hot oven at 110 degrees Celsius. This solvent temperature was increased to the specified ultimate heat in a burner at a fluid velocity of 350 mL/min of nitrogen. In addition, jute core carbon was made at 900°C for 3 hours before implantation using K₂CO₃ solutions. The compounds were washed several times using 0.5 ml of hydrochloric acid with rubbing alcohol till the pH of a supernatant approached about 6.0, dried over 24 hours at 110°C, and then measured.

2.3. Adsorption Characteristics

Both the iodine amount and methylene blue adsorption have been measured in accordance with GB/T 12496.8-1999 and GB/T 12496.10-1999, respectively. Iodine is a typical absorption coefficient probing chemical, representing small pores with diameters greater than 1.0 nanometers. On the other hand, methylene blue is the most widely used modelling structure for evaluating an adsorbent’s most significant potential to reduce soluble compounds with molecular sizes greater than 1.5 nanometers. The adsorbent capabilities of iodine and MB are provided in milligrammes of adsorbent surface captured by 1 gramme of charcoal. Nitrogen desorption at 77 K has been used to characterise the texture of the indicated activated specimen.

2.4. Response Surface Methodology

The Box-Behnken design includes specified placement of input parameters and has 3 dimensions for every element labelled as 1, 0, and +1. It was designed to predict a statistical approach and deliver high empirical results at the centre of a design project and lower at the frame’s extremities. This is a rotational polynomial pattern with part of what makes up the centre point at the centre of the sides and even in the middle [23]. A Box-Behnken statistically exploratory approach using the RSM was employed to study the impacts of three variables: period, molar ratio, and temperatures. The responsive factors were selected as the iodine amount with methylene blue adsorbed. The Box-Behnken design was selected owing to its low cost and high efficiency [24, 25]. Experimentation results were recorded and then matched towards the two multiple regressions utilising the Design Expert 13 programme to assess the importance of a dependent dimension. $\begin{matrix} (1) & Z = A_{o} + \sum_{i = 1}^{n} A i Y i + \sum_{i = 1}^{n} A ii Y i 2 + \sum_{i = 1}^{n = 1} A ij Y i Y j + e . \end{matrix}$

$Z$ would be the appropriate reaction, $Y i$ and $Y j$ are the relevant factors, $A_{0}$ , $A i$ , $A ii$ , and $A ij$ were predicted values for the interception, linearity, exponential, and interaction components, $e$ is the errors, where $n$ is the number of possibilities analysed. The $F$ test was used to analyse the relevance of a functional form and its resulting consequences. The coefficient of determination $R^{2}$ and modified $R^{2}$ were used to measure the experience of the polynomial system of equations. The statistically significant correlation of a design was determined using variance analysis (ANOVA). The ideal parameters were determined using the following linear relationship; then, contours were utilised to examine every variable’s interaction influence [26].

3. Result and Discussions

3.1. RSM Models

The Box-Behnken model is a helpful exploratory study using 3D surface methods based on 3 imperfect random effects. It aids in optimising the impacts of many factors, either solitary or interactive, to get the optimum results. The two elements in this concept are at the centre points of the processing satellite’s borders and the centre. BBD is more effective for quadratic polynomials than orthogonal arrays (OA) and especially beneficial in preventing excessive control variables [27]. Table 1 shows the three critical parameters and the static loading with observable consequences of iodine. The absolute errors and variability were calculated using the cycle at the correct location. According to the programme, the model equation was chosen for matching iodine and methylene blue adsorption abilities. After excluding the statistically irrelevant impacts of salt and methylene blue absorption, our final empirical regressors in terms of coding components were just as shown in the following: $\begin{matrix} (2) & Iodine = 1059.26 - 35.75 A + 31.66 B + 171.26 C + 46.50 AB + 9.21 AC + 34.01 BC - 2.96 A^{2} + 2.96 B^{2} - 6.61 C^{2}, \\ (3) & Methylene blue = 225.55 - 38.43 A + 22.69 B + 74.13 C - 14.69 AB + 4.82 AC - 13.63 BC + 1.94 A^{2} + 4.36 B^{2} - 3.76 C^{2} . \end{matrix}$

Table 1

BBD constraints and their levels.

Sl. no	Parameters	L1	L2	L3
1	Impregnation ratio	1	1.5	2
2	Time (hrs)	3	3.5	4
3	Temperature (°C)	800	850	900

The measured results of iodine and methylene blue adsorbed were in excellent accordance with quantities anticipated by equations as shown in Figures 1 and 2. The corrected reliability ratio ( $R^{2}$ ) estimates for Equations (2) and (3) of the models remained at 0.9618 and 0.9793, correspondingly. All values of $R^{2}$ are near 1.0, suggesting that the constructed regression analysis is very reliable in describing the variances in the empirical observations.

Figure 1

Response 3D surface and contour plots of iodine number based on the input parameters.

(b)

(c)

Figure 2

Response 3D surface and contour plots of methylene blue based on the input parameters.

(b)

(c)

In the instance of iodine absorption values in Figures 1(a)–1(c), every linear regression graph exhibits a distinct peak along with symmetrically filled arcs in the associated contour showing that the peak amount of a reaction (Z1) is achievable inside the design process. Figures 2(a)–2(c) exhibit multiple (3D) linear regression graphs of a predicted quadratic polynomial for methylene blue adsorption, correspondingly. As shown in Figures 2(a)–2(c), ignition delay has by far the most dramatic influence ( $F$ value = 41.73) on methylene blue (Y2) sorption of any three components tested (activating heat, molar ratio, and reaction rate). However, according to Figure 2(a), the combined impact of heating rate on iodine has no substantial effect on the growth of adsorbent values under the circumstances examined [28]. Figures 2(b) and 2(c) show that a prolonged incubation period is beneficial for increasing methylene blue adsorbent dosage.

The design project’s desired spot predictions feature was used to figure out how to maximise the absorption coefficients of iodine and methylene blue within the experiment limits investigated. The projected best adhesion values were found by employing an activating temperature of 898.91°C, an impregnation ratio of 1.52, and an active duration of 3.5 hours. Considering the real-time operating procedure, the altered optimal conditions were determined as 900° C, impregnation ratio, and 3.5 hours. Adsorbent uptakes of iodine and methylene blue were determined to be 1247.63 mg/g and 340 mg/g, correspondingly. To validate the projected findings, several desorption specimens were created under the ideal conditions above for further iodine and methylene blue sorption experiments. The mean measurement results for iodine and methylene blue desorption were 1055.89 mg/g and 226.74 mg/g, correspondingly, which are in good accordance with econometric methods’ impact on subsequent, having relatively little uncertainties of 1.56% and 1.80%, respectively. The operating parameters for the coagulant are detailed in Table 2.

Table 2

ANOVA predictions of iodine number.

Source	SOS	Df	MS	$F$ value	$P$ value
Model	266749.359	9	29638.818	20.085	0.001
Impregnation ratio	10222.856	1	10222.856	6.928	0.034
Time	8020.301	1	8020.301	5.435	0.053
Temperature	234646.751	1	234646.751	159.012	0.001
AB	8649.651	1	8649.651	5.862	0.046
AC	339.112	1	339.112	0.230	0.646
BC	4626.040	1	4626.040	3.135	0.120
${\overset{\land}{A}}^{2}$	36.794	1	36.794	0.025	0.879
${\overset{\land}{A}}^{2}$	24.331	1	24.331	0.016	0.901
${\overset{\land}{A}}^{2}$	183.709	1	183.709	0.124	0.735
Residual	10329.579	7	1475.654
Lack of fit	5049.996	3	1683.332	1.275	0.396
Pure error	5279.583	4	1319.896
Cor total	277078.938	16

A descriptive analysis (ANOVA) was used to assess the model’s relevance and appropriateness and to discover the complicated link between factors and outcomes. Tables 2 and 3 summarise the presented iodine and methylene blue summary statistics. Due to the absence of fitting rates, estimated $F$ values, and a very low probability for answers and values of $P$ (0.001) as shown in Table 2, the regression has a firm fit and is considerable. Table 3 shows the ANOVA prediction of methylene blue.

Table 3

ANOVA prediction of methylene blue.

Source	SOS	Df	MS	$F$ value	$P$ value
Model	61736.363	9	6859.596	41.736	0.001
Impregnation ratio	11812.614	1	11812.614	71.871	0.001
Time	4120.050	1	4120.050	25.068	0.002
Temperature	43956.125	1	43956.125	267.441	0.001
AB	862.891	1	862.891	5.250	0.056
AC	92.930	1	92.930	0.565	0.477
BC	742.563	1	742.563	4.518	0.071
AÂ²	15.794	1	15.794	0.096	0.766
BÂ²	80.105	1	80.105	0.487	0.508
CÂ²	59.550	1	59.550	0.362	0.566
Residual	1150.506	7	164.358
Lack of fit	561.290	3	187.097	1.270	0.397
Pure error	589.216	4	147.304
Cor Total	62886.869	16

Figures 3(a) and 3(b) show the normal probability plots of the outcomes of iodine and methylene blue. All Y12 interaction variables were found to be insignificant to the outcomes of the two experiments. Furthermore, the overall quadratic impacts of Y1 (temperature) and Y3 (time) are optimistic, indicating that these factors have a beneficial or cooperative influence on iodine and methylene blue desorption levels in the studied experimental location. Furthermore, the interaction factors Y1Y3 and Y2Y3, as well as Y2 and all exponential factors, show substantial as well as hostile impacts on reactions, meaning that increasing these variables further than the limitations is likely to lower iodine and methylene blue desorption levels.

Figure 3

Actual vs. predicted plots of (a) iodine number and (b) methylene blue.

(b)

For a successful fit, the endpoints must be near the fitting line, with small comfort intervals. Points just on the show’s left or right, at the furthest average, have had the most leverage and can successfully drag the directly connected towards the centre [29, 30]. Exceptions are locations that are substantially distant from the line. All sorts of tips can degrade the fitting. The chart depicts an ANOVA analysis, but every piece of data is presented, giving readers far more information than simply the hypothesis. This standard error over the whole model range depicts the $F$ -test, which indicates that almost all variables except for the slope are 0. The hypotheses test is practical when the standard error does not contain the horizontally neutral product lineup [31].

Jute inner carbon has iodine and methylene blue desorption capabilities of 846 mg/g and 98.21 mg/g, correspondingly. Those are all significantly less than all the carbonaceous materials generated under the given circumstances as shown in Figures 1 and 2. It was also found that the entire jute progenitor cell lump charcoal carbonised at 900°C for 3.5 hours had a methylene blue adsorption performance of 340 mg/g. As a result, adding an adequate weight ratio of potash bicarbonate to a substrate substantially influences the growth of the more expanded permeability inside the polymeric network. As the comparative temperature builds, the empirical model of both materials rises slowly, and a residual stress forms, indicating that the significant number of small pores is linked with significant microporosity growth.

3.2. Optimization through ANN Modelling

In recent decades, ANN has emerged as a critical technique in the simulation and management of electrospun operations. As a computer tool, the ANN provides a graphical view with a slew of levels and multiple interacting processor parts that are primarily aware of inputs [32]. However, ANNs may adapt to real-world samples of a situation by utilising different equations among neurons and specialised machine learning built into the architecture of software applications. Figure 4 demonstrates the ANN structure of the current research.

Figure 4

ANN structure of present research work.

The impregnation ratio, time length, and warmth were selected as input variables for the ANN, and the iodine number and methylene blue were selected as output results. This research explored the parabolic tangential, logistic digression, and linear activation parameters to improve the backpropagation neural network [33, 34]. Backpropagation (BP) has been used as a learning method to calculate performance gradients for weight vector parameter X. All specimens were separated into three subgroups at randomization to conduct an assessment. The supervised learning comprised 60% of specimens, the verification time series comprised 20% of specimens, and the testing data source held 20% of all specimens. The verification dataset is used to reduce the possibility of an over or forgetting [35]. This implies that whenever the inaccuracy of a learning test dataset drops while the fault of a testing dataset set grows, then network training is halted, and overtraining is prevented. Figures 5(a) and 5(b) show the predicted features of ANN results of iodine and methylene blue.

Figure 5

ANN performance features of (a) iodine number and (b) methylene blue.

(b)

ANN can become caught in a minimum of errors, which the velocity factor helps to avoid. As a result, adopting the velocity factor reduces the probability of an under. This network can be trained using the Levenberg-Marquardt (LM) classification model. Although this approach handles general contour issues, its LM may be locked on the shortest path. To prevent the minimum error trapping, a velocity factor is provided. The Levenberg-Marquardt method is much more resilient than other algorithms that, in so many circumstances, result in the greatest network quality [36, 37]. A programme in MATLAB software was supplied to create the architecture of the graze and return network (version R2016). Since there is no predetermined procedure for determining its cortex and levels in the ANN framework, the network output and stages are determined through experimentation. The number of nodes and levels was raised throughout this experiment to minimise the error function. Still, any growth in the population of neurons and levels did not improve the accuracy.

The assessment subcategories for training, validation, and assessment are shown in Table 4 along with the expected failure rate. Figures 5(a) and 5(b) show how well neurological systems predict what will happen. With values of 0.9599 for iodine and 0.9675 for methylene blue, the average amount of anticipated errors was reduced by less than 3%. Figures 6(a) and 6(b) are excellent instances of that one. Figures 7(a) and 7(b) provide iodine and methylene effectiveness graphs, respectively. The investigation was allowed since the measurement items were within the allowable levels. It can assess the accuracy of experiments conducted [38, 39]. The reliability of investigation, prediction, and artificial neural networks is summarised in Table 4. Statistical analysis revealed that the RSM or ANN approaches yield accurate findings.

Table 4

Predicted error based on the comparison of experimental and ANN values.

RUN	Experimental		ANN		Error
RUN	Iodine	Methylene blue	Iodine	Methylene blue	Iodine	Methylene blue
1	1182.650	340	1212.650	340	-2.53668	$- 3.00936 E - 13$
2	800.360	97.82	800.630	97.82	-0.03373	$8.78917 E - 12$
3	1042.280	210	1072.280	210	-2.87831	$- 1.43462 E - 12$
4	1207.170	256.21	1201.250	256.21	0.490403	$- 1.17587 E - 12$
5	1068.250	298.19	1098.250	298.19	-2.80833	$- 6.67199 E - 13$
6	1100.287	225.79	1100.270	225.79	0.001545	$- 2.21543 E - 12$
7	1042.280	235.96	1042.000	210	0.026865	11.00186472
8	1042.280	239.65	1023.000	210	1.849791	12.37220947
9	1042.280	220.71	1072.280	210	-2.87831	4.852521408
10	1260.077	310.28	1290.077	369.2163412	-2.38081	-18.99456659
11	907.900	114.78	937.900	114.78	-3.30433	$4.35809 E - 12$
12	910.650	200.89	910.580	197.0881454	0.007688	1.892505633
13	905.570	189.78	935.570	189.78	-3.31283	$5.24165 E - 13$
14	956.170	194.89	956.320	194.89	-0.01569	0
15	1214.591	289.78	1248.210	289.78	-2.76793	$- 1.03965 E - 12$
16	1042.280	221.45	1165.320	210	-11.8049	5.170467374
17	1110.140	208.54	1040.140	208.54	6.305511	$- 4.77012 E - 13$

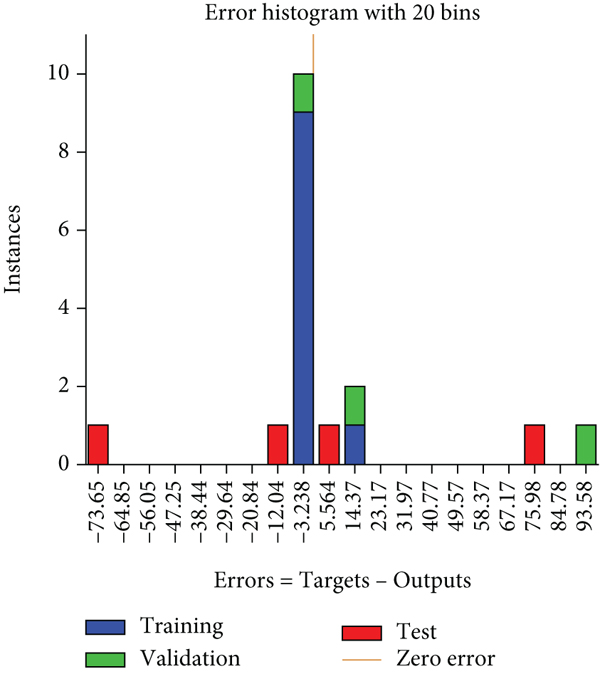

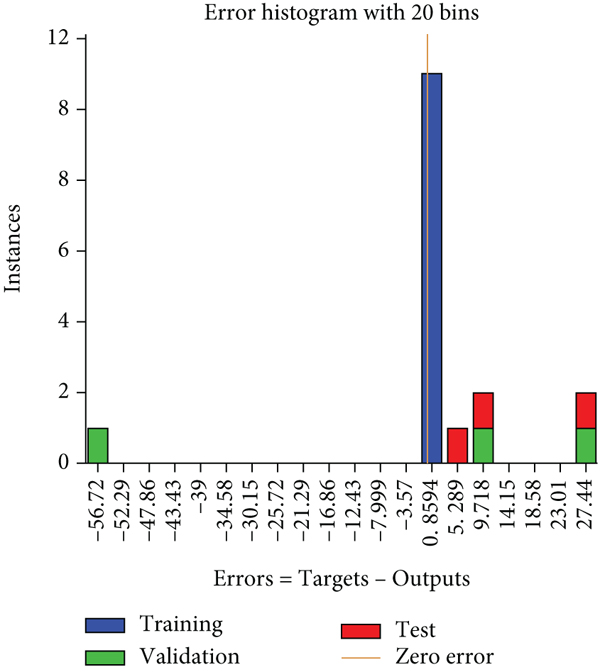

Figure 6

Error plots of (a) iodine and (b) methylene blue.

(b)

Figure 7

Effectiveness plots of (a) iodine and (b) methylene blue.

(b)

According to the transmittance finding given in Figure 8, the adsorbed contains considerable microporous and mesoporous, compared with an average pore diameter of 3.16 nm. Comparison of experimental, RSM, and ANN-predicted values of iodine number and methylene blue are shown in Figures 8(a) and 8(b). Even though the precise emphasis given to K₂CO₃ is unknown at the moment, given the creation of K₂C₃O₄ just after evolvement with one additional molarity of CO at approximately 870°C, these same porous and papule responses begun by K₂CO₃ stimulation might be temporarily posited to be quite comparable to an initiation action needed to make progress by K₂C₃O₄ [40]. The additional CO launched during K₂CO₃ dissolution, on either side, could act as a gas phase to aid in the removal of gasification volatile matter from the carbonaceous mixture to a high likelihood extent and have a moderate beneficial impact on suppressing this same overaggressive porous broadening advancement to accomplish a relatively homogenous porous structure and high return [41]. Future studies should focus on a more in-depth examination of the activating effect of K₂CO₃ and K₂C₃O₄ on the pore structure of these carbonaceous materials. The ANN approach produced more future systems with a 95% reliability rate than response surface data. The ANN optimum model helps the user to account for the uncertainty associated with a particular cast combination.

Figure 8

Comparison of experimental, RSM, and ANN-predicted values of (a) iodine number and (b) methylene blue.

(b)

4. Conclusion

BBD effectively optimised the process of producing K₂CO₃-activated carbons from the jute core. RSM and ANN modelling were used to maximise the findings appropriately. The experimental results for iodine and methylene blue desorption were directly correlated very well with polynomial model predictions. The best charcoal was obtained using 900°C activating temperatures, a 1.5 molar ratio, and a 4-hour activating time. This resulted in iodine and methylene blue absorption of 1260.07 mg/g and 369.21 mg/g, respectively. It was discovered that the K₂CO₃-based pyrolysis process might be anticipated to become a safe yet incredibly efficient process of making activated carbons with a very well-defined and monocultural porous structure. Both the RSM and ANN models have to modify coefficients more significantly than 95%. (i.e., $R^{2}$ and adj. $R^{2}$ ). The prediction of ANN values of 0.9599 for iodine and 0.9675 for methylene blue reduced the average amount of anticipated errors by less than 3%. This clearly demonstrates that the adsorbed contains considerable microporous and mesoporous, compared with an average pore diameter of 3.16 nm. Even though the precise emphasis given to K₂CO₃ is unknown at the moment, given the creation of K₂C₃O₄ just after evolvement with one additional molarity of CO at approximately 870°C, these same porous and papule responses begun by K₂CO₃ stimulation might be temporarily posited to be quite comparable to an initiation action needed to make progress by K₂C₃O_4.

Footnotes

Data Availability

The data used to support the findings of this study are included within the article. Should further data or information be required, these are available from the corresponding author upon request.

Conflicts of Interest

The authors declare that there are no conflicts of interest regarding the publication of this paper.

References

Zhang

Mechanical properties of activated carbon fibers

Activated Carbon Fiber and Textiles 2017 6

8674382

167 180

10.1016/B978-0-08-100660-3.00006-7

2-s2.0-85017474897

Martin-Gullon

Font

Dynamic pesticide removal with activated carbon fibers

Water Research 2001 35

8674382

2 516 520

10.1016/S0043-1354(00)00262-1

2-s2.0-0035255452

11229006

Gupta

V. K.

Pathania

Sharma

Adsorptive remediation of cu(II) and Ni(II) by microwave assisted H₃PO₄ activated carbon

Arabian Journal of Chemistry 2017 10

8674382

S2836 S2844

10.1016/J.ARABJC.2013.11.006

2-s2.0-84888786698

Zheng

Zhao

Preparation and characterization of activated carbon fiber (ACF) from cotton woven waste

Applied Surface Science 2014 299

8674382

86 91

10.1016/j.apsusc.2014.01.190

2-s2.0-84896401285

Nieto-Delgado

Partida-Gutierrez

Rangel-Mendez

J. R.

Preparation of activated carbon cloths from renewable natural fabrics and their performance during the adsorption of model organic and inorganic pollutants in water

Journal of Cleaner Production. 2019 213

8674382

650 658

10.1016/J.JCLEPRO.2018.12.184

2-s2.0-85059559385

Velmurugan

Babu

Statistical analysis of mechanical properties of wood dust filled jute fiber based hybrid composites under cryogenic atmosphere using Grey-Taguchi method

Materials Research Express. 2020 7

8674382

10.1088/2053-1591/ab9ce9

Wang

Experimental investigation of _Luffa cylindrica_ as a natural sorbent material for the removal of a cationic surfactant

Journal of the Taiwan Institute of Chemical Engineers 2013 44

8674382

1 74 80

10.1016/j.jtice.2012.08.006

2-s2.0-84871681988

Munawar

S. S.

Umemura

Kawai

Characterization of the morphological, physical, and mechanical properties of seven nonwood plant fiber bundles

Journal of Wood Science. 2007 53

8674382

2 108 113

10.1007/S10086-006-0836-X

2-s2.0-34247327268

Symington

M. C.

Banks

W. M.

West

O. D.

Pethrick

R. A.

Tensile testing of cellulose based natural fibers for structural composite applications

Journal of Composite Materials 2009 43

8674382

9 1083 1108

10.1177/0021998308097740

2-s2.0-65449158858

10.

Sudin

Swamy

Bamboo and wood fibre cement composites for sustainable infrastructure regeneration

Journal of Materials Science 2006 41

8674382

21 6917 6924

10.1007/S10853-006-0224-3

2-s2.0-33751540888

11.

Kicińska-Jakubowska

Bogacz

Zimniewska

Review of natural fibers. Part I—vegetable fibers

Journal of Natural Fibers 2012 9

8674382

3 150 167

10.1080/15440478.2012.703370

2-s2.0-84866272972

12.

Gopinath

Murugesan

Manjula Devi

Venkatesan

Sudha

Kannan

J. C.

Keerthika

Characterization of jute fibre-epoxy reinforced composites

Materials Today: Proceedings. 2021 46

8674382

8858 8863

10.1016/j.matpr.2021.04.434

13.

Yallew

T. B.

Kumar

Singh

Sliding wear properties of jute fabric reinforced polypropylene composites

Procedia Engineering. 2014 97

8674382

402 411

10.1016/j.proeng.2014.12.264

2-s2.0-84922283611

14.

Ganesan

Kaliyamoorthy

Utilization of Taguchi technique to enhance the interlaminar shear strength of wood dust filled woven jute fiber reinforced polyester composites in cryogenic environment

Journal of Natural Fibers 2022 19

8674382

6 1990 2001

10.1080/15440478.2020.1789021

15.

Chinta

V. S.

Ravinder Reddy

Prasad

K. E.

The effect of stacking sequence on the tensile properties of jute fibre reinforced hybrid composite material for axial flow fan blades: an experimental and finite element investigation

Materials Today: Proceedings. 2022 59

8674382

747 755

10.1016/j.matpr.2021.12.500

16.

Mohanty

A. K.

Misra

Studies on jute composites—a literature review

Polymer-Plastics Technology and Engineering. 1995 34

8674382

5 729 792

10.1080/03602559508009599

2-s2.0-0029228102

17.

Reddy

Yang

Biofibers from agricultural byproducts for industrial applications

Trends in Biotechnology. 2005 23

8674382

1 22 27

10.1016/j.tibtech.2004.11.002

2-s2.0-11444264189

15629854

18.

Mohanty

A. K.

Khan

M. A.

Hinrichsen

Surface modification of jute and its influence on performance of biodegradable jute-fabric/Biopol composites

Composites Science and Technology 2000 60

8674382

7 1115 1124

10.1016/S0266-3538(00)00012-9

2-s2.0-0034193759

19.

Kaliappan

Mohanamurugan

Nagarajan

P. K.

Numerical investigation of sinusoidal and trapezoidal piston profiles for an IC engine

Journal of Applied Fluid Mechanics 2020 13

8674382

1 287 298

20.

Kazemi

Javanbakht

Alginate beads impregnated with magnetic [email protected] nanocomposite for cationic methylene blue dye removal from aqueous solution

International Journal of Biological Macromolecules. 2020 154

8674382

1426 1437

10.1016/j.ijbiomac.2019.11.024

31733254

21.

Quesada

H. B.

de Araújo

T. P.

Cusioli

L. F.

de Barros

M. A. S. D.

Gomes

R. G.

Bergamasco

Caffeine removal by chitosan/activated carbon composite beads: adsorption in tap water and synthetic hospital wastewater

Chemical Engineering Research and Design. 2022 184

8674382

1 12

10.1016/j.cherd.2022.05.044

22.

Debnath

Haldar

Purkait

M. K.

Environmental remediation by tea waste and its derivative products: a review on present status and technological advancements

Chemosphere 2022 300

8674382

134480

10.1016/j.chemosphere.2022.134480

35395270

23.

Balaji

Kaliappan

Madhuvanesan

D. M.

Ezhumalai

D. S.

Boopathi

Mani

Combustion analysis of biodiesel-powered propeller engine for least environmental concerns in aviation industry

Aircraft Engineering and Aerospace Technology 2022 94

8674382

5 760 769

24.

Onyekwere

O. S.

Odiakaose

Uyanga

K. A.

Multi response optimization of the functional properties of rubber seed – shear butter based core oil using D-optimal mixture design

Archives of Foundry Engineering. 2017 17

8674382

4 207 223

10.1515/AFE-2017-0159

2-s2.0-85041043400

25.

Ghelich

Jahannama

M. R.

Abdizadeh

Torknik

F. S.

Vaezi

M. R.

Central composite design (CCD)-response surface methodology (RSM) of effective electrospinning parameters on PVP-B-Hf hybrid nanofibrous composites for synthesis of HfB₂-based composite nanofibers

Composites Part B: Engineering. 2019 166

8674382

527 541

10.1016/J.COMPOSITESB.2019.01.094

2-s2.0-85062258460

26.

Sasidharan

Kumar

Response surface methodology for optimization of heavy metal removal by magnetic biosorbent made from anaerobic sludge

Journal of the Indian Chemical Society. 2022 99

8674382

9, article ???

10.1016/J.JICS.2022.100638

27.

Bhatti

M. S.

Kapoor

Kalia

R. K.

Reddy

A. S.

Thukral

A. K.

RSM and ANN modeling for electrocoagulation of copper from simulated wastewater: multi objective optimization using genetic algorithm approach

Desalination 2011 274

8674382

1-3 74 80

10.1016/J.DESAL.2011.01.083

2-s2.0-79955484718

28.

Muthiya

S. J.

Natrayan

Kaliappan

Patil

P. P.

Naveena

B. E.

Dhanraj

J. A.

Subramaniam

Paramasivam

Experimental investigation to utilize adsorption and absorption technique to reduce CO2 emissions in diesel engine exhaust using amine solutions

Adsorption Science & Technology 2022 2022, article 9621423

8674382

1 11

29.

Matheswaran

M. M.

Arjunan

T. V.

Muthusamy

Natrayan

Panchal

Subramaniam

Sonawane

A case study on thermo-hydraulic performance of jet plate solar air heater using response surface methodology

Case Studies in Thermal Engineering 2022 34, article 101983

8674382

10.1016/j.csite.2022.101983

30.

Paranthaman

Shanmuga Sundaram

Natrayan

Influence of SiC particles on mechanical and microstructural properties of modified interlock friction stir weld lap joint for automotive grade aluminium alloy

Silicon 2022 14

8674382

4 1617 1627

10.1007/s12633-021-00944-5

31.

Subramanian

Lakshmaiya

Ramasamy

Devarajan

Detailed analysis on engine operating in dual fuel mode with different energy fractions of sustainable HHO gas

Environmental Progress & Sustainable Energy 2022 41

8674382

5, article e13850

32.

Rodríguez-Sánchez

A. E.

Ledesma-Orozco

Ledesma

Vidal-Lesso

Application of artificial neural networks to map the mechanical response of a thermoplastic elastomer

Materials Research Express. 2019 6

8674382

10.1088/2053-1591/AB13EC

2-s2.0-85065848067

33.

Yun

G. J.

Ghaboussi

Elnashai

A. S.

A new neural network-based model for hysteretic behavior of materials

International Journal for Numerical Methods in Engineering. 2008 73

8674382

4 447 469

10.1002/NME.2082

2-s2.0-38349175675

34.

Dimiduk

D. M.

Holm

E. A.

Niezgoda

S. R.

Perspectives on the impact of machine learning, deep learning, and artificial intelligence on materials, processes, and structures engineering

Innovations 2018 7

8674382

3 157 172

10.1007/S40192-018-0117-8

35.

Wang

Zhu

Wei

Lin

Jing

Shi

Misra

R. D. K.

Hot deformation behaviors of AZ91 magnesium alloy: constitutive equation, ANN- based prediction, processing map and microstructure evolution

Journal of Alloys and Compounds. 2022 908

8674382

164580

10.1016/j.jallcom.2022.164580

36.

Masi

Stefanou

Multiscale modeling of inelastic materials with thermodynamics-based artificial neural networks (TANN)

Computer Methods in Applied Mechanics and Engineering 2022 398, article 115190

8674382

10.1016/j.cma.2022.115190

37.

Habib

Yildirim

Developing a physics-informed and physics-penalized neural network model for preliminary design of multi-stage friction pendulum bearings

Engineering Applications of Artificial Intelligence. 2022 113

8674382

104953

10.1016/j.engappai.2022.104953

38.

Dong

Zhang

Yang

Xiong

Zhao

Single and competitive adsorption between indigo carmine and methyl orange dyes on quaternized kapok fiber adsorbent prepared by radiation technique

Separation and Purification Technology. 2022 292

8674382

121103

10.1016/j.seppur.2022.121103

39.

Ghosh

Bhattacharyya

K. G.

Adsorption of methylene blue on kaolinite

Applied Clay Science. 2002 20

8674382

6 295 300

10.1016/S0169-1317(01)00081-3

2-s2.0-0036469247

40.

Rafatullah

Sulaiman

Hashim

Ahmad

Adsorption of methylene blue on low-cost adsorbents: a review

Journal of Hazardous Materials. 2010 177

8674382

1-3 70 80

10.1016/J.JHAZMAT.2009.12.047

2-s2.0-77949571251

20044207

41.

Shankar

V. S.

Velmurugan

Kaliappan

Baskara Sethupathy

Sekar

Patil

P. P.

Anitha

Kailo

G. G.

Optimization of CO2 concentration on mortality of various stages of Callosobruchus maculatus and development of controlled atmosphere storage structure for black gram grains

Adsorption Science & Technology 2022 2022

8674382

1 12

10.1155/2022/3381510
