Construction of Te-ZnO@S-g-C 3 N 4 Heterojunction Nanocomposites for the Efficient Removal of Methylene Blue,Antifungal Activity,and Adsorption of Cr(VI) Ion

Abstract

Heterojunctions have proven to be effective catalysts for removing organic pollutants and heavy metals from wastewater. The following study is also about the formation of 2D heterojunction tellurium-doped zinc oxide composite with sulfur-doped graphitic carbon nitride (Te-ZnO@S-g-C₃N₄) by adopting a low-cost, simple, and ecofriendly coprecipitation technique. Thiourea was calcined to prepare S-g-C₃N₄ using the thermal degradation method. The characterization of synthesized photocatalysts was carried out by using SEM-EDX, FTIR, and XRD. The results obtained showed that the incorporation of tellurium caused an alteration in the wurtzite structure of ZnO. SEM-EDX analysis validated the purity of the synthesized samples due to the absence of any additional peaks. The decrease in the bandgap was also noted by the formation of composites. Using methylene blue as a reference dye, the UV-vis spectrophotometer was utilized to calculate the absorbance for photocatalytic degradation behavior. As a result of tellurium doping into the ZnO lattice, photocatalytic oxidation/reduction was improved, according to the results. 3Te-ZnO NPs showed the best degradation rate among dopant series, while an excellent overall degradation rate was noted by fabricated composite 3Te-ZnO@40S-g-C₃N₄. The best doped ZnO and composites were also used as sorbents for the abstraction of heavy metal (Cr(VI)) from water via adsorption. A definite rise in the removal efficiency percentage of chromium ions was observed by using these sorbents. The overall photo degradation rate and adsorption behavior noted were in ZnO<Te-ZnO<Te-ZnO@S-g-C₃N₄ order. When compared to ZnO, Te-ZnO, SCN, and Te-ZnO@40SCN, the 3Te-ZnO@40SCN NCs have outstanding antifungal potential. The improved dispersibility and interaction of 3Te-ZnO@40SCN with membrane and intracellular proteins of fungi may be the cause of the greater effect of Te-ZnO@40SCN.

1. Introduction

Unpredictable climate change and an increase in human population have recently resulted in the crisis of clean water supply for both people and wildlife [1, 2]. Moreover, dye emission from various sectors is another issue that contaminates water and has drawn a lot of attention [3]. The effluents obtained from the printing industry and textile dyeing are complex and contain dissolved and suspended solids, organic compounds, and heavy metals [4]. Since azo dyes do not stick to the cloth during the dyeing process, 15 to 50 percent of them are washed away with the wastewater. This wastewater is employed in irrigation procedures even though it is not beneficial for crop germination or growth [5–7]. Textile dyes also cause mutations and generate cancer-causing agents [8]. A kind of basic cationic dye that is widely used by many industries is methylene blue (MB). Shock, tissue necrosis, cyanosis, vomiting, and jaundice become more common in affected individuals [8]. Dyes decrease the light penetration in water, thus affecting the photosynthesis process [9]. Therefore, it surely needs to remove these dyes from the wastewater. To treat contaminated effluents, several physical, chemical, and biological techniques have been employed. The photocatalytic degradation of organic pollutants utilizing nanoparticles as the photocatalyst is one of the environmentally friendly methods for treating industrial effluent.

The photocatalysis mechanism involves the conversion of toxic pollutants into nontoxic ones through light irradiation [10]. A wide range of semiconductor photocatalysts (e.g., TiO₂ [11–15], ZnO [1], CuO [16], NiS [17], SnO₂ [18], ZrO₂ [19], and WO₃ [20]) with various nanostructures have been studied. At ambient temperature, ZnO has a relatively wide bandgap of about 3.37 eV, an excitation energy of about 15 meV, and a significantly high excitation binding energy of around 60 meV. It is a transparent, dielectric, and piezoelectric semiconducting oxide [21]. It is observed from previous studies that the photoactivity of bare ZnO is limited due to the instant recombination of photogenerated e^--h⁺ pairs, photocorrosion, and visible light inactiveness [22]. Metal doping enhances the photocatalytic efficiency of ZnO. By introducing impurities between energy levels in the form of a midgap state, doping aids in the reduction of the bandgap. Dopants can alter the size of the grain and its corresponding surface area, as well as cause structural and microstructural flaws [23–25]. The doping of tellurium (Te) in zinc oxide (ZnO) can tailor its (ZnO) luminescence properties through the passivation of oxygen defects [26–28]. It has been reported that on doping of ZnO, the bond length between Zn and O will change due to stretching vibrations and shifting to lower and higher energy regions. The bond length value between Zn and O will also decrease at high levels of Te doping and increase at low doping concentrations [29]. Te-ZnO photocatalytic efficiency still falls short of expectations. To increase its catalytic efficiency, it can be coupled with a suitable polymeric molecule. g-C₃N₄ may be a helpful semiconductor for integrating with other semiconductors, notably ZnO, because of its suitable bandgap (2.7 eV) and absorption in the visible spectrum of light [30–33]. The nitrogen incorporated in carbon nitride helps to capture more visible light because of its lower electronegativity and higher potential energy compared to oxygen [1]. It has been thoroughly investigated as a practical, stable, affordable, and safe photocatalyst to address the pollution concerns.

Up to now, several reports on the metal doping in ZnO have been demonstrated, which showed an increase in the photocatalytic degradation rate as compared to ZnO [34]. Jamali-Sheini et al. revealed morphological and structural changes due to the Te doping into ZnO. Shanmugam et al. reported the improved photodegradation efficiency of brilliant green (BG) by employing Te-doped ZnO nanosheets. Sher et al. loaded Mo-ZnO on g-C₃N₄ nanosheets in order to obtain superior photocatalytic efficiency against MB [35]. Ahmad et al. reported that Ag-doped ZnO nanoparticles are efficient photocatalysts to photodegrade methyl orange, rhodamine B, and safranine O in a short time [36]. Equally, the doped metal oxide coupling on g-C₃N₄ sheets has been stated to demonstrate the improved photocatalytic behavior. Sher et al. and Kuang et al. designed a highly effective g-C₃N₄/Sn ZnO photocatalyst that showed an improvement in the photocatalytic effectiveness of MB from 35 to 88% [37, 38]. Qamar et al. reported 100% degradation of MB by using g-C₃N₄/Co@ZnO under sunlight [39]. Zhang et al. reported 98.97% of MB degradation by using a novel ternary nanocomposite (Ag/g-C₃N₄/LaFeO₃). In order to degrade Rh-B under the influence of visible light, Zhang et al. synthesized g-C₃N₄/MoS₂/grapheme nanocomposite that shows a photodegradation rate nearly 4.8 times superior to that of pristine g-C₃N₄ [40].

Inspired by the improved photocatalytic performance of metal-doped ZnO and ZnO/S-g-C₃N₄, we fabricated Te-ZnO and Te-ZnO/S-g-C₃N₄ via the ecofriendly coprecipitation technique. Thiourea was polycondensed to produce S-g-C₃N₄. Using a model dye, the photocatalytic characteristics of manufactured catalysts were investigated (MB). The subsequent investigation was divided into two parts. Phase 1 of the investigation looked at the photocatalytic capability of Te-doped zinc oxide NPs (1, 3, 6, 9, 12, and 15 wt%). The greatest dye degradation rate/efficiency was achieved by the 3 percent Te-ZnO NPs (3 Te-ZnO). The 3 percent Te-ZnO NPs were combined with S-g-C₃N₄ (SCN) concentrations of 20, 40, 60, and 80 weight percent in the second phase to create Te-ZnO/S-g-C₃N₄ NCs, which further increased the photocatalytic activity. In comparison to other samples, the 3Te-ZnO@40SCN nanocomposite (3Te-ZnO@40SCN) had the best photocatalytic activity. The synthetic materials might find use in the wastewater treatment industry. Furthermore, nanocomposite uses are not restricted to the purification of wastewater/dye water. They can also be used to fabricate energy storage and conversion devices due to their environmentally pleasant nature [41, 42].

2. Materials and Methods

2.1. Reagents

The zinc chloride (ZnCl₂), tellurium (Te), methylene blue, ammonia (NH₃), potassium dichromate, polyethylene glycol, and thiourea (CH₄N₂S) were bought from Merck and employed as such.

2.2. Synthesis of Undoped ZnO and Te-Doped ZnO NPs

In a typical ZnO synthesis experiment, 200 ml of distilled water was used to dissolve 3.38 g of ZnCl2 and 4 ml of polyethylene glycol. NH₃ (4 ml) was added dropwise and stirred continuously for two hours, causing white precipitates to develop (a milky solution). The precipitates were collected, repeatedly rinsed in a water/ethanol solution, and then dehydrated in an oven for two hours at roughly 80°C. Then, calcination of the precipitates was carried out at 400°C in a muffle furnace for 3 hours. Finally, precipitates were ground and stored. A series of Te-doped ZnO nanoparticles (1, 3, 6, 9, 12, and 15 wt%) were synthesized by the same process except with the addition of various concentrations of tellurium.

2.3. Fabrication of SCN

For the synthesis of S-g-C₃N₄ nanosheets, 10 g of the thiourea was taken in a covered crucible and placed in a muffle heating system to carry out the calcination. The temperature was gradually increased at a rate of 5°C per minute until it reached 550°C and kept there for about 4 hours [43]. The obtained yellowish product was permitted to cool at room temperature, ground into a fine powder, and then stored safely.

2.4. Synthesis of Nanocomposites (Te-ZnO@SCN)

For the preparation of 20, 40, 60, and 80% nanocomposite series, 3% Te-doped ZnO nanoparticles were hybridized with 0.005, 0.13, 0.26, and 0.39 g of S-g-C₃N₄, respectively. In a typical synthesis of 20% nanocomposites, 0.13 g of Te powder was added into a 0.1 M solution of ZnCl₂ under magnetic stirring. To induce precipitation, 4 mL NH₃ was added dropwise to the solution, whereas 4 mL polyethylene glycol was added to avoid agglomeration. This solution is marked as solution A. Subsequently, the required S-g-C₃N₄ was ultrasonically dispersed into 50 ml water to prepare solution B. After that, the two solutions were combined into a single beaker and swirled for around two hours at room temperature. The precipitates were dehydrated in an oven at 80°C for two hours after filtering and washing with water/ethanol. In a muffle furnace, the precipitates were calcined for roughly three hours at 400°C. The finished product was powdered down to a fine consistency.

3. Results and Discussion

3.1. Bandgap Determination: Optical Property

The UV-visible spectroscopy was used to measure the absorbance of the fabricated samples that were further used to draw the “Tauc plot.” The calculated bandgaps for ZnO NPs and g-C₃N₄ NSs were 3.13 and 2.32 eV, respectively, as shown in Figures 1(a) and 1(b). These bandgaps obtained were similar to the previously reported work [44–46]. These bandgap values indirectly confirmed the successful synthesis of the desired ZnO and SCN. The bandgap of 3Te-ZnO NPs was calculated to be 2.59 eV (Figure 1(c)), indicating that doping reduced the bandgap of ZnO. Tellurium (Te) doping on ZnO can tailor its luminous properties by passivation oxygen defects [27–29, 47]. The bandgap of Te-ZnO@40SCN was calculated as 2.10 eV (Figure 1(d)), indicating that hybridization with SCN further lowered the bandgap of ZnO. In order to make ZnO a more efficient photocatalyst in visible light, the bandgap narrowing showed that ZnO hybridization reduced the bandgap and shifted its light-absorbing ability toward the visible portion of the light spectrum (red shift) [48].

Figure 1

Bandgap estimation of (a) ZnO, (b) Te-ZnO, (c) SCN, and (d) Te-ZnO@SCN by employing the Tauc plot.

(b)

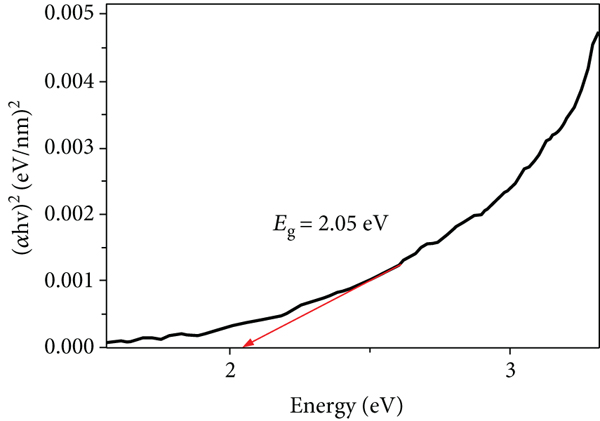

(c)

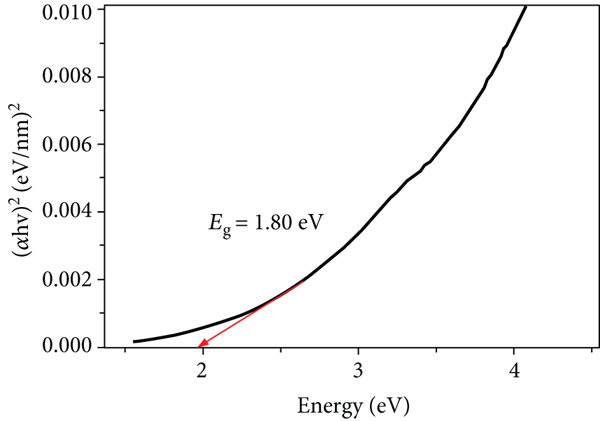

(d)

3.2. Validation of Functional Group by FTIR Spectrum

To confirm the functional groups of the manufactured samples, FTIR spectroscopy was performed to characterize them (Figure 2). The FTIR spectra of ZnO showed the fundamental mode of vibration at around 3492 cm^-1 due to O-H stretching [49]. For 3% tellurium-doped ZnO, a peak around 3503 cm^-1 was observed that indicated stretching vibrations of the -OH group due to the presence of moisture/water. Weak bands for Te-ZnO NDP in the 611-1518 cm^-1 range are a sign that Te⁴⁺ ions were successfully incorporated into the ZnO NPs. These peaks obtained are almost similar to the absorption band observed for ZnO NPs, with a slightly higher wavenumber cm^-1. SCN’s FTIR spectra showed a distinct absorption band at 808 cm^-1, which is connected to the triazine group’s stretching vibration. The existence of C-N heterocycles that have undergone vibrational stretching is indicated by the absorption bands that were detected in the 1228-1616 cm^–1 range. The water molecule adsorbed and N-H vibration probability associated with uncondensed amine groups are represented by the characteristic band at 3111 cm^-1 [43].

Figure 2

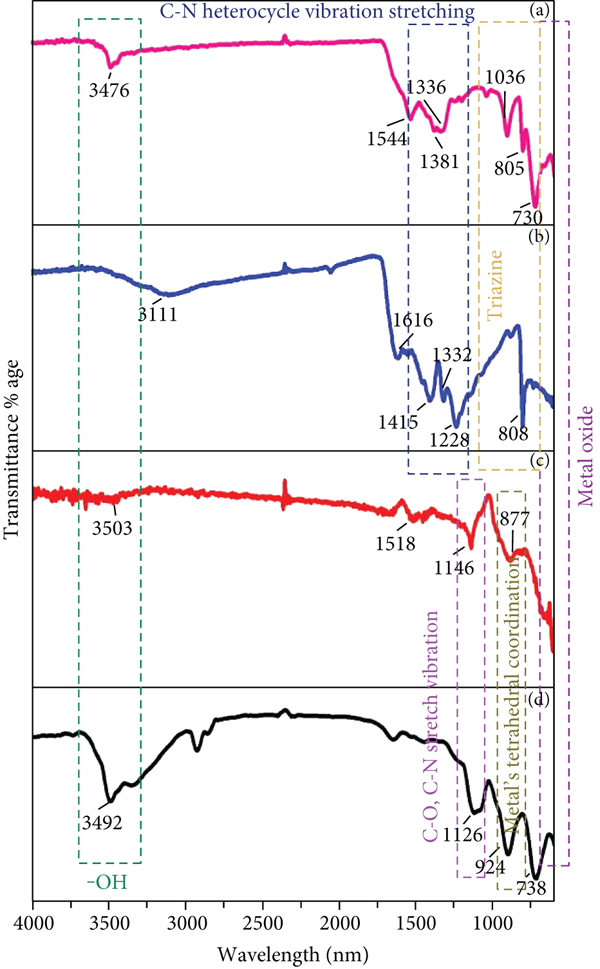

FTIR spectrum of (a) ZnO, (b) Te-ZnO, (c) SCN, and (d) Te-ZnO@SCN.

These spectra’s peaks coincide with previously published research. The precise absorption bands at 3476, 2986, 1381, 1036, 885, and 718 cm^-1 were seen in the composite spectra like the peaks in 3Te-ZnO, while the peaks at 808, 1336, and 1544 cm^-1 resemble the absorption bands found in SCN spectra. It confirms the successful synthesis of 3Te-ZnO@SCN nanocomposite. An increase in the transmittance percentage was observed by the incorporation of Te-doped NPs into SCN.

3.3. Structural Confirmation by X-Ray Diffractograms

The phase, purity, and lattice characteristics of the produced nanocatalysts (ZnO, SCN, and Te-ZnO@40SCN) were characterized by XRD. The XRD pattern of zinc oxide showed peaks at $2 θ ° = 32.29 °$ , 34.94°, 36.77°, 48.04°, 57.08°, 63.33°, 66.89°, 68.41°, 69.52°, 77.03°, and 77.45° which correspond to (100), (002), (101), (102), (110), (103), (200), (112), (201), (004), and (202) crystalline planes of ZnO (Figure 3(a)). All these peaks or characteristics of the Miller indices validate the wurtzite structure of ZnO. The result obtained was the same as the previously reported work [29, 36, 50, 51]. Indicating the successful doping of Te into ZnO and the coupling of SCN with Te-ZnO photocatalysts, the X-ray diffraction patterns of 3Te-ZnO and Te-ZnO/40%SCN exhibit a little shift toward the lower angle (Figure 3(b)). This discovery shows that Te⁴⁺ has successfully replaced Zn2+ in the ZnO lattice [29, 52].

Figure 3

XRD pattern of (a) ZnO, (b) Te-ZnO, (c) SCN, (d) Te-ZnO@SCN, and (e) shifting of angles.

Figure 3(c) displays the XRD form for S-g-C₃N₄ containing the two distinct peaks at 13.02° and 27.3° which correspond to the (100) and (002) facets of the crystals. These two peaks are probably due to the interplanar tri-s-triazine unit and the coupled aromatic arrangement, respectively. In the XRD findings of Te-ZnO/40%SCN, the crystal planes (100) and (002) are due to the peaks at 11.67° and 27.97° confirming the presence of S-g-C₃N₄ while the peaks appearing (32.25°, 34.8°, 36.7°, 48.0°, 57.0°, 63.3°, 66.8°, 68.4°, 69.4°, 72.9°, and 77.3°) correspond to the crystalline planes of tellurium-doped ZnO. The intensity of all these peaks is slightly lower as compared to peaks present in ZnO and tellurium-doped zinc oxide diffractograms, which indicate successful synthesis of Te-doped zinc oxide composite with SCN (Figure 3(d)).

3.4. SEM-EDX Analysis

The morphological structure and corresponding elemental makeup of ZnO, Te-ZnO NPs, and Te-ZnO@SCN NCs are described using SEM-EDX images in Figures 4(a)–4(f). ZnO NPs exhibited porous morphology with particle widths in the range of 100–600 nm, but these NPs had an average particle size of ~291 nm (Figure 4(a)). Zn and O peaks are present in the ZnO EDX spectrum, indicating that the NPs are pure (Figure 4(b)). The particles have a rod-like shape with a preferential horizontal orientation. The Te-ZnO NPs are showing a disordered rod-like structure (Figure 4(c)). In EDX spectrum of Te-ZnO, peaks for the Te, Zn, and O elements are seen (Figure 4(d)). The rod structures of these NPs are more stacked together than ZnO NPs forming the agglomeration. This agglomeration is due to the reduction of the combined total surface energy of all the particles. The average width recorded for these nanorods is 300 nm. The Te-ZnO@SCN NCs’ morphology is seen in Figure 4(e). The elemental peaks for sulfur, carbon, nitrogen, zinc, oxygen, and Te can be seen in the EDX spectrum of Te-ZnO@SCN NCs, which is oriented haphazardly on the surface of the SCN sheets in NCs (Figure 4(f)). No additional peak was present, confirming the purity of the synthesized samples.

Figure 4

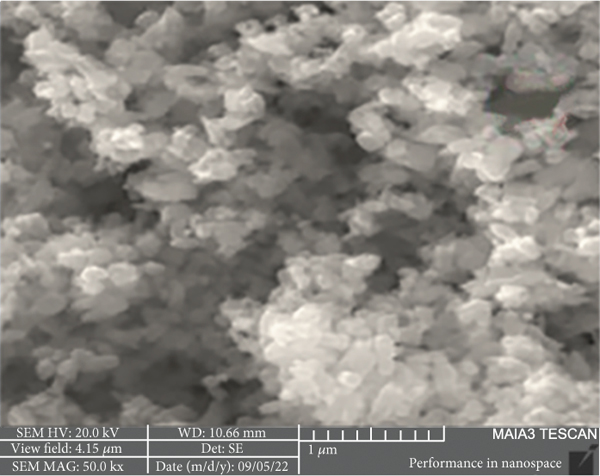

SEM-EDX analysis of (a, b) ZnO, (c, d) Te-ZnO, and (e, f) Te-ZnO@SCN.

(b)

(c)

(d)

(e)

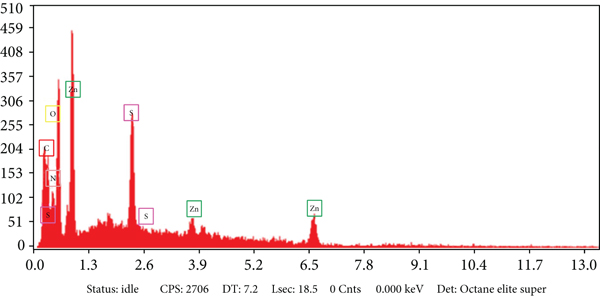

(f)

3.5. XPS Analysis

XPS measurements were used to look into the constituent elements’ chemical states and composition in the 3Te-ZnO@40SCN NCs. The deconvolution Zn 2p spectrum in Figure 5(a) exhibits two distinct Zn²⁺ peaks at 1021.82 and 1044.76 eV. It is possible to see two satellite peaks in Zn 2p with binding energies of around 1026.14 and 1049.15 eV [53, 54]. In the XPS spectrum of Te 3d (Figure 5(b)), four characteristic peaks of Te 3d_3/2 (583.21 eV), Te 3d_5/2 (573.21 eV), and TiO_x (587.04 and 576.71 eV) eV were linked with metallic Te and silver ions Te⁴⁺, respectively; this fits with the literature perfectly [55]. In the deconvolution O 1s spectra of 3Te-ZnO@40SCN NCs, there are two peaks that correspond to C-O and Zn-O, respectively (Figure 5(c)). At binding energies of 531.47 and 530.48 eV, these peaks were seen. In Figure 4(b), high-resolution N 1s spectra show three distinct peaks. N-(C)₃ and sp²-hybridized nitrogen (C-N-C) are responsible for the N 1s peak in the CN network at 398.1 and 399.1 eV, respectively. N-H on the powder surface is often blamed for the peak at 400.69 eV. Two distinct peaks can be seen at 283.21 and 287.61 eV in the high-resolution C 1s spectra (see Figure S1a). The first is made up of graphitic carbon that has been adsorbed onto the surface of CN, and the second is made up of sp²-bonded carbon (N-C-N) in the CN network. 3Te-ZnO@40SCN heterostructure S exhibits two peaks in the S 2p XPS spectra (Figure 1Sb) at 160.10 and 160.98 eV. The XPS measurements confirmed the production of the 3Te-ZnO@40SCN nanostructure and the formation of a heterointerface between Te-ZnO and SCN.

Figure 5

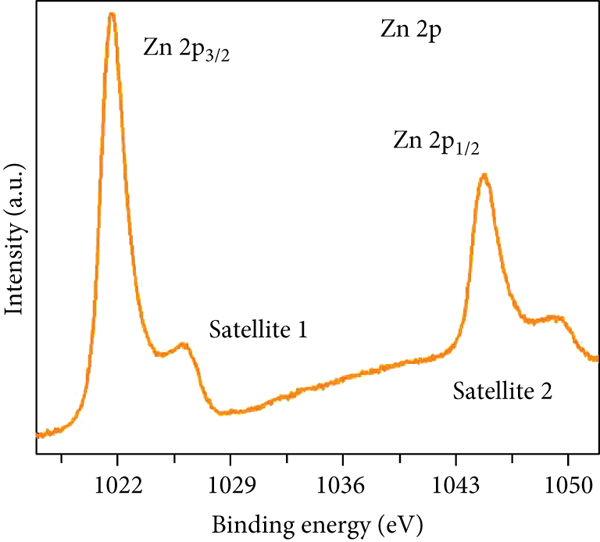

High-resolution XPS spectra of Te-ZnO@SCN: (a) Zn 2p, (b) Te 3d, (c) O 1s, and (d) N 1s.

(b)

(c)

(d)

3.6. PL and BET Analyses

As shown in Figure 6(a), the photoinduced charge transfer and separation efficiency of 3Te-ZnO@40SCN NCs were investigated using PL at a 325 nm excitation wavelength. The NCs of Te-ZnO@SCN significantly lowered the surface trap-state PL of the ZnO at 565 nm (Figure 6(a)), exhibiting efficient transport and split of photogenerated e^--h⁺ sets [53]. The 3Te-ZnO@40SCN NCs in this study see a decrease in electron-hole recombination, pointing to a fine heterojunction at the Te-ZnO and SCN interface. ZnO>Te-ZnO>3Te-ZnO@40SCN is the order of the studied samples’ PL intensity’s downward trend. According to the data, 3Te-ZnO@40SCN NC is enough to give increased charge carrier transport efficacy across the 3Te-ZnO@40SCN interface, leading to a very effective charge transfer technique.

Figure 6

(a) PL spectra and (b) N₂ adsorption-desorption isotherms of Te-ZnO, ZnO, and Te-ZnO@SCN NCs.

(b)

For pure ZnO, Te-ZnO, and 3Te-ZnO@40SCN NCs, Figure 6(b) reveals the N₂ adsorption-desorption isotherms. It is not surprising that spherical materials like pure ZnO NPs, Te-ZnO, and 3Te-ZnO@40SCN NCs have specific surface areas of up to 5.73, 17.13, and 51.97 m²/g, correspondingly. The surface area of 3Te-ZnO@40SCN NCs is greater than that of pure ZnO and Te-ZnO because various hybridization materials can aid in the formation of additional surface-active sites. The photocatalytic activities of 3Te-ZnO@40SCN NCs are improved by the ability of mesoporous 3Te-ZnO@40SCN NCs to effectively reduce photoinduced e^--h⁺ pair recombination processes.

3.7. Photocatalytic Ability

Under the influence of sunlight, the photocatalytic ability of constructed samples was assessed. First, as shown in Figure 7(a), the photocatalytic activities of produced nanoparticles (ZnO and Te-ZnO) were investigated employing an aqueous MB solution outdoors. The deterioration contours (Figure S2) and percent degradation plots make this abundantly obvious (Figure 7(b)) that increasing the Te+4 doping up to 3 percent wt. boosted the photocatalytic activity of Te-ZnO NPs, which afterwards reduced up to 15 percent wt. Since Te⁴⁺ doping reduces Te-ZnO NPs’ bandgap and makes the e/h⁺ pair easier to form, Te-ZnO NPs have improved photocatalytic ability than ZnFe₂O₄. It has been shown that doping pure ZnO with different metal ions may change its optical and structural characteristics and raise the metal-doped ZnO’s photocatalytic efficiency [56]. Therefore, Te (3 wt%) is the ideal doping content for Te-ZnO NPs, and while the content of doped Te⁴⁺ ions is raised above this level (3 wt%), Te-ZnO NPs’ photocatalytic activity is reduced (Figures 7(a) and 7(b)). After 120 minutes, 3Te-ZnO NPs and ZnO NPs showed the highest (78%) and lowest (51%) photocatalytic activity, respectively. In comparison to other NPs, the 3Te-ZnO NPs had the best photocatalytic efficiency.

Figure 7

Degradation rate (a) and % degradation (b) of MB by ZnO and Te-ZnO NPs.

(b)

The 3Te-ZnO NPs were then homogenised with various concentrations of S-g-C3N4 (as listed in Table 1) to create Te-ZnO@SCN NCs, and their photocatalytic effectiveness toward MB was assessed. Before exposure to sunlight, the NCs were left in the dark to create a symmetry between dye and photocatalysts [35]. Figures 7(a) and 7(b) show that the photocatalysts only absorbed a little amount of MB. The 3Te-ZnO@40SCN NCs showed the highest dye degradation when compared to the other samples after samples were subjected to sunlight. The photocatalytic performance increased as the SCN nanosheet loading increased from 20 to 40%, as shown by the degradation curves (Figure S3) and percentage removal plots (Figures 8(a) and 8(b)), before declining for NCs containing the SCN more than 40%. Better charge separation and more excellent visible light absorption of the Te-ZnO@SCN are primarily responsible for this enhanced degradation outcome. Thus, according to the current research, the ideal S-g-C₃N₄ concentration was found to be 40% (wt%), and Te-ZnO@SCN NC was able to degrade ≈96% MB in 90 minutes. It is most likely due to the effective junction of S-g-C₃N₄ with ZnO. However, increasing the S-g-C₃N₄ concentration beyond 40% may provide extra e-h pair recombination centers, reducing the photocatalytic efficiency. To better understand this justification, additional research is necessary [57–59]. The degradation efficiencies of the synthesized ZnO, SCN, and Te-ZnO@ (20, 40, 60, and 80 wt%) SCN NCs after 90 minutes of exposure to sunshine are 62%, 67%, 91%, 96%, 88%, and 82%, respectively. The percent photocatalytic removal of MB by comparable NCs is shown in Figure 7(b).

Table 1

The Te-ZnO@SCN nanocomposites’ rate constant ( $k$ ) values.

Sr. no.	Nanocomposites	S-g-C₃N₄ (wt%)	% degradation	$k$ (min⁻¹)
1	S-g-C₃N₄	100	51	0.0145
2	ZnO	—	54	0.0133
3	Te-ZnO@20SCN	20	65	0.0251
4	Te-ZnO@40SCN	40	89	0.0323
5	Te-ZnO@60SCN	60	100	0.0242
6	Te-ZnO@80SCN	80	85	0.0236

Figure 8

Photocatalytic removal rate (a) and % degradation (b) of MB by ZnO, SCN, and Te-ZnO@SCN NCs.

(b)

The kinetics of Te-ZnO/(0, 20, 40, 60, and 80 wt%) SCN NCs were realized using the Langmuir-Hinshelwood model, and the corresponding results are shown graphically in Figure S4 [38]. According to the kinetic investigation, the NCs’ degradation of MB in the presence of sunlight is fit to a first-order function. Table 1 lists the rate constant ( $k$ ) values of Te-ZnO@ (0, 20, 40, 60, and 80 wt%) SCN NCs.

Thus, the highest and lowest estimated “ $k$ ” values were determined to be, respectively, for 3Te-ZnO@40 percent SCN NCs (0.0323 min^-1) and ZnO (0.0133 min^-1). The MB (96%) was decoloured by the 3Te-ZnO@40 percent SCN NCs in 90 minutes, and their “ $k$ ” values were 2.4 and 2.3 times higher than those of ZnO and SCN correspondingly. A further increase in concentration may lead to the production of e-h pair sequence centers, which would progressively lower the photocatalytic efficacy of NCs. The observed optimal concentration of SCN for Te-ZnO/SCN NCs is 40%. Additionally, earlier investigations provide support for the current findings [35, 60]. Additional research is necessary to thoroughly investigate this justification. Comparing 3Te-ZnO@40SCN NC’s photocatalytic efficiency to that of other previously reported research, there is a significant difference (Table 2) [61–68]. It is possible that the improvement in the NC’s photocatalytic effectiveness over previously reported composites is attributable to the formation of more excellent heterojunctions between S-g-C₃N₄ and ZnO. Additionally, the Te ions might make it easier for the NC to transfer and separate the photoinduced e/h⁺ [25, 39, 69]. To evaluate the practicability of the 3Te-ZnO@40SCN NC, it was further employed in the recycling experiment (Figure S5).

Table 2

Comparison of the 3Te-ZnO@40SCN NC’s photocatalytic effectiveness with some earlier reports.

Sr. no.	Photocatalysts	Light sources	Contaminants	Radiation time (minutes)	Degradation percentage	Reference
1	TiO₂/GO	Solar	MB	140	97.5	[70]
2	Bi₂WO₆/CoFe₂O₄	Solar	Bisphenol A	120	92.0	[71]
3	ZnNd_xFe_2−xO₄	Xe lamp	Rhodamine B	180	98.0	[72]
4	ZnFe₂O₄	Xe lamp	Toluene	300	57.2	[73]
5	Cu₂O/BiVO₄	Visible	MB	180	73.0	[61]
5	Pt-BiFeO₃	Solar	MG	240	96.0	[62]
7	Mn–ZnO/RGO	Visible	RhB	140	99.0	[63]
8	ZnFe₂O₄@ZnO	Visible	MO	240	95.0	[64]
9	Ag/g-C₃N₄/LaFeO₃	Visible	MB	90	98.97	[40]
10	3Te-ZnO@40S-g-C₃N₄	Solar	MB	90	96.0	Present work

3.8. Scavenging Activity

Organic contaminants in water are decomposed primarily by superoxide radicals (^⋅O₂), hydroxyl radicals (^⋅OH), and photogenerated holes (h⁺) [65]. To test Te-ZnO@S-g-C3N4 NC’s ability to produce active species, scavengers were added to dye solutions containing the photocatalyst. Benzoquinone (BQ) traps superoxide radicals (·O₂), ethylenediaminetetraacetic acid- (EDTA-) 2Na catches hydroxyl ions (h⁺), and isopropanol (IPA) scavenges ^⋅OH. The efficiency of MB breakdown was reduced by 89% with the addition of benzoquinone. Only 63% and 38%, respectively, of the breakdown rates of MB were reduced by IPA and EDTA-2Na. Figure 9 details how trapping compounds affect dye degradation reactions. Thus, in the photocatalytic dye degradation process, ^⋅OH and ^⋅O₂ are more reactive than holes (h⁺).

Figure 9

Radical scavengers’ function in the photocatalytic MB degradation by 3Te-ZnO@40SCN NC.

3.9. Adsorption Activity

The effect of time on chromium adsorption was assessed using various sorbents (ZnO, 3Te-ZnO, SCN, and 3Te-ZnO@40SCN). The synthesized dopant and composite significantly boosted the adsorption capacity. The adsorption capacity showed a consistent uptrend when ZnO defects were covered by the formation of composite (3Te-ZnO@40SCN), as shown in Figure 10(a). A clear increase in the removal efficiency percentage of chromium ions was being observed by using sorbents (Figure 10(b)). The trend noted was 3Te-ZnO@40SCN>3Te-ZnO>ZnO, which was comparable to that of photocatalysts.

Figure 10

Adsorption capacity mg g^-1 (a) and removal efficiency % age of Cr ion (b) by using ZnO, SCN, Te-ZnO, and Te-ZnO@SCN.

(b)

It is well known that too little time must pass between the sorbent and the adsorbate in order for the sorbent to reach its maximum adsorption capacity. A prolonged contact period will be ineffective. Using sorbents and a particular concentration of chromium salt solution, the adsorption time range of 30–1440 min was examined in order to calculate adsorption capacities. Cr(VI) adsorption started off moving along very quickly. Due to the surface pore channels, surface functional groups, and adequate amounts of the sorbent, numerous binding sites can be provided during the initial sorption stage, allowing heavy metal ions to connect to the material’s surface with ease. However, as time goes on, these sites diminish and the electrostatic repulsion between the ions increases, making it more challenging for the adsorption reaction to reach adsorption equilibrium [66]. The synthesized sorbents attained the adsorption equilibrium within 120 to 150 minutes of adsorption (Figure 10(a)).

3.9.1. Adsorption Kinetics

Table 3 includes the experimental equilibrium adsorption capacity $q_{e}$ for chromium metal ions at a starting concentration of 50 mg L^-1, the pseudo-first-order rate constants $k_{1}$ and $k_{2}$ , expected equilibrium adsorption capacity $q_{e}$ , and theoretical equilibrium adsorption capacity $q_{e}$ . The actual values of $q_{e}$ were clearly different from the theoretical values of $q_{e}$ calculated from the pseudo-first-order kinetic model. The theoretical $q_{e}$ values determined for the pseudo-second-order kinetic model are quite similar but not identical. Additionally, the pseudo-second-order model has a higher correlation value ( $R^{2}$ ) than the pseudo-first-order model, suggesting that it is more widely used (Figure 11(a)). The initial chromium ion adsorption rate ( $h$ ) was calculated using the pseudo-second-order rate equation, and it was found to be 2.51 mg g^-1 for ZnO, 6.50 mg g^-1 for Te-ZnO, 3.28 mg g^-1 for SCN, and 8.82 mg g^-1 for Te-ZnO@SCN. This indicates that the composite was utilized as the sorbent to produce the higher chromium adsorption rate. This revealed that the total kinetics of the chromium ion adsorption reaction is a pseudo-second-order process (Figure 11(b)), and the use of composite as a sorbent led to the highest values of the correlation coefficients ( $R^{2}$ ), equilibrium adsorption capacity $q_{e (theoretical)}$ , and initial adsorption rate ( $h$ ) [66, 67].

Table 3

The adsorption of Cr(VI) ions onto artificial nanoparticles’ kinetic characteristics.

Sorbents	$q_{e}$ (mg g^-1)	Pseudo-first-order kinetics				Pseudo-second-order kinetics
Sorbents	Experimental	Intercept	Slope	$K_{1}$ (min^-1)	$q_{e}$ (mg g^-1)	Intercept	Slope	$K_{2}$ (min^-1)	$q_{e}$ (mg g^-1)
ZnO	139	-0.0082	3.70904	0.005151	0.9918	0.39865	0.00636	0.000101	157
SCN	191	-0.0037	4.26447	0.005923	0.9963	0.30464	0.00495	0.000101	202
3Te-ZnO	217	-0.0031	4.68136	0.006502	0.9969	0.15382	0.00424	0.000117	235
3Te-ZnO@40SCN	229	-0.0035	4.42391	0.006144	0.9965	0.11323	0.00414	0.000151	242

Figure 11

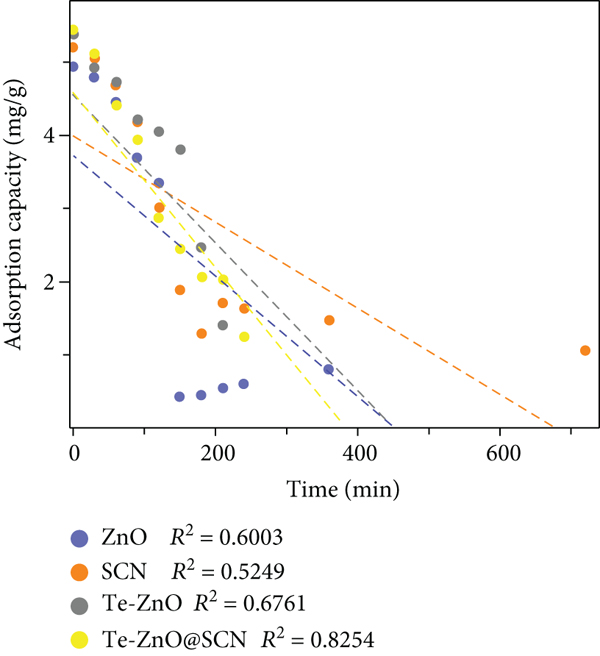

Pseudo-first-order (a) and pseudo-second-order (b) adsorption kinetic curve of chromium by using ZnO, SCN, Te-ZnO, and Te-ZnO@SCN.

(b)

4. Mechanism for Catalytic Degradation

According to the schematic sketch, the formation of e^-/h⁺ pairs in the synthesized samples is responsible for the photocatalytic destruction of MB by the manufactured NCs (Figure 12 and Figure S6). ZnO and SCN are both stimulated by sunlight when it strikes 3Te-ZnO@40SCN, and their corresponding bands (conduction bands (CB) or valence bands (VB)) form e/h⁺ couples as a result [68]. Since the conduction band of SCN has a lower potential than the conduction band of ZnO, the photoinduced electrons can readily move from the conduction band of SCN to the conduction band of SCN due to the edge potentials of CB/VB. Additionally, the potential exists for the holes produced in the VB of SCN to move toward ZnO [74]. Te atoms are present in the heterostructure, which lowers the value of Eg while also facilitating the transfer of electrons from SCN to ZnO. Thus, as shown by the EIS data, Te doping has the ability to lower the charge recombination rate by increasing the spacing of photogenerated e^-/h⁺ couples (Figure S7). Reactive oxygen species (^⋅O₂ and ^⋅OH) are created when the e^-/h⁺ pairs contact with the water molecules and oxygen on the photocatalyst surface (ROS) [75]. The MB is then degraded by an oxidative process, using up the produced radicals.

Figure 12

Catalytic degradation mechanism of MB by the 3Te-ZnO@40SCN NCs.

5. Antifungal Activity

Further testing was done on the antifungal effectiveness of ZnO, Te-ZnO NPs, SCN, and 3Te-ZnO@40SCN NCs using the agar well diffusion technique and amphotericin B as a reference. The results are presented in broad strokes in Table 4. The highest zone inhibition values of 3Te-ZnO@40SCN for Alternata sp. and Bacillus sp. are 47.4 mm and 41.5 mm, correspondingly, based on the antifungal activity data (Table 4). They quickly penetrate the fungal cell membrane, bind to functional protein groups and phosphorus- and sulfur-containing materials, such as DNA, and ultimately cause fungal cell death owing to the 3Te-ZnO@40SCN NCs with well-defined heterojunction. 3Te-ZnO@40SCN NCs and a clearly defined heterojunction worked together synergistically to boost the antifungal effect on Alternata sp. and Bacillus sp.

Table 4

When utilized in the agar well diffusion technique, ZnO, Te-ZnO NPs, SCN, and 3Te-ZnO@40SCN NCs show zones of inhibition for their antifungal activity.

Antifungal performance
Bacterial strains	Samples	Blank	Zone of inhibition (mm)
Alternata sp.	ZnO	0	21.6
	Te-ZnO	0	30.7
	SCN	0	24.8
	Te-ZnO@SCN	0	47.4
Bacillus sp.	ZnO	0	18.3
	Te-ZnO	0	28.4
	SCN	0	21.4
	Te-ZnO@SCN	0	41.5

6. Conclusion

Conclusively, the purpose of the current work was to synthesize ZnO NPs, Te-ZnO NPs, and Te-ZnO@SGCN NCs using a simple coprecipitation method. FTIR, SEM, EDX, and XRD patterns confirm the chemical purity and elemental compositions of synthesized samples. The photocatalytic performance of the produced samples was evaluated against MB (aqueous solution), and it was discovered that 3Te-ZnO NPs and 3Te-ZnO@40SCN NCs had extraordinarily high catalytic efficiencies. The 3Te-ZnO@40SCN was shown to degrade MB using holes, electrons, and ROS in the radical scavenging experiment. The nanocomposites demonstrated exceptional stability with a steady high degree of MB degradation for 6 consecutive catalytic cycles. Based on EIS measurements, it is possible that the creation of the synergistic interaction and fine interfaces between the Te and ZnO will considerably increase the movement and transportation of photoinduced e^-/h⁺ pairs in 3Te-ZnO@40SCN. The adsorption capacity of the synthesized samples was examined via Cr ion adsorption experiments. The results and kinetic models indicate that the adsorption of chromium ions was increased by Te doping into ZnO and composite formation (Te-ZnO@40SCN). As a result, the 3Te-ZnO@40SCN heterojunction is a suitable candidate and may be used in the photocatalytic elimination of heavy metal (Cr) and mineralization of organic contaminants (MB) to purify water.

Footnotes

Data Availability

On reasonable request, the corresponding author will provide the datasets collected and/or evaluated during the present study.

Conflicts of Interest

No conflict of interest is disclosed by the authors.

Acknowledgments

The authors thankfully acknowledge the funding provided by the Scientific Research Deanship, King Khalid University, Abha, Kingdom of Saudi Arabia, under the grant number RGP.1/267/43. The researchers would like to acknowledge the Deanship of Scientific Research, Taif University, for funding this work. This research was funded by the Princess Nourah Bint Abdulrahman University Researchers Supporting Project number (PNURSP2023R156), Princess Nourah Bint Abdulrahman University, Riyadh, Saudi Arabia.

Supplementary Materials

References

Kalisamy

Lallimathi

Suryamathi

Palanivel

Venkatachalam

ZnO-embedded S-doped g-C3N4heterojunction: mediator-free Z-scheme mechanism for enhanced charge separation and photocatalytic degradation

RSC Advances 2020 10

6736182

47 28365 28375

10.1039/D0RA04642F

35519103

Palanivel

Shkir

Alshahrani

Mani

A. J. D.

Novel NiFe₂O₄ deposited S-doped g-C₃N₄ nanorod: Visible-light- driven heterojunction for photo-Fenton like tetracycline degradation

Diamond and Related Materials 2021 112, article 108148

6736182

10.1016/j.diamond.2020.108148

Anwer

Mahmood

Lee

Kim

K.-H.

Park

J.-W.

Yip

A. C. J. N. R.

Photocatalysts for degradation of dyes in industrial effluents: Opportunities and challenges

Nano Research 2019 12

6736182

5 955 972

10.1007/s12274-019-2287-0

2-s2.0-85060206747

Chia

M. A.

Musa

R. I.

Effect of indigo dye effluent on the growth, biomass production and phenotypic plasticity of Scenedesmus quadricauda (Chlorococcales)

Anais da Academia Brasileira de Ciências 2014 86

6736182

1 419 428

10.1590/0001-3765201420130225

2-s2.0-84897855910

24676177

Rehman

Shahzad

Sahar

Hussain

Mahmood

Siddique

M. H.

Siddique

M. A.

Rashid

M. I.

Effect of reactive black 5 azo dye on soil processes related to C and N cycling

PeerJ 2018 6, article e4802

6736182

10.7717/peerj.4802

2-s2.0-85047321886

29844965

Palanivel

Hossain

M. S.

Reddy

I. N.

Abhinav E

al-Enizi

A. M.

Ubaidullah

Macadangdang

R. R.

Jr. Shim

Chemical oxidants (H₂O₂ and persulfate) activated photo-Fenton like degradation reaction using sol-gel derived g-C₃N₄/ZnCo₂O₄ nanocomposite

Diamond and Related Materials 2022 130, article 109413

6736182

10.1016/j.diamond.2022.109413

Kalisamy

Lallimathi

Suryamathi

Palanivel

Venkatachalam

ZnO-embedded S-doped g-C₃N₄ heterojunction: mediator-free Z-scheme mechanism for enhanced charge separation and photocatalytic degradation

RSC Advances 2020 10

6736182

47 28365 28375

10.1039/D0RA04642F

35519103

Lellis

Fávaro-Polonio

C. Z.

Pamphile

J. A.

Polonio

J. C.

Effects of textile dyes on health and the environment and bioremediation potential of living organisms

Biotechnology Research and Innovation 2019 3

6736182

2 275 290

10.1016/j.biori.2019.09.001

Giraldo

Robles

Godínez

L. A.

Acelas

Flórez

Experimental and theoretical insights on methylene blue removal from wastewater using an adsorbent obtained from the residues of the orange industry

Molecules 2021 26

6736182

15 4555

10.3390/molecules26154555

34361706

10.

Santhosh

Malathi

Daneshvar

Kollu

Bhatnagar

Photocatalytic degradation of toxic aquatic pollutants by novel magnetic 3D-TiO₂@HPGA nanocomposite

Scientific Reports 2018 8

6736182

1 1 15

10.1038/s41598-018-33818-9

2-s2.0-85055077422

11.

Zhang

Feng

Importance of the relationship between surface phases and photocatalytic activity of TiO₂

Angewandte Chemie 2008 120

6736182

9 1790 1793

10.1002/ange.200704788

12.

Zhao

Effect of surface structure on photocatalytic activity of TiO₂ thin films prepared by sol-gel method

Thin Solid Films 2000 379

6736182

1-2 7 14

10.1016/S0040-6090(00)01542-X

2-s2.0-0034512040

13.

Bellardita

Addamo

Di Paola

Marcì

Palmisano

Cassar

Borsa

Photocatalytic activity of TiO₂/SiO₂ systems

Journal of Hazardous Materials 2010 174

6736182

1-3 707 713

10.1016/j.jhazmat.2009.09.108

2-s2.0-71849111852

19828242

14.

Jeon

J. P.

Kweon

D. H.

Jang

B. J.

M. J.

Baek

J. B.

Enhancing the photocatalytic activity of TiO₂ catalysts

Advanced Sustainable Systems 2020 4

6736182

12, article 2000197

10.1002/adsu.202000197

15.

Sakthivel

Hidalgo

Bahnemann

Geissen

S.-U.

Murugesan

Vogelpohl

A fine route to tune the photocatalytic activity of TiO₂

Applied Catalysis B: Environmental 2006 63

6736182

1-2 31 40

10.1016/j.apcatb.2005.08.011

2-s2.0-32844461028

16.

Scuderi

Amiard

Boninelli

Scalese

Miritello

Sberna

Impellizzeri

Privitera

Photocatalytic activity of CuO and Cu₂O nanowires

Materials Science in Semiconductor Processing 2016 42

6736182

89 93

10.1016/j.mssp.2015.08.008

2-s2.0-84958872218

17.

Torki

Faghihian

Photocatalytic activity of NiS, NiO and coupled NiS–NiO for degradation of pharmaceutical pollutant cephalexin under visible light

RSC Advances 2017 7

6736182

86 54651 54661

10.1039/C7RA09461B

2-s2.0-85037032045

18.

Kim

S. P.

Choi

M. Y.

Choi

H. C.

Photocatalytic activity of SnO₂ nanoparticles in methylene blue degradation

Materials Research Bulletin 2016 74

6736182

85 89

10.1016/j.materresbull.2015.10.024

2-s2.0-84944769074

19.

Ashkarran

A. A.

Afshar

S. A. A.

Aghigh

S. M.

kavianipour

Photocatalytic activity of ZrO₂ nanoparticles prepared by electrical arc discharge method in water

Polyhedron 2010 29

6736182

4 1370 1374

10.1016/j.poly.2010.01.003

2-s2.0-76749170280

20.

Liu

Peng

Liu

Dai

Preparation and photocatalytic activity of WO₃/TiO₂ nanocomposite particles

Materials Letters 2008 62

6736182

3 447 450

10.1016/j.matlet.2007.05.060

2-s2.0-36448982465

21.

Lehru

Radhanpura

Kumar

Zala

Vadgama

Dadhich

Rathod

Trivedi

Pandya

Shah

Solanki

P. S.

Studies on electrical properties of Fe doped ZnO nanostructured oxides synthesized by sol-gel method

Solid State Communications 2021 336, article 114415

6736182

10.1016/j.ssc.2021.114415

22.

Vaiano

Jaramillo-Paez

C. A.

Matarangolo

Navío

J. A.

del Carmen Hidalgo

UV and visible-light driven photocatalytic removal of caffeine using ZnO modified with different noble metals (Pt, Ag and Au)

Materials Research Bulletin 2019 112

6736182

251 260

10.1016/j.materresbull.2018.12.034

2-s2.0-85059216921

23.

Ebrahimi

Hossienzadeh

Maleki

Ghanbari

Rezaee

Safari

Shahmoradi

Daraei

Jafari

Yetilmezsoy

Puttaiah

S. H.

Effects of doping zinc oxide nanoparticles with transition metals (Ag, Cu, Mn) on photocatalytic degradation of direct blue 15 dye under UV and visible light irradiation

Journal of Environmental Health Science and Engineering 2019 17

6736182

1 479 492

10.1007/s40201-019-00366-x

2-s2.0-85067794060

31297221

24.

Ren

Koshy

Chen

W.-F.

Sorrell

C. C.

Photocatalytic materials and technologies for air purification

Journal of Hazardous Materials 2017 325

6736182

340 366

10.1016/j.jhazmat.2016.08.072

2-s2.0-85006789955

25.

Qamar

M. A.

Shahid

Javed

Sher

Iqbal

Bahadur

Fabricated novel g-C₃N₄/Mn doped ZnO nanocomposite as highly active photocatalyst for the disinfection of pathogens and degradation of the organic pollutants from wastewater under sunlight radiations

Colloids and Surfaces A: Physicochemical and Engineering Aspects 2021 611, article 125863

6736182

10.1016/j.colsurfa.2020.125863

26.

Iribarren

Fernández

Piqueras

Cathodoluminescence study of Te-doped ZnO microstructures grown by a vapour–solid process

Journal of Materials Science 2008 43

6736182

8 2844 2848

10.1007/s10853-007-2384-1

2-s2.0-43249083238

27.

Iribarren

Fernández

Piqueras

Recombination processes in Te-doped ZnO microstructures

physica status solidi (b) 2014 251

6736182

3 683 688

10.1002/pssb.201248600

2-s2.0-84896725366

28.

Sönmezoğlu

Akman

Improvement of physical properties of ZnO thin films by tellurium doping

Applied Surface Science 2014 318

6736182

319 323

10.1016/j.apsusc.2014.06.187

2-s2.0-84909944387

29.

Shanmugam

Suthakaran

Kannadasan

Sathishkumar

Synthesis and characterization of Te doped ZnO nanosheets for photocatalytic application

Journal of Heterocyclics 2015 105

6736182

15 20

30.

Zhang

Ren

Zhu

Wang

Zhang

Cao

In-situ fabrication of g-C₃N₄/ZnO nanocomposites for photocatalytic degradation of methylene blue: synthesis procedure does matter

Nanomaterials 2019 9

6736182

2 215

10.3390/nano9020215

2-s2.0-85069675301

30736333

31.

Javed

Qamar

M. A.

Shahid

Alsaab

H. O.

Asif

Highly efficient visible light active Cu–ZnO/SgC 3 N 4 nanocomposites for efficient photocatalytic degradation of organic pollutants

RSC Advances 2021 11

6736182

59 37254 37267

10.1039/D1RA07203J

35496420

32.

Bahadur

Iqbal

Shoaib

Saeed

A. J. D. T.

Electrochemical study of specially designed graphene-Fe3O4-polyaniline nanocomposite as a high-performance anode for lithium-ion battery

Dalton Transactions 2018 47

6736182

42 15031 15037

10.1039/C8DT03107J

2-s2.0-85055660549

30303235

33.

Bahadur

Shoaib

Iqbal

Saeed

Rahman

M. S. .

Channar

P. A.

Regulating the anticancer drug release rate by controlling the composition of waterborne polyurethane

Reactive and Functional Polymers 2018 131

6736182

134 141

10.1016/j.reactfunctpolym.2018.07.014

2-s2.0-85050893898

34.

Iqbal

Javed

Qamar

M. A.

Bahadur

Fayyaz

Akbar

Alsaab

H. O.

Awwad

N. S.

Ibrahium

H. A. J. C.

Synthesis of Cu‐ZnO/polyacrylic acid hydrogel as visible‐light‐driven photocatalyst for organic pollutant degradation

ChemistrySelect 2022 7

6736182

10.1002/slct.202103694

35.

Sher

Shahid

Javed

Synthesis of a novel ternary (g-C₃N₄ nanosheets loaded with Mo doped ZnOnanoparticles) nanocomposite for superior photocatalytic and antibacterial applications

Journal of Photochemistry and Photobiology B: Biology 2021 219, article 112202

6736182

10.1016/j.jphotobiol.2021.112202

33946027

36.

Ahmad

Wei

Syed

Tahir

Rehman

A. U.

Khan

Ullah

Yuan

The effects of bacteria-nanoparticles interface on the antibacterial activity of green synthesized silver nanoparticles

Microbial Pathogenesis 2017 102

6736182

133 142

10.1016/j.micpath.2016.11.030

2-s2.0-85002251445

27916692

37.

Sher

Javed

Shahid

Hakami

Qamar

M. A.

Iqbal

al-Anazy

M. M.

Baghdadi

H. B.

Designing of highly active g-C₃N₄/Sn doped ZnO heterostructure as a photocatalyst for the disinfection and degradation of the organic pollutants under visible light irradiation

Journal of Photochemistry and Photobiology A: Chemistry 2021 418, article 113393

6736182

10.1016/j.jphotochem.2021.113393

38.

Kuang

Tan

Bahadur

Iqbal

Javed

Qamar

M. A.

Fayyaz

Liu

Alzahrani

O. M.

Alzahrani

Farouk

A. E. A.

Dye degradation study by incorporating Cu-doped ZnO photocatalyst into polyacrylamide microgel

Journal of Materials Science: Materials in Electronics 2022 33

6736182

13 9930 9940

10.1007/s10854-022-07984-6

39.

Qamar

M. A.

Javed

Shahid

Sher

Fabrication of g-C₃N₄/transition metal (Fe, Co, Ni, Mn and Cr)-doped ZnO ternary composites: excellent visible light active photocatalysts for the degradation of organic pollutants from wastewater

Materials Research Bulletin 2022 147, article 111630

6736182

10.1016/j.materresbull.2021.111630

40.

Zhang

Zhu

Liu

Bao

Tian

Fabrication of Ag decorated g-C₃N₄/LaFeO₃ Z-scheme heterojunction as highly efficient visible-light photocatalyst for degradation of methylene blue and tetracycline hydrochloride

Journal of Alloys and Compounds 2021 864, article 158914

6736182

10.1016/j.jallcom.2021.158914

41.

Tian

Liu

Zheng

W. J. A. C. B. E.

Constructing 2D graphitic carbon nitride nanosheets/layered MoS₂/graphene ternary nanojunction with enhanced photocatalytic activity

Applied Catalysis B: Environmental 2018 225

6736182

468 476

10.1016/j.apcatb.2017.12.019

2-s2.0-85038027730

42.

Suganya

Maruthamuthu

Chandrasekaran

Saravanakumar

Vijayakumar

Marnadu

Al-Enizi

A. M.

Ubaidullah

Design of zinc vanadate (Zn₃V₂O₈)/nitrogen doped multiwall carbon nanotubes (N-MWCNT) towards supercapacitor electrode applications

Journal of Electroanalytical Chemistry 2021 881, article 114936

6736182

10.1016/j.jelechem.2020.114936

43.

Vinoth

Rajaitha

P. M.

Venkadesh

Shalini Devi

K. S.

Radhakrishnan

Pandikumar

Nickel sulfide-incorporated sulfur-doped graphitic carbon nitride nanohybrid interface for non-enzymatic electrochemical sensing of glucose

Nanoscale Advances 2020 2

6736182

9 4242 4250

10.1039/D0NA00172D

44.

Srikant

Clarke

D. R.

On the optical band gap of zinc oxide

Journal of Applied Physics 1998 83

6736182

10 5447 5451

10.1063/1.367375

2-s2.0-0001106216

45.

Huang

Koodali

R. T.

Liu

Zeng

Meng

Yuan

Synthesis of sulfur-doped 2D graphitic carbon nitride nanosheets for efficient photocatalytic degradation of phenol and hydrogen evolution

ACS Applied Materials & Interfaces 2020 12

6736182

11 12656 12667

10.1021/acsami.9b19057

32083456

46.

Guan

Lei

Wang

Tong

Jia

Zhang

Synthesis of sulfur doped g-C₃N₄ with enhanced photocatalytic activity in molten salt

Journal of Materiomics 2021 7

6736182

5 1131 1142

10.1016/j.jmat.2021.01.008

47.

Jamali-Sheini

Yousefi

Mahmoudian

Bakr

N. A.

Huang

N. M.

Facile synthesis of different morphologies of Te-doped ZnO nanostructures

Ceramics International 2014 40

6736182

6 7737 7743

10.1016/j.ceramint.2013.12.115

2-s2.0-84897393012

48.

Ba-Abbad

M. M.

Kadhum

A. A. H.

Mohamad

A. B.

Takriff

M. S.

Sopian

Visible light photocatalytic activity of Fe³⁺-doped ZnO nanoparticle prepared via sol-gel technique

Chemosphere 2013 91

6736182

11 1604 1611

10.1016/j.chemosphere.2012.12.055

2-s2.0-84876438847

23384541

49.

Iqbal

Nadeem

Bahadur

Javed

Ahmad

M. N.

Shoaib

Liu

Mohyuddin

Raheel

The effect of Ni-doped ZnO NPs on the antibacterial activity and degradation rate of polyacrylic acid-modified starch nanocomposite

JOM 2021 73

6736182

1 380 386

10.1007/s11837-020-04490-0

50.

Kotresh

Patil

Inamdar

Reaction temperature based synthesis of ZnO nanoparticles using co- precipitation method: detailed structural and optical characterization

Optik 2021 243, article 167506

6736182

10.1016/j.ijleo.2021.167506

51.

Sher

Khan

S. A.

Shahid

Javed

Qamar

M. A.

Chinnathambi

Almoallim

H. S.

Synthesis of novel ternary hybrid g-C₃N₄@Ag-ZnO nanocomposite with Z-scheme enhanced solar light‐driven methylene blue degradation and antibacterial activities

Journal of Environmental Chemical Engineering 2021 9

6736182

4, article 105366

10.1016/j.jece.2021.105366

52.

Singh

Nenavathu

B. P.

Mohsin

Facile synthesis of Te-doped ZnO nanoparticles and their morphology-dependent antibacterial studies

Chemical Papers 2021 75

6736182

8 4317 4326

10.1007/s11696-021-01654-3

53.

Wang

Chen

Liao

Enhanced visible light photocatalytic activity of ZnO nanowires doped with Mn²⁺ and Co²⁺ ions

Nanomaterials 2017 7

6736182

1 20

10.3390/nano7010020

2-s2.0-85010739500

28336854

54.

Qamar

M. A.

Javed

Shahid

Iqbal

Abubshait

S. A.

Abubshait

H. A.

Ramay

S. M.

Mahmood

Ghaithan

H. M.

Designing of highly active g-C3N4/Co@ZnO ternary nanocomposites for the disinfection of pathogens and degradation of the organic pollutants from wastewater under visible light

Journal of Environmental Chemical Engineering 2021 9

6736182

4, article 105534

10.1016/j.jece.2021.105534

55.

Reese

M. O.

Perkins

Burst

J. M.

Farrell

Barnes

Johnston

Kuciauskas

Gessert

Metzger

Intrinsic surface passivation of CdTe

Journal of Applied Physics 2015 118

6736182

15, article 155305

10.1063/1.4933186

2-s2.0-84945384142

56.

Peng

Fang

Yang

Huang

Kong

Effect of annealing temperature on the structure and optical properties of in- doped ZnO thin films

Journal of Alloys and Compounds 2009 484

6736182

1-2 575 579

10.1016/j.jallcom.2009.04.139

2-s2.0-69949092016

57.

Dai

Zhen

Sun

Ding

ZnFe₂O₄/g-C₃N₄ S-scheme photocatalyst with enhanced adsorption and photocatalytic activity for uranium(VI) removal

Chemical Engineering Journal 2021 415, article 129002

6736182

10.1016/j.cej.2021.129002

58.

Kuai

Zhang

Nan

Synthesis of Ce³⁺ doped ZnFe₂O₄ self- assembled clusters and adsorption of chromium(VI)

Journal of Hazardous Materials 2013 250-251

6736182

229 237

10.1016/j.jhazmat.2013.01.074

2-s2.0-84874527831

23454462

59.

Vinoth

Subramani

Ong

W.-J.

Sathish

Pandikumar

CoS₂ engulfed ultra-thin S-doped g-C₃N₄ and its enhanced electrochemical performance in hybrid asymmetric supercapacitor

Journal of Colloid and Interface Science 2021 584

6736182

204 215

10.1016/j.jcis.2020.09.071

33069019

60.

Qamar

M. A.

Shahid

Javed

Synthesis of dynamic g-C3N4/Fe@ZnO nanocomposites for environmental remediation applications

Ceramics International 2020 46

6736182

14 22171 22180

10.1016/j.ceramint.2020.05.294

61.

Min

Wang

Jin

Cu₂O nanoparticles decorated BiVO₄ as an effective visible-light-driven p-n heterojunction photocatalyst for methylene blue degradation

Superlattices and Microstructures 2014 74

6736182

294 307

10.1016/j.spmi.2014.07.003

2-s2.0-84907362653

62.

Jaffari

Z. H.

Lam

S.-M.

Sin

J.-C.

Zeng

Mohamed

A. R.

Magnetically recoverable Pd-loaded BiFeO₃ microcomposite with enhanced visible light photocatalytic performance for pollutant, bacterial and fungal elimination

Separation and Purification Technology 2020 236, article 116195

6736182

10.1016/j.seppur.2019.116195

63.

Mohamed

Shawky

CNT supported Mn-doped ZnO nanoparticles: simple synthesis and improved photocatalytic activity for degradation of malachite green dye under visible light

Applied Nanoscience 2018 8

6736182

5 1179 1188

10.1007/s13204-018-0742-8

2-s2.0-85055096184

64.

Kulkarni

S. D.

Kumbar

Menon

S. G.

Choudhari

Santhosh

Magnetically separable core-shell ZnFe₂O₄@ZnO nanoparticles for visible light photodegradation of methyl orange

Materials Research Bulletin 2016 77

6736182

70 77

10.1016/j.materresbull.2016.01.022

2-s2.0-84955497502

65.

Zhang

Wang

Qiu

Zuo

Engineering carbon nitride with cyanide groups for efficient photocatalytic alcohol oxidation and H₂O₂ production-utilization of photogenerated electrons and holes

Applied Surface Science 2022 573, article 151506

6736182

10.1016/j.apsusc.2021.151506

66.

Xiao

Deng

Xue

Gao

Adsorption of chromium by functionalized metal organic frameworks from aqueous solution

Environmental Technology 2021 42

6736182

12 1930 1942

10.1080/09593330.2019.1683618

31633450

67.

Sheela

Nayaka

Y. A.

Viswanatha

Basavanna

Venkatesha

Kinetics and thermodynamics studies on the adsorption of Zn(II), Cd(II) and Hg(II) from aqueous solution using zinc oxide nanoparticles

Powder Technology 2012 217

6736182

163 170

10.1016/j.powtec.2011.10.023

2-s2.0-84855214516

68.

Zhang

Zhu

Zhang

Tang

Cao

Palladium modified ZnFe₂O₄/g-C₃N₄ nanocomposite as an efficiently magnetic recycling photocatalyst

Journal of Solid State Chemistry 2020 288, article 121389

6736182

10.1016/j.jssc.2020.121389

69.

Sher

Javed

Shahid

Iqbal

Qamar

M. A.

Bahadur

Qayyum

M. A.

The controlled synthesis of g-C₃N₄/Cd-doped ZnO nanocomposites as potential photocatalysts for the disinfection and degradation of organic pollutants under visible light irradiation

RSC Advances 2021 11

6736182

4 2025 2039

10.1039/D0RA08573A

70.

Wang

Shi

Huang

Zhang

Synthesis and degradation kinetics of TiO₂/GO composites with highly efficient activity for adsorption and photocatalytic degradation of MB

Scientific Reports 2019 9

6736182

1 1 9

10.1038/s41598-019-54320-w

71.

Wang

Zhu

Chang

Chu

Preparation of magnetic composite photocatalyst Bi₂WO₆/CoFe₂O₄by two-step hydrothermal method and itsphotocatalytic degradation of bisphenol A

Catalysis Communications 2013 37

6736182

92 95

10.1016/j.catcom.2013.03.038

2-s2.0-84876915426

72.

Nguyen

L. T.

Nguyen

H. T.

T. H.

Nguyen

L. T.

Nguyen

H. Q.

Pham

T. T.

Bui

N. D.

Tran

N. T.

Nguyen

D. T. C.

Lam

T. V.

Enhanced photocatalytic activity of spherical Nd³⁺ substituted ZnFe₂O₄ nanoparticles

Materials 2021 14

6736182

8 2054

10.3390/ma14082054

33921759

73.

Yin

Wang

Synergetic effect of facet junction and specific facet activation of ZnFe₂O₄ nanoparticles on photocatalytic activity improvement

ACS Applied Materials & Interfaces 2019 11

6736182

32 29004 29013

10.1021/acsami.9b11836

2-s2.0-85071351868

31314495

74.

Shi

Sun

Amin

Guo

Shi

Engineering of 2D/3D architectures type II heterojunction with high- crystalline g-C₃N₄ nanosheets on yolk-shell ZnFe₂O₄ for enhanced photocatalytic tetracycline degradation

Materials Research Bulletin 2022 150, article 111789

6736182

10.1016/j.materresbull.2022.111789

75.

Wang

Yang

Chen

Enhanced photocatalytic performance of hierarchical ZnFe₂O₄/g-C₃N₄ heterojunction composite microspheres

Catalysis Letters 2018 148

6736182

7 2179 2189

10.1007/s10562-018-2376-6

2-s2.0-85047162632
