Abstract

Nano-zero-valent iron (nZVI) can be used to remove nitrate nitrogen (NO₃-N) from groundwater. However, it has low reduction efficiency owing to its oxidation and aggregation characteristics. Thus, nZVI-loaded material is used to alleviate these drawbacks. In this study, nZVI-coated attapulgite (ATP) was prepared for the removal of NO₃-N from groundwater. ATP-nZVI was prepared using the chemical liquid deposition-coreduction method. The prepared materials were characterized by SEM, XRD, and XPS analyses, which confirmed that the aluminum silicate particles in the ATP structure are effective carriers of nZVI and effectively inhibit self-consumption caused by the oxidation and aggregation of nZVI. The batch experiments examined experimental samples containing 30 mg/L nitrate and analyzed the effects of various parameters, including the material, mass ratio, initial pH, initial temperature, and coexisting anions on the NO₃-N removal efficiency. The results showed that the optimal removal rate of the composite was 78.61%, which is higher than that using the same amount of ATP, iron powder, and nZVI. When the mass ratio of ATP to nZVI was 1 : 1, the NO₃-N removal efficiency was the highest. When the pH value increased from 3 to 9, the NO₃-N removal rate decreased, while an increase in the reaction temperature promoted NO₃-N removal. The order of the inhibitory effect of coexisting anions on NO₃-N removal by various nanoions was PO₄ ^3–>CO₃ ^2–>SO₄ ^2–>Cl^–. The adsorption kinetic model fitting results indicated that the chemisorption of electron exchange between ATP and nZVI in NO₃-N removal was the main rate-limiting step in the reaction. This study demonstrates the potential of the prepared ATP-nZVI composite for NO₃-N removal from groundwater.

1. Introduction

Industrial discharges, urban activities, pesticides and fertilizer usage in agriculture, and disposal of waste have led to groundwater pollution becoming a serious problem, wherein nitrate is an important cause of groundwater pollution ([1, 2]. Long-term exposure to high nitrate levels poses varying degrees of risk to human health, such as the conversion of hemoglobin to methemoglobin, which depletes oxygen levels in infant blood, suppresses thyroid function, and forms nitrosamines that can cause cancer [3]. In 2017, the World Health Organization’s International Agency for Research on Cancer listed nitrate and nitrite as 2A carcinogens [4]. China’s new standard implemented in 2006 revised the maximum allowable limit for nitrate in drinking water to 10 mg/L (identical to that in the USA) [5]. Therefore, developing composite materials capable of adsorbing and oxidizing nitrate is important when remediating nitrate contamination in groundwater.

Nanomaterials have large surface areas and a small particle size [6] and can be injected into polluted groundwater for in situ repair. Synthesizing nanomaterials for removing nitrate from groundwater has become a focal topic of research studies [7]. Nano-zero-valent iron (nZVI) has been widely adopted as a good electron-donating material and preliminarily tested for removing nitrate from groundwater owing to its high removal efficiency [8], generation of fewer intermediate products in the process, and environmental friendliness [9–11]. However, the disadvantages of nZVI, such as easy oxidation by nontarget chemicals and particle aggregation, limit its direct application in the remediation of nitrates in polluted groundwater. These disadvantages usually lead to a rapid decrease in catalytic activity and material waste and, thus, limit its cost-effectiveness [12]. To overcome these challenges, several studies have attempted to improve the stability and dispersibility of nZVI particles (Table 1), and many modifications have been reported for nZVI or composites between nZVI and other adsorbents. Vicente-Martinez et al. [13] successfully prepared silver-functionalized magnetic nanoparticles and revealed their ability to remove nitrates from water in a relatively short duration, with an adsorption efficiency of 100%. Liu et al. [14] used Fe0/Pd/Cu nanocomposites to remove groundwater nitrate and found that the introduction of Pd and Cu improved NO₃-N removal rate and also reduced the amount of ammonia nitrogen produced. Ghosh et al. [15] enhanced the aerobic stability of nanoparticles by synthesizing them in a medium consisting of a viscous solvent, glycerol, and water. Furthermore, they showed that the pollutant removal rate was higher under acidic conditions than under alkaline conditions.

Table 1

Comparison of NO₃-N removal by various loaded nano-zero-valent iron materials.

Load materials	$C_{0}$ (mg/L^–1)	Initial pH	$T$ (K)	Removal rate (%)	Cost	References
nZVI without support	100	3	313	40	Low	[48]
Pd/Cu	30	7	313	63.2	High	[49]
Composites of boiling stone	30	7	298	43	High	[50]
Acticarbon	60	3	298	89.7	Middle	[51]
Zeolite	100	5.5	298	84.3	Middle	[52]
Attapulgite	30	5	298	78.6	Low	This study

As a natural mineral, attapulgite (ATP) is a typical crystalline hydrated magnesium silicate [16], which can promote NO₃-N removal by nZVI in aqueous solution. Compared with other clay minerals, not only is ATP abundant in reserves and inexpensive but it also has more efficient adsorption characteristics [17], porous structure, large specific surface area, and reasonable cation exchange capacity [18]. These properties can be used for the adsorption of ferrous or ferric oxide and further reduction of nZVI [19]. Several studies have assessed the performance and pollutant removal capacity of ATP-loaded nZVI composites [20–23] and showed that ATP-loaded nZVI composites have improved interfacial effect between materials and enhanced ability to remove pollutants.

In this study, ATP was used as a porous material carrier to synthesize ATP-nZVI using a liquid-phase reduction method. The effect of the interaction between ATP and nZVI on NO₃-N removal from simulated groundwater was evaluated. The overall objectives of this study were to (1) characterize ATP-nZVI composites; (2) determine the influence of nZVI on the ATP mass ratio, initial pH, initial temperature, and coexisting anions for NO₃-N removal; and (3) further understand the underlying NO₃-N removal mechanism of ATP-nZVI. Our results provide a theoretical basis and technical support for the remediation of NO₃-N polluted groundwater.

2. Materials and Methods

2.1. Experimental Materials

The chemicals used in this study, i.e., sodium nitrate (NaNO₃), hydrochloric acid (HCl), sodium borohydride (NaBH₄), sodium hydroxide (NaOH), and anhydrous ethanol (CH₃CH₂OH), were provided by Sinopharm Chemical Reagent Co., Ltd. (China). Phenylcarbazide (C₁₃H₁₄N₄O) and potassium iodide (KI) were purchased from Tianjin Fuchen Chemical Reagent Factory (China). Sodium nitrite (NaNO₂), sodium carbonate (Na₂CO₃), sulfamic acid (NH₂SO₃H), and ferric chloride hexahydrate (FeCl₃·6H₂O) were obtained from Tianjin Damao Chemical Reagent Factory (China). All chemicals were of analytical grade. All solutions were prepared in deionized water. N₂ (99.9% purity), purchased from Xi’an Oxygen Source Oxygen Cylinder Sales Company (China), was blown into all prepared solutions for deoxygenation.

2.2. Preparation of ATP-nZVI Composites

In attapulgite purification, the raw ATP was ground and filtered through a 200-mesh sieve and then incubated in an oven set at 105°C for 240 min to remove excess water [23–26]. The removal of water from attapulgite required 10 g attapulgite being placed into 200 mL deionized water. We then added 3.2 g sodium hexametaphosphate as a dispersant [23, 26]. The mixture was then subjected to ultrasonic magnetic stirring for 15 min, so that the attapulgite powder, under the action of the dispersant, quickly dispersed to prevent agglomeration. Next, the mixture was centrifuged at 3,000 rpm for 15 min to obtain the upper milky white phase. Finally, the precipitate was dried at 105°C for 240 min and ATP was filtered through a 200-mesh sieve to achieve pure ATP.

We used the liquid-phase chemical reduction method [27], where deionized water (250 mL) was weighed into a three-necked flask using a graduated cylinder. Then, nitrogen was introduced to the deionized water for 30 min to remove dissolved oxygen (DO). Then, 4.8214 g FeCl₃·6H₂O was weighed and added to the three-necked flask containing 250 mL of deionized water. Subsequently, 1 g ATP was added and stirred vigorously (500 rpm) for 30 min. Then, 3 g NaBH₄ was dissolved in 100 mL deionized water and the NaBH₄ reagent was dropped into a three-necked flask with a peristaltic pump at a speed of 1 drop/s. The mixture was stirred for 40 min to ensure that the NaBH₄ and Fe³⁺ had fully reacted, as shown in Equation (1), and the entire process was carried out under a nitrogen atmosphere: $\begin{matrix} (1) & 4 {Fe}^{3 +} + 3 {BH}_{4}^{-} + 9 H_{2} O ⟶ 4 {Fe}^{0} + 3 H_{2} {BO}_{3}^{-} + 12 H^{+} + 6 H_{2} . \end{matrix}$

After the reaction, the precipitate was washed with absolute ethanol (when nZVI is dispersed in the attapulgite matrix, latter’s hydroxyl group provide a passivation contact to impart spatial stability, thereby preventing nZVI aggregation) [28] two to three times to obtain a black suspension. Finally, suction filtration was performed using a vacuum pump and ATP-nZVI composite was obtained as solid particles.

2.3. ATP-nZVI Characterization

The surface morphologies and structures of ATP, nZVI, and ATP-nZVI were observed using scanning electron microscopy (SEM) (Zeiss, Zeiss Sigma500, Germany). To further understand the material surface composition, an X-ray diffractometer (XRD) (Bruker, BRUKER D8 ADVANCE, Germany) was used to analyze the material and determine the crystal structure while verifying the successful loading of ATP onto nZVI. The ATP-nZVI and ATP-nZVI composites obtained after the reaction with nitrate were identified by X-ray photoelectron spectroscopy (XPS) (ESCALAB Xi+, Thermo Scientific, USA).

2.4. Batch Experiments

All batch experiments were conducted in 50 mL conical flasks. To simulate the real environment and the dark and anaerobic environment of groundwater, nitrogen gas ( $DO < 0.5$ mg/L) was injected into the solution before the reaction. The reaction flask was wrapped with aluminum foil and evaluated under dark conditions. Studies have suggested that the nitrate pollution range of groundwater in the Chongqing area is approximately 30 mg/L; therefore, 30 mg/L NaNO₃ was added to simulated nitrate wastewater.

A series of experiments were conducted to study different materials (ATP, Fe, nZVI, and ATP-NZVI), the mass ratio of nZVI to ATP (1 : 0.5, 1 : 1, 1 : 3, and 1 : 5), initial pH of the solution (3, 5, 7, and 9), solution temperature (15, 25, and 35°C), and coexisting anions (anion concentration and nitrate nitrogen ion ratio were all 4 : 1). Briefly, 50 mL NaNO₃ containing DI water was placed in a conical flask and 75 mg preparation material was added to it. The mixture was placed in a thermostatic shaking water bath (160 rpm) at 25°C to perform the removal experiment. Sample aliquots were obtained using a 10 mm syringe at regular intervals. The reaction was performed for 150 min, and samples were collected every 10 min for the first 60 min. Following this, samples were obtained every 30 min for the last 90 min of the experiment (a total of eight aliquots of 0.5 mL each). The samples were filtered through a 0.45 μm syringe filter, and the filtered liquid was placed in the sampling bottle.

In this study, the temperature comparison experiment was conducted at 35°C, while the remaining experiments were conducted at 25°C. The temperature of groundwater varies with the region. Studies have reported that global warming had affected the groundwater layer to a certain extent. Tissen et al. [29] showed that the temperature of groundwater in central Europe generally ranges between 2 and 46°C. Ciardelli et al. [30] also performed a series of experiments to explore groundwater, and except for evaluating the effect of different temperatures, their experiments were performed at 25°C. Therefore, we selected 25°C as the representative groundwater temperature.

2.5. Analytical Methods

The NO₃-N, NH₄-N, and NO₂-N concentrations in the solution were measured using a UV spectrophotometer (PerkinElmer, PELambda950, USA) ([23, 31]. The concentration of NO₃-N was measured at 220 nm; the value of NO₃-N was corrected at 275 nm, with a detection limit of 0.08 mg/L. The concentration of NH₄-N was analyzed at 425 and 540 nm, with detection limits of 0.025 and 0.025 mg/L, respectively. The NO₂-N concentration was detected at the lower limit, with a detection limit of 0.003 mg/L.

2.6. Statistical Methods

All experiments were performed in triplicate. The data are expressed as the $mean \pm standard deviation$ . As shown in Equation (2). XPS phases were analyzed using the Avantage software (version 5.948, Thermo Fisher Scientific). The adsorption kinetics data were fitted using the Origin software (Origin Lab, 2018, USA). The adsorption kinetic model is described in the Supporting Information (SI, Section 1). $\begin{matrix} (2) & R (%) = (1 - \frac{C_{t}}{C_{0}}) \times 100, \end{matrix}$ where $C_{0}$ is the initial nitrate concentration and $C_{t}$ is the nitrate concentration at time $t$ .

3. Results and Discussion

3.1. Characterization of ATP-nZVI and Interaction between ATP and nZVI

Figure 1 shows the SEM images of ATP, nZVI, ATP-nZVI, and nitrate-laden ATP-nZVI. The ATP was characterized by rod- and block-like structures (Figure 1(a)) while nZVI was characterized by spherical particles of varying sizes. Owing to the small diameter of the nanoiron particles, there was an interaction force between the particles, which led to the aggregation of the nZVI particles (Figure 1(b)). Following ATP loading, the ATP-nZVI particles exhibited better dispersion than the nZVI particles. The small nZVI particles were distributed on the surface and pores of ATP. This resulted in a higher surface area and a greater number of reaction sites (Figure 1(c)). The particle size of nitrate-laden ATP-nZVI increased after the reaction, and notable agglomeration was observed. During ATP adsorption, NO₃-N is adsorbed to the surface and the oxidation reaction occurs on nZVI, resulting in the formation of iron oxide and iron hydroxide on nZVI surface. These results demonstrate the successful preparation of ATP-nZVI composites and that NO₃-N was effectively adsorbed on ATP-nZVI surface.

Figure 1

SEM images of (a) ATP, (b) nZVI, (c) ATP-nZVI, and (d) nitrate-laden ATP-nZVI. ATP: attapulgite; ATP-nZVI: nano-zero-valent iron-coated attapulgite; nZVI: nano-zero-valent iron.

(b)

(c)

(d)

Figure 2 shows the XRD patterns of ATP, nZVI, ATP-nZVI, and nitrate-laden ATP-nZVI, with characteristic diffraction peaks for ATP at $2 θ = 19.82 °$ , 21.68°, and 26.69° (Figure 2(a)). ATP is a natural mineral composed of SiO₂ [23]. In Figure 2(d), a $2 θ$ of 44.8° was observed in the nZVI spectrum, confirming the existence of α-Fe⁰, the characteristic diffraction peak of nZVI ([32–34]. When ATP was loaded with nZVI, typical diffraction peaks for ATP and nZVI appeared in the XRD spectrum of ATP-nZVI. The loaded material increased the crystallinity of α-Fe⁰ because iron can be adsorbed on aluminum silicate sites. The doping of SiO₂ increases the crystallinity of nZVI [20, 22, 35]. We confirmed that the aluminum silicate particles in the ATP structure functioned as effective carriers of nZVI, which confirmed the successful preparation of the ATP-nZVI composites.

Figure 2

XRD images of (a) ATP, (b) nitrate-laden ATP-nZVI, (c) ATP-nZVI, and (d) nZVI. ATP: attapulgite; ATP-nZVI: nano-zero-valent iron-coated attapulgite; nZVI: nano-zero-valent iron.

Figure 3 shows the XPS results before and after NO₃-N removal using ATP-nZVI. The binding energies of Fe 2p at 725.4 and 712.9 eV were assigned to Fe₂O₃ and Fe₃O₄, respectively. However, a signal peak of Fe⁰ was noted at a binding energy at 707.1 eV in Figure 3(a), but not in Figure 3(b). This was attributed to the participation of Fe⁰ in nZVI in the reduction reaction to remove nitrate nitrogen [36].

Figure 3

X-ray photoelectron spectroscopy spectra (a) before and (b) after NO₃-N removal by ATP-nZVI. ATP-nZVI: nano-zero-valent iron-coated attapulgite.

(b)

3.2. Comparison of NO₃-N Removal Rates by Different Materials

The NO₃-N removal efficiencies of ATP, Fe (particle sizes: 0.075-0.09 mm), nZVI, and ATP-nZVI were investigated. In the solution containing an initial NO₃-N concentration of 30 mg/L, the NO₃-N removal rates were 10.75%, 41.37%, 55.48%, and 78.61%, respectively, (Figure 4), after 150 min. The ATP and iron powder also exhibited an NO₃-N removal effect; however, it was not satisfactory since electrostatic repulsion occurred between ATP and NO₃-N [20, 22], whereas iron powder was easily oxidized and had a small surface area. However, ATP-nZVI and nZVI had 5.2- and 7.3-fold higher NO₃-N removal rates, respectively, than that of ATP. This indicated that the fine particles of nZVI enabled the exposure of its active sites, thereby promoting NO₃-N removal, whereas ATP-nZVI composites inhibited the agglomeration of nZVI particles via ATP loading and removed nitrates by reduction, adsorption, and surface complexation. These results confirmed that nZVI played a significant role in the removal of reductive NO₃-N.

Figure 4

NO₃-N removal rates for different materials (ATP, Fe, nZVI, and ATP-nZVI). ATP: attapulgite; ATP-nZVI: nano-zero-valent iron-coated attapulgite; nZVI: nano-zero-valent iron (initial NO₃-N $concentration = 30$ mg/L, $adsorbent = 1.5$ g/L, $pH = 7$ , reaction $temperature = 25$ °C, and $contact time = 150$ min).

3.3. Influence of nZVI on ATP Mass Ratio

To optimize ATP loading to nZVI, we prepared materials at different mass ratios of nZVI to ATP (1 : 0.5, 1 : 1, 1 : 3, and 1 : 5) and obtained NO₃-N removal rates of 70.57%, 78.61%, 71.74%, and 61.49%, respectively (Figure 5). The highest ratios of nZVI (nZVI to ATP mass $ratio = 1 : 0.5$ ) and ATP (nZVI to ATP mass $ratio = 1 : 5$ ) did not achieve the maximum NO₃-N removal rate. Instead, the NO₃-N removal rate peaked when the nZVI to ATP mass ratio was 1 : 1. Notably, when nZVI dosage in the composite was not significantly different from that of ATP, the NO₃-N removal efficiency was relatively high, indicating that nZVI plays an important role in the NO₃-N removal. However, when the ATP dosage was further increased and the mass ratio of nZVI to ATP was increased from 1 : 3 to 1 : 5, the active nZVI sites were encapsulated, reducing the loading effect of ATP on nZVI, thereby reducing the ATP, number of surface functional groups, and reactive sites on the nZVI composites, which reduced their ability to remove NO₃-N.

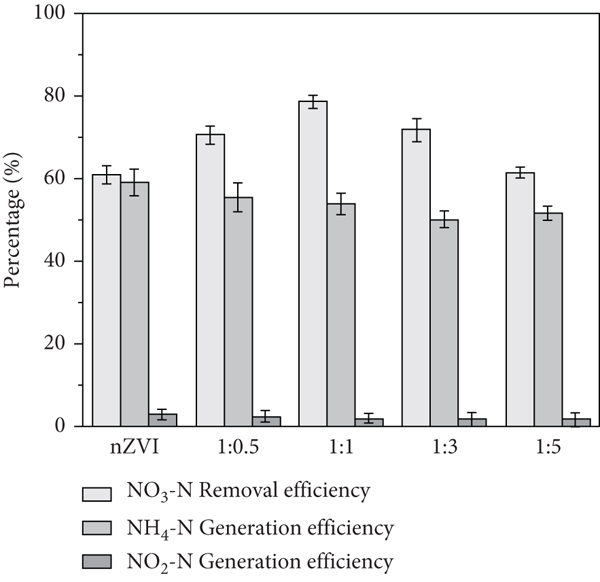

Figure 5

Effect of nZVI and ATP mass ration on NO₃-N removal rate. ATP: attapulgite; nZVI: nano-zero-valent iron (initial NO₃-N $concentration = 30$ mg/L, $adsorbent = 1.5$ g/L, $pH = 7$ , reaction $temperature = 25$ °C, and $contact time = 150$ min).

Additionally, comparing the effects of nZVI and ATP-nZVI revealed that ATP loading effectively inhibited the production of ammonia nitrogen. Studies have reported that most products of NO₃-N reduction via zero-valent iron include ammonia nitrogen [14], which is consistent with our findings. With an increase in the ATP loading ratio, the ammonia nitrogen production decreased slightly from 57.45% at 1 : 0.5 to 51.04% at 1 : 5. Following nitrate nitrogen generation, the production rate accounted for a small proportion of the total nitrogen. Therefore, the optimal mass ratio of nZVI to ATP was determined to be 1 : 1.

3.4. Effect of Initial pH

To explore the effect of the initial pH on NO₃-N removal from groundwater by ATP-nZVI, the initial pH was set at 3, 5, 7, and 9 using NaOH and HCl, as required. We achieved NO₃-N removal rates of 79.77%, 79.58%, 78.61%, and 74.27%, respectively. The removal rate did not change significantly when the reaction reached equilibrium under different pH conditions (Figure 6). When the pH values were 3 and 5, equilibrium was reached within 50 min and the removal rates were 79.77% and 79.58%, respectively. When the pH value was 7, the removal rate was 78.61% at 90 min. At a pH 9, equilibrium was reached at 120 min, with a removal rate of 74.27%; however, the increase in pH negatively correlated with the reaction rate. This is because the stronger the acidity, the higher the reduction rate due to the acceleration of H⁺ ions [37]. Therefore, under this condition, it is easier for nZVI to lose electrons and be oxidized, whereas it is easier for NO₃-N to gain electrons and be reduced [20, 22, 38]. In contrast, alkaline conditions increase the oxides on the nZVI surface, hindering the reducing agents and target contaminants. As the reaction progressed, corrosive products, such as hydroxides, generated in the solution gradually precipitated on the particle surface, thus limiting the nitrate diffusion from nZVI particle surface to the inner layer [39]. These results showed NO₃-N reduction by nZVI is an acid-driven reaction.

Figure 6

Effect of changes in initial pH on NO₃-N removal rate (initial NO₃-N $concentration = 30$ mg/L, $adsorbent = 1.5$ g/L, reaction $temperature = 25$ °C, and contact $time = 150$ min).

3.5. Effect of Initial Temperature

Water temperature is an important factor affecting chemical reactions; therefore, investigating the effect of temperature changes on NO₃-N removal is necessary. The increase in the temperature positively correlated with NO₃-N removal efficiency, although the removal efficiency did not change significantly (Figure 7). At reaction equilibrium, the removal rates at 15, 25, and 35°C were 75.81%, 78.61%, and 80.32%, respectively. At 35°C, the reaction reached equilibrium at 60 min, whereas at the other temperatures, it reached equilibrium at 100 min. The results showed that NO₃-N removal rates increased slightly with increasing water temperature. This was attributed to the fact that increase in the temperature accelerated the rate of intermolecular movement, thereby increasing the probability of nitrate contacting nZVI and being removed faster. Additionally, an increase in the reaction temperature increased the activation energy of the chemical reaction, which aided in overcoming the reaction energy barrier [40], thus promoting the reaction process. This result is consistent with those of studies that utilized zero-valent iron to degrade pollutants [41, 42]. Our results confirmed that the increase in the temperature aided NO₃-N removal [43].

Figure 7

Effect of initial temperature on NO₃-N removal rate (initial NO₃-N $concentration = 30$ mg/L, $adsorbent = 1.5$ g/L, $pH = 7$ , and $contact time = 150$ min).

3.6. Role of Coexisting Anions

Different anions coexist in groundwater, which may interfere with NO₃-N removal by ATP-nZVI. To assess the influence of coexisting anions in an actual water body on the reaction system, samples containing PO₄ ^3–, SO₄ ^2–, Cl^–, CO₃ ^2–, and a blank control were used, where the ratio of the anion concentration to the nitrate nitrogen ion was 4 : 1. The order of NO₃-N removal inhibition by ATP-nZVI due to various coexisting anions was PO₄ ^3–>CO₃ ^2–>SO₄ ^2–>Cl^– (Figure 8). Here, PO₄ ^3– had the greatest effect on NO₃-N removal as its presence decreased NO₃-N removal efficiency sharply from 78.64% to 15.2%. Owing to the strong binding ability of CO₂ ^3– to the ATP surface, iron, as a reducing agent, reacted with PO₄ ^3–, thus reducing the probability of NO₃ ^– being adsorbed on the iron surface. NO₃ ^– removal rate decreased when these anions coexist in large amounts. The presence of CO₂ ^3– also partially inhibited the reaction, and the removal rate decreased to 48.32%. The presence of Cl^– and SO₄ ^2– had a negligible effect on NO₃-N removal, with removal rates being 74.23% and 68.44%, respectively. Additionally, NO₃ ^– formed precipitates with the corrosion products, i.e., Fe(II)/Fe(III), adsorbed on the iron surface.

Figure 8

Rates of NO₃-N removal and ammonia nitrogen and nitrite generation in presence of coexisting ions (anion concentration to nitrate nitrogen ion $ratio = 4 : 1$ , mass ratio of ATP-nZVI $material = 1 : 1$ , initial NO₃-N $concentration = 30$ mg/L, $adsorbent = 1.5$ g/L, $pH = 7$ , reaction $temperature = 25$ °C, and contact $time = 150$ min).

The presence of coexisting anions (NO₃-N, PO₄ ^3–, SO₄ ^2–, Cl^–, and CO₃ ^2–) in water body slightly increased the conversion of ammonia nitrogen compared with the control, with conversion rates of 68.25%, 58.12%, 57.65%, 61.74%, and 56.32%, respectively. These results suggest that coexisting surface ions promote the formation of ammonia nitrogen.

3.7. Adsorption Kinetic Model

The kinetics of ATP-nZVI were fitted using pseudosecond-order models at different initial pH values, temperatures, and coexisting anions. The fitting parameters are provided in the Supporting Information (Tables S1, S2, and S3). The results showed that ATP-nZVI kinetics can optimally fit a pseudosecond-order model.

In the pseudosecond-order model fitting at different initial pH values, the larger pseudosecond-order kinetic reaction constant and faster the reaction rate were obtained at lower pH; the optimal pH was 3 with the fitting result of $R^{2} = 0.996$ (Figure S1). The fitting of the pseudosecond-order model at different initial temperatures showed that greater pseudosecond-order kinetic reaction constant and faster reaction rates were obtained at higher temperatures (Figure S2). The higher temperature is beneficial for the accelerated molecular movement. The pseudosecond-order model fitting in the presence of coexisting anions (Figure S3) exhibited a faster reaction rate than that under other anions in the presence of Cl^–, whereas the presence of PO₄ ^3– led to a rapid decrease in the reaction rate.

3.8. NO₃-N Removal Mechanism

Based on the characterization and batch experiments, Figure 9 summarizes the reaction mechanism of nZVI-mediated NO₃-N removal on the surface of the ATP-nZVI composite, where nZVI was oxidized to Fe(II) and Fe(III) by electrostatic attraction and chemisorption of NO₃-N on the surface, followed by its further reduction. The chemical adsorption of electrons exchanged between NO₃-N and ATP-nZVI is the main rate-limiting step in the nitrogen-nitrate removal reaction process [44]. This result further demonstrated that the physical diffusion and electron exchange between the adsorbent and adsorbate contributes to the reaction during NO₃-N removal by ATP-nZVI. The reactions are shown in Equations (4)–(7).

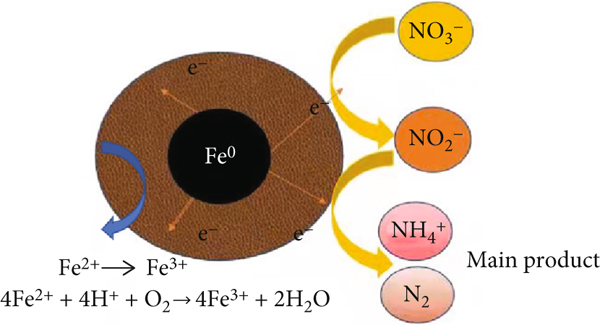

Figure 9

NO₃-N removal mechanism of nZVI. ATP: attapulgite; nZVI: nano-zero-valent iron.

Altered NO₃-N removal by ATP-nZVI in an aqueous solution was due to the incomplete removal of air; as a result, ATP-nZVI reacted with dissolved oxygen to produce Fe(II) (see Equation (3)). The change in the pH value, which increased rapidly (Figure 10), was due to the production of a large amount of hydroxide during the reaction [45]. The pH of the solution finally remained between 9.0 and 9.5; the alkaline condition was conducive to the precipitation of ferrous iron and reduced secondary pollution caused by the dissolution of soluble iron [20, 22, 38], consistent with the results of previous studies.

Figure 10

Change in pH during NO₃-N removal by ATP-nZVI. nZVI: nano-zero-valent iron.

Figure 11 shows the variation in the nitrogen species concentration with time under the experimental conditions. Nitrite was detected only in the early stage, peaking at 40 min, and then decreased slightly. As reaction progressed, ammonia nitrogen increased to 12.71 mg/L, whereas the total nitrogen decreased to 17.64 mg/L, indicating that ammonia nitrogen and nitrogen were the main products of the reduction process. The nitrite was only the intermediate product of the NO₃-N reduction reaction and was subsequently converted to ammonia nitrogen and nitrogen [10, 46]. The reaction equations are as follows: $\begin{matrix} (3) & {Fe}^{0} + O_{2} + H_{2} O ⟶ 2 {Fe}^{2 +} + 4 {OH}^{-}, \\ (4) & {Fe}^{0} + {NO}_{3}^{-} + 2 H^{+} ⟶ {Fe}^{2 +} + H_{2} O + {NO}_{2}^{-}, \\ (5) & 3 {Fe}^{0} + {NO}_{2}^{-} + 8 H^{+} ⟶ 3 {Fe}^{2 +} + 2 H_{2} O + {NH}_{4}^{+}, \\ (6) & 3 {Fe}^{0} + 2 {NO}_{2}^{-} + 8 H^{+} ⟶ 3 {Fe}^{2 +} + 4 H_{2} O + N_{2} ↑, \\ (7) & 5 {Fe}^{0} + 2 {NO}_{3}^{-} + 6 H_{2} O ⟶ 5 {Fe}^{2 +} + 12 {OH}^{-} + N_{2} ↑ . \end{matrix}$

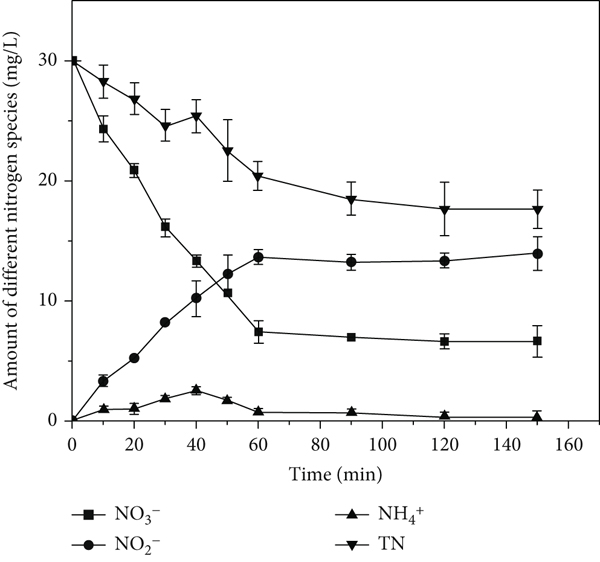

Figure 11

Change in nitrogen species over time.

Iron is oxidized mainly on particle surfaces and generates iron oxides and hydroxides. The main accompanying reactions were as follows: $\begin{matrix} (8) & {Fe}^{2 +} + 2 {OH}^{-} ⟶ Fe {(OH)}_{2}, \\ (9) & 4 {Fe}^{2 +} + O_{2} + 4 H_{2} O ⟶ 2 {Fe}_{2} O_{3} + 8 H^{+}, \\ (10) & 4 {Fe}^{2 +} + O_{2} + 4 H^{+} ⟶ 4 {Fe}^{3 +} + 2 H_{2} O, \\ (11) & {Fe}^{3 +} + 3 {OH}^{-} ⟶ Fe {(OH)}_{3}, \\ (12) & Fe {(OH)}_{3} + 3 H^{+} ⟶ FeOOH + H_{2} O . \end{matrix}$

During the reduction of nitrate solution using ATP-nZVI, the total number of nitrogen species decreased compared with the initial number, indicating that part of the nitrogen from the aqueous phase was converted to the gas phase while part of the nitrogen in the solution was converted to gaseous nitrogen, which escaped [47]. According to the principle of mass balance, including that for water and gas species, a small decrease in the total nitrogen volume led to the escape of gases. Alternatively, a small amount of solid residue adsorption was observed. This also indicated that during nitric acid treatment by ATP-nZVI, a large amount of NO₃-N was converted to other nitrogen species. Therefore, the main reason for NO₃-N removal by ATP-nZVI was the reduction of nZVI, where ATP loading improved the reduction efficiency. Compared with similar studies (Table 1), ATP-nZVI showed a good NO₃-N removal rate at low cost.

4. Conclusions

In this study, an ATP-nZVI composite was successfully prepared and used for the efficient removal of NO₃-N from groundwater. The stability of ATP-nZVI and its NO₃-N removal performance were evaluated. The changes in the surface, composition, and properties of the material before and after the reaction of ATP-nZVI with nitrate were investigated. A variety of materials (iron powder, ATP, nZVI, and ATP-nZVI) were compared to verify the advantages of ATP-nZVI for NO₃-N removal. Additionally, the effects of nZVI on the ATP mass ratio, initial pH value, water temperature, and coexisting anions on the removal of NO₃-N from groundwater via ATP-nZVI were investigated.

Based on the characterization results, we inferred that the aluminum silicate particles in the ATP structure are effective carriers of nZVI, which promote the crystallization of the reaction product and reduce self-consumption caused by the oxidation and aggregation of nZVI. Compared with nZVI, ATP-nZVI is more stable in aqueous solutions and less prone to oxidation and aggregation. The removal order of NO₃-N with respect to the different preparation materials was ATP-nZVI>nZVI>iron powder>ATP. During the removal of NO₃-N by ATP-nZVI, most of the NO₃-N was converted into NH₄-N, N₂ was generated, and the pH increased. In terms of the mass ratio of nZVI to ATP, the loading mass ratio between nZVI and ATP was optimized; the removal efficiency of NO₃-N was highest when the ratio of nZVI to ATP was 1 : 1. The initial pH had a rate limiting effect on NO₃-N removal; therefore, the equilibration was reached faster when the solution was acidic than when it was alkaline. However, the NO₃-N removal rate could be promoted by increasing the reaction temperature. The order of the inhibitory effect of the coexisting anions on NO₃-N removal was PO₃ ^4–>CO₃ ^2–>SO₂ ^4–>Cl^–. The ATP-nZVI synthesis process used in this study is simple, environmentally friendly, and cost-effective and can efficiently treat NO₃-N-contaminated water and wastewater. Thus, it is a promising material to treat contaminated groundwater. In the future, more research studies should be conducted on ATP-nZVI composites because the actual NO₃-N removal efficiency in groundwater may be affected by other factors not evaluated in this study, such as microorganisms and water velocity; such studies will be useful to completely understand the corresponding underlying mechanisms and processes.

Footnotes

Data Availability

The data used to support the findings of this study are included within the article and supplementary information files.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

Acknowledgments

This work was supported by the Natural Science Foundation of Chongqing, China (cstc2021jcyj-bshX0231, cstc2020jcyj-msxmX0763, and cstc2021jcyj-msxmX0328).
