Contribution Evaluation of Physical Hole Structure,Hydrogen Bond,and Electrostatic Attraction on Dye Adsorption through Individual Experiments

Abstract

Disagreements over various unanswered questions about contribution of the adsorption process and functional groups on dye adsorption still exist. The main aim of this research was to evaluate the contributions of physical hole structure, hydrogen bond, and electrostatic attraction on dye adsorption. Three ideal representatives, namely, a sponge with porous structure, P(AM) containing -CONH₂ groups, and P(AANa/AM) containing -COONa groups, were chosen to evaluate the above contributions. The methylene blue (MB) removal rates of these three products were compared through individual experiments. The results revealed that physical hole structure did not play a role in decreasing dye concentration. Hydrogen bond existed in dye adsorption but did not remarkably reduce dye concentration. The excellent removal results of P(AANa/AM) demonstrated that electrostatic attraction was critical in enriching dye contaminants from the solution into solid adsorbent. The results could provide insights into the dye adsorption mechanisms for further research.

1. Introduction

Much attention has been paid to the exponential growth of dye pollution. These pollutants are released from contemporary industries and chemical laboratories [1–3]. Coloring materials have high chromaticity, which sets them apart from other types of traditional organic pollutants, such as lipids or carbohydrates. If dyes are released straight into the natural rivers without any treatment, the water will be contaminated and turn into a red, blue, yellow, or other colored environment. However, microbial degradation has a poorer removal effectiveness than chemical separation techniques for a high-concentration dye wastewater [4–6]. Moreover, a bioreactor can maintain a high residue level of dye pollutants for an extended period of time. By contrast, adsorption treatment has a potential efficacy in removing dye contaminants and could be regarded as a large-scale and rapid method to transfer pollutants from a solution into solid adsorbents [7, 8].

Various adsorption materials, including modified agricultural wastes, synthesized high-molecular polymers, and advanced materials, have been reported for dye removal [9–11]. On the one hand, the adsorption capacities of adsorbents have been developed through innovating traditional preparation methods. On the other hand, extensively modified adsorbents, such as hydrogel loaded with magnetic materials and small-molecular substances packaged by large porous materials, have been prepared to enhance their recycling convenience [12, 13]. Previous studies have described adsorption functions, including physical hole structure, electrostatic attraction, or hydrogen bonds with N and O atoms to H atom, to explain the adsorption mechanisms. The porous properties of adsorbents have been obtained by scanning electron microscopy (SEM) observation or Brunauer-Emmett-Teller (BET) surface area analysis. Typical porous materials, such as active carbon and zeolite, exhibit excellent dye adsorption capacity [14–16]. However, although dye concentration can be decreased by activated carbon or zeolite, the conclusion that physical hole structure in activated carbon or zeolite plays a crucial role in decreasing dye concentration may still not be drawn. The reason for this statement is that the compositions of the reported adsorbents are complex. In addition, the existence of porous structure was emphasized in the mass transfer from aqueous solution into solid adsorbents. However, the contribution of each part of adsorbents on dye adsorption should still be evaluated from contrast experiments. Functional groups, like hydroxide radical (-OH), amidogen (-NH₂), and carboxyl (-COO^-), have adsorption forces that fix dye pollutants. Wang et al. reported that the outstanding adsorption capacity of acrylic acid-functionalized graphene for cationic dyes was attributed to electrostatic interaction, π-π conjugation, and hydrogen bonding [17]. Silva et al. revealed that -OH and -NH₂ groups in chitosan exerted main roles in the removal of cationic basic blue 7 dye [18]. Chen et al. accounted that hydrogen bond could be an adsorption force between -CONH₂ and methylene blue (MB) dye [19]. Xu et al. gave an account that the hydroxyalkylaminoalkylamide groups on the six-membered ring of β-cyclodextrin enhanced the porous network capture ability for congo red dye [20]. Fan et al. interpreted that amino -NH₂ and azo -N=N- groups in cationic dyes could interact with carboxylic -COO^- groups in hydrogels [21]. Seera et al. manifested that -NH₂ in gelatin can connect with MB through forming hydrogen bond with -NH₂ and N atoms in MB molecules [22]. Hafdi et al. explained that the adsorption mechanism of nickel oxide-doped natural phosphate (NP/NiO) was the formation of hydrogen bond between hydroxyl groups in nanoparticles and N atoms in dye [23]. Jiang et al. demonstrated that the high adsorption capacity of modified β-cyclodextrin could be partly ascribed to the complexation and network capture by its special cavity structure [24]. In conclusion, the adsorption action of hydrogen bond in mixed systems containing various functional groups has been described. Hydrogen bond existed in a form of covalent bond between H atom and electronegative atoms. And the electronegative atoms included N and O atoms [25, 26]. However, the contribution of hydrogen bond on dye adsorption has not yet been quantified. Whether hydrogen bond would greatly decrease dye concentration remains in doubt. Up to now, the essence of adsorbents in adsorbing pollutants has not been explained clearly and definitely. Therefore, a series of single-factor evaluation experiments should be designed and conducted to determine the crucial adsorption force on dye adsorption.

The -COONa functional group has been applied in adsorbents to adsorb dye pollutants. Moreover, the -COONa groups are widely used in super absorbent resin, which can absorb water and retain water molecules in network structures [27–29]. Hence, the same property of -COONa groups that absorbs water molecules might also be applicable for dye adsorbents. Early studies have focused on the adsorption capacities of adsorbents or the removal rates for dye pollutants. Batch experiments, such as the kinetic model fitting for time-dependent curves and the calculation of parameters in thermodynamic models, have been conducted to clarify the basic characteristics of dye adsorbents [30]. The focus of these models is to explain the trends of the adsorption capacity for adsorbents and the pollutant removal rates. However, the swelling characteristics of adsorbents containing -COONa group in dye solution have not been investigated. Studies that observed the dynamic changes of adsorbent during the entire dye adsorption process are limited. The contribution of each part of an adsorbent, including the physical hole structure and various functional groups on dye adsorption, has not been evaluated individually. The dynamic changes might include the water absorption or swelling behavior of adsorbents during the dye adsorption process.

In this work, the contributions of physical hole structure, hydrogen bond, and electrostatic attraction on dye adsorption were evaluated through individual experiments. Three ideal representatives, namely, a sponge with physical hole structure, P(AM) with -CONH₂ groups, and P(AANa/AM) with -COONa groups, were chosen to evaluate the above contributions. Especially, P(AM) and P(AANa/AM) were prepared by graft copolymerization. These two products were used to evaluate the dye enrichment properties of hydrogen bond by -CONH₂ and electrostatic attraction by -COONa. Meaningful evaluation experiments were conducted for these three single component materials. The MB removal rates of the three representatives were compared to assess the effect on decreasing dye concentration. The morphologies of the three representatives in MB solution were also focused synchronously to provide the favorable evidence. The adsorption performance of the electrostatic attraction between -COONa in the P(AANa/AM) product and MB was investigated thoroughly under bottle shaking and column adsorption experiments. This research would be bound to have an important impact on dye adsorption mechanisms.

2. Materials and Methods

2.1. Materials

Acrylic acid (AA), acrylamide (AM), ammonium persulfate (APS), N,N-methylene bisacrylamide (MBA), sodium hydroxide (NaOH), methylene blue (MB), hydrochloride acid (HCl), and sodium chloride (NaCl) were purchased from Kelong Chemical Reagent Plant (Chengdu, China). The above chemical reagents were analytical grade. The sponge was purchased from Zhengzhou Fengtai Nanomaterials Co., Ltd. (Zhengzhou, China).

2.2. Product Preparation

Three products, including P(AM), P(AANa), and P(AANa/AM), were synthesized by graft copolymerization in solution. The main components of P(AANa/AM) were composed of sodium carboxylate (-COONa) and acylamino (-CONH₂) in polymer chains. The adsorption capacity of -COONa was assessed using P(AM) with -CONH₂ groups. P(AANa) and P(AANa/AM) gels were used as the intermediate polymerization products to conduct the mechanical experiment for observing the role of AM in the P(AANa/AM) product. Firstly, 5 mL of AA with 100% neutralization degree by 10 wt.% NaOH, 2 g of AM, and 0.30 g of MBA were mixed in a 100 mL breaker under constant magnetic stirring at 70°C. Then, the APS solution (0.20 g of APS to 5 mL of distilled water) was added. When the mixture turned into a gel, the magnetic stirrer was turned off, and the reaction was continued for 3 h. In addition, under the same APS and MBA doses, P(AM) was prepared with 7.0 g of AM and no addition of AA, and P(AANa) was prepared with AA and no addition of AM. Finally, the gel was cut and dried at 70°C. The products had a particle size in the range of 0.45 mm to 1 mm.

2.3. MB Adsorption Experiments

The main MB adsorption force of the functional groups in P(AANa/AM) was investigated. The polymer chains of the P(AANa/AM) product included -CONH₂ and -COONa, whereas those of the P(AM) contained -CONH₂ groups. Methylene blue solutions with various concentrations were prepared using distilled water. Then, 0.05 g of the dried particles was added into 50 mL of the solution at 25°C. The determination experiments of water absorbency were conducted from three individual measurements. After reaching the equilibrium state, the concentration of MB in the residual solution was detected using a UV-vis spectrometer (UV-1800, Shimadzu, Japan). The adsorption capacity ( $Q_{a}$ ) and removal rate ( $η$ ) to MB were calculated: $\begin{matrix} (1) & Q_{a} = \frac{(C_{0} - C_{e}) \times V}{m}, \\ (2) & η = \frac{C_{0} - C_{e}}{C_{0}} \times 100 %, \end{matrix}$ where $Q_{a}$ means the adsorption capacity of product (mg/g), $η$ means the removal rate to MB (%), $C_{0}$ and $C_{e}$ mean the initial equilibrium concentration (mg/L), $V$ is the volume of MB solution (L), and $m$ is the weight of the dried products (g).

Based on the shaking flask adsorption experiments, dynamic column adsorption experiments were also established. With the effective height of 10 cm, 0.15 g of the dried P(AANa/AM) particles was loaded into the glass column. The upward flow was 5 mL/min by using a peristaltic pump to inject 20 mg/L MB solution for 30 min. The MB concentration in effluent was detected with an interval of 2 min.

2.4. Measurement of Water Absorbency

The swelling properties of P(AANa) and P(AANa/AM) were determined by the gravimetric method. In particular, a sponge block was applied to determine the water holding property of physical hole structure. The dried samples (0.1 g) were immersed in 100 mL distilled water or 20 mg/L MB solution. After the samples were saturated, filtered, and weighted, water absorbency was calculated: $\begin{matrix} (3) & Q_{b} = \frac{m_{2} - m_{1}}{m_{1}}, \end{matrix}$ where $Q_{b}$ is the water absorbency of product (g/g), $m_{1}$ is the weight of the dried samples (g), and $m_{2}$ is the weight of samples for absorbing water (g).

2.5. Characterization

The compressive strengths of the polymerized gels were determined using the universal material testing machine (Instron 5967, England) at the compression rate of 10 mm/min. The samples were in the shape of a cylinder (diameter of 2 cm and height of 3 cm). The end of compression ratio was 70%. The macroappearance and the microtopography of the products after immersion in MB solution were observed using the reflected light microscope (ZEISS Stemi SV 11, Shanghai, China) and scanning electron microscopy (SEM, Apreo S, USA). The samples were filtered and photographed after immersion in distilled water or MB solution. For SEM observation, the swollen particles were dried by vacuum freeze dryer. The dried specimens were placed carefully on conducting glue coated with gold vapor to confer conductivity. A Nikon camera was used to photograph the morphology in the column experiment.

3. Results and Discussion

3.1. Role of AM in P(AANa/AM)

The P(AANa/AM) product consisted of two hydrophilic groups, namely, -CONH₂ and -COONa, in the polymer chains. The final removal state to dye pollutants is the transferring and enriching process from the solution into adsorbents. Figure 1(a) shows the MB removal rates of P(AM) and P(AANa/AM) in 20 mg/L MB solution under different adding doses. Obviously, the MB removal rate by P(AM) increased linearly when the weight of P(AM) increased from 0.01 g to 0.05 g. More remarkable, when the weight of P(AM) increased further, the MB removal rates were kept a relatively stable state and all were lower than 80%. However, for P(AANa/AM), the average MB removal rates under different adding doses were $97.06 % \pm 0.60 %$ . In particular, P(AM) was synthesized by AM under graft copolymerization, in which functional group was -CONH₂. P(AANa/AM) was synthesized by AA and AM under neutral condition and graft copolymerization, in which the functional groups were -CONH₂ and -COONa. Comparisons of the structure and composition differences between P(AM) and P(AANa/AM) showed that -COONa in the polymer chains was the remarkable characteristic of P(AANa/AM) for MB removal. More deeply, P(AM) containing -CONH₂ groups exhibited the dye combination property with the dye but did not achieve a great effect in enriching dye molecules. On the contrary, -COONa in P(AANa/AM) belongs to ionic functional groups, which showed excellent performance in combining with MB pollutant [31]. The comparison results showed that -CONH₂ in AM was not crucial in MB adsorption. However, AM was one of the indispensable raw materials to synthesize P(AANa/AM). Thus, necessary experiment should be conducted to investigate the actual contribution of AM in P(AANa/AM).

Figure 1

(a) Effect of adsorbent dose to MB removal rate. (b) Compressive strain-stress curves of P(AANa) and P(AANa/AM) gels.

(b)

Figure 1(b) shows the compressive strength results of the P(AANa) and P(AANa/AM) gels, respectively. Under the same cracking moment, the compressive strength of the polymerized gel increased from 49.80 kPa to 278.66 kPa. The vital promotive role of AM was not to increase the capacity of the adsorbent to adsorb MB solution, but to strengthen the mechanical property of the polymerized gel. At the late product preparation process, an essential step was to cut the polymerized gel into small cubes. Thus, the gel with strong mechanical strength contributed to this process.

3.2. Dye Adsorption and Swelling Property

The removal process of dye pollutants involved the migration and binding process for dye molecules. Two indexes, namely, MB removal rate and water absorbency, were observed to evaluate the interaction between P(AANa/AM) and dye pollutants. Table 1 and Figure 2 show the removal rate and water absorbency results for sponge, P(AM), and P(AANa/AM), respectively. Porous sponge had no MB adsorption capacity and exhibited the water absorption capacity of 135.29 g/g in distilled water and 135.50 g/g in 20 mg/L MB solution. Porous sponge could absorb water when immersing in MB solution. The color of the sponge block turned into blue, but the concentration of MB solution did not decrease. MB molecules were moved out from the sponge by squeezing. In comparison, the porous structure in adsorbents was favorable for the migration of dye pollutants from the solution into the adsorbent’s inner areas. However, whether physical hole structure could decrease dye concentration had not been concerned in literatures. The porous sponge did not cause a remarkable decrease in MB concentration. These individual experiments confirmed that the physical hole structure in adsorbents did not contribute to dye adsorption.

Table 1

Comparison of the MB removal rate and water absorbency for sponge, P(AM), and P(AANa/AM).

	Removal rate to MB (%)	Water absorbency (g/g)
	Removal rate to MB (%)	Distilled water	MB solution
Sponge	0	135.29	135.50
P(AM)	64.88	7.51	7.48
P(AANa/AM)	97.44	53.80	53.74

Figure 2

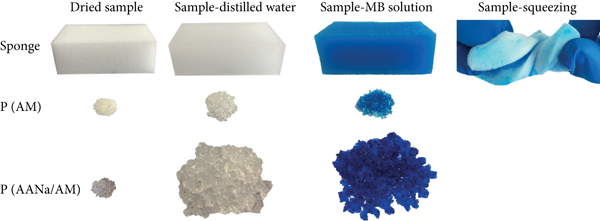

Macromorphologies of sponge, P(AM), and P(AANa/AM) immersed in distilled water and 20 mg/L MB solution.

Across the same dose and dye concentration, the dye removal rate of 97.44% by P(AANa/AM) was quite higher than that of 64.88% by P(AM). P(AM) and P(AANa/AM) products produced under the graft copolymerization reaction and contained the polymeric network structure. The partial decrease in MB concentration by P(AM) was ascribed to the hydrogen bond between P(AM) and MB molecules, rather than the polymer chains. For P(AM), several -CONH₂ groups were linked at the main polymer chains. The hydrogen bond between -CONH₂ and MB molecules caused the decrease in MB concentration. For P(AANa/AM), the electrostatic attraction between -COONa and MB molecules achieved an excellent dye removal effect. This result indicated that the electrostatic attraction had a crucial impact on removing dye pollutants from the solution into the solid adsorbents. Specifically, -COONa groups were classified as an anionic group, which could combine with cationic MB molecules [32, 33]. Based on this form, MB molecules could be enriched and fixed in the inner area of P(AANa/AM). Overall, the binding force that remarkably decreased MB concentration was the electrostatic attraction, not hole structure and hydrogen bond.

The water-absorbing behavior of P(AANa/AM) in dye solution was also observed. The sponge, P(AM), and P(AANa/AM) all absorbed water when immersed in distilled water or MB solution. The swelling phenomena for P(AM) and P(AANa/AM) were accompanied with dye adsorption behavior. Particle size was increased obviously after adding the dried products into distilled water or MB solution. Thus, previous insights about dye adsorption process were partially limited. The swelling behaviors of dried P(AM) and P(AANa/AM) particles were ascribed to their obtained functional groups and polymer network structure. In fact, -CONH₂ and -COONa groups are hydrophilic groups. With the cooperation of polymer network structure, these groups presented the water combination property. Furthermore, the mutual repulsive force for -COONa groups aggravated the expansion of the polymer chains. This property was also confirmed from the water absorbency difference between P(AM) and P(AANa/AM). The hydrophilic groups in the polymer chains, including -CONH₂ and -COONa, could combine water and MB molecules through hydrogen bond and electrostatic attraction. A new insight was put forward that the morphological changes, especially the swelling behavior, should be listed as an index to study the dye pollutant removal mechanisms.

3.3. SEM Observation

Figure 3 shows the SEM images of P(AANa/AM) and sponge. The dense and solid structure of the P(AANa/AM) surface after dehydration and drying treatments during preparation is displayed in Figure 3(a). After soaking the dried particles into 20 mg/L MB solution, the particle size increased as shown in Figure 3(b). The interwoven polymer chains of the swollen particles were a testament to the ease and practicability of graft polymerization. Hydrophilic functional groups, such as -CONH₂ and -COONa, allowed the stretching of the polymer chains. Water molecules were immobilized in the polymer network structure. As a result, the water absorption process was coupled with the dynamic dye adsorption process. Finally, P(AANa/AM) particles were no longer the original dried particles but became an extended gel once the dye adsorption equilibrium condition was reached. Figure 3(c) shows the SEM image of the physical hole structure of sponge. The visible porous structure in the sponge revealed that sponge could be an ideal representative to evaluate the contribution of physical hole structure on dye adsorption.

Figure 3

SEM images of (a) dried P(AANa/AM) particles, (b) P(AANa/AM) immersed in MB solution, and (c) the sponge.

(b)

(c)

Figure 4 provides the morphological variations of P(AANa/AM) during the product preparation and MB adsorption processes. The formation of free radicals at AA and AM was assisted by the initiator APS. All single monomers took part in chain growth and formed the long chain polymer. In addition, the dissolved AA and AM raw materials were transformed into a translucent huge gel by the crosslinking agent MBA. The gel had a water content of roughly 86%. The gel was then sliced with scissors into tiny cubes. After the cubes were dried, milled, and sifted, the P(AANa/AM) adsorbents were obtained as dried, shrank particles. Two hydrophilic functional groups, namely, -CONH₂ and -COONa, were located at the polymer-branched chains. After the dried P(AANa/AM) particles were soaked into MB solution, the dye adsorption phenomenon could be clearly observed, which was accompanied by a remarkable decrease in MB concentration. Furthermore, the final state of P(AANa/AM) was the expanded hydrogel, where large amounts of water molecules were stored in the inner of adsorbent. This unique characteristic of the adsorbent brought the ease in the diffusion and migration for MB molecules. Moreover, the stretched polymer chains have a high efficiency for the combination reaction between -COONa groups and MB molecules [32–34].

Figure 4

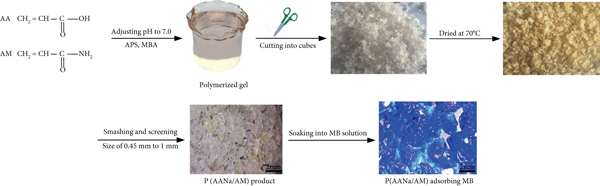

Morphological changes of P(AANa/AM) during the preparation and MB adsorption processes.

3.4. Confirmation of Adsorption Force

Figure 5 shows the MB removal rate results of P(AM) and P(AANa/AM) under various low concentrations of MB. It can be seen that the removal rates of MB by P(AANa/AM) were all considerably higher than those by P(AM). The MB removal rate by P(AM) was 15.31% when the initial MB concentration was 1 mg/L. Further increasing the initial MB concentration, the removal rate by P(AM) was 60.57%. However, P(AANa/AM) exhibited outstanding adsorption performance even under low MB concentration. The removal rates of P(AANa/AM) were 90.18% for 1 mg/L MB and 97.34% for 20 mg/L MB. The results demonstrated that electrostatic attraction was the most efficient adsorption mechanism. Even though -CONH₂ groups in P(AM) were able to bind MB molecules through hydrogen bond, a remarkable amount of MB was still presented in the solution. The removal efficiency for MB contaminants by P(AM) was subpar due to the diffusion resistance [35]. The goal of reducing a large amount of MB was not met after reaching the equilibrium condition. In comparison, P(AANa/AM) maintained an active adsorption performance with the existence of -COONa groups. According to the literature, hydrogen bond and electrostatic attraction are responsible for the adsorption functional forces [36, 37]. From these results, cationic MB molecules were concentrated on the adsorbents by anionic -COONa groups. Additionally, the -COONa groups in the stretched polymer chains might increase the negative charge of the P(AANa/AM) adsorbent by virtue of the swelling feature. After reaching equilibrium, the amount of residual dye pollutants in the solution was also minimal. By contrast, -CONH₂ in P(AM) exhibited dye combination property through hydrogen bond. A huge decrease in MB concentration was not obtained by P(AM). On the contrary, the excellent removal rate results by P(AANa/AM) demonstrated high efficiency in enriching the mass transfer of dye pollutants from solution into adsorbent by electrostatic attraction.

Figure 5

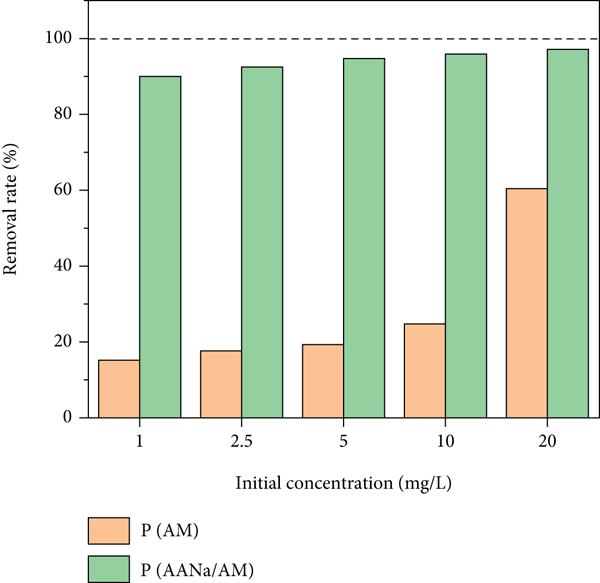

MB removal rates of P(AM) and P(AANa/AM).

3.5. Effect of Coexisting Substance on MB Adsorption

Figure 6(a) shows the MB removal rates by P(AANa/AM) adsorbent under various coexisting Na⁺ concentrations. Efficient removal results were maintained when Na⁺ concentration was lower than 0.001 mol/L. Further increasing the concentration of coexisting Na⁺ in MB solutions decreased the MB removal rates. The remarkable relationship between MB removal rate and coexisting Na⁺ concentration indicated that high of Na⁺ concentration in the solution would inhibit -COONa groups from combining with MB molecules [38, 39]. The ionization reaction of -COONa into -COO^- and Na⁺ occurred after P(AANa/AM) was soaked into MB solution. High concentration of Na⁺ brought the ionization resistance to shield the active sites in -COO^- groups. Moreover, a large amount of Na⁺ in the solution caused the increase of the cationic density and produced an ion shielding effect to MB molecules [40]. Thus, the MB removal rate by P(AANa/AM) declined under 0.1 mol/L coexisting Na⁺ solution. Figure 6(b) shows the MB removal rates by P(AANa/AM) under the interference of different organic compounds with the same MB concentration of 20 mg/L. The MB removal rates were 97.34%, 97.29%, and 97.04% when 20 mg/L glucose, urea, and humic acid were coexisted with 20 mg/L MB solution. Stable and excellent removal results were obtained in the interference of organic compounds. Therefore, electrostatic attraction has a potential application in adsorbents to control MB pollution.

Figure 6

Effects of coexisting (a) Na⁺ concentration and (b) organic compounds on MB removal rates.

(b)

3.6. Effect of Initial Dye Concentration on Adsorption

Figure 7 shows the MB adsorption capacity of P(AANa/AM) under various initial MB concentrations. The adsorption capacities of P(AANa/AM) increased linearly with increasing MB concentration in solution. The MB adsorption capacity of the P(AANa/AM) product was 198.29 mg/g at the initial MB concentration of 200 mg/L. Methylene blue is a water-based dye with excellent solubility. The MB removal rates at the initial MB concentration of 200 and 1 mg/L was 98.94% and 90.18%, respectively, owing to the electrostatic attraction of -COONa to MB molecules. The experimental results indicated that electrostatic attraction has an absolute superiority in dye adsorption over other mechanisms. Different from the physical porous structure, -COONa groups enriched the mass transfer of the dye pollutant from the solution into solid adsorbents.

Figure 7

Effect of MB concentration on the equilibrium adsorption capacity for P(AANa/AM).

3.7. Column Adsorption Experiment

Figure 8 shows the apparent changes of P(AANa/AM) and MB removal rates in the column adsorption experiment. The expanding tendency of dried particles became apparent after injecting 20 mg/L MB solution. Water started trickling from the top outlet after 2 min. The MB removal rate from wastewater was 90.21% at this time. Afterward, the expansion continued as it approached water absorption saturation after 5 min. The removal rates remained consistent and effective in the following injection step. Overall, the swelling property for P(AANa/AM) was visible. An excellent interception of MB pollutants was achieved by the swollen P(AANa/AM) particles. Besides the microscopic differences in adsorbent before and after adsorbing dye pollutants, a new insight was generated that the morphological changes of adsorbents on dye adsorption should be followed.

Figure 8

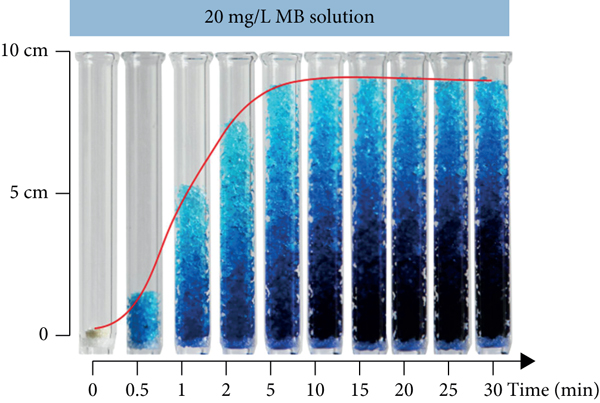

Dynamic changes in P(AANa/AM) morphology and MB removal rates in column adsorption experiments.

(b)

3.8. Dye Adsorption Mechanism

Figure 9 shows the schematic illustration of the dye adsorption mechanism from individual evaluation experiments of the contributions of physical hole structure, hydrogen bond, and electrostatic attraction. Firstly, the physical hole structure in the material could be regarded as the space area [41]. Water molecules and its contained dye molecules could permeate into the inner area by immersing porous material in the dye solution [42]. This migration behavior was in virtue of the wetting effect. Notably, the dye concentrations in the inner area of the adsorbent and the outer solution were equal. The dye removal rate was 0% from the representative result of the porous sponge. Secondly, the existence of hydrogen bonds with N and O atoms exhibited the bonding fastness for dye pollutants. The representative results of P(AM) on dye adsorption indicated that it had low MB removal rates. The combination by hydrogen bond was limited by migration resistance, which was dominated by the dye concentration in the solution. The remarkable decrease in dye concentration was not obtained even in high P(AM) doses. The findings could confirm that the hydrogen bond between adsorbent and dye pollutants did not play a crucial role in decreasing dye concentration. Thirdly, the results by P(AANa/AM) on dye adsorption indicated that the electrostatic attraction between anionic -COONa groups and cationic MB molecules exhibited an excellent removal effect by transferring dye pollutants into adsorbents. This point was also supported in the shake flask and column adsorption experiments. Overall, the individual evaluation experiments defined the crucial role of electrostatic attraction in dye pollutant treatment. Moreover, an inspiration arose spontaneously that the firm statement should be validated by independent evidence, rather than just a possibility.

Figure 9

Schematic illustration of dye adsorption mechanism from individual evaluation experimental results.

4. Conclusion

In summary, the contributions of physical hole structure, hydrogen bond, and electrostatic attraction to dye adsorption were studied from individual evaluation experiments. Comparisons of MB removal rates and apparent changes to sponge, P(AM), and P(AANa/AM) were conducted. The results of MB removal rates by porous sponge revealed that physical hole structure was useless in decreasing dye concentration. The low removal rate by P(AM) indicated that hydrogen bond could not substantially reduce dye concentration. The electrostatic attraction between -COONa and MB molecules achieved the enrichment of MB adsorption from solution into solid adsorbents. As one of the main synthetic materials, AM played a role in enhancing the mechanical stretch of the intermediate polymeric gel. Additionally, the findings of the morphological observation and water absorbency measurement revealed that the expanding behavior of P(AANa/AM) coexisted in MB solution. In further research, electrostatic attraction on dye adsorption should be thought highly to develop adsorbents. This study also recommends that the convincing conclusion should be obtained by visible evidence. Some individual representatives might be chosen to decompose the complex compositions of the adsorbent.
