Adsorption of Arsenic,Lead,Cadmium,and Chromium Ions from Aqueous Solution Using a Protonated Chabazite: Preparation,Characterization,and Removal Mechanism

Abstract

The adsorption of As(V), Pb(II), Cd(II), and Cr(III) ions from aqueous solutions on natural and modified chabazite was studied. The functionalization of chabazite was performed via a protonation and calcination with the aim of generating Lewis acid sites to improve its anion exchange properties. The surface and physicochemical properties of both adsorbents were studied and compared. The adsorption isotherms of tested heavy metal ions were quantified and modeled to identify the best isotherm equation. Steric parameters for the adsorption of these ions were also calculated with a monolayer statistical physics model. Natural chabazite showed the maximum adsorption capacity for Pb(II), while the modified zeolite improved its As(V) properties in 79%. These results showed that the modified zeolite was able to remove both cations and anions from aqueous solution. The application of this functionalized chabazite can be extended for the removal of other anionic pollutants from water, thus opening the possibility of preparing new adsorbents with tailored properties for water treatment.

1. Introduction

Heavy metal pollution is a relevant environmental problem worldwide due to its significant potential hazard to ecosystems and human health [1]. In particular, heavy metals dissolved in aqueous media are priority in terms of environmental protection because they are more toxic than the atomic form [2]. These soluble heavy metals include arsenic (As), lead (Pb), cadmium (Cd), and chromium (Cr), which are nonbiodegradable and have no physiological function. They have been reported as hazardous pollutants due to their toxicological profile, high solubility, environmental persistence, and accumulation into the food chain [3, 4]. Therefore, these dissolved heavy metals are classified as potentially toxic elements (PTEs).

According to the International Agency for Research on Cancer (IARC), these PTEs are also considered as carcinogenic [5] where their main exposure routes are the inhalation of contaminated air, skin absorption, and ingestion of polluted food or water [6–9]. Consequently, it is necessary to develop cost-effective and sustainable methods and materials to reduce the concentrations of these toxic species from polluted water and industrial effluents [10]. Nowadays, the adsorption is a simple and reliable technique for water and wastewater treatment where its success mainly depends on the preparation of an effective adsorbent [11]. The most used adsorbents are activated carbons, zeolites, silica gel, activated alumina, and biochar [12–15].

Natural zeolites offer several advantages for water treatment. They are low-cost minerals present in various parts of the world, have pore $sizes < 20 Å$ , and, consequently, are capable of adsorbing or rejecting molecules, which make them suitable as molecular sieves [16]. Zeolites also adjust the pH of the media, and their application usually does not generate additional environmental pollution [17].

In terms of chemical composition, zeolites are aluminosilicates with a structure consisting of a tetrahedral arrangement of silicon (Si⁴⁺) and aluminum (Al³⁺) cations with four oxygen anions (O^2-) at the vertices. This composition generates a three-dimensional framework containing SiO₄ and AlO₄ tetrahedral building blocks with permanent negative charges [18], which are balanced by monovalent or divalent counterions (e.g., alkaline or alkaline earth metals) that have the capability of acting as adsorption sites [19]. The adsorption process is controlled by the zeolite properties like ion exchange capacity and selectivity [20].

Chabazite is a zeolite used worldwide due its high surface area and physicochemical properties as ion exchanger [21–23]. Its framework has units of six double rings (D6R) interconnected through 4 rings, forming a 3-dimensional channel system that presents large ellipsoidal cavities with apertures consisting of 8 rings with a diameter of 3.8 Å in the cation-free condition [24, 25].

Natural chabazite can adsorb cationic species due to its negative charge. Different studies have reported the removal of different cations using this zeolite, thus obtaining a maximum adsorption capacity of 175 mg/g of Pb(II) [26]; 120 mg/g of Cd(II) [27]; 4.5 mg/g of Ni(II) [28]; 4.2–8.9 mg/g of Cu(II), Co(II), Zn(II), and Mg(II) [29]; and 30-45 mg/g of ${NH}_{4}^{+}$ [30, 31]. It has been established that its adsorption properties to remove cationic species in water treatment follow the next selectivity: ${Cs}^{+} > {NH}_{4}^{+} > K^{+} > {Pb}^{2 +} > {Na}^{+} > {Ba}^{2 +} > {Cd}^{2 +} > {Sr}^{2 +} > {Cu}^{2 +} > {Zn}^{2 +}$ [32].

On the other hand, the chabazite can be tailored via different processes to improve its adsorption performance for the removal of organic molecules and negatively charged species. For example, this material can be synthetized from urban wastes like cement and used to adsorb 129 mg/g of methylene blue [33]. This zeolite with the incorporation of copper was also able to adsorb NOx where the results showed that Cu-CHA catalysts prepared with a conventional wet ion exchange method outperformed the NOx conversion obtained with samples prepared via chemical vapor deposition and solid-state ion exchange [34]. A chemical treatment based on hexadecyltrimethylammonium bromide (HDTMA-Br) helped to change the external surface of this zeolite from negative to positive, thus being able to adsorb 26 mg/g of ${Cr}_{2} O_{7}^{2 -}$ [35], 6.9 mg/g of $As O_{4}^{3 -}$ , and 3.3 mg/g of $P O_{4}^{3 -}$ [36].

A straightforward modification process to improve the properties of zeolites relies on the decationation using different interchange ions like NH₄Cl, NaCl, or Cu(NO₃)₂ with the subsequent calcination at ≥450°C. This approach has been used to modify the surface properties of zeolites with the aim of removing anions in aqueous solution. Some examples are the removal of fluoride using clinoptilolite with a maximum adsorption capacity of 12.3 mg/g [37], the gasoline desulfurization employing 5A and 13X zeolites with a removal of 16.7 mg/g [38], and the nitrite removal from wastewater [39]. The superficial zeolite modification using NH₄Cl and a subsequent thermal treatment have been utilized to tailor synthetic chabazites for the thermal degradation of high-density polyethylene to low molecular mass hydrocarbons [40] and the adsorption of ethane (41 mg/g) and propane (81 mg/g) [41]. This material had been also employed as a catalyst in the methanol to olefins reaction (forming polyaromatic coke species) [42]. However, this approach has not been applied to improve the chabazite properties for the adsorption of anionic pollutants from water. Also, its impact on the cation adsorption properties of natural zeolites has not been analyzed in detail.

The aim of this study was to develop an effective and low-cost protocol to tailor the surface properties of the chabazite for the improvement of the adsorption of anionic species. This method was based on the decationation with NH₄Cl and protonation and subsequent calcination of natural chabazite. Results showed that this functionalization route was successful to generate Lewis acid sites (LAS) on this zeolite, thus increasing its anion adsorption properties. The performance of natural and modified zeolites was tested on the removal of As(V), Pb(II), Cd(II), and Cr(III) ions. The adsorption isotherms were correlated and analyzed with the Langmuir, Freundlich, Sips, Liu, and statistical physics models. The adsorption properties of these adsorbents were compared and correlated with their ion exchange capacity and chemical composition. The mechanisms of chabazite modification and adsorption of tested ions were analyzed. Finally, this study showed that the modified chabazite can be used to remove both anions and cations of water pollutants, thus being a promising approach for low-cost water depollution.

2. Methodology

2.1. Preparation of Modified Chabazite

Natural zeolite used in this study was obtained from a mineral deposit from the state of Sonora, Mexico. The natural chabazite (labelled as CH-N) was sieved to obtain a particle $size < 125 μ m$ , and these zeolite particles were utilized in the surface modification process, which was implemented according to a method adapted from Ghasemian et al. [43]. This method involved the following steps: (a) Homogenization: 50 g of zeolite was mixed with 500 mL of 2 N NaCl solution, stirred at 500 rpm and room temperature for 24 h [44]. Zeolite was washed several times with deionized water and dried at 100°C for 24 h. The sample obtained from the homogenization process was represented by the label “Z-Na”. (b) Decationation: the dry zeolite was treated with ammonium chloride because the exchange of Na⁺ is better for zeolites with ${NH}_{4}^{+}$ [45]. 12.5 g of homogenized chabazite was mixed with 250 mL of 1 N NH₄Cl at room temperature for 24 h under constant stirring. The final zeolite was washed with hot deionized water and dried at 100°C. The sample obtained from the decationation process was labelled as “Z-NH₄ ⁺”. (c) Thermal treatment: decationated zeolite was calcined at 500°C for 3 h using a heating rate of 5°C/min. Then, the sample was washed with deionized water and dried at 100°C for 24 h. Finally, this modified zeolite (labelled as “CH-MS”) was characterized and used for the adsorption experiments. Flow diagram of this process is included as Supplementary Information.

2.2. Chemical Characterization of Zeolite

The identification of the crystalline phases present in the zeolite samples was carried out by X-ray diffraction (XRD) analysis. XRD patterns were recorded with a diffractometer Siemens D5000 at room temperature. Samples were scanned within 2θ angular range of 5-50° with a step size of 0.020° for 10 s.

The textural parameters were determined by the Brunauer-Emmett-Teller method (BET) using a surface area and pore size analyzer (Quantachrome model nova 3200e). The samples were introduced into glass cell and degassed at 200°C for 10 h. N₂ physisorption was measured at -196.15°C.

The surface morphology of the zeolite samples was examined by using a scanning electron microscope (SEM) JEOL, model JSM-6610LV equipped with a microanalysis system model DX-4 energy dispersed spectroscopy (EDS). CH-N and CH-MS samples were placed on a fine coat brand carbon coater for this analysis.

Infrared spectra were obtained using Fourier transform infrared spectrophotometer (Thermo Scientific Nicolet iS10 FTIR). First, CH-N and CH-MS samples were dried at 70°C for 24 h to remove the moisture. Spectra of the samples were recorded in the region of 4000-600 cm^-1. FTIR analysis was also performed to determine the acid centers of tested adsorbents via the adsorption of pyridine. Samples of CH-N and CH-MS were subjected to vacuum and then exposed to pyridine atmosphere for 24 h. FTIR spectra of pyridine-loaded samples were recorded and analyzed.

The thermogravimetric analysis (TGA) was done using a PerkinElmer equipment (model Pyris Diamond TGA/DTG) calibrated with indium and gold samples from 25 to 660°C and 1063°C, respectively. 0.2 mg of zeolite sample was analyzed in the temperature range of 25–700°C with increments of 10°C/min.

The procedure established by Corbin et al. [46] was utilized for the determination of chemical composition of CH-N and CH-MS. The samples were sieved to obtain a particle size of 0.18 mm, and then, 0.1 g was mixed with 0.2 g of LiBO₂ and 0.4 g of Li₂B₄O₇. The mixtures were placed in a graphite crucible with a drop of LiBr (25% $w / w$ ) and calcined for 30 min at 900°C in a muffle. The melted mixture was dissolved in 75 mL of HNO₃ (10% $w / w$ ), filtered and made up to 200 mL. The concentrations of dissolved metals were quantified with a Thermo Scientific Inductively Coupled Plasma Optical Emission Spectrometry (ICP-OES). Multielement solutions containing Fe, Mn, Ca, Mg, K, Si, Na, Al, Sr, Pb, Sn, Hg, Cd, Zn, As, Ni, Cr, Mo, and Ba were used to prepare the calibration curve where high purity standard solutions (1000 mg/L) of each metal and deionized water were employed for this purpose.

2.3. Surface Properties of Zeolites

The pH of the point of zero charge (PZ) of the zeolites was determined preparing solutions with pH between 2.27 and 6.75 (with a constant ionic strength of 0.01 M) via the mixing of certain volumes of 0.01 M NaOH, HNO₃, and NaNO₃ with 0.005 g of the samples at 25°C under constant stirring of 30 rpm for 5 days in an orbital shaker. Finally, the zeta potential of the zeolite particles was obtained using the zetameter (Zetasizer, Malvern model Nano series).

Cation exchange capacity (CEC) was obtained using a methodology reported by Ming & Dixon [47] where 1 g of CH-N and CH-MS samples was saturated with Na⁺ ions (using 50 mL of 1 N C₂H₃NaO₂ for 24 h) and washed, and the exchange of Na⁺ ions for NH₄ ⁺ ions was done using 50 mL of 1 N C₂H₇NO₂ at room temperature for 24 h. Na⁺ ion concentration was measured with an ICP-OES, and the CEC (meEq/g) was determined with the following equation: $\begin{matrix} (1) & CIC (\frac{mEq}{100 g}) = \frac{[{Na}^{+}] V . 100}{m MW}, \end{matrix}$ where $[Na +]$ is the Na⁺ concentration (mg/L), $V$ is the volume (L), $m$ is the mass of chabazite (g), and $MW$ is the Na⁺ molecular weight (mg/mEq).

2.4. Adsorption Studies Using Zeolites

Adsorption studies were conducted with both zeolites CH-N and CH-MS in glass Erlenmeyer flasks containing 0.05 g of the adsorbent and 0.040 L of the pollutant solution. These studies were performed at pH 4 where the solution pH was adjusted by adding HNO₃ or NaOH and mixing with a glass stirrer. Note that this solution pH was selected to avoid the precipitation of Cd(II) and Pb(II) ions as hydroxides (i.e., Cd(OH)₂ and Pb(OH)₂ at $pH > 5$ and 6, respectively) [48, 49] and to prevent the zeolite dealumination [31, 50]. Other studies have also reported that a maximum adsorption capacity of Pb(II), Cd(II), and Cr(III) ions can be obtained with different adsorbents at pH 4 [48, 51, 52]. Initial concentrations of 1-59, 20-500, 10-112, and 5-93 mg/L for As(V), Pb(II), Cd(II), and Cr(III), respectively, were used in the adsorption experiments. These solutions were prepared with J.T. Baker standard solution of 1000 mg/L of each metal and deionized water. The suspensions (adsorbent+pollutant solution) were stirring at 50 rpm and $25 \pm 0.5 ° C$ in a thermoregulated orbital shaker (IKA model KS 4000) for 5 days. This time was enough to reach the equilibrium according to preliminary adsorption experiments at tested conditions. The quantification of metal concentrations was done using ICP-OES. The calibration curve for the quantification of these metals was obtained with solutions that were prepared using a high purity standard solution (1000 mg/L) of each adsorbate and deionized water. The removal of ions per unit mass of adsorbent (i.e., adsorption capacity) was expressed as $q_{e}$ (mEq/g) and calculated with the mass balance given by the following equation: $\begin{matrix} (2) & q_{e} = \frac{V}{m} (C_{o} - C_{e}), \end{matrix}$ where $C_{o}$ and $C_{e}$ are the initial and equilibrium concentrations (mEq/L) of tested ion in the aqueous solution. Finally, the speciation of tested heavy metals was obtained by means of Hydra-Medusa speciation software at pH 0–14 and 25°C.

2.5. Isotherm Modeling

The experimental equilibrium data were modeled to analyze As(V), Pb(II), Cd(II), and Cr(III) adsorption and to explain the interactions of these heavy metal ions with CH-N and CH-MS samples. The best isotherm model for the removal of these pollutants was also identified. Therefore, four different isotherm models were tested using a nonlinear regression procedure. They corresponded to two-parameter (Langmuir and Freundlich) and three-parameter (Liu and Sips) isotherm models.

Langmuir is a monolayer adsorption model where the adsorbent saturation occurs assuming active sites with the same energy. This model considers that there is only one interaction corresponding to one active site per specie, and this isotherm is presented in equation (3) [53]. Freundlich is a multilayer adsorption model where the energy of active sites is not homogeneous, and this model is commonly applied to analyze heterogeneous systems. This isotherm model is presented in equation (4) [54]. Alternatively, Sips model can be reduced to the Freundlich and Langmuir models at low and high concentrations, respectively, and it presents the advantages of these two models since it is a combination of them. This isotherm model is given by equation (5) [55]. The Liu isotherm is a Langmuir-Freundlich type isotherm that has the advantage over the Sips model because its exponent has no restrictions in terms of its maximum value where it is >0. This isotherm is presented in equation (6) [56]. In summary, the corresponding equations of these isotherm models are given by $\begin{matrix} (3) & q_{e} = \frac{q_{L} K_{L} C_{e}}{1 + K_{L} C_{e}}, \\ (4) & q_{e} = K_{F} {C_{e}}^{1 / n_{F}}, \\ (5) & q_{e} = \frac{q_{S} K_{S} C_{e}^{n_{S}}}{1 + K_{S} C_{e}^{n_{S}}}, \\ (6) & q_{e} = \frac{q_{L F} {(K_{L F} C e)}^{n} L F}{1 + {(K_{L F} C e)}^{n} L F}, \end{matrix}$ where $q_{L}$ , $q_{S}$ , $and q_{L F}$ are the maximum adsorption capacities of the Langmuir, Sips, and Liu equations (mEq/g); $K_{L}$ , $K_{S}$ , $K_{L F}$ , and $K_{F}$ are the constants of the Langmuir, Sips, Liu (L/mEq), and Freundlich (mEq/g)(L/mEq)^1/nF isotherms; and $n_{F}$ , $n_{S}$ , and $n_{L F}$ are the dimensionless exponents (parameters related to the adsorption intensity that represents the relative distribution of the heterogeneity and the energy of the adsorption sites) of the Freundlich, Sips, and Liu equations, respectively.

A nonlinear least squares method based on an optimization algorithm was used to obtain the isotherm model parameters. The Solver tool of Microsoft Excel software was used to minimize the sum of the square error (ERRSQ) [57]: $\begin{matrix} (7) & (ERRSQ) : \sum_{i = 1}^{N} {(q_{t, meas} - q_{t, calc})}_{i}^{2}, \end{matrix}$ where $q_{t, meas}$ is the adsorption capacity from the experiment (mEq/g), $q_{t, calc}$ is the adsorption capacity calculated with the isotherm model (mEq/g), and $N$ is number of experimental points.

To compare and assess the performance of the isotherm models, three statistical metrics were calculated: determination coefficient ( $R^{2}$ ), the average percentage deviation (%D), and chi-square ( $X^{2}$ ) [57–59]. These metrics are given by the following equations: $\begin{matrix} (8) & R^{2} = \frac{\sum_{i = 1}^{N} {(q_{t, calc} - \bar{q_{t, meas}})}^{2}}{\sum_{i = 1}^{N} {(q_{t, calc} - \bar{q_{t, meas}})}^{2} + \sum_{i = 1}^{N} {(q_{t, calc} - q_{t, meas})}^{2}}, \\ (9) & % D = [\frac{1}{N} \sum_{i = 1}^{N} |\frac{q_{t, meas} - q_{t, calc}}{q_{t, meas}}|] . 100 %, \\ (10) & X^{2} = \sum_{I = 1}^{i = N} \frac{{(q_{t, meas} - q_{t, calc})}^{2}}{q_{t, calc}} . \end{matrix}$

A monolayer adsorption model [60] was also utilized in the isotherm data correlation with the aim of analyzing the main steric parameters involved in the removal of these ions. This model was defined by $\begin{matrix} (11) & q_{e} = \frac{n_{ads} N_{zeolite}}{1 + {(C_{med} / C_{e})}^{n_{ads}}}, \end{matrix}$ where $n_{ads}$ is the number of ions adsorbed per functional group of zeolite, $N_{zeolite}$ (mEq/g) is the quantity of zeolite functional groups involved in the adsorption of these pollutants, and $C_{med}$ (mEq/L) is the adsorbate concentration at the half saturation condition, respectively.

3. Results and Discussion

3.1. Surface Chemistry Characterization of CH-N and CH-MS

Figure 1 shows the X-ray diffraction patterns of both zeolites used in this study. For CH-N, it was possible to confirm the presence of the expected chabazite structure characterized by its main peaks at 9.39° (1 0 1), 20.43° (-2 1 0), and 30.37° (-3 1 1) according to the JCPDS card 34-137 [61]. This result also agreed with the calculated XRD patterns reported for this zeolite [62]. X-ray diffraction pattern of CH-MS indicated that the crystalline structure remained after the modification process, thus preserving all the intensity peaks similar to CH-N. These findings could suggest that the modification took place only on the external surface, which agreed with the previous studies [63, 64]. Additionally, it was possible to observe an increase in the intensity of the peaks in the modified zeolite. This observation agreed with other studies (e.g., [37]) where an increment of the intensity after a similar modification to a natural zeolite was also identified.

Figure 1

X-ray diffraction patterns of CH-N and CH-MS. Label “Theoretical” corresponds to the calculated pattern from International Zeolite Association, which was used as a reference pattern.

The textural properties of CH-N and CH-MS are given in Table 1. According to these results, CH-N surface area (324.4 m²/g) was higher than some values reported in the literature for natural zeolites such as 2.7 m²/g for perlite consisting of zeolites X (FAU type), P (GIS type), and phillipsite [65]; 20.3, 42, and 258 m²/g for clinoptilolite [66–68]; 68 and 305 m²/g for modernite [68, 69]; and 202 m²/g for a natural chabazite from Mexico [31]. However, this value was lower than 1100 m²/g of a natural chabazite supplied by Minerals Research-Clarkson, NY, USA [70].

Table 1

Textural properties of CH-N and CH-MS samples.

Zeolite	Surface area (m²/g)	Pore diameter (nm)	Pore volume (cm³/g)
CH-N	324.2	2.94	0.198
CH-MS	325.9	3.04	0.216

Regarding the texture properties of CH-N and CH-MS, the differences between their surface areas and pore diameters were 0.52% and 3.35%, which were not significant because they were within the error interval of the equipment used in sample analysis. Nevertheless, the difference in pore volume corresponded to an increment of 8.33% that was statistically significant. It is convenient to remark that the behavior of the texture properties of different zeolites submitted to the similar surface modification treatment has been associated to the changes on their micropore structure. Both increments and reductions in these textural parameters have been reported. For instance, Saucedo-Delgado et al. [37] reported an increment of 90.6 and 22% in the surface area and pore volume of clinoptilolite. On the other hand, Albayati and Kalash [71] proved that the functionalization (via the reaction between the silylating agent and the silanol groups) of mesoporous silica MCM-41 incremented the surface area from 28.7 to 300 m²/g, while the calcined MCM-41 showed the highest surface area (i.e., 1000 m²/g). In the contrary case, a decrease of 15.5 and 23% in pore diameter and surface area of modernite was reported by Mori et al. [72], while Atiyah et al. [73] obtained surface areas of 845 and 45 m²/g for the mesoporous silica SBA-15 and its functionalized form NH₂/SBA-15, respectively, thus indicating a significant decrement of this textural parameter.

SEM micrographs of chabazites showed the typical rhombohedral crystals that were consistent with the previous studies [31, 74, 75]. By comparing these micrographs, it was possible to observe that CH-N (Figure 2(a)) presented a well-defined structure, while CH-MS (Figure 2(b)) showed partially formed rhombohedral structures. This could be explained because during the modification process, the minerals were washed several times, which could fragment the zeolite agglomerates. Chemical analysis of CH-N crystals by SEM-EDX (Figure 2(a)) indicated the presence of the characteristic elements of zeolites: Si, Al, O, Mg, Ca, K, and Na. On the other hand, EDX results showed that the exchangeable cations (Na⁺ and Ca⁺) of CH-MS (Figure 2(b)) were expelled out from the framework, where this effect agreed with the result obtained by Barrer et al. [76] and Ghasemian et al. [43]. This behavior can be explained by the fact that, during the homogenization phase carried out for chabazite, Na⁺ displaced the majority of Ca²⁺. Then, the sodium ions were exchanged with the ammonium ions when the zeolite was treated with NH₄Cl because the thermodynamic affinities for the exchange reactions in chabazite followed the next sequence: ${NH}_{4}^{+}$ > Na⁺ > Ca²⁺, which were given by the standard free energies of exchange [76].

Figure 2

(a, b) SEM micrographs and (c, d) SEM/EDX elemental microanalysis for CH-N and CH-MS samples.

(b)

(c)

(d)

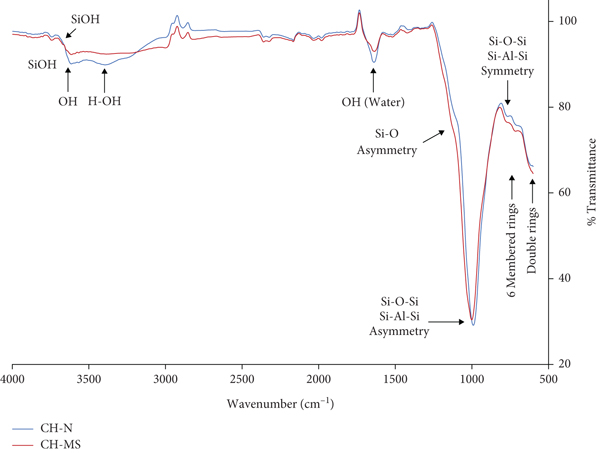

Figure 3(a) presents the FTIR spectra of CH-N and CH-MS at 4000-600 cm^-1. At 750–650 and 1250–950 cm⁻¹, these spectra displayed the internal vibrations of TO₄ tetrahedron (T = Si and Al) named as OH stretching (indicated by the four-membered ring structure) and asymmetry stretching. The absorption band between 570 and 635 cm^-1 indicated 6-membered rings. The external vibrations of the tetrahedron (i.e., T–O double ring, symmetry and asymmetry stretching) appeared at 650-500, 820-750, and 1150-1050 cm^-1, respectively [77]. The absorption bands observed at 1640, 3600, and 3380 cm^-1 were characteristic to the water bending vibration, isolated, and H-bonded hydroxyl groups, respectively [78]. These three bands for CH-N sample showed higher intensities than those observed for CH-MS, thus indicating that CH-N had a higher water content that was lost in the modified zeolite upon calcination. Another major difference was that CH-MS sample showed an absorption band at 3640 cm⁻¹ corresponding to the hydroxyl group formed during the modification process [79]. Both types of vicinal hydroxyl groups were observed via the bands at 3640 and 3700–3740 cm^-1 that was associated to the silanol nests [80].

Figure 3

FTIR spectra of CH-N and CH-MS samples (a) without and (b) with loaded pyridine.

(b)

It was possible to observe that CH-MS did not present the characteristic bands of ${NH}_{4}^{+}$ form (i.e., the Lewis bond NH₃ at 1630 cm^-1, while ${NH}_{4}^{+}$ is characterized by bands between 1400 and 1500 cm^-1 and NH stretching frequencies at 3800 cm^-1) because they disappeared due to the heating at 290°C [81].

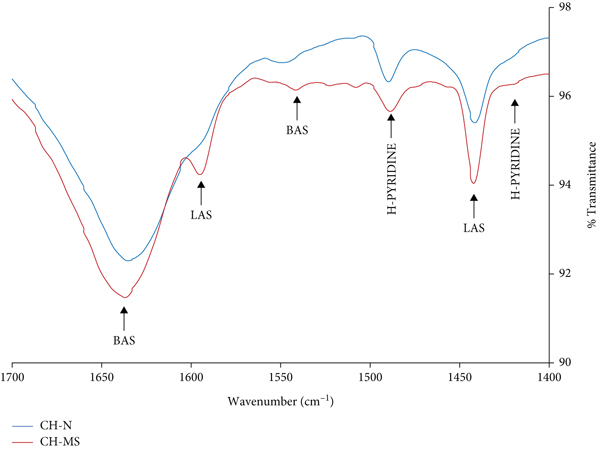

Figure 3(b) reports the FTIR spectra of CH-N and CH-MS samples loaded with pyridine at 1400-1700 cm^-1. The absorption bands at 1640 and 1545 cm^-1 have been attributed to the pyridine adsorption and were characteristic of the Brönsted acid sites (BAS). The bands located at ~1430 and 1490 cm^-1 corresponded to hydrogen-bonded pyridine (H-pyridine), while the bands identified at 1590 and 1450 cm^-1 have been attributed to coordinately bound pyridine, thus being an indicator of Lewis acidity [82–84]. The intensity of the absorption bands of LAS (1450 and 1590 cm^-1) and BAS (1640 cm^-1) in the spectrum of pyridine-loaded CH-MS were higher than those of the other zeolite sample. This was due to the modification where BAS and LAS sites were formed. Emeis [85] reported similar results where pyridine adsorption was studied for natural and calcined modernite at 550°C for 2 h. Other studies of Ward [86] showed an infrared spectrum of pyridine adsorbed on a rare earth Y zeolite calcined at 430 and 680°C, while Wu and Weitz [87] reported the results for a ZSM-5 zeolite modified (protonated with nitrate salt and calcined at 500°C).

Figures 4(a) and 4(b) show the thermogravimetric (TGA) and differential (DTG) analysis curves for CH-N and CH-MS samples. TGA results indicated that the weight of both samples decreased considerably with the increase of temperature up to ~600°C. Then, there was a slow and progressive weight reduction. The weight loss was 16.55% for CH-N and 19.92% for CH-MS. DTG curve showed the water loss from CH-N sample in two steps. The first step at 81°C was attributed to the humidity loss of the zeolite, while the second step at 118°C corresponded to the loss of structural water from the zeolite. The decomposition of calcium carbonate was associated to the peak at 270°C, which was consistent with the study of Stakebake [88] that indicated that this phenomenon could occur before 310°C.

Figure 4

Results of TGA and DTG for the zeolite samples: (a) CH-N and (b) CH-MS.

(b)

For the case of CH-MS sample, the loss of water adsorbed on the zeolite (humidity) occurred at 109.98°C. It is convenient to highlight that there was no other peak corresponding to the loss of structural water for this sample, which occurred during the zeolite calcination at 500°C. It should be noted that other studies have reported the decomposition of NH₄Cl at 310°C [89]. Based on the DTG curve of CH-MS, it was concluded that this compound was not present in the modified zeolite. This finding could be due to the previous release of NH₃ in the calcination stage of the modification process, which was consistent with the FTIR results that confirmed the absence of this compound.

The chemical composition of CH-N and CH-MS is presented in Table 2. It can be observed that the weight fractions of exchangeable cations in CH-N decreased in the following order: Ca²⁺, Mg²⁺, Na⁺, and K⁺. On the other hand, the chemical composition confirmed the EDX results of CH-MS (Figure 2(d)) where the exchangeable cations Na⁺ and Ca⁺ were expelled out from the framework.

Table 2

Chemical composition of the chabazite and its modified form.

Zeolite	wt%								Si/Al ratio
Zeolite	Fe	Ca	Mg	K	Si	Na	Al	Others	Si/Al ratio
CH-N	3.76	5.95	4.31	3.12	60.11	3.65	18.22	0.88	3.3
CH-MS	3.75	0.00	3.98	3.00	64.65	0.00	24.10	0.52	2.8

Table 2 shows Si/Al ratio of 3.3 for the CH-N sample that matched with the value of 3.2 found by Leyva-Ramos et al. [31], which was also between the range of 1.43-4.18, 3.2-3.8, and 2-4 obtained by Gottardi & Galli [90], Zamzow et al. [91], and Metwally & Attallah [92], respectively. Si/Al ratio of CH-MS sample was 2.8, which was lower than the value found for CH-N sample. The decrease in the Si/Al ratio of these samples coincided with the results reported by Panayotova [93] where a natural zeolite from Kardjali was modified by heating at 373°C and using 2 mol/dm³ of NaOH solution.

The significant decrease in the Si/Al ratio between CH-N and CH-MS samples was caused by the superficial modification of the zeolite, whose steps are schematized in Figure 5. After homogenization (Z-Na) and decationization (Z-NH₄ ⁺), NH₃ was removed by a thermal treatment at ≥290°C. This sample was named protonated form of zeolite (H-Z). This process generated BAS and was accompanied by the formation of free protons that attacked the tetrahedral aluminum lattice, thus causing the formal bond between aluminum and oxygen broken, and the corresponding formation of hydroxyl groups as silanol (Si-OH). This process was reversible since the interaction of silanols with aluminum formed the protonated zeolite and vice versa [79, 94]. Note that Iler [95] established that the condensation of silanol groups was higher in the presence of excess salts at pH 4-8. Therefore, the pH 7 and the application of 2 M NH₄Cl solution in the chabazite modification process provided the optimal conditions for the formation of silanol groups. They can be eliminated with the consecutive washing of material during the modification process. Therefore, it was reflected as an increase in the proportion of Al in the zeolite framework and a change in the Si/Al ratio.

Figure 5

Illustrative 1D scheme of the stages of CH-N modification process where the formation of silanol, Brönsted acid sites (BAS), Lewis acid sites (LAS), and trigonal silicon ions is shown. The interaction of the CH-MS with divalent cations M(II) and anions like As(V). This figure was adapted from Uytterhoeven et al. [81] and Juzsakova et al. [45].

3.2. Surface Properties of Zeolites

Figure 6 shows the results of the pH of PZ for both zeolites. It was concluded that the CH-N and CH-MS surfaces were negatively charged at tested adsorption conditions. Similar findings have been reported in the literature for clinoptilolite and other zeolites treated with NH₄Cl and calcination process [86, 96].

Figure 6

Zeta potential versus pH for CH-N and CH-MS samples.

The negative charge for CH-MS was an expected result, which can be explained considering that the modification process was carried out at high temperature (i.e., 500°C). Ward [86] indicated that if the calcination process occurred at ≥480°C, BAS became LAS because the bounds of H-Z were very weak and easily removable (i.e., this process is called dehydroxylation or water loss). This phenomenon caused the formation of trigonal silicon ions and accessible trigonal aluminum [81] that can accept a pair of electrons, and therefore, it can adsorb anions. Figure 5 illustrates the formation of LAS where the negative charge of CH-MS is clearly outlined.

The surface interactions involved in the adsorption of anions on this modified zeolite can be explained as follows: CH-MS zeolite showed a negatively surface charge in the aqueous solutions that caused the attraction of H⁺ ions from the solution, while the HO^- ions were attracted by the trigonal silicon ions, thus forming silanols. The adsorbate anions in the solution can interact via electrostatic attraction with the LAS [97] since they are the active sites in the zeolites [98]. This mechanism agreed with that proposed by Uytterhoeven [81] for water, Lewis acid centers, and molecules with lone pairs of electrons such as NH₃. On the other hand, the cations can be attracted by the negative charges of the CH-MS during the adsorption process. Note that the divalent cations could interact with more than a single site of the zeolite during the interface phenomenon [99]. It could be expected that the adsorption of cations on CH-MS was associated to an ion exchange. As explained, the interaction of silanol groups with acid centers of a zeolite generates a protonated zeolite. But this process was not reversible at 25°C because the zeolite was not reheated and the dehydroxylation did not occur.

CEC of CH-N and CH-MS was 1.68 and 0.53 mEq/g. These values showed a significant decrease of 68.45% of this property with respect to a CH-N sample. This result was because the ion exchange behavior of zeolites depends on the internal properties like chemical composition, framework structure, and charge density [100], besides the external properties like size, shape, charge, and concentration of ions [101]. As stablished by Jacobs and Leuven [102], the average reaction rate per site will be related with the chemical composition, thus generating an increment almost linearly of the frequency of silanol groups with a decrement of Si/Al ratio of the framework [103], which was coupled with the formation of LAS containing trigonal silicon ions. This explained that the change in the Si/Al ratio of CH-MS sample caused a decrement of the number of active sites because of the formation of the silanol groups and the trigonal silicon ions. This pointed out that the silanol groups were not active centers such these cannot serve as adsorption sites [80]. Although LAS were active sites, they can attract anions. As a result of the interaction of BAS and LAS, the zeolites present a superacidity [104] since both sites act synergistically potentiating the acidity [105]. As stablished by Barthomeuf [106], an acidic environment in zeolites affects the number of interchange sites, their location, density, and efficiency.

The value of CEC of CH-N was within the range of values reported for natural chabazites from Japan, Christmas Arizona, and a zeolite provided by American Colloid Co., which showed values of 1.87, 1.95, and between 0.08 and 2.61 mEq/g, respectively [20, 70, 107]. The decrease in CEC agreed with Ferrer [108] that used a clinoptilolite submitted to the same surface treatment and subsequent calcination at 500°C. These authors reported CEC values of 11.76 and 6.33 mEq/g for natural and modified materials, respectively. This treatment generated a change of 46% in this property, which was lower than that obtained with chabazite. In this direction, Moreno-Tost et al. [109] use Cu-exchanged mordenite and clinoptilolite with the subsequent calcination at 550°C. These authors found a change in the CEC of 86% with respect to a natural clinoptilolite and 68% for natural modernite.

3.3. Analysis and Modeling of Adsorption Isotherms

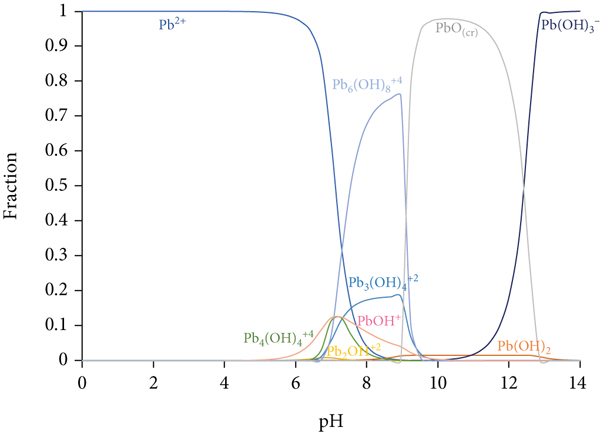

Figure 7 shows the speciation diagrams of the different metals in the aqueous solution as a function of solution pH. The predominant ionic forms for tested adsorbates at pH 4 were Pb²⁺ and Cd²⁺ for Pb(II) and Cd(II), while $H_{2} As O_{4}^{-}$ and ${(CrOH)}^{2 +}$ were the dissolved species for As(V) and Cr(III) during the adsorption experiments. Therefore, the experimental isotherms of the adsorption of As(V), Pb(II), Cd(II), and Cr(III) on CH-N and CH-MS samples are reported in Figure 8, and the fitting results using the models of Langmuir, Freundlich, Sips, and Liu are shown in Table 3.

Figure 7

(a) Arsenic, (b) lead, (c) cadmium, and (d) chromium speciation as a function of solution pH in aqueous solution.

(b)

(c)

(d)

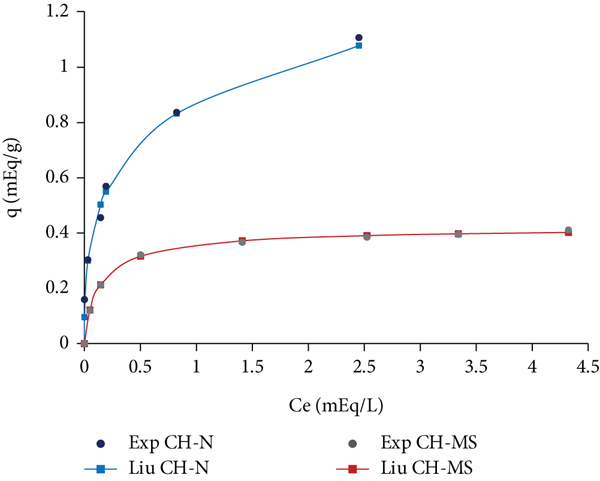

Figure 8

Isotherms for the adsorption of (a) As(V), (b) Pb(II), (c) Cd(II), and (d) Cr(III) on CH-N and CH-MS zeolites at pH 4 and their correlation with Liu model.

(b)

(c)

(d)

Table 3

Results of isotherm fitting using the Langmuir, Freundlich, Sips, and Liu equations for the adsorption of As(V), Pb(II), Cd(II), and Cr(III) on CH-N and CH-MS zeolites.

Ion	Zeolite	Model parameters $^{*}$				$R^{2}$	%D	$X^{2}$	Model
Ion	Zeolite	$q_{model}$ (mg/g)	$q_{model}$ (mEq/g)	$K_{model}$	$n_{model}$	$R^{2}$	%D	$X^{2}$	Model
As(V)	CH-N			0.024	1.954	0.984	8.473	$1.01 \times 10^{- 3}$	Freundlich
		1.324	0.047	1.219		0.979	14.509	$3.32 \times 10^{- 3}$	Langmuir
		2.226	0.079	0.330	0.701	0.973	6.539	$8.43 \times 10^{- 4}$	Liu
		2.226	0.079	0.460	0.685	0.982	6.166	$8.15 \times 10^{- 4}$	Sips

As(V)	CH-MS			0.045	1.600	0.934	24.330	$8.01 \times 10^{- 3}$	Freundlich
		3.015	0.107	0.825		0.973	14.473	$3.44 \times 10^{- 3}$	Langmuir
		2.902	0.103	0.924	1.105	0.988	8.683	$2.22 \times 10^{- 4}$	Liu
		2.902	0.103	0.933	1.162	0.974	7.82	$2.20 \times 10^{- 4}$	Sips

Pb(II)	CH-N			0.851	3.008	0.992	11.949	0.056	Freundlich
		114.989	1.109	5.537		0.956	27.56	2.591	Langmuir
		235.960	2.277	0.307	0.0407	0.992	9.656	0.048	Liu
		232.429	2.244	0.635	0.410	0.989	9.778	0.049	Sips

Pb(II)	CH-MS			0.314	4.885	0.962	10.525	0.026	Freundlich
		42.279	0.408	7.576		0.995	2.219	$1.27 \times 10^{- 3}$	Langmuir
		43.656	0.421	5.365	0.864	0.997	1.136	$4.36 \times 10^{- 4}$	Liu
		43.656	0.421	6.976	0.864	0.998	1.135	$4.36 \times 10^{- 4}$	Sips

Cd(II)	CH-N			0.273	2.582	0.997	4.194	$4.98 \times 10^{- 3}$	Freundlich
		18.716	0.333	4.250		0.983	5.967	$8.38 \times 10^{- 3}$	Langmuir
		25.236	0.449	1.796	0.660	0.997	2.048	$7.95 \times 10^{- 4}$	Liu
		25.236	0.449	1.472	0.6604	0.995	2.047	$7.95 \times 10^{- 4}$	Sips

Cd(II)	CH-MS			0.104	8.139	0.882	4.564	$1.63 \times 10^{- 3}$	Freundlich
		6.126	0.109	23.016		0.995	0.716	$5.29 \times 10^{- 5}$	Langmuir
		6.126	0.109	22.54	1.051	0.996	0.632	$4.76 \times 10^{- 5}$	Liu
		6.126	0.109	26.10	1.047	0.996	0.631	$4.77 \times 10^{- 5}$	Sips

Cr(III)	CH-N			0.876	9.718	0.838	7.111	0.035	Freundlich
		19.680	0.855	190.38		0.441	12.302	0.090	Langmuir
		45.773	1.990	0.451	0.194	0.962	8.401	0.034	Liu
		44.719	1.944	0.889	0.195	0.809	8.397	0.035	Sips

Cr(III)	CH-MS			0.455	2.457	0.986	11.058	0.078	Freundlich
		17.259	0.750	2.049		0.914	20.917	0.671	Langmuir
		25.495	1.108	0.629	0.544	0.966	12.965	0.075	Liu
		24.434	1.062	0.842	0.559	0.941	13.310	0.0811	Sips

$^{*} q_{model}$ ( $q_{L}$ , $q_{L F}$ , and $q_{S}$ ) is the maximum adsorption capacities of the Langmuir, Liu, and Sips equations. $K_{model}$ ( $K_{L}$ , $K_{L F}$ , $K_{S}$ , and $K_{F}$ ) is the constant of the Langmuir, Liu, Sips (L/mEq), and Freundlich (mEq/g) (L/mEq)^1/nF equations. $n_{model}$ ( $n_{L F}$ , $n_{S}$ , and $n_{F}$ ) is the dimensionless exponent of the Liu, Sips, and Freundlich equations.

The adsorption capacity on CH-N and CH-MS followed the next sequence: Pb(II) > Cr(III) > Cd(II) > As(V), which agreed with the results obtained by Caputo and Pepe [32]. Experimental data showed that As(V) adsorption capacity was 0.034 and 0.061 mEq/g for CH-N and CH-MS, respectively, thus indicating that the zeolite functionalization improved in 79% its removal performance for this ion. Pb(II) adsorption capacities of CH-N and CH-MS were 1.10 and 0.41 mEq/g, respectively, while the Cd(II) and Cr(III) adsorption capacities of these zeolites were 0.29 and 0.11 mEq/g and 1.02 and 0.69 mEq/g, respectively. These reductions (33–67%) in the adsorption capacities of these cations were directly related to CEC decreased 68.45% due to the zeolite modification and the generation of BAS and LAS on the adsorbent surface. These adsorption capacities were not attributed to the surface area and pore diameter of tested zeolites, since both samples showed similar textural parameters.

The maximum exchange degree of Pb(II) on CH-N was an expected result, which can be explained according to the Eisenman-Sherry theory [110, 111]. Particularly, Pb(II) ion has a lower value of hydration enthalpy and a higher value of equilibrium constant (which is generally utilized as a measure of the cation exchange selectivity) in chabazite than those reported for the other two cations.

The chabazite has four classes of cation sites, named C1, C2, C3, and C4, where C1 sites are located in the center of the small cage (D6R) and they can be accessed through 6-membered ring, thus representing 20% of the overall CEC of this zeolite. C2-C4 sites are located in the large ellipsoidal cavities, and they can be accessed via 8-membered ring [112, 113]. According to the Double Selectivity Model (DSM) proposed by Pepe et al. [114], these types of sites are named group “I” and group “II.” It could be expected that large ions like ${(CrOH)}^{2 +}$ could not access to C1, while Pb(II) and Cd(II) can interact with these sites [115, 116]. So, the reduction of CEC in the modified zeolite was mainly associated to the loss of active sites in group I and group II, which were involved in the generation of Lewis acid centers. This phenomenon affected the final adsorption properties of the modified zeolite for cationic species. It is also important to mention that the significant reduction (up to 67%) of Pb(II) adsorption properties of CH-MS was associated to Na⁺ ions that were expelled out from the zeolite framework during the modification process. Previous studies have reported that Na⁺ can be completely exchangeable by Pb²⁺, thus explaining the adsorption capacities of natural chabazite [116, 117].

Table 3 indicates that the $q_{L}$ values obtained with the Langmuir model were lower than $q_{L F}$ and $q_{S}$ values calculated by the Liu and Sips models. These findings agreed with other studies reported for the adsorption of As(V), Pb(II), Cd(II), and Cr(III) ([118–121]). On the other hand, the $n_{F}$ values of the Freundlich model ranged from 1.60 to 9.71 for the adsorption of tested ions, thus indicating a favorable removal process [54, 122]. The Langmuir constant $K_{L}$ can be associated to the bonding energy between the zeolite and ions [123], and this parameter ranged from 1.21 to 190.38 (L/mEq), thus suggesting a good adsorption affinity between the zeolite and tested ions.

In terms of modeling, $X^{2}$ has been widely used to analyze the error distributions of data sets and to identify the most suitable equation for the calculation of adsorption isotherms [58, 124, 125]. Therefore, $X^{2}$ was employed to characterize the performance of tested isotherm models for both zeolites. This statistical metric indicated that the three-parameter isotherm models (i.e., Liu and Sips) showed the better fit of experimental data, thus presenting $X^{2}$ values lower than those obtained for the two-parameter isotherm models of Langmuir and Freundlich. Herein, it is convenient to recall that the use of the Sips equation is usually restricted to the fact that its dimensionless heterogeneity factor $n_{S}$ must be between 0 and 1 [55, 122]. Results reported in Table 3 indicated that the calculated $n_{S}$ values for As(V), Pb(II), Cd(II), and Cr(III) adsorption on chabazite modified did not comply with this restriction. Therefore, the Liu isotherm ( $X^{2} = 4.76 \times 10^{- 5} - 0.075$ ) was selected as the best model to correlate these experimental adsorption isotherms (see Figure 8).

For illustration, Table 4 shows a comparison of the maximum adsorption capacity for the removal of different ions using several adsorbents. Overall, the results confirmed that the protonated chabazite was more effective for the removal of As(V) than other zeolites reported in the literature like clinoptilolite, modernite, and chabazite [126–128], as well as other waste materials like hydrated cement and bone char [118, 129]. However, the adsorption capacities of CH-N and CH-MS were lower than the values reported for advanced materials like graphene oxide and carbon nanotubes [130, 131].

Table 4

Maximum adsorption capacities for the removal of As(V), Pb(II), Cd(II), and Cr(III) using different materials.

Ion	Adsorbent	$q_{\max}$ (mg/g)	Isotherm model	Reference
As(V)	Clinoptilolite and modernite natural and modified with Fe	$9.2 \times 10^{- 3}$ 0.062	Freundlich	Baskan & Pala [126]Velazquez-Peña et al. [128]Elizalde-González et al. [127]
	Chabazite modified with Fe and Zr	0.068	Freundlich	Velazquez-Peña et al. [128]
	Hydrated cement	1.92	Langmuir	Bibi et al. [129]
	Bone char	2.45	Langmuir	Alkurdi et al. [118]
	Activated carbon from oat hulls	3.09	Langmuir	Chuang et al. [134]
	Graphene oxide modified by iron-manganese binary oxide (FeMnOx/RGO)	11.5	Langmuir	Zhu et al. [135]
	Magnetite nanoparticle coated zeolite	19.39	Freundlich	Liu et al. [130]
	Carbon nanotubes coated with zirconium oxide	124.6		Liu et al. [131]

Pb(II)	Clinoptilolite	14.25-22.60	Freundlich	Kragović et al. [136] Mozgawa & Bajda [137]
	Cocoa pod husk and watermelon rind	20.10-98.06	Rendlich-Peterson	Liu et al. [138]
	Clinoptilolite natural and its NH₄ ⁺and Na⁺ forms	120.2-142.8	Langmuir	Leyva-Ramos et al. [139]
	Chabazite	175	—	Kesraoui-Ouki et al. [26]
	Synthetized zeolite from lithium leach residue via hydrothermal method	487.80	Langmuir	Lv et al. [140]
	Carbon foam	491.0	Sips	Lee et al. [141]
	Synthetized zeolite from bagasse fly ash	625.0	Langmuir	Jangkorn et al. [142]

Cd(II)	Erionite and clinoptilolite	2.54–4.63	Sips	Hernández-Montoya et al. [120]
	Peanut husk and corn stalk industrial waste	7.68-12.63	Langmuir	Rozumová et al. [143]Zheng et al. [107]
	Carbon nanotubes oxidized with HNO₃	11.1	—	Li et al. [144]
	Chabazite	13.26	Freundlich	Panuccio et al. [145]
	Synthesized coal fly ash zeolite	26.25	Langmuir	Javadian et al. [146]
	Fly ash treated with NaOH	48.31	Langmuir	Buema et al. [147]
	Activated carbon derived from bagasse	49.07	Freundlich	Mohan & Singh [148]
	Grape pomace activated carbon	75.61	Langmuir	Sardella et al. [149]

Cr(III)	Fibrous activated carbons	3.52	Langmuir	Aggarwal et al. [150]
	Granulated activated carbon	13.31	Langmuir	Aggarwal et al. [150]
	MnO₂-modified magnetic biochar derived from palm kernel cake	19.92	Langmuir	Maneechakr & Mongkollertlop [151]
	Natural clinoptilolite	21.20	—	Mozgawa & Bajda [137]

Cr(VI)	Multiwalled carbon nanotube	13.2	—	Kumar et al. [152]
	Magnetic zeolite/chitosan composites	25.67	Langmuir	Liu et al. [153]
	Porous Fe₃O₄ hollow microspheres/graphene oxide composite	32.33	Langmuir	Liu et al. [154]
	Functionalized multiwalled carbon nanotube with H₂SO₄/HNO₃ solution	85.83	—	Kumar et al. [152]
	Ionic liquid impregnated exfoliated graphene oxide	285.71	Temkin	Kumar et al. [155]

This study confirmed that the functionalization of zeolites to remove anions is a promising approach to improve the performance of these materials in water treatment. For example, the clinoptilolite modified with NH₄Cl plus its subsequent thermal treatment at 500°C increased its fluoride adsorption capacity by 2.33-fold with respect to the natural zeolite [37]. Other study showed that a natural zeolite rock treated at 800°C increased its anion adsorption capacity with respect to the uncalcined zeolite [39]. Another example is the thermal treatment (at ≥500) of different mesoporous silica sieves like MCM-41, MCM-48, SBA-15, and Co/MCM-41 to improve the removal of sulfur from diesel [132, 133].

With respect to the performance of natural chabazite for the removal of cations, its Pb(II) adsorption properties are competitive and can outperform the results obtained using watermelon rind and other zeolites like natural and modified clinoptilolite and chabazite [26, 138, 139]. Even after its functionalization, the protonated chabazite showed a Pb(II) adsorption capacity higher than those of cocoa pod husk and natural clinoptilolite [136–138]. However, this modified zeolite can be outperformed by, for example, carbon foam and zeolites synthesized by complex processes from lithium leach residue and bagasse fly ash ([135, 141, 142]).

For the case of Cd(II) adsorption, CH-MS can outperform erionite and clinoptilolite [120], while the adsorption properties of CH-N were better than those reported for carbon nanotubes and biomass wastes like peanut husk and corn stalk [143, 144, 156]. However, fly ash treated with NaOH outperformed this zeolite [147]. Also, the adsorption capacities of natural and modified chabazite for Cd(II) removal were significantly lower than those obtained with activated carbon [148, 149].

For the case of Cr(III) and Cr(VI) adsorption, CH-MS outperformed different activated carbons, magnetic zeolite/chitosan composites, multiwalled carbon nanotube, and natural clinoptilolite [137, 150–152]. On the other hand, the adsorption properties of CH-N were higher than those reported for magnetic zeolite/chitosan composites and porous Fe₃O₄ hollow microspheres/graphene oxide composite [153, 154]. However, its removal performance was lower than the reported for functionalized multiwalled carbon nanotube with H₂SO₄/HNO₃ solution and ionic liquid impregnated exfoliated graphene oxide [152, 155].

In summary, these results indicated that CH-MS could be considered a promising adsorbent for the removal of anions and cations from polluted water. This adsorbent could be applied in the depollution of other matrices like soil or mining waste, which also contain both types of ionic pollutants.

With respect to the interpretation of the adsorption mechanism, the steric parameters related to the adsorption of Cd(II), Pb(II), Cr(III), and As(V) on CH-N and CH-MS are reported in Table 5. In particular, $n_{ads}$ ranged from 0.41 to 0.76 for the adsorption of cations and $n_{ads} = 0.69$ for the anion adsorption on CH-N. These results suggested that the removal of Cd(II), Pb(II), Cr(III), and As(V) can be classified as multianchorage where two adsorption sites from this zeolite could participate during the removal process [60]. For the case of modified chabazite, the calculated $n_{ads}$ values ranged from 0.39 to 0.89 for the adsorption of heavy metal cations, while $n_{ads}$ was 1.68 for the adsorption of As(V) anions (see Table 5). These results indicated that the Pb(II), Cd(II), and Cr(III) adsorption prevailed as multianchorage, and a multi-ionic adsorption occurred for the As(V) removal with CH-MS sample. The amount of adsorption sites of CH-N that were involved in the adsorption of these pollutants was 0.12-1.19 mEq/g, while the adsorption sites of CH-MS that participated in the adsorption were 0.04–0.48 mEq/g. These calculations were consistent with characterization results and CEC values that indicated the loss of some adsorption sites due to the zeolite modification protocol. As illustrated in Figure 5, the framework vacancy generated during the surface modification of chabazite allowed that its adsorption sites could interact with more than one As(V) anion, thus causing a multi-ionic adsorption of this pollutant.

Table 5

Calculated steric parameters for the adsorption of Cd(II), Pb(II), Cr(III), and As(V) on CH-N and CH-MS zeolites.

Adsorbate	Zeolite	$n_{ads}$	Interpretation
As(V)	CH-N	0.69	Multianchorage
As(V)	CH-MS	1.68	Multi-ionic
Pb(II)	CH-N	0.41	Multianchorage
Pb(II)	CH-MS	0.88	Multianchorage
Cd(II)	CH-N	0.68	Multianchorage
Cd(II)	CH-MS	0.89	Multianchorage
Cr(III)	CH-N	0.76	Multianchorage
Cr(III)	CH-MS	0.39	Multianchorage

4. Conclusions

This study has proved that a low-cost and straightforward protocol can be used to modify and tailor the surface properties of chabazite for the adsorption of anionic pollutants from aqueous solutions. This zeolite surface modification allowed to generate Lewis acid centers that could act as electron pair acceptors, thus increasing up to 79% the As(V) adsorption properties. However, the adsorption of Pb(II), Cd(II), and Cr(III) cations of this modified chabazite decreased 33-67%. This reduction of the cation adsorption properties was generated by a decrement of its cation exchange capacity and the loss of Na⁺ exchange sites from zeolite surface. Statistical physics calculations indicated that the adsorption of all these ions on natural chabazite was a multianchorage phenomenon, while the As(V) adsorption on modified chabazite was a multi-ionic process. A reduction of the number of zeolite adsorption sites after surface functionalization was confirmed that affected the removal of cationic species. Natural chabazite can be considered an outstanding adsorbent for the Pb(II) removal with adsorption capacities higher than 100 mg/g. The application of this modified chabazite can be extended for the removal of other relevant anion pollutants from water. Further studies should be also focused on its application to depollute other real-life matrices (e.g., soil and wastewater) containing both anionic and cationic toxic compounds.

Footnotes

Data Availability

The data used to support the findings of this study are included within the article.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

Acknowledgments

This work was funded by the Consejo Nacional de Ciencia y Tecnología (National Council of Science and Technology), CONACYT, Mexico, through Grant PN 2015-01-1616 (attention to national problems financed by CONACYT).

Supplementary Materials

References

Paithankar

J. G.

Saini

Dwivedi

Sharma

Chowdhuri

D. K.

Heavy metal associated health hazards: an interplay of oxidative stress and signal transduction

Chemosphere 2021 262, article 128350

2018121

10.1016/j.chemosphere.2020.128350

33182141

Tasharrofi

Rouzitalab

Maklavany

D. M.

Esmaeili

Rabieezadeh

Askarieh

Taghdisian

Adsorption of cadmium using modified zeolite-supported nanoscale zero-valent iron composites as a reactive material for PRBs

Science of the Total Environment 2020 736, article 139570

2018121

10.1016/j.scitotenv.2020.139570

32485377

Afroze

Sen

T. K.

A review on heavy metal ions and dye adsorption from water by agricultural solid waste adsorbents

Water, Air, & Soil Pollution 2018 229

2018121

7 1 50

10.1007/s11270-018-3869-z

2-s2.0-85048892764

Gutiérrez-Segura

Solache-Ríos

Colín-Cruz

Fall

Comparison of cadmium adsorption by inorganic adsorbents in column systems

Water, Air, & Soil Pollution 2014 225

2018121

6 1 13

10.1007/s11270-014-1943-8

2-s2.0-84901374829

International Agency for Research on Cancer

Beryllium, cadmium, mercury, and exposures in the glass

Apresentado Em: IARC Working Group on the Evaluation of Carcinogenic Risks to Humans 1993

Lyon

IARC monographs on the evaluation of carcinogenic risks to humans

1 415

Chen

Xie

Yang

Gao

Wang

Effects of calcium on arsenate adsorption and arsenate/iron bioreduction of ferrihydrite in stimulated groundwater

International Journal of Environmental Research and Public Health 2022 19

2018121

6 3465

10.3390/ijerph19063465

35329158

Chung

J. Y.

S. D.

Hong

Y. S.

Environmental source of arsenic exposure

Journal of Preventive Medicine and Public Health 2014 47

2018121

5 253 257

10.3961/jpmph.14.036

2-s2.0-84924874789

Genchi

Sinicropi

M. S.

Lauria

Carocci

Catalano

The effects of cadmium toxicity

International Journal of Environmental Research and Public Health 2020 17

2018121

11 3782

10.3390/ijerph17113782

Saint-Jacques

Parker

Brown

Dummer

T. J.

Arsenic in drinking water and urinary tract cancers: a systematic review of 30 years of epidemiological evidence

Environmental Health 2014 13

2018121

1 1 32

10.1186/1476-069X-13-44

2-s2.0-84904254734

10.

Ulmanu

Marañón

Fernández

Castrillón

Anger

Dumitriu

Removal of copper and cadmium ions from diluted aqueous solutions by low cost and waste material adsorbents

Water, Air, and Soil Pollution 2003 142

2018121

1 357 373

10.1023/A:1022084721990

2-s2.0-0037279519

11.

Wang

Peng

Natural zeolites as effective adsorbents in water and wastewater treatment

Chemical Engineering Journal 2010 156

2018121

1 11 24

10.1016/j.cej.2009.10.029

2-s2.0-72049113067

12.

Bailey

S. E.

Olin

T. J.

Bricka

R. M.

Adrian

D. D.

A review of potentially low-cost sorbents for heavy metals

Water Research 1999 33

2018121

11 2469 2479

10.1016/S0043-1354(98)00475-8

2-s2.0-0033035788

13.

Boehler

Zwickenpflug

Hollender

Ternes

Joss

Siegrist

Removal of micropollutants in municipal wastewater treatment plants by powder-activated carbon

Water Science and Technology 2012 66

2018121

10 2115 2121

10.2166/wst.2012.353

2-s2.0-84870356601

22949241

14.

Chikri

Elhadiri

Benchanaa

el maguana

Efficiency of sawdust as low-cost adsorbent for dyes removal

Journal of Chemistry 2020 2020

2018121

10.1155/2020/8813420

8813420

15.

Yang

R. T.

Adsorbents: Fundamentals and Applications 2003

John Wiley & Sons

10.1002/047144409X

16.

de Magalhães

L. F.

da Silva

G. R.

Peres

A. E. C.

Zeolite application in wastewater treatment

Adsorption Science & Technology 2022 2022, article 4544104

2018121

1 26

10.1155/2022/4544104

17.

Misaelides

Application of natural zeolites in environmental remediation: a short review

Microporous and Mesoporous Materials 2011 144

2018121

1-3 15 18

10.1016/j.micromeso.2011.03.024

2-s2.0-79960190911

18.

Moshoeshoe

Nadiye-Tabbiruka

M. S.

Obuseng

A review of the chemistry, structure, properties and applications of zeolites

Am. J. Mater. Sci 2017 7

2018121

5 196 221

19.

Koudelková

Ghrib

de Oliveira Ramos

F. S.

Čičmanec

Bulánek

Adsorption and separation of the C3 hydrocarbons on cationic FER zeolites: effect of dual sites existence

Microporous and Mesoporous Materials 2019 279

2018121

416 422

10.1016/j.micromeso.2019.01.032

2-s2.0-85060081843

20.

Kesraoui-Ouki

Cheeseman

C. R.

Perry

Natural zeolite utilisation in pollution control: a review of applications to metals' effluents

Journal of Chemical Technology & Biotechnology: International Research in Process, Environmental AND Clean Technology 1994 59

2018121

2 121 126

10.1002/jctb.280590202

2-s2.0-0028166486

21.

Ackley

M. W.

Rege

S. U.

Saxena

Application of natural zeolites in the purification and separation of gases

Microporous and Mesoporous Materials 2003 61

2018121

1-3 25 42

10.1016/S1387-1811(03)00353-6

2-s2.0-0042267287

22.

Servatan

Zarrintaj

Mahmodi

Kim

S. J.

Ganjali

M. R.

Saeb

M. R.

Mozafari

Zeolites in drug delivery: progress, challenges and opportunities

Drug Discovery Today 2020 25

2018121

4 642 656

10.1016/j.drudis.2020.02.005

32062009

23.

Zhang

Singh

Webley

P. A.

Alkali and alkaline-earth cation exchanged chabazite zeolites for adsorption based CO₂ capture

Microporous and Mesoporous Materials 2008 111

2018121

1-3 478 487

10.1016/j.micromeso.2007.08.022

2-s2.0-41649095885

24.

Meier

W. M.

Olson

D. H.

Baerlocher

Atlas of Zeolite Structure Types

Zeolites 1996 17

2018121

(1-2)

25.

Smith

J. V.

Topochemistry of zeolites and related materials. 1. Topology and geometry

Chemical Reviews 1988 88

2018121

1 149 182

10.1021/cr00083a008

2-s2.0-4243447509

26.

Kesraoui-Ouki

Cheeseman

Perry

Effects of conditioning and treatment of chabazite and clinoptilolite prior to lead and cadmium removal

Environmental Science & Technology 1993 27

2018121

6 1108 1116

10.1021/es00043a009

2-s2.0-0027324420

27.

Yakout

S. M.

Borai

E. H.

Adsorption behavior of cadmium onto natural chabazite: batch and column investigations

Desalination and Water Treatment 2014 52

2018121

22-24 4212 4222

10.1080/19443994.2013.803938

2-s2.0-84879598696

28.

Ouki

S. K.

Kavannagh

Performance of natural zeolites for the treatment of mixed metal-contaminated effluents

Waste Management & Research 1997 15

2018121

4 383 394

10.1177/0734242X9701500406

29.

Erdem

Karapinar

Donat

The removal of heavy metal cations by natural zeolites

Journal of Colloid and Interface Science 2004 280

2018121

2 309 314

10.1016/j.jcis.2004.08.028

2-s2.0-7944220988

30.

Galamini

Ferretti

Medoro

Tescaro

Faccini

Coltorti

Isotherms, kinetics, and thermodynamics of nh4+ adsorption in raw liquid manure by using natural chabazite zeolite-rich tuff

Water 2020 12

2018121

10 2944

10.3390/w12102944

31.

Leyva-Ramos

Monsivais-Rocha

J. E.

Aragon-Piña

Berber-Mendoza

M. S.

Guerrero-Coronado

R. M.

Alonso-Davila

Mendoza-Barron

Removal of ammonium from aqueous solution by ion exchange on natural and modified chabazite

Journal of Environmental Management 2010 91

2018121

12 2662 2668

10.1016/j.jenvman.2010.07.035

2-s2.0-77956879811

20708838

32.

Caputo

Pepe

Experiments and data processing of ion exchange equilibria involving Italian natural zeolites: a review

Microporous and Mesoporous Materials 2007 105

2018121

3 222 231

10.1016/j.micromeso.2007.04.024

2-s2.0-34548568769

33.

Song

Zhang

Cui

Liu

Zhao

Preparation and characterization of chabazite from construction waste and application as an adsorbent for methylene blue

Adsorption Science & Technology 2021 2021, article 9994079

2018121

1 13

10.1155/2021/9994079

34.

Wang

Zhao

Haller

Recent advances in the selective catalytic reduction of NOx with NH₃ on Cu-Chabazite catalysts

Applied Catalysis B: Environmental 2017 202

2018121

346 354

10.1016/j.apcatb.2016.09.024

2-s2.0-84988476265

35.

Gallegos-García

M. I.

Modificación química de una zeolita tipo chabasita para la remoción de aniones en solución acuosa, [Doctoral thesis] 2016

UASLP

36.

Barczyk

Mozgawa

Król

Studies of anions sorption on natural zeolites

Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy 2014 133

2018121

876 882

10.1016/j.saa.2014.06.065

2-s2.0-84925883958

37.

Saucedo-Delgado

B. G.

De Haro-Del Rio

D. A.

González-Rodríguez

L. M.

Reynel-Ávila

H. E.

Mendoza-Castillo

D. I.

Bonilla-Petriciolet

de la Rosa

J. R.

Fluoride adsorption from aqueous solution using a protonated clinoptilolite and its modeling with artificial neural network-based equations

Journal of Fluorine Chemistry 2017 204

2018121

98 106

10.1016/j.jfluchem.2017.11.002

2-s2.0-85033552100

38.

Zhu

Tong

Zhang

Song

Wang

Hao

Huang

Xia

Modification of zeolite by metal and adsorption desulfurization of organic sulfide in natural gas

Journal of Natural Gas Science and Engineering 2019 69, article 102941

2018121

10.1016/j.jngse.2019.102941

2-s2.0-85069679933

39.

Ahmed

A. T.

Almohamadi

Chemical and microstructural studies for using natural zeolite in advanced wastewater treatment

International journal of Environmental Science and Technology 2022 1 8

10.1007/s13762-022-04384-5

40.

Fernandes

V. J.

Araujo

A. S.

Medeiros

R. A.

Matos

J. D. R.

Mercuri

L. P.

Silva

A. O.

Melo

D. M. A.

Kinetic parameters of polyethylene degradation by the natural zeolite chabazite

Journal of Thermal Analysis and Calorimetry 1999 56

2018121

3 1279 1282

10.1023/A:1010142003725

41.

Piccini

Alessio

Sauer

Zhi

Liu

Kolvenbach

Jentys

Lercher

J. A.

Accurate adsorption thermodynamics of small alkanes in zeolites. Ab initio theory and experiment for H-chabazite

The Journal of Physical Chemistry C 2015 119

2018121

11 6128 6137

10.1021/acs.jpcc.5b01739

2-s2.0-84925240452

42.

Florindo

B. R.

Catuzo

G. L.

Martins

Porosity of CHA zeolite driving the formation of polyaromatic coke species in the methanol to olefins reaction

Journal of the Brazilian Chemical Society 2021 32

2018121

1051 1059

10.21577/0103-5053.20210008

43.

Ghasemian

Falamaki

Kalbasi

Clinoptilolite zeolite as a potential catalyst for propane-SCR-NOx: performance investigation and kinetic analysis

Chemical Engineering Journal 2014 236

2018121

464 470

10.1016/j.cej.2013.10.061

2-s2.0-84887991101

44.

Oliveira

C. D. R.

Rubio

Adsorption of ions onto treated natural zeolite

Materials Research 2007 10

2018121

4 407 412

10.1590/S1516-14392007000400014

2-s2.0-39849105365

45.

Juzsakova

Csavdari

Rédey

Á.

Fráter

Dióssy

Popita

G. E.

Ráduly

Lauer

Study on the alkylaton mechanism of isobutane with 1-butene using environmental friendly catalysts

Environmental Engineering and Management Journal 2014 13

2018121

9 2343 2347

10.30638/eemj.2014.261

46.

Corbin

D. R.

Burgess

B. F.

Vega

A. J.

Farlee

R. D.

Comparison of analytical techniques for the determination of silicon and aluminum content in zeolites

Analytical Chemistry 1987 59

2018121

22 2722 2728

10.1021/ac00149a019

2-s2.0-0023457075

47.

Ming

D. W.

Dixon

J. B.

Quantitative determination of clinoptilolite in soils by a cation-exchange capacity method

Clays and Clay Minerals 1987 35

2018121

6 463 468

10.1346/CCMN.1987.0350607

2-s2.0-0023525564

48.

Bernal-Jácome

L. A.

Olvera-Izaguirre

Gallegos García

Delgado-Delgado

Espinosa Rodríguez

M. Á.

Adsorption of lead (II) from aqueous solution using adsorbents obtained from nanche stone (Byrsonima crassifolia)

Journal of the Mexican Chemical Society 2020 64

2018121

4 301 315

49.

Nityanandi

Subbhuraam

C. V.

Adsorptive removal of Pb (II) ions from aqueous solution using a coir-based product (puresorbe)

Adsorption Science & Technology 2006 24

2018121

2 177 192

10.1260/026361706778529164

2-s2.0-33749478455

50.

Wingenfelder

Hansen

Furrer

Schulin

Removal of heavy metals from mine waters by natural zeolites

Environmental Science & Technology 2005 39

2018121

12 4606 4613

10.1021/es048482s

2-s2.0-20744446445

16047799

51.

Bedemo

Chandravanshi

B. S.

Zewge

Removal of trivalent chromium from aqueous solution using aluminum oxide hydroxide

Springerplus 2016 5

2018121

1 1 11

10.1186/s40064-016-2983-x

2-s2.0-84981294059

52.

Ehrampoush

M. H.

Miria

Salmani

M. H.

Mahvi

A. H.

Cadmium removal from aqueous solution by green synthesis iron oxide nanoparticles with tangerine peel extract

Journal of Environmental Health Science and Engineering 2015 13

2018121

1 1 7

10.1186/s40201-015-0237-4

2-s2.0-84959493201

53.

Langmuir

The adsorption of gases on plane surfaces of glass, mica and platinum

Journal of the American Chemical Society 1918 40

2018121

9 1361 1403

10.1021/ja02242a004

2-s2.0-0007601535

54.

Freundlich

H. M. F.

Over the adsorption in solution

The Journal of Physical Chemistry 1906 57

2018121

385471 1100 1107

55.

Sips

On the structure of a catalyst surface

The Journal of Chemical Physics 1948 16

2018121

5 490 495

10.1063/1.1746922

2-s2.0-35148870757

56.

Liu

Yang

S. F.

Tay

J. H.

A general model for biosorption of Cd²⁺, Cu²⁺ and Zn²⁺ by aerobic granules

Journal of Biotechnology 2003 102

2018121

3 233 239

10.1016/S0168-1656(03)00030-0

2-s2.0-0038364059

57.

Rahman

Pal

Uddin

Thu

Saha

B. B.

Statistical analysis of optimized isotherm model for maxsorb iii/ethanol and silica gel/water pairs

Evergreen 2018 5

2018121

4 1 12

10.5109/2174852

2-s2.0-85066635318

58.

Boulinguiez

Le Cloirec

Wolbert

Revisiting the determination of Langmuir parameters. Application to Tetrahydrothiophene adsorption onto activated carbon

Langmuir 2008 24

2018121

13 6420 6424

10.1021/la800725s

2-s2.0-47349104080

18537274

59.

Leyva-Ramos

Jacobo-Azuara

Diaz-Flores

P. E.

Guerrero-Coronado

R. M.

Mendoza-Barron

Berber-Mendoza

M. S.

Adsorption of chromium(VI) from an aqueous solution on a surfactant-modified zeolite

Colloids and Surfaces A: Physicochemical and Engineering Aspects 2008 330

2018121

1 35 41

10.1016/j.colsurfa.2008.07.025

2-s2.0-53649088130

60.

Amrhar

El Gana

Mobarak

Calculation of adsorption isotherms by statistical physics models: a review

Environmental Chemistry Letters 2021 19

2018121

6 4519 4547

10.1007/s10311-021-01279-8

61.

Arkhipenko

D. K.

Valueva

G. P.

Moroz

T. N.

Determination of the space group of chabazite

Journal of Structural Chemistry 1995 36

2018121

1 171 174

10.1007/BF02577766

2-s2.0-51649137586

62.

Treacy

M. M.

Higgins

J. B.

Collection of simulated xrd powder patterns for zeolites fifth (5th) 2007 5th

Elsevier

63.

Bansiwal

A. K.

Rayalu

S. S.

Labhasetwar

N. K.

Juwarkar

A. A.

Devotta

Surfactant-modified zeolite as a slow release fertilizer for phosphorus

Journal of Agricultural and Food Chemistry 2006 54

2018121

13 4773 4779

10.1021/jf060034b

2-s2.0-33746534424

64.

Mohammadi

Bina

Ebrahimi

Hajizadeh

Amin

M. M.

Pourzamani

Effectiveness of nanozeolite modified by cationic surfactant in the removal of disinfection by-product precursors from water solution

International journal of environmental health engineering 2012 1

2018121

1 3

10.4103/2277-9183.94387

65.

Osacký

Pálková

Hudec

Czímerová

Galusková

Vítková

Effect of alkaline synthesis conditions on mineralogy, chemistry and surface properties of phillipsite, P and X zeolitic materials prepared from fine powdered perlite by-product

Microporous and Mesoporous Materials 2020 294, article 109852

2018121

10.1016/j.micromeso.2019.109852

66.

Abukhadra

M. R.

Basyouny

M. G.

El-Sherbeeny

A. M.

El-Meligy

M. A.

The effect of different green alkali modification processes on the clinoptilolite surface as adsorbent for ammonium ions; characterization and application

Microporous and Mesoporous Materials 2020 300, article 110145

2018121

10.1016/j.micromeso.2020.110145

67.

Alvarez-Ayuso

Garcıa-Sánchez

Querol

Purification of metal electroplating waste waters using zeolites

Water Research 2003 37

2018121

20 4855 4862

10.1016/j.watres.2003.08.009

2-s2.0-0242298223

14604631

68.

Alver

B. E.

Sakızcı

Hydrogen (H₂) adsorption on natural and cation-exchanged clinoptilolite, mordenite and chabazite

International Journal of Hydrogen Energy 2019 44

2018121

13 6748 6755

10.1016/j.ijhydene.2019.01.203

2-s2.0-85061368161

69.

Al-Mamoori

Alsalbokh

Lawson

Rownaghi

A. A.

Rezaei

Development of bismuth-mordenite adsorbents for iodine capture from off-gas streams

Chemical Engineering Journal 2020 391, article 123583

2018121

10.1016/j.cej.2019.123583

70.

Sheta

A. S.

Falatah

A. M.

Al-Sewailem

M. S.

Khaled

E. M.

Sallam

A. S. H.

Sorption characteristics of zinc and iron by natural zeolite and bentonite

Microporous and Mesoporous Materials 2003 61

2018121

1-3 127 136

10.1016/S1387-1811(03)00360-3

2-s2.0-0043268148

71.

Albayati

T. M.

Kalash

K. R.

Polycyclic aromatic hydrocarbons adsorption from wastewater using different types of prepared mesoporous materials MCM-41in batch and fixed bed column

Process Safety and Environmental Protection 2020 133

2018121

124 136

10.1016/j.psep.2019.11.007

72.

Mori

Nishiyama

Tsuruya

Masai

Deactivation of zeolites in n-hexane cracking

Applied Catalysis 1991 74

2018121

1 37 52

10.1016/0166-9834(91)90007-U

2-s2.0-0026169088

73.

Atiyah

N. A.

Albayati

T. M.

Atiya

M. A.

Interaction behavior of curcumin encapsulated onto functionalized SBA-15 as an efficient carrier and release in drug delivery

Journal of Molecular Structure 2022 1260, article 132879

2018121

10.1016/j.molstruc.2022.132879

74.

Giampaolo

Mengarelli

Torracca

Spencer

Zeolite characterization of “Vico red tuff with black scoria” ignimbrite flow: the extractive district of Civita Castellana (Viterbo, Italy)

Il Nuovo Cimento B 2008 123

2018121

1459 1476

75.

Ibrahim

K. M.

Khoury

H. N.

Tuffaha

Mo and Ni removal from drinking water using zeolitic tuff from Jordan

Minerals 2016 6

2018121

4 116

10.3390/min6040116

2-s2.0-84998829108

76.

Barrer

R. M.

Davies

J. A.

Rees

L. V. C.

Thermodynamics and thermochemistry of cation exchange in chabazite

Journal of Inorganic and Nuclear Chemistry 1969 31

2018121

1 219 232

10.1016/0022-1902(69)80071-0

2-s2.0-0012132868

77.

Akdeniz

Ülkü

Thermal stability of Ag-exchanged clinoptilolite rich mineral

Journal of Thermal Analysis and Calorimetry 2008 94

2018121

3 703 710

10.1007/s10973-008-9358-7

2-s2.0-57949097276

78.

Aysan

Edebali

Ozdemir

Karakaya

M. C.

Karakaya

Use of chabazite, a naturally abundant zeolite, for the investigation of the adsorption kinetics and mechanism of methylene blue dye

Microporous and Mesoporous Materials 2016 235

2018121

78 86

10.1016/j.micromeso.2016.08.007

2-s2.0-84981354764

79.

Ward

J. W.

The nature of active sites on zeolites: II. Temperature dependence of the infrared spectra of hydrogen Y zeolite

Journal of Catalysis 1967 9

2018121

4 396 402

10.1016/0021-9517(67)90266-7

2-s2.0-0001121034

80.

Paukshtis

E. A.

Yaranova

M. A.

Batueva

I. S.

Bal'zhinimaev

B. S.

A FTIR study of silanol nests over mesoporous silicate materials

Microporous and Mesoporous Materials 2019 288, article 109582

2018121

10.1016/j.micromeso.2019.109582

2-s2.0-85068250108

81.

Uytterhoeven

J. B.

Christner

L. G.

Hall

W. K.

Studies of the hydrogen held by solids. VIII. The decationated zeolites

The Journal of Physical Chemistry 1965 69

2018121

6 2117 2126

10.1021/j100890a052

2-s2.0-33947481134

82.

Ward

J. W.

The nature of active sites on zeolites: III. The alkali and alkaline earth ion-exchanged forms

Journal of Catalysis 1968 10

2018121

1 34 46

10.1016/0021-9517(68)90220-0

2-s2.0-0003149398

83.

Jia

Massiani

Barthomeuf

Characterization by infrared and nuclear magnetic resonance spectroscopies of calcined beta zeolite

Journal of the Chemical Society, Faraday Transactions 1993 89

2018121

19 3659 3665

10.1039/ft9938903659

2-s2.0-0942275817

84.

Silva-Rodrigo

López-Goerne

Bertin-Mardel

Gómez-Romero

Salas-Castillo

Propiedades ácidas de los catalizadores de Pt-Sn/Al₂O₃ preparados por sol-gel

Revista Mexicana de Ingeniería Química 2005 4

2018121

2 141 145

85.

Emeis

C. A.

Determination of integrated molar extinction coefficients for infrared absorption bands of pyridine adsorbed on solid acid catalysts

Journal of Catalysis 1993 141

2018121

2 347 354

10.1006/jcat.1993.1145

2-s2.0-0005326430

86.

Ward

J. W.

The nature of active sites on zeolites: VIII. Rare earth Y zeolite

Journal of Catalysis 1969 13

2018121

3 321 327

10.1016/0021-9517(69)90407-2

2-s2.0-0011435911

87.

Weitz

Modification of acid sites in ZSM-5 by ion-exchange: an in-situ FTIR study

Applied Surface Science 2014 316

2018121

405 415

10.1016/j.apsusc.2014.07.194

2-s2.0-84922532313

88.

Stakebake

J. L.

Characterization of natural chabazite and 5A synthetic zeolites: part I. Thermal and outgassing properties

Journal of Colloid and Interface Science 1984 99

2018121

1 41 49

10.1016/0021-9797(84)90083-3

2-s2.0-0021428232

89.

Stewart

H. G.

Humphries

T. D.

Sheppard

D. A.

Tortoza

M. S.

Sofianos

M. V.

Liu

Buckley

C. E.

Ammonium chloride–metal hydride based reaction cycle for vehicular applications

Journal of Materials Chemistry A 2019 7

2018121

9 5031 5042

10.1039/C9TA00192A

2-s2.0-85062295164

90.

Gottardi

Galli

Natural Zeolites 2012

Springer Science & Business Media

91.

Zamzow

M. J.

Eichbaum

B. R.

Sandgren

K. R.

Shanks

D. E.

Removal of heavy metals and other cations from wastewater using zeolites

Separation Science and Technology 1990 25

2018121

13-15 1555 1569

10.1080/01496399008050409

2-s2.0-0025558484

92.

Metwally

S. S.

Attallah

M. F.

Impact of surface modification of chabazite on the sorption of iodine and molybdenum radioisotopes from liquid phase

Journal of Molecular Liquids 2019 290, article 111237

2018121

10.1016/j.molliq.2019.111237

2-s2.0-85068405379

93.

Panayotova

M. I.

Use of zeolite for cadmium removal from wastewater

Journal of Environmental Science & Health Part A 2000 35

2018121

9 1591 1601

10.1080/10934520009377057

2-s2.0-0034306075

94.

Liengme

B. V.

Hall

W. K.

Studies of hydrogen held by solids. Part 11.—Interaction of simple olefins and pyridine with decationated zeolites

Transactions of the Faraday Society 1966 62

2018121

3229 3243

10.1039/TF9666203229

2-s2.0-0001294734

95.

Iler

R. K.

The colloid chemistry of silica and silicates

Soil Science 1955 80

2018121

1 86

10.1097/00010694-195507000-00014

96.

Corma

Catálisis con zeolitas: desde el laboratorio a su aplicación industrial

Arbor 2011 187

2018121

Extra_1 83 102

10.3989/arbor.2011.extran1115

2-s2.0-79952085228

97.

Jamieson

H. L.

Yin

Waller

Khosravi

Lind

M. L.

Impact of acids on the structure and composition of Linde type A zeolites for use in reverse osmosis membranes for recovery of urine-containing wastewaters

Microporous and Mesoporous Materials 2015 201

2018121

50 60

10.1016/j.micromeso.2014.09.017

2-s2.0-84926158588

98.

Turkevich

Nozaki

Stamires

D. N.

Proc. 3rd Internat. Congress Catalys., Amsterdam, 1964. North-Holland publishing co

Amsterdam 1965 1

2018121

586 599

99.

Murrieta-Rico

F. N.

Antúnez-García

Yocupicio-Gaxiola

R. I.

Galván

D. H.

González

J. C.

Petranovskii

Zeolites as initial structures for the preparation of functional materials

Journal Of Applied Research And Technology 2022 20

2018121

1 92 116

10.22201/icat.24486736e.2022.20.1.1561

100.

Tao

Bai

Zhao

Chen

Cao

Yang

Correlation of Brønsted acid sites and Al distribution in ZSM-5 zeolites and their effects on butenes conversion

Fuel 2022 320, article 123729

2018121

10.1016/j.fuel.2022.123729

101.

Kalló

Applications of natural zeolites in water and wastewater treatment

Reviews in Mineralogy and Geochemistry 2001 45

2018121

1 519 550

10.2138/rmg.2001.45.15

102.

Jacobs

P. A.

Leuven

K. U.

Acid zeolites: an attempt to develop unifying concepts (P. H. Emmett award address, 1981)

Catalysis Reviews 1982 24

2018121

3 415 440

10.1080/03602458208079659

2-s2.0-0020271645

103.

Jacobs

P. A.

Mortier

W. J.

Uytterhoeven

J. B.

Properties of zeolites in relation to their electronegativity: acidity, carboniogenic activity and strength of interaction in transition metal complexes

Journal of Inorganic and Nuclear Chemistry 1978 40

2018121

11 1919 1923

10.1016/0022-1902(78)80256-5

2-s2.0-0038746061

104.

Jacobs

P. A.

Carboniogenic Activity of Zeolites 1977

Amsterdam/Oxford/New York

Elsevier Scientific Publishing Company

105.

Zheng

Zhang

Chen

Yang

Deng

Brønsted/Lewis acid synergy in dealuminated HY zeolite: a combined solid-state NMR and theoretical calculation study

Journal of the American Chemical Society 2007 129

2018121

36 11161 11171

10.1021/ja072767y

2-s2.0-34548800352

17705381

106.

Barthomeuf

Zeolite acidity dependence on structure and chemical environment. Correlations with catalysis

Materials Chemistry and Physics 1987 17

2018121

1-2 49 71

10.1016/0254-0584(87)90048-4

2-s2.0-0023331011

107.

Zeng

Woo

Lee

Park

Removal of chromate from water using surfactant modified Pohang clinoptilolite and Haruna chabazite

Desalination 2010 257

2018121

1-3 102 109

10.1016/j.desal.2010.02.039

2-s2.0-77951112548

108.

Ferrer-Luna

Estudio sobre la estabilización fisicoquímica de metales pesados en suelo contaminado por jales mineros usando zeolita Clinoptilolita, [Master’s thesis] 2018

UANL

109.

Moreno-Tost

Santamaría-González

Rodríguez-Castellón

Jiménez-López

Autié

M. A.

González

Carreras-Glacial

De las Pozas

Selective catalytic reduction of nitric oxide by ammonia over cu-exchanged Cuban natural zeolites

Applied Catalysis B: Environmental 2004 50

2018121

4 279 288

10.1016/j.apcatb.2004.01.019

2-s2.0-2542577775

110.

Eisenman

Cation selective glass electrodes and their mode of operation

Biophysical Journal 1962 2

2018121

2 259 323

10.1016/S0006-3495(62)86959-8

2-s2.0-73049154846

13889686

111.

Sherry

H. S.

The ion-exchange properties of zeolites. I. Univalent ion exchange in synthetic faujasite

The Journal of Physical Chemistry 1966 70

2018121

4 1158 1168

10.1021/j100876a031

2-s2.0-33947335456

112.

Alberti

Galli

Vezzalini

Passaglia

Zanazzi

P. F.

Position of cations and water molecules in hydrated chabazite. Natural and Na-, Ca-, Sr- and K-exchanged chabazites

Zeolites 1982 2

2018121

4 303 309

10.1016/S0144-2449(82)80075-4

2-s2.0-0019912007

113.

Calligaris

Nardin

Randaccio

Chiaramonti

P. C.

Cation-site location in a natural chabazite

Acta Crystallographica Section B: Structural Crystallography and Crystal Chemistry 1982 38

2018121

2 602 605

10.1107/S0567740882003483

114.

Pepe

Caputo

Colella

The double selectivity model for the description of ion-exchange equilibria in zeolites

Industrial & Engineering Chemistry Research 2003 42

2018121

5 1093 1097

10.1021/ie020512h

115.

Calligaris

Nardin

Cation site location in hydrated chabazites. Crystal structure of barium- and cadmium-exchanged chabazites

Zeolites 1982 2

2018121

3 200 204

10.1016/S0144-2449(82)80052-3

2-s2.0-0012459441

116.

Lucolano

Caputo

Pepe

Colella

A thermodynamic model of chabazite selectivity for Pb²⁺

Studies in Surface Science and Catalysis 2005 155

2018121

Elsevier

339 346

10.1016/S0167-2991(05)80161-2

117.

Torracca

Galli

Pansini

Colella

Cation exchange reactions of a sedimentary chabazite

Microporous and Mesoporous Materials 1998 20

2018121

1-3 119 127

10.1016/S1387-1811(97)00020-6

2-s2.0-0031995390

118.

Alkurdi

S. S.

Al-Juboori

R. A.

Bundschuh

Bowtell

Marchuk

Inorganic arsenic species removal from water using bone char: a detailed study on adsorption kinetic and isotherm models using error functions analysis

Journal of Hazardous Materials 2021 405, article 124112

2018121

10.1016/j.jhazmat.2020.124112

119.

Günay

Arslankaya

Tosun

Lead removal from aqueous solution by natural and pretreated clinoptilolite: adsorption equilibrium and kinetics

Journal of Hazardous Materials 2007 146

2018121

1-2 362 371

10.1016/j.jhazmat.2006.12.034

2-s2.0-34250377943

17261347

120.

Hernández-Montoya

Pérez-Cruz

M. A.

Mendoza-Castillo

D. I.

Moreno-Virgen

M. R.

Bonilla-Petriciolet

Competitive adsorption of dyes and heavy metals on zeolitic structures

Journal of Environmental Management 2013 116

2018121

213 221

10.1016/j.jenvman.2012.12.010

2-s2.0-84872417106

121.

Guimarães

Paquini

L. D.

Ferraz

B. R. L.

Profeti

L. P. R.

Profeti

Efficient removal of Cu(II) and Cr(III) contaminants from aqueous solutions using marble waste powder

Journal of Environmental Chemical Engineering 2020 8

2018121

4, article 103972

10.1016/j.jece.2020.103972

122.

Lima

É. C.

Dehghani

M. H.

Guleria

Sher

Karri

R. R.

Dotto

G. L.

Tran

H. N.

Adsorption: fundamental aspects and applications of adsorption for effluent treatment

In Green Technologies for the Defluoridation of Water, Elsevier 2021 41 88

10.1016/B978-0-323-85768-0.00004-X

123.

Panayotova

M. I.

Kinetics and thermodynamics of copper ions removal from wastewater by use of zeolite

Waste Management 2001 21

2018121

7 671 676

10.1016/S0956-053X(00)00115-X

2-s2.0-0034980042

11530923

124.

Arshadi

Amiri

M. J.

Mousavi

Kinetic, equilibrium and thermodynamic investigations of Ni(II), Cd(II), Cu(II) and Co(II) adsorption on barley straw ash

Water Resources And Industry 2014 6

2018121

1 17

10.1016/j.wri.2014.06.001

2-s2.0-84906779820

125.

Zhang

Wan

Zhu

Luo

Enhanced fluoride removal from water by rare earth (La and Ce) modified alumina: adsorption isotherms, kinetics, thermodynamics and mechanism

Science of the Total Environment 2019 688

2018121

184 198

10.1016/j.scitotenv.2019.06.175

2-s2.0-85067393069

31229816

126.

Baskan

M. B.

Pala

Removal of arsenic from drinking water using modified natural zeolite

Desalination 2011 281

2018121

396 403

10.1016/j.desal.2011.08.015

2-s2.0-80054874816

127.

Elizalde-González

M. P.

Mattusch

Einicke

W. D.

Wennrich

Sorption on natural solids for arsenic removal

Chemical Engineering Journal 2001 81

2018121

1-3 187 195

10.1016/S1385-8947(00)00201-1

2-s2.0-0034745822

128.

Velazquez-Peña

G. C.

Solache-Ríos

Olguin

M. T.

Fall

As(V) sorption by different natural zeolite frameworks modified with Fe, Zr and FeZr

Microporous and Mesoporous Materials 2019 273

2018121

133 141

10.1016/j.micromeso.2018.07.003

2-s2.0-85049429969

129.

Bibi

Farooqi

Hussain

Haider

Evaluation of industrial based adsorbents for simultaneous removal of arsenic and fluoride from drinking water

Journal of Cleaner Production 2015 87

2018121

882 896

10.1016/j.jclepro.2014.09.030

2-s2.0-84922537456

130.

Liu

C. H.

Chuang

Y. H.

Chen

T. Y.

Tian

Wang

M. K.

Zhang

Mechanism of arsenic adsorption on magnetite nanoparticles from water: thermodynamic and spectroscopic studies

Environmental Science & Technology 2015 49

2018121

13 7726 7734

10.1021/acs.est.5b00381

2-s2.0-84936804086

26055623

131.

Liu

Deng

Maimaiti

Wang

Huang

Wang

As(III) and As(V) adsorption on nanocomposite of hydrated zirconium oxide coated carbon nanotubes

Journal of Colloid and Interface Science 2018 511

2018121

277 284

10.1016/j.jcis.2017.10.004

2-s2.0-85031025536

29031147

132.

Khadim

A. T.

Albayati

T. M.

Saady

N. M. C.

Removal of sulfur compounds from real diesel fuel employing the encapsulated mesoporous material adsorbent Co/MCM-41 in a fixed-bed column

Microporous and Mesoporous Materials 2022 341, article 112020

2018121

10.1016/j.micromeso.2022.112020

133.

Sentorun-Shalaby

Saha

S. K.

Song

Mesoporous-molecular-sieve-supported nickel sorbents for adsorptive desulfurization of commercial ultra-low-sulfur diesel fuel

Applied Catalysis B: Environmental 2011 101

2018121

3-4 718 726

10.1016/j.apcatb.2010.11.014

2-s2.0-78650309746

134.

Chuang

C. L.

Fan

Brown

R. C.

Sung

Saha

Huang

C. P.

Adsorption of arsenic(V) by activated carbon prepared from oat hulls

Chemosphere 2005 61

2018121

4 478 483

10.1016/j.chemosphere.2005.03.012

2-s2.0-25844461968

16202801

135.

Zhu

Lou

Liu

Baig

S. A.

Adsorption behavior and removal mechanism of arsenic on graphene modified by iron–manganese binary oxide (FeMnO x/RGO) from aqueous solutions

RSC advances 2015 5

2018121

83 67951 67961

136.

Kragović

Daković

Sekulić

Ž.

Trgo

Ugrina

Perić

Gatta

G. D.

Removal of lead from aqueous solutions by using the natural and Fe(III)-modified zeolite

Applied Surface Science 2012 258

2018121

8 3667 3673

10.1016/j.apsusc.2011.12.002

2-s2.0-84856228819

137.

Mozgawa

Bajda

Spectroscopic study of heavy metals sorption on clinoptilolite

Physics and Chemistry of Minerals 2005 31

2018121

10 706 713

10.1007/s00269-004-0433-8

2-s2.0-15044358621

138.

Liu

Ngo

H. H.

Guo

Watermelon rind: agro-waste or superior biosorbent?

Applied Biochemistry and Biotechnology 2012 167

2018121

6 1699 1715

10.1007/s12010-011-9521-7

2-s2.0-84866353559

139.

Leyva-Ramos

Berber Mendoza

M. S.

Mendoza Barrón

Aragón Piña

Intercambio iónico de Pb (II) en solución acuosa sobre clinoptilolita modificada por intercambio catiónico

Revista de la Sociedad Química de México 2004 48

2018121

2 130 136

140.

Liu

Wang

Chen

Adsorption behavior and mechanism of mixed heavy metal ions by zeolite adsorbent prepared from lithium leach residue

Microporous and Mesoporous Materials 2022 329, article 111553

2018121

10.1016/j.micromeso.2021.111553

141.

Lee

C. G.

Jeon

J. W.

Hwang

M. J.

Ahn

K. H.

Park

Choi

J. W.

Lee

S. H.

Lead and copper removal from aqueous solutions using carbon foam derived from phenol resin

Chemosphere 2015 130

2018121

59 65

10.1016/j.chemosphere.2015.02.055

2-s2.0-84928104361

25819762

142.

Jangkorn

Youngme

Praipipat

Comparative lead adsorptions in synthetic wastewater by synthesized zeolite A of recycled industrial wastes from sugar factory and power plant

Heliyon 2022 8

2018121

4 e09323

10.1016/j.heliyon.2022.e09323

143.

Rozumová

Životský

Seidlerová

Motyka

Šafařík

Šafaříková

Magnetically modified peanut husks as an effective sorbent of heavy metals

Journal of Environmental Chemical Engineering 2016 4

2018121

1 549 555

10.1016/j.jece.2015.10.039

2-s2.0-84957566429

144.

Y. H.

Wang

Luan

Ding

Adsorption of cadmium(II) from aqueous solution by surface oxidized carbon nanotubes

Carbon 2003 41

2018121

5 1057 1062

10.1016/S0008-6223(02)00440-2

2-s2.0-0344089039

145.

Panuccio

M. R.

Sorgonà

Rizzo

Cacco

Cadmium adsorption on vermiculite, zeolite and pumice: batch experimental studies

Journal of Environmental Management 2009 90

2018121

1 364 374

10.1016/j.jenvman.2007.10.005

2-s2.0-55549142214

18082309

146.

Javadian

Ghorbani

Tayebi

H. A.

Asl

S. H.

Study of the adsorption of cd (II) from aqueous solution using zeolite-based geopolymer, synthesized from coal fly ash; kinetic, isotherm and thermodynamic studies

Arabian Journal of Chemistry 2015 8

2018121

6 837 849

10.1016/j.arabjc.2013.02.018

2-s2.0-85028198830

147.

Buema

Lupu

Chiriac

Ciobanu

Bucur

R. D.

Bucur

Favier

Harja

Performance assessment of five adsorbents based on fly ash for removal of cadmium ions

Journal of Molecular Liquids 2021 333, article 115932

2018121

10.1016/j.molliq.2021.115932

148.

Mohan

Singh

K. P.

Single-and multi-component adsorption of cadmium and zinc using activated carbon derived from bagasse an agricultural waste

Water Research 2002 36

2018121

9 2304 2318

10.1016/S0043-1354(01)00447-X

2-s2.0-0035986531

149.

Sardella

Gimenez

Navas

Morandi

Deiana

Sapag

Conversion of viticultural industry wastes into activated carbons for removal of lead and cadmium

Journal of Environmental Chemical Engineering 2015 3

2018121

1 253 260

10.1016/j.jece.2014.06.026

2-s2.0-84920469370

150.

Aggarwal

Goyal

Bansal

R. C.

Adsorption of chromium by activated carbon from aqueous solution

Carbon 1999 37

2018121

12 1989 1997

10.1016/S0008-6223(99)00072-X

2-s2.0-0032606235

151.

Maneechakr

Mongkollertlop

Investigation on adsorption behaviors of heavy metal ions (Cd²⁺, Cr³⁺, Hg²⁺ and Pb²⁺) through low- cost/active manganese dioxide-modified magnetic biochar derived from palm kernel cake residue

Journal of Environmental Chemical Engineering 2020 8

2018121

6, article 104467

10.1016/j.jece.2020.104467

152.

Kumar

A. S. K.

Jiang

S. J.

Tseng

W. L.

Effective adsorption of chromium (VI)/Cr (III) from aqueous solution using ionic liquid functionalized multiwalled carbon nanotubes as a super sorbent

Journal of Materials Chemistry A 2015 3

2018121

13 7044 7057

10.1039/C4TA06948J

2-s2.0-84925059229

153.

Liu

Zhang

Liu

Zhang

T.’.

Green method to synthesize magnetic zeolite/chitosan composites and adsorption of hexavalent chromium from aqueous solutions

International Journal of Biological Macromolecules 2022 194

2018121

746 754

10.1016/j.ijbiomac.2021.11.121

34813789

154.

Liu

Wen

Chen

Wang

Synthesis of porous Fe₃O₄ hollow microspheres/graphene oxide composite for Cr (VI) removal

Dalton Transactions 2013 42

2018121

41 14710 14717

10.1039/c3dt50955a

2-s2.0-84880594382

23743481

155.

Kumar

A. S. K.

Kakan

S. S.

Rajesh

A novel amine impregnated graphene oxide adsorbent for the removal of hexavalent chromium

Chemical Engineering Journal 2013 230

2018121

328 337

10.1016/j.cej.2013.06.089

2-s2.0-84880606123

156.

Zheng

Dang

Zhang

Equilibrium and kinetic studies of adsorption of Cd(II) from aqueous solution using modified corn stalk

Journal of Hazardous Materials 2010 176

2018121

1-3 650 656

10.1016/j.jhazmat.2009.11.081

2-s2.0-74449087894
