Distributed Cooperative Algorithm for k - M Set with Negative Integer k by Fractal Symmetrical Property

Abstract

In recent years, fractal is widely used everywhere and escape time algorithm (ETA) became the most useful fractal creating method. However, ETA performs not so well because it needs huge computations. So, in this paper, we first present an improved fractal creating algorithm by symmetrical radius of $k\text{-}M$ set. Meanwhile, we use distributed cooperative method to improve classic ETA into parallel system, which is called distributed cooperative ETA (DCETA). Secondly, we present the proof of fractal property in $k\text{-}M$ set $f_{\text{c}}\left(z\right)=z^k+c$ with exponent $k\hspace{0.17em}\hspace{0.17em}(k<0)$ , which concludes its threshold and symmetrical property. Finally, computational result shows correctness of the novel DCETA, which shows better computational effectiveness and lower waste.

1. Introduction

Since Mandelbrot has presented M set (Mandelbrot's set), fractals have been soon used everywhere [1]. Nowadays, generalized M sets become representatives of chaotic dynamics. We present M set in Definition 1 and $k\text{-}M$ set in Definition 2 as follows [2]. In Definition 1   $f_c^n(z)$ is defined in  (1).

Definition 1.

$M\text{-set}=\{c\hspace{0.17em}|\hspace{0.17em}{\lim }_{n\to \infty }{f}_c^n(0)\nrightarrow \infty \mathrm{\hspace{0.17em}\hspace{0.17em}}(c\in C,n=1\cdots \infty )\}$

$$\begin{array}{cc}& f_c^n\left(z\right)={\left(f_c^{n-1}\left(z\right)\right)}^2+c\hspace{1em}\text{where}\hspace{0.17em}\hspace{0.17em}{f}_c^1\left(z\right)=z^2+c.\end{array}$$

(1)

Then, when we reform $F_c^n(z)$ to $F_c^n(z)$ in (2), definition of $k\text{-}M$ set is presented in Definition 2. Consider

$$\begin{array}{cc}& F_c^n\left(z\right)={\left(F_c^{n-1}\left(z\right)\right)}^k+c\hspace{1em}\text{where}\mathrm{\hspace{0.17em}\hspace{0.17em}}{F}_c^1\left(z\right)=z^k+c.\mathrm{\hspace{0.17em}\hspace{0.17em}}\mathrm{\hspace{0.17em}\hspace{0.17em}}\mathrm{\hspace{0.17em}\hspace{0.17em}}\end{array}$$

(2)

Definition 2.

$k\text{-}M\mathrm{\hspace{0.17em}\hspace{0.17em}}\text{set}=\{c\hspace{0.17em}|\hspace{0.17em}{\lim }_{n\to \infty }{f}_c^n(0)\nrightarrow \infty \mathrm{\hspace{0.17em}\hspace{0.17em}}(c\in C,n=1\cdots \infty )\}$ .

Nowadays, many scholars research deeply in $k\text{-}M$ set with many kinds of exponents. In fact, we know that the dynamics system $k\text{-}M$ set is generalization of M set, and classic M set is actually $2\text{-}M$ set.

Then, because the structure of $k\text{-}M$ set is complex, we use escape time algorithm (ETA) to create its fractal. The algorithm ETA compares $|f_c^n(c)|$ to a given large number N of all points c. Admittedly, a point c is in $k\text{-}M$ set when the iteration time is more than another given number M. To explain it, we present the escape time algorithm in Algorithm 1.

Algorithm 1: Escape time algorithm (ETA).

Step  1.

  Let T = escape threshold, I = max iterated number.

  Assuming $I_c$ = 0 is iterated times of points c.

  Set $T_c$ = c as $f_c^n$ (z) (0) of points c.

Step  2.

  For all points c in complex plane,

  While $I_c\le I$ and $\left|T_c\right|<T$

   $I_c=I_c+1$ . $T_c=$  f( $T_c$ ).

Step  3.

  Color all points c by different $I_z$ .

In Algorithm 1, if $I_z>I$ , the iterations of z are convergent; else are divergent.

In fact, Algorithm 1 is an approximate algorithm because M and N cannot be determined. For example, if there exists a point c makes $\left|f_c^k(z)(0)\right|<T$ and $\left|f_c^{k+1}(z)(0)\right|>T\hspace{0.17em}\hspace{0.17em}\text{or}\hspace{0.17em}\hspace{0.17em}\left|f_c^k(z)(0)\right|>T$ and $\left|f_c^{k+1}(z)(0)\right|<T$ , we will find different results when $I=k$ . So we cannot make sure the point c is convergent or not for ETA in these two conditions. Another problem is that when the iteration exponent is negative or complex number with negative real part, the iteration value is often changed from greatly large to greatly low or opposite. It is hardly to use ETA in this condition. So a strict proof is necessary to be given, which is used to prove convergence and divergence of $k\text{-}M$ set in complex plane with $k<0$ .

Then, there is another problem in fractal creating algorithms, that is, the huge time cost. Assuming the displayed area contains $M\times N$ points, which need to compute I times in the worst condition (I is maximum iteration times), we know that the computational times $C=M\times N\times I$ . This is a huge number and it needs huge time to be processed. So we have to use a distributed cooperative algorithm to decrease the computational times.

For years, distributed cooperative algorithms are widely used in many areas, which indeed decrease time cost by using multiprocessors instead of single processor. Today, researchers usually use multicomputers to construct a cooperative system. Furthermore, parallel and distributed system is always used for transportation [3], estimation [4], optimization [5], and localization [6] in engineering area. Admittedly, we call them distributed cooperative transportation/estimation/optimization/localization algorithms.

In fractal area, there are many initial iterated functions with complex structure [7, 8]. So we have to use novel iterated method to process them [9]. Admittedly, distributional method is an effective method to decrease the computational time, just like parallel and cloud environment [10, 11].

In this paper, in order to decrease huge time cost which comes from fractal creating algorithms of $k\text{-}M$ set, we present a distributed cooperative algorithm under a parallel system at first. We create $k\text{-}M$ set with both classic ETA and novel DCETA to validate the correctness of DCETA. Besides, in order to validate the positive of DCETA, the parallel experimental results are also presented and analyzed.

Second, we prove that $k\text{-}M$ set has strongly symmetrical properties with phase angles. In this case, we decrease the iterated time further. Meantime, we analyze these results and find the parallel properties of this distributional algorithm. It is also experimented in DCETA and the experimental results also validate our conclusions.

In conclusion, in this paper, we firstly present a separate method to reform ETA into distributional environment. Meanwhile, we analyze this novel algorithm with experimental results. Secondly, we research in properties of $k\text{-}M$ set and find self-symmetrical regions with phase angles. Then, we present a separate method to reform ETA into distributional environment. Meanwhile, we analyze this novel algorithm with experimental results. The results also validate properties of $k\text{-}M$ set. Finally, some Julia sets are created to validate containable properties between $k\text{-}M$ set and the corresponding Julia sets.

The remainder of the paper is organized as follows. We proved properties of $k\text{-}M$ set when $k<0$ in Section 2. Moreover, we have their parallel experimental results and analysis in Section 3. Finally, Section 4 summarizes the main results of the paper.

In this paper, k is a negative integer, i and n are positive integers, c is a complex number, T and I are positive real numbers.

2. Distributed Cooperative ETA with Fractal Symmetrical Property

In order to run ETA in distributed system, we use SIMC in the distributional method in Algorithm 2.

Algorithm 2: DCA of ETA.

Primary node

(i) For all task nodes

  Send group message ( ${\text{area}}_i$ , f) to $i\text{th}$ task nodes;

 in the message, ${\text{area}}_i$ = ( $x_{\text{start}}$ , $x_{\text{end}}$ ) × ( $y_{\text{start\_}i}$ , $y_{\text{end\_}i}$ ) denotes iterated area, and function f

    dotes the iterated mapping

(ii) While all task nodes send its result

   Connect all sub-images and display it;

(iii) Finished;

Task nodes

(i) If primary node send message ( ${\text{area}}_{ii}$ , f)

 Use ETA to create sub-image by compute all points in this area with iterated function f;

(ii) Send sub-image to primary node;

Finished;

Not as usual as other cooperative algorithm, DCA creates the final image with the hidden cooperative multitask nodes, which provides a part of the final image. So we cannot find the cooperative relation in DCT. In our experiment, by these two distributed cooperative methods which are presented, the parallel system is constructed with 3 same PCs. In this system, one PC is the primary node and other two are task nodes. Then, all subresults are connected in the primary node as the final result.

In this paper, we use $k=-3$ and −4 to process the experiment and compute a sector with center (0, 0) and radius $(\sqrt{2}/2)s\mathrm{\hspace{0.17em}\hspace{0.17em}}(s\mathrm{\hspace{0.17em}\hspace{0.17em}}\text{is}\mathrm{\hspace{0.17em}\hspace{0.17em}}\text{a}\mathrm{\hspace{0.17em}\hspace{0.17em}}\text{side}\mathrm{\hspace{0.17em}\hspace{0.17em}}\text{of}\mathrm{\hspace{0.17em}\hspace{0.17em}}\text{displayed}\mathrm{\hspace{0.17em}\hspace{0.17em}}\text{area})$ . For example, when $k=-3$ , the original and improved fractal is presented in Figure 1 (with no larger than threshold 10 and no lower than threshold 0.1). Similarly, the original and improved fractal is presented in Figure 2 (with no larger than threshold 10 and no lower than threshold 0.1) when $k=-4$ . In these figures, Theorems 4 and 6, Lemma 5, and Inference 2 are validated. In detail, we find the symmetrical property from the general views of Figures 1-2, and they validate Lemma 5 and Inference 2. Then, the escape areas are all similar-round with the escape points in Figures 1-2. They validate Theorem 4. Additionally, we have the farthest fractal area to validate Theorem 6.

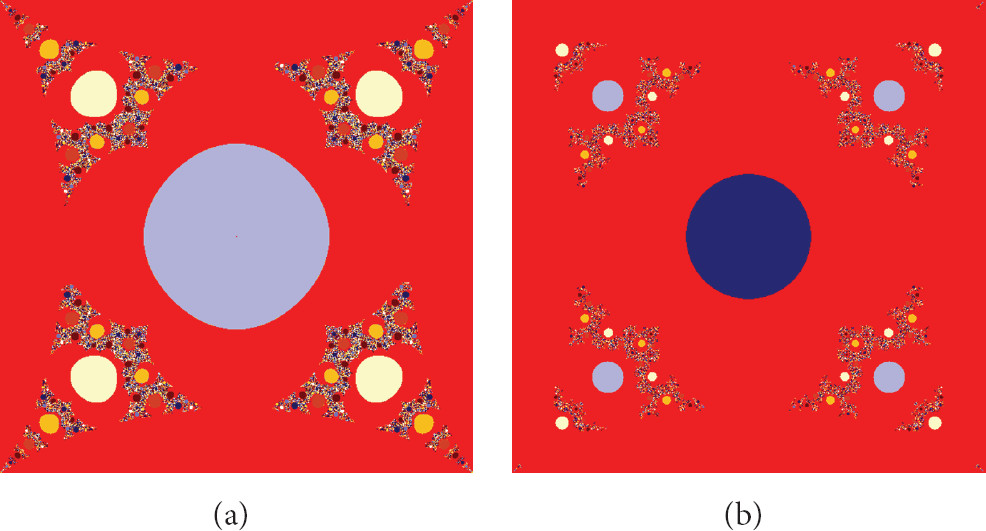

Figure 1

Fractal of $k\text{-}M$ set by original (10) and improved (0.1) threshold  ( $k=-3$ ).

Figure 2

Fractal of $k\text{-}M$ set by original (10) and improved (0.1) threshold ( $k=-4$ ).

In this paper, the two worker nodes compute results of the area $(\rho ,\theta )$ with modality of polar coordinates. In the area, $\rho =(\sqrt{2}/2)s$ , and $\theta =[2p\pi /|k|,2(1+p)\pi /|k|)$ , where $p\in \{\mathrm{0,1}\}$ denotes number of the two worker nodes. We present Figures 3-4 to validate the conclusion we given. In Figure 3, we present the two fractal image created by two worker nodes. In Figure 4, we present the remainder of whole $k\text{-}M$ set. Then, we find that the pseudoescape lines are the symmetry axes of $k\text{-}M$ set. Moreover, Figure 5 is similar to Figures 3-4. It is presented to validate our conclusion with $k=-4$ .

Figure 3

Fractal of $k\text{-}M$ set by the two worker nodes ( $k=-3$ ).

Figure 4

Corresponding fractal of $k\text{-}M$ set in the two worker nodes ( $k=-3$ ).

Figure 5

Original and corresponding fractal of $k\text{-}M$ set by the two worker nodes   $(k=-4)$ .

Then, the basic computational area is presented in Figures 6(a)-6(b) and 7(a)-7(b), which are corresponding to $k=-3$ and $k=-4$ . Moreover, their symmetrical fractals of pseudoescape line are presented in Figures 6(c)-6(d) and Figures 7(c)-7(d). In these figures, (a) is the original computational area with original threshold, (b) is the improved computational area with improved threshold, and (c) and (d) are the symmetrical areas with corresponding axis pseudoescape lines. Meantime, in these two examples, the expected displayed area is (−1.2, 1.2) × (−1.2, 1.2). So radius of the computational sector is about 1.697.

Figure 6

Fractal of the computational area by original and improved threshold ( $k=-3$ ).

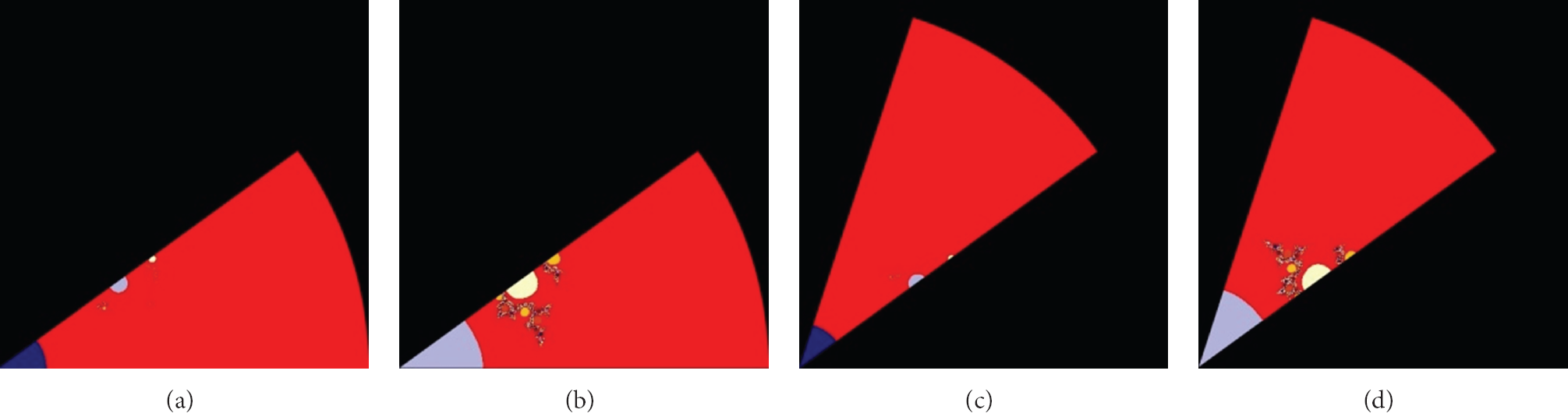

Figure 7

Fractal of the computational area by original and improved threshold $(k=-4)$ .

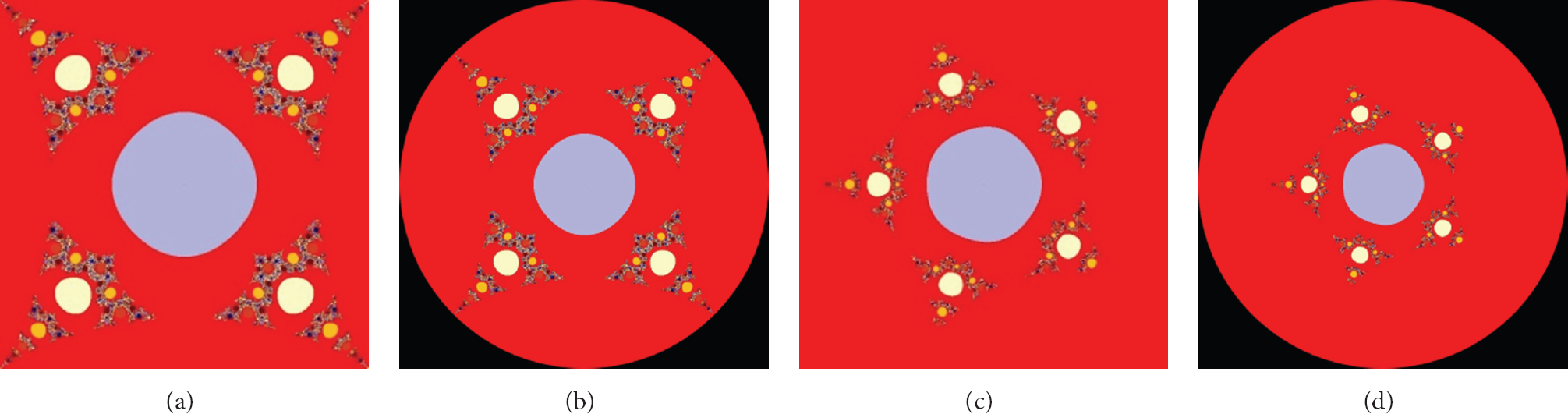

Finally, Figure 8 presents the symmetrical properties of $k\text{-}M$ set by the two thresholds, and we validate Theorems 6 and 7 with Figures 6, 7, and 8.

Figure 8

Fractal of $k\text{-}M$ sets by xOy and polar coordinates with two thresholds $(k=-4)$ .

3. Proof of Fractal Property in $k\text{-}M$   Set

3.1. Correctness of the New Threshold

In this paper, we study properties when k is a negative integer from (2). At first, we give threshold and convergent properties of $k\text{-}M$ set by Theorem 3.

Theorem 3.

$k\text{-}M$ set contains whole complex plane except countable points.

Furthermore, when $k=-1$ , we reach Inference 1, which presents escape points of $k\text{-}M$ set.

Inference 1.

Origin is the only escape point of $k\text{-}M$ set when $k=-1$ .

In this way, we can analyze these countable escape points of $k\text{-}M$ set. So when we let E = $\{\text{Set of escape points}\}$ , we know that $S=\{S_i\},\hspace{0.17em}\hspace{0.17em}i=1\cdots \infty$ is a partition of E, where $S_i=\{c\hspace{0.17em}|\hspace{0.17em}c$ is a solution of $r_i^{*}=0\}$ . It is because of the following:

$$\begin{array}{cc}& S_i\ne \varnothing ,\\ S_i\cap S_j=\varnothing \hspace{1em}\text{when}\mathrm{\hspace{0.17em}\hspace{0.17em}}i\ne j,\\ {\displaystyle \bigcup }_{i=1}^{\infty }\hspace{0.17em}{S}_i=E.\end{array}$$

(3)

Then, when we reach Theorem 4 to find all escape points which are attracting, we will found the structure of $k\text{-}M$ set.

Theorem 4.

All escape points of $k\text{-}M$ set are attracting.

Proof.

Firstly, (4) is applied to compute all escape points of $k\text{-}M$ set:

$$\begin{array}{cc}& F_c^i\left(0\right)=0.\end{array}$$

(4)

Generalizing (4) to infinite, we have (5). It means that c is an escape point. However, using $1/\infty =0$ , we have (6). It means that c is similar to a periodic point. Meantime, in this paper, a point c is called pseudoperiodic point when it reaches (4)–(6):

$$\begin{array}{cc}& F_c^{i+1}\left(0\right)=\infty ,\end{array}$$

(5)

$$\begin{array}{cc}& F_c^{i+2}\left(0\right)=c.\end{array}$$

(6)

So when applying (7), we have (8) to reach its derivative:

$$\begin{array}{cc}& f^i\left(z\right)=f^{i-1}\left(z^k+c\right),\end{array}$$

(7)

$$\begin{array}{cc}& {\left(f^i\left(z\right)\right)}^{\prime }={\displaystyle \prod }_{j=0}^{i-1}\begin{array}{c}{\left(f\left(z_j\right)\right)}^{\prime }\hspace{1em}\left(z_0=c,\hspace{0.17em}{z}_j=f^j\left(z_0\right)\right).\end{array}\end{array}$$

(8)

Then we have (9) to reform (8):

$$\begin{array}{l}\left|{\left(f^i\left(z\right)\right)}^{\prime }\right|={\displaystyle \prod }_{j=0}^{i-1}\left|{\left(f\left(z_j\right)\right)}^{\prime }\right|\hfill \\ ={\displaystyle \prod }_{j=0}^{i-1}\left(k{\left|z_j\right|}^{k-1}\right)={\left|k\right|}^i·{\left(\left|{\displaystyle \prod }_{j=0}^{i-1}{z}_j\right|\right)}^{k-1}.\hfill \end{array}$$

(9)

Admittedly, infinite is attracting fixed point, and zero is pseudo-2 periodic point.

So when applying (10) into (9), we have (11) when $i-1$ is even or (12) when $i-1$ is odd:

$$\begin{array}{cc}& z_i·z_{i+1}=z_i·\left(z_i^k+c\right)=z_i^{k+1}+c{z}_i,\end{array}$$

(10)

$$\begin{array}{cc}& {\left|{\left(f^i\left(z\right)\right)}^{\prime }\right|={\left|k\right|}^i·\left({\displaystyle \prod }_{j=0}^{(i-2)/2}\left|z_{2j}^{k+1}+c{z}_{2j}\right|\right)}^{k-1},\end{array}$$

(11)

$$\begin{array}{cc}& {\left|{\left(f^i\left(z\right)\right)}^{\prime }\right|=\left|k\right|}^i·{\left(z_{i-1}·{\displaystyle \prod }_{j=0}^{\left(i-3\right)/2}\left|z_{2j}^{k+1}+c{z}_{2j}\right|\right)}^{k-1}.\end{array}$$

(12)

So when $z_i=0$ or $z_i=\infty$ , (10) is infinite, and computational result of (11) is zero. Moreover, it is admittedly that computational result of (12) is zero. So we know these pseudoperiodic points are all attracting.

Theorem 4 is proved.

Moreover, we know that escape points of $k\text{-}M$ set are all attracting from Theorem 4. So when we use a threshold T as the threshold, we know that $1/T$ can also be used as a threshold in the fractal generation.

When assuming that radius of the approximately circle is ε. So we have (13) from the newer threshold:

$$\begin{array}{cc}& \left|f^i\left(c+\epsilon \right)\right|<\frac{1}{T}\hspace{1em}\text{when}\hspace{0.17em}\hspace{0.17em}{f}^i\left(c\right)=0.\end{array}$$

(13)

Then, it reforms to (14) because ε is tiny and ${(f^i(c))}^{\prime }=0$ :

$$\begin{array}{cc}& \left|\frac{\epsilon ·\left({\left(f^i\left(c\right)\right)}^{\prime }+{\left(f^i\left(c+\epsilon \right)\right)}^{\prime }\right)}{2}\right|=\left|\frac{\epsilon ·{\left(f^i\left(c+\epsilon \right)\right)}^{\prime }}{2}\right|<\frac{1}{T}.\end{array}$$

(14)

So, we have (15) to present attracting area of the ith escape point c:

$$\begin{array}{cc}& \epsilon <\frac{2}{T\left|{\left(f^i\left(c+\epsilon \right)\right)}^{\prime }\right|}\le \frac{2}{T}.\end{array}$$

(15)

In this case, we prove the novel threshold of $k\text{-}M$ set. Then, the symmetrical fractal property of k-Mandelbrot set is presented in the following section.

3.2. Fractal Symmetrical Property of $k\text{-}M$ Set

At first, when we analyze $S_{i\mathrm{\hspace{0.17em}\hspace{0.17em}}}$ in (9)–(11), we have Lemma 5 as follows.

Lemma 5.

$c^{*}=c·e^{2n\pi i/(1-k)}\in S_i$ when $c\in S_i\mathrm{\hspace{0.17em}\hspace{0.17em}}(n=1\cdots 1-k)$ .

Proof.

Using mathematical induction, first, let $i=1$ ; using $c^{*}$ in $r_i^{*}=r_0^{*}+{(r_{i-1}^{*})}^k$ , we have

$$\begin{array}{l}{r}_1^{*}\left(c^{*}\right)=r_0^{*}\left(c^{*}\right)+{\left(r_0^{*}\left(c^{*}\right)\right)}^k\hfill \\ =c·e^{2n\pi i/\left(1-k\right)}·\left(1+c^{k-1}\right)=e^{2n\pi i/\left(1-k\right)}·\left(c+c^k\right)\hfill \\ =e^{2n\pi i/\left(1-k\right)}·r_1^{*}\left(c\right).\hfill \end{array}$$

(16)

Then, let $i=n$ ; assuming

$$\begin{array}{cc}& r_n^{*}\left(c^{*}\right)=e^{2n\pi i/(1-k)}·r_n^{*}\left(c\right)\end{array}$$

(17)

we have

$$\begin{array}{l}{r}_{n+1}^{*}\left(c^{*}\right)=r_0^{*}\left(c^{*}\right)+{\left(r_n^{*}\left(c^{*}\right)\right)}^k\hfill \\ =e^{2n\pi i/\left(1-k\right)}·c+e^{2kn\pi i/\left(1-k\right)}·{\left(r_n^{*}\left(c\right)\right)}^k\hfill \\ =e^{2n\pi i/(1-k)}\left(c+e^{2n\pi i/\left(1-k\right)}·r_n^{*}\left(c\right)\right)\hfill \\ =e^{2n\pi i/\left(1-k\right)}{r}_1^{*}\left(c\right).\hfill \end{array}$$

(18)

Summarizing (16)–(18), we have (19). So when $c\in S_i$ , which is equal to $r_1^{*}(c)=0$ , we know that $r_1^{*}(c^{*})=0:$

$$\begin{array}{cc}& \left|r_n^{*}\left(c^{*}\right)\right|=\left|r_n^{*}\left(c\right)\right|.\end{array}$$

(19)

It means that $c^{*}\in S_i$ . Lemma 5 is proved

In this way, we separate all $S_i$ to $1-k$ parts, which differ from each other with phase angle $2\pi /(1-k)$ .

Then, we reach Inference 2 from (19).

Inference 2.

$c^{*}=c·e^{2n\pi i/(1-k)}\in k\text{-}M\hspace{0.17em}\hspace{0.17em}\text{set}$ when $c\in k\text{-}M\hspace{0.17em}\hspace{0.17em}\text{set}\hspace{0.17em}\hspace{0.17em}(n=1\cdots 1-k)$ .

In this case, we know that $k\text{-}M$ sets also can be separated to $1-k$ parts, which differ from each other with phase angle $2\pi /(1-k)$ .

From Lemma 5 and Inference 2, we find the separation of $S_i$ clearly by fractal symmetry of $k\text{-}M$ set. In our distributional strategy, $S_i$ is divided into $1-k$ parts, which differ from each other with phase angle $2\pi /(1-k)$ . In this case, we separate $k\text{-}M$ set to n nodes. The ith node computes area with phase angle $(2\pi (i-1)/n(1-k),\hspace{0.17em}2\pi i/n(1-k))$ and we only compute area with phase angle $(0,2\pi /(1-k))$ . The other area is same as the computational area and can be collaged with it.

Then, we have Theorem 6 to present the farthest “escape point” of origin, which denotes the displayed area of $k\text{-}M$ set.

Theorem 6.

In Algorithm 1, the farthest pseudoescape point of origin is at the line $\theta =(2n+1)\pi /(1-k),\hspace{0.17em}\hspace{0.17em}n=0\cdots 1-k$ .

Proof.

Without loss of generality, we assume a point $c=r·e^{ix}\hspace{0.17em}\hspace{0.17em}(x>0)$ as a farthest escape point. Then, we find that $|f(c)|$ has the lowest modulus than any other points with modulus r in the following by using mathematical induction.

(a) Let $i=1$ ; $|f^i(c)|$ is lower than other points with modulus r, where $x=(2n+1)\pi /(1-k)$ and phase angle of $f(c)$ is same as c. Its proof is in the following.

Applying $c=r·e^{ix}$ in (11), we have

$$\begin{array}{cc}& f\left(c\right)=c·\left(c^{k-1}+1\right)=c·\left(r^{k-1}·e^{ix\left(k-1\right)}+1\right),\end{array}$$

(20)

$$\begin{array}{cc}& \left|f\left(c\right)\right|=r·\left|r^{k-1}·e^{ix\left(k-1\right)}+1\right|.\end{array}$$

(21)

Admittedly, $|f(c)|$ reach its lowest value when $x(k-1)=(2n+1)\pi$ ; applying it into (20), we find the lowest value is

$$\begin{array}{cc}& \left|f\left(c\right)\right|=r·\left|1-r^{k-1}\right|.\end{array}$$

(22)

(b) Let $i=n$ and assuming that $|f^n(c)|$ is lower than other points with modulus r, where $x=(2n+1)\pi /(1-k)$ and  phase angle of $f^n(c)$ is same as c.

(c) Let $i=n+1$ ; | $f^i(c)|$ is lower than other points with modulus r, where $x=(2n+1)\pi /(1-k)$ and phase angle of $f^{n+1}(c)$ is same to c. Its proof is in the following.

Assuming that

$$\begin{array}{cc}& f^n\left(c\right)=R·c,\end{array}$$

(23)

we have

$$\begin{array}{cc}& f^{n+1}\left(c\right)=c·\left(R^k·c^{k-1}+1\right).\end{array}$$

(24)

    So, when $x=(2n+1)\pi /(1-k)$ , we have | $f^{n+1}(c)\left|=r·\right|R^k-1|$ which is the lowest of all points with modulus r.

Summarizing (a)–(c), we prove that $f^n(c)$ is lowest when its modulus is lower than T in Algorithm 1. Then when we apply Theorem 3, we have threshold of these pseudoescape points which are determined by ${(f^n(c))}^k$ . So c is farther from origin when $f^n(c)$ is lower.

It means Theorem 6 is proved.

In this way, we know that $k\text{-}M$ set has $1-k$ farthest pseudoescape points, which are at lines $\theta =(2n+1)\pi /(1-k)$ for $n=1~1-k$ . In this paper, we use radii to name these $1-k$ lines. Then, we use Theorem 7 to present their symmetrical properties.

Theorem 7.

$\left|f^i(c)\right|=\left|f^i(c^{\prime })\right|\mathrm{\hspace{0.17em}\hspace{0.17em}}(i=\mathrm{1,2},\dots )$ for all points $c=r·e^{i\alpha },c^{\prime }=r·e^{i(2\theta -\alpha )}$ with $\theta =(2n+1)\pi /(1-k),\hspace{0.17em}\hspace{0.17em}n=0\cdots -k$ .

Proof.

Using mathematical induction, first, let $i=1$ ; we have

$$\begin{array}{cc}& f^1\left(\stackrel{-}{c}\right)=\stackrel{-}{c}=\stackrel{-}{f^1\left(c\right)}.\end{array}$$

(25)

Then, let $i=n$ , and assuming

$$\begin{array}{cc}& f^n\left(\stackrel{-}{c}\right)=\stackrel{-}{f^n\left(c\right),}\end{array}$$

(26)

we have

$$\begin{array}{l}{f}^{n+1}\left(\stackrel{-}{c}\right)={\left(f^n\left(\stackrel{-}{c}\right)\right)}^k+\stackrel{-}{c}\hfill \\ ={\left(\stackrel{-}{f^n\left(c\right)}\right)}^k+\stackrel{-}{c}=\stackrel{-}{{\left(f^n\left(c\right)\right)}^k}+\stackrel{-}{c}\hfill \\ =\stackrel{-}{{\left(f^n\left(c\right)\right)}^k+c}=\stackrel{-}{f^{n+1}\left(c\right)}.\hfill \end{array}$$

(27)

Summarizing (25)–(27), we have that $f^n(\stackrel{-}{c})=\stackrel{-}{f^n(c)}$   for all n. In other words, $k\text{-}M$ set is symmetry with the real axis.

Then, when applying Lemma 5 and Inference 2, we know that $k\text{-}M$ set is symmetric with phase angle $2n\pi /(1-k)\hspace{0.17em}\hspace{0.17em}(n=1\cdots 1-k)$ . It means

$$\begin{array}{cc}& c^{\prime }=r·e^{i\left(2\theta -\alpha \right)}=\stackrel{-}{c}·e^{2\theta i}.\end{array}$$

(28)

Moreover, it is admittedly that $2\theta =2(2n+1)\pi /(1-k)\hspace{0.17em}\hspace{0.17em}(n<[k/2]+1)$ or $2\theta =2(2n+k)\pi /(1-k)+2\pi \hspace{0.17em}\hspace{0.17em}(n>[k/2])$ . So we have (29) by (19), (26), and (28):

$$\begin{array}{cc}& \left|f^n\left(c^{\prime }\right)\right|=\left|f^n\left(\stackrel{-}{c}\right)\right|=\left|f^n\left(c\right)\right|.\end{array}$$

(29)

It means Theorem 7 is proved.

In this case, we know that these pseudoescape lines are all symmetrical lines of $k\text{-}M$ set. So the ratio of computational area is reduced to $1/2(1-k)$ with original displayed area. In conclusion of Section 3.2, we know the correctness of symmetrical property in $k\text{-}M$ set.

4. Conclusion

In this paper, we analyze $k\text{-}M$ set with formula $f_c(z)=z^k+c\hspace{0.17em}\hspace{0.17em}(k=-1,-2,\dots )$ by using distributed cooperative algorithm. We present an algorithm DCETA to improve classic ETA to a distributed parallel system, and this novel fractal creating method has lower computations. With experimental results, we validate our conclusions.

Then, we proved the fractal property of $k\text{-}M$ set, which contains the correctness of the novel threshold and the fractal symmetrical properties. These novel properties are improvements of [12, 13].

Since we have already studied some special $k\text{-}M$ set with many methods [14], and used $k\text{-}M$ set in many other areas, in the next step, first, we will find some properties of $k\text{-}M$ set, which can enhance understanding of $k\text{-}M$ set. Then, we will use properties of $k\text{-}M$ set into distributed parallel system to enhance its effectiveness and robustness.
