Abstract

This paper addresses the problem of estimation fusion in a distributed wireless sensor network (WSN) under the following conditions: (i) sensor noises are contaminated by outliers or gross errors; (ii) process noise and sensor noises are correlated; (iii) cross-correlation among local estimates is unknown. First, to attack the correlation and outliers, a correlated robust Kalman filtering (coR²KF) scheme with weighted matrices on innovation sequences is introduced as local estimator. It is shown that the proposed coR²KF takes both conventional Kalman filter and robust Kalman filter as a special case. Then, a novel version of our internal ellipsoid approximation fusion (IEAF) is used in the fusion center to handle the unknown cross-correlation of local estimates. The explicit solution to both fusion estimate and corresponding covariance is given. Finally, to demonstrate robustness of the proposed coR²KF and the effectiveness of IEAF strategy, a simulation example of tracking a target moving on noisy circular trajectories is included.

1. Introduction

Estimation fusion, or data fusion for estimation, has wide-spread applications in many practical situations that data from multiple sources are involved, for example, guidance, defense, robotics, integrated navigation, target tracking, and GPS positioning [1]. Combining the results of multiple sensors can provide more accurate estimation than using a single sensor [2]. There are two basic fusion architectures [1, 3]: centralized and distributed (referred to as measurement fusion and estimate fusion in target tracking, resp.), depending on whether raw data are sent to the fusion center or not. Both architectures have pros and cons in terms of optimality, channel requirements, requirements, reliability, information sharing, and so forth. For the distributed fusion, it has been realized for many years that local estimates (track) have correlated errors thereafter the original work of [3]. How to counter this cross-correlation has been a central topic in distributed fusion. One problem with the Kalman Filtering is that it requires either that the measurements are independent or that the cross-covariance is known [4, 5]. As is well known, the independent assumption can be relaxed in the case of correlated data, if the cross-covariance information is available. The optimal KF-based approach that the KF maintains cross-covariance information between updates is proposed considering the correlation among the local estimates [3, 6–8].

A common simplification is to assume the cross-covariance to be zero; that is, the measurements are independent. However, the simplification may cause that the KF produces nonconservative covariance. This leads to an artificially high confidence value, which can lead to filter divergence [9]. Although under the assumption that the cross-correlation is known, the optimal KF-based approach scales quadratically with the number of updates. This makes optimal KF-based approach impractical [10]. Several ingenious techniques, such as the tracklets technique [11], covariance intersection [12], and those based on the information graph [13], have been developed. Unfortunately, if the cross-correlation information is missing or incomplete, the Kalman filter cannot be applied. In such situations, to allow the use of the Kalman filter, the independence of the sources is often assumed and the correlation is simply ignored in the fusion process, for example, the simple convex combination (SCC) method [14]. This makes the filter over optimistic in its estimation, which may lead to divergence [7]. Recently proposed covariance intersection (CI) filtering [8, 10] is based on convex combination of information matrices, that is, inverse covariance matrices and the corresponding information states. The algorithm provides a general framework for information fusion with incomplete knowledge about the signal sources since it yields consistent estimates for any degree of cross-correlation. Since covariance intersection filtering requires optimization of a nonlinear cost function and instead of underestimation of the actual covariance matrix, the covariance intersection method overestimates it, which obviously results in a significant decrease in performance. To avoid both the inconsistency of the basic convex combination and the lack of performance of the covariance intersection method, internal ellipsoid approximation fusion (IEAF) has been proposed [15]. For this approach, the largest volume ellipsoid within the intersection of two ellipsoids can be computed by internal ellipsoid approximation.

On the other hand, the distribution of noise arising in application deviates frequently from assumed Gaussian model, often being characterized by skewed (asymmetric) or heavier tails generating the outlier. A sufficiently far away located outlier can completely cause the least squares estimator or the Kalman filter to break down [16, 17]. This will degrade the fusion performance greatly. Therefore it is of practical interest to consider filters which are robust to perform fairly well in non-Gaussian environment especially in the presence of outliers, and some results have been obtained during the last decade. Robust statistical procedures provide formal methods to spot the outlying data points and reduce their influence. Most of the contributions in this area have been directed toward censoring data; namely, if an observation differs sufficiently from its predicted value, then it is discarded. For example, an M-estimate filter for robust adaptive filtering in impulse noise is proposed in [18]; a recursive adaptive algorithm and a robust threshold estimation method are derived employing an M-estimate cost function. Djurovic and Kovacevic established the equivalence between the Kalman filter algorithm and a particular least squares regression problem. Based on the equivalence it solved the robust estimation with unknown noise statistics with the help of M-estimate method, and the equivalence between the Kalman filter and proposed technique is established [19]. Recently, in [20] a deemphasis weighting approach is used to suppress the effect of outliers in background samples during the formation of a sample covariance matrix. When outliers are present when comparing the results from processing simulated and real coherent radar data using the proposed approach with results using no outlier suppression and censored sample matrix inversion pruning methods, the deemphasis techniques are shown to produce the most robust diction performance. Very recently, by reformulating the traditional Kalman filter into a least square form, a novel version of RKF has been proposed using L ₁-regularized optimization [21]. To the best of the authors’ knowledge, however, there is little result discussing how to eliminate or reduce the influence of outliers on the fusion performance, which remains a challenging problem so far.

In this paper, the problem of estimation fusion in a distributed architecture under the following conditions is addressed: (i) process noise and sensor noises are correlated; (ii) sensor noises are contaminated by outliers or gross errors; (iii) cross-correlation among local estimates is unknown. First, to attack the correlation and outliers, a novel robust Kalman filtering (coR²KF) scheme with weighted matrices of innovation sequences is introduced as local estimator. It is shown that the proposed coR²KF takes both conventional Kalman filter and robust Kalman filter as a special case. Then, a novel version of our internal ellipsoid approximation fusion (IEAF) is used in the fusion center to handle the unknown cross-correlation of local estimates.

2. Problem Statement and Lemmas

Consider the discrete linear stochastic system with N sensors in the network:

\begin{matrix} x (t + 1) = F x (t) + G ω (t), \end{matrix}

(1)

\begin{matrix} y_{i} (t) = H_{i} x (t) + υ_{i} (t) + z_{i} (t), i = 1,2, 3, \dots, N, \end{matrix}

(2)

where

x (t) \in ℜ^{n}

is the state vector,

y_{i} (t) \in ℜ^{m_{i}}

is the ith measurement in the sampling period

t T

;

ω (t) \in ℜ^{p}

is the disturbance input or system noise with zero mean and variance matrix Q;

e_{i} (t) = [υ_{i} (t) + z_{i} (t)] \in ℜ^{m_{i}}

i = 1,2, 3, \dots, N

, are the outlier-contaminated measuring noise vectors. The matrices F, G, and

H_{i}

are known real constant matrices with appropriate dimensions.

Assumption 1.

$ω (t)$ and $υ_{i} (t)$ , $i = 1,2, 3, \dots, N$ , are correlated white noises with zero mean and

\begin{matrix} E (ω_{i} (t) υ_{j}^{T} (k)) = S_{i j} (t) δ_{t k}, \forall t, k, if i \neq j, \\ E {[\begin{bmatrix} ω (t) \\ υ_{i} (t) \end{bmatrix}] [\begin{bmatrix} ω^{T} (k) & υ_{i}^{T} (k) \end{bmatrix}]} = [\begin{bmatrix} Q (t) & S_{i} (t) \\ S_{i}^{T} (t) & R_{i} (t) \end{bmatrix}] δ_{t k}, \end{matrix}

(3)

where E is the expectation, the superscript T denotes the transpose, and

δ_{t k}

is the Kronecker delta function.

Remark 2.

Our interest in this paper also lies in the outlier measurement which means mismatch in measurement noise model. In order to simulate these unmodeled measurement uncertainty, a non-Gaussian error term $z_{i} (t)$ is included. Commonly, the outlier-corrupted measuring noise can be represented by the Turkey's gross error model, a contaminated Gaussian model. Mathematically, $e_{i} (t) = υ_{i} (t) + z_{i} (t)$ are with non-Gaussian density function $f (e)$ described by

\begin{matrix} ℱ_{i} = (1 - α) 𝒢_{i} + α Δ 𝒢_{i}, \end{matrix}

(4)

where

𝒢_{i}

is the zero-mean Gaussian density and

Δ 𝒢_{i}

is some unknown symmetric function representing the impulsive part of the noise density or outliers.

Remark 3.

The problem of outliers is of practical importance in a target tracking system using multiple sensors (radar or infrared) [21, 22] and communication applications where non-Gaussian (heavy-tailed) noise occurs, such as in underwater acoustics, and satellite communications through the ionosphere [23]. It is commonly used to describe unmodeled measurement uncertainties that relate to the sensor failure, spikes, or jamming.

Assumption 4.

The initial state $x (0)$ is independent of $ω (t)$ and $e_{i} (t)$ , $i = 1,2, 3, \dots, N$ , and

\begin{matrix} E x (0) = x_{0}, E [(x (0) - x_{0}) {(x (0) - x_{0})}^{T}] = P_{0} . \end{matrix}

(5)

The problem is to find the estimation fusion ${\hat{x}}_{0} (t)$ of the state $x (t)$ in terms of local robust Kalman filter based on the measurement $(y_{i} (t), \dots, y_{i} (1))$ , $i = 1,2, 3, \dots, N$ . The estimation fusion should have the desirable properties of efficiency and robustness; that is, it (i) yields the estimation fusion with a high accuracy for normal distributed observation while keeping the solution in high efficiency; (ii) reduces the bad effect of moderate errors on filtering and fusion in the way of weighting innovation; (iii) is robust in the sense that outliers and correlation do not affect the solution by setting the weighted matrix of innovation to be zeroes and further suppress the influence of outliers to the performance of fusion.

We start with some definitions and lemmas.

Definition 5.

Ellipsoid $ε (x_{0}, P)$ in $R^{n}$ with center $x_{0}$ and shape matrix P is the set

\begin{matrix} ε (x_{0}, P) = {x \in R^{n} | {(x - x_{0})}^{T} P^{- 1} (x - x_{0}) \leq 1}, \end{matrix}

(6)

where

P > 0

might be standing for the covariance matrix of the estimation or fusion error.

Lemma 6.

Under the Assumptions 1 and 4, for ith sensor subsystem of the system (1)-(2) without outlier (i.e., $z_{i} (t) = 0$ ), the local optimal Kalman filters [24] one has:

\begin{array}{l} {\hat{x}}_{i} (t + 1 | t + 1) = {\hat{x}}_{i} (t + 1 | t) + K_{i} (t + 1) ε_{i} (t + 1), \end{array}

(7)

\begin{array}{l} {\hat{x}}_{i} (t + 1 | t) = Φ_{i} (t) {\hat{x}}_{i} (t | t) + Θ_{i} (t) y_{i} (t), \end{array}

(8)

\begin{array}{l} ε_{i} (t + 1) = y_{i} (t + 1) - H_{i} {\hat{x}}_{i} (t + 1 | t), \end{array}

(9)

\begin{array}{l} K_{i} (t + 1) = P_{i} (t + 1 | t) H_{i}^{T} {[H_{i} P_{i} (t + 1 | t) H_{i}^{T} + R_{i}]}^{- 1}, \end{array}

(10)

\begin{array}{l} P_{i} (t + 1 | t) = Φ_{i} (t) P_{i} (t | t) Φ_{i}^{T} (t) \\ + G [Q - S_{i} (t) R_{i}^{- 1} (t) S_{i}^{T} (t)] G^{T}, \end{array}

(11)

\begin{array}{l} P_{i} (t + 1 | t + 1) = [I_{n} - K_{i} (t + 1) H_{i}] P_{i} (t + 1 | t), \end{array}

(12)

\begin{array}{l} {\hat{x}}_{i} (0 | 0) = x_{0}, P_{i} (0 | 0) = P_{0}, \end{array}

(13)

where

Φ_{i} (t) = F (t) - Θ_{i} (t) H_{i} (t)

Θ_{i} (t) = G (t) S_{i} (t) R_{i}^{- 1}

, and

I_{n}

stands for a n-dimensional unit diagonal matrix.

P_{i} (t + 1 | t)

and

P_{i} (t | t)

are the one-step prediction and filtering error variance, respectively, and

K_{i} (t)

is the filtering gain matrix. As described in Section 3, the innovation

ε_{i} (t)

plays an important role in robust Kalman filter recursive process.

Remark 7.

If the process noise and measuring noises are not correlated, that is, $S_{i} (t) = 0$ , it is obvious that $Θ_{i} (t) = 0$ , $Φ_{i} (t) = F (t)$ , and (11) reduced to $P_{i} (t + 1 | t) = F (t) P_{i} (t | t) F^{T} (t) + G Q G^{T}$ . This makes the correlated Kalman filter recursions in Lemma 6 taking the traditional Kalman filter in case of uncorrelated noises as a special case.

Lemma 8.

Checking whether two ellipsoids $ε (x_{0_{1}}, P_{1})$ and $ε (x_{0_{2}}, P_{2})$ have nonempty intersection can be cast as to the following Quadratic Programming (QP) problem with quadratic constraints [25, 26]:

\begin{matrix} β_{1} = \min_{〈 x, P_{2}^{- 1} x 〉 = 1} 〈 x, P_{1}^{- 1} x 〉 = \min_{x^{T} P_{2}^{- 1} x = 1} x^{T} P_{1}^{- 1} x, \\ β_{2} = \min_{〈 x, P_{1}^{- 1} x 〉 = 1} 〈 x, P_{2}^{- 1} x 〉 = \min_{x^{T} P_{1}^{- 1} x = 1} x^{T} P_{2}^{- 1} x, \end{matrix}

(14)

where

β_{1}

and

β_{2}

are invariant with respect to affine coordinate transformation and describe the position of ellipsoids

ε (x_{0_{1}}, P_{1})

ε (x_{0_{2}}, P_{2})

with respect to each other:

(i)

if $β_{1} \geq 1$ , $β_{2} \geq 1$ , then $ε (x_{0_{1}}, P_{1}) \cap ε (x_{0_{2}}, P_{2}) = φ$ ,

(ii)

if $β_{1} \geq 1$ , $β_{2} \leq 1$ , then $ε (x_{0_{1}}, P_{1}) \subseteq ε (x_{0_{2}}, P_{2})$ ,

(iii)

if $β_{1} \leq 1$ , $β_{2} \geq 1$ , then $ε (x_{0_{1}}, P_{1}) \supseteq ε (x_{0_{2}}, P_{2})$ ,

(iv)

if $β_{1} < 1$ , $β_{2} < 1$ , then $ε (x_{0_{1}}, P_{1}) \cap ε (x_{0_{2}}, P_{2}) \neq φ$ , and $ε (x_{0_{1}}, P_{1}) ⊄ ε (x_{0_{2}}, P_{2})$ , and $ε (x_{0_{2}}, P_{2}) ⊄ ε (x_{0_{1}}, P_{1})$ .

3. An Improved Robust Kalman Filter: coR²KF

From (7) to (13), we can see that in (t+1)th sampling period, ${\hat{x}}_{i} (t + 1 | t + 1)$ is corrected by the linear combination of $ε_{i} (t + 1)$ . Therefore, if the measurements $y_{i} (t + 1)$ are contaminated by outliers, $ε_{i} (t + 1)$ will correct ${\hat{x}}_{i} (t + 1 | t + 1)$ in a wrong way, which should make traditional Kalman filter degrade or even divergent.

In another point of view, the conventional Kalman filter can also be formulated as a solution to a particular weighted least squares problem [21]. Unfortunately, it is not robust because extreme outliers with arbitrarily large residuals can have an infinitely large influence on the resulting estimate. To handle this, the M-estimator, one of the most sophisticated approaches among the robust statistics approaches, is proposed [16]. Further, the M-estimator has an advantage of less computational effort as it can be computed by a standard least squares algorithm with minor modifications [27].

M-estimators attempt to suppress the influence of outliers by replacing the square of the residuals with a less rapidly increasing loss function, which is

\begin{matrix} J = \sum_{j = 1}^{m_{i}} ρ (y_{i j} (t) - h_{i j} x (t)) = \sum_{j = 1}^{m_{i}} ρ (ε_{i j} (t)), \end{matrix}

(15)

where

y_{i j} (t)

ε_{i j} (t)

, and

h_{i j}

stand for thejth row of

y_{i} (t)

ε_{i} (t)

, and

H_{i}

, respectively (cf. (9)).

ρ (\cdot)

is a scalar robust convex function that has to cut off the outliers. Particularly, if one chooses

ρ (\cdot)

to be a quadratic function, the estimator according to (15) reduces to the least squares estimator or Kalman filter solution (7) [21, 27].

Equating the first partial derivatives with respect to the state to be estimated $x (t)$ leads to the following relation:

\begin{matrix} \sum_{j = 1}^{m_{i}} ψ (y_{i j} (t) - h_{i j} \hat{x} (t)) h_{i j} = \sum_{j = 1}^{m_{i}} ψ (ε_{i j} (t)) h_{i j} = 0 . \end{matrix}

(16)

The score function $ρ (\cdot)$ is usually nonnegative and symmetric, and $ψ (\cdot)$ , the derivative of $ρ (\cdot)$ , is often called the influence (score) function, since it describes the influence of the measurement errors on the solutions.

Now, (16) can be rewritten as

\begin{matrix} \sum_{j = 1}^{m_{i}} h_{i j} ε_{i j} \frac{ψ (ε_{i j})}{ε_{i j}} = 0 . \end{matrix}

(17)

Letting $d (ε_{i j}) = ψ (ε_{i j}) / ε_{i j}$ , then (17) can be reformulated as the matrix form

\begin{matrix} H_{i}^{T} D_{i} (ε) ε_{i} = 0, \end{matrix}

(18)

where

D_{i} (ε) = diag {d (ε_{i 1}), d (ε_{i 2}), \dots, d (ε_{i n})}

In the light of the above comparison and analysis of conventional Kalman filtering and M-estimator, the proposed coR²KF is given in Theorem 9 as follows.

Theorem 9.

Under Assumptions 1 and 4, the ith sensor subsystem of the system (1)-(2), the coR²KF one has:

\begin{array}{l} {\hat{x}}_{i} (t + 1 | t + 1) = {\hat{x}}_{i} (t + 1 | t) + K_{i} (t + 1) D_{i} (t) ε_{i} (t + 1), \end{array}

(19)

\begin{array}{l} K_{i} (t + 1) = P_{i} (t + 1 | t) H_{i}^{T} \\ \times {[H_{i} P_{i} (t + 1 | t) H_{i}^{T} + D_{i} (t) R_{i} D_{i}^{T} (t)]}^{- 1}, \end{array}

(20)

\begin{array}{l} P_{i} (t + 1 | t + 1) = [I_{n} - K_{i} (t + 1) D_{i} (t) H_{i}] \\ \times P_{i} (t + 1 | t) \cdot {[I_{n} - K_{i} (t + 1) D_{i} (t) H_{i}]}^{T} \\ + K_{i} (t + 1) D_{i} (t) R_{i} D_{i}^{T} K_{i}^{T} (t + 1) . \end{array}

(21)

Other recursive steps are just the same as (8), (9), (11), and (13) in Lemma 6.

Proof.

The formula (19) can be derived from above directly, and the covariance of weighted innovation is

\begin{matrix} E [(D_{i} (t) ε_{i} (t + 1)) {(D_{i} (t) ε_{i} (t + 1))}^{T}] = D_{i} (t) R_{i} D_{i}^{T} (t) \end{matrix}

(22)

from which we have the robust Kalman gain matrix as (20).

Substituting (19) into the filtering error equation

\begin{array}{l} {\tilde{x}}_{i} (t + 1 | t + 1) = x_{i} (t + 1) - {\hat{x}}_{i} (t + 1 | t + 1) \\ = [I_{n} - K_{i} (t + 1) D_{i} (t) H_{i}] {\tilde{x}}_{i} (t + 1 | t) \\ - K_{i} (t + 1) D_{i} (t) υ_{i} (t), \end{array}

(23)

where

{\tilde{x}}_{i} (t + 1 | t)

is the one-step prediction residual, and after mathematical manipulation, the robust filter covariance can be computed as

\begin{array}{l} P_{i} (t + 1 | t + 1) \\ = E [{\tilde{x}}_{i} (t + 1 | t + 1) {\tilde{x}}_{i}^{T} (t + 1 | t + 1)] \\ = [I_{n} - K_{i} (t + 1) D_{i} (t) H_{i}] P_{i} (t + 1 | t) \\ \times {[I_{n} - K_{i} (t + 1) D_{i} (t) H_{i}]}^{T} \\ + K_{i} (t + 1) D_{i} (t) R_{i} D_{i}^{T} K_{i}^{T} (t + 1) . \end{array}

(24)

This completes the proof.

Remark 10.

$ρ (\cdot)$ is a robust M-estimate function for suppressing the outliers and is important for the estimation performance. Different $ρ (\cdot)$ will result in different M-estimate and fusion performance. Say, for a given density f, the choice $ρ (υ) = - \log f (υ)$ yields the maximum likelihood estimator. Several robust cost functions have been used in the robust statistics setting, such as Huber's robust cost function, Andrews’ method, Vapnik's loss function, or the biweight approach. Here, we propose a more general M-estimate function generated from Huber's robust cost function:

\begin{matrix} ρ (ε_{i j} (t)) = {\begin{cases} \frac{ε_{i j}^{2} (t)}{2}, & for | ε_{i j} (t) | \leq a, \\ a | ε_{i j} (t) | - \frac{a^{2}}{2}, & for a < | ε_{i j} (t) | \leq b, \\ a b - \frac{a^{2}}{2}, & for | ε_{i j} (t) | > b, \end{cases} \end{matrix}

(25)

where a and b have to be chosen to provide the desired efficiency at the Gaussian model while possess robustness at the non-Gaussian model. Usually, they are chose empirically [18, 22]. For simplicity, we let

a = 3 \sqrt{R_{i}^{j, j} (t)}

b = 5 \sqrt{R_{i}^{j, j} (t)}

in this paper, where

R_{i}^{j, j} (t)

stands for the

(j, j)

entry of the covariance matrix

R_{i} (t)

Remark 11.

It can be seen that $ρ (\cdot)$ is an even real-valued function and it is quadratic when $ε_{i j} (t)$ is smaller than a, which is just the same as the maximum likelihood (ML) cost function and keeps the efficiency of the M-estimate. For larger values of $ε_{i j} (t)$ in the interval $[a, b]$ , the function is linear and increase more slowly than ML. For residuals greater than b, the function is equal to a constant. Based on (25), the weighted matrix of innovations can be formulated as

\begin{matrix} d (ε_{i j} (t)) = {\begin{cases} 1, & for | ε_{i j} (t) | \leq a, \\ \frac{a}{| ε_{i j} (t) |} & for a < | ε_{i j} (t) | \leq b, \\ 0, & for | ε_{i j} (t) | > b . \end{cases} \end{matrix}

(26)

The three different intervals of $D_{i} (\cdot)$ serve to deal with different kinds of residuals. In order to keep the accuracy and efficiency, when $| ε_{i j} (t) | \leq a$ , $D_{i} (\cdot)$ are set to be 1; when sampling from the moderate innovations, $D_{i} (\cdot)$ are decreased with the residuals while sampling from a heavy-tailed distribution or outliers, the weighted matrix is set to be zeroes.

Remark 12.

If $ω (t)$ and $υ_{i} (t)$ , $i = 1,2, 3, \dots, N$ , are correlated white Gaussian noises with variance matrices Q and $R_{i}$ , respectively, we can see that $D_{i} = I_{n}$ from Remark 11. In this case, the proposed coR²KF reduced to the correlated Kalman filter formulated in Lemma 6, which in turn takes the traditional Kalman filter with uncorrelated noises as a special case.

4. Robust Internal Ellipsoid Approximation Fusion

Once the local estimation is obtained by the subsystems, we are facing the problem of how to fuse the estimation in a right way in the higher level, that is, a cluster head or a sink node.

In this paper, our internal ellipsoid approximation fusion (IEAF) method [15] is adopted to fuse local estimate. For convenience, the IEAF is reformulated in the following theorem.

Theorem 13.

Given two ellipsoids $ε (x_{0_{1}}, P_{1})$ and $ε (x_{0_{2}}, P_{2})$ , and define parameterized family of internal ellipsoids $ε (x_{0}^{-}, P^{-})$ with

\begin{array}{l} x_{0}^{-} = {(ω_{1} P_{1}^{- 1} + ω_{2} P_{2}^{- 1})}^{- 1} (ω_{1} P_{1}^{- 1} x_{1} + ω_{2} P_{2}^{- 1} x_{2}), \end{array}

(27)

\begin{array}{l} P^{-} = (1 - ω_{1} x_{1}^{T} P_{1}^{- 1} x_{1} - ω_{2} x_{2}^{T} P_{2}^{- 1} x_{2} \\ + {x_{0}^{-}}^{T} {(P^{-})}^{- 1} x_{0}^{-}) \cdot {(ω_{1} P_{1}^{- 1} + ω_{2} P_{2}^{- 1})}^{- 1} . \end{array}

(28)

The best internal ellipsoid $ε ({\hat{x}}_{0}^{-}, {\hat{P}}^{-})$ in class (27)-(28), namely, such that

\begin{matrix} ε (x_{0}^{-}, P^{-}) \subseteq ε ({\hat{x}}_{0}^{-}, {\hat{P}}^{-}) \subseteq ε (x_{0_{1}}, P_{1}) \cap ε (x_{0_{2}}, P_{2}), \end{matrix}

(29)

for all

0 \leq ω_{1}

ω_{2} \leq 1

, is specified by the parameters

\begin{matrix} {\hat{ω}}_{1} = \frac{1 - \min (1, β_{2})}{1 - \min (1, β_{1}) \cdot \min (1, β_{2})}, \\ {\hat{ω}}_{2} = \frac{1 - \min (1, β_{1})}{1 - \min (1, β_{1}) \cdot \min (1, β_{2})}, \end{matrix}

(30)

where

β_{1}

and

β_{2}

are the parameters determined in (14).

Proof.

The proof is omitted. Readers are referred to [15] for a strict proof.

Remark 14.

After the parameters $β_{1}$ and $β_{2}$ are determined by Lemma 8, the center and shape parameters of the best internal ellipsoid $ε ({\hat{x}}_{0}^{-}, {\hat{P}}^{-})$ can be calculated by (27)-(28) and (30).

Remark 15.

A graphic demonstration of the relation between the correlated source ellipsoids and the fused one by IEAF and CI are shown in Figure 1. It can be seen that the actual covariance ellipsoid always lies within the region defined by the intersection of the covariance ellipsoids of the fused sources regardless the degree of correlation between these sources. The CI, on the contrary, results in a covariance matrix that will always be greater than the actual one. This makes the CI some degree of conservativeness and a suboptimal estimate. The proposed IEAF slightly underestimates the intersection region, instead of overestimating this region like CI. In fact, the IEAF computes the largest ellipsoid contained within the intersection region and results in an increased performance. Also the consistency of the IEAF can be observed from Figure 1 directly.

Note that the center of internal approximation ellipsoid can be easily calculated from (27). Hence, the only difficulty remained is to solve (28) for the shape matrix. In this paper, we derive the explicit solution to (28) as explained in the following theorem in light of the symmetric positive-define property of $P^{-}$ , $P_{1}$ , and $P_{2}$ .

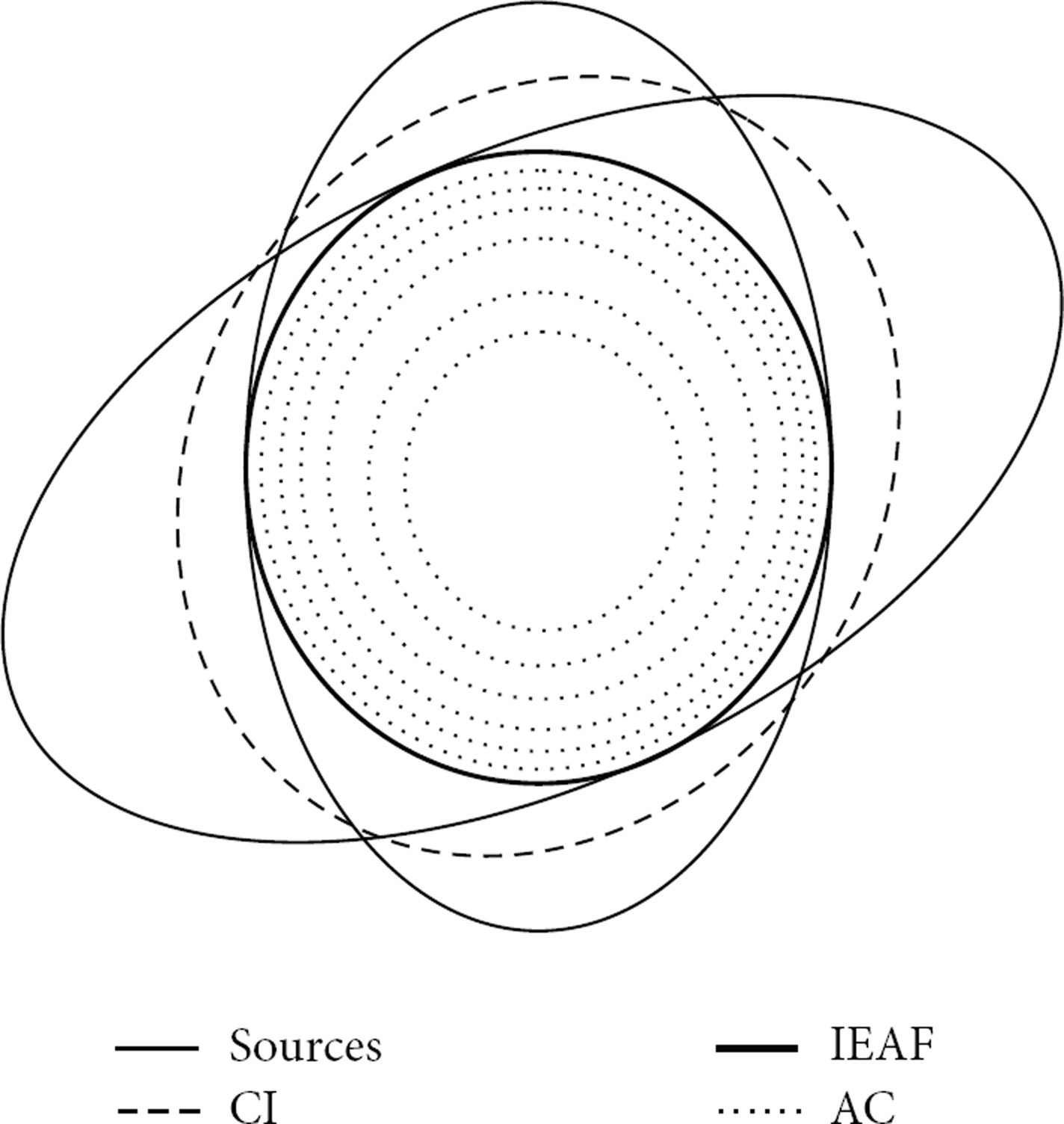

Figure 1

Comparison among the proposed IEAF and CI, and actual covariance (AC).

Theorem 16.

Given two local estimations $x_{0_{1}}$ and $x_{0_{2}}$ with the error covariance matrices $P_{1}$ and $P_{2}$ , respectively, according to the internal ellipsoid approximation method, the fusion estimation and its covariance are

\begin{matrix} {\hat{x}}_{0} = {(ω_{1} P_{1}^{- 1} + ω_{2} P_{2}^{- 1})}^{- 1} (ω_{1} P_{1}^{- 1} x_{1} + ω_{2} P_{2}^{- 1} x_{2}), \end{matrix}

(31)

\begin{matrix} P_{0} = {\hat{x}}_{0} {(ω_{1} P_{1}^{- 1} + ω_{2} P_{2}^{- 1})}^{- 1} Y^{+}, \end{matrix}

(32)

where

\begin{array}{l} Y = unvec {{(- {\hat{x}}_{0}^{T} \otimes {\hat{x}}_{0}^{T})}^{+} \\ \times vec [(1 - ω_{1} x_{1}^{T} P_{1}^{- 1} x_{1} - ω_{2} x_{2}^{T} P_{2}^{- 1} x_{2}) \\ \cdot {(ω_{1} P_{1}^{- 1} + ω_{2} P_{2}^{- 1})}^{- 1} \\ - {(ω_{1} P_{1}^{- 1} + ω_{2} P_{2}^{- 1})}^{- T} \\ \cdot (1 - ω_{1} x_{1}^{T} P_{1}^{- 1} x_{1} - ω_{2} x_{2}^{T} P_{2}^{- 1} x_{2})] } \end{array}

(33)

and

0 \leq ω_{1}

ω_{2} \leq 1

can be calculated using Lagrange multiplier method from Lemma 8 and (30).

Proof.

Note that all the parameters in (28) are given except $P^{-}$ . Letting

\begin{matrix} A = 1 - ω_{1} x_{1}^{T} P_{1}^{- 1} x_{1} - ω_{2} x_{2}^{T} P_{2}^{- 1} x_{2}, \\ B = x_{0}^{-}, C = {(ω_{1} P_{1}^{- 1} + ω_{2} P_{2}^{- 1})}^{- 1}, \end{matrix}

(34)

and

X = P^{-}

, now we are in the position to calculated X from the following equation:

\begin{matrix} X = (A + B^{T} X^{- 1} B) C . \end{matrix}

(35)

Noting that C and X are given symmetric positive-define matrices, we have

\begin{matrix} 0 = X - X^{T} = (A C + B^{T} X^{- 1} B C) - (C^{T} B^{T} X^{- T} B + C^{T} A^{T}); \end{matrix}

(36)

that is,

A C - C^{T} A^{T} = (- B^{T}) X^{- 1} B C + C^{T} B^{T} X^{- T} B

Letting $Y = X^{- 1} B C$ and using the properties of Kronecker product, we have

\begin{array}{l} vec (A C - C^{T} A^{T}) = vec (- B^{T} Y) + vec (Y^{T} B) \\ = (- I \otimes B^{T}) vec (Y) + (B^{T} \otimes I) vec (Y) \\ = (- B^{T} \otimes B^{T}) vec (Y), \end{array}

(37)

where

vec (\cdot)

represents vectorization function which is column stacking of the matrix.

Then Y and X can be derived as follows, respectively, as the same of (35)–(37):

\begin{matrix} X = B C {(unvec ({(- B^{T} \otimes B^{T})}^{+} vec (A C - C^{T} A^{T})))}^{+}, \\ Y = unvec ({(- B^{T} \otimes B^{T})}^{+} vec (A C - C^{T} A^{T})), \end{matrix}

(38)

where

unvec (\cdot)

transfers an vector to corresponding matrix.

Corollary 17.

(i) If $β_{1} \geq 1$ , $β_{2} \leq 1$ , then ${\hat{ω}}_{1} = 1$ , ${\hat{ω}}_{2} = 0$ ; one has $ε ({\hat{x}}_{0}^{-}, {\hat{P}}^{-}) = ε (x_{0_{1}}, P_{1})$ ;

(ii) if $β_{1} \leq 1$ , $β_{2} \geq 1$ , then ${\hat{ω}}_{1} = 0$ , ${\hat{ω}}_{2} = 1$ ; one has $ε ({\hat{x}}_{0}^{-}, {\hat{P}}^{-}) = ε (x_{0_{2}}, P_{2})$ .

Proof.

Here, we just prove (i) while the statement (ii) can be easily derived in a similar way. If $β_{1} \geq 1$ , $β_{2} \leq 1$ , then from (30) we can obtain ${\hat{ω}}_{1} = 1$ , ${\hat{ω}}_{2} = 0$ . Furthermore, from Lemma 8 (ii), we have $ε (x_{0_{1}}, P_{1}) \subseteq ε (x_{0_{2}}, P_{2})$ , which means the approximated largest ellipsoid is $ε (x_{0_{1}}, P_{1})$ . In other words, we have the fused ellipsoid $ε ({\hat{x}}_{0}^{-}, {\hat{P}}^{-}) = ε (x_{0_{1}}, P_{1})$ .

5. A Simulation Example

To evaluate the robustness of the proposed coR²KF and effectiveness of the IEAF approach, a simulation example of tracking a target moving on noisy circular trajectories is given in this section. The objectives of the simulation examples are twofold: (a) to verify the robustness of the proposed coR²KF and (b) to demonstrate the performance superiority of the IEAF method.

Suppose N sensors are randomly deployed in the ROI, which is 50 m × 50 m with the coordinate from (−25, −25) to (25, 25). The layout of the simulation scenarios is illustrated in Figure 2, where a five-point star stands for the location of a sensor.

Figure 2

A particular setup of the simulation scenarios.

Consider a target with the following dynamics:

\begin{matrix} \dot{x} = F_{c} x + G_{c} ω, \end{matrix}

(39)

where

x = [p_{x}, p_{y}]^{T}

denotes the state variable with

p_{x}, p_{y}

stands for the target position on x- and y-direction, respectively,

F_{c} = [\begin{matrix} 0 & - 2; \end{matrix} \begin{matrix} 2 & 0 \end{matrix}]

, and

G_{c} = [1,1]^{T}

. We use the discrete-time model of the target with parameters:

\begin{matrix} F = I_{2} + T F_{c} + \frac{T^{2}}{2} F_{c}^{2} + \frac{T^{3}}{6} F_{c}^{3}, G = T G_{c} . \end{matrix}

(40)

The step-size is $T = 0.025$ . Each sensor makes noisy measurements of the position of the target according to (2) with $H = I_{2}$ . We add outliers into $υ_{i} (t)$ , $i = 1,2$ , all the simulation period. The outlier-corrupted noise $e_{i} (t)$ is with the contaminated Gaussian density function $ℱ_{i} = (1 - α) N (0, σ_{i}^{2}) + α N (0, k σ_{i}^{2})$ , where $σ_{i}$ is set as 5. Moreover, $υ_{i} (t)$ are correlated with the process noise $ω (t)$ , which is standard Gaussian white noise. The correlation coefficient $S_{i} (t)$ is supposed to be $[\begin{bmatrix} 2, & 2 \end{bmatrix}], [\begin{bmatrix} 2, & 1 \end{bmatrix}]$ , and $[\begin{bmatrix} 1, & 2 \end{bmatrix}]$ , respectively. Our goal is to find the estimation fusion based on the local robust Kalman filters suppressing the effect of outliers on the estimation performance in case of cross-correlation among local estimates is unknown. We use the Root of Mean Square Error (RMSE), that is, $RMSE = \sqrt{\sum_{i = 1}^{M} [{\tilde{x}}_{k} (i)^{T} {\tilde{x}}_{k} (i)] / M}$ , as a performance criterion, where M is the number of Monte Carlo runs and ${\tilde{x}}_{k} (i)$ represents the estimation error.

Scenario 1 (one sensor case, Robustness of ${coR}^{2} KF$ ).

To verify the robustness of proposed coR²KF under condition of both outlier-corrupted measuring noises and process-measuring noises correlation, we first consider that just a single sensor is used to track the target. For the coR²KF, we set $a = 3 σ_{i}$ and $b = 5 σ_{i}$ in (26). The RMSE over 500 Monte Carlo runs with different PDF function is shown in Table 1.

From Table 1, we can see in case of no outlier presented that the proposed coR²KF performs a little poorer than traditional KF. This is because coR²KF has deweighted the elements of matrix D in case of larger innovations. However, when outliers present, the adaptive weight of matrix D according to different innovation make the proposed coR²KF more robust than traditional KF. For example, in case of $α = 0.2$ and $k = 1000$ , the degradation of coR²KF and traditional KF are, respectively, $(2.97 - 2.27) / 2.27 = 30.84 %$ and $(6.04 - 2.25) / 2.25 = 168.44 %$ . Therefore, the performance discrepancy of coR²KF with different α and k is not very large, which demonstrates the robustness of proposed coR²KF.

Table 1

RMSE (/10⁻² m) performance for single sensor.

		coR² KF	Traditional correlated KF
$α = 0$ (no outliers)	/	2.27	2.25

$α = 0.05$	$k = 100$	2.29	2.64
	$k = 500$	2.31	4.61
	$k = 1000$	2.33	4.69

$α = 0.1$	$k = 100$	2.46	4.01
	$k = 500$	2.56	4.56
	$k = 1000$	2.69	4.99

$α = 0.2$	$k = 100$	2.66	4.88
	$k = 500$	2.72	5.20
	$k = 1000$	2.97	6.04

Scenario 2 (multiple sensors case, advantage of IEAF).

In order to demonstrate the performance superiority of the IEAF method, we then consider multiple-sensor tracking of the target in a distributed way. Suppose that there are 3 sensors randomly deployed in the ROI as shown in Figure 2, while other parameters are the same as in Scenario 1.

In fact, the performance of IEAF has been shown to be less conservative than CI; both are not necessarily to have the knowledge of cross-correlation [15]. Also, this can be observed from the results of this scenario, where the proposed coR²KF is adopted as the local estimator. The simulation is performed over 500 Monte Carlo runs each with 200 time steps. In this scenario, only the parameters $α = 0.2$ and $k = 1000$ are considered. In Table 2, the performance of the fast covariance intersection (FCI) [28], the simple convex combination (SCC), and the proposed IEAF are compared with the centralized fusion, which is optimal by directly fusing the measurements from local systems.

Obviously, using coR²KF as local estimators, proposed IEAF and the FCI achieve almost identical performance; both perform very closely to the optimal centralized fusion by coR²KF. Besides, both IEAF and FCI are much superior to the SCC approach, which ignore the cross-correlation among local estimates. To demonstrate the results visually and clearly, the RMSE of four fusion methods mentioned above versus time sampling periods is shown in Figure 3. Moreover, the real track along x-direction, measurement of each sensor and fused estimate by coR²KF-IEAF are shown in Figure 4. The results along y-axis are similar, which are omitted for space reason. From Figure 4, we can see that the measurement of each sensor fluctuates seriously as the outliers appear. However, the outliers are suppressed by the coR²KF, as can be seen from Table 2 and both figures. In Table 2, we also give the results on average computational complexity over 500 Monte Carlo runs for whole 200 simulation steps. It is obvious that SCC has the smallest complexity since no cross-correlation needed. Our proposed IEAF has almost identical computational burden as FCI approach. This can be expected since there is no extra computation except Y in Theorem 16.

Table 2

Comparison of fusion accuracy and average computational burden for 200 steps.

Fusion method		RMSE (/10⁻² m)	Computational burden (ms)
Distributed fusion	SCC	5.73	31.2
	FCI	2.56	49.8
	IEAF	2.48	52.9

Centralized fusion		2.32	/

Figure 3

Comparison of RMSE among SCC, FCI, IEAF, and the centralized fusion.

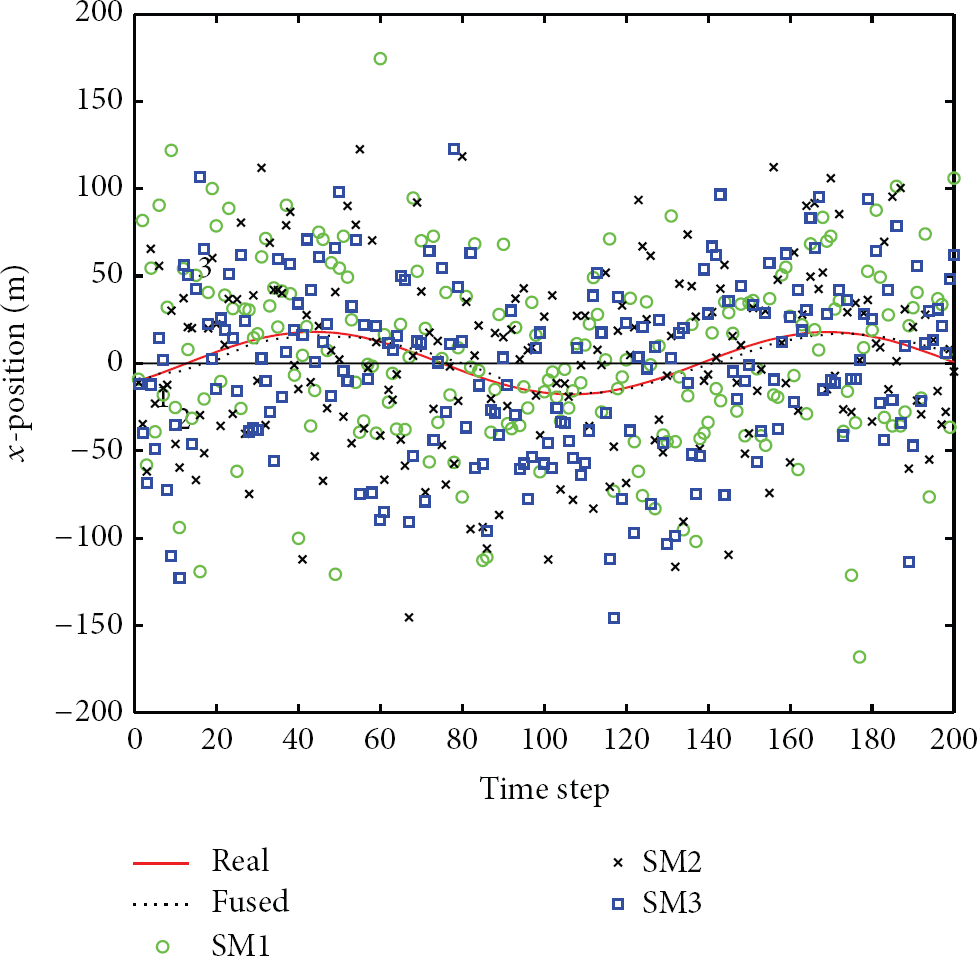

Figure 4

The real track, each measurement, and the fused estimate along x-axis. The measurements of the 3 sensors are denoted by SM1, SM2, and SM3, respectively, while the fused position estimate by the black dotted line, which tracks the real position on x-axis very closely (cf. the red solid line).

6. Conclusion and Future Work

The problem of estimation fusion in a distributed WSN has been addressed under the conditions of correlation between process noise and sensor noises, outlier-corrupted sensor noises, and unknown cross-correlation among local estimates. To attack the correlation and outliers, a novel robust Kalman filtering (coR²KF) scheme with weighted matrices of innovation has been introduced as local estimator. It has been shown that the proposed coR²KF takes both conventional Kalman filter and robust Kalman filter as a special case. Then, an improved version of our previously proposed IEAF has been used in the fusion center to handle the unknown cross-correlation of local estimates. To demonstrate the robustness of proposed coR²KF and the effectiveness of IEAF strategy, a simulation example of tracking a target moving on noisy circular trajectories has been included. Future work will be focused on posterior Cramer-Rao lower bounds (pCRLBs) analysis [29] and comparison with other outlier processing method (e.g., sensor validation technique) in the framework of estimation fusion [6].

Footnotes

Conflict of Interests

The authors declare that there is no conflict of interests regarding the publication of this paper.

Acknowledgments

The work was supported by the National Natural Science Foundation of China (Under Grant nos. 61104210, 61100140, 61070180, and 61372049), Project of Science & Technology Department of Hunan (Under Grant no. 2012TP4032-6), and the Construct Program of the Key Discipline in Hunan Province.

References

Wang

X. R.

Distributed estimation fusion under unknown cross-correlation: an analytic center approach

Proceedings of the 13th International Conference on Information Fusion (FUSION ′10)

July 2010

Edinburgh, UK

1 8

2-s2.0-79952416239

Smith

Singh

Approaches to multisensor data fusion in target tracking: a survey

IEEE Transactions on Knowledge and Data Engineering 2006 18 12 1696 1710

2-s2.0-33750838172

10.1109/TKDE.2006.183

Bar-Shalom

On the track-to-track correlation problem

IEEE Transactions on Automatic Control 1981 26 2 571 572

10.1109/TAC.1981.1102635

Atherton

D. P.

Bather

J. A.

Briggs

A. J.

Data fusion for several Kalman filters tracking a single target

IEE Proceedings: Radar, Sonar and Navigation 2005 152 5 372 376

10.1049/ip-rsn:20045054

Zhou

Wang

Quantized measurement fusion in wireless sensor networks with correlated sensor noises

Proceedings of the 7th IEEE International Conference on Control and Automation (ICCA ′09)

December 2009

Christchurch, New Zealand

1868 1873

2-s2.0-77950430023

10.1109/ICCA.2009.5410559

Khaleghi

Khamis

Karray

F. O.

Razavi

S. N.

Multisensor data fusion: a review of the state-of-the-art

Information Fusion 2013 14 1 28 44

2-s2.0-80052468076

10.1016/j.inffus.2011.08.001

Sun

S.-L.

Deng

Z.-L.

Multi-sensor optimal information fusion Kalman filter

Automatica 2004 40 6 1017 1023

2-s2.0-2042546059

10.1016/j.automatica.2004.01.014

Mori

Chang

K. C.

Chong

C. Y.

Comparison of track fusion rules and track association metrics

Proceedings of the 15th International Conference on Information Fusion (FUSION ′12)

July 2012

Singapore

1996 2003

Maybeck

Stochastic Models, Estimation and Control 1979

London, UK

Academic Press

10.

Uhlmann

J. K.

Julier

S. J.

Durrant-Whyte

H. F.

A culminating advance in the theory and practice of data fusion, filtering and decentralized estimation

1997

Covariance Intersection Working Group

11.

Drummond

O. E.

A hybrid sensor fusion algorithm architecture and tracklets

3163

Signal and Data processing of Small Targets

July 1997

San Diego, Calif, USA

512 524 Proceedings of SPIE

10.1117/12.292746

12.

Julier

S. J.

Uhlmann

J. K.

A non-divergent estimation algorithm in the presence of unknown correlations

Proceedings of the American Control Conference

June 1997

Albuquerque, NM, USA

2369 2373

2-s2.0-0030652361

10.1109/ACC.1997.609105

13.

Chong

C.-Y.

Mori

Barker

W. H.

Chang

K.-C.

Architectures and algorithms for track association and fusion

IEEE Aerospace and Electronic Systems Magazine 2000 15 1 5 13

2-s2.0-0033892156

10.1109/62.821657

14.

Chong

C. Y.

Mori

Convex combination and covariance intersection algorithms in distributed fusion

Proceedings of the 4th International Conference on Information Fusion (FUSION ′01)

2001

Montreal, Canada

2 11

15.

Zhou

Data fusion of unknown correlations using internal ellipsoidal approximation

Proceedings of the IFAC World Congress

July 2008

Seoul, Republic of Korea

2856 2860

16.

Huber

P. J.

Robust Statistics 1981

New York, NY, USA

John Wiley & Sons

17.

Gupta

Gao

Aggarwal

C. C.

Han

Outlier detection for temporal data: a survey

IEEE Transactions on Knowledge and Data Engineering 2013 25 1 1 20

10.1109/TKDE.2013.184

18.

Zou

Chan

S. C.

T. S.

Robust M-estimate adaptive filtering

IEE Proceedings: Vision, Image and Signal Processing 2001 148 4 289 294

2-s2.0-0035435611

10.1049/ip-vis:20010316

19.

Djurovic

Kovacevic

Robust estimation with unknown noise statistics

IEEE Transactions on Automatic Control 1999 44 6 1292 1296

10.1109/9.769393

20.

McDonald

Bhashyam

Outlier suppression in adaptive filtering through de-empahsis weighting

IET Radar, Sonar & Navigation 2007 1 1 38 49

10.1049/iet-rsn:20050156

21.

Mattingely

Boyd

Real-time convex optimization in signal processing

IEEE Signal Processing Magazine 2010 27 3 50 61

2-s2.0-77951493445

10.1109/MSP.2010.936020

22.

Kumar

A new algorithm for outlier rejection in particle filters

Proceedings of the 13th International Conference on Information Fusion (FUSION ′10)

July 2010

Edinburgh, UK

1 7

23.

Wang

Poor

H. V.

Robust multiuser detection in non-gaussian channels

IEEE Transactions on Signal Processing 1999 47 2 289 305

2-s2.0-0033079576

10.1109/78.740103

24.

Anderson

B. D. O.

Moore

J. B.

Optimal Filtering 1979

Boston, Mass, USA

Prentice-Hall

25.

Vazhentsev

A. Y.

On internal ellipsoidal approximations for problems of control synthesis with bounded coordinates

International Journal of Computer and System Sciences 2000 39 3 399 406

2-s2.0-33746267069

26.

Kurzhanski

A. B.

Vályi

Ellipsoidal techniques for dynamic systems: the problem of control synthesis

Dynamics and Control 1991 1 4 357 378

2-s2.0-0026256516

10.1007/BF02169766

27.

Hampel

F. R.

Ronchetti

E. M.

Rousseeuw

P. J.

Stahel

W. A.

Robust Statistics: The Approach Based on Influence Functions 1986

New York, NY, USA

Wiley-Interscience

28.

Niehsen

Information fusion based on fast covariance intersection filtering

Proceedings of the 5th International Conference on Information Fusion (FUSION ′02)

July 2002

Annapolis, Md, USA

901 904

10.1109/ICIF.2002.1020907

29.

Zhou

Wang

Posterior Cramér-Rao lower bounds for target tracking in sensor networks with quantized range-only measurements

IEEE Signal Processing Letters 2010 17 2 157 160

2-s2.0-79955712228

10.1109/LSP.2009.2035672

Robust Estimation Fusion in Wireless Senor Networks with Outliers and Correlated Noises

Abstract

1. Introduction

2. Problem Statement and Lemmas

Assumption 1.

Remark 2.

Remark 3.

Assumption 4.

Definition 5.

Lemma 6.

Remark 7.

Lemma 8.

3. An Improved Robust Kalman Filter: coR2KF

Theorem 9.

Proof.

Remark 10.

Remark 11.

Remark 12.

4. Robust Internal Ellipsoid Approximation Fusion

Theorem 13.

Proof.

Remark 14.

Remark 15.

Theorem 16.

Proof.

Corollary 17.

Proof.

5. A Simulation Example

Scenario 1 (one sensor case, Robustness of coR 2 KF ).

Scenario 2 (multiple sensors case, advantage of IEAF).

6. Conclusion and Future Work

Footnotes

Conflict of Interests

Acknowledgments

References

3. An Improved Robust Kalman Filter: coR²KF

Scenario 1 (one sensor case, Robustness of ${coR}^{2} KF$ ).
