Abstract

In moving environment, the positions of moving objects cannot be located accurately. Apart from the measuring instrument errors, movement of the objects is the main factor contributing to this uncertainty. This uncertainty makes dominant relationship of data instable, which will affect skyline operator. In this paper, we mainly study the continuous probabilistic skyline query for uncertain moving objects in road network. The query point is deemed to be stationary while moving objects are treated as targets with uncertainty described by a probability density function. After defining the notion of dominant probability and probabilistic skyline, we put forward a novel algorithm to deal with continuous probabilistic skyline query on road network. Firstly, we compute the dominant probability and skyline probability to get initial permanent p-skyline set. Then we define events to predict the time when dominant relationship between moving objects may change. Furthermore, we track and calculate events to update the probabilistic skyline in an incremental way. Two pruning strategies are proposed to cancel invalid events and objects in a bid to diminish search space. Finally, an extensive experimental evaluation on real datasets shows that probabilistic skyline sets in road network can be updated by the proposed algorithm. It demonstrates both efficiency and effectiveness.

1. Introduction

Skyline query aims to find a subset where all objects are not dominated by any other object in the dataset, helping users in multicriteria decision making, data mining and visualizing for database, and so forth.

In mobile database, a moving object reports its position and velocity to database service through wireless communication interface. Because of time delay and other technical limitations, the position obtained usually deviates from actual one. The deviation causes what is called uncertainty, which leads to instability of dominant relationship between objects. In real world, objects are restricted in road network, such as track, road, or highway. Position uncertainty of moving objects including its environment should be considered in skyline operation.

Until recently, a lot of work on skyline query had been focused on a static dataset, where the distances from query point to target objects are invariant. With rapid development of GPS technology and mobile devices, the location-based service (LBS) [1], which is pervasive in daily life, is becoming one of the most important applications in spatiotemporal database. However, in moving environment, moving objects whose position is detected by GPS system alternately are always in motion. Delay or error of the sensor in GPS, especially the self-motion of moving objects, makes the location of moving objects uncertain. Despite the existing uncertainty, the position is often treated as being accurate to be queried in many studies [2, 3]. Study on continuous skyline query on moving objects was first proposed by Huang et al. [4]. In his work, position of moving objects is considered as the data with certainty.

In fact, because of the sensors’ error and the objects’ movement, the position of objects in moving environment is uncertain and vague. Recently, a few researchers have been aware of this imprecision and made some contributions [5–7]. In our approach, the location of query object is exactly known as a stationary object, but the location of moving target objects is characterized by a certain distribution instead of a precise point. For example, a weapon-related crime takes place somewhere, which is located in point O, as Figure 1 shows. Police cars should be dispatched to intervene. The adequate police strength including the number of policemen and equipment in the dispatched car is needed. Also a car as near to the crime scene as possible is another factor for consideration in order to arrive in time. In Figure 1, table shows the parameters of each police car, including position of the cars, number of policeman, equipment level, and network distance to the query point O, where the value of equipment level is used to quantify the level of equipment, with greater value corresponding to higher level. If the police cars are treated as certain points, cars A and E are skyline objects. However, the cars are moving quickly, so their positions are uncertain to some extent. For example, suppose that the true position of car A is at point $A^{'}$ , where the distance from $A^{'}$ to O is 130 instead of 125, and car B's actual position is at point $B^{'}$ whose distance to O is 125. In this case, car B can dominate car A, so car A is not skyline object. Because of road network limitation, the uncertain area is represented as a line centered on its acquired location, as Figure 1 shows. In order to simplify this scene, probability density function $f (t)$ assumes uniform distribution and the police car B is possible to be skyline object.

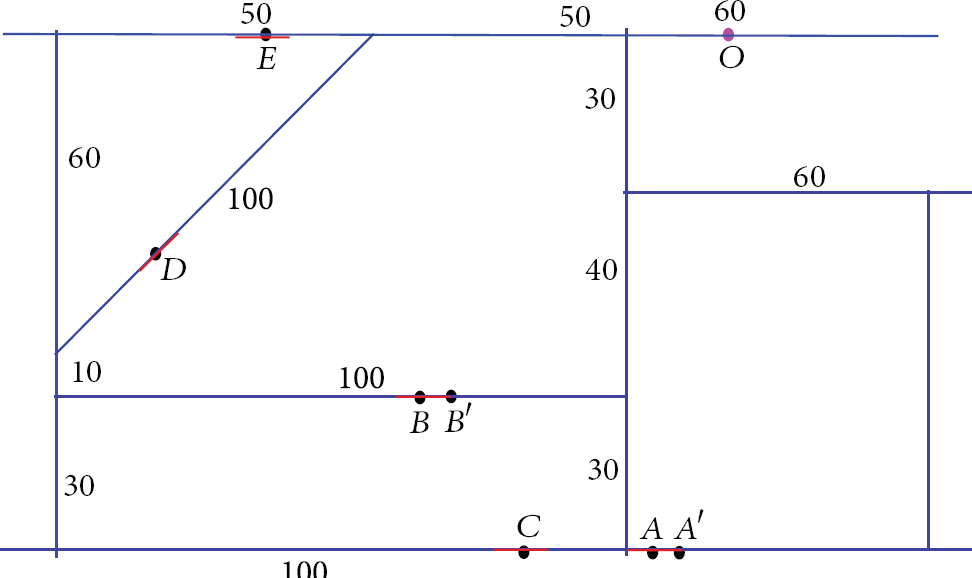

Figure 1

An example of skyline query for uncertain data.

In this paper, we address the problem of continuous probabilistic skyline query for uncertain moving objects in road network. In our study case, the query object stays still, while the target objects are moving with uncertainty which is characterized by both a closed uncertainty region and a probability density function (pdf). The main contributions are as follows. (1)

Probabilistic skyline on uncertain moving object in road network is introduced as a new important issue in decision support or navigation systems.

(2)

By analyzing the dominant relationship between moving objects in uncertain position environment, the dominant probability and skyline probability are defined in case the query is stationary with targets moving.

(3)

Based on trigger events which are presented to track the change of dominant relationship, a novel algorithm Probabilistic Skyline query with Uncertainty in Road network (PSUR) is proposed to deal with the dynamic skyline query with uncertainty. A series of pruning strategies are introduced to optimize and fasten this incremental algorithm.

(4)

A great deal of experiments on two truth datasets are conducted to analyze the uncertain region, numbers of static dimensions, velocity of moving objects, and dataset size that affect the algorithm. Contrast experiments from literature [8] are made to validate the proposed PSUR. The experimental results show that PSUR is effective and efficient.

The rest of this paper is organized as follows. In Section 2, we summarize the related work of skyline computation. In Section 3, after describing basic notion of skyline and uncertain model for moving objects, we define dominant probability and probabilistic skyline. Section 4 introduces trigger events to track how dominant probability relationship varies when objects are moving with uncertainty. Two pruning strategies are adopted to reduce the search space. Section 5 describes PSUR algorithm to update p-skyline set. Section 6 gives experimental evaluation on two real datasets. Finally, the conclusion is reached in Section 7.

2. Related Work

Skyline queries are hot areas of current database research which recently have attracted more and more attention. It is introduced into relational database firstly by Borzsony et al. [9] with two proposed processing algorithms Block-Nested-loops algorithm (BNL) and Extended Divide & Conquer algorithm (D&C). As an improved method of BNL proposed by Dr. Chomicki et al. Sort-Filter-Skyline algorithm (SFS) [10] constructs the multidecision dominative order chains for the ordered data. NN algorithm [11], based on R-tree, searches the nearest neighbor recursively. It speeds up the skyline query by reducing the comparison numbers of BNL among objects. Nevertheless, it will cost more time and space in searching subspace repeatedly. Overcoming this limitation, the sorted R-tree based BBS [12] is proposed. It is one of the best skyline query methods in centralized datasets.

In recent years, skyline query has been extended to the dynamic datasets. The R-tree based I-Eager and I-Lazy algorithms were brought forth by Tao and Papadias [13] who firstly studied how to update and maintain the skyline results in dynamic datasets.. Tian et al. [14] introduced GICSC updating skyline query sets dynamically which better fits for low dimension metrics. Kontaki et al. [15] exerted efforts to maintain k-dominant skyline objects with maximum user's preference. Huang et al. [4] probed into the continuous skyline query for certain moving objects. It assumes that all points including the query point move in a predictable way. After analyzing dominating relationship between points in the space, Huang presented a continuous tracking algorithm-CSQ to maintain skyline sets dynamically.

In sensor networks and moving environment, the characters of the objects are not exactly known due to the limitations of measuring equipment and objects’ movement. A lot of work has focused on uncertain data. The authors in [5] studied the execution of probabilistic range and nearest-neighbor queries in mobile environment. The author in [16] focused on the situation in which the location of a query object is not exactly known. In research of skyline query field, Fiedler [17] firstly proposed skyline operator on uncertain data in his dissertation. Pei et al. [18] proposed a probabilistic skyline model for multiinstance data, where each object is part of the skyline with a certain probability. They presented two algorithms BUM and TDM to study skyline query on uncertain data of the possible world model (PWM). Lian and Chen [19] studied reverse-skyline query. They modeled the probabilistic reverse skyline query on uncertain data, in both monochromatic and bichromatic case, and proposed two effective pruning methods, MPRS and BPRS, to reduce the search space of query processing. Zhang et al. [20] explored how to maintain skyline sets when uncertain data are updated. An AR-tree is constructed for all uncertain data, and the maintenance is inserting, deleting, and updating on this AR-tree. The authors in [21] designed partitioning method to compute skyline probabilities for discrete data with uncertainty. The authors in [8] investigated skyline probabilities with a parametric form pdf (e.g., a Gaussian function or a Gaussian mixture model). The authors in[22] proposed a sliding window skyline model to study the execution of the probabilistic skyline query over uncertain data streams. [23]The authors studied a new problem of range-based skyline queries. Two novel algorithms I-SKY and N-SKY were presented to solve the probabilistic and continuous range-based skyline queries.

In road network, Huang and Jensen [24] assumed that the user's movement is constrained to a road network. The authors defined route nearest-neighbour skyline queries to consider the computation efficiency. Deng et al. [25] studied multisource skyline query in road networks. Three different road networks of multisource query methods were presented. The authors in [26] proposed a new method to process continuous skyline in road network based on precomputing the shortest range data of targets. The authors in [27] introduced route skyline computation in a multiattribute graph. Top routes are computed iteratively in an efficient way and pruning technique is adopted in order to reduce the search space. The authors in [28] focused on extracting the path skylines and proposed PathSL to generate an optimal skyline for moving objects.

In spite of much work focusing on uncertainty of skyline queries or route skyline queries, there is little work completed for skyline query concerning uncertainty of moving objects. The authors in[4, 22–25] ignored the uncertainty of moving objects, while the authors [8, 18, 21] dealt with discrete data with independent dominant relationship between objects. It is the first time to compute continuous probabilistic skyline query with regard to uncertainty of moving objects in road network.

3. The Probabilistic Skyline for Uncertain Moving Objects

3.1. Skyline on Certain Points

Suppose that the point set is $S = {s_{1}, s_{2}, \dots, s_{Num}}$ , where Num is the number of points, each point in an n-dimensional numeric space $D = {d_{1}, d_{2}, \dots, d_{n}}$ . The original concept of skyline is based on the notion of dominance. Let $X = (x_{1}, x_{2}, \dots, x_{n})$ , $Y = (y_{1}, y_{2}, \dots, y_{n})$ , $X \in S$ , $Y \in S$ , if $\forall i$ , $x_{i} \leq y_{i} (1 \leq i \leq n)$ , and $\exists j$ , satisfy $x_{j} < y_{j} (1 \leq j \leq n)$ , then X is said to dominate Y, donated by $X ≺ Y$ . Given a set of objects S, an object X is a skyline point if there is not any other point dominating X. The skyline on S is the set of all skyline points.

3.2. Uncertain Model for Moving Objects

After Wolfson et al. [1] firstly studied the uncertainty of moving objects, a lot of work has focused on this field [5–7]. An uncertain region [5] of a moving object $M i$ at time t, denoted by $U i (t)$ , is a closed irregular region with a velocity $\vec{v}$ such that the recorded location $O_{i}$ can be found only inside this region. The pdf represents the probability density distribution of an object in its uncertain region. The uncertainty pdf [5] of an object $M i$ , denoted by $f (o_{i})$ , is a pdf of $O_{i}$ , that has a value of 0 outside $U i (t)$ .

3.3. The Dominant Probability

What we mainly study on is as follows. There is a set of moving target objects whose centers are $O = {o_{1}, o_{2}, \dots, o_{Num}} \in R^{n}$ and a stationary object q as a query point to continuously compute updated probabilistic skyline dataset.

Dissimilar to the traditional skyline query, in moving environment, the spatial location is changing with time. All attributes are divided into dynamic attributes and static ones. Let us suppose that there are m dynamic attributes, k static attributes, and n attributes where $n = m + k$ . For each object $O_{i} = (x_{1}^{i}, x_{2}^{i}, \dots, x_{d}^{i})^{T}$ , the static attributes construct a vector denoted by $O_{i}^{S} = (x_{S 1}^{i}, x_{S 2}^{i}, \dots, x_{S k}^{i})^{T}$ , while the dynamic ones are made up of a vector $O_{i}^{d} = (x_{d 1}^{i}, x_{d 2}^{i}, \dots, x_{d m}^{i})^{T}$ , where $n = k + m$ . For instance, in Figure 1, the number of police and equipment level belong to static attributes because they are invariant in our study case. However, the distance from $O_{i}$ to q is varying continuously with police car $O_{i}$ moving. In order to simplify the description, dynamic attributes are supposed to include only spatial position (Table 1).

Table 1

Position of police car	A	B	C	D	E
Number of policemen	6	6	6	4	5
Equipment level	3	3	2	3	2
Network distance to O	125	130	140	155	90

Definition 1 (dominant probability).

Let $O_{i}$ , $O_{j}$ be two moving objects with uncertainty and q be a stationary query point. Then probability that $O_{j}$ dominates $O_{i}$ is

\begin{array}{l} p (o_{j} ≺ o_{i}) \\ = \int_{U r_{O_{j}}} \int_{U r_{O_{i}}} f_{O_{i}} (\vec{x_{i}}) f_{O_{j}} (\vec{x_{j}}) isdom (\vec{x_{j}}, \vec{x_{i}}) d o_{i} d o_{j}, \end{array}

(1)

where

f_{O_{i}} (\vec{x_{i}})

and

f_{O_{j}} (\vec{x_{j}})

are probability density function of object

O_{i}

and

O_{j}

\vec{x_{j}} \in U r (O_{j})

\vec{x_{i}} \in U r (O_{i})

, and function

isdom (\vec{x_{j}}, \vec{x_{i}}) = {\begin{smallmatrix} 1 & dist (\vec{x_{j}}, q) \leq dist (\vec{x_{i}}, q) \\ 0 & otherwise \end{smallmatrix}

dist (\vec{x_{j}}, q)

is Euclidean distance between

x_{j}

and q.

According to the definition of dominance in (1), we maintain that $O_{j}$ can have dominance probability on $O_{i}$ only if the static attributes of $O_{j}$ dominate the static ones of $O_{i}$ . As shown in Figure 2, for arbitrary point $x_{j}$ in $U r (O_{j})$ , each point $x_{i}$ in $U r (O_{i})$ that satisfies $dist (\vec{x_{j}}, q) \leq d i s t (\vec{x_{i}}, q)$ will be dominated by $x_{j}$ , as the hatched area shows.

Figure 2

Dominant probability.

3.4. The Skyline Probability

Definition 2 (skyline probability).

The skyline probability of object $O_{i}$ is the likelihood that object $O_{i}$ is not dominated by any other object and is defined below:

\begin{array}{l} Pr (o_{i}) = Pr (\underset{O_{j} \in O}{\land} O_{j}! ≺ O_{i}) \\ = \int_{U r_{O_{i}}} f_{O_{i}} (\vec{x_{i}}) \\ \times \prod (1 - \int f_{O_{j}} (\vec{x_{j}}) isdom (\vec{x_{i}}, \vec{x_{j}}) d o_{j}) d o_{i}, \end{array}

(2)

where

f_{O_{i}} (\vec{x_{i}})

and

f_{O_{j}} (\vec{x_{j}})

are probability density function of object

O_{i}

and

O_{j}

, respectively,

\vec{x_{j}} \in U r (O_{j}), \vec{x_{i}} \in U r (O_{i})

Definition 3 (p-skyline).

Let $p \in [0 \dots 1]$ be a threshold. The p-skyline is the set of objects for which the following property holds:

\begin{matrix} S_{τ} = {O_{i} \in O ∣ Pr (O_{i}) \geq p} . \end{matrix}

(3)

3.5. Uncertain Model in Road Network

The road network can be treated as a nondirection graph $G = 〈 V, E, W 〉$ , where V is node set representing crossroad, E is edge representing roads between two crossroads, and W is length of E.

In road network, the objects are limited movement, so the uncertain domain is denoted by a line segment with $f (t)$ distribution, which $f (t)$ is pdf, as Figure 3 shows.

Figure 3

Uncertain model in road network.

Denote $d (v, v ’)$ by the shortest path between nodes v and $v ’$ . $d (v, v ’) = \infty$ if there exists no path from v to $v ’$ . In road network, the distance is represented by shortest path.

Definition 4 (minimum distance function).

The minimum distance between uncertain object $O_{i}$ to query q at time t is denoted by $d_{\min} (q, o_{i}) = d (q, o_{i}) - r$ .

Definition 5 (maximum distance function).

The maximum distance between uncertain object $O_{i}$ to query q at time t is denoted by $d_{\max} (q, o_{i}) = d (q, o_{i}) + r$ .

In continuous movement, the dominant relationship of two objects will change. For two moving objects $O_{i}$ and $O_{j}$ ,

\begin{array}{l} p (o_{j} ≺ o_{i}) \\ = {\begin{array}{l} 1 \\ d_{\max} (q, o_{j}) \leq d_{\min} (q, o_{i}) \\ 0 \\ d_{\min} (q, o_{j}) \geq d_{\max} (q, o_{i}) \\ \int_{U r_{O j}} \int_{U r_{O i}} f_{O_{i}} (\vec{x_{i}}) f_{O_{j}} (\vec{x_{j}}) isdom (\vec{x_{j}}, \vec{x_{i}}) d o_{i} d o_{j} \\ d_{\min} (q, o_{j}) < d_{\max} (q, o_{i}), \\ d_{\max} (q, o_{j}) > d_{\min} (q, o_{i}) . \end{array} \end{array}

(4)

The maximum and minimum distance functions maybe intersect with each other among moving objects. Two distance functions of object

O_{i}

and

O_{j}

are given in Figure 4. The maximum distance of

O_{i}

is less than the minimum distance of

O_{j}

prior to time

t_{1}

, so

O_{j}

cannot dominate

O_{i}

O_{j}

might begin to dominate

O_{i}

from

t_{1}

t_{2}

, as the hatched area shows, so does it from

t_{3}

t_{4}

, and from

t_{5}

t_{6}

Figure 4

Transformation of dominant relationship.

4. Tracking by Events

The probabilistic skyline set is updated in an incremental way. The key step is how to predict the time when the dominant relationship changes. It's hard to know the accurate time when p-skyline just change. But we can estimate period of time during which the p-skyline may change.

4.1. Trigger Events

As shown in Figure 4, from time $t_{1}$ to time $t_{2}$ , the dominant relationship between $O_{i}$ and $O_{j}$ might change, because the maximum distance of $O_{i}$ is greater than the minimum distance of $O_{j}$ . So we call the time between $t_{1}$ and $t_{2}$ an event. An event on $O_{i}$ can be presented as $e v e n t (o_{i}, o_{j}) = 〈 o_{i}, o_{j}, s_t i m e, e_t i m e 〉$ , where $O_{i}$ and $O_{j}$ are two objects whose dominant relationship may be varied when $s_t i m e$ and $e_t i m e$ are start time and end time of the event, respectively.

4.2. The Pruning Strategy for Events

By analyzing relationship of objects we know that if static characters of any two objects $O_{i}$ and $O_{j}$ have dominant relationship, supposing that $O_{j}^{S} ≺ O_{i}^{S}$ , an event maybe occur. With the query object moving, a considerable amount of events will occur. In order to improve effectiveness of our algorithm, we propose a series of event pruning strategies.

Pruning Strategy 1. If the dominant relationship in static attributes between two moving objects $O_{i}$ and $O_{j}$ does not exist, the intersection of those two distance functions will cause no variation to p-skyline set. In this case, the intersection will not cause any event.

Proof.

Suppose $\vec{o_{i}} = (x_{1}^{i}, x_{2}^{i}, \dots, x_{d}^{i})$ , $\vec{o_{j}} = (x_{1}^{j}, x_{2}^{j}, \dots, x_{d}^{j})$ , whose static characters are $\vec{o_{i}^{S}} = (x_{s 1}^{i}, x_{s 2}^{i}, \dots, x_{s k}^{i})$ and $\vec{o_{j}^{S}} = (x_{s 1}^{j}, x_{s 2}^{j}, \dots, x_{s k}^{j})$ , respectively. It is known that the static characters of $O_{i}$ and $O_{j}$ do not possess any dominant relationship, so $\exists k_{p}, k_{q}, x_{k_{p}}^{i} > x_{k_{p}}^{j}$ and $x_{k_{q}}^{i} < x_{k_{q}}^{j}$ . Even considering their dynamic attributes, the dominant relationship does not exist at any time. In conclusion, if the dominant relationship in static attributes between two objects does not exist, the intersection of their distance functions will not cause any change for their dominant probability. Events cannot take place.

Pruning Strategy 2. Suppose $\exists o_{i}, o_{j}, p (o_{j} ≺ o_{i}) = 1$ . Event $(i, j, t_{begin}, t_{end})$ is an event interrelated to $O_{i}$ and $O_{j}$ . If $\exists event (O_{i}, O_{k}, t_{begin}^{'}, t_{end}^{'}) (0 < k < Num$ and $k \neq i)$ and $t_{begin}^{'} < t_{begin}$ , the computation for $event (O_{i}, O_{k}, t_{begin}^{'}, t_{end}^{'})$ is invalid before $t_{begin}$ . However, if $t_{end}^{'} < t_{begin}$ , $event (i, k, t_{begin}^{'}, t_{end}^{'})$ is also invalid.

Proof.

Because $p (o_{j} ≺ o_{i}) = 1$ , it is known that $p (o_{i} ≺ o_{j}) = 0$ prior to time $t_{begin}$ . The update for $event (O_{i}, O_{k}, t_{begin}^{'}, t_{end}^{'})$ is invalid. It is also invalid when $t_{end}^{'} < t_{begin}$ .

5. Continuous Probabilistic Skyline Queries Algorithm

5.1. Initialization

The initialization framework is presented in this section. Each object has static and dynamic attributes, so we should compute the dominance relation on static attributes firstly. For two objects $O_{i}$ and $O_{j}$ , $O_{j}$ might dominate $O_{i}$ only when $o_{j}^{S} ≺ o_{i}^{S}$ (Algorithm 1). In order to compute fast, static skyline set denoted by $S_{static}$ is introduced if only the dominant relationship for static characters is considered.

Algorithm 1: Initialization.

Input: one query object, n moving objects;

Output: Initialization p-skyline;

(1) $S_{static}$ = NULL

(2) for any point $o_{i}$ in O

(3) compute_path( $o_{i}$ ); //get the moving path of objects

(4) compute_distance( $o_{i}$ ); //computing distance function

(5) $O_{i}$ = NULL

(6) for any point $o_{j} (j! = i)$ in O

(7) compare( $o_{j}^{S}$ , $o_{i}^{S}$ ); //ensure whether $O_{j}$ dominate $O_{i}$ in static attributes;

(8) if $o_{j}^{S} ≺ o_{i}^{S}$

(9) flag( $o_{j}$ , $o_{i}$ ) = 1;

(10) push $o_{j}$ into the $O_{i}$ ;

(11) else

(12) flag( $o_{j}$ , $o_{i}$ ) = 0;

(13) if the $O_{i}$ = NULL

(14) $S_{static} = S_{static} \cup o_{i}$ ;

In any case objects move, $S_{static}$ always belongs to skyline. In initialization step, the moving path and distance function of each moving object need to be precomputed according to the information of road network and moving objects, apart from $S_{static}$ .

5.2. PSUR Algorithm

Not all skyline probability of objects will change at one moment. If maximum/minimum distance function of one object cuts that of others in Cartesian coordinates, skyline probability of this object maybe vary (Algorithm 2). In other words, trigger events include all possible variations of p-skyline for each moving object.

Algorithm 2: PSUR algorithm.

Input: the set of moving objects D, query point q, p is the probabilistic threshold, the time interval [ $t_{s}, t_{e}$ ].

Output: the p-Skyline at any time instant t within [ $t_{s}, t_{e}$ ].

(1) initialization();

(2) // compute events;

(3) for any point $o_{i}$ in O

(4) for each point $o_{j}$ in $O_{i}$

(5) compute begin time s_time and end time e_time of each event;

(6) if s_time $\leq$ $t_{e}$ && e_time $\geq$ $t_{s}$

(7) push it into $Q_{e}$ ; //valid event;

(8) //handle events;

(9) time = $t_{s}$ , $L_{p}$ = $L_{s}$

(10) while (time $\leq$ $t_{e}$ )

(11) while ( $Q_{e}$ != NULL)

(12) e = $Q_{e}$ · erase(); // pop queue's head;

(13) while ( $e \cdot t_{begin}$ $\leq$ time)

(14) $Q_{handle}$ · push_back(e); // push e into queue;

(15) e = $Q_{e}$ · erase();

(16) handle( $Q_{handle}$ ); //update $Q_{e}$ and $S_{p}$

(17) time++;

In order to simplify the problem, we suppose that all moving objects preserve their velocity with uniform speed. If not, the precomputing cannot be processed in advance. All events should be recomputed again. The movement of moving objects to query point can be picked up with its shortest path to query point. The intersecting time for the distance function can be recomputed and put into event queue sorted by time in ascending order. For each time, skyline probabilities of moving objects under trigger events need to be updated.

5.3. Algorithm Analysis and Discussion

The cost incurred by our method consists of three components: initialization, events computing, and updating by tracking.

In initialization period, computing static dominant relationship will cost $O (d \cdot n (n - 1) / 2)$ , where d is static dimensional degree. The most cost is skyline probability computation. The famous Simpson integration method, which is introduced to compute skyline probability of each moving objects Num, and time interval t. Probabilistic $O ((Len / h)^{2})$ , where Len is uncertain segment length and h is step width of Simpson, so the cost of skyline probability of each moving object is $O ((Len / h)^{2} (n - 1))$ . After skyline probability computation, judgment for p-skyline objects will cost $O (n)$ . Above all, time cost in initialization is $O (d \cdot n (n - 1) / 2 + (Len / h)^{2} (n - 1) + n)$ .

In second step, the worst cost of comparison for static dominant relationship between objects is $O (n (n - 1) / 2)$ . The interaction time for arbitrary two moving objects’ distance function will cost $O (δ_{1})$ , where $δ_{1}$ is constant. Thus it will cost $O (δ_{1} \cdot n (n - 1) / 2)$ in this period.

Handling events generates at most $n (n - 1) / 2$ . In the worst case, each event is valid in time period $[t_{s}, t_{e}]$ , and this requires $(t_{e} - t_{s})$ times to deal with events. In every processing, skyline probability related to trigger events will cost $O ((Len / h)^{2} (n - 1))$ , while update computing for event is $O (δ_{2})$ , where $δ_{2}$ is constant. The total cost in this period is $O ((Len / h)^{2} (n - 1) \cdot (t_{e} - t_{s}) \cdot n (n - 1) / 2 + δ_{2} \cdot (t_{e} - t_{s}) \cdot n (n - 1) / 2)$ .

In conclusion, the total cost is added together for these three periods, which is equivalent to $O (n^{2})$ .

6. Experimental Evaluation

6.1. Datasets

Two real road networks are used to test the effect and efficiency of the proposed algorithm PSUR. One is the famous seashore city Oldenburg in Germany, which includes 6105 nodes and 7036 edges. The other is Cixi city of China, which contains 244 intersection nodes and 407 edges, much smaller than the first one. We assume that the uncertain area is segment along the road. Two distributions of uniform and Gaussian distribution for probability density function are adopted because these two functions are by far the most important and commonly used in statistics. Moving objects are generated randomly. Baseline and priority algorithms proposed in [8] are used to compare with our method PSUR to verify efficiency and effect. The main parameters are segment length Len, static dimension number d, numbers of moving objects Num, and time interval t, and probabilistic threshold p is 0.5 in all experiments.

We conducted our experiments on desktop PC running on Windows XP professional. The PC has Intel Core 2Duo 2.93 GHz and 3 GB RAM memory. All experiments were coded in Visual C++ 2008.

6.2. Numbers of Moving Objects

In this experiment, suppose $d = 5$ , $Len = 10$ , and $t = 20$ . Figure 5 shows performance of PSUR versus baseline and priority [8] when numbers of moving objects vary on Cixi's road network, both in uniform distribution and Gaussian distribution. Likewise, Figure 10 demonstrates the performance on road network in Oldenburg. The figures show that runtime increases with object's numbers whichever the model is. No matter what model is used, uniform or Gaussian, the cost in the same dataset is similar. Among these three methods, the response time of our algorithm is only one-tenth of the other two methods. It is because baseline and priority need recompute the probabilistic skyline set at each time while PSUR is an incremental method.

Figure 5

Numbers of moving objects effects of the performance in Cixi city $(d = 5$ , $Len = 10$ and $t = 20)$ .

If there is the same number of moving objects in two real networks, the density of moving objects in Cixi is bigger than that in Oldenburg, because Cixi is smaller than Oldenburg. Therefore the chances for interaction of moving objects in Cixi are more those that in Oldenburg. Trigger events generated in Cixi are evidently more than those in Oldenburg, as Tables 2 and 3 show. The density of moving objects leads to this difference, because it is more sparsely distributed in Oldenburg than in Cixi for the same number of objects. As a result, by observing the performance between two city networks under the same data model, such as Figures 5(a) and 6(a), it is noted that the runtime in the smaller city Cixi costs a little more than that in Oldenburg.

Table 2

Event size in Cixi road network ( $d = 5$ , Len = 10, $t = 20$ ).

Numbers of moving objects	Event size before pruning	Event size after pruning
50	669	35
100	2721	95
200	10389	205
300	35009	400
400	62723	514
500	96890	736

Table 3

Event size in Oldenburg road network ( $d = 5$ , Len = 10, $t = 20$ ).

Numbers of moving objects	Event size before pruning	Event size after pruning
50	245	5
100	455	15
200	1557	41
300	3945	131
400	6464	236
500	9951	367

Figure 6

Numbers of moving objects effect of the performance in Oldenburg city $(d = 5$ , $Len = 10$ and $t = 20)$ .

The pruning strategy has done effective work on event size, as Tables 2 and 3 show. Event size will grow with the number of moving objects, because the number of the intersection of distance function rises.

6.3. The Effect of Uncertain Segment Length

In this section, parameters are as follows: $Num = 50$ , $d = 5$ and $t = 20$ . Figures 7 and 8 show performance of three algorithms when segment length of uncertainty varies on Cixi road network and Oldenburg city, respectively, both in uniform distribution and Gaussian distribution.

Figure 7

Segment length effects of the performance in Cixi city $(Num = 50$ , $d = 5$ , $t = 20)$ .

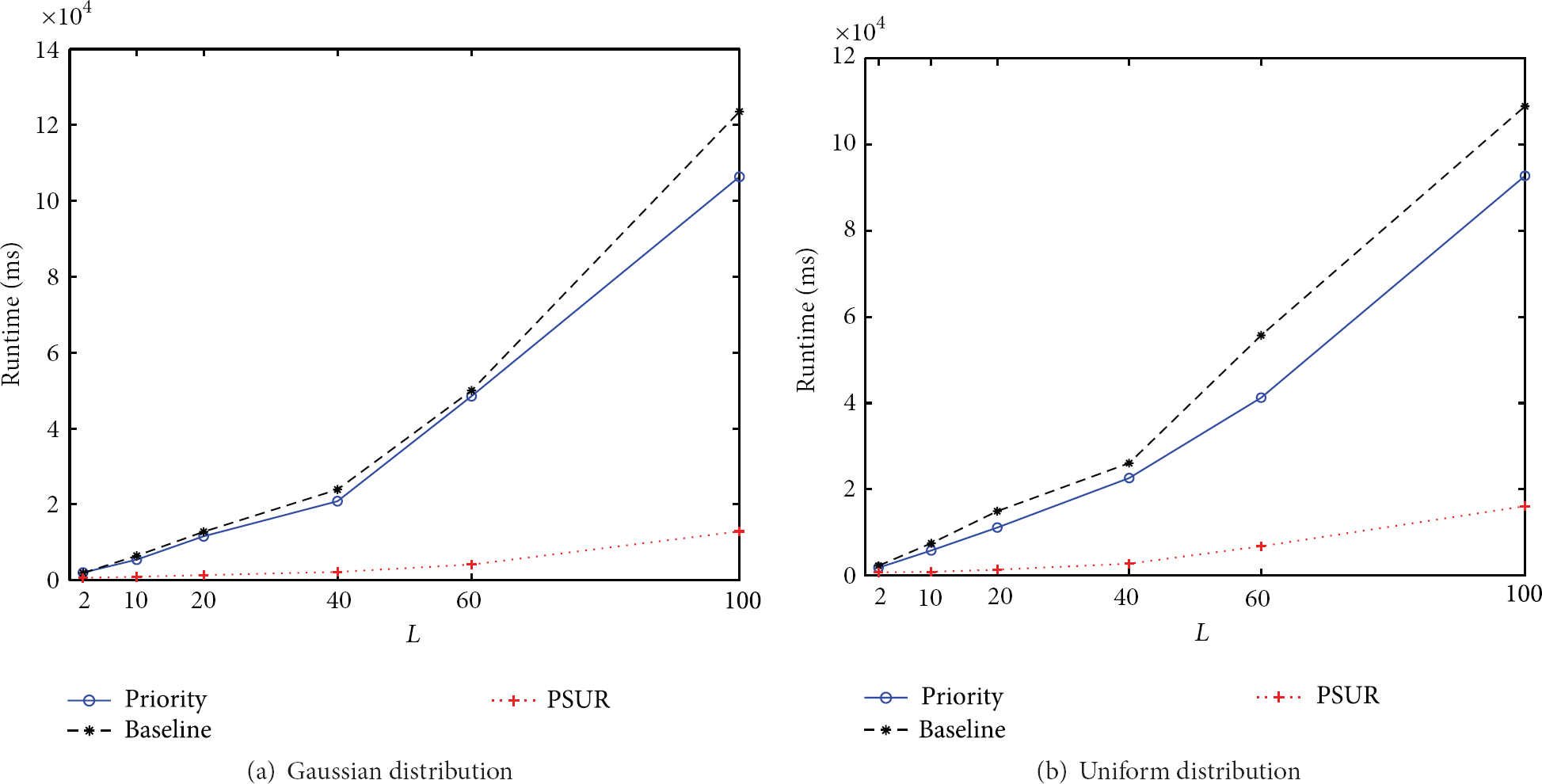

Figure 8

Segment length effects of the performance in Oldenburg city $(Num = 50$ , $d = 5$ , $t = 20)$ .

The magnitude of the uncertain length may also affect the performance of algorithm PSUR. It is seen that the longer the segment length is, the more runtime is required. If the length becomes much longer, for any two objects $O_{i}$ and $O_{j}$ , the probability that $Pr (O_{j} ≺ O_{i}) \neq 0$ , $Pr (O_{j} ≺ O_{i}) \neq 1$ happen becomes greater. According to the definition of event, the size of event queue will increase, so will the times to track and handle events. The calculation of dominance probability and skyline probability grows with this increasing probability, so that the cost will go up.

It is shown that the segment length of uncertainty affects event's size, as shown in Tables 4 and 5. With increase of segment length, the number of events becomes great.

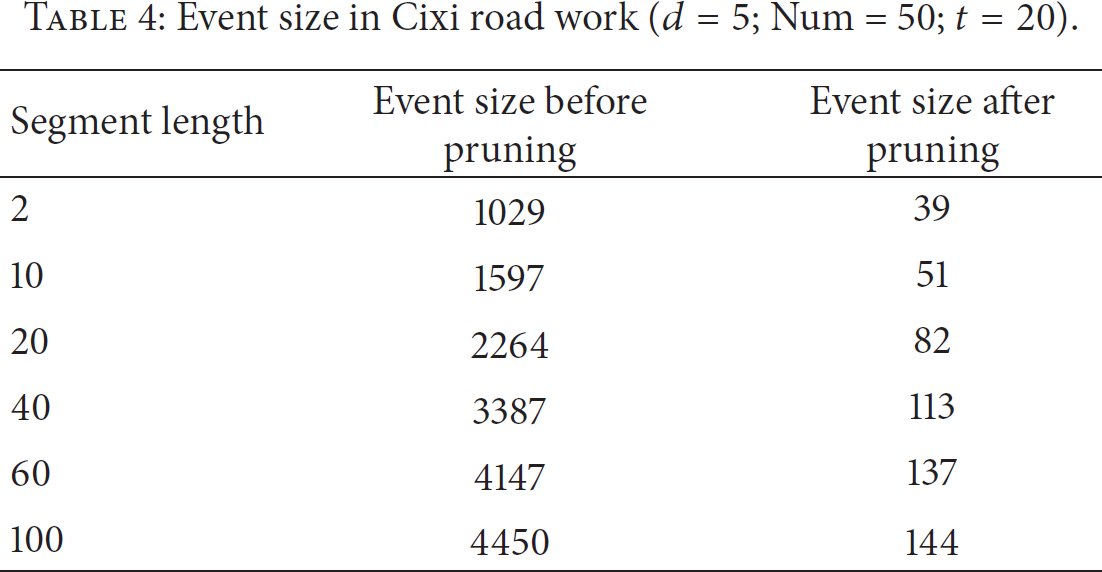

Table 4

Event size in Cixi road work ( $d = 5$ ; Num = 50; $t = 20$ ).

Segment length	Event size before pruning	Event size after pruning
2	1029	39
10	1597	51
20	2264	82
40	3387	113
60	4147	137
100	4450	144

Table 5

Event size in Oldenburg road work ( $d = 5$ ; Num = 50; $t = 20$ ).

Segment length	Event size before pruning	Event size after pruning
2	190	2
10	245	5
20	306	6
40	461	7
60	611	7
100	890	16

6.4. The Effect of Static Attribute Dimensionality

We will discuss the effect that multidimensional attributes impact on our algorithm over real road network. The result is shown in Figures 9 and 10. It is known that the higher dimension results in less run- time. This is because the computation of dominance relation on static attributes is carried out only once at the beginning. The higher the static dimensions are, the less objects that dominant $o_{i}$ are. The less the time cost on computation of initializing adjacency list and event queue is, the less the total runtime is.

Figure 9

Static attribute dimensionality effects of the performance in Cixi city $(Num = 50$ , $Len = 20$ , $t = 20)$ .

Figure 10

Static attribute dimensionality effects of the performance in Oldenburg city $(Num = 50$ , $Len = 20$ , $t = 20)$ .

Tables 6 and 7 show the event size changes with static dimensionality of PSUR. Unlike preceding two experiments, in this case, when static dimensionality d increases, the event size reduces instead of increasing. This is due to the fact that, when d increases, the number of moving objects which have dominant relationship in static dimensionality decreases. The distance function will interact less, so will valid events.

Table 6

Event size in Cixi road network (Len = 20; Num = 50; $t = 20$ ).

Static dimensionality d	Event size before pruning	Event size after pruning
2	543	97
3	558	72
4	665	37
5	519	21
6	620	10
7	625	5

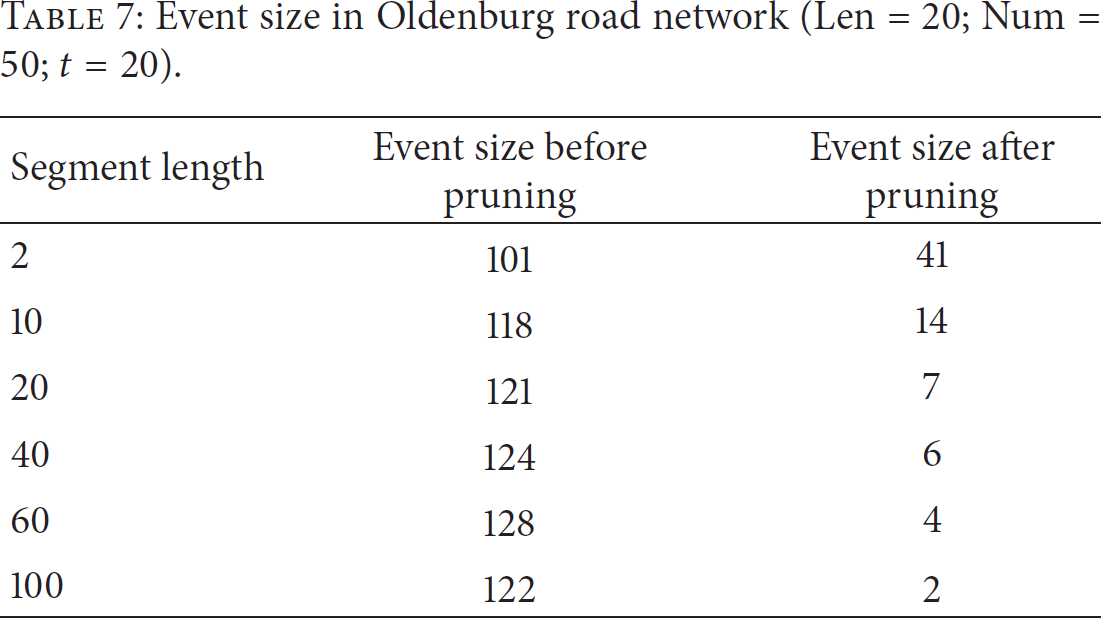

Table 7

Event size in Oldenburg road network (Len = 20; Num = 50; $t = 20$ ).

Segment length	Event size before pruning	Event size after pruning
2	101	41
10	118	14
20	121	7
40	124	6
60	128	4
100	122	2

6.5. The Effect of Time Span

Baseline and priority are somewhat static algorithms. They need to recompute skyline probability for each moving object, so runtime is proportional to the time span. However, as a dynamic method, PSUR can update the p-skyline set by tracking event size to decide which one might vary, so the time cost is approximately the same as in each timestamp, which saves more time than other two algorithms. Figures 11 and 12 show this evidence.

Figure 11

Time span effects of the performance in Cixi city $(d = 5$ , $Len = 20$ , $Num = 100)$ .

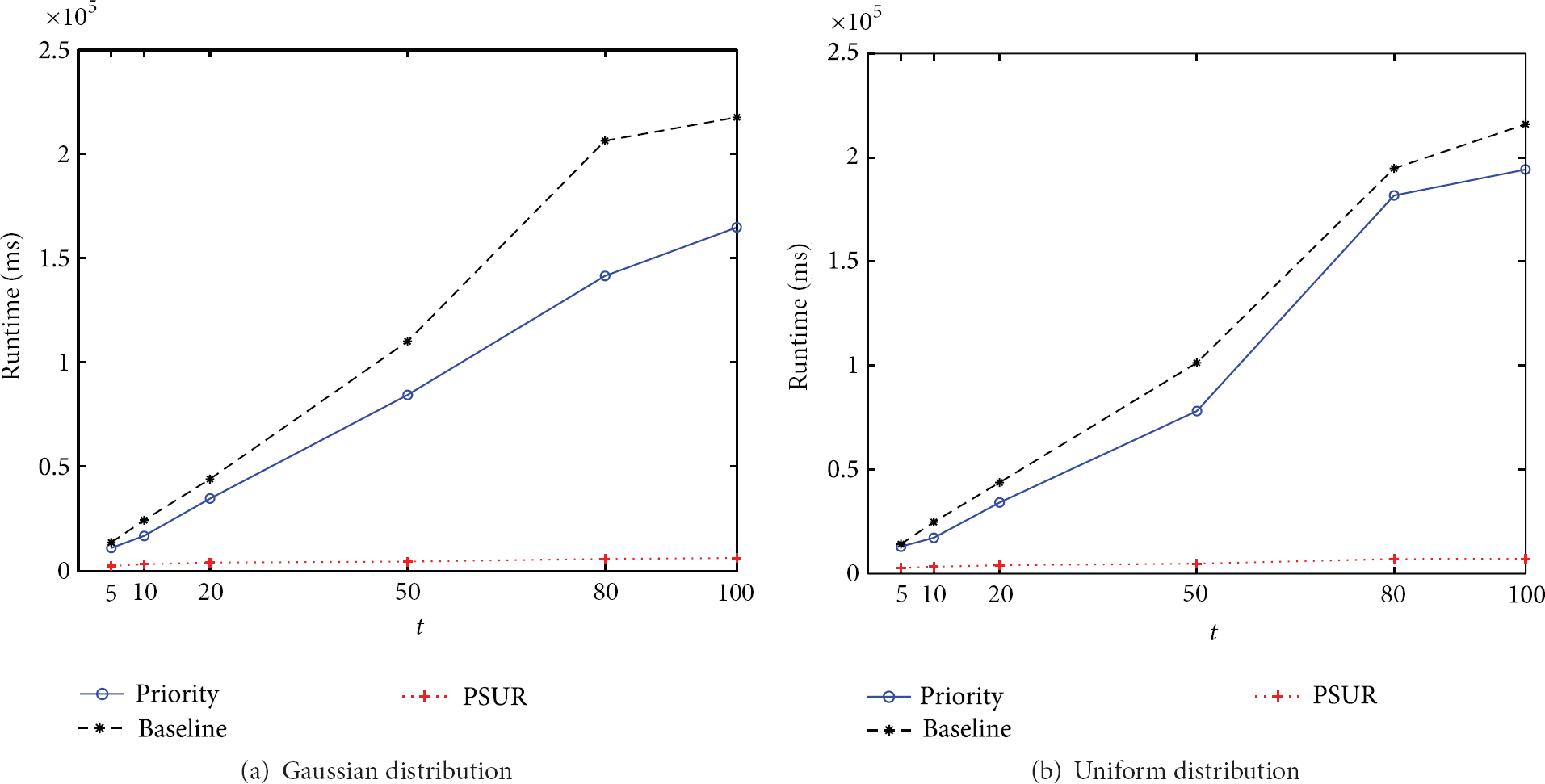

Figure 12

Time span effects of the performance in Oldenburg city $(d = 5$ , $Len = 20$ , $Num = 100)$ .

Tables 8 and 9 show the event size changes with time span length of PSUR. It is obvious that the event size grows with increasing time span length. Nevertheless, the difference is not significant. The runtime of PSUR varies a little in Figures 11 and 12.

Table 8

Event size in Cixi road network (Len = 20; Num = 100; $d = 5$ ).

Time span length	Event size before pruning	Event size after pruning
5	1029	39
10	1597	51
20	2264	82
50	3387	113
80	4147	137
100	4450	144

Table 9

Event size in Oldenburg road network (Len = 20; Num = 100; $d = 5$ ).

Segment length	Event size before pruning	Event size after pruning
5	359	9
10	481	13
20	583	15
50	714	20
80	830	24
100	914	28

7. Conclusion

To the best of our knowledge, this is the first work to compute probabilistic skyline queries for uncertainty in road network. In this paper, we have addressed the problem of continuous probabilistic skyline query for moving objects. Firstly attributes of objects are divided into static and dynamic to define dominant probability and skyline probability with continuous data. In order to update the skyline set continuously, trigger events are introduced to compute varying skyline probability of objects. Two pruning ways are proposed to save search space and speed up this computation. At last, the continuous probabilistic skyline query algorithm with uncertainty in road network named PSUR is proposed. Finally, a series of experiments are devised to verify the effectiveness and efficiency of PSUR. The results of our experimental study for different scales of datasets on two real road networks are very encouraging. The investigation demonstrates that the proposed updating method is more effective and efficient than periodic methods.

Footnotes

Conflict of Interests

The authors declare that there is no conflict of interests regarding the publication of this paper.

Acknowledgments

This research is partly supported by the Zhejiang Natural Science Foundation (LY12F02020), Ningbo Natural Science Foundation (2013A610063, 2012A610066), and the K. C. Wong Magna Fund in Ningbo University.

References

Wolfson

Sistla

A. P.

Chamberlain

Yesha

Updating and querying databases that track mobile units

Distributed and Parallel Databases 1999 7 3 257 287

2-s2.0-0033365270

10.1023/A:1008782710752

Iwerks

G. S.

Samet

Smith

Continuous k-nearest neighbor queries for continuously moving points with updates

Proceedings of the International Conference on Very Large Data Bases (VLDB '03)

2003

512 523

Mokhtar

Ibarra

On moving object queries

Proceedings of the 21st ACM SIGMOD-SIGACT-SIGART Symposium on Principles of Database Systems (PODS '02)

June 2002

188 198

2-s2.0-0036037647

Huang

Ooi

B. C.

Tung

A. K. H.

Continuous skyline queries for moving objects

IEEE Transactions on Knowledge and Data Engineering 2006 18 12 1645 1658

2-s2.0-33750803003

10.1109/TKDE.2006.185

Cheng

Kalashnikov

D. V.

Prabhakar

Querying imprecise data in moving object environments

IEEE Transactions on Knowledge and Data Engineering 2004 16 9 1112 1127

2-s2.0-4544385907

10.1109/TKDE.2004.46

Pfoser

Jensen

Capturing the uncertainty of moving-objects representations

Proceedings of International Conference on Scientific and Statistical Database Management 1999 1651 111 131 Lecture Notes in Computer Science

Ding

Indexing the imprecise positions of moving objects

Proceedings of the ACM SIGMOD Ph.D. Workshop on Innovative Database Research

2007

Beijing, China

45 50

Böhm

Fiedler

Oswald

Plant

Wackersreuther

Probabilistic skyline queries

Proceedings of the 18th ACM International Conference on Information and Knowledge Management (CIKM '09)

November 2009

Hong Kong

651 660

2-s2.0-74549163637

10.1145/1645953.1646037

Borzsony

Kossmann

Stocker

The skyline operator

Proceedings of the 17th International Conference on Data Engineering

April 2001

Heidelberg, Germany

421 430

2-s2.0-0035008034

10.

Chomicki

Godfrey

Gryz

Skyline with presorting: theory and optimization

Proceedings of the 14th International Conference on Intelligent Information System

2005

593 602

11.

Kossmann

Ramsak

Rost

Shooting stars in the sky: an online algorithm for skyline queries

Proceedings of the International Conference on Very Large Data Bases (VLDB '02)

2002

Hong Kong

275 286

12.

Papadias

Tao

Seeger

Progressive skyline computation in database systems

ACM Transactions on Database Systems 2005 30 1 41 82

2-s2.0-23944477932

10.1145/1061318.1061320

13.

Tao

Papadias

Maintaining sliding window skylines on data streams

IEEE Transactions on Knowledge and Data Engineering 2006 18 3 377 391

2-s2.0-31644433921

10.1109/TKDE.2006.48

14.

Tian

Zou

A.-P.

Jia

Grid index based algorithm for continuous skyline computation

Chinese Journal of Computers 2008 31 6 998 1012

2-s2.0-46449119116

15.

Kontaki

Papadopoulos

A. N.

Manolopoulos

Continuous k-dominant skyline computation on multidimensional data streams

Proceedings of the 23rd Annual ACM Symposium on Applied Computing (SAC '08)

March 2008

956 960

2-s2.0-56749106440

10.1145/1363686.1363908

16.

Ishikawa

Iijima

J. X.

Spatial range querying for Gaussian-based imprecise query objects

Proceedings of the 25th IEEE International Conference on Data Engineering (ICDE '09)

April 2009

676 687

2-s2.0-67649668618

10.1109/ICDE.2009.93

17.

Fiedler

Probabilistic skyline queries on uncertain data [Ph. D. dissertation] 2006

18.

Pei

Jiang

Lin

Probabilistic skylines on uncertain data

Proceedings of the 33th International Conference on Very Large Databases(VLDB '07)

2007

Vienna, Austria

253 264

19.

Lian

Chen

Monochromatic and bichromatlc reverse skyline search over uncertain databases

Proceedings of the ACM SIGMOD International Conference on Management of Data (SIGMOD '08)

June 2008

213 226

2-s2.0-57149142762

10.1145/1376616.1376641

20.

Zhang

Lin

Zhang

Wang

J. X.

Probabilistic skyline operator over sliding windows

Proceedings of the 25th IEEE International Conference on Data Engineering (ICDE '09)

April 2009

1060 1071

2-s2.0-67649671763

10.1109/ICDE.2009.83

21.

Atallah

M. J.

Computing all skyline probabilities for uncertain data

Proceedings of the 28th ACM SIGMOD-SIGACT-SIGART Symposium on Principles of Database Systems (PODS '09)

July 2009

279 287

2-s2.0-70350645438

10.1145/1559795.1559837

22.

Ding

Lian

Chen

Jin

Continuous monitoring of skylines over uncertain data streams

Information Sciences 2012 184 1 196 214

2-s2.0-80055027950

10.1016/j.ins.2011.09.007

23.

Lin

Range-based skyline queries in mobile environments

IEEE Transactions on Knowledge and Data Engineering 2013 25 4 835 849

24.

Huang

Jensen

C. S.

In-route skyline querying for location-based services

3428

Proceedings of the 4th International Workshop on Web and Wireless Geographical Information Systems (W2GIS '04)

November 2004

120 135 Lecture Notes in Computer Science

2-s2.0-24344458136

25.

Deng

Zhou

Shen

H. T.

Multi-source skyline query processing in road networks

Proceedings of the 23rd International Conference on Data Engineering (ICDE '07)

April 2007

796 805

2-s2.0-34548719251

10.1109/ICDE.2007.367925

26.

Jang

S. M.

Yoo

J. S.

Processing continuous skyline queries in road networks

Proceedings of the International Symposium on Computer Science and Its Applications (CSA '08)

October 2008

353 356

2-s2.0-56649117730

10.1109/CSA.2008.30

27.

Kriegel

H.-P.

Renz

Schubert

Route skyline queries: a multi-preference path planning approach

Proceedings of the 26th IEEE International Conference on Data Engineering (ICDE '10)

March 2010

261 272

2-s2.0-77952774394

10.1109/ICDE.2010.5447845

28.

Lee

Eom

C. S.-H.

T.-C.

Path skyline for moving objects

Web Technologies and Applications 2012 7235

Springer

610 617 Lecture Notes in Computer Science

2-s2.0-84859724023

10.1007/978-3-642-29253-8_56

Continuous Probabilistic Skyline Queries for Uncertain Moving Objects in Road Network

Abstract

1. Introduction

2. Related Work

3. The Probabilistic Skyline for Uncertain Moving Objects

3.1. Skyline on Certain Points

3.2. Uncertain Model for Moving Objects

3.3. The Dominant Probability

Definition 1 (dominant probability).

3.4. The Skyline Probability

Definition 2 (skyline probability).

Definition 3 (p-skyline).

3.5. Uncertain Model in Road Network

Definition 4 (minimum distance function).

Definition 5 (maximum distance function).

4. Tracking by Events

4.1. Trigger Events

4.2. The Pruning Strategy for Events

Proof.

Proof.

5. Continuous Probabilistic Skyline Queries Algorithm

5.1. Initialization

Algorithm 1: Initialization.

5.2. PSUR Algorithm

Algorithm 2: PSUR algorithm.

5.3. Algorithm Analysis and Discussion

6. Experimental Evaluation

6.1. Datasets

6.2. Numbers of Moving Objects

6.3. The Effect of Uncertain Segment Length

6.4. The Effect of Static Attribute Dimensionality

6.5. The Effect of Time Span

7. Conclusion

Footnotes

Conflict of Interests

Acknowledgments

References
