Abstract

This work provides a distributed fault-tolerant event region detection algorithm for wireless sensor networks. The proposed algorithm can identify faulty and fault-free sensors and ignore the abnormal readings to avoid false alarm. Moreover, every event region can also be detected and identified. Simulation results show that fault detection accuracy (FDA) is greater than 92%, false alarm rate (FAR) is near 0%, and event detection accuracy (EDA) is greater than 99% under uniform distribution. FDA is greater than 92%, FAR is less than 1.2%, and EDA is greater than 88% under random distribution when sensor fault probability is less than 0.3.

1. Introduction

The wireless sensor network (WSN) is a novel technology developed in recently years [1–9]. A wireless sensor network (WSN) consists of a large number of sensors. These sensors are used to monitor environmental variations such as temperature, humidity, pressure, and concentration of chemicals. Sensors in a WSN have limited computation, communication, and sensing capabilities because they are low cost and energy-constrained. Moreover, sensors are often deployed in an uncontrolled and harsh environment. They are prone to be faulty and hard to maintain. Therefore, a fault-tolerant and energy-efficient algorithm is required for network operation [4, 10–13].

The communication protocol of a WSN is very important in order to reduce power consumption. Three general-purpose protocol architectures include direct transmission protocol [15, 16], routing protocol [17–19], and clustering protocol [1, 3, 7, 11, 20–24]. Clustering is a popular energy-efficient protocol in WSNs [3, 11, 21, 23]. It divides the monitored area into several clusters, and each cluster has a cluster head. A cluster head can be regarded as a local fusion center. Each cluster member will send its physical value or decision to its cluster head, and the cluster head can thus make data aggregation or data fusion to eliminate invalid values and report this result to the base station (BS). Significantly, the challenge of designing a clustering WSN is that a cluster head is easy to exhaust its energy, and hence the network will be out of control. Heinzelman et al. proposed the LEACH algorithm [11]. In LEACH, cluster heads are randomly chosen, and a self-organization procedure is performed. This protocol balances the energy load between sensors. Heinzelman et al. later proposed the improved centralized algorithm as LEACH-C [21]. In LEACH-C, each sensor takes its turn as the cluster head according to the remaining energy. Therefore, the energy load is more evenly balanced than that in the LEACH algorithm. Nocetti et al. proposed a clustering algorithm based on connectivity [23]. The efficiency of this algorithm can be measured by the number of clusters formed and the number of border nodes produced.

Chen et al. proposed a distributed fault detection algorithm in [25]. Each sensor compares the observed data with its neighbors and makes a local decision by majority of votes. Krishnamachari and Iyengar proposed a distributed Bayesian algorithm [26]. In this algorithm, faults can be detected and corrected, but it also introduces new errors. Wu et al. [14] proposed an algorithm to solve the fault-event disambiguation problem. They focused on two typical cases, the event regions with ellipses or straight lines as boundaries.

This work provides a distributed and fault-tolerant algorithm to extend the uses of fault-event disambiguation. It can identify not only faulty and fault-free sensors but also the region where the event occurs. Simulation results demonstrate that the proposed algorithm has high accuracy and low false alarm in any shape of event regions.

The rest of this paper is organized as follows. Section 2 defines the network model and fault model. Section 3 describes the algorithm. Section 4 makes some simulations and shows their results. Conclusion and future work are drawn in Section 5.

2. Network Model and Fault Model

For ease of reference, frequently used notations and definitions in this paper are listed in Table 1. Each sensor $s_{i}$ in a WSN has an observation $x_{i}$ from its location. This observation is independent and identically distributed on phenomenon from sensor to sensor. $θ_{d}$ is defined as a threshold for checking whether two readings are in the same situation. For example, to get the relationship and to decide the status of two sensors $s_{i}$ and $s_{j}$ , the measurement difference $d_{i j}$ is compared with $θ_{d}$ . When $d_{i j} > θ_{d}$ , at least one of $s_{i}$ and $s_{j}$ is abnormal. $θ_{ev}$ is defined as the event threshold. When $s_{i}$ is a fault-free sensor and $x_{i}$ is greater than $θ_{ev}$ , $s_{i}$ is identified as an event sensor. $θ_{D}$ and $θ_{f}$ are defined as the thresholds of degree and faith, respectively. These two thresholds are used in the procedure of making the strong decision by a cluster head, which will be further described in the next section. Assume that each sensor has a unique ID and can use the power control mechanism to vary the transmitting power, and the transmission range in the WSN is independent from sensor to sensor. If a sensor is far away from all other sensors, it can enhance its transmitting power to increase the transmission range and communicate with other sensors.

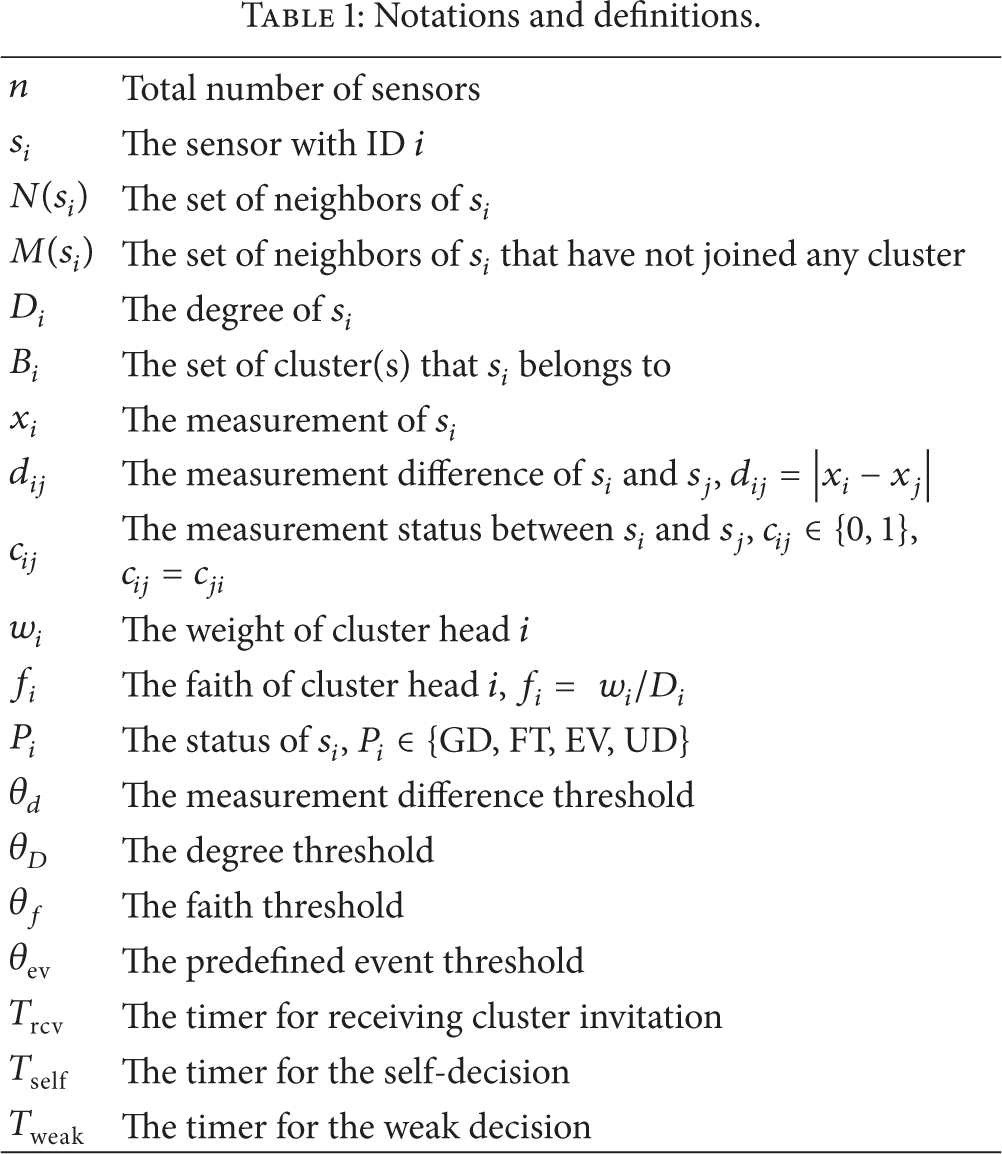

Table 1

Notations and definitions.

n	Total number of sensors
$s_{i}$	The sensor with ID i
N( $s_{i}$ )	The set of neighbors of $s_{i}$
M( $s_{i}$ )	The set of neighbors of $s_{i}$ that have not joined any cluster
$D_{i}$	The degree of $s_{i}$
$B_{i}$	The set of cluster(s) that $s_{i}$ belongs to
$x_{i}$	The measurement of $s_{i}$
$d_{i j}$	The measurement difference of $s_{i}$ and $s_{j}$ , $d_{i j} = \| x_{i} - x_{j} \|$
$c_{i j}$	The measurement status between $s_{i}$ and $s_{j}$ , $c_{i j} \in {0, 1}$ , $c_{i j} = c_{j i}$
$w_{i}$	The weight of cluster head i
$f_{i}$	The faith of cluster head i, $f_{i} = w_{i} / D_{i}$
$P_{i}$	The status of $s_{i}$ , $P_{i} \in {$ GD, FT, EV, UD}
$θ_{d}$	The measurement difference threshold
$θ_{D}$	The degree threshold
$θ_{f}$	The faith threshold
$θ_{ev}$	The predefined event threshold
$T_{rcv}$	The timer for receiving cluster invitation
$T_{self}$	The timer for the self-decision
$T_{weak}$	The timer for the weak decision

Notably, the fault model of this work assumes that computation and communication capabilities of each sensor always work properly. Three types of sensing fault are defined as stuck-at-maximum fault, stuck-at-minimum fault, and random fault. When a sensor is on the stuck-at-maximum fault, on the stuck-at-minimum fault, or on the random fault, it reports the maximum physical value, the minimum physical value, or a random physical value uncorrelated to the environment, respectively. These faulty sensors make the network unreliable and affect the final decision of the WSN. Therefore, a fault-tolerant algorithm to identify and isolate faulty sensors is designed in this work, and hence the precision of the event region detection is improved.

3. Proposed Algorithm

Assumes that the BS is capable of broadcasting a global message to sensors everywhere and each sensor knows its own geographical location either through GPS or RF-based beacons [27]. Each cluster head collects data from its cluster members. The data may contain abnormal readings. Therefore, this work provides an algorithm to identify those sensors that get abnormal readings. The proposed algorithm adopts the correlative relationship to distinguish event sensors or faulty sensors. Faulty sensors are likely to be uncorrelated, and sensors in the event region are spatially correlated. The algorithm is divided into two phases, clustering phase and decision phase.

Some other definitions are described as follows. If $d_{i j} \leq θ_{d}$ , where $s_{i}$ is a cluster head and $s_{j} \in N (s_{i})$ , then $c_{i j} = c_{j i} = 0$ and $w_{i}$ increases by one. If $d_{i j} > θ_{d}$ , then $c_{i j} = c_{j i} = 1$ and $w_{i}$ does not increase. Weight $w_{i}$ is used to calculate $f_{i}$ . Four statuses of a sensor in a WSN are defined as Good (GD), Faulty (FT), Event (EV), or Undetermined (UD).

3.1. Clustering Phase

The clustering phase starts when the BS broadcasts a clustering message to all sensors. In this phase, the monitored environment is divided into several clusters by cluster heads. Each cluster head can be regarded as a local fusion center. It collects information from its members and reports the fusion to the remote BS. Therefore, a well-designed clustering rule is to avoid chaotic situations such that a cluster head has no members or two cluster heads exist in the same cluster. The clustering rule of this work uses the degree of a sensor as the primary key and the sensor ID as the secondary key. At the first stage, each sensor exchanges degrees with its neighbors. Every sensor $s_{j}$ , which has $D_{j} = 0$ and does not belong to any cluster, is classified as an isolated sensor. Every sensor $s_{i}$ with the highest degree among $M (s_{i})$ and itself is chosen as the cluster head. The remaining sensors start a timer $T_{rcv}$ for receiving invitations. If two or more sensors have the same maximum degree as $s_{i}$ and $M (s_{i})$ , the sensor with the lowest sensor ID is chosen to be the cluster head. Each cluster head sends an invitation to its neighbors to include them as its cluster members and ends the clustering phase. When a sensor receives an invitation, it joins the cluster. Every sensor will check if it has joined any cluster when $T_{rcv}$ expires. If yes, it starts a timer $T_{self}$ for the self-decision which will be described in the decision phase, and the clustering phase is completed. If not, it continues to check if it is the highest degree among $M (s_{i})$ and itself as is in the previous step. In the clustering phase of the algorithm, each cluster head forms its own cluster and each member sensor may belong to more than one cluster. Because all neighbors of a cluster head are its cluster members, the clustering rule used in the algorithm guarantees that every cluster head is not adjacent to any other cluster head; that is, there is only one cluster head in each cluster. Figure 1 shows the flow chart of the clustering phase.

Figure 1

The flow chart of the clustering phase.

3.2. Decision Phase

Initially, the status of each sensor is set to UD. This phase is divided into three kinds of decision: strong decision, weak decision, and self-decision. An important mechanism in this phase is that when sensor $s_{j}$ is set to GD or EV, it will cease to allow other sensors to reset its status. On the other hand, when $s_{j}$ is set to FT, $P_{j}$ may be switched to the same status as $P_{k}$ by $s_{k}$ if $s_{k} \in N (s_{j})$ and $P_{k} = GD$ or EV to reduce false alarms. The strong decision is only performed in the cluster heads whose degree and faith exceed the thresholds. The weak decision is performed in the cluster heads with status UD when $T_{weak}$ expires. The self-decision is performed in the cluster members with status UD when $T_{self}$ expires. Each decision is described in detail as follows.

3.3. Strong Decision

First, each member sensor $s_{j}$ sends the observation $x_{j}$ to its cluster head(s), and each cluster head $s_{i}$ calculates $d_{i j}$ , $c_{i j}$ , $w_{i}$ , $D_{i}$ , and $f_{i}$ where $s_{j} \in N (s_{i})$ . If $D_{i} \geq θ_{D}$ , $f_{i} \geq θ_{f}$ , and $P_{i} = UD$ , cluster head $s_{i}$ sets $P_{i}$ to GD when $x_{i} < θ_{ev}$ or EV when $x_{i} \geq θ_{ev}$ and determines the statuses of $N (s_{i})$ . If $D_{i} \geq θ_{D}$ , $x_{i} \geq θ_{ev}$ , $f_{i} \geq θ_{f} / 2$ , and $P_{i} = UD$ , cluster head $s_{i}$ sets $P_{i}$ to EV and also determines the statuses of $N (s_{i})$ . Otherwise, $s_{i}$ starts a timer $T_{weak}$ for the weak decision described in next paragraph and exits current decision. Second, during the status propagation, $s_{i}$ checks $c_{i j}$ to set $P_{j}$ to UD or FT for all $s_{j} \in N (s_{i})$ . If $c_{i j} = 0$ , then $P_{j}$ is copied from $P_{i}$ , and $s_{j}$ continues to set the statuses of $N (s_{j})$ . If $c_{i j} = 1$ and $P_{i} = GD$ , $P_{j}$ is set to FT, and $s_{j}$ terminates the status propagation. Figure 2 illustrates the flow chart of the strong decision.

Figure 2

The flow chart of the strong decision.

3.4. Weak Decision

When $T_{weak}$ of cluster head $s_{i}$ expires, $s_{i}$ with $P_{i} = UD$ starts the weak decision. Based on majority vote, if $f_{i} > 0.5$ , $s_{i}$ sets $P_{i}$ to GD when $x_{i} < θ_{ev}$ or EV when $x_{i} \geq θ_{ev}$ , and $s_{i}$ checks $c_{i j}$ to set $P_{j}$ to UD or FT for all $s_{j} \in N (s_{i})$ . If $c_{i j} = 0$ , $P_{j}$ is copied from $P_{i}$ . Moreover, if $c_{i j} = 1$ and $P_{i} = GD$ , $P_{j}$ is set to FT. If $f_{i} \leq 0.5$ , $s_{i}$ sets $P_{i}$ to FT and terminates the weak decision. Figure 3 illustrates the flow chart of the weak decision.

Figure 3

The flow chart of the weak decision.

3.5. Self-Decision

When $T_{self}$ of member sensor $s_{j}$ expires, $s_{j}$ first starts reclustering described in next paragraph and then checks $P_{j}$ . If $P_{j} = UD$ , $s_{j}$ searches for a GD sensor $s_{k}$ in $N (s_{j})$ and calculates $c_{j k}$ . If $c_{j k} = 0$ , $P_{j}$ is set to GD. If $c_{j k} = 1$ , $P_{j}$ is set to FT. Notably, it is possible that no sensor with status GD can be found in $N (s_{j})$ . When that happens, $s_{j}$ uses its maximum transmission range for searching a sensor with status GD. Nevertheless, if a sensor with status GD cannot be found within the range, $P_{j}$ is set to FT. Figure 4 illustrates the flow chart of the self-decision.

Figure 4

The flow chart of the self-decision.

Reclustering is an important approach in the self-decision. If a cluster head $s_{i}$ is set to FT, its members who do not belong to any other cluster must be reclustered because a faulty cluster head cannot properly report data to the BS. The erroneous data may cause incorrect final decisions at the BS and thus the WSN may miss some event regions. For example, $s_{i}$ and $s_{h}$ are two cluster heads, and $P_{i}$ is set to FT, and $P_{h}$ is set to GD. There exist two cluster members $s_{j}$ and $s_{k}$ of cluster $s_{i}$ such that $B_{j} = {i, h}$ and $B_{k} = {i}$ . In this case, since $s_{i}$ is faulty, $s_{j}$ removes i from $B_{j}$ and belongs to cluster h only. Therefore, $s_{j}$ does not require reclustering. On the other hand, after removing i from $B_{k}$ , $s_{k}$ does not belong to any cluster and its observations will be ignored. Therefore, $s_{k}$ requires reclustering. After reclustering, everything is accomplished by the new cluster head. Every sensor is included in some cluster after the decision phase, except for all isolated sensors.

4. Simulation Results

The simulation platform is a PC with Windows XPSP3, and the simulation program is developed in C#. The network parameters in this simulation are preset as follow. The transmission range of a sensor is between 2 m and 10 m. Thresholds $θ_{d}$ , $θ_{ev}$ , and $θ_{f}$ are set to 5, 60, and 0.66, respectively, and $θ_{D}$ is set to the average degree of the network. Notably, with the aid of experiments, we tuned every threshold carefully to get higher FDA and EDA and lower FAR. Each physical datum of any observation is between 0 and 100. The fault detection accuracy (FDA) is defined as the ratio of the number of faulty sensors detected to the total number of faulty sensors. The false alarm rate (FAR) is defined as the ratio of the number of fault-free sensors diagnosed as faulty to the total number of fault-free sensors. The event detection accuracy (EDA) is defined as the ratio of the number of event sensors detected to the total number of sensors located in the event region.

The result of the proposed algorithm will be compared with that of a recent algorithm for event boundary detection with faulty sensors in a WSN by Wu et al. [14]. For ease of comparison, the network setup is the same as that of Wu et al. 4,096 sensors are uniformly distributed in a 64 m × 64 m square region and represent an averaged summary of 100 runs. Figure 5 illustrates the FDA of the algorithm provided by Wu et al. and the proposed algorithm. Figure 6 shows the FAR of Wu et al.'s algorithm and the proposed algorithm.

Figure 5

The FDA of Wu et al.'s algorithm [14] and the proposed algorithm.

Figure 6

The FAR of Wu et al.'s algorithm [14] and the proposed algorithm.

Referring to Figure 5, the FDA of Wu et al.'s algorithm is slightly better than that of the proposed algorithm when average degree is between 20 and 50. This is because our simulation includes random faults, and random faulty sensors may catch random physical data near normal range (or event range), which are difficult to be correctly detected. Nevertheless, the FDA of Wu et al.'s algorithm is very inaccurate, while average degree is 10. In contrast, the FDA of the proposed algorithm remains close to 93% under various average degrees. The FARs of Wu et al.'s algorithm and the FAR of the proposed algorithm are illustrated in Figure 6. Undoubtedly, higher FAR always gets higher FDA. Obviously, our algorithm thus makes a significant improvement in FAR since it is almost 0%. The key point is that when a fault-free sensor $s_{j}$ has been diagnosed as FT, its status may be switched to GD as long as there exists a sensor with status GD in $N (s_{j})$ running the status propagation.

Figure 7 demonstrates that the FDA of our algorithm decreases smoothly with the sensor fault probability from 0.1 to 0.4 and average degree 10. Actually, a high degree network demands high cost and is not practical for a large scale network. Therefore, the proposed algorithm is more suitable for WSNs.

Figure 7

The FDA of our algorithm in a WSN with an average degree of 10.

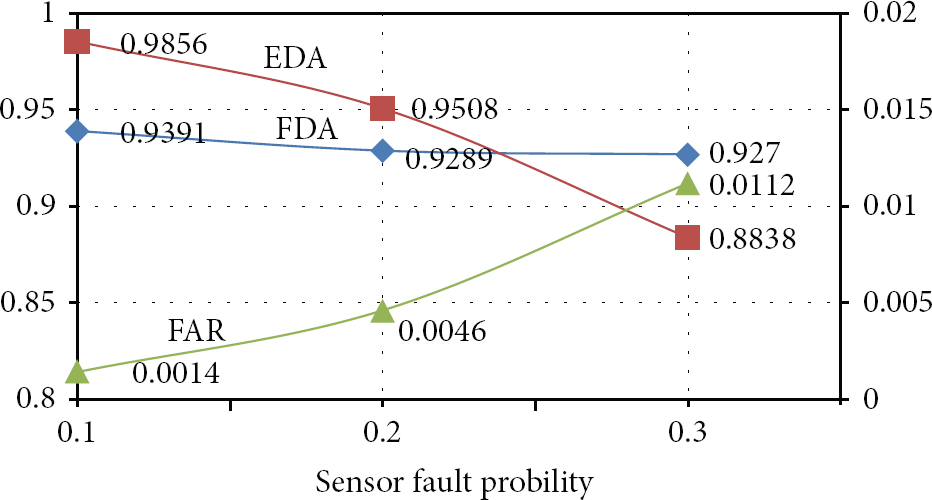

Figure 8 shows the results of our algorithm that 250 sensors are randomly distributed in a 30 m × 30 m square region with average degree of 10, and the predefined event region is a square with side length 8 m located in the middle. The FDA is greater than 92%, the FAR is less than 1.2%, and EDA is greater than 88% when sensor fault probability is less than 0.3. Figure 9 illustrates the simulation result that the BS uses the convex hull algorithm to identify the event region. In Figure 9, red, black, and blue nodes indicate GD, FT, and EV sensors, respectively. The black circles are clusters, the green square is the predefined event region, and the purple polygon is the detected event region.

Figure 8

FDA, FAR, and EDA of our algorithm in a WSN when the sensors are randomly distributed with an average degree of 10.

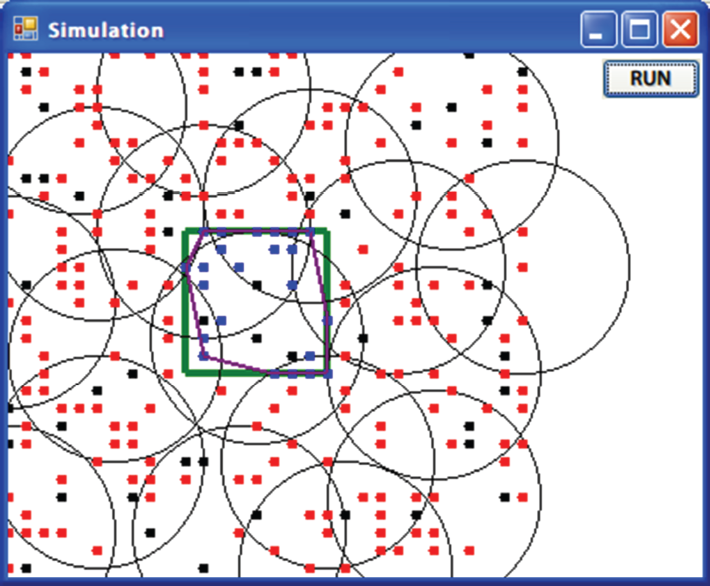

Figure 9

Convex hull algorithm is used to identify the event region at the BS. (Red: GD sensor; black: FT sensor; blue: EV sensor; green: the predefined event region; purple: the detected event region).

5. Conclusion

This work provides a distributed fault-tolerant algorithm for event region detection of WSNs to solve the fault-event disambiguation problem. It may be widely used in abnormal region detection. For example, sensors can be deployed in a forest by an airplane to discover promptly forest fires by monitoring the temperature around each sensor. The BS can identify the abnormal region based on the report of the cluster heads and send out a fire alarm signal. The proposed algorithm has high accuracy on event detection and low false alarm. Our future work will focus on power consumption and cluster head rotation to extend system life time. Moreover, to compute the best value of every threshold is our further research.

Footnotes

Acknowledgment

The authors would like to thank the National Science Council, Taiwan, for financially supporting this research under Contract NSC 100-2221-E-146-014.

References

Abbasi

A. A.

Younis

A survey on clustering algorithms for wireless sensor networks

Computer Communications 2007 30 14-15 2826 2841

2-s2.0-34548850872

10.1016/j.comcom.2007.05.024

Agre

Clare

An integrated architecture for cooperative sensing networks

IEEE Computer 33 5 106 108

Amini

Vahdatpour

Gerla

Sarrafzadeh

Cluster size optimization in sensor networks with decentralized cluster-based protocols

Computer Communications 2012 35 2 207 220

2-s2.0-82955227461

10.1016/j.comcom.2011.09.009

Akyildiz

I. F.

Sankarasubramaniam

Cayirci

A survey on sensor networks

IEEE Communications Magazine 2002 40 8 102 114

2-s2.0-0036688074

10.1109/MCOM.2002.1024422

Culler

Estrin

Srivastava

Overview of sensor networks

Computer 2004 37 8 41 49

2-s2.0-4344668573

10.1109/MC.2004.93

Geeta

D. D.

Nalini

Biradar

R. C.

Fault tolerance in wireless sensor network using hand-off and dynamic power adjustment approach

Journal of Network and Computer Applications 2013 36 4 1174 1185

Lin

J.-W.

Duh

D.-R.

Distributed fault detection of wireless sensor networks

Proceedings of the 2010 International Conference on Wireless Networks (ICWN ’10)

July 2010

Las Vegas, Nev, USA

Monte Carlo Resort

472 477

J.-Y.

Duh

D.-R.

Wang

T.-Y.

On-line fault-tolerant decision fusion scheme based on a record table in wireless sensor networks

Proceedings of the Conference on Information Technology and Applications in Outlying Islands (ITAOI ’13)

May 2013

Jinning, Kinmen, Taiwan

249 255

Xia

Vlajic

Near-optimal node clustering in wireless sensor networks for environment monitoring

Proceedings of the International Conference on Electrical and Computer Engineering (CCECE ′06)

May 2006

Ottawa, Ontario, Canada

1825 1829

2-s2.0-39049124816

10.1109/CCECE.2006.277300

10.

Estrin

Govindan

Heidemann

Kumar

Next century challenges: scalable coordination in sensor networks

Proceedings of the 5th Annual ACM/IEEE International Conference on Mobile Computing and Networking (MOBICOM ′99)

August 1999

Seattle, Wash, USA

263 270

11.

Heinzelman

W. R.

Chandrakasan

Balakrishnan

Energy-efficient communication protocol for wireless microsensor networks

Proceedings of the 33rd Annual Hawaii International Conference on System Siences (HICSS-33 ′00)

January 2000

1 10

2-s2.0-0033877788

12.

Manjeshwar

Agrawal

D. P.

TEEN: a routing protocol for enhanced efficiency in wireless sensor networks

Proceedings of the 15th International Symposium on Parallel and Distributed Processing (IPDPS ′01)

April 2001

San Francisco, Calif, USA

2009 2015

13.

Heidemann

Estrin

An energy-efficient MAC protocol for wireless sensor networks

Proceedings of the 21st Annual Joint Conference of the IEEE International Conference on Computer and Communications Societies (INFOCOM ′02)

June 2002

New York, NY, USA

1567 1576

2-s2.0-0036343658

10.1109/INFCOM.2002.1019408

14.

Cheng

Ding

Xing

Liu

Deng

Localized outlying and boundary data detection in sensor networks

IEEE Transactions on Knowledge and Data Engineering 2007 19 8 1145 1156

2-s2.0-34347262454

10.1109/TKDE.2007.1062

15.

Chen

L.-C.

Duh

D.-R.

Wang

T.-Y.

Using a saturation counter to improve the accuracy of final decisions in wireless sensor networks

Proceedings of the International Conference on Wireless Networks (ICWN ’09)

July 2009

Las Vegas, Nev, USA

Monte Carlo Resort

124 129

16.

Wang

T.-Y.

Chang

L.-Y.

Duh

D.-R.

J.-Y.

Fault-tolerant decision fusion via collaborative sensor fault detection in wireless sensor networks

IEEE Transactions on Wireless Communications 2008 7 2 756 768

2-s2.0-39749143224

10.1109/TWC.2008.060653

17.

Ettus

System capacity, latency, and power consumption in multihop-routed SS-CDMA wireless networks

Proceedings of the IEEE Radio and Wireless Conference (RAWCON ′98)

August 1988

Colorado Springs, Colo, USA

55 58

18.

Shepard

T. J.

Channel access scheme for large dense packet radio networks

Proceedings of the Annual Conference on Applications, Technologies, Architectures, and Protocols for Computer Communications (SIGCOMM ’96)

August 1996

Stanford, Calif, USA

219 230

2-s2.0-0030262889

19.

Singh

Woo

Raghavendra

C. S.

Power-aware routing in mobile and ad hoc networks

Proceedings of the ACM/IEEE International Conference on Mobile Computing and Networking (MOBICOM ‘98)

1998

Dallas, Tex, USA

181 190

20.

Baker

D. J.

Ephremides

Flynn

J. A.

The design and simulation of a mobile radio network with distributed control

IEEE Journal on Selected Areas in Communications 1984 2 1 226 237

2-s2.0-0021198082

21.

Heinzelman

W. B.

Chandrakasan

A. P.

Balakrishnan

An application-specific protocol architecture for wireless microsensor networks

IEEE Transactions on Wireless Communications 2002 1 4 660 670

2-s2.0-33646589837

10.1109/TWC.2002.804190

22.

Lin

C. R.

Gerla

Adaptive clustering for mobile wireless networks

IEEE Journal on Selected Areas in Communications 1997 15 7 1265 1275

2-s2.0-0031234161

10.1109/49.622910

23.

Nocetti

F. G.

Gonzalez

J. S.

Stojmenovic

Connectivity-based k-hop clustering in wireless networks

Telecommunication Systems 2003 22 1–4 205 220

2-s2.0-0038027240

10.1023/A:1023447105713

24.

Ruppe

Griswald

Walsh

Martin

Near Term Digital Radio (NTDR) system

Proceedings of the 1997 Military Communications Conference (MILCOM ’97)

November 1997

Monterey, Calif, USA

1282 1287

2-s2.0-0031357594

25.

Chen

Kher

Somani

Distributed fault detection of wireless sensor networks

Proceedings of the Workshop on Dependability Issues in Wireless Ad Hoc Networks and Sensor Networks (DIWANS ’06)

September 2006

Los Angeles, Calif, USA

65 71

2-s2.0-34247378242

10.1145/1160972.1160985

26.

Krishnamachari

Iyengar

Distributed Bayesian algorithms for fault-tolerant event region detection in wireless sensor networks

IEEE Transactions on Computers 2004 53 3 241 250

2-s2.0-1842478856

10.1109/TC.2004.1261832

27.

Bulusu

Heidemann

Estrin

GPS-less low-cost outdoor localization for very small devices

IEEE Personal Communications 2000 7 5 28 34

2-s2.0-0034291601

10.1109/98.878533
