Abstract

Wireless sensor networks (WSNs) are widely used in detecting, locating, and tracking moving objects. The cheap, low-powered, and energy-limited sensors that are set up in large areas may consume large portion of energy and disable the whole network. In this paper, a new energy-efficient method based on Distributed Incremental Gene Expression Programming (DI-GEP) is proposed to collaboratively mine moving patterns of moving targets in order to turn on/off some sensor nodes at certain time to save energy further. Meanwhile, an adjustable sliding window is designed to quickly train the latest collected location data in order to improve the efficiency of DI-GEP. The simulation results show that the proposed method effectively prolongs the network lifetime by around 25% compared with the EKF and ECPA.

1. Introduction

Recent advances in low-power micro-electro-mechanical system (MEMS) technology, wireless communications, and digital electronics have made it possible to design and develop highly integrated, yet low-cost, low-power, multifunctional microsensor nodes, with the capabilities of sensing, processing, and wireless communications. Once deployed in a certain region, the wireless sensor networks (WSN), composed of thousands of sensor nodes, can work for several years. Through cooperative processing of these sensor nodes, WSNs work in many areas, for example, civil, military, health, and so on. For example, WSNs can be deployed in a hospital to track and monitor patients to remotely collect the physiological data of a patient continuously. Unlike traditional networks, WSNs are self-organized, application specific, and data centric [1].

A wireless sensor node is typically battery operated. Thus, the most important constraint in WSNs is the low energy consumption requirement among their sensor nodes. Sensor nodes carry limited, generally irreplaceable, battery-power sources. So, WSNs must focus primarily on power conservation and provide inbuilt trade-off mechanisms that give end users the chance of prolonging network lifetime at the cost of high quality of service (QoS). Sensor nodes may fail due to energy depletion and lead to network failure. So it is very important for WSN to operate energy efficiently. Raising research interest promotes us to develop energy-efficient protocols or algorithms for WSNs.

Target tracking is an important application in terms of WSNs [2]. Bayesian Network and Kalman filtering are two classical methods for achieving this task. One possible solution is as follows. The system state includes the position, direction, and velocity of the target. At each step, sensors near to the target form clusters and select a leader to perform the Kalman filtering, and the updated state is forwarded to cluster leaders chosen from the next step. The Kalman filtering implementation is straightforward in a centralized environment. But it is difficult in the extremely distributed environments such as WSNs due to the energy constraints and lower computation capability of sensor nodes.

The target tracking applications in WSNs are always limited by the inherent energy constraints of sensor nodes, aiming to improve the energy efficiency in target tracking applications in WSNs; the paper proposes a new scheme based on Gene Expression Programming (GEP) [3]. GEP is also adapted to fit for distributed environment. GEP works well in modeling the moving patterns of targets without aprior knowledge. Based on the historical location information of the target, GEP automatically evolves a trajectory of a moving object. To handle the problem, this paper makes the following contributions. (1)

A new algorithm named Distributed Incremental Gene Expression Programming (DI-GEP) is proposed to mine moving patterns of targets. The basic idea is that DI-GEP runs at multiple collaboratively working sensor nodes to mine the trajectory of a target.

(2)

An adjustable sliding window is adopted to ensure that distributed GEP can quickly train the latest collected location data. When new location data are received, old location data are discarded when prediction error exceeds a certain threshold, which is defined and can be calculated by (7). The policy ensures that succeeding evolutions can energy efficiently find latest moving patterns.

(3)

Extensive simulations are conducted on OMNet++, a discrete event simulator, to show that new algorithms effectively prolong the network lifetime by about 25% in average when compared to other algorithms, that is, EKF and ECPA.

The rest of the paper is organized as follows. Section 2 presents the related work on energy-saving algorithms. Section 3 gives the preliminaries including GEP-related and target tracking. Section 4 introduces the target diction model. Section 5 formally defines the problems. Section 6 proposes the main algorithms in our scheme. Section 7 gives the experimental analysis. Section 8 concludes this paper and gives the future research directions.

2. Related Work

There are many research efforts on target detection and tracking in terms of WSNs, which describes several aspects of collaborative signal processing [2, 4, 5] and real-time application for biologists to find the presence of individuals [6]. A set of approaches presented in [7–9] were proposed recently to solve the target localization and tracking problem with proximity binary sensors, which transmit only one bit information to indicate whether a target is present. The information transmitted among sensor nodes was greatly reduced, while the localization error was increased. Shrivastava et al. [8] proved that the accuracy in tracking a target is of the order of $ρ * R$ , where R is the sensing radius and ρ is the sensor density, which articulates the common intuition that, for a fixed sensing radius, the accuracy improves linearly with an increasing sensor density, which shows that, for a fixed number of sensors, the accuracy improves linearly with an increase in the sensing radius. Dai et al. present a light weight target tracking method based on densely distributed sensor networks [10, 11] and also propose a new node deployment policy for target tracing applications in WSNs [12] to further improve target tracking performance and quality including accuracy, network lifetime, energy consumption level, trends analysis, and so forth.

The lifetime of a WSN depends greatly on power consumption from each sensor node. Energy-efficient algorithms, protocols, and node hardware and software designing technologies can help prolong the lifetime of the network. Several approaches have been proposed at hardware and software levels to design energy efficient CPU, OS, algorithms, and communication protocols [1]. Dynamic power management (DPM) schemes have been proposed in [13–15] to reduce the power consumption by selectively turning off idle components, such as radio frequency (RF) transmitter, RF receiver, sensing device, A/D converter, and the sensor node.

Target tracking applications are special and have their own characteristics. It is unnecessary to turn on all sensor nodes because an object only appears at certain time and place. It is feasible to turn off some idle nodes if we can predict the time and place where the object will appear. Classical target tracking algorithms such as Bayesian Network and Kalman filtering cannot be directly used to predict moving patterns of targets in WSNs due to resource limitations.

To track moving targets energy efficiently, Allegretti et al. [16] proposed a solution based on CA (Cellular Automata) to reduce long distance communications among nodes because of its locally data exchanging scheme, but a higher power consumption is introduced because it cannot turn off those nodes that are far away from the moving object. Qing et al. [17] proposed ECPA (Enhanced Closest Point Approach) to predict the location of targets during the phase of moving, but the velocity and direction calculation algorithms with regard to the targets are computation intensive for sensor nodes, which often have low power and computation capability.

3. Preliminary

3.1. Introduction of Gene Expression Programming

Gene Expression Programming (GEP) was proposed by Ferreira in 2006 [3]. As a new member of Evolutionary Algorithm (EA) family, GEP is widely applied in data mining areas, that is, function finding, classification, association rule mining, time series prediction, parameter optimization, and digital circuit design, and so forth. In GEP, Genotype (Chromosome) and Phenotype (Expression Tree (ET)) are separated. Without prior knowledge, GEP automatically evolves over training data and discovers knowledge as mathematical formula depicting movement patterns of moving objects in WSNs.

In GEP, an individual, that is, a solution corresponding to a problem, is represented as linear fixed-length string named chromosome. It contains one or more genes. Each gene is decoded into a nonlinear expression tree (ET). Decoded ETs are linked together by prespecified linking function symbols such as plus (+) and minus (−). One chromosome represents one formula that is, the solution to a specific problem. Genetic operations are applied on chromosomes, that is, genotype and selection operations are performed on ETs.

A gene in GEP consists of head and tail. The head contains symbols from either function symbol set (F) or terminal symbol set (T) and the tail only contains symbols from terminal symbol set. The tail length satisfies (1), which guarantees that a gene can be decoded into a valid ET

t = h (n - 1) + 1 .

(1)

In (1), n is the maximum parametric number of function in F, h is head length, and t is tail length. Example 1 below shows a 2-gene chromosome in GEP and its ETs.

Example 1.

Let $C_{1}$ be a chromosome with 2 genes in GEP. Let ${Q, *, /, -, +}$ be the function set F, and $T = {a, b}$ the terminal set, $n = 2$ . If head length is 6, then tail length is 7 by (1). The length of gene is 13 (the sum of head length and tail length). Figure 1 shows the 2-gene chromosome, two sub-ETs, which are linked by the linking function “plus,” denoted as “+” and the mathematical function obtained from the linked expression tree.

Figure 1

Individual representation in GEP: 2-gene chromosome, 2 expression trees, and corresponding one mathematical expression.

3.2. Target Tracking in WSNs

There are several target tracking methods that adopt distinct models. Kalman filtering method requires that the velocity, direction, and acceleration of a moving object are given to predict the next location of a moving object. But it is impossible for WSNs to equip each node with these devices due to its lower cost and lower power supply. It is critically important to design energy-efficient target tracking algorithms for WSNs.

The tracking model is described in Figure 2. The monitored region is covered with sensor nodes that are distributed manually or randomly. A target moves along a trajectory that is unknown before and is detected by some sensor nodes that are depicted as black solid circle nodes. Suppose that the location data the moving object passed are known at time $t_{0}, t_{1}, t_{2}, \dots, t_{i}$ . A question arises: where will it appear at time $t_{i + 1}, t_{i + 2}, \dots$ ?

Figure 2

Target tracking model.

Once the trajectory of a moving object is found and expressed as a mathematical function, then the following tasks are straightforward. (i)

Predicting the locations that the moving object will appear at time $t_{i + 1}, t_{i + 2}, \dots$ .

(ii)

Activating the necessary sensor nodes and turning off unrelated sensors to save energy.

Target-tracking applications need careful consideration of trade-off between tracking error and energy consumption. The tracking error is defined by the average target location estimation error of sensor nodes. The better trajectory leads to a better target location estimation.

To achieve the above goals, we propose three policies. (1)

DI-GEP, that is, a trajectory discovery algorithm based on distributed incremental gene expression programming. It mines the trajectory in order to reduce tracking errors.

(2)

Node scheduling algorithm. It activates the necessary nodes and turn off unrelated sensors at certain time in future to save energy.

(3)

Sliding window strategy is used to improve performance of DI-GEP.

The experiments in Section 7 will demonstrate the effectiveness and efficiency of proposed methods.

4. Target Detection Model

Sensor nodes receive the physical signal and convert it to electrical signal. Based on the variation of electrical signal, sensors can detect the existence of target.

To describe the model formally, we make the following three assumptions. $A_{1}$ :

There are N sensors $s_{i} \in S$ distributed randomly or manually across the monitored areas, where S is the set of all sensors. Each sensor detects targets by its reading $x_{i}$ , where $i = 1, 2, \dots, N$ .

A_{2}

There is a single target anytime. Note that, by Assumption ( $A_{2}$ ), a present target is depicted by ( $H_{1}$ ), and an absent target is represented by ( $H_{0}$ ). The criterion is based on the following formulations [18]:

\begin{gathered} H_{0} : x_{i} = n_{i}, \\ H_{1} : x_{i} = w_{i} + n_{i}, \end{gathered}

(2)

where

w_{i}

is the obtained signal by sensor

s_{i}

. Several physical signals such as sound and electromagnetic wave have signal strength decaying according to the power law, and the noise is represented by

n_{i}

A_{3}

(borrowed from [19]): Le $w_{t}$ is the power emitted by target

w_{i} = {\begin{cases} w_{t}, & d_{i} < d_{0}, \\ \frac{w_{t}}{{(d_{i} / d_{0})}^{k}}, & d_{i} \geq d_{0}, \end{cases}

(3)

where

d_{0}

is determined by the target shape and size which is set to be small enough and satisfies

d_{i} > d_{0}

, where

d_{i}

is the distance between the target and sensor node

x_{i}

and k is the decaying factor which is set to 2–5 according to different physical signals and its environment.

This study adopts a practical target detection model shown in Figure 3, which satisfies

p_{i} = {\begin{cases} 1, & d_{i} \leq r_{l}, \\ {(\frac{d_{i}}{r_{0}})}^{k}, & {r_{l} \leq d}_{i} \leq r_{u}, \\ 0, & d_{i} > r_{u}, \end{cases}

(4)

where

r_{l}

is the lower bound (LB) of sensing range,

p_{i}

is the probability of a target detected by the sensor node

s_{i}

, and

r_{u}

is the upper bound (UB) sensing range.

Figure 3

Target detection model.

5. Problem Formulation

A trajectory of a moving object is treated as a sequence of time-stamped locations that are collected by sensor nodes around the target. It is described as follows.

Definition 2 (Trajectory).

A trajectory of a moving object is a time sequence with time interval $Δ t$ :

P (t) = [X (t), Y (t)] = {(x_{0}, y_{0}), (x_{1}, y_{1}), \dots, (x_{n}, y_{n})},

(5)

where for all

i \in [0, n], t_{i} < t_{i + 1}, t_{i + 1} = t_{i} + Δ t (x_{i}, y_{i})

is 2D points that represent locations of the target appeared at time

t_{i}

and

x (t_{i}) = x_{i}, y (t_{i}) = y_{i}, P (i) = [x_{i}, y_{i}]

Δ t

is used to sample the locations collected by sensors to improve our algorithms energy efficiency as well as performance. Because the location data may be of large scale, which will put great burden on sensors and exhausts a great of energy because of huge amount of computations and communications.

$P (t)$ describes a varying kinds of trajectories, that is, line segments, quadric curves, cubic curves, and splines. Once $P (t)$ is obtained, it is easy to achieve single-step or multiple-step location predictions.

$P (t)$ can be obtained by trajectory mining algorithm. In terms of target tracking applications, there are several unnecessary historical location data during evolving process in distributed GEP. To deal with this problem, we adopt a sliding window prediction method (SWP) to load the latest historical data to train trajectories. The basic idea of SWP is given below.

Given the historical location data $P (0), P (1), \dots, P (n)$ with length $n + 1$ . The sliding window size is denoted as $h (h ⩽ n + 1)$ . (a)

Find a formula $\hat{P} (t) = [f (t), g (t)]$ from h samples and predict the location at time instant m, $(m > n - 1)$ by (6). Example 3 illustrates the phases of evolutions of trajectories.

\hat{P} (m) = [\hat{X} (m), \hat{Y} (m)] = [f (t_{m}), g (t_{m})] .

(6)

(b)

During evolving process, the size of sliding window h determines how many historical location data are used. The smaller h leads to less energy consumption and faster convergence speed. h is adjusted based on the location prediction error ε, geometric distance between the prediction value and the real measurement. ε should be as small as possible and is calculated by

ε = \sqrt{{(\hat{x} (m) - x (m))}^{2} + {(\hat{y} (m) - y (m))}^{2}} .

(7)

In target-tracking applications, the trade-off between the energy consumption and the prediction accuracy is balanced by adjusting ε to satisfy different application requirements. In densely distributed sensor networks, tracking-tolerant environment or fast response time tracking areas, ε can be set to a bigger value to save energy. But, in some areas with higher tracking accuracy with slow moving targets environment, ε can be set to a smaller one. In sum, ε cannot be set to zero since the estimated trajectory would always deviate from the actual path targets passed.

Example 3.

The historical locations are listed in Table 1.

Table 1

Location data obtained.

$t_{i}$	x	y
0	1	1
1	2	5
2	3	11
3	4	19

Thus, f may be $P (t) = [t + 1, t^{2} + 3 t + 0.5]$ , $P (t) = [t + 2, t^{2} + 2 t + 1]$ or even perfect approximation $P (t) = [t + 1, t^{2} + 3 t + 1]$ given in Figure 4. All these approximations are suitable in environments with different prediction accuracy requirements.

Figure 4

An example of a tracking trajectory.

6. DI-GEP Scheme

6.1. Fitness Evaluation of Individual

In evolutionary computations, fitness functions and selection environments are the two very important faces of fitness and are, therefore, intricately connected. When we speak of the fitness of an individual, on the one hand, it is always relative to a particular environment and, on the other, it is also relative to the measure (the fitness function) we are using to evaluate them. Consequently, the success of a problem not only depends on the way the fitness function is designed but also on the quality of the selection environment [3].

Combining the fitness evaluation and prediction error, DI-GEP calculates the fitness of each individual in distinct populations by

E_{i} = \frac{1}{h} \sum_{j = 1}^{h} (ε_{i}^{2}),

(8)

where

ε_{i}

is the evaluation error of the ith location data and

E_{i}

is the fitness value of the ith individual.

6.2. Trajectory Mining Algorithm

The main steps of trajectory search algorithms are given below. (1)

Sensor nodes are activated based on the node scheduling algorithm.

(2)

Communications occur among sensor nodes when one node succeeds in obtaining a trajectory and notifies other nodes.

(3)

Other nodes stop running their algorithms and obtain the trajectory to predict future location of the moving object.

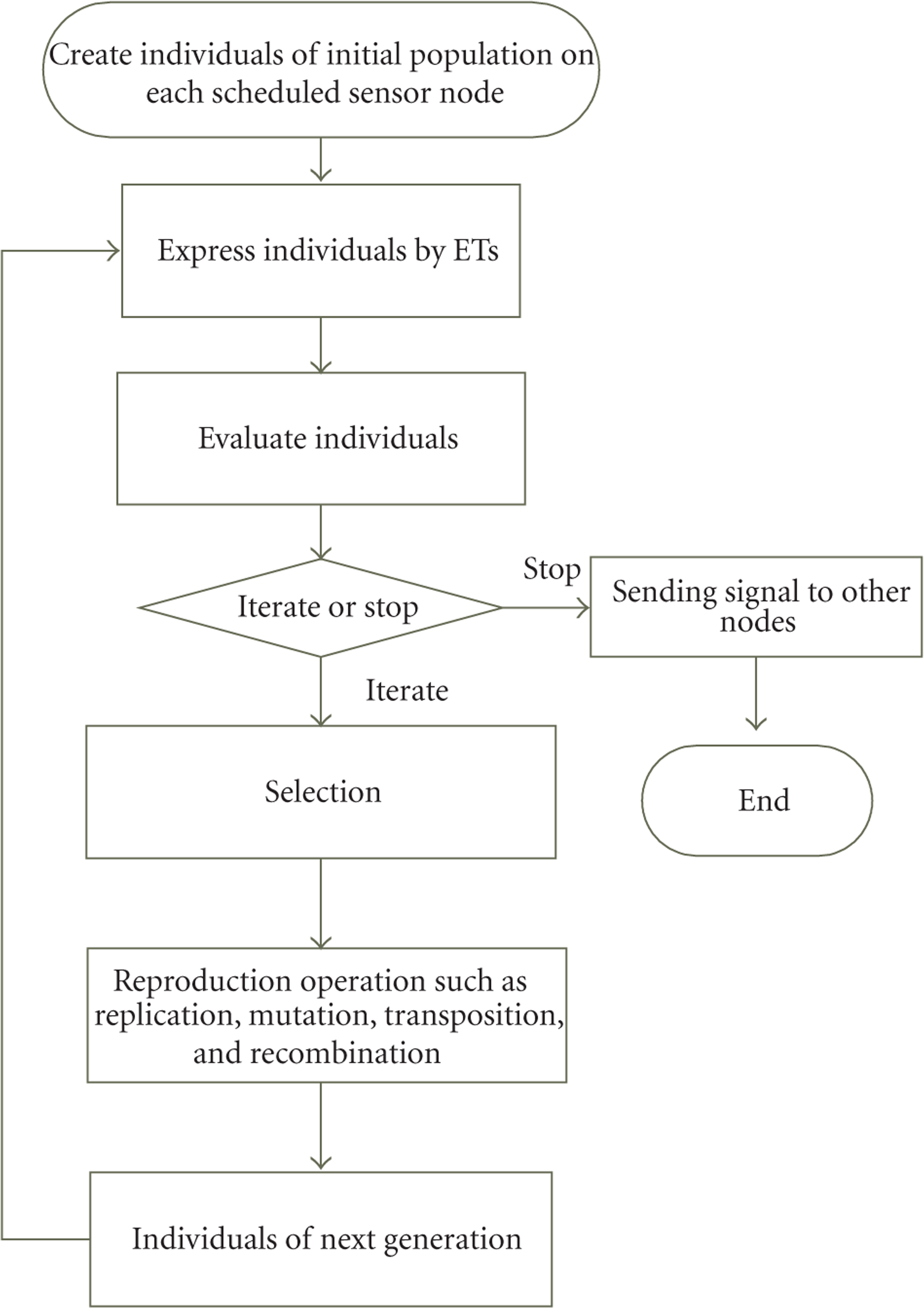

Figure 5 details the flowchart of DI-GEP.

Figure 5

The workflow of distributed GEP.

DI-GEP stops if one of these stopping criteria is satisfied. (1)

The maximum number of generations is reached.

(2)

DI-GEP exceeds the specified runtime.

(3)

One or more other nodes send stopping signal to the node.

(4)

The node succeeds in obtaining a trajectory.

The implementation of DI-GEP is described in Algorithm 1. It mines a trajectory represented as individual in DI-GEP.

Algorithm 1: Distributed GEP trajectory mining.

Input: settings and historic location data

Output: one individual representing a trajectory

or null if no trajectory is found

(1) load historic location data of size h and initial

configuration

(2) randomly create an initial population

(3) decode each chromosome into one ET

(4) calculate each chromosome's fitness by (8).

(5) while (stopping criteria are not satisfied){

(6) select individuals, generate next generation

(7) apply genetic operations sequentially on

the new generation

(8) decode each chromosome into ET.

(9) calculate each chromosome's fitness

(10)}

(11) return an individual with best fitness.

6.3. Location Prediction and Node Scheduling

Once a trajectory is found, the model uses it to predict the location where the target will appear as at time $t_{i + j}$ by (6), where $0 < j \leq L$ and L is the prediction length that is used in single-step or multistep predictions.

To reduce computational cost, we do not use a circle but a square to select nodes around $\hat{P} (t_{i + 1})$ . If sensor node $s_{k} (x_{k}, y_{k})$ satisfies (9), then it should be selected and activated at time $t_{i + j}$ to detect the target

\begin{gathered} f (t_{i + j}) - r_{0} \leq x_{k} \leq f (t_{i + j}) + r_{0}, 0 < j \leq L, \\ g (t_{i + j}) - r_{0} \leq y_{k} \leq g (t_{i + j}) + r_{0}, 0 < j \leq L . \end{gathered}

(9)

The node scheduling algorithm is given in Algorithm 2.

Algorithm 2: Node scheduling.

Input: functions $\hat{P} (t)$ found in Algorithm 1 and

prediction length L.

Output: activated sensor nodes

(1) for $(k = 0; k < L; k + +)$ {

(2) for each (sensor node $s_{j} (x_{j}, y_{j})$ in WSN) {

(3) if $(f (t_{i + k + 1}) - R ⩽ x_{j}$ and $x_{j} ⩽ f (t_{i + k + 1}) + R$

(4) and $g (t_{i + k + 1}) - R ⩽ y_{j}$ and $y_{j} ⩽ g (t_{i + k + 1}) + R)$

(5) $S_{i}$ is scheduled awake at $t_{i + k + 1}$

(6) else

(7) $S_{i}$ is scheduled asleep at $t_{i + k + 1}$

(8) $}}$

6.4. Incremental Evolution Strategy

In real-world practice, a trajectory of a target is very complex and variable. Thus, to improve the performance of DI-GEP, the key steps of our policy are as follows. (1)

Trajectory is described as a curve. Any complex curve can be spitted into multiple simpler curves that are described as line segments, quadric curves, or cubic curves. This method can not only ensure the flexibility of modeling the trajectory but also guarantee less computation cost.

(2)

To capture the variation of a trajectory and accelerate the evolving process, sliding window policy is proposed to keep a certain number of latest historical data during individual evolving.

(3)

When the obtained function cannot represent the current moving behaviors, that is, the prediction error is greater than a certain threshold; distributed GEP and the node scheduling algorithm should run again with location data in sliding window.

We assume that a trajectory function $P (t)$ is obtained through historical location data sampled at $t_{i}, t_{i - 1}, \dots, t_{i - h - 1}$ . These data fall in the sliding window $w_{1}$ described in Figure 6.

Figure 6

Sliding window.

$P (t)$ works well in predicting the future location during the time interval $[t_{i + 1}, t_{j - 1}]$ , that is, $ε \leq τ$ . Suppose that at time $t_{j}$ , $P (t)$ does not work well because $ε > τ$ , the trajectory should be recalculated as follows. (1)

The sliding window moves to $w_{2}$ to include the latest location data. The process can be simplified by $w_{1}$ sliding right when prediction is performed to reduce memory usage.

(2)

DI-GEP and the node scheduling algorithm run again.

The performance of these algorithms is evaluated on OMNet++ and Castalia.

In order to compare the performance with other target tracking algorithms, we evaluate DI-GEP, ECPA, and extended Kalman filtering (EKF). The target cannot be found until the network fails, and the tracking task stops simultaneously.

7. Experiments

7.1. Sensor Networks Setting

Suppose that hundreds of sensor nodes are uniformly distributed in a square of 100 × 100 meters. A target can present at a random place in the WSNs and sends signal with the strength of $w_{t}$ . The signal decays according to (3), with parameters $d_{0} = 0.15$ and $w_{t} = 15 d_{0}^{- k}$ . The prediction accuracy τ is 2 meters and $h = 7$ .

The sensing range $r_{o}$ of sensor nodes is set to 7 and $r_{1}$ is set to 10. The sensing energy $e_{s}$ is 100 uJ, and transmission (receiving and sending) energy for one packet is $e_{t} = e_{r} = 100 uJ$ . The initial energy of each sensor node is 100 mJ. Parameters used in distributed GEP are listed in Table 2.

Table 2

Parameters setting in DI-GEP.

Parameters	values
Function set	${+, -, *, /}$
Basic terminal set	${t}$
Number of generations	1000
Population size	100
Head length	7
Mutation rate	0.044
Inversion rate	0.1
IS rate	0.1
RIS rate	0.1
Length of insertion sequence	${1,2, 3}$
One-point recombination rate	0.3
Two-point recombination rate	0.3
Gene recombination rate	0.1

7.2. Network Lifetime

Suppose that different number of sensor nodes are uniformly distributed in the grid network, this experiment analyses the impact of the number of sensor nodes on the network lifetime. The results are given in Figure 7. It shows that the three algorithms often obtain longer network lifetime when the number of sensor nodes gets bigger. The network lifetime of DI-GEP is averagely 35% longer than EKF and ECPA.

Figure 7

Network lifetime and number of sensor nodes.

7.3. Energy Consumption

In this experiment, four hundred sensor nodes are used to monitor the grid network. The sensor nodes are manually distributed at cross points in the grid network.

This experiment analyzes the energy consumption of three algorithms. The results are given in Figure 8. The results show that the total left energy decreases when the time passes. The total left energy cannot be zero because all these algorithms are invalid when the network fails. Note that, some sensor nodes consume their energy and cannot communicate with other nodes any more. Meanwhile, DI-GEP performs better than EKF and ECPA. This is because it consumes less energy than EKF and ECPA after running the same time.

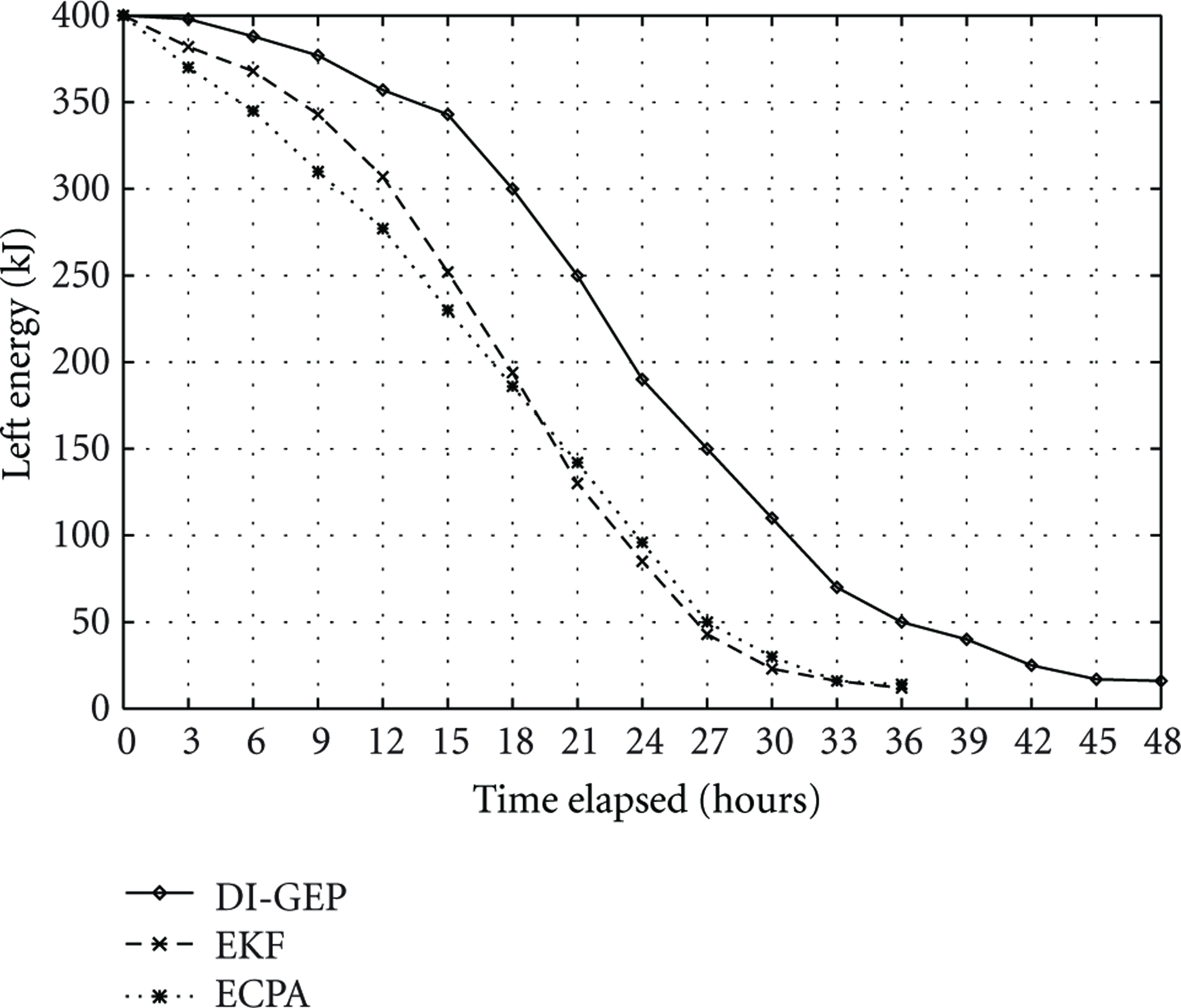

Figure 8

Energy consumption and time elapsed.

7.4. Active Nodes

This experiment uses the similar setting as given in the previous section and testifies the influence of the number of the active nodes as shown in Figure 9. DI-GEP outperforms EKF and ECPA in node scheduling because of its better trajectory prediction, so the number of active nodes in DI-GEP is about 25, 30% less than that in EKF and ECPA, separately.

Figure 9

Active nodes and time elapsed.

7.5. Prediction Accuracy

This experiment uses the same setting as given in previous section and will testify that the prediction accuracy can heavily affect the network lifetime. The results are shown in Figure 10. Distributed GEP outperforms EKF and ECPA because of its better trajectory prediction, so at the same prediction accuracy, the network lifetime is averagely 28% longer than that in EKF and ECPA.

Figure 10

Network lifetime and prediction accuracy.

8. Conclusions

In order to track targets energy-efficiently in WSNs, we presented a distributed incremental algorithm based on GEP for target tracking applications in WSNs, proposed sliding window policy for distributed GEP to improve evolution process, proposed a new target tracking model, and give extensive experimental results to show the good performance of our method.

The future work includes (a) optimize DI-GEP to capture abrupt moving behaviors, (b) optimize DI-GEP to suit randomly distributed wireless sensor networks, and (c) consider border intrusion detection to save more energy in the initial state.

Footnotes

Acknowledgments

The work in this paper was partially supported by the National Science Foundation of China under Grant no. 61103043, and Youth Fund of Sichuan University (project No. 2030404134011 and 2010SCU11049). The authors would like to express their gratitude to these two entities for their financial and technical support.

References

Akyildiz

I. F.

Sankarasubramaniam

Cayirci

A survey on sensor networks

IEEE Communications Magazine 2002 40 8 102 105

2-s2.0-0036688074

10.1109/MCOM.2002.1024422

D. Wong

H. Hu

Detection, classification and tracking of targets in distributed sensor networks

IEEE Signal Processing Magazine 2002 17 29

Ferreira

Gene Expression Programming: Mathematical Modeling by an Artificial Intelligence 2006

Berlin, Germany

Springer

Zhao

Shin

Reich

Information-driven dynamic sensor collaboration for tracking applications

IEEE Signal Processing Magazine 2002 19 2 61 72

2-s2.0-0036503165

10.1109/79.985685

Brooks

R. R.

Ramanathan

Sayeed

A. M.

Distributed target classification and tracking in sensor networks

Proceedings of the IEEE 2003 91 8 1163 1171

2-s2.0-4844228284

10.1109/JPROC.2003.814923

Ali

A. M.

Yao

Collier

T. C.

Taylor

C. E.

Blumstein

D. T.

Girod

An empirical study of collaborative acoustic source localization

Proceedings of the 6th International Symposium on Information Processing in Sensor Networks (IPSN ′07)

April 2007

New York, NY, USA

41 50

2-s2.0-35348812492

10.1145/1236360.1236367

Singh

Madhow

Kumar

Suri

Cagley

Tracking multiple targets using binary proximity sensors

Proceedings of the 6th International Symposium on Information Processing in Sensor Networks (IPSN ′07)

April 2007

New York, NY, USA

529 538

2-s2.0-35348873843

10.1145/1236360.1236427

Shrivastava

Mudumbai

Madhow

Suri

Target tracking with binary proximity sensors: fundamental limits, minimal descriptions, and algorithms

Proceedings of the 4th International Conference on Embedded Networked Sensor Systems (SenSys ′06)

November 2006

New York, NY, USA

251 264

2-s2.0-34547427338

10.1145/1182807.1182833

Kim

Mechitov

Choi

J. Y.

Ham

On target tracking with binary proximity sensors

Proceedings of the 4th International Symposium on Information Processing in Sensor Networks (IPSN ′05)

April 2005

301 308

2-s2.0-33744945260

10.1109/IPSN.2005.1440939

10.

Dai

Chen

Tang

Light-weight target tracking in dense wireless sensor networks

Proceedings of the 5th International Conference on Mobile Ad-hoc and Sensor Networks

2009

480 487 IEEE Computer Society

11.

Dai

Tang

Qiao

Wang

An energy-efficient tracking algorithm based on gene expression programming in wireless sensor networks

Proceedings of the 1st International Conference on Information Science and Engineering (ICISE ′09)

December 2009

Nanjing, China

774 777 IEEE Computer Society

2-s2.0-77952749663

10.1109/ICISE.2009.259

12.

Dai

Tang

Qiao

Zhu

Optimal multiple sink nodes deployment in wireless sensor networks based on gene expression programming

Proceedings of the 2nd International Conference on Communication Software and Networks (ICCSN ′10)

February 2010

Singapore

355 359 IEEE Computer Society

2-s2.0-77952337100

10.1109/ICCSN.2010.33

13.

Sinha

Chandrakasan

Dynamic power management in wireless sensor networks

IEEE Design and Test of Computers 2001 18 2 62 74

2-s2.0-0035279599

10.1109/54.914626

14.

Lin

Y. X.

Xiong

An energy-efficient dynamic power management in wireless sensor networks

Proceedings of the 5th International Symposium on Parallel and Distributed Computing (ISPDC ′06)

July 2006

Timisoara, Romania

148 154

2-s2.0-34547540977

10.1109/ISPDC.2006.8

15.

Wang

Collaborative deployment optimization and dynamic power management in wireless sensor networks

Proceedings of the 5th International Conference on Grid and Cooperative Computing (GCC ′06)

October 2006

Hunan, China

121 128

2-s2.0-38649102503

10.1109/GCC.2006.36

16.

Allegretti

D. G.

Kenyon

G. T.

Priedhorsky

W. C.

Cellular automata for distributed sensor networks

International Journal of High Performance Computing Applications 2008 22 2 167 176

2-s2.0-42449117647

10.1177/1094342007083803

17.

Qing

Lim

Casey

Neelisetti

R. K.

Real-time target tracking with CPA algorithm in wireless sensor networks

Proceedings of the 5th Annual IEEE Communications Society Conference on Sensor, Mesh and Ad Hoc Communications and Networks (SECON ′08)

June 2008

San Francisco, Calif, USA

305 313

2-s2.0-51749087081

10.1109/SAHCN.2008.45

18.

Wang

Srinivasan

Chua

K. C.

Wang

Energy-efficient coverage for target detection in wireless sensor networks

Proceedings of the 6th International Symposium on Information Processing in Sensor Networks (IPSN ′07)

April 2007

313 322

2-s2.0-35348828626

10.1145/1236360.1236401

19.

Clouqueur

Saluja

K. K.

Ramanathan

Fault tolerance in collaborative sensor networks for target detection

IEEE Transactions on Computers 2004 53 3 320 333

2-s2.0-1842478834

10.1109/TC.2004.1261838

DI-GEP: A New Lifetime Extending Algorithm for Target Tracking in Wireless Sensor Networks

Abstract

1. Introduction

2. Related Work

3. Preliminary

3.1. Introduction of Gene Expression Programming

Example 1.

3.2. Target Tracking in WSNs

4. Target Detection Model

5. Problem Formulation

Definition 2 (Trajectory).

Example 3.

6. DI-GEP Scheme

6.1. Fitness Evaluation of Individual

6.2. Trajectory Mining Algorithm

Algorithm 1: Distributed GEP trajectory mining.

6.3. Location Prediction and Node Scheduling

Algorithm 2: Node scheduling.

6.4. Incremental Evolution Strategy

7. Experiments

7.1. Sensor Networks Setting

7.2. Network Lifetime

7.3. Energy Consumption

7.4. Active Nodes

7.5. Prediction Accuracy

8. Conclusions

Footnotes

Acknowledgments

References
