Abstract
In the distal radioulnar joint, the triangular fibrocartilage complex (TFCC) is an important stabilizer and are frequently found in patients with rheumatoid arthritis (RA) with wrist pain. This study was designed to predict TFCC tears using high-resolution ultrasound in severe RA. We retrospectively reviewed patients with severe RA. MRI and ultrasound were performed at baseline and after 1 year of follow-up. TFCC tears were recorded. The predictive factors for TFCC tears were analyzed by logistic regression. During the 1-year follow-up period, 54 patients were enrolled (42 females and 12 males), of whom 21 (38.9%) developed TFCC tears. The body mass index was 22.81±2.59 kg/m2 in the TFCC tear group compared with 23.61±2.76 kg/m2 in the non-tear group (p=0.136). The mean age was 55.14±9.54 years in the TFCC tear group compared with 56.45±14.04 years in the non-tear group (p=0.596). The tear group had a higher Disease Activity Score in 28 joints (DAS28) (6.36±0.47 vs 5.58±0.65, p=0.011) and higher power Doppler (PD) ultrasound score at the dorsal radiocarpal joint (1.90±1.30 vs 1.33±0.99, p=0.011) than the non-tear group. We found that high DAS28 (OR 2.96, 95% CI 1.95 to 4.50; p=0.001) and higher baseline PD score (OR 1.51, 95% CI 1.07 to 2.14; p=0.019) were significantly associated with a higher risk of TFCC tears by logistic regression. So we conclude a higher wrist PD score in severe RA predicted future TFCC tears. Therefore, we suggest to use PD score in such patients to monitor the risk of future TFCC tears.
Significance of this study
What is already known about this subject?
The triangular fibrocartilage complex (TFCC) is an important stabilizer of the distal radioulnar joint.
Tears can be detected using various radiological methods, including arthrography, MRI, and MR arthrography. TFCCs lesions are associated with diminished function including grip weakness and ulnar-sided wrist pain in rheumatoid arthritis (RA).
What are the new findings?
Those with TFCC tear had a higher power Doppler (PD) ultrasound score and higher Disease Activity Score in 28 joints (DAS28) than the non-tear group.
Logistic regression analysis showed that a higher baseline PD score and high DAS28 were significantly associated with a higher risk of TFCC tears.
How might these results change the focus of research or clinical practice?
Higher PD score at wrist joint predicted future TFCC tears in patients with severe RA.
We suggest to use PD score in patients with severe RA to monitor the risk of future TFCC tears.
Background
In the distal radioulnar joint, the triangular fibrocartilage complex (TFCC) is an important stabilizer.
A TFCC tear is a major cause of wrist pain at ulnar side, especially in patients with rheumatoid arthritis (RA). Palmer classified TFCC tears into four subtypes,1 and recent studies have reported the new anatomical structure of TFCC.2 3 Tears can be detected using various radiological methods, including arthrography, MR arthrography and MRI.4 TFCC lesions are associated with diminished function including ulnar-sided wrist pain in RA and grip weakness.
This study aimed to evaluate the predictive role of ultrasound for TFCC tears using high-resolution morphological MRI.
Methods
Research methodology
A retrospective case–control study.
Study patients
We collected patients with RA with high disease activity who had undergone MRI of the wrist. Cases were patients diagnosed with high RA disease activity with TFCC tears.
Controls were those with high RA disease activity without TFCC tears.
Diagnostic criteria for RA
The American College of Rheumatology 2010 criteria5 for RA were used to enroll the study patients.
Application of these criteria provided a score of 0–10, with a score of 6 or greater being indicative of the presence of definite RA.
Definition of high RA disease activity
A Disease Activity Score in 28 joints (DAS28) greater than 5.1 was considered to be indicative of high disease activity6
Study protocol
Inclusion criteria
RA with high disease activity and having undergone wrist MRI and ultrasound examinations.
Exclusion criteria
Patients were excluded from the study if they had the following conditions:
Infections. Underlying neoplasms or known hematological disorders that affected thrombosis, platelet count, or function. Major systemic diseases such as end-stage renal disease, liver cirrhosis, or congestive heart failure.
Ultrasound assessment
Bilateral wrist radiocarpal joints were assessed for the presence of synovial power Doppler (PD) signals.
The synovial PD signals were scored on a semiquantitative scale of 0–3 (0: absent (no synovial flow); 1: mild (≤3 PD signals); 2: moderate (>3 PD signals in less than half of the synovial area); 3: marked (signals in more than half of the synovial area)).
Mri
Complete MRI findings at baseline and after 1 year of follow-up were reviewed. The TFCC was classified as either being normal or torn (a full-thickness tear). A tear was diagnosed on imaging if there was evidence of associated leakage of intra-articular contrast material from the radiocarpal joint into the inferior radioulnar joint or disruption of fibers.
Abnormal MRI findings included: fluid intensity extending to the tissue surface on either or both sides, or tissue transection or irregular high intensity with morphological alterations. Those with baseline TFCC tears were excluded from the study.
Results
Sixty-seven patients underwent MRI and ultrasound examinations of the wrist. Of these patients, 13 had previous TFCC tears or terminated the study early and 54 completed the study (figure 1).

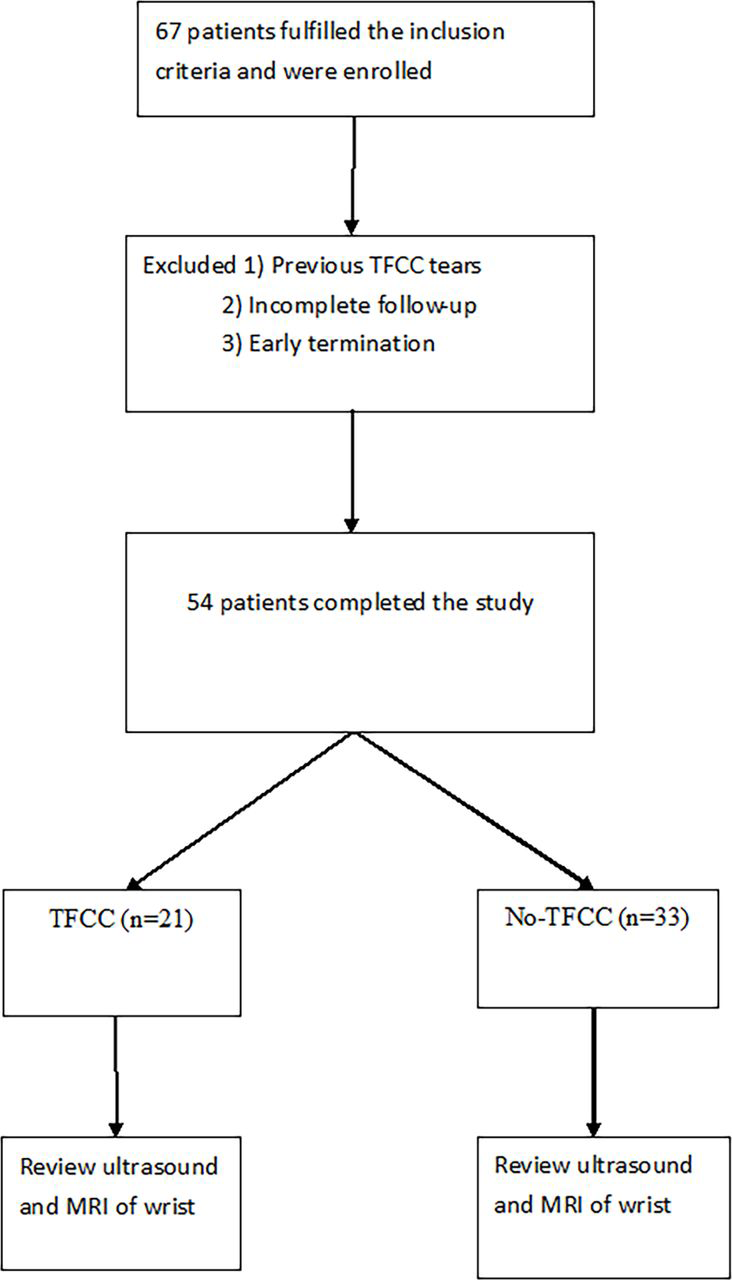

Flow chart of the study. TFCC, triangular fibrocartilage complex.
There were 42 females and 12 males. During the follow-up period, 21 (38.9%) developed TFCC tears (figure 2). The mean age in the TFCC tear and non-tear group was 55.14±9.54 and 56.45±14.04, respectively (p=0.596). The body mass index in the TFCC tear and non-tear group was 22.81±2.59 kg/m2 and 23.61±2.76 kg/m2, respectively (p=0.136). The tear group had a higher DAS28 (6.36±0.47 vs 5.58±0.65, p=0.011) and higher PD ultrasound score at the dorsal radiocarpal joint (1.90±1.30 vs 1.33±0.99, p=0.011) than the non-tear group (table 1). We found a higher baseline PD score (OR 1.51, 95% CI 1.07 to 2.14; p=0.019) and high DAS28 (OR=2.96, 95% CI 1.95 to 4.50; p=0.001) were significantly associated with a higher risk of TFCC tears (table 2).
A 60-year-old woman with severe RA. Follow-up MRI showed perforation at the left disc proper of the triangular fibrocartilage complex.

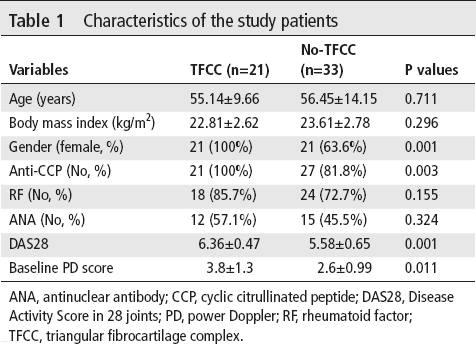

Characteristics of the study patients
ANA, antinuclear antibody; CCP, cyclic citrullinated peptide; DAS28, Disease Activity Score in 28 joints; PD, power Doppler; RF, rheumatoid factor; TFCC, triangular fibrocartilage complex.

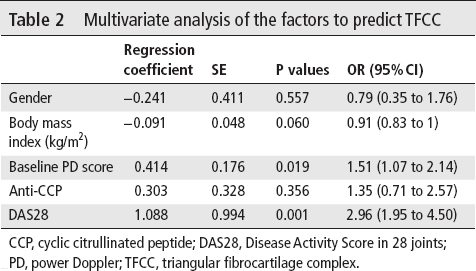

Multivariate analysis of the factors to predict TFCC
CCP, cyclic citrullinated peptide; DAS28, Disease Activity Score in 28 joints; PD, power Doppler; TFCC, triangular fibrocartilage complex.
Discussion
In this study, 21 of the 54 (38.9%) patients developed TFCC tears, which is a very high proportion of the patients with severe RA. However, this may be due to selection bias. In this retrospective review, only those with severe wrist pain underwent MRI examinations. Radiological evaluations of the TFCC included X-ray, CT, or MRI. The TFCC has been reported to have a similar picture to the knee meniscus in MRI,7 and MRI has been proposed to be a non-invasive alternative diagnostic test.8
MRI can provide additional information regarding bone edema, cartilage lesions, neuropathy, and bone and muscle injuries. All of the TFCC tears were proven by MRI in this study, which is a reliable method to confirm TFCC. In this study, higher RA activity including higher DAS28 and higher PD scores were associated with a risk for TFCC tears. In RA, structural joint damage may be caused by synovitis9; therefore, we must focus on synovitis to monitor disease activity. It has been reported that synovitis includes periarticular vasodilatation and synovial proliferation, followed by angiogenesis and invasive behavior of rheumatoid pannus. This may explain the higher proportion of TFCC in patients with severe RA.
Using PD score, we found a relationship between joint inflammation activity and synovial vascularization and this could predict TFCC tears. High-resolution ultrasound had been used to monitor RA. PD allows for the assessment of synovial vascularity and to differentiate between inflamed and non-vascular synovial swelling.
Taylor et al10 evaluated the prognostic value of ultrasound in patients with RA receiving antitumour necrosis factor therapy and found that baseline synovial vascularization detected by PD in joints was correlated with radiographic joint damage over the following year. Apart from ultrasound, erythrocyte sedimentation rate (ESR), C-reactive protein (CRP) and DAS28 can be used for clinical follow-up. However, severe RA is associated with high DAS28, ESR and CRP levels; so when treating this group of patients, it can be difficult to predict radiological progression using these markers alone.
There are several limitations to this study. First, the patients were treated with various disease-modifying antirheumatic drugs (DMARDs), oral corticosteroids and non-steroid anti-inflammatory drugs at variable doses during the study because it was conducted in accordance with daily clinical practice. Therefore, we could not compare the predictive role of PD ultrasound variables based on the prescribed DMARDs because the therapeutic decisions were made without the previous knowledge of the sonographic findings, and we cannot evaluate the potential effect of different DMARDs on PD ultrasound parameters or study the effect of PD ultrasound findings when making therapeutic decisions.
Conclusion
This study found that in patients with RA, the TFCC not only had degenerative change but also inflammation was found; so there was a high proportion of TFCC tears. In addition, the results showed that a higher PD score at wrist joint predicted future TFCC tears in the patients with RA. Therefore, we recommended using PD score in patients with severe RA to monitor possible future TFCC tears.
