Further Considerations on How to Improve Phage Therapy Experimentation,Practice,and Reporting: Pharmacodynamics Perspectives

Abstract

Phage therapy uses bacterial viruses (bacteriophages) to infect and kill targeted pathogens. Approximately one decade ago, I started publishing on how possibly to improve upon phage therapy experimentation, practice, and reporting. Here, I gather and expand upon some of those suggestions. The issues emphasized are (1) that using ratios of antibacterial agents to bacteria is not how dosing is accomplished in the real world, (2) that it can be helpful to not ignore Poisson distributions as a means of either anticipating or characterizing phage therapy success, and (3) how to calculate a concept of ‘inundative phage densities.’ Together, these are issues of phage therapy pharmacodynamics, meaning they are ways of thinking about the potential for phage therapy treatments to be efficacious mostly independent of the details of delivery of phages to targeted bacteria. Much emphasis is placed on working with Poisson distributions to better align phage therapy with other antimicrobial treatments.

Introduction

“…the student of phage should be familiar with the Poisson distribution…” Mark H. Adams,¹ p. 30 (1959)

Biological control is the use of organisms or products of organisms to reduce numbers of nuisance organisms.² One form of biological control involves the application of viruses that target microorganisms.³ By far the most common form of virus-mediated biological control of microorganisms involves the use of bacterial viruses (bacteriophages or phages) to target bacteria,^4–7 and a specific form of such phage-mediated biocontrol of bacteria is described as phage therapy.⁸ This is the application of phages to bodies to treat bacterial infections of those bodies, which is a 100-year-old technology that is being increasingly used clinically.^9,10 Products of phages that can be used for biological control purposes also exist, so-called enzybiotics,^11,12 but are not the emphasis here.

For the past two decades, collaborators and I have been contributing to the phage-mediated biocontrol/phage therapy literature, starting with Gill and Abedon¹³ and Goodridge and Abedon,¹⁴ plus I edited one of the first journal special issues or sections emphasizing phage therapy.¹⁵ Since then, I have focused on phage therapy pharmacology^16–20 and particularly pharmacodynamics.^9,17,21–23 For the latter, what I have considered especially is the theoretical potential for treatment phages to eradicate bacteria once those phages have reached those bacteria in situ.

As part of these efforts, I have published a number of articles and chapters critiquing various approaches that have been used to both report and research phage therapy,^23–28 plus see the appendix of Abedon,²⁹ as well as a companion perspective found also in the current issue (pp. 95–97).

Here, I present a deeper exploration of a subset of these various topics, particularly to throw further light on how to improve phage therapy experimentation, practice, and reporting. Emphasized in particular are the concepts of multiplicity of infection (MOI; see after the heading, “No to dosing just using ratios”), Poisson distributions (see after the heading, “Poisson distributions can be your friends”), and what I call “Inundative phage densities” (IPDs). An MOI is the ratio of phages to bacteria, though these ratios are typically defined by different authors in different ways.

The Poisson distribution is a statistical construct that describes discrete interactions between two entities, such as phages adsorbing to bacteria. These distributions are similar to the familiar normal distribution but are different in that they do not encompass negative values. Described based on Poisson distributions instead are the fraction of instances of zero (e.g., bacteria with no phages adsorbed), one (e.g., bacteria with one phage adsorbed), two (e.g., bacteria with two phages adsorbed), etc. Greatly simplifying calculations, here focus is on the zero instance and how this fraction of bacteria with zero phages adsorbed can be easily calculated or predicted based on MOI information.

The IPD, in turn, describes what phage titer should be required to reduce a bacterial population by a set amount over a defined interval of time and is determined using this Poisson-distribution zero instance (fraction of bacteria with no phages adsorbed). For example, at least 7.7 × 10⁷ phages/mL may be required to achieve a five-log reduction in numbers of unadsorbed bacteria over the course of 1 h, or at least 6.1 × 10⁷ phages/mL to achieve a four-log reduction over the same interval, and so on.

No to Dosing Using Just Ratios

Application of antimicrobial agents generally takes into account the traditional pharmacodynamics concern of killing targeted microbes (primary pharmacodynamics) while avoiding harming everything else (secondary pharmacodynamics). This often is stated in terms of the concept of a therapeutic window, index, or ratio. That is, there is a need to keep antimicrobials as found in situ above minimum effective levels (ideally the lower number) while below minimal harmful levels (ideally the higher number), with the therapeutic window spanning the difference. In either case, “levels” are in concentration units.

Since these concentrations are as found in bodies, the dosing of drugs often is accomplished in per-kilogram body weight units. That measure can be less relevant, however, to the extent that drugs become neither systemic in their distribution nor substantially diluted on dosing. For example are topical-only applications, in which case it is drug concentrations within formulated products along with what amounts have been applied that are of primary importance.

Alternatively, it is difficult to imagine a physician counting, before treatment with an antibiotic, all of the to-be-treated bacteria infecting a body, or a janitor counting all of the to-be-eradicated microbes such as found on a schoolroom floor before mopping with a disinfectant, or a food processing plant counting the numbers of to-be-eliminated individual cells of a bacterial pathogen contaminating a ready-to-eat salad before processing. Indeed, as stated by Chang et al.,³⁰ “In clinical settings, the actual bacterial load of an infection is almost impossible to determine.” And yet, one often sees in the preclinical phage therapy literature dosing that is accomplished primarily in phages-per-targeted-bacterium units, that is, so-called MOIs.^24–26,31 Why is this?

Ratio-based approaches to dosing seem to have snuck into the phage therapy literature at some point in the past few decades and subsequently copied ad nauseam. Use of MOIs can make sense when studying the biology of phages, where it is useful to appreciate how many phages are infecting individual bacteria, but it is non-sensical to imagine that similar precision would be needed or would even be possible in terms of the real-world implementation of phage therapy or phage-mediated biocontrol of bacteria (previous paragraph).

Indeed, this is simply not how phage dosing has generally been undertaken for phage therapy in the clinic nor, for example, how phages should be applied to foods such as to remove contaminating Listeria.^29,32–34 Calculating MOIs in phage therapy, versus basing dosing on solely MOIs, nonetheless can be useful, as I consider after two subsequent headings, “Poisson distributions can be your friends” and “Inundative phage densities.” In the following six sections I discuss a number of issues that can result from the use of MOIs—along with other ratios besides per kilogram body weight—for phage dosing. A summary of some of these issues is shown in Figure 1.

FIG. 1.

A summary of some of the issues that can be associated with use of MOIs, or ratios more generally, to describe dosing for phage therapy. MOI, multiplicity of infection.

Phage titers should be explicitly described

In too many phage therapy or phage-mediated biocontrol publications, there is no explicit mention of phage titers; for review of a sample of these, see the appendix of Ref.²⁹ Those publications instead use only MOIs or other non-per kilogram of body weight ratios to describe dosing. At a minimum, however, phage dosing should be specified in terms of (1) phage titers as found in applied formulations (or at least for non-topical use total numbers of phages or numbers of phages applied per unit mass body weight), (2) volumes of doses (or in some cases grams), and, if more than one treatment phage is used,²³ then (3) the individual dosed titers of each of the phages applied.^25,26 Important as well is (4) reporting numbers of doses and then, in many cases, (5) some sort of estimation or possibly even measurement of what phage concentrations are achieved in situ after dosing.

The latter (5) is because except for especially topical phage application, phages are expected to be diluted upon entrance into bodies or environments.²⁶ Dosing with, for example, 10⁹ plaque-forming units (PFUs) orally³⁵ thus, and for a diversity of reasons, does not mean that you will end up at least initially with 10⁹ PFUs/mL in the intestinal lumen. Alternatively, dosing with 10⁹ PFUs/mL locally, such as to a wound,^36–38 could very well result in roughly 10⁹ PFUs/mL being present, also at least initially.

In any case, the initial phage titer within a body or environment will be the number of phages applied divided by whatever is the volume that is then directly accessible to those phages. As we will see, this in situ phage titer can be highly relevant toward understanding the potential for phage treatments to be efficacious. Crucially, though, it is hard to imagine circumstances in which at least an approximation of this measure, of initial in situ phage titers, would not be available if MOI also can be precisely defined.

Thus, if at all possible, phage dosing should always be explicitly presented as titers—even if MOIs are also being provided, even if with greater prominence—and if possible phage titers after dosing should be described as well, or at least estimated.

Related to the problem of not describing dosing explicitly in terms of phage titers, in some cases authors seem to ambiguously describe the number of bacteria that phages have been applied to.^25,28 This number, however, is the denominator in most MOI calculations, resulting, as a consequence, in an inability for readers to estimate what phage titers have been used based on MOI information if titer information is not also explicitly supplied.

For example, was it the number of bacteria present at the point of bacterial challenge that has been used? Is it instead the number of bacteria that were supplied to initiate the formation of biofilms? Or is it the number of bacteria determined to be present at the point of phage application? If the latter, then how was that number of bacteria determined? I often find myself asking these questions as I attempt to reverse calculate what phage titers have been used in experiments.

Tell us what you mean by MOI

Another issue is just what MOI even means. This problem, I believe, stems in part from when the concept of MOI was first used, a time when phage adsorption and phage infection were only vaguely distinguishable concepts.³⁹ The problem with “infection” is that it can mean different things to different people. For instance, I prefer to define infection as the point at which phage nucleic acid has entered into the bacterial cytoplasm, though it is possible that I am in a minority there. Others clearly do not distinguish phage infection from phage adsorption, or at least do not do so consistently (I probably am guilty of that as well).

Yet others do not seem to distinguish, at least in their prose, phage infection of individual bacteria (however infection there may be defined) from phage infection of bacterial cultures. Thus, “MOI” seems to have diverged over time from what ought to originally have been a multiplicity of adsorbed phages to adsorbable bacteria, as was its original meaning—from Benzer et al., “…the ratio of adsorbed phage particles to bacteria in the culture is named multiplicity of infection,”⁴⁰ p. 113, emphasis theirs—to instead a multiplicity of phage addition (or input) to a culture.⁴¹

Thus, consider this second quotation from Benzer et al.,⁴⁰ from 1950, p. 114, which not only reemphasizes the central role of adsorption in determining MOIs but also indicates that the extent of phage adsorption after application can be uncertain:

Infection is brought about by mixing a suspension of a known number of bacteria with a suspension of a known number of phages. The proportion of these two numbers determines roughly the multiplicity of infection. Since adsorption of phages is never 100%, the actual multiplicity has to be determined for each experiment, for instance by comparison of the plaque count after adsorption with the total virus input.

(for a modern perspective on “is never 100%,” see Storms and Sauvageau⁴²). Now compare that with this from Kasman et al.,⁴¹ from more than 50 years later, p. 5558:

…we propose that the term MOI with regard to bacteriophage be further refined so that MOI_input indicates MOI in its traditional sense, i.e., the simple ratio of input phage to input cells. The designation MOI_actual would indicate the number of phage calculated to be bound per host cell at the end of the adsorption period…

Though MOI_actual was the original definition of MOI, it is instead MOI_input that one often sees or at least seems to see in modern phage therapy publications. Both MOI_actual and MOI_input can be useful measures, however, but in different ways, as considered next. Hence, there can be utility to not confusing the two concepts.

Are phages adsorbing at reasonable rates?

As noted in the second quotation from Benzer et al., accurate determinations of MOI_actual are dependent to a large extent on how effectively phages are adsorbing. In particular, if few phages are adsorbing of those added, then MOI_actual will tend to be somewhat smaller than MOI_input. For many, the key parameter governing these phage adsorption rates is probably thought to be the adsorption rate constant,⁴³ as well as concentrations of targeted bacteria.

Although those certainly can be quite relevant, nevertheless and as this section considers, there in fact can be other factors underlying whether phages are adsorbing at reasonable rates, particularly within a phage therapy context, and these other factors in many cases can be far more relevant in establishing an MOI_actual. This is rather than what can be relatively minor adsorption-rate-constant differences as may be seen between different types of phages, or whether there are sufficient numbers of bacteria around. Both of these would have been the primary concerns leading to the earlier statement by Benzer et al. (“is never 100%”), but they can be of somewhat lesser concern for phage therapy and especially during phage-mediated biocontrol of bacteria such as when treating foods.

For instance, MOI_actual, from the perspective of the bacteria being adsorbed, is “actually” a function of especially both time (t) and phage titers (P).^25,44,45 It is an important function also of concentrations of bacteria (N), but only if bacteria are sufficiently prevalent that adsorptions can substantially reduce numbers of potentially adsorbing free phages. This is rather than MOI_actual being substantially a function of bacterial and phage densities, as tends to be true only when bacterial densities are fairly high.

Thus, although “traditionally” MOI_input has been defined as the ratio of numbers of added phages to receiving bacteria (P/N), under many circumstances MOI_actual instead may be estimated based predominantly on numbers of phages, along with time and volume considerations. At its simplest, particularly given lower bacterial concentrations (N), MOI_actual therefore can be approximated by P × k × t, where k is the noted phage adsorption rate constant.

The previous statement (MOI_actual approximated as Pkt) may seem to contradict the standard understanding that numbers of phage adsorptions are a function of both phage and bacterial densities (approximated as NPkt). It does not actually contradict this idea, however, and this is because for considerations of phage therapy pharmacodynamics it is not the absolute numbers of phage adsorptions (NPkt) that are crucial toward understanding the potential for treatment effectiveness but instead the numbers of phage adsorptions relative to numbers of targeted bacteria (NPkt/N). Thus, although raising concentrations of bacteria should increase the absolute number of adsorptions, at best it will not change the relative number of adsorptions.

What is important in calculating MOI_actual instead is the rate that individual bacteria become phage adsorbed (number of adsorptions relative to number of targeted bacteria), and this is rather than the rate at which populations of bacteria become phage adsorbed (absolute number of adsorptions). As the rate that individual bacteria become phage adsorbed is dependent on phage titers rather than on bacterial numbers (as the latter for this calculation would be equal to 1 regardless of what bacterial concentrations might be, i.e., 1Pkt), this has the effect of decreasing the relevance of bacterial densities in MOI_actual calculations. That is unless, as noted, phage titers become somewhat reduced due to adsorptions, in which case use P(1 − e^−Nkt)/N instead of Pkt to predict MOI_actual.

We can gain a better appreciation of these various statements by calculating bacterial half-lives as functions of phage titers^29,44,46,47 as well as phage half-lives as functions of bacterial densities (Box 1 and Fig. 2).^48–50 Note, though, that the latter (phage half-lives) are not equivalent to the concept from pharmacokinetics of phage half-lives as may be measured upon phage introduction into blood.¹⁸ That is, what is of concern here, at least in part, are half-lives describing rates of loss of free phages as a function solely of rates of phage adsorption to bacteria; however, in pharmacokinetics, phage half-lives can be considered without reference to phage adsorptions of bacteria at all, for example, such as phage survival after application to a body lacking in targeted bacteria.

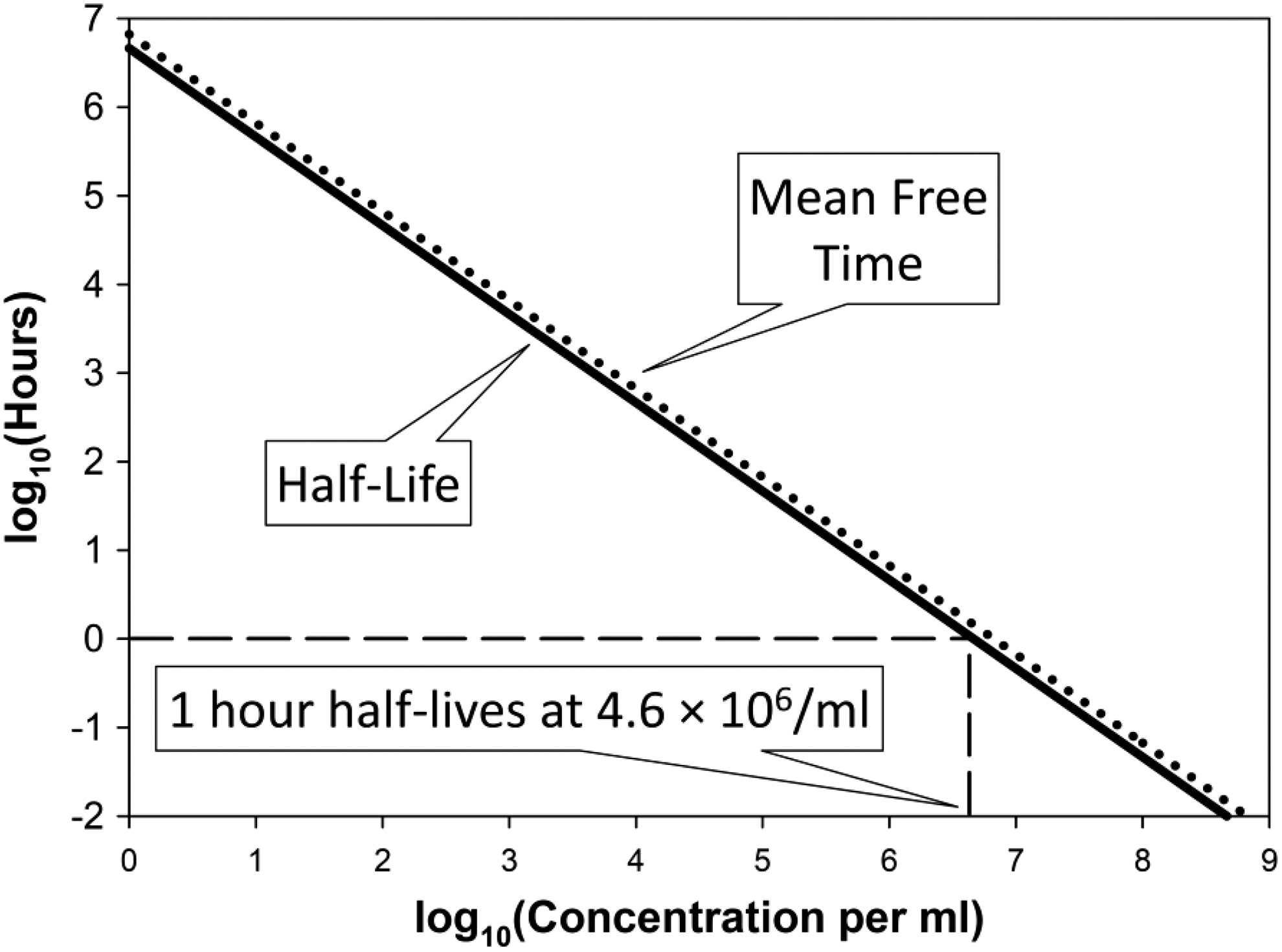

FIG. 2.

Calculating half-lives (in hours) as a function of concentrations. Concentrations are in per milliliter units and would be adsorbable bacteria for phage half-lives or adsorbing phages for bacterial half-lives, assuming in both cases that “lives” (bacteria or free phages) are lost at the point of adsorption. In either case, concentrations of the adsorber (phages for bacterial half-lives) or “adsorbee” (bacteria for phage half-lives) are assumed to remain constant over time, that is, at the values indicated. Shown as well are mean free times ( = 1/kN or 1/kP; dotted line), though as presented these nearly completely coincide with half-lives [ = ln(2)/kN or ln(2)/kP (solid line)]. The adsorption rate constant, k, in any case has been set to 2.5 × 10⁻⁹ mL⁻¹ min⁻¹ from Stent.⁵¹

Box 1.

Calculating Half-Lives with Respect to Phage Adsorption

The not-phage-adsorbed half-life of a bacterium can be approximated as 1/kP, whereas the not-yet-adsorbed half-life of a phage can be approximated as 1/kN. Here, k is the phage adsorption rate constant, P is phage titer, and N is bacterial concentration. I tend to set k to 2.5 × 10⁻⁹ mL⁻¹ min⁻¹.^43,51 Note, though, that actual half-lives in fact are 0.69-fold smaller than this, where 0.69 = −ln(0.5) = ln(2). That is, ln(2)/kP and ln(2)/kN, respectively, are actual half-life calculations whereas the simpler expressions presented at the start of this paragraph technically describe instead mean free times. For our purposes, though, there is little meaningful difference between 1 and 0.69 and therefore between mean free times and phage or bacterial half-lives, both as defined in terms of rates of phage adsorption. Feel free, therefore, to use this mean free time simplification when predicting half-lives on your own.

For concentrations (per mL) of 10⁹, 10⁸, 10⁷, 10⁶, 10⁵, 10⁴, or 10³, we have mean free times of 24 s (10⁹), 4 min (10⁸), 40 min (10⁷), 7 h (10⁶), 3 days (10⁵), 4 weeks (10⁴), and 9 months (10³), respectively (or 17 s, 3 min, 28 min, 5 h, 2 days, 3 weeks, and 6 months, also respectively, for half-lives). Thus, if you have a more or less constant 10⁷ phages per millimeter with phage numbers substantially exceeding bacterial numbers, then half of the co-located, phage-susceptible bacteria will be lost to phage adsorption every half or so hour, again given k equal to 2.5 × 10⁻⁹ mL⁻¹ min⁻¹. Similarly, if you have a constant 10⁷ bacteria per milliliter, then half of the co-located phages to which those bacteria are susceptible will be lost to adsorption also every half or so hour.

In short, neither individual phages will adsorb nor individual bacteria will be adsorbed very quickly given concentrations of phages (determining bacterial survival) or of bacteria (determining free phage persistence) in the range of 10⁶/mL or less. As a result, in terms of calculating MOI_actual, it really does not matter how many bacteria are present, unless you have somewhat more than 10⁶ bacteria per milliliter adsorbing phages, and even then phage numbers might be boosted via either in situ phage replication or multiple phage dosing, resulting at least potentially in phage titers remaining more or less consistent despite their ongoing absorption to bacteria. It also can be foolish to count on phage titers that persist at densities of around 10⁶/mL or fewer to eradicate targeted bacteria (e.g., Fig. 2). Even phage titers persisting in a range of 10⁷/mL we can predict will not result in especially rapid bacterial eradication, with this latter point considered further after the heading of, “Inundative phage densities.”

In addition, if very few bacteria are present, then even a large MOI_input of, say, 1000, might not result in all that rapid loss of bacteria to phage adsorption. For example, starting with 10³ bacteria per milliliter will mean that the associated 10⁶ phages/mL (10³ bacteria × 1000 phages bacteria⁻¹ = 10⁶ phages) will take about a quarter of a day to reduce bacterial numbers only by about one half. Further, successful virion production by phage infection of only 10³ bacteria per milliliter is unlikely to have much of an impact on phage titers across treated environments, though such in situ virion production still might have an impact over very short, for example, sub-millimeter distances, as such short distances between bacteria might be found within cellular arrangements, microcolonies, and/or biofilms.²⁹ In any case, readers cannot have much appreciation of either phage or bacterial half-lives if dosing is indicated in publications as just MOIs and particularly as just MOI_input in combination with ambiguous reporting of target-bacterium concentrations.

How rapidly individual bacteria may be adsorbed by phages is, thus, a function especially of what phage titers have been achieved in situ. The corollary is that without that measure, as too often can be either obscured or outright lacking in phage therapy publications, there literally can be no understanding of how long it should take for targeted bacteria to be adsorbed by treatment phages.

MOI, multiplicity of infection.

In any case, as one can see from the examples provided in Box 1 as well from Figure 2, low densities—whether low titers of phages or low bacterial concentrations—can result in substantial delays in the phage impact on targeted bacteria or targeted bacteria impact on phages. The overall result is that MOI_actual, unlike MOI_input, can be defined under various circumstances, especially, for example, the biological control of relatively low concentrations of bacteria such as those contaminating foods, often without any reference to concentrations of treated bacteria.

Impact of bacterial “clustering”

When bacteria exist as clonal clusters, such as cellular arrangements or microcolonies, then the issue of just what an MOI consists of becomes somewhat more complicated. First is the question of the denominator for MOI_input calculations. Is it individual bacteria or instead individual colony-forming units, where the latter can consist of multiple rather than individual bacteria?

Second is the issue of what multiple phage adsorptions consist of. If those adsorptions are to individual, isolated bacteria, then it will be more than one phage adsorbing per bacterium, but if the bacteria are found instead as clusters, then these adsorptions can be to multiple cells, thus artificially inflating with MOI measured burst sizes, that is, becoming per-cluster phage production rather than per individual bacterium.^16,52

A third issue is the rate that a randomly placed phage may adsorb, which should simultaneously be faster to individual clusters and slower to the individual bacteria making up clusters.^53,54 The latter is due to “shading” of bacteria from adsorption by other bacteria making up the same cluster, though with the clusters themselves still being larger targets for phage adsorption than individual bacteria despite this shading. For example, a cluster of two bacteria can have a target size for adsorption of less than 2 but still greater than 1.

The result of clustering therefore should be positive effects on bacterial survival across a bacterial population—at least over the shorter term, that is, as independent of subsequent phage replication^53,54—and this may be seen even though a given phage should be able to encounter a cluster of bacteria with a higher likelihood than it will encounter an isolated bacterium. See Abedon^29,55,56 for further elaboration on the vulnerability of bacterial clusters to phages and note also that Eriksen et al.⁵³ mistakenly accuse me⁵⁴ of not understanding the subtleties of the above arguments.

Lastly is the issue of clustering, resulting in non-identical likelihoods of exposure of bacteria to phages, with some being “shaded” by other bacteria whereas others are not or less shaded. In this case, then even if clusters are separated into individual bacteria before their enumeration, MOI_actual for some of those bacteria will be higher—those that had been more likely to encounter phages—but lower for others (those less likely to encounter phages).

More bacteria, more effective treatment paradox

If holding MOI_input constant, then the higher the concentration of bacteria being targeted, the more likely that a phage dose will exceed IPD, the latter a concept considered in detail below. The result will be that when more bacteria are present, all else held constant, then those bacteria should display greater susceptibility to a given MOI_input than if fewer bacteria are present. That situation, though, is the opposite of what one should expect in microbiology, where instead it is generally assumed that the presence of fewer microorganisms will be more conducive to their eradication by a given dose of antimicrobial than the presence of greater numbers of microorganisms.²⁵

This contradiction comes about because by holding the ratio of phages to bacteria constant, then more bacteria will imply more phages and, because individual bacteria are adsorbed at a rate that is dependent especially on phage densities (Box 1 and above), the result should be faster loss of individual bacteria to phage adsorption than if one started with fewer bacteria, again if holding MOI_input constant.

Multiplicity of “well” or “area”?

A yet additional issue can be found in association with dosing that is described only on per-well bases (i.e., of microtiter plates) or per-area bases (e.g., such as biofilm areas found on large surfaces).^28,29 Though this is not strictly dosing in terms of MOI_input, it still involves dosing that is based on ratios, and in a manner that can serve to obscure what phage titers actually may be coming into contact with targeted bacteria, unless those titers are explicitly described. Particularly, it is impossible to back-calculate phage titers from these dosing measures if volume information is not also included. Contrast, for example, the per-areas-dosing method described in Chibeu and Balamurugan,³³ where phage titer, in fact, is explicitly indicated.

Poisson Distributions Can Be Your Friends

Unlike MOI_input, important to understanding the potential for phages to therapeutically impact bacteria is the concept of Poisson distributions.^27,31,57 By way of introduction, note this now third quotation from Benzer et al.,⁴⁰ p. 114 (most italics added), also from 1950:

Each bacterium does not receive exactly the same number of infecting phage particles. Because of statistical fluctuations some will have more, some less. This kind of fluctuation is governed by the Poisson Law p(r) = n^re⁻ⁿ/r!, which gives the probability p(r) of r objects being present in a given sample, when the average number of objects per sample is n.

For our purposes, especially n can be set equal to MOI_actual. MOI_actual, in turn, can be viewed as having an upper limit that is equal to MOI_input, the latter if unambiguously defined. That is, should all phages adsorb, and MOI_input be defined as the ratio of phages added to numbers of adsorbable bacteria unequivocally present at the point of phage addition, then MOI_actual can equal MOI_input. Of course, all phages adsorbing is not necessarily guaranteed (Box 1) and we have to assume as well for this equivalency that neither bacterial nor free phage numbers otherwise change over time, except as a consequence of phage adsorptions.

To the extent that these various assumptions are moderately well conformed to, then if we set r to zero—referring to the fraction of bacteria that remain unadsorbed, that is, the zero-adsorbed phage portion of a population of phage-exposed bacteria—then p(r) is equal to simply e⁻ⁿ (Fig. 3) (Somewhat equivalently, though describing instead unadsorbed phages, is e^−Nkt, above.). That equality, p(0) = e⁻ⁿ, as defining the fraction of bacteria that are expected to be phage unadsorbed and thereby presumably still viable, can be extremely useful toward understanding either observed or anticipated outcomes of phage treatments, particularly as performed in vitro.

FIG. 3.

The Poisson distribution and its simplification for r = 0. Shown is how the equation p(0) = e⁻ⁿ is derived, that is, by substituting r with 0, where anything raised to the 0th power is equal to 1 and 0!, that is, zero factorial, is also equal to 1. Shown as well is how the resulting equation can be rearranged to define n, that is, MOI, and particularly n = MOI_actual. This latter equation alternatively can be written as n = ln[1/p(0)]. Most emphasis in this article is on p(0) = e⁻ⁿ and the equivalent n = ln[1/p(0)].

Poisson distributions therefore ought to be viewed by phage therapists as “friends,” and indeed see the quotation of Adams¹ found at the start of this article. Over the next two sections I take a closer look at why exactly that is, along with how to go about applying these calculations.

Some phage treatment predictive power

If, indeed, we are going to use MOI_input as a dosing measure, then we ought to take advantage of using this approach statistically. Thus, for example, if our MOI_input were 10, then we have an expectation—were all added phages to adsorb, no phage-resistant bacteria were present, and with no substantial replication of unadsorbed bacteria taking place—that the fraction of bacteria remaining unadsorbed would be equal to e⁻¹⁰. For example, this could be phage treatment of a relatively mature, in vitro grown bacterial biofilm.^28,36 If we go to Excel^®, this expression would be entered as EXP(−10), which is equal to 4.5 × 10⁻⁵.

Thus, if there were 10 million (10⁷) bacteria present to start with, then at a minimum there would be 450 bacteria left ( = 10⁷ × 4.5 × 10⁻⁵) after such treatment with an MOI_input of 10 phages, or a maximum of 99.995% bacteria killed. This assumes again that all added phages adsorb (i.e., MOI_input = MOI_actual), that there are no phage-resistant bacteria, and that bacteria are not otherwise replicating, but also that other phenomena are not impacting bacterial numbers, such as immune systems, antibiotics, or in situ increases in phage numbers.

Importantly, in terms of predictive power, if somewhat more than 450 bacteria were to remain after phage treatment, then we could assume that not all of the bacteria targeted were either reached or otherwise affected by the treatment phages. Alternatively, or in addition, treated bacteria may have been able to increase their numbers despite phage presence, as could be the case were there bacterial subpopulations that treatment phages were unable to penetrate to (Box 2). In other words, phage treatments, as based on dosed phages alone, we would infer were not as effective as predicted if more than 450 bacteria were to survive given phage application of 10 phages for every treated bacterium.

Box 2.

Let's Analyze Some Data

We can better appreciate the benefits of using Poisson distributions when we apply this framework to real data. Let us consider, for example, the dose-response data provided by Chang et al.³⁰ They delivered phage PEV31 to mouse lungs that had been challenged with 2 × 10⁴ CFU of Pseudomonas aeruginosa 2 h earlier. At the point of phage addition, the total number of CFUs found in the mouse lungs was, on average, a bit less than 10⁵ CFU, which we will call exactly 10⁵ CFU for the sake of being conservative in our MOI_input estimations. Mice were dosed at this point, that is, 2 h after bacterial challenge, with 7.5 × 10⁴, 5 × 10⁶, and 5 × 10⁸ PFUs, which seems to have resulted in somewhat fewer phages in the first group, for example, by about one fewer log as measured in sacrificed mice (which I speculate is due to relatively fixed losses in numbers of phages that are somewhat independent of the amount of phages applied), but about the same number of phages in the second and third groups. That discrepancy makes the next step a little difficult, but let us say nevertheless—for the sake of ease of consideration—that for MOI_input we have values of 0.5, 50, and 5000, respectively. For example, 5 × 10⁸/10⁵ = 5 × 10³ for the latter.

The next step is to calculate the number of bacteria that are expected to still be alive assuming that MOI_actual ≈ MOI_input. From e⁻ⁿ we thus, respectively, have estimated log₁₀ bacterial survival rates of −0.21 (or 0.6 in non-log units), −22 (or 10⁻²², i.e., effectively zero), and basically negative infinity (i.e., also effectively zero). Thus, for the three doses, we expect bacterial survival rates in absolute terms, per lung, of not quite 10⁵ CFU (though close to that number), zero, and zero. Actual numbers of bacteria after 24 h, however, were 2.3 × 10⁸ CFU (for the no-phage control), about 1.1 × 10⁷ CFU for the lowest phage dosage, 6.5 × 10⁶ CFU for the middle phage dosage, and 3.1 × 10⁶ CFU for the highest phage dose. All of these represent increases in the original pulmonary load, that is, by at least one log in each case, and thereby not quite the “significant reduction in pulmonary bacterial load” described in this study's abstract. Thus, rather than decreases in CFUs as estimated quantitatively based on assumptions of Poisson distributions, instead increases in CFUs were observed, as relative to the initial bacterial numbers,²⁸ though slightly smaller increases in CFUs with the higher phage doses.

We can infer from these observations that bacteria were able to replicate in situ despite phage treatments. As an immediate following step, one therefore should be asking whether this ability of bacteria to continue to replicate was due to bacterial evolution of phage resistance. In fact, such evolution was found to be the case, though fractions of bacteria that were phage resistant after 24 h of phage treatment were not 100% but instead 30%, 74%, and 91%, respectively, for the increasing phage doses. What does this suggest? First, clearly the treatment phages in all cases failed to reach and/or otherwise kill all of the targeted bacteria, and those still phage-sensitive bacteria thereby appear to have been able to replicate within what I will guess were phage-free microenvironments (see Appendix A1 for my arguments against phenotypic resistance as an alternative explanation). Those microenvironments likely were found either within the lumens of the treated mouse lungs or instead external to the lumen but still in association with the mouse lungs. Second, the higher phage doses probably reduced the number of phage-free microenvironments, or perhaps reduced the ability of bacteria to reach these phage-free microenvironments, resulting in greater fractions of the bacteria that divided, after the start of phage treatment, being phage resistant when phage doses were higher. The second inference, by the way, could be indicative of just how difficult it may be for phages applied into a lung to reach all of the bacteria infecting that lung.

As a conclusion, clearly in this case the impact of phages on bacterial numbers, at least after 24 or so hours of treatment, was substantially less than would be predicted assuming Poisson distributions of adsorptions by all treatment phages. The differences, furthermore, I suspect were due to inefficiencies in phage penetration to targeted bacteria after dosing into the murine lung. This, I should mention, is not an argument against the validity of Poisson distributions in describing phage adsorption to bacteria, but instead that for Poisson distributions to be valid, then all bacteria found in a phage-targeted population must be equally likely to become phage adsorbed. When Poisson distributions fail to describe experimental results, in other words, that can be telling us something. See Appendix A2, along with Appendix A1, for additional discussion of this study.

CFU, colony-forming units; PFUs, plaque-forming units.

If somewhat fewer than 450 bacteria remained after the phage treatment, then we could assume that something other than the direct action of the dosed phages was reducing the presence of bacteria. For example, this could be the previously noted immune systems, antibiotics, or an increase in the number of phages present over what were dosed due to in situ phage replication. I personally find this sort of Poisson distribution-based information to be quite useful in assessing outcomes of published experiments.^22,29,58

Estimating minimum phage requirements

Using Poisson distributions to forecast the impact of phages on bacterial numbers, we can gain an appreciation of how many phages are needed, at a minimum, to achieve treatment success, assuming, of course, that all bacteria killing is phage related. This again is based on e⁻ⁿ equaling the fraction of bacteria that remain uninfected. Thus, for example, if 10⁹ phages are applied, and there are 10⁸ bacteria targeted, then we will expect that as many as 4500 bacteria could remain alive ( = 10⁸ × 4.5 × 10⁻⁵), and this is even if all bacteria present are phage-sensitive (assuming again no in situ phage replication as well as no in situ bacterial replication). However, this number ought to be compared with at least two other measures.

The first is that it often is conservative to attempt to kill bacteria many fold over,²⁹ for example, aiming for, for example, 10⁻³ surviving bacteria out of that starting 10⁸ rather than the earlier calculated 4.5 × 10⁺³. That 10⁻³ in this example would be a reduction in bacterial numbers of 10¹¹-fold (10⁸/10⁻³), which would require instead an MOI_actual of about 25. This is calculated as ln(10¹¹) or ln(1/10⁻¹¹) or −ln(10⁻¹¹), etc.; that is, e⁻²⁵ = 1.4 × 10⁻¹¹ ≈ 10⁻¹¹. See Figure 4 for illustration.

FIG. 4.

Impact of MOI_actual on bacterial survival. Assumed is that neither bacteria nor phages are replicating and that bacterial survival is entirely a function of remaining not phage adsorbed. Note that the number of bacteria surviving will be greater to the extent that MOI_input is employed rather than MOI_actual and phage adsorption is less than 100%. The y access is calculated simply as e⁻ⁿ where n is MOI_actual. These calculations otherwise are independent of phage or bacterial densities, as well as the phage adsorption rate constant and time, except to the extent that those values contribute to the magnitude of the indicated MOI_actual.

The second comparison should be to the number of bacteria remaining, after phage treatment, that can endure phage exposure. That is, the number of phage-resistant bacteria, as those bacteria could very well dominate among the bacteria surviving. Thus, if an excess of bacteria remain after phage application—over what may be predicted based on Poisson distributions—then it could be (1) that just resistant or mostly just resistant bacteria have survived (Box 2), (2) that not all bacteria could be reached by dosed phages (as considered as well in Box 2 and see also Schrag and Mittler⁵⁹), or (3) that there was inadequate phage adsorption due, for example, to not providing sufficient time (Box 1).

Especially the issue of providing sufficient time, in combination with sufficient numbers of dosed phages, can be considered using a concept that I call inundative phage densities (IPDs).

Inundative Phage Densities

Simply because I believe that such a concept is useful, I have defined a quantity that I call an IPD. This is sufficient phage titers to result in the removal of some specified numbers of bacteria over some reasonable span of time.^{18,27,54,60–62} If we can determine how many bacteria are present initially, how many bacteria we want to be present after treatments (at least in terms of remaining phage-sensitive bacteria), and how long we want treatments to last—assuming that phage numbers do not increase over time and rates of bacterial replication are slow relative to rates of phage impact—then it is possible to define an IPD based on these values (Fig. 5), plus considerations of total treated volumes and the phage adsorption-rate constant (Box 3).

FIG. 5.

Defining a minimum inundative phage density (IPD_min). Shown is the simpler of the two formulae (Box 3), which assumes that titers of free phages remain constant over time despite adsorbing bacteria (alternatively, see the second equation, also in Box 3). This is a minimum number because it assumes ideal circumstances, such as that all bacteria are equally accessible to all phages. Variables refer to environmental volume (V), starting concentrations of bacteria (N₀, and which in combination with volume gives the starting number of bacteria), ending number of unadsorbed bacteria (N_F), the phage adsorption rate constant (k), and the total time over which phage adsorption occurs (t).

Box 3.

Calculating an Inundative Phage Density or Inundative Phage Number

If we assume a constant phage density, then a minimum inundative phage density (IPD_min) can be defined as,

I P D_{m i n} = ln (V \cdot N_{0} ∕ N_{F}) ∕ k t,

(1)

where N₀ is the starting concentration of bacteria, V is the volume in which phages are impacting bacteria, N_F is the end number of bacteria (not concentration, but still as found over the entire volume), k is the adsorption rate constant, and t is the time over which you want this reduction in numbers of bacteria to occur. Note that the equation alternatively could be written as IPD_min = −ln(N_F/V∙N₀)/kt (i.e., see Fig. 3). This is based on the minimum bactericidal concentration, of phages, calculation from Abedon.¹⁷

If there were 10⁶ bacteria per milliliter in a 10 mL volume, then that would be 10⁷ bacteria in total. If the goal is to reduce that number down to, for example, a total of 10 bacteria over 100 min, then this would require an MOI_actual of 13.8, as is equal to ln(10⁷/10) = ln(V∙N₀/N_F). Assuming a constant phage titer, that would require, per Equation (1), about 5.5 × 10⁷ phages/mL = IPD_min with k here defined, as in Box 1, as 2.5 × 10⁻⁹ mL⁻¹ min⁻¹. That is, 5.5 × 10⁷ = 13.8/(2.5 × 10⁻⁹ × 100).

The Equation (1) calculation can become less realistic at higher bacterial densities, as rates of phage adsorption increase to a point that phage numbers are substantially reduced over short time frames (again, as considered in Box 1). This in essence is the opposite of the problem of how MO_Iinput increasingly fails to approximate MOI_actual at increasingly lower concentrations of target bacteria.²⁵ That is, here it is associated with substantial phage adsorption rather than too little. A calculation allowing for phage adsorption, holding numbers of adsorbable bacteria constant over time, is however easily generated as a modification of Equation (1). Thus,

which for the same numbers as above is equal instead to 6.2 × 10⁷ = IPD_min, or not much different in this example from the calculated 5.5 × 10⁷ phages/mL delivered by Equation (1). Again, see Abedon¹⁷ for more details.

If we change N₀ to 10⁸ bacteria per milliliter, then the Equation (2) calculated IPD_min instead would be 1.8 × 10⁹ phages/mL. By contrast, by Equation (1) the IPD_min value for N₀ = 10⁸ bacteria per milliliter would be a presumably unrealistically low 7.4 × 10⁷ phages/mL, with the difference owing to the assumption for Equation (1) that phage numbers do not decline despite ongoing phage adsorption to bacteria. That is, with Equation (1) free phage adsorption with free phage replacement is assumed whereas with Equation (2) free phage numbers do decline with phage adsorption (still assumed, though, is no phage replication nor replication of unadsorbed bacteria).

Unfortunately, it is difficult to modify these calculations to consider spatially structured environments such as biofilms. In part, this is because volumes overlying biofilms can range from very tiny to effectively infinite,²⁸ which renders the “density” aspect of IPD irrelevant. What becomes relevant instead are total numbers of phages (P_T or IPN, as considered below), total numbers of targeted bacteria (N_T), the extent to which the added phages adsorb, and the degree to which phages can reach individual bacteria. Notwithstanding these issues, and assuming that all phages can reach and then adsorb all bacteria easily, then we can revert to considerations of straight Poisson distributions, that is, as covered in the main text (after the heading, “Poisson can be your friends”). Thus, reducing total numbers of biofilm bacteria from 10⁷ down to 10 would again require an MOI_actual of 13.8 (see, e.g., Fig. 4), which would require a total of 1.38 × 10⁸ phages (i.e., 13.8 × 10⁷), or what instead could be, for example, 1.38 × 10⁷ phages/mL distributed over 10 mL.

The latter, a minimum inundative phage number (IPN_min), is smaller than that calculated using Equation (2), which instead is 10 mL × 6.2 × 10⁷ phages/mL. This is because all of the phages in the calculation yielding IPN_min = 1.38 × 10⁸ phages, where that calculation basically is,

I P N_{m i n} = l n (N_{T} ∕ N_{F}) \cdot N_{T},

(3)

are assumed to adsorb. With Equation (2), by contrast, only 22% of phages will have adsorbed over 100 min, and 1.38/0.22 with rounding error is about 6.2. This is 1.38 × 10⁸ phages/mL for IPN_min distributed over 10 mL versus 6.2 × 10⁸ phages/mL for IPD_min also distributed over 10 mL via the Equation (2) calculation. Of course, if a lower fraction of phages adsorb in either example, then higher phage titers will be required to achieve the same amount of killing of bacteria as based on adsorption by the originally dosed phages.

In summary, there exists overall a phage density (a titer, i.e., an IPD) or instead an absolute number of phages (an IPN) that are minimally required to reduce some starting number of bacteria (N_T = V∙N₀) to some desired ending or final number of bacteria (N_F), which in the case of IPD is over some desired interval of time (t). This minimum phage quantity in many cases may be relatively easily approximated. Generally, especially as seen using Equations (2) and (3), the number of phages required (IPD or IPN) also will be somewhat in excess of the number of bacteria targeted, and this is both because it takes time for phages to adsorb and, statistically, many more phage adsorptions are required to infect most or all bacteria than there are bacteria, that is, due to phage adsorptions occurring over Poisson distributions. Note, by the way, that as with Equation (3), if we set t to infinity with Equation (2), then we can rearrange such that the fraction of bacteria not adsorbed (N_F/N_T or N_F/V∙N₀) is equal to e⁻ⁿ, where n is MOI_actual, that is, as equivalent to IPN_min/N₀ or IPD_min/N₀. This explicitly is the calculation considered in Box 2, where 100% phage adsorption is implicitly assumed. That is, all of these calculations are based on an assumption that phage populations adsorb bacterial populations Poissonally.

IPD, inundative phage density; IPN, inundative phage number.

Of note, however, it is not unusual for reductions in numbers of bacteria resulting from phage treatments to not be precisely reported in publications. For example, see again the appendix of Abedon.²⁹

Why and why not bother to calculate IPDs

The importance of calculating an IPD (or number, IPN; Box 3) is twofold. First, one should be able to predict whether a given phage dose should be adequate for a given phage therapy protocol, particularly absent any in situ phage replication and not just assuming 100% phage adsorption. Providing fewer phages than this dose thus will guarantee that more bacteria killing will need to occur in situ—to reach desired levels of bacterial eradication—than would be supplied over the allotted time by the applied phage dose alone.

Second, one can determine whether experimental results meet expectations. If results exceed calculated predictions, then, as suggested earlier, one can be fairly certain that more bacteria killing is occurring than could have been directly mediated by the original phage dose, for example, as a result of the occurrence of phage replication in situ or immune-system action, also in situ. It is, of course, also possible to recognize when a given treatment has failed to meet expectations (Box 2).

A problem, though, is that one does not necessarily know all of the variables required to make any of these calculations, particularly during real-world phage applications. What phage titers then might be inherently inundative? A reasonable general answer may be simply 10⁸ phages/mL or more,¹⁹ with more needed if phage affinity for bacteria is low (such as in situ), bacteria are relatively difficult for phages to reach (e.g., Box 2), phages are relatively easily inactivated in situ other than due to virion adsorption to bacteria, or if one simply wants to be conservative in one's dosing.

Dosing to IPDs, or with inundative phage numbers (IPNs) (Box 3), should in any case be particularly necessary to the extent that in situ phage population growth up to those numbers cannot be counted upon. Even more generally, the point of this section, and previous sections starting with “Poisson distributions can be your friends,” is that though models for phage therapy can be highly complex,^63–66 it is still possible to gain useful information from relatively simple calculations.

Killing titers

A killing titer is the concentration of phages necessary, assuming full adsorption, to reduce a not-growing bacterial population to some specific fraction of unadsorbed cells.⁶⁷ This is something that I have previously extolled as relevant to phage therapy for its predictive value.^{26,27,29,31,57,68,69} Killing titer calculations are also based on Poisson distributions, but working from the fraction of bacteria surviving ( = e⁻ⁿ) to the responsible phage titer instead of starting with a given phage titer and then calculating expected bacterial survival ( = e⁻ⁿ). Thus, when I have pointed out the utility of killing titer calculations elsewhere, this has been just a different way of stating that Poisson distributions again can be used predictively in a phage therapy context.

Note, though not emphasized here, that the rest of the Poisson distribution, besides just the zero-adsorption calculation, can be relevant as well to the study of phage biology (Box 4).^31,57

Box 4.

Why Care About the Rest of the Poisson Distribution?

Emphasis here has been on calculating the fraction of bacteria expected to be unadsorbed by bacteria, that is, with r = 0 (Fig. 3). The calculation of p(1), or p(2), etc., however, can also be relevant to experiments with phages. For example, what if there is a desire to keep multiple phage adsorptions to a single bacterium minimal? This can be relevant when performing one-step growth experiments,^43,70 where ideally few multiple-phage adsorptions will be occurring. Using Excel^®, the relevant function is POISSON.DIST(r,n,False).⁵⁷ Thus, for MOI_actual = 1, the fraction of bacteria adsorbed by only a single phage is just 0.37, whereas the fraction adsorbed by more than one phage is expected to be 0.26, that is, about one-quarter of the bacteria. This, though, is actually about 42% of the phage-adsorbed bacteria that are multiply phage adsorbed! The fraction of bacteria that are expected to be multiply adsorbed, however, drops to less than 1% (0.005) with an MOI_actual = 0.1, but still this is 5% of the bacteria that are phage adsorbed. It is only on dropping to an even lower MOI_actual, such as of 0.01, that the fraction of phage-infected bacteria that are multiply adsorbed drops to less than 1%, that is, 0.005 in that case. Of course, crucial to such calculations are that one considers only those phages that have succeeded in adsorbing, hence Benzer et al.'s admonishment quoted earlier (the second quotation, i.e., from their p. 114, i.e., “is never 100%”).⁴⁰

Note that the fraction of bacteria that are phage adsorbed is equal to 1 − POISSON.DIST(0,n,False). The fraction of bacteria that have been adsorbed by more than one phage is equal instead to 1 − POISSON.DIST(0,n,False) − POISSON.DIST(1,n,False), where n in both cases again is equal to MOI_actual. To calculate the fraction of phage-adsorbed bacteria that are expected to be multiply adsorbed, I simply divided the second expression by the first expression.

Clearance thresholds are not IPDs

A clearance threshold,^71,72 which also can be labeled as a minimum inundative dose, minimum inundatory dose, or inundation threshold,^71–73 is that constant phage titer necessary to prevent the growth of a bacterial population. This prevention specifically occurs via phages adsorbing newly arising bacteria as fast as those new bacteria appear in the course of cell division. This threshold also could be described as sufficient to achieve “Control” of bacterial growth.²⁸ Exceeding that number of phages, again holding phage concentrations constant, should be sufficient to eliminate a bacterial population. Barely exceeding a clearance threshold, however, is unlikely to achieve relatively rapid or timely bacterial eradication.

An IPD instead, and by definition, will achieve—whatever the associated titer might be—relatively rapid or at least timely bacterial eradication, that is, by adsorbing and then killing bacteria much faster than those bacteria can replicate. IPDs thus represent sufficiently bactericidal phage concentrations and this is rather than phage concentrations that are not quite sufficient to eradicate targeted bacteria, that is, as represented instead by clearance thresholds.¹⁷ In other words—though not directly comparable as one assumes a lack of bacterial division while the other requires bacterial division—in terms of the phage titers involved, IPDs as a phage dosing strategy against a given bacterial population can involve somewhat greater titers than clearance thresholds.

Conclusions

My background is neither in clinical nor even preclinical phage therapy, but rather in the study of phage evolutionary and organismal ecologies.^74–79 I will strongly suggest, though, that a combined knowledge of phage biology and phage ecology can go a long way toward appreciating the subtleties of phage therapy pharmacodynamics,^16,17 particularly as suggested by the results presented in many phage therapy-type publications.

From becoming familiar with a substantial number of these publications,^{9,29,36,62,80} my general observations have been that in many cases the presented research could benefit from a better understanding and documentation of phage therapy pharmacodynamics, while the readers of these studies could benefit from the inclusion of fuller descriptions of the methods employed. Particularly for the latter, this is in terms of what phage titers have been both applied and achieved.
