Abstract

Background:

Developing new (triggered) or improving existing inhaler systems for (preterm) neonates and adults requires test benches for the determination of aerosol output and aerosol output rate. Furthermore, real-time measurement of aerosol output and output rate is advantageous with respect to both development costs and development time, especially when using liquid or humidified dry aerosols. The current standard test procedures following ISO 27427, however, are time-consuming. Moreover, these procedures are not applicable to inhalers for preterm neonates, due to their high breathing frequency, low tidal volume, and the dead space in commercially available test benches. We are describing a novel test bench approach combining gravimetric and optical detection to facilitate real-time measurement of aerosol output, aerosol output rate, and aerosol liquid water content in inhalation systems for (preterm) neonates and adults.

Methods:

We integrated a laser-based optical measurement unit into test benches for inhalers for adults and preterm neonates, based on ISO 27427. Breathing was simulated by a sine pump for adults and by a test lung for preterm neonates on continuous positive airway pressure respiratory support. Dry or humidified aerosol was released by a continuous powder aerosolizer system. Simultaneous particle measurement by gravimetry (filter) and light extinction (laser system) was performed using the novel test benches.

Results:

We developed test benches for inhalers for (preterm) neonates and adults in accordance with ISO 27427, combining optical and gravimetric particle detection. Optical and gravimetric measurements conducted with these test benches were highly correlated, thus enabling real-time measurement of aerosol output and output rate. In addition, our test benches are suitable to determine the aerosol water content in situ directly at the patient interface.

Conclusion:

This novel test bench allows characterization of inhalation devices in real time and therefore will accelerate optimization and development cycles. Conformity with ISO 27427 allows its use in various applications.

Introduction

The development and testing of new inhalers or improvement of existing systems requires test benches to measure, among others, aerosol output and aerosol output rate.^(1–8) Furthermore, real-time measurement of aerosol output and aerosol output rate would be advantageous with respect to both development costs and time, especially when using liquid or humidified aerosols.

The standard procedure to measure the aerosol output and aerosol output rate of nebulizers is described in ISO 27427:2013(E), annex C.⁽⁹⁾ For testing of nebulizers, this standard recommends the aerosolization of sodium fluoride in a known concentration and sampling of the aerosol on a filter using a sine pump connected in series. According to annex C, the sine pump shall simulate the respiratory flow of an adult with a tidal volume of 500 mL, an inhalation–exhalation ratio of 1:1, and a breathing frequency of 15 breaths/min. A filter is to be installed between the nebulizer and sine pump, collecting aerosol, which is chemically analyzed to determine the aerosol output and aerosol output rate. The device dead space between patient interface (e.g., a mouthpiece for adults or a nasal prong for preterm neonates) and the filter surface must not exceed 10% of the tidal volume. Otherwise, findings will be unacceptably reduced, as aerosol will fail to deposit on the filter.⁽⁹⁾

This standard procedure using adult breathing characteristics, as described above, takes significant time to determine the aerosol output and aerosol output rate due to elaborate chemical analysis or lengthy filter conditioning for gravimetric measurements.⁽⁹⁾

Furthermore, the aerosol liquid water content (ALWC) resulting, for example, from water absorption by particles or condensation of water on the surface of particles normally cannot be determined quantitatively without altering it, for example, by sampling and subsequent chemical analysis. The ALWC has an impact on optical properties (light extinction and light scattering), physical properties (particle size), and possibly chemical properties, making it an important parameter. Considering primarily dry particles, the ALWC mainly depends on hygroscopicity of the aerosol and relative ambient humidity.^(10–14) Due to the change in particle size as a function of the ALWC, it can have a significant influence on particle deposition in the respiratory tract.^(15–18)

Often, a reduction of treatment time by maximizing inhaled concentrations is desirable. From a practical point of view, it is therefore desirable to minimize the number of test filters and to maximize filter loads. This is achieved by keeping the area of the collection filter as large as possible, so that the filter will not clog prematurely and will not require frequent replacements during testing.

This requirement, however, is in conflict with the stipulated dead volume smaller than 10% of the tidal volume. Therefore, standard procedures cannot be used for characterization especially of inhalers for preterm neonates, which require high breathing rates of up to 60 breaths/min, low tidal volumes of often less than 6 mL/kg, and, following ISO 27427, dead spaces of less than 0.6 mL/kg.^(19–21)

Pohlmann and Helwich⁽²²⁾ have described a new method based on the standard process mentioned above to overcome this contradiction. This new method uses a closed flow circuit by which the dead space is reduced tremendously. Thus, a filter with high collection capacity can be used, which is advantageous for inhaler test benches for preterm neonates. However, even applying this new method, it still takes significant time to measure the aerosol output and aerosol output rate.

To overcome these time limitations, we see the necessity to develop a test bench that measures the aerosol output and aerosol output rate in real time using light extinction. Since the ALWC has a major impact on aerosol properties, a method to measure the ALWC must be included. It is known that under well-defined constant conditions, as during measurement of aerosol output and aerosol output rate, a particular inhaler delivers an aerosol whose particle size distribution does not change between measurements. Therefore, at sufficiently low concentrations, one can expect a linear correlation between light extinction and aerosol concentration, suitable for real-time measurement of aerosol concentration, and hence, assuming special framework conditions, of aerosol output and aerosol output rate.^(23–25)

In the following, we describe two novel test benches for measuring aerosol output, output rate, and ALWC in real time. Our results have shown that measurements are performed accurately, both for adult and preterm neonate breathing characteristics. We have further shown, for the first time, that it is possible to measure ALWC in situ directly at the patient interface.

Materials and Methods

Aerosolizer system

An aerosolizer system was used, consisting of a continuous dry-powder aerosolizer (CPA) in combination with a humidification chamber, which additionally humidifies and heats the aerosol.⁽²⁶⁾ This system is able to administer high concentrations of recombinant surfactant protein-C by a continuous aerosol flow of 0.84 L/min and releases humidified surfactant particles with a mass median diameter in the range of 3–3.5 μm.^(27,28)

Test bench for preterm neonate inhalers

The original preterm neonate inhaler test bench has been described by Pohlmann and Helwich.⁽²²⁾

In this approach, the rotary pump circulates a volume flow between the end of the patient interface and the gravimetric filter in the circuit. This results in a closed system between the end of the patient interface and the filter. Consequently, the particles cannot pass over the end of the patient interface. However, as soon as the test lung simulates an inspiration, the particles are sucked out of the patient interface and collected on the gravimetric filter. During exhalation, the remaining particles in the area of the patient interface are removed. Due to this arrangement, the device dead space no longer needs to be considered between the patient interface and the filter, but only between the beginning and the end of the patient interface. This allows an application for the breathing parameters of preterm neonates. We equipped this original test bench with additional detection units for measurement of inhaled and non-inhaled aerosol (Fig. 1), as described in the patent WO/2020-007858 A1.⁽²⁹⁾

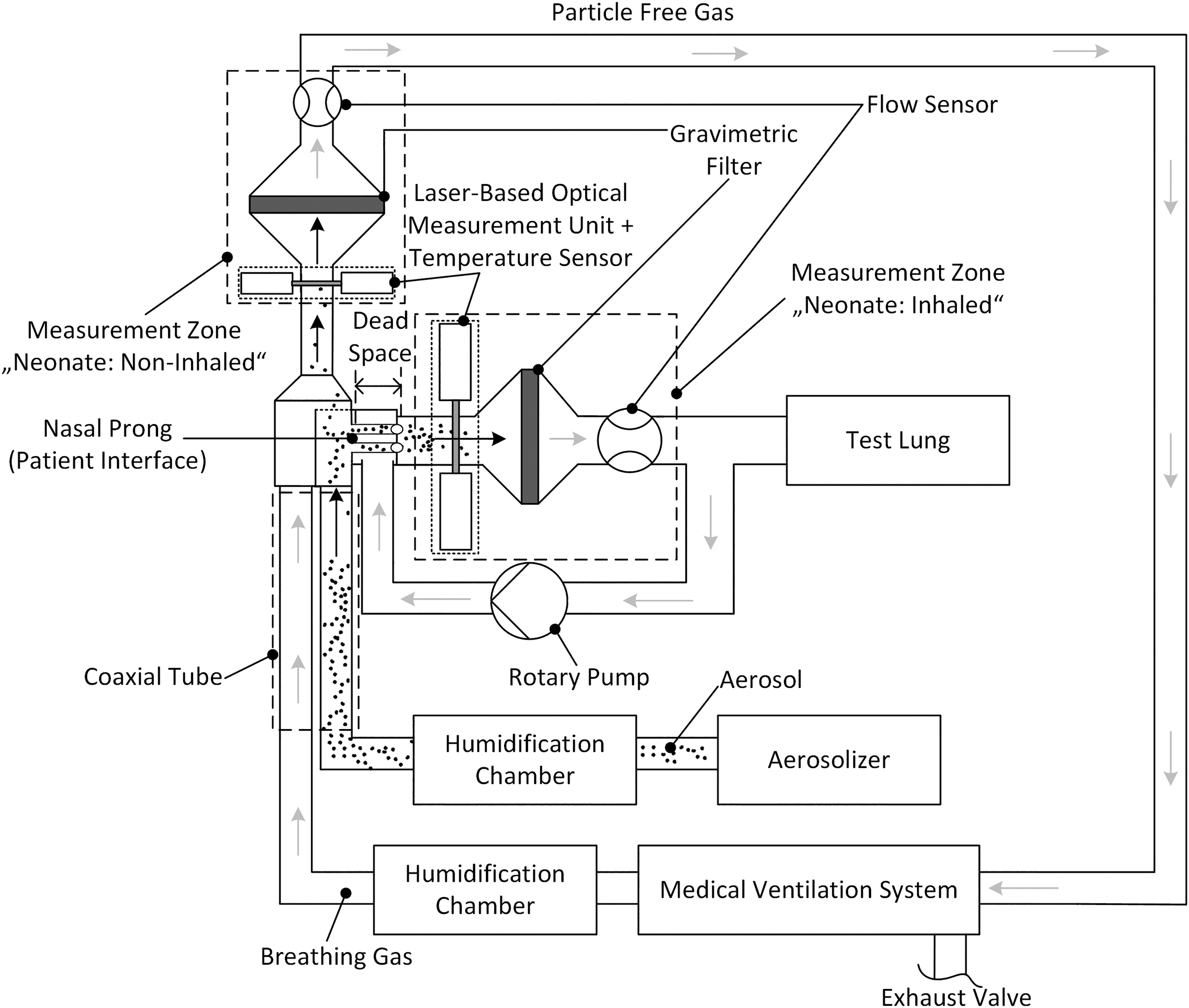

FIG. 1.

Preterm neonate inhaler test bench with two integrated laser-based optical measurement units upstream of gravimetric filters, making use of simulated preterm neonate breathing characteristics. This test bench is based on ISO 27427 and two patents.

The test bench parameters were derived on a spontaneously breathing preterm neonate [2000 g, <38 weeks gestational age⁽³⁰⁾] under NCPAP (nasal continuous positive airway pressure) respiratory support. Preterm neonate breathing characteristics were simulated by a test lung consisting of a silicone bellow and shaft, operated by a linear motor (PS02-23Sx80F-HP-K; NTI AG LinMot & MagSpring, Spreitenbach, Switzerland). The test lung simulated the breathing using an inhalation–exhalation ratio (I:E) of 0.39:0.61, 51 breaths/min, and a tidal volume of 12.3 mL.^(20,31–33) The measurement cycle had a duration of about 144 seconds, resulting in a total inhalation volume of about 1.5 L. A nasal prong was used as patient interface (Fig. 1), but a nasal mask is also feasible.⁽³⁴⁾ The medical ventilation circuit was utilized by a Babylog^® 8000 plus (Drägerwerk AG & Co. KGaA, Lübeck, Germany) and operated in CPAP (continuous positive airway pressure) mode with a positive end expiratory pressure of 5 mbar and a breathing gas flow of 6 L/min. Both the aerosol and breathing gas were heated (45°C) and humidified (100% r.H) in a humidification chamber. They were then conditioned in a subsequent coaxial tube, where they were cooled down to be at 36.5°C at the patient interface, leading to supersaturation and subsequent condensation of water onto the particles (100% r.H). Temperatures inside the laser-based optical measurement units were measured (Temperature Transmitter Red-MU-PT100-44P; Meilhaus Electronic GmbH, Alling, Germany) to calculate local absolute humidities H_optic.

During a simulated inhalation, particles were sucked through the nasal prong into the measurement zone “neonate: inhaled” (Fig. 1). Once there, these “inhaled aerosol” particles were first measured by the laser-based optical measurement unit (light extinction), followed by particle sampling on the filter. Particles not sucked in were guided toward the measurement zone “neonate: non-inhaled” during a simulated exhalation. These “non-inhaled particles” were then measured by the second laser-based optical measurement unit (light extinction), followed by sampling of these particles on a second filter, resulting in particle-free gas that was conducted back to the medical ventilation system.

The total flows $\dot{V}$ (t) in the measurement zone “neonate: inhaled” and $\dot{V}$ (t) in the measurement zone “neonate: non-inhaled” were measured with a flow sensor (Mass Flow Meter SFM3000; Sensirion AG, Staefa ZH, Switzerland). This parameter was also used in older measurements under the same flow conditions.

Test bench for common adult inhalers

In a modified test bench for inhalers for adults, an additional laser-based optical measurement unit for light extinction measurements was integrated (Fig. 2). The adult breathing characteristics in this test bench were simulated using a sine pump (BRS 1000; Copley Scientific, Nottingham, United Kingdom) with an I:E of 1:1, 15 bmp, and a tidal volume of 500 mL. Each measurement cycle comprised two breathing cycles with a total duration of 8 seconds. A standard mouthpiece was used as patient interface. Dry or humidified aerosol was delivered to the patient interface. Heated and humidified aerosol⁽²⁶⁾ was delivered to the patient interface at 100% relative humidity (r.H.) and 32°C. The temperature inside the optical measurement unit was set to the slightly higher value of 32.9°C.

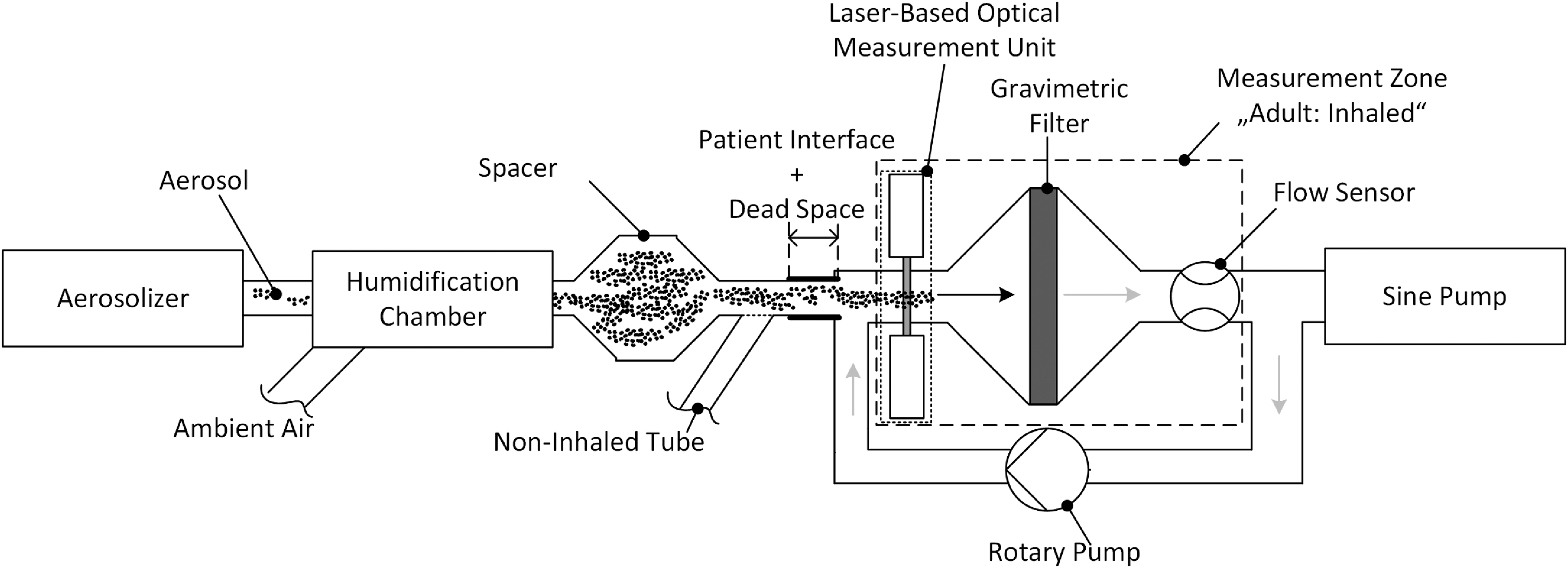

FIG. 2.

Adult inhaler test bench with an integrated laser-based optical measurement unit added upstream of a gravimetric filter, simulating adult breathing characteristics. This test bench is based on ISO 27427 and two patents.

As soon as the sine pump started a simulated inhalation, the aerosol was sucked into the measurement zone “adult: inhaled.” These “inhaled” particles were first detected by the laser-based optical measurement unit (light extinction), followed by sampling on the filter. During a simulated exhalation, the particles remaining in the patient interface were drained out of the patient interface through the “non-inhaled tube” utilizing special valves. The total flow $\dot{V}$ (t) in the measurement zone “adult: inhaled” was measured with a flow sensor (Mass Flow Meter SFM3000; Sensirion AG).

Determination of dry mass

For the determination of dry particle mass, filters (glass fibers, 80 mm diameter) were conditioned before and after sampling. For conditioning, the filters were first dried at a temperature of 60°C for 6 hours, then acclimatized for 24 hours at a constant relative humidity of 30% and weighed three times by a measuring robot developed at Fraunhofer ITEM (weighing accuracy ±0.04 mg). The difference between initial and final weight is the mass of dried particles collected on the filter.

Laser-based optical measurement units

For optical particle measurement, we used light extinction by aerosol particles. The optical measurements were performed by a laser-based optical measurement unit. Each unit made use of an infrared diode laser system with detector (Laser Beam Sensor LA-511; Panasonic Electric Works Europe AG, Ottobrunn, Germany), facilitating a beam height of 15 mm, a beam width of ≤1 mm, and a wavelength of 780 nm. The advantage of this geometry is its large detection cross section with a high measurement sensitivity and dynamic range. To ensure that the laser beam is not refracted as it passes through the optical windows, it enters and exits vertically (Fig. 3).

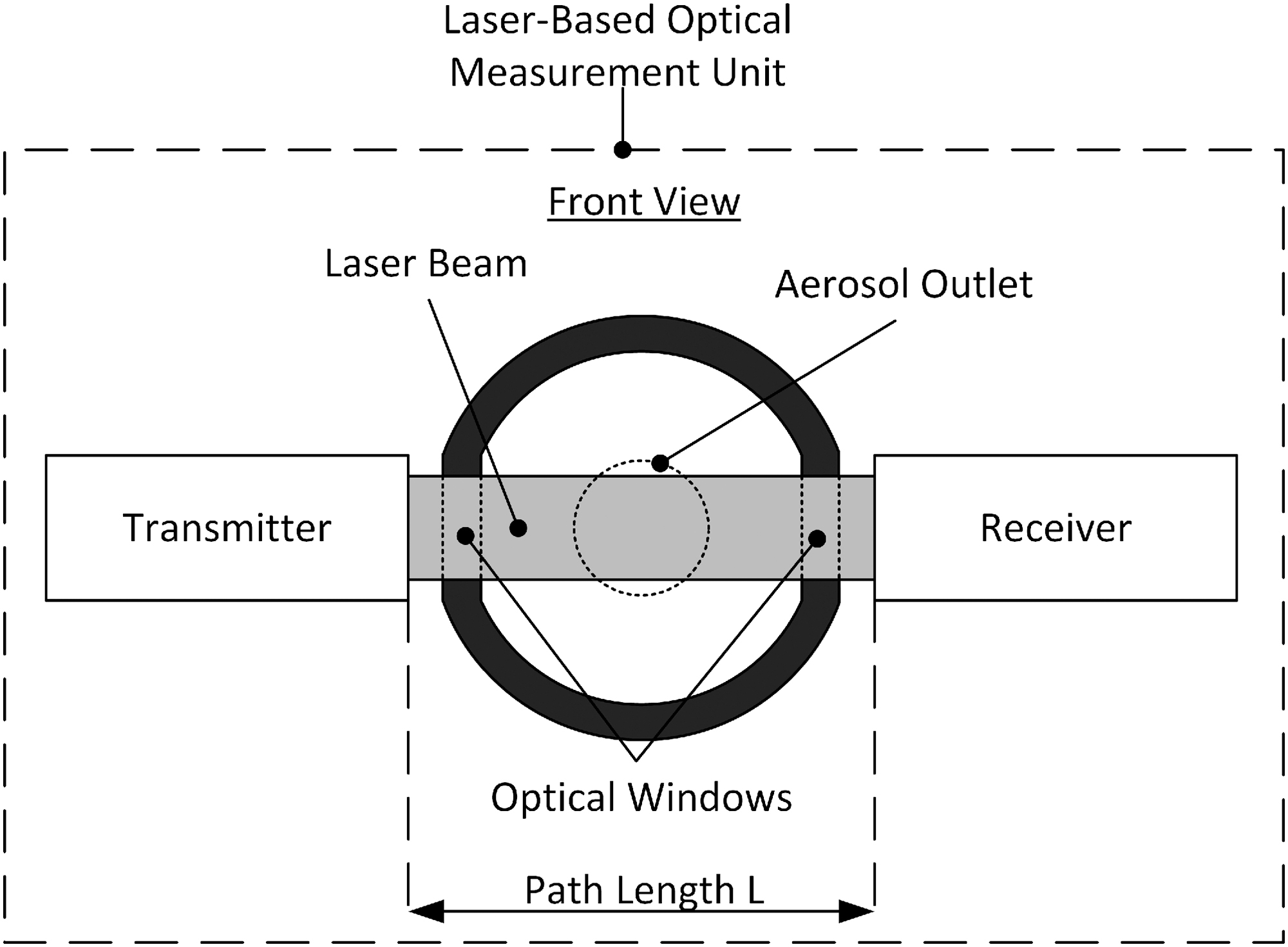

FIG. 3.

Front view of the laser-based optical measurement unit. The optical windows were perpendicular to the laser beam to prevent refraction. The geometry of the laser beam allows a large detection cross section.

Polymethyl methacrylate was utilized for the optical window, due to its high transmittance of about 92% in the range of the laser beam wavelength of 780 nm. The path length (L) between the transmitter and receiver was 27.5 mm for the adult inhaler test bench and 32 mm for the preterm neonate inhaler test bench.

Determination of aerosol output and aerosol output rate by optical measurement

The output v(t) measured with the laser system is as follows: $v (t) = e_{s y s} I (t),$ (1)

where e_sys is a constant describing the transfer function of the optical measurement system and I(t) is the light incident on the detector with light attenuation by the aerosol in the optical path at time t. The description of incident light following Lambert Beer's law is as follows: $I (t) = I_{0} \times e^{- σ_{e} \times c (t) \times L},$ (2)

where I₀ is the light incident on the detector without aerosol, L is the optical path length, σ_e the (substance-dependent) extinction coefficient, and c(t) the (aerosol) concentration averaged over the optical cross section. Combining σ_e and L in one constant k results in the following: $c (t) = \frac{- 1 n (\frac{I (t)}{I_{0}})}{k}$ (3)

The mass m sampled on the filter downstream of the laser system during one measurement cycle depends on the aerosol concentration c(t) passing through the measurement volume and the volume sucked through the filter. V is the total volume of aerosol passing through the measurement zone during time t = t₀ (start of measurement cycle) to t = t_end (end of measurement cycle). The volume V depends on the total flow $\dot{V}$ (t) circulating in the corresponding measurement zone. Hence, the total mass m_total passing through the respective measurement zone and being sampled on the filter during one measurement cycle can be expressed as follows: $\begin{matrix} m_{t o t a l} & = \int_{t_{0}}^{t_{e n d}} ṁ (t) d t = \int_{t_{0}}^{t_{e n d}} c (t) \dot{V} (t) d t \\ = \frac{1}{k} \int_{t_{0}}^{t_{e n d}} - l n (\frac{I (t)}{I_{0}}) \dot{V} (t) d t, \end{matrix}$ (4)

where $l n (\frac{I (t)}{I_{0}})$ is measured by the optical laser system and $\dot{V}$ (t) is measured by the flow sensor (Figs. 1 and 2) of the respective measurement zone.

In the case of humidified particles, the total mass m_total is the sum of dry particle mass m_dry and the amount of water m_water condensed onto the particles: $m_{t o t a l} = m_{d r y} + m_{w a t e r} .$ (5)

Assuming that the constant k is approximately independent of particle composition, it follows: $\begin{matrix} m_{t o t a l} & = m_{d r y} + m_{w a t e r} \\ = \int_{t_{0}}^{t_{e n d}} (ṁ_{d r y} (t) + ṁ_{w a t e r} (t)) d t ≅ \frac{1}{k} \int_{t_{0}}^{t_{e n d}} - l n (\frac{I (t)}{I_{0}}) \dot{V} (t) d t . \end{matrix}$ (6)

Hence: $m_{d r y} ≅ \frac{1}{k} \times \int_{t_{0}}^{t_{e n d}} - l n (\frac{I (t)}{I_{0}}) \dot{V} (t) d t - m_{w a t e r} .$ (7)

Since the extinction coefficient σ_e of the measured aerosol is not known, the constant k cannot be determined ab initio. However, assuming that the aforementioned conditions (optical, physical, and chemical properties) do not change during the measurements, simple linear regression between the gravimetrically weighed dry mass m_dry and $\int_{t_{0}}^{t_{e n d}} - l n (\frac{I (t)}{I_{0}}) \dot{V} (t) d t$ allows determination of the constant k and the amount of water m_water: $m_{d r y} = β_{1} \times \int_{t_{0}}^{t_{e n d}} - l n (\frac{I (t)}{I_{0}}) \dot{V} (t) d t + β_{0},$ (8)

where the regression coefficient β₁ represents the 1/k factor and the regression coefficient β₀ the water mass m_water. As I₀ in the real system decreases over time, caused by aerosol deposition and water condensation onto the optical windows, we calculated I₀(t) by simple linear regression over the first and last three measurement points of I₀ and the corresponding time t as follows: $I_{0} (t) = β_{1} \times t + β_{0} .$ (9)

Plausibility check for ALWC

The water condensing onto the particles originates from water vapor through cooling and can be determined by the difference in saturation at different temperatures. Neglecting vapor pressure reduction due to dissolved solutes, the saturation humidity H at temperature T can be expressed as follows: $H = (\frac{e_{s a t}}{R_{w} \times T}),$ (10)

where e_sat is the saturation vapor pressure calculated by the August–Roche–Magnus equation and R_w the specific gas constant of water. The amount of water in the gas phase H_available that can condense onto the particles can be estimated from the difference in absolute humidities between patient interface H_interface and optical measurement unit H_optic at saturation humidity: $H_{a v a i l a b l e} = H_{i n t e r f a c e} - H_{o p t i c} .$ (11)

The absolute humidity at the patient interface H_interface is calculated by the following: $H_{i n t e r f a c e} = (\frac{H_{a e r o s o l} \times {\dot{V}}_{a e r o s o l} + H_{b r e a t h i n g g a s} \times {\dot{V}}_{b r e a t h i n g g a s}}{{\dot{V}}_{a e r o s o l} + {\dot{V}}_{b r e a t h i n g g a s}}),$ (12)

using the flow of the aerosolizer $\dot{V}$ _aerosol, the flow of the breathing gas $\dot{V}$ _{breathing gas}, the absolute humidity of the aerosol H_aerosol, and the absolute humidity of the breathing gas H_{breathing gas}. Based on the aforementioned conditions, we estimated an absolute humidity at the patient interface of $H_{i n t e r f a c e, a d u l t} = 36 \frac{m g}{L}$ for the adult inhaler test bench and of $H_{i n t e r f a c e, n e o n a t e} = 45.46 \frac{m g}{L}$ for preterm neonates.

Results and Discussion

Optical measurements

Figure 4a and b provides the light incident I(t) on the detector after passing through the measurement zone “adult: inhaled” for (a) dry aerosol and (b) humidified aerosol during one inhalation cycle of 2 seconds. Figure 4c and d shows the light incident I(t) on the detector after passing through the measurement zones (c) “neonate: inhaled” and (d) “neonate: non-inhaled” for humidified aerosol over several breaths within a period of 140 seconds each.

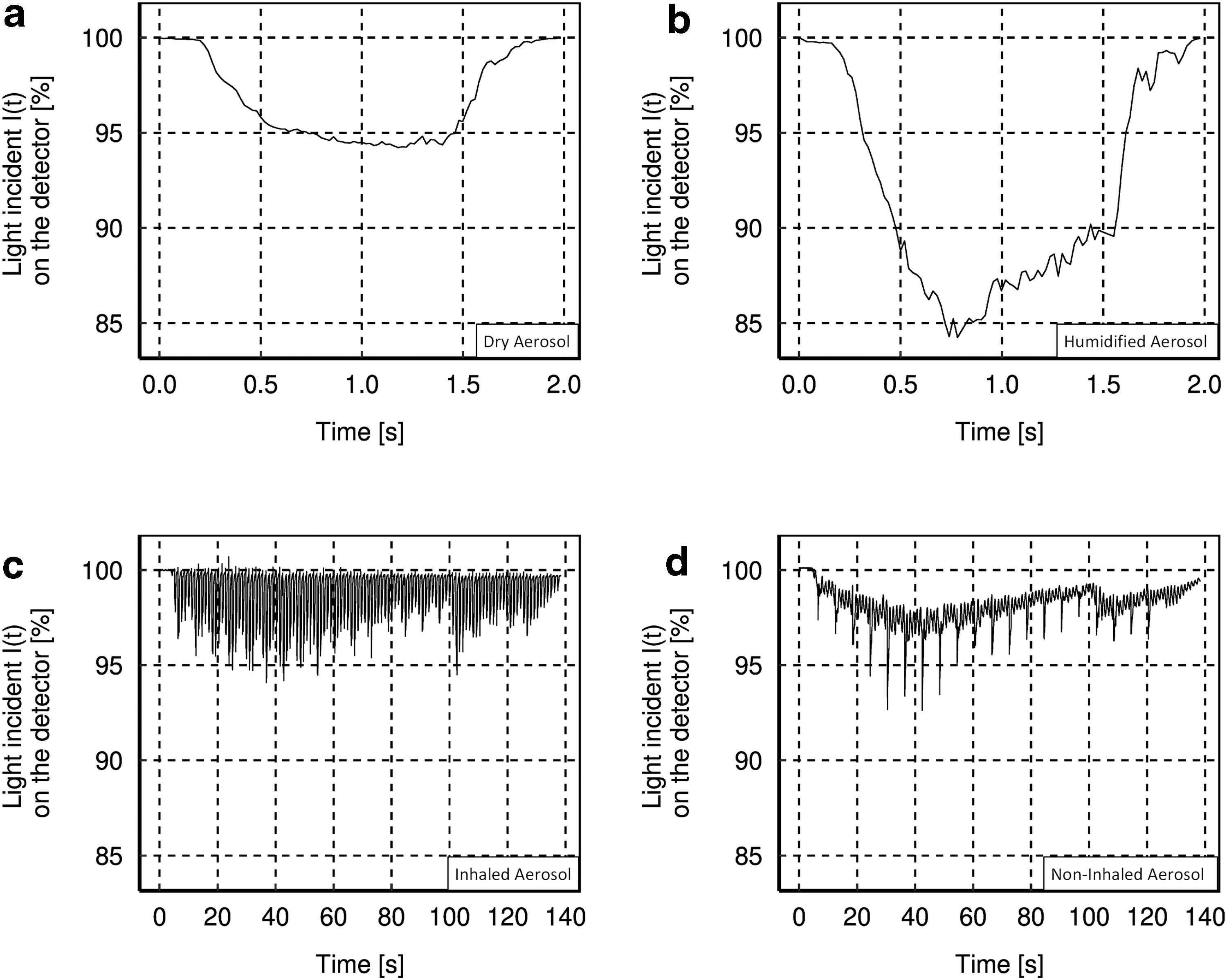

FIG. 4.

Diagrams of the light incident I(t) on the detector in (%) over time in (second) in the measurement zone “adult: inhaled” for (a) dry aerosol and (b) humidified aerosol, and in the measurement zones (c) “neonate: inhaled” and (d) “neonate: non-inhaled” for humidified aerosol.

The graphs for (a) dry aerosol and (b) humidified aerosol in the measurement zone “adult: inhaled” show close matches (same particle mass of ≈1 mg was sampled in both cases on the filters). However, the light incident I(t) on the detector is less for humidified aerosol than for dry aerosol. The light incident I(t) on the detector in the measurement zone “neonate: inhaled” (Fig. 4c) varies between particle detection (I(t) <100%) and no particle detection (I(t) = 100%), with partly false peak overshoots (I(t) >100%), whereas in the measurement zone “neonate: non-inhaled” (Fig. 4d), a signal I(t) <100% was detected during the whole measurement period. Furthermore, both figures simultaneously exhibit periodic narrow-bands of signal attenuation due to the operating principle of the CPA with its short 10 mseconds pulses of pressurized gas every 6 seconds,⁽²⁸⁾ which appear more prominent but with less background in the measurement zone “neonate: non-inhaled.” It is also obvious that I₀ (baseline) decreases over time, as noted previously.

Correlation between optical and gravimetric measurements

The correlation of optical measurements with gravimetrically determined dry mass is shown in Figure 5a for dry (n = 13) and humidified aerosol (n = 53) for the measurement zone “adult: inhaled.” Figure 5b shows the corresponding correlation for humidified aerosol in the measurement zones “neonate: inhaled” (n = 13) and “neonate: non-inhaled” (n = 13).

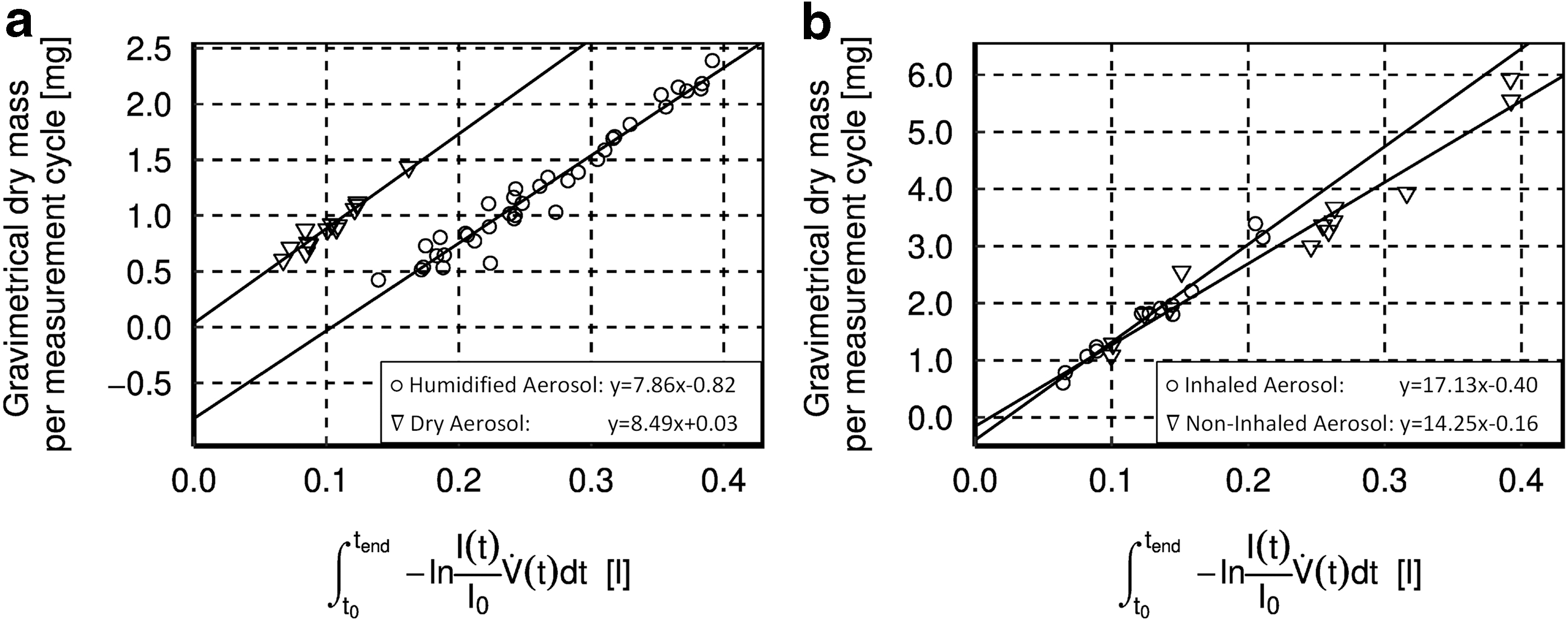

FIG. 5.

Diagrams showing the correlation of optical and gravimetric measurements (points = single-measurement cycle) of (a) dry (R2 = 0.94) and humidified (R2 = 0.96) aerosol using the adult inhaler test bench, and (b) inhaled (R2 = 0.97) and non-inhaled (R2 = 0.96) humidified aerosol using the preterm neonate inhaler test bench.

Humidification of dry-powder aerosol in humidifier systems of aerosol generators: estimation of potential amount of water available for condensation onto dry particles

Condensation was optically observed in all laser-based optical measurement units when using humidified aerosol, thus indicating a relative humidity of the air surrounding the particles in the measuring volume ≥100%. The measured average temperature T inside the laser-based optical measurement unit (Fig. 3), as well as the amount of water available for condensation onto particles per liter volume and per measurement cycle, estimated according to Equation (11), is listed in Table 1. To determine the amount of water available for condensation onto particles per measurement cycle, the corresponding aerosol volume passing through the measurement zone was taken into account.

Table 1.

Temperature Measured Inside the Laser-Based Optical Measurement Units and Theoretically Estimated Amount of Water Available for Condensation onto Particles

Measurement zone	Aerosol	Temperature inside the laser-based optical measurement unit (°C)	Theoretically estimated amount of water available for condensation per liter volume (mg/L)	Theoretically estimated amount of water available for condensation per measurement cycle (mg)
Adult: inhaled	Dry	—	0	0
Adult: inhaled	Humidified	32.9	0.7	0.7
Neonate: inhaled	Humidified	35.61	0.94	1.4
Neonate: non-inhaled	Humidified	41.19	0	0

We combined optical with gravimetric detection to enable real-time measurement of aerosol output. Our results show a high correlation between gravimetric and optical detection of more than R² > 0.94 (Fig. 5), for both dry and humidified aerosol. This high correlation is consistent with data obtained in previous studies.^(23–25) Nevertheless, when using humidified aerosol, we observed that the regression line did not pass through the origin but had a negative offset on the gravimetric axis. The observed offset results from comparison of the optical signal caused by humidified aerosol with the dry particle mass on the filter. Light extinction of the humidified, still airborne particles exhibits a stronger signal than expected for dry particles. We hypothesize that the difference is due to additional water on the particles, thus leading to an enlarged scattering cross section. Since we also observed a linear relationship between light extinction by humidified aerosol and dry particle mass, we further hypothesize that the offset found is a measure of water uptake by particles in the airborne state. This is in line with the findings reported by Wallace et al.,⁽³⁵⁾ demonstrating a high bias in optical detection of humidified particles compared to measurement of dry weight with filter-based instruments.

To confirm these assumptions, measurements with the adult inhaler test bench were carried out with dry and humidified aerosol. The dry measurements confirmed the linear relationship between optical signal and sampled aerosol with an offset of almost zero. The offset observed for humidified particles therefore is clearly related to water uptake by particles. It is known that the particle cross section increases^(36–39) with water content, depending on the hygroscopicity, and thus, a larger optical signal is measured due to increased light extinction. On the contrary, simple condensation of water onto the particle surface would also lead to particle growth. This is also consistent with the measurement result showing that the light attenuation of humidified aerosol is about 8% stronger than attenuation of a comparable dry aerosol.

Accordingly, it is obvious that under certain temperature and humidity conditions, the gravimetric offsets for humidified aerosol are measures of water uptake by the aerosol (Fig. 6).

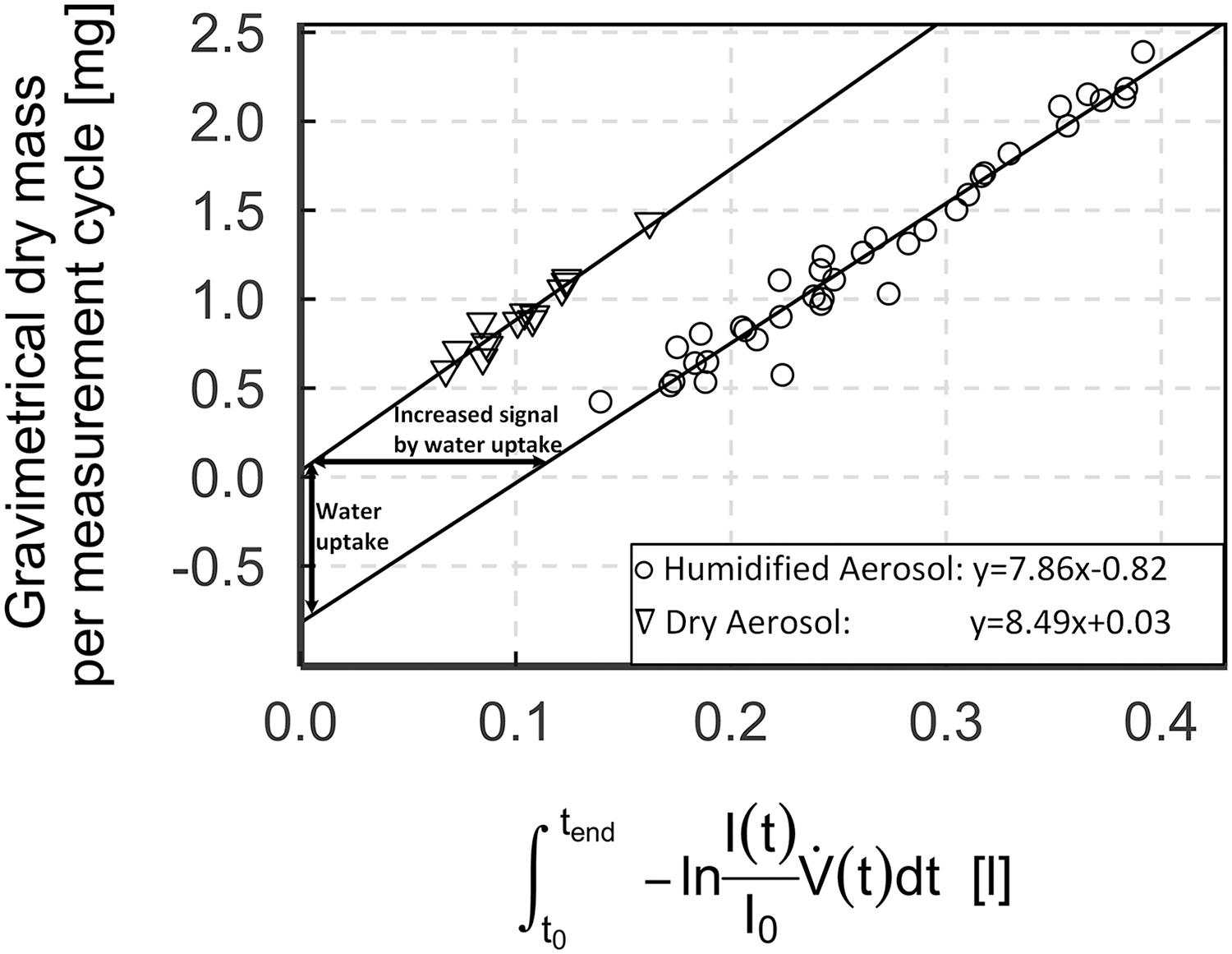

FIG. 6.

Representation of water uptake by the aerosol and its increased signal.

Hence, the extrapolated ALWC (gravimetric offset) corresponds very well to the estimated amount of water per measurement cycle (Table 2).

Table 2.

Tabulated Summary of Estimated and Extrapolated Aerosol Liquid Water Contents and Their Difference, Taken from Figure 5 and Table 1

Measurement zone	Aerosol	Theoretically estimated ALWC per measurement cycle (mg)	ALWC extrapolated from measurement data per measurement cycle (mg)	Difference between estimated and extrapolated ALWC (mg)
Adult: inhaled	Dry	0	≈0	≈0
Adult: inhaled	Humidified	0.7	0.82	0.12
Neonate: inhaled	Humidified	1.4	0.4	−1
Neonate: non-inhaled	Humidified	0	0.16	0.16

ALWC, aerosol liquid water content.

As expected, the difference between the estimated and measured ALWC is negligible for the measurement zone “adult: inhaled” when using dry aerosol. Using humidified aerosol, the deviation observed can be explained, for example, by competing water condensation onto the aerosol-conducting tubes.

For the measurement zone “neonate: inhaled,” the discrepancy found is larger. This is due to the fact that the temperature of the aerosol in the inhaler system on purpose is always higher than the surrounding tube walls and this was not taken into account in the simple estimation we performed. Since the aerosol is reheated above the dew point in the measurement zone “neonate: non-inhaled,” partial water evaporation occurs, and this is also in concurrence with evaporation kinetics. We calculated (one-way coupled)⁽⁴⁰⁾ that total evaporation of the aerosol in the measurement zone “neonate: non-inhaled” would take 5.8 mseconds. However, the residence time of the aerosol in the measurement zone “neonate: non-inhaled” is only about 3.2 mseconds. Since the droplet lifetime, estimated with one-way coupled analysis, is greater than the total evaporation time of the aerosol, a two-way coupled hygroscopic estimation would give even smaller size changes. Thus, two-way coupled hygroscopic effects can be neglected, and the first estimation is safe to use.⁽⁴¹⁾

The approach to extrapolate the ALWC from the correlation between optical signal and dry mass on the filter is based on the assumption that the extinction coefficient (σ_e) does not considerably change with variating aerosol layer composition. Applying the algorithm of Bohren and Huffman for coated spheres,⁽⁴²⁾ we calculated the extinction coefficient for six different scenarios (Table 3).

Table 3.

Calculation of Extinction Coefficients for Different Aerosol Compositions

Scenario	Aerosol composition	Refractive index n	Extinction coefficient
1	Dry surfactant sphere with 3 μm diameter	1.590 + 0.66i⁽⁴⁰⁾	2.343
2	Dry surfactant sphere with 3 μm diameter	1.590 + 0.66i⁽⁴⁰⁾	2.414
2	Water layer of 0.25 μm	1.321 + 1.27E—07i, calculated according to Li et al.^(43,44)	2.414
3	Dry surfactant sphere with 3 μm diameter	1.590 + 0.66i⁽⁴⁰⁾	2.455
3	10% NaCl layer of 0.25 μm	1.340 + 1.32E—07i, calculated according to Li et al.^(43,44)	2.455
4	Dry surfactant sphere with 3 μm diameter	1.590 + 0.66i⁽⁴⁰⁾	2.500
4	30% NaCl layer of 0.25 μm	1.368 + 1.42E—07i, calculated according to Li et al.^(43,44)	2.500
5	3.5 μm Sphere of 10% NaCl	1.340 + 1.32E—07i, calculated according to Li et al.^(43,44)	2.578
6	3.5 μm Sphere of 30% NaCl	1.368 + 1.42E—07i, calculated according to Li et al.^(43,44)	2.747

The extinction coefficients of 3 μm dry surfactant particles, containing a 0.25 μm liquid layer of water (scenario 2), of 10% NaCl (scenario 3), and of 30% NaCl (scenario 4), differ by 3.0%–6.7% compared with the pure dry surfactant particle (scenario 1). Even when using a nebulizer, which concentrates the aerosol from 10% NaCl (scenario 5) to 30% NaCl (scenario 6) over time, the calculated extinction coefficient changes by only 5.7%. As the extinction coefficient σ_e does not change considerably with varying compositions of the aerosol layer and the aforementioned differences are small compared with the variations observed during practical measurements (Fig. 6), a correlation between optical signal and dry mass on the filter is feasible.

To verify that the observed ALWC is in accordance with changes in measured particle size, we assumed that the condensed water is used mainly to build up a layer on the surface of the dry surfactant powder and is absorbed by the powder only to a small amount. Particle size calculations are based, on the one hand, on the ALWC measured with the adult inhaler test bench and, on the other hand, on size distributions of the aerosol emitted at the patient interface of the adult systems.

The measured particle size distribution of the dry surfactant at the patient interface has an MMAD of 3.16 μm and a GSD of 2.1.⁽²⁸⁾ Based on these values, the rough change in particle size by humidification is estimated for the adult inhaler test bench assuming a water layer of identical thickness condensing onto all particles. Taking into account the water condensing onto the particles, a water layer of 0.31 μm is obtained for the measured ALWC of 0.82 mg per measurement cycle using the adult inhaler test bench. This results in an MMAD of 3.79 μm and a GSD of 1.91 for the recalculated humidified surfactant, which is in good agreement with the values measured for the humidified surfactant (MMAD of 3.6 μm and GSD of 1.8, nonpublished verification results). This also supports the hypothesis that the amount of water condensed on the particles is predictable using the above system.

However, it must be taken into account that with complex formulations, such as semivolatile organic compounds, mass determination by filter weighing can lead to errors due to volatilization after sampling on the filter (also known as negative artifact).^(45–48) In such cases, chemical mass analysis is preferable to simple filter weighing.

Nevertheless, the presented novel test stand is unique as it is able to determine the aerosol output in real time and the water content of the aerosol directly at the patient interface as well as being easily adopted and used in other laboratories.

Conclusion

We have shown that optical and gravimetric measurements are highly correlated when comparing dried and humidified aerosol, using breathing characteristics of both adults and preterm neonates. As the effort for gravimetric measurements is reduced to ideally two measurements (low and high concentrations) and further results can be gathered in real time, the system allows a much faster, quantitative measurement of aerosol output and aerosol output rate. In contrast to chemical water content analysis, for example, our test bench does not alter the aerosol and, for the first time, enables measurement of the ALWC in situ directly at the patient interface. Therefore, the test bench can be used for the development and rapid optimization of new inhalers. In particular, it can be used for the development and optimization of a breath-triggered aerosol release system for preterm neonates. Due to its applicability in test benches based on ISO 27427, this new approach has the potential to be used in various sectors.
